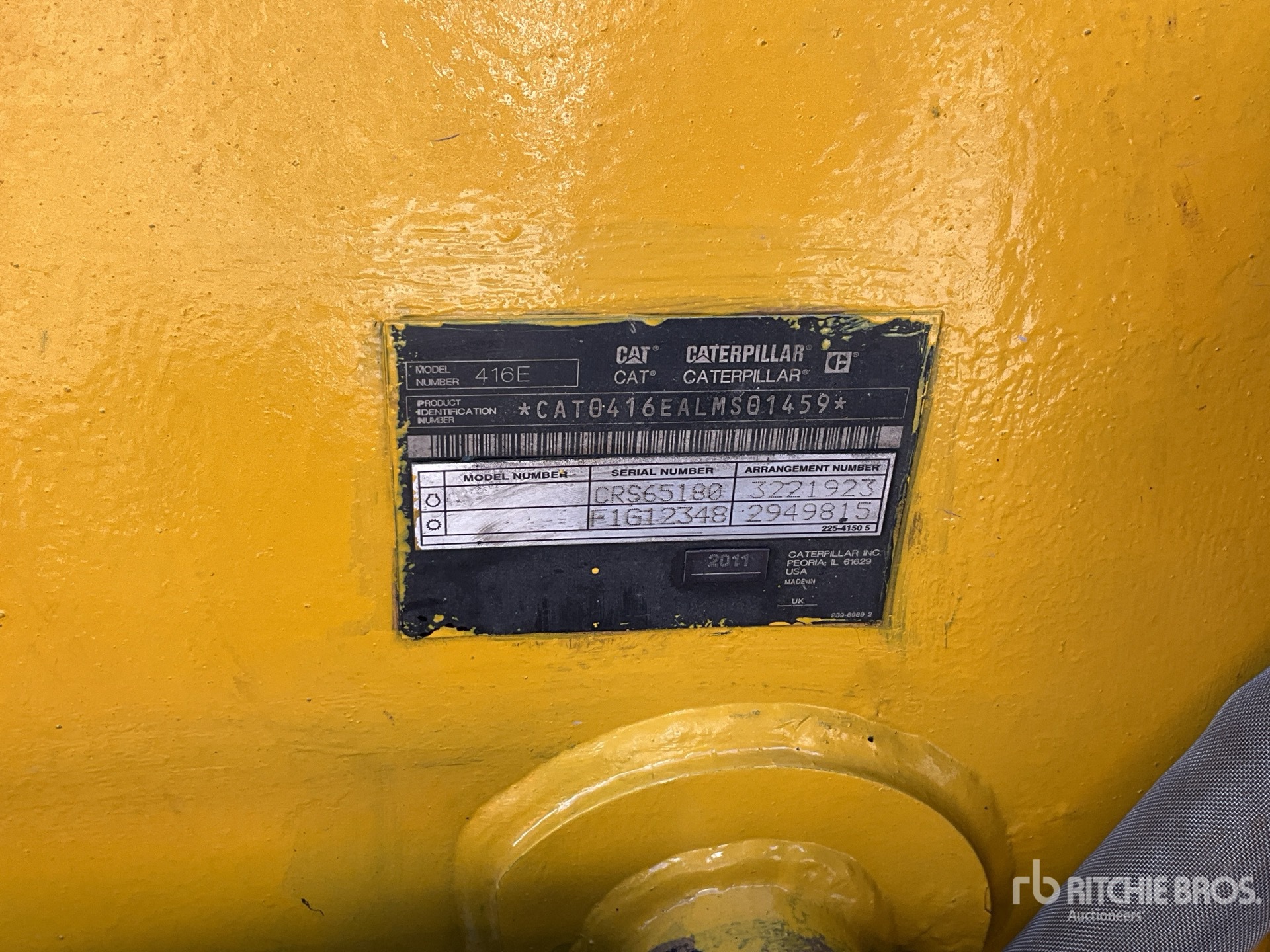

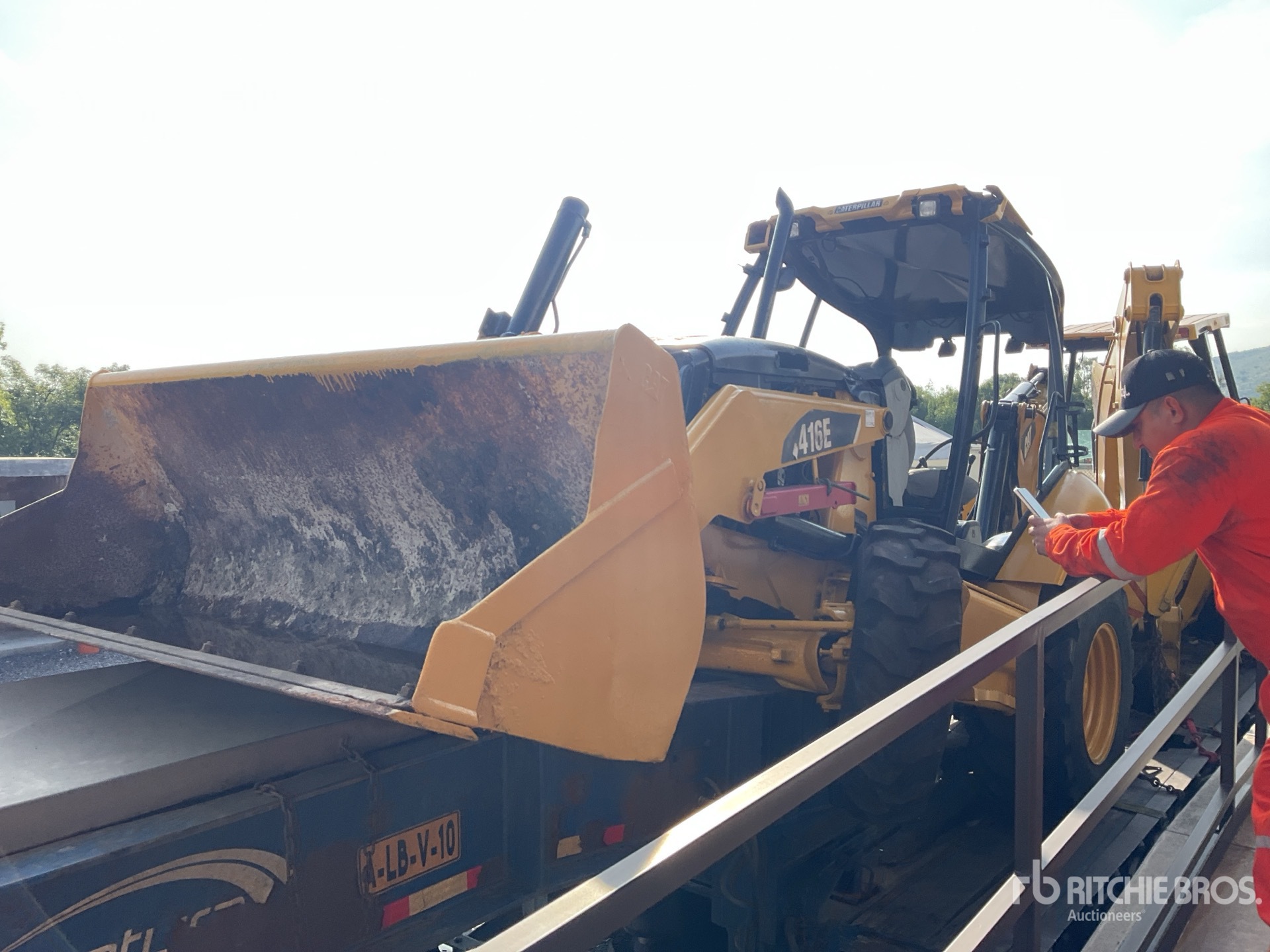

| Axle Ratings |
|
Dynamic |
20,233 lbs (9,178 kg)
|
|
Front Axle (2wd) - Static |
50,582 lbs (22,944 kg)
|
|
Front Axle (4wd) - Static |
50,582 lbs (22,944 kg)
|
|
Rear Axle - Static |
50,582 lbs (22,944 kg)
|
| Backhoe |
|
Bucket Dig Force - Ext |
11,491 lbs (5,212 kg)
|
|
Bucket Dig Force - Standard |
11,749 lbs (5,329 kg)
|
|
Bucket Dig Force - Std |
11,655 lbs (5,287 kg)
|
|
Bucket Rotation |
205 degrees |
|
Dig Depth - Ext |
18 ft (5 m)
|
|
Dig Depth - Standard |
14 ft (4 m)
|
|
Dig Depth - Std |
14 ft (4 m)
|
|
E-Stick Extended (1) |
18 ft (5 m)
|
|
E-Stick Extended (2) |
22 ft (7 m)
|
|
E-Stick Extended (3) |
11,491 lbs (5,212 kg)
|
|
E-Stick Extended (4) |
5,250 lbs (2,381 kg)
|
|
E-Stick Extended (5) |
2,839 lbs (1,288 kg)
|
|
E-Stick Extended (6) |
14 ft (4 m)
|
|
E-Stick Extended (7) |
9 ft (3 m)
|
|
E-Stick Retracted (1) |
14 ft (4 m)
|
|
E-Stick Retracted (2) |
19 ft (6 m)
|
|
E-Stick Retracted (3) |
11,491 lbs (5,212 kg)
|
|
E-Stick Retracted (4) |
7,200 lbs (3,266 kg)
|
|
E-Stick Retracted (5) |
4,539 lbs (2,059 kg)
|
|
E-Stick Retracted (6) |
12 ft (4 m)
|
|
E-Stick Retracted (7) |
6 ft (2 m)
|
|
Load At Max Lift - Ext |
1,712 lbs (777 kg)
|
|
Load At Max Lift - Std |
2,838 lbs (1,287 kg)
|
|
Load Height - Ext |
14 ft (4 m)
|
|
Load Height - Std |
12 ft (4 m)
|
|
Loading Height - Standard |
12 ft (4 m)
|
|
Loading Reach - Standard |
6 ft (2 m)
|
|
Reach At Load Height - Ext |
9 ft (3 m)
|
|
Reach At Load Height - Std |
6 ft (2 m)
|
|
Reach From Swing Pivot - Standard |
18 ft (6 m)
|
|
Reach From Swivel - Ext |
22 ft (7 m)
|
|
Reach From Swivel - Std |
18 ft (6 m)
|
|
Stick Dig Force - Standard |
7,200 lbs (3,266 kg)
|
|
Stick Lift At 2440 Mm (8 Ft) - Standard |
5,005 lbs (2,270 kg)
|
| Dimensions |
|
Height |
12 ft (4 m)
|
|
Height To Top Of Suspended Cab |
9 ft (3 m)
|
|
Length |
24 ft (7 m)
|
|
Transport Height |
12 ft (4 m)
|
|
Transport Length |
24 ft (7 m)
|
|
Transport Width |
8 ft (2 m)
|
|
Weight |
22,466 lbs (10,189 kg)
|
|
Wheelbase |
7 ft (2 m)
|
|
Width |
8 ft (2 m)
|
| Engine |
|
Bore |
4 in (11 cm)
|
|
Displacement |
268 cu in (4,392 cu cm)
|
|
Engine Make |
2,236 |
|
Engine Model |
3054C DINA |
|
Engine Model - Standard |
Cat C4.4 DITA |
|
Gross Power |
78 hp (58 kw)
|
|
Gross Power - Iso 14396 |
94 hp (70 kw)
|
|
Gross Power - Sae J1995 |
96 hp (72 kw)
|
|
Net Max Torque |
219 lbs ft (297 nm)
|
|
Net Peak Power - 2,000 Rpm - Eec 80/1269 |
90 hp (67 kw)
|
|
Net Peak Power - 2,000 Rpm - Iso 9249 |
90 hp (67 kw)
|
|
Net Peak Power - 2,000 Rpm - Sae J1349 |
89 hp (66 kw)
|
|
Net Peak Torque - 1400 Rpm - Standard - Sae J1349 |
283 lbs ft (384 nm)
|
|
Net Power |
74 hp (55 kw)
|
|
Net Power - Eec 80/1269 |
88 hp (66 kw)
|
|
Net Power - Iso 9249 |
88 hp (66 kw)
|
|
Net Power - Sae J1349 |
87 hp (65 kw)
|
|
Net Torque Rise |
27 % |
|
Net Torque Rise - 1,400 Rpm - Standard |
35 % |
|
Number Of Cylinders |
4 |
|
Power Measured @ |
2,200 rpm |
|
Stroke |
5 in (13 cm)
|
| General Specifications |
|
4th Gear Fwd (Since 2006)
|
25 mph (40 kph)
|
|
4th Gear Fwd (2007)
|
25 mph (40 kph)
|
|
4th Gear Fwd (2008)
|
25 mph (40 kph)
|
|
4TH GEAR FWD (Since 2010)
|
25 mph (40 kph)
|
|
BACKHOE LOADING HEIGHT (Since 2009)
|
14 ft (4 m)
|
|
Backhoe Loading Height (Since 2011)
|
12 ft (4 m)
|
|
Backhoe Loading Height (2012)
|
12 ft (4 m)
|
|
Breakout Force (Since 2006)
|
10,036 lbs (4,552 kg)
|
|
Breakout Force (Since 2007)
|
9,014 lbs (4,089 kg)
|
|
Breakout Force (2008)
|
9,014 lbs (4,089 kg)
|
|
BREAKOUT FORCE (Since 2010)
|
10,036 lbs (4,552 kg)
|
|
Digging Depth (Since 2006)
|
18 ft (5 m)
|
|
Digging Depth (2007)
|
18 ft (5 m)
|
|
Digging Depth (2008)
|
18 ft (5 m)
|
|
DIGGING DEPTH (Since 2010)
|
18 ft (5 m)
|
|
Lift Capacity (Since 2006)
|
6,180 lbs (2,803 kg)
|
|
Lift Capacity (Since 2007)
|
5,503 lbs (2,496 kg)
|
|
Lift Capacity (2008)
|
5,503 lbs (2,496 kg)
|
|
LIFT CAPACITY (Since 2010)
|
6,180 lbs (2,803 kg)
|
|
LOADER BREAKOUT FORCE (Since 2009)
|
10,036 lbs (4,552 kg)
|
|
Loader Breakout Force (Since 2011)
|
9,014 lbs (4,089 kg)
|
|
Loader Breakout Force (Since 2012)
|
10,036 lbs (4,552 kg)
|
|
LOADER LIFT CAPACITY (Since 2009)
|
5,503 lbs (2,496 kg)
|
|
Loader Lift Capacity (Since 2011)
|
5,503 lbs (2,496 kg)
|
|
Loader Lift Capacity (Since 2012)
|
6,180 lbs (2,803 kg)
|
|
LOADER SAE (Since 2009)
|
96 hp (72 kw)
|
|
Loader SAE (Since 2011)
|
87 hp (65 kw)
|
|
Loader SAE (2012)
|
87 hp (65 kw)
|
|
Loading Height (Since 2006)
|
14 ft (4 m)
|
|
Loading Height (2007)
|
14 ft (4 m)
|
|
Loading Height (2008)
|
14 ft (4 m)
|
|
LOADING HEIGHT (Since 2010)
|
14 ft (4 m)
|
|
MAX DIGGING DEPTH (Since 2009)
|
18 ft (5 m)
|
|
Max Digging Depth (Since 2011)
|
14 ft (4 m)
|
|
Max Digging Depth (2012)
|
14 ft (4 m)
|
|
Operating Weight (Since 2006)
|
14,960 lbs (6,786 kg)
|
|
Operating Weight (Since 2007)
|
22,466 lbs (10,190 kg)
|
|
Operating Weight (2008)
|
22,466 lbs (10,190 kg)
|
|
OPERATING WEIGHT (Since 2009)
|
14,960 lbs (6,786 kg)
|
|
Operating Weight (Since 2011)
|
14,960 lbs (6,786 kg)
|
|
Operating Weight (Since 2012)
|
14,881 lbs (6,750 kg)
|
|
SAE (Since 2010)
|
96 hp (72 kw)
|
|
SAE Net (Since 2006)
|
74 hp (55 kw)
|
|
SAE Net (2007)
|
74 hp (55 kw)
|
|
SAE Net (2008)
|
74 hp (55 kw)
|
|
TRAVEL SPEED 4TH GEAR FWD (Since 2009)
|
25 mph (40 kph)
|
|
Travel Speed 4th Gear Fwd (Since 2011)
|
25 mph (40 kph)
|
|
Travel Speed 4th Gear Fwd (2012)
|
25 mph (40 kph)
|
|
WEIGHT (Since 2010)
|
14,960 lbs (6,786 kg)
|
| Hydraulic |
|
Pump Flow Capacity |
35 gpm (132 lpm)
|
|
Pump Type |
variable-flow, axial piston |
|
Relief Valve Pressure |
3,292 psi |
| Hydraulic System |
|
2wd Cylinder - Bore |
3 in (7 cm)
|
|
4wd Cylinder - Bore |
3 in (7 cm)
|
|
Brake System |
Inboard, oil-immersed, multiple disc |
|
Circuit Type |
Closed center, load sensing |
|
Power Steering |
Hydrostatic, HMU |
|
Pump Capacity At 2,200 Rpm |
35 gpm (132 lpm)
|
|
Pump Type |
Variable-flow, axial piston |
|
Rod Diameter |
1 in (4 cm)
|
|
Steering Type |
Front wheel |
|
Stroke |
0 ft (0 m)
|
|
System Pressure - Backhoe |
3,300 psi |
|
System Pressure - Loader |
3,000 psi |
| Loader |
|
Bucket Breakout Force |
9,185 lbs (4,166 kg)
|
|
Bucket Breakout Force - Single Tilt |
10,036 lbs (4,552 kg)
|
|
Bucket Capacity |
1 cu yd |
|
Bucket Capacity - General Purpose |
1 cu yd |
|
Bucket Width |
7 in (19 cm)
|
|
Bucket Width - General Purpose |
7.42 ft |
|
Clearance At Max Dump Height |
9 ft (3 m)
|
|
Dig Depth |
4 in (10 cm)
|
|
Dig Depth - Single Tilt |
4 in (10 cm)
|
|
Dump Height At Maximum Angle - Single Tilt |
9 ft (3 m)
|
|
Dump Reach At Maximum Angle - Single Tilt |
3 ft (1 m)
|
|
Lift Capacity At Full Height |
5,615 lbs (2,547 kg)
|
|
Lift Capacity At Full Height - Single Tilt |
6,180 lbs (2,803 kg)
|
|
Reach At Max Dump Height |
3 ft (1 m)
|
| Operating Specifications - Backhoe |
|
Turning Circle - Outside - Front Wheels |
27 ft (8 m)
|
|
Turning Circle - Outside, Widest Loading Bucket |
36 ft (11 m)
|
| Operational |
|
Cooling System Fluid Capacity |
4 gal (17 l)
|
|
Front Axle Fluid Capacity |
3 gal (11 l)
|
|
Fuel Capacity |
38 gal (144 l)
|
|
Hydraulic System Fluid Capacity |
21 gal (79 l)
|
|
Max Weight |
22,466 lbs (10,190 kg)
|
|
Oil System Fluid Capacity |
2 gal (8 l)
|
|
Operating Voltage |
12 V |
|
Operating Weight 2wd |
14,960 lbs (6,786 kg)
|
|
Rear Axle Fluid Capacity |
4 gal (17 l)
|
|
Rear Tires Size 2wd/4wd |
19.5L-24 (12 ply) R4 ATU / 19.5L-R24 XM37 |
|
Tire Size Front - 2wd / 4wd |
11L-16 (12 ply) F-3 / 335/80R 18 XM37 |
|
Transmission Fluid Capacity |
5 gal (19 l)
|
|
Turning Radius |
18 ft (5 m)
|
| Power Train |
|
Forward - 2nd |
6 mph (10 kph)
|
|
Forward - 3rd |
12 mph (19 kph)
|
|
Forward - 4th |
25 mph (40 kph)
|
|
Power Shuttle Transmission - Forward 1st |
4 mph (6 kph)
|
|
Power Shuttle Transmission - Reverse 1st |
4 mph (6 kph)
|
|
Reverse - 2nd |
6 mph (10 kph)
|
|
Reverse - 3rd |
12 mph (19 kph)
|
|
Reverse - 4th |
25 mph (40 kph)
|
| Service Refill |
|
Cooling System |
5 gal (20 l)
|
|
Engine Oil - With Filter |
2 gal (8 l)
|
|
Front Axle (4wd) |
3 gal (11 l)
|
|
Front Axle - Planetaries |
0 gal (1 l)
|
|
Fuel Tank |
45 gal (170 l)
|
|
Hydraulic System |
24 gal (90 l)
|
|
Hydraulic Tank |
10 gal (38 l)
|
|
Rear Axle |
4 gal (17 l)
|
|
Rear Axle - Planetaries |
0 gal (2 l)
|
|
Transmission - Torque Converter - Power Shuttle - 2wd |
5 gal (19 l)
|
|
Transmission - Torque Converter - Power Shuttle - 4wd |
5 gal (19 l)
|
| Standards |
|
Brakes |
SAE J/ISO 3450, ISO 3450 1996 |
|
Cab - Fops |
SAE J/ISO 3449 APR98 LEVEL II and ISO 3449: 1992 LEVEL II |
|
Cab - Rops |
SAE J1040 May 1994/ISO 3741 1994 |
|
Cab - Sound |
ANSI/SAE J1166 Oct 98 is 80 dB (A) |
|
Exterior Sound |
SAE J88 JUN86 is 76 dB (A) |
| Transmission |
|
Max Speed - Forward |
25 mph (40 kph)
|
|
Max Speed Reverse |
25 mph (40 kph)
|
|
Number Of Forward Gears |
4 |
|
Number Of Reverse Gears |
4 |
|
Transmission Type |
power-shuttle |
| Weights |
|
Air Conditioning |
86 lbs (39 kg)
|
|
Cab - Rops/Fops |
573 lbs (260 kg)
|
|
Counterweights - Option 1 |
255 lbs (116 kg)
|
|
Counterweights - Option 2 |
510 lbs (231 kg)
|
|
Counterweights - Option 3 |
1,075 lbs (488 kg)
|
|
Extendible Stick - No Weights |
659 lbs (299 kg)
|
|
Four Wheel Drive |
342 lbs (155 kg)
|
|
Operating Weight - Maximum |
22,466 lbs (10,190 kg)
|
|
Operating Weight - Nominal |
14,881 lbs (6,750 kg)
|
|
Ride Control |
55 lbs (25 kg)
|
