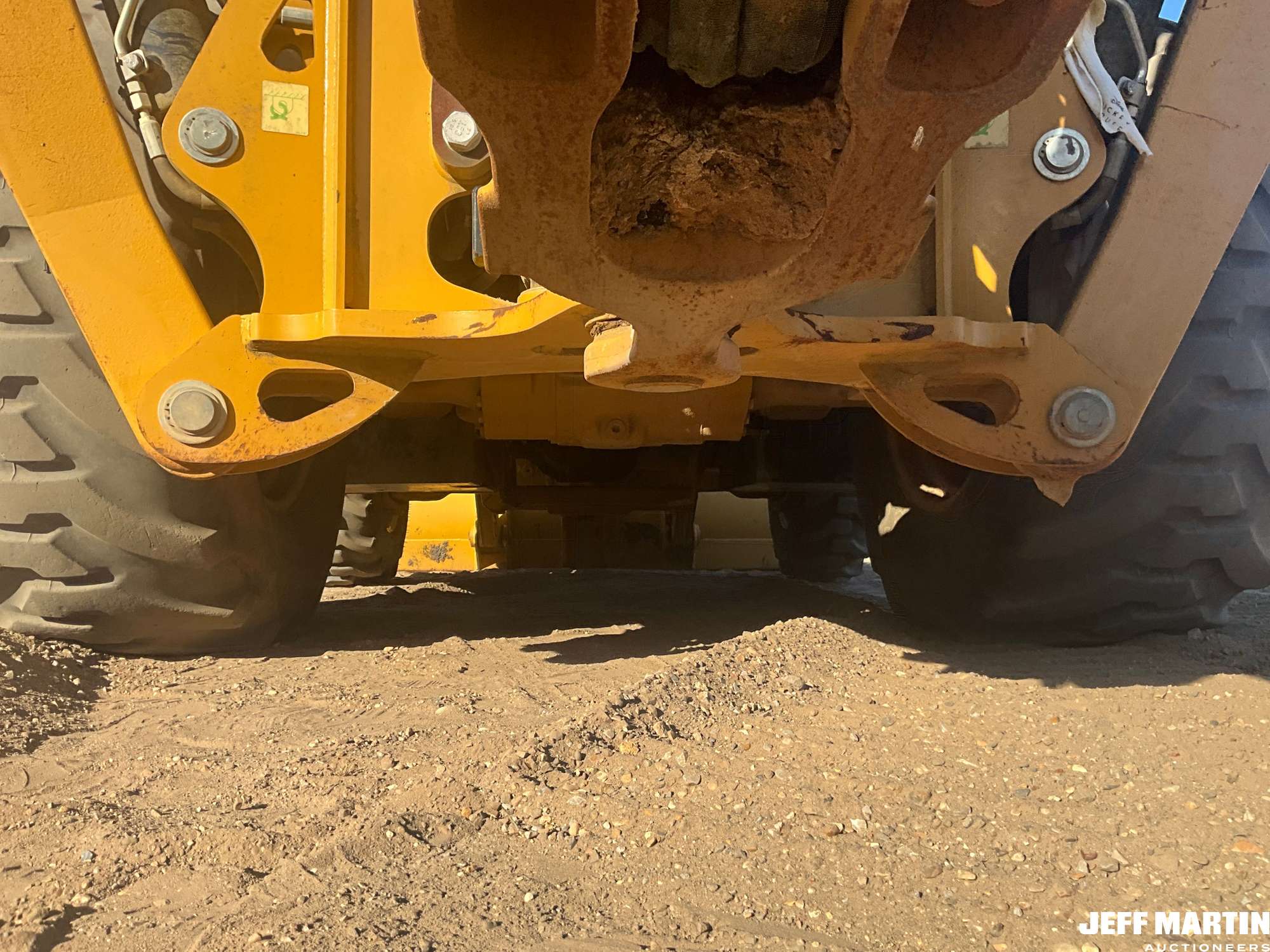

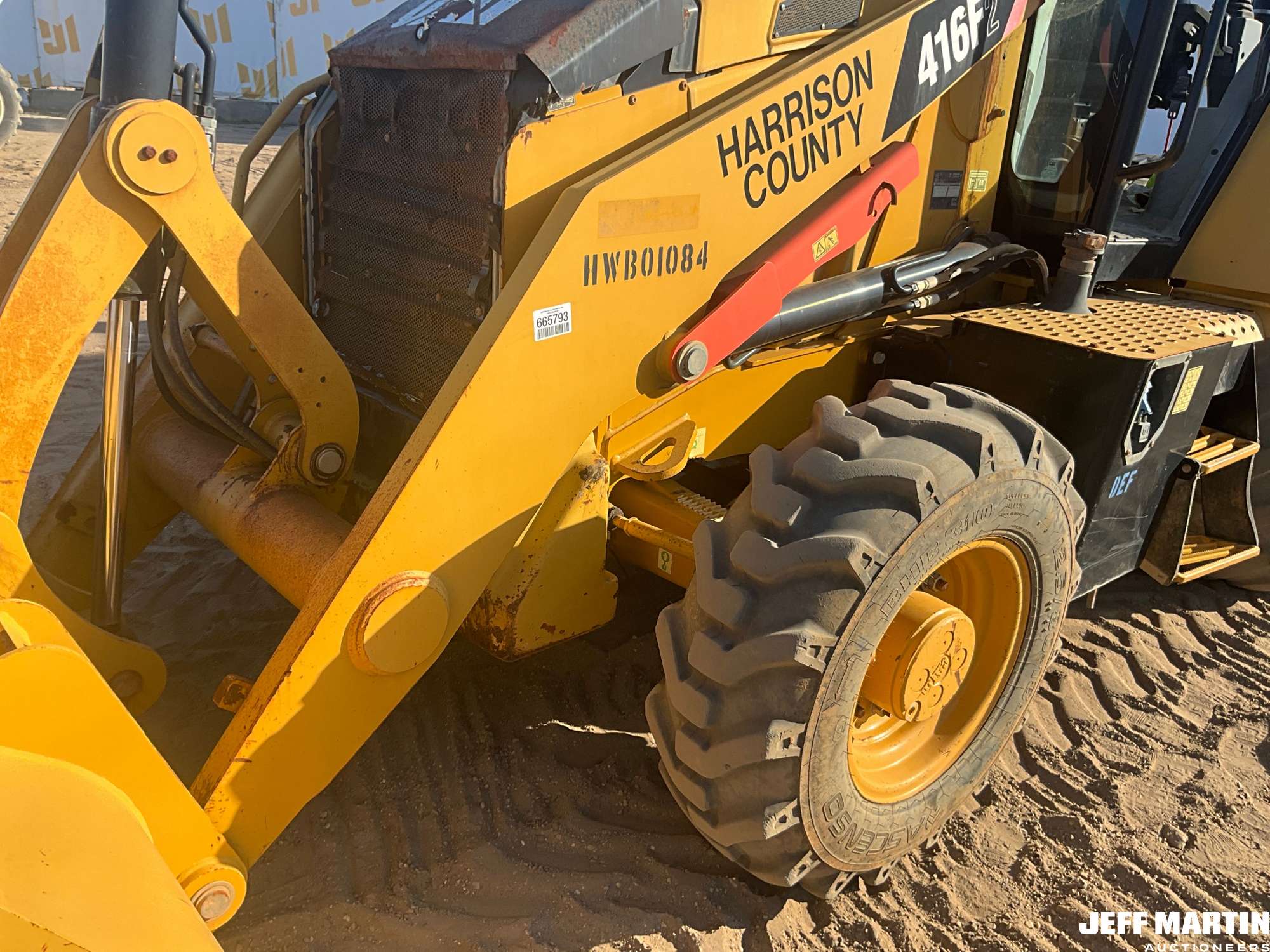

| Axle Ratings |
|

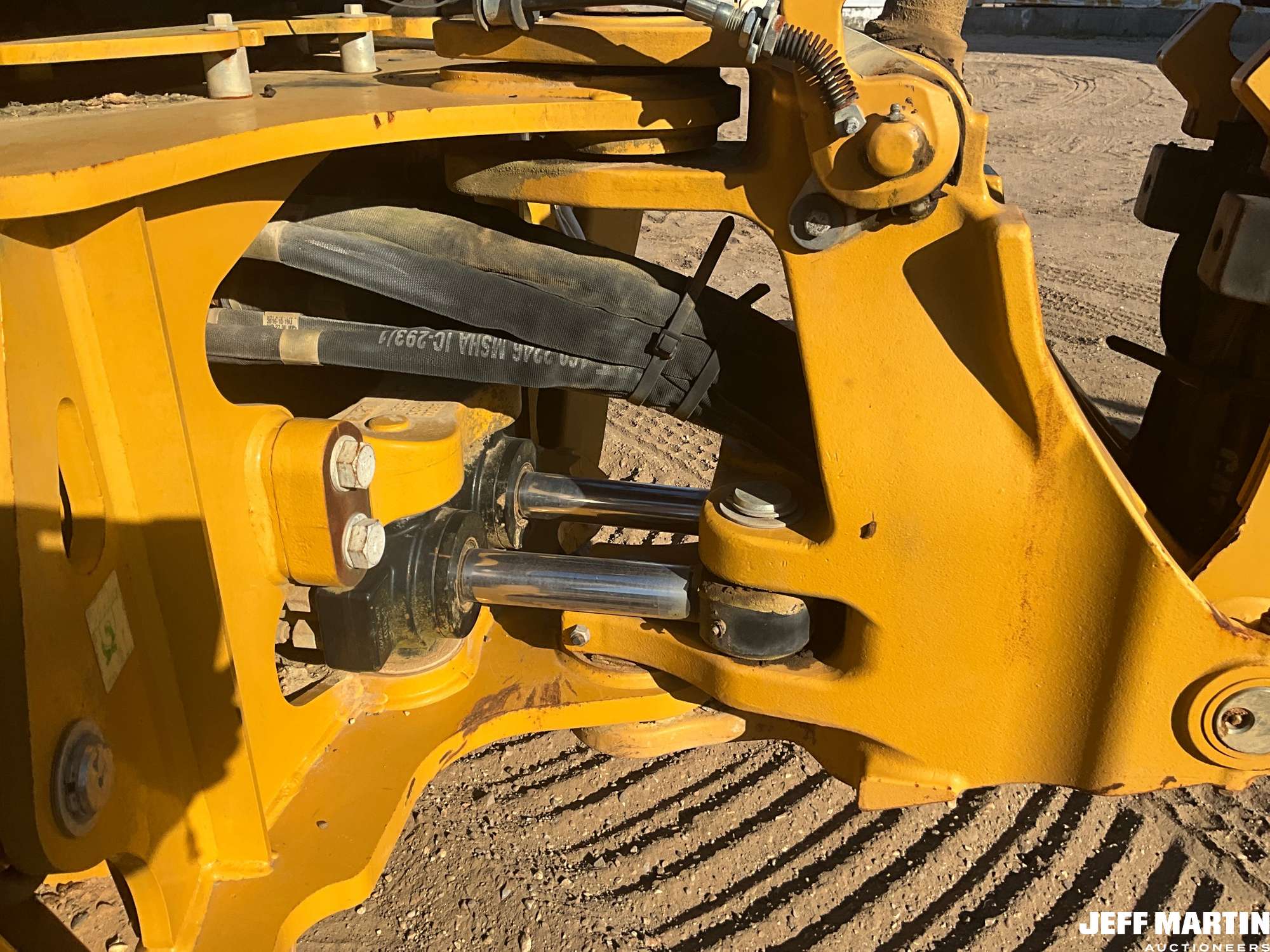

Front Axle (2wd) - Dynamic |
20,233 lbs (9,178 kg)
|
|
Front Axle (2wd) - Static |
50,582 lbs (22,944 kg)
|
|
Front Axle (4wd) - Dynamic |
20,233 lbs (9,178 kg)
|
|
Front Axle (4wd) - Static |
50,582 lbs (22,944 kg)
|
|
Rear Axle - Dynamic |
20,233 lbs (9,178 kg)
|
|
Rear Axle - Static |
50,582 lbs (22,944 kg)
|

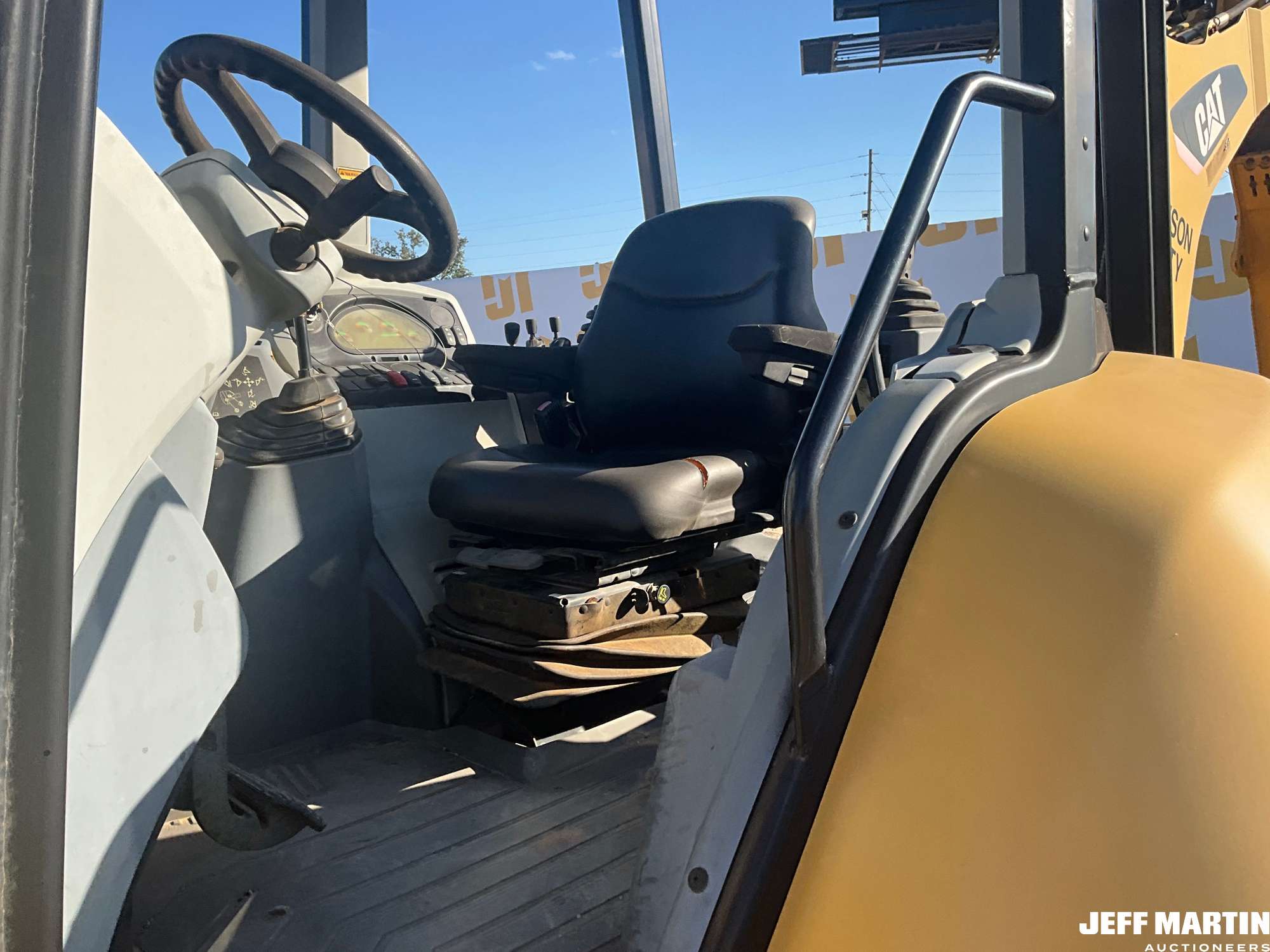

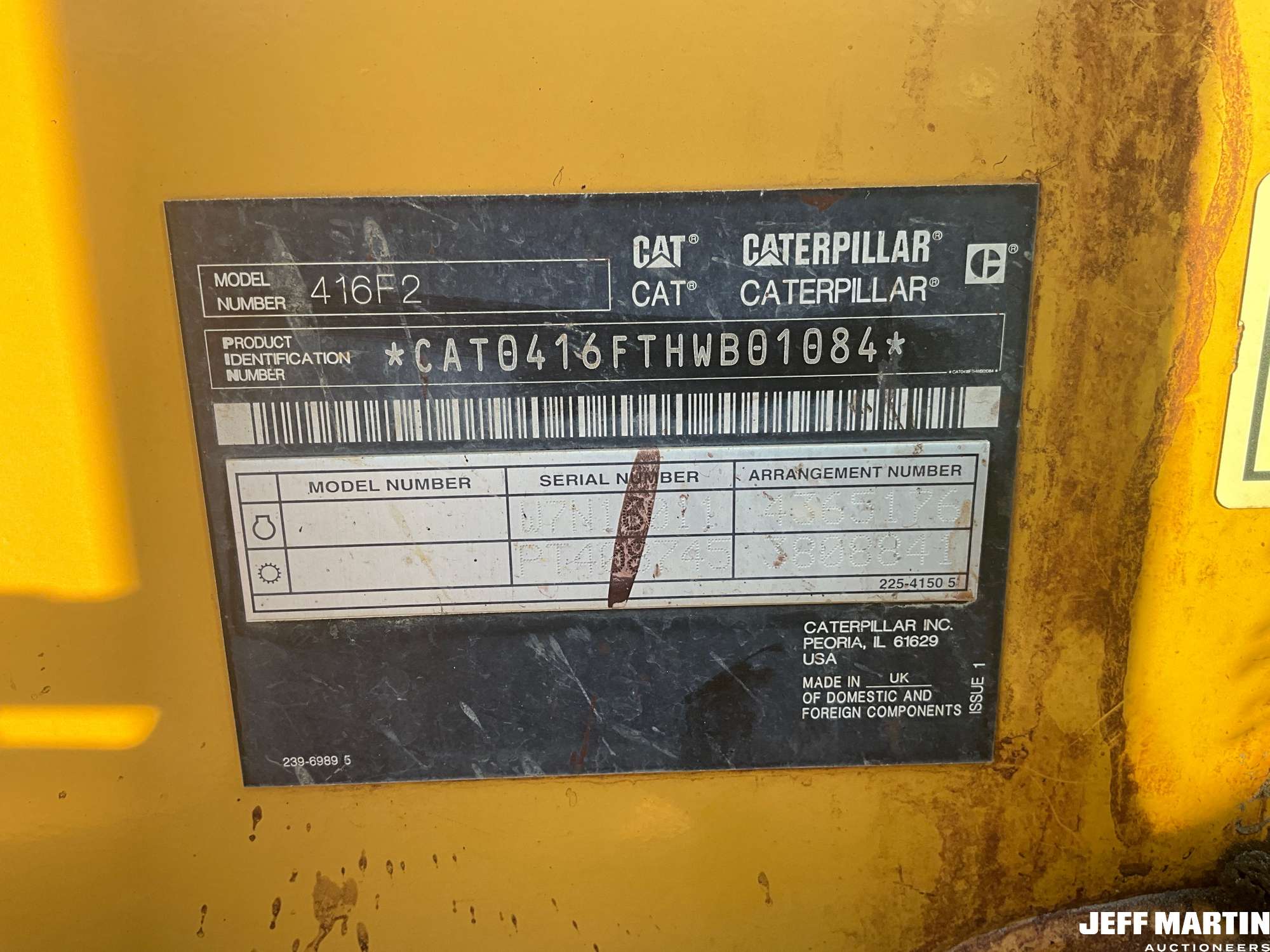

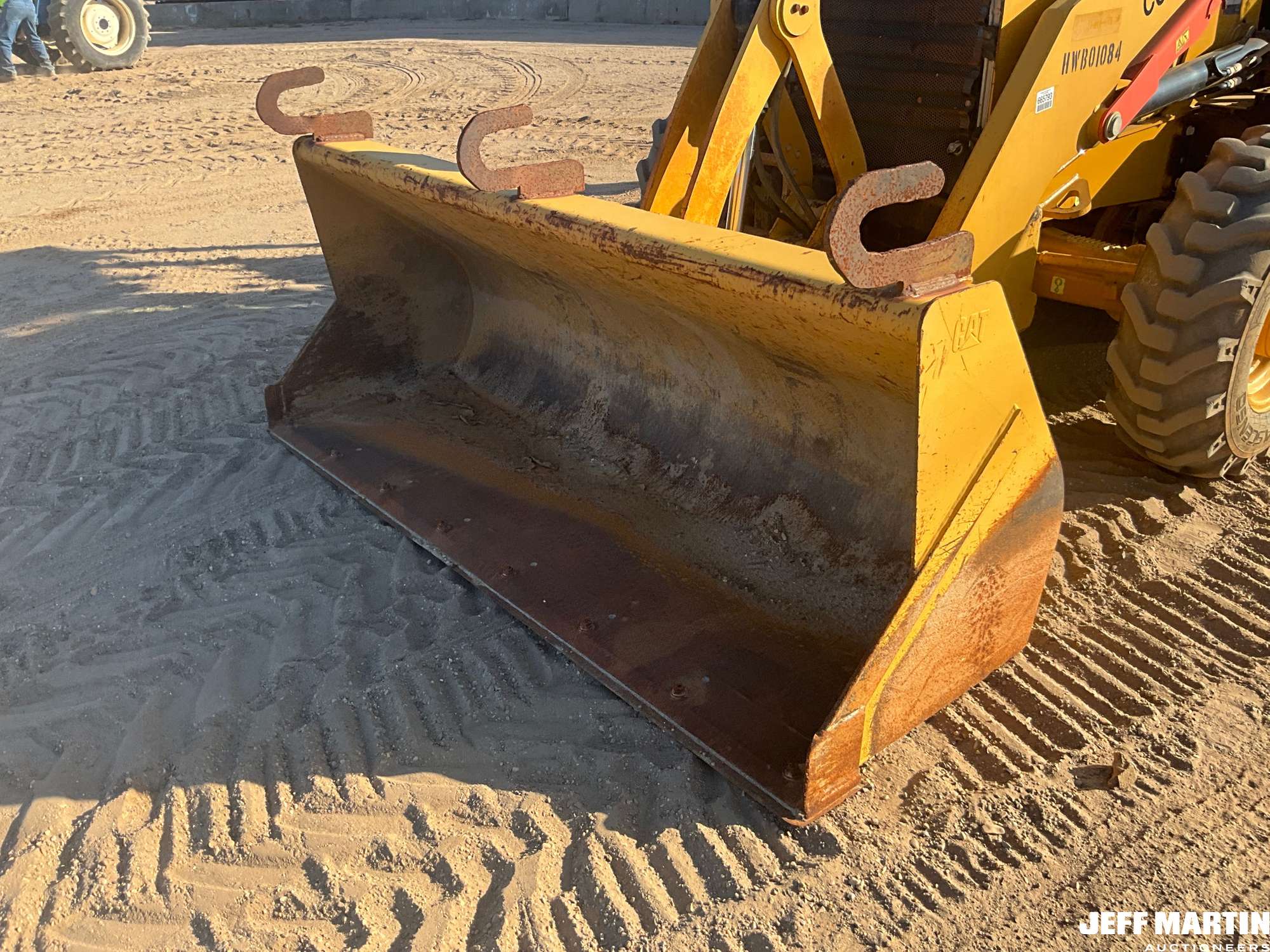

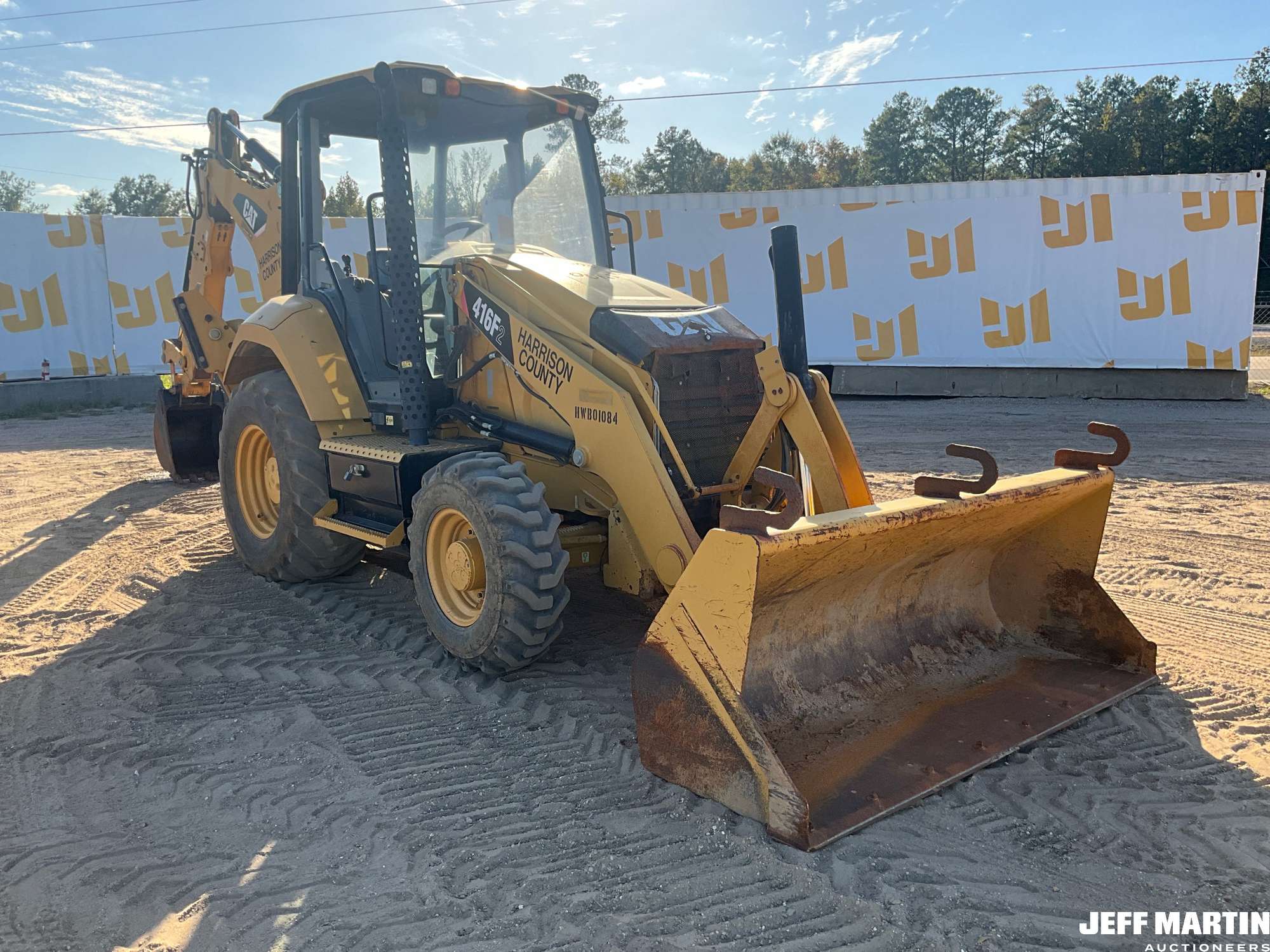

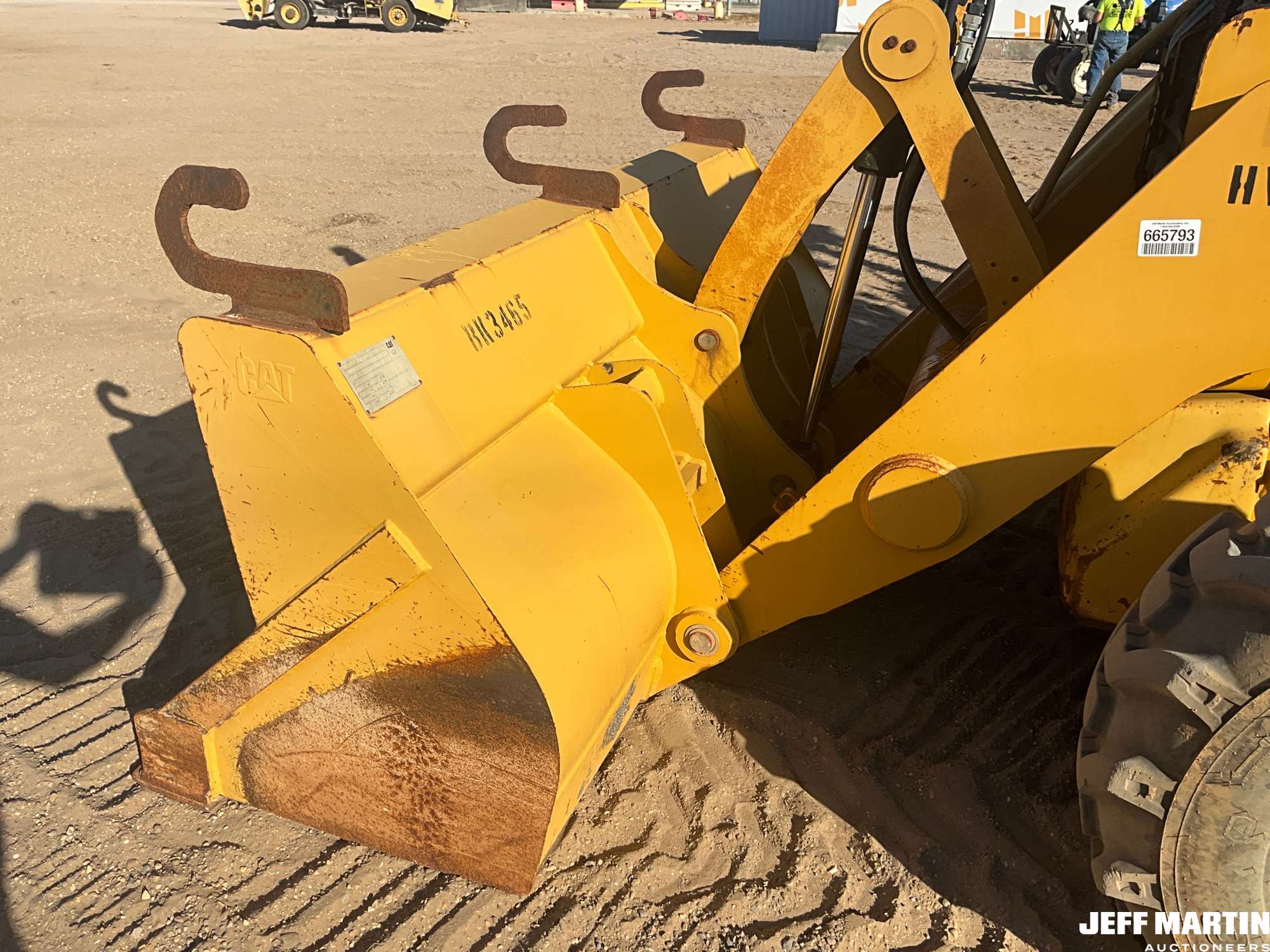

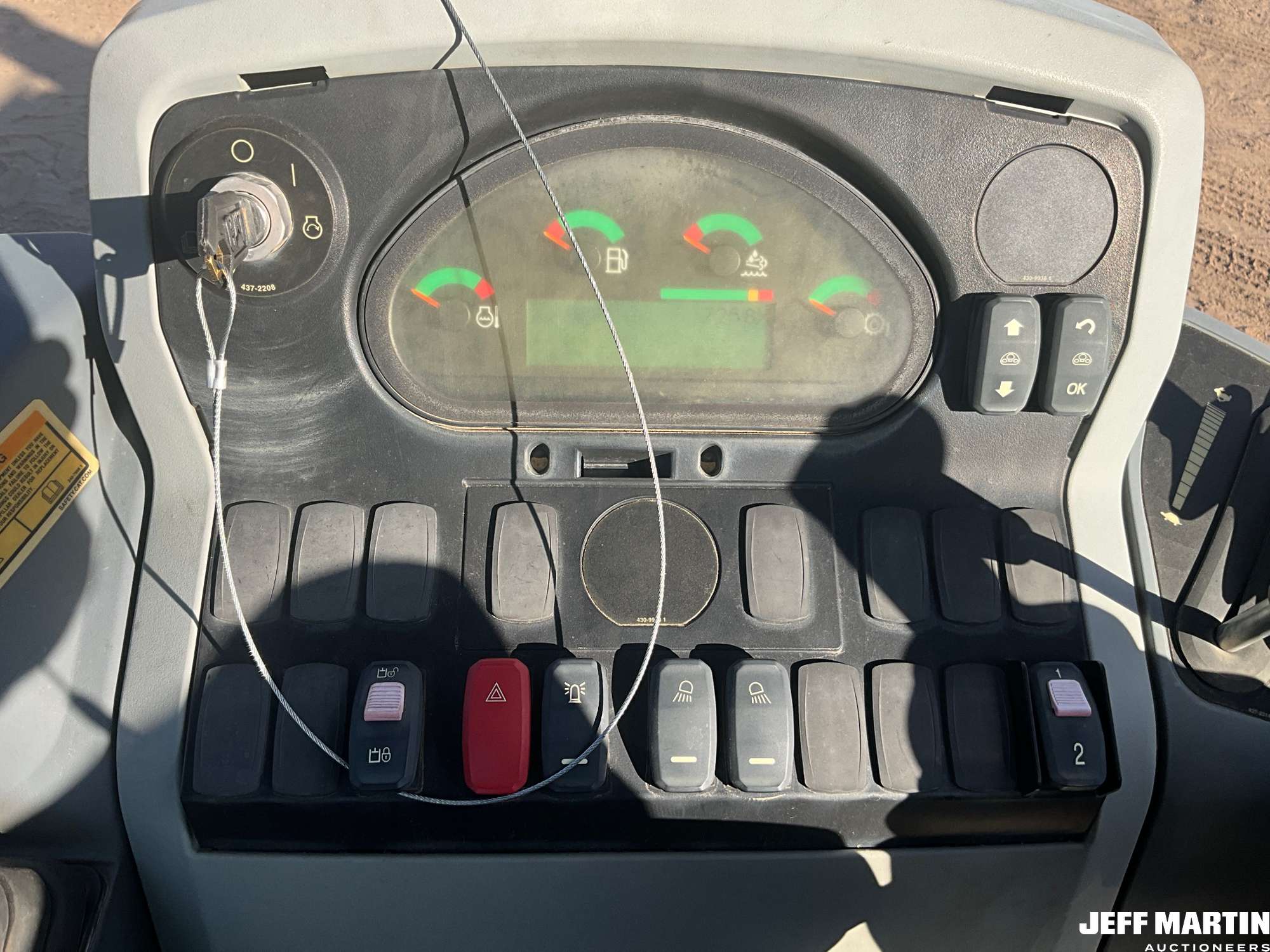

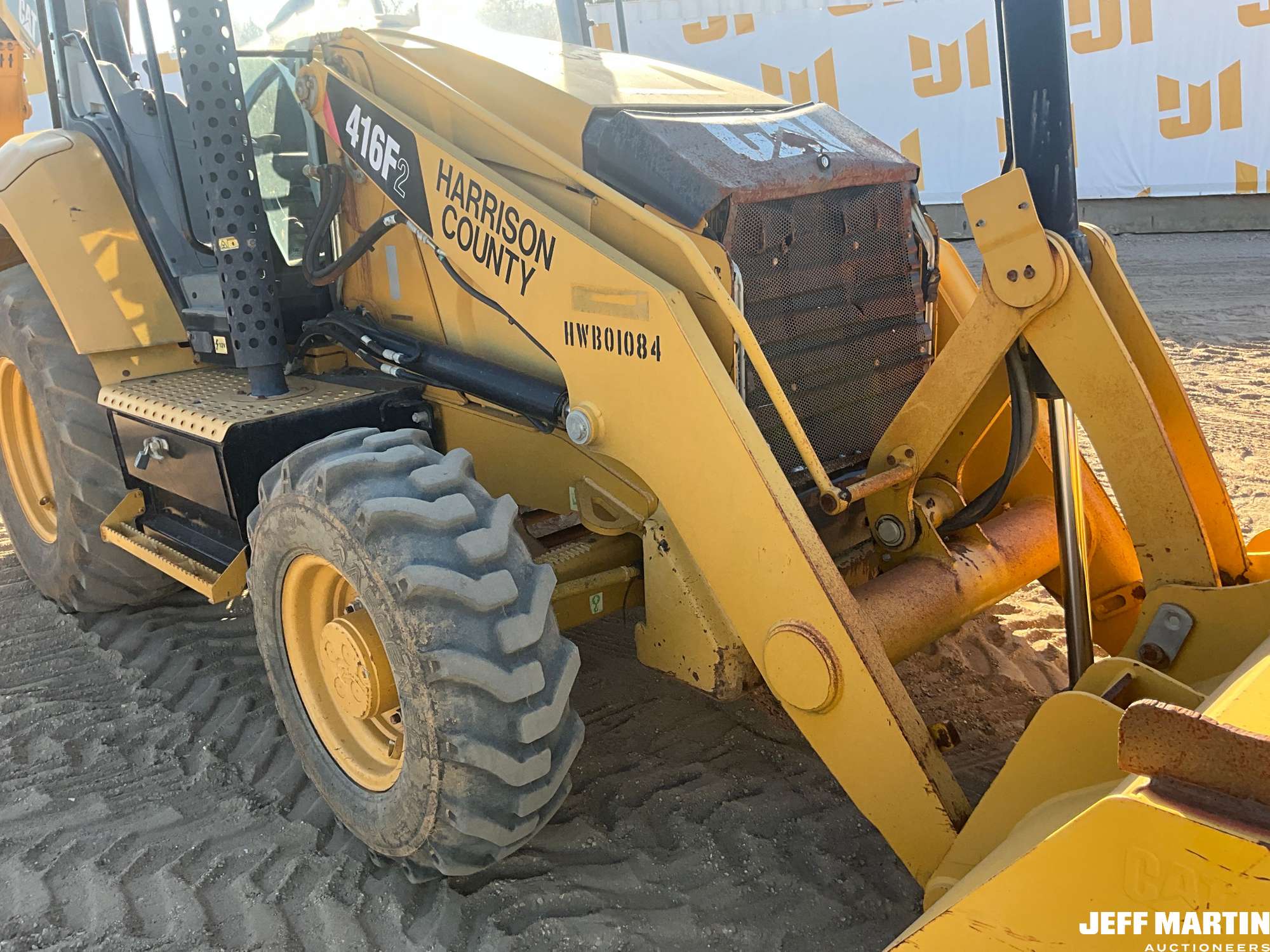

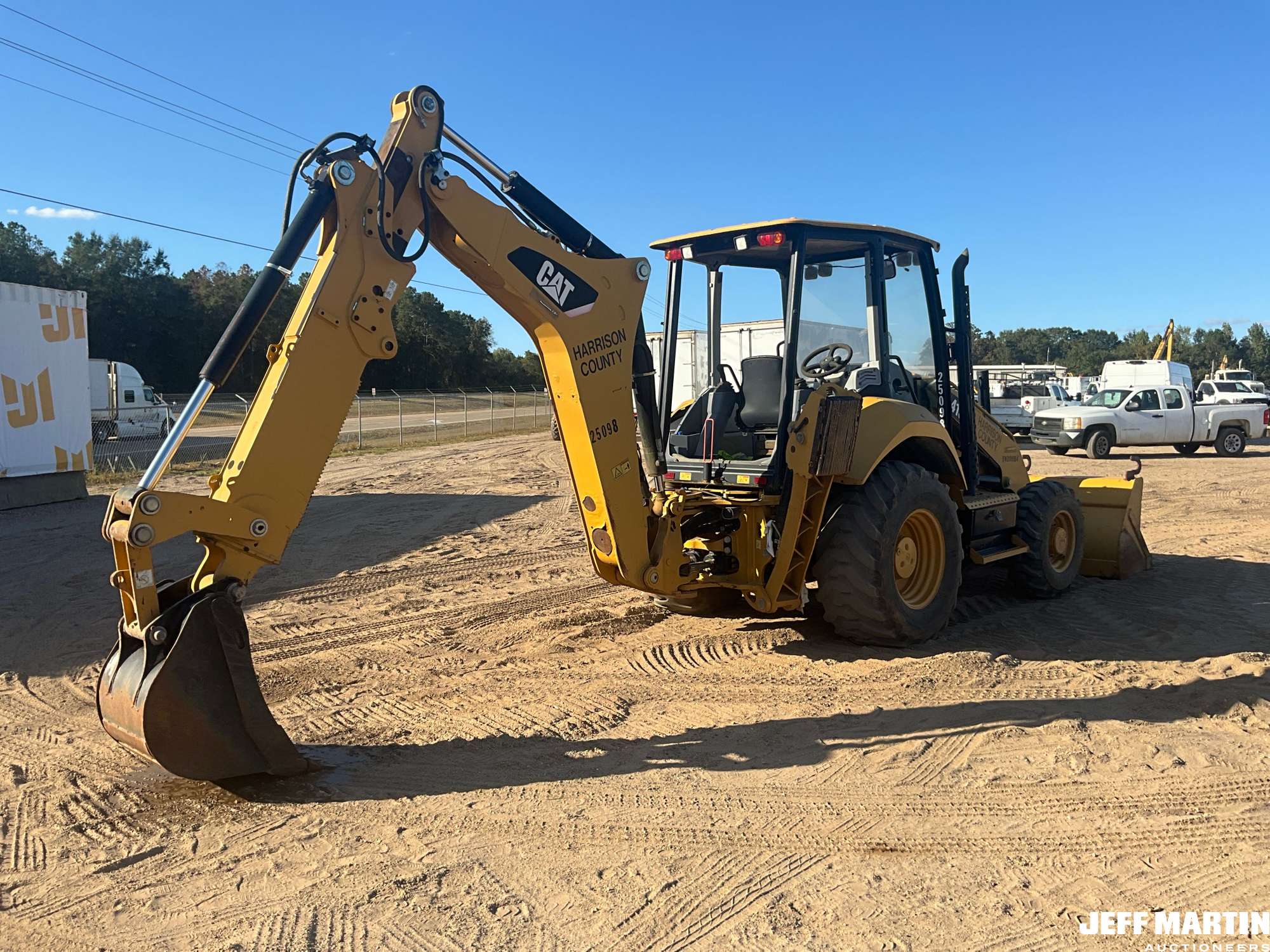

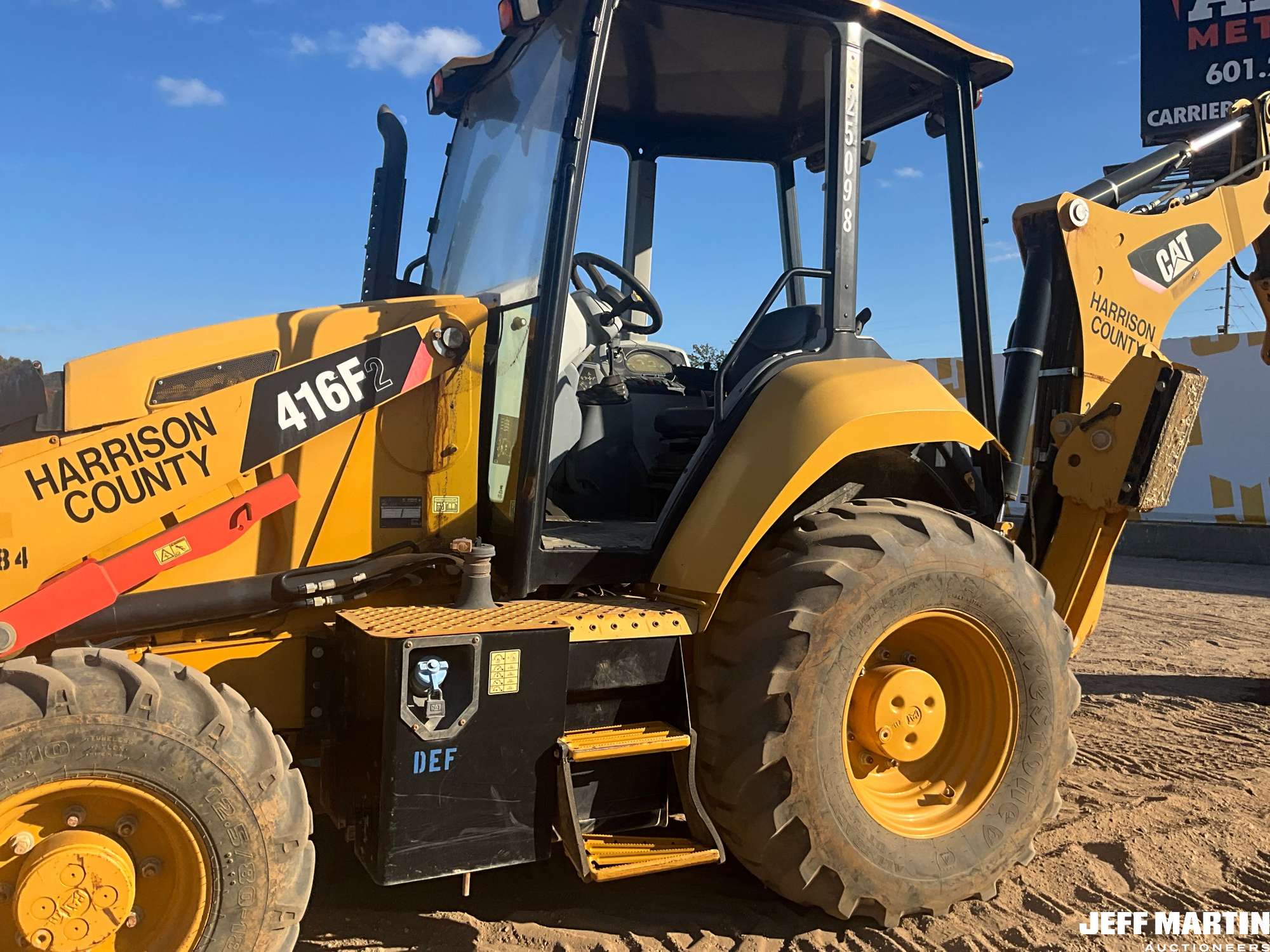

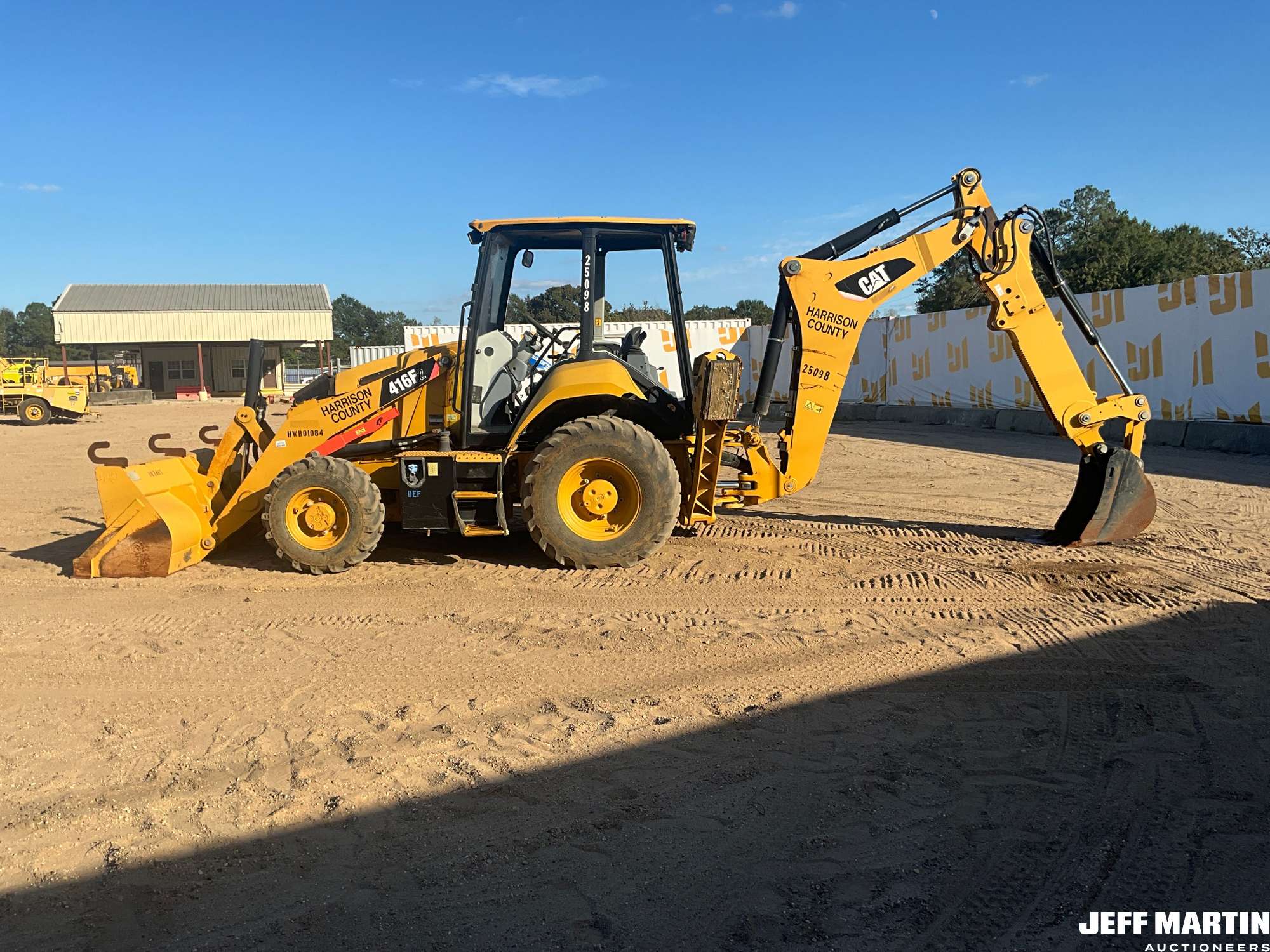

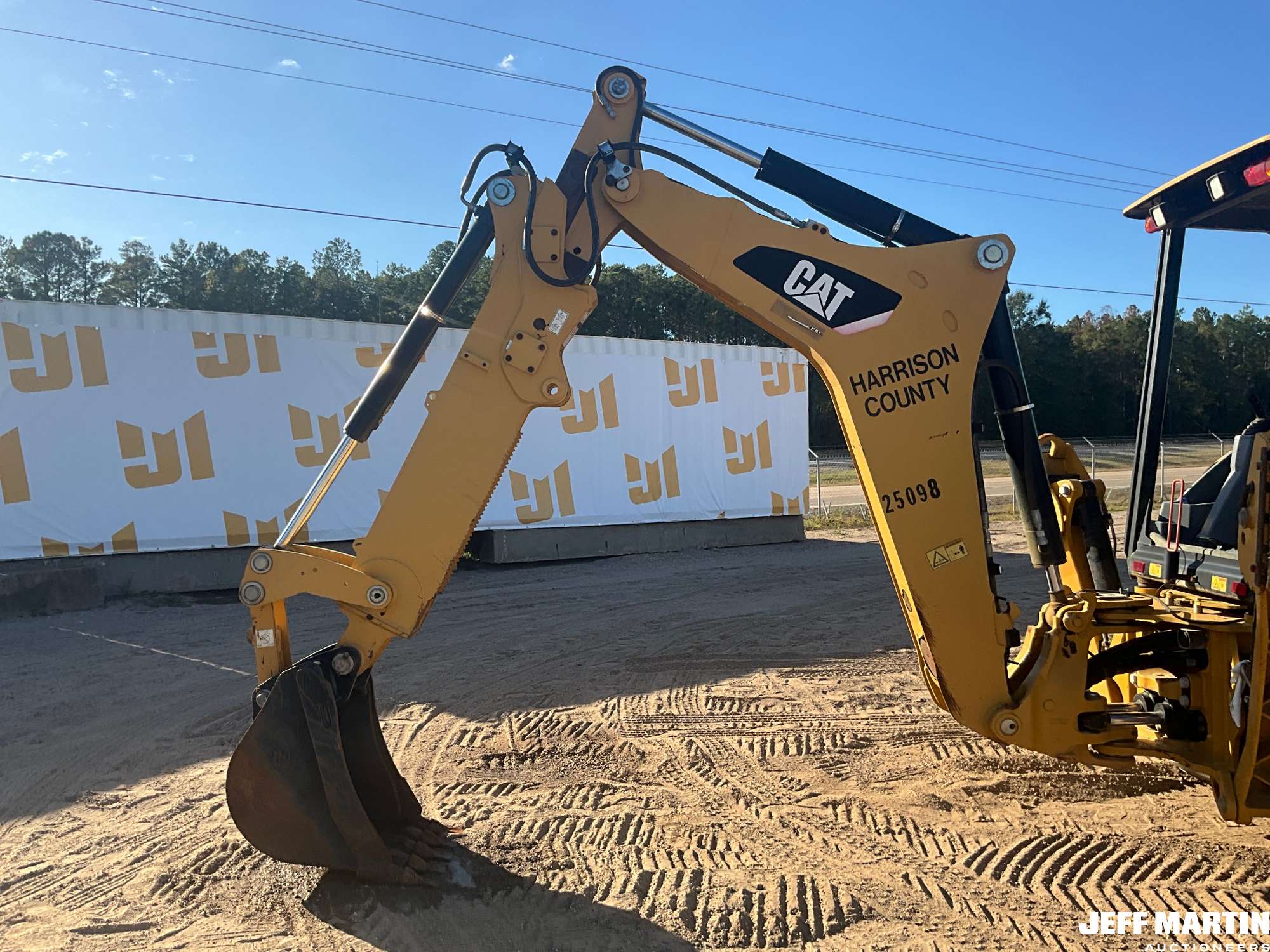

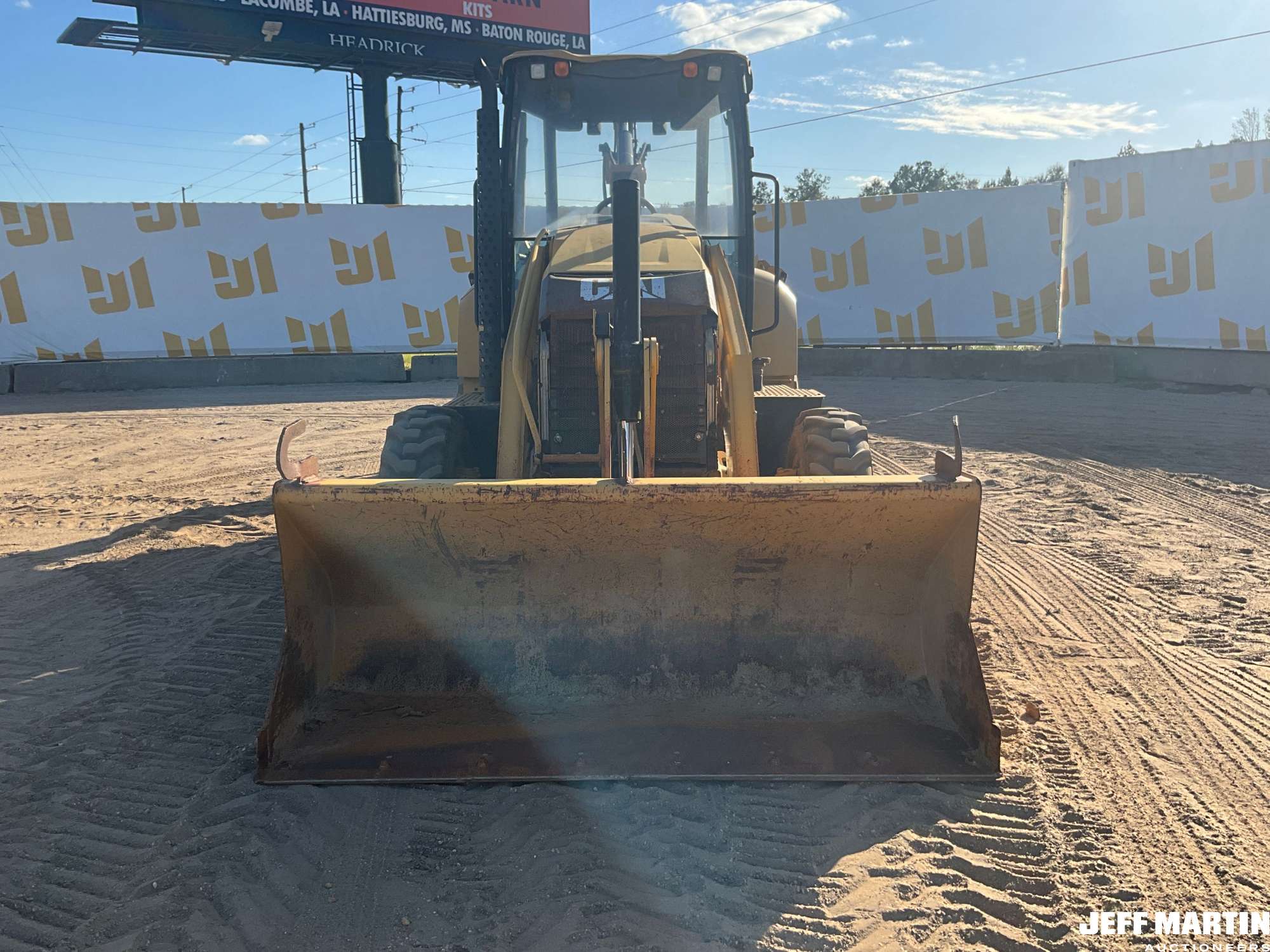

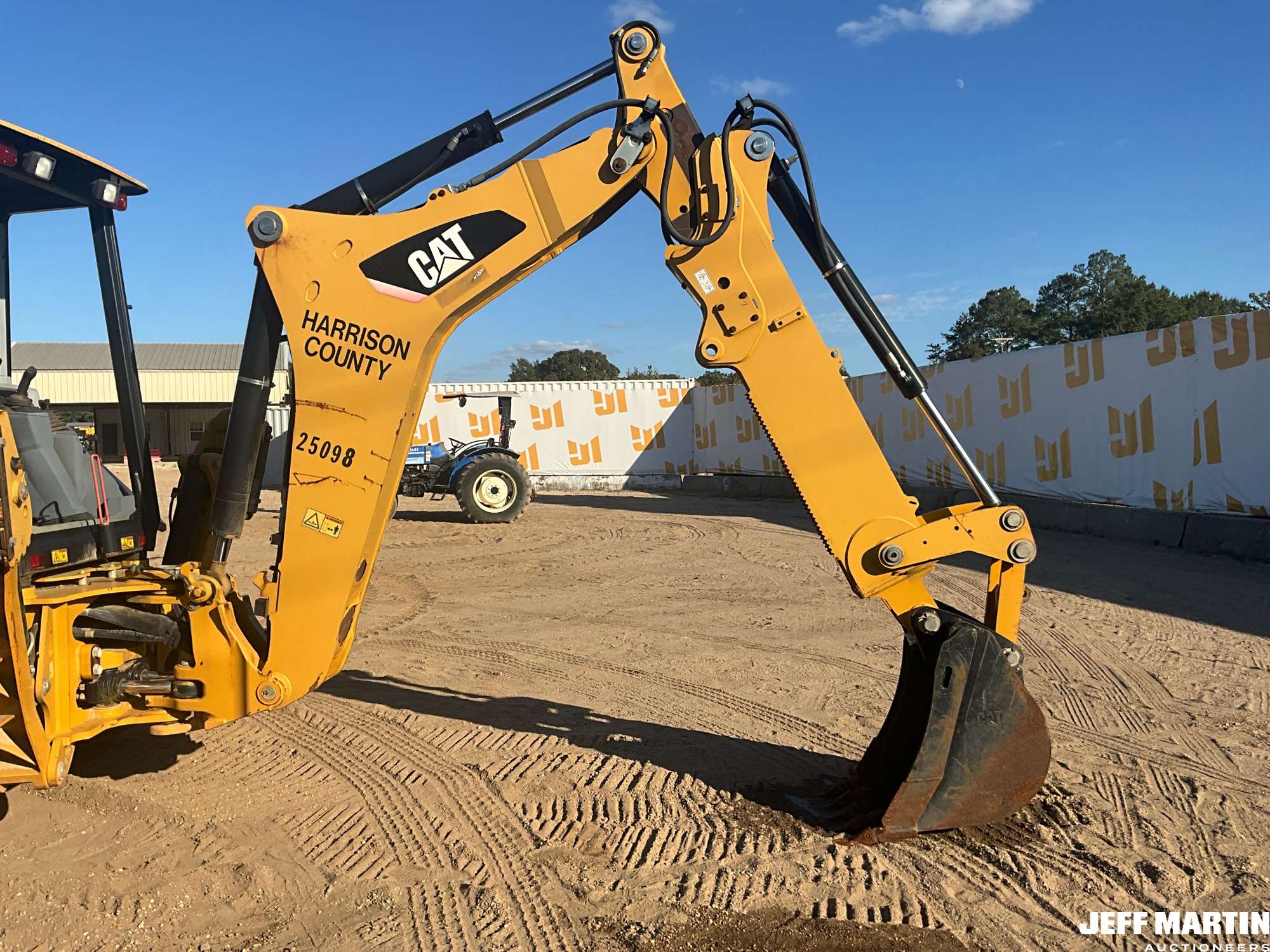

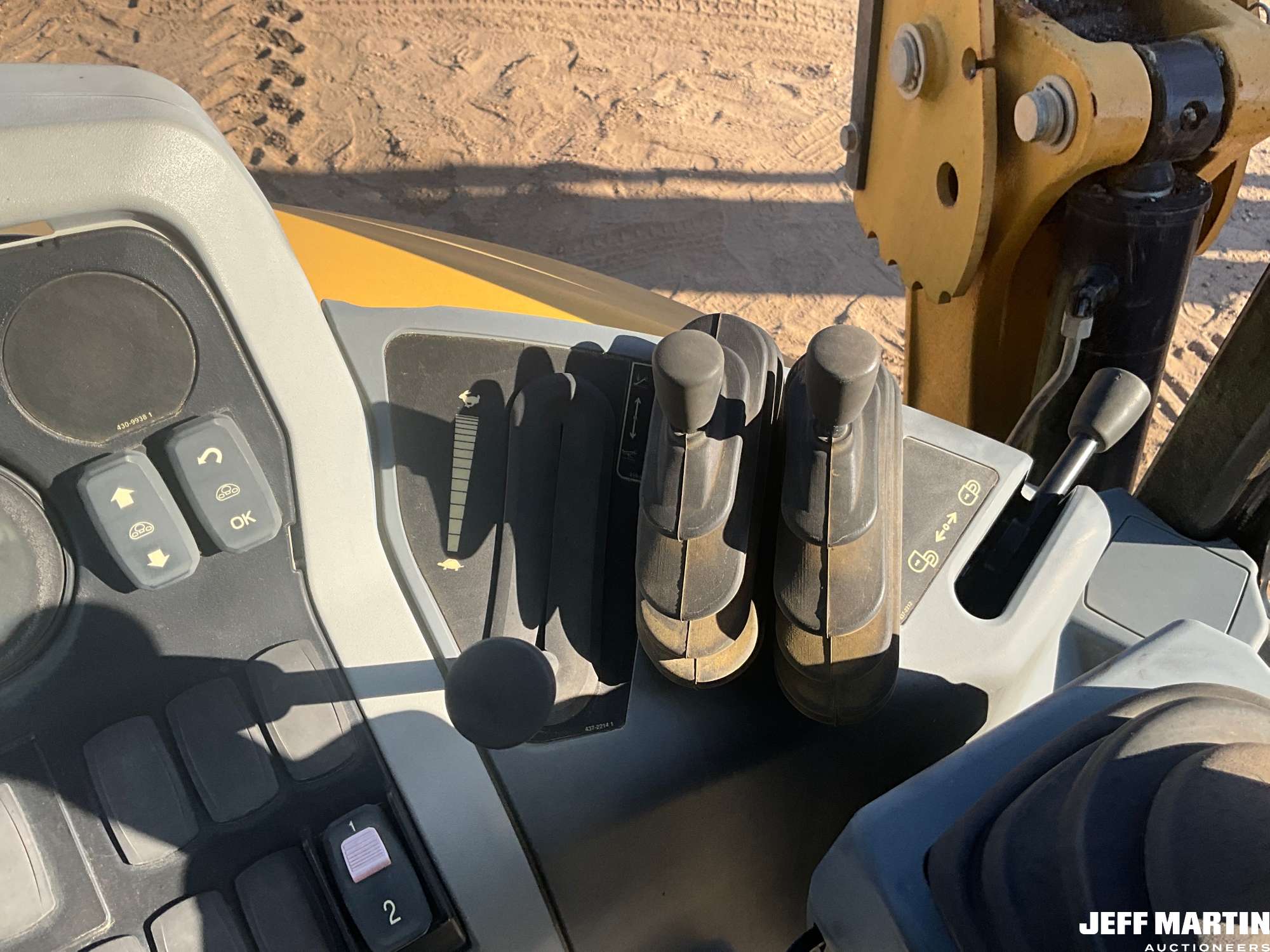

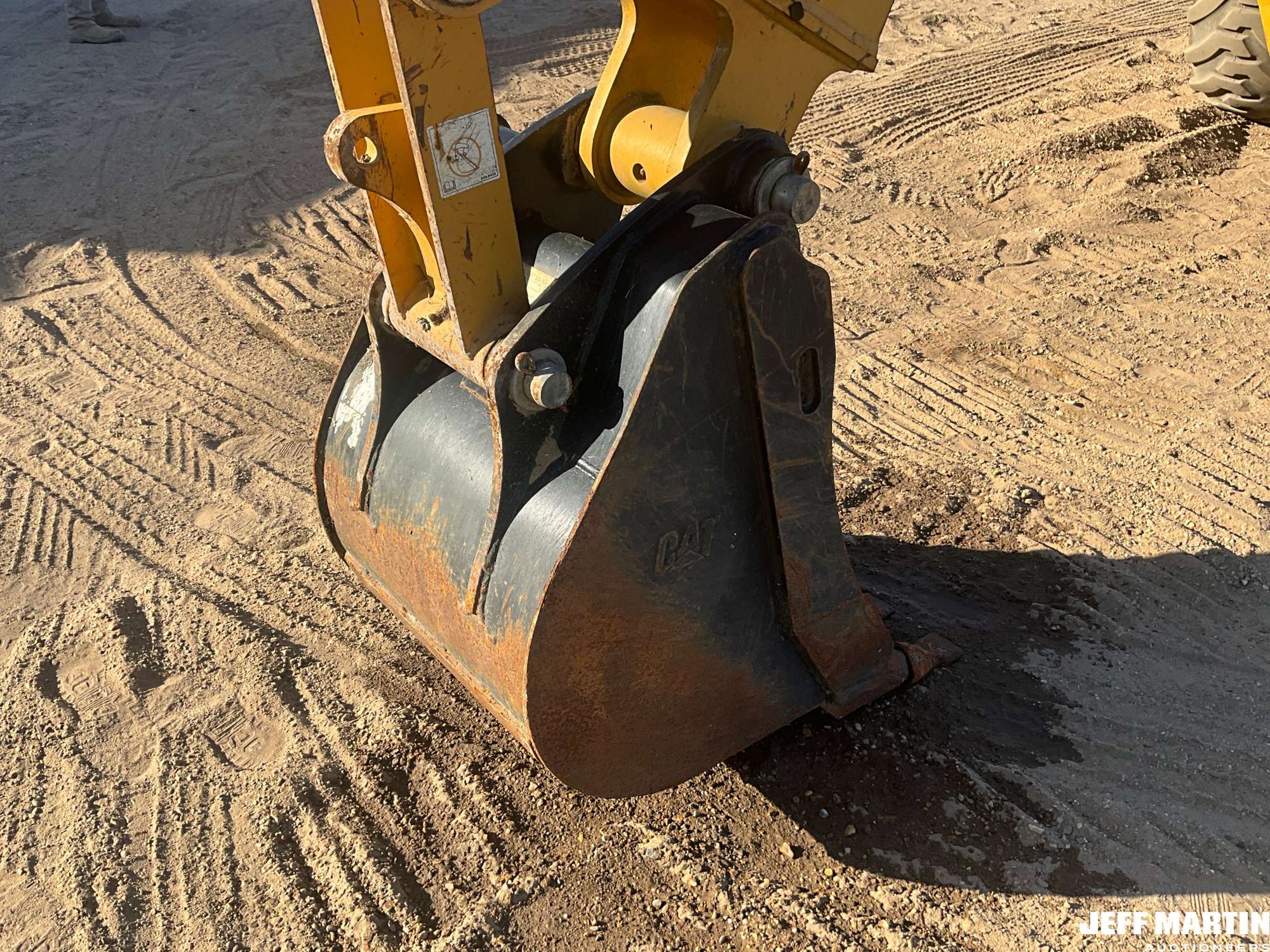

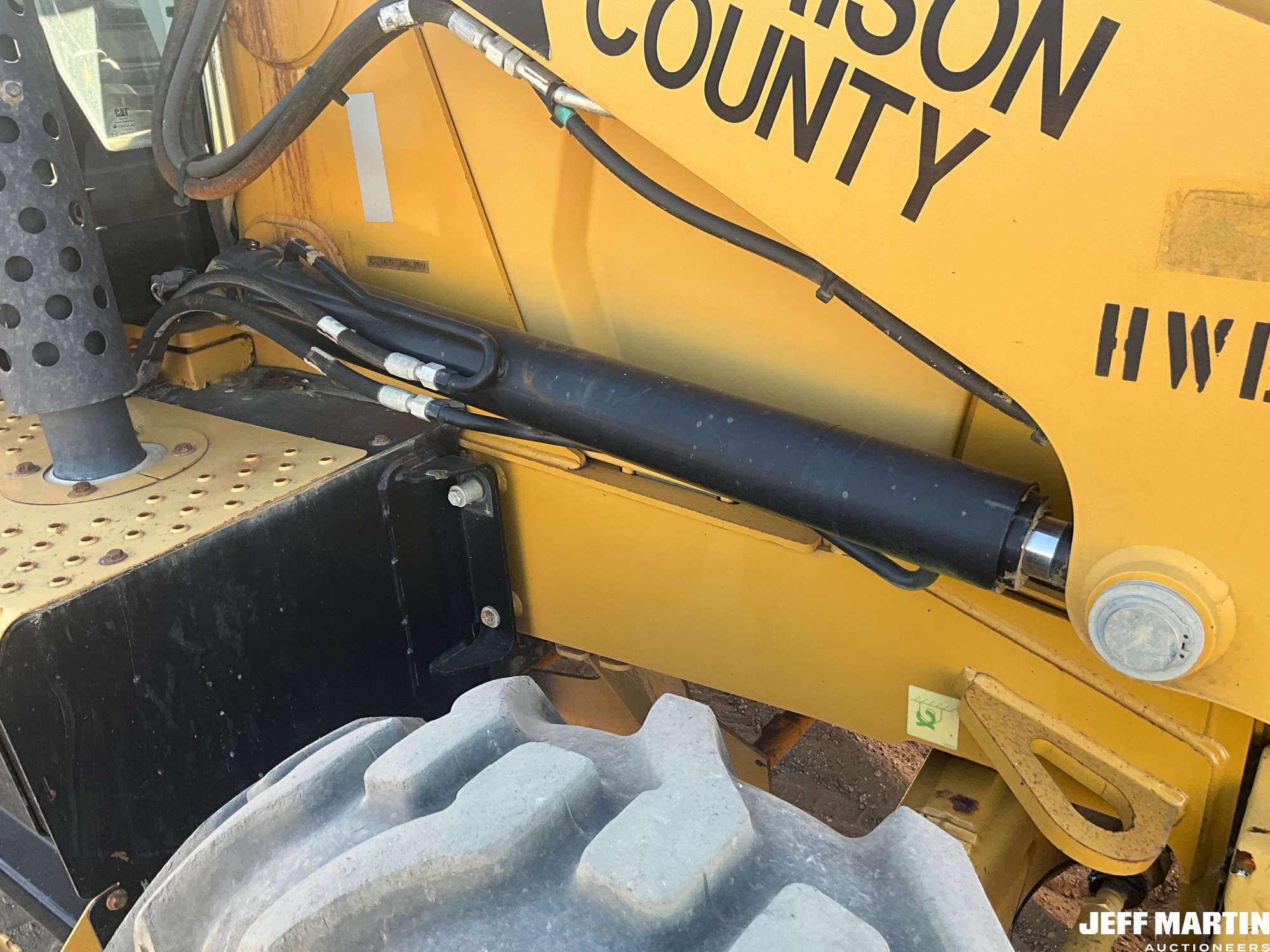

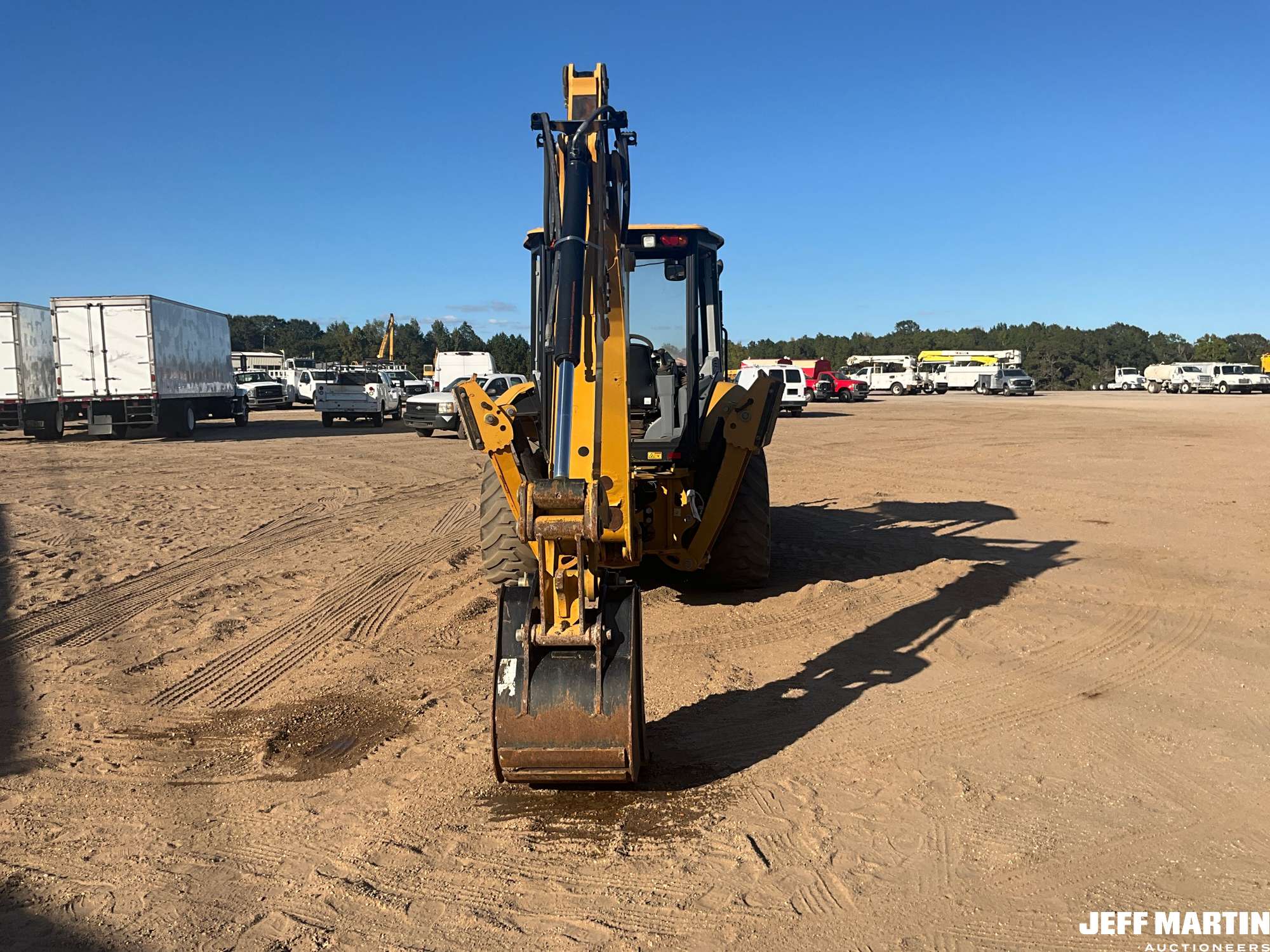

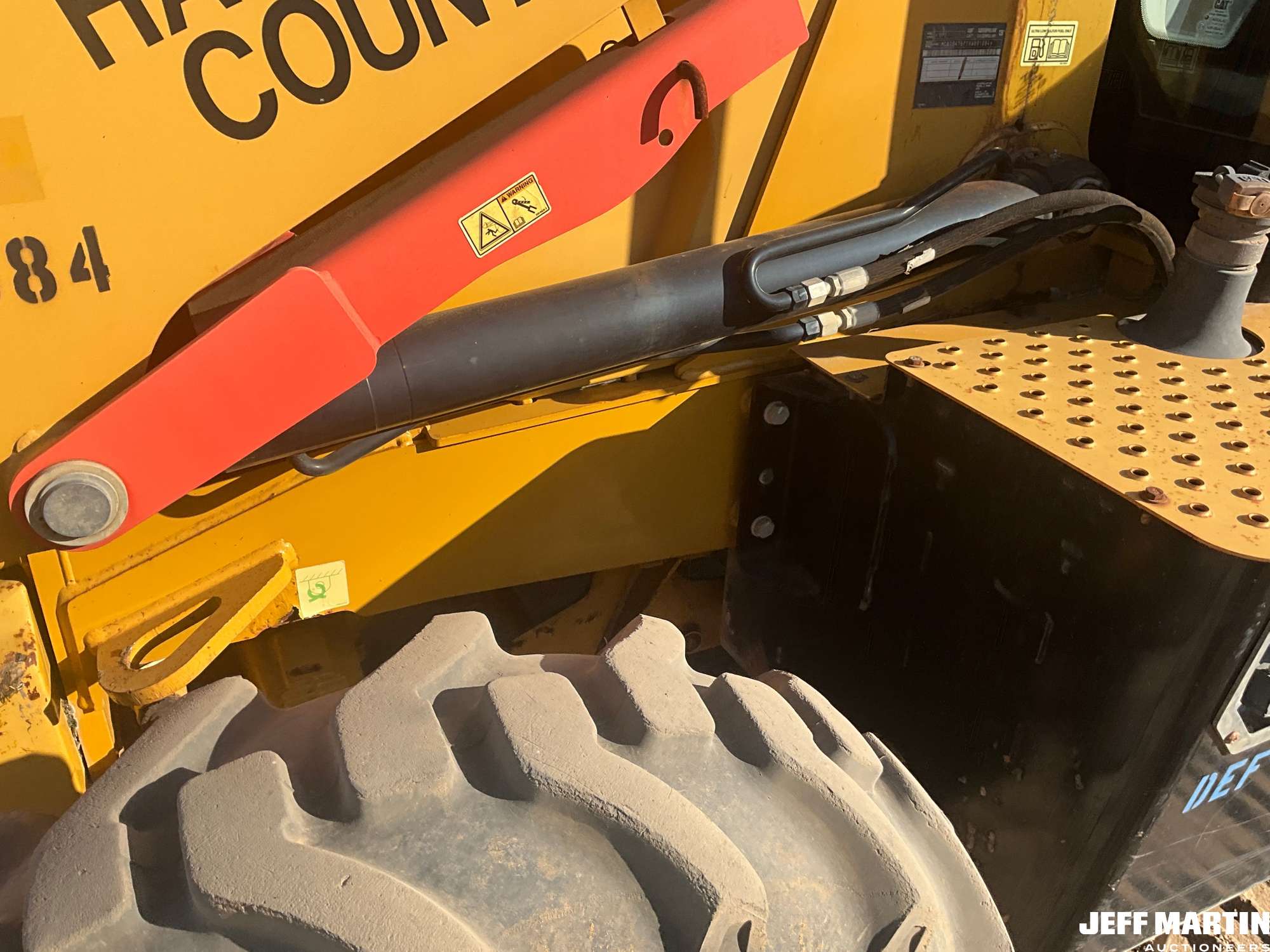

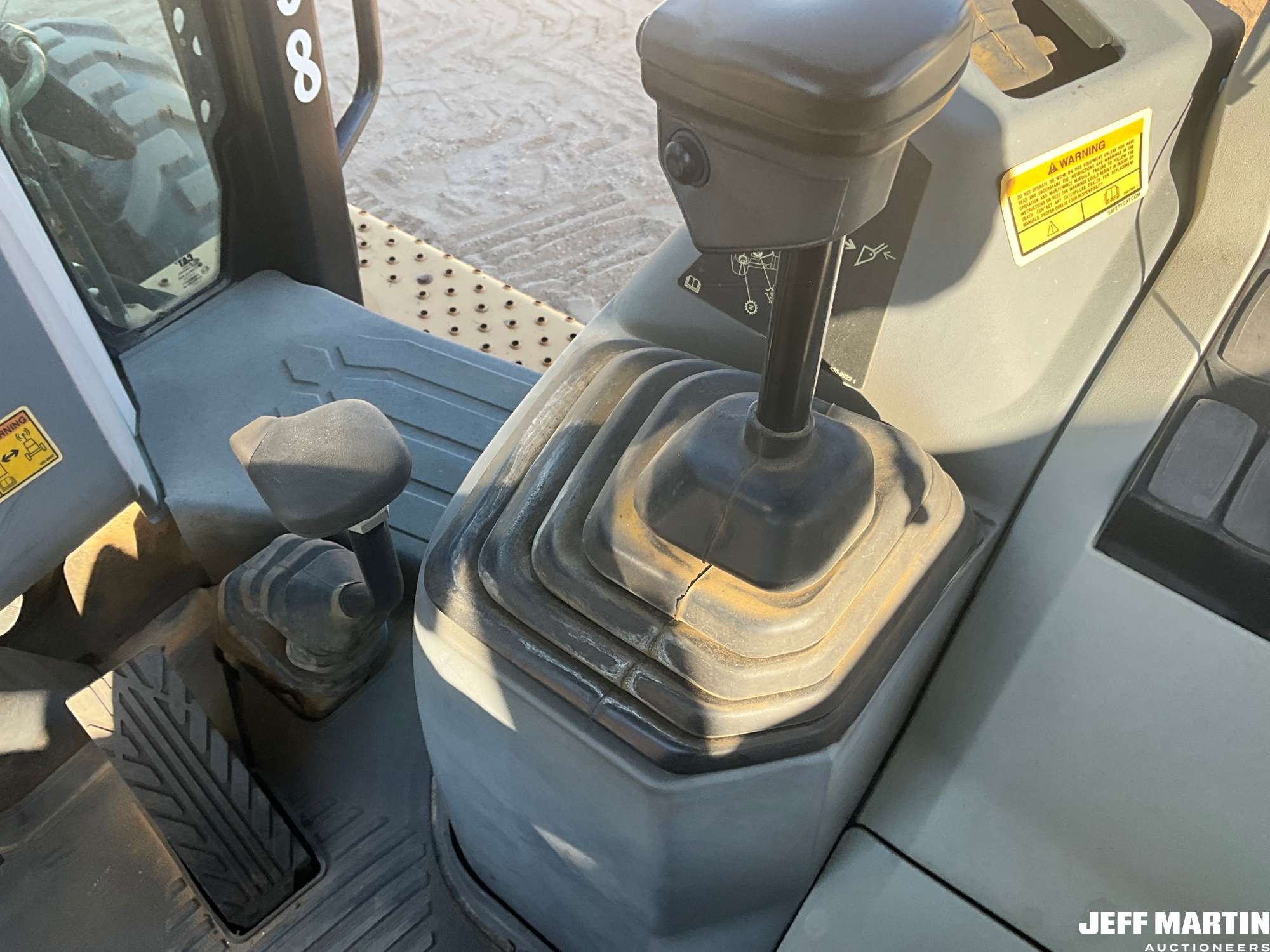

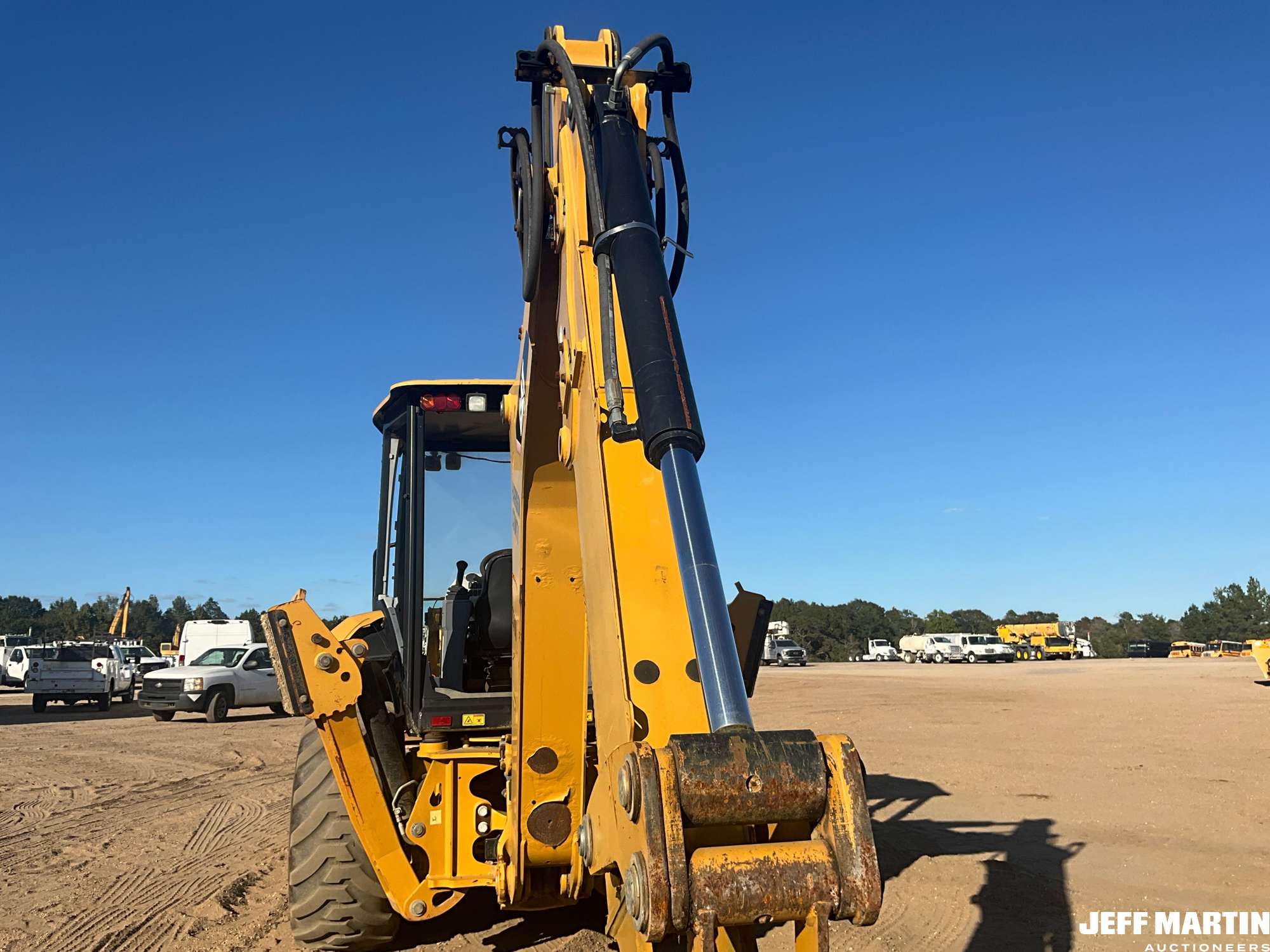

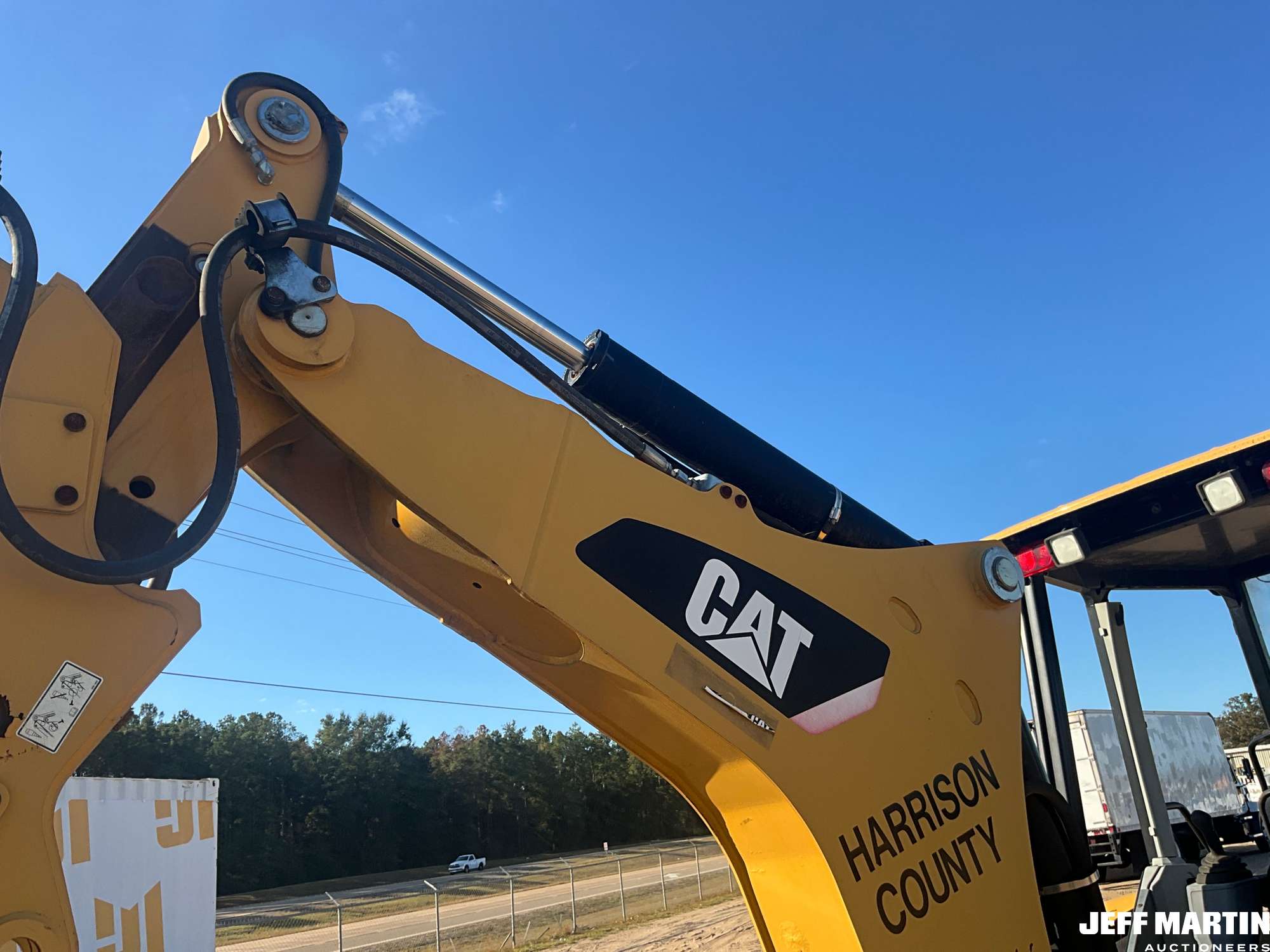

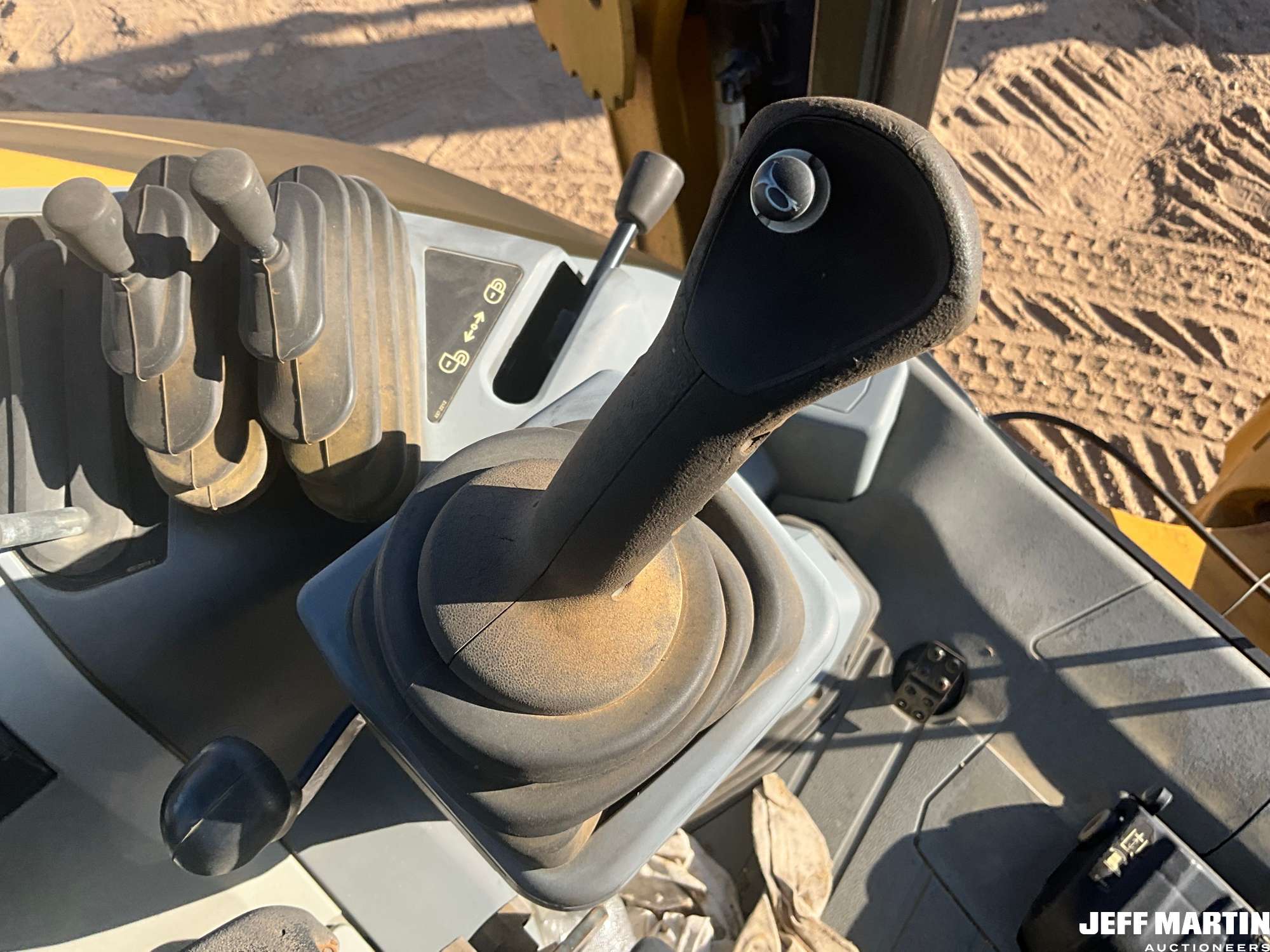

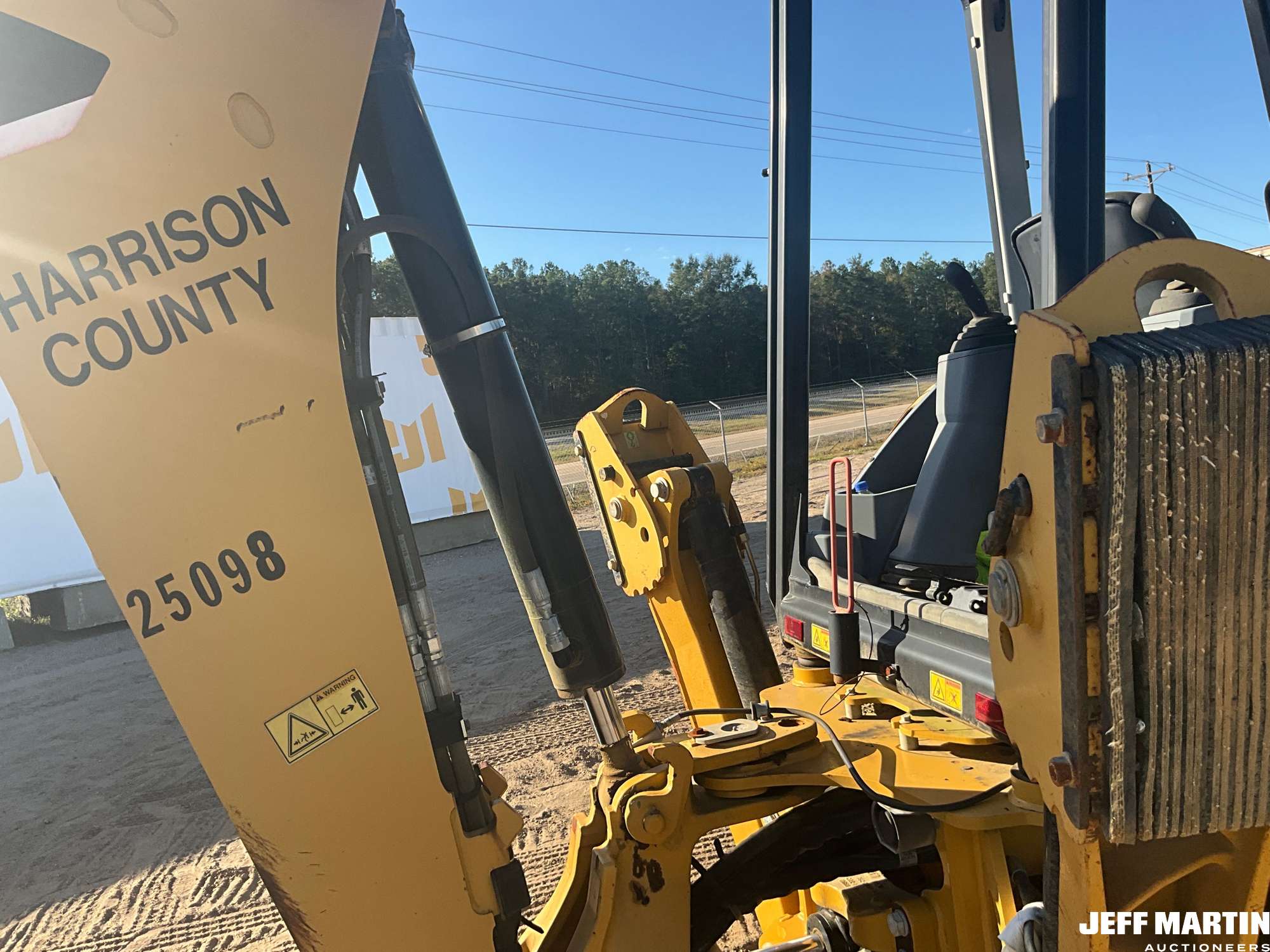

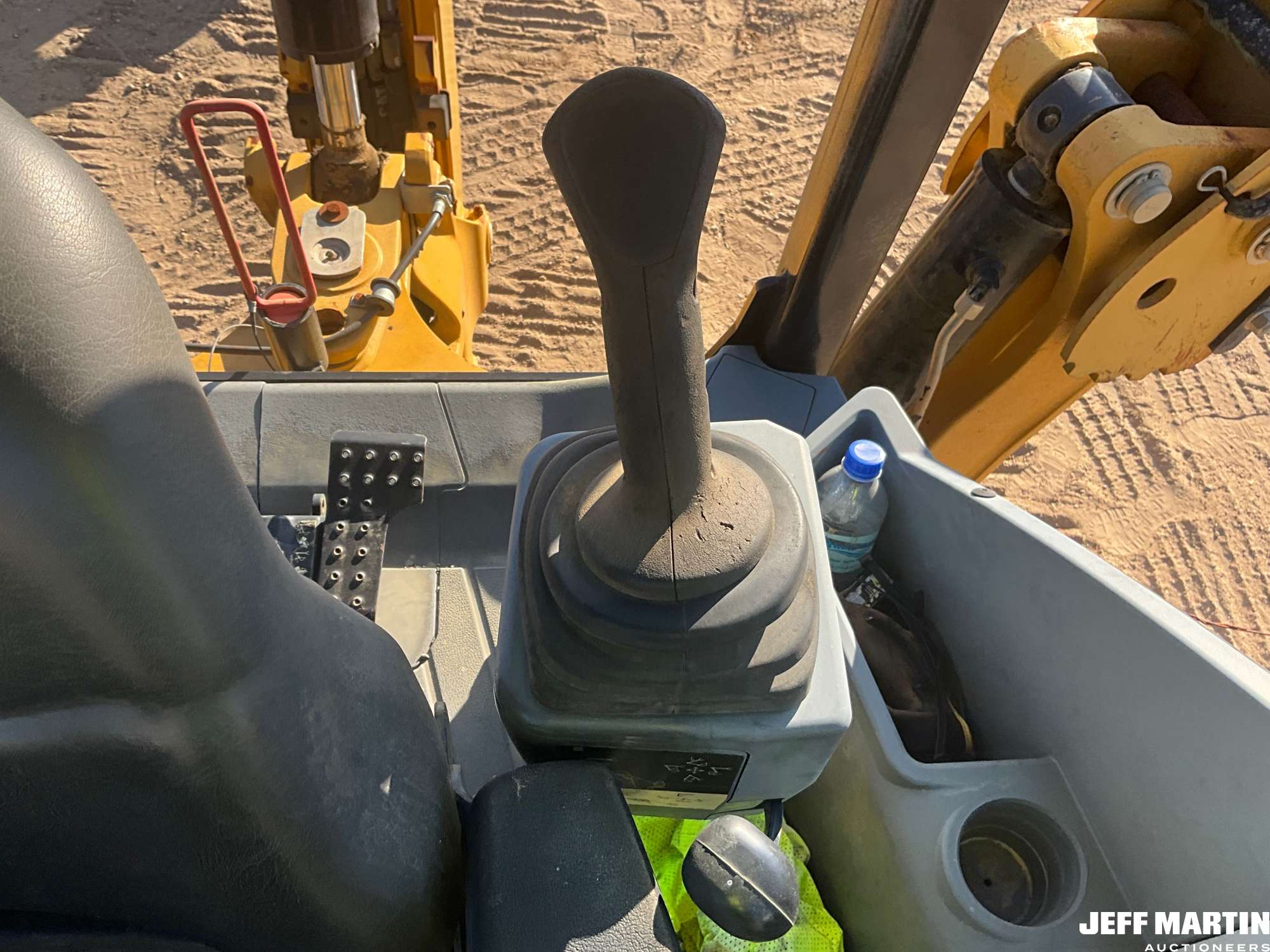

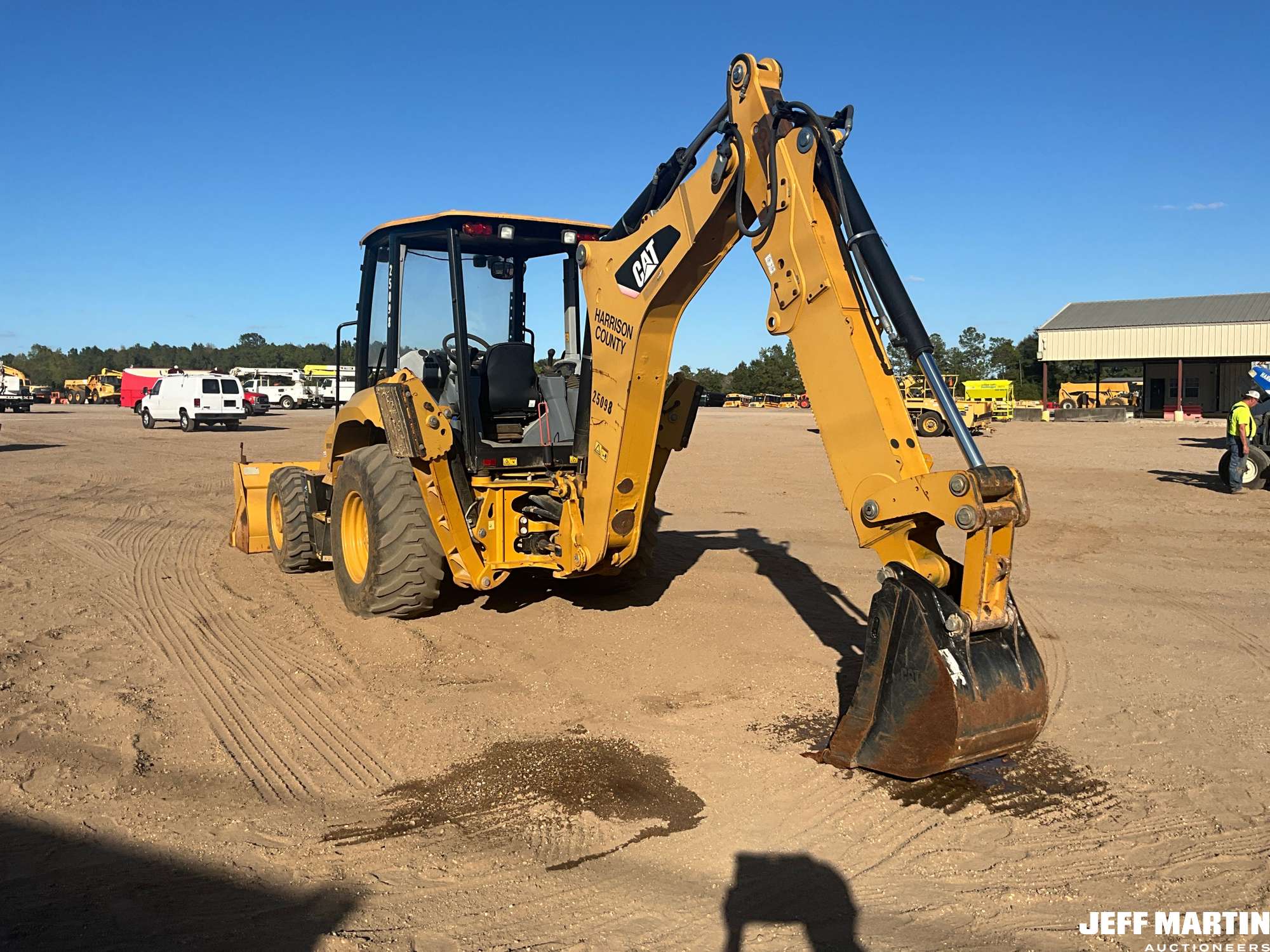

| Backhoe |
|
Dig Depth - E-Stick Extended |
18 ft (5 m)
|
|
Dig Depth - Standard |
14 ft (4 m)
|
| Brakes |
|
Feature (1) |
Brakes meet the following standards: SAE J1473 and ISO 3450 requirements. |
|
Feature (2) |
Self-adjusting, completely enclosed and sealed. |
|
Feature (3) |

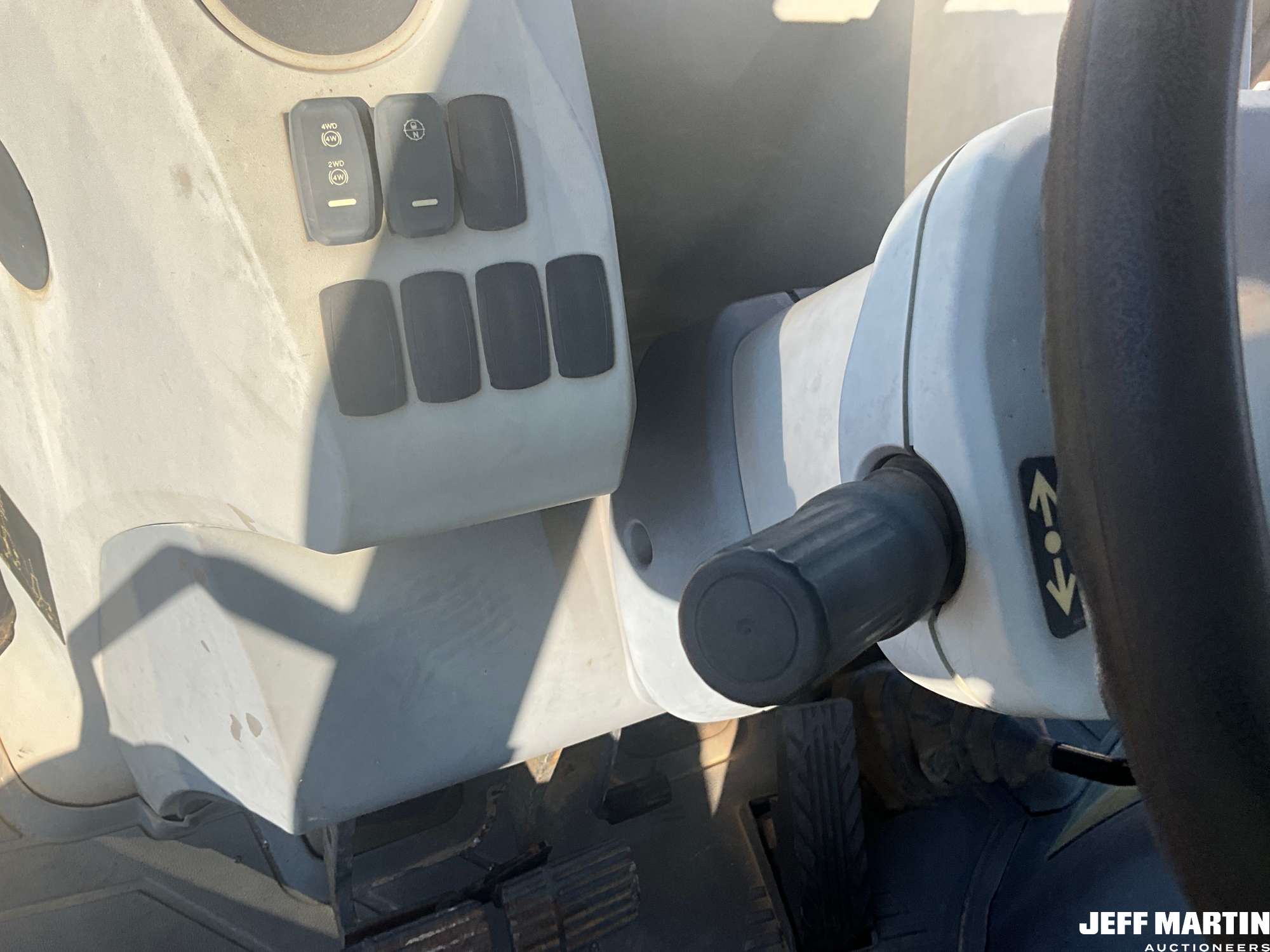

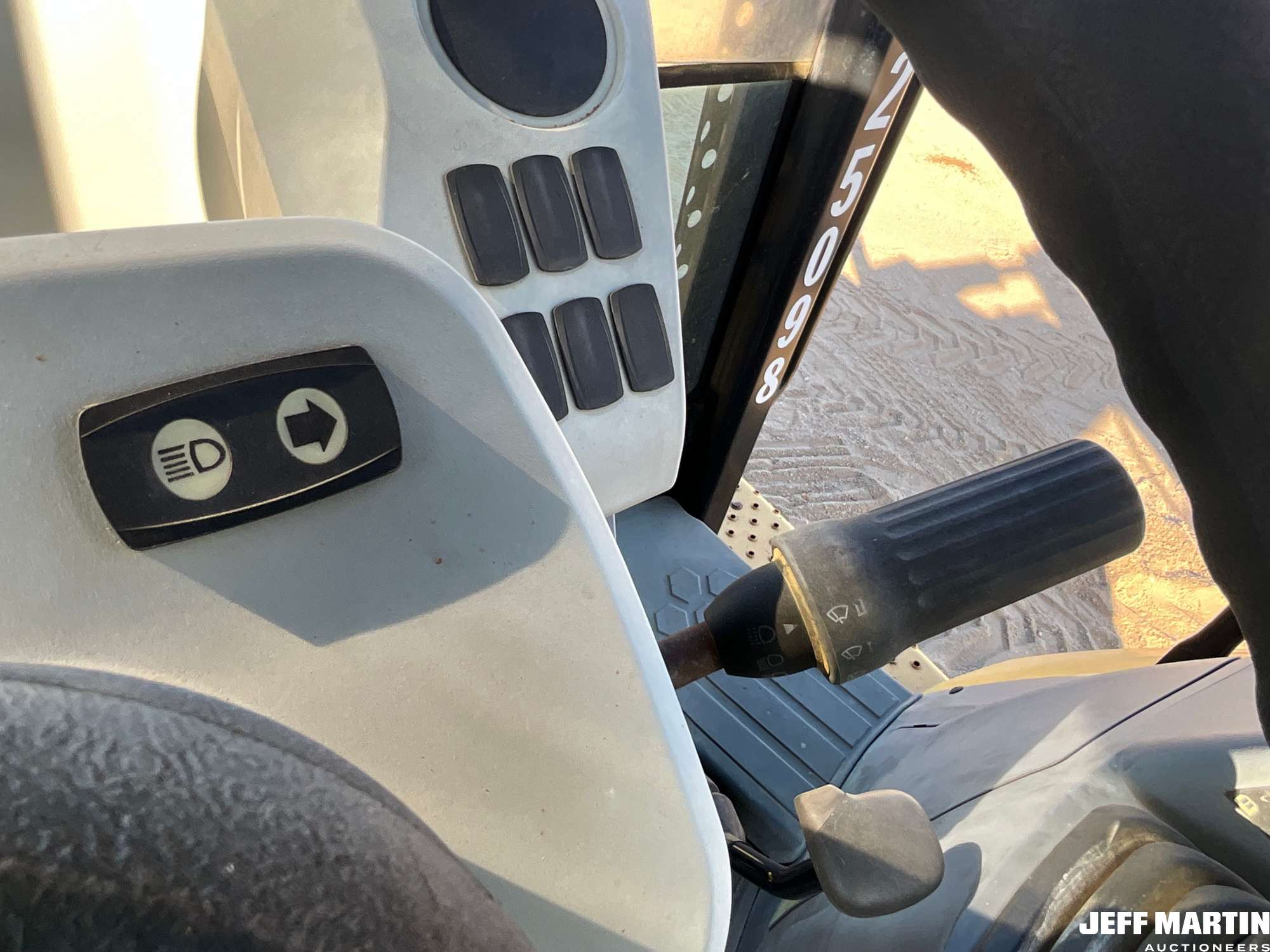

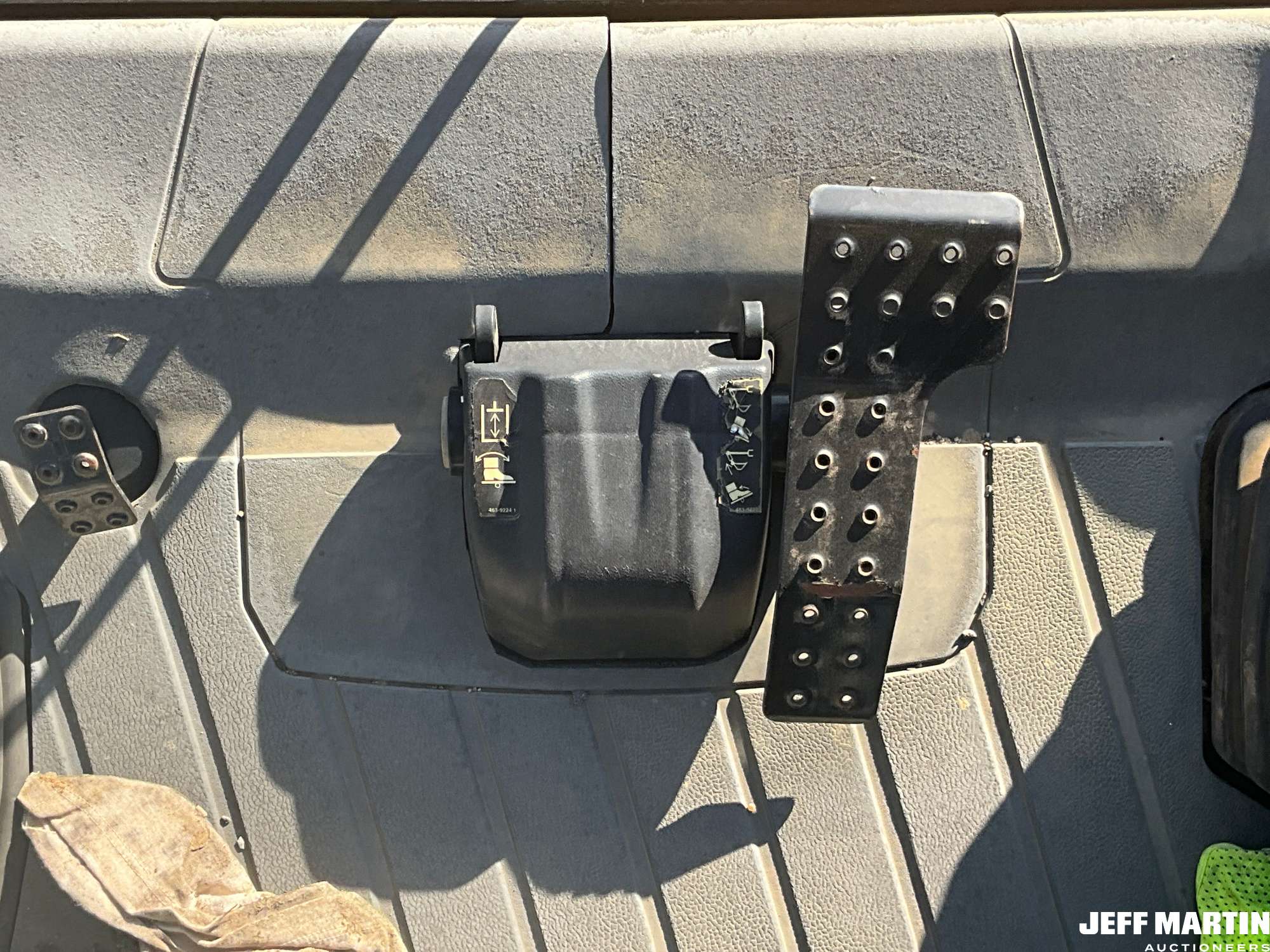

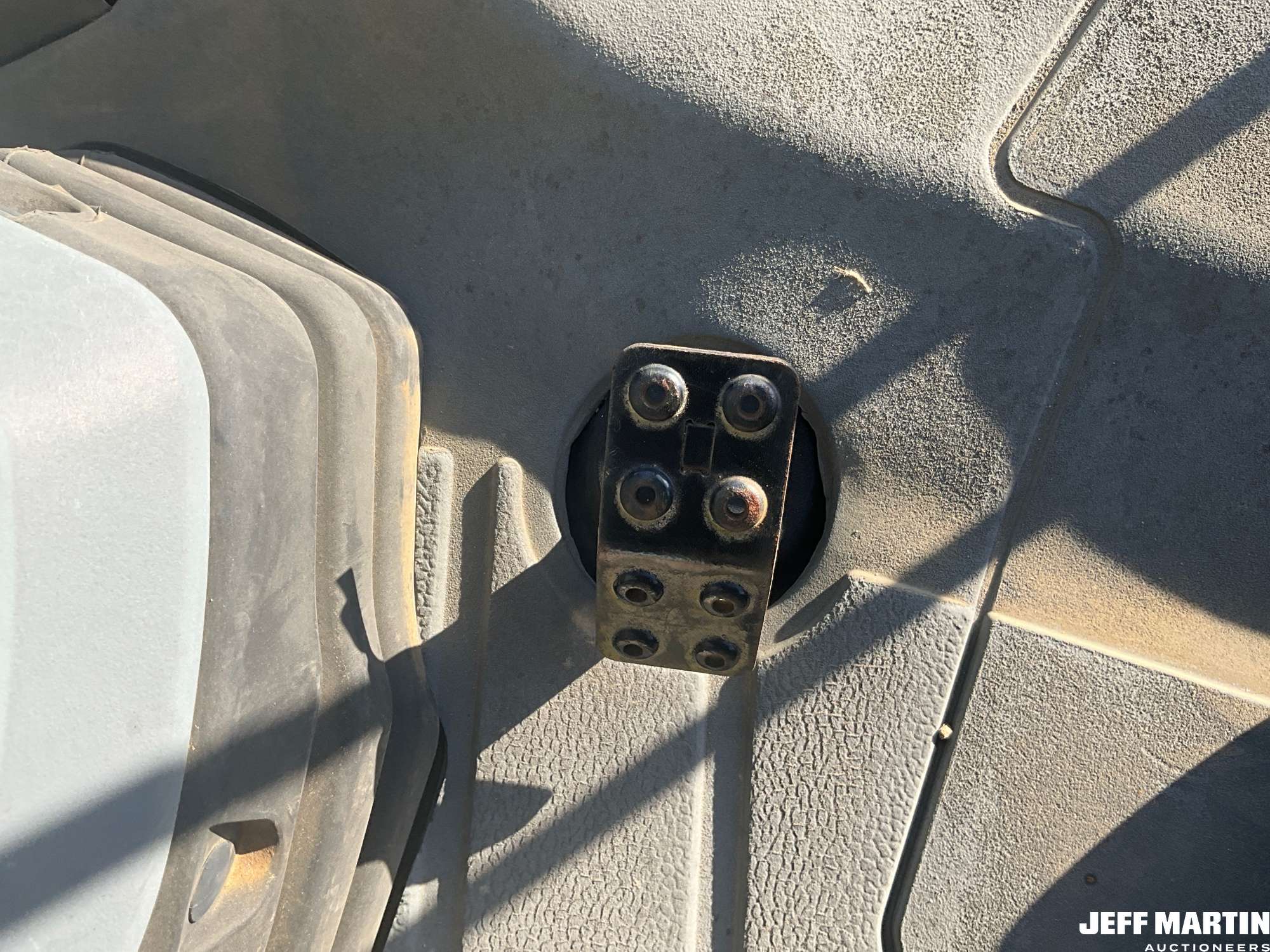

Foot operated brake pedals can be interlocked for roading. |
|
Feature (4) |
Parking/secondary brakes are independent of the service brake system. |
|
Feature (5) |

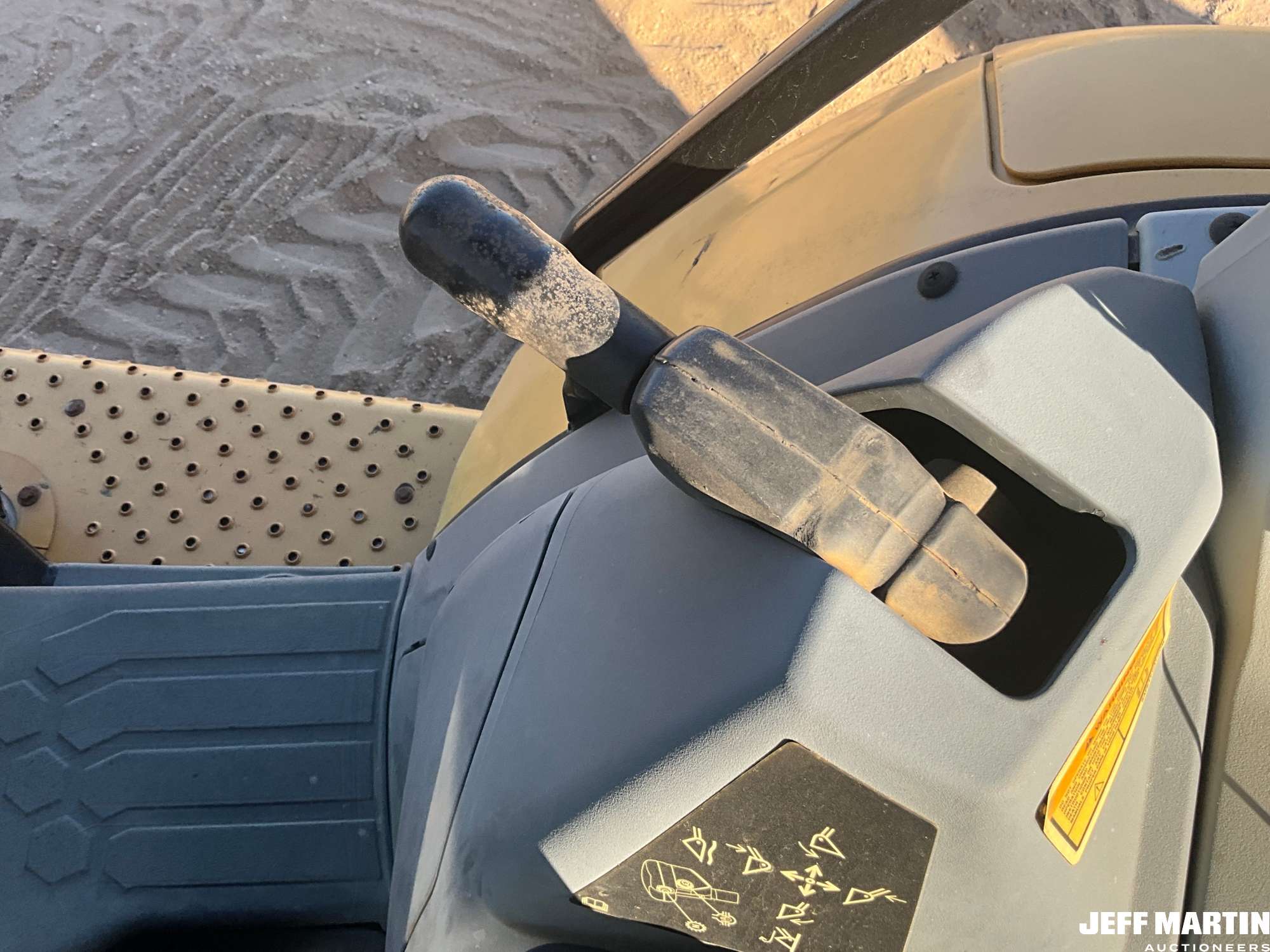

Parking brake is mechanically applied through an adjustable hand lever located on the right console. |

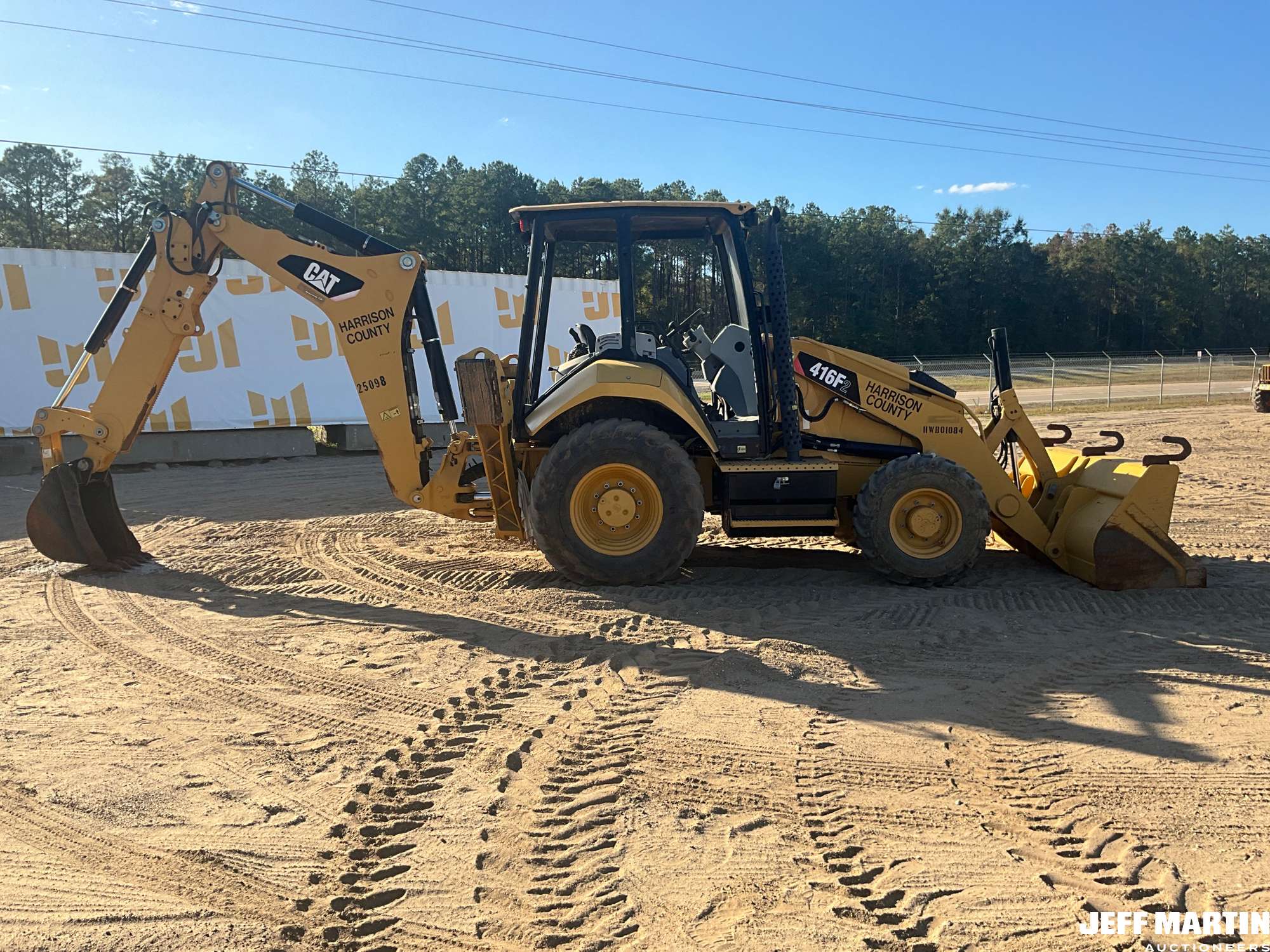

| Dimensions |
|
Height |
12 ft (4 m)
|
|
Length |
23 ft (7 m)
|
|
Weight |
24,251 lbs (11,000 kg)
|
|
Width |
8 ft (2 m)
|
| Engine |
|
Bore |
4 in (11 cm)
|
|
Displacement |
268 cu in (4,392 cu cm)
|
|
Engine Model |
Cat C4.4 ACERT |
|
Gross Power - Iso 14396 |
94 hp (70 kw)
|
|
Gross Power - Sae J1995 |
95 hp (71 kw)
|
|
Net Peak Power - 1,800 Rpm - Eec 80/1269 |
107 hp (80 kw)
|
|
Net Peak Power - 1,800 Rpm - Iso 9249 |
107 hp (80 kw)
|
|
Net Peak Power - 1,800 Rpm - Sae J1349 |
106 hp (79 kw)
|
|
Net Peak Torque - 1,400 Rpm |
323 lbs ft (438 nm)
|
|
Net Power - Sae J1349 |
87 hp (65 kw)
|
|
Note |
Engine meets U.S. EPA Tier 4 Final emission standards. |
|
Rated Net Power - 2,200 Rpm - Eec 80/1269 |
88 hp (66 kw)
|
|
Rated Net Power - 2,200 Rpm - Iso 9249 |
88 hp (66 kw)
|
|
Rated Net Power - 2,200 Rpm - Sae J1349 |
87 hp (65 kw)
|
|
Rated Net Power - Iso 9249 |
88 hp (66 kw)
|
|
Rated Net Power - Sae J1349 |
87 hp (65 kw)
|
|
Stroke |
5 in (13 cm)
|
| Engine Features |
|
Feature (1) |
Regeneration is passive and does not require any input from the operator or disrupt work. |
|
Feature (10) |
Direct injection fuel system provides accurate fuel delivery and efficiency. |
|
Feature (11) |
Dry-type axial seal air cleaner with integral precleaner, automatic dust ejection system, and filter condition indicator. |
|
Feature (12) |
Direct electric, 12-volt starting and charging system with 880 CCA Group 31 maintenance free battery. |
|
Feature (13) |
Standard glow plug starting aid system for efficient cold weather starting. |
|
Feature (14) |
High contact ratio/gear train, peripheral fixed isolation top cover and open deck block design reduce bare engine noise. |
|
Feature (15) |
Higher low end torque for better engine/machine performance. |
|
Feature (16) |
Engine is equipped with electric fuel priming pump. |
|
Feature (2) |
Three-ring pistons made of lightweight, silicon/aluminum alloy for strength and maximum thermal conductivity. |
|
Feature (3) |
Forged chrome/molybdenum-steel crankshaft with salt bath nitrocarburized pins and journals. |
|
Feature (4) |
Front and rear crankshaft oil seals are lip type Viton and PTFE designs featuring an integral dust lip. |
|
Feature (5) |
For durability, inlet valves are nitrided, martensitic chrome silicon steel. |
|
Feature (6) |
For durability, exhaust valves are nitrided, austenitic chrome manganese-nickel steel. |
|
Feature (7) |
Cylinder block is high strength, cast iron alloy of deep skirt, monobloc design for increased strength and long life. |
|
Feature (8) |
Cylinder head is high strength, cast iron alloy construction with extra duty wall and deck thickness. |
|
Feature (9) |
Cylinder head's intake and exhaust ports are precision cast to promote optimum gas flow. |
| General Specifications |
|
10) Maximum bucket rollback at ground level (Since 2016)
|
37 deg |
|
10) Maximum bucket rollback at ground level (Since 2016)
|
38 deg |
|
10) Maximum bucket rollback at ground level (Since 2017)
|
37 deg |
|
10) Maximum bucket rollback at ground level (Since 2017)
|
38 deg |
|
10) Maximum bucket rollback at ground level (Since 2018)
|
37 deg |
|
10) Maximum bucket rollback at ground level (Since 2018)
|
38 deg |
|
10) Maximum bucket rollback at ground level (Since 2019)
|
37 deg |
|
10) Maximum bucket rollback at ground level (Since 2019)
|
38 deg |
|
11) Digging depth (Since 2016)
|
3 in (8 cm)
|
|
11) Digging depth (Since 2016)
|
4 in (10 cm)
|
|
11) Digging depth (Since 2017)
|
3 in (8 cm)
|
|
11) Digging depth (Since 2017)
|
4 in (10 cm)
|
|
11) Digging depth (Since 2018)
|
3 in (8 cm)
|
|
11) Digging depth (Since 2018)
|
4 in (10 cm)
|
|
11) Digging depth (Since 2019)
|
3 in (8 cm)
|
|
11) Digging depth (Since 2019)
|
4 in (10 cm)
|
|
12) Grill to bucket cutting edge, carry position (Since 2016)
|
55 in (140 cm)
|
|
12) Grill to bucket cutting edge, carry position (Since 2016)
|
59 in (150 cm)
|
|
12) Grill to bucket cutting edge, carry position (Since 2016)
|
57 in (145 cm)
|
|
12) Grill to bucket cutting edge, carry position (Since 2017)
|
55 in (140 cm)
|
|
12) Grill to bucket cutting edge, carry position (Since 2017)
|
59 in (150 cm)
|
|
12) Grill to bucket cutting edge, carry position (Since 2017)
|
57 in (145 cm)
|
|
12) Grill to bucket cutting edge, carry position (Since 2018)
|
55 in (140 cm)
|
|
12) Grill to bucket cutting edge, carry position (Since 2018)
|
59 in (150 cm)
|
|
12) Grill to bucket cutting edge, carry position (Since 2018)
|
57 in (145 cm)
|
|
12) Grill to bucket cutting edge, carry position (Since 2019)
|
55 in (140 cm)
|
|
12) Grill to bucket cutting edge, carry position (Since 2019)
|
59 in (150 cm)
|
|
12) Grill to bucket cutting edge, carry position (Since 2019)
|
57 in (145 cm)
|
|
13) Maximum operating height (Since 2016)
|
166 in (422 cm)
|
|
13) Maximum operating height (Since 2016)
|
171 in (434 cm)
|
|
13) Maximum operating height (Since 2016)
|
173 in (439 cm)
|
|
13) Maximum operating height (Since 2016)
|
192 in (488 cm)
|
|
13) Maximum operating height (Since 2017)
|
166 in (422 cm)
|
|
13) Maximum operating height (Since 2017)
|
171 in (434 cm)
|
|
13) Maximum operating height (Since 2017)
|
173 in (439 cm)
|
|
13) Maximum operating height (Since 2017)
|
192 in (488 cm)
|
|
13) Maximum operating height (Since 2018)
|
166 in (422 cm)
|
|
13) Maximum operating height (Since 2018)
|
171 in (434 cm)
|
|
13) Maximum operating height (Since 2018)
|
173 in (439 cm)
|
|
13) Maximum operating height (Since 2018)
|
192 in (488 cm)
|
|
13) Maximum operating height (Since 2019)
|
166 in (422 cm)
|
|
13) Maximum operating height (Since 2019)
|
171 in (434 cm)
|
|
13) Maximum operating height (Since 2019)
|
173 in (439 cm)
|
|
13) Maximum operating height (Since 2019)
|
192 in (488 cm)
|
|
1st (Since 2016)
|
5 3 |
|
1st (2017)
|
5 3 |
|
1st (2018)
|
5 3 |
|
1st (2019)
|
5 3 |
|
2nd (Since 2016)
|
9 6 |
|
2nd (2017)
|
9 6 |
|
2nd (2018)
|
9 6 |
|
2nd (2019)
|
9 6 |
|
3rd (Since 2016)
|
20 13 |
|
3rd (2017)
|
20 13 |
|
3rd (2018)
|
20 13 |
|
3rd (2019)
|
20 13 |
|
4th (Since 2016)
|
36 23 |
|
4th (2017)
|
36 23 |
|
4th (2018)
|
36 23 |
|
4th (2019)
|
36 23 |
|
7) Maximum hinge pin height (Since 2016)
|
137 in (348 cm)
|
|
7) Maximum hinge pin height (2017)
|
137 in (348 cm)
|
|
7) Maximum hinge pin height (2018)
|
137 in (348 cm)
|
|
7) Maximum hinge pin height (2019)
|
137 in (348 cm)
|
|
8) Dump angle at full height (Since 2016)
|
44 deg |
|
8) Dump angle at full height (2017)
|
44 deg |
|
8) Dump angle at full height (2018)
|
44 deg |
|
8) Dump angle at full height (2019)
|
44 deg |
|
9) Dump reach at maximum angle (Since 2016)
|
29 in (74 cm)
|
|
9) Dump reach at maximum angle (Since 2016)
|
32 in (81 cm)
|
|
9) Dump reach at maximum angle (Since 2016)
|
28 in (71 cm)
|
|
9) Dump reach at maximum angle (Since 2017)
|
29 in (74 cm)
|
|
9) Dump reach at maximum angle (Since 2017)
|
32 in (81 cm)
|
|
9) Dump reach at maximum angle (Since 2017)
|
28 in (71 cm)
|
|
9) Dump reach at maximum angle (Since 2018)
|
29 in (74 cm)
|
|
9) Dump reach at maximum angle (Since 2018)
|
32 in (81 cm)
|
|
9) Dump reach at maximum angle (Since 2018)
|
28 in (71 cm)
|
|
9) Dump reach at maximum angle (Since 2019)
|
29 in (74 cm)
|
|
9) Dump reach at maximum angle (Since 2019)
|
32 in (81 cm)
|
|
9) Dump reach at maximum angle (Since 2019)
|
28 in (71 cm)
|
|
Backhoe - 14) Digging depth, SAE (maximum) (Since 2016)
|
214 in (544 cm)
|
|
Backhoe - 14) Digging depth, SAE (maximum) (Since 2016)
|
173 in (439 cm)
|
|
Backhoe - 14) Digging depth, SAE (maximum) (Since 2016)
|
171 in (434 cm)
|
|
Backhoe - 14) Digging depth, SAE (maximum) (Since 2017)
|
214 in (544 cm)
|
|
Backhoe - 14) Digging depth, SAE (maximum) (Since 2017)
|
173 in (439 cm)
|
|
Backhoe - 14) Digging depth, SAE (maximum) (Since 2017)
|
171 in (434 cm)
|
|
Backhoe - 14) Digging depth, SAE (maximum) (Since 2018)
|
214 in (544 cm)
|
|
Backhoe - 14) Digging depth, SAE (maximum) (Since 2018)
|
173 in (439 cm)
|
|
Backhoe - 14) Digging depth, SAE (maximum) (Since 2018)
|
171 in (434 cm)
|
|
Backhoe - 14) Digging depth, SAE (maximum) (Since 2019)
|
214 in (544 cm)
|
|
Backhoe - 14) Digging depth, SAE (maximum) (Since 2019)
|
173 in (439 cm)
|
|
Backhoe - 14) Digging depth, SAE (maximum) (Since 2019)
|
171 in (434 cm)
|
|
Backhoe - 15) Digging depth, 610 mm (2'0") flat bottom (Since 2016)
|
213 in (541 cm)
|
|
Backhoe - 15) Digging depth, 610 mm (2'0") flat bottom (Since 2016)
|
171 in (434 cm)
|
|
Backhoe - 15) Digging depth, 610 mm (2'0") flat bottom (Since 2016)
|
170 in (432 cm)
|
|
Backhoe - 15) Digging depth, 610 mm (2'0") flat bottom (Since 2017)
|
213 in (541 cm)
|
|
Backhoe - 15) Digging depth, 610 mm (2'0") flat bottom (Since 2017)
|
171 in (434 cm)
|
|
Backhoe - 15) Digging depth, 610 mm (2'0") flat bottom (Since 2017)
|
170 in (432 cm)
|
|
Backhoe - 15) Digging depth, 610 mm (2'0") flat bottom (Since 2018)
|
213 in (541 cm)
|
|
Backhoe - 15) Digging depth, 610 mm (2'0") flat bottom (Since 2018)
|
171 in (434 cm)
|
|
Backhoe - 15) Digging depth, 610 mm (2'0") flat bottom (Since 2018)
|
170 in (432 cm)
|
|
Backhoe - 15) Digging depth, 610 mm (2'0") flat bottom (Since 2019)
|
213 in (541 cm)
|
|
Backhoe - 15) Digging depth, 610 mm (2'0") flat bottom (Since 2019)
|
171 in (434 cm)
|
|
Backhoe - 15) Digging depth, 610 mm (2'0") flat bottom (Since 2019)
|
170 in (432 cm)
|
|
Backhoe - 16) Reach from swing pivot at ground line (Since 2016)
|
262 in (665 cm)
|
|
Backhoe - 16) Reach from swing pivot at ground line (Since 2016)
|
222 in (564 cm)
|
|
Backhoe - 16) Reach from swing pivot at ground line (Since 2016)
|
221 in (561 cm)
|
|
Backhoe - 16) Reach from swing pivot at ground line (Since 2017)
|
262 in (665 cm)
|
|
Backhoe - 16) Reach from swing pivot at ground line (Since 2017)
|
222 in (564 cm)
|
|
Backhoe - 16) Reach from swing pivot at ground line (Since 2017)
|
221 in (561 cm)
|
|
Backhoe - 16) Reach from swing pivot at ground line (Since 2018)
|
262 in (665 cm)
|
|
Backhoe - 16) Reach from swing pivot at ground line (Since 2018)
|
222 in (564 cm)
|
|
Backhoe - 16) Reach from swing pivot at ground line (Since 2018)
|
221 in (561 cm)
|
|
Backhoe - 16) Reach from swing pivot at ground line (Since 2019)
|
262 in (665 cm)
|
|
Backhoe - 16) Reach from swing pivot at ground line (Since 2019)
|
222 in (564 cm)
|
|
Backhoe - 16) Reach from swing pivot at ground line (Since 2019)
|
221 in (561 cm)
|
|
Backhoe - 17) Loading reach (Since 2016)
|
112 in (284 cm)
|
|
Backhoe - 17) Loading reach (Since 2016)
|
76 in (193 cm)
|
|
Backhoe - 17) Loading reach (Since 2016)
|
72 in (183 cm)
|
|
Backhoe - 17) Loading reach (Since 2017)
|
112 in (284 cm)
|
|
Backhoe - 17) Loading reach (Since 2017)
|
76 in (193 cm)
|
|
Backhoe - 17) Loading reach (Since 2017)
|
72 in (183 cm)
|
|
Backhoe - 17) Loading reach (Since 2018)
|
112 in (284 cm)
|
|
Backhoe - 17) Loading reach (Since 2018)
|
76 in (193 cm)
|
|
Backhoe - 17) Loading reach (Since 2018)
|
72 in (183 cm)
|
|
Backhoe - 17) Loading reach (Since 2019)
|
112 in (284 cm)
|
|
Backhoe - 17) Loading reach (Since 2019)
|
76 in (193 cm)
|
|
Backhoe - 17) Loading reach (Since 2019)
|
72 in (183 cm)
|
|

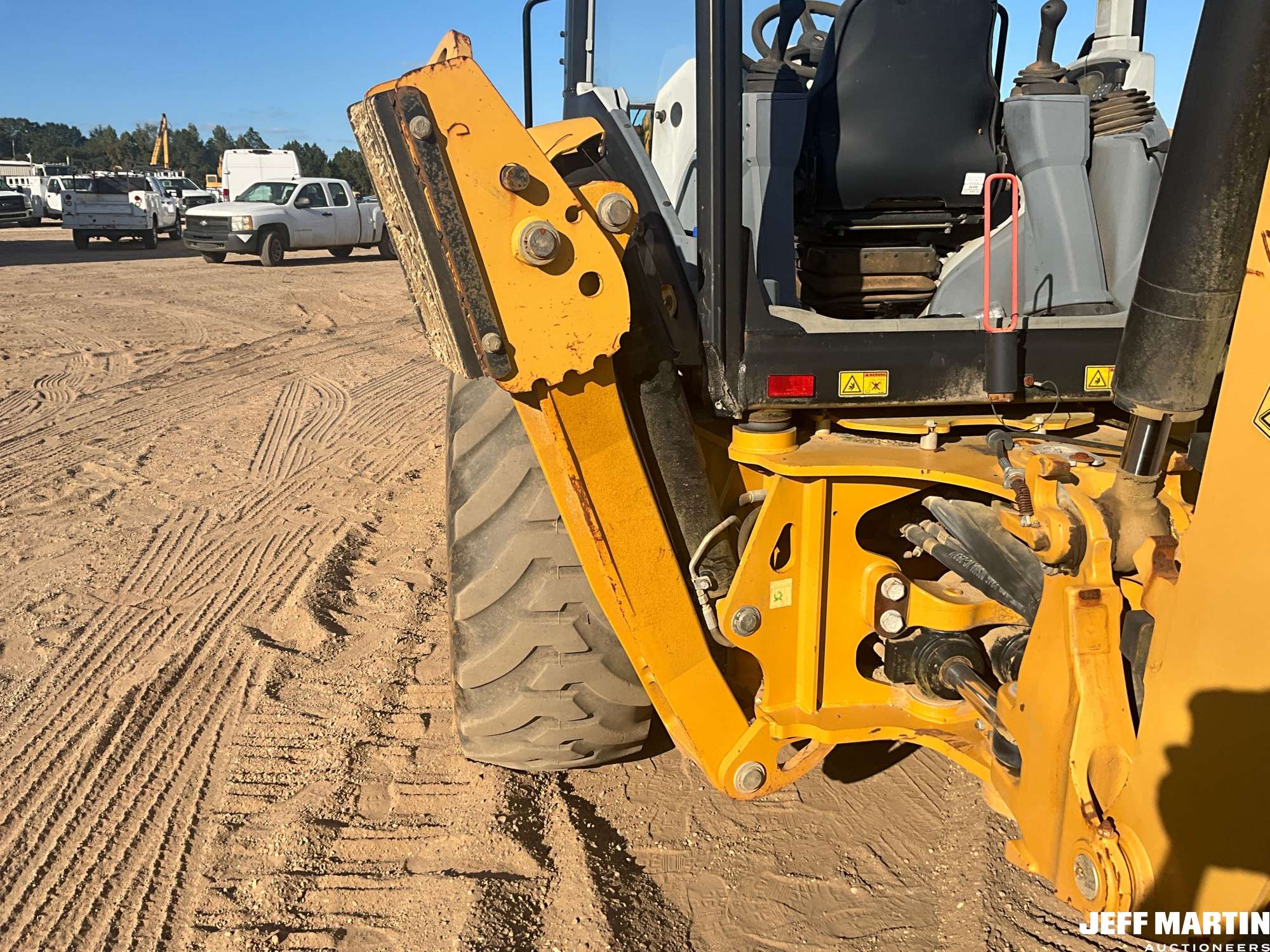

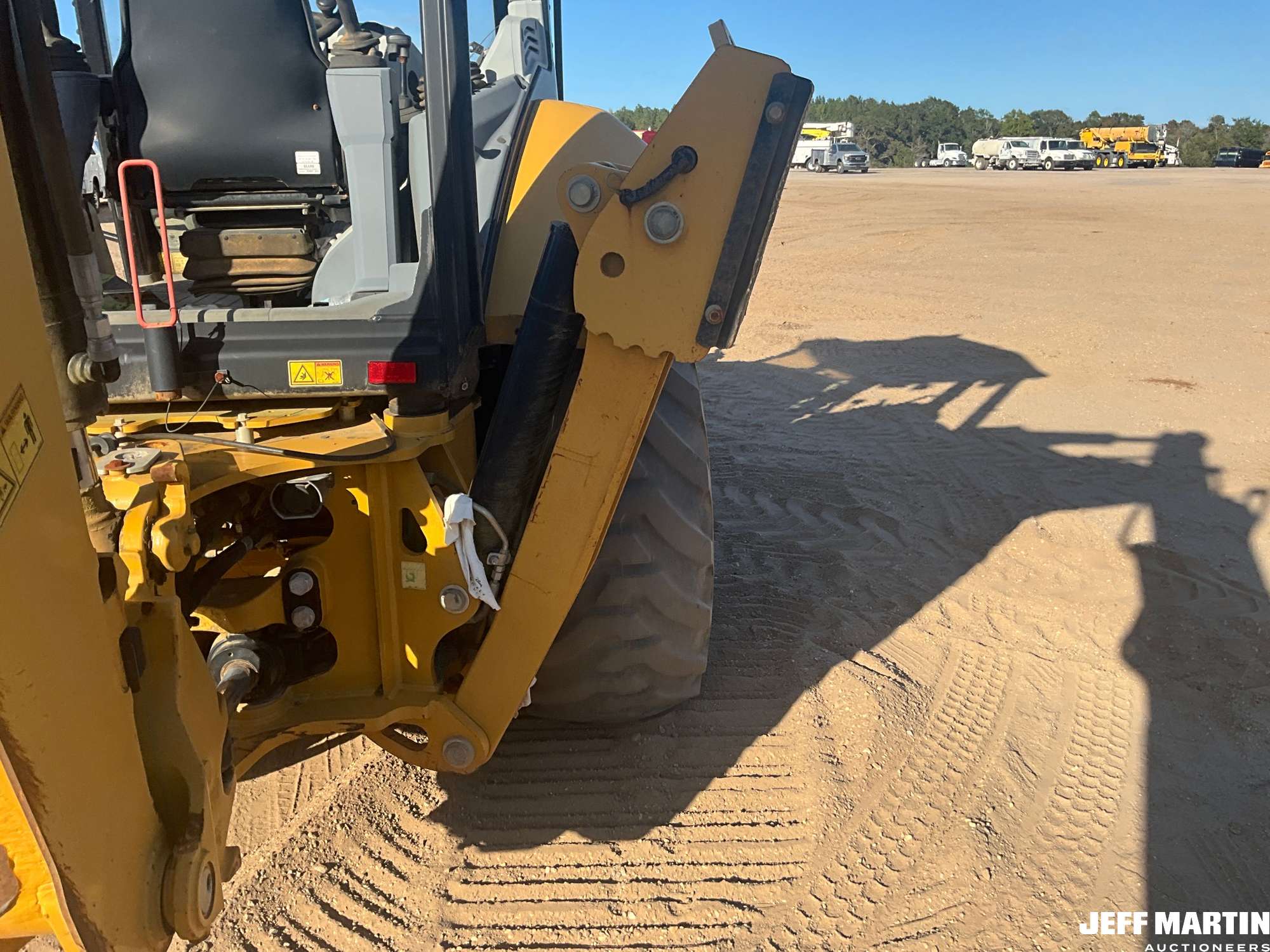

Backhoe - 18) Stabilizer spread, operating position (center of pad) (Since 2016)
|
130 in (330 cm)
|
|
Backhoe - 18) Stabilizer spread, operating position (center of pad) (2017)
|
130 in (330 cm)
|
|
Backhoe - 18) Stabilizer spread, operating position (center of pad) (2018)
|
130 in (330 cm)
|
|
Backhoe - 18) Stabilizer spread, operating position (center of pad) (2019)
|
130 in (330 cm)
|
|
Backhoe - 19) Stabilizer spread, operating position (outside edge of pad) (Since 2016)
|
148 in (376 cm)
|
|
Backhoe - 19) Stabilizer spread, operating position (outside edge of pad) (2017)
|
148 in (376 cm)
|
|
Backhoe - 19) Stabilizer spread, operating position (outside edge of pad) (2018)
|
148 in (376 cm)
|
|
Backhoe - 19) Stabilizer spread, operating position (outside edge of pad) (2019)
|
148 in (376 cm)
|
|
Backhoe - Bucket dig force (Since 2016)
|
13,103 lbf (58 kN)
|
|
Backhoe - Bucket dig force (Since 2016)
|
13,290 lbf (59 kN)
|
|
Backhoe - Bucket dig force (Since 2017)
|
13,103 lbf (58 kN)
|
|
Backhoe - Bucket dig force (Since 2017)
|
13,290 lbf (59 kN)
|
|
Backhoe - Bucket dig force (Since 2018)
|
13,103 lbf (58 kN)
|
|
Backhoe - Bucket dig force (Since 2018)
|
13,290 lbf (59 kN)
|
|
Backhoe - Bucket dig force (Since 2019)
|
13,103 lbf (58 kN)
|
|
Backhoe - Bucket dig force (Since 2019)
|
13,290 lbf (59 kN)
|
|
Backhoe - Bucket rotation (Since 2016)
|
204 deg |
|
Backhoe - Bucket rotation (Since 2016)
|
205 deg |
|
Backhoe - Bucket rotation (Since 2017)
|
204 deg |
|
Backhoe - Bucket rotation (Since 2017)
|
205 deg |
|
Backhoe - Bucket rotation (Since 2018)
|
204 deg |
|
Backhoe - Bucket rotation (Since 2018)
|
205 deg |
|
Backhoe - Bucket rotation (Since 2019)
|
204 deg |
|
Backhoe - Bucket rotation (Since 2019)
|
205 deg |
|
Backhoe - Loading height (Since 2016)
|
164 in (417 cm)
|
|
Backhoe - Loading height (Since 2016)
|
142 in (361 cm)
|
|
Backhoe - Loading height (Since 2016)
|
143 in (363 cm)
|
|
Backhoe - Loading height (Since 2017)
|
164 in (417 cm)
|
|
Backhoe - Loading height (Since 2017)
|
142 in (361 cm)
|
|
Backhoe - Loading height (Since 2017)
|
143 in (363 cm)
|
|
Backhoe - Loading height (Since 2018)
|
164 in (417 cm)
|
|
Backhoe - Loading height (Since 2018)
|
142 in (361 cm)
|
|
Backhoe - Loading height (Since 2018)
|
143 in (363 cm)
|
|
Backhoe - Loading height (Since 2019)
|
164 in (417 cm)
|
|
Backhoe - Loading height (Since 2019)
|
142 in (361 cm)
|
|
Backhoe - Loading height (Since 2019)
|
143 in (363 cm)
|
|
Backhoe - Maximum operating height (Since 2016)
|
247 in (627 cm)
|
|
Backhoe - Maximum operating height (Since 2016)
|
218 in (554 cm)
|
|
Backhoe - Maximum operating height (Since 2017)
|
247 in (627 cm)
|
|
Backhoe - Maximum operating height (Since 2017)
|
218 in (554 cm)
|
|
Backhoe - Maximum operating height (Since 2018)
|
247 in (627 cm)
|
|
Backhoe - Maximum operating height (Since 2018)
|
218 in (554 cm)
|
|
Backhoe - Maximum operating height (Since 2019)
|
247 in (627 cm)
|
|
Backhoe - Maximum operating height (Since 2019)
|
218 in (554 cm)
|
|
Backhoe - Reach from rear axle centerline at ground line (Since 2016)
|
305 in (775 cm)
|
|
Backhoe - Reach from rear axle centerline at ground line (Since 2016)
|
265 in (673 cm)
|
|
Backhoe - Reach from rear axle centerline at ground line (Since 2016)
|
264 in (671 cm)
|
|
Backhoe - Reach from rear axle centerline at ground line (Since 2017)
|
305 in (775 cm)
|
|
Backhoe - Reach from rear axle centerline at ground line (Since 2017)
|
265 in (673 cm)
|
|
Backhoe - Reach from rear axle centerline at ground line (Since 2017)
|
264 in (671 cm)
|
|
Backhoe - Reach from rear axle centerline at ground line (Since 2018)
|
305 in (775 cm)
|
|
Backhoe - Reach from rear axle centerline at ground line (Since 2018)
|
265 in (673 cm)
|
|
Backhoe - Reach from rear axle centerline at ground line (Since 2018)
|
264 in (671 cm)
|
|
Backhoe - Reach from rear axle centerline at ground line (Since 2019)
|
305 in (775 cm)
|
|
Backhoe - Reach from rear axle centerline at ground line (Since 2019)
|
265 in (673 cm)
|
|
Backhoe - Reach from rear axle centerline at ground line (Since 2019)
|
264 in (671 cm)
|
|
Backhoe - Stabilizer spread, transport position (Since 2016)
|
91 in (231 cm)
|
|
Backhoe - Stabilizer spread, transport position (2017)
|
91 in (231 cm)
|
|
Backhoe - Stabilizer spread, transport position (2018)
|
91 in (231 cm)
|
|
Backhoe - Stabilizer spread, transport position (2019)
|
91 in (231 cm)
|
|
Backhoe - Stick dig force (Since 2016)
|
5,346 lbf (24 kN)
|
|
Backhoe - Stick dig force (Since 2016)
|
7,286 lbf (32 kN)
|
|
Backhoe - Stick dig force (Since 2016)
|
7,276 lbf (32 kN)
|
|
Backhoe - Stick dig force (Since 2017)
|
5,346 lbf (24 kN)
|
|
Backhoe - Stick dig force (Since 2017)
|
7,286 lbf (32 kN)
|
|
Backhoe - Stick dig force (Since 2017)
|
7,276 lbf (32 kN)
|
|
Backhoe - Stick dig force (Since 2018)
|
5,346 lbf (24 kN)
|
|
Backhoe - Stick dig force (Since 2018)
|
7,286 lbf (32 kN)
|
|
Backhoe - Stick dig force (Since 2018)
|
7,276 lbf (32 kN)
|
|
Backhoe - Stick dig force (Since 2019)
|
5,346 lbf (24 kN)
|
|
Backhoe - Stick dig force (Since 2019)
|
7,286 lbf (32 kN)
|
|
Backhoe - Stick dig force (Since 2019)
|
7,276 lbf (32 kN)
|
|

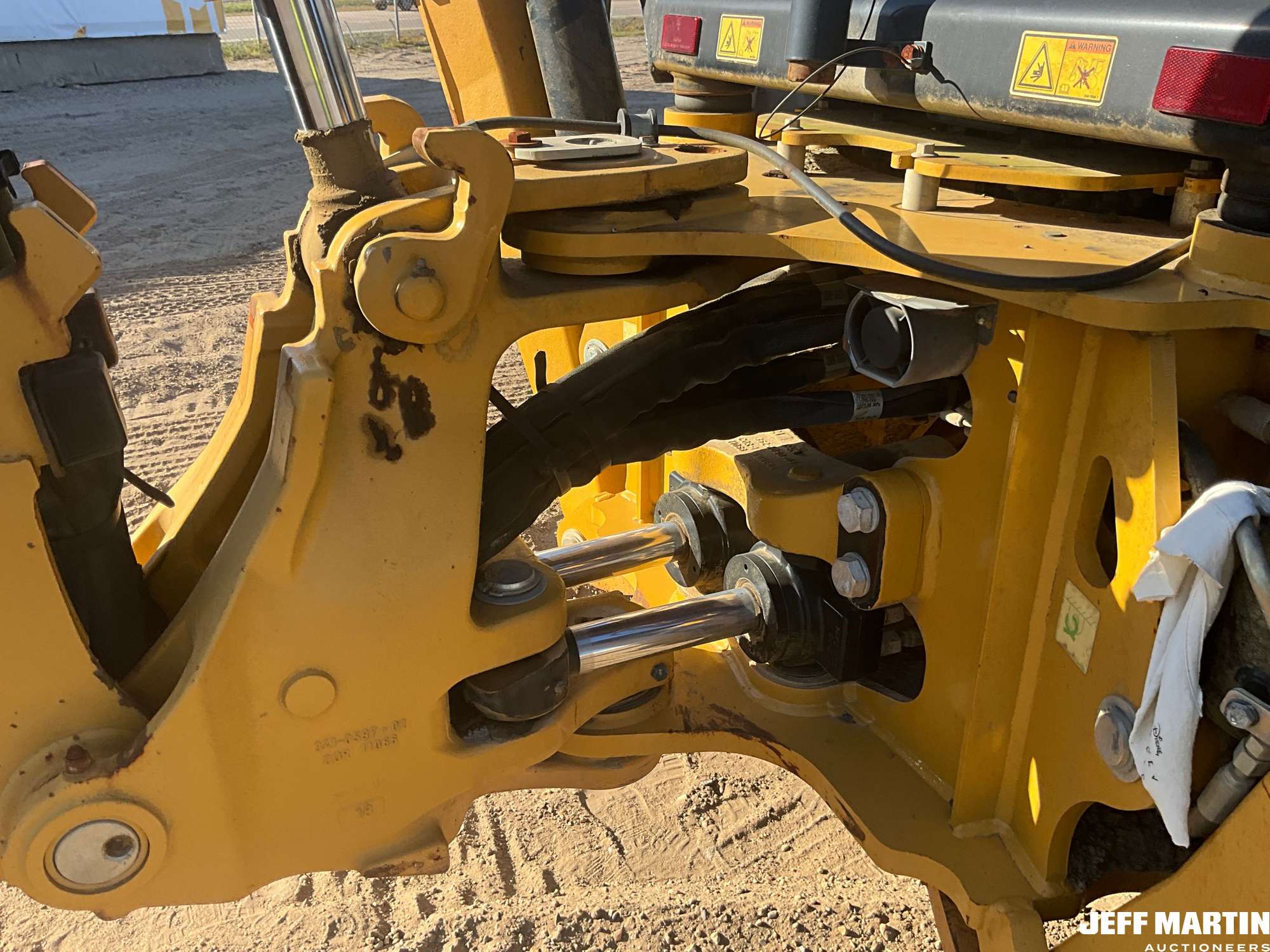

Backhoe - Swing arc (Since 2016)
|
180 deg |
|
Backhoe - Swing arc (2017)
|
180 deg |
|
Backhoe - Swing arc (2018)
|
180 deg |
|
Backhoe - Swing arc (2019)
|
180 deg |
|
Backhoe Loading Height (Since 2015)
|
12 ft (4 m)
|
|
Backhoe Loading Height (2016)
|
12 ft (4 m)
|
|
Backhoe Loading Height (2017)
|
12 ft (4 m)
|
|
Backhoe Loading Height (2019)
|
12 ft (4 m)
|
|
Bore (Since 2016)
|
4 in (10 cm)
|
|
Bore (2017)
|
4 in (10 cm)
|
|
Bore (2018)
|
4 in (10 cm)
|
|
Bore (2019)
|
4 in (10 cm)
|
|
Bucket jaw clamping force (Since 2016)
|
11,375 lbf (51 kN)
|
|
Bucket jaw clamping force (2017)
|
11,375 lbf (51 kN)
|
|
Bucket jaw clamping force (2018)
|
11,375 lbf (51 kN)
|
|
Bucket jaw clamping force (2019)
|
11,375 lbf (51 kN)
|
|

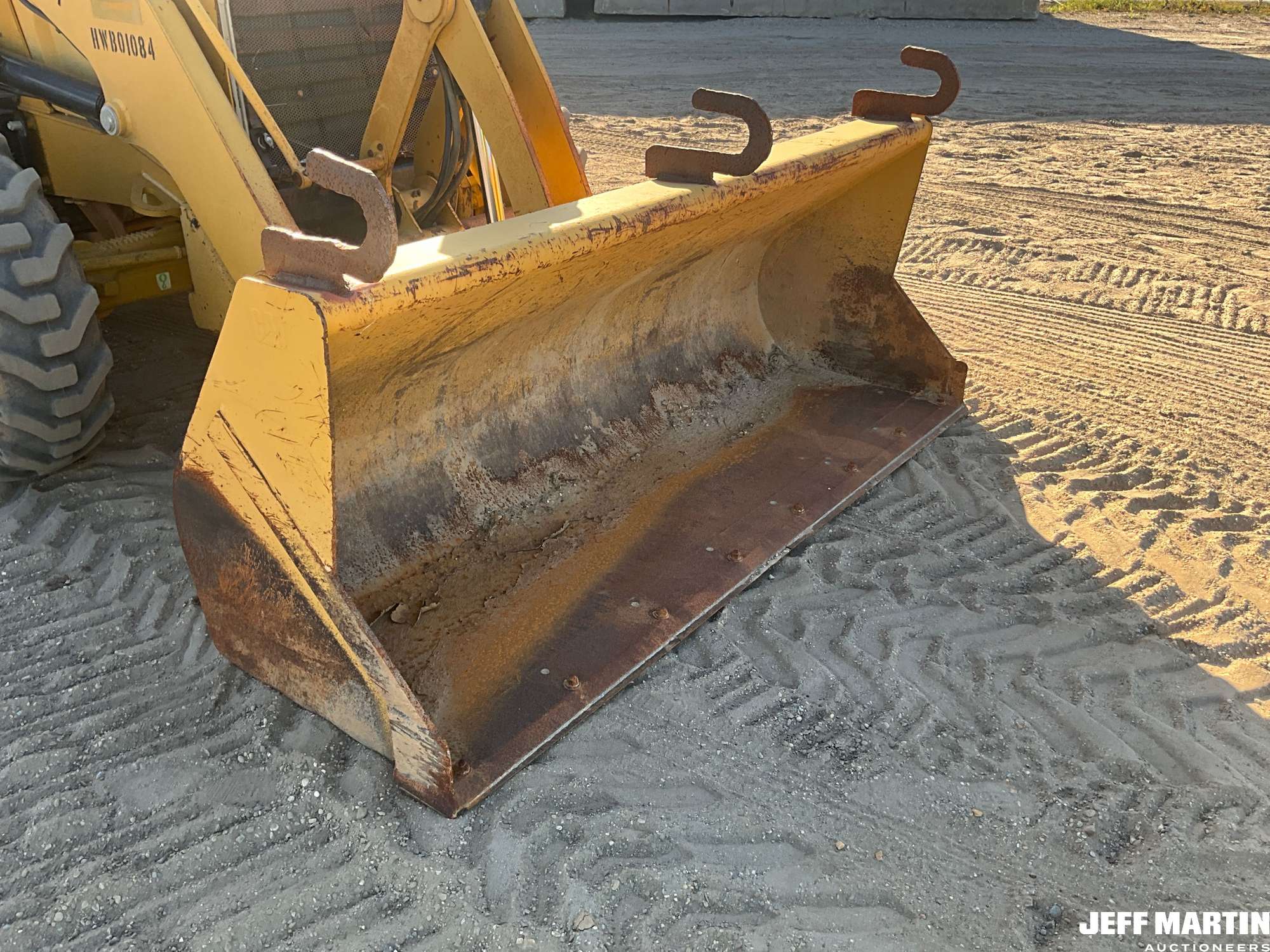

Capacity (SAE) rated (Since 2016)
|
1 cu yd (1 cu m)
|
|
Capacity (SAE) rated (Since 2016)
|
1 cu yd (1 cu m)
|
|
Capacity (SAE) rated (Since 2016)
|
1 cu yd (1 cu m)
|
|
Capacity (SAE) rated (Since 2017)
|
1 cu yd (1 cu m)
|
|
Capacity (SAE) rated (Since 2017)
|
1 cu yd (1 cu m)
|
|
Capacity (SAE) rated (Since 2017)
|
1 cu yd (1 cu m)
|
|
Capacity (SAE) rated (Since 2018)
|
1 cu yd (1 cu m)
|
|
Capacity (SAE) rated (Since 2018)
|
1 cu yd (1 cu m)
|
|
Capacity (SAE) rated (Since 2018)
|
1 cu yd (1 cu m)
|
|
Capacity (SAE) rated (Since 2019)
|
1 cu yd (1 cu m)
|
|
Capacity (SAE) rated (Since 2019)
|
1 cu yd (1 cu m)
|
|
Capacity (SAE) rated (Since 2019)
|
1 cu yd (1 cu m)
|
|
Dump height at maximum angle (Since 2016)
|
111 in (282 cm)
|
|
Dump height at maximum angle (Since 2016)
|
108 in (274 cm)
|
|
Dump height at maximum angle (Since 2016)
|
110 in (279 cm)
|
|
Dump height at maximum angle (Since 2017)
|
111 in (282 cm)
|
|
Dump height at maximum angle (Since 2017)
|
108 in (274 cm)
|
|
Dump height at maximum angle (Since 2017)
|
110 in (279 cm)
|
|
Dump height at maximum angle (Since 2018)
|
111 in (282 cm)
|
|
Dump height at maximum angle (Since 2018)
|
108 in (274 cm)
|
|
Dump height at maximum angle (Since 2018)
|
110 in (279 cm)
|
|
Dump height at maximum angle (Since 2019)
|
111 in (282 cm)
|
|
Dump height at maximum angle (Since 2019)
|
108 in (274 cm)
|
|
Dump height at maximum angle (Since 2019)
|
110 in (279 cm)
|
|
Engine Displacement (Since 2016)
|
268 cu in (4,392 cu cm)
|
|
Engine Displacement (2017)
|
268 cu in (4,392 cu cm)
|
|
Engine Displacement (2018)
|
268 cu in (4,392 cu cm)
|
|
Engine Displacement (2019)
|
268 cu in (4,392 cu cm)
|
|
Engine Model (Since 2016)
|
C4.4 ACERT 3054C |
|
Engine Model (2017)
|
C4.4 ACERT 3054C |
|
Engine Model (2018)
|
C4.4 ACERT 3054C |
|
Engine Model (2019)
|
C4.4 ACERT 3054C |
|
Flywheel Power - Gross - Tier 2/Stage II/Japan 2001 (Tier 2) equivalent (Since 2016)
|
92 hp (69 kw)
|
|
Flywheel Power - Gross - Tier 2/Stage II/Japan 2001 (Tier 2) equivalent (2017)
|
92 hp (69 kw)
|
|
Flywheel Power - Gross - Tier 2/Stage II/Japan 2001 (Tier 2) equivalent (2018)
|
92 hp (69 kw)
|
|
Flywheel Power - Gross - Tier 2/Stage II/Japan 2001 (Tier 2) equivalent (2019)
|
92 hp (69 kw)
|
|
Flywheel Power - Gross - Tier 3/Stage IIIA/Japan 2006 (Tier 3) equivalent (Since 2016)
|
94 hp (70 kw)
|
|
Flywheel Power - Gross - Tier 3/Stage IIIA/Japan 2006 (Tier 3) equivalent (2017)
|
94 hp (70 kw)
|
|
Flywheel Power - Gross - Tier 3/Stage IIIA/Japan 2006 (Tier 3) equivalent (2018)
|
94 hp (70 kw)
|
|
Flywheel Power - Gross - Tier 3/Stage IIIA/Japan 2006 (Tier 3) equivalent (2019)
|
94 hp (70 kw)
|
|
Flywheel Power - Gross - Tier 4 Final/Stage IV/Japan 2014 (Tier 4 Final) (Since 2016)
|
94 hp (70 kw)
|
|
Flywheel Power - Gross - Tier 4 Final/Stage IV/Japan 2014 (Tier 4 Final) (2017)
|
94 hp (70 kw)
|
|
Flywheel Power - Gross - Tier 4 Final/Stage IV/Japan 2014 (Tier 4 Final) (2018)
|
94 hp (70 kw)
|
|
Flywheel Power - Gross - Tier 4 Final/Stage IV/Japan 2014 (Tier 4 Final) (2019)
|
94 hp (70 kw)
|
|
Flywheel Power - Net - Tier 2/Stage II/Japan 2001 (Tier 2) equivalent (Since 2016)
|
87 hp (65 kw)
|
|
Flywheel Power - Net - Tier 2/Stage II/Japan 2001 (Tier 2) equivalent (2017)
|
87 hp (65 kw)
|
|
Flywheel Power - Net - Tier 2/Stage II/Japan 2001 (Tier 2) equivalent (2018)
|
87 hp (65 kw)
|
|
Flywheel Power - Net - Tier 2/Stage II/Japan 2001 (Tier 2) equivalent (2019)
|
87 hp (65 kw)
|
|
Flywheel Power - Net - Tier 3/Stage IIIA/Japan 2006 (Tier 3) equivalent (Since 2016)
|
87 hp (65 kw)
|
|
Flywheel Power - Net - Tier 3/Stage IIIA/Japan 2006 (Tier 3) equivalent (2017)
|
87 hp (65 kw)
|
|
Flywheel Power - Net - Tier 3/Stage IIIA/Japan 2006 (Tier 3) equivalent (2018)
|
87 hp (65 kw)
|
|
Flywheel Power - Net - Tier 3/Stage IIIA/Japan 2006 (Tier 3) equivalent (2019)
|
87 hp (65 kw)
|
|
Flywheel Power - Net - Tier 4 Final/Stage IV/Japan 2014 (Tier 4 Final) (Since 2016)
|
89 hp (66 kw)
|
|
Flywheel Power - Net - Tier 4 Final/Stage IV/Japan 2014 (Tier 4 Final) (2017)
|
89 hp (66 kw)
|
|
Flywheel Power - Net - Tier 4 Final/Stage IV/Japan 2014 (Tier 4 Final) (2018)
|
89 hp (66 kw)
|
|
Flywheel Power - Net - Tier 4 Final/Stage IV/Japan 2014 (Tier 4 Final) (2019)
|
89 hp (66 kw)
|
|
Fuel Tank Capacity (Since 2016)
|
42 US gal (160 L)
|
|
Fuel Tank Capacity (2017)
|
42 US gal (160 L)
|
|
Fuel Tank Capacity (2018)
|
42 US gal (160 L)
|
|
Fuel Tank Capacity (2019)
|
42 US gal (160 L)
|
|
Hydraulic System, closed center (Since 2016)
|
Load Sensing, Flow Sharing |
|
Hydraulic System, closed center (2017)
|
Load Sensing, Flow Sharing |
|
Hydraulic System, closed center (2018)
|
Load Sensing, Flow Sharing |
|
Hydraulic System, closed center (2019)
|
Load Sensing, Flow Sharing |
|
Jaw opening maximum (Since 2016)
|
31 in (79 cm)
|
|
Jaw opening maximum (2017)
|
31 in (79 cm)
|
|
Jaw opening maximum (2018)
|
31 in (79 cm)
|
|
Jaw opening maximum (2019)
|
31 in (79 cm)
|
|
Lift breakout force (Since 2016)
|
10,772 lbf (48 kN)
|
|
Lift breakout force (Since 2016)
|
10,189 lbf (45 kN)
|
|
Lift breakout force (Since 2016)
|
9,979 lbf (44 kN)
|
|
Lift breakout force (Since 2016)
|
9,645 lbf (43 kN)
|
|
Lift breakout force (Since 2017)
|
10,772 lbf (48 kN)
|
|
Lift breakout force (Since 2017)
|
10,189 lbf (45 kN)
|
|
Lift breakout force (Since 2017)
|
9,979 lbf (44 kN)
|
|
Lift breakout force (Since 2017)
|
9,645 lbf (43 kN)
|
|
Lift breakout force (Since 2018)
|
10,772 lbf (48 kN)
|
|
Lift breakout force (Since 2018)
|
10,189 lbf (45 kN)
|
|
Lift breakout force (Since 2018)
|
9,979 lbf (44 kN)
|
|
Lift breakout force (Since 2018)
|
9,645 lbf (43 kN)
|
|
Lift breakout force (Since 2019)
|
10,772 lbf (48 kN)
|
|
Lift breakout force (Since 2019)
|
10,189 lbf (45 kN)
|
|
Lift breakout force (Since 2019)
|
9,979 lbf (44 kN)
|
|
Lift breakout force (Since 2019)
|
9,645 lbf (43 kN)
|
|
Lift capacity at maximum height (Since 2016)
|
6,751 lbs (3,062 kg)
|
|
Lift capacity at maximum height (Since 2016)
|
6,535 lbs (2,964 kg)
|
|
Lift capacity at maximum height (Since 2016)
|
6,108 lbs (2,771 kg)
|
|
Lift capacity at maximum height (Since 2016)
|
5,855 lbs (2,656 kg)
|
|
Lift capacity at maximum height (Since 2017)
|
6,751 lbs (3,062 kg)
|
|
Lift capacity at maximum height (Since 2017)
|
6,535 lbs (2,964 kg)
|
|
Lift capacity at maximum height (Since 2017)
|
6,108 lbs (2,771 kg)
|
|
Lift capacity at maximum height (Since 2017)
|
5,855 lbs (2,656 kg)
|
|
Lift capacity at maximum height (Since 2018)
|
6,751 lbs (3,062 kg)
|
|
Lift capacity at maximum height (Since 2018)
|
6,535 lbs (2,964 kg)
|
|
Lift capacity at maximum height (Since 2018)
|
6,108 lbs (2,771 kg)
|
|
Lift capacity at maximum height (Since 2018)
|
5,855 lbs (2,656 kg)
|
|
Lift capacity at maximum height (Since 2019)
|
6,751 lbs (3,062 kg)
|
|
Lift capacity at maximum height (Since 2019)
|
6,535 lbs (2,964 kg)
|
|
Lift capacity at maximum height (Since 2019)
|
6,108 lbs (2,771 kg)
|
|
Lift capacity at maximum height (Since 2019)
|
5,855 lbs (2,656 kg)
|
|

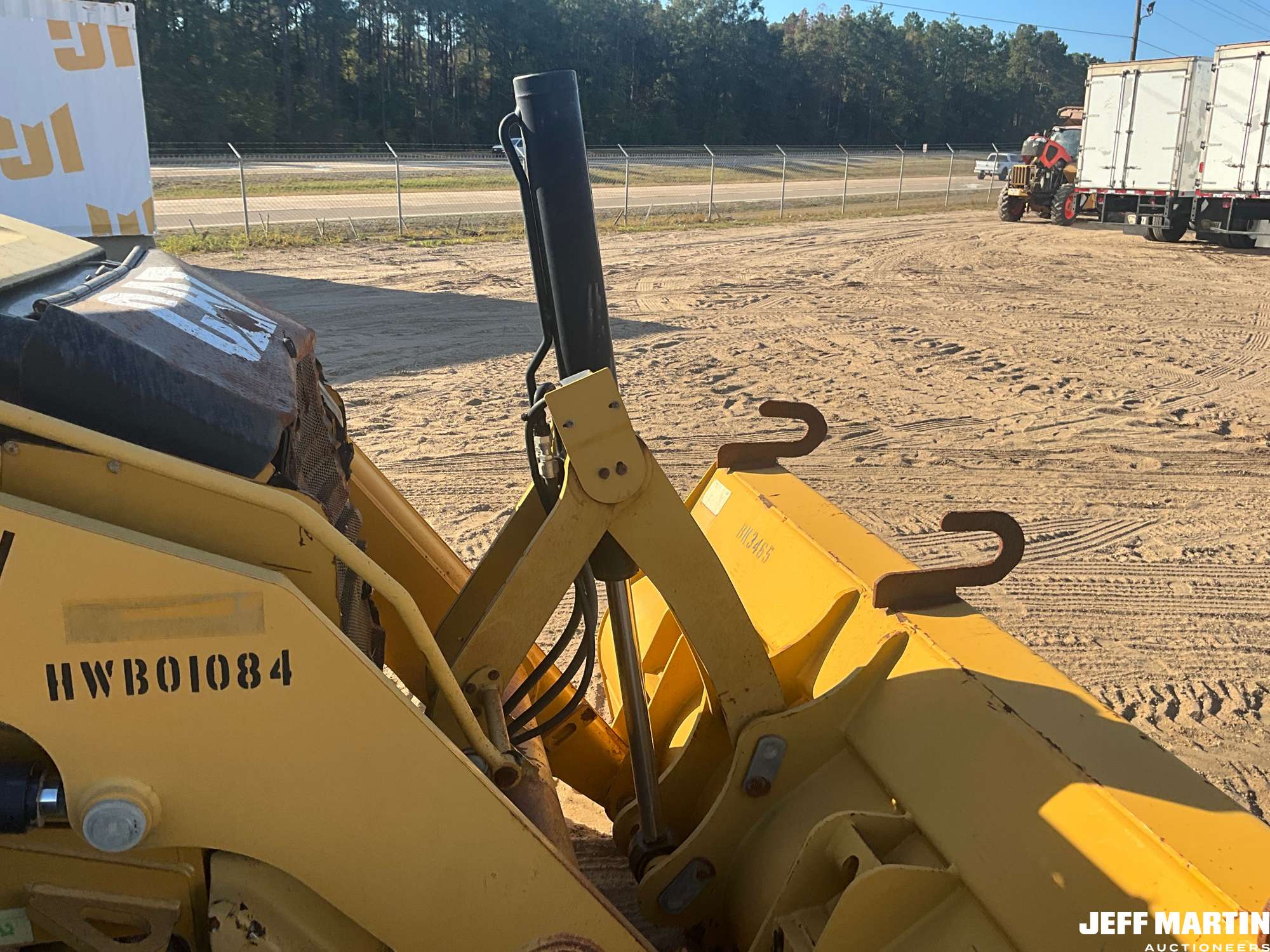

Loader Breakout Force (Since 2015)
|
12,281 lbs (5,571 kg)
|
|
Loader Breakout Force (2016)
|
12,281 lbs (5,571 kg)
|
|
Loader Breakout Force (2017)
|
12,281 lbs (5,571 kg)
|
|
Loader Breakout Force (2019)
|
12,281 lbs (5,571 kg)
|
|
Loader Lift Capacity (Since 2015)
|
2,466 lbs (1,119 kg)
|
|
Loader Lift Capacity (2016)
|
2,466 lbs (1,119 kg)
|
|
Loader Lift Capacity (2017)
|
2,466 lbs (1,119 kg)
|
|
Loader Lift Capacity (2019)
|
2,466 lbs (1,119 kg)
|
|
Loader SAE (Since 2015)
|
87 hp (65 kw)
|
|
Loader SAE (2016)
|
87 hp (65 kw)
|
|
Loader SAE (2017)
|
87 hp (65 kw)
|
|
Loader SAE (2019)
|
87 hp (65 kw)
|
|
Machine Dimensions - 1) Overall transport length (Since 2016)
|
279 in (709 cm)
|
|
Machine Dimensions - 1) Overall transport length (Since 2016)
|
282 in (716 cm)
|
|
Machine Dimensions - 1) Overall transport length (Since 2016)
|
281 in (714 cm)
|
|
Machine Dimensions - 1) Overall transport length (Since 2017)
|
279 in (709 cm)
|
|
Machine Dimensions - 1) Overall transport length (Since 2017)
|
282 in (716 cm)
|
|
Machine Dimensions - 1) Overall transport length (Since 2017)
|
281 in (714 cm)
|
|
Machine Dimensions - 1) Overall transport length (Since 2018)
|
279 in (709 cm)
|
|
Machine Dimensions - 1) Overall transport length (Since 2018)
|
282 in (716 cm)
|
|
Machine Dimensions - 1) Overall transport length (Since 2018)
|
281 in (714 cm)
|
|
Machine Dimensions - 1) Overall transport length (Since 2019)
|
279 in (709 cm)
|
|
Machine Dimensions - 1) Overall transport length (Since 2019)
|
282 in (716 cm)
|
|
Machine Dimensions - 1) Overall transport length (Since 2019)
|
281 in (714 cm)
|
|
Machine Dimensions - 2) Overall transport height S-stick (Since 2016)
|
141 in (358 cm)
|
|
Machine Dimensions - 2) Overall transport height S-stick (2017)
|
141 in (358 cm)
|
|
Machine Dimensions - 2) Overall transport height S-stick (2018)
|
141 in (358 cm)
|
|
Machine Dimensions - 2) Overall transport height S-stick (2019)
|
141 in (358 cm)
|
|
Machine Dimensions - 3) Height to top of cab/canopy (Since 2016)
|
111 in (282 cm)
|
|
Machine Dimensions - 3) Height to top of cab/canopy (2017)
|
111 in (282 cm)
|
|
Machine Dimensions - 3) Height to top of cab/canopy (2018)
|
111 in (282 cm)
|
|
Machine Dimensions - 3) Height to top of cab/canopy (2019)
|
111 in (282 cm)
|
|
Machine Dimensions - 4) Height to top of exhaust stack (Since 2016)
|
108 in (274 cm)
|
|
Machine Dimensions - 4) Height to top of exhaust stack (2017)
|
108 in (274 cm)
|
|
Machine Dimensions - 4) Height to top of exhaust stack (2018)
|
108 in (274 cm)
|
|
Machine Dimensions - 4) Height to top of exhaust stack (2019)
|
108 in (274 cm)
|
|
Machine Dimensions - 5) Rear axle centerline to front grill (Since 2016)
|
106 in (269 cm)
|
|
Machine Dimensions - 5) Rear axle centerline to front grill (2017)
|
106 in (269 cm)
|
|
Machine Dimensions - 5) Rear axle centerline to front grill (2018)
|
106 in (269 cm)
|
|
Machine Dimensions - 5) Rear axle centerline to front grill (2019)
|
106 in (269 cm)
|
|
Machine Dimensions - 6) Wheelbase (2WD/AWD) (Since 2016)
|
87 in (221 cm)
|
|
Machine Dimensions - 6) Wheelbase (2WD/AWD) (2017)
|
87 in (221 cm)
|
|
Machine Dimensions - 6) Wheelbase (2WD/AWD) (2018)
|
87 in (221 cm)
|
|
Machine Dimensions - 6) Wheelbase (2WD/AWD) (2019)
|
87 in (221 cm)
|
|
Machine Dimensions - Front wheel tread gauge (Since 2016)
|
75 in (191 cm)
|
|
Machine Dimensions - Front wheel tread gauge (2017)
|
75 in (191 cm)
|
|
Machine Dimensions - Front wheel tread gauge (2018)
|
75 in (191 cm)
|
|
Machine Dimensions - Front wheel tread gauge (2019)
|
75 in (191 cm)
|
|
Machine Dimensions - Ground clearance (485 kg/ 1170 lb counterweight) (Since 2016)
|
11 in (28 cm)
|
|
Machine Dimensions - Ground clearance (485 kg/ 1170 lb counterweight) (2017)
|
11 in (28 cm)
|
|
Machine Dimensions - Ground clearance (485 kg/ 1170 lb counterweight) (2018)
|
11 in (28 cm)
|
|
Machine Dimensions - Ground clearance (485 kg/ 1170 lb counterweight) (2019)
|
11 in (28 cm)
|
|
Machine Dimensions - Ground clearance (AWD guard) (Since 2016)
|
12 in (30 cm)
|
|
Machine Dimensions - Ground clearance (AWD guard) (2017)
|
12 in (30 cm)
|
|
Machine Dimensions - Ground clearance (AWD guard) (2018)
|
12 in (30 cm)
|
|
Machine Dimensions - Ground clearance (AWD guard) (2019)
|
12 in (30 cm)
|
|
Machine Dimensions - Ground clearance (LH step) (Since 2016)
|
12 in (30 cm)
|
|
Machine Dimensions - Ground clearance (LH step) (2017)
|
12 in (30 cm)
|
|
Machine Dimensions - Ground clearance (LH step) (2018)
|
12 in (30 cm)
|
|
Machine Dimensions - Ground clearance (LH step) (2019)
|
12 in (30 cm)
|
|
Machine Dimensions - Overall length (Since 2016)
|
277 in (704 cm)
|
|
Machine Dimensions - Overall length (Since 2016)
|
281 in (714 cm)
|
|
Machine Dimensions - Overall length (Since 2016)
|
278 in (706 cm)
|
|
Machine Dimensions - Overall length (Since 2017)
|
277 in (704 cm)
|
|
Machine Dimensions - Overall length (Since 2017)
|
281 in (714 cm)
|
|
Machine Dimensions - Overall length (Since 2017)
|
278 in (706 cm)
|
|
Machine Dimensions - Overall length (Since 2018)
|
277 in (704 cm)
|
|
Machine Dimensions - Overall length (Since 2018)
|
281 in (714 cm)
|
|
Machine Dimensions - Overall length (Since 2018)
|
278 in (706 cm)
|
|
Machine Dimensions - Overall length (Since 2019)
|
277 in (704 cm)
|
|
Machine Dimensions - Overall length (Since 2019)
|
281 in (714 cm)
|
|
Machine Dimensions - Overall length (Since 2019)
|
278 in (706 cm)
|
|
Machine Dimensions - Overall transport height E-stick (Since 2016)
|
143 in (363 cm)
|
|
Machine Dimensions - Overall transport height E-stick (2017)
|
143 in (363 cm)
|
|
Machine Dimensions - Overall transport height E-stick (2018)
|
143 in (363 cm)
|
|
Machine Dimensions - Overall transport height E-stick (2019)
|
143 in (363 cm)
|
|
Machine Dimensions - Overall width (Since 2016)
|
91 in (231 cm)
|
|
Machine Dimensions - Overall width (2017)
|
91 in (231 cm)
|
|
Machine Dimensions - Overall width (2018)
|
91 in (231 cm)
|
|
Machine Dimensions - Overall width (2019)
|
91 in (231 cm)
|
|
Machine Dimensions - Rear wheel tread gauge (Since 2016)
|
67 in (170 cm)
|
|
Machine Dimensions - Rear wheel tread gauge (2017)
|
67 in (170 cm)
|
|
Machine Dimensions - Rear wheel tread gauge (2018)
|
67 in (170 cm)
|
|
Machine Dimensions - Rear wheel tread gauge (2019)
|
67 in (170 cm)
|
|
Max Digging Depth (Since 2015)
|
14 ft (4 m)
|
|
Max Digging Depth (2016)
|
14 ft (4 m)
|
|
Max Digging Depth (2017)
|
14 ft (4 m)
|
|
Max Digging Depth (2019)
|
14 ft (4 m)
|
|
Maximum grading angle (Since 2016)
|
116 deg |
|
Maximum grading angle (Since 2016)
|
112 deg |
|
Maximum grading angle (Since 2017)
|
116 deg |
|
Maximum grading angle (Since 2017)
|
112 deg |
|
Maximum grading angle (Since 2018)
|
116 deg |
|
Maximum grading angle (Since 2018)
|
112 deg |
|
Maximum grading angle (Since 2019)
|
116 deg |
|
Maximum grading angle (Since 2019)
|
112 deg |
|
Net Torque Rise at 1400 rpm - Tier 2/Stage II/Japan 2001 (Tier 2) equivalent (Since 2016)
|
38 % |
|
Net Torque Rise at 1400 rpm - Tier 2/Stage II/Japan 2001 (Tier 2) equivalent (2017)
|
38 % |
|
Net Torque Rise at 1400 rpm - Tier 2/Stage II/Japan 2001 (Tier 2) equivalent (2018)
|
38 % |
|
Net Torque Rise at 1400 rpm - Tier 2/Stage II/Japan 2001 (Tier 2) equivalent (2019)
|
38 % |
|
Net Torque Rise at 1400 rpm - Tier 3/Stage IIIA/Japan 2006 (Tier 3) equivalent (Since 2016)
|
37 % |
|
Net Torque Rise at 1400 rpm - Tier 3/Stage IIIA/Japan 2006 (Tier 3) equivalent (2017)
|
37 % |
|
Net Torque Rise at 1400 rpm - Tier 3/Stage IIIA/Japan 2006 (Tier 3) equivalent (2018)
|
37 % |
|
Net Torque Rise at 1400 rpm - Tier 3/Stage IIIA/Japan 2006 (Tier 3) equivalent (2019)
|
37 % |
|
Net Torque Rise at 1400 rpm - Tier 4 Final/Stage IV/Japan 2014 (Tier 4 Final) (Since 2016)
|
56 % |
|
Net Torque Rise at 1400 rpm - Tier 4 Final/Stage IV/Japan 2014 (Tier 4 Final) (2017)
|
56 % |
|
Net Torque Rise at 1400 rpm - Tier 4 Final/Stage IV/Japan 2014 (Tier 4 Final) (2018)
|
56 % |
|
Net Torque Rise at 1400 rpm - Tier 4 Final/Stage IV/Japan 2014 (Tier 4 Final) (2019)
|
56 % |
|
No. of Cylinders (Since 2016)
|
4 |
|
No. of Cylinders (2017)
|
4 |
|
No. of Cylinders (2018)
|
4 |
|
No. of Cylinders (2019)
|
4 |
|
Operating Weight (Since 2015)
|
15,207 lbs (6,898 kg)
|
|
Operating Weight (2016)
|
15,207 lbs (6,898 kg)
|
|
Operating Weight (Since 2016)
|
16,506 lbs (7,487 kg)
|
|
Operating Weight (Since 2017)
|
15,207 lbs (6,898 kg)
|
|
Operating Weight (Since 2017)
|
16,506 lbs (7,487 kg)
|
|
Operating Weight (2018)
|
16,506 lbs (7,487 kg)
|
|
Operating Weight (Since 2019)
|
15,207 lbs (6,898 kg)
|
|
Operating Weight (Since 2019)
|
16,506 lbs (7,487 kg)
|
|
Pump Capacity (Since 2016)
|
3,336 psi (23,000 kPa)
|
|
Pump Capacity (2017)
|
3,336 psi (23,000 kPa)
|
|
Pump Capacity (2018)
|
3,336 psi (23,000 kPa)
|
|
Pump Capacity (2019)
|
3,336 psi (23,000 kPa)
|
|
Rated Engine RPM (Since 2016)
|
2,200 rpm |
|
Rated Engine RPM (2017)
|
2,200 rpm |
|
Rated Engine RPM (2018)
|
2,200 rpm |
|
Rated Engine RPM (2019)
|
2,200 rpm |
|
Stroke (Since 2016)
|
5 in (13 cm)
|
|
Stroke (2017)
|
5 in (13 cm)
|
|
Stroke (2018)
|
5 in (13 cm)
|
|
Stroke (2019)
|
5 in (13 cm)
|
|
Tilt breakout force (Since 2016)
|
12,281 lbf (55 kN)
|
|
Tilt breakout force (Since 2016)
|
10,339 lbf (46 kN)
|
|
Tilt breakout force (Since 2016)
|
11,841 lbf (53 kN)
|
|
Tilt breakout force (Since 2016)
|
11,636 lbf (52 kN)
|
|
Tilt breakout force (Since 2017)
|
12,281 lbf (55 kN)
|
|
Tilt breakout force (Since 2017)
|
10,339 lbf (46 kN)
|
|
Tilt breakout force (Since 2017)
|
11,841 lbf (53 kN)
|
|
Tilt breakout force (Since 2017)
|
11,636 lbf (52 kN)
|
|
Tilt breakout force (Since 2018)
|
12,281 lbf (55 kN)
|
|
Tilt breakout force (Since 2018)
|
10,339 lbf (46 kN)
|
|
Tilt breakout force (Since 2018)
|
11,841 lbf (53 kN)
|
|
Tilt breakout force (Since 2018)
|
11,636 lbf (52 kN)
|
|
Tilt breakout force (Since 2019)
|
12,281 lbf (55 kN)
|
|
Tilt breakout force (Since 2019)
|
10,339 lbf (46 kN)
|
|
Tilt breakout force (Since 2019)
|
11,841 lbf (53 kN)
|
|
Tilt breakout force (Since 2019)
|
11,636 lbf (52 kN)
|
|

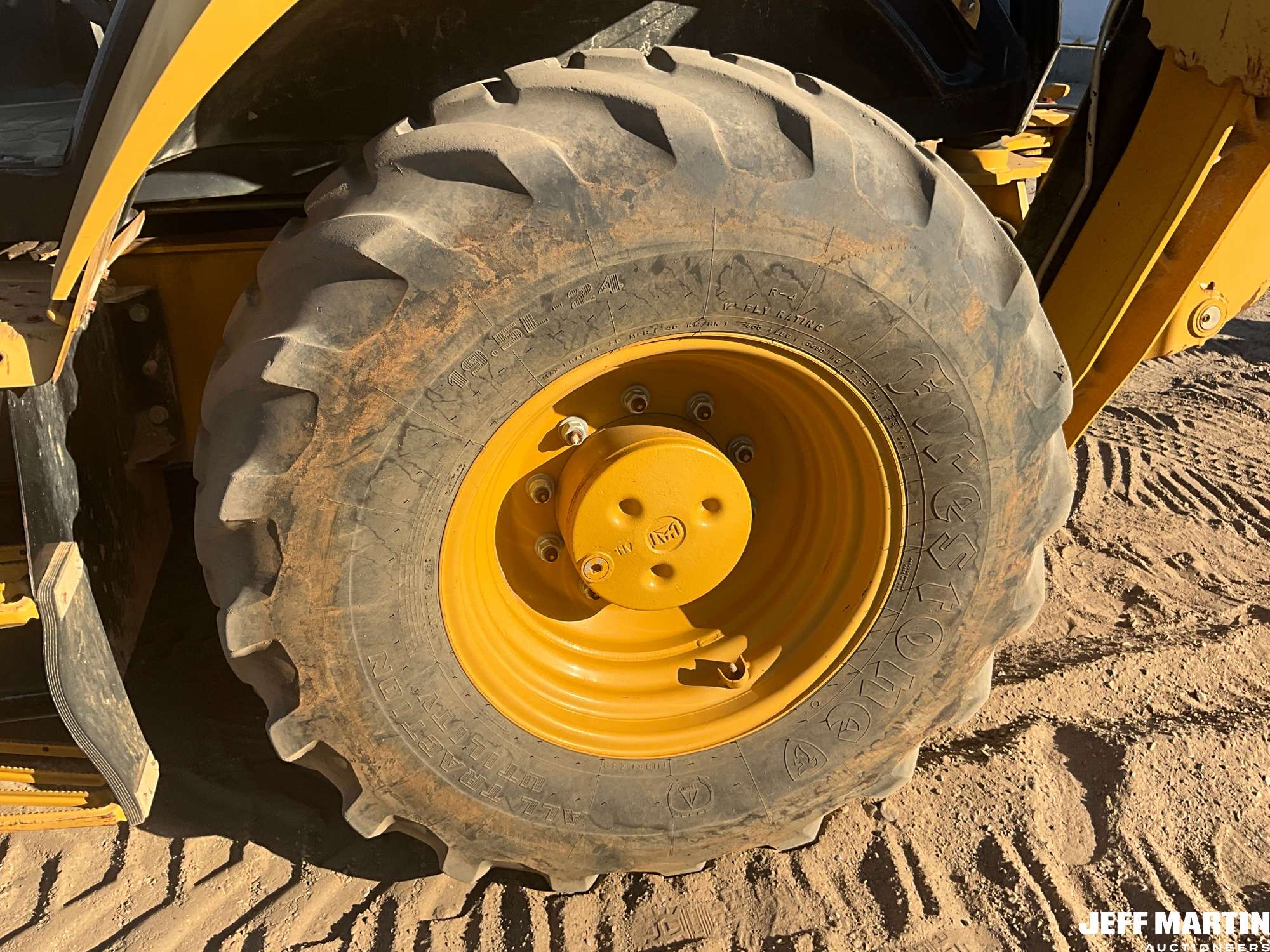

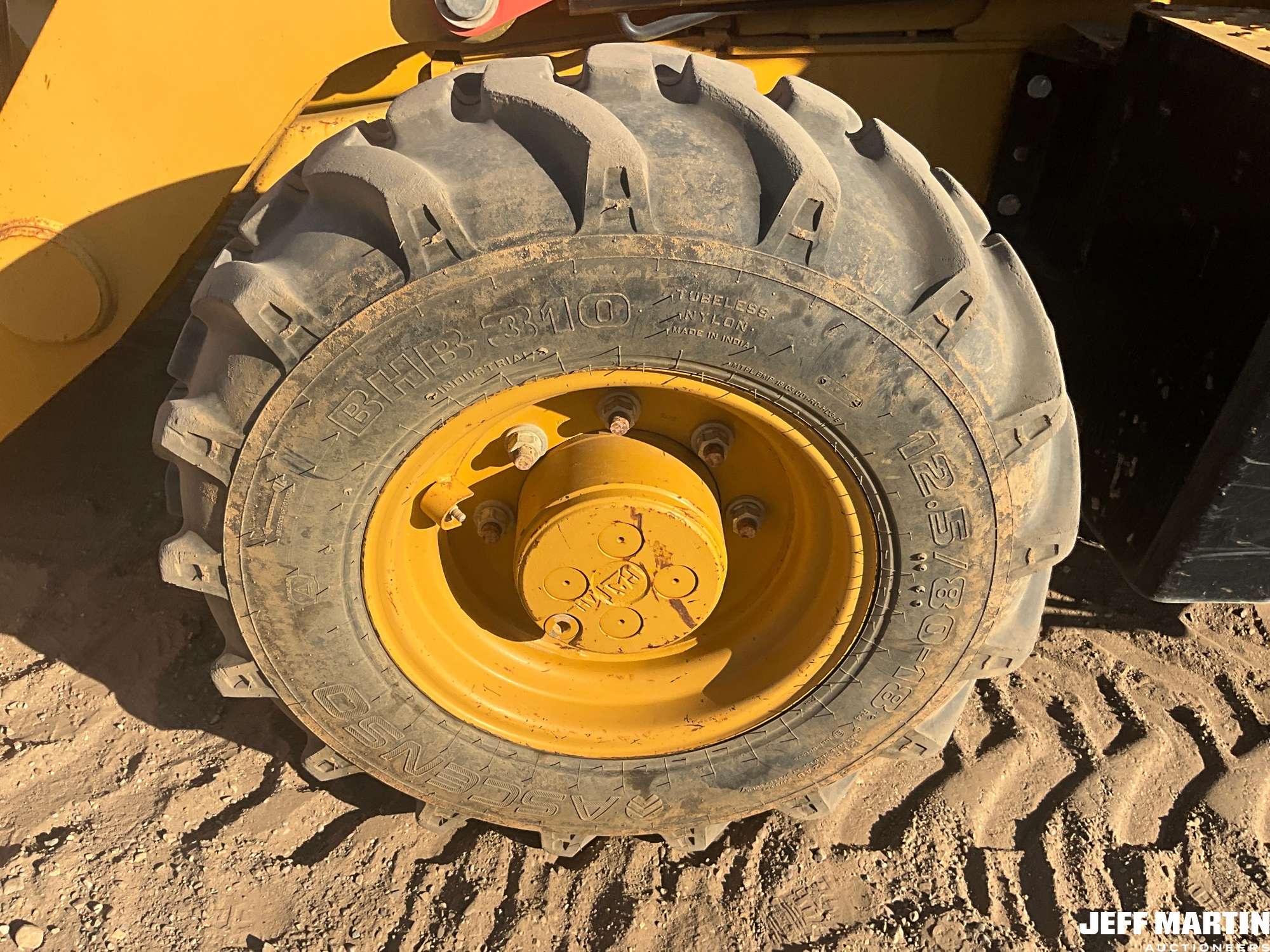

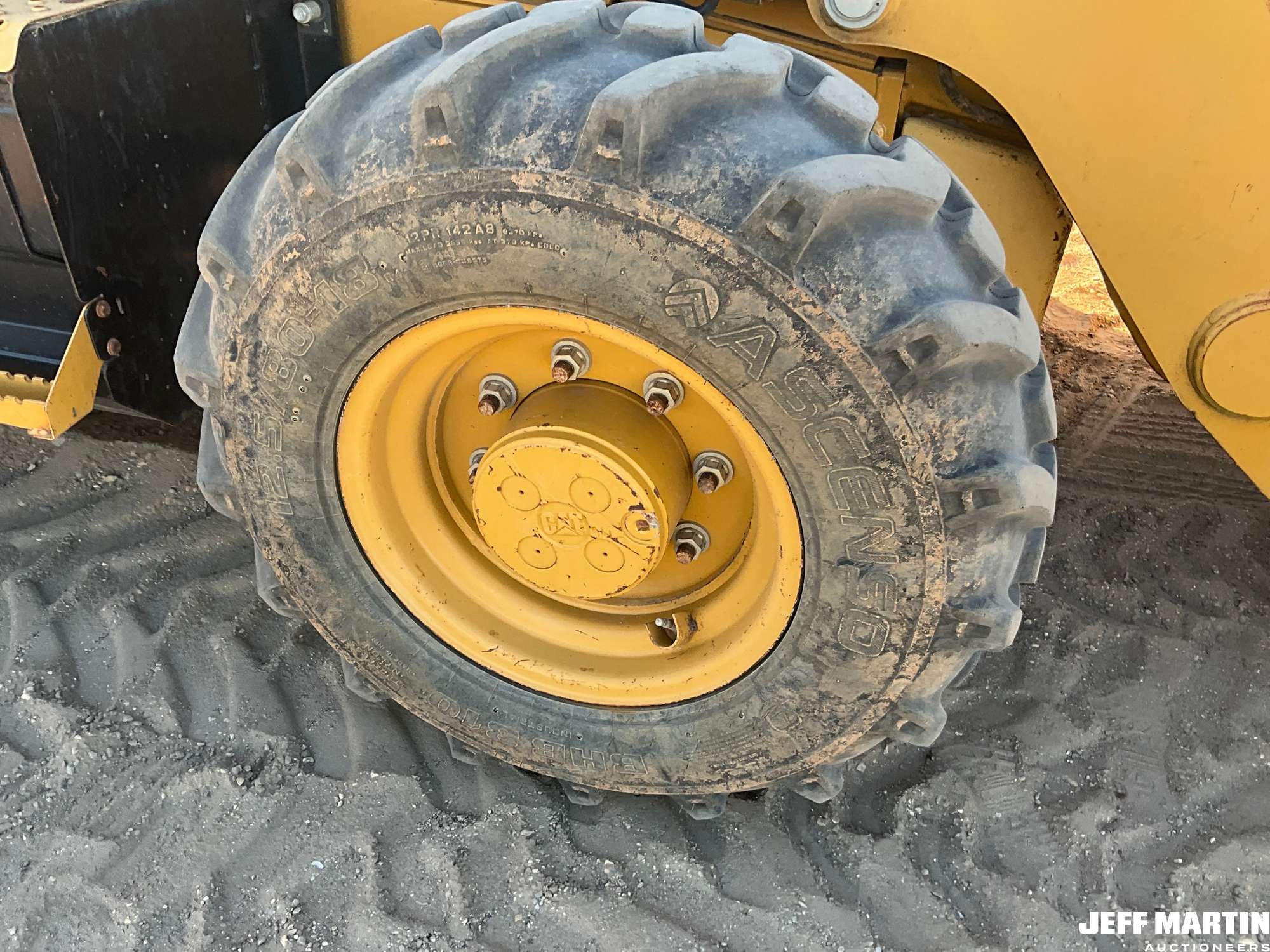

Tires - 2WD Bias Front (Since 2016)
|
12-16.5 10 PR F-3 |
|
Tires - 2WD Bias Front (2017)
|
12-16.5 10 PR F-3 |
|
Tires - 2WD Bias Front (2018)
|
12-16.5 10 PR F-3 |
|
Tires - 2WD Bias Front (2019)
|
12-16.5 10 PR F-3 |
|

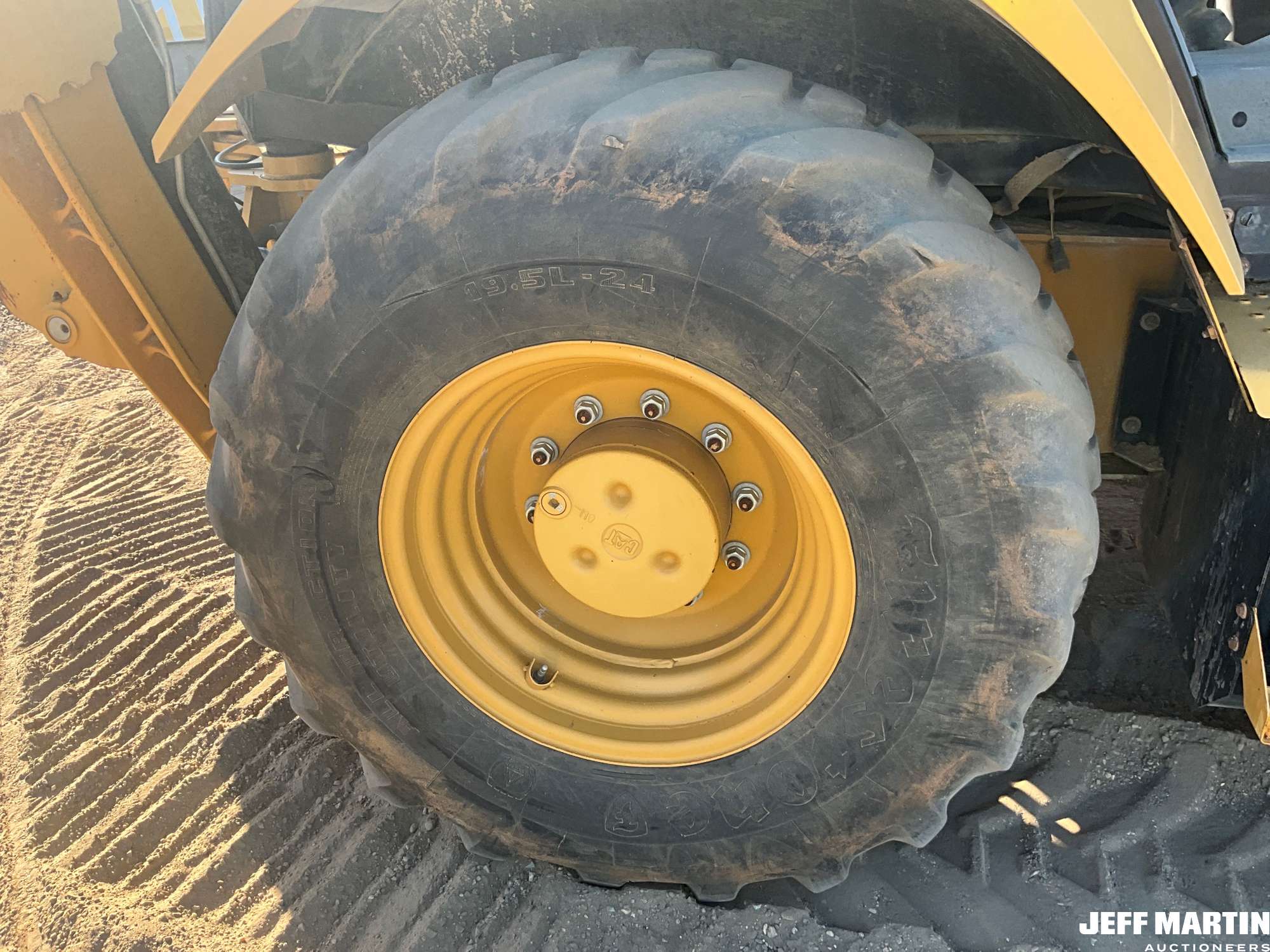

Tires - 2WD Bias Rear (Since 2016)
|
19.5L-24 12 PR R-4 |
|
Tires - 2WD Bias Rear (2017)
|
19.5L-24 12 PR R-4 |
|
Tires - 2WD Bias Rear (2018)
|
19.5L-24 12 PR R-4 |
|
Tires - 2WD Bias Rear (2019)
|
19.5L-24 12 PR R-4 |
|
Tires - AWD Bias Front (Since 2016)
|
12.5/80-18 12 PR I-3 |
|
Tires - AWD Bias Front (2017)
|
12.5/80-18 12 PR I-3 |
|
Tires - AWD Bias Front (2018)
|
12.5/80-18 12 PR I-3 |
|
Tires - AWD Bias Front (2019)
|
12.5/80-18 12 PR I-3 |
|
Tires - AWD Bias Front, Flotation (Since 2016)
|
12.5/80-18 12 PR I-3 |
|
Tires - AWD Bias Front, Flotation (2017)
|
12.5/80-18 12 PR I-3 |
|
Tires - AWD Bias Front, Flotation (2018)
|
12.5/80-18 12 PR I-3 |
|
Tires - AWD Bias Front, Flotation (2019)
|
12.5/80-18 12 PR I-3 |
|
Tires - AWD Bias Rear (Since 2016)
|
19.5L-24 12 PR R-4 |
|
Tires - AWD Bias Rear (2017)
|
19.5L-24 12 PR R-4 |
|
Tires - AWD Bias Rear (2018)
|
19.5L-24 12 PR R-4 |
|
Tires - AWD Bias Rear (2019)
|
19.5L-24 12 PR R-4 |
|
Tires - AWD Bias Rear, Flotation (Since 2016)
|
21L-24 16 PR R-4 |
|
Tires - AWD Bias Rear, Flotation (2017)
|
21L-24 16 PR R-4 |
|
Tires - AWD Bias Rear, Flotation (2018)
|
21L-24 16 PR R-4 |
|
Tires - AWD Bias Rear, Flotation (2019)
|
21L-24 16 PR R-4 |
|
Tires - AWD Combination Front (Since 2016)
|
340/80R18 |
|
Tires - AWD Combination Front (2017)
|
340/80R18 |
|
Tires - AWD Combination Front (2018)
|
340/80R18 |
|
Tires - AWD Combination Front (2019)
|
340/80R18 |
|
Tires - AWD Combination Rear (Since 2016)
|
19.5L-24 12 PR R-4 |
|
Tires - AWD Combination Rear (2017)
|
19.5L-24 12 PR R-4 |
|
Tires - AWD Combination Rear (2018)
|
19.5L-24 12 PR R-4 |
|
Tires - AWD Combination Rear (2019)
|
19.5L-24 12 PR R-4 |
|
Tires - AWD Radial Front (Since 2016)
|
340/80R18 |
|
Tires - AWD Radial Front (2017)
|
340/80R18 |
|
Tires - AWD Radial Front (2018)
|
340/80R18 |
|
Tires - AWD Radial Front (2019)
|
340/80R18 |
|
Tires - AWD Radial Rear (Since 2016)
|
500/70R24 |
|
Tires - AWD Radial Rear (2017)
|
500/70R24 |
|
Tires - AWD Radial Rear (2018)
|
500/70R24 |
|
Tires - AWD Radial Rear (2019)
|
500/70R24 |
|
Travel Speed 4th Gear Fwd (Since 2015)
|
25 mph (40 kph)
|
|
Travel Speed 4th Gear Fwd (2016)
|
25 mph (40 kph)
|
|
Travel Speed 4th Gear Fwd (2017)
|
25 mph (40 kph)
|
|
Travel Speed 4th Gear Fwd (2019)
|
25 mph (40 kph)
|
|
Turning Circle, Wall to Wall (Since 2016)
|
432 in (1,097 cm)
|
|
Turning Circle, Wall to Wall (2017)
|
432 in (1,097 cm)
|
|
Turning Circle, Wall to Wall (2018)
|
432 in (1,097 cm)
|
|
Turning Circle, Wall to Wall (2019)
|
432 in (1,097 cm)
|
|
Weight (does not include teeth or forks) (Since 2016)
|
847 lbs (384 kg)
|
|
Weight (does not include teeth or forks) (Since 2016)
|
994 lbs (451 kg)
|
|
Weight (does not include teeth or forks) (Since 2016)
|
1,642 lbs (745 kg)
|
|
Weight (does not include teeth or forks) (Since 2016)
|
2,017 lbs (915 kg)
|
|
Weight (does not include teeth or forks) (Since 2017)
|
847 lbs (384 kg)
|
|
Weight (does not include teeth or forks) (Since 2017)
|
994 lbs (451 kg)
|
|
Weight (does not include teeth or forks) (Since 2017)
|
1,642 lbs (745 kg)
|
|
Weight (does not include teeth or forks) (Since 2017)
|
2,017 lbs (915 kg)
|
|
Weight (does not include teeth or forks) (Since 2018)
|
847 lbs (384 kg)
|
|
Weight (does not include teeth or forks) (Since 2018)
|
994 lbs (451 kg)
|
|
Weight (does not include teeth or forks) (Since 2018)
|
1,642 lbs (745 kg)
|
|
Weight (does not include teeth or forks) (Since 2018)
|
2,017 lbs (915 kg)
|
|
Weight (does not include teeth or forks) (Since 2019)
|
847 lbs (384 kg)
|
|
Weight (does not include teeth or forks) (Since 2019)
|
994 lbs (451 kg)
|
|
Weight (does not include teeth or forks) (Since 2019)
|
1,642 lbs (745 kg)
|
|
Weight (does not include teeth or forks) (Since 2019)
|
2,017 lbs (915 kg)
|
|
Width (Since 2016)
|
89 in (226 cm)
|
|
Width (Since 2016)
|
90 in (229 cm)
|
|
Width (Since 2017)
|
89 in (226 cm)
|
|
Width (Since 2017)
|
90 in (229 cm)
|
|
Width (Since 2018)
|
89 in (226 cm)
|
|
Width (Since 2018)
|
90 in (229 cm)
|
|
Width (Since 2019)
|
89 in (226 cm)
|
|
Width (Since 2019)
|
90 in (229 cm)
|
|
Width of dozer cutting edge (Since 2016)
|
89 in (226 cm)
|
|
Width of dozer cutting edge (2017)
|
89 in (226 cm)
|
|
Width of dozer cutting edge (2018)
|
89 in (226 cm)
|
|
Width of dozer cutting edge (2019)
|
89 in (226 cm)
|
| Hydraulic System |
|
Hydraulic System Type |
Closed Center |
|
Pump Capacity At 2,200 Rpm |
35 gpm (132 lpm)
|
|
Pump Type |
Variable Flow, Axial Piston |
|
System Pressure - Backhoe |
3,336 psi |
|
System Pressure - Loader |
3,336 psi |
| Service Refill Capacities |
|
Cooling System With Air Conditioning |
6 gal (22 l)
|
|
Diesel Exhaust Fluid (Def)* |
5 gal (19 l)
|
|
Engine Oil - With Filter |
2 gal (9 l)
|
|
Front Axle (4wd) |
3 gal (11 l)
|
|
Front Axle (4wd) - Planetaries |
0 gal (1 l)
|
|
Fuel Tank |
42 gal (159 l)
|
|
Hydraulic System |
24 gal (90 l)
|
|
Hydraulic Tank |
11 gal (40 l)
|
|
Note (1) |
Requires ultra-low sulfur fuel less than or equal to 15 ppm fuel sulfur. |
|
Note (2) |
* Must meet the requirements outlined in ISO 22241. |
|
Rear Axle |
4 gal (17 l)
|
|
Rear Axle - Planetaries |
0 gal (2 l)
|
|
Transmission - Power Shuttle - 2wd |
4 gal (15 l)
|
|
Transmission - Power Shuttle - 4wd |
4 gal (15 l)
|
| Standards |
|
Brakes |
SAE J/ISO 3450; ISO 3450 1996 |
|
Cab - Fops |
SAE J/ISO 3449 APR98 LEVEL II and ISO 3449: 1992 LEVEL II |
|
Cab - Rops |
SAE J1040 MAY94; ISO 3741 1994 |
|
Cab - Sound |
ANSI/SAE J1166 OCT98 is 79 dB(A) |
|
Exterior Sound |
SAE J188 JUN86 is 76 dB(A) |
| Steering |
|
Axle Oscillation |
11 degrees |
|
Bore |
3 in (7 cm)
|
|
Power Steering |
Hydrostatic |
|
Rod Diameter |
1 in (4 cm)
|
|
Steering Type |
Front Wheel |
|
Stroke |
5 in (12 cm)
|
|
Turning Circle - 2wd/Awd (Inner Wheel Not Braked) - Outside Front Wheels |
27 ft (8 m)
|
|
Turning Circle - 2wd/Awd (Inner Wheel Not Braked) - Outside Widest Loader Bucket |
36 ft (11 m)
|
| Tires |
|
Choice 1 |
Front: 11L-16 (12 ply) F-3; Rear: 19.5L-24 (12 ply) R4 ATU |
|
Choice 2 |
Front: 12.5/80-18 (12 ply) 1-3; Rear: 19.5L-24 (12 ply) ATU |
|
Choice 3 |
Front: 12.5/80-18 NHS (12 ply) 1-3; Rear: 21L-24 (16 ply) R4 ATU |
|
Choice 4 |
Front: 340/80R18; Rear: 19.5L-24 (12 ply) R4 ATU |
| Transmission |
|
Power Shuttle Transmission - Forward 1st |
3 mph (5 kph)
|
|
Power Shuttle Transmission - Forward 2nd |
6 mph (9 kph)
|
|
Power Shuttle Transmission - Forward 3rd |
12 mph (19 kph)
|
|
Power Shuttle Transmission - Forward 4th |
23 mph (37 kph)
|
|
Power Shuttle Transmission - Reverse 1st |
3 mph (5 kph)
|
|
Power Shuttle Transmission - Reverse 2nd |
6 mph (9 kph)
|
|
Power Shuttle Transmission - Reverse 3rd |
12 mph (19 kph)
|
|
Power Shuttle Transmission - Reverse 4th |
23 mph (37 kph)
|
| Weights |
|
Air Conditioning |
101 lbs (46 kg)
|
|
Cab - Rops/Fops |
359 lbs (163 kg)
|
|
Counterweights - Option 1 |
255 lbs (116 kg)
|
|
Counterweights - Option 2 |
530 lbs (240 kg)
|
|
Counterweights - Option 3 |
1,015 lbs (460 kg)
|
|
Extendible Stick |
659 lbs (299 kg)
|
|
Four Wheel Drive |
392 lbs (178 kg)
|
|
Mp Bucket (0.96 M3/1.25 Yd3) - No Forks Or Teeth |
1,642 lbs (745 kg)
|
|
Operating Weight - Maximum |
24,251 lbs (11,000 kg)
|
|
Operating Weight - Maximum - Rops Capacity |
24,251 lbs (11,000 kg)
|
|
Operating Weight - Minimum |
15,904 lbs (7,214 kg)
|
