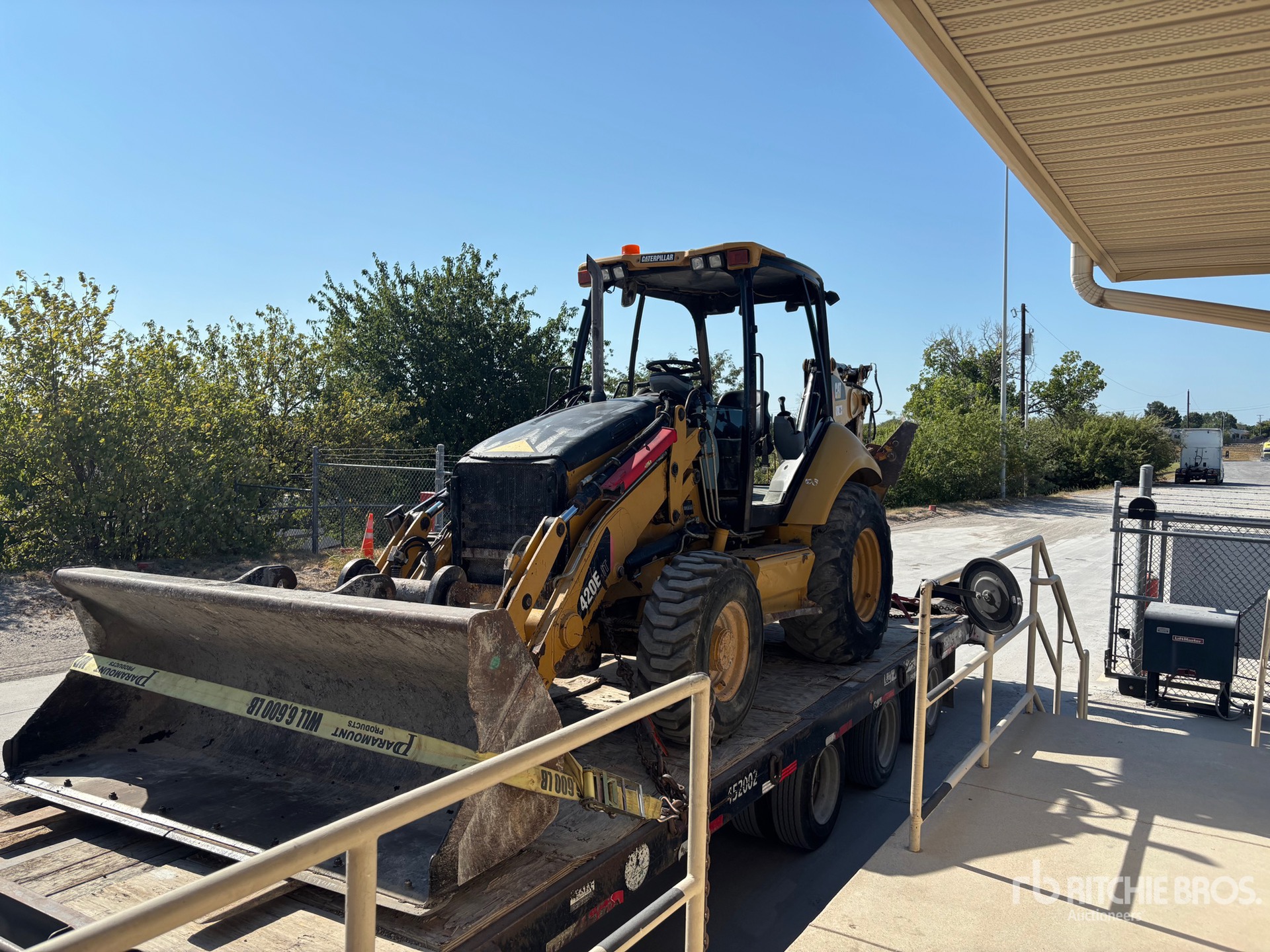

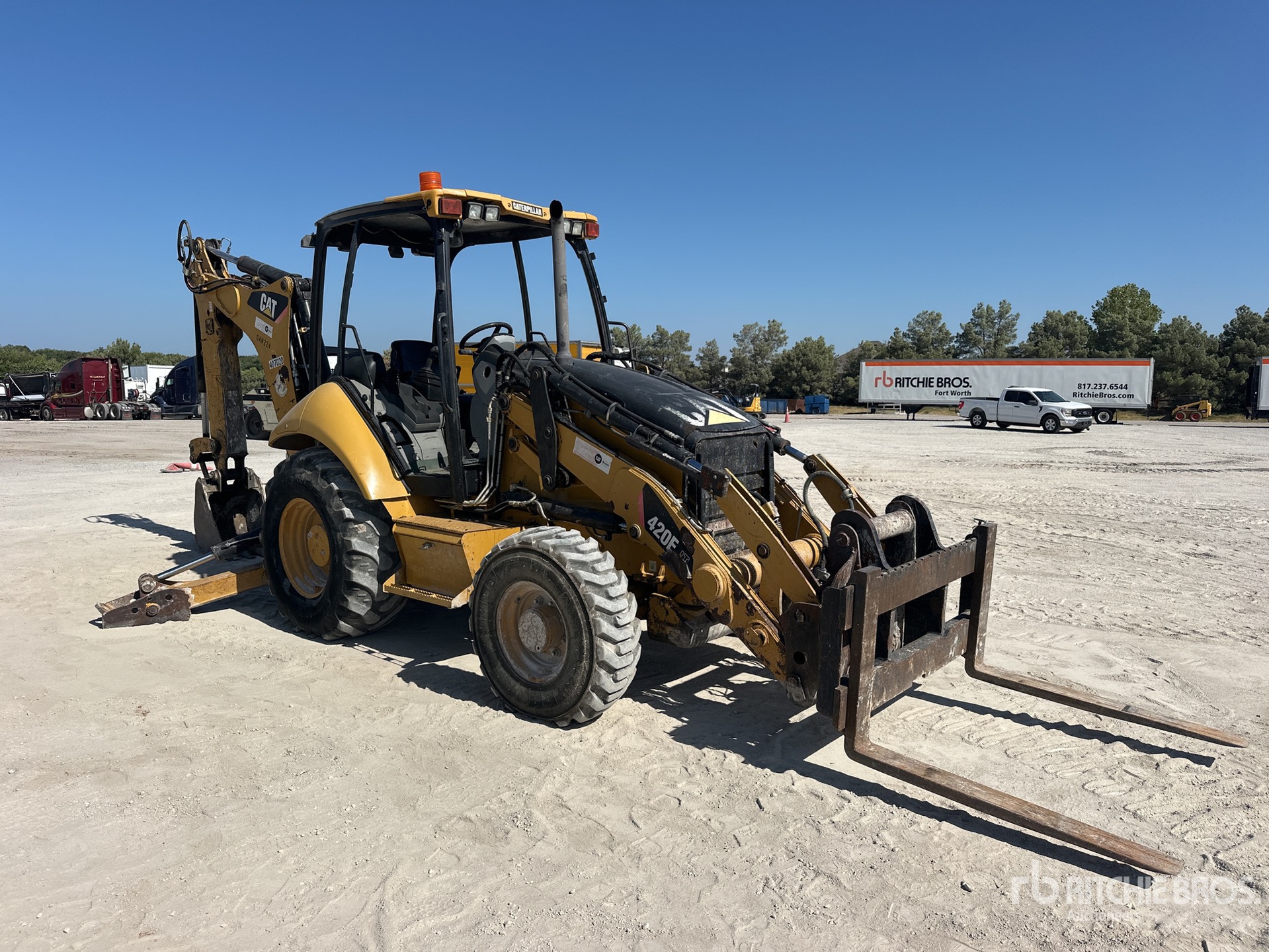

2010 Caterpillar 420E IT For Sale in Fort Worth, Tx
Auction Pricing
Auction Info: Starting on 2026-08-19 Click here to place a bid
Machine Info:

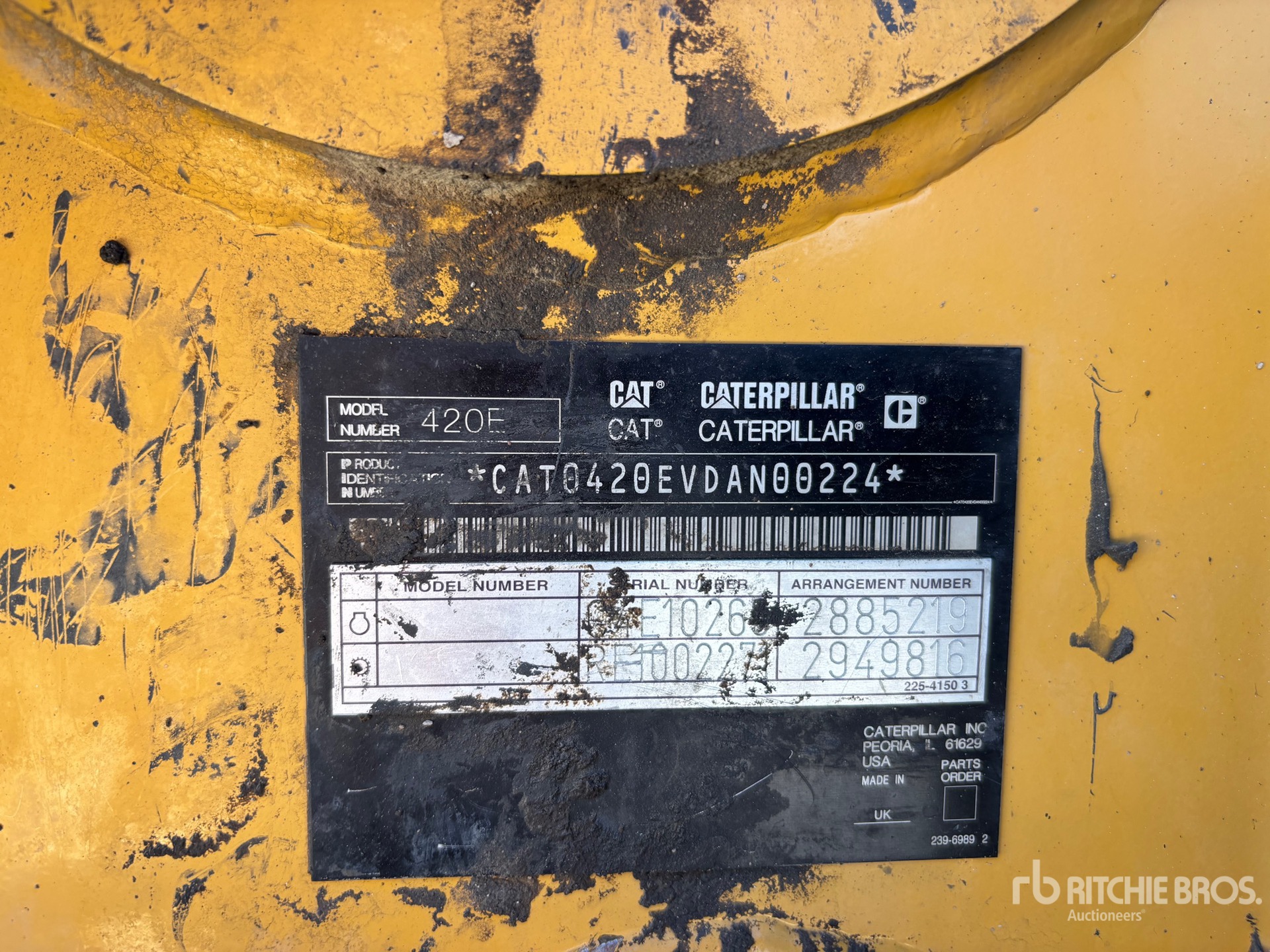

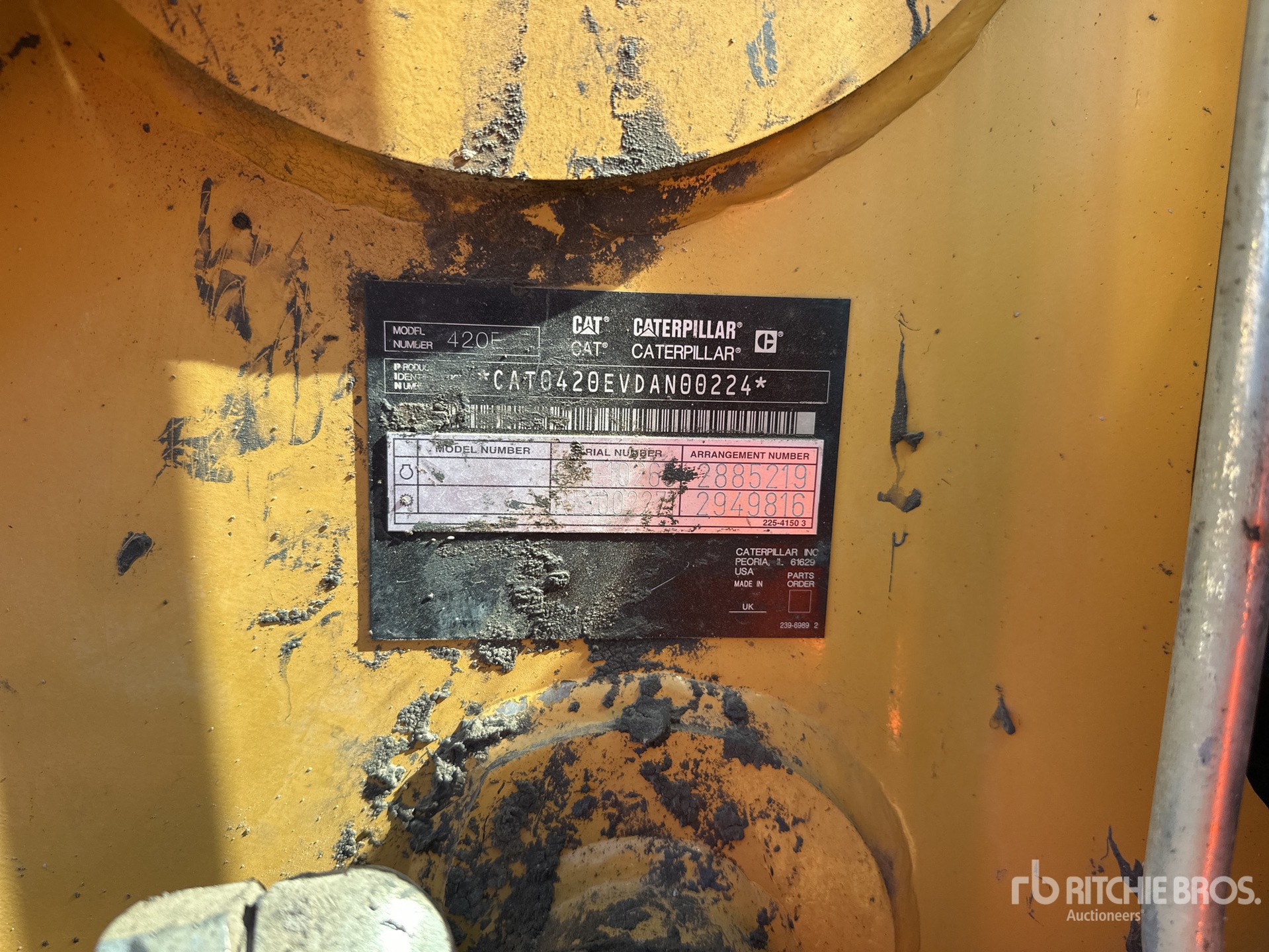

| Serial Number: | CAT0420EVDAN00224 |
| Machine Location: | FORT WORTH, TX |
Description:
Open Operator Station, Backhoe Pilot Controls, Auxiliary Hydraulics, Hydraulic Coupler, 94 in Loader Bucket, Forks, Extendable Stick, 24 in Backhoe Digging Bucket, Thumb Bracket, 46 in Forks The closing times of lots 277 thru 278 are tied together. If a bid is received, then a time extension will be applied to all lots. Once the time closes, the high bidder on each lot will be the winner., Job Completion Fleet Realignment for Heavy Highway Joint Venture, Closing Time: 2026-08-19 10:09:00 AM
From the manufacturer:
Supplied by HeavyEquipmentData.com →
The Caterpillar 420E IT is a backhoe loader designed for construction, utility, and site preparation work. It combines a front loader with a rear backhoe attachment, providing digging, loading, trenching, and material handling capability in one machine. The IT designation refers to integrated toolcarrier features, supporting quick attachment changes and improved versatility for handling pallets, forks, buckets, and other work tools. The 420E IT is part of Caterpillar's E Series backhoe loader line, known for balanced performance, operator visibility, and service access. It is commonly used on job sites requiring a compact, multi-purpose machine with loader and excavator functions.
| Backhoe |
|
Bucket Dig Force |
13,875 lbs (6,294 kg)
|
|
Bucket Dig Force - Extended |
13,863 lbs (6,288 kg)
|
|
Dig Depth |
14 ft (4 m)
|
|
Dig Depth - Extended |
18 ft (5 m)
|
|
Load Height - Extended |
14 ft (4 m)
|
|
Reach at Load Height - Extended |
9 ft (3 m)
|
|
Reach From Swivel |
19 ft (6 m)
|
|
Reach From Swivel - Extended |
22 ft (7 m)
|
| Dimensions |
|
Ground Clearance |
1 ft (0 m)
|
|
Height to Top of Suspended Cab |
9 ft (3 m)
|
|
Transport Length |
24 ft (7 m)
|
|
Transport Width |
8 ft (2 m)
|
|
Wheelbase |
7 ft (2 m)
|
| Engine |
|
Displacement |
268 cu in (4,392 cu cm)
|
|
Engine Model |
C4.4 DIT |
|
Gross Power |
101 hp (75 kw)
|
|
Net Max Torque |
301 lbs ft (408 nm)
|
|
Net Power |
93 hp (69 kw)
|
|
Net Torque Rise |
0 |
|
Power Measured @ |
2,200 rpm |
|
Torque Measured @ |
1,400 rpm |
| General Specifications |
|
Backhoe Loading Height ft. (m) (Since 2011)
|
11.9 (3.6) |
|
Loader Breakout Force lbs. (kg) (Since 2011)
|
10,076 (4,570) |
|
Loader Lift Capacity lbs. (kg) (Since 2011)
|
6,340 (2,876) |
|
Loader SAE HP (kw) (Since 2011)
|
93 (69.3) |
|
Max Digging Depth ft. (m) (Since 2011)
|
14.3 (4.4) |
|
Operating Weight lbs. (kg) (Since 2011)
|
15,474 (7,019) |
|
Travel Speed 4th Gear Fwd MPH (kmh) (Since 2011)
|
25 (40.0) |
| Hydraulic System |
|
Pump Flow Capacity |
43 gpm (163 lpm)
|
|
Pump Type |
variable-flow axial piston |
|
Relief Valve Pressure |
3,611 psi |
| Loader |
|
Bucket Capacity |
1 cu yd (1 cu m)
|
|
Bucket Width |
8 in (19 cm)
|
|
Clearance at Max Dump Height |
9 ft (3 m)
|
|
Dig Depth |
4 in (10 cm)
|
|
Reach at Max Dump Height |
3 ft (1 m)
|
| Operating Specifications |
|
Cooling System Fluid Capacity |
4 gal (17 l)
|
|
Front Axle Fluid Capacity |
3 gal (11 l)
|
|
Fuel Capacity |
38 gal (144 l)
|
|
Hydraulic System Fluid Capacity |
21 gal (79 l)
|
|
Max Weight |
24,251 lbs (11,000 kg)
|
|
Oil System Fluid Capacity |
2 gal (8 l)
|
|
Operating Voltage |
12 volts |
|
Operating Weight |
15,474 lbs (7,019 kg)
|
|
Operating Weight 4wd |
16,921 lbs (7,675 kg)
|
|
Rear Axle Fluid Capacity |
4 gal (17 l)
|
|
Tire Size Front - 2wd / 4wd |
11L-16 F-3/12.5/80-18 (10ply) 1-3 Super Traction |
|
Transmission Fluid Capacity |
5 gal (19 l)
|
|
Turning Radius |
18 ft (5 m)
|
| Tires |
|
Rear Tires Size |
19.5L-24 (12 ply) R4 ATU/ 19.5L-24 (12 ply) IT 525 |
| Transmission |
|
Max Speed - Reverse |
25 mph (40 kph)
|
|
Number of Forward Gears |
4 |
|
Number of Reverse Gears |
4 |
