| Axle Ratings |
|
Dynamic (1) |
6,983 lbs (3,167 kg)
|
|
Dynamic (2) |
20,418 lbs (9,261 kg)
|
|
Front Axle (2wd) - Static |
30,319 lbs (13,752 kg)
|
|
Front Axle (4wd) - Static |
27,029 lbs (12,260 kg)
|
|
Rear Axle - Static |
61,233 lbs (27,775 kg)
|

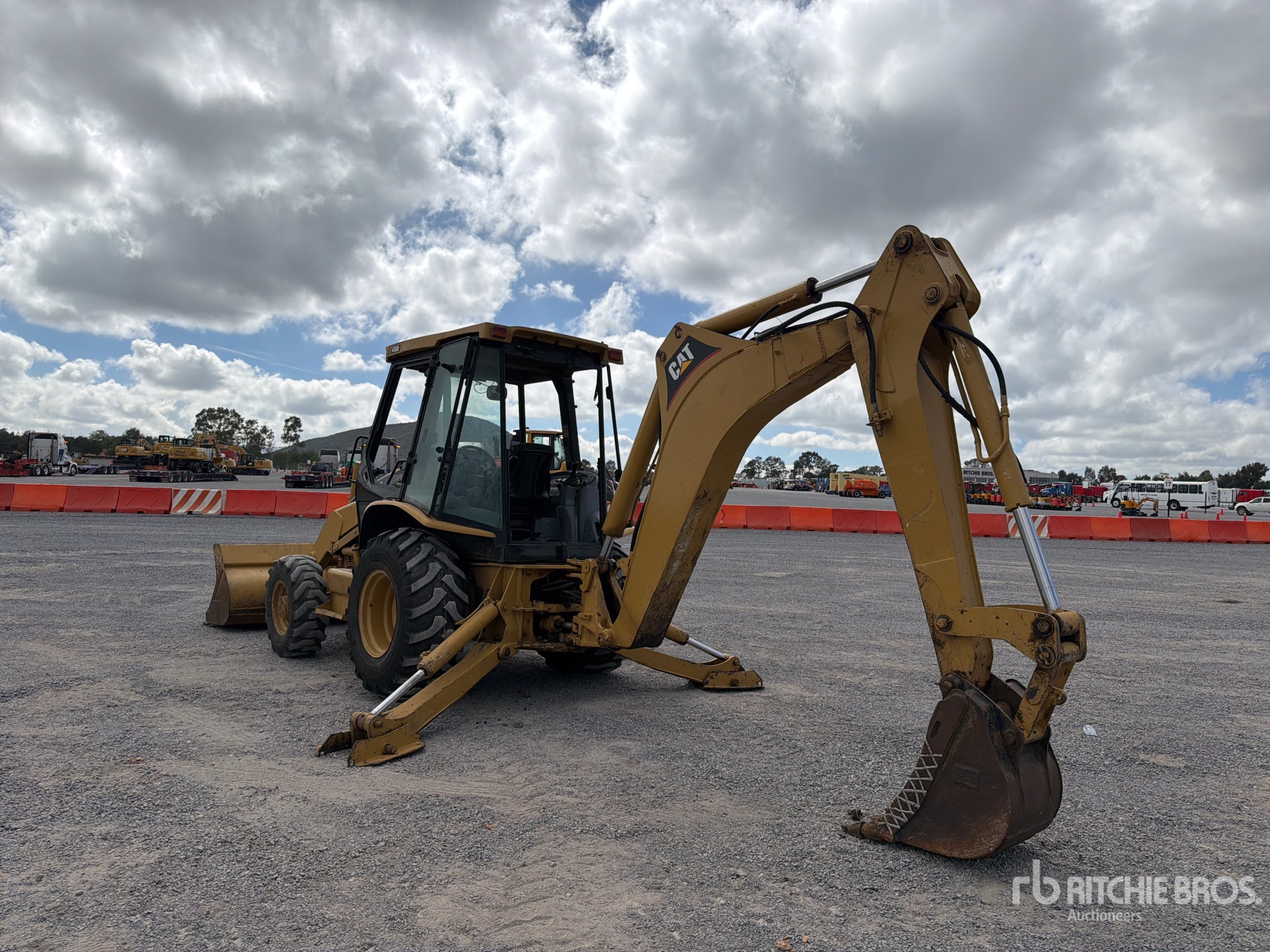

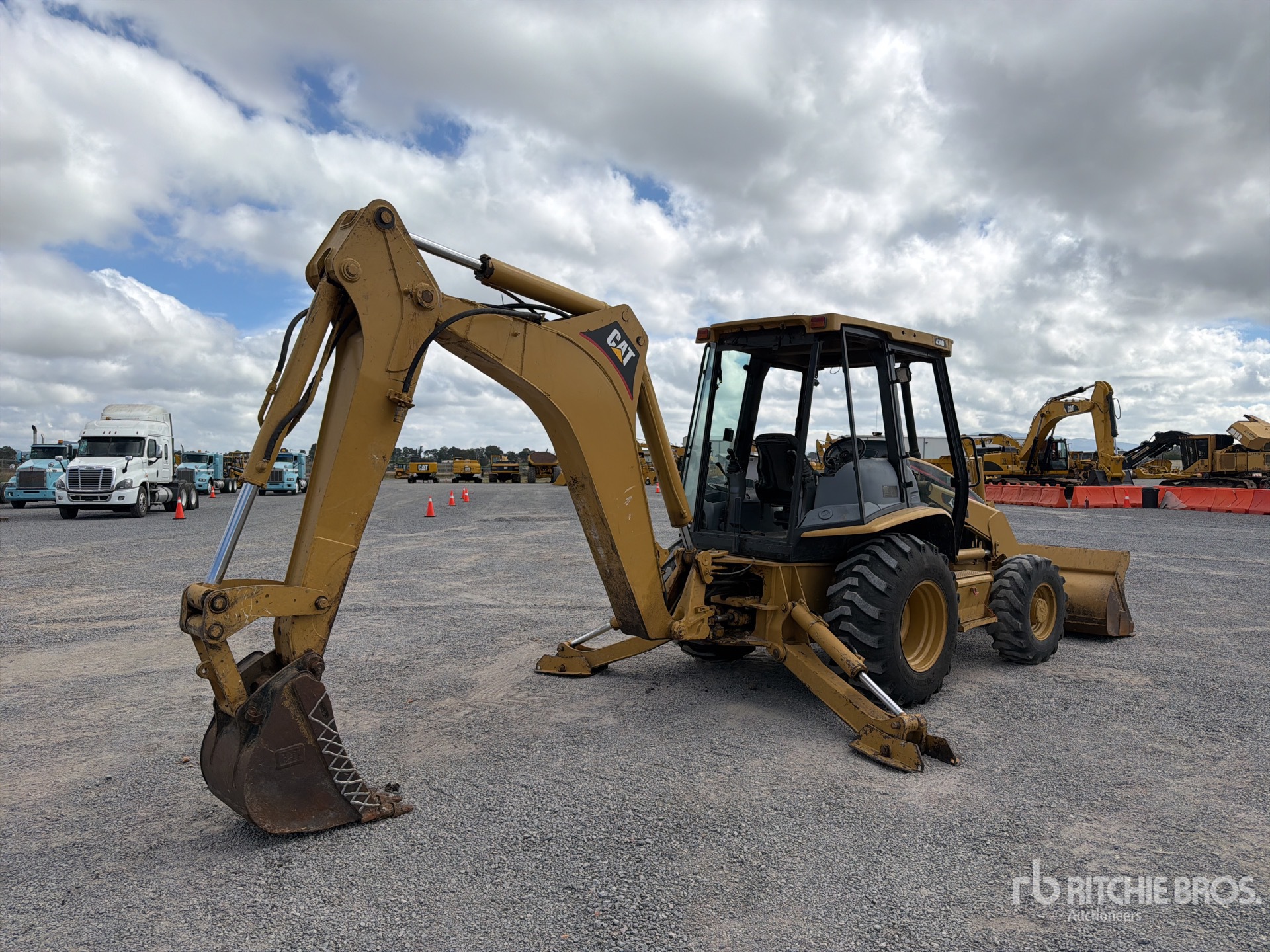

| Backhoe |
|
Bucket Dig Force - Ext |
14,602 lbs (6,623 kg)
|
|
Bucket Dig Force - Standard |
14,732 lbs (6,682 kg)
|
|
Bucket Dig Force - Std |
14,732 lbs (6,682 kg)
|
|
Bucket Rotation |
205 degrees |
|
Dig Depth - Ext |
20 ft (6 m)
|
|
Dig Depth - Standard |
15 ft (5 m)
|
|
Dig Depth - Std |
15 ft (5 m)
|
|
E-Stick Extended (1) |
20 ft (6 m)
|
|
E-Stick Extended (2) |
24 ft (7 m)
|
|
E-Stick Extended (3) |
14,602 lbs (6,623 kg)
|
|
E-Stick Extended (4) |
6,430 lbs (2,917 kg)
|
|
E-Stick Extended (5) |
4,064 lbs (1,843 kg)
|
|
E-Stick Retracted (1) |
16 ft (5 m)
|
|
E-Stick Retracted (2) |
20 ft (6 m)
|
|
E-Stick Retracted (3) |
14,602 lbs (6,623 kg)
|
|
E-Stick Retracted (4) |
8,865 lbs (4,021 kg)
|
|
E-Stick Retracted (5) |
7,855 lbs (3,563 kg)
|
|
Load Height - Ext |
15 ft (5 m)
|
|
Load Height - Std |
13 ft (4 m)
|
|
Loading Height - Standard |
13 ft (4 m)
|
|
Loading Reach - Standard |
6 ft (2 m)
|
|
Reach At Load Height - Ext |
10 ft (3 m)
|
|
Reach At Load Height - Std |
6 ft (2 m)
|
|
Reach From Swing Pivot - Standard |
20 ft (6 m)
|
|
Reach From Swivel - Ext |
28 ft (8 m)
|
|
Reach From Swivel - Std |
23 ft (7 m)
|
|
Stick Dig Force - Standard |
9,448 lbs (4,286 kg)
|
|
Stick Lift At 2440 Mm (8 Ft) - Standard |
14,821 lbs (6,723 kg)
|
| Dimensions |
|
Ground Clearance |
1 ft (0 m)
|
|
Height To Top Of Suspended Cab |
9 ft (3 m)
|
|
Transport Height |
12 ft (4 m)
|
|
Transport Length |
24 ft (7 m)
|
|
Transport Width |
8 ft (2 m)
|
|
Wheelbase |
7 ft (2 m)
|
| Engine |
|
Bore |
4 in (10 cm)
|
|
Displacement |
243 cu in (3,982 cu cm)
|
|
Engine Make |
2,236 |
|
Engine Model |
3054T |
|
Engine Model - Standard |
Cat 3054T |
|
Gross Power |
98 hp (73 kw)
|
|
Gross Power - Sae J1995 |
98 hp (73 kw)
|
|
Net Peak Torque - 1400 Rpm - Standard - Sae J1349 |
277 lbs ft (376 nm)
|
|
Net Power |
94 hp (70 kw)
|
|
Net Power (Optional) - Din 70020 |
98 PS |
|
Net Power (Optional) - Eec 80/1269 |
94 hp (70 kw)
|
|
Net Power (Optional) - Iso 1585 |
94 hp (70 kw)
|
|
Net Power (Optional) - Iso 9249 |
94 hp (70 kw)
|
|
Net Power (Optional) - Sae J1349 |
93 hp (69 kw)
|
|
Net Power - Sae J1349 |
94 hp (70 kw)
|
|
Net Torque Rise - 1,400 Rpm - Standard |
23.1 % |
|
Number Of Cylinders |
4 |
|
Power Measured @ |
2,200 rpm |
|
Stroke |
5 in (13 cm)
|
| General Specifications |
|
4th Gear Fwd (Since 2004)
|
21 mph (34 kph)
|
|
Breakout Force (Since 2004)
|
10,269 lbs (4,658 kg)
|
|
Digging Depth (Since 2004)
|
20 ft (6 m)
|
|
Lift Capacity (Since 2004)
|
6,391 lbs (2,899 kg)
|
|
Loading Height (Since 2004)
|
22 ft (7 m)
|
|
Operating Weight (Since 2004)
|
15,772 lbs (7,154 kg)
|
|
SAE Net (Since 2004)
|
94 hp (70 kw)
|
| Hydraulic |
|
Pump Flow Capacity |
43 gpm (163 lpm)
|
|
Pump Type |
LSPC, closed center |
|
Relief Valve Pressure |
3,300 psi |
| Hydraulic System |
|
2wd Cylinder - Bore |
3 in (7 cm)
|
|
4wd Cylinder - Bore |
3 in (7 cm)
|
|
Brake System |
Inboard, oil-immersed |
|
Circuit Type |
Load-sensing, closed-center |
|
Power Steering |
Hydrostatic |
|
Pump Capacity At 2,200 Rpm |
43 gpm (163 lpm)
|
|
Pump Type |
Variable flow, axial piston |
|
Rod Diameter (1) |
2 in (5 cm)
|
|
Rod Diameter (2) |
2 in (4 cm)
|
|
Steering Type |
Front wheel |
|
Stroke (1) |
9 in (22 cm)
|
|
Stroke (2) |
8 in (21 cm)
|
|
System Pressure |
3,300 psi |

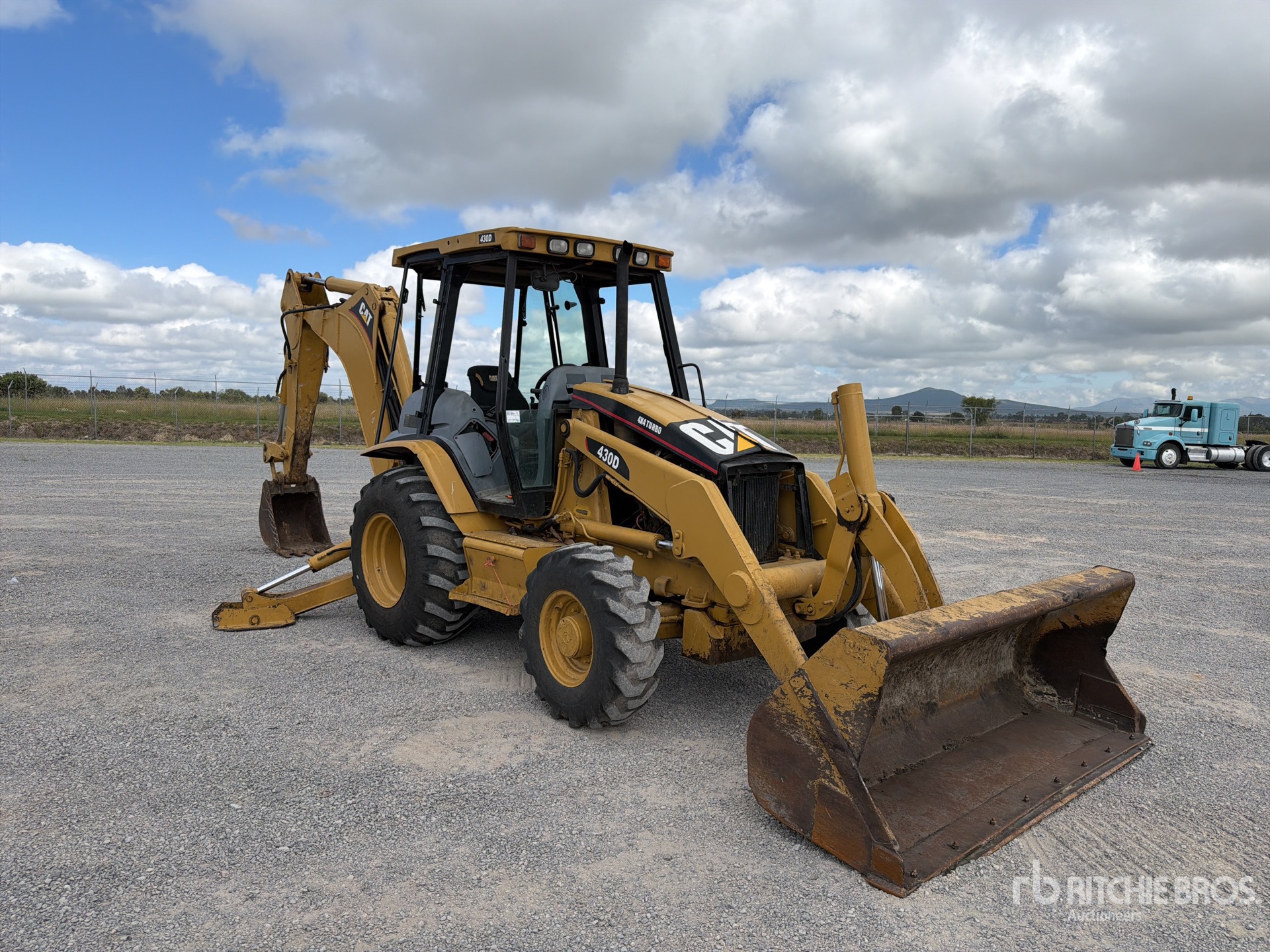

| Loader |
|
Bucket Breakout Force |
10,274 lbs (4,660 kg)
|
|
Bucket Breakout Force - Single Tilt |
10,269 lbs (4,658 kg)
|
|
Bucket Capacity |
1 cu yd |
|
Bucket Capacity - General Purpose |
1 cu yd |
|
Bucket Width |
95 in (241 cm)
|
|
Bucket Width - General Purpose |
95 ft |
|
Clearance At Max Dump Height |
8 ft (3 m)
|
|
Dig Depth |
5 in (14 cm)
|
|
Dig Depth - Single Tilt |
7 in (17 cm)
|
|
Dump Height At Maximum Angle - Single Tilt |
9 ft (3 m)
|
|
Dump Reach At Maximum Angle - Single Tilt |
3 ft (1 m)
|
|
Lift Capacity At Full Height |
6,389 lbs (2,898 kg)
|
|
Lift Capacity At Full Height - Single Tilt |
6,391 lbs (2,899 kg)
|
|
Reach At Max Dump Height |
3 ft (1 m)
|
| Operating Specifications - Backhoe |
|
Turning Circle - Outside - Front Wheels |
27 ft (8 m)
|
|
Turning Circle - Outside, Widest Loading Bucket |
36 ft (11 m)
|
| Operational |
|
Fuel Capacity |
34 gal (128 l)
|
|
Operating Weight 4wd |
16,215 lbs (7,355 kg)
|
|
Rear Tires Size 2wd/4wd |
12.5/80x18,10PR / 19.5x24,10PR |
|
Tire Size Front - 2wd / 4wd |
11Lx16,12PR / 12.5/80x18,10PR |
|
Turning Radius |
18 ft (5 m)
|
| Power Train |
|
Auto-Shift - Optional - Forward 1st |
4 mph (6 kph)
|
|
Auto-Shift - Optional - Reverse 1st |
4 mph (6 kph)
|
|
Forward - 2nd (1) |
6 mph (10 kph)
|
|
Forward - 2nd (2) |
6 mph (9 kph)
|
|
Forward - 3rd (1) |
12 mph (20 kph)
|
|
Forward - 3rd (2) |
8 mph (12 kph)
|
|
Forward - 4th (1) |
21 mph (34 kph)
|
|
Forward - 4th (2) |
12 mph (19 kph)
|
|
Forward - 5th |
20 mph (32 kph)
|
|
Power Shuttle Transmission - Forward 1st |
4 mph (6 kph)
|
|
Power Shuttle Transmission - Reverse 1st |
4 mph (6 kph)
|
|
Reverse - 2nd (1) |
6 mph (10 kph)
|
|
Reverse - 2nd (2) |
8 mph (12 kph)
|
|
Reverse - 3rd (1) |
12 mph (20 kph)
|
|
Reverse - 3rd (2) |
14 mph (23 kph)
|
|
Reverse - 4th |
21 mph (34 kph)
|
| Service Refill |
|
Cooling System - A/C |
4 gal (16 l)
|
|
Cooling System - High-Ambient |
4 gal (17 l)
|
|
Engine Oil - With Filter |
2 gal (8 l)
|
|
Front Axle (4wd) |
2 gal (8 l)
|
|
Front Axle - Planetaries |
0 gal (1 l)
|
|
Fuel Tank |
34 gal (129 l)
|
|
Hydraulic System |
21 gal (79 l)
|
|
Hydraulic Tank |
10 gal (38 l)
|
|
Rear Axle |
6 gal (24 l)
|
|
Transmission - Auto-Shift - 2wd |
4 gal (15 l)
|
|
Transmission - Auto-Shift - Awd |
4 gal (15 l)
|
|
Transmission - Torque Converter - Power Shuttle - 2wd |
4 gal (15 l)
|
| Standards |
|
Brakes |
SAE J1473 October 1990/ISO 3450 1996 |
|
Cab - Rops |
SAE J397/SAE J1040 May 1994/ISO 3741 1994 |
|
Cab - Sound |
ANSI/SAE J1166 Oct 98 is 78.5 dB(A) |
|
Exterior Sound |
SAE J88 April 95 is 73.0 dB(A) |
| Transmission |
|
Max Speed - Forward |
21 mph (34 kph)
|
|
Max Speed Reverse |
21 mph (34 kph)
|
|
Number Of Forward Gears |
4 |
|
Number Of Reverse Gears |
4 |
|
Transmission Type |
power shuttle |
| Weights |
|
Counterweights - Option 1 |
320 lbs (145 kg)
|
|
Operating Weight - Maximum |
21,605 lbs (9,800 kg)
|
|
Operating Weight - Nominal |
16,217 lbs (7,356 kg)
|
