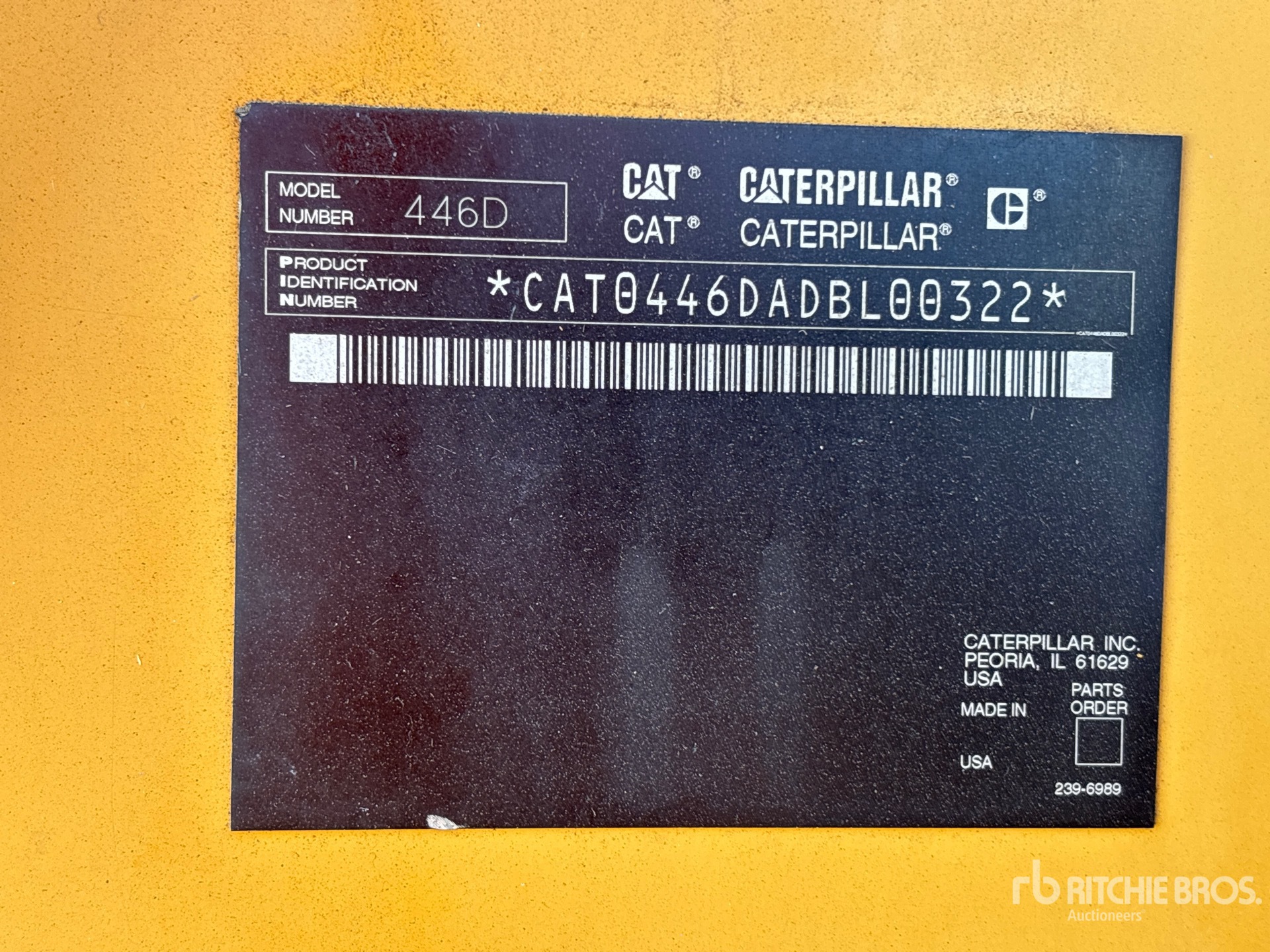

| Axle Ratings |
|
Front Axle (2wd) - Static |
21,230 lbs (9,630 kg)
|
|
Front Axle (4wd) - Static |
21,230 lbs (9,630 kg)
|
|
Rear Axle - Static |
20,194 lbs (9,160 kg)
|

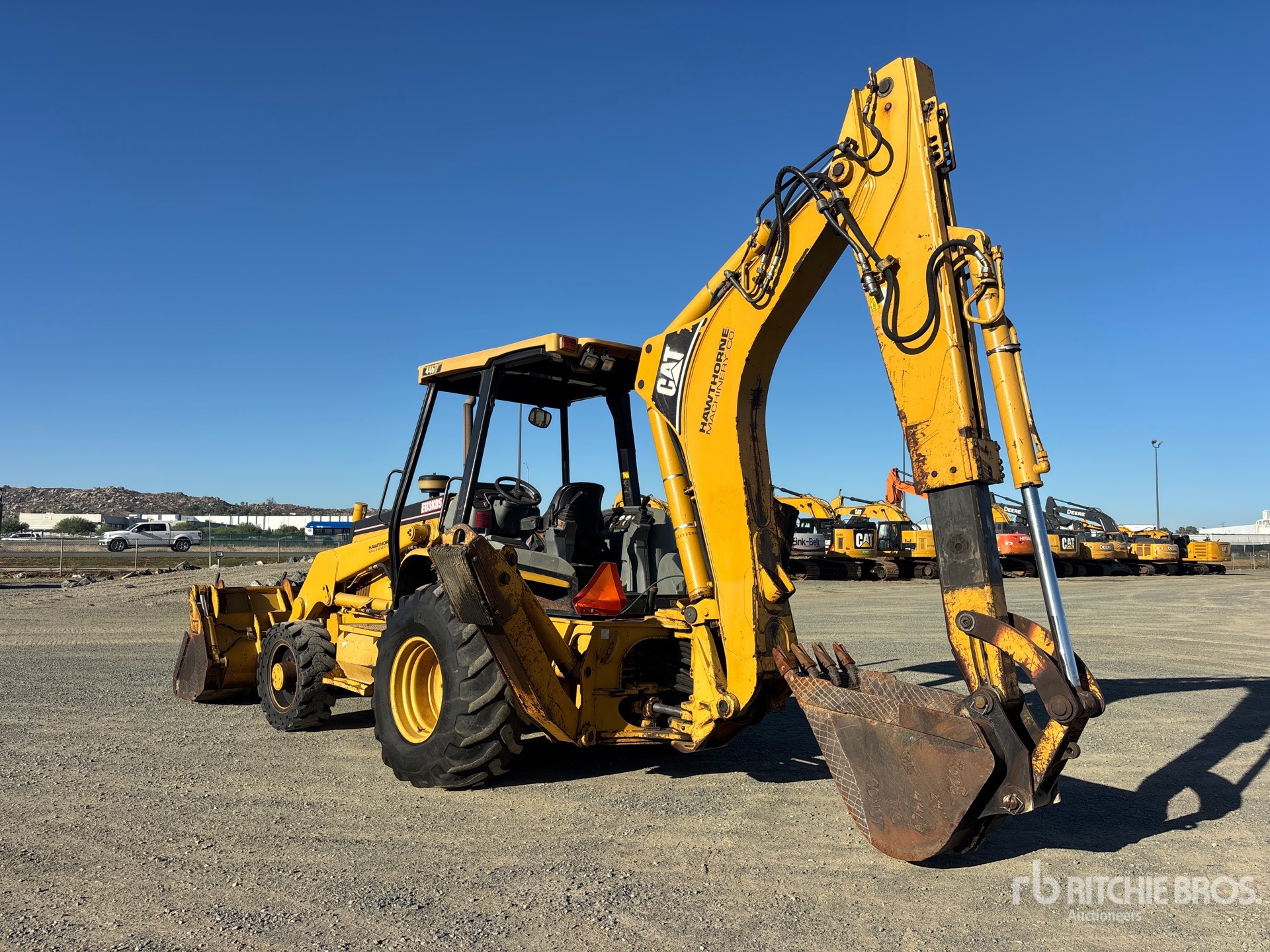

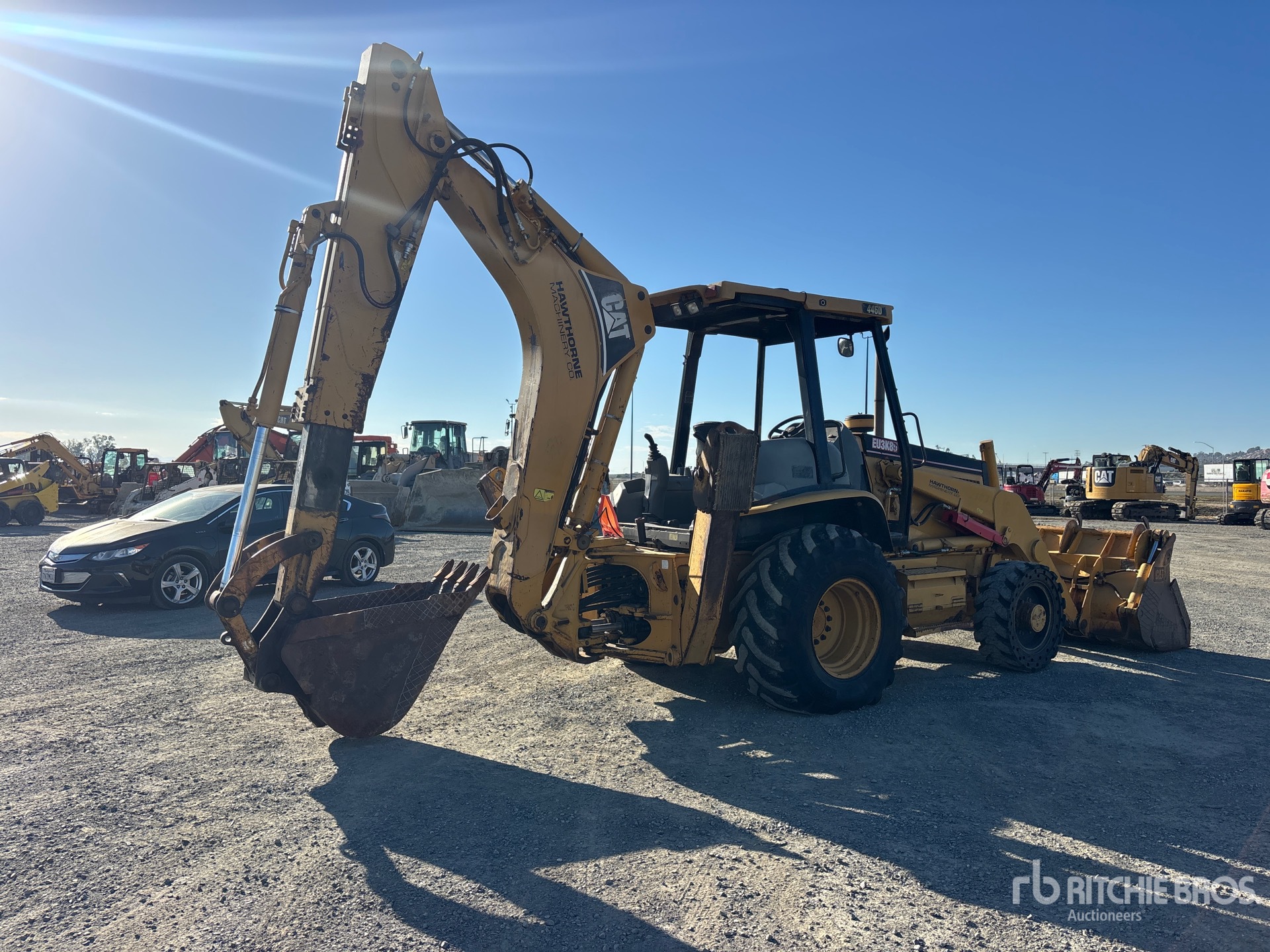

| Backhoe |
|
Bucket Dig Force - Ext |
15,150 lbs (6,872 kg)
|
|
Bucket Dig Force - Standard |
15,200 lbs (6,895 kg)
|
|
Bucket Dig Force - Std |
15,200 lbs (6,895 kg)
|
|
Bucket Rotation |
169 degrees |
|
Dig Depth - Ext |
21 ft (7 m)
|
|
Dig Depth - Standard |
17 ft (5 m)
|
|
Dig Depth - Std |
17 ft (5 m)
|
|
E-Stick Extended (1) |
22 ft (7 m)
|
|
E-Stick Extended (2) |
26 ft (8 m)
|
|
E-Stick Extended (3) |
15,150 lbs (6,872 kg)
|
|
E-Stick Extended (4) |
7,830 lbs (3,552 kg)
|
|
E-Stick Extended (5) |
4,600 lbs (2,087 kg)
|
|
E-Stick Retracted (1) |
17 ft (5 m)
|
|
E-Stick Retracted (2) |
22 ft (7 m)
|
|
E-Stick Retracted (3) |
15,150 lbs (6,872 kg)
|
|
E-Stick Retracted (4) |
11,200 lbs (5,080 kg)
|
|
E-Stick Retracted (5) |
13,660 lbs (6,196 kg)
|
|
Load Height - Ext |
16 ft (5 m)
|
|
Load Height - Std |
14 ft (4 m)
|
|
Loading Height - Standard |
14 ft (4 m)
|
|
Loading Reach - Standard |
7 ft (2 m)
|
|
Reach At Load Height - Ext |
11 ft (3 m)
|
|
Reach At Load Height - Std |
7 ft (2 m)
|
|
Reach From Swing Pivot - Standard |
22 ft (7 m)
|
|
Reach From Swivel - Ext |
26 ft (8 m)
|
|
Reach From Swivel - Std |
22 ft (7 m)
|
|
Stick Dig Force - Standard |
10,800 lbs (4,899 kg)
|
|
Stick Lift At 2440 Mm (8 Ft) - Standard |
13,540 lbs (6,142 kg)
|
| Dimensions |
|
Ground Clearance |
1 ft (0 m)
|
|
Height |
9 ft (3 m)
|
|
Height To Top Of Suspended Cab |
9 ft (3 m)
|
|
Length |
26 ft (8 m)
|
|
Transport Height |
14 ft (4 m)
|
|
Transport Length |
25 ft (8 m)
|
|
Transport Width |
8 ft (2 m)
|
|
Weight |
19,603 lbs (8,892 kg)
|
|
Wheelbase |
7 ft (2 m)
|
|
Width |
8 ft (2 m)
|
| Engine |
|
Bore |
4 in (11 cm)
|
|
Displacement |
268 cu in (4,392 cu cm)
|
|
Engine Make |
2,236 |
|
Engine Model |
3114 DIT |
|
Engine Model - Standard |
Cat 3114T Diesel |
|
Gross Power |
110 hp (82 kw)
|
|
Gross Power - Sae J1995 |
110 hp (82 kw)
|
|
Net Power |
102 hp (76 kw)
|
|
Net Power (Optional) - Din 70020 |
107PS |
|
Net Power (Optional) - Eec 80/1269 |
102 hp (76 kw)
|
|
Net Power (Optional) - Iso 1585 |
102 hp (76 kw)
|
|
Net Power (Optional) - Iso 9249 |
102 hp (76 kw)
|
|
Net Power (Optional) - Sae J1349 |
101 hp (75 kw)
|
|
Net Power - Sae J1349 |
102 hp (76 kw)
|
|
Net Torque Rise - 1,400 Rpm - Standard |
32.6 % |
|
Number Of Cylinders |
4 |
|
Power Measured @ |
2,200 rpm |
|
Stroke |
5 in (13 cm)
|
| General Specifications |
|
1) Overall transport length (Since 2001)
|
313 in (795 cm)
|
|
1) Overall transport length (Since 2001)
|
315 in (800 cm)
|
|
1) Overall transport length (Since 2001)
|
316 in (803 cm)
|
|
1st (Since 1998)
|
6.6 4.1 |
|
2 3 17 18 14 13 16 15 MACHINE DIMENSIONS (Since 2001)
|
2 cu yd (1 cu m)
|
|
2 3 17 18 14 13 16 15 MACHINE DIMENSIONS (Since 2001)
|
2 cu yd (1 cu m)
|
|
2 3 17 18 14 13 16 15 MACHINE DIMENSIONS (Since 2001)
|
1 cu yd (1 cu m)
|
|
2) Overall transport height (Since 2001)
|
165 in (419 cm)
|
|
2nd (Since 1998)
|
12.1 7.5 |
|
3) Height to top of cab/canopy (Since 2001)
|
113 in (287 cm)
|
|
3rd (Since 1998)
|
21.7 13.5 |
|
4) Height to top of exhaust stack (Since 2001)
|
117 in (297 cm)
|
|
4th (Since 1998)
|
33.0 20.5 |
|
4th Gear Fwd (Since 2004)
|
21 mph (33 kph)
|
|
5) Rear axle centerline to front grill (Since 2001)
|
108 in (274 cm)
|
|
6) Wheelbase (2WD/AWD) (Since 2001)
|
88 in (224 cm)
|
|
A) Digging depth (SAE max.) (Since 1998)
|
257 in (653 cm)
|
|
A) Digging depth (SAE max.) (Since 1998)
|
204 in (518 cm)
|
|
A) Digging depth (SAE max.) (Since 1998)
|
206 in (523 cm)
|
|
B) 610 mm (2'0") flat bottom (SAE) (Since 1998)
|
255 in (648 cm)
|
|
B) 610 mm (2'0") flat bottom (SAE) (Since 1998)
|
202 in (513 cm)
|
|
B) 610 mm (2'0") flat bottom (SAE) (Since 1998)
|
204 in (518 cm)
|
|
Backhoe - 13) Digging depth, SAE (maximum) (Since 2001)
|
257 in (653 cm)
|
|
Backhoe - 13) Digging depth, SAE (maximum) (Since 2001)
|
204 in (518 cm)
|
|
Backhoe - 13) Digging depth, SAE (maximum) (Since 2001)
|
206 in (523 cm)
|
|
Backhoe - 14) Digging depth, 610 mm (2'0") flat bottom (Since 2001)
|
255 in (648 cm)
|
|
Backhoe - 14) Digging depth, 610 mm (2'0") flat bottom (Since 2001)
|
202 in (513 cm)
|
|
Backhoe - 14) Digging depth, 610 mm (2'0") flat bottom (Since 2001)
|
204 in (518 cm)
|
|
Backhoe - 15) Reach from swing pivot at ground line (Since 2001)
|
309 in (785 cm)
|
|
Backhoe - 15) Reach from swing pivot at ground line (Since 2001)
|
258 in (655 cm)
|
|
Backhoe - 15) Reach from swing pivot at ground line (Since 2001)
|
260 in (660 cm)
|
|
Backhoe - 16) Loading reach (Since 2001)
|
128 in (325 cm)
|
|
Backhoe - 16) Loading reach (Since 2001)
|
81 in (206 cm)
|
|
Backhoe - 16) Loading reach (Since 2001)
|
80 in (203 cm)
|
|
Backhoe - 17) Stabilizer spread, operating position (center of pad) (Since 2001)
|
142 in (361 cm)
|
|
Backhoe - 18) Stabilizer spread, operating position (outside edge of pad) (Since 2001)
|
161 in (409 cm)
|
|
Backhoe - Bucket dig force (Since 2001)
|
15,150 lbs (6,872 kg)
|
|
Backhoe - Bucket dig force (Since 2001)
|
15,200 lbs (6,895 kg)
|
|
Backhoe - Bucket rotation, pin position 1 and 2 (Since 2001)
|
163 deg |
|
Backhoe - Bucket rotation, pin position 1 and 2 (Since 2001)
|
169 deg |
|
Backhoe - Loading height (Since 2001)
|
193 in (490 cm)
|
|
Backhoe - Loading height (Since 2001)
|
166 in (422 cm)
|
|
Backhoe - Loading height (Since 2001)
|
170 in (432 cm)
|
|
Backhoe - Maximum operating height (Since 2001)
|
285 in (724 cm)
|
|
Backhoe - Maximum operating height (Since 2001)
|
248 in (630 cm)
|
|
Backhoe - Maximum operating height (Since 2001)
|
249 in (632 cm)
|
|
Backhoe - Reach from rear axle centerline at ground line (Since 2001)
|
359 in (912 cm)
|
|
Backhoe - Reach from rear axle centerline at ground line (Since 2001)
|
308 in (782 cm)
|
|
Backhoe - Reach from rear axle centerline at ground line (Since 2001)
|
310 in (787 cm)
|
|
Backhoe - Stabilizer spread, transport position (Since 2001)
|
95 in (241 cm)
|
|
Backhoe - Stick dig force (Since 2001)
|
7,830 lbs (3,552 kg)
|
|
Backhoe - Stick dig force (Since 2001)
|
11,200 lbs (5,080 kg)
|
|
Backhoe - Stick dig force (Since 2001)
|
10,800 lbs (4,899 kg)
|
|
Backhoe - Swing arc (Since 2001)
|
180 deg |
|
Bore (Since 1998)
|
4 in (10 cm)
|
|
Bore (2001)
|
4 in (10 cm)
|
|
Breakout force (Since 1998)
|
12,600 lbs (5,715 kg)
|
|
Breakout force (Since 1998)
|
11,610 lbs (5,266 kg)
|
|
Breakout force (Since 1998)
|
12,900 lbs (5,851 kg)
|
|
Breakout Force (Since 2004)
|
12,600 lbs (5,715 kg)
|
|
Bucket capacity (Since 1998)
|
2 cu yd (1 cu m)
|
|
Bucket capacity (Since 1998)
|
2 cu yd (1 cu m)
|
|
Bucket capacity (Since 1998)
|
1 cu yd (1 cu m)
|
|
Bucket rotation - Truck loading position (Since 1998)
|
163 deg |
|
Bucket rotation - Truck loading position (Since 1998)
|
169 deg |
|
Bucket rotation - Vertical wall position (Since 1998)
|
163 deg |
|
Bucket rotation - Vertical wall position (Since 1998)
|
169 deg |
|
C) Overall operating height - fully raised (Since 1998)
|
285 in (724 cm)
|
|
C) Overall operating height - fully raised (Since 1998)
|
248 in (630 cm)
|
|
C) Overall operating height - fully raised (Since 1998)
|
249 in (632 cm)
|
|
Clam opening - maximum (Since 1998)
|
38 in (97 cm)
|
|
Clam opening - maximum (Since 1998)
|
39 in (99 cm)
|
|
D) Loading height (Since 1998)
|
193 in (490 cm)
|
|
D) Loading height (Since 1998)
|
166 in (422 cm)
|
|
D) Loading height (Since 1998)
|
170 in (432 cm)
|
|
Digging Depth (Since 2004)
|
21 ft (7 m)
|
|
Digging force, bucket cylinder, SAE (Since 1998)
|
15,150 lbs (6,872 kg)
|
|
Digging force, bucket cylinder, SAE (Since 1998)
|
15,200 lbs (6,895 kg)
|
|
Digging force, stick cylinder, SAE (Since 1998)
|
7,830 lbs (3,552 kg)
|
|
Digging force, stick cylinder, SAE (Since 1998)
|
11,200 lbs (5,080 kg)
|
|
Digging force, stick cylinder, SAE (Since 1998)
|
10,800 lbs (4,899 kg)
|
|
E) Overall reach from rear axle centerline (Since 1998)
|
359 in (912 cm)
|
|
E) Overall reach from rear axle centerline (Since 1998)
|
308 in (782 cm)
|
|
E) Overall reach from rear axle centerline (Since 1998)
|
310 in (787 cm)
|
|
Engine Displacement (Since 1998)
|
268 cu in (4,392 cu cm)
|
|
Engine Displacement (2001)
|
268 cu in (4,392 cu cm)
|
|
Engine Model (Since 1998)
|
3114 DIT |
|
Engine Model (2001)
|
3114 DIT |
|
F) Loading reach (Since 1998)
|
128 in (325 cm)
|
|
F) Loading reach (Since 1998)
|
81 in (206 cm)
|
|
F) Loading reach (Since 1998)
|
80 in (203 cm)
|
|
Flywheel Power (Gross) (Since 1998)
|
110 hp (82 kw)
|
|
Flywheel Power (Gross) (2001)
|
110 hp (82 kw)
|
|
Flywheel Power (Net) (Since 1998)
|
102 hp (76 kw)
|
|
Flywheel Power (Net) (2001)
|
102 hp (76 kw)
|
|
Front wheel tread (Since 1998)
|
78 in (198 cm)
|
|
Front wheel tread gauge (Since 2001)
|
78 in (198 cm)
|
|
Fuel Tank Capacity (Since 1998)
|
33 US gal (125 L)
|
|
Fuel Tank Capacity (2001)
|
33 US gal (125 L)
|
|
G) Dump height @ 45 degrees (Since 1998)
|
106 in (269 cm)
|
|
G) Dump height @ 45 degrees (Since 1998)
|
105 in (267 cm)
|
|
G) Dump height @ 45 degrees (Since 1998)
|
108 in (274 cm)
|
|
Grading angle (Since 1998)
|
115 deg |
|
Ground clearance (machine main frame) (Since 1998)
|
13 in (33 cm)
|
|
Ground clearance (minimum) (Since 2001)
|
13 in (33 cm)
|
|
H) Hinge pin height (Since 1998)
|
137 in (348 cm)
|
|
Height to top of cab (Since 1998)
|
113 in (287 cm)
|
|
Height to top of stack (Since 1998)
|
117 in (297 cm)
|
|
Height to top of steering wheel (Since 1998)
|
83 in (211 cm)
|
|
Hydraulic System, closed center (Since 1998)
|
LSPC |
|
Hydraulic System, closed center (2001)
|
LSPC |
|
J) Overall operating height - fully raised (Since 1998)
|
171 in (434 cm)
|
|
J) Overall operating height - fully raised (Since 1998)
|
165 in (419 cm)
|
|
J) Overall operating height - fully raised (Since 1998)
|
174 in (442 cm)
|
|
K) Digging depth (Since 1998)
|
6 in (16 cm)
|
|
K) Digging depth (Since 1998)
|
6 in (14 cm)
|
|
L) Reach @ full height/45 degrees (Since 1998)
|
34 in (86 cm)
|
|
L) Reach @ full height/45 degrees (Since 1998)
|
36 in (91 cm)
|
|
Leveling angle (maximum slope on which backhoe will make vertical cut) (Since 1998)
|
13 deg |
|
Lift Capacity (Since 2004)
|
8,760 lbs (3,973 kg)
|
|
Lift capacity at full height (Since 1998)
|
8,760 lbs (3,973 kg)
|
|
Lift capacity at full height (Since 1998)
|
8,610 lbs (3,905 kg)
|
|
Lift capacity at full height (Since 1998)
|
8,350 lbs (3,788 kg)
|
|
Loader (Since 1998)
|
Purpose |
|
Loader Bucket - 10) Maximum bucket rollback at ground level (Since 2001)
|
40 deg |
|
Loader Bucket - 11) Digging depth (Since 2001)
|
6 in (16 cm)
|
|
Loader Bucket - 11) Digging depth (Since 2001)
|
6 in (14 cm)
|
|
Loader Bucket - 12) Maximum operating height (Since 2001)
|
174 in (442 cm)
|
|
Loader Bucket - 12) Maximum operating height (Since 2001)
|
178 in (452 cm)
|
|
Loader Bucket - 12) Maximum operating height (Since 2001)
|
174 in (442 cm)
|
|
Loader Bucket - 7) Maximum hinge pin height (Since 2001)
|
137 in (348 cm)
|
|
Loader Bucket - 8) Dump angle at full height (Since 2001)
|
45 deg |
|
Loader Bucket - 9) Dump reach at maximum angle (Since 2001)
|
34 in (86 cm)
|
|
Loader Bucket - 9) Dump reach at maximum angle (Since 2001)
|
36 in (91 cm)
|
|
Loader Bucket - Breakout force (Since 2001)
|
12,600 lbs (5,715 kg)
|
|
Loader Bucket - Breakout force (Since 2001)
|
11,610 lbs (5,266 kg)
|
|
Loader Bucket - Breakout force (Since 2001)
|
12,900 lbs (5,851 kg)
|
|
Loader Bucket - Capacity (SAE) rated (Since 2001)
|
2 cu yd (1 cu m)
|
|
Loader Bucket - Capacity (SAE) rated (Since 2001)
|
2 cu yd (1 cu m)
|
|
Loader Bucket - Capacity (SAE) rated (Since 2001)
|
1 cu yd (1 cu m)
|
|
Loader Bucket - Dump height at maximum angle (Since 2001)
|
106 in (269 cm)
|
|
Loader Bucket - Dump height at maximum angle (Since 2001)
|
105 in (267 cm)
|
|
Loader Bucket - Dump height at maximum angle (Since 2001)
|
108 in (274 cm)
|
|
Loader Bucket - Jaw opening maximum (Since 2001)
|
39 in (99 cm)
|
|
Loader Bucket - Lift capacity at maximum height (Since 2001)
|
8,760 lbs (3,973 kg)
|
|
Loader Bucket - Lift capacity at maximum height (Since 2001)
|
8,610 lbs (3,905 kg)
|
|
Loader Bucket - Lift capacity at maximum height (Since 2001)
|
8,350 lbs (3,788 kg)
|
|
Loader Bucket - Maximum grading angle (Since 2001)
|
115 deg |
|
Loader Bucket - Weight (does not include teeth or forks) (Since 2001)
|
1,217 lbs (552 kg)
|
|
Loader Bucket - Weight (does not include teeth or forks) (Since 2001)
|
1,338 lbs (607 kg)
|
|
Loader Bucket - Weight (does not include teeth or forks) (Since 2001)
|
1,868 lbs (847 kg)
|
|
Loader Bucket - Width (Since 2001)
|
96 in (244 cm)
|
|
Loader Bucket - Width of dozer cutting edge (Since 2001)
|
81 in (206 cm)
|
|
Loading Height (Since 2004)
|
16 ft (5 m)
|
|
M) Maximum rollback @ groundline (Since 1998)
|
40 deg |
|
No. of Cylinders (Since 1998)
|
4 |
|
No. of Cylinders (2001)
|
4 |
|
Operating Weight (Since 1998)
|
19,600 lbs (8,890 kg)
|
|
Operating Weight (2001)
|
19,600 lbs (8,890 kg)
|
|
Operating Weight (Since 2004)
|
19,600 lbs (8,890 kg)
|
|
Overall length (Since 2001)
|
312 in (792 cm)
|
|
Overall length (Since 2001)
|
314 in (798 cm)
|
|
Overall length (Since 2001)
|
313 in (795 cm)
|
|
Overall length (loader on ground) (Since 1998)
|
312 in (792 cm)
|
|
Overall reach from swing pivot (Since 1998)
|
309 in (785 cm)
|
|
Overall reach from swing pivot (Since 1998)
|
258 in (655 cm)
|
|
Overall reach from swing pivot (Since 1998)
|
260 in (660 cm)
|
|
Overall transport height (Since 1998)
|
165 in (419 cm)
|
|
Overall transport length (Since 1998)
|
313 in (795 cm)
|
|
Overall width (Since 2001)
|
96 in (244 cm)
|
|
Overall width, without bucket (Since 1998)
|
96 in (244 cm)
|
|
Pump capacity (Since 1998)
|
3,250 psi (22,400 kPa)
|
|
Pump capacity (2001)
|
3,250 psi (22,400 kPa)
|
|
Rated Engine RPM (Since 1998)
|
2,200 rpm |
|
Rated Engine RPM (2001)
|
2,200 rpm |
|
Rear axle centerline to front grill (Since 1998)
|
108 in (274 cm)
|
|
Rear wheel tread (Since 1998)
|
71 in (180 cm)
|
|
Rear wheel tread gauge (Since 2001)
|
71 in (180 cm)
|
|
SAE Net (Since 2004)
|
102 hp (76 kw)
|
|
Speeds Forward (Auto-Shift) - 1st (Since 2001)
|
5.6 3.5 |
|
Speeds Forward (Auto-Shift) - 2nd (Since 2001)
|
8.9 5.5 |
|
Speeds Forward (Auto-Shift) - 3rd (Since 2001)
|
11.6 7.2 |
|
Speeds Forward (Auto-Shift) - 4th (Since 2001)
|
18.8 11.7 |
|
Speeds Forward (Auto-Shift) - 5th (Since 2001)
|
31.5 19.6 |
|
Speeds Reverse (Auto-Shift) - 1st (Since 2001)
|
5.6 3.5 |
|
Speeds Reverse (Auto-Shift) - 2nd (Since 2001)
|
11.6 7.2 |
|
Speeds Reverse (Auto-Shift) - 3rd (Since 2001)
|
20.6 12.8 |
|
Speeds Reverse - 1st (Since 1998)
|
7.3 4.5 |
|
Speeds Reverse - 2nd (Since 1998)
|
13.4 8.3 |
|
Speeds Reverse - 3rd (Since 1998)
|
24.1 15.0 |
|
Speeds Reverse - 4th (Since 1998)
|
36.5 22.7 |
|
Stabilizer spread - Operating position (Since 1998)
|
161 in (409 cm)
|
|
Stroke (Since 1998)
|
5 in (13 cm)
|
|
Stroke (2001)
|
5 in (13 cm)
|
|
Swing arc (Since 1998)
|
180 deg |
|
Tires, Single-Tilt, Front - Standard, 2WD (Since 1998)
|
14.5/75-16, 10 PR, F3 |
|
Tires, Single-Tilt, Front - Standard, 2WD (Since 2001)
|
14.5/75 x 16.1, 10 PR, F3 |
|
Tires, Single-Tilt, Front - Standard, 4WD (Since 1998)
|
12.5-20, 10 PR, R4, IT525 |
|
Tires, Single-Tilt, Front - Standard, AWD (Since 1998)
|
12.5-20, 10 PR, R4 |
|
Tires, Single-Tilt, Front - Standard, AWD (Since 2001)
|
12.5 x 20, 10 PR, R4 |
|
Tires, Single-Tilt, Rear - Optional, AWD (Since 1998)
|
21L-24, 12 PR, R4, IT525 |
|
Tires, Single-Tilt, Rear - Standard, 2WD (Since 1998)
|
21L-24, 12 PR, R4, IT525 |
|
Tires, Single-Tilt, Rear - Standard, 2WD/AWD (Since 2001)
|
21L x 24, 12 PR, R4 |
|
Tires, Single-Tilt, Rear - Standard, AWD (Since 1998)
|
21L-24, 12 PR, R4, IT525 |
|
Transport position (Since 1998)
|
95 in (241 cm)
|
|
Turning Circle Wall to Wall (Since 1998)
|
447 in (1,135 cm)
|
|
Turning Circle Wall to Wall (2001)
|
447 in (1,135 cm)
|
|
Weight (Since 1998)
|
1,217 lbs (552 kg)
|
|
Weight (Since 1998)
|
1,338 lbs (607 kg)
|
|
Weight (Since 1998)
|
1,868 lbs (847 kg)
|
|
Wheel base: (2WD) (Since 1998)
|
88 in (224 cm)
|
|
Wheel base: (4WD) (Since 1998)
|
88 in (224 cm)
|
|
Width (Since 1998)
|
96 in (244 cm)
|
|
Width of dozer cutting edge (Since 1998)
|
96 in (244 cm)
|
| Hydraulic |
|
Pump Flow Capacity |
47 gpm (178 lpm)
|
|
Pump Type |
LSPC closed center |
|
Relief Valve Pressure |
3,249 psi |
| Hydraulic System |
|
2wd Cylinder - Bore |
3 in (8 cm)
|
|
4wd Cylinder - Bore |
3 in (8 cm)
|
|
Brake System |
Fully enclosed, hydraulic, multiple disk |
|
Circuit Type |
Closed - center |
|
Power Steering |
Hydrostatic |
|
Pump Capacity At 2,200 Rpm |
47 gpm (178 lpm)
|
|
Pump Type |
Variable - flow, axial piston |
|
Rod Diameter |
2 in (6 cm)
|
|
Steering Type |
Front Wheel |
|
Stroke |
1 ft (0 m)
|
|
System Pressure |
3,250 psi |

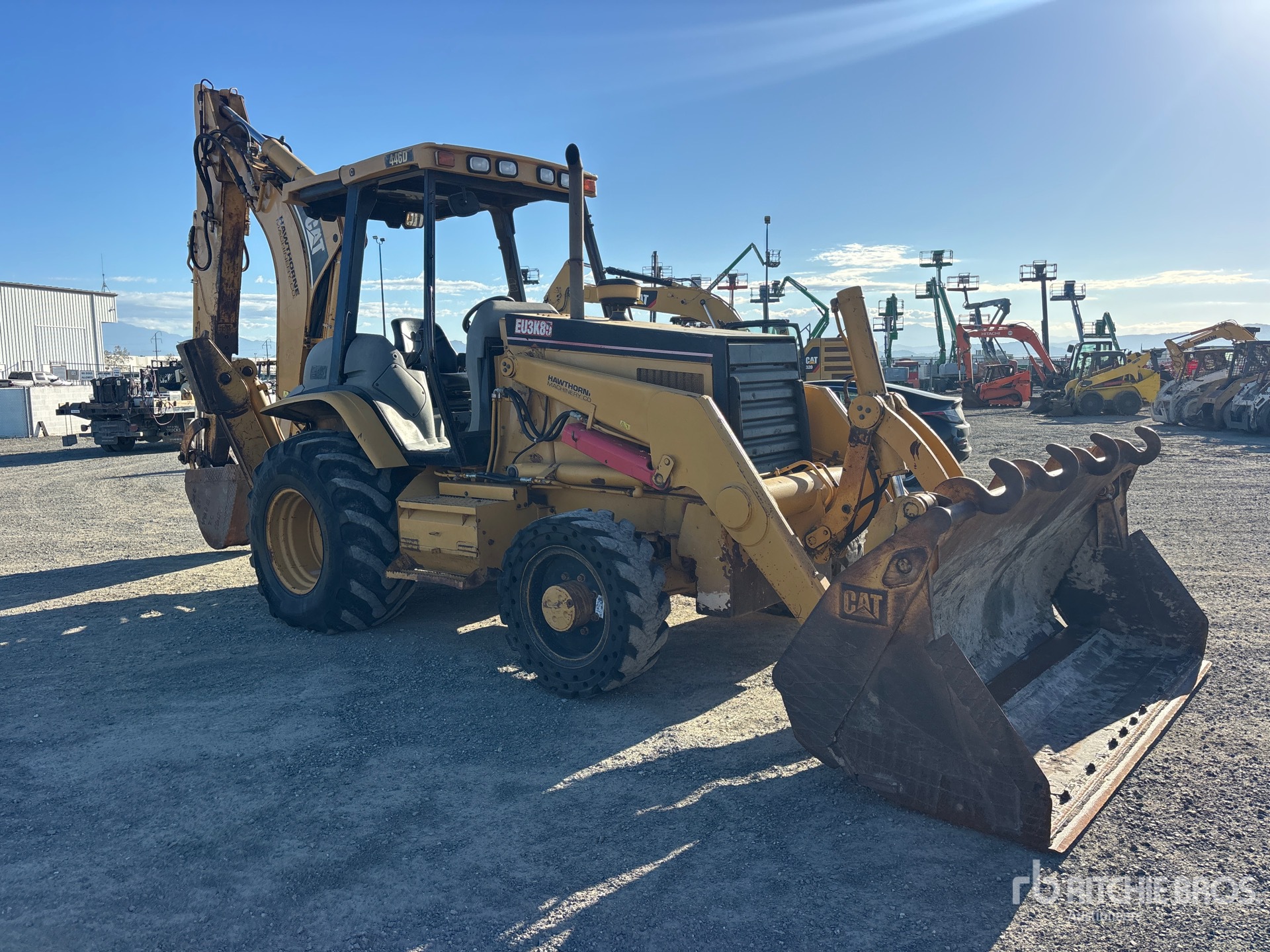

| Loader |
|
Bucket Breakout Force |
12,589 lbs (5,710 kg)
|
|
Bucket Breakout Force - Single Tilt |
11,610 lbs (5,266 kg)
|
|
Bucket Capacity |
1 cu yd |
|
Bucket Capacity - General Purpose |
2 cu yd |
|
Bucket Width |
96 in (243 cm)
|
|
Bucket Width - General Purpose |
96 ft |
|
Clearance At Max Dump Height |
9 ft (3 m)
|
|
Dig Depth |
6 in (16 cm)
|
|
Dig Depth - Single Tilt |
6 in (16 cm)
|
|
Dump Height At Maximum Angle - Single Tilt |
9 ft (3 m)
|
|
Dump Reach At Maximum Angle - Single Tilt |
3 ft (1 m)
|
|
Lift Capacity At Full Height |
8,752 lbs (3,970 kg)
|
|
Lift Capacity At Full Height - Single Tilt |
8,610 lbs (3,905 kg)
|
|
Reach At Max Dump Height |
3 ft (1 m)
|
| Operating Specifications - Backhoe |
|
Turning Circle - Outside - Front Wheels |
29 ft (9 m)
|
|
Turning Circle - Outside, Widest Loading Bucket |
37 ft (11 m)
|
| Operational |
|
Fuel Capacity |
33 gal (125 l)
|
|
Operating Weight 4wd |
19,599 lbs (8,890 kg)
|
|
Rear Tires Size 2wd/4wd |
21Lx24,12PR,R4 |
|
Tire Size Front - 2wd / 4wd |
14.5/75 x16.1,10PR,F3 / 12.5x20,10PR,R4 |
|
Turning Radius |
19 ft (6 m)
|
| Power Train |
|
Auto-Shift - Optional - Forward 1st |
4 mph (6 kph)
|
|
Auto-Shift - Optional - Reverse 1st |
4 mph (6 kph)
|
|
Forward - 2nd |
6 mph (9 kph)
|
|
Forward - 3rd |
7 mph (12 kph)
|
|
Forward - 4th |
12 mph (19 kph)
|
|
Forward - 5th |
20 mph (32 kph)
|
|
Reverse - 2nd |
7 mph (12 kph)
|
|
Reverse - 3rd |
13 mph (21 kph)
|
| Service Refill |
|
Cooling System - A/C |
8 gal (30 l)
|
|
Engine Oil - With Filter |
3 gal (11 l)
|
|
Front Axle (4wd) |
3 gal (9 l)
|
|
Front Axle - Planetaries |
0 gal (1 l)
|
|
Fuel Tank |
33 gal (125 l)
|
|
Hydraulic System |
41 gal (155 l)
|
|
Hydraulic Tank |
15 gal (57 l)
|
|
Rear Axle |
8 gal (31 l)
|
|
Transmission - Auto-Shift - 2wd |
7 gal (26 l)
|
| Standards |
|
Brakes |
SAE J1473 October 1990 and ISO 3450 1985 |
|
Cab - Rops |
SAE J394, SAE J1040 Apr 88, ISO 3471 1986 |
|
Cab - Sound |
ANSI/SAE J1166 May 90 is 81 dB (A) |
|
Exterior Sound |
SAE J88 Jun 86, is 76dB (A) |
| Transmission |
|
Max Speed - Forward |
20 mph (32 kph)
|
|
Max Speed Reverse |
13 mph (21 kph)
|
|
Number Of Forward Gears |
4 |
|
Number Of Reverse Gears |
3 |
|
Transmission Type |
auto-shift |
| Weights |
|
Counterweights - Option 1 |
35 lbs (16 kg)
|
|
Operating Weight - Maximum |
19,604 lbs (8,892 kg)
|
|
Operating Weight - Nominal |
19,603 lbs (8,892 kg)
|
