| Axle Ratings |
|
Dynamic (1) |
21,230 lbs (9,630 kg)
|
|
Dynamic (2) |
20,194 lbs (9,160 kg)
|
|
Front Axle (2wd) - Static |
21,230 lbs (9,630 kg)
|
|
Front Axle (4wd) - Static |
21,230 lbs (9,630 kg)
|
|
Rear Axle - Static |
20,194 lbs (9,160 kg)
|
| Backhoe |
|
Bucket Dig Force - Standard |
16,950 lbs (7,688 kg)
|
|
Bucket Rotation |
190 degrees |
|
Dig Depth - Standard |
17 ft (5 m)
|
|
E-Stick Extended (1) |
21 ft (6 m)
|
|
E-Stick Extended (2) |
25 ft (8 m)
|
|
E-Stick Extended (3) |
16,230 lbs (7,362 kg)
|
|
E-Stick Extended (4) |
8,230 lbs (3,733 kg)
|
|
E-Stick Extended (5) |
4,836 lbs (2,194 kg)
|
|
E-Stick Extended (6) |
17 ft (5 m)
|
|
E-Stick Extended (7) |
11 ft (3 m)
|
|
E-Stick Retracted (1) |
17 ft (5 m)
|
|
E-Stick Retracted (2) |
22 ft (7 m)
|
|
E-Stick Retracted (3) |
16,230 lbs (7,362 kg)
|
|
E-Stick Retracted (4) |
11,400 lbs (5,171 kg)
|
|
E-Stick Retracted (5) |
7,343 lbs (3,331 kg)
|
|
E-Stick Retracted (6) |
14 ft (4 m)
|
|
E-Stick Retracted (7) |
7 ft (2 m)
|
|
Loading Height - Standard |
14 ft (4 m)
|
|
Loading Reach - Standard |
7 ft (2 m)
|
|
Reach From Swing Pivot - Standard |
22 ft (7 m)
|
|
Stick Dig Force - Standard |
11,430 lbs (5,185 kg)
|
|
Stick Lift At 2440 Mm (8 Ft) - Standard |
7,451 lbs (3,380 kg)
|
| Engine |
|
Bore |
4 in (11 cm)
|
|
Displacement |
268 cu in (4,392 cu cm)
|
|
Engine Model - Standard |
Cat 3114 DIT |
|
Gross Power - Iso 14396 |
110 hp (82 kw)
|
|
Gross Power - Sae J1995 |
110 hp (82 kw)
|
|
Net Peak Torque - 1400 Rpm - Standard - Sae J1349 |
336 lbs ft (456 nm)
|
|
Net Power (Optional) - Din 70020 |
107 ps |
|
Net Power (Optional) - Eec 80/1269 |
102 hp (76 kw)
|
|
Net Power (Optional) - Iso 1585 |
102 hp (76 kw)
|
|
Net Power - Eec 80/1269 |
102 hp (76 kw)
|
|
Net Power - Iso 9249 |
102 hp (76 kw)
|
|
Net Power - Sae J1349 |
101 hp (75 kw)
|
|
Net Torque Rise - 1,400 Rpm - Standard |
32.6 % |
|
Stroke |
5 in (13 cm)
|
| General Specifications |
|
4th Gear Fwd (Since 2006)
|
20 mph (32 kph)
|
|
Backhoe - 14) Digging depth SAE (max) (Since 2006)
|
254 in (645 cm)
|
|
Backhoe - 14) Digging depth SAE (max) (Since 2006)
|
205 in (521 cm)
|
|
Backhoe - 14) Digging depth SAE (max) (Since 2006)
|
202 in (513 cm)
|
|
Backhoe - 15) Digging depth 610 mm (2'0") flat bottom (Since 2006)
|
253 in (643 cm)
|
|
Backhoe - 15) Digging depth 610 mm (2'0") flat bottom (Since 2006)
|
204 in (518 cm)
|
|
Backhoe - 15) Digging depth 610 mm (2'0") flat bottom (Since 2006)
|
200 in (508 cm)
|
|
Backhoe - 16) Reach from swing pivot at ground line (Since 2006)
|
311 in (790 cm)
|
|
Backhoe - 16) Reach from swing pivot at ground line (Since 2006)
|
264 in (671 cm)
|
|
Backhoe - 16) Reach from swing pivot at ground line (Since 2006)
|
261 in (663 cm)
|
|
Backhoe - 17) Loading reach (Since 2006)
|
125 in (318 cm)
|
|
Backhoe - 17) Loading reach (Since 2006)
|
79 in (201 cm)
|
|
Backhoe - 17) Loading reach (Since 2006)
|
82 in (208 cm)
|
|
Backhoe - 18) Stabilizer spread, operating position (center of pad) (Since 2006)
|
142 in (361 cm)
|
|
Backhoe - 19) Stabilizer spread, operating position (outside edge of pad) (Since 2006)
|
161 in (409 cm)
|
|
Backhoe - Bucket dig force (Since 2006)
|
16,400 lbf (73 kN)
|
|
Backhoe - Bucket dig force (Since 2006)
|
16,950 lbf (75 kN)
|
|
Backhoe - Bucket rotation (Since 2006)
|
187 deg |
|
Backhoe - Bucket rotation (Since 2006)
|
190 deg |
|
Backhoe - Leveling angle (maximum slope on which machine will make a vertical cut) (Since 2006)
|
13 deg |
|
Backhoe - Loading height (Since 2006)
|
199 in (505 cm)
|
|
Backhoe - Loading height (Since 2006)
|
173 in (439 cm)
|
|
Backhoe - Loading height (2006)
|
173 in (439 cm)
|
|
Backhoe - Maximum operating height (Since 2006)
|
297 in (754 cm)
|
|
Backhoe - Maximum operating height (Since 2006)
|
262 in (665 cm)
|
|
Backhoe - Maximum operating height (Since 2006)
|
257 in (653 cm)
|
|
Backhoe - Reach from rear axle centerline at ground line (Since 2006)
|
359 in (912 cm)
|
|
Backhoe - Reach from rear axle centerline at ground line (Since 2006)
|
312 in (792 cm)
|
|
Backhoe - Reach from rear axle centerline at ground line (Since 2006)
|
310 in (787 cm)
|
|
Backhoe - Stabilizer spread, transport position (Since 2006)
|
98 in (249 cm)
|
|
Backhoe - Stick dig force (Since 2006)
|
8,275 lbf (37 kN)
|
|
Backhoe - Stick dig force (Since 2006)
|
11,260 lbf (50 kN)
|
|
Backhoe - Stick dig force (Since 2006)
|
11,430 lbf (51 kN)
|
|
Backhoe - Swing arc (Since 2006)
|
180 deg |
|
Bore (Since 2006)
|
4 in (10 cm)
|
|
Breakout Force (Since 2006)
|
13,838 lbs (6,277 kg)
|
|
Digging Depth (Since 2004)
|
202 in (513 cm)
|
|
Digging Depth (2005)
|
202 in (513 cm)
|
|
Digging Depth (Since 2006)
|
21 ft (6 m)
|
|
Digging Depth (Since 2006)
|
202 in (513 cm)
|
|
Engine Displacement (Since 2006)
|
268 cu in (4,392 cu cm)
|
|
Engine Model (Since 2006)
|
3114 DIT |
|
Flywheel Horsepower (Since 2004)
|
102 hp (76 kw)
|
|
Flywheel Horsepower (2005)
|
102 hp (76 kw)
|
|
Flywheel Horsepower (2006)
|
102 hp (76 kw)
|
|
Fuel Tank Capacity (Since 2006)
|
33 US gal (125 L)
|
|
GP Bucket Capacity (Since 2004)
|
2 cu yd (1 cu m)
|
|
GP Bucket Capacity (2005)
|
2 cu yd (1 cu m)
|
|
GP Bucket Capacity (2006)
|
2 cu yd (1 cu m)
|
|
Gross Flywheel Power - Caterpillar (Since 2006)
|
110 hp (82 kw)
|
|
Gross Flywheel Power - SAE J1349 (Since 2006)
|
109 hp (81 kw)
|
|
Hydraulic System, closed center (Since 2006)
|
LSPC |
|
Lift Capacity (Since 2006)
|
9,572 lbs (4,342 kg)
|
|
Loader Bucket - 10) Maximum bucket rollback at ground level (Since 2006)
|
41 deg |
|
Loader Bucket - 11) Digging depth (Since 2006)
|
6 in (15 cm)
|
|
Loader Bucket - 11) Digging depth (Since 2006)
|
7 in (18 cm)
|
|
Loader Bucket - 13) Maximum operating height (Since 2006)
|
173 in (439 cm)
|
|
Loader Bucket - 13) Maximum operating height (Since 2006)
|
177 in (450 cm)
|
|
Loader Bucket - 13) Maximum operating height (Since 2006)
|
173 in (439 cm)
|
|
Loader Bucket - 7) Maximum hinge pin height (Since 2006)
|
137 in (348 cm)
|
|
Loader Bucket - 8) Dump angle at full height (Since 2006)
|
45 deg |
|
Loader Bucket - 9) Dump reach at full height (Since 2006)
|
34 in (86 cm)
|
|
Loader Bucket - 9) Dump reach at full height (Since 2006)
|
35 in (89 cm)
|
|
Loader Bucket - 9) Dump reach at full height (Since 2006)
|
32 in (81 cm)
|
|
Loader Bucket - Breakout (Since 2006)
|
13,868 lbf (62 kN)
|
|
Loader Bucket - Breakout (Since 2006)
|
12,744 lbf (57 kN)
|
|
Loader Bucket - Breakout (Since 2006)
|
14,105 lbf (63 kN)
|
|
Loader Bucket - Capacity (SAE) rated (Since 2006)
|
2 cu yd (1 cu m)
|
|
Loader Bucket - Capacity (SAE) rated (Since 2006)
|
2 cu yd (1 cu m)
|
|
Loader Bucket - Capacity (SAE) rated (Since 2006)
|
2 cu yd (1 cu m)
|
|
Loader Bucket - Dump height at maximum angle (Since 2006)
|
107 in (272 cm)
|
|
Loader Bucket - Dump height at maximum angle (2006)
|
107 in (272 cm)
|
|
Loader Bucket - Dump height at maximum angle (2006)
|
107 in (272 cm)
|
|
Loader Bucket - Jaw opening maximum (Since 2006)
|
41 in (104 cm)
|
|
Loader Bucket - Lift capacity (Since 2006)
|
9,592 lbs (4,351 kg)
|
|
Loader Bucket - Lift capacity (Since 2006)
|
9,296 lbs (4,217 kg)
|
|
Loader Bucket - Lift capacity (Since 2006)
|
8,905 lbs (4,039 kg)
|
|
Loader Bucket - Maximum grading angle (Since 2006)
|
104 deg |
|
Loader Bucket - Maximum grading angle (Since 2006)
|
101 deg |
|
Loader Bucket - Weight (Since 2006)
|
1,176 lbs (533 kg)
|
|
Loader Bucket - Weight (Since 2006)
|
1,278 lbs (580 kg)
|
|
Loader Bucket - Weight (Since 2006)
|
2,000 lbs (907 kg)
|
|
Loader Bucket - Width (Since 2006)
|
96 in (244 cm)
|
|
Loader Bucket - Width (Since 2006)
|
100 in (254 cm)
|
|
Loader Bucket - Width of dozer cutting edge (Since 2006)
|
96 in (244 cm)
|
|
Loading Height (Since 2006)
|
17 ft (5 m)
|
|
Machine Dimensions - 1) Overall transport length (Since 2006)
|
313 in (795 cm)
|
|
Machine Dimensions - 1) Overall transport length (Since 2006)
|
315 in (800 cm)
|
|
Machine Dimensions - 1) Overall transport length (Since 2006)
|
313 in (795 cm)
|
|
Machine Dimensions - 2) Overall transport height (Since 2006)
|
165 in (419 cm)
|
|
Machine Dimensions - 3) Height to top of cab/canopy (Since 2006)
|
114 in (290 cm)
|
|
Machine Dimensions - 4) Height to top of exhaust stack (Since 2006)
|
117 in (297 cm)
|
|
Machine Dimensions - 5) Rear axle centerline to front grill (Since 2006)
|
108 in (274 cm)
|
|
Machine Dimensions - 6) Wheelbase (2WD/AWD) (Since 2006)
|
88 in (224 cm)
|
|
Machine Dimensions - Front wheel tread gauge (Since 2006)
|
78 in (198 cm)
|
|
Machine Dimensions - Ground clearance (minimum) (Since 2006)
|
13 in (33 cm)
|
|
Machine Dimensions - Overall length (Since 2006)
|
311 in (790 cm)
|
|
Machine Dimensions - Overall length (Since 2006)
|
313 in (795 cm)
|
|
Machine Dimensions - Overall length (Since 2006)
|
310 in (787 cm)
|
|
Machine Dimensions - Overall width (Since 2006)
|
98 in (249 cm)
|
|
Machine Dimensions - Rear wheel tread gauge (Since 2006)
|
71 in (180 cm)
|
|
MP Bucket Capacity (Since 2004)
|
2 cu yd (1 cu m)
|
|
MP Bucket Capacity (2005)
|
2 cu yd (1 cu m)
|
|
MP Bucket Capacity (2006)
|
2 cu yd (1 cu m)
|
|
Net Flywheel Power - EEC 80/1269 (Since 2006)
|
102 hp (76 kw)
|
|
Net Flywheel Power - ISO 9249 (Since 2006)
|
102 hp (76 kw)
|
|
Net Flywheel Power - SAE J1349 (Since 2006)
|
101 hp (75 kw)
|
|
No. of Cylinders (Since 2006)
|
4 |
|
Operating Weight (Since 2004)
|
19,666 lbs (8,920 kg)
|
|
Operating Weight (2005)
|
19,666 lbs (8,920 kg)
|
|
Operating Weight (Since 2006)
|
19,666 lbs (8,920 kg)
|
|
Operating Weight (Since 2006)
|
19,666 lbs (8,920 kg)
|
|

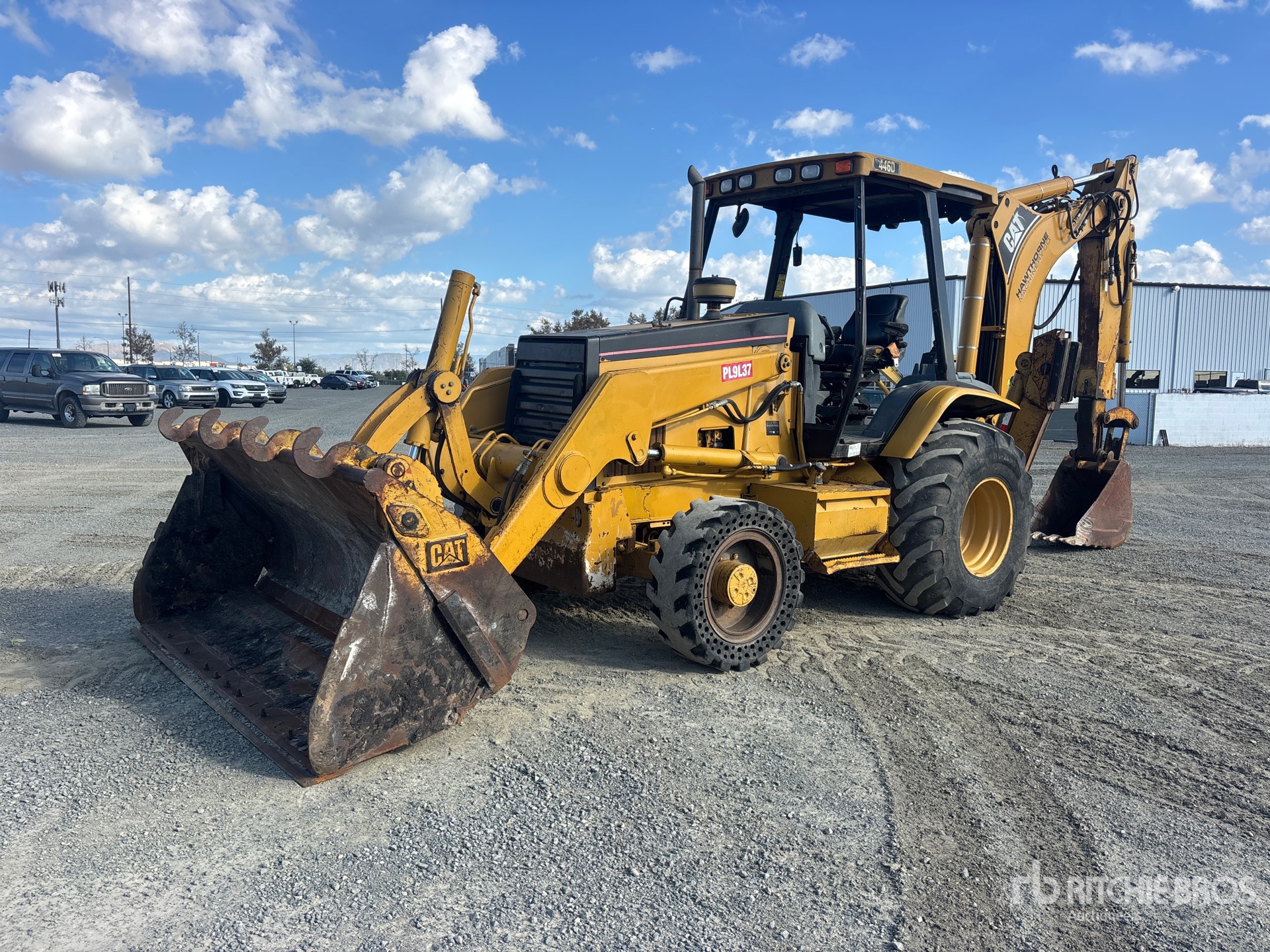

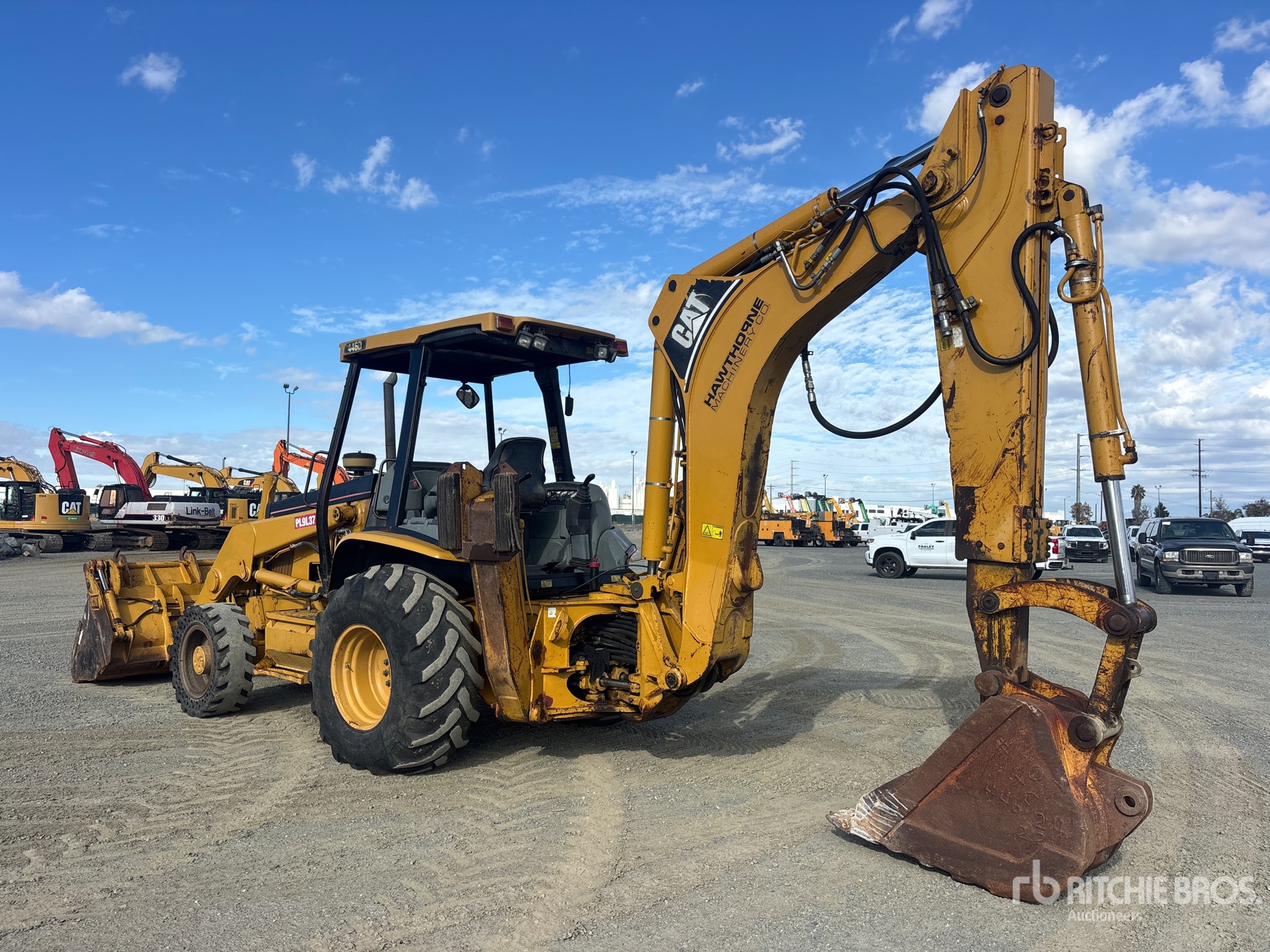

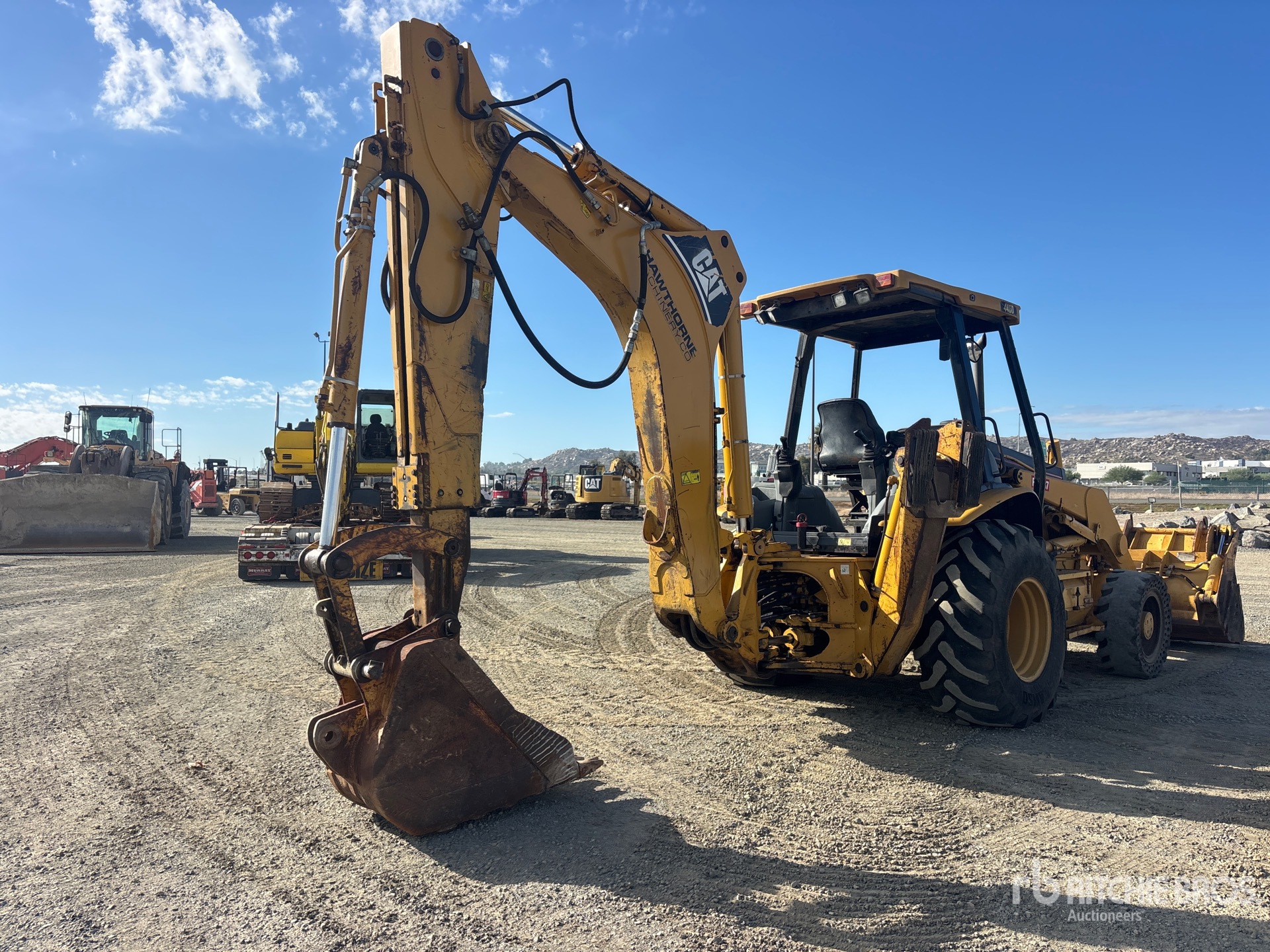

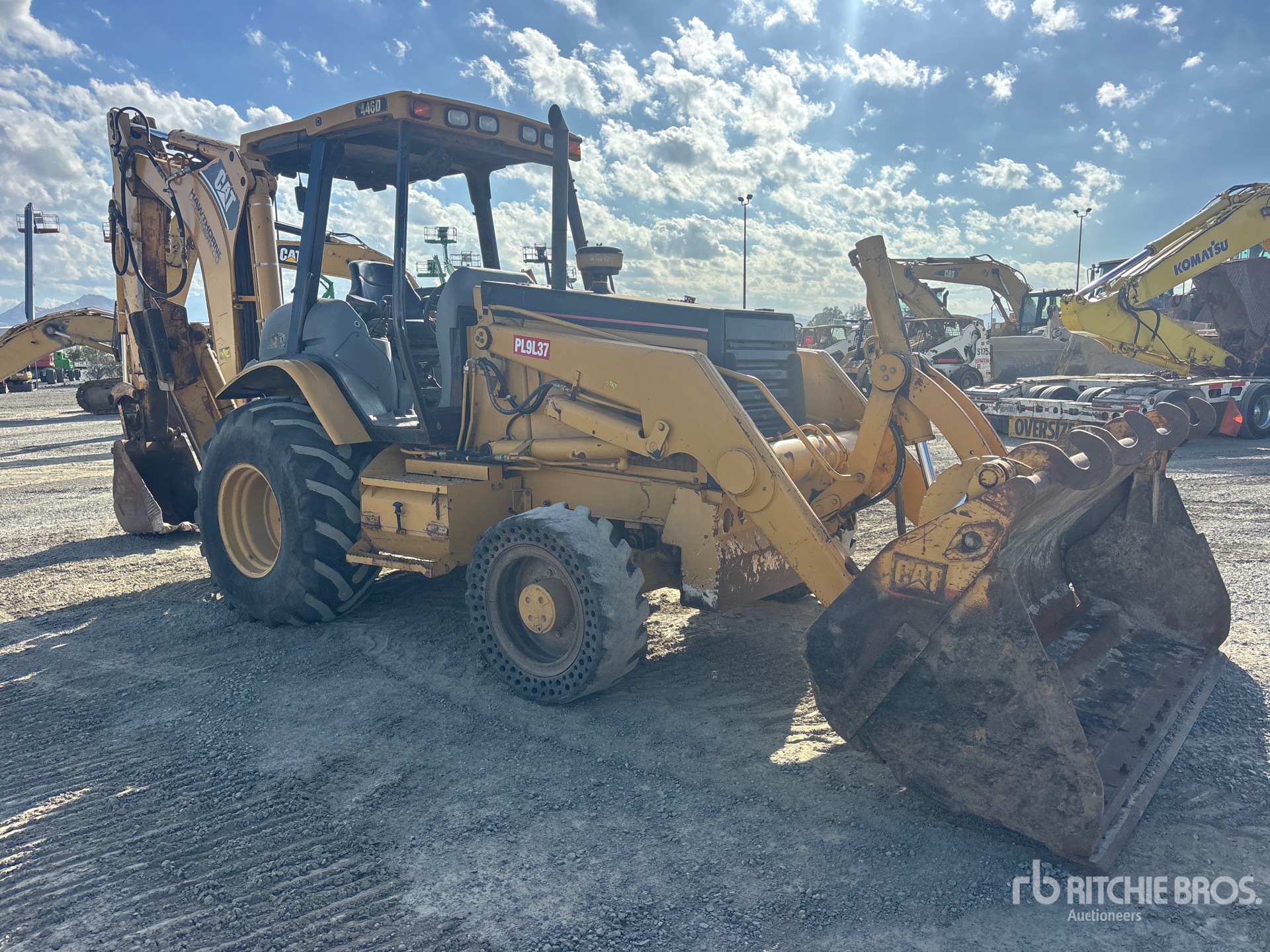

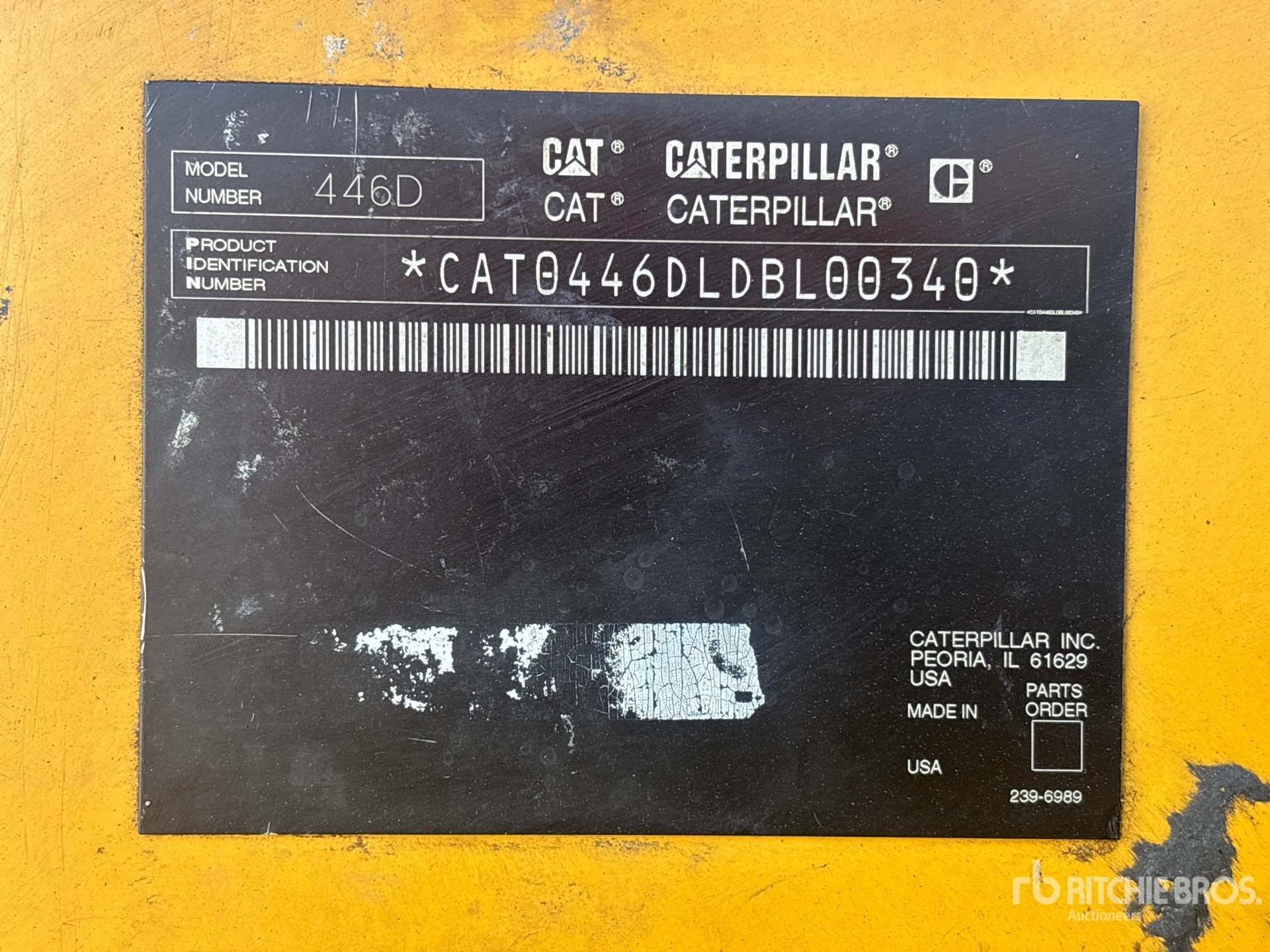

Product Identification Prefix (Since 2004)
|
DBL |
|
Product Identification Prefix (2005)
|
DBL |
|
Product Identification Prefix (2006)
|
DBL |
|
Pump capacity (Since 2006)
|
3,250 psi (22,400 kPa)
|
|
Rated Engine RPM (Since 2006)
|
2,200 rpm |
|
SAE Net (Since 2006)
|
102 hp (76 kw)
|
|
Speeds Forward (Auto-Shift) - 1st (Since 2006)
|
5.6 3.5 |
|
Speeds Forward (Auto-Shift) - 2nd (Since 2006)
|
8.9 5.5 |
|
Speeds Forward (Auto-Shift) - 3rd (Since 2006)
|
11.6 7.2 |
|
Speeds Forward (Auto-Shift) - 4th (Since 2006)
|
18.8 11.7 |
|
Speeds Forward (Auto-Shift) - 5th (Since 2006)
|
31.5 19.6 |
|
Speeds Reverse (Auto-Shift) - 1st (Since 2006)
|
5.6 3.5 |
|
Speeds Reverse (Auto-Shift) - 2nd (Since 2006)
|
11.6 7.2 |
|
Speeds Reverse (Auto-Shift) - 3rd (Since 2006)
|
20.6 12.8 |
|
Stroke (Since 2006)
|
5 in (13 cm)
|
|
Tires, Single-Tilt, Front - Standard, 2WD (Since 2006)
|
14.5/75 x 16.1, 10 PR, F3 |
|
Tires, Single-Tilt, Front - Standard, AWD (Since 2006)
|
12.5 x 20, 10 PR, R4 |
|
Tires, Single-Tilt, Rear - Standard, 2WD/AWD (Since 2006)
|
21L x 24, 12 PR, R4 |
|
Turning Circle Wall to Wall (Since 2006)
|
447 in (1,135 cm)
|
|
Years Built (Since 2004)
|
2,004 - 2,006 |
|
Years Built (2005)
|
2,004 - 2,006 |
|
Years Built (2006)
|
2,004 - 2,006 |
| Hydraulic System |
|
4wd Cylinder - Bore |
3 in (8 cm)
|
|
Axle Oscillation |
11 degrees |
|
Brake System |
Fully enclosed, oil immersed, inboard, multiple disc |
|
Circuit Type |
Closed-center, load sensing |
|
Power Steering |
Hydrostatic, Hand Metering Unit |
|
Pump Capacity At 2,200 Rpm |
47 gpm (178 lpm)
|
|
Pump Type |
Variable-flow, axial piston, load sensing, closed center system |
|
Rod Diameter |
2 in (5 cm)
|
|
Steering Type |
Ackerman |
|
Stroke |
11 in (28 cm)
|
|
System Pressure |
3,550 psi |
|
System Pressure - Backhoe |
3,550 psi |
|
System Pressure - Loader |
3,550 psi |
| Loader |
|
Bucket Breakout Force - Single Tilt |
13,838 lbs (6,277 kg)
|
|
Bucket Capacity - General Purpose |
2 cu yd |
|
Bucket Width - General Purpose |
8 ft |
|
Dig Depth - Single Tilt |
6 in (15 cm)
|
|
Dump Height At Maximum Angle - Single Tilt |
9 ft (3 m)
|
|
Dump Reach At Maximum Angle - Single Tilt |
3 ft (1 m)
|
|
Lift Capacity At Full Height - Single Tilt |
9,572 lbs (4,342 kg)
|
| Operating Specifications - Backhoe |
|
Turning Circle - Outside - Front Wheels |
29 ft (9 m)
|
|
Turning Circle - Outside, Widest Loading Bucket |
37 ft (11 m)
|
| Power Train |
|
Auto-Shift - Optional - Forward 1st |
4 mph (6 kph)
|
|
Auto-Shift - Optional - Reverse 1st |
4 mph (6 kph)
|
|
Forward - 2nd |
6 mph (9 kph)
|
|
Forward - 3rd |
7 mph (12 kph)
|
|
Forward - 4th |
12 mph (19 kph)
|
|
Forward - 5th |
20 mph (32 kph)
|
|
Reverse - 2nd |
7 mph (12 kph)
|
|
Reverse - 3rd |
13 mph (21 kph)
|
| Service Refill |
|
Cooling System - A/C |
8 gal (30 l)
|
|
Engine Oil - With Filter |
3 gal (11 l)
|
|
Front Axle (4wd) |
3 gal (9 l)
|
|
Front Axle - Planetaries |
0 gal (1 l)
|
|
Fuel Tank |
33 gal (125 l)
|
|
Hydraulic System |
41 gal (155 l)
|
|
Hydraulic Tank |
15 gal (57 l)
|
|
Rear Axle |
8 gal (31 l)
|
|
Transmission - Auto-Shift - 2wd |
7 gal (26 l)
|
|
Transmission - Auto-Shift - Awd |
7 gal (26 l)
|
| Standards |
|
Brakes |
SAE J1473 and ISO 3450 |
|
Cab - Rops |
SAE J394, SAE J1040, ISO 3471 |
|
Cab - Sound |
ANSI/SAE J1166 is 81 dB(A) |
|
Exterior Sound |
SAE J88, is 76dB(A) |
| Tires |
|
Front 2wd Standard Size |
14.5/75-16.1 |
|
Front 4wd Standard Size |
12.5-20, R4 10 PR |
|
Rear - 4wd Standard Size |
21L-24, R4 16 PR |
|
Standard Ply |
10 |
| Weights |
|
Air Conditioning |
103 lbs (47 kg)
|
|
Cab - Rops/Fops |
670 lbs (304 kg)
|
|
Counterweight |
1,000 lbs (454 kg)
|
|
Counterweights - Option 1 |
1,500 lbs (680 kg)
|
|
Extendible Stick - No Weights |
661 lbs (300 kg)
|
|
Mp Bucket (1.10 M3/1.50 Yd3) - Without Fold-Over Forks |
619 lbs (281 kg)
|
|
Operating Weight - Maximum |
25,357 lbs (11,502 kg)
|
|
Operating Weight - Nominal |
19,666 lbs (8,920 kg)
|
