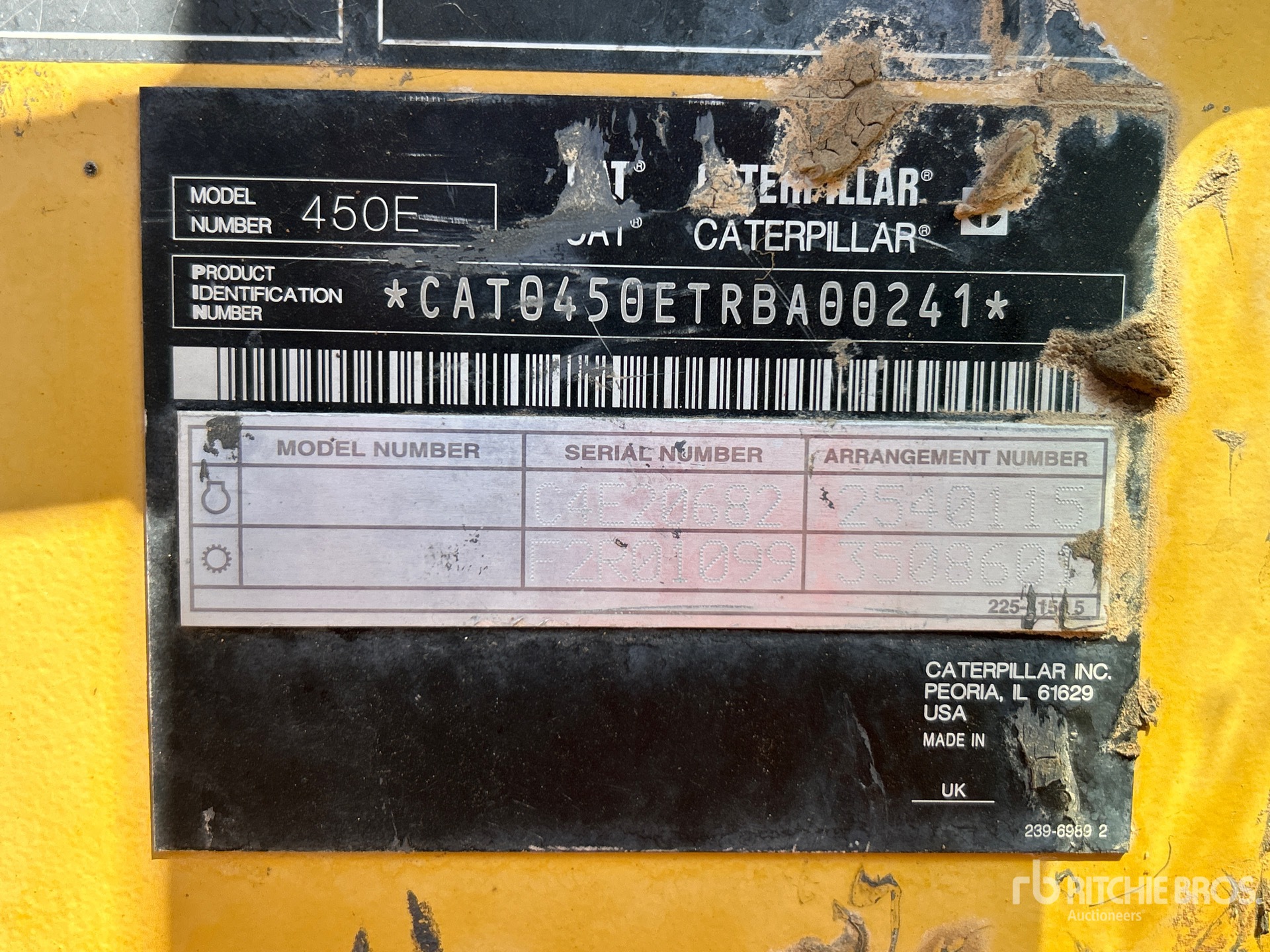

| Axle Ratings |
|
Dynamic (1) |
20,233 lbs (9,178 kg)
|
|
Dynamic (2) |
20,503 lbs (9,300 kg)
|
|
Front Axle (4wd) - Static |
50,582 lbs (22,944 kg)
|
|
Rear Axle - Static |
51,257 lbs (23,250 kg)
|

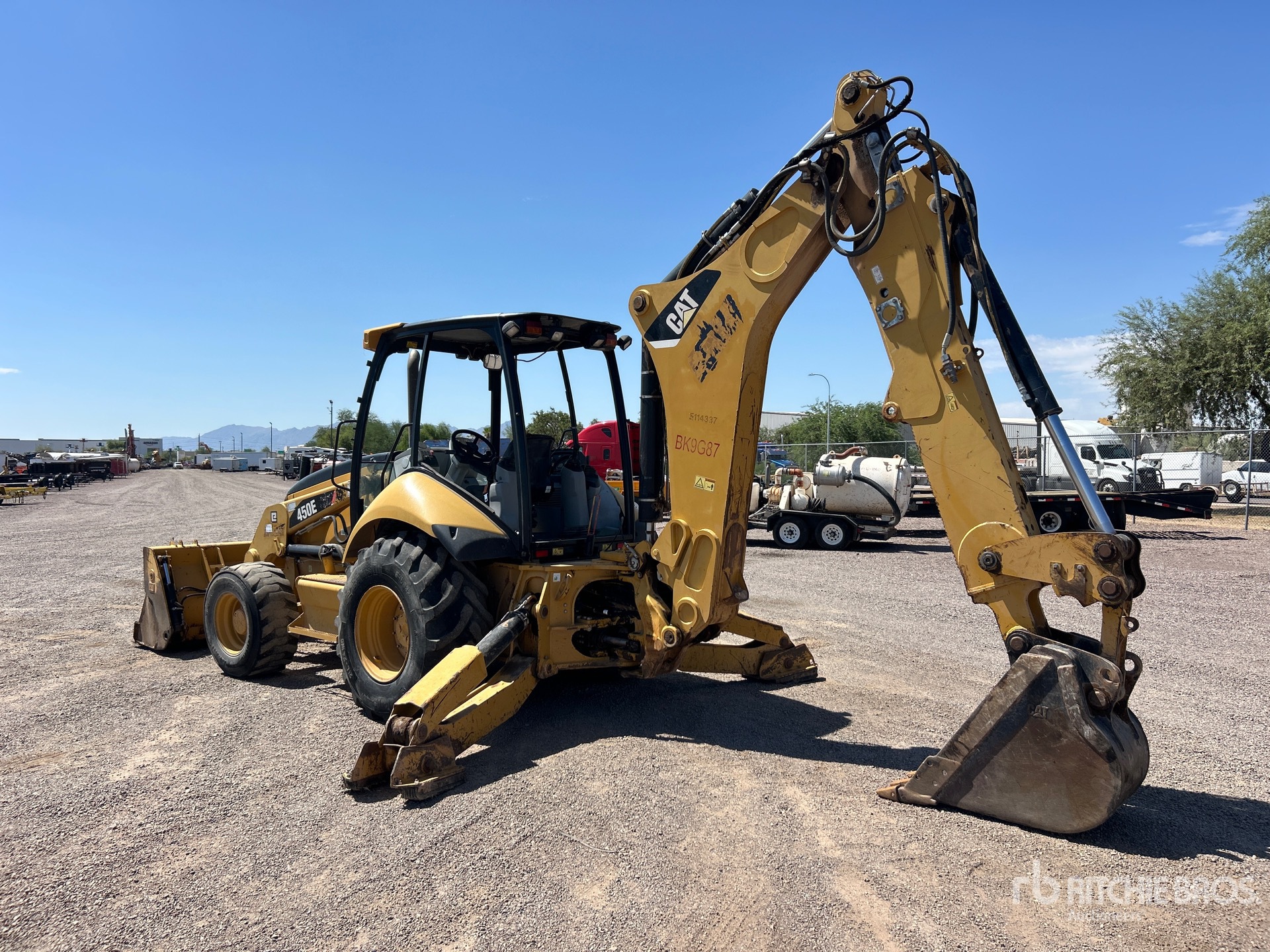

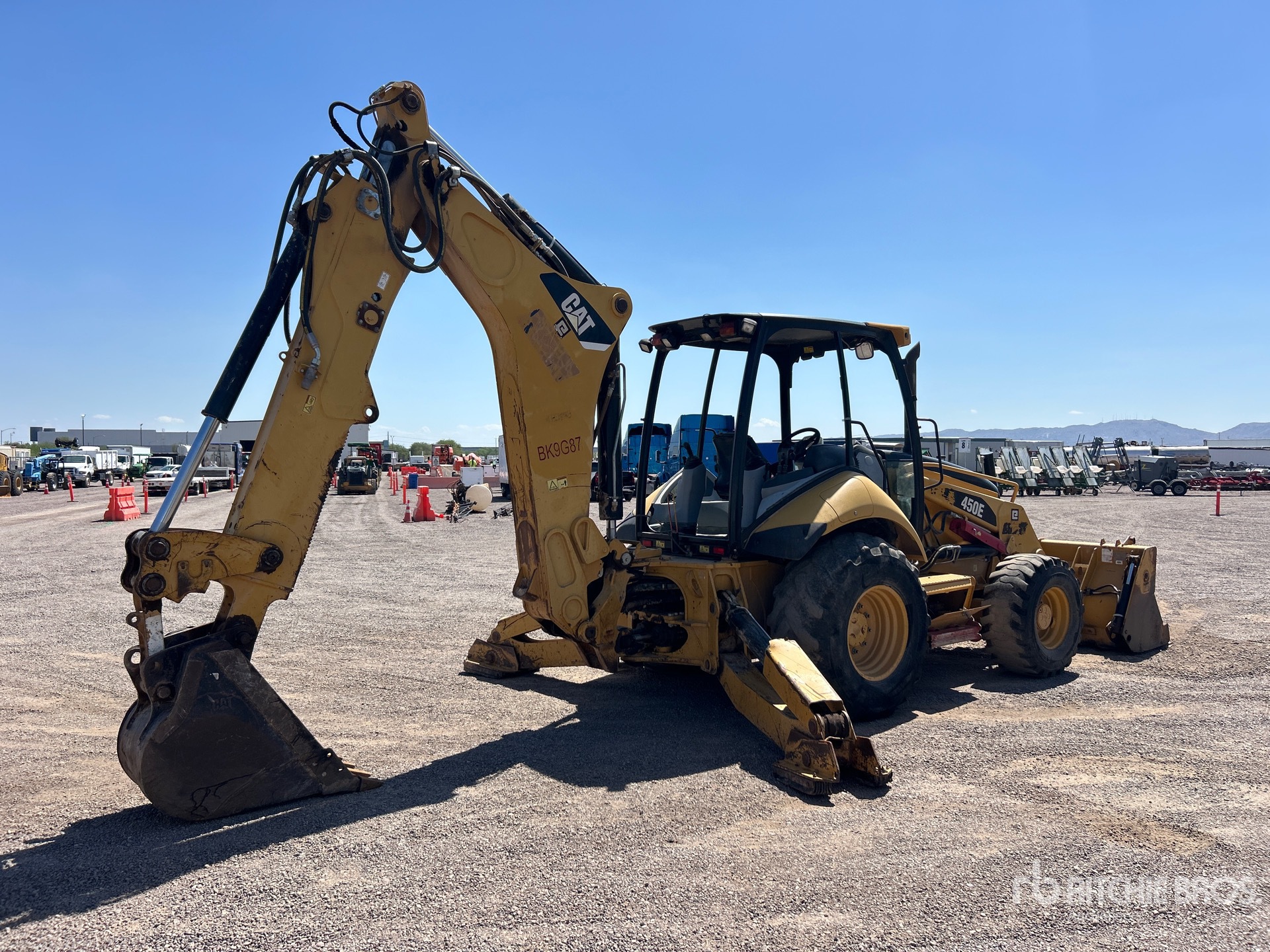

| Backhoe |
|
Bucket Dig Force - Ext |
17,746 lbs (8,049 kg)
|
|
Bucket Dig Force - Standard |
17,746 lbs (8,049 kg)
|
|
Bucket Dig Force - Std |
17,746 lbs (8,049 kg)
|
|
Bucket Rotation |
198 degrees |
|
Dig Depth - Ext |
21 ft (6 m)
|
|
Dig Depth - Standard |
17 ft (5 m)
|
|
Dig Depth - Std |
17 ft (5 m)
|
|
E-Stick Extended (1) |
21 ft (6 m)
|
|
E-Stick Extended (2) |
26 ft (8 m)
|
|
E-Stick Extended (3) |
17,746 lbs (8,049 kg)
|
|
E-Stick Extended (4) |
9,009 lbs (4,086 kg)
|
|
E-Stick Extended (5) |
4,514 lbs (2,048 kg)
|
|
E-Stick Extended (6) |
17 ft (5 m)
|
|
E-Stick Extended (7) |
10 ft (3 m)
|
|
E-Stick Retracted (1) |
17 ft (5 m)
|
|
E-Stick Retracted (2) |
22 ft (7 m)
|
|
E-Stick Retracted (3) |
17,746 lbs (8,049 kg)
|
|
E-Stick Retracted (4) |
11,939 lbs (5,415 kg)
|
|
E-Stick Retracted (5) |
8,084 lbs (3,667 kg)
|
|
E-Stick Retracted (6) |
15 ft (4 m)
|
|
E-Stick Retracted (7) |
7 ft (2 m)
|
|
Load At Max Lift - Ext |
3,283 lbs (1,489 kg)
|
|
Load At Max Lift - Std |
5,860 lbs (2,658 kg)
|
|
Load Height - Ext |
17 ft (5 m)
|
|
Load Height - Std |
15 ft (4 m)
|
|
Loading Height - Standard |
15 ft (4 m)
|
|
Loading Reach - Standard |
7 ft (2 m)
|
|
Reach At Load Height - Ext |
10 ft (3 m)
|
|
Reach At Load Height - Std |
7 ft (2 m)
|
|
Reach From Swing Pivot - Standard |
22 ft (7 m)
|
|
Reach From Swivel - Ext |
26 ft (8 m)
|
|
Reach From Swivel - Std |
22 ft (7 m)
|
|
Stick Dig Force - Standard |
11,780 lbs (5,343 kg)
|
|
Stick Lift At 2440 Mm (8 Ft) - Standard |
8,401 lbs (3,811 kg)
|
| Dimensions |
|
Height |
14 ft (4 m)
|
|
Height To Top Of Suspended Cab |
9 ft (3 m)
|
|
Length |
26 ft (8 m)
|
|
Transport Height |
14 ft (4 m)
|
|
Transport Length |
26 ft (8 m)
|
|
Transport Width |
8 ft (2 m)
|
|
Weight |
27,115 lbs (12,297 kg)
|
|
Wheelbase |
7 ft (2 m)
|
|
Width |
8 ft (2 m)
|
| Engine |
|
Bore |
4 in (11 cm)
|
|
Displacement |
268 cu in (4,392 cu cm)
|
|
Engine Make |
2,236 |
|
Engine Model |
C4.4 |
|
Engine Model - Standard |
Cat C4.4 |
|
Gross Power |
137 hp (102 kw)
|
|
Gross Power - Iso 14396 |
137 hp (102 kw)
|
|
Gross Power - Sae J1995 |
137 hp (102 kw)
|
|
Net Max Torque |
380 lbs ft (515 nm)
|
|
Net Peak Torque - 1400 Rpm - Standard - Sae J1349 |
380 lbs ft (515 nm)
|
|
Net Power |
125 hp (93 kw)
|
|
Net Power - Eec 80/1269 |
125 hp (93 kw)
|
|
Net Power - Iso 9249 |
125 hp (93 kw)
|
|
Net Power - Sae J1349 |
124 hp (92 kw)
|
|
Net Torque Rise |
28 % |
|
Net Torque Rise - 1,400 Rpm - Standard |
28 % |
|
Stroke |
5 in (13 cm)
|
| General Specifications |
|
4th Gear Fwd (Since 2007)
|
25 mph (40 kph)
|
|
4th Gear Fwd (2008)
|
25 mph (40 kph)
|
|
4TH GEAR FWD (Since 2010)
|
25 mph (40 kph)
|
|
BACKHOE LOADING HEIGHT (Since 2009)
|
17 ft (5 m)
|
|
Backhoe Loading Height (Since 2011)
|
15 ft (4 m)
|
|
Backhoe Loading Height (2012)
|
15 ft (4 m)
|
|
Breakout Force (Since 2007)
|
12,661 lbs (5,743 kg)
|
|
Breakout Force (2008)
|
12,661 lbs (5,743 kg)
|
|
BREAKOUT FORCE (Since 2010)
|
11,375 lbs (5,160 kg)
|
|
Digging Depth (Since 2007)
|
21 ft (6 m)
|
|
Digging Depth (2008)
|
21 ft (6 m)
|
|
DIGGING DEPTH (Since 2010)
|
21 ft (6 m)
|
|
Lift Capacity (Since 2007)
|
8,439 lbs (3,828 kg)
|
|
Lift Capacity (2008)
|
8,439 lbs (3,828 kg)
|
|
LIFT CAPACITY (Since 2010)
|
7,871 lbs (3,570 kg)
|
|
LOADER BREAKOUT FORCE (Since 2009)
|
11,375 lbs (5,160 kg)
|
|
Loader Breakout Force (Since 2011)
|
11,375 lbs (5,160 kg)
|
|
Loader Breakout Force (2012)
|
11,375 lbs (5,160 kg)
|
|
LOADER LIFT CAPACITY (Since 2009)
|
7,871 lbs (3,570 kg)
|
|
Loader Lift Capacity (Since 2011)
|
11,375 lbs (5,160 kg)
|
|
Loader Lift Capacity (2012)
|
11,375 lbs (5,160 kg)
|
|
LOADER SAE (Since 2009)
|
137 hp (102 kw)
|
|
Loader SAE (Since 2011)
|
124 hp (92 kw)
|
|
Loader SAE (2012)
|
124 hp (92 kw)
|
|
Loading Height (Since 2007)
|
17 ft (5 m)
|
|
Loading Height (2008)
|
17 ft (5 m)
|
|
LOADING HEIGHT (Since 2010)
|
17 ft (5 m)
|
|
MAX DIGGING DEPTH (Since 2009)
|
21 ft (6 m)
|
|
Max Digging Depth (Since 2011)
|
17 ft (5 m)
|
|
Max Digging Depth (2012)
|
17 ft (5 m)
|
|
Operating Weight (Since 2007)
|
25,357 lbs (11,502 kg)
|
|
Operating Weight (2008)
|
25,357 lbs (11,502 kg)
|
|
OPERATING WEIGHT (Since 2009)
|
24,141 lbs (10,950 kg)
|
|
Operating Weight (Since 2011)
|
24,141 lbs (10,950 kg)
|
|
Operating Weight (2012)
|
24,141 lbs (10,950 kg)
|
|
SAE (Since 2010)
|
137 hp (102 kw)
|
|
SAE Net (Since 2007)
|
124 hp (92 kw)
|
|
SAE Net (2008)
|
124 hp (92 kw)
|
|
TRAVEL SPEED 4TH GEAR FWD (Since 2009)
|
25 mph (40 kph)
|
|
Travel Speed 4th Gear Fwd (Since 2011)
|
25 mph (40 kph)
|
|
Travel Speed 4th Gear Fwd (2012)
|
25 mph (40 kph)
|
|
WEIGHT (Since 2010)
|
24,141 lbs (10,950 kg)
|
| Hydraulic |
|
Pump Flow Capacity |
51 gpm (194 lpm)
|
|
Pump Type |
variable-flow, axial piston, secondary gear |
|
Relief Valve Pressure |
3,800 psi |
| Hydraulic System |
|
4wd Cylinder - Bore |
3 in (9 cm)
|
|
Axle Oscillation |
10 degrees |
|
Brake System |
Boosted, outboard, oil-immersed, multiple disc |
|
Circuit Type |
Closed center, load sensing |
|
Power Steering |
Hydrostatic, Hand Metering Unit |
|
Pump Capacity At 2,200 Rpm |
51 gpm (194 lpm)
|
|
Pump Type |
Variable-flow, axial piston, secondary gear |
|
Rod Diameter |
2 in (4 cm)
|
|
Steering Type |
Ackerman |
|
Stroke |
1 ft (0 m)
|
|
System Pressure - Backhoe |
3,800 psi |
|
System Pressure - Loader |
3,550 psi |

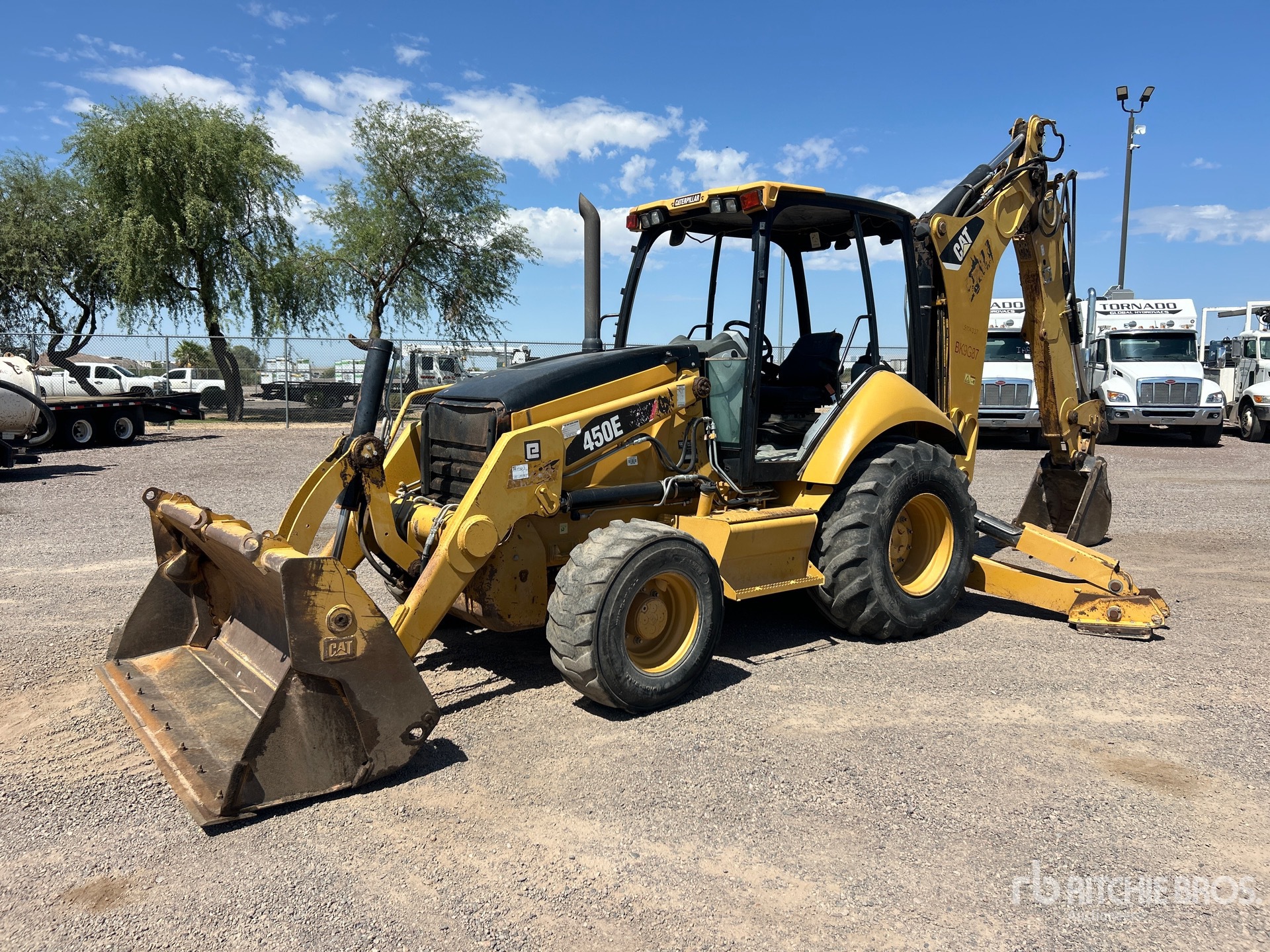

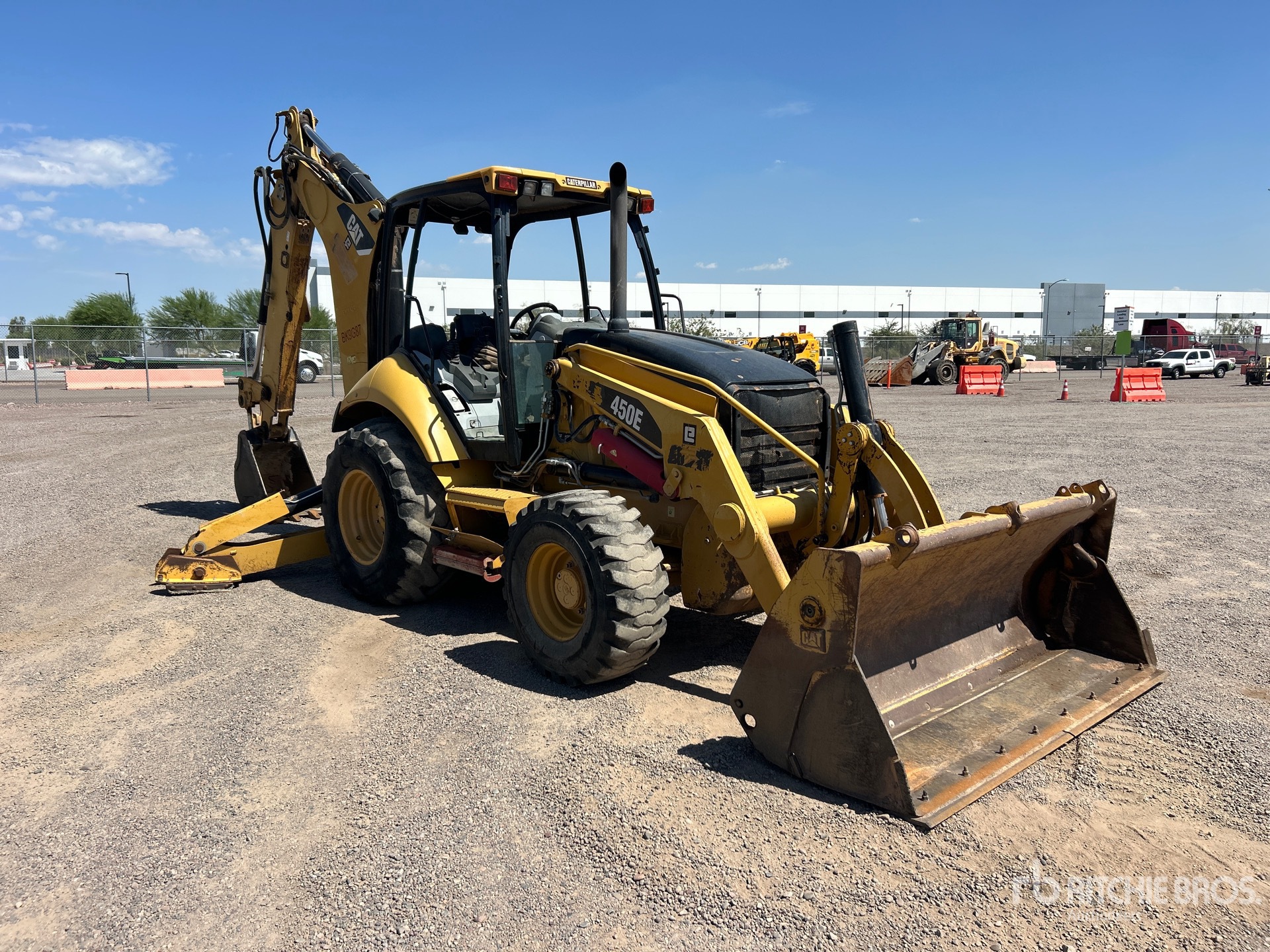

| Loader |
|
Bucket Breakout Force |
11,375 lbs (5,160 kg)
|
|
Bucket Breakout Force - Single Tilt |
11,375 lbs (5,160 kg)
|
|
Bucket Capacity |
2 cu yd |
|
Bucket Capacity - General Purpose |
2 cu yd |
|
Bucket Width |
96 in (244 cm)
|
|
Bucket Width - General Purpose |
8 ft |
|
Clearance At Max Dump Height |
9 ft (3 m)
|
|
Dig Depth |
6 in (15 cm)
|
|
Dig Depth - Single Tilt |
6 in (15 cm)
|
|
Dump Height At Maximum Angle - Single Tilt |
9 ft (3 m)
|
|
Dump Reach At Maximum Angle - Single Tilt |
3 ft (1 m)
|
|
Lift Capacity At Full Height |
7,871 lbs (3,570 kg)
|
|
Lift Capacity At Full Height - Single Tilt |
7,871 lbs (3,570 kg)
|
|
Reach At Max Dump Height |
3 ft (1 m)
|
| Operating Specifications - Backhoe |
|
Turning Circle - Outside - Front Wheels |
27 ft (8 m)
|
|
Turning Circle - Outside, Widest Loading Bucket |
37 ft (11 m)
|
| Operational |
|
Cooling System Fluid Capacity |
7 gal (26 l)
|
|
Front Axle Fluid Capacity |
3 gal (11 l)
|
|
Fuel Capacity |
38 gal (145 l)
|
|
Hydraulic System Fluid Capacity |
27 gal (100 l)
|
|
Max Weight |
27,115 lbs (12,299 kg)
|
|
Oil System Fluid Capacity |
2 gal (8 l)
|
|
Operating Voltage |
12 V |
|
Operating Weight 4wd |
24,141 lbs (10,950 kg)
|
|
Rear Axle Fluid Capacity |
5 gal (19 l)
|
|
Rear Tires Size 2wd/4wd |
21L-24 R4 18PR |
|
Tire Size Front - 2wd / 4wd |
15-19.5 12PR |
|
Transmission Fluid Capacity |
6 gal (21 l)
|
|
Turning Radius |
27 ft (8 m)
|
| Power Train |
|
Auto-Shift - Optional - Forward 1st |
4 mph (6 kph)
|
|
Auto-Shift - Optional - Reverse 1st |
4 mph (6 kph)
|
|
Forward - 2nd |
6 mph (10 kph)
|
|
Forward - 3rd |
12 mph (19 kph)
|
|
Forward - 4th |
17 mph (27 kph)
|
|
Forward - 5th |
25 mph (40 kph)
|
|
Reverse - 2nd |
8 mph (13 kph)
|
|
Reverse - 3rd |
17 mph (27 kph)
|
| Service Refill |
|
Cooling System - A/C |
6 gal (24 l)
|
|
Cooling System - High-Ambient |
7 gal (26 l)
|
|
Engine Oil - With Filter |
2 gal (8 l)
|
|
Front Axle (4wd) |
3 gal (11 l)
|
|
Front Axle - Planetaries |
0 gal (1 l)
|
|
Fuel Tank |
38 gal (145 l)
|
|
Hydraulic System |
27 gal (100 l)
|
|
Hydraulic Tank |
13 gal (50 l)
|
|
Rear Axle |
5 gal (19 l)
|
|
Transmission - Auto-Shift - Awd |
6 gal (21 l)
|
| Standards |
|
Brakes |
SAE J/ISO 3450, ISO 3450 1996 |
|
Cab - Fops |
SAE J/ISO 3449 APR98 LEVEL II and ISO 3449:1992 LEVEL II |
|
Cab - Rops |
SAE J1040 May 1994/ISO 3741 1994 |
|
Cab - Sound |
ANSI/SAE J1166 Oct 98 is 83 dB (A) |
|
Exterior Sound |
SAE J88 APR95 is 79 dB (A) |
| Tires |
|
Front 4wd Standard Size |
15-19.5, 12 PR |
|
Rear - 4wd Standard Size |
21L-24, R4 18 PR |
| Transmission |
|
Max Speed - Forward |
25 mph (40 kph)
|
|
Max Speed Reverse |
17 mph (27 kph)
|
|
Number Of Forward Gears |
5 |
|
Number Of Reverse Gears |
3 |
| Weights |
|
Air Conditioning |
157 lbs (71 kg)
|
|
Cab - Rops/Fops |
556 lbs (252 kg)
|
|
Extendible Stick - No Weights |
628 lbs (285 kg)
|
|
Mp Bucket (1.10 M3/1.50 Yd3) - With Fold-Over Forks |
231 lbs (105 kg)
|
|
Mp Bucket (1.10 M3/1.50 Yd3) - Without Fold-Over Forks |
-190 lbs (-86 kg)
|
|
Operating Weight - Maximum |
27,115 lbs (12,299 kg)
|
|
Operating Weight - Nominal |
24,141 lbs (10,950 kg)
|
