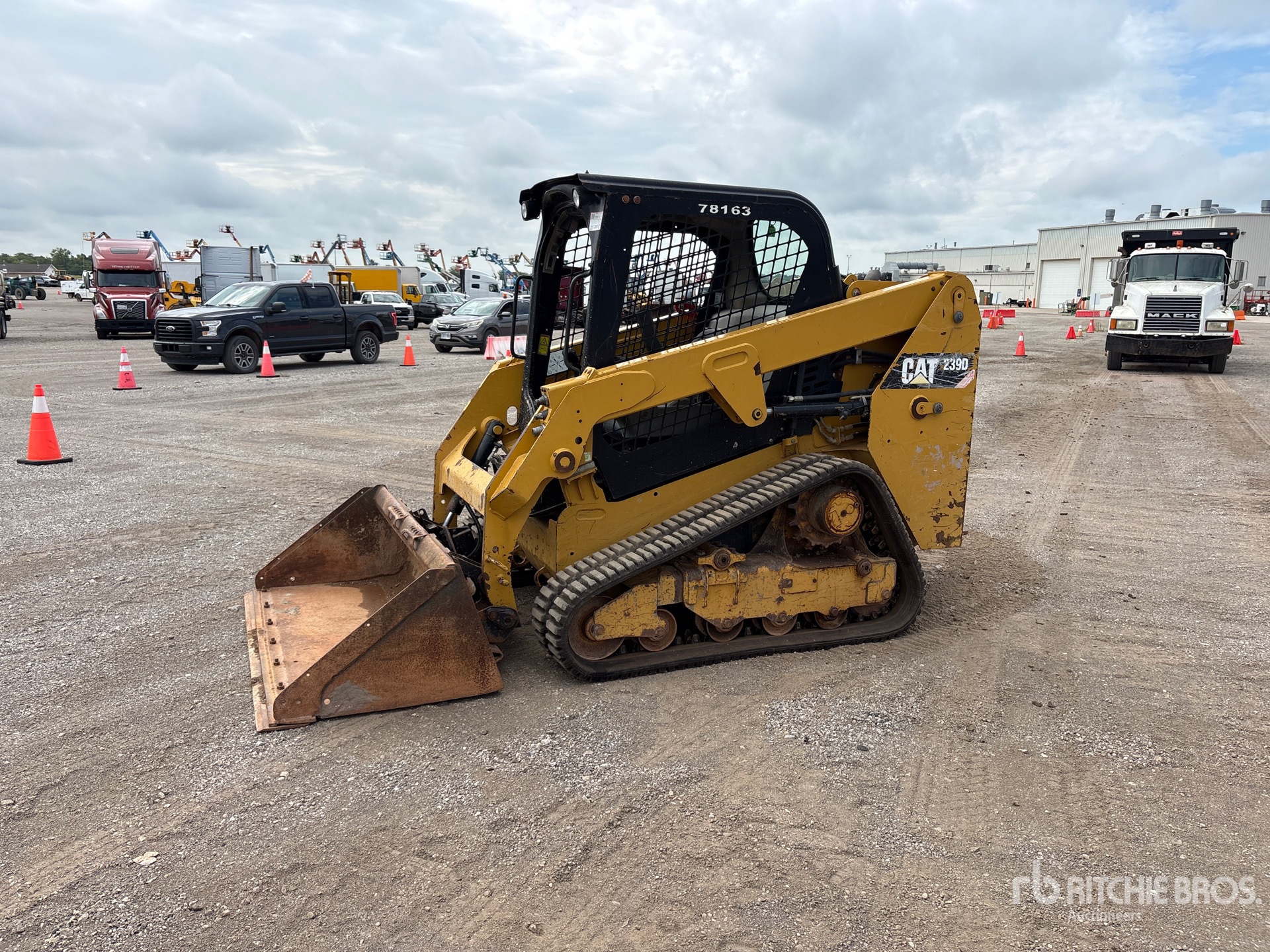

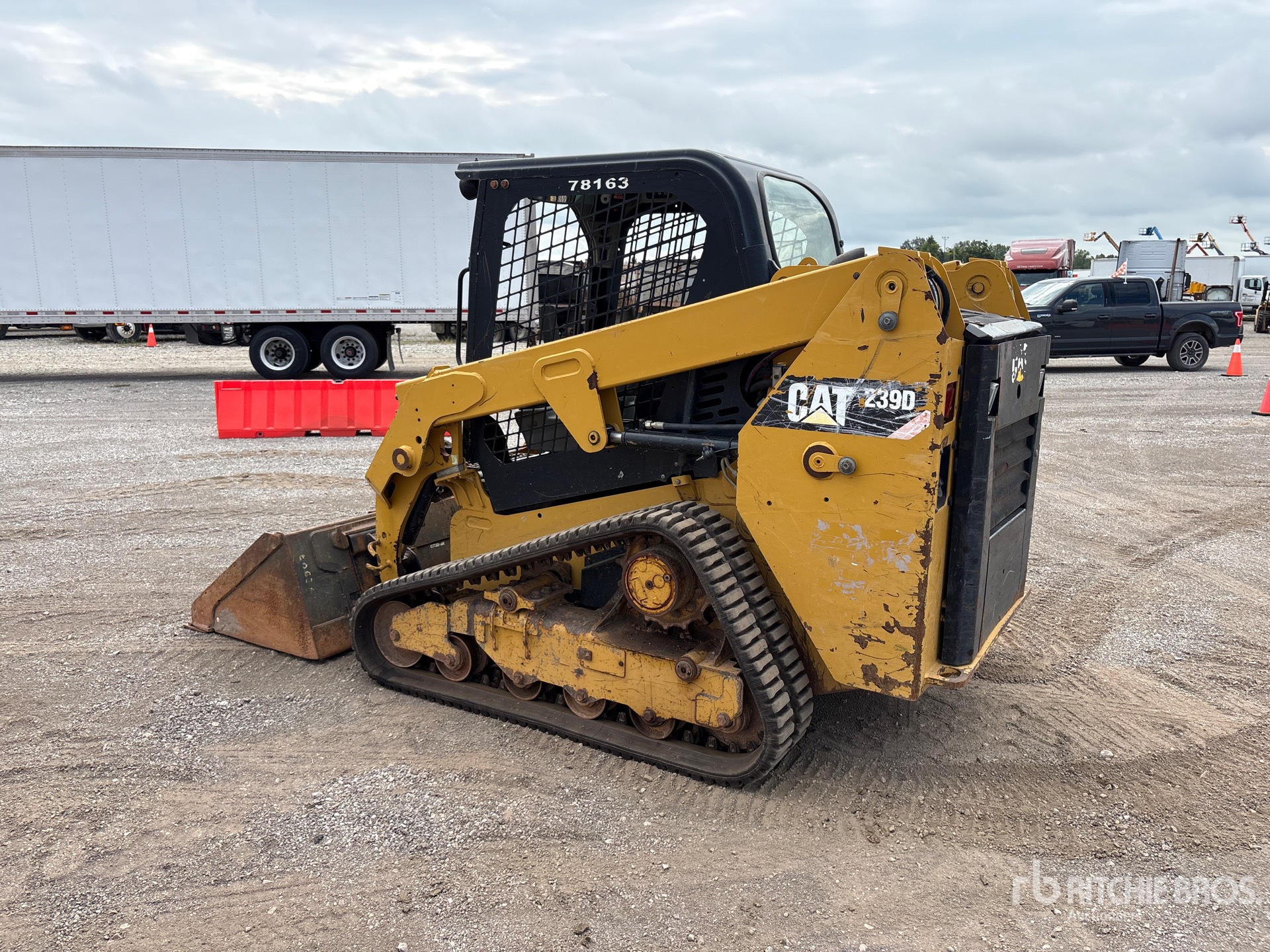

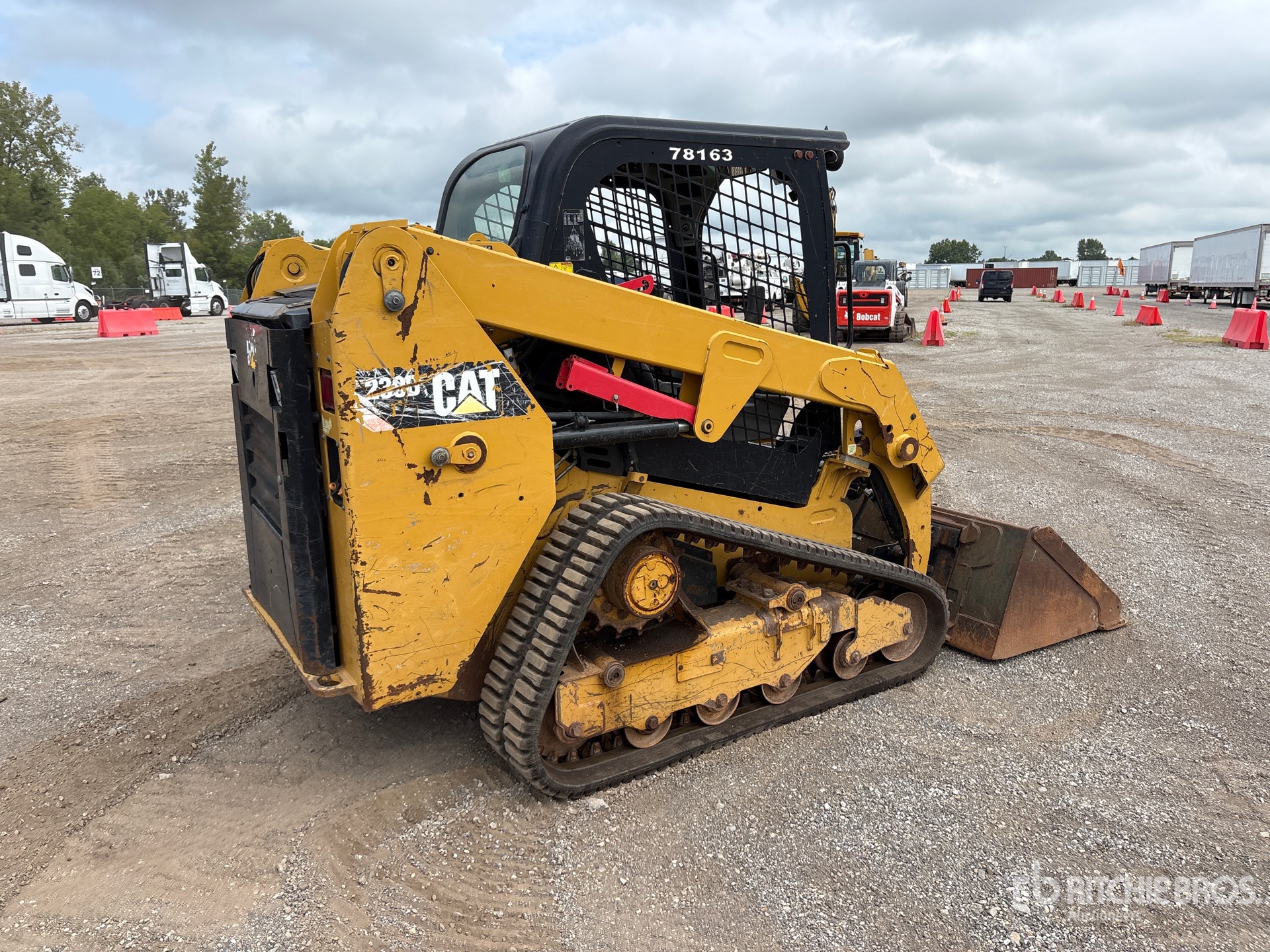

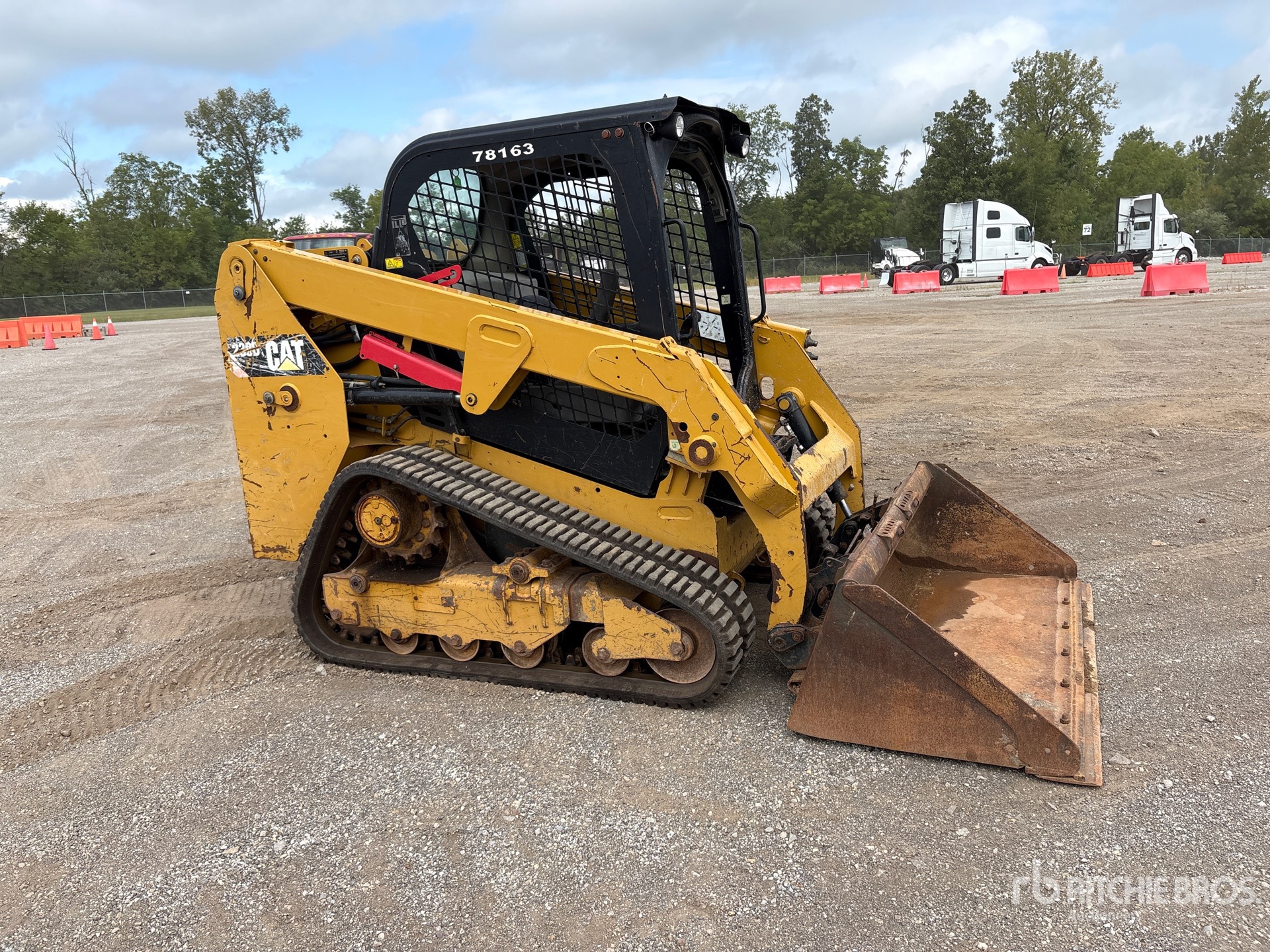

| Air Conditioning System |
|
Air Conditioning |
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.81 kg of refrigerant which has a CO2 equivalent of 1.158 metric tonnes. |

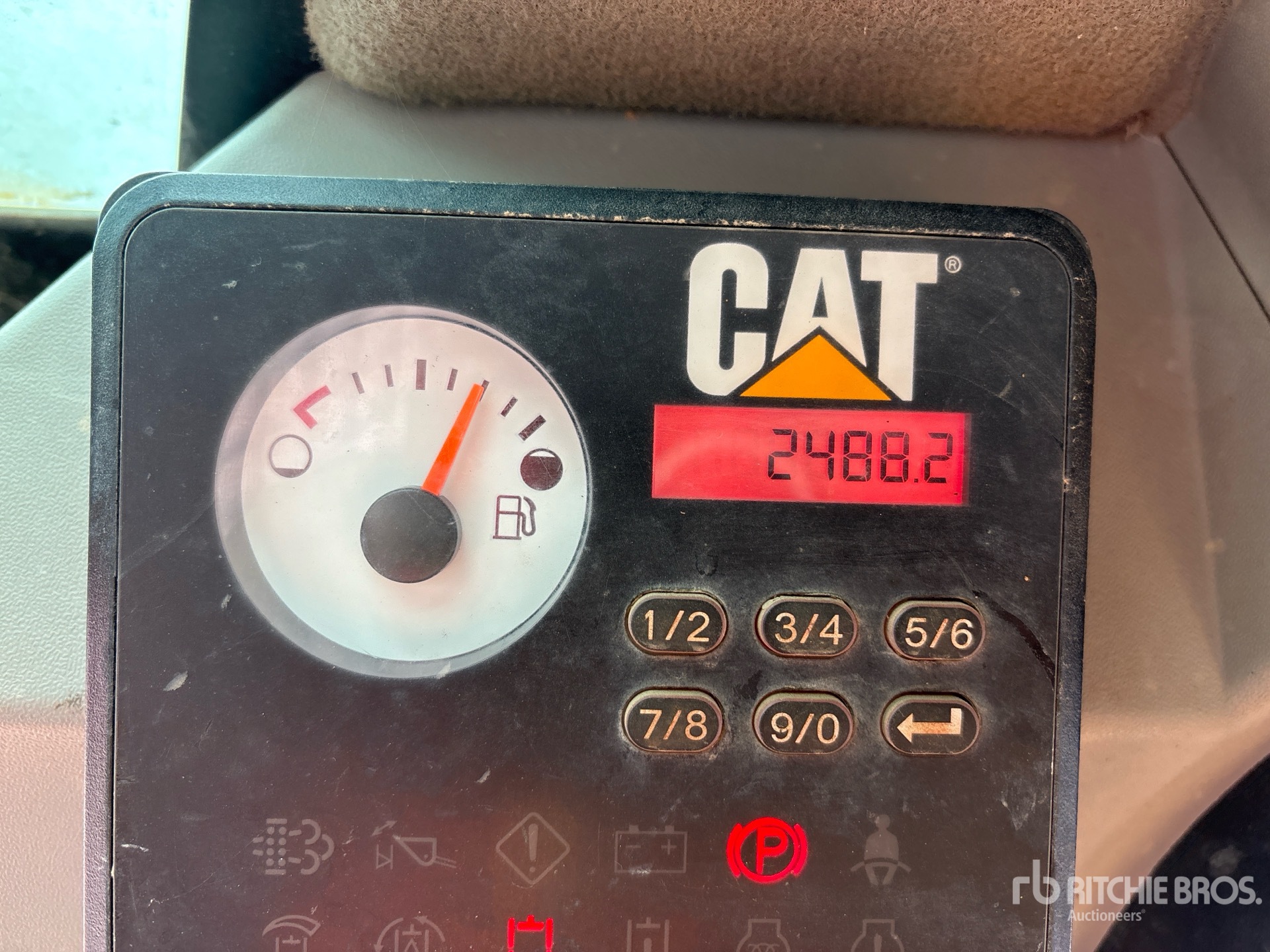

| Cab |
|
Fops |
ISO 3449:2005 Level I |
|
Fops Level Ii |
ISO 3449:2005 Level II |
|
Rops |
ISO 3471:2008 |
| Dimensions |
|
Bucket Pin Height - Carry Position |
9 in (22 cm)
|
|
Bucket Pin Height - Maximum Lift |
9 ft (3 m)
|
|
Clearance At Maximum Lift And Dump |
81 in (206 cm)
|
|
Departure Angle |
35 degrees |
|
Ground Clearance |
1 ft (0 m)
|
|
Height - Top Of Cab |
7 ft (2 m)
|
|
Length - Track On Ground |
55 in (138 cm)
|
|
Length - With Bucket On Ground |
127 in (323 cm)
|
|
Length - Without Bucket |
99 in (252 cm)
|
|
Maximum Dump Angle |
50 degrees |
|
Maximum Overall Height |
144 in (364 cm)
|
|
Maximum Reach - With Arms Parallel To Ground |
53 in (136 cm)
|
|
Note |
Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, 1676 mm (66 in) dirt bucket, 320 mm (12.6 in) tracks, standard flow hydraulics, C0 cab (OROPS, static seat), 880 CCA battery, manual quick coupler, no self level and no optional counterweights (unless otherwise noted). |
|
Overall Length - Track |
71 in (181 cm)
|
|
Rack Back Angle - Maximum Height |
86 degrees |
|
Reach - Maximum Lift/Dump |
22 in (56 cm)
|
|
Turning Radius From Center - Bucket |
82 in (207 cm)
|
|
Turning Radius From Center - Coupler |
46 in (116 cm)
|
|
Turning Radius From Center - Machine Rear |
57 in (146 cm)
|
|
Vehicle Width (320 Mm/12.6 In Tracks) |
66 in (168 cm)
|
|
Vehicle Width (400 Mm/15.7 In Tracks) |
69 in (176 cm)
|
| Engine |
|
Bore |
3 in (8 cm)
|
|
Displacement |
134 cu in (2,201 cu cm)
|
|
Engine Model |
Cat C2.2 CRDI |
|
Gross Power - Sae J1995 |
67 hp (50 kw)
|
|
Net Power |
66 hp (49 kw)
|
|
Net Power - Iso 9249 |
67 hp (50 kw)
|
|
Net Power - Sae 1349 |
66 hp (49 kw)
|
|
Peak Torque - 1,500 Rpm - Sae J1995 |
153 lbs ft (207 nm)
|
|
Stroke |
4 in (10 cm)
|

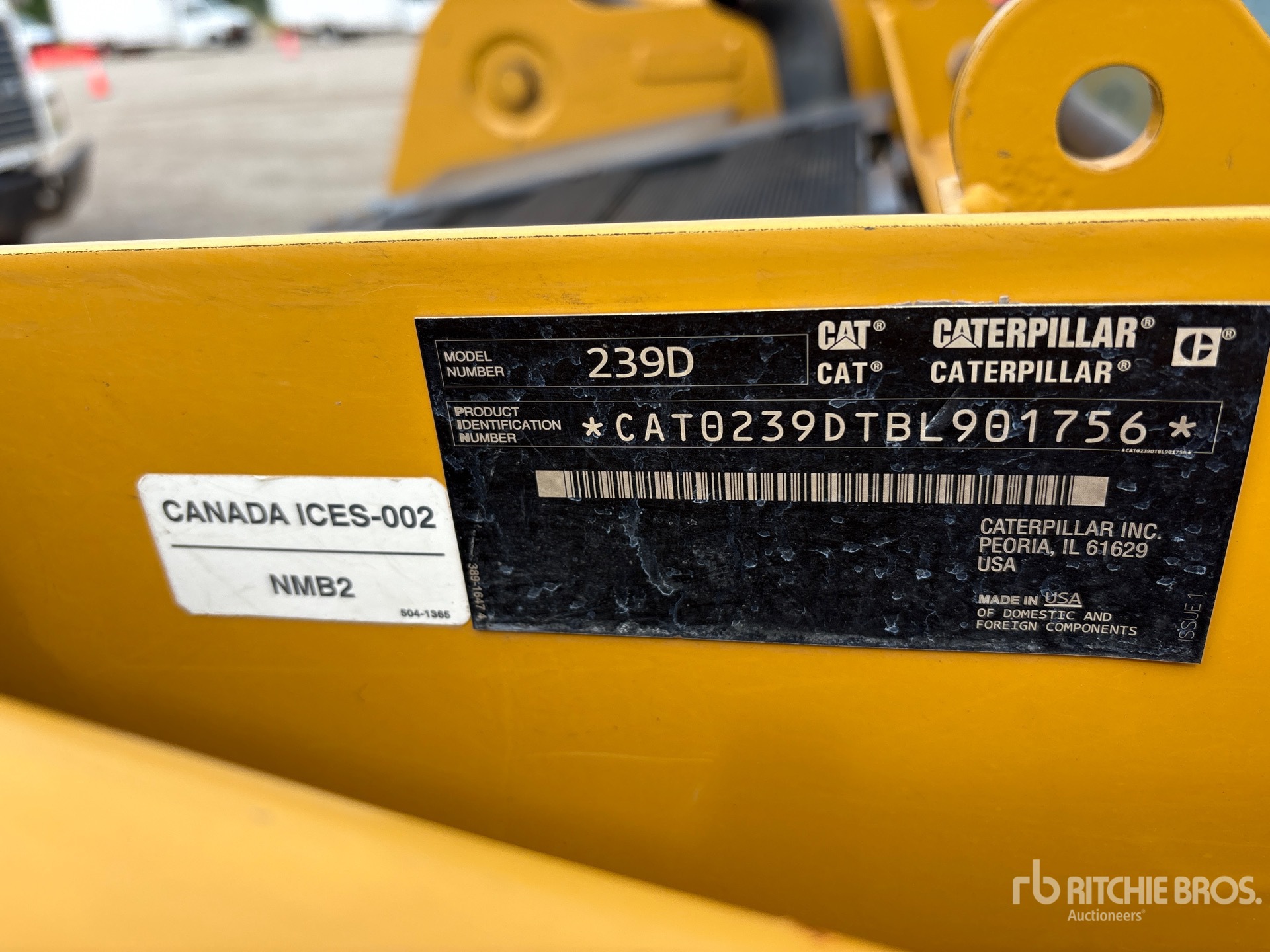

| General Specifications |
|
category (Since 2020)
|
COMPACT TRACK LOADERS |
|
ENGINE POWER (Since 2016)
|
60 hp (45 kw)
|
|
ENGINE POWER (2017)
|
60 hp (45 kw)
|
|
ENGINE POWER (Since 2019)
|
67 hp (50 kw)
|
|
ENGINE POWER (2020)
|
67 hp (50 kw)
|
|
MODEL (Since 2016)
|
239D |
|
MODEL (2017)
|
239D |
|
MODEL (2019)
|
239D |
|
MODEL (2020)
|
239D |
|
OPERATING LOAD (Since 2016)
|
2,050 lbs (930 kg)
|
|
OPERATING LOAD (2017)
|
2,050 lbs (930 kg)
|
|
OPERATING WIDTH (Since 2016)
|
66 in (168 cm)
|
|
OPERATING WIDTH (2017)
|
66 in (168 cm)
|
|
OPERATING WIDTH (2019)
|
66 in (168 cm)
|
|
OPERATING WIDTH (2020)
|
66 in (168 cm)
|
|
RATED OPERATING CAPACITY (35%) (Since 2020)
|
1,435 lbs (651 kg)
|
|
RATED OPERATING CAPACITY (50%) (Since 2019)
|
1,435 lbs (651 kg)
|
| Hydraulic System |
|
Hydraulic Flow - High Flow - Hydraulic Power (Calculated) |
51 hp (38 kw)
|
|
Hydraulic Flow - High Flow - Loader Hydraulic Flow |
26 gpm (98 lpm)
|
|
Hydraulic Flow - High Flow - Loader Hydraulic Pressure |
3,336 psi |
|
Hydraulic Flow - Standard - Hydraulic Power (Calculated) |
36 hp (26 kw)
|
|
Hydraulic Flow - Standard - Loader Hydraulic Flow |
18 gpm (68 lpm)
|
|
Hydraulic Flow - Standard - Loader Hydraulic Pressure |
3,336 psi |
| Noise Level |
|
Inside Cab** |
83 dB(A) |
|
Note (1) |
Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe. |
|
Note (2) |
**The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds. |
|
Note (3) |
***The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC. |
|
Outside Cab*** |
103 dB(A) |
| Operating Specifications |
|
Breakout Force - Tilt Cylinder |
3,969 lbs (1,800 kg)
|
|
Ground Contact Area - With 320 Mm/12.6 In Track |
1373 in2 |
|
Ground Contact Area - With 400 Mm/15.7 In Track |
1716 in2 |
|
Ground Pressure - With 320 Mm/12.6 In Track |
5 psi |
|
Ground Pressure - With 400 Mm/15.7 In Track |
4 psi |
|
Note |
Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, 1676 mm (66 in) dirt bucket, 320 mm (12.6 in) tracks, standard flow hydraulics, C0 cab (OROPS, static seat), 880 CCA battery, manual quick coupler, no self level and no optional counterweights (unless otherwise noted). |
|
Rated Operating Capacities - 35% Tipping Load |
1,435 lbs (651 kg)
|
|
Rated Operating Capacities - 50% Tipping Load |
2,050 lbs (930 kg)
|
|
Rated Operating Capacity With Optional Counterweight |
2,250 lbs (1,020 kg)
|
|
Tipping Load |
4,100 lbs (1,859 kg)
|
| Operational |
|
Operating Weight |
7,289 lbs (3,306 kg)
|
| Power Train |
|
Travel Speed - Forward Or Reverse |
7 mph (11 kph)
|
| Service Refill Capacities |
|
Cooling System |
3 gal (12 l)
|
|
Engine Crankcase |
3 gal (10 l)
|
|
Fuel Tank |
15 gal (57 l)
|
|
Hydraulic System |
12 gal (45 l)
|
|
Hydraulic Tank |
9 gal (34 l)
|
| Weights |
|
Note |
Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, 1676 mm (66 in) dirt bucket, 320 mm (12.6 in) tracks, standard flow hydraulics, C0 cab (OROPS, static seat), 880 CCA battery, manual quick coupler, no self level and no optional counterweights (unless otherwise noted). |
