2006 Caterpillar 247B

Name: 2006 Caterpillar 247B
Brand: Caterpillar
SKU: 88940009
Availability: OutOfStock

❮

❯

/ Save to Watch List

Apply for Financing

MACHINE SOLD

Auction Info: Starting on 2026-09-25 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

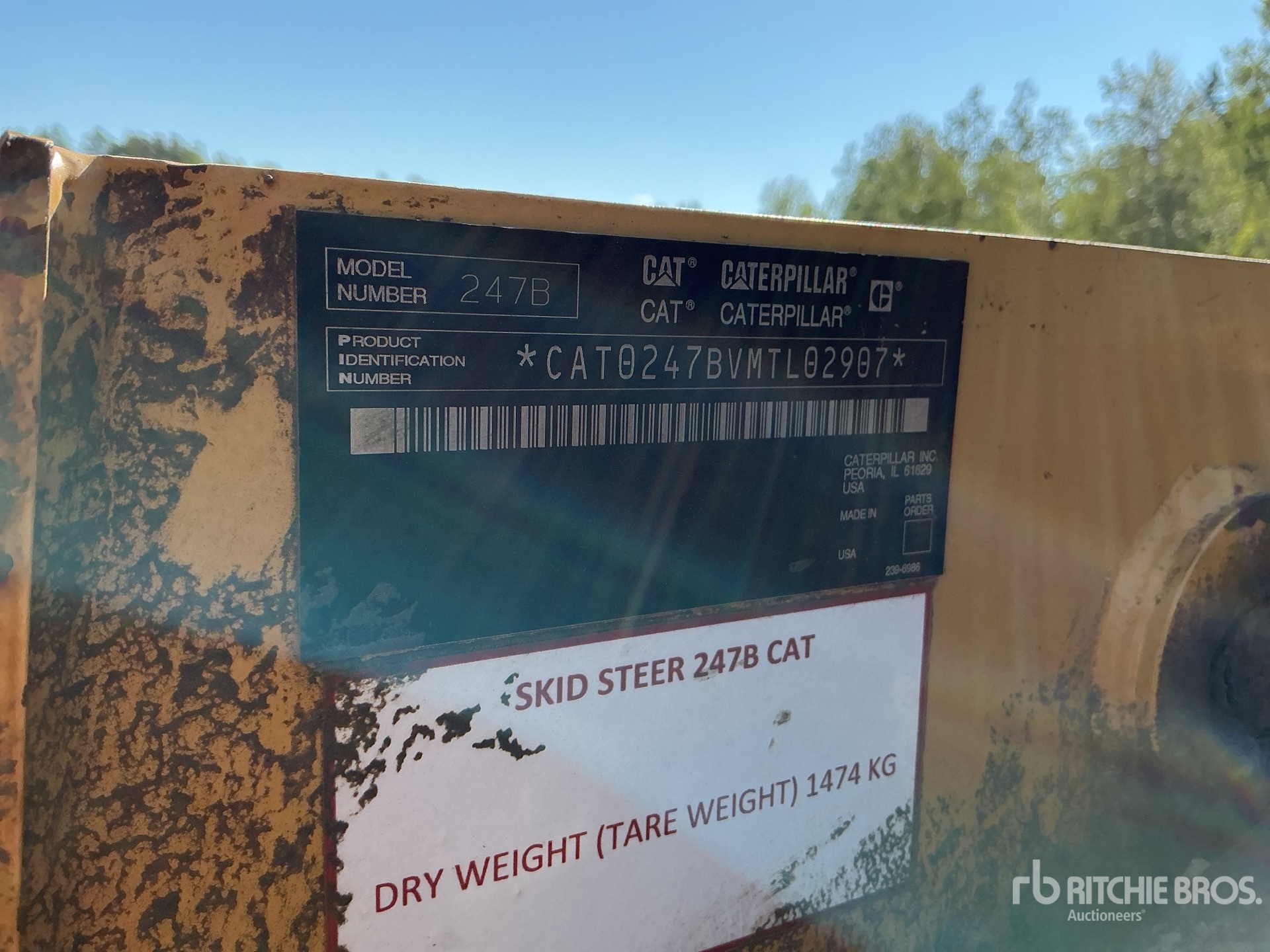

Serial Number:	CAT0247BVMTL02907
Machine Location:	TRURO, NS

Description:

Enclosed Cab (Door missing), 2005 US EPA Label, CARB Compliant, 15 in Track Belts, Manual Quick Coupler

From the manufacturer:

Supplied by HeavyEquipmentData.com →

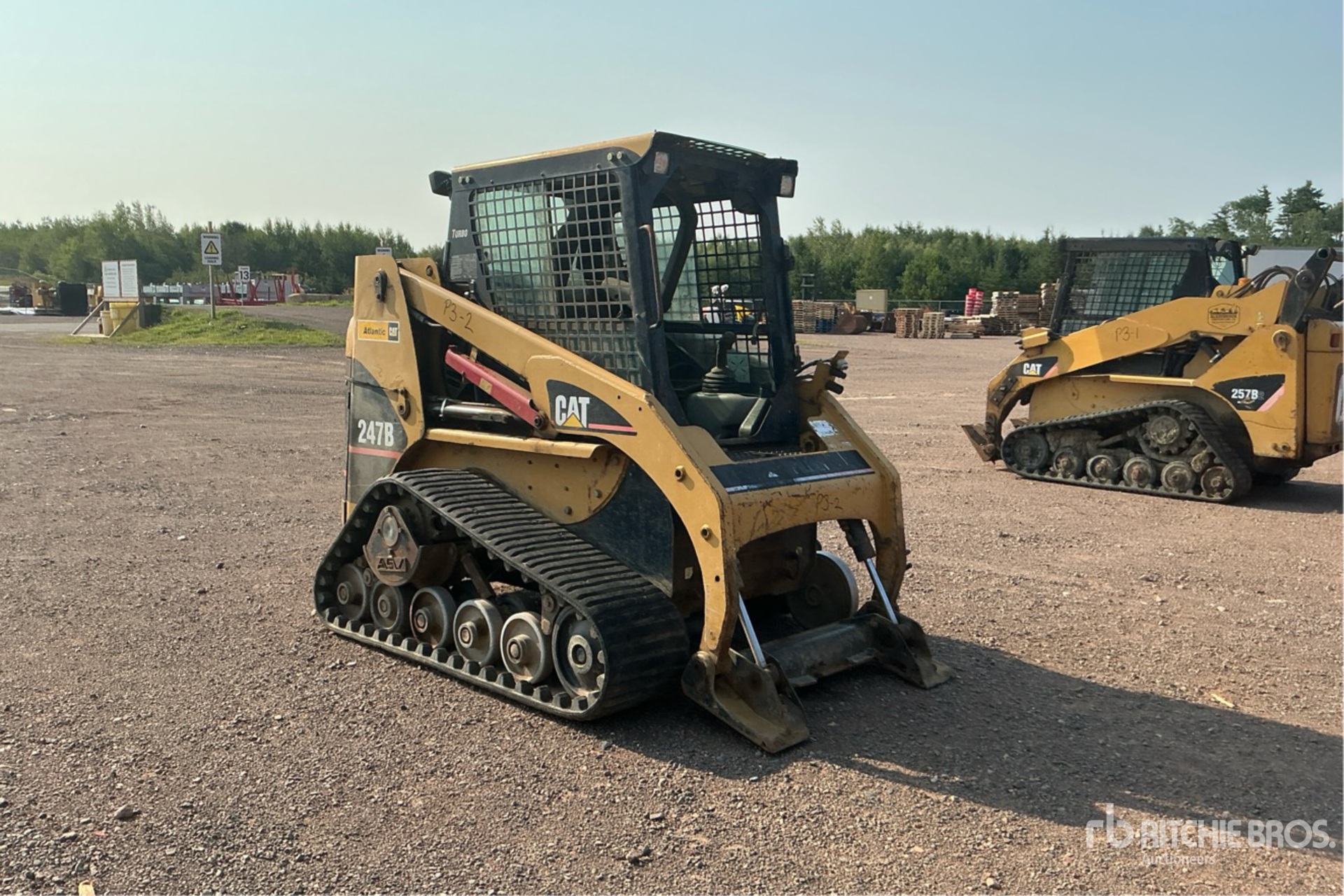

The Caterpillar 247B is a compact track loader designed for material handling, grading, site preparation, and general construction work. It features a compact frame, rubber track undercarriage, and vertical lift path for improved reach at truck height and loading applications. The 247B is commonly used in landscaping, utility work, agriculture, and light demolition where traction and low ground pressure are important. Caterpillar equipped the model with a diesel engine, hydraulic attachment capability, and a cab or canopy operator station depending on configuration. The 247B remains a recognized Cat compact track loader for versatile jobsite performance.

Dimensions
Clearance at Max Lift and Dump	7 ft (2 m)
Ground Clearance	11 in (27 cm)
Height - Top of Cab	7 ft (2 m)
Length - with Bucket	11 ft (3 m)
Length - without Bucket	8 ft (3 m)
Reach at Max Lift and Dump	2 ft (1 m)
Turning Radius from Center - inc bucket	85 in (216 cm)
Turning Radius from Center - machine rear	53 in (136 cm)
Width Over Tracks	6 ft (2 m)
Engine
Aspiration	turbocharged
Displacement	134 cu in (2,201 cu cm)
Engine Model	3024C T
Gross Power	62 hp (46 kw)
Net Power	58 hp (43 kw)
Hydraulic System
Pump Flow	16 gpm (60 lpm)
Relief Valve Pressure	3,336 psi
Loader
Breakout Force	3,735 lbs (1,694 kg)
Operating Load	1,951 lbs (885 kg)
Tipping Angle	3,907 degrees
Operating Specifications
Alternator Supplied Amperage	85 amps
Cooling System Fluid Capacity	3 gal (10 l)
Engine Oil Capacity	2 gal (8 l)
Fuel Capacity	17 gal (65 l)
Hydraulic System Fluid Capacity	15 gal (55 l)
Max Speed - high range	8 mph (12 kph)
Operating Voltage	12 volts
Operating Weight	6,667 lbs (3,024 kg)
Undercarriage
Ground Contact Area	1,767 cu in (28,958 cu cm)
Ground Pressure	4 psi
Length of Track on Ground	5 ft (2 m)
