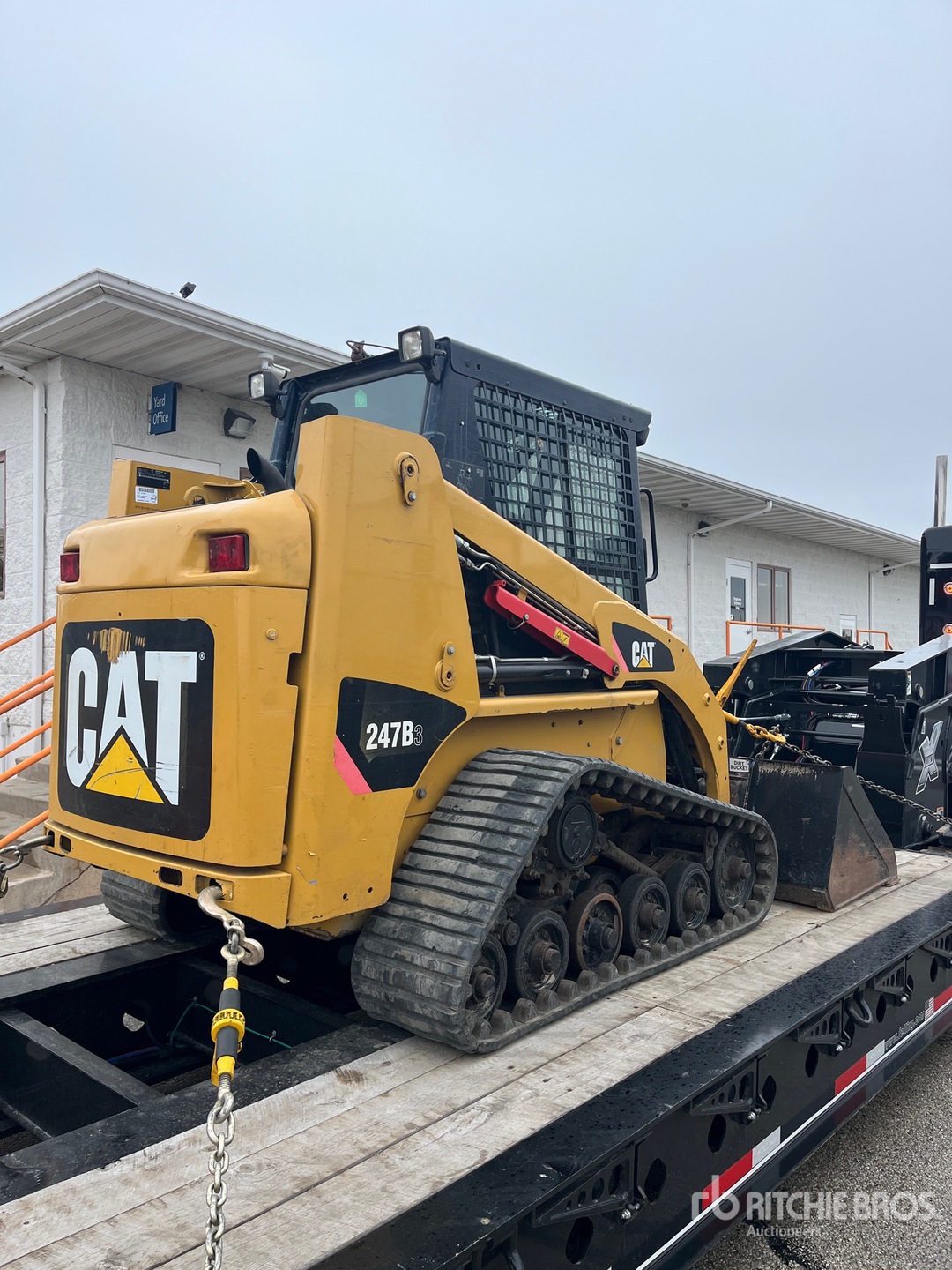

| Cab |
|
Fops |
SAE J1043 SEPT87, ISO 3449:1992 Level I |
|
Fops Level Ii |
SAE J231 JAN81, ISO 3449:1992 Level II |
|
Rops |
SAE J1040 MAY94, ISO 3471:1994 |
| Dimensions |
|
Bucket Pin Height - Carry Position |
9 in (22 cm)
|
|
Bucket Pin Height - Maximum Lift |
9 ft (3 m)
|
|
Clearance At Max Lift And Dump |
7 ft (2 m)
|
|
Clearance At Maximum Lift And Dump |
84 in (213 cm)
|
|
Departure Angle |
41 degrees |
|
Ground Clearance |
10 in (25 cm)
|
|
Height - Top Of Cab |
7 ft (2 m)
|
|
Height To Top Of Cab |
7 ft (2 m)
|
|
Length - Track On Ground |
59 in (150 cm)
|
|
Length - With Bucket On Ground |
129 in (328 cm)
|
|
Length - Without Bucket |
99 in (251 cm)
|
|
Length With Bucket |
11 ft (3 m)
|
|
Length With Out Bucket |
8 ft (3 m)
|
|
Maximum Dump Angle |
40 degrees |
|
Maximum Overall Height |
150 in (381 cm)
|
|
Maximum Reach - With Arms Parallel |
53 in (135 cm)
|
|
Overall Length - Track |
75 in (191 cm)
|
|
Rack Back Angle - Maximum Height |
82 degrees |
|
Reach At Max Lift And Dump |
2 ft (1 m)
|
|
Reach At Maximum Lift/Dump |
25 in (64 cm)
|
|
Turn Radius From Center - Bucket |
82 in (208 cm)
|
|
Turn Radius From Center - Coupler |
52 in (132 cm)
|
|
Turn Radius From Center - Rear |
54 in (137 cm)
|
|
Turning Radius From Center - Inc Bucket |
82 in (210 cm)
|
|
Turning Radius From Center - Machine Rear |
54 in (138 cm)
|
|
Vehicle Width |
66 in (168 cm)
|
|
Width Over Tracks |
6 ft (2 m)
|
| Engine |
|
Bore |
3 in (8 cm)
|
|
Displacement |
134 cu in (2,196 cu cm)
|
|
Engine Make |
2,236 |
|
Engine Model |
C2.2T |
|
Engine Model |
Cat C2.2 T |
|
Gross Power |
62 hp (46 kw)
|
|
Gross Power - Sae J1995 |
62 hp (46 kw)
|
|
Net Power |
56 hp (42 kw)
|
|
Net Power - Iso 9249 Eec |
56 hp (42 kw)
|
|
Net Power - Sae 1349 |
56 hp (42 kw)
|
|
Stroke |
4 in (10 cm)
|
| Hydraulic |
|
Pump Flow |
16 gpm (61 lpm)
|
|
Relief Valve Pressure |
3,335 psi |
| Hydraulic System |
|
Hydraulic Flow |
Standard |
|
Hydraulic Power |
31 hp (23 kw)
|
|
Loader Hydraulic Flow |
16 gpm (61 lpm)
|
|
Loader Hydraulic Pressure |
3,335 psi |
| Loader |
|
Breakout Force |
4,060 lbs (1,842 kg)
|
|
Operating Load |
2,150 lbs (975 kg)
|
|
Tipping Angle |
4,299 degrees |
| Operating Specifications |
|
Breakout Force - Tilt Cylinder |
4,060 lbs (1,842 kg)
|
|
Ground Contact Area |
1770 in2 |
|
Ground Pressure |
4 psi |
|
Rated Operating Capacities - 35% Tipping Load |
1,505 lbs (683 kg)
|
|
Rated Operating Capacities - 50% Tipping Load |
2,150 lbs (975 kg)
|
|
Tipping Load |
4,300 lbs (1,950 kg)
|
| Operational |
|
Alternator Supplied Amperage |
85 amps |
|
Cooling System Fluid Capacity |
3 gal (10 l)
|
|
Engine Oil Capacity |
3 gal (10 l)
|
|
Fuel Capacity |
17 gal (65 l)
|
|
Hydraulic System Fluid Capacity |
15 gal (55 l)
|
|
Max Speed - Low Range |
7 mph (11 kph)
|
|
Operating Voltage |
12 V |
|
Operating Weight |
6,997 lbs (3,174 kg)
|
| Power Train |
|
Travel Speed Forward |
7 mph (11 kph)
|
|
Travel Speed Reverse |
7 mph (11 kph)
|
| Service Refill Capacities |
|
Cooling System |
3 gal (10 l)
|
|
Engine Crankcase |
3 gal (10 l)
|
|
Fuel Tank |
17 gal (64 l)
|
|
Hydraulic System |
15 gal (55 l)
|
|
Hydraulic Tank |
9 gal (35 l)
|
| Undercarriage |
|
Ground Contact Area |
1770 in2 |
|
Ground Pressure |
4 psi |
|
Length Of Track On Ground |
5 ft (2 m)
|
| Weights |
|
Operating Weight |
6,997 lbs (3,174 kg)
|
