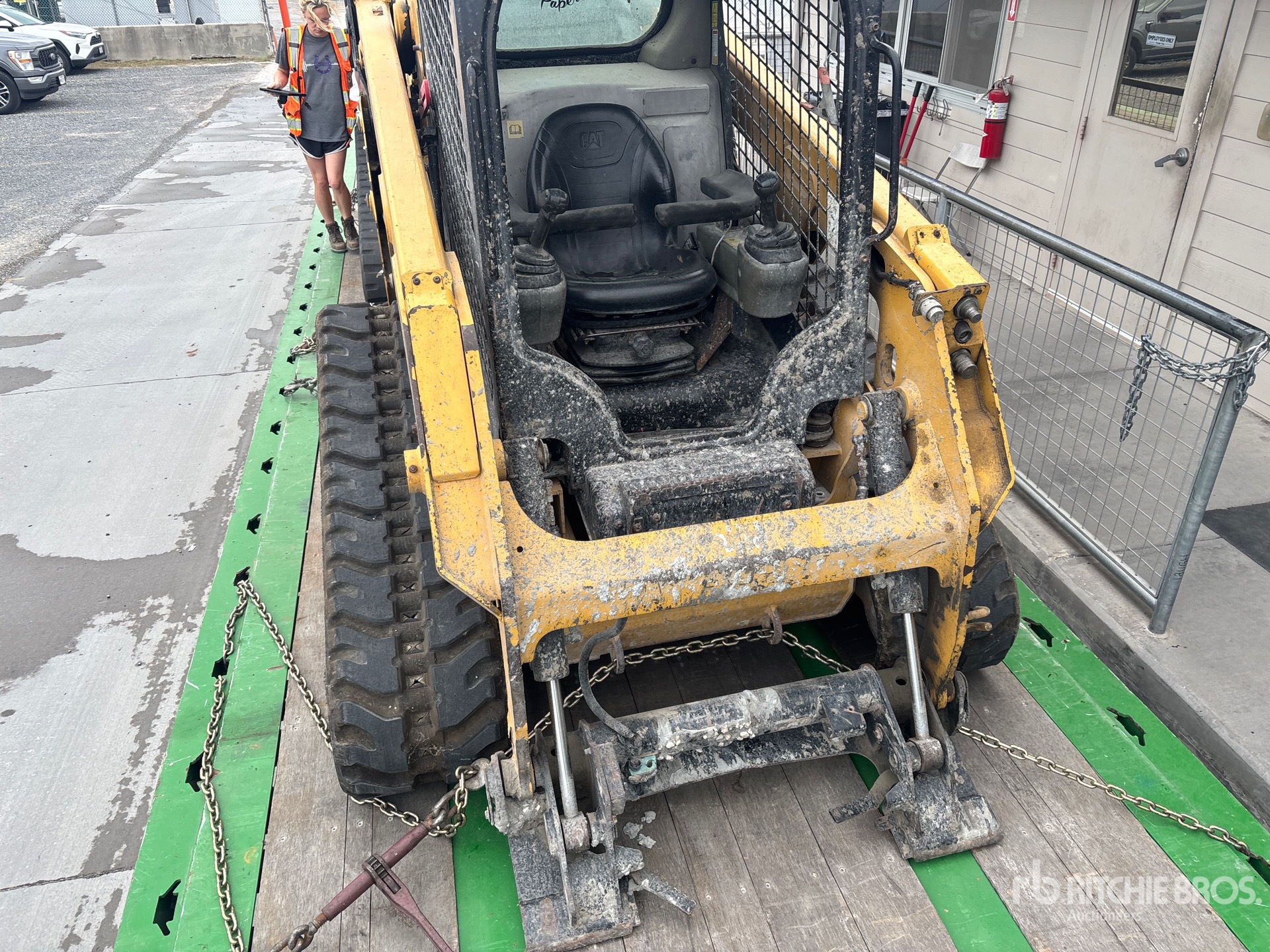

| Air Conditioning System |
|
Air Conditioning |
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.81 kg of refrigerant which has a CO2 equivalent of 1.158 metric tonnes. |
| Cab |
|
Fops |
ISO 3449:2005 Level I |
|
Fops Level Ii |
ISO 3449:2005 Level II |
|
Rops |
ISO 3471:2008 |
| Dimensions |
|
Bucket Pin Height - Carry Position |
9 in (22 cm)
|
|
Bucket Pin Height - Maximum Lift |
10 ft (3 m)
|
|
Bucket Pin Reach - Maximum Lift |
12 in (31 cm)
|
|
Clearance At Maximum Lift And Dump |
89 in (225 cm)
|
|
Departure Angle |
35 degrees |
|
Ground Clearance |
1 ft (0 m)
|
|
Height - Top Of Cab |
7 ft (2 m)
|
|
Length - Track On Ground |
55 in (138 cm)
|
|
Length - With Bucket On Ground |
127 in (323 cm)
|
|
Length - Without Bucket |
99 in (252 cm)
|
|
Maximum Dump Angle |
48 degrees |
|
Maximum Overall Height |
151 in (383 cm)
|
|
Maximum Reach - With Arms Parallel To Ground |
52 in (132 cm)
|
|
Note |
Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, 1676 mm (66 in) dirt bucket, 320 mm (12.6 in) tracks, standard flow hydraulics, C0 cab (OROPS, static seat), 880 CCA battery, manual quick coupler, no self level and no optional counterweights (unless otherwise noted). |
|
Overall Length - Track |
71 in (181 cm)
|
|
Rack Back Angle - Maximum Height |
88 degrees |
|
Reach - Maximum Lift/Dump |
29 in (73 cm)
|
|
Turning Radius From Center - Bucket |
81 in (206 cm)
|
|
Turning Radius From Center - Coupler |
46 in (116 cm)
|
|
Turning Radius From Center - Machine Rear |
57 in (146 cm)
|
|
Vehicle Width (320 Mm/12.6 In Tracks) |
66 in (168 cm)
|
|
Vehicle Width (400 Mm/15.7 In Tracks) |
69 in (176 cm)
|
| Engine |
|
Bore |
3 in (8 cm)
|
|
Displacement |
134 cu in (2,201 cu cm)
|
|
Engine Model |
Cat C2.2 CRDI |
|
Gross Power - Sae J1995 |
67 hp (50 kw)
|
|
Net Power |
66 hp (49 kw)
|
|
Net Power - Iso 9249 |
67 hp (50 kw)
|
|
Net Power - Sae 1349 |
66 hp (49 kw)
|
|
Peak Torque - 1,500 Rpm - Sae J1995 |
153 lbs ft (207 nm)
|
|
Stroke |
4 in (10 cm)
|
| General Specifications |
|
A Length of track on ground (Since 2016)
|
55 in (138 cm)
|
|
A Length of track on ground (2017)
|
55 in (138 cm)
|
|
A Length of track on ground (2018)
|
55 in (138 cm)
|
|
A Length of track on ground (2019)
|
55 in (138 cm)
|
|
B Overall length of track (Since 2016)
|
71 in (181 cm)
|
|
B Overall length of track (2017)
|
71 in (181 cm)
|
|
B Overall length of track (2018)
|
71 in (181 cm)
|
|
B Overall length of track (2019)
|
71 in (181 cm)
|
|
Blade surface height at level lift arms (Since 2016)
|
62 in (158 cm)
|
|
Blade surface height at level lift arms (Since 2016)
|
62 in (158 cm)
|
|
Blade surface height at level lift arms (Since 2017)
|
62 in (158 cm)
|
|
Blade surface height at level lift arms (Since 2017)
|
62 in (158 cm)
|
|
Blade surface height at level lift arms (Since 2018)
|
62 in (158 cm)
|
|
Blade surface height at level lift arms (Since 2018)
|
62 in (158 cm)
|
|
Blade surface height at level lift arms (Since 2019)
|
62 in (158 cm)
|
|
Blade surface height at level lift arms (Since 2019)
|
62 in (158 cm)
|
|
Blade surface height at maximum height (Since 2016)
|
114 in (290 cm)
|
|
Blade surface height at maximum height (2016)
|
114 in (290 cm)
|
|
Blade surface height at maximum height (2016)
|
114 in (290 cm)
|
|
Blade surface height at maximum height (2017)
|
114 in (290 cm)
|
|
Blade surface height at maximum height (2017)
|
114 in (290 cm)
|
|
Blade surface height at maximum height (2017)
|
114 in (290 cm)
|
|
Blade surface height at maximum height (2018)
|
114 in (290 cm)
|
|
Blade surface height at maximum height (2018)
|
114 in (290 cm)
|
|
Blade surface height at maximum height (2018)
|
114 in (290 cm)
|
|
Blade surface height at maximum height (2019)
|
114 in (290 cm)
|
|
Blade surface height at maximum height (2019)
|
114 in (290 cm)
|
|
Blade surface height at maximum height (2019)
|
114 in (290 cm)
|
|
Blade surface height at minimum lift (Since 2016)
|
5 in (12 cm)
|
|
Blade surface height at minimum lift (Since 2016)
|
19 in (49 cm)
|
|
Blade surface height at minimum lift (Since 2016)
|
5 in (12 cm)
|
|
Blade surface height at minimum lift (Since 2017)
|
5 in (12 cm)
|
|
Blade surface height at minimum lift (Since 2017)
|
19 in (49 cm)
|
|
Blade surface height at minimum lift (Since 2017)
|
5 in (12 cm)
|
|
Blade surface height at minimum lift (Since 2018)
|
5 in (12 cm)
|
|
Blade surface height at minimum lift (Since 2018)
|
19 in (49 cm)
|
|
Blade surface height at minimum lift (Since 2018)
|
5 in (12 cm)
|
|
Blade surface height at minimum lift (Since 2019)
|
5 in (12 cm)
|
|
Blade surface height at minimum lift (Since 2019)
|
19 in (49 cm)
|
|
Blade surface height at minimum lift (Since 2019)
|
5 in (12 cm)
|
|
Bore (Since 2016)
|
3 in (8 cm)
|
|
Bore (2017)
|
3 in (8 cm)
|
|
Bore (2018)
|
3 in (8 cm)
|
|
Bore (2019)
|
3 in (8 cm)
|
|
Breakout force - lift (Since 2016)
|
3,540 lbs (1,606 kg)
|
|
Breakout force - lift (Since 2016)
|
3,511 lbs (1,593 kg)
|
|
Breakout force - lift (Since 2016)
|
3,301 lbs (1,497 kg)
|
|
Breakout force - lift (Since 2016)
|
3,261 lbs (1,479 kg)
|
|
Breakout force - lift (Since 2016)
|
3,645 lbs (1,653 kg)
|
|
Breakout force - lift (Since 2016)
|
3,615 lbs (1,640 kg)
|
|
Breakout force - lift (Since 2017)
|
3,540 lbs (1,606 kg)
|
|
Breakout force - lift (Since 2017)
|
3,511 lbs (1,593 kg)
|
|
Breakout force - lift (Since 2017)
|
3,301 lbs (1,497 kg)
|
|
Breakout force - lift (Since 2017)
|
3,261 lbs (1,479 kg)
|
|
Breakout force - lift (Since 2017)
|
3,645 lbs (1,653 kg)
|
|
Breakout force - lift (Since 2017)
|
3,615 lbs (1,640 kg)
|
|
Breakout force - lift (Since 2018)
|
3,540 lbs (1,606 kg)
|
|
Breakout force - lift (Since 2018)
|
3,511 lbs (1,593 kg)
|
|
Breakout force - lift (Since 2018)
|
3,301 lbs (1,497 kg)
|
|
Breakout force - lift (Since 2018)
|
3,261 lbs (1,479 kg)
|
|
Breakout force - lift (Since 2018)
|
3,645 lbs (1,653 kg)
|
|
Breakout force - lift (Since 2018)
|
3,615 lbs (1,640 kg)
|
|
Breakout force - lift (Since 2019)
|
3,540 lbs (1,606 kg)
|
|
Breakout force - lift (Since 2019)
|
3,511 lbs (1,593 kg)
|
|
Breakout force - lift (Since 2019)
|
3,301 lbs (1,497 kg)
|
|
Breakout force - lift (Since 2019)
|
3,261 lbs (1,479 kg)
|
|
Breakout force - lift (Since 2019)
|
3,645 lbs (1,653 kg)
|
|
Breakout force - lift (Since 2019)
|
3,615 lbs (1,640 kg)
|
|
Breakout force - tilt (Since 2016)
|
3,444 lbs (1,562 kg)
|
|
Breakout force - tilt (Since 2016)
|
3,424 lbs (1,553 kg)
|
|
Breakout force - tilt (Since 2016)
|
3,312 lbs (1,502 kg)
|
|
Breakout force - tilt (Since 2016)
|
3,291 lbs (1,493 kg)
|
|
Breakout force - tilt (Since 2016)
|
3,706 lbs (1,681 kg)
|
|
Breakout force - tilt (Since 2016)
|
3,685 lbs (1,671 kg)
|
|
Breakout force - tilt (Since 2017)
|
3,444 lbs (1,562 kg)
|
|
Breakout force - tilt (Since 2017)
|
3,424 lbs (1,553 kg)
|
|
Breakout force - tilt (Since 2017)
|
3,312 lbs (1,502 kg)
|
|
Breakout force - tilt (Since 2017)
|
3,291 lbs (1,493 kg)
|
|
Breakout force - tilt (Since 2017)
|
3,706 lbs (1,681 kg)
|
|
Breakout force - tilt (Since 2017)
|
3,685 lbs (1,671 kg)
|
|
Breakout force - tilt (Since 2018)
|
3,444 lbs (1,562 kg)
|
|
Breakout force - tilt (Since 2018)
|
3,424 lbs (1,553 kg)
|
|
Breakout force - tilt (Since 2018)
|
3,312 lbs (1,502 kg)
|
|
Breakout force - tilt (Since 2018)
|
3,291 lbs (1,493 kg)
|
|
Breakout force - tilt (Since 2018)
|
3,706 lbs (1,681 kg)
|
|
Breakout force - tilt (Since 2018)
|
3,685 lbs (1,671 kg)
|
|
Breakout force - tilt (Since 2019)
|
3,444 lbs (1,562 kg)
|
|
Breakout force - tilt (Since 2019)
|
3,424 lbs (1,553 kg)
|
|
Breakout force - tilt (Since 2019)
|
3,312 lbs (1,502 kg)
|
|
Breakout force - tilt (Since 2019)
|
3,291 lbs (1,493 kg)
|
|
Breakout force - tilt (Since 2019)
|
3,706 lbs (1,681 kg)
|
|
Breakout force - tilt (Since 2019)
|
3,685 lbs (1,671 kg)
|
|
Breakout force, tilt cylinder (Since 2016)
|
3,963 lbs (1,798 kg)
|
|
Breakout force, tilt cylinder (2017)
|
3,963 lbs (1,798 kg)
|
|
Breakout force, tilt cylinder (2018)
|
3,963 lbs (1,798 kg)
|
|
Breakout force, tilt cylinder (2019)
|
3,963 lbs (1,798 kg)
|
|
C Length without bucket (Since 2016)
|
99 in (252 cm)
|
|
C Length without bucket (2017)
|
99 in (252 cm)
|
|
C Length without bucket (2018)
|
99 in (252 cm)
|
|
C Length without bucket (2019)
|
99 in (252 cm)
|
|
Carriage height above blade top (Since 2016)
|
37 in (93 cm)
|
|
Carriage height above blade top (2017)
|
37 in (93 cm)
|
|
Carriage height above blade top (2018)
|
37 in (93 cm)
|
|
Carriage height above blade top (2019)
|
37 in (93 cm)
|
|
Carriage overall width without step (Since 2016)
|
46 in (116 cm)
|
|
Carriage overall width without step (2017)
|
46 in (116 cm)
|
|
Carriage overall width without step (2018)
|
46 in (116 cm)
|
|
Carriage overall width without step (2019)
|
46 in (116 cm)
|
|
Carriage step additional width (Since 2016)
|
4 in (11 cm)
|
|
Carriage step additional width (2017)
|
4 in (11 cm)
|
|
Carriage step additional width (2018)
|
4 in (11 cm)
|
|
Carriage step additional width (2019)
|
4 in (11 cm)
|
|
category (Since 2020)
|
COMPACT TRACK LOADERS |
|
Clearance at maximum lift/level bucket (Since 2016)
|
110 in (279 cm)
|
|
Clearance at maximum lift/level bucket (Since 2016)
|
110 in (279 cm)
|
|
Clearance at maximum lift/level bucket (Since 2016)
|
109 in (278 cm)
|
|
Clearance at maximum lift/level bucket (Since 2016)
|
109 in (277 cm)
|
|
Clearance at maximum lift/level bucket (Since 2016)
|
110 in (280 cm)
|
|
Clearance at maximum lift/level bucket (2016)
|
110 in (280 cm)
|
|
Clearance at maximum lift/level bucket (Since 2017)
|
110 in (279 cm)
|
|
Clearance at maximum lift/level bucket (Since 2017)
|
110 in (279 cm)
|
|
Clearance at maximum lift/level bucket (Since 2017)
|
109 in (278 cm)
|
|
Clearance at maximum lift/level bucket (Since 2017)
|
109 in (277 cm)
|
|
Clearance at maximum lift/level bucket (Since 2017)
|
110 in (280 cm)
|
|
Clearance at maximum lift/level bucket (2017)
|
110 in (280 cm)
|
|
Clearance at maximum lift/level bucket (Since 2018)
|
110 in (279 cm)
|
|
Clearance at maximum lift/level bucket (Since 2018)
|
110 in (279 cm)
|
|
Clearance at maximum lift/level bucket (Since 2018)
|
109 in (278 cm)
|
|
Clearance at maximum lift/level bucket (Since 2018)
|
109 in (277 cm)
|
|
Clearance at maximum lift/level bucket (Since 2018)
|
110 in (280 cm)
|
|
Clearance at maximum lift/level bucket (2018)
|
110 in (280 cm)
|
|
Clearance at maximum lift/level bucket (Since 2019)
|
110 in (279 cm)
|
|
Clearance at maximum lift/level bucket (Since 2019)
|
110 in (279 cm)
|
|
Clearance at maximum lift/level bucket (Since 2019)
|
109 in (278 cm)
|
|
Clearance at maximum lift/level bucket (Since 2019)
|
109 in (277 cm)
|
|
Clearance at maximum lift/level bucket (Since 2019)
|
110 in (280 cm)
|
|
Clearance at maximum lift/level bucket (2019)
|
110 in (280 cm)
|
|
D Length with bucket on ground (Since 2016)
|
127 in (323 cm)
|
|
D Length with bucket on ground (2017)
|
127 in (323 cm)
|
|
D Length with bucket on ground (2018)
|
127 in (323 cm)
|
|
D Length with bucket on ground (2019)
|
127 in (323 cm)
|
|
Dig depth with level bucket (Since 2016)
|
0 in (1 cm)
|
|
Dig depth with level bucket (2016)
|
0 in (1 cm)
|
|
Dig depth with level bucket (Since 2016)
|
0 in (0 cm)
|
|
Dig depth with level bucket (2016)
|
0 in (0 cm)
|
|
Dig depth with level bucket (Since 2016)
|
1 in (2 cm)
|
|
Dig depth with level bucket (Since 2016)
|
1 in (1 cm)
|
|
Dig depth with level bucket (Since 2017)
|
0 in (1 cm)
|
|
Dig depth with level bucket (2017)
|
0 in (1 cm)
|
|
Dig depth with level bucket (Since 2017)
|
0 in (0 cm)
|
|
Dig depth with level bucket (2017)
|
0 in (0 cm)
|
|
Dig depth with level bucket (Since 2017)
|
1 in (2 cm)
|
|
Dig depth with level bucket (Since 2017)
|
1 in (1 cm)
|
|
Dig depth with level bucket (Since 2018)
|
0 in (1 cm)
|
|
Dig depth with level bucket (2018)
|
0 in (1 cm)
|
|
Dig depth with level bucket (Since 2018)
|
0 in (0 cm)
|
|
Dig depth with level bucket (2018)
|
0 in (0 cm)
|
|
Dig depth with level bucket (Since 2018)
|
1 in (2 cm)
|
|
Dig depth with level bucket (Since 2018)
|
1 in (1 cm)
|
|
Dig depth with level bucket (Since 2019)
|
0 in (1 cm)
|
|
Dig depth with level bucket (2019)
|
0 in (1 cm)
|
|
Dig depth with level bucket (Since 2019)
|
0 in (0 cm)
|
|
Dig depth with level bucket (2019)
|
0 in (0 cm)
|
|
Dig depth with level bucket (Since 2019)
|
1 in (2 cm)
|
|
Dig depth with level bucket (Since 2019)
|
1 in (1 cm)
|
|
Displacement (Since 2016)
|
134 cu in (2,201 cu cm)
|
|
Displacement (2017)
|
134 cu in (2,201 cu cm)
|
|
Displacement (2018)
|
134 cu in (2,201 cu cm)
|
|
Displacement (2019)
|
134 cu in (2,201 cu cm)
|
|
Dump (Since 2016)
|
2 |
|
Dump (2017)
|
2 |
|
Dump (2018)
|
2 |
|
Dump (2019)
|
2 |
|
Dump clearance at maximum lift/dump (Since 2016)
|
86 in (217 cm)
|
|
Dump clearance at maximum lift/dump (2016)
|
86 in (217 cm)
|
|
Dump clearance at maximum lift/dump (Since 2016)
|
85 in (216 cm)
|
|
Dump clearance at maximum lift/dump (Since 2016)
|
85 in (216 cm)
|
|
Dump clearance at maximum lift/dump (Since 2016)
|
87 in (222 cm)
|
|
Dump clearance at maximum lift/dump (2016)
|
87 in (222 cm)
|
|
Dump clearance at maximum lift/dump (Since 2017)
|
86 in (217 cm)
|
|
Dump clearance at maximum lift/dump (2017)
|
86 in (217 cm)
|
|
Dump clearance at maximum lift/dump (Since 2017)
|
85 in (216 cm)
|
|
Dump clearance at maximum lift/dump (Since 2017)
|
85 in (216 cm)
|
|
Dump clearance at maximum lift/dump (Since 2017)
|
87 in (222 cm)
|
|
Dump clearance at maximum lift/dump (2017)
|
87 in (222 cm)
|
|
Dump clearance at maximum lift/dump (Since 2018)
|
86 in (217 cm)
|
|
Dump clearance at maximum lift/dump (2018)
|
86 in (217 cm)
|
|
Dump clearance at maximum lift/dump (Since 2018)
|
85 in (216 cm)
|
|
Dump clearance at maximum lift/dump (Since 2018)
|
85 in (216 cm)
|
|
Dump clearance at maximum lift/dump (Since 2018)
|
87 in (222 cm)
|
|
Dump clearance at maximum lift/dump (2018)
|
87 in (222 cm)
|
|
Dump clearance at maximum lift/dump (Since 2019)
|
86 in (217 cm)
|
|
Dump clearance at maximum lift/dump (2019)
|
86 in (217 cm)
|
|
Dump clearance at maximum lift/dump (Since 2019)
|
85 in (216 cm)
|
|
Dump clearance at maximum lift/dump (Since 2019)
|
85 in (216 cm)
|
|
Dump clearance at maximum lift/dump (Since 2019)
|
87 in (222 cm)
|
|
Dump clearance at maximum lift/dump (2019)
|
87 in (222 cm)
|
|
E Height to top of cab (Since 2016)
|
80 in (204 cm)
|
|
E Height to top of cab (2017)
|
80 in (204 cm)
|
|
E Height to top of cab (2018)
|
80 in (204 cm)
|
|
E Height to top of cab (2019)
|
80 in (204 cm)
|
|
Engine Model (Since 2016)
|
C2.2 CRDI |
|
Engine Model (2017)
|
C2.2 CRDI |
|
Engine Model (2018)
|
C2.2 CRDI |
|
Engine Model (2019)
|
C2.2 CRDI |
|
ENGINE POWER (Since 2016)
|
60 hp (45 kw)
|
|
ENGINE POWER (2017)
|
60 hp (45 kw)
|
|
ENGINE POWER (Since 2019)
|
67 hp (50 kw)
|
|
ENGINE POWER (2020)
|
67 hp (50 kw)
|
|
F Maximum overall height (Since 2016)
|
151 in (383 cm)
|
|
F Maximum overall height (2017)
|
151 in (383 cm)
|
|
F Maximum overall height (2018)
|
151 in (383 cm)
|
|
F Maximum overall height (2019)
|
151 in (383 cm)
|
|
Floor angle at maximum lift/dump (Since 2016)
|
-48 deg |
|
Floor angle at maximum lift/dump (Since 2016)
|
-49 deg |
|
Floor angle at maximum lift/dump (Since 2016)
|
-48 deg |
|
Floor angle at maximum lift/dump (Since 2017)
|
-48 deg |
|
Floor angle at maximum lift/dump (Since 2017)
|
-49 deg |
|
Floor angle at maximum lift/dump (Since 2017)
|
-48 deg |
|
Floor angle at maximum lift/dump (Since 2018)
|
-48 deg |
|
Floor angle at maximum lift/dump (Since 2018)
|
-49 deg |
|
Floor angle at maximum lift/dump (Since 2018)
|
-48 deg |
|
Floor angle at maximum lift/dump (Since 2019)
|
-48 deg |
|
Floor angle at maximum lift/dump (Since 2019)
|
-49 deg |
|
Floor angle at maximum lift/dump (Since 2019)
|
-48 deg |
|
Floor angle at maximum lift/rack back (Since 2016)
|
88 deg |
|
Floor angle at maximum lift/rack back (Since 2016)
|
87 deg |
|
Floor angle at maximum lift/rack back (Since 2016)
|
87 deg |
|
Floor angle at maximum lift/rack back (Since 2016)
|
87 deg |
|
Floor angle at maximum lift/rack back (Since 2017)
|
88 deg |
|
Floor angle at maximum lift/rack back (Since 2017)
|
87 deg |
|
Floor angle at maximum lift/rack back (Since 2017)
|
87 deg |
|
Floor angle at maximum lift/rack back (Since 2017)
|
87 deg |
|
Floor angle at maximum lift/rack back (Since 2018)
|
88 deg |
|
Floor angle at maximum lift/rack back (Since 2018)
|
87 deg |
|
Floor angle at maximum lift/rack back (Since 2018)
|
87 deg |
|
Floor angle at maximum lift/rack back (Since 2018)
|
87 deg |
|
Floor angle at maximum lift/rack back (Since 2019)
|
88 deg |
|
Floor angle at maximum lift/rack back (Since 2019)
|
87 deg |
|
Floor angle at maximum lift/rack back (Since 2019)
|
87 deg |
|
Floor angle at maximum lift/rack back (Since 2019)
|
87 deg |
|
Flywheel Power - Gross (SAE J1995) (Since 2016)
|
67 hp (50 kw)
|
|
Flywheel Power - Gross (SAE J1995) (2017)
|
67 hp (50 kw)
|
|
Flywheel Power - Gross (SAE J1995) (2018)
|
67 hp (50 kw)
|
|
Flywheel Power - Gross (SAE J1995) (2019)
|
67 hp (50 kw)
|
|
Flywheel Power - Net (SAE 1349) (Since 2016)
|
66 hp (49 kw)
|
|
Flywheel Power - Net (SAE 1349) (2017)
|
66 hp (49 kw)
|
|
Flywheel Power - Net (SAE 1349) (2018)
|
66 hp (49 kw)
|
|
Flywheel Power - Net (SAE 1349) (2019)
|
66 hp (49 kw)
|
|
Flywheel Power - Net (SAE 1349)# (Since 2016)
|
59 hp (44 kw)
|
|
Flywheel Power - Net (SAE 1349)# (2017)
|
59 hp (44 kw)
|
|
Flywheel Power - Net (SAE 1349)# (2018)
|
59 hp (44 kw)
|
|
Flywheel Power - Net (SAE 1349)# (2019)
|
59 hp (44 kw)
|
|
Front clearance circle radius (with bucket) (Since 2016)
|
84 in (214 cm)
|
|
Front clearance circle radius (with bucket) (Since 2016)
|
85 in (217 cm)
|
|
Front clearance circle radius (with bucket) (Since 2016)
|
84 in (214 cm)
|
|
Front clearance circle radius (with bucket) (Since 2016)
|
86 in (217 cm)
|
|
Front clearance circle radius (with bucket) (Since 2016)
|
82 in (209 cm)
|
|
Front clearance circle radius (with bucket) (Since 2016)
|
84 in (213 cm)
|
|
Front clearance circle radius (with bucket) (Since 2017)
|
84 in (214 cm)
|
|
Front clearance circle radius (with bucket) (Since 2017)
|
85 in (217 cm)
|
|
Front clearance circle radius (with bucket) (Since 2017)
|
84 in (214 cm)
|
|
Front clearance circle radius (with bucket) (Since 2017)
|
86 in (217 cm)
|
|
Front clearance circle radius (with bucket) (Since 2017)
|
82 in (209 cm)
|
|
Front clearance circle radius (with bucket) (Since 2017)
|
84 in (213 cm)
|
|
Front clearance circle radius (with bucket) (Since 2018)
|
84 in (214 cm)
|
|
Front clearance circle radius (with bucket) (Since 2018)
|
85 in (217 cm)
|
|
Front clearance circle radius (with bucket) (Since 2018)
|
84 in (214 cm)
|
|
Front clearance circle radius (with bucket) (Since 2018)
|
86 in (217 cm)
|
|
Front clearance circle radius (with bucket) (Since 2018)
|
82 in (209 cm)
|
|
Front clearance circle radius (with bucket) (Since 2018)
|
84 in (213 cm)
|
|
Front clearance circle radius (with bucket) (Since 2019)
|
84 in (214 cm)
|
|
Front clearance circle radius (with bucket) (Since 2019)
|
85 in (217 cm)
|
|
Front clearance circle radius (with bucket) (Since 2019)
|
84 in (214 cm)
|
|
Front clearance circle radius (with bucket) (Since 2019)
|
86 in (217 cm)
|
|
Front clearance circle radius (with bucket) (Since 2019)
|
82 in (209 cm)
|
|
Front clearance circle radius (with bucket) (Since 2019)
|
84 in (213 cm)
|
|
Fuel Tank Capacity (Since 2016)
|
16 US gal (59 L)
|
|
Fuel Tank Capacity (2017)
|
16 US gal (59 L)
|
|
Fuel Tank Capacity (2018)
|
16 US gal (59 L)
|
|
Fuel Tank Capacity (2019)
|
16 US gal (59 L)
|
|
G Bucket pin height at maximum lift (Since 2016)
|
118 in (300 cm)
|
|
G Bucket pin height at maximum lift (2017)
|
118 in (300 cm)
|
|
G Bucket pin height at maximum lift (2018)
|
118 in (300 cm)
|
|
G Bucket pin height at maximum lift (2019)
|
118 in (300 cm)
|
|
Ground Clearance (Since 2016)
|
8 in (20 cm)
|
|
Ground Clearance (2017)
|
8 in (20 cm)
|
|
Ground Clearance (2018)
|
8 in (20 cm)
|
|
Ground Clearance (2019)
|
8 in (20 cm)
|
|
Ground pressure (Since 2016)
|
6 psi (39 kPa)
|
|
Ground pressure (2017)
|
6 psi (39 kPa)
|
|
Ground pressure (2018)
|
6 psi (39 kPa)
|
|
Ground pressure (2019)
|
6 psi (39 kPa)
|
|
H Bucket pin height at carry position (Since 2016)
|
9 in (22 cm)
|
|
H Bucket pin height at carry position (2017)
|
9 in (22 cm)
|
|
H Bucket pin height at carry position (2018)
|
9 in (22 cm)
|
|
H Bucket pin height at carry position (2019)
|
9 in (22 cm)
|
|
Hinge pin height at maximum lift (Since 2016)
|
118 in (300 cm)
|
|
Hinge pin height at maximum lift (Since 2016)
|
118 in (300 cm)
|
|
Hinge pin height at maximum lift (Since 2016)
|
118 in (299 cm)
|
|
Hinge pin height at maximum lift (2016)
|
118 in (299 cm)
|
|
Hinge pin height at maximum lift (Since 2016)
|
118 in (300 cm)
|
|
Hinge pin height at maximum lift (2016)
|
118 in (300 cm)
|
|
Hinge pin height at maximum lift (2017)
|
118 in (300 cm)
|
|
Hinge pin height at maximum lift (Since 2017)
|
118 in (300 cm)
|
|
Hinge pin height at maximum lift (Since 2017)
|
118 in (299 cm)
|
|
Hinge pin height at maximum lift (2017)
|
118 in (299 cm)
|
|
Hinge pin height at maximum lift (Since 2017)
|
118 in (300 cm)
|
|
Hinge pin height at maximum lift (2017)
|
118 in (300 cm)
|
|
Hinge pin height at maximum lift (2018)
|
118 in (300 cm)
|
|
Hinge pin height at maximum lift (Since 2018)
|
118 in (300 cm)
|
|
Hinge pin height at maximum lift (Since 2018)
|
118 in (299 cm)
|
|
Hinge pin height at maximum lift (2018)
|
118 in (299 cm)
|
|
Hinge pin height at maximum lift (Since 2018)
|
118 in (300 cm)
|
|
Hinge pin height at maximum lift (2018)
|
118 in (300 cm)
|
|
Hinge pin height at maximum lift (2019)
|
118 in (300 cm)
|
|
Hinge pin height at maximum lift (Since 2019)
|
118 in (300 cm)
|
|
Hinge pin height at maximum lift (Since 2019)
|
118 in (299 cm)
|
|
Hinge pin height at maximum lift (2019)
|
118 in (299 cm)
|
|
Hinge pin height at maximum lift (Since 2019)
|
118 in (300 cm)
|
|
Hinge pin height at maximum lift (2019)
|
118 in (300 cm)
|
|
Hydraulic Pressure, High Flow/XPS (Since 2016)
|
3,336 psi (23,000 kPa)
|
|
Hydraulic Pressure, High Flow/XPS (2017)
|
3,336 psi (23,000 kPa)
|
|
Hydraulic Pressure, High Flow/XPS (2018)
|
3,336 psi (23,000 kPa)
|
|
Hydraulic Pressure, High Flow/XPS (2019)
|
3,336 psi (23,000 kPa)
|
|
Hydraulic Pressure, Standard (Since 2016)
|
3,336 psi (23,000 kPa)
|
|
Hydraulic Pressure, Standard (2017)
|
3,336 psi (23,000 kPa)
|
|
Hydraulic Pressure, Standard (2018)
|
3,336 psi (23,000 kPa)
|
|
Hydraulic Pressure, Standard (2019)
|
3,336 psi (23,000 kPa)
|
|
Hydraulic Pump Capacity, - High Flow/XPS (Since 2016)
|
26 US gpm (99 L/min)
|
|
Hydraulic Pump Capacity, - High Flow/XPS (2017)
|
26 US gpm (99 L/min)
|
|
Hydraulic Pump Capacity, - High Flow/XPS (2018)
|
26 US gpm (99 L/min)
|
|
Hydraulic Pump Capacity, - High Flow/XPS (2019)
|
26 US gpm (99 L/min)
|
|
Hydraulic Pump Capacity, Standard (Since 2016)
|
18 US gpm (69 L/min)
|
|
Hydraulic Pump Capacity, Standard (2017)
|
18 US gpm (69 L/min)
|
|
Hydraulic Pump Capacity, Standard (2018)
|
18 US gpm (69 L/min)
|
|
Hydraulic Pump Capacity, Standard (2019)
|
18 US gpm (69 L/min)
|
|
Hydraulic System Capacity - (includes tank) (Since 2016)
|
12 US gal (45 L)
|
|
Hydraulic System Capacity - (includes tank) (2017)
|
12 US gal (45 L)
|
|
Hydraulic System Capacity - (includes tank) (2018)
|
12 US gal (45 L)
|
|
Hydraulic System Capacity - (includes tank) (2019)
|
12 US gal (45 L)
|
|
Hydraulic Tank Capacity (Since 2016)
|
9 US gal (34 L)
|
|
Hydraulic Tank Capacity (2017)
|
9 US gal (34 L)
|
|
Hydraulic Tank Capacity (2018)
|
9 US gal (34 L)
|
|
Hydraulic Tank Capacity (2019)
|
9 US gal (34 L)
|
|
J Reach at maximum lift and dump (Since 2016)
|
29 in (73 cm)
|
|
J Reach at maximum lift and dump (2017)
|
29 in (73 cm)
|
|
J Reach at maximum lift and dump (2018)
|
29 in (73 cm)
|
|
J Reach at maximum lift and dump (2019)
|
29 in (73 cm)
|
|
K Clearance at maximum lift and dump (Since 2016)
|
89 in (225 cm)
|
|
K Clearance at maximum lift and dump (2017)
|
89 in (225 cm)
|
|
K Clearance at maximum lift and dump (2018)
|
89 in (225 cm)
|
|
K Clearance at maximum lift and dump (2019)
|
89 in (225 cm)
|
|
L Ground clearance (Since 2016)
|
8 in (19 cm)
|
|
L Ground clearance (2017)
|
8 in (19 cm)
|
|
L Ground clearance (2018)
|
8 in (19 cm)
|
|
L Ground clearance (2019)
|
8 in (19 cm)
|
|
Lower (Empty, Float Down) (Since 2016)
|
7 |
|
Lower (Empty, Float Down) (2017)
|
7 |
|
Lower (Empty, Float Down) (2018)
|
7 |
|
Lower (Empty, Float Down) (2019)
|
7 |
|
M Departure angle (Since 2016)
|
35 deg |
|
M Departure angle (2017)
|
35 deg |
|
M Departure angle (2018)
|
35 deg |
|
M Departure angle (2019)
|
35 deg |
|
Maximum floor angle at minimum lift (Since 2016)
|
26 deg |
|
Maximum floor angle at minimum lift (Since 2016)
|
26 deg |
|
Maximum floor angle at minimum lift (Since 2016)
|
26 deg |
|
Maximum floor angle at minimum lift (Since 2016)
|
26 deg |
|
Maximum floor angle at minimum lift (Since 2017)
|
26 deg |
|
Maximum floor angle at minimum lift (Since 2017)
|
26 deg |
|
Maximum floor angle at minimum lift (Since 2017)
|
26 deg |
|
Maximum floor angle at minimum lift (Since 2017)
|
26 deg |
|
Maximum floor angle at minimum lift (Since 2018)
|
26 deg |
|
Maximum floor angle at minimum lift (Since 2018)
|
26 deg |
|
Maximum floor angle at minimum lift (Since 2018)
|
26 deg |
|
Maximum floor angle at minimum lift (Since 2018)
|
26 deg |
|
Maximum floor angle at minimum lift (Since 2019)
|
26 deg |
|
Maximum floor angle at minimum lift (Since 2019)
|
26 deg |
|
Maximum floor angle at minimum lift (Since 2019)
|
26 deg |
|
Maximum floor angle at minimum lift (Since 2019)
|
26 deg |
|
Maximum overall height (Since 2016)
|
154 in (391 cm)
|
|
Maximum overall height (2016)
|
154 in (391 cm)
|
|
Maximum overall height (Since 2016)
|
154 in (391 cm)
|
|
Maximum overall height (Since 2016)
|
152 in (386 cm)
|
|
Maximum overall height (Since 2016)
|
152 in (386 cm)
|
|
Maximum overall height (Since 2017)
|
154 in (391 cm)
|
|
Maximum overall height (2017)
|
154 in (391 cm)
|
|
Maximum overall height (Since 2017)
|
154 in (391 cm)
|
|
Maximum overall height (Since 2017)
|
152 in (386 cm)
|
|
Maximum overall height (Since 2017)
|
152 in (386 cm)
|
|
Maximum overall height (Since 2018)
|
154 in (391 cm)
|
|
Maximum overall height (2018)
|
154 in (391 cm)
|
|
Maximum overall height (Since 2018)
|
154 in (391 cm)
|
|
Maximum overall height (Since 2018)
|
152 in (386 cm)
|
|
Maximum overall height (Since 2018)
|
152 in (386 cm)
|
|
Maximum overall height (Since 2019)
|
154 in (391 cm)
|
|
Maximum overall height (2019)
|
154 in (391 cm)
|
|
Maximum overall height (Since 2019)
|
154 in (391 cm)
|
|
Maximum overall height (Since 2019)
|
152 in (386 cm)
|
|
Maximum overall height (Since 2019)
|
152 in (386 cm)
|
|

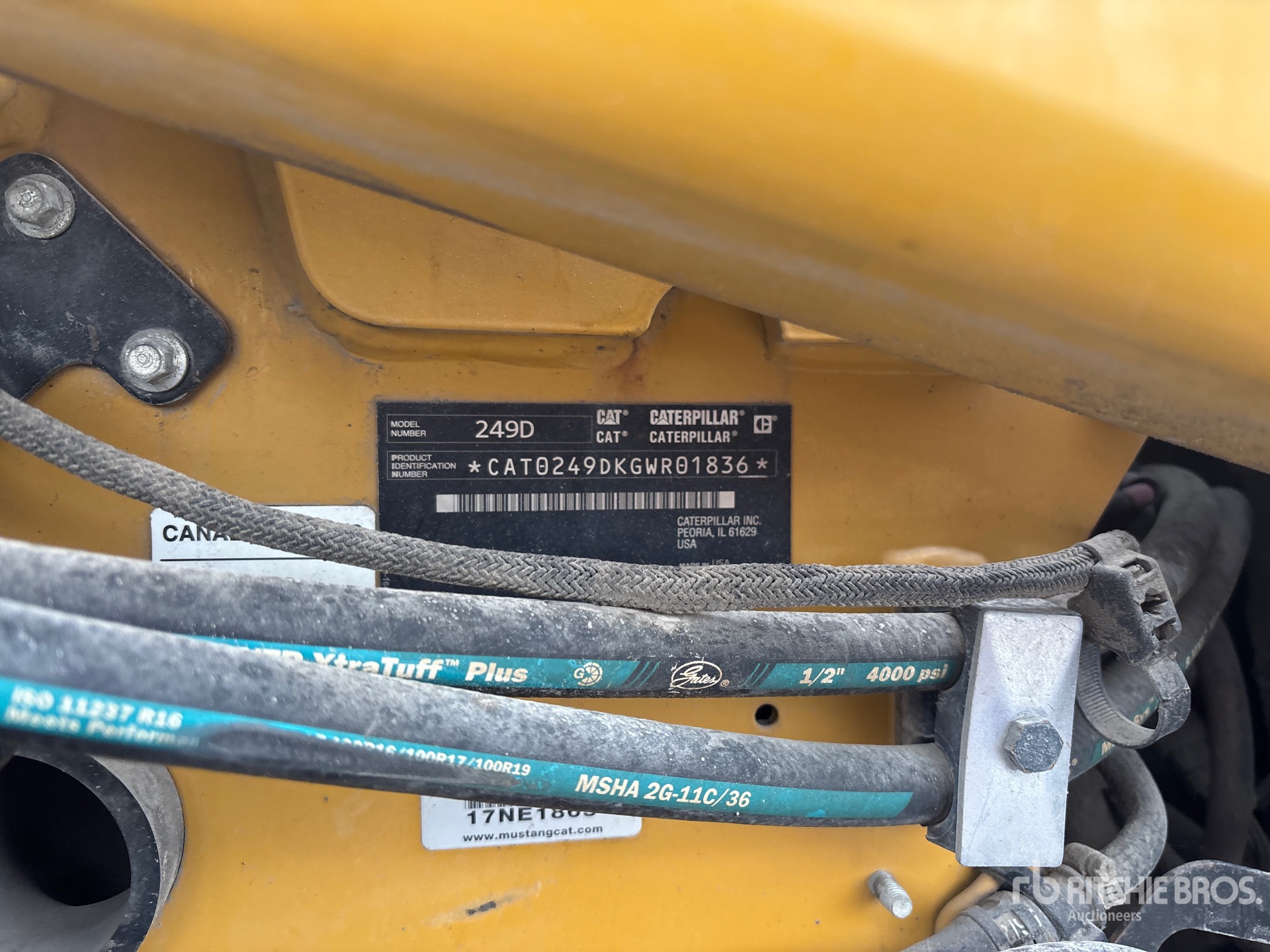

MODEL (Since 2016)
|
249D |
|
MODEL (2017)
|
249D |
|
MODEL (2019)
|
249D |
|
MODEL (2020)
|
249D |
|
N Maximum dump angle (Since 2016)
|
48 deg |
|
N Maximum dump angle (2017)
|
48 deg |
|
N Maximum dump angle (2018)
|
48 deg |
|
N Maximum dump angle (2019)
|
48 deg |
|
No. Cylinders (Since 2016)
|
4 |
|
No. Cylinders (2017)
|
4 |
|
No. Cylinders (2018)
|
4 |
|
No. Cylinders (2019)
|
4 |
|
O Vehicle width (Since 2016)
|
66 in (168 cm)
|
|
O Vehicle width (2017)
|
66 in (168 cm)
|
|
O Vehicle width (2018)
|
66 in (168 cm)
|
|
O Vehicle width (2019)
|
66 in (168 cm)
|
|
One Speed Forward (Since 2016)
|
7 mph (11 kph)
|
|
One Speed Forward (2017)
|
7 mph (11 kph)
|
|
One Speed Forward (2018)
|
7 mph (11 kph)
|
|
One Speed Forward (2019)
|
7 mph (11 kph)
|
|
One Speed Reverse (Since 2016)
|
7 mph (11 kph)
|
|
One Speed Reverse (2017)
|
7 mph (11 kph)
|
|
One Speed Reverse (2018)
|
7 mph (11 kph)
|
|
One Speed Reverse (2019)
|
7 mph (11 kph)
|
|
OPERATING LOAD (Since 2016)
|
2,300 lbs (1,043 kg)
|
|
OPERATING LOAD (2017)
|
2,300 lbs (1,043 kg)
|
|
Operating weight (Since 2016)
|
7,827 lbs (3,550 kg)
|
|
Operating weight (Since 2016)
|
7,861 lbs (3,566 kg)
|
|
Operating weight (Since 2016)
|
8,121 lbs (3,684 kg)
|
|
Operating weight (Since 2016)
|
8,171 lbs (3,706 kg)
|
|
Operating weight (Since 2016)
|
7,777 lbs (3,528 kg)
|
|
Operating weight (Since 2016)
|
7,812 lbs (3,543 kg)
|
|
Operating weight (Since 2016)
|
7,676 lbs (3,482 kg)
|
|
Operating weight (Since 2016)
|
7,698 lbs (3,492 kg)
|
|
Operating weight (Since 2016)
|
7,654 lbs (3,472 kg)
|
|
Operating weight (Since 2016)
|
7,685 lbs (3,486 kg)
|
|
Operating weight (Since 2017)
|
7,827 lbs (3,550 kg)
|
|
Operating weight (Since 2017)
|
7,861 lbs (3,566 kg)
|
|
Operating weight (Since 2017)
|
8,121 lbs (3,684 kg)
|
|
Operating weight (Since 2017)
|
8,171 lbs (3,706 kg)
|
|
Operating weight (Since 2017)
|
7,777 lbs (3,528 kg)
|
|
Operating weight (Since 2017)
|
7,812 lbs (3,543 kg)
|
|
Operating weight (Since 2017)
|
7,676 lbs (3,482 kg)
|
|
Operating weight (Since 2017)
|
7,698 lbs (3,492 kg)
|
|
Operating weight (Since 2017)
|
7,654 lbs (3,472 kg)
|
|
Operating weight (Since 2017)
|
7,685 lbs (3,486 kg)
|
|
Operating weight (Since 2018)
|
7,827 lbs (3,550 kg)
|
|
Operating weight (Since 2018)
|
7,861 lbs (3,566 kg)
|
|
Operating weight (Since 2018)
|
8,121 lbs (3,684 kg)
|
|
Operating weight (Since 2018)
|
8,171 lbs (3,706 kg)
|
|
Operating weight (Since 2018)
|
7,777 lbs (3,528 kg)
|
|
Operating weight (Since 2018)
|
7,812 lbs (3,543 kg)
|
|
Operating weight (Since 2018)
|
7,676 lbs (3,482 kg)
|
|
Operating weight (Since 2018)
|
7,698 lbs (3,492 kg)
|
|
Operating weight (Since 2018)
|
7,654 lbs (3,472 kg)
|
|
Operating weight (Since 2018)
|
7,685 lbs (3,486 kg)
|
|
Operating weight (Since 2019)
|
7,827 lbs (3,550 kg)
|
|
Operating weight (Since 2019)
|
7,861 lbs (3,566 kg)
|
|
Operating weight (Since 2019)
|
8,121 lbs (3,684 kg)
|
|
Operating weight (Since 2019)
|
8,171 lbs (3,706 kg)
|
|
Operating weight (Since 2019)
|
7,777 lbs (3,528 kg)
|
|
Operating weight (Since 2019)
|
7,812 lbs (3,543 kg)
|
|
Operating weight (Since 2019)
|
7,676 lbs (3,482 kg)
|
|
Operating weight (Since 2019)
|
7,698 lbs (3,492 kg)
|
|
Operating weight (Since 2019)
|
7,654 lbs (3,472 kg)
|
|
Operating weight (Since 2019)
|
7,685 lbs (3,486 kg)
|
|
OPERATING WIDTH (Since 2016)
|
67 in (170 cm)
|
|
OPERATING WIDTH (2017)
|
67 in (170 cm)
|
|
OPERATING WIDTH (Since 2019)
|
66 in (168 cm)
|
|
OPERATING WIDTH (2020)
|
66 in (168 cm)
|
|
Overall length at minimum lift, level tine (Since 2016)
|
148 in (377 cm)
|
|
Overall length at minimum lift, level tine (Since 2016)
|
154 in (390 cm)
|
|
Overall length at minimum lift, level tine (Since 2016)
|
142 in (361 cm)
|
|
Overall length at minimum lift, level tine (Since 2017)
|
148 in (377 cm)
|
|
Overall length at minimum lift, level tine (Since 2017)
|
154 in (390 cm)
|
|
Overall length at minimum lift, level tine (Since 2017)
|
142 in (361 cm)
|
|
Overall length at minimum lift, level tine (Since 2018)
|
148 in (377 cm)
|
|
Overall length at minimum lift, level tine (Since 2018)
|
154 in (390 cm)
|
|
Overall length at minimum lift, level tine (Since 2018)
|
142 in (361 cm)
|
|
Overall length at minimum lift, level tine (Since 2019)
|
148 in (377 cm)
|
|
Overall length at minimum lift, level tine (Since 2019)
|
154 in (390 cm)
|
|
Overall length at minimum lift, level tine (Since 2019)
|
142 in (361 cm)
|
|
Overall length with bucket on ground (Since 2016)
|
131 in (332 cm)
|
|
Overall length with bucket on ground (Since 2016)
|
131 in (332 cm)
|
|
Overall length with bucket on ground (Since 2016)
|
131 in (332 cm)
|
|
Overall length with bucket on ground (Since 2016)
|
129 in (326 cm)
|
|
Overall length with bucket on ground (2016)
|
129 in (326 cm)
|
|
Overall length with bucket on ground (Since 2017)
|
131 in (332 cm)
|
|
Overall length with bucket on ground (Since 2017)
|
131 in (332 cm)
|
|
Overall length with bucket on ground (Since 2017)
|
131 in (332 cm)
|
|
Overall length with bucket on ground (Since 2017)
|
129 in (326 cm)
|
|
Overall length with bucket on ground (2017)
|
129 in (326 cm)
|
|
Overall length with bucket on ground (Since 2018)
|
131 in (332 cm)
|
|
Overall length with bucket on ground (Since 2018)
|
131 in (332 cm)
|
|
Overall length with bucket on ground (Since 2018)
|
131 in (332 cm)
|
|
Overall length with bucket on ground (Since 2018)
|
129 in (326 cm)
|
|
Overall length with bucket on ground (2018)
|
129 in (326 cm)
|
|
Overall length with bucket on ground (Since 2019)
|
131 in (332 cm)
|
|
Overall length with bucket on ground (Since 2019)
|
131 in (332 cm)
|
|
Overall length with bucket on ground (Since 2019)
|
131 in (332 cm)
|
|
Overall length with bucket on ground (Since 2019)
|
129 in (326 cm)
|
|
Overall length with bucket on ground (2019)
|
129 in (326 cm)
|
|
P Turning radius from center - machine rear (Since 2016)
|
57 in (146 cm)
|
|
P Turning radius from center - machine rear (2017)
|
57 in (146 cm)
|
|
P Turning radius from center - machine rear (2018)
|
57 in (146 cm)
|
|
P Turning radius from center - machine rear (2019)
|
57 in (146 cm)
|
|
Q Turning radius from center - coupler (Since 2016)
|
46 in (116 cm)
|
|
Q Turning radius from center - coupler (2017)
|
46 in (116 cm)
|
|
Q Turning radius from center - coupler (2018)
|
46 in (116 cm)
|
|
Q Turning radius from center - coupler (2019)
|
46 in (116 cm)
|
|
R Turning radius from center - bucket (Since 2016)
|
81 in (206 cm)
|
|
R Turning radius from center - bucket (2017)
|
81 in (206 cm)
|
|
R Turning radius from center - bucket (2018)
|
81 in (206 cm)
|
|
R Turning radius from center - bucket (2019)
|
81 in (206 cm)
|
|
Raise (Since 2016)
|
4 |
|
Raise (2017)
|
4 |
|
Raise (2018)
|
4 |
|
Raise (2019)
|
4 |
|
Rated bucket capacity (Since 2016)
|
1 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2016)
|
1 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2016)
|
0 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2016)
|
0 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2016)
|
1 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2017)
|
1 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2017)
|
1 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2017)
|
0 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2017)
|
0 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2017)
|
1 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2018)
|
1 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2018)
|
1 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2018)
|
0 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2018)
|
0 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2018)
|
1 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2019)
|
1 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2019)
|
1 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2019)
|
0 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2019)
|
0 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2019)
|
1 cu yd (0 cu m)
|
|
Rated Engine RPM (Since 2016)
|
2,800 rpm |
|
Rated Engine RPM (2017)
|
2,800 rpm |
|
Rated Engine RPM (2018)
|
2,800 rpm |
|
Rated Engine RPM (2019)
|
2,800 rpm |
|
RATED OPERATING CAPACITY (35%) (Since 2020)
|
1,610 lbs (730 kg)
|
|
RATED OPERATING CAPACITY (50%) (Since 2019)
|
1,610 lbs (730 kg)
|
|
Rated operating capacity at 35% (Since 2016)
|
1,608 lbs (729 kg)
|
|
Rated operating capacity at 35% (2017)
|
1,608 lbs (729 kg)
|
|
Rated operating capacity at 35% (2018)
|
1,608 lbs (729 kg)
|
|
Rated operating capacity at 35% (2019)
|
1,608 lbs (729 kg)
|
|
Rated operating capacity at 50% (Since 2016)
|
2,297 lbs (1,042 kg)
|
|
Rated operating capacity at 50% (Since 2017)
|
2,300 lbs (1,043 kg)
|
|
Rated operating capacity at 50% (2018)
|
2,300 lbs (1,043 kg)
|
|
Rated operating capacity at 50% (2019)
|
2,300 lbs (1,043 kg)
|
|
Reach at level lift arm/bucket (Since 2016)
|
55 in (140 cm)
|
|
Reach at level lift arm/bucket (Since 2016)
|
58 in (147 cm)
|
|
Reach at level lift arm/bucket (Since 2016)
|
57 in (145 cm)
|
|
Reach at level lift arm/bucket (Since 2016)
|
56 in (142 cm)
|
|
Reach at level lift arm/bucket (Since 2016)
|
53 in (135 cm)
|
|
Reach at level lift arm/bucket (2016)
|
53 in (135 cm)
|
|
Reach at level lift arm/bucket (Since 2017)
|
55 in (140 cm)
|
|
Reach at level lift arm/bucket (Since 2017)
|
58 in (147 cm)
|
|
Reach at level lift arm/bucket (Since 2017)
|
57 in (145 cm)
|
|
Reach at level lift arm/bucket (Since 2017)
|
56 in (142 cm)
|
|
Reach at level lift arm/bucket (Since 2017)
|
53 in (135 cm)
|
|
Reach at level lift arm/bucket (2017)
|
53 in (135 cm)
|
|
Reach at level lift arm/bucket (Since 2018)
|
55 in (140 cm)
|
|
Reach at level lift arm/bucket (Since 2018)
|
58 in (147 cm)
|
|
Reach at level lift arm/bucket (Since 2018)
|
57 in (145 cm)
|
|
Reach at level lift arm/bucket (Since 2018)
|
56 in (142 cm)
|
|
Reach at level lift arm/bucket (Since 2018)
|
53 in (135 cm)
|
|
Reach at level lift arm/bucket (2018)
|
53 in (135 cm)
|
|
Reach at level lift arm/bucket (Since 2019)
|
55 in (140 cm)
|
|
Reach at level lift arm/bucket (Since 2019)
|
58 in (147 cm)
|
|
Reach at level lift arm/bucket (Since 2019)
|
57 in (145 cm)
|
|
Reach at level lift arm/bucket (Since 2019)
|
56 in (142 cm)
|
|
Reach at level lift arm/bucket (Since 2019)
|
53 in (135 cm)
|
|
Reach at level lift arm/bucket (2019)
|
53 in (135 cm)
|
|
Reach at maximum lift/dump (Since 2016)
|
31 in (77 cm)
|
|
Reach at maximum lift/dump (2016)
|
31 in (77 cm)
|
|
Reach at maximum lift/dump (Since 2016)
|
31 in (79 cm)
|
|
Reach at maximum lift/dump (Since 2016)
|
31 in (79 cm)
|
|
Reach at maximum lift/dump (Since 2016)
|
29 in (74 cm)
|
|
Reach at maximum lift/dump (2016)
|
29 in (74 cm)
|
|
Reach at maximum lift/dump (Since 2017)
|
31 in (77 cm)
|
|
Reach at maximum lift/dump (2017)
|
31 in (77 cm)
|
|
Reach at maximum lift/dump (Since 2017)
|
31 in (79 cm)
|
|
Reach at maximum lift/dump (Since 2017)
|
31 in (79 cm)
|
|
Reach at maximum lift/dump (Since 2017)
|
29 in (74 cm)
|
|
Reach at maximum lift/dump (2017)
|
29 in (74 cm)
|
|
Reach at maximum lift/dump (Since 2018)
|
31 in (77 cm)
|
|
Reach at maximum lift/dump (2018)
|
31 in (77 cm)
|
|
Reach at maximum lift/dump (Since 2018)
|
31 in (79 cm)
|
|
Reach at maximum lift/dump (Since 2018)
|
31 in (79 cm)
|
|
Reach at maximum lift/dump (Since 2018)
|
29 in (74 cm)
|
|
Reach at maximum lift/dump (2018)
|
29 in (74 cm)
|
|
Reach at maximum lift/dump (Since 2019)
|
31 in (77 cm)
|
|
Reach at maximum lift/dump (2019)
|
31 in (77 cm)
|
|
Reach at maximum lift/dump (Since 2019)
|
31 in (79 cm)
|
|
Reach at maximum lift/dump (Since 2019)
|
31 in (79 cm)
|
|
Reach at maximum lift/dump (Since 2019)
|
29 in (74 cm)
|
|
Reach at maximum lift/dump (2019)
|
29 in (74 cm)
|
|
S Maximum reach with arms parallel to ground (Since 2016)
|
52 in (132 cm)
|
|
S Maximum reach with arms parallel to ground (2017)
|
52 in (132 cm)
|
|
S Maximum reach with arms parallel to ground (2018)
|
52 in (132 cm)
|
|
S Maximum reach with arms parallel to ground (2019)
|
52 in (132 cm)
|
|
Shank front face reach at level lift arms (Since 2016)
|
31 in (78 cm)
|
|
Shank front face reach at level lift arms (Since 2016)
|
31 in (78 cm)
|
|
Shank front face reach at level lift arms (Since 2016)
|
31 in (77 cm)
|
|
Shank front face reach at level lift arms (Since 2017)
|
31 in (78 cm)
|
|
Shank front face reach at level lift arms (Since 2017)
|
31 in (78 cm)
|
|
Shank front face reach at level lift arms (Since 2017)
|
31 in (77 cm)
|
|
Shank front face reach at level lift arms (Since 2018)
|
31 in (78 cm)
|
|
Shank front face reach at level lift arms (Since 2018)
|
31 in (78 cm)
|
|
Shank front face reach at level lift arms (Since 2018)
|
31 in (77 cm)
|
|
Shank front face reach at level lift arms (Since 2019)
|
31 in (78 cm)
|
|
Shank front face reach at level lift arms (Since 2019)
|
31 in (78 cm)
|
|
Shank front face reach at level lift arms (Since 2019)
|
31 in (77 cm)
|
|
Shank front face reach at maximum height (Since 2016)
|
24 in (61 cm)
|
|
Shank front face reach at maximum height (Since 2016)
|
24 in (61 cm)
|
|
Shank front face reach at maximum height (Since 2016)
|
24 in (61 cm)
|
|
Shank front face reach at maximum height (Since 2017)
|
24 in (61 cm)
|
|
Shank front face reach at maximum height (Since 2017)
|
24 in (61 cm)
|
|
Shank front face reach at maximum height (Since 2017)
|
24 in (61 cm)
|
|
Shank front face reach at maximum height (Since 2018)
|
24 in (61 cm)
|
|
Shank front face reach at maximum height (Since 2018)
|
24 in (61 cm)
|
|
Shank front face reach at maximum height (Since 2018)
|
24 in (61 cm)
|
|
Shank front face reach at maximum height (Since 2019)
|
24 in (61 cm)
|
|
Shank front face reach at maximum height (Since 2019)
|
24 in (61 cm)
|
|
Shank front face reach at maximum height (Since 2019)
|
24 in (61 cm)
|
|
Shank front face reach at minimum lift (Since 2016)
|
16 in (42 cm)
|
|
Shank front face reach at minimum lift (Since 2016)
|
16 in (40 cm)
|
|
Shank front face reach at minimum lift (Since 2017)
|
16 in (42 cm)
|
|
Shank front face reach at minimum lift (Since 2017)
|
16 in (40 cm)
|
|
Shank front face reach at minimum lift (Since 2018)
|
16 in (42 cm)
|
|
Shank front face reach at minimum lift (Since 2018)
|
16 in (40 cm)
|
|
Shank front face reach at minimum lift (Since 2019)
|
16 in (42 cm)
|
|
Shank front face reach at minimum lift (Since 2019)
|
16 in (40 cm)
|
|
Stroke (Since 2016)
|
4 in (10 cm)
|
|
Stroke (2017)
|
4 in (10 cm)
|
|
Stroke (2018)
|
4 in (10 cm)
|
|
Stroke (2019)
|
4 in (10 cm)
|
|
Struck capacity (Since 2016)
|
0 cu yd (0 cu m)
|
|
Struck capacity (Since 2016)
|
0 cu yd (0 cu m)
|
|
Struck capacity (Since 2016)
|
0 cu yd (0 cu m)
|
|
Struck capacity (Since 2016)
|
0 cu yd (0 cu m)
|
|
Struck capacity (Since 2016)
|
0 cu yd (0 cu m)
|
|
Struck capacity (Since 2016)
|
0 cu yd (0 cu m)
|
|
Struck capacity (Since 2017)
|
0 cu yd (0 cu m)
|
|
Struck capacity (Since 2017)
|
0 cu yd (0 cu m)
|
|
Struck capacity (Since 2017)
|
0 cu yd (0 cu m)
|
|
Struck capacity (Since 2017)
|
0 cu yd (0 cu m)
|
|
Struck capacity (Since 2017)
|
0 cu yd (0 cu m)
|
|
Struck capacity (Since 2017)
|
0 cu yd (0 cu m)
|
|
Struck capacity (Since 2018)
|
0 cu yd (0 cu m)
|
|
Struck capacity (Since 2018)
|
0 cu yd (0 cu m)
|
|
Struck capacity (Since 2018)
|
0 cu yd (0 cu m)
|
|
Struck capacity (Since 2018)
|
0 cu yd (0 cu m)
|
|
Struck capacity (Since 2018)
|
0 cu yd (0 cu m)
|
|
Struck capacity (Since 2018)
|
0 cu yd (0 cu m)
|
|
Struck capacity (Since 2019)
|
0 cu yd (0 cu m)
|
|
Struck capacity (Since 2019)
|
0 cu yd (0 cu m)
|
|
Struck capacity (Since 2019)
|
0 cu yd (0 cu m)
|
|
Struck capacity (Since 2019)
|
0 cu yd (0 cu m)
|
|
Struck capacity (Since 2019)
|
0 cu yd (0 cu m)
|
|
Struck capacity (Since 2019)
|
0 cu yd (0 cu m)
|
|
T Rack back angle at maximum height (Since 2016)
|
88 deg |
|
T Rack back angle at maximum height (2017)
|
88 deg |
|
T Rack back angle at maximum height (2018)
|
88 deg |
|
T Rack back angle at maximum height (2019)
|
88 deg |
|
Tipping load (Since 2016)
|
4,283 lbs (1,943 kg)
|
|
Tipping load (Since 2016)
|
4,246 lbs (1,926 kg)
|
|
Tipping load (Since 2016)
|
3,955 lbs (1,794 kg)
|
|
Tipping load (Since 2016)
|
3,907 lbs (1,772 kg)
|
|
Tipping load (Since 2016)
|
4,438 lbs (2,013 kg)
|
|
Tipping load (Since 2016)
|
4,402 lbs (1,997 kg)
|
|
Tipping load (Since 2016)
|
3,423 lbs (1,553 kg)
|
|
Tipping load (Since 2016)
|
3,256 lbs (1,477 kg)
|
|
Tipping load (Since 2016)
|
3,617 lbs (1,641 kg)
|
|
Tipping load (Since 2016)
|
4,594 lbs (2,084 kg)
|
|
Tipping load (Since 2017)
|
4,283 lbs (1,943 kg)
|
|
Tipping load (Since 2017)
|
4,246 lbs (1,926 kg)
|
|
Tipping load (Since 2017)
|
3,955 lbs (1,794 kg)
|
|
Tipping load (Since 2017)
|
3,907 lbs (1,772 kg)
|
|
Tipping load (Since 2017)
|
4,438 lbs (2,013 kg)
|
|
Tipping load (Since 2017)
|
4,402 lbs (1,997 kg)
|
|
Tipping load (Since 2017)
|
3,423 lbs (1,553 kg)
|
|
Tipping load (Since 2017)
|
3,256 lbs (1,477 kg)
|
|
Tipping load (Since 2017)
|
3,617 lbs (1,641 kg)
|
|
Tipping load (Since 2017)
|
4,600 lbs (2,087 kg)
|
|
Tipping load (Since 2018)
|
4,283 lbs (1,943 kg)
|
|
Tipping load (Since 2018)
|
4,246 lbs (1,926 kg)
|
|
Tipping load (Since 2018)
|
3,955 lbs (1,794 kg)
|
|
Tipping load (Since 2018)
|
3,907 lbs (1,772 kg)
|
|
Tipping load (Since 2018)
|
4,438 lbs (2,013 kg)
|
|
Tipping load (Since 2018)
|
4,402 lbs (1,997 kg)
|
|
Tipping load (Since 2018)
|
3,423 lbs (1,553 kg)
|
|
Tipping load (Since 2018)
|
3,256 lbs (1,477 kg)
|
|
Tipping load (Since 2018)
|
3,617 lbs (1,641 kg)
|
|
Tipping load (Since 2018)
|
4,600 lbs (2,087 kg)
|
|
Tipping load (Since 2019)
|
4,283 lbs (1,943 kg)
|
|
Tipping load (Since 2019)
|
4,246 lbs (1,926 kg)
|
|
Tipping load (Since 2019)
|
3,955 lbs (1,794 kg)
|
|
Tipping load (Since 2019)
|
3,907 lbs (1,772 kg)
|
|
Tipping load (Since 2019)
|
4,438 lbs (2,013 kg)
|
|
Tipping load (Since 2019)
|
4,402 lbs (1,997 kg)
|
|
Tipping load (Since 2019)
|
3,423 lbs (1,553 kg)
|
|
Tipping load (Since 2019)
|
3,256 lbs (1,477 kg)
|
|
Tipping load (Since 2019)
|
3,617 lbs (1,641 kg)
|
|
Tipping load (Since 2019)
|
4,600 lbs (2,087 kg)
|
|
Total (Since 2016)
|
13 |
|
Total (2017)
|
13 |
|
Total (2018)
|
13 |
|
Total (2019)
|
13 |
|
Two Speed Reverse Hydraulic Cycle Time, Empty Bucket (Since 2016)
|
- Seconds |
|
Two Speed Reverse Hydraulic Cycle Time, Empty Bucket (2017)
|
- Seconds |
|
Two Speed Reverse Hydraulic Cycle Time, Empty Bucket (2018)
|
- Seconds |
|
Two Speed Reverse Hydraulic Cycle Time, Empty Bucket (2019)
|
- Seconds |
|
U Bucket pin reach at maximum lift (Since 2016)
|
12 in (31 cm)
|
|
U Bucket pin reach at maximum lift (2017)
|
12 in (31 cm)
|
|
U Bucket pin reach at maximum lift (2018)
|
12 in (31 cm)
|
|
U Bucket pin reach at maximum lift (2019)
|
12 in (31 cm)
|
|
Width (Since 2016)
|
69 in (174 cm)
|
|
Width (Since 2016)
|
75 in (189 cm)
|
|
Width (Since 2016)
|
69 in (175 cm)
|
|
Width (Since 2016)
|
75 in (190 cm)
|
|
Width (Since 2017)
|
69 in (174 cm)
|
|
Width (Since 2017)
|
75 in (189 cm)
|
|
Width (Since 2017)
|
69 in (175 cm)
|
|
Width (Since 2017)
|
75 in (190 cm)
|
|
Width (Since 2018)
|
69 in (174 cm)
|
|
Width (Since 2018)
|
75 in (189 cm)
|
|
Width (Since 2018)
|
69 in (175 cm)
|
|
Width (Since 2018)
|
75 in (190 cm)
|
|
Width (Since 2019)
|
69 in (174 cm)
|
|
Width (Since 2019)
|
75 in (189 cm)
|
|
Width (Since 2019)
|
69 in (175 cm)
|
|
Width (Since 2019)
|
75 in (190 cm)
|
| Hydraulic System |
|
Hydraulic Flow - High Flow - Hydraulic Power (Calculated) |
51 hp (38 kw)
|
|
Hydraulic Flow - High Flow - Loader Hydraulic Flow |
26 gpm (98 lpm)
|
|
Hydraulic Flow - High Flow - Loader Hydraulic Pressure |
3,336 psi |
|
Hydraulic Flow - Standard - Hydraulic Power (Calculated) |
36 hp (26 kw)
|
|
Hydraulic Flow - Standard - Loader Hydraulic Flow |
18 gpm (68 lpm)
|
|
Hydraulic Flow - Standard - Loader Hydraulic Pressure |
3,336 psi |
| Noise Level |
|
Inside Cab** |
83 dB(A) |
|
Note (1) |
Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe. |
|
Note (2) |
**The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds. |
|
Note (3) |
***The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC. |
|
Outside Cab*** |
103 dB(A) |
| Operating Specifications |
|
Breakout Force - Tilt Cylinder |
3,963 lbs (1,798 kg)
|
|
Ground Contact Area - With 320 Mm/12.6 In Track |
1373 in2 |
|
Ground Contact Area - With 400 Mm/15.7 In Track |
1716 in2 |
|
Ground Pressure - With 320 Mm/12.6 In Track |
6 psi |
|
Ground Pressure - With 400 Mm/15.7 In Track |
5 psi |
|
Note |
Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, 1676 mm (66 in) dirt bucket, 320 mm (12.6 in) tracks, standard flow hydraulics, C0 cab (OROPS, static seat), 880 CCA battery, manual quick coupler, no self level and no optional counterweights (unless otherwise noted). |
|
Rated Operating Capacities - 35% Tipping Load |
1,610 lbs (730 kg)
|
|
Rated Operating Capacities - 50% Tipping Load |
2,300 lbs (1,043 kg)
|
|
Rated Operating Capacity With Optional Counterweight |
2,500 lbs (1,134 kg)
|
|
Tipping Load |
4,600 lbs (2,087 kg)
|
| Operational |
|
Operating Weight |
7,685 lbs (3,486 kg)
|
| Power Train |
|
Travel Speed - Forward Or Reverse |
7 mph (11 kph)
|
| Service Refill Capacities |
|
Cooling System |
3 gal (12 l)
|
|
Engine Crankcase |
3 gal (10 l)
|
|
Fuel Tank |
15 gal (57 l)
|
|
Hydraulic System |
12 gal (45 l)
|
|
Hydraulic Tank |
9 gal (34 l)
|
| Weights |
|
Note |
Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, 1676 mm (66 in) dirt bucket, 320 mm (12.6 in) tracks, standard flow hydraulics, C0 cab (OROPS, static seat), 880 CCA battery, manual quick coupler, no self level and no optional counterweights (unless otherwise noted). |
