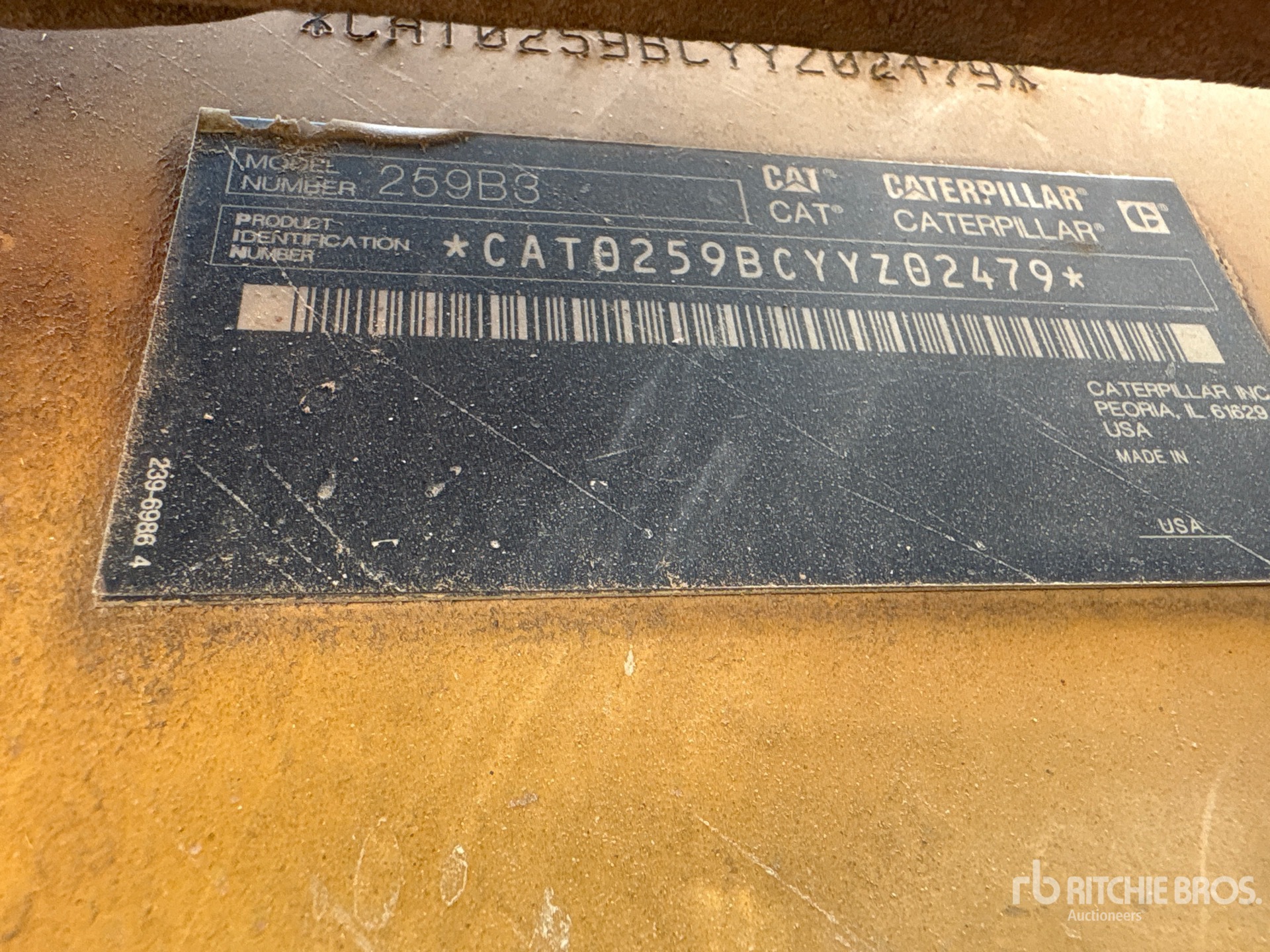

| Cab |
|
Fops |
SAE J1043 SEPT87, ISO 3449:1992 Level I |
|
Fops Level Ii |
SAE J231 JAN81, ISO 3449:1992 Level II |
|
Rops |
SAE J1040 MAY94, ISO 3471:1994 |
| Dimensions |
|
Bucket Pin Height - Carry Position |
8 in (20 cm)
|
|
Bucket Pin Height - Maximum Lift |
10 ft (3 m)
|
|
Clearance At Max Lift And Dump |
7 ft (2 m)
|
|
Clearance At Maximum Lift And Dump |
88 in (224 cm)
|
|
Departure Angle |
35 degrees |
|
Ground Clearance |
9 in (23 cm)
|
|
Height - Top Of Cab |
7 ft (2 m)
|
|
Height To Top Of Cab |
7 ft (2 m)
|
|
Length - Track On Ground |
59 in (150 cm)
|
|
Length - With Bucket On Ground |
135 in (343 cm)
|
|
Length - Without Bucket |
107 in (272 cm)
|
|
Length With Bucket |
11 ft (3 m)
|
|
Length With Out Bucket |
9 ft (3 m)
|
|
Maximum Dump Angle |
50 degrees |
|
Maximum Overall Height |
152 in (386 cm)
|
|
Maximum Reach - With Arms Parallel |
53 in (135 cm)
|
|
Overall Length - Track |
79 in (201 cm)
|
|
Rack Back Angle - Maximum Height |
87 degrees |
|
Reach At Max Lift And Dump |
2 ft (1 m)
|
|
Reach At Maximum Lift/Dump |
29 in (74 cm)
|
|
Turn Radius From Center - Bucket |
86 in (218 cm)
|
|
Turn Radius From Center - Coupler |
55 in (140 cm)
|
|
Turn Radius From Center - Rear |
58 in (147 cm)
|
|
Turning Radius From Center - Inc Bucket |
86 in (217 cm)
|
|
Turning Radius From Center - Machine Rear |
58 in (147 cm)
|
|
Vehicle Width |
66 in (168 cm)
|
|
Width Over Tracks |
6 ft (2 m)
|
| Engine |
|
Bore |
4 in (9 cm)
|
|
Displacement |
201 cu in (3,294 cu cm)
|
|
Engine Make |
2,236 |
|
Engine Model |
Cat C3.4T |
|
Engine Model |
C3.4 DIT |
|
Gross Power |
74 hp (55 kw)
|
|
Gross Power - Sae J1995 |
74 hp (55 kw)
|
|
Net Power |
71 hp (53 kw)
|
|
Net Power - Sae 1349 |
71 hp (53 kw)
|
|
Stroke |
5 in (12 cm)
|
| Hydraulic |
|
Pump Flow |
22 gpm (83 lpm)
|
|
Relief Valve Pressure |
3,335 psi |
| Hydraulic System |
|
Hydraulic Flow (1) |
Standard |
|
Hydraulic Flow (2) |
High Flow |
|
Hydraulic Power |
43 hp (32 kw)
|
|
Hydraulic Power - Calculated |
60 hp (45 kw)
|
|
Loader Hydraulic Flow (1) |
22 gpm (83 lpm)
|
|
Loader Hydraulic Flow (2) |
31 gpm (117 lpm)
|
|
Loader Hydraulic Pressure |
3,335 psi |
| Loader |
|
Breakout Force |
4,509 lbs (2,045 kg)
|
|
Operating Load |
2,950 lbs (1,338 kg)
|
|
Tipping Angle |
5,900 degrees |
| Operating Specifications |
|
Breakout Force - Tilt Cylinder |
4,508 lbs (2,044 kg)
|
|
Ground Contact Area |
1495 in2 |
|
Ground Pressure |
6 psi |
|
Rated Operating Capacities - 35% Tipping Load |
2,065 lbs (937 kg)
|
|
Rated Operating Capacities - 50% Tipping Load |
2,950 lbs (1,338 kg)
|
|
Rated Operating Capacity With Optional Counterweight |
3,000 lbs (1,361 kg)
|
|
Tipping Load |
5,900 lbs (2,676 kg)
|
| Operational |
|
Alternator Supplied Amperage |
90 amps |
|
Cooling System Fluid Capacity |
3 gal (10 l)
|
|
Engine Oil Capacity |
2 gal (9 l)
|
|
Fuel Capacity |
22 gal (84 l)
|
|
Hydraulic System Fluid Capacity |
15 gal (55 l)
|
|
Max Speed - High Range |
9 mph (14 kph)
|
|
Max Speed - Low Range |
6 mph (10 kph)
|
|
Operating Voltage |
12 V |
|
Operating Weight |
9,226 lbs (4,184 kg)
|
| Power Train |
|
Travel Speed Forward |
6 mph (10 kph)
|
|
Travel Speed Forward - 2-Speed |
9 mph (14 kph)
|
|
Travel Speed Reverse |
6 mph (10 kph)
|
|
Travel Speed Reverse - 2-Speed |
9 mph (14 kph)
|
| Service Refill Capacities |
|
Cooling System |
3 gal (10 l)
|
|
Engine Crankcase |
2 gal (9 l)
|
|
Fuel Tank |
22 gal (84 l)
|
|
Hydraulic System |
15 gal (55 l)
|
|
Hydraulic Tank |
9 gal (35 l)
|
| Undercarriage |
|
Ground Contact Area |
1848 in2 |
|
Ground Pressure |
5 psi |
|
Length Of Track On Ground |
5 ft (2 m)
|
|
Width Of Track |
16 in (40 cm)
|
| Weights |
|
Operating Weight |
8,934 lbs (4,052 kg)
|
