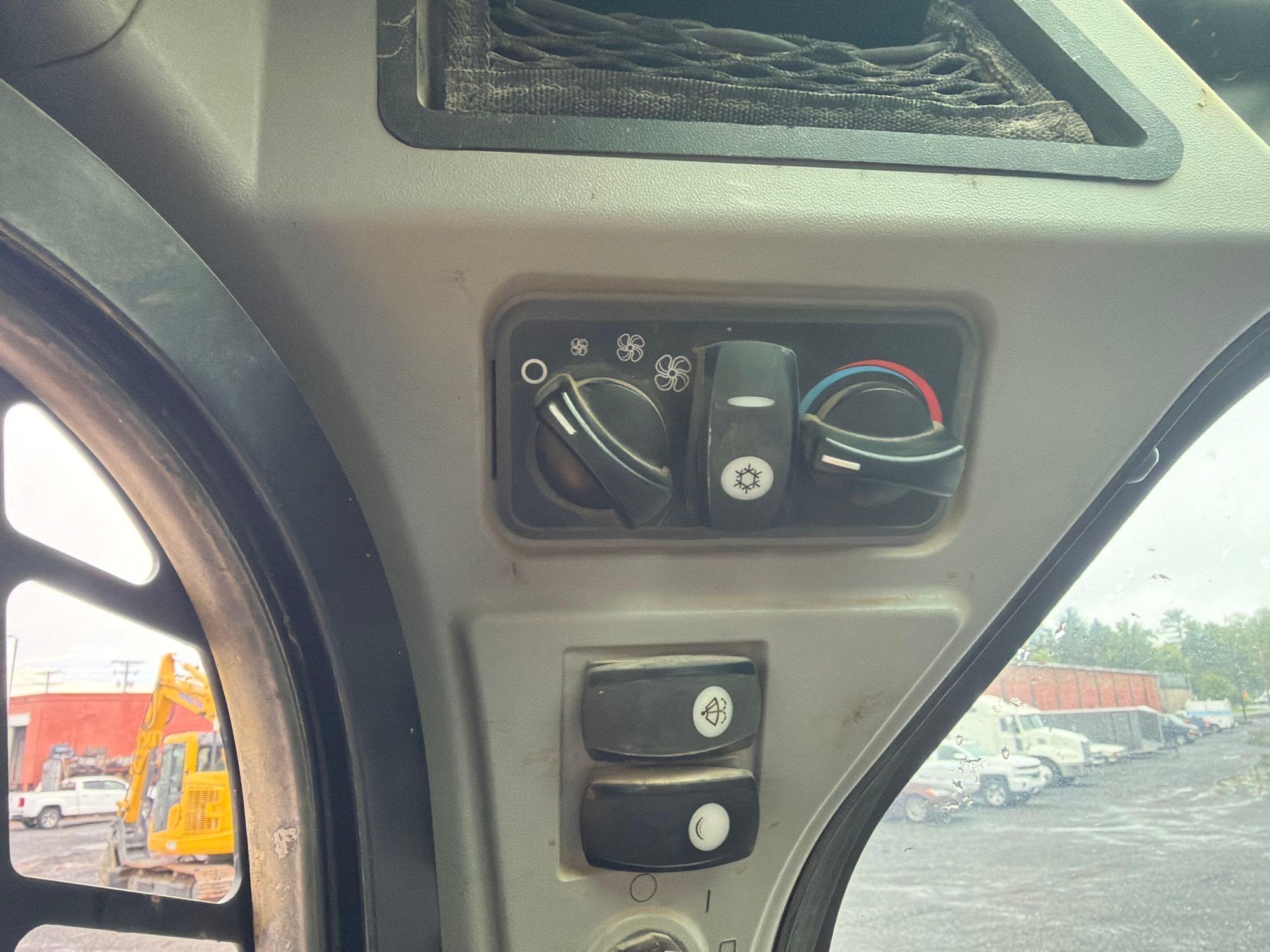

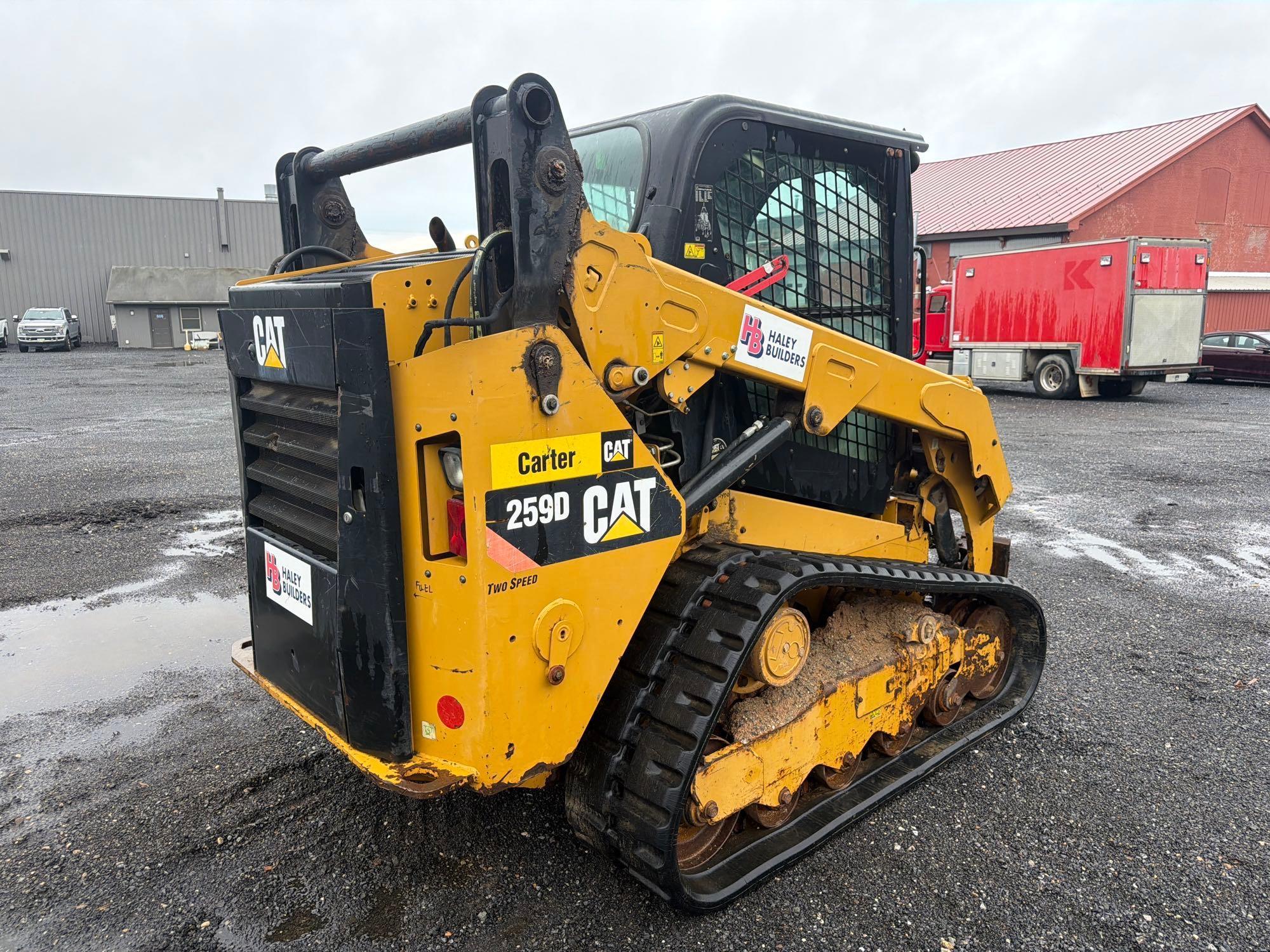

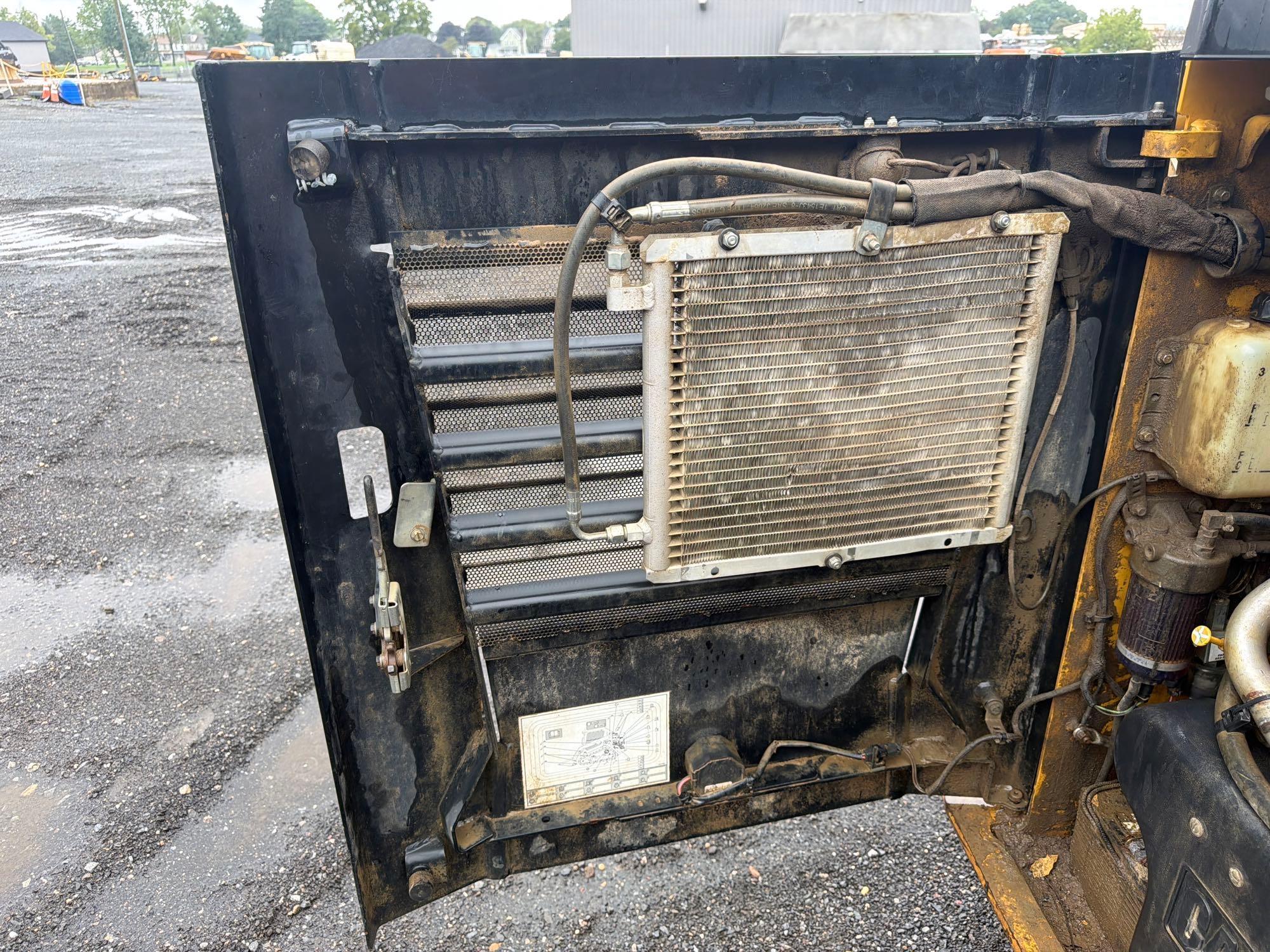

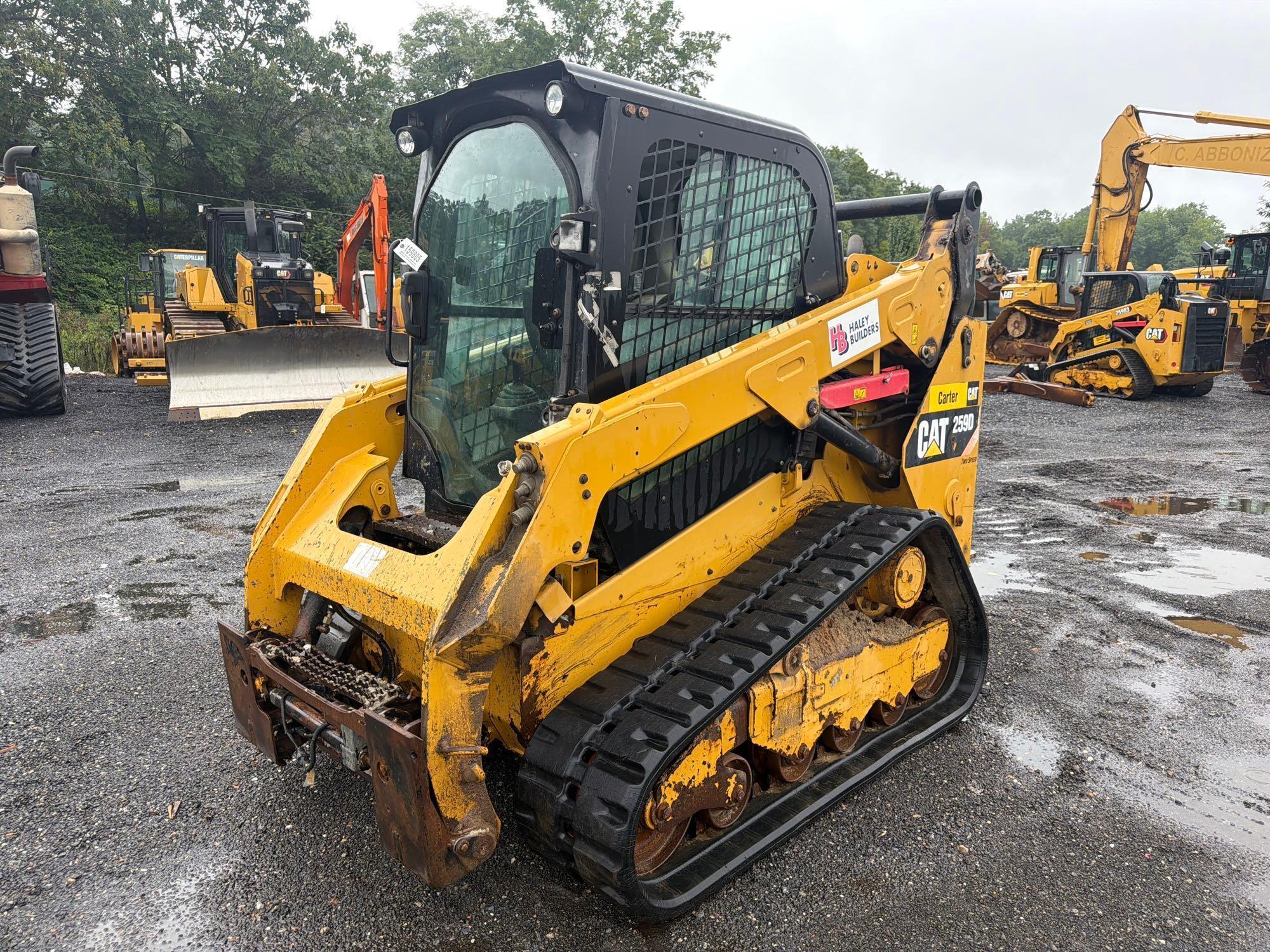

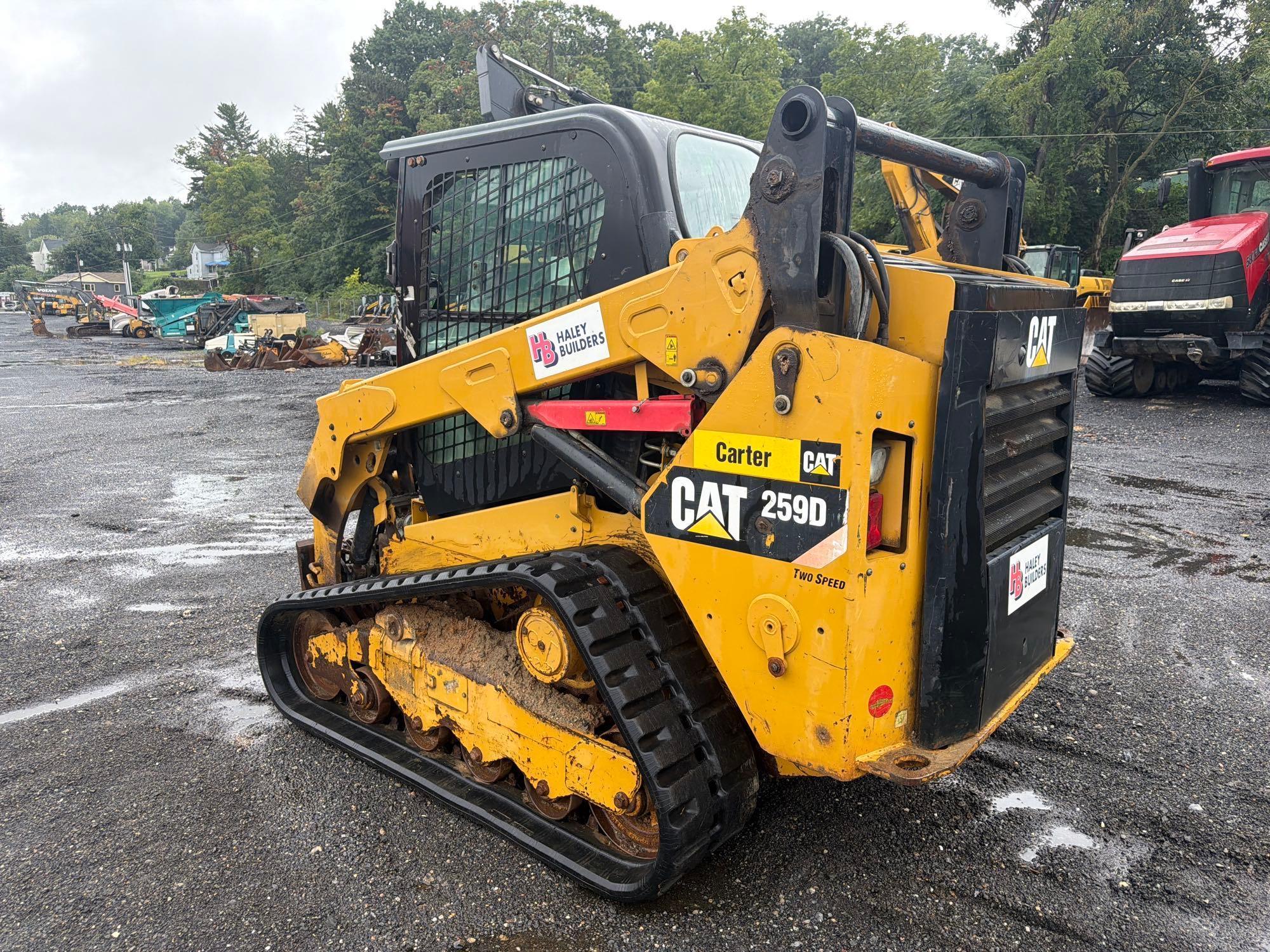

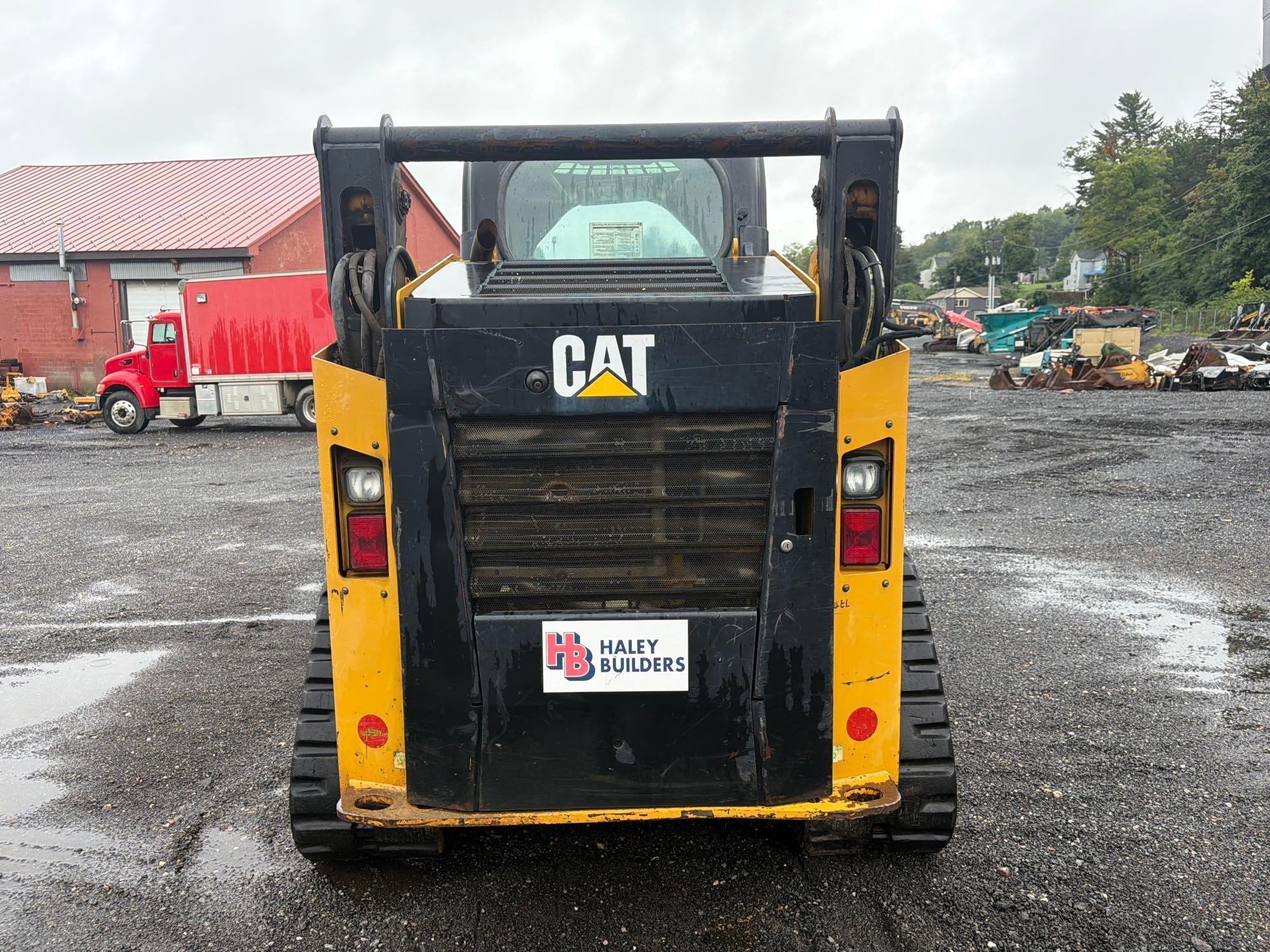

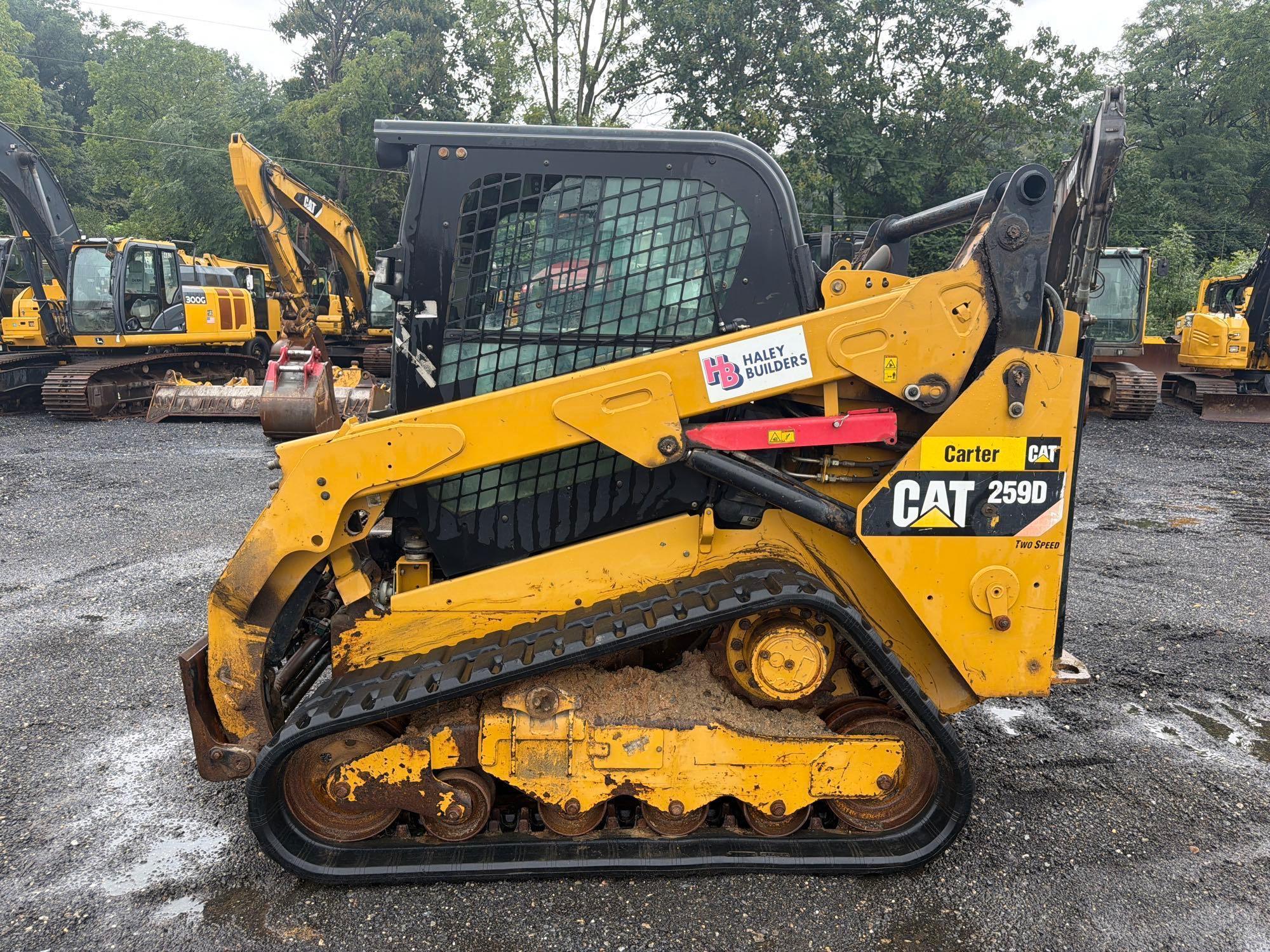

| Air Conditioning System |
|

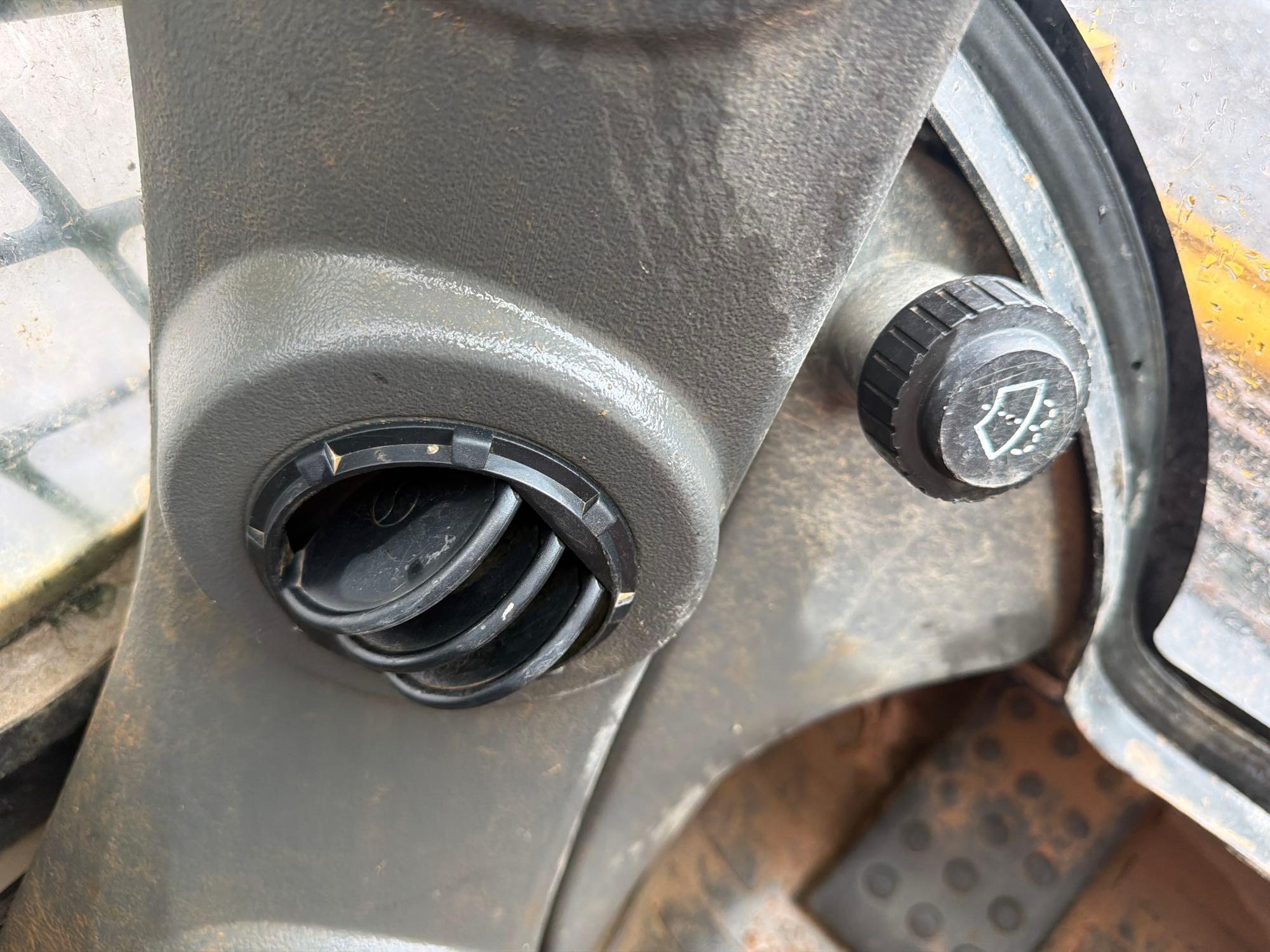

Air Conditioning |
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.81 kg of refrigerant which has a CO2 equivalent of 1.158 metric tonnes. |

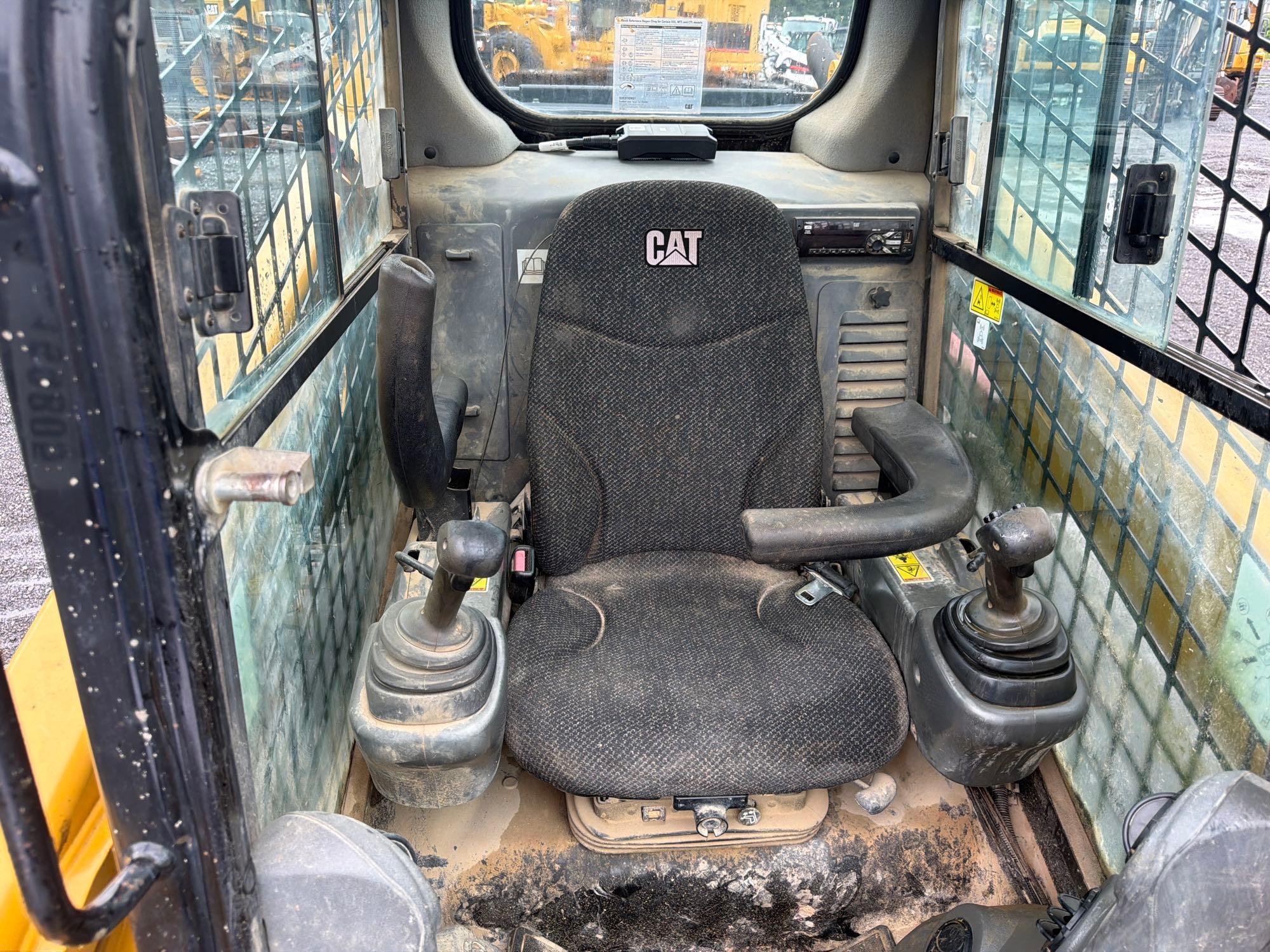

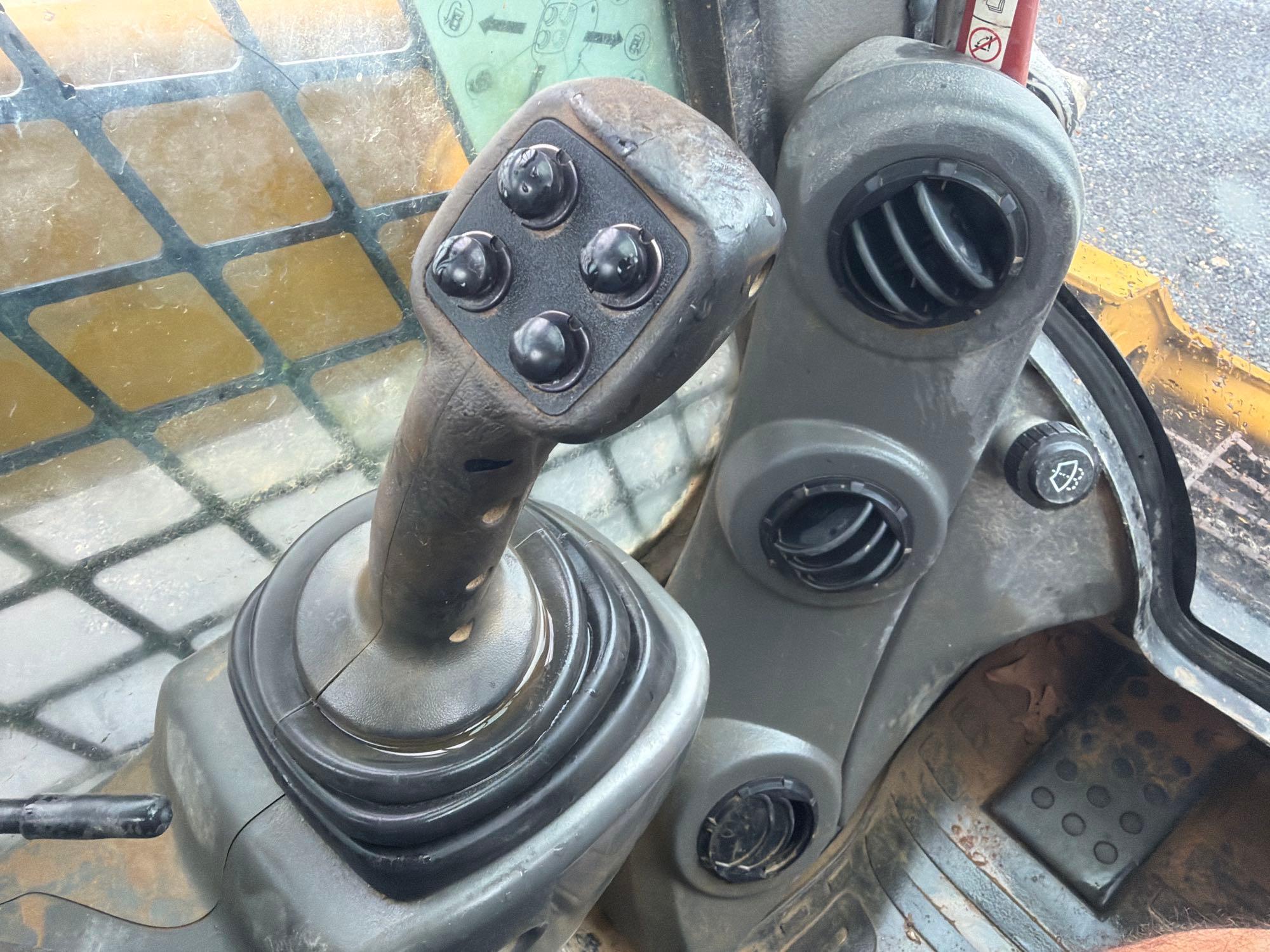

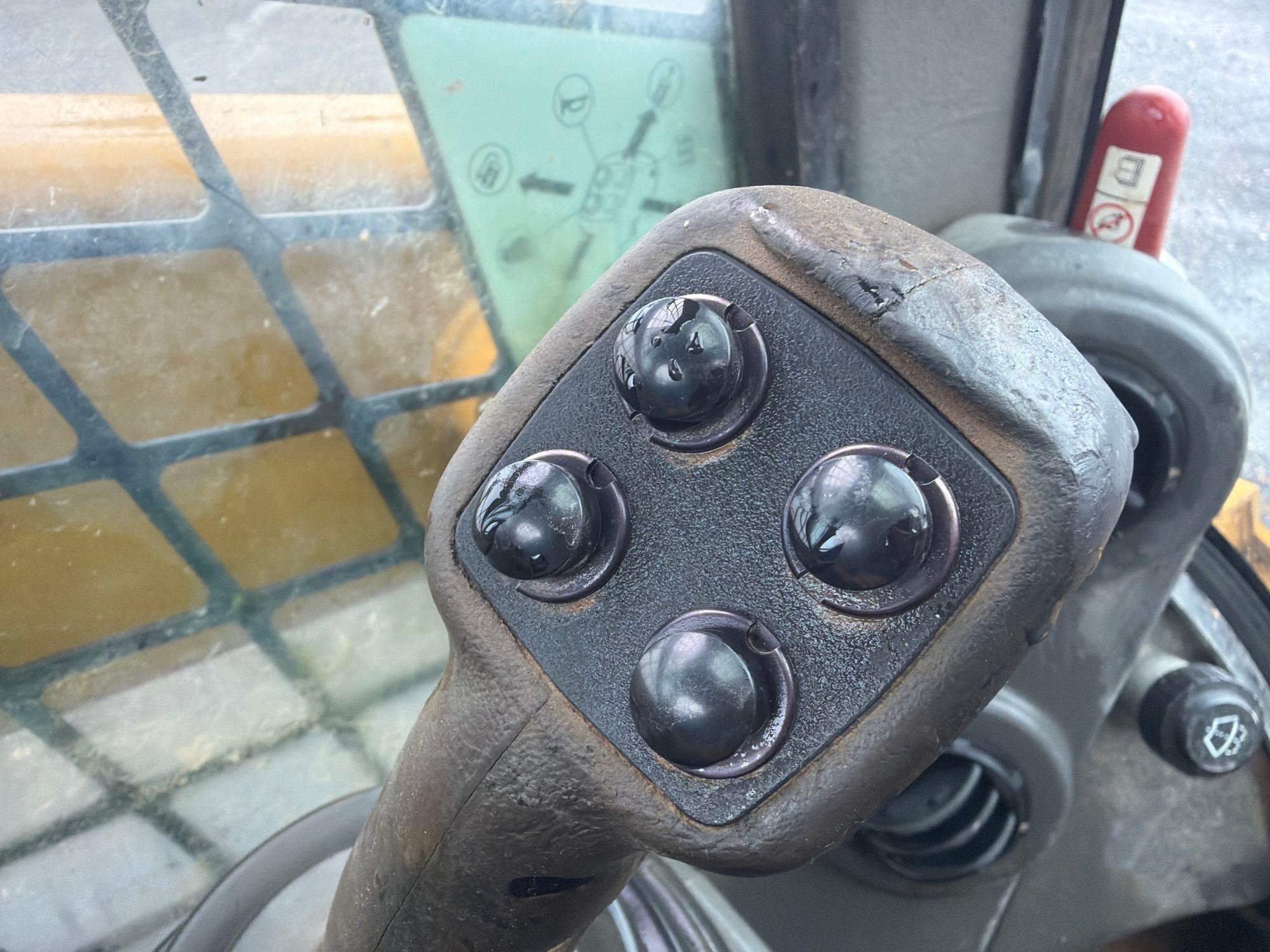

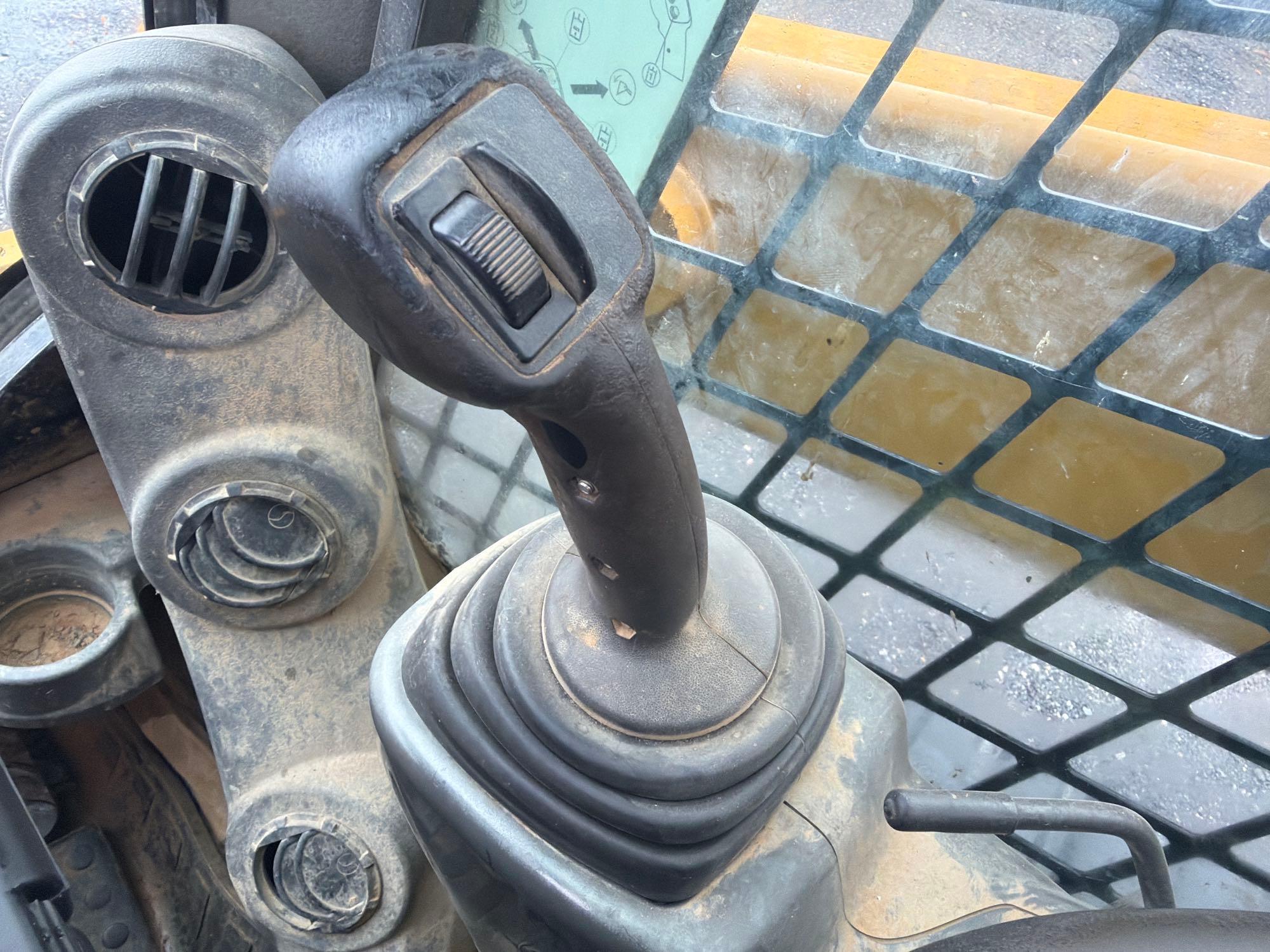

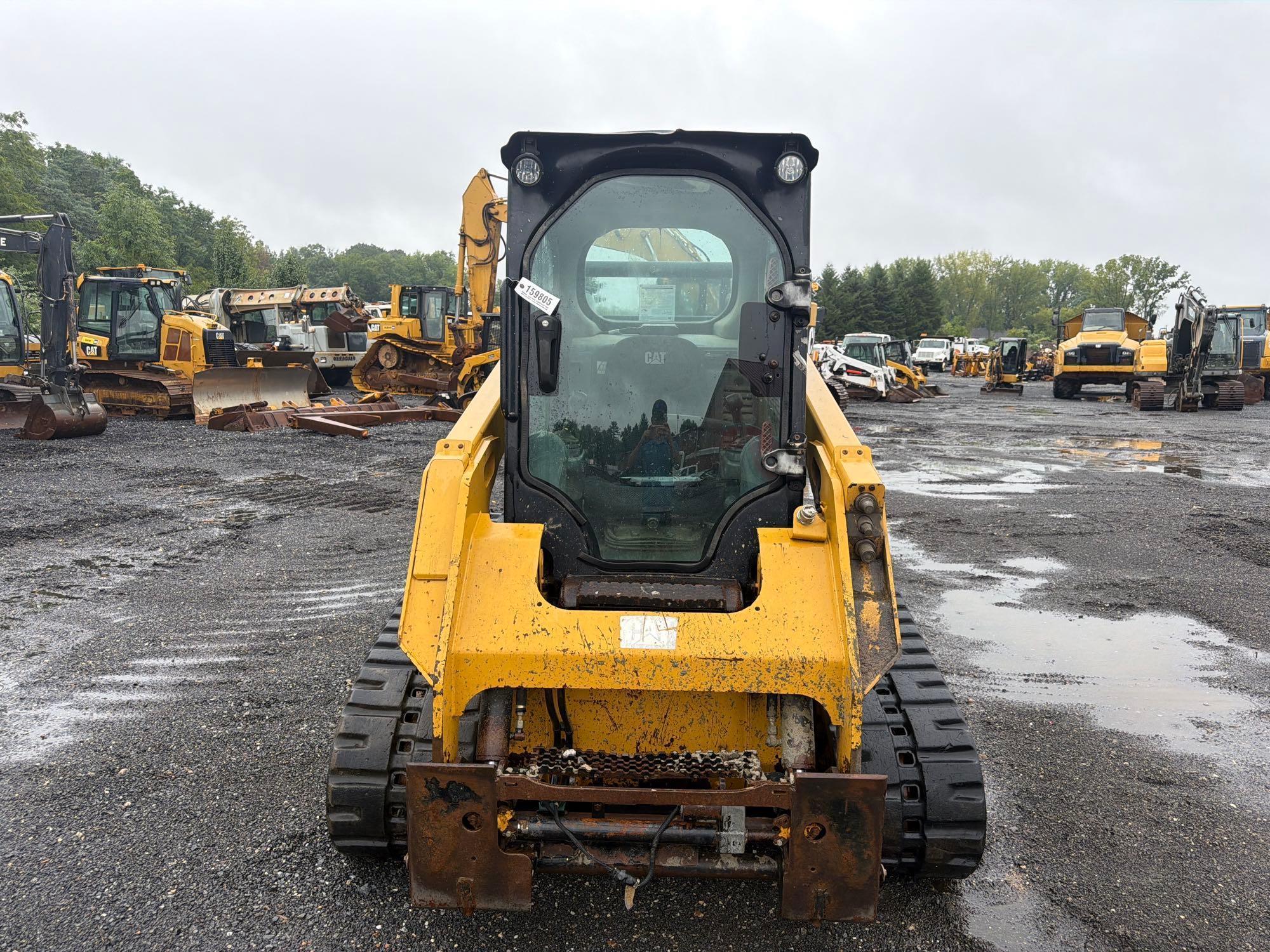

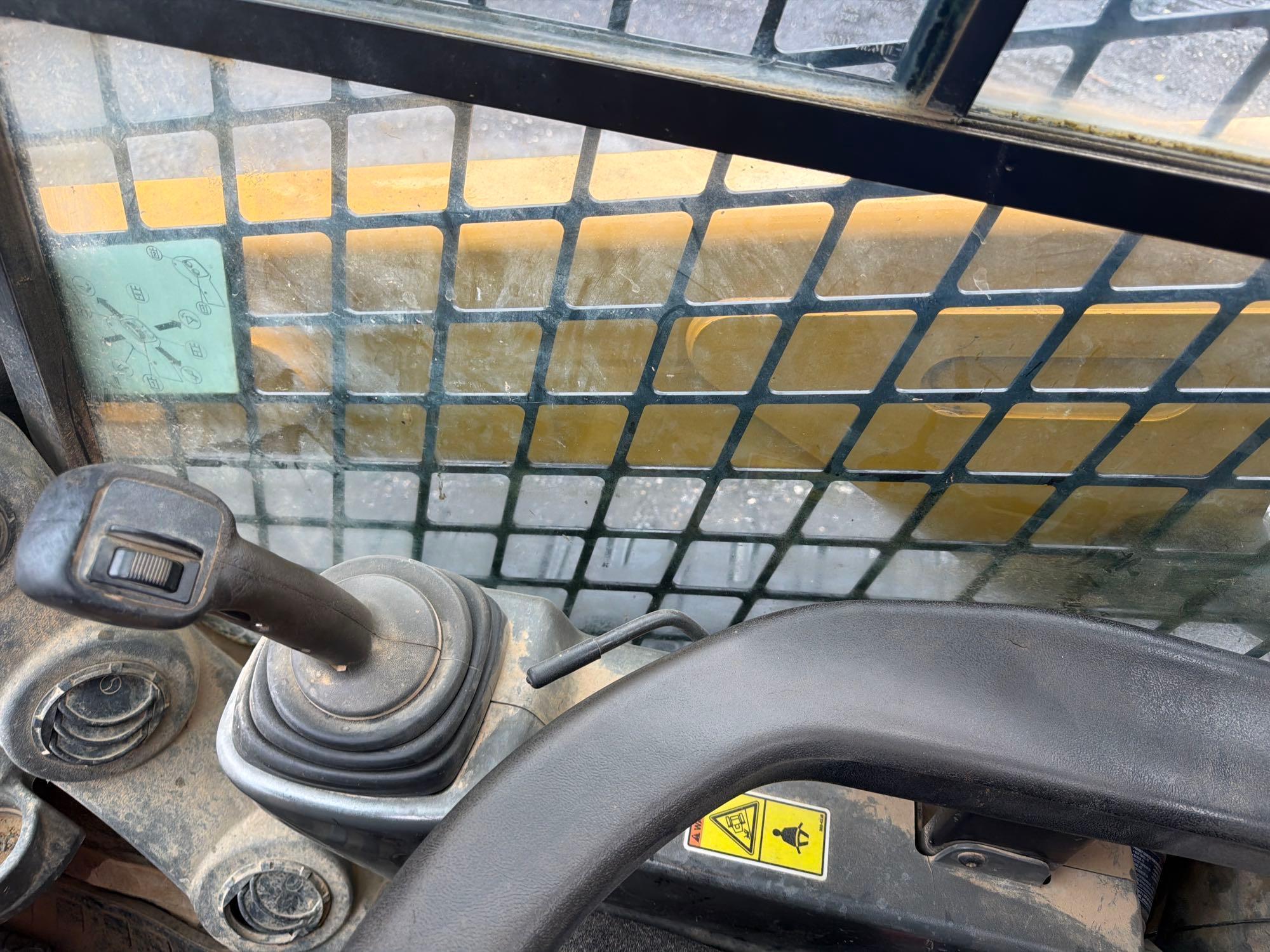

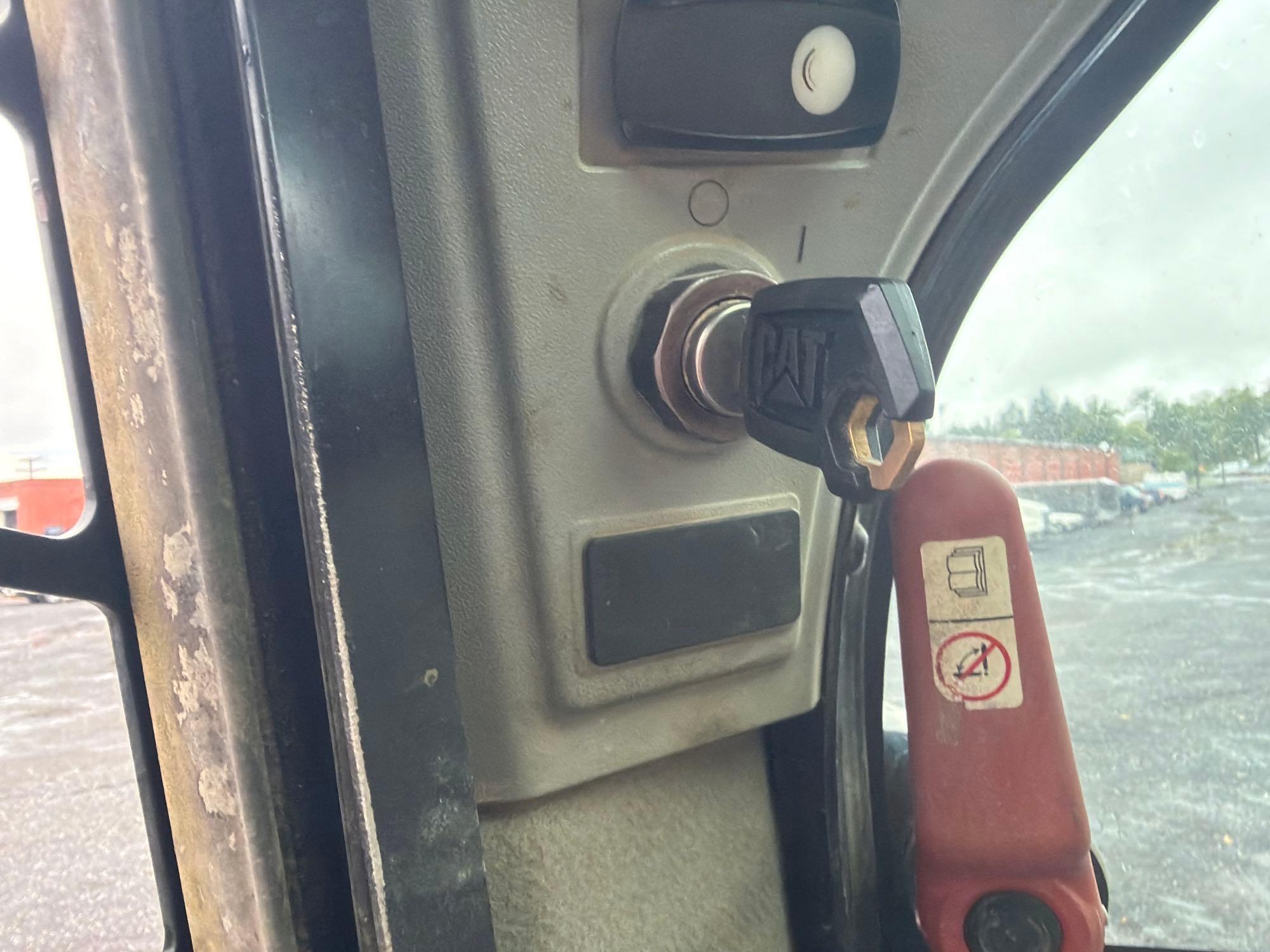

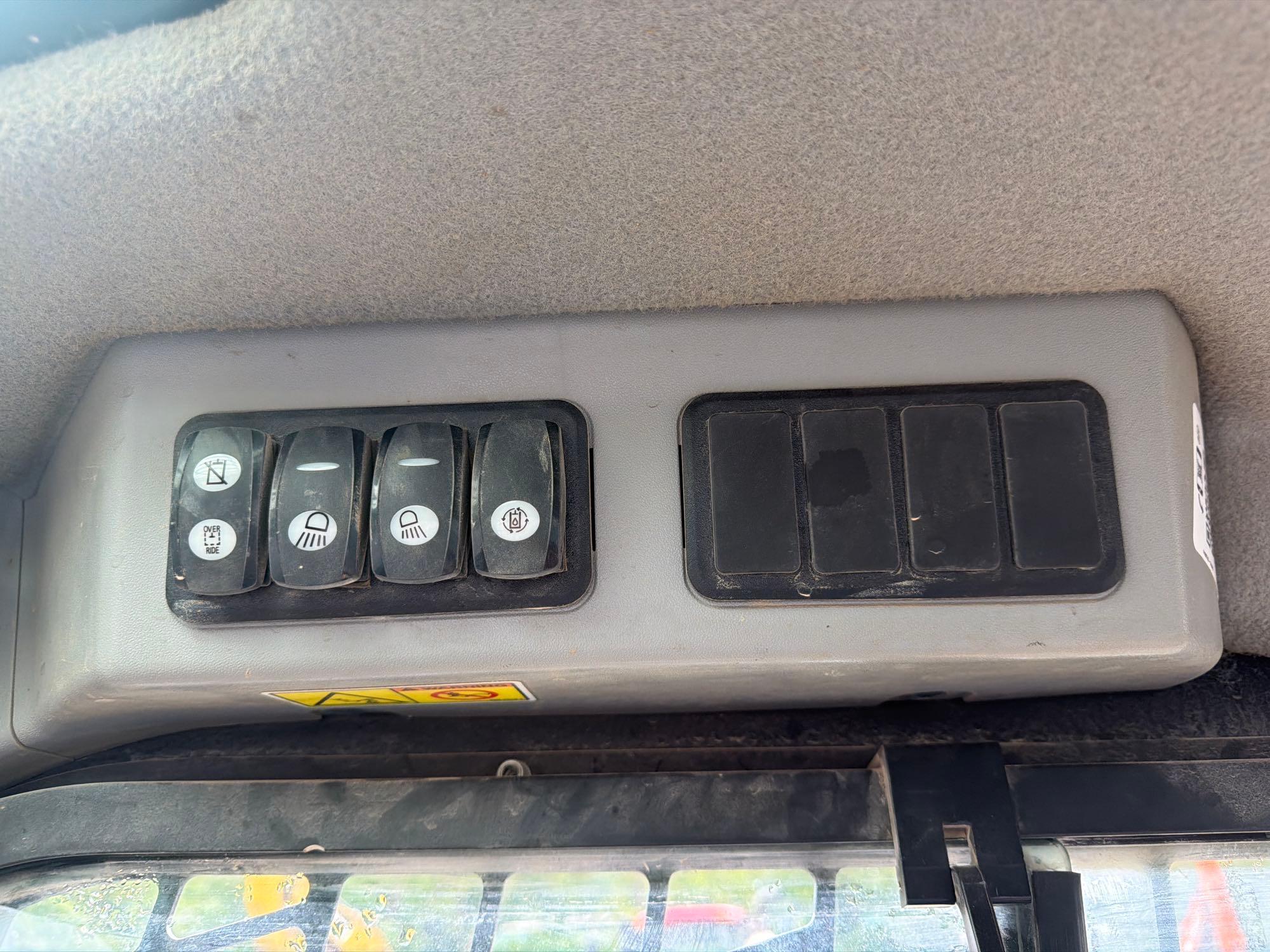

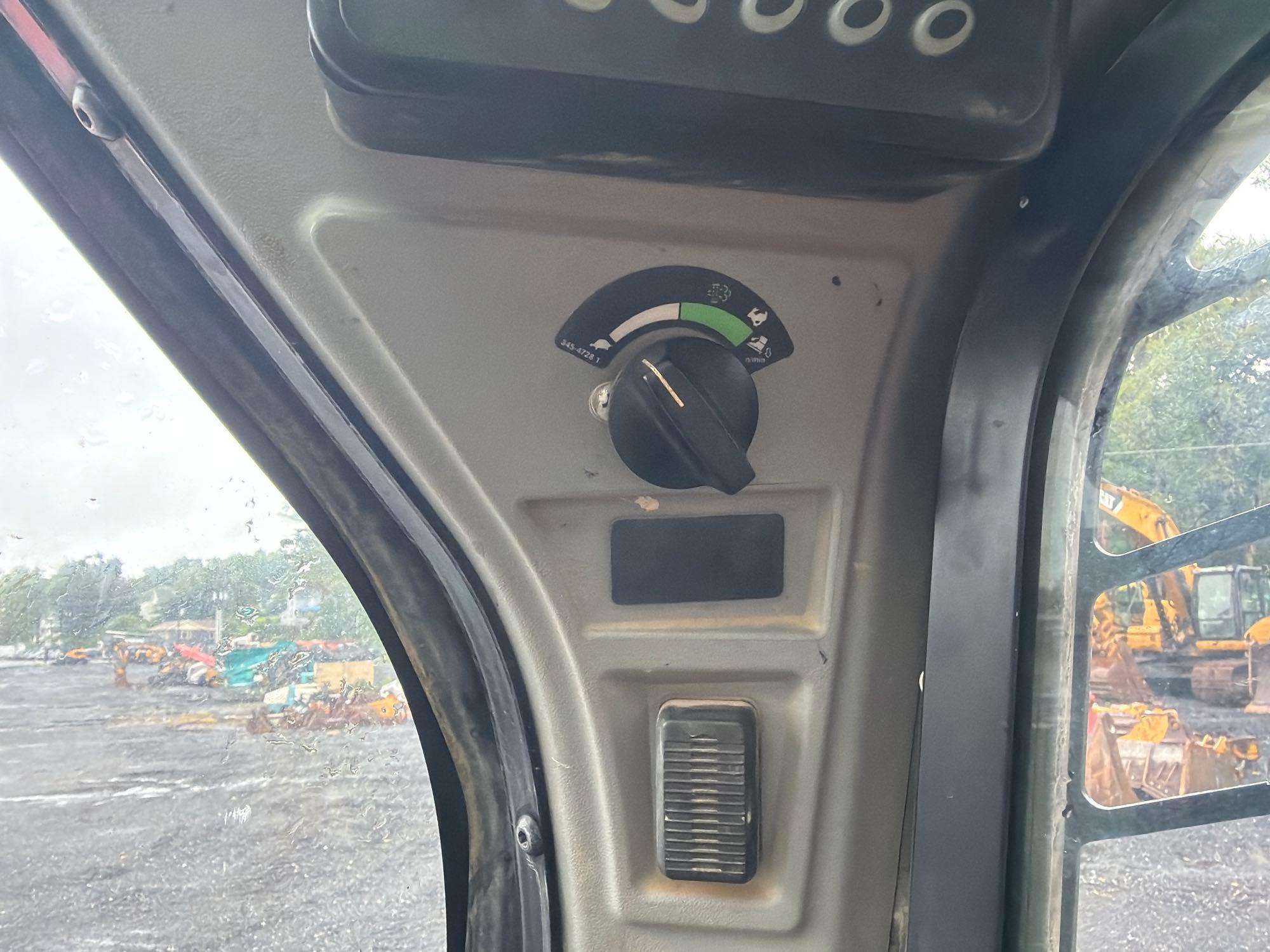

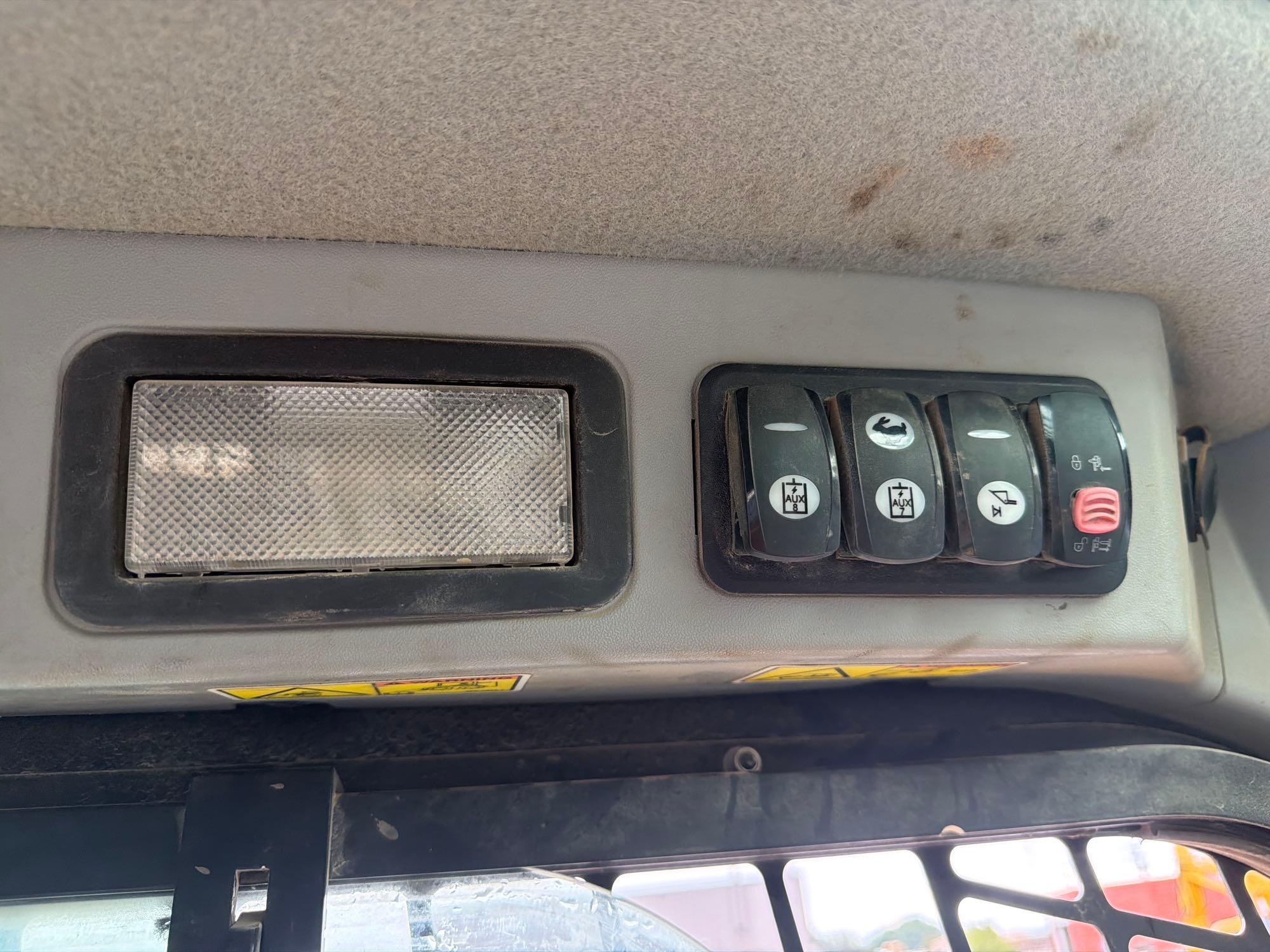

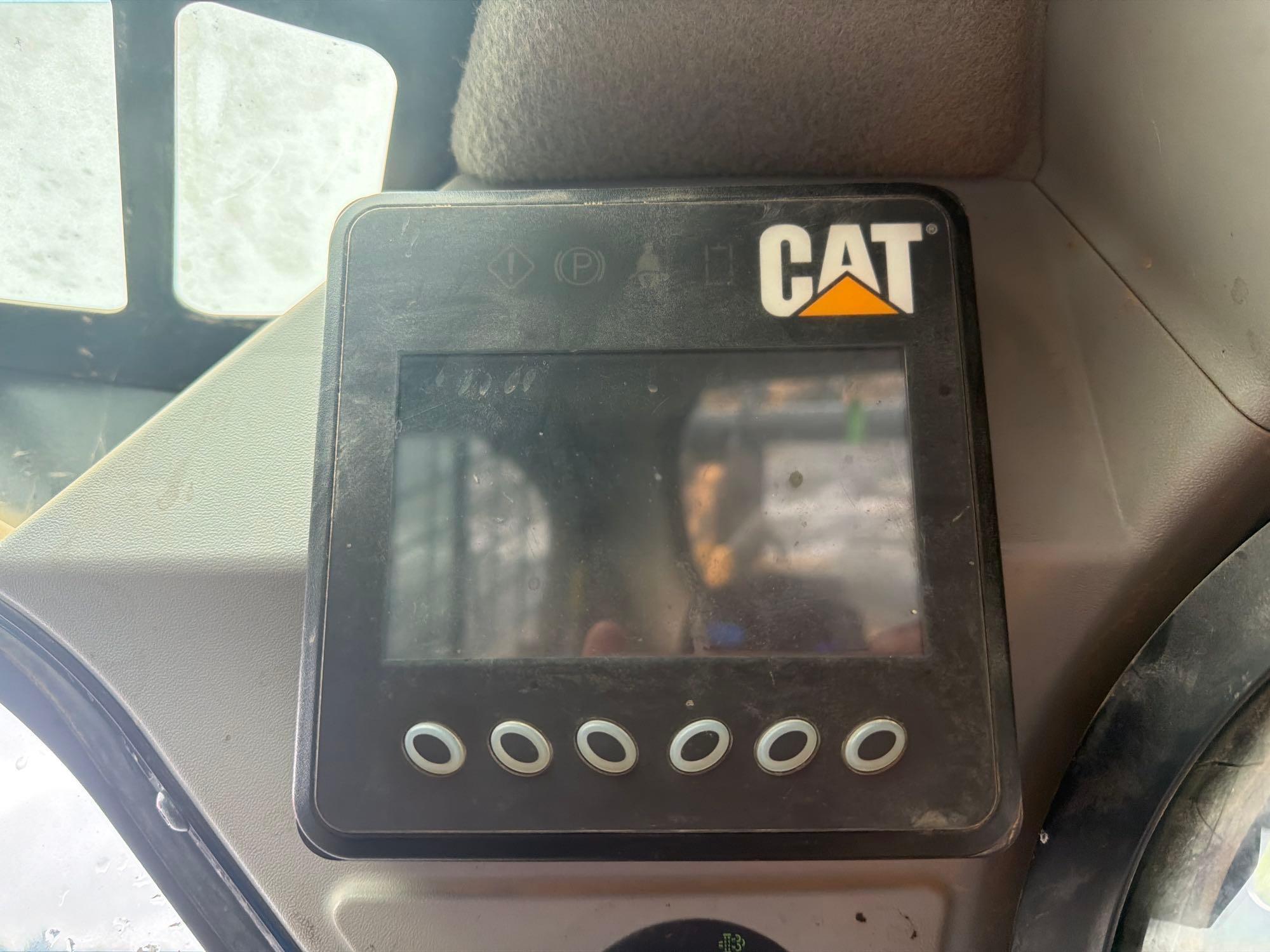

| Cab |
|
Fops |
ISO 3449:2005 Level I |
|
Fops Level Ii |
ISO 3449:2005 Level II |
|
Rops |
ISO 3471:2008 |

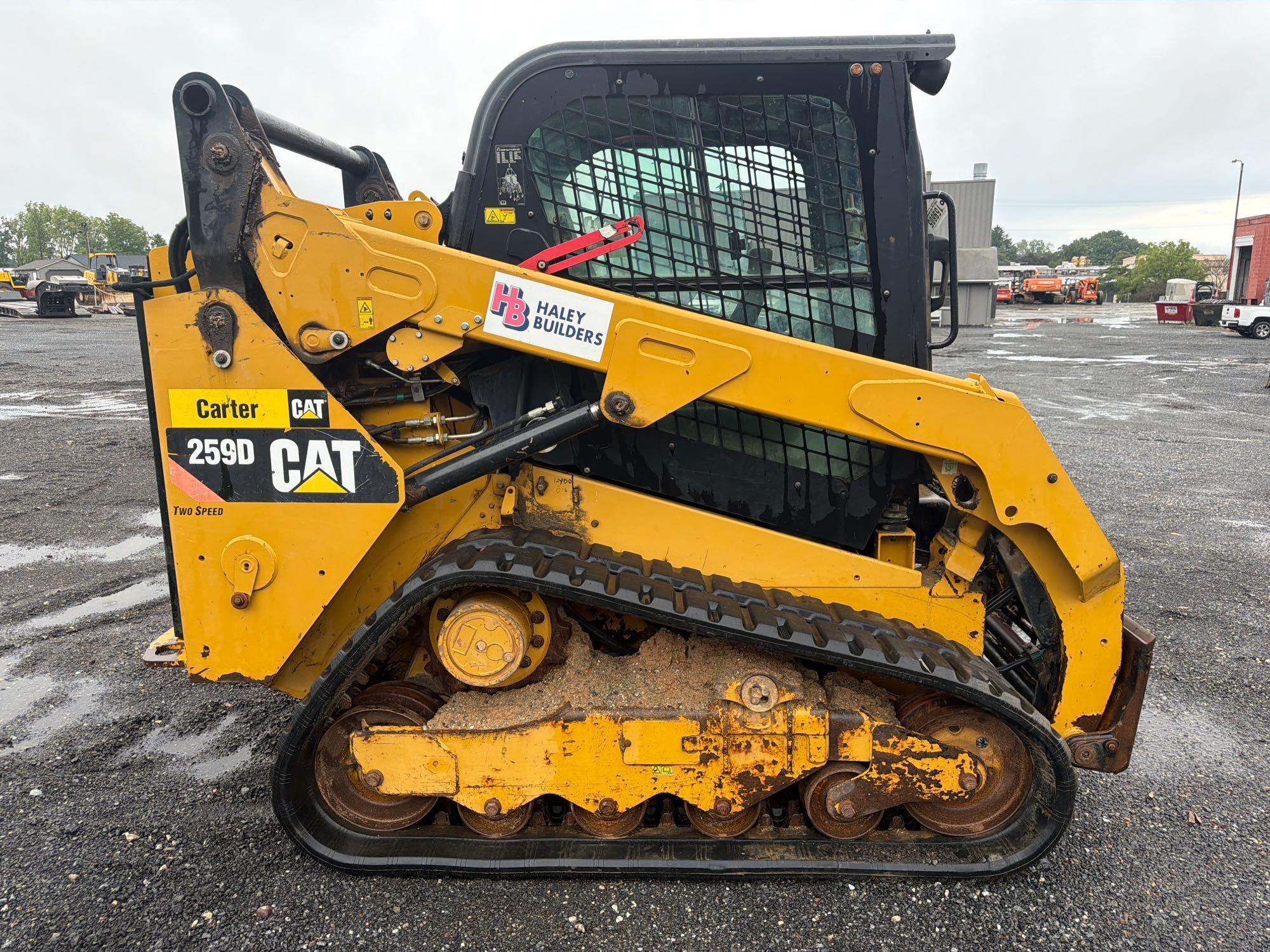

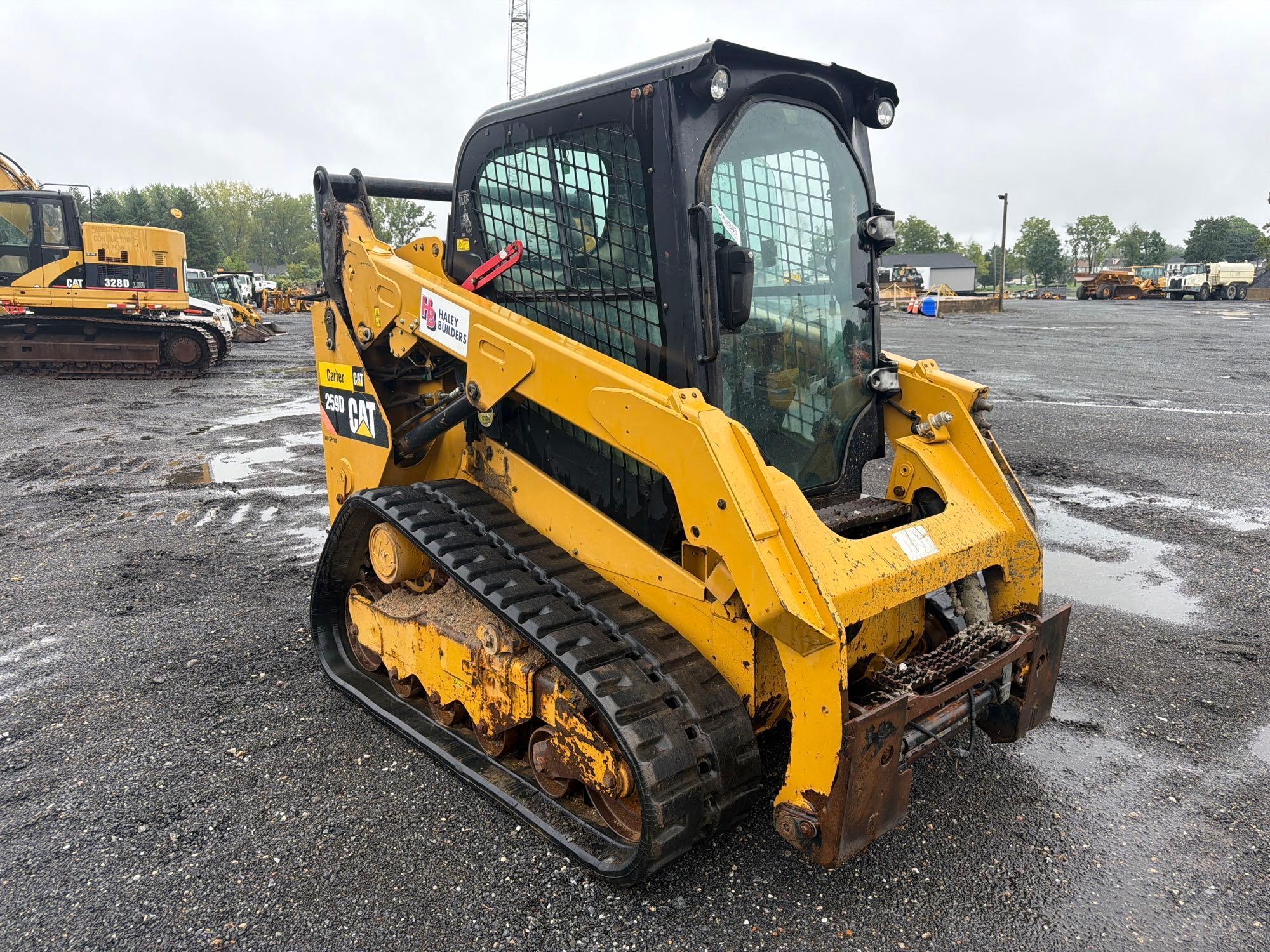

| Dimensions |
|
Bucket Pin Height - Carry Position |
8 in (20 cm)
|
|
Bucket Pin Height - Maximum Lift |
10 ft (3 m)
|
|
Bucket Pin Reach - Maximum Lift |
9 in (24 cm)
|
|
Clearance At Max Lift And Dump |
8 ft (2 m)
|
|
Clearance At Maximum Lift And Dump |
90 in (228 cm)
|
|
Departure Angle |
35 degrees |
|
Dump Angle |
52 degrees |
|
Ground Clearance |
9 in (23 cm)
|
|
Height - Top Of Cab |
7 ft (2 m)
|
|
Height To Top Of Cab |
7 ft (2 m)
|
|
Length - Track On Ground |
59 in (150 cm)
|
|
Length - With Bucket On Ground |
137 in (349 cm)
|
|
Length - Without Bucket |
109 in (277 cm)
|
|
Length With Bucket |
11 ft (3 m)
|
|
Length With Out Bucket |
9 ft (3 m)
|
|
Maximum Dump Angle |
52 degrees |
|
Maximum Overall Height |
154 in (391 cm)
|
|
Maximum Reach - With Arms Parallel To Ground |
51 in (131 cm)
|
|
Note |
Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, OROPS, 1676 mm (66 in) dirt bucket, 320 mm (12.6 in) tracks, dual flange front idler/single flange rear idler, standard flow hydraulics, mechanical suspension seat, no optional counterweights and manual quick coupler (unless otherwise noted). |
|
Overall Height |
13 ft (4 m)
|
|
Overall Length - Track |
79 in (200 cm)
|
|
Overall Track Length |
7 ft (2 m)
|
|
Rack Back Angle - Maximum Height |
87 degrees |
|
Reach - Maximum Lift/Dump |
24 in (61 cm)
|
|
Reach At Max Lift And Dump |
2 ft (1 m)
|
|
Turning Radius From Center - Bucket |
86 in (218 cm)
|
|
Turning Radius From Center - Coupler |
55 in (139 cm)
|
|
Turning Radius From Center - Machine Rear |
62 in (156 cm)
|
|
Vehicle Width (320 Mm/12.6 In Tracks) |
66 in (168 cm)
|
|
Vehicle Width (400 Mm/15.7 In Tracks) |
69 in (175 cm)
|

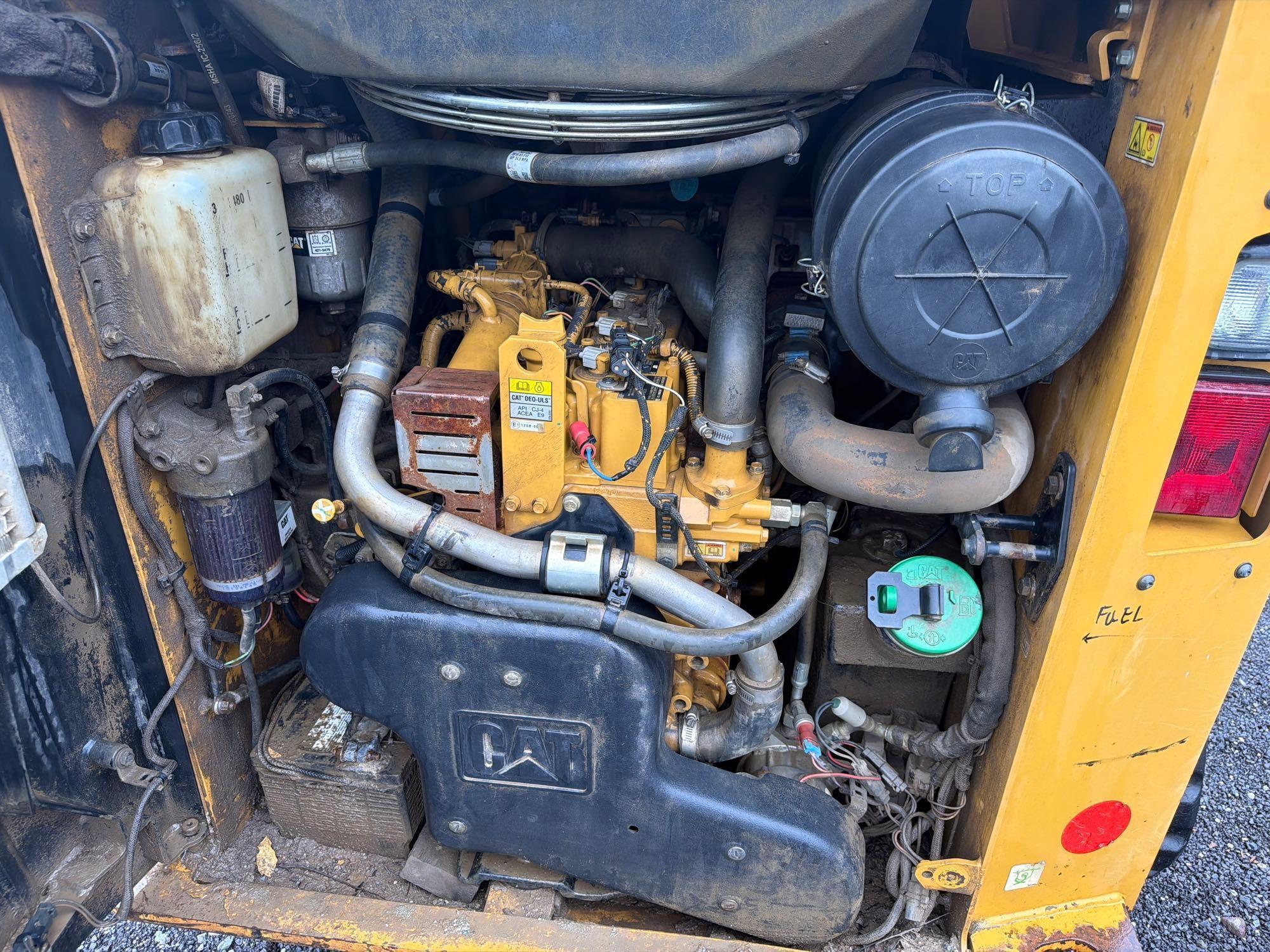

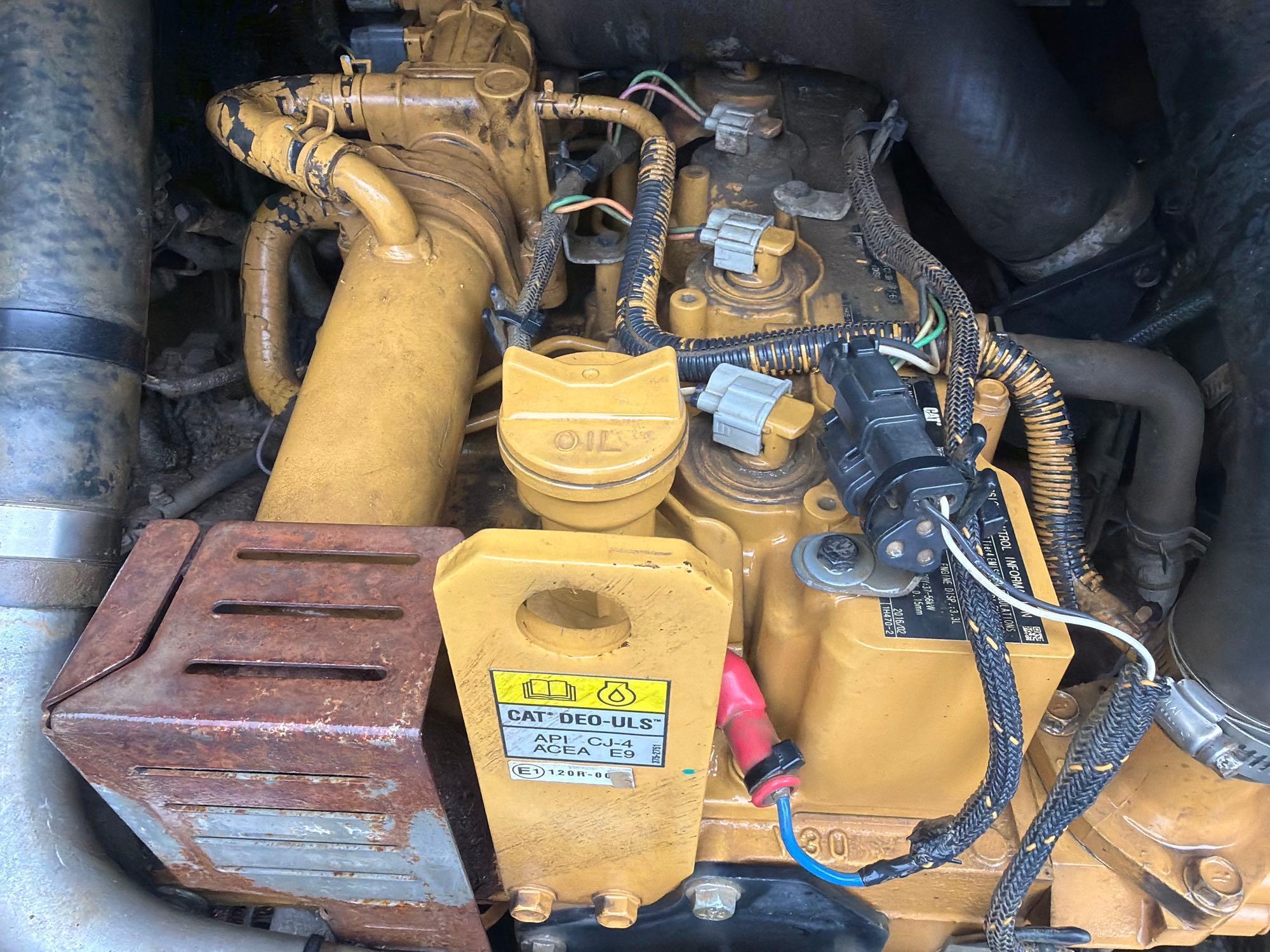

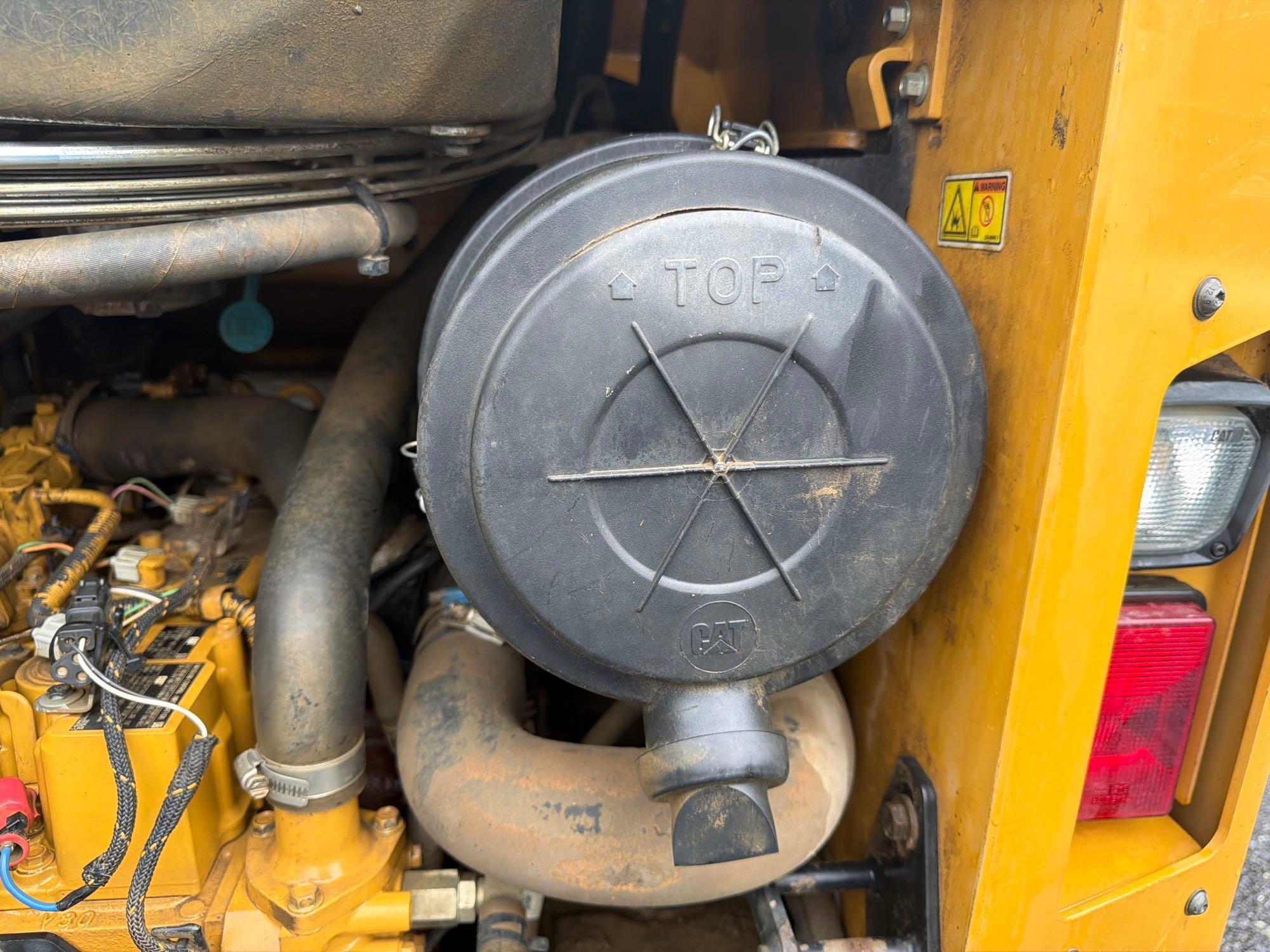

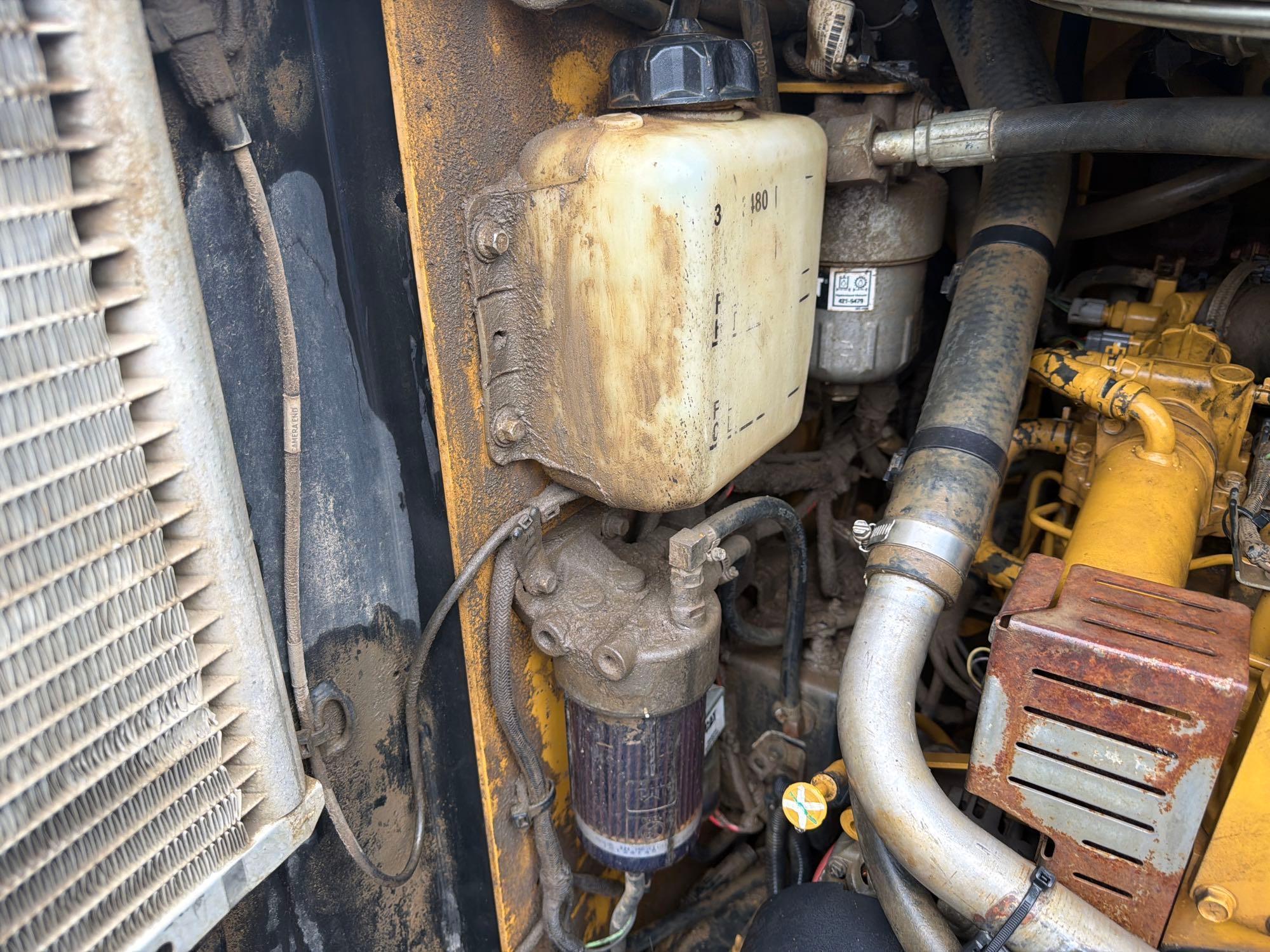

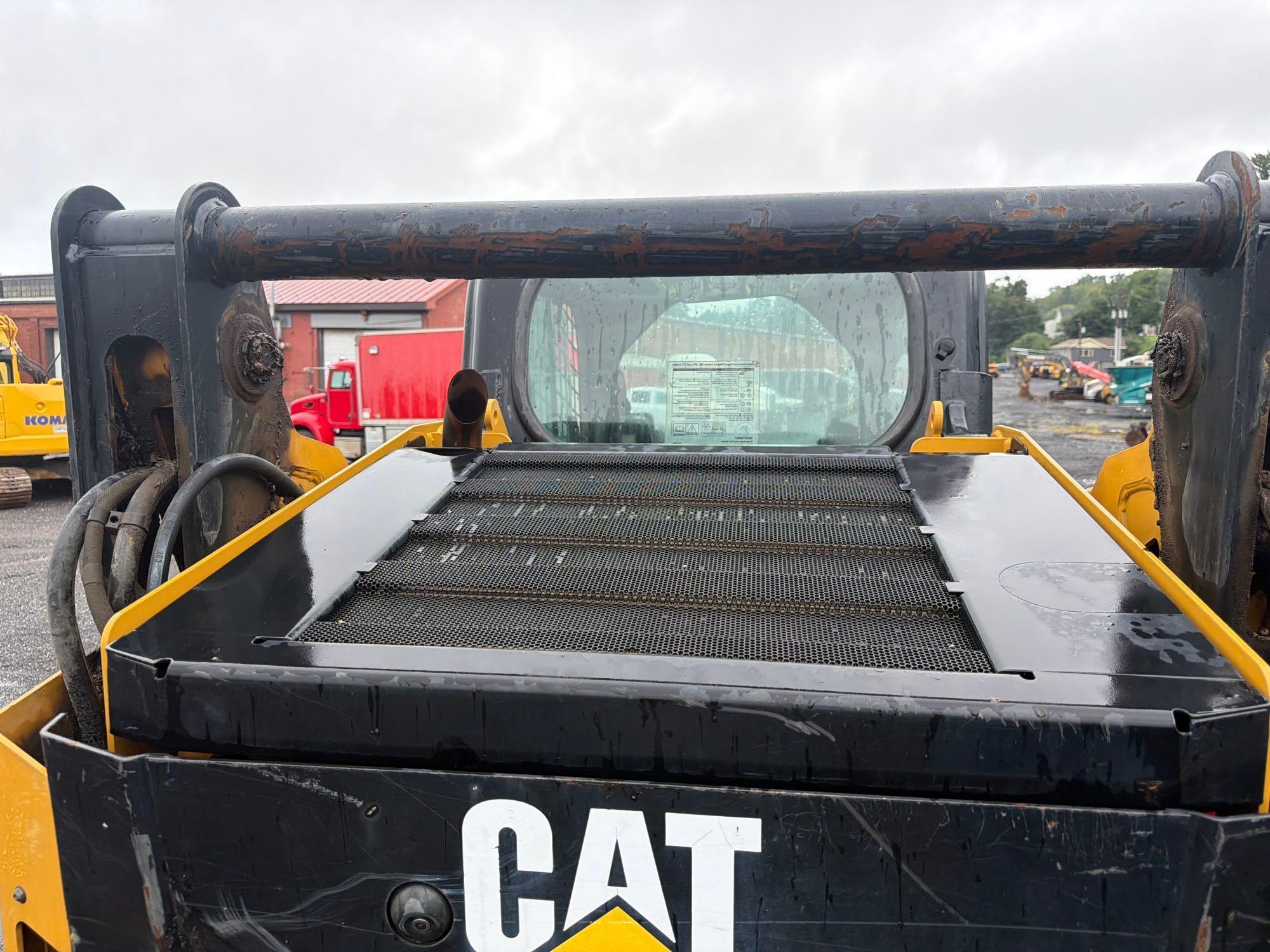

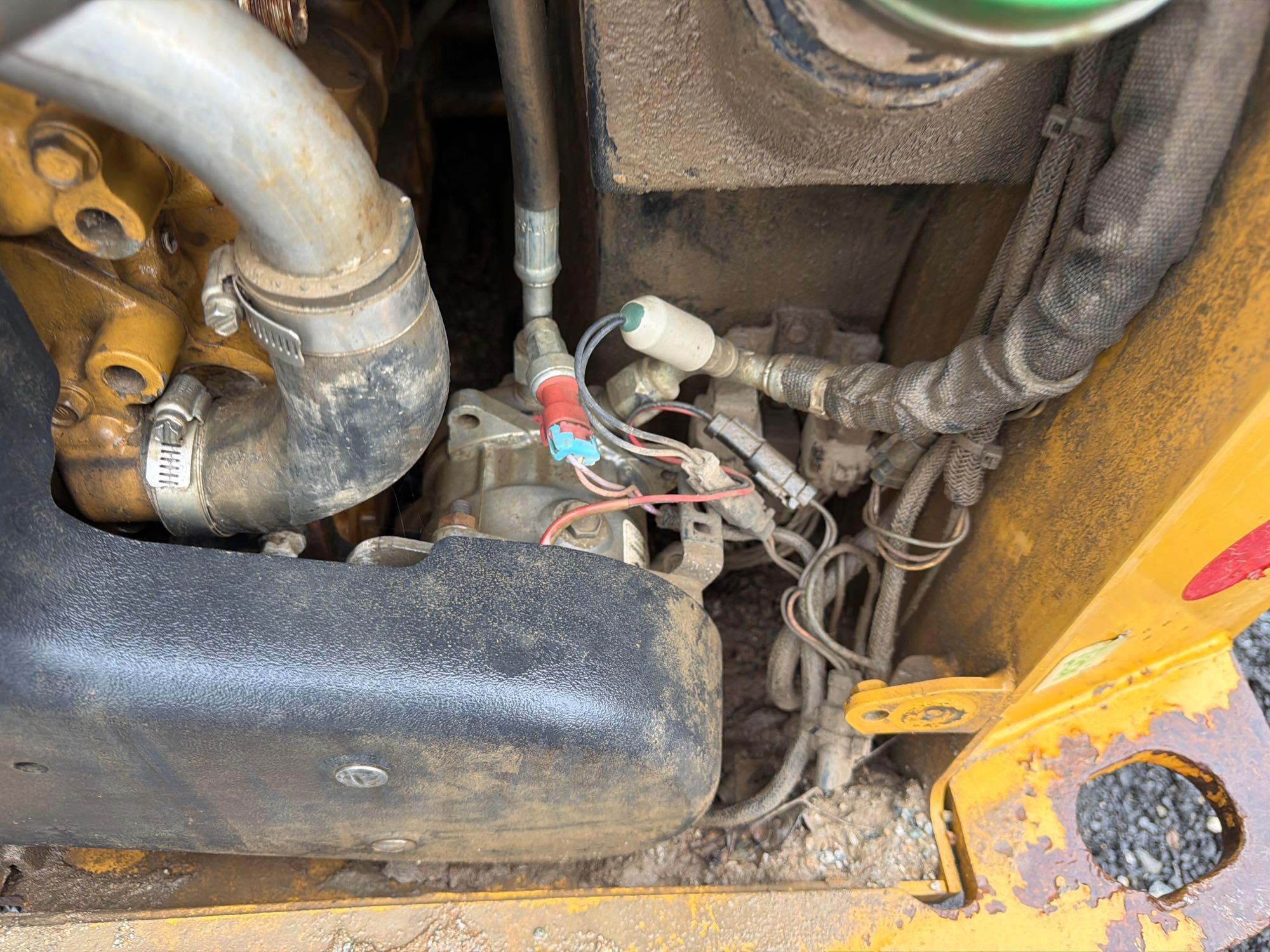

| Engine |
|
Bore |
4 in (9 cm)
|
|
Displacement |
203 cu in (3,327 cu cm)
|
|
Engine Make |
DIT |
|
Engine Model |
Cat C3.3B DIT (turbo) |
|
Gross Power |
74 hp (55 kw)
|
|
Gross Power - Sae J1995 |
74 hp (55 kw)
|
|
Net Power |
73 hp (55 kw)
|
|
Net Power - Iso 9249 |
74 hp (55 kw)
|
|
Net Power - Sae 1349 |
73 hp (55 kw)
|
|
Peak Torque |
196 lbs ft (265 nm)
|
|
Peak Torque - 1,500 Rpm - Sae J1995 |
195 lbs ft (264 nm)
|
|
Stroke |
5 in (12 cm)
|
|
Torque Measured @ |
1,500 rpm |

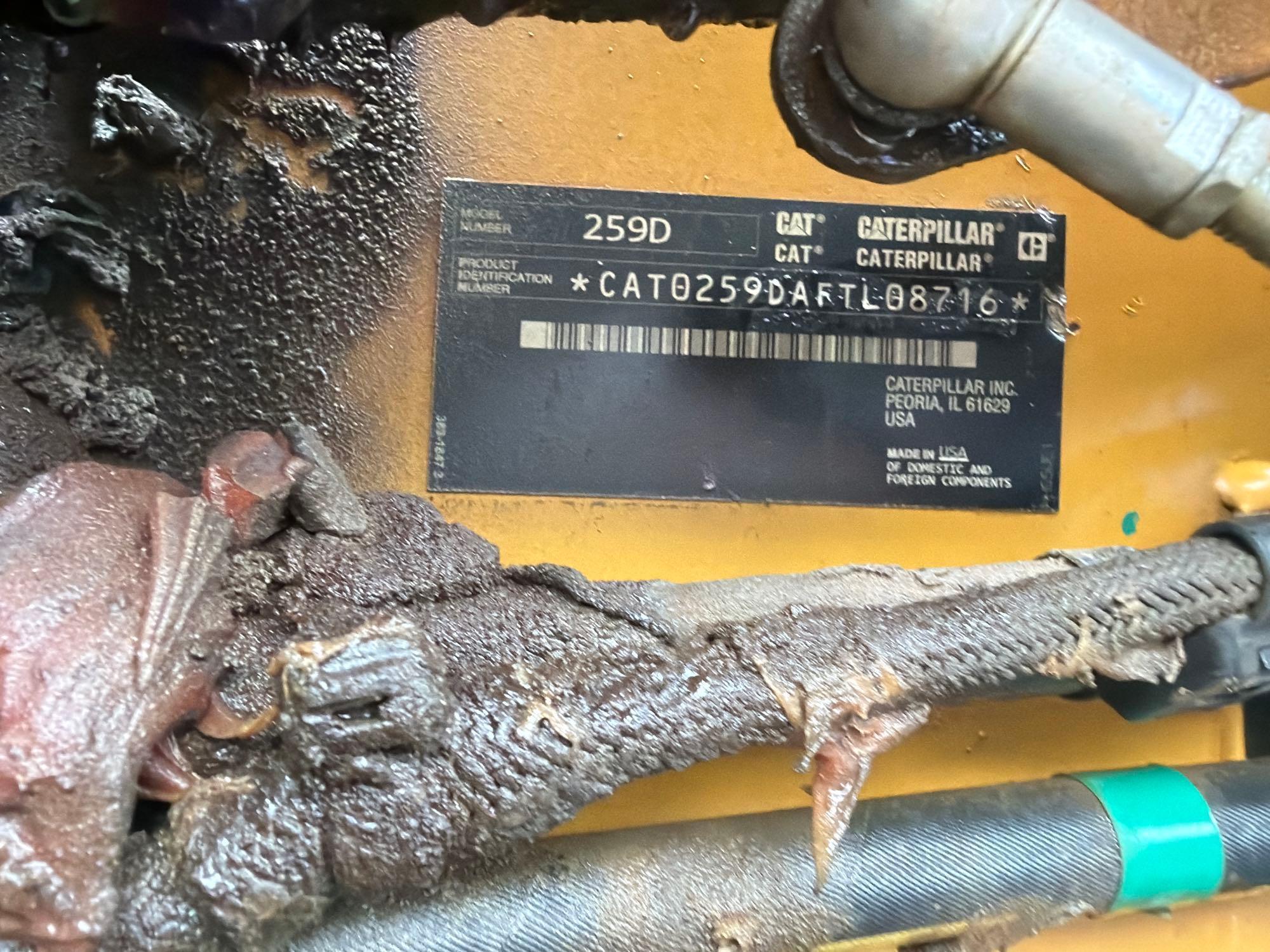

| General Specifications |
|
A Length of track on ground (Since 2015)
|
59 in (1,499 mm)
|
|
A Length of track on ground (2016)
|
59 in (1,499 mm)
|
|
A Length of track on ground (2017)
|
59 in (1,499 mm)
|
|
A Length of track on ground (2018)
|
59 in (1,499 mm)
|
|
A Length of track on ground (2019)
|
59 in (1,499 mm)
|
|
B Overall length of track (Since 2015)
|
79 in (1,999 mm)
|
|
B Overall length of track (2016)
|
79 in (1,999 mm)
|
|
B Overall length of track (2017)
|
79 in (1,999 mm)
|
|
B Overall length of track (2018)
|
79 in (1,999 mm)
|
|
B Overall length of track (2019)
|
79 in (1,999 mm)
|
|
Blade surface height at level lift arms (Since 2015)
|
56 in (1,426 mm)
|
|
Blade surface height at level lift arms (2016)
|
56 in (1,426 mm)
|
|
Blade surface height at level lift arms (2017)
|
56 in (1,426 mm)
|
|
Blade surface height at level lift arms (2018)
|
56 in (1,426 mm)
|
|
Blade surface height at level lift arms (2019)
|
56 in (1,426 mm)
|
|
Blade surface height at maximum height (Since 2015)
|
117 in (2,975 mm)
|
|
Blade surface height at maximum height (2016)
|
117 in (2,975 mm)
|
|
Blade surface height at maximum height (2017)
|
117 in (2,975 mm)
|
|
Blade surface height at maximum height (2018)
|
117 in (2,975 mm)
|
|
Blade surface height at maximum height (2019)
|
117 in (2,975 mm)
|
|
Blade surface height at minimum lift (Since 2015)
|
4 in (90 mm)
|
|
Blade surface height at minimum lift (2016)
|
4 in (90 mm)
|
|
Blade surface height at minimum lift (2017)
|
4 in (90 mm)
|
|
Blade surface height at minimum lift (2018)
|
4 in (90 mm)
|
|
Blade surface height at minimum lift (2019)
|
4 in (90 mm)
|
|
Bore (Since 2015)
|
4 in (94 mm)
|
|
Bore (2016)
|
4 in (94 mm)
|
|
Bore (2017)
|
4 in (94 mm)
|
|
Bore (2018)
|
4 in (94 mm)
|
|
Bore (2019)
|
4 in (94 mm)
|
|
Breakout force - lift (Since 2015)
|
4,515 lbf (20 kN)
|
|
Breakout force - lift (2016)
|
4,515 lbf (20 kN)
|
|
Breakout force - lift (Since 2017)
|
4,515 lbf (2,048 kgf)
|
|
Breakout force - lift (Since 2018)
|
4,515 lbf (20 kN)
|
|
Breakout force - lift (2019)
|
4,515 lbf (20 kN)
|
|
Breakout force - tilt (Since 2015)
|
4,715 lbf (21 kN)
|
|
Breakout force - tilt (2016)
|
4,715 lbf (21 kN)
|
|
Breakout force - tilt (Since 2017)
|
4,715 lbf (2,139 kgf)
|
|
Breakout force - tilt (Since 2018)
|
4,715 lbf (21 kN)
|
|
Breakout force - tilt (2019)
|
4,715 lbf (21 kN)
|
|
Breakout force, tilt cylinder (Since 2015)
|
5,035 lbf (22 kN)
|
|
Breakout force, tilt cylinder (2016)
|
5,035 lbf (22 kN)
|
|
Breakout force, tilt cylinder (Since 2017)
|
5,035 lbf (2,284 kgf)
|
|
Breakout force, tilt cylinder (Since 2018)
|
5,035 lbf (22 kN)
|
|
Breakout force, tilt cylinder (2019)
|
5,035 lbf (22 kN)
|
|
C Length without bucket (Since 2015)
|
109 in (2,767 mm)
|
|
C Length without bucket (2016)
|
109 in (2,767 mm)
|
|
C Length without bucket (2017)
|
109 in (2,767 mm)
|
|
C Length without bucket (2018)
|
109 in (2,767 mm)
|
|
C Length without bucket (2019)
|
109 in (2,767 mm)
|
|
Carriage height above blade top (Since 2015)
|
37 in (926 mm)
|
|
Carriage height above blade top (2016)
|
37 in (926 mm)
|
|
Carriage height above blade top (2017)
|
37 in (926 mm)
|
|
Carriage height above blade top (2018)
|
37 in (926 mm)
|
|
Carriage height above blade top (2019)
|
37 in (926 mm)
|
|
Carriage overall width without step (Since 2015)
|
46 in (1,160 mm)
|
|
Carriage overall width without step (2016)
|
46 in (1,160 mm)
|
|
Carriage overall width without step (2017)
|
46 in (1,160 mm)
|
|
Carriage overall width without step (2018)
|
46 in (1,160 mm)
|
|
Carriage overall width without step (2019)
|
46 in (1,160 mm)
|
|
Carriage step additional width (Since 2015)
|
4 in (106 mm)
|
|
Carriage step additional width (2016)
|
4 in (106 mm)
|
|
Carriage step additional width (2017)
|
4 in (106 mm)
|
|
Carriage step additional width (2018)
|
4 in (106 mm)
|
|
Carriage step additional width (2019)
|
4 in (106 mm)
|
|
category (Since 2020)
|
COMPACT TRACK LOADERS |
|
Clearance at maximum lift/level bucket (Since 2015)
|
117 in (2,967 mm)
|
|
Clearance at maximum lift/level bucket (2016)
|
117 in (2,967 mm)
|
|
Clearance at maximum lift/level bucket (2017)
|
117 in (2,967 mm)
|
|
Clearance at maximum lift/level bucket (2018)
|
117 in (2,967 mm)
|
|
Clearance at maximum lift/level bucket (2019)
|
117 in (2,967 mm)
|
|
D Length with bucket on ground (Since 2015)
|
137 in (3,486 mm)
|
|
D Length with bucket on ground (2016)
|
137 in (3,486 mm)
|
|
D Length with bucket on ground (2017)
|
137 in (3,486 mm)
|
|
D Length with bucket on ground (2018)
|
137 in (3,486 mm)
|
|
D Length with bucket on ground (2019)
|
137 in (3,486 mm)
|
|
Dig depth with level bucket (Since 2015)
|
0 in (-4 mm)
|
|
Dig depth with level bucket (2016)
|
0 in (-4 mm)
|
|
Dig depth with level bucket (2017)
|
0 in (-4 mm)
|
|
Dig depth with level bucket (2018)
|
0 in (-4 mm)
|
|
Dig depth with level bucket (2019)
|
0 in (-4 mm)
|
|
Displacement (Since 2015)
|
203 cu in (3 L)
|
|
Displacement (2016)
|
203 cu in (3 L)
|
|
Displacement (2017)
|
203 cu in (3 L)
|
|
Displacement (2018)
|
203 cu in (3 L)
|
|
Displacement (2019)
|
203 cu in (3 L)
|
|
Dump (Since 2016)
|
2 |
|
Dump clearance at maximum lift/dump (Since 2015)
|
97 in (2,455 mm)
|
|
Dump clearance at maximum lift/dump (2016)
|
97 in (2,455 mm)
|
|
Dump clearance at maximum lift/dump (2017)
|
97 in (2,455 mm)
|
|
Dump clearance at maximum lift/dump (2018)
|
97 in (2,455 mm)
|
|
Dump clearance at maximum lift/dump (2019)
|
97 in (2,455 mm)
|
|
Engine Model (Since 2015)
|
C3.3B DIT |
|
Engine Model (2016)
|
C3.3B DIT |
|
Engine Model (2017)
|
C3.3B DIT |
|
Engine Model (2018)
|
C3.3B DIT |
|
Engine Model (2019)
|
C3.3B DIT |
|
ENGINE POWER (Since 2016)
|
73 hp (54 kw)
|
|
ENGINE POWER (2017)
|
73 hp (54 kw)
|
|
ENGINE POWER (2019)
|
73 hp (54 kw)
|
|
ENGINE POWER (2020)
|
73 hp (54 kw)
|
|
F Maximum overall height (Since 2015)
|
154 in (3,915 mm)
|
|
F Maximum overall height (2016)
|
154 in (3,915 mm)
|
|
F Maximum overall height (2017)
|
154 in (3,915 mm)
|
|
F Maximum overall height (2018)
|
154 in (3,915 mm)
|
|
F Maximum overall height (2019)
|
154 in (3,915 mm)
|
|
Floor angle at maximum lift/dump (Since 2015)
|
-39 deg |
|
Floor angle at maximum lift/dump (2016)
|
-39 deg |
|
Floor angle at maximum lift/dump (2017)
|
-39 deg |
|
Floor angle at maximum lift/dump (2018)
|
-39 deg |
|
Floor angle at maximum lift/dump (2019)
|
-39 deg |
|
Floor angle at maximum lift/rack back (Since 2015)
|
84 deg |
|
Floor angle at maximum lift/rack back (2016)
|
84 deg |
|
Floor angle at maximum lift/rack back (2017)
|
84 deg |
|
Floor angle at maximum lift/rack back (2018)
|
84 deg |
|
Floor angle at maximum lift/rack back (2019)
|
84 deg |
|
Flywheel Power - Gross (SAE J1995) (Since 2015)
|
74 hp (55 kW)
|
|
Flywheel Power - Gross (SAE J1995) (2016)
|
74 hp (55 kW)
|
|
Flywheel Power - Gross (SAE J1995) (2017)
|
74 hp (55 kW)
|
|
Flywheel Power - Gross (SAE J1995) (2018)
|
74 hp (55 kW)
|
|
Flywheel Power - Gross (SAE J1995) (2019)
|
74 hp (55 kW)
|
|
Flywheel Power - Net (SAE 1349) (Since 2016)
|
73 hp (54 kW)
|
|
Flywheel Power - Net (SAE 1349)# (Since 2016)
|
72 hp (54 kW)
|
|
Front clearance circle radius (with bucket) (Since 2015)
|
88 in (2,235 mm)
|
|
Front clearance circle radius (with bucket) (2016)
|
88 in (2,235 mm)
|
|
Front clearance circle radius (with bucket) (2017)
|
88 in (2,235 mm)
|
|
Front clearance circle radius (with bucket) (2018)
|
88 in (2,235 mm)
|
|
Front clearance circle radius (with bucket) (2019)
|
88 in (2,235 mm)
|
|
Fuel Tank Capacity (Since 2015)
|
28 US gal (105 L)
|
|
Fuel Tank Capacity (2016)
|
28 US gal (105 L)
|
|
Fuel Tank Capacity (2017)
|
28 US gal (105 L)
|
|
Fuel Tank Capacity (2018)
|
28 US gal (105 L)
|
|
Fuel Tank Capacity (2019)
|
28 US gal (105 L)
|
|
G Bucket pin height at maximum lift (Since 2015)
|
121 in (3,075 mm)
|
|
G Bucket pin height at maximum lift (2016)
|
121 in (3,075 mm)
|
|
G Bucket pin height at maximum lift (2017)
|
121 in (3,075 mm)
|
|
G Bucket pin height at maximum lift (2018)
|
121 in (3,075 mm)
|
|
G Bucket pin height at maximum lift (2019)
|
121 in (3,075 mm)
|
|
Ground Clearance (Since 2015)
|
9 in (226 mm)
|
|
Ground Clearance (2016)
|
9 in (226 mm)
|
|
Ground Clearance (2017)
|
9 in (226 mm)
|
|
Ground Clearance (2018)
|
9 in (226 mm)
|
|
Ground Clearance (2019)
|
9 in (226 mm)
|
|
Ground pressure (Since 2015)
|
6 psi (41 kPa)
|
|
Ground pressure (2016)
|
6 psi (41 kPa)
|
|
Ground pressure (2017)
|
6 psi (41 kPa)
|
|
Ground pressure (2018)
|
6 psi (41 kPa)
|
|
Ground pressure (2019)
|
6 psi (41 kPa)
|
|
H Bucket pin height at carry position (Since 2015)
|
8 in (198 mm)
|
|
H Bucket pin height at carry position (2016)
|
8 in (198 mm)
|
|
H Bucket pin height at carry position (2017)
|
8 in (198 mm)
|
|
H Bucket pin height at carry position (2018)
|
8 in (198 mm)
|
|
H Bucket pin height at carry position (2019)
|
8 in (198 mm)
|
|
Height to top of cab (Since 2015)
|
83 in (2,111 mm)
|
|
Height to top of cab (2016)
|
83 in (2,111 mm)
|
|
Height to top of cab (2017)
|
83 in (2,111 mm)
|
|
Height to top of cab (2018)
|
83 in (2,111 mm)
|
|
Height to top of cab (2019)
|
83 in (2,111 mm)
|
|
Hinge pin height at maximum lift (Since 2015)
|
125 in (3,175 mm)
|
|
Hinge pin height at maximum lift (2016)
|
125 in (3,175 mm)
|
|
Hinge pin height at maximum lift (2017)
|
125 in (3,175 mm)
|
|
Hinge pin height at maximum lift (2018)
|
125 in (3,175 mm)
|
|
Hinge pin height at maximum lift (2019)
|
125 in (3,175 mm)
|
|
Hydraulic Cycle Time (empty bucket) - Dump (Since 2015)
|
2 sec |
|
Hydraulic Cycle Time (empty bucket) - Dump (2017)
|
2 sec |
|
Hydraulic Cycle Time (empty bucket) - Dump (2018)
|
2 sec |
|
Hydraulic Cycle Time (empty bucket) - Dump (2019)
|
2 sec |
|
Hydraulic Cycle Time (empty bucket) - Lower (Empty, Float Down) (Since 2015)
|
4 sec |
|
Hydraulic Cycle Time (empty bucket) - Lower (Empty, Float Down) (2016)
|
4 sec |
|
Hydraulic Cycle Time (empty bucket) - Lower (Empty, Float Down) (2017)
|
4 sec |
|
Hydraulic Cycle Time (empty bucket) - Lower (Empty, Float Down) (2018)
|
4 sec |
|
Hydraulic Cycle Time (empty bucket) - Lower (Empty, Float Down) (2019)
|
4 sec |
|
Hydraulic Cycle Time (empty bucket) - Raise (Since 2015)
|
4 sec |
|
Hydraulic Cycle Time (empty bucket) - Raise (2017)
|
4 sec |
|
Hydraulic Cycle Time (empty bucket) - Raise (2018)
|
4 sec |
|
Hydraulic Cycle Time (empty bucket) - Raise (2019)
|
4 sec |
|
Hydraulic Cycle Time (empty bucket) - Total (Since 2015)
|
10 sec |
|
Hydraulic Cycle Time (empty bucket) - Total (2017)
|
10 sec |
|
Hydraulic Cycle Time (empty bucket) - Total (2018)
|
10 sec |
|
Hydraulic Cycle Time (empty bucket) - Total (2019)
|
10 sec |
|
Hydraulic Pressure, High Flow/XPS (Since 2015)
|
3,335 psi (23,000 kPa)
|
|
Hydraulic Pressure, High Flow/XPS (2016)
|
3,335 psi (23,000 kPa)
|
|
Hydraulic Pressure, High Flow/XPS (2017)
|
3,335 psi (23,000 kPa)
|
|
Hydraulic Pressure, High Flow/XPS (2018)
|
3,335 psi (23,000 kPa)
|
|
Hydraulic Pressure, High Flow/XPS (2019)
|
3,335 psi (23,000 kPa)
|
|
Hydraulic Pressure, Standard (Since 2015)
|
3,335 psi (23,000 kPa)
|
|
Hydraulic Pressure, Standard (2016)
|
3,335 psi (23,000 kPa)
|
|
Hydraulic Pressure, Standard (2017)
|
3,335 psi (23,000 kPa)
|
|
Hydraulic Pressure, Standard (2018)
|
3,335 psi (23,000 kPa)
|
|
Hydraulic Pressure, Standard (2019)
|
3,335 psi (23,000 kPa)
|
|
Hydraulic Pump Capacity, - High Flow/XPS (Since 2015)
|
30 US gpm (112 L/min)
|
|
Hydraulic Pump Capacity, - High Flow/XPS (2016)
|
30 US gpm (112 L/min)
|
|
Hydraulic Pump Capacity, - High Flow/XPS (2017)
|
30 US gpm (112 L/min)
|
|
Hydraulic Pump Capacity, - High Flow/XPS (2018)
|
30 US gpm (112 L/min)
|
|
Hydraulic Pump Capacity, - High Flow/XPS (2019)
|
30 US gpm (112 L/min)
|
|
Hydraulic Pump Capacity, Standard (Since 2015)
|
20 US gpm (76 L/min)
|
|
Hydraulic Pump Capacity, Standard (2016)
|
20 US gpm (76 L/min)
|
|
Hydraulic Pump Capacity, Standard (2017)
|
20 US gpm (76 L/min)
|
|
Hydraulic Pump Capacity, Standard (2018)
|
20 US gpm (76 L/min)
|
|
Hydraulic Pump Capacity, Standard (2019)
|
20 US gpm (76 L/min)
|
|
Hydraulic System Capacity - (includes tank) (Since 2015)
|
13 US gal (50 L)
|
|
Hydraulic System Capacity - (includes tank) (2016)
|
13 US gal (50 L)
|
|
Hydraulic System Capacity - (includes tank) (2017)
|
13 US gal (50 L)
|
|
Hydraulic System Capacity - (includes tank) (2018)
|
13 US gal (50 L)
|
|
Hydraulic System Capacity - (includes tank) (2019)
|
13 US gal (50 L)
|
|
Hydraulic Tank Capacity (Since 2015)
|
10 US gal (39 L)
|
|
Hydraulic Tank Capacity (2016)
|
10 US gal (39 L)
|
|
Hydraulic Tank Capacity (2017)
|
10 US gal (39 L)
|
|
Hydraulic Tank Capacity (2018)
|
10 US gal (39 L)
|
|
Hydraulic Tank Capacity (2019)
|
10 US gal (39 L)
|
|
J Reach at maximum lift and dump (Since 2015)
|
24 in (608 mm)
|
|
J Reach at maximum lift and dump (2016)
|
24 in (608 mm)
|
|
J Reach at maximum lift and dump (2017)
|
24 in (608 mm)
|
|
J Reach at maximum lift and dump (2018)
|
24 in (608 mm)
|
|
J Reach at maximum lift and dump (2019)
|
24 in (608 mm)
|
|
K Clearance at maximum lift and dump (Since 2015)
|
90 in (2,283 mm)
|
|
K Clearance at maximum lift and dump (2016)
|
90 in (2,283 mm)
|
|
K Clearance at maximum lift and dump (2017)
|
90 in (2,283 mm)
|
|
K Clearance at maximum lift and dump (2018)
|
90 in (2,283 mm)
|
|
K Clearance at maximum lift and dump (2019)
|
90 in (2,283 mm)
|
|
L Ground clearance (Since 2015)
|
9 in (226 mm)
|
|
L Ground clearance (2016)
|
9 in (226 mm)
|
|
L Ground clearance (2017)
|
9 in (226 mm)
|
|
L Ground clearance (2018)
|
9 in (226 mm)
|
|
L Ground clearance (2019)
|
9 in (226 mm)
|
|
M Departure angle (Since 2015)
|
35 deg |
|
M Departure angle (2016)
|
35 deg |
|
M Departure angle (2017)
|
35 deg |
|
M Departure angle (2018)
|
35 deg |
|
M Departure angle (2019)
|
35 deg |
|
Maximum floor angle at minimum lift (Since 2015)
|
23 deg |
|
Maximum floor angle at minimum lift (2016)
|
23 deg |
|
Maximum floor angle at minimum lift (2017)
|
23 deg |
|
Maximum floor angle at minimum lift (2018)
|
23 deg |
|
Maximum floor angle at minimum lift (2019)
|
23 deg |
|
Maximum overall height (Since 2015)
|
161 in (4,082 mm)
|
|
Maximum overall height (2016)
|
161 in (4,082 mm)
|
|
Maximum overall height (2017)
|
161 in (4,082 mm)
|
|
Maximum overall height (2018)
|
161 in (4,082 mm)
|
|
Maximum overall height (2019)
|
161 in (4,082 mm)
|
|
MODEL (Since 2016)
|
259D |
|
MODEL (2017)
|
259D |
|
MODEL (2019)
|
259D |
|
MODEL (2020)
|
259D |
|
N Maximum dump angle (Since 2015)
|
52 deg |
|
N Maximum dump angle (2016)
|
52 deg |
|
N Maximum dump angle (2017)
|
52 deg |
|
N Maximum dump angle (2018)
|
52 deg |
|
N Maximum dump angle (2019)
|
52 deg |
|
Net Power (SAE J1349) [Tier 4 Final / Stage IIIB / Japan 2011] (Since 2015)
|
73 hp (55 kW)
|
|
Net Power (SAE J1349) [Tier 4 Final / Stage IIIB / Japan 2011] (2017)
|
73 hp (55 kW)
|
|
Net Power (SAE J1349) [Tier 4 Final / Stage IIIB / Japan 2011] (2018)
|
73 hp (55 kW)
|
|
Net Power (SAE J1349) [Tier 4 Final / Stage IIIB / Japan 2011] (2019)
|
73 hp (55 kW)
|
|
Net Power (SAE J1349) [Tier 4 Interim / Stage IIIA / Japan 2006 or Tier 2 equivalent] (Since 2015)
|
72 hp (54 kW)
|
|
Net Power (SAE J1349) [Tier 4 Interim / Stage IIIA / Japan 2006 or Tier 2 equivalent] (2017)
|
72 hp (54 kW)
|
|
Net Power (SAE J1349) [Tier 4 Interim / Stage IIIA / Japan 2006 or Tier 2 equivalent] (2018)
|
72 hp (54 kW)
|
|
Net Power (SAE J1349) [Tier 4 Interim / Stage IIIA / Japan 2006 or Tier 2 equivalent] (2019)
|
72 hp (54 kW)
|
|
No. Cylinders (Since 2015)
|
4 |
|
No. Cylinders (2016)
|
4 |
|
No. Cylinders (2017)
|
4 |
|
No. Cylinders (2018)
|
4 |
|
No. Cylinders (2019)
|
4 |
|
O Vehicle width (Since 2015)
|
66 in (1,676 mm)
|
|
O Vehicle width (2016)
|
66 in (1,676 mm)
|
|
O Vehicle width (2017)
|
66 in (1,676 mm)
|
|
O Vehicle width (2018)
|
66 in (1,676 mm)
|
|
O Vehicle width (2019)
|
66 in (1,676 mm)
|
|
One Speed Forward (Since 2015)
|
0 - 6 mph |
|
One Speed Forward (2016)
|
0 - 6 mph |
|
One Speed Forward (2017)
|
0 - 6 mph |
|
One Speed Forward (2018)
|
0 - 6 mph |
|
One Speed Forward (2019)
|
0 - 6 mph |
|
One Speed Reverse (Since 2015)
|
0 - 6 mph |
|
One Speed Reverse (2016)
|
0 - 6 mph |
|
One Speed Reverse (2017)
|
0 - 6 mph |
|
One Speed Reverse (2018)
|
0 - 6 mph |
|
One Speed Reverse (2019)
|
0 - 6 mph |
|
OPERATING LOAD (Since 2016)
|
2,900 lbs (1,315 kg)
|
|
OPERATING LOAD (2017)
|
2,900 lbs (1,315 kg)
|
|
Operating weight (Since 2015)
|
8,846 lbs (4,013 kg)
|
|
Operating weight (2016)
|
8,846 lbs (4,013 kg)
|
|
Operating weight (2017)
|
8,846 lbs (4,013 kg)
|
|
Operating weight (2018)
|
8,846 lbs (4,013 kg)
|
|
Operating weight (2019)
|
8,846 lbs (4,013 kg)
|
|
OPERATING WIDTH (Since 2016)
|
66 / 69 |
|
OPERATING WIDTH (2017)
|
66 / 69 |
|
OPERATING WIDTH (2019)
|
66 / 69 |
|
OPERATING WIDTH (2020)
|
66 / 69 |
|
Overall length at minimum lift, level tine (Since 2015)
|
152 in (3,851 mm)
|
|
Overall length at minimum lift, level tine (2016)
|
152 in (3,851 mm)
|
|
Overall length at minimum lift, level tine (2017)
|
152 in (3,851 mm)
|
|
Overall length at minimum lift, level tine (2018)
|
152 in (3,851 mm)
|
|
Overall length at minimum lift, level tine (2019)
|
152 in (3,851 mm)
|
|
Overall length with bucket on ground (Since 2015)
|
147 in (3,724 mm)
|
|
Overall length with bucket on ground (2016)
|
147 in (3,724 mm)
|
|
Overall length with bucket on ground (2017)
|
147 in (3,724 mm)
|
|
Overall length with bucket on ground (2018)
|
147 in (3,724 mm)
|
|
Overall length with bucket on ground (2019)
|
147 in (3,724 mm)
|
|
P Turning radius from center - machine rear (Since 2015)
|
62 in (1,561 mm)
|
|
P Turning radius from center - machine rear (2016)
|
62 in (1,561 mm)
|
|
P Turning radius from center - machine rear (2017)
|
62 in (1,561 mm)
|
|
P Turning radius from center - machine rear (2018)
|
62 in (1,561 mm)
|
|
P Turning radius from center - machine rear (2019)
|
62 in (1,561 mm)
|
|
Q Turning radius from center - coupler (Since 2015)
|
55 in (1,392 mm)
|
|
Q Turning radius from center - coupler (2016)
|
55 in (1,392 mm)
|
|
Q Turning radius from center - coupler (2017)
|
55 in (1,392 mm)
|
|
Q Turning radius from center - coupler (2018)
|
55 in (1,392 mm)
|
|
Q Turning radius from center - coupler (2019)
|
55 in (1,392 mm)
|
|
R Turning radius from center - bucket (Since 2015)
|
86 in (2,184 mm)
|
|
R Turning radius from center - bucket (2016)
|
86 in (2,184 mm)
|
|
R Turning radius from center - bucket (2017)
|
86 in (2,184 mm)
|
|
R Turning radius from center - bucket (2018)
|
86 in (2,184 mm)
|
|
R Turning radius from center - bucket (2019)
|
86 in (2,184 mm)
|
|
Raise (Since 2016)
|
4 |
|
Rated bucket capacity (Since 2015)
|
1 cu yd (0 cu m)
|
|
Rated bucket capacity (2016)
|
1 cu yd (0 cu m)
|
|
Rated bucket capacity (2017)
|
1 cu yd (0 cu m)
|
|
Rated bucket capacity (2018)
|
1 cu yd (0 cu m)
|
|
Rated bucket capacity (2019)
|
1 cu yd (0 cu m)
|
|
Rated Engine RPM (Since 2015)
|
2,400 rpm |
|
Rated Engine RPM (2016)
|
2,400 rpm |
|
Rated Engine RPM (2017)
|
2,400 rpm |
|
Rated Engine RPM (2018)
|
2,400 rpm |
|
Rated Engine RPM (2019)
|
2,400 rpm |
|
RATED OPERATING CAPACITY (35%) (Since 2020)
|
2,030 lbs (921 kg)
|
|
RATED OPERATING CAPACITY (50%) (Since 2019)
|
2,030 lbs (921 kg)
|
|
Rated operating capacity at 35% (Since 2015)
|
2,030 lbs (921 kg)
|
|
Rated operating capacity at 35% (2016)
|
2,030 lbs (921 kg)
|
|
Rated operating capacity at 35% (2017)
|
2,030 lbs (921 kg)
|
|
Rated operating capacity at 35% (2018)
|
2,030 lbs (921 kg)
|
|
Rated operating capacity at 35% (2019)
|
2,030 lbs (921 kg)
|
|
Rated operating capacity at 50% (Since 2015)
|
2,900 lbs (1,315 kg)
|
|
Rated operating capacity at 50% (2016)
|
2,900 lbs (1,315 kg)
|
|
Rated operating capacity at 50% (2017)
|
2,900 lbs (1,315 kg)
|
|
Rated operating capacity at 50% (2018)
|
2,900 lbs (1,315 kg)
|
|
Rated operating capacity at 50% (2019)
|
2,900 lbs (1,315 kg)
|
|
Reach at level lift arm/bucket (Since 2015)
|
56 in (1,425 mm)
|
|
Reach at level lift arm/bucket (2016)
|
56 in (1,425 mm)
|
|
Reach at level lift arm/bucket (2017)
|
56 in (1,425 mm)
|
|
Reach at level lift arm/bucket (2018)
|
56 in (1,425 mm)
|
|
Reach at level lift arm/bucket (2019)
|
56 in (1,425 mm)
|
|
Reach at maximum lift/dump (Since 2015)
|
24 in (613 mm)
|
|
Reach at maximum lift/dump (2016)
|
24 in (613 mm)
|
|
Reach at maximum lift/dump (2017)
|
24 in (613 mm)
|
|
Reach at maximum lift/dump (2018)
|
24 in (613 mm)
|
|
Reach at maximum lift/dump (2019)
|
24 in (613 mm)
|
|
S Maximum reach with arms parallel to ground (Since 2015)
|
51 in (1,305 mm)
|
|
S Maximum reach with arms parallel to ground (2016)
|
51 in (1,305 mm)
|
|
S Maximum reach with arms parallel to ground (2017)
|
51 in (1,305 mm)
|
|
S Maximum reach with arms parallel to ground (2018)
|
51 in (1,305 mm)
|
|
S Maximum reach with arms parallel to ground (2019)
|
51 in (1,305 mm)
|
|
Shank front face reach at level lift arms (Since 2015)
|
30 in (754 mm)
|
|
Shank front face reach at level lift arms (2016)
|
30 in (754 mm)
|
|
Shank front face reach at level lift arms (2017)
|
30 in (754 mm)
|
|
Shank front face reach at level lift arms (2018)
|
30 in (754 mm)
|
|
Shank front face reach at level lift arms (2019)
|
30 in (754 mm)
|
|
Shank front face reach at maximum height (Since 2015)
|
20 in (516 mm)
|
|
Shank front face reach at maximum height (2016)
|
20 in (516 mm)
|
|
Shank front face reach at maximum height (2017)
|
20 in (516 mm)
|
|
Shank front face reach at maximum height (2018)
|
20 in (516 mm)
|
|
Shank front face reach at maximum height (2019)
|
20 in (516 mm)
|
|
Shank front face reach at minimum lift (Since 2015)
|
18 in (452 mm)
|
|
Shank front face reach at minimum lift (2016)
|
18 in (452 mm)
|
|
Shank front face reach at minimum lift (2017)
|
18 in (452 mm)
|
|
Shank front face reach at minimum lift (2018)
|
18 in (452 mm)
|
|
Shank front face reach at minimum lift (2019)
|
18 in (452 mm)
|
|
Stroke (Since 2015)
|
5 in (120 mm)
|
|
Stroke (2016)
|
5 in (120 mm)
|
|
Stroke (2017)
|
5 in (120 mm)
|
|
Stroke (2018)
|
5 in (120 mm)
|
|
Stroke (2019)
|
5 in (120 mm)
|
|
Struck capacity (Since 2015)
|
0 cu yd (0 cu m)
|
|
Struck capacity (2016)
|
0 cu yd (0 cu m)
|
|
Struck capacity (2017)
|
0 cu yd (0 cu m)
|
|
Struck capacity (2018)
|
0 cu yd (0 cu m)
|
|
Struck capacity (2019)
|
0 cu yd (0 cu m)
|
|
T Rack back angle at maximum height (Since 2015)
|
87 deg |
|
T Rack back angle at maximum height (2016)
|
87 deg |
|
T Rack back angle at maximum height (2017)
|
87 deg |
|
T Rack back angle at maximum height (2018)
|
87 deg |
|
T Rack back angle at maximum height (2019)
|
87 deg |
|
Tipping load (Since 2015)
|
5,800 lbs (2,631 kg)
|
|
Tipping load (2016)
|
5,800 lbs (2,631 kg)
|
|
Tipping load (2017)
|
5,800 lbs (2,631 kg)
|
|
Tipping load (2018)
|
5,800 lbs (2,631 kg)
|
|
Tipping load (2019)
|
5,800 lbs (2,631 kg)
|
|
Total (Since 2016)
|
10 |
|
Two Speed Forward (Since 2015)
|
0 - 9 mph |
|
Two Speed Forward (2016)
|
0 - 9 mph |
|
Two Speed Forward (2017)
|
0 - 9 mph |
|
Two Speed Forward (2018)
|
0 - 9 mph |
|
Two Speed Forward (2019)
|
0 - 9 mph |
|
U Bucket pin reach at maximum lift (Since 2015)
|
9 in (238 mm)
|
|
U Bucket pin reach at maximum lift (2016)
|
9 in (238 mm)
|
|
U Bucket pin reach at maximum lift (2017)
|
9 in (238 mm)
|
|
U Bucket pin reach at maximum lift (2018)
|
9 in (238 mm)
|
|
U Bucket pin reach at maximum lift (2019)
|
9 in (238 mm)
|
|
Width (Since 2015)
|
75 in (1,902 mm)
|
|
Width (2016)
|
75 in (1,902 mm)
|
|
Width (2017)
|
75 in (1,902 mm)
|
|
Width (2018)
|
75 in (1,902 mm)
|
|
Width (2019)
|
75 in (1,902 mm)
|

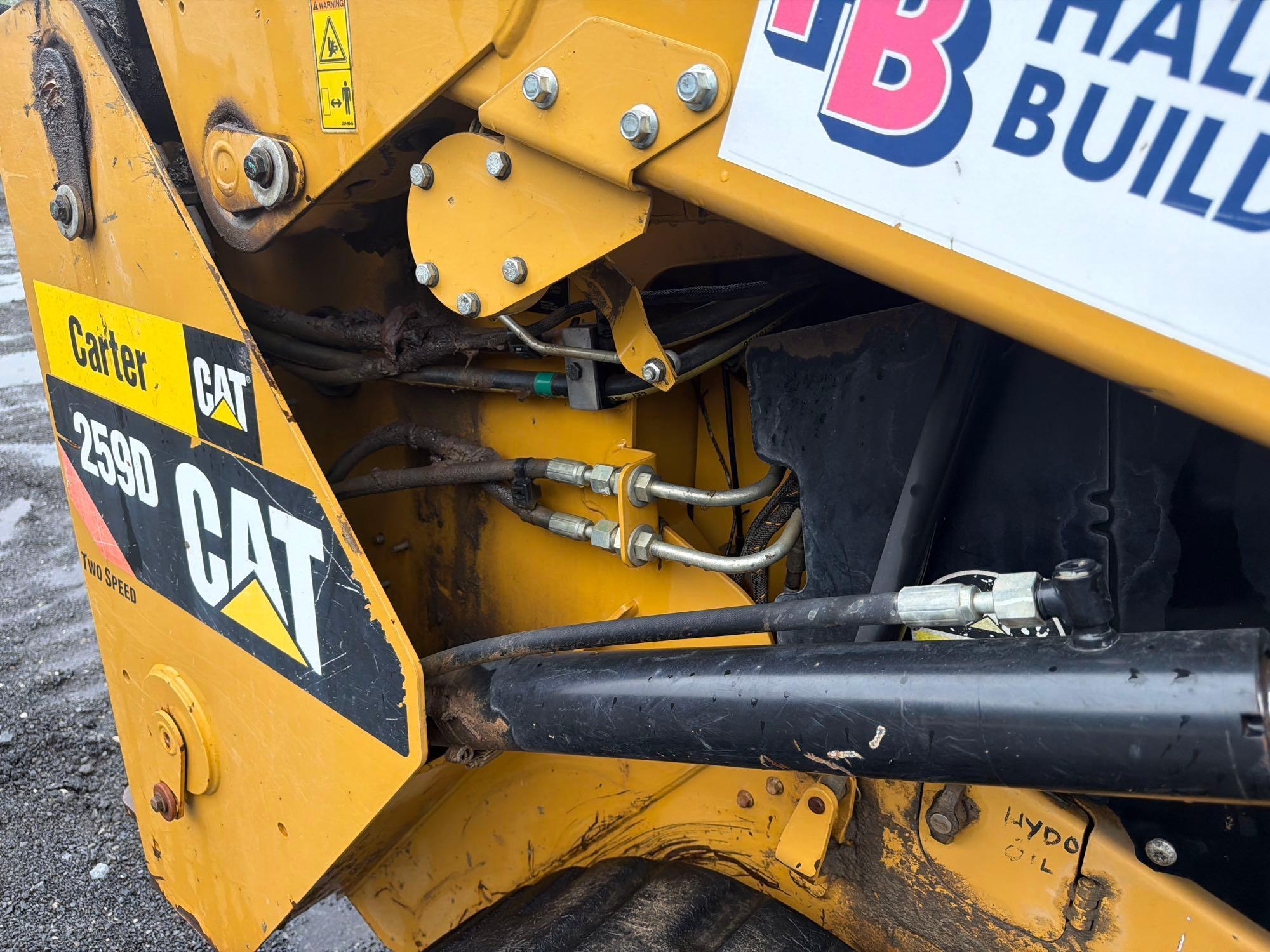

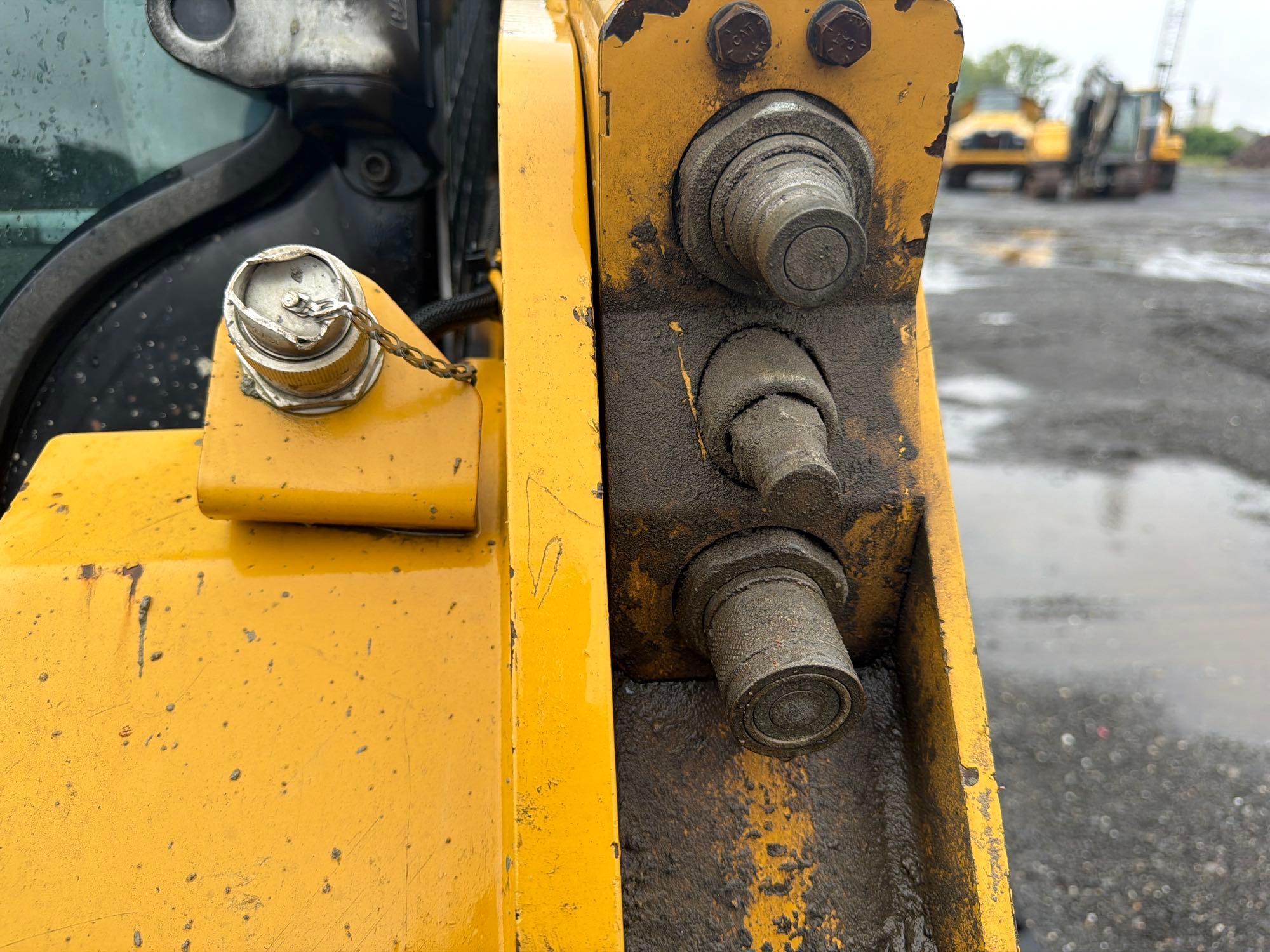

| Hydraulic |
|
Pump Flow |
20 gpm (76 lpm)
|
|
Relief Valve Pressure |
3,336 psi |
| Hydraulic System |
|
Hydraulic Flow - High Flow - Hydraulic Power (Calculated) |
58 hp (43 kw)
|
|
Hydraulic Flow - High Flow - Loader Hydraulic Flow |
30 gpm (114 lpm)
|
|
Hydraulic Flow - High Flow - Loader Hydraulic Pressure |
3,335 psi |
|
Hydraulic Flow - Standard - Hydraulic Power (Calculated) |
39 hp (29 kw)
|
|
Hydraulic Flow - Standard - Loader Hydraulic Flow |
20 gpm (76 lpm)
|
|
Hydraulic Flow - Standard - Loader Hydraulic Pressure |
3,335 psi |

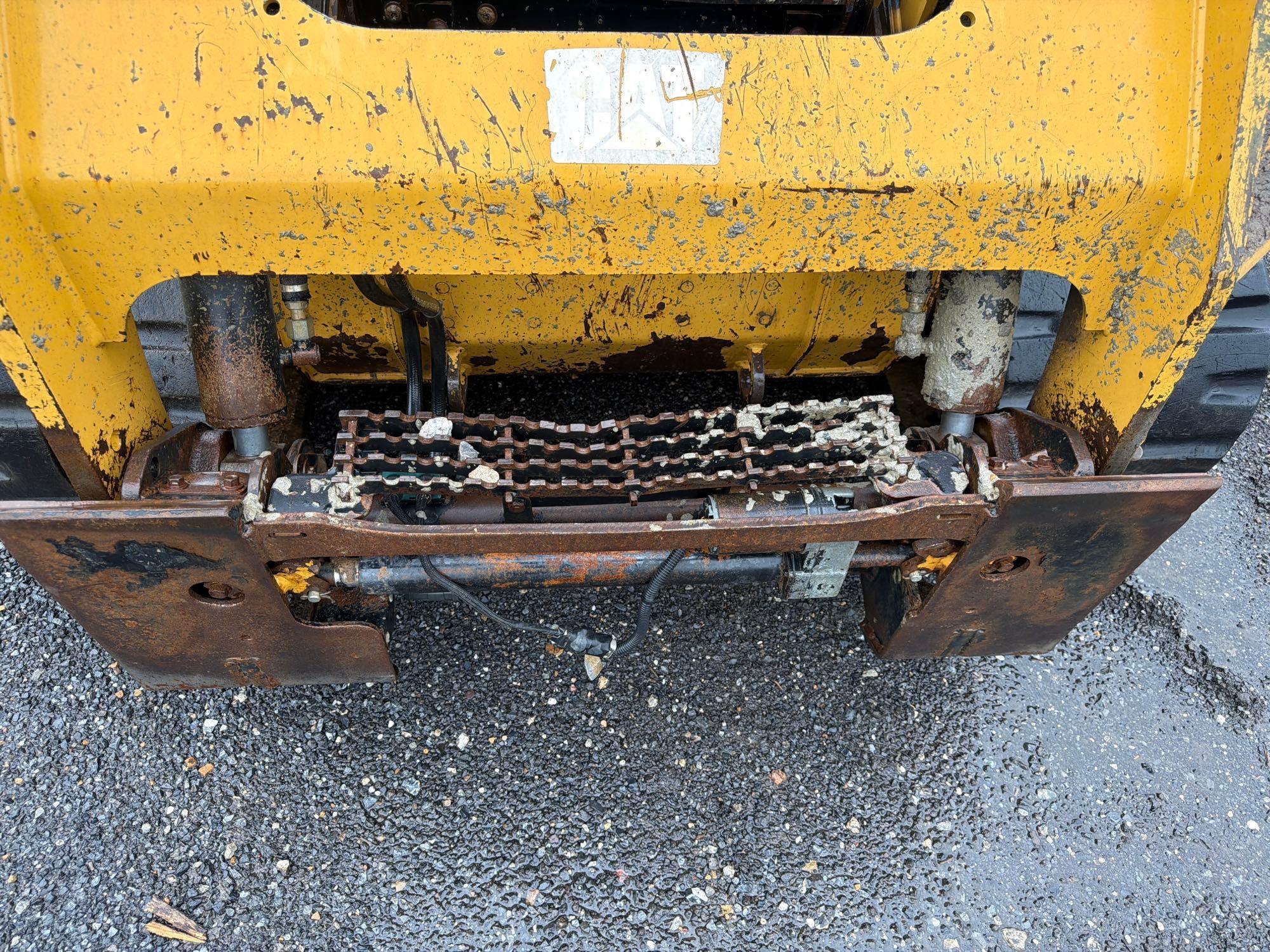

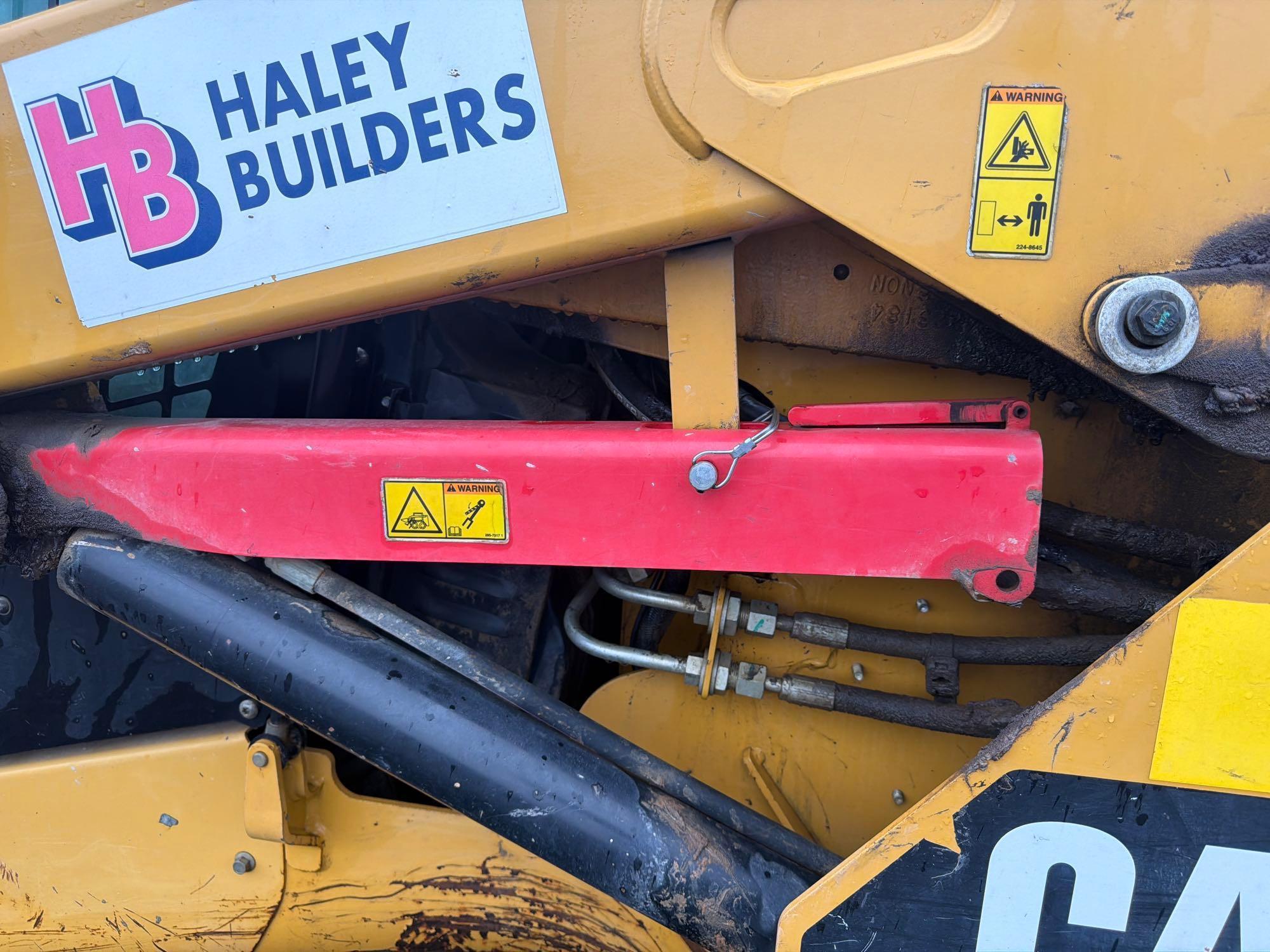

| Loader |
|
Breakout Force |
5,035 lbs (2,284 kg)
|
|
Operating Load |
2,899 lbs (1,315 kg)
|
|
Tipping Load |
5,800 lbs (2,631 kg)
|
| Noise Level |
|
Inside Cab** |
83 dB(A) |
|
Note (1) |
Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe. |
|
Note (2) |
**The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds. |
|
Note (3) |
***The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC. |
|
Outside Cab*** |
103 dB(A) |
| Operating Specifications |
|
Breakout Force - Tilt Cylinder |
5,035 lbs (2,284 kg)
|
|
Ground Contact Area - With 320 Mm/12.6 In Track |
1483 in2 |
|
Ground Contact Area - With 400 Mm/15.7 In Track |
1848 in2 |
|
Ground Pressure - With 320 Mm/12.6 In Track |
6 psi |
|
Ground Pressure - With 400 Mm/15.7 In Track |
5 psi |
|
Note |
Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, OROPS, 1676 mm (66 in) dirt bucket, 320 mm (12.6 in) tracks, dual flange front idler/single flange rear idler, standard flow hydraulics, mechanical suspension seat, no optional counterweights and manual quick coupler (unless otherwise noted). |
|
Rated Operating Capacities - 35% Tipping Load |
2,030 lbs (921 kg)
|
|
Rated Operating Capacities - 50% Tipping Load |
2,900 lbs (1,315 kg)
|
|
Rated Operating Capacity With Optional Counterweight |
3,100 lbs (1,406 kg)
|
|
Tipping Load |
5,800 lbs (2,631 kg)
|

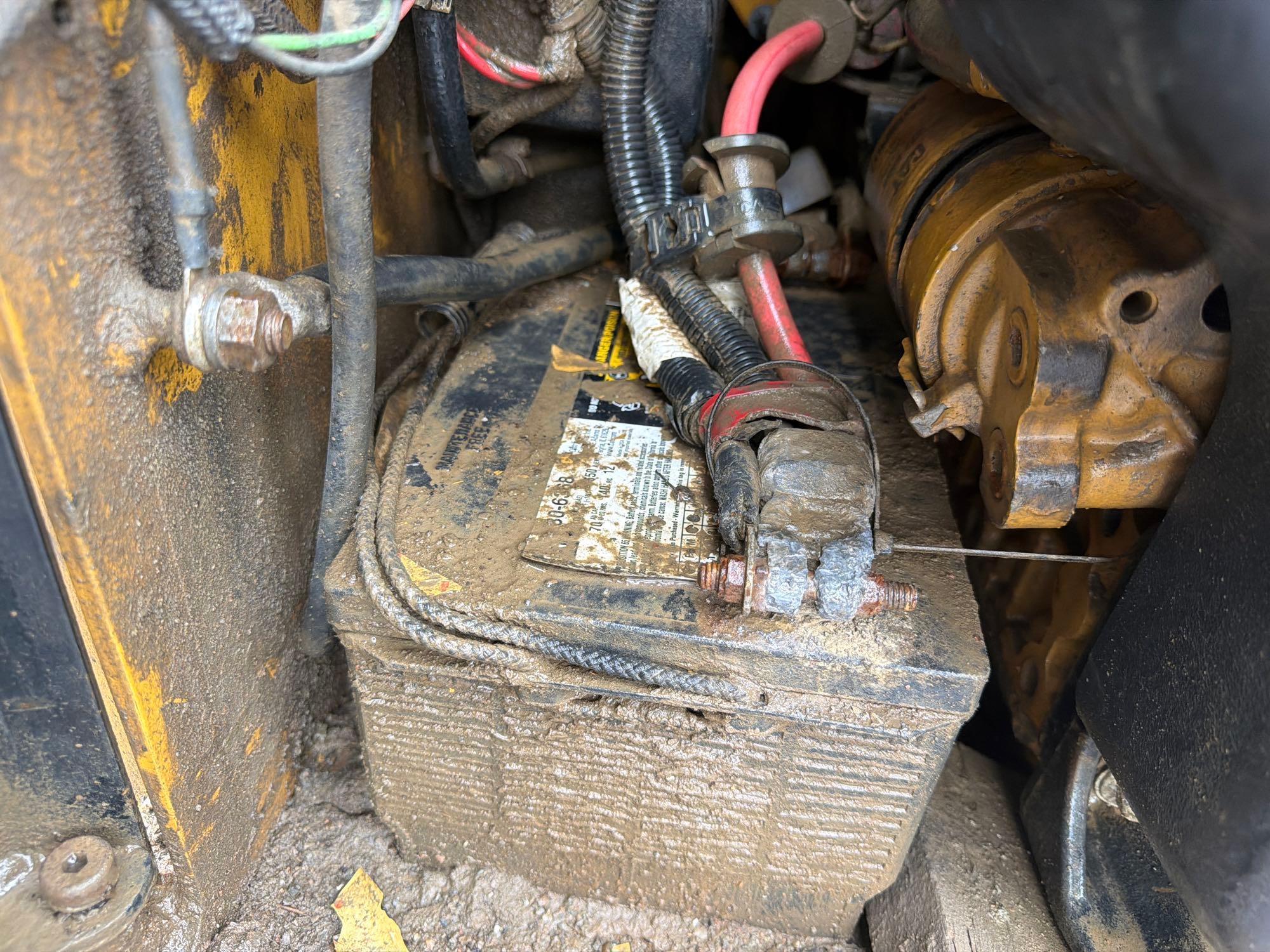

| Operational |
|
Alternator Supplied Amperage |
80 amps |
|
Cooling System Fluid Capacity |
4 gal (14 l)
|
|
Engine Oil Capacity |
3 gal (11 l)
|
|
Fuel Capacity |
28 gal (105 l)
|
|
Hydraulic System Fluid Capacity |
13 gal (50 l)
|
|
Max Speed - High Range |
9 mph (14 kph)
|
|
Max Speed - Low Range |
6 mph (10 kph)
|
|
Operating Voltage |
12 V |
|
Operating Weight |
8,847 lbs (4,013 kg)
|
| Power Train |
|
Travel Speed - Forward Or Reverse - One Speed |
6 mph (10 kph)
|
|
Travel Speed - Forward Or Reverse - Two Speed |
9 mph (14 kph)
|

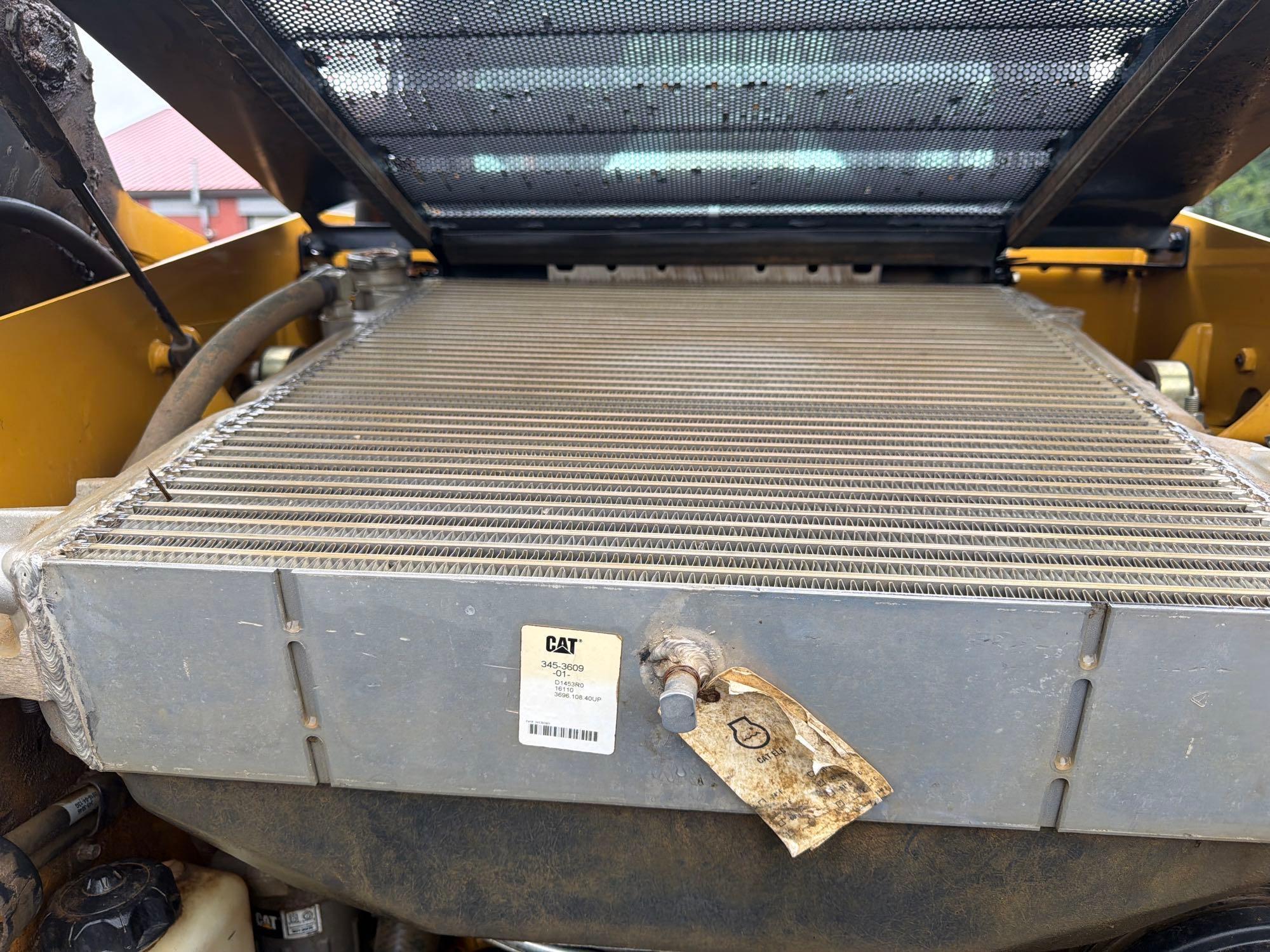

| Service Refill Capacities |
|
Cooling System |
4 gal (14 l)
|
|
Engine Crankcase |
3 gal (11 l)
|
|
Fuel Tank |
28 gal (105 l)
|
|
Hydraulic System |
13 gal (50 l)
|
|
Hydraulic Tank |
10 gal (39 l)
|

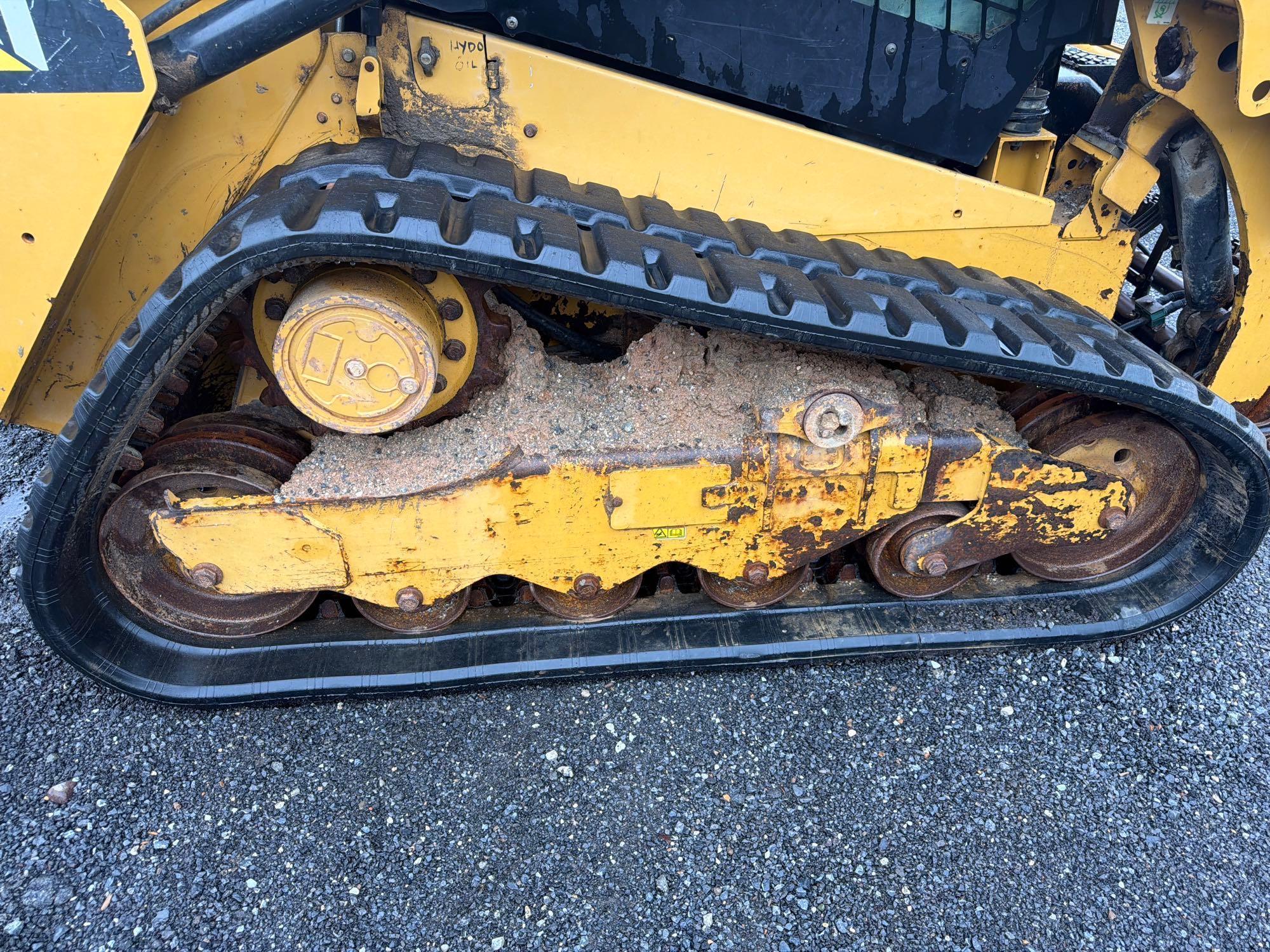

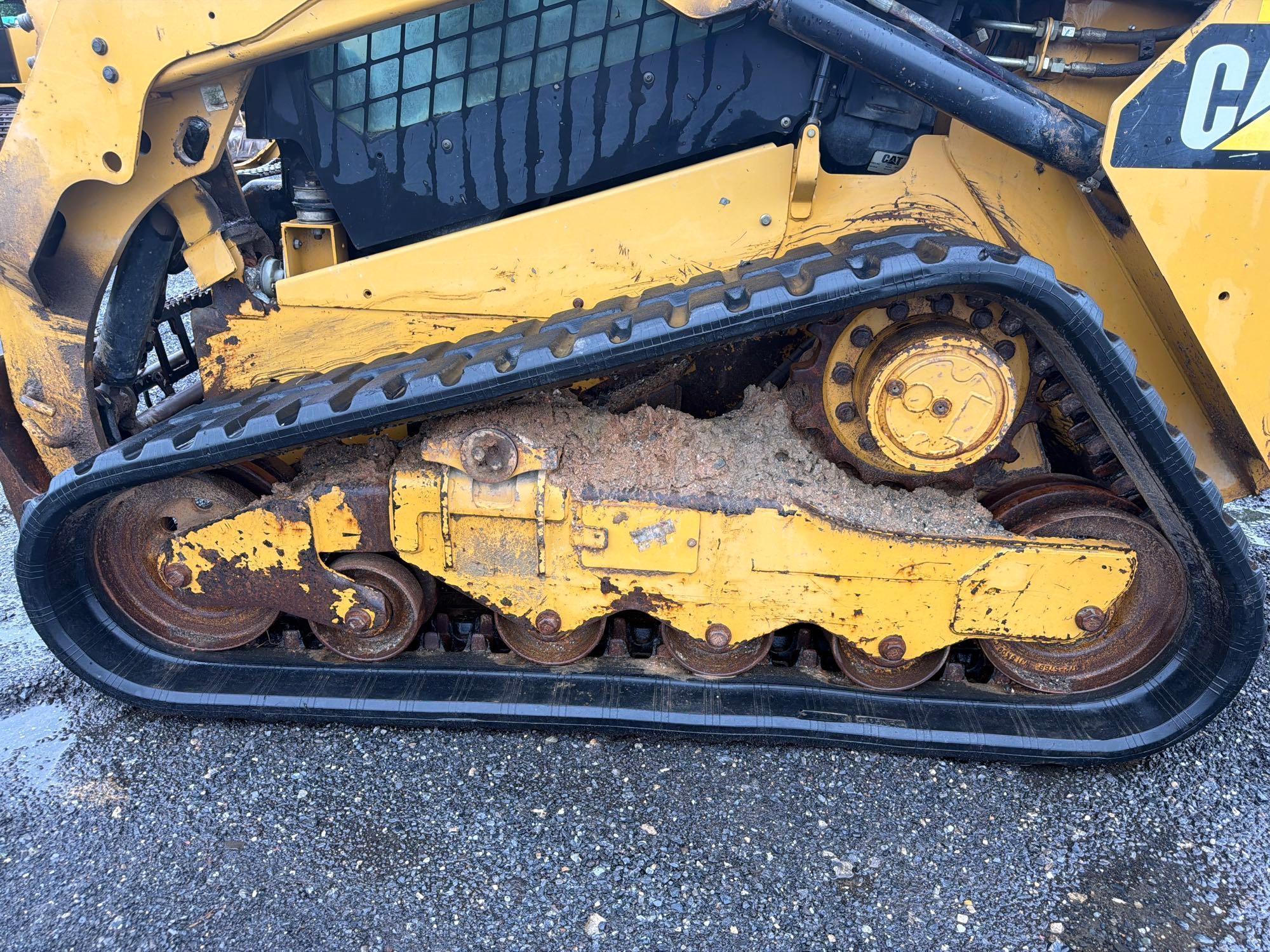

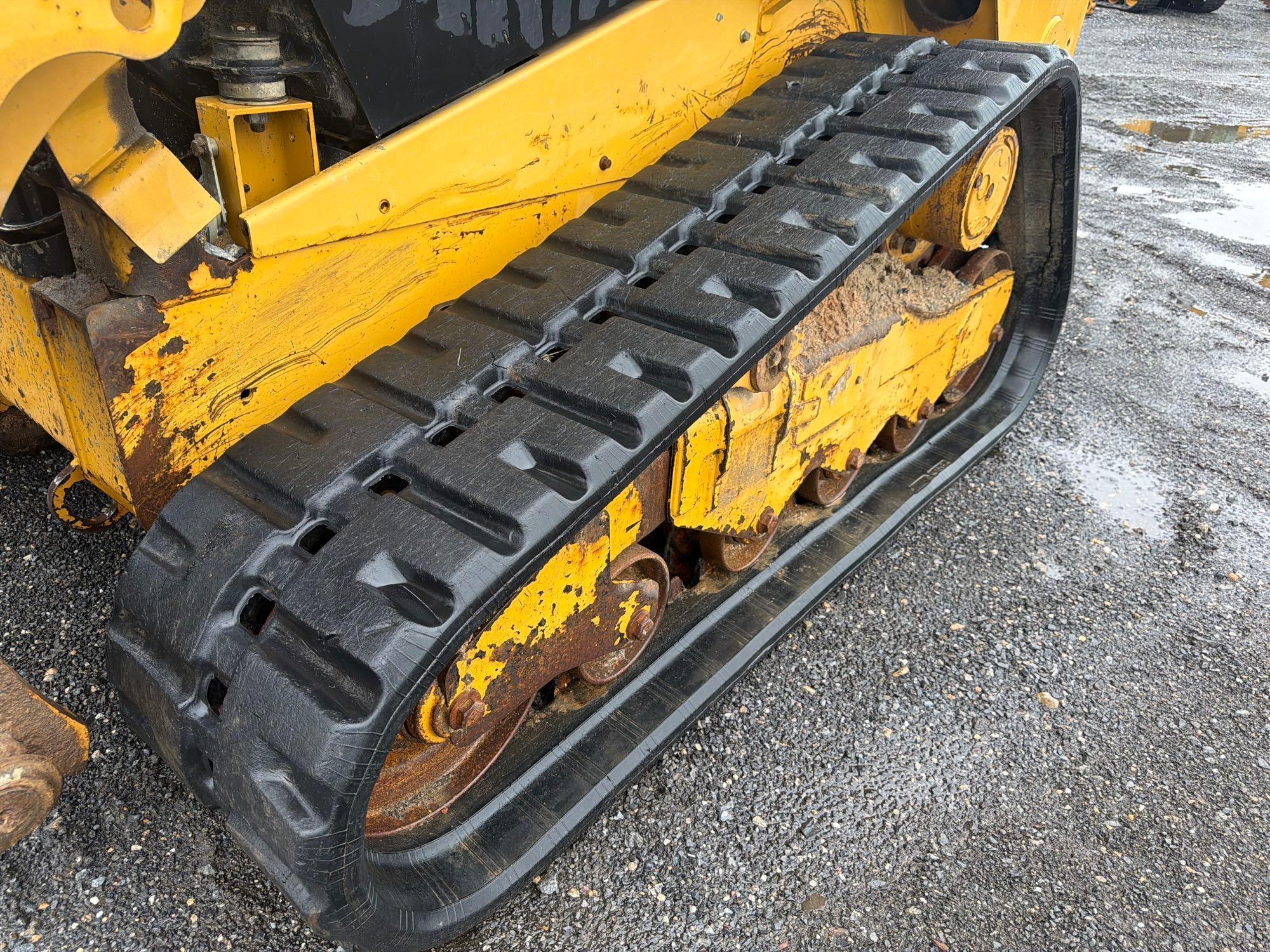

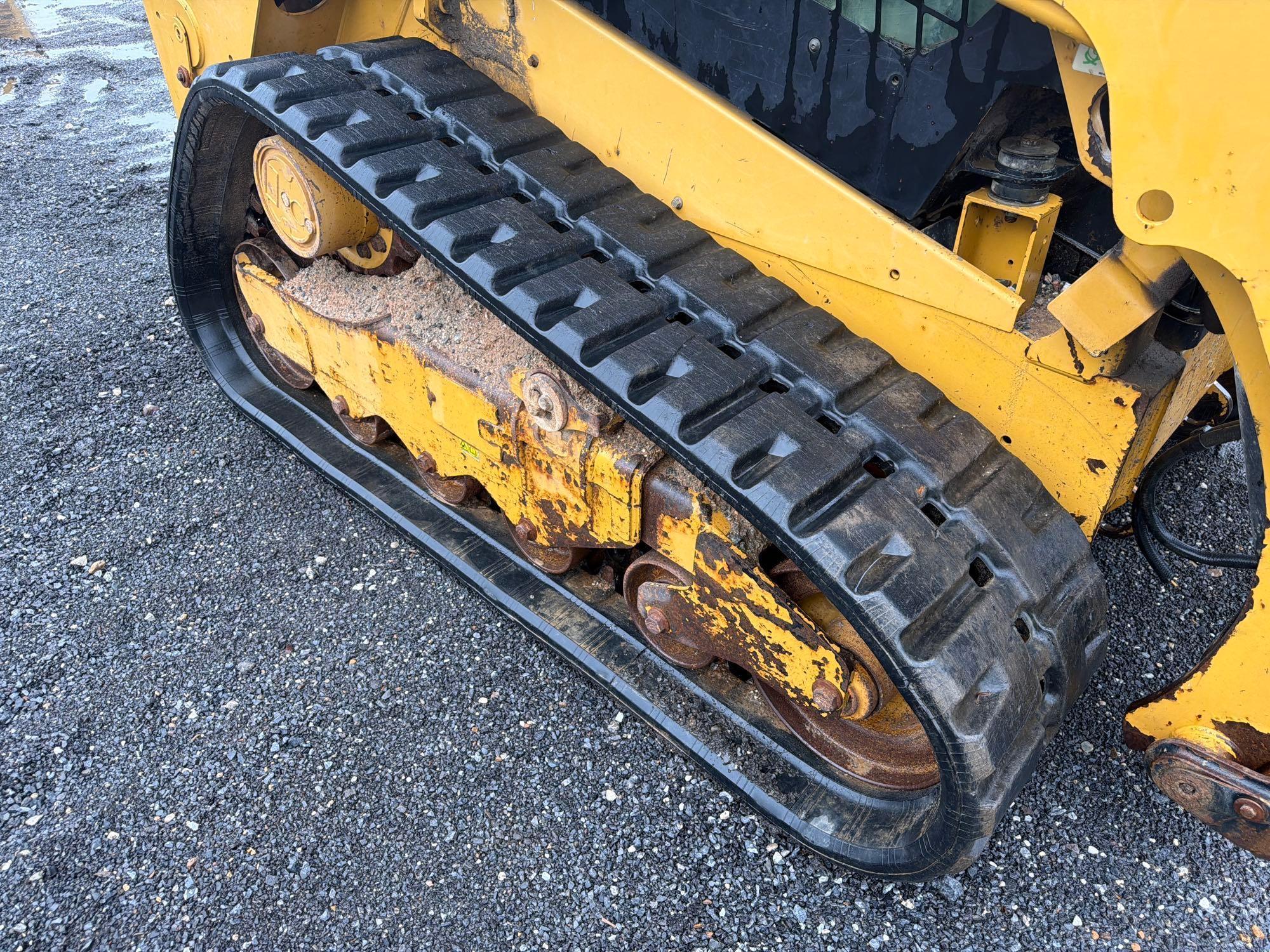

| Undercarriage |
|
Ground Contact Area |
1488.01 in2 |
|
Ground Pressure |
6 psi |
|
Length Of Track On Ground |
11 ft (3 m)
|
| Weights |
|
Note |
Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, OROPS, 1676 mm (66 in) dirt bucket, 320 mm (12.6 in) tracks, dual flange front idler/single flange rear idler, standard flow hydraulics, mechanical suspension seat, no optional counterweights and manual quick coupler (unless otherwise noted). |
|
Operating Weight |
8,945 lbs (4,057 kg)
|
|
Operating Weight - 320 Mm/12.6 In Tracks |
8,846 lbs (4,012 kg)
|
|
Operating Weight - 400 Mm/15.7 In Tracks |
8,945 lbs (4,057 kg)
|
