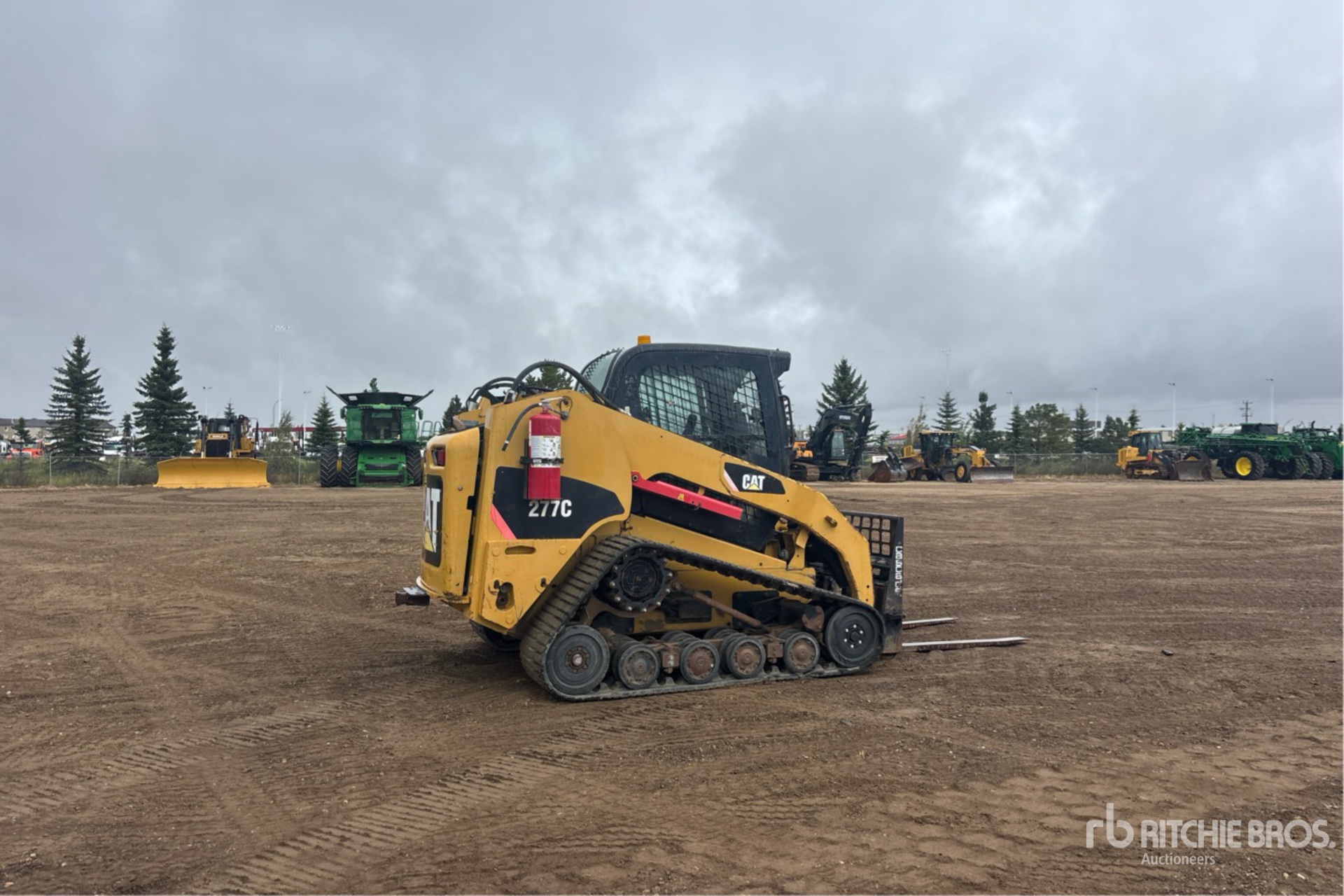

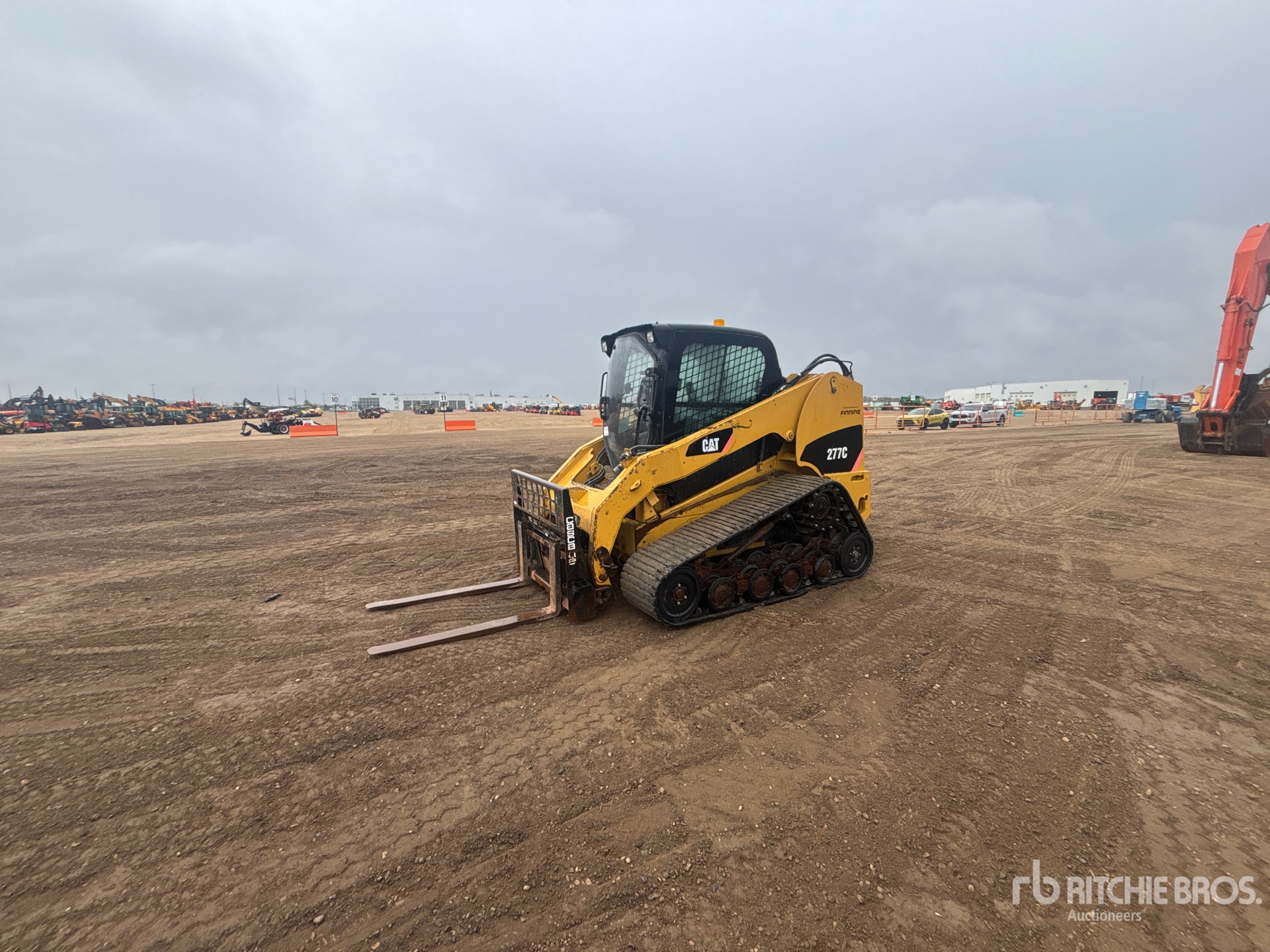

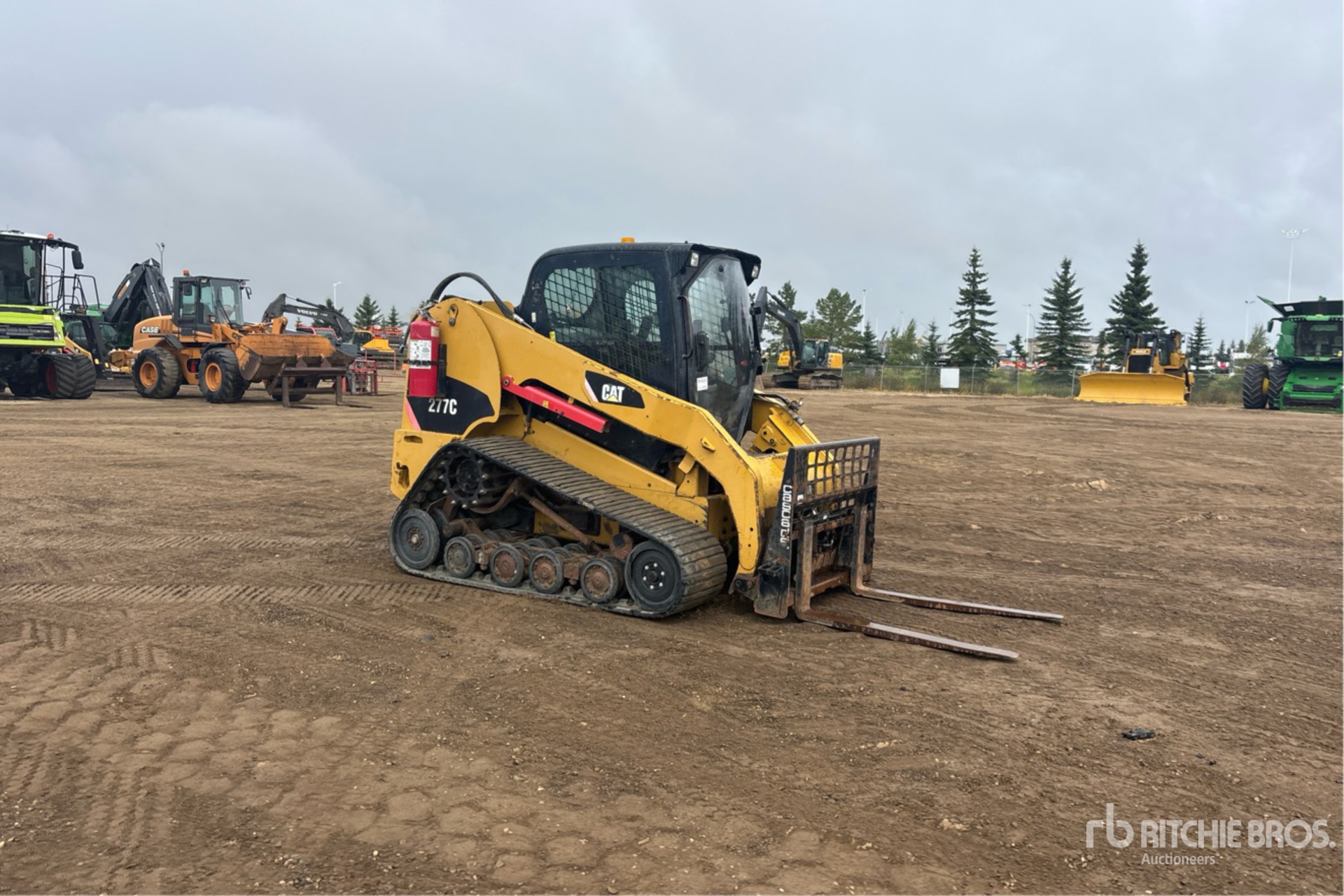

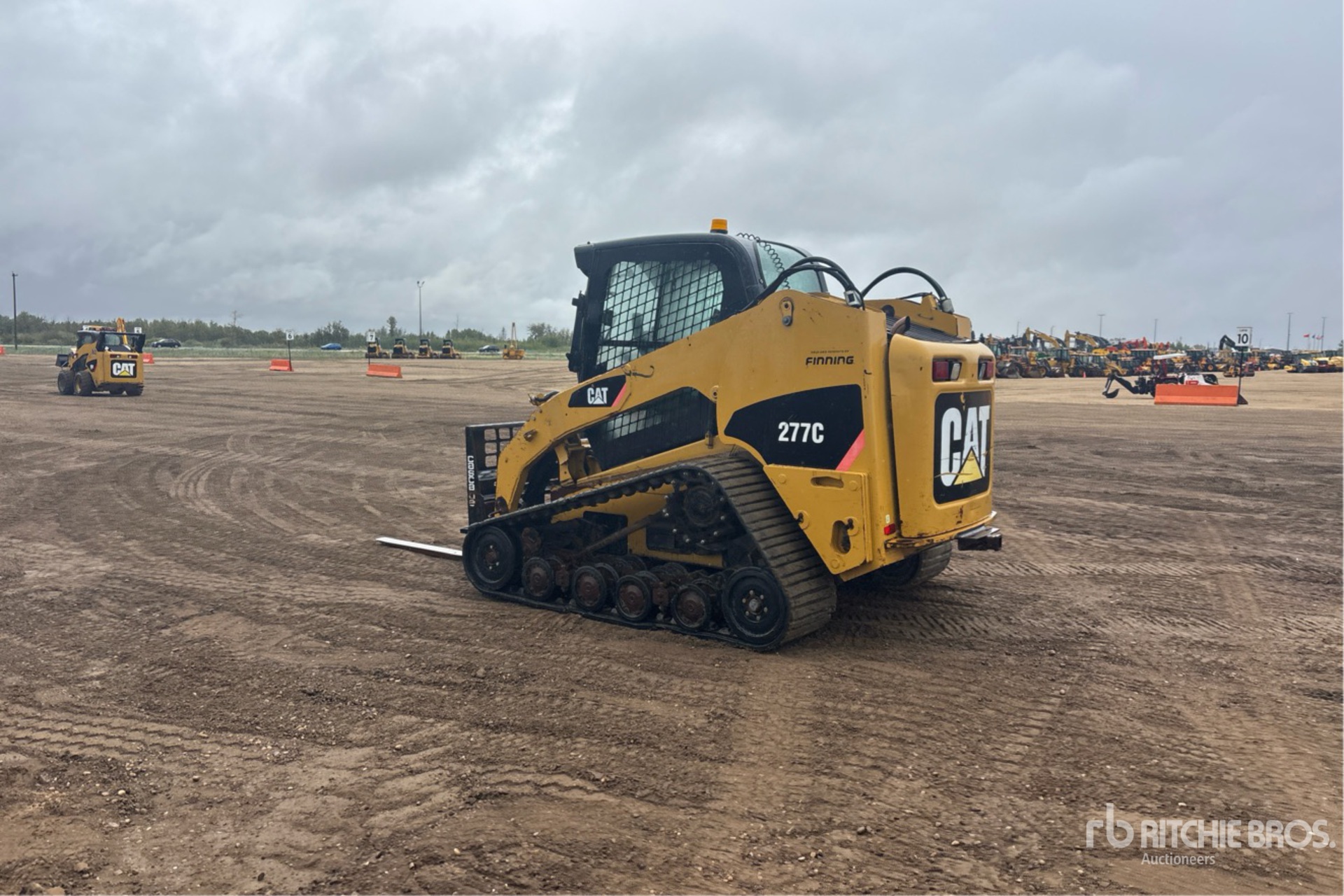

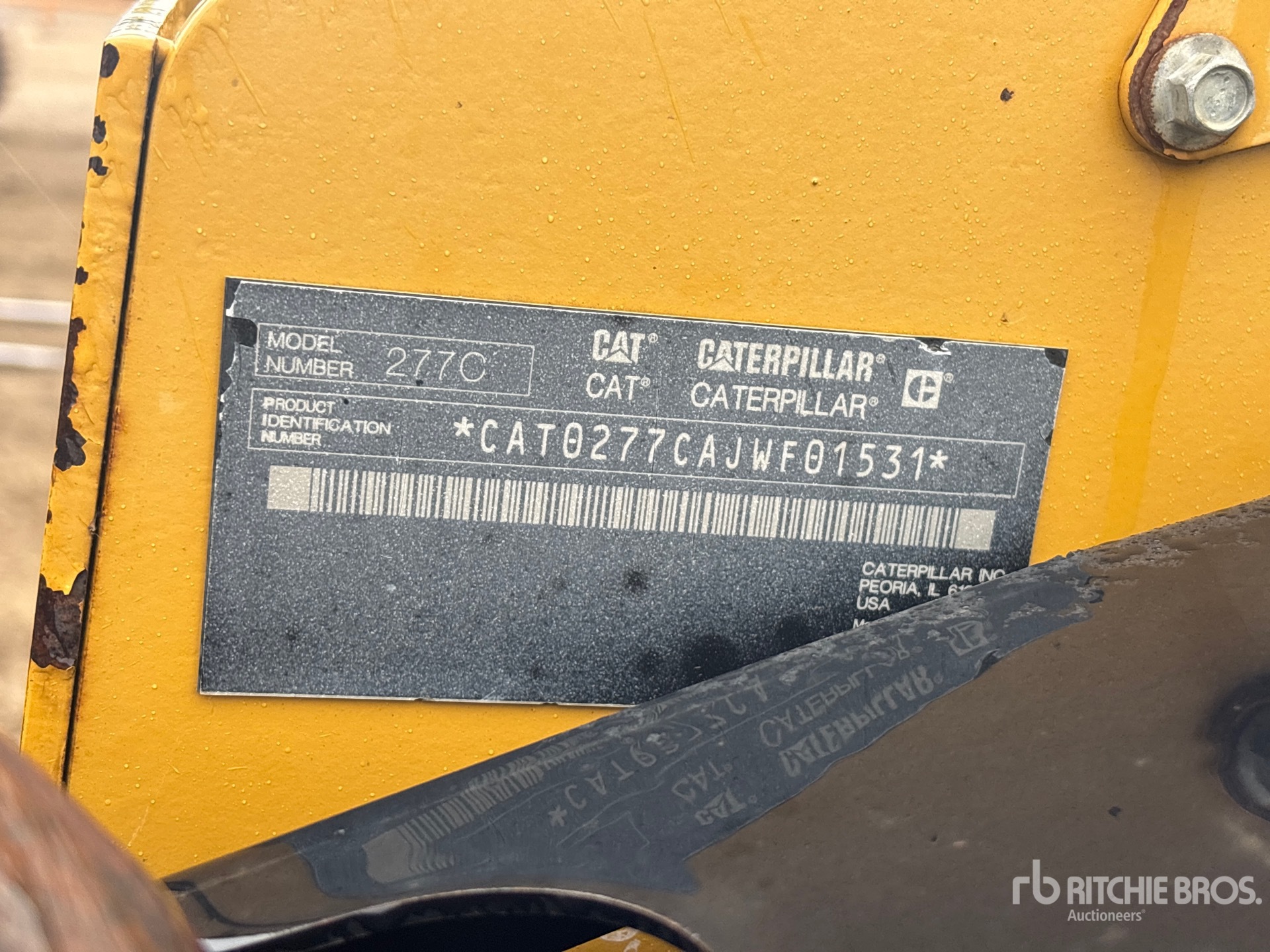

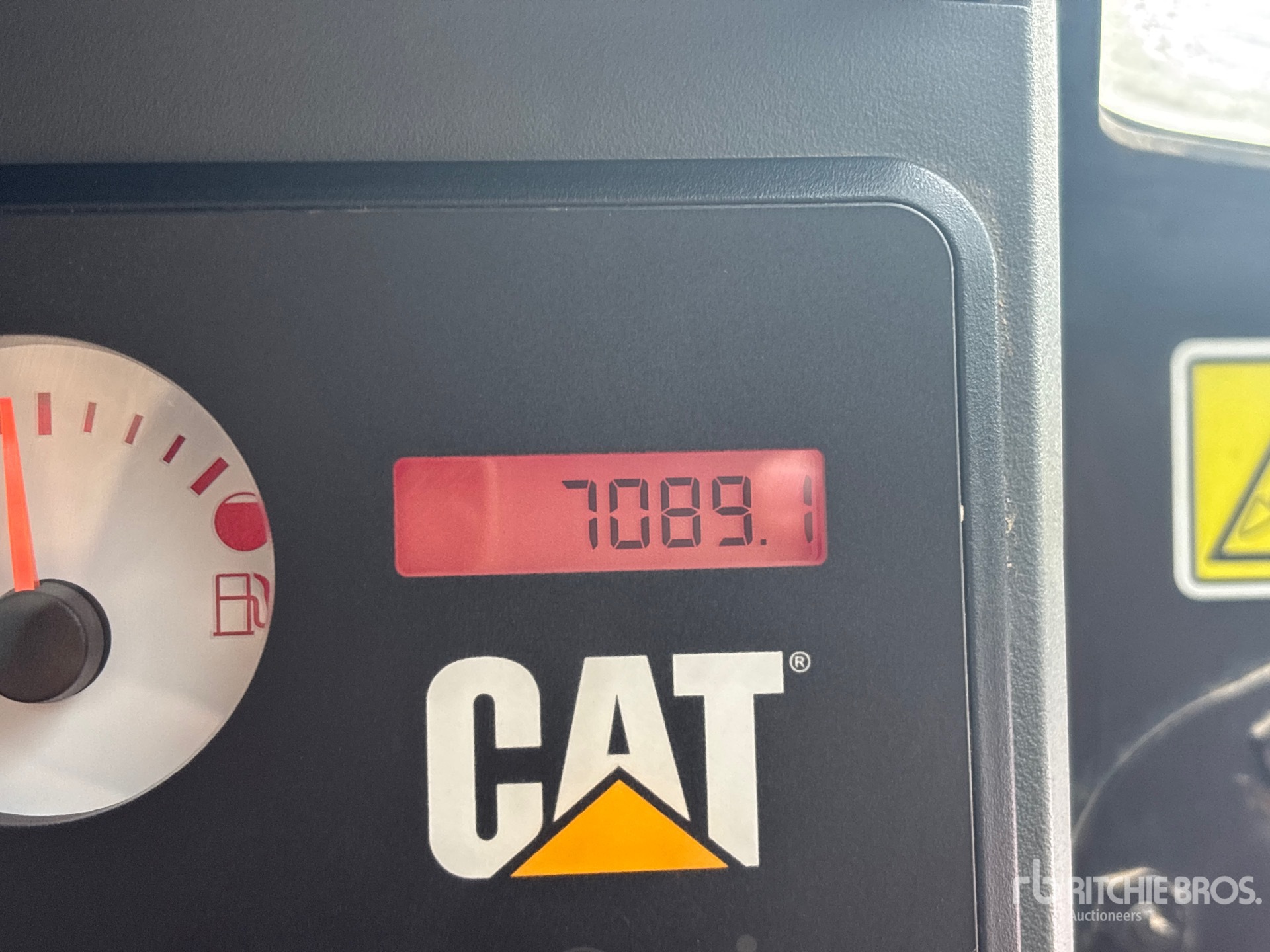

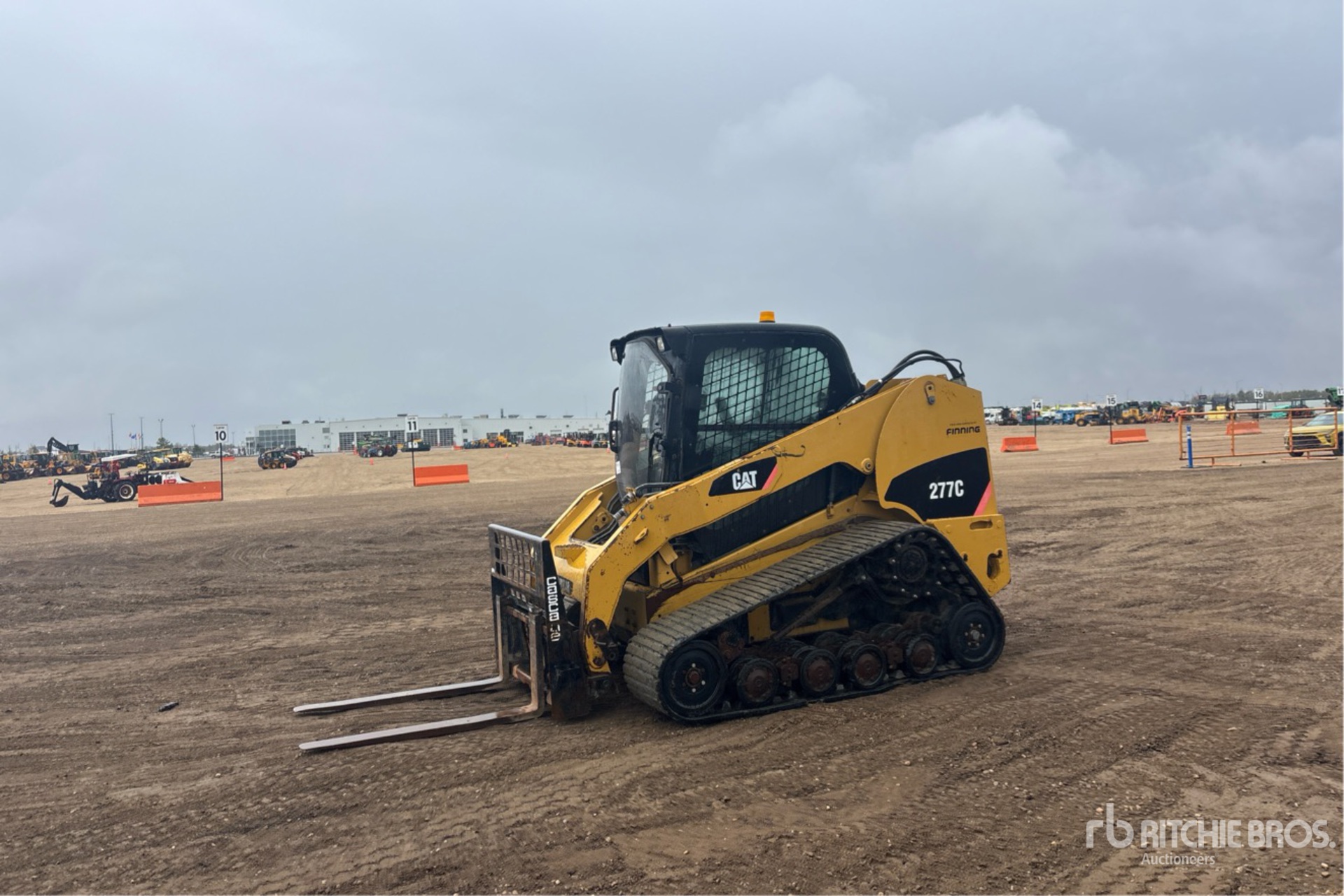

| Cab |
|
Fops |
SAE J1043 SEPT87, ISO 3449:1992 Level I |
|
Fops Level Ii |
SAE J231 JAN81, ISO 3449:1992 Level II |
|
Rops |
SAE J1040 MAY94, ISO 3471:1994 |
| Dimensions |
|
Bucket Pin Height - Carry Position |
8 in (20 cm)
|
|
Bucket Pin Height - Maximum Lift |
10 ft (3 m)
|
|
Clearance At Max Lift And Dump |
8 ft (2 m)
|
|
Clearance At Maximum Lift And Dump |
96 in (243 cm)
|
|
Departure Angle |
42 degrees |
|
Ground Clearance |
9 in (22 cm)
|
|
Height - Top Of Cab |
7 ft (2 m)
|
|
Height To Top Of Cab |
7 ft (2 m)
|
|
Length - Track On Ground |
71 in (181 cm)
|
|
Length - With Bucket On Ground |
145 in (369 cm)
|
|
Length - Without Bucket |
117 in (298 cm)
|
|
Length With Bucket |
12 ft (4 m)
|
|
Length With Out Bucket |
10 ft (3 m)
|
|
Maximum Dump Angle |
40 degrees |
|
Maximum Overall Height |
157 in (400 cm)
|
|
Maximum Reach - With Arms Parallel |
55 in (141 cm)
|
|
Overall Length - Track |
90 in (229 cm)
|
|
Rack Back Angle - Maximum Height |
85 degrees |
|
Reach At Max Lift And Dump |
2 ft (1 m)
|
|
Reach At Maximum Lift/Dump |
24 in (62 cm)
|
|
Turn Radius From Center - Bucket |
92 in (233 cm)
|
|
Turn Radius From Center - Coupler |
59 in (149 cm)
|
|
Turn Radius From Center - Rear |
64 in (163 cm)
|
|
Turning Radius From Center - Inc Bucket |
92 in (233 cm)
|
|
Turning Radius From Center - Machine Rear |
64 in (163 cm)
|
|
Vehicle Width |
78 in (198 cm)
|
|
Width Over Tracks |
7 ft (2 m)
|
| Engine |
|
Bore |
4 in (9 cm)
|
|
Displacement |
201 cu in (3,294 cu cm)
|
|
Engine Make |
2,236 |
|
Engine Model |
C3.4 DIT |
|
Engine Model |
Cat C3.4 DIT |
|
Engine Power - Iso 14396 |
83 hp (62 kw)
|
|
Gross Power |
84 hp (63 kw)
|
|
Gross Power - Sae J1995 |
84 hp (63 kw)
|
|
Net Power |
82 hp (61 kw)
|
|
Net Power - Eec 80/1269 |
83 hp (62 kw)
|
|
Net Power - Iso 9249 Eec |
83 hp (62 kw)
|
|
Net Power - Sae 1349 |
82 hp (61 kw)
|
|
Number Of Cylinders |
4 |
|
Power Measured @ |
2,500 rpm |
|
Stroke |
5 in (12 cm)
|
| Hydraulic |
|
Pump Flow |
22 gpm (84 lpm)
|
|
Relief Valve Pressure |
3,336 psi |
| Hydraulic System |
|
Hydraulic Flow (1) |
Standard |
|
Hydraulic Flow (2) |
High Flow XPS |
|
Hydraulic Power |
43 hp (32 kw)
|
|
Loader Hydraulic Flow |
22 gpm (83 lpm)
|
|
Loader Hydraulic Pressure |
3,335 psi |
|
Maximum Loader Hydraulic Flow |
33 gpm (125 lpm)
|
|
Maximum Loader Hydraulic Pressure |
4,061 psi |
| Loader |
|
Breakout Force |
7,308 lbs (3,315 kg)
|
|
Operating Load |
7,055 lbs (3,200 kg)
|
|
Tipping Angle |
14,716 degrees |
| Operating Specifications |
|
Breakout Force - Tilt Cylinder |
7,308 lbs (3,315 kg)
|
|
Ground Contact Area |
2542 in2 |
|
Ground Pressure |
4 psi |
|
Rated Operating Capacities - 35% Tipping Load |
2,337 lbs (1,060 kg)
|
|
Rated Operating Capacities - 50% Tipping Load |
3,200 lbs (1,452 kg)
|
|
Rated Operating Capacity With Optional Counterweight |
3,571 lbs (1,620 kg)
|
|
Tipping Load |
6,675 lbs (3,028 kg)
|
| Operational |
|
Alternator Supplied Amperage |
90 amps |
|
Cooling System Fluid Capacity |
4 gal (14 l)
|
|
Engine Oil Capacity |
3 gal (10 l)
|
|
Fuel Capacity |
26 gal (98 l)
|
|
Hydraulic System Fluid Capacity |
15 gal (57 l)
|
|
Max Speed - High Range |
9 mph (15 kph)
|
|
Max Speed - Low Range |
6 mph (9 kph)
|
|
Operating Voltage |
12 V |
|
Operating Weight |
9,495 lbs (4,307 kg)
|
| Power Train |
|
Travel Speed Forward |
6 mph (9 kph)
|
|
Travel Speed Forward - 2-Speed Option |
9 mph (15 kph)
|
|
Travel Speed Reverse |
6 mph (9 kph)
|
|
Travel Speed Reverse - 2-Speed Option |
9 mph (15 kph)
|
| Service Refill Capacities |
|
Cooling System |
4 gal (14 l)
|
|
Engine Crankcase |
3 gal (10 l)
|
|
Fuel Tank |
26 gal (98 l)
|
|
Hydraulic System |
15 gal (57 l)
|
|
Hydraulic Tank |
11 gal (42 l)
|
| Undercarriage |
|
Ground Contact Area |
2542 in2 |
|
Ground Pressure |
4 psi |
|
Length Of Track On Ground |
6 ft (2 m)
|
| Weights |
|
Operating Weight |
9,495 lbs (4,307 kg)
|
