| Cab |
|
Fops |
ISO 3449:2005 Level I |
|
Fops Level Ii |
ISO 3449:2005 Level II |
|
Rops |
ISO 3471:2008 |
| Dimensions |
|
Bucket Pin Height - Carry Position |
8 in (19 cm)
|
|
Bucket Pin Height - Maximum Lift |
10 ft (3 m)
|
|
Bucket Pin Reach - Maximum Lift |
16 in (40 cm)
|
|
Clearance At Maximum Lift And Dump |
94 in (240 cm)
|
|
Departure Angle |
31 degrees |
|
Ground Clearance |
1 ft (0 m)
|
|
Height - Top Of Cab |
7 ft (2 m)
|
|
Length - Track On Ground |
71 in (181 cm)
|
|
Length - With Bucket On Ground |
152 in (387 cm)
|
|
Length - Without Bucket |
124 in (315 cm)
|
|
Maximum Dump Angle |
52 degrees |
|
Maximum Overall Height |
158 in (402 cm)
|
|
Maximum Reach - With Arms Parallel |
50 in (127 cm)
|
|
Overall Length - Track |
90 in (229 cm)
|
|
Rack Back Angle - Maximum Height |
83 degrees |
|
Reach At Maximum Lift/Dump |
31 in (78 cm)
|
|
Turn Radius From Center - Bucket |
92 in (233 cm)
|
|
Turn Radius From Center - Coupler |
58 in (147 cm)
|
|
Turn Radius From Center - Rear |
73 in (186 cm)
|
|
Vehicle Width |
76 in (194 cm)
|
| Engine |
|
Bore |
4 in (10 cm)
|
|
Displacement |
232 cu in (3,802 cu cm)
|
|
Engine Model |
Cat C3.8 DIT (Turbo) |
|
Gross Power - Sae J1995 |
98 hp (73 kw)
|
|
Net Power |
95 hp (71 kw)
|
|
Net Power - Iso 9249 Eec |
71 hp (53 kw)
|
|
Net Power - Sae 1349 |
71 hp (53 kw)
|
|
Stroke |
5 in (12 cm)
|
| General Specifications |
|
Approx. Machine Weight (Since 2014)
|
10,120 lbs (4,590 kg)
|
|
Approx. Machine Weight (2015)
|
10,120 lbs (4,590 kg)
|
|
Engine Model (Since 2014)
|
Cat C3.8 DIT |
|
Engine Model (2015)
|
Cat C3.8 DIT |
|
Height to Top of Cab (Since 2014)
|
84 in (212 cm)
|
|
Height to Top of Cab (2015)
|
84 in (212 cm)
|
|
Length to Coupler (Since 2014)
|
124 in (315 cm)
|
|
Length to Coupler (2015)
|
124 in (315 cm)
|
|
Net Power (Since 2014)
|
95 hp (71 kw)
|
|
Net Power (2015)
|
95 hp (71 kw)
|
|

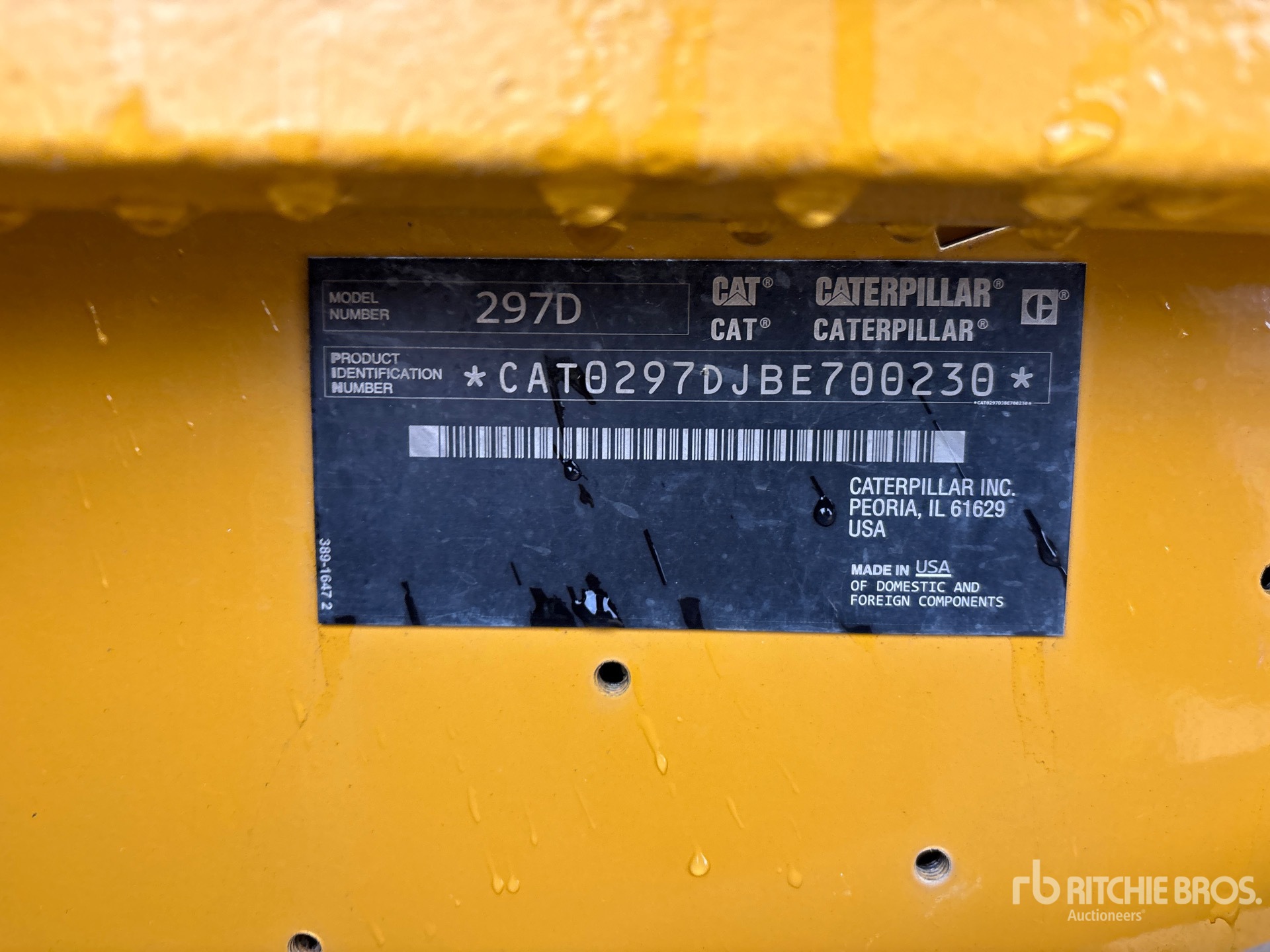

Product Identification Prefix (Since 2014)
|
BE7 |
|
Product Identification Prefix (2015)
|
BE7 |
|
Rated Operating Capacity at 50% (Since 2014)
|
4,550 lbs (2,064 kg)
|
|
Rated Operating Capacity at 50% (2015)
|
4,550 lbs (2,064 kg)
|
|
Top Travel Speed km/h (mph (Since 2014)
|
15.1 (9.4 |
|
Top Travel Speed km/h (mph (2015)
|
15.1 (9.4 |
|
Width over Tracks (Since 2014)
|
76 in (194 cm)
|
|
Width over Tracks (2015)
|
76 in (194 cm)
|
|
Years Built (Since 2014)
|
2,014 - 2,015 |
|
Years Built (2015)
|
2,014 - 2,015 |
| Hydraulic System |
|
Hydraulic Flow (1) |
Standard |
|
Hydraulic Flow (2) |
High Flow XPS |
|
Hydraulic Power |
44 hp (33 kw)
|
|
Hydraulic Power - Calculated |
76 hp (57 kw)
|
|
Loader Hydraulic Flow |
23 gpm (87 lpm)
|
|
Loader Hydraulic Pressure |
3,335 psi |
|
Maximum Loader Hydraulic Flow |
32 gpm (121 lpm)
|
|
Maximum Loader Hydraulic Pressure |
4,061 psi |
| Operating Specifications |
|
Breakout Force - Tilt Cylinder |
7,491 lbs (3,398 kg)
|
|
Ground Contact Area |
2233 in2 |
|
Ground Pressure |
5 psi |
|
Rated Operating Capacities - 35% Tipping Load |
3,185 lbs (1,445 kg)
|
|
Rated Operating Capacities - 50% Tipping Load |
4,550 lbs (2,064 kg)
|
|
Rated Operating Capacity With Optional Counterweight |
4,800 lbs (2,177 kg)
|
|
Tipping Load |
9,100 lbs (4,128 kg)
|
| Operational |
|
Operating Weight |
10,120 lbs (4,590 kg)
|
| Power Train |
|
Travel Speed Forward |
6 mph (10 kph)
|
|
Travel Speed Forward - 2-Speed Option |
9 mph (15 kph)
|
|
Travel Speed Reverse |
6 mph (10 kph)
|
|
Travel Speed Reverse - 2-Speed Option |
9 mph (15 kph)
|
| Service Refill Capacities |
|
Cooling System |
4 gal (16 l)
|
|
Engine Crankcase |
4 gal (13 l)
|
|
Fuel Tank |
32 gal (122 l)
|
|
Hydraulic System |
15 gal (55 l)
|
|
Hydraulic Tank |
10 gal (39 l)
|
