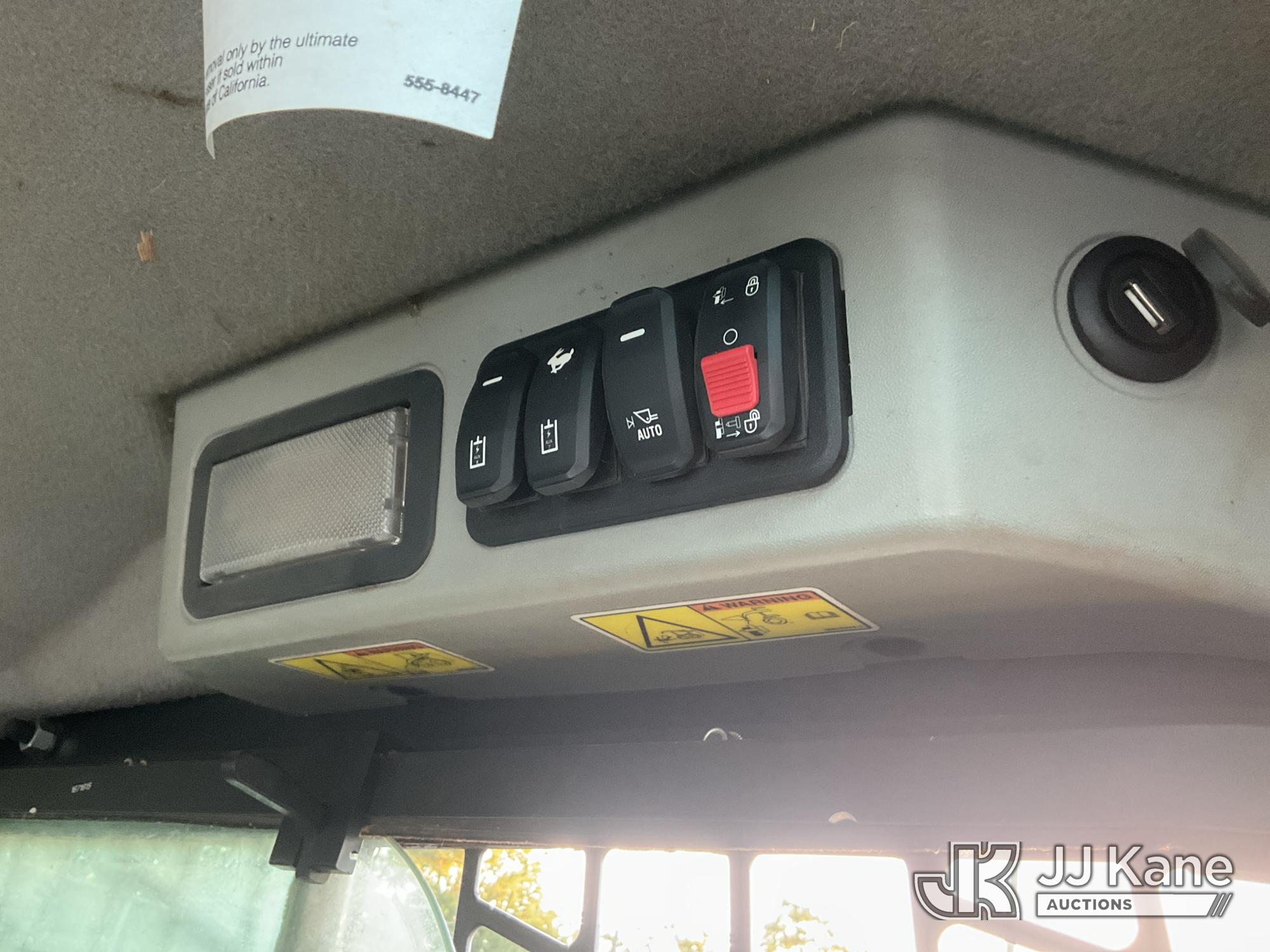

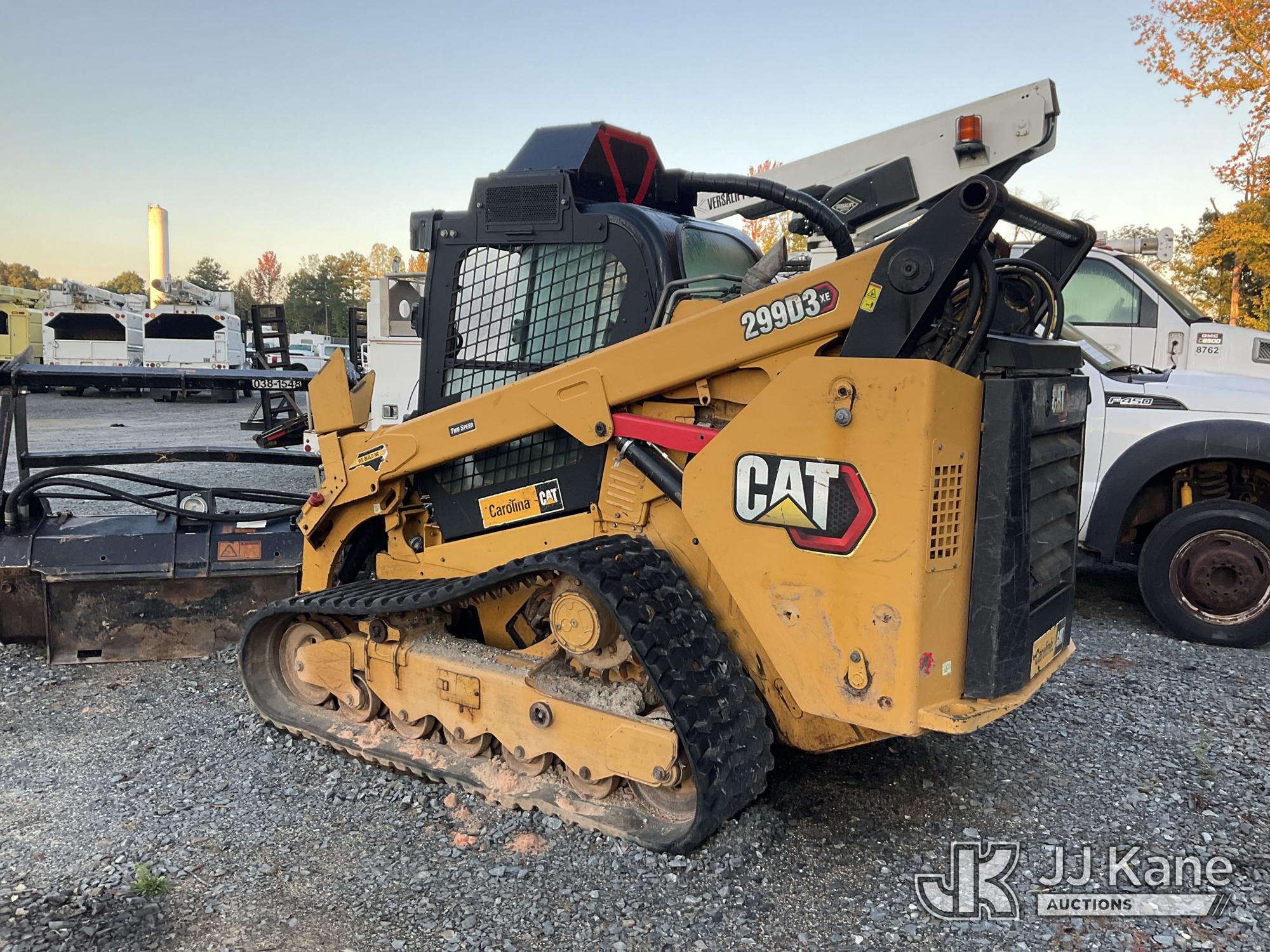

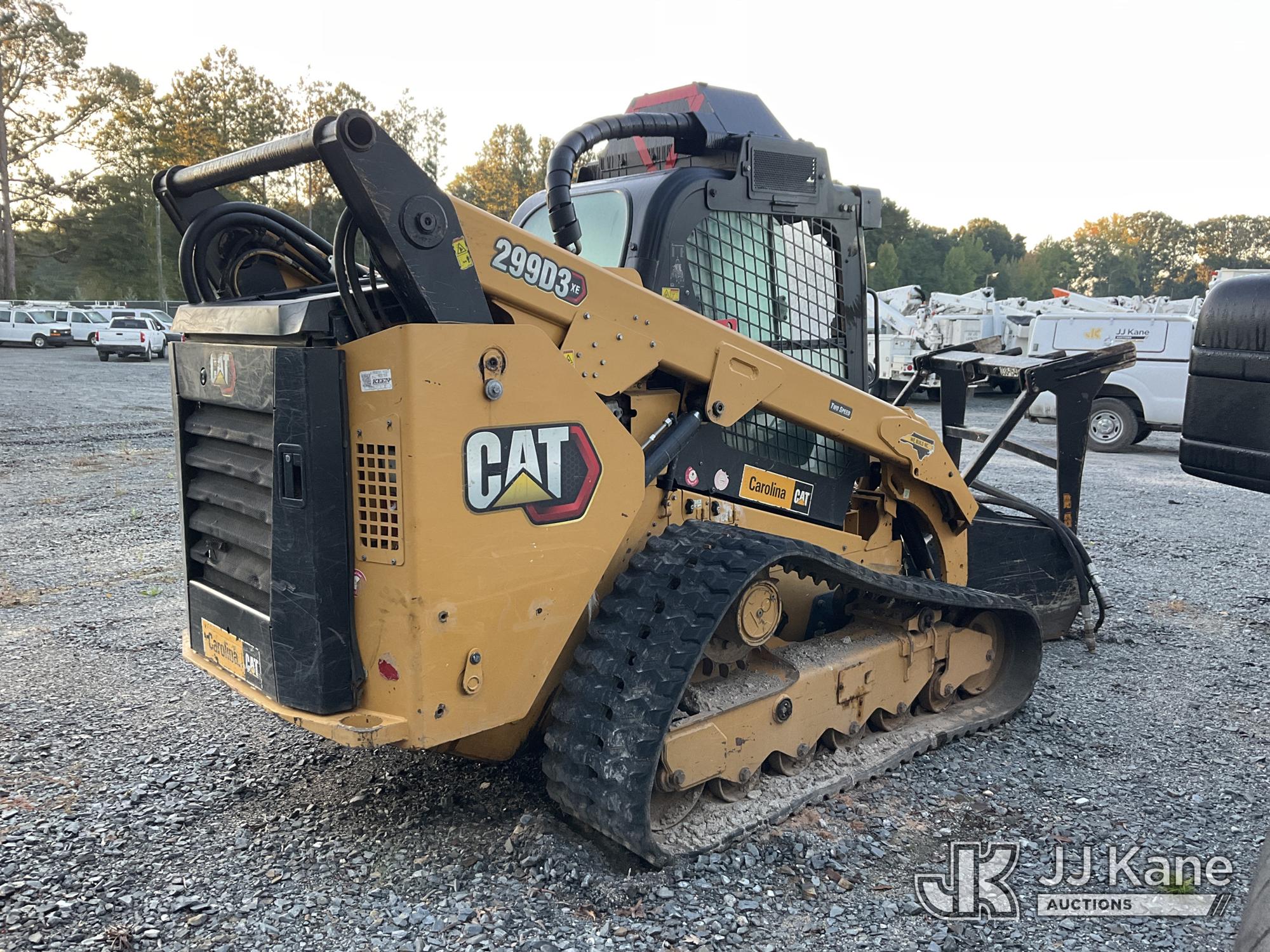

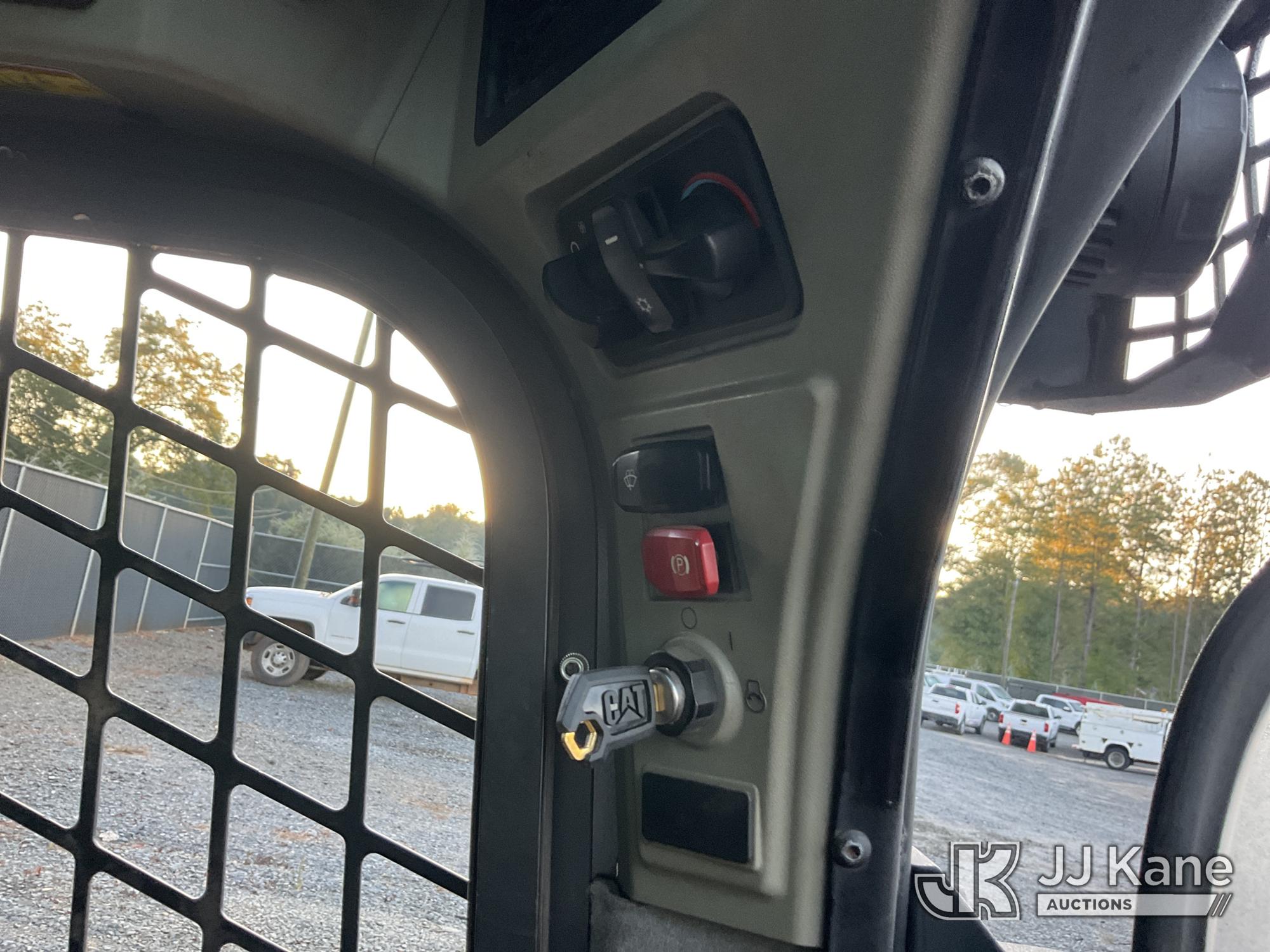

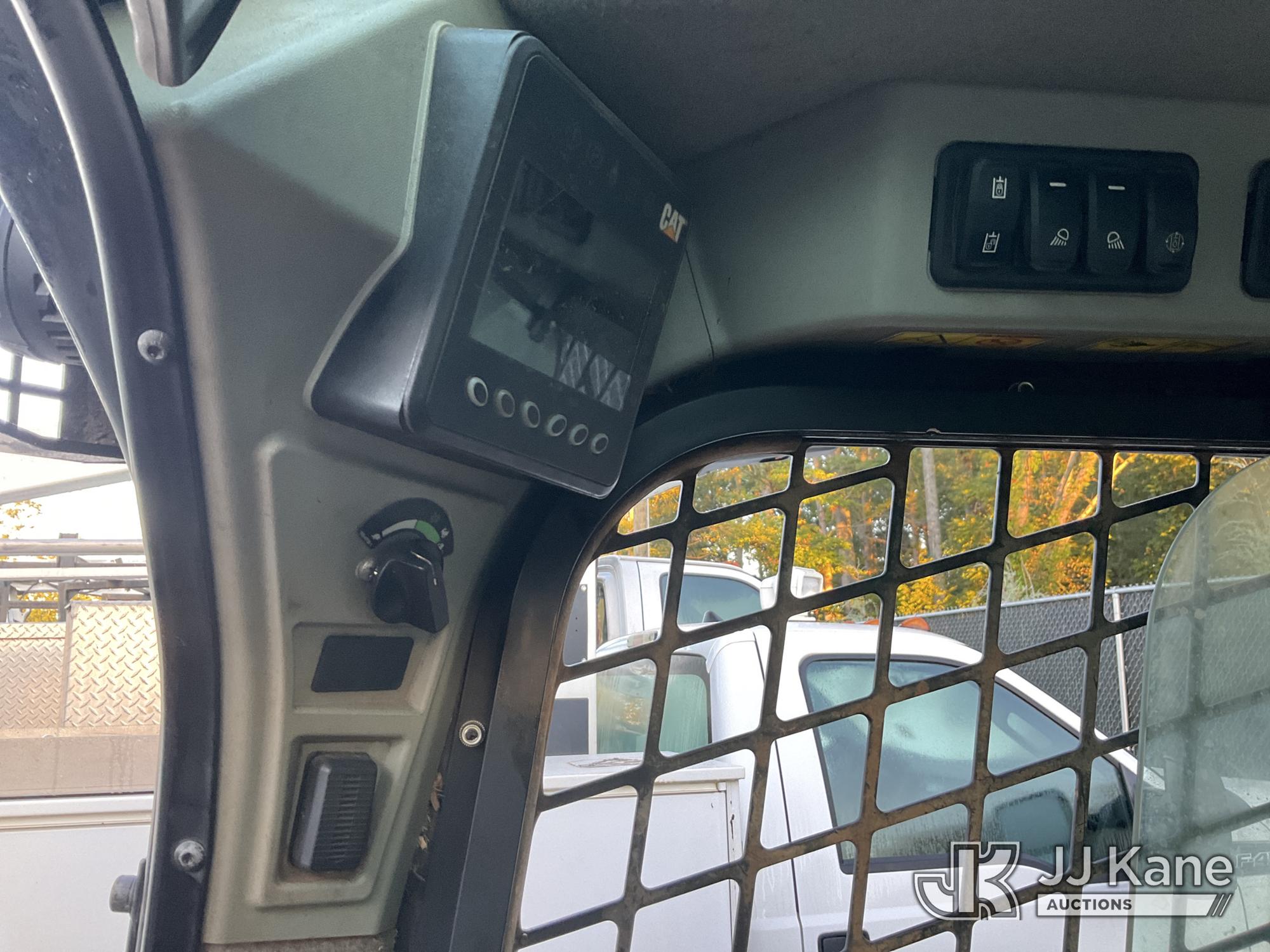

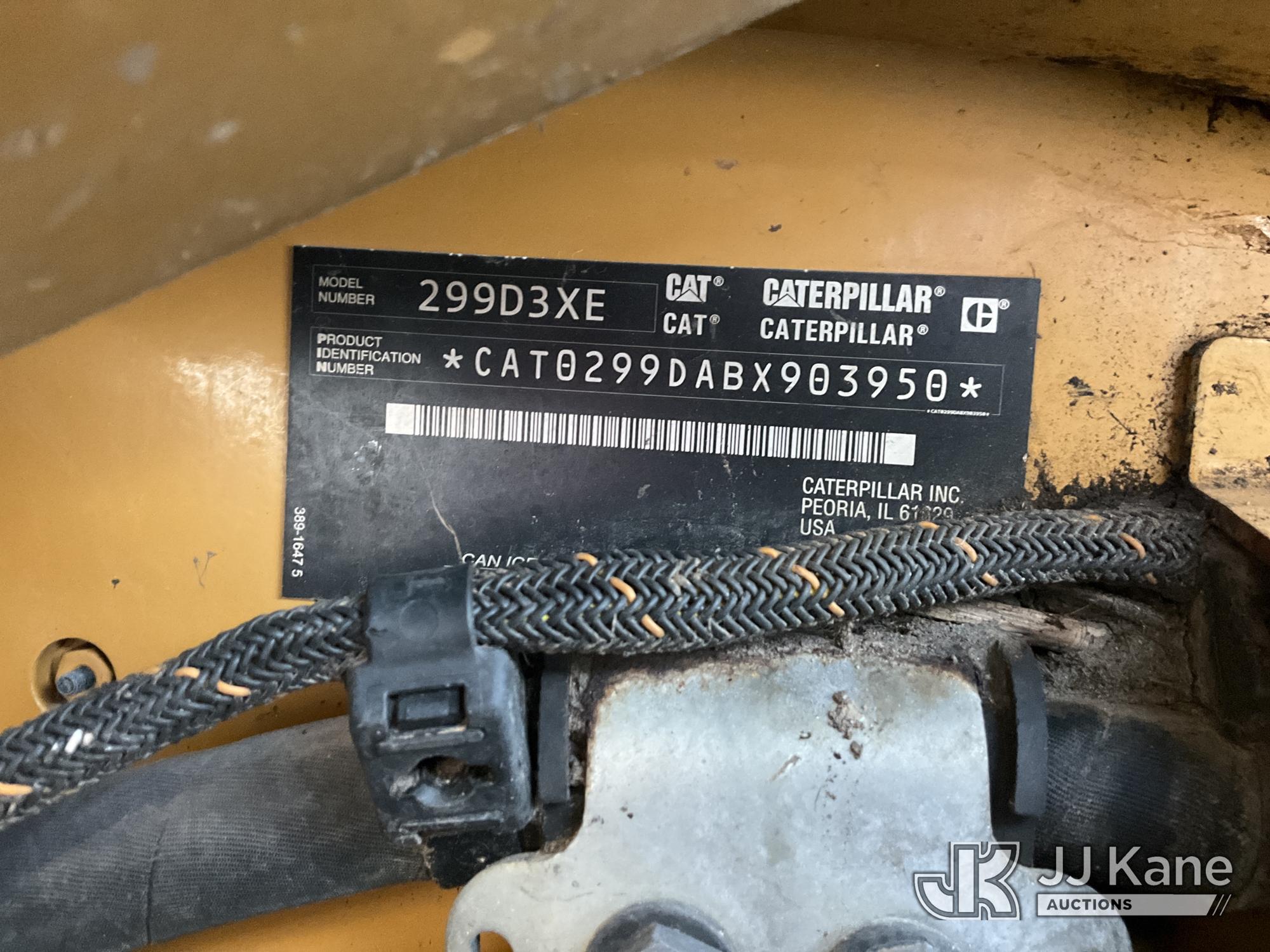

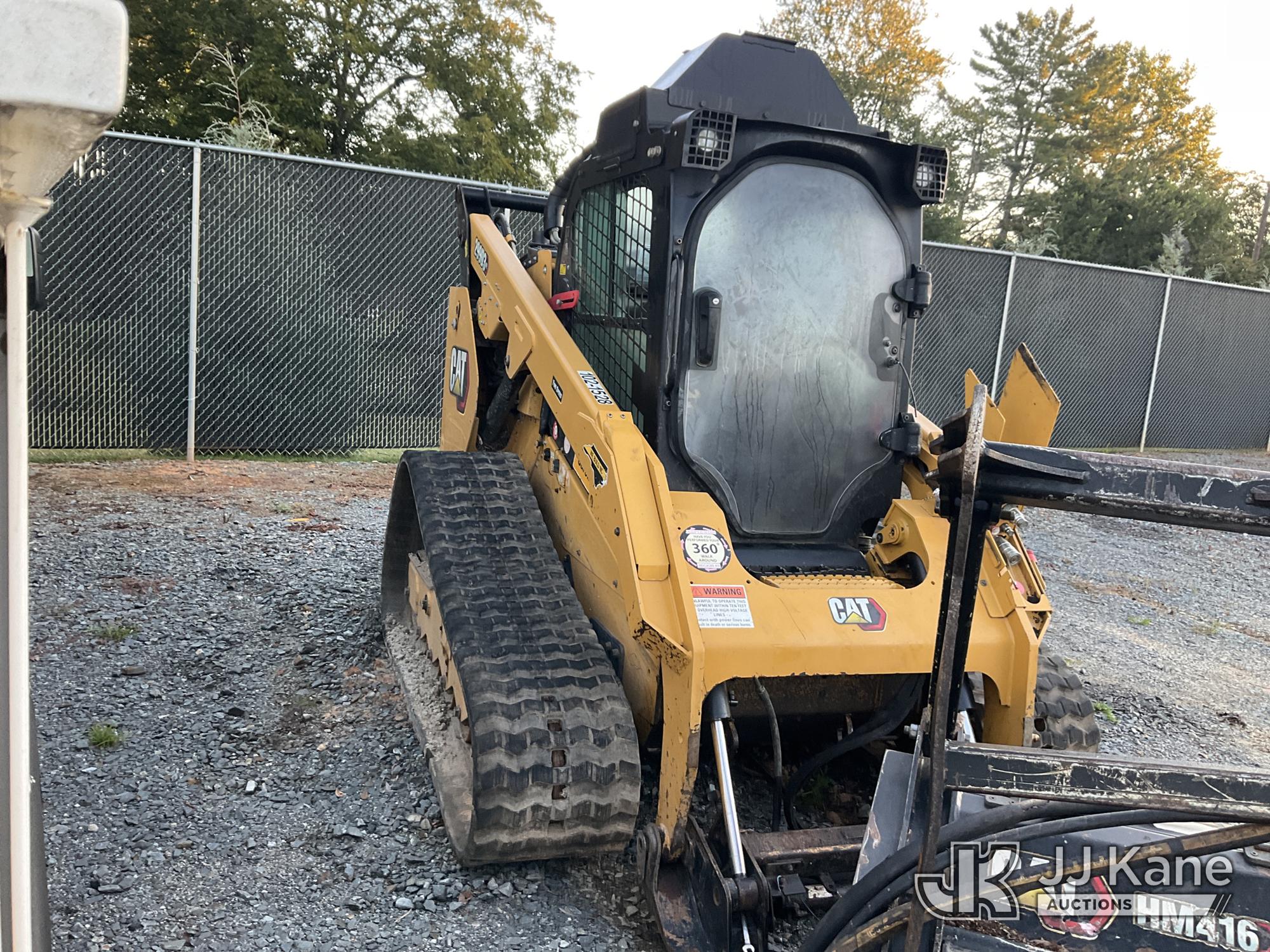

| Cab |
|
Fops |
ISO 3449:2005 Level I |
|
Fops Level Ii |
ISO 3449:2005 Level II |
|
Rops |
ISO 3471:2008 |
| Dimensions |
|
Bucket Pin Height - Carry Position |
8 in (20 cm)
|
|
Bucket Pin Height - Maximum Lift |
11 ft (3 m)
|
|
Bucket Pin Reach - Maximum Lift |
16 in (40 cm)
|
|
Clearance At Max Lift And Dump |
8 ft (2 m)
|
|
Clearance At Maximum Lift And Dump |
94 in (240 cm)
|
|
Departure Angle |
30 degrees |
|
Dump Angle |
52 degrees |
|
Ground Clearance |
9 in (22 cm)
|
|
Height |
7 ft (2 m)
|
|
Height - Top Of Cab |
7 ft (2 m)
|
|
Height To Top Of Cab |
7 ft (2 m)
|
|
Length |
13 ft (4 m)
|
|
Length - Track On Ground |
70 in (177 cm)
|
|
Length - With Bucket On Ground |
152 in (386 cm)
|
|
Length - Without Bucket |
124 in (314 cm)
|
|
Length Of Track On Ground |
6 ft (2 m)
|
|
Length With Bucket |
10 ft (3 m)
|
|
Length With Out Bucket |
13 ft (4 m)
|
|
Maximum Dump Angle |
52 degrees |
|
Maximum Overall Height |
158 in (402 cm)
|
|
Maximum Reach - With Arms Parallel |
50 in (128 cm)
|
|
Overall Height |
13 ft (4 m)
|
|
Overall Length - Track |
89 in (227 cm)
|
|
Overall Track Length |
7 ft (2 m)
|
|
Rack Back Angle - Maximum Height |
83 degrees |
|
Reach At Max Lift And Dump |
3 ft (1 m)
|
|
Reach At Maximum Lift/Dump |
31 in (78 cm)
|
|
Turn Radius From Center - Bucket |
91 in (232 cm)
|
|
Turn Radius From Center - Coupler |
58 in (147 cm)
|
|
Turn Radius From Center - Rear |
73 in (186 cm)
|
|
Turning Radius From Center - Machine Rear |
73 in (185 cm)
|
|
Vehicle Width |
78 in (198 cm)
|
|
Weight |
10,898 lbs (4,943 kg)
|
|
Width |
7 ft (2 m)
|
| Engine |
|
Aspiration |
Turbocharged |
|
Bore |
4 in (10 cm)
|
|
Displacement |
232 cu in (3,802 cu cm)
|
|
Engine Model |
Cat C3.8 DIT (Turbo) |
|
Engine Model |
Cat® C3.8 |
|
Gross Power |
98 hp (73 kw)
|
|
Gross Power - Sae J1995 |
98 hp (73 kw)
|
|
Net Power |
95 hp (71 kw)
|
|
Net Power - Sae 1349 |
95 hp (71 kw)
|
|
Stroke |
5 in (12 cm)
|
| Hydraulic |
|
Pump Flow |
23 gpm (87 lpm)
|
| Hydraulic System |
|
Hydraulic Flow (1) |
Standard |
|
Hydraulic Flow (2) |
High Flow XPS |
|
Hydraulic Power |
44 hp (33 kw)
|
|
Hydraulic Power - Calculated |
76 hp (57 kw)
|
|
Loader Hydraulic Flow |
23 gpm (87 lpm)
|
|
Loader Hydraulic Pressure |
3,335 psi |
|
Maximum Loader Hydraulic Flow |
32 gpm (121 lpm)
|
|
Maximum Loader Hydraulic Pressure |
4,061 psi |
| Loader |
|
Tipping Load |
8,499 lbs (3,855 kg)
|
| Operating Specifications |
|
Breakout Force - Lift Cylinder |
6,122 lbs (2,777 kg)
|
|
Breakout Force - Tilt Cylinder |
7,552 lbs (3,426 kg)
|
|
Ground Contact Area |
2463 in2 |
|
Ground Pressure |
4 psi |
|
Rated Operating Capacities - 35% Tipping Load |
2,975 lbs (1,349 kg)
|
|
Rated Operating Capacities - 50% Tipping Load |
4,250 lbs (1,928 kg)
|
|
Rated Operating Capacity With Optional Counterweight |
4,500 lbs (2,041 kg)
|
|
Tipping Load |
8,500 lbs (3,856 kg)
|
| Operational |
|
Alternator Supplied Amperage |
100 amps |
|
Cooling System Fluid Capacity |
4 gal (14 l)
|
|
Fuel Capacity |
31 gal (117 l)
|
|
Hydraulic System Fluid Capacity |
16 gal (61 l)
|
|
Max Speed - High Range |
9 mph (14 kph)
|
|
Max Speed - Low Range |
5 mph (8 kph)
|
|
Operating Voltage |
12 V |
|
Operating Weight |
10,898 lbs (4,943 kg)
|
| Power Train |
|
Travel Speed Forward |
5 mph (8 kph)
|
|
Travel Speed Forward - 2-Speed |
8 mph (14 kph)
|
|
Travel Speed Reverse |
5 mph (8 kph)
|
|
Travel Speed Reverse - 2-Speed |
8 mph (14 kph)
|
| Service Refill Capacities |
|
Cooling System |
4 gal (16 l)
|
|
Engine Crankcase |
4 gal (13 l)
|
|
Fuel Tank |
32 gal (122 l)
|
|
Hydraulic System |
15 gal (55 l)
|
|
Hydraulic Tank |
10 gal (39 l)
|
| Undercarriage |
|
Ground Contact Area |
2463 in2 |
|
Ground Pressure |
4 psi |
| Weights |
|
Operating Weight |
10,718 lbs (4,862 kg)
|
