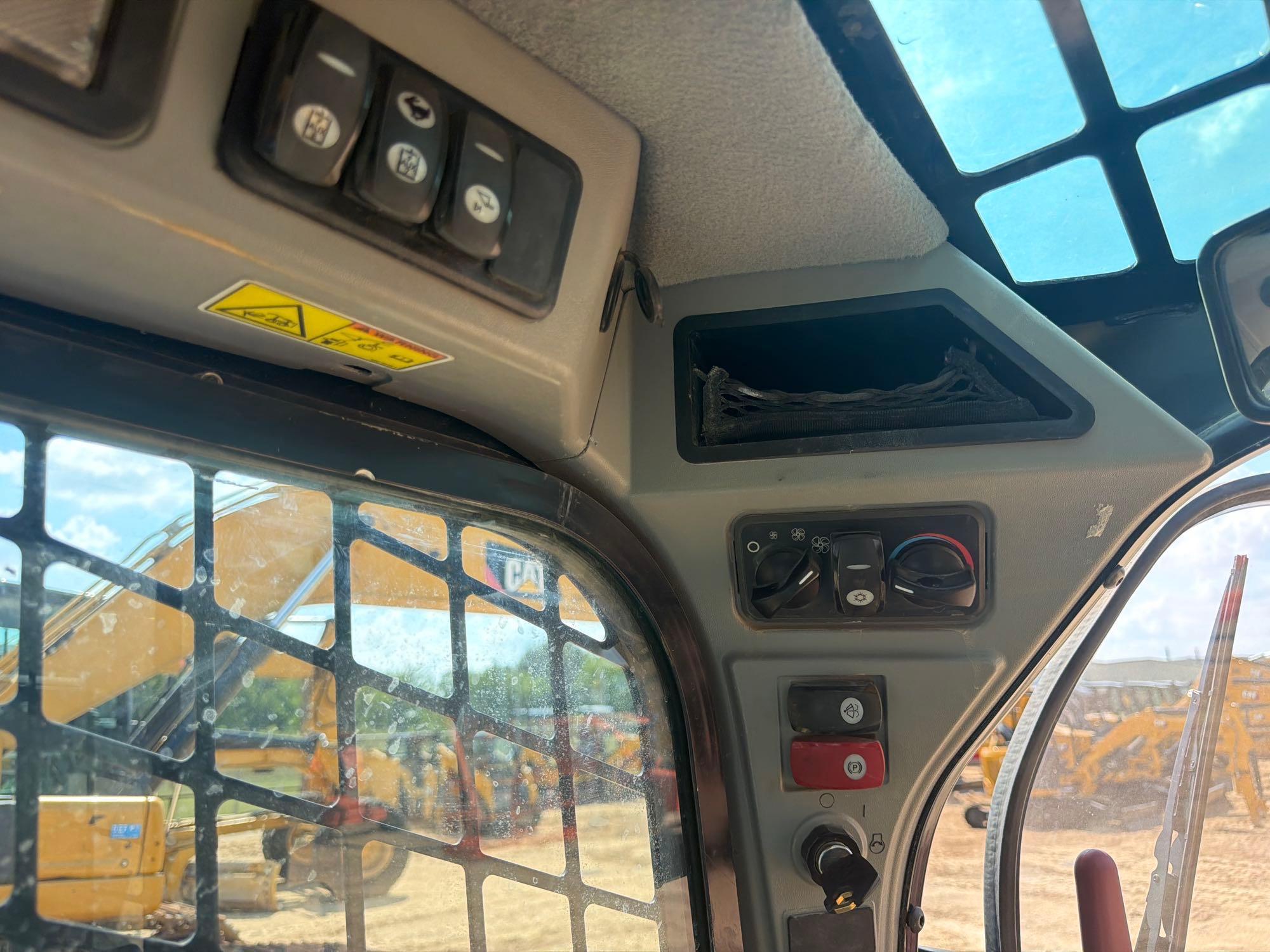

| Air Conditioning System |
|
Air Conditioning |
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.81 kg of refrigerant which has a CO2 equivalent of 1.158 metric tonnes. |

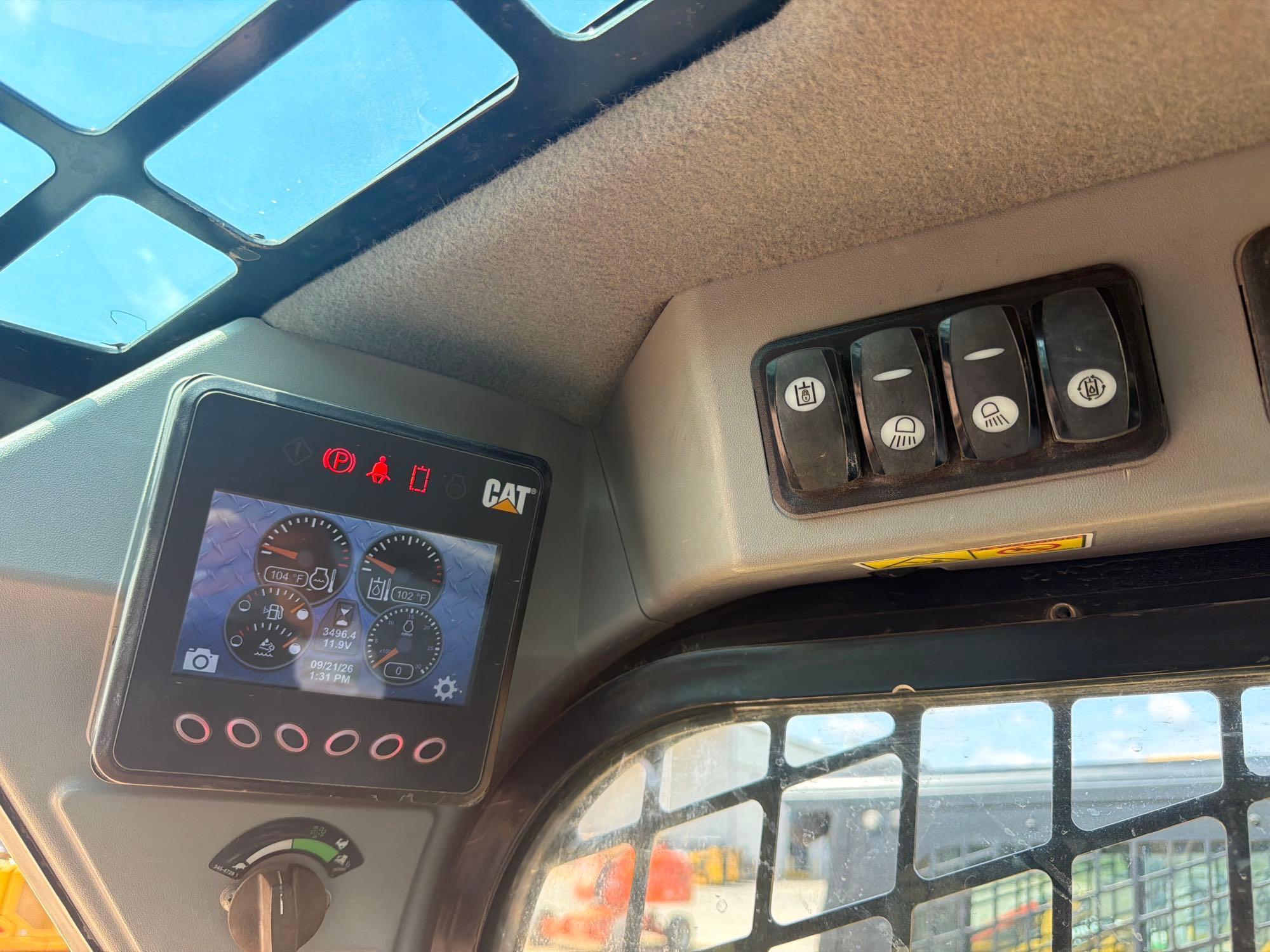

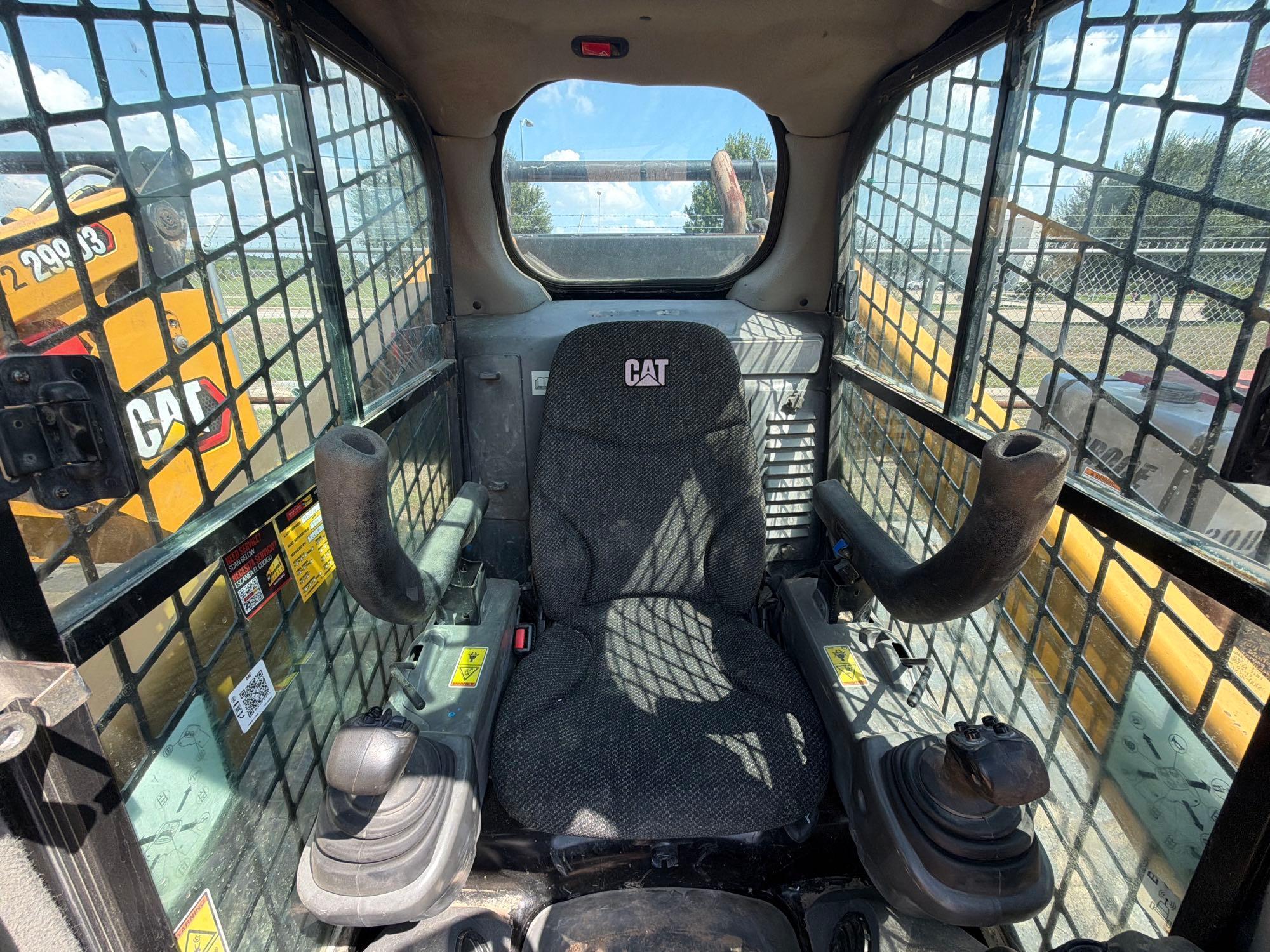

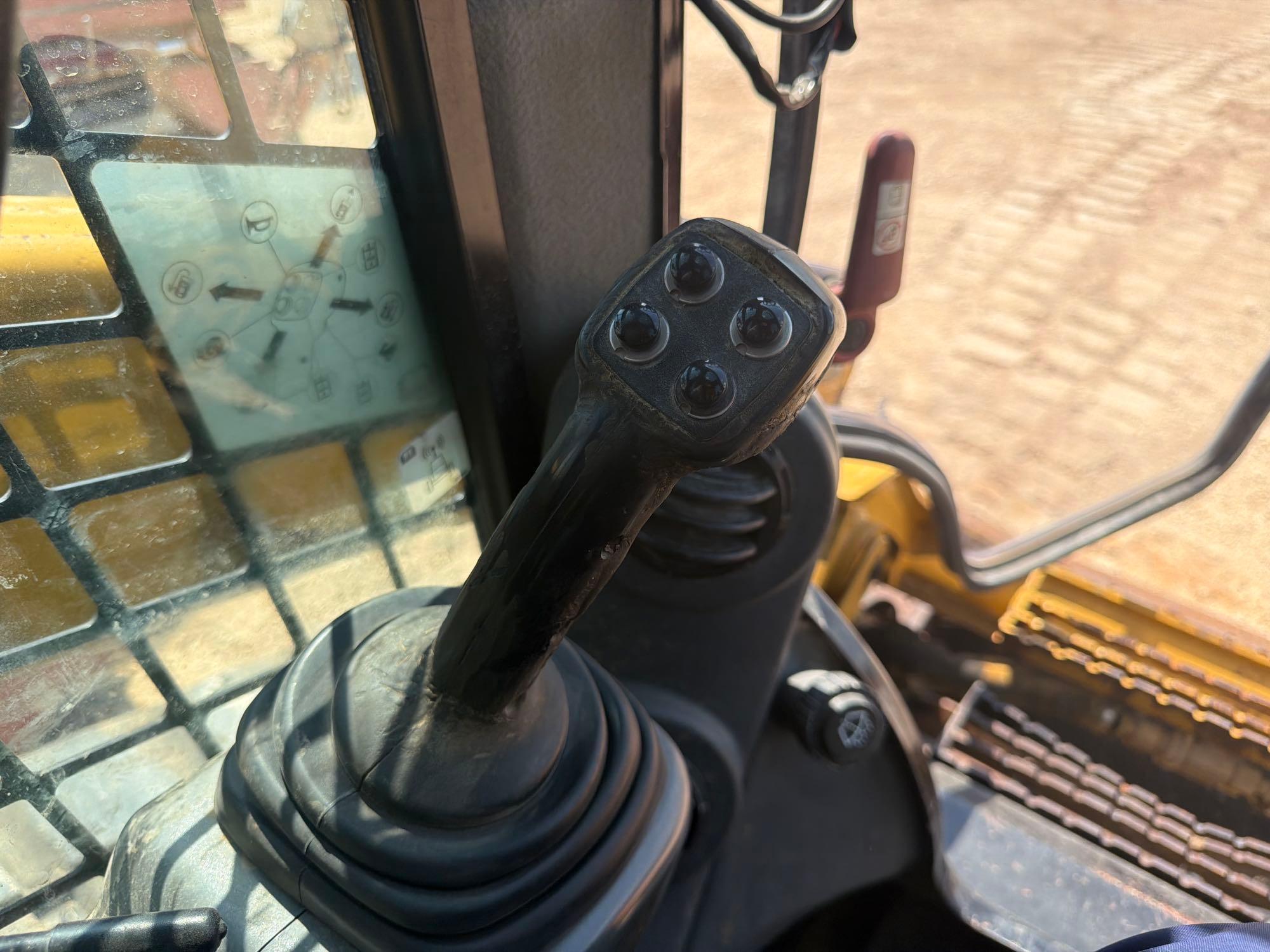

| Cab |
|
Fops |
ISO 3449:2005 Level I |
|
Fops Level Ii |
ISO 3449:2005 Level II |
|
Rops |
ISO 3471:2008 |

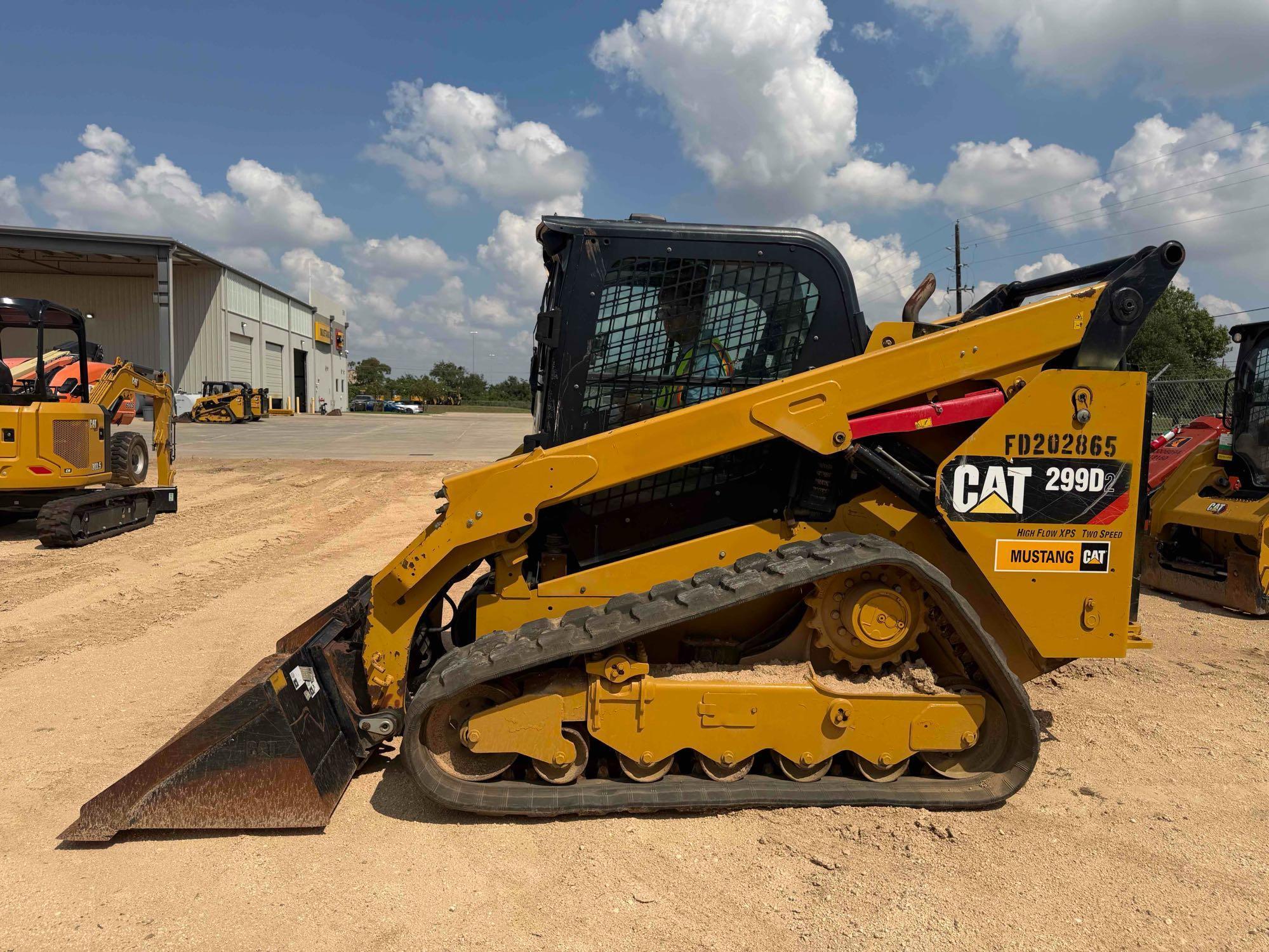

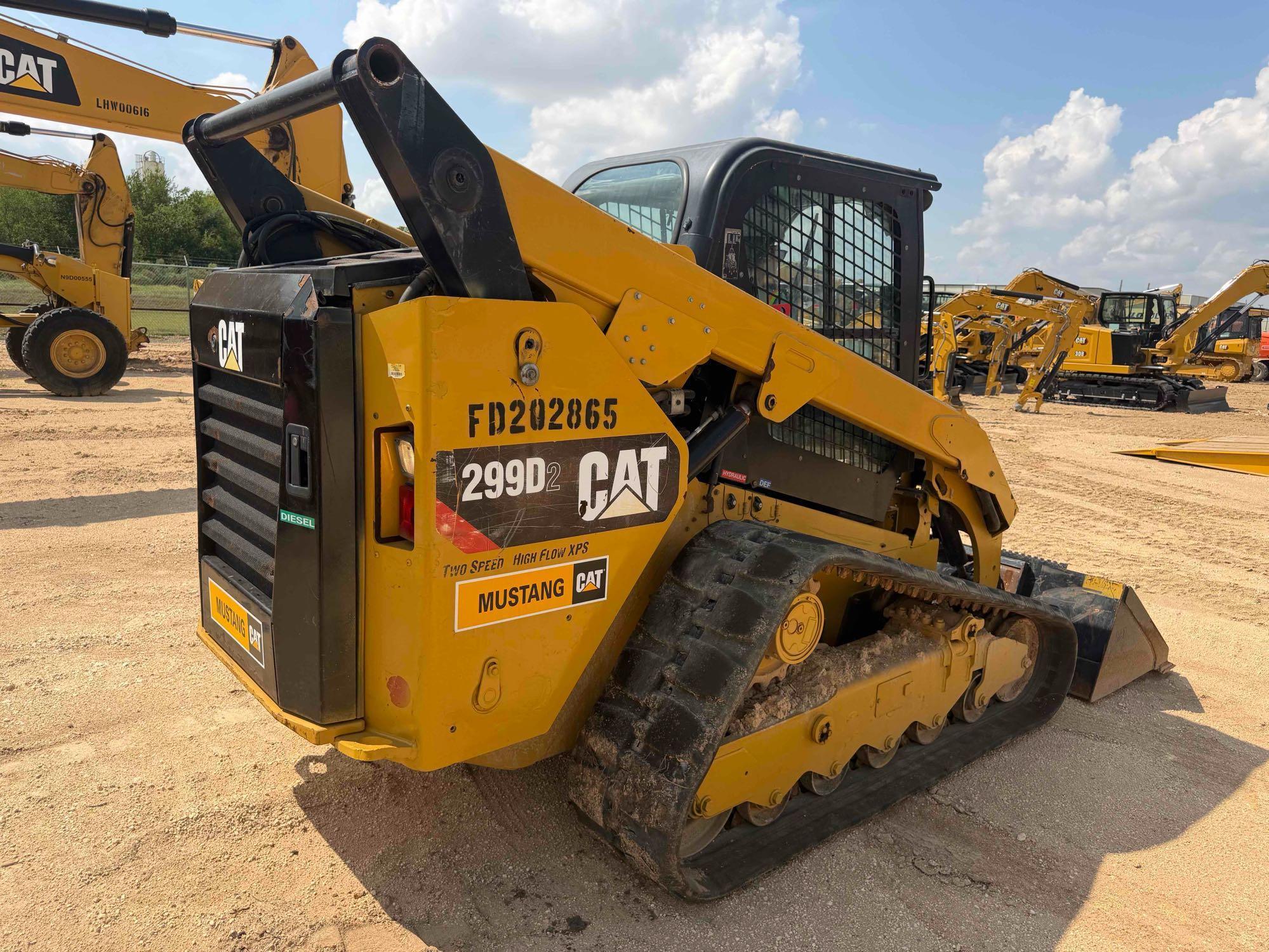

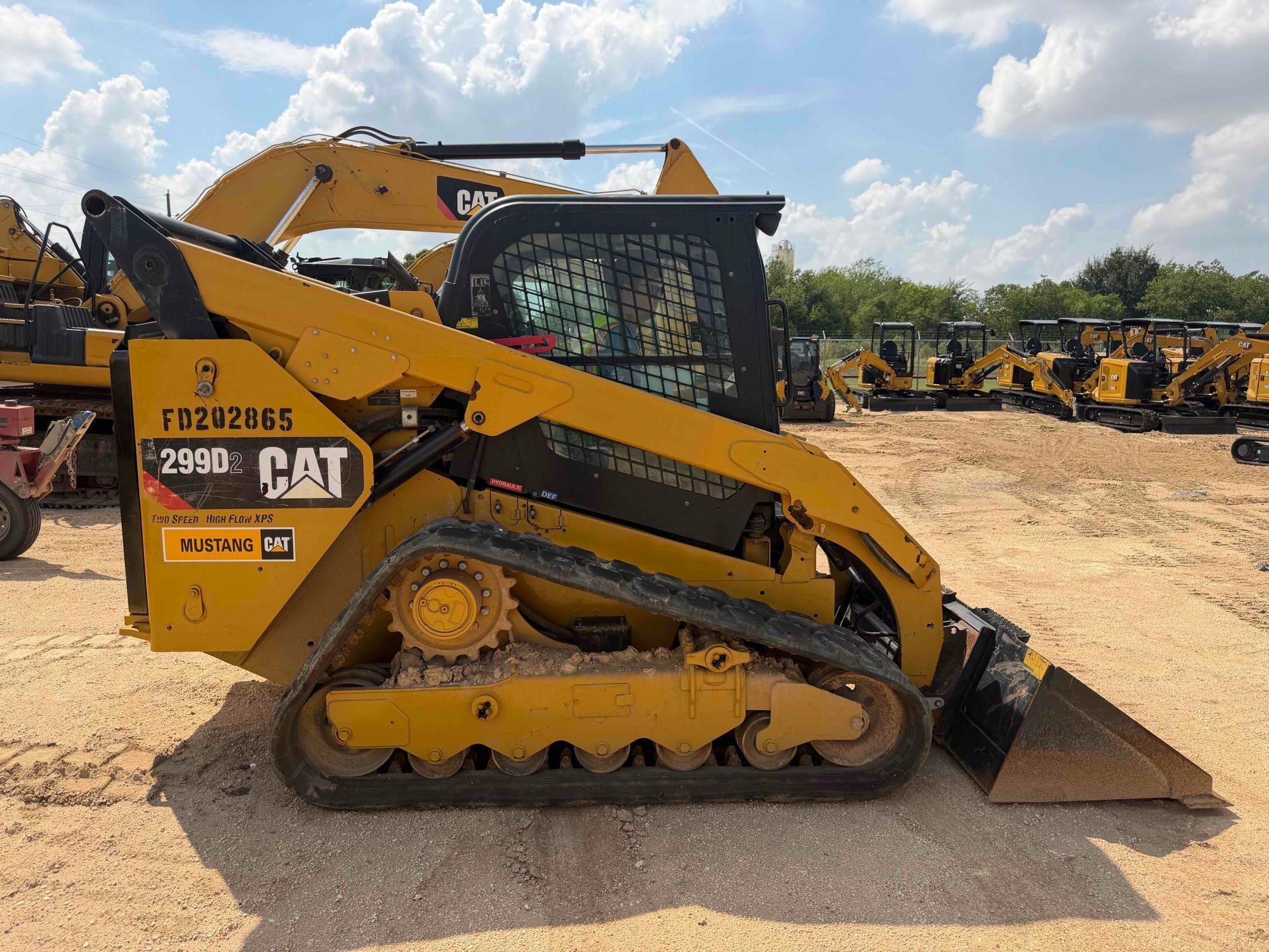

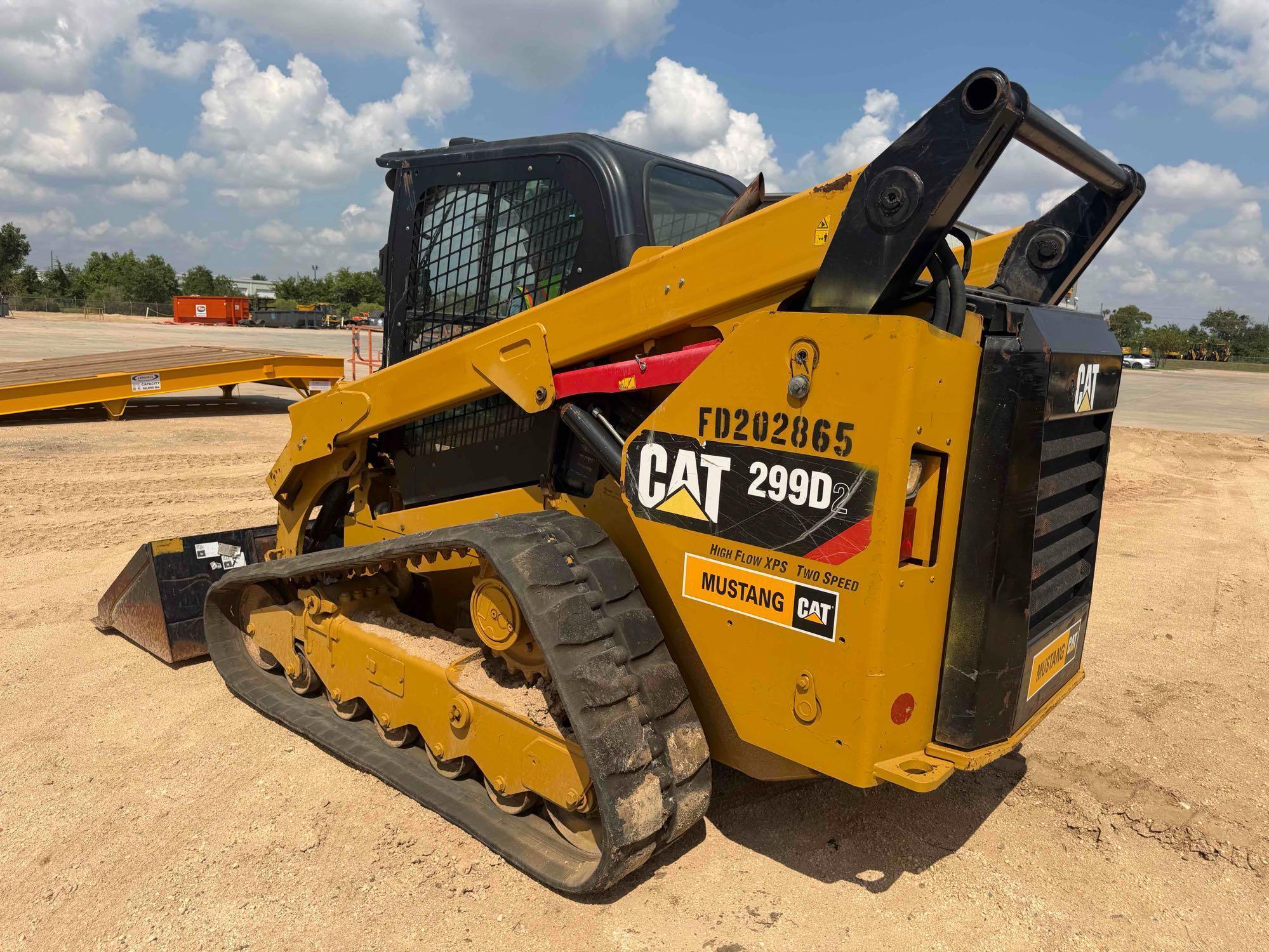

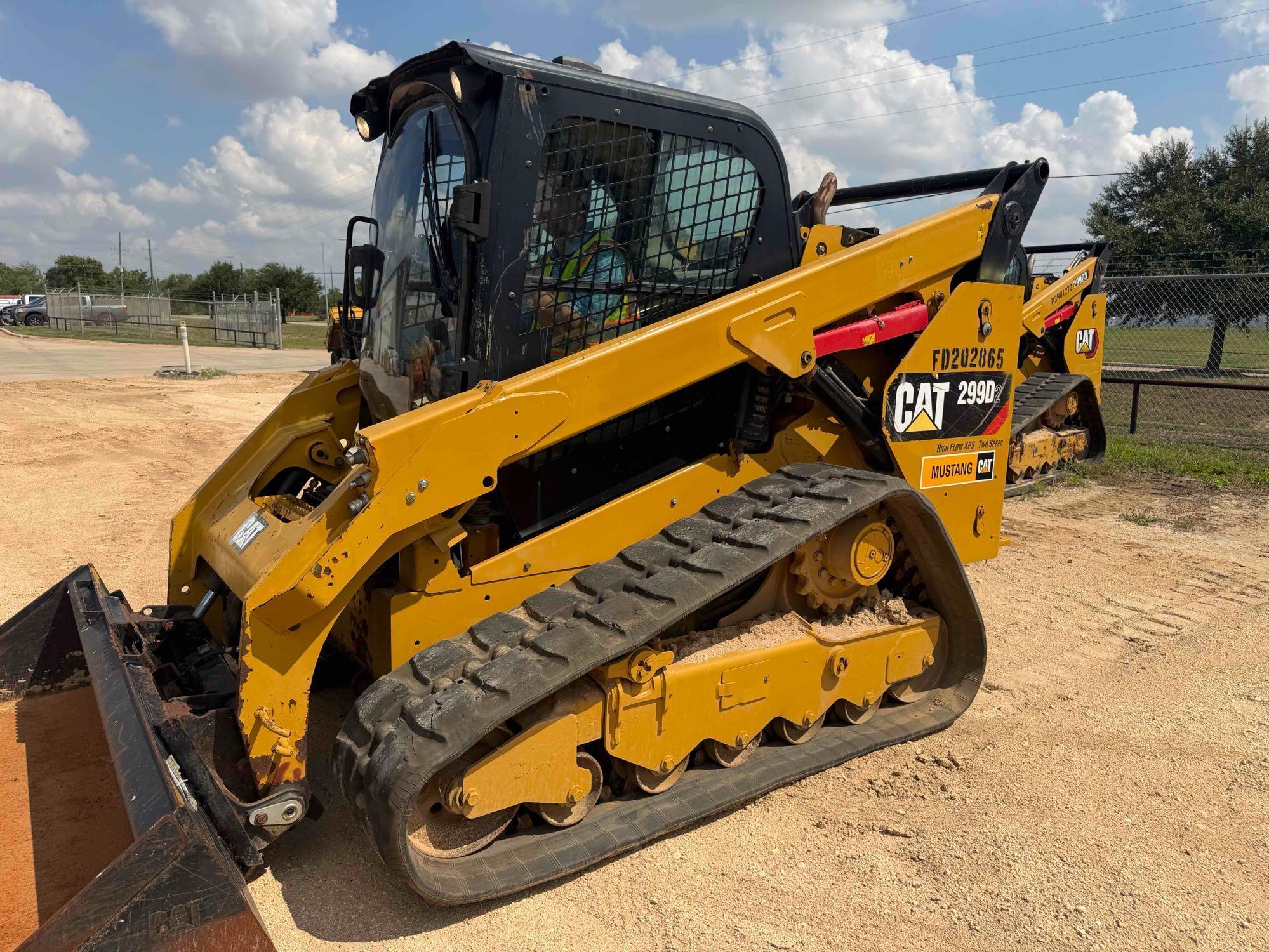

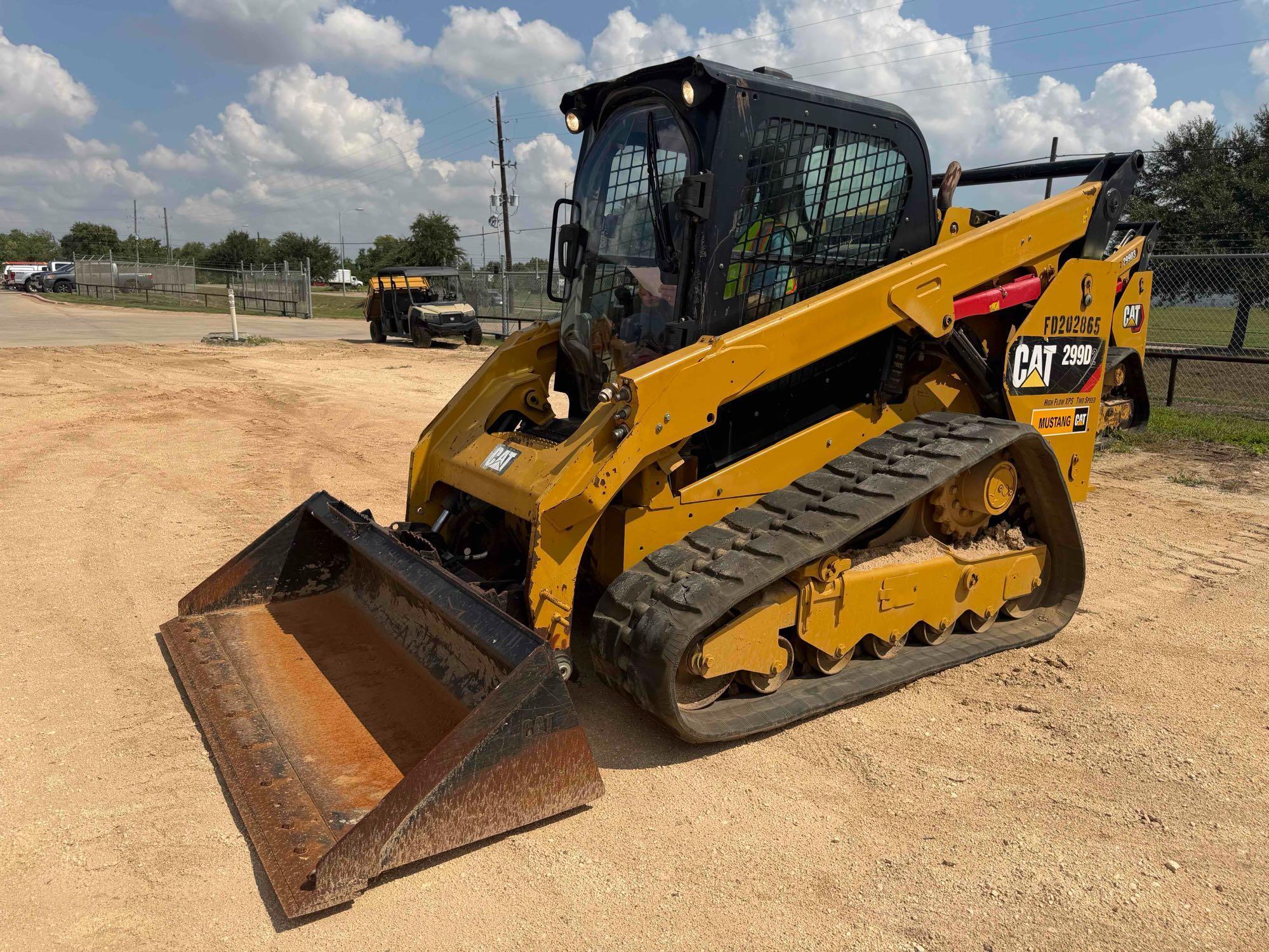

| Dimensions |
|
Bucket Pin Height - Carry Position |
7 in (18 cm)
|
|
Bucket Pin Height - Maximum Lift |
11 ft (3 m)
|
|
Bucket Pin Reach - Maximum Lift |
19 in (49 cm)
|
|
Clearance At Maximum Lift And Dump |
95 in (240 cm)
|
|
Departure Angle |
33 degrees |
|
Ground Clearance |
1 ft (0 m)
|
|
Height |
7 ft (2 m)
|
|
Height |
7 ft (2 m)
|
|
Height - Top Of Cab |
7 ft (2 m)
|
|
Length |
13 ft (4 m)
|
|
Length |
13 ft (4 m)
|
|

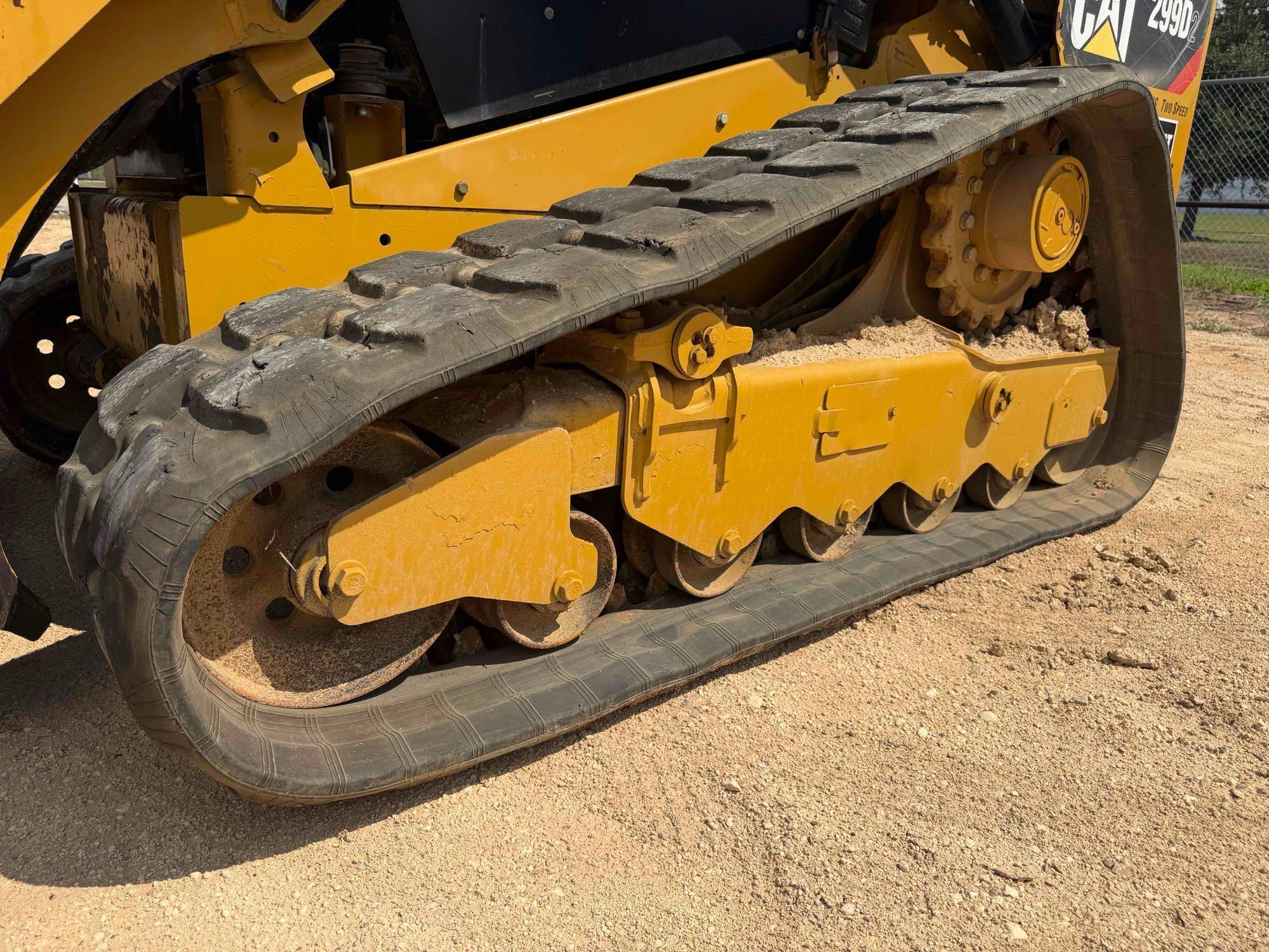

Length - Track On Ground |
70 in (177 cm)
|
|

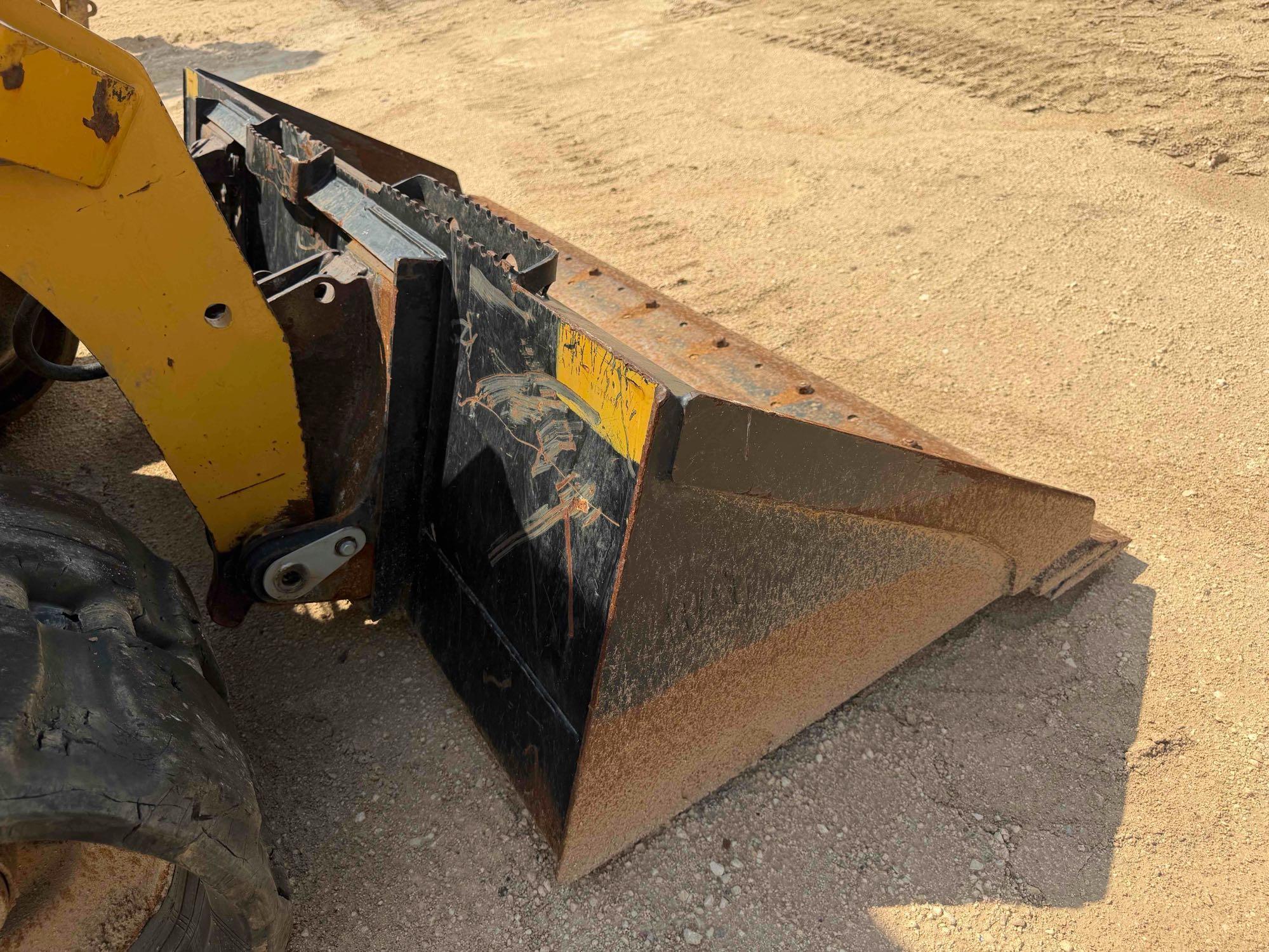

Length - With Bucket On Ground |
155 in (393 cm)
|
|
Length - Without Bucket |
126 in (319 cm)
|
|
Maximum Dump Angle |
54 degrees |
|
Maximum Overall Height |
159 in (403 cm)
|
|
Maximum Reach - With Arms Parallel To Ground |
52 in (132 cm)
|
|
Note |
Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, 1981 mm (78 in) dirt bucket, 400 mm (15.7 in) tracks, dual flange front idler/single flange rear idler, standard flow hydraulics, enclosed cab with glass door, side windows, heater, mechanical suspension seat, advanced display, 880 CCA battery, no optional counterweights and manual quick coupler (unless otherwise noted). |
|
Overall Length - Track |
89 in (227 cm)
|
|
Rack Back Angle - Maximum Height |
81 degrees |
|
Reach - Maximum Lift/Dump |
34 in (85 cm)
|
|
Roll Back Angle |
25 degrees |
|
Turning Radius From Center - Bucket (Racked) |
91 in (231 cm)
|
|
Turning Radius From Center - Coupler |
58 in (148 cm)
|
|
Turning Radius From Center - Machine Rear |
74 in (188 cm)
|
|
Vehicle Width (400 Mm/15.7 In Tracks) |
76 in (193 cm)
|
|
Vehicle Width (450 Mm/17.7 In Tracks) |
78 in (198 cm)
|
|
Weight |
11,275 lbs (5,114 kg)
|
|
Weight |
11,608 lbs (5,265 kg)
|
|
Width |
6 ft (2 m)
|
|
Width |
6 ft (2 m)
|

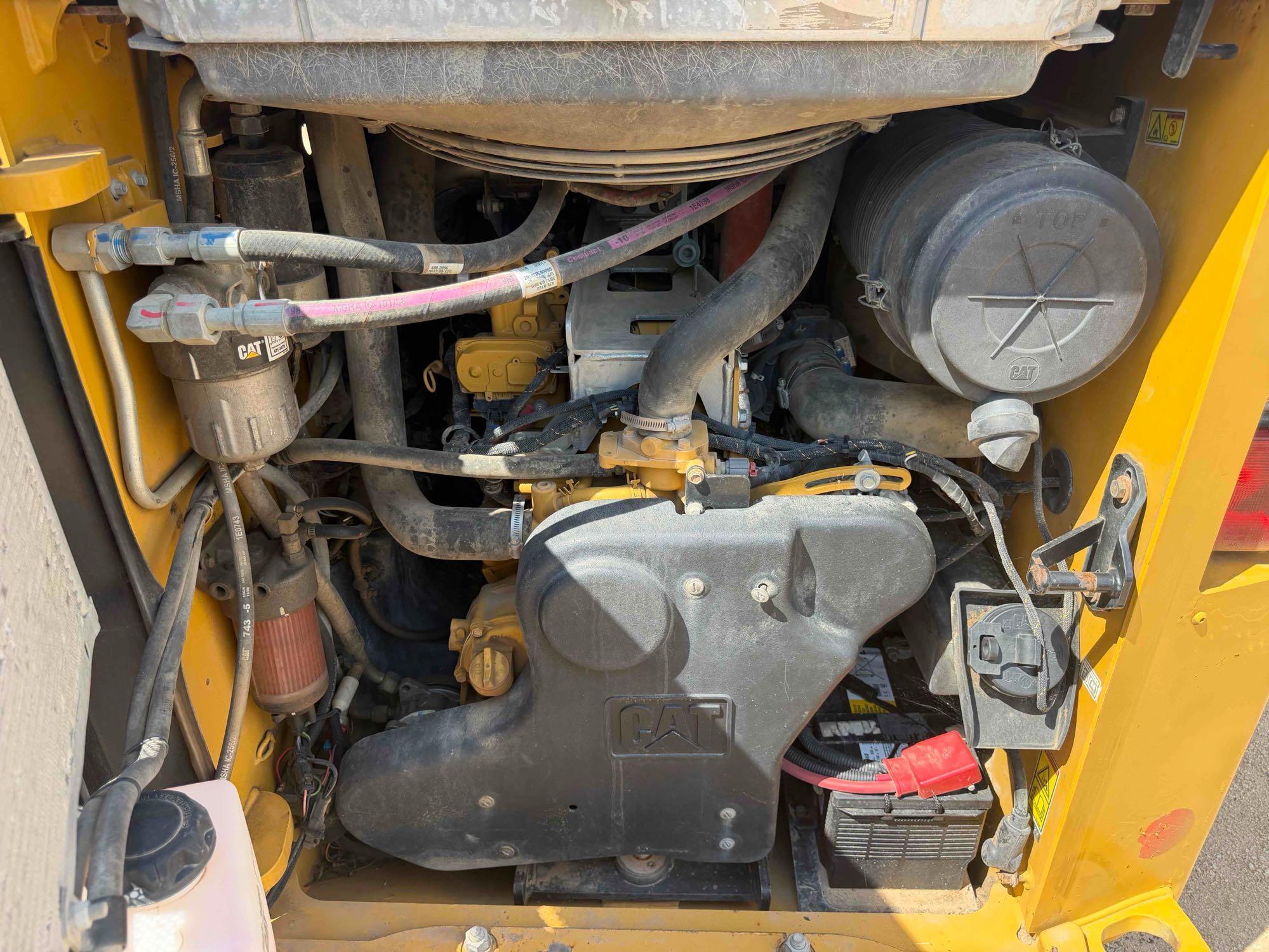

| Engine |
|
Bore |
4 in (10 cm)
|
|
Displacement |
232 cu in (3,802 cu cm)
|
|
Engine Model |
Cat C3.8 DIT (turbo) |
|
Gross Power - Sae J1995 |
98 hp (73 kw)
|
|
Net Power |
95 hp (71 kw)
|
|
Net Power - Iso 9249 |
95 hp (71 kw)
|
|
Net Power - Sae 1349 |
95 hp (71 kw)
|
|
Peak Torque - 1,500 Rpm - Sae J1995 |
246 lbs ft (334 nm)
|
|
Stroke |
5 in (12 cm)
|

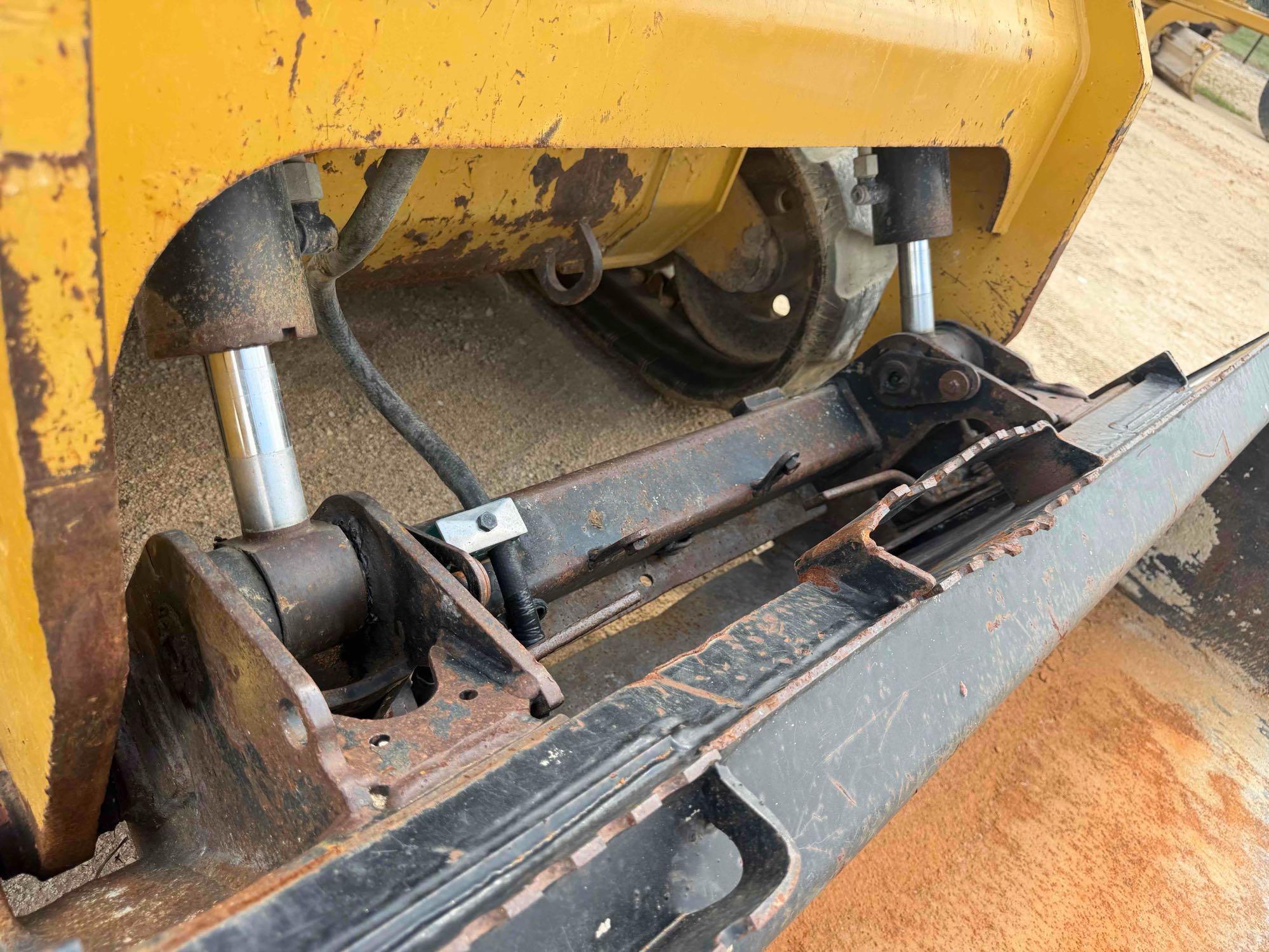

| General Specifications |
|

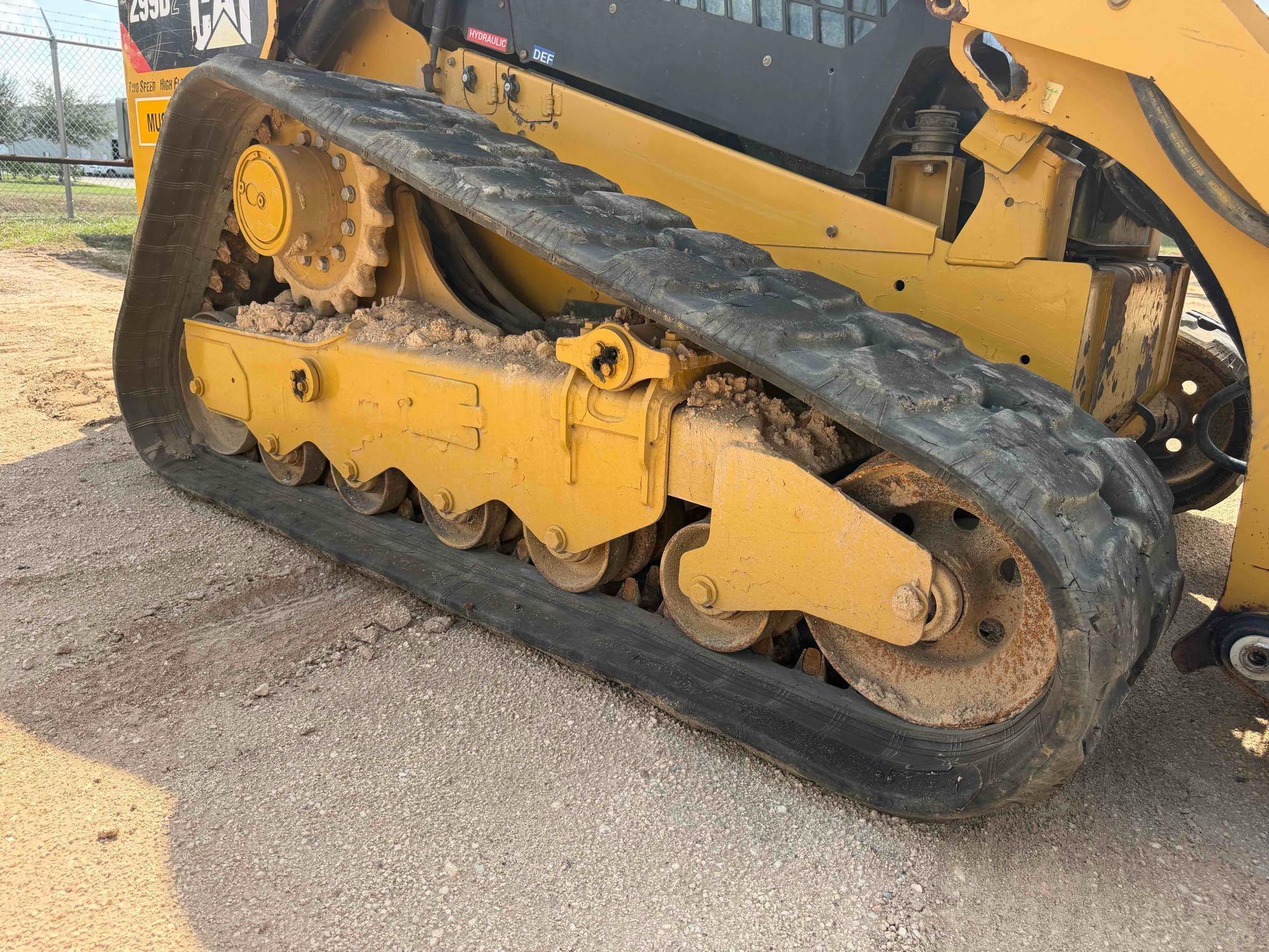

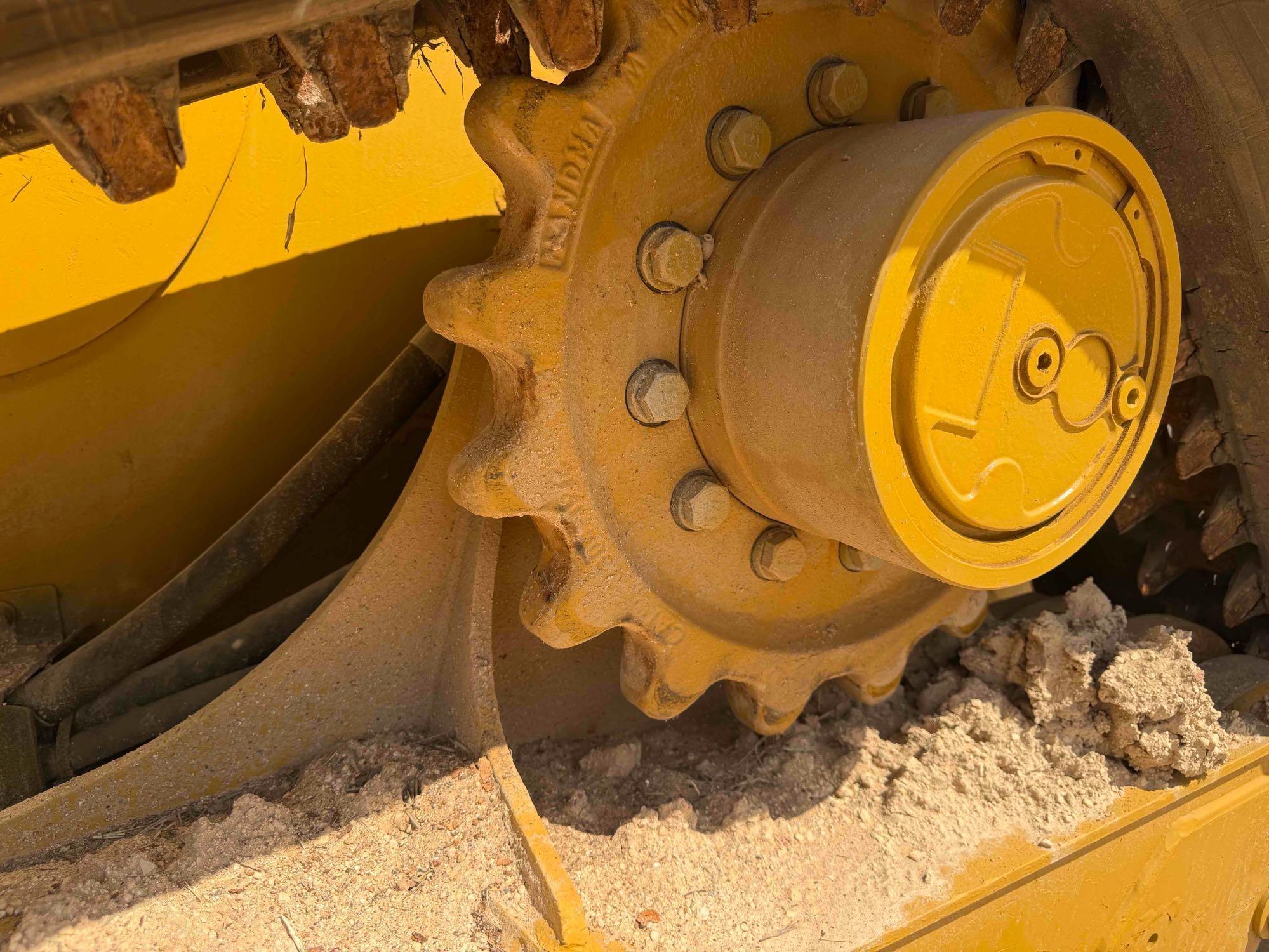

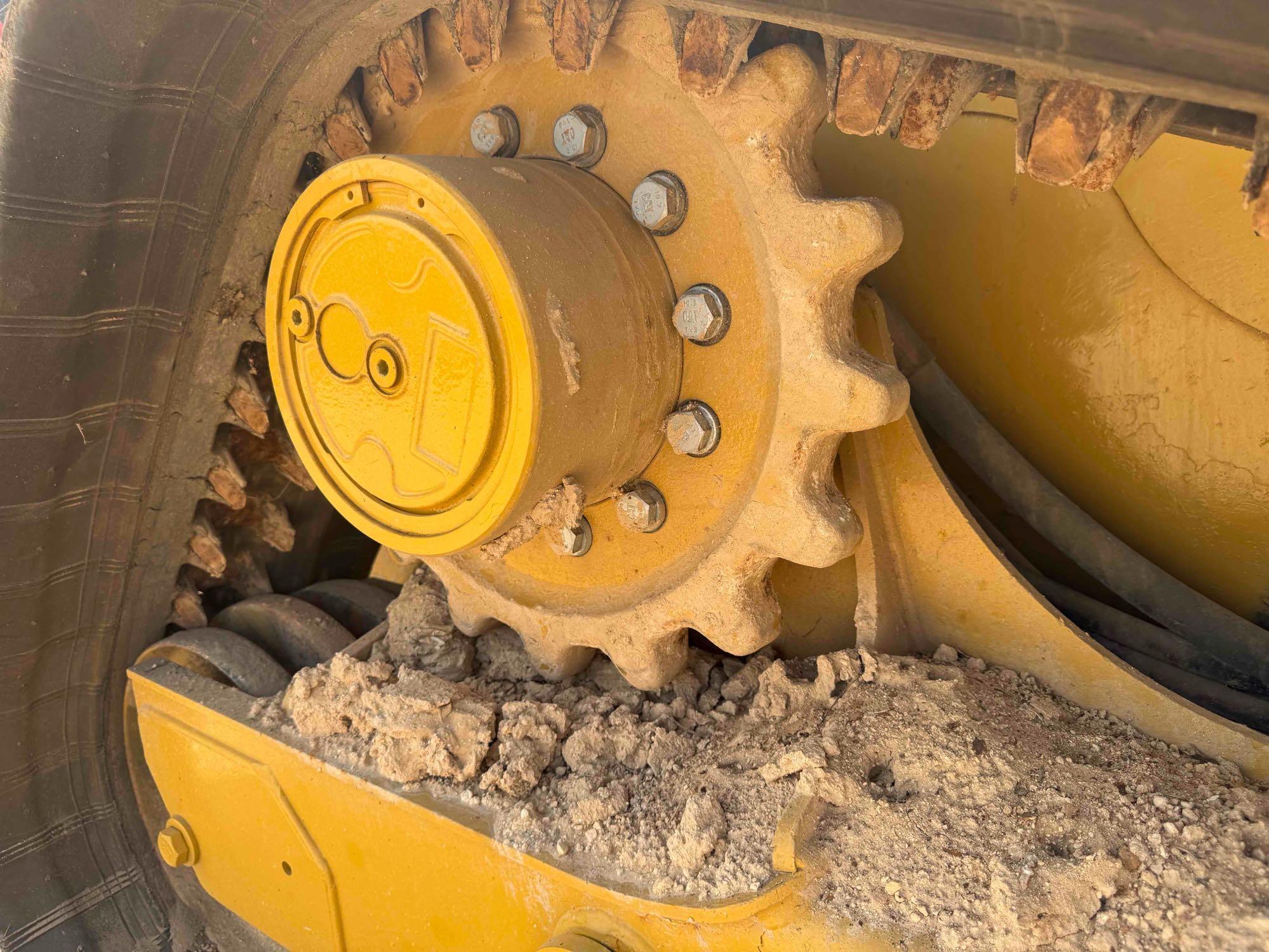

A Length of track on ground (Since 2016)
|
70 in (177 cm)
|
|
A Length of track on ground (2017)
|
70 in (177 cm)
|
|
A Length of track on ground (2018)
|
70 in (177 cm)
|
|
A Length of track on ground (2019)
|
70 in (177 cm)
|
|
B Overall length of track (Since 2016)
|
89 in (227 cm)
|
|
B Overall length of track (2017)
|
89 in (227 cm)
|
|
B Overall length of track (2018)
|
89 in (227 cm)
|
|
B Overall length of track (2019)
|
89 in (227 cm)
|
|
Blade surface height at level lift arms (Since 2016)
|
55 in (139 cm)
|
|
Blade surface height at level lift arms (Since 2016)
|
55 in (139 cm)
|
|
Blade surface height at level lift arms (Since 2016)
|
55 in (140 cm)
|
|
Blade surface height at level lift arms (Since 2017)
|
55 in (139 cm)
|
|
Blade surface height at level lift arms (Since 2017)
|
55 in (139 cm)
|
|
Blade surface height at level lift arms (Since 2017)
|
55 in (140 cm)
|
|
Blade surface height at level lift arms (Since 2018)
|
55 in (139 cm)
|
|
Blade surface height at level lift arms (Since 2018)
|
55 in (139 cm)
|
|
Blade surface height at level lift arms (Since 2018)
|
55 in (140 cm)
|
|
Blade surface height at level lift arms (Since 2019)
|
55 in (139 cm)
|
|
Blade surface height at level lift arms (Since 2019)
|
55 in (139 cm)
|
|
Blade surface height at level lift arms (Since 2019)
|
55 in (140 cm)
|
|
Blade surface height at maximum height (Since 2016)
|
121 in (308 cm)
|
|
Blade surface height at maximum height (Since 2016)
|
121 in (307 cm)
|
|
Blade surface height at maximum height (Since 2016)
|
121 in (308 cm)
|
|
Blade surface height at maximum height (Since 2017)
|
121 in (308 cm)
|
|
Blade surface height at maximum height (Since 2017)
|
121 in (307 cm)
|
|
Blade surface height at maximum height (Since 2017)
|
121 in (308 cm)
|
|
Blade surface height at maximum height (Since 2018)
|
121 in (308 cm)
|
|
Blade surface height at maximum height (Since 2018)
|
121 in (307 cm)
|
|
Blade surface height at maximum height (Since 2018)
|
121 in (308 cm)
|
|
Blade surface height at maximum height (Since 2019)
|
121 in (308 cm)
|
|
Blade surface height at maximum height (Since 2019)
|
121 in (307 cm)
|
|
Blade surface height at maximum height (Since 2019)
|
121 in (308 cm)
|
|
Blade surface height at minimum lift (Since 2016)
|
1 in (3 cm)
|
|
Blade surface height at minimum lift (Since 2016)
|
1 in (3 cm)
|
|
Blade surface height at minimum lift (Since 2016)
|
1 in (3 cm)
|
|
Blade surface height at minimum lift (Since 2017)
|
1 in (3 cm)
|
|
Blade surface height at minimum lift (Since 2017)
|
1 in (3 cm)
|
|
Blade surface height at minimum lift (Since 2017)
|
1 in (3 cm)
|
|
Blade surface height at minimum lift (Since 2018)
|
1 in (3 cm)
|
|
Blade surface height at minimum lift (Since 2018)
|
1 in (3 cm)
|
|
Blade surface height at minimum lift (Since 2018)
|
1 in (3 cm)
|
|
Blade surface height at minimum lift (Since 2019)
|
1 in (3 cm)
|
|
Blade surface height at minimum lift (Since 2019)
|
1 in (3 cm)
|
|
Blade surface height at minimum lift (Since 2019)
|
1 in (3 cm)
|
|
Bore (Since 2016)
|
4 in (10 cm)
|
|
Bore (2017)
|
4 in (10 cm)
|
|
Bore (2018)
|
4 in (10 cm)
|
|
Bore (2019)
|
4 in (10 cm)
|
|
Breakout force - lift (Since 2016)
|
5,884 lbs (2,669 kg)
|
|
Breakout force - lift (Since 2016)
|
5,652 lbs (2,564 kg)
|
|
Breakout force - lift (Since 2016)
|
6,013 lbs (2,727 kg)
|
|
Breakout force - lift (Since 2016)
|
5,616 lbs (2,547 kg)
|
|
Breakout force - lift (Since 2016)
|
5,571 lbs (2,527 kg)
|
|
Breakout force - lift (Since 2017)
|
5,884 lbs (2,669 kg)
|
|
Breakout force - lift (Since 2017)
|
5,652 lbs (2,564 kg)
|
|
Breakout force - lift (Since 2017)
|
6,013 lbs (2,727 kg)
|
|
Breakout force - lift (Since 2017)
|
5,616 lbs (2,547 kg)
|
|
Breakout force - lift (Since 2017)
|
5,571 lbs (2,527 kg)
|
|
Breakout force - lift (Since 2018)
|
5,884 lbs (2,669 kg)
|
|
Breakout force - lift (Since 2018)
|
5,652 lbs (2,564 kg)
|
|
Breakout force - lift (Since 2018)
|
6,013 lbs (2,727 kg)
|
|
Breakout force - lift (Since 2018)
|
5,616 lbs (2,547 kg)
|
|
Breakout force - lift (Since 2018)
|
5,571 lbs (2,527 kg)
|
|
Breakout force - lift (Since 2019)
|
5,884 lbs (2,669 kg)
|
|
Breakout force - lift (Since 2019)
|
5,652 lbs (2,564 kg)
|
|
Breakout force - lift (Since 2019)
|
6,013 lbs (2,727 kg)
|
|
Breakout force - lift (Since 2019)
|
5,616 lbs (2,547 kg)
|
|
Breakout force - lift (Since 2019)
|
5,571 lbs (2,527 kg)
|
|
Breakout force - tilt (Since 2016)
|
6,412 lbs (2,908 kg)
|
|
Breakout force - tilt (Since 2016)
|
5,708 lbs (2,589 kg)
|
|
Breakout force - tilt (Since 2016)
|
6,864 lbs (3,113 kg)
|
|
Breakout force - tilt (Since 2016)
|
6,259 lbs (2,839 kg)
|
|
Breakout force - tilt (Since 2016)
|
6,232 lbs (2,827 kg)
|
|
Breakout force - tilt (Since 2017)
|
6,412 lbs (2,908 kg)
|
|
Breakout force - tilt (Since 2017)
|
5,708 lbs (2,589 kg)
|
|
Breakout force - tilt (Since 2017)
|
6,864 lbs (3,113 kg)
|
|
Breakout force - tilt (Since 2017)
|
6,259 lbs (2,839 kg)
|
|
Breakout force - tilt (Since 2017)
|
6,232 lbs (2,827 kg)
|
|
Breakout force - tilt (Since 2018)
|
6,412 lbs (2,908 kg)
|
|
Breakout force - tilt (Since 2018)
|
5,708 lbs (2,589 kg)
|
|
Breakout force - tilt (Since 2018)
|
6,864 lbs (3,113 kg)
|
|
Breakout force - tilt (Since 2018)
|
6,259 lbs (2,839 kg)
|
|
Breakout force - tilt (Since 2018)
|
6,232 lbs (2,827 kg)
|
|
Breakout force - tilt (Since 2019)
|
6,412 lbs (2,908 kg)
|
|
Breakout force - tilt (Since 2019)
|
5,708 lbs (2,589 kg)
|
|
Breakout force - tilt (Since 2019)
|
6,864 lbs (3,113 kg)
|
|
Breakout force - tilt (Since 2019)
|
6,259 lbs (2,839 kg)
|
|
Breakout force - tilt (Since 2019)
|
6,232 lbs (2,827 kg)
|
|
Breakout force, tilt cylinder (Since 2016)
|
7,270 lbs (3,298 kg)
|
|
Breakout force, tilt cylinder (2017)
|
7,270 lbs (3,298 kg)
|
|
Breakout force, tilt cylinder (2018)
|
7,270 lbs (3,298 kg)
|
|
Breakout force, tilt cylinder (2019)
|
7,270 lbs (3,298 kg)
|
|
C Length without bucket (Since 2016)
|
126 in (319 cm)
|
|
C Length without bucket (2017)
|
126 in (319 cm)
|
|
C Length without bucket (2018)
|
126 in (319 cm)
|
|
C Length without bucket (2019)
|
126 in (319 cm)
|
|
Carriage height above blade top (Since 2016)
|
37 in (93 cm)
|
|
Carriage height above blade top (2017)
|
37 in (93 cm)
|
|
Carriage height above blade top (2018)
|
37 in (93 cm)
|
|
Carriage height above blade top (2019)
|
37 in (93 cm)
|
|
Carriage overall width without step (Since 2016)
|
46 in (116 cm)
|
|
Carriage overall width without step (2017)
|
46 in (116 cm)
|
|
Carriage overall width without step (2018)
|
46 in (116 cm)
|
|
Carriage overall width without step (2019)
|
46 in (116 cm)
|
|
Carriage step additional width (Since 2016)
|
4 in (11 cm)
|
|
Carriage step additional width (2017)
|
4 in (11 cm)
|
|
Carriage step additional width (2018)
|
4 in (11 cm)
|
|
Carriage step additional width (2019)
|
4 in (11 cm)
|
|
category (Since 2020)
|
COMPACT TRACK LOADERS |
|
Clearance at maximum lift/level bucket (Since 2016)
|
117 in (297 cm)
|
|
Clearance at maximum lift/level bucket (Since 2016)
|
117 in (297 cm)
|
|
Clearance at maximum lift/level bucket (Since 2016)
|
117 in (298 cm)
|
|
Clearance at maximum lift/level bucket (Since 2016)
|
116 in (296 cm)
|
|
Clearance at maximum lift/level bucket (Since 2016)
|
116 in (295 cm)
|
|
Clearance at maximum lift/level bucket (Since 2017)
|
117 in (297 cm)
|
|
Clearance at maximum lift/level bucket (Since 2017)
|
117 in (297 cm)
|
|
Clearance at maximum lift/level bucket (Since 2017)
|
117 in (298 cm)
|
|
Clearance at maximum lift/level bucket (Since 2017)
|
116 in (296 cm)
|
|
Clearance at maximum lift/level bucket (Since 2017)
|
116 in (295 cm)
|
|
Clearance at maximum lift/level bucket (Since 2018)
|
117 in (297 cm)
|
|
Clearance at maximum lift/level bucket (Since 2018)
|
117 in (297 cm)
|
|
Clearance at maximum lift/level bucket (Since 2018)
|
117 in (298 cm)
|
|
Clearance at maximum lift/level bucket (Since 2018)
|
116 in (296 cm)
|
|
Clearance at maximum lift/level bucket (Since 2018)
|
116 in (295 cm)
|
|
Clearance at maximum lift/level bucket (Since 2019)
|
117 in (297 cm)
|
|
Clearance at maximum lift/level bucket (Since 2019)
|
117 in (297 cm)
|
|
Clearance at maximum lift/level bucket (Since 2019)
|
117 in (298 cm)
|
|
Clearance at maximum lift/level bucket (Since 2019)
|
116 in (296 cm)
|
|
Clearance at maximum lift/level bucket (Since 2019)
|
116 in (295 cm)
|
|
D Length with bucket on ground (Since 2016)
|
155 in (393 cm)
|
|
D Length with bucket on ground (2017)
|
155 in (393 cm)
|
|
D Length with bucket on ground (2018)
|
155 in (393 cm)
|
|
D Length with bucket on ground (2019)
|
155 in (393 cm)
|
|
Dig depth with level bucket (Since 2016)
|
-3 in (-7 cm)
|
|
Dig depth with level bucket (Since 2016)
|
-3 in (-8 cm)
|
|
Dig depth with level bucket (Since 2016)
|
-3 in (-7 cm)
|
|
Dig depth with level bucket (Since 2016)
|
-3 in (-8 cm)
|
|
Dig depth with level bucket (Since 2016)
|
-3 in (-9 cm)
|
|
Dig depth with level bucket (Since 2017)
|
-3 in (-7 cm)
|
|
Dig depth with level bucket (Since 2017)
|
-3 in (-8 cm)
|
|
Dig depth with level bucket (Since 2017)
|
-3 in (-7 cm)
|
|
Dig depth with level bucket (Since 2017)
|
-3 in (-8 cm)
|
|
Dig depth with level bucket (Since 2017)
|
-3 in (-9 cm)
|
|
Dig depth with level bucket (Since 2018)
|
-3 in (-7 cm)
|
|
Dig depth with level bucket (Since 2018)
|
-3 in (-8 cm)
|
|
Dig depth with level bucket (Since 2018)
|
-3 in (-7 cm)
|
|
Dig depth with level bucket (Since 2018)
|
-3 in (-8 cm)
|
|
Dig depth with level bucket (Since 2018)
|
-3 in (-9 cm)
|
|
Dig depth with level bucket (Since 2019)
|
-3 in (-7 cm)
|
|
Dig depth with level bucket (Since 2019)
|
-3 in (-8 cm)
|
|
Dig depth with level bucket (Since 2019)
|
-3 in (-7 cm)
|
|
Dig depth with level bucket (Since 2019)
|
-3 in (-8 cm)
|
|
Dig depth with level bucket (Since 2019)
|
-3 in (-9 cm)
|
|
Displacement (Since 2016)
|
232 cu in (3,800 cu cm)
|
|
Displacement (2017)
|
232 cu in (3,800 cu cm)
|
|
Displacement (2018)
|
232 cu in (3,800 cu cm)
|
|
Displacement (2019)
|
232 cu in (3,800 cu cm)
|
|
Dump (Since 2016)
|
2 |
|
Dump (2017)
|
2 |
|
Dump (2018)
|
2 |
|
Dump (2019)
|
2 |
|
Dump clearance at maximum lift/dump (Since 2016)
|
91 in (232 cm)
|
|
Dump clearance at maximum lift/dump (Since 2016)
|
88 in (224 cm)
|
|
Dump clearance at maximum lift/dump (Since 2016)
|
93 in (236 cm)
|
|
Dump clearance at maximum lift/dump (Since 2016)
|
91 in (230 cm)
|
|
Dump clearance at maximum lift/dump (2016)
|
91 in (230 cm)
|
|
Dump clearance at maximum lift/dump (Since 2017)
|
91 in (232 cm)
|
|
Dump clearance at maximum lift/dump (Since 2017)
|
88 in (224 cm)
|
|
Dump clearance at maximum lift/dump (Since 2017)
|
93 in (236 cm)
|
|
Dump clearance at maximum lift/dump (Since 2017)
|
91 in (230 cm)
|
|
Dump clearance at maximum lift/dump (2017)
|
91 in (230 cm)
|
|
Dump clearance at maximum lift/dump (Since 2018)
|
91 in (232 cm)
|
|
Dump clearance at maximum lift/dump (Since 2018)
|
88 in (224 cm)
|
|
Dump clearance at maximum lift/dump (Since 2018)
|
93 in (236 cm)
|
|
Dump clearance at maximum lift/dump (Since 2018)
|
91 in (230 cm)
|
|
Dump clearance at maximum lift/dump (2018)
|
91 in (230 cm)
|
|
Dump clearance at maximum lift/dump (Since 2019)
|
91 in (232 cm)
|
|
Dump clearance at maximum lift/dump (Since 2019)
|
88 in (224 cm)
|
|
Dump clearance at maximum lift/dump (Since 2019)
|
93 in (236 cm)
|
|
Dump clearance at maximum lift/dump (Since 2019)
|
91 in (230 cm)
|
|
Dump clearance at maximum lift/dump (2019)
|
91 in (230 cm)
|
|
E Height to top of cab (Since 2016)
|
84 in (212 cm)
|
|
E Height to top of cab (2017)
|
84 in (212 cm)
|
|
E Height to top of cab (2018)
|
84 in (212 cm)
|
|
E Height to top of cab (2019)
|
84 in (212 cm)
|
|
Engine Model (Since 2016)
|
C3.8 DIT |
|
Engine Model (2017)
|
C3.8 DIT |
|
Engine Model (2018)
|
C3.8 DIT |
|
Engine Model (2019)
|
C3.8 DIT |
|
ENGINE POWER (Since 2016)
|
95 hp (71 kw)
|
|
ENGINE POWER (2017)
|
95 hp (71 kw)
|
|
ENGINE POWER (2019)
|
95 hp (71 kw)
|
|
ENGINE POWER (2020)
|
95 hp (71 kw)
|
|
F Maximum overall height (Since 2016)
|
159 in (403 cm)
|
|
F Maximum overall height (2017)
|
159 in (403 cm)
|
|
F Maximum overall height (2018)
|
159 in (403 cm)
|
|
F Maximum overall height (2019)
|
159 in (403 cm)
|
|
Floor angle at maximum lift/dump (Since 2016)
|
-54 deg |
|
Floor angle at maximum lift/dump (Since 2016)
|
-54 deg |
|
Floor angle at maximum lift/dump (Since 2016)
|
-54 deg |
|
Floor angle at maximum lift/dump (Since 2017)
|
-54 deg |
|
Floor angle at maximum lift/dump (Since 2017)
|
-54 deg |
|
Floor angle at maximum lift/dump (Since 2017)
|
-54 deg |
|
Floor angle at maximum lift/dump (Since 2018)
|
-54 deg |
|
Floor angle at maximum lift/dump (Since 2018)
|
-54 deg |
|
Floor angle at maximum lift/dump (Since 2018)
|
-54 deg |
|
Floor angle at maximum lift/dump (Since 2019)
|
-54 deg |
|
Floor angle at maximum lift/dump (Since 2019)
|
-54 deg |
|
Floor angle at maximum lift/dump (Since 2019)
|
-54 deg |
|
Floor angle at maximum lift/rack back (Since 2016)
|
81 deg |
|
Floor angle at maximum lift/rack back (Since 2016)
|
81 deg |
|
Floor angle at maximum lift/rack back (Since 2016)
|
81 deg |
|
Floor angle at maximum lift/rack back (Since 2017)
|
81 deg |
|
Floor angle at maximum lift/rack back (Since 2017)
|
81 deg |
|
Floor angle at maximum lift/rack back (Since 2017)
|
81 deg |
|
Floor angle at maximum lift/rack back (Since 2018)
|
81 deg |
|
Floor angle at maximum lift/rack back (Since 2018)
|
81 deg |
|
Floor angle at maximum lift/rack back (Since 2018)
|
81 deg |
|
Floor angle at maximum lift/rack back (Since 2019)
|
81 deg |
|
Floor angle at maximum lift/rack back (Since 2019)
|
81 deg |
|
Floor angle at maximum lift/rack back (Since 2019)
|
81 deg |
|
Flywheel Power - Gross (SAE J1995) (Since 2016)
|
98 hp (73 kw)
|
|
Flywheel Power - Gross (SAE J1995) (2017)
|
98 hp (73 kw)
|
|
Flywheel Power - Gross (SAE J1995) (2018)
|
98 hp (73 kw)
|
|
Flywheel Power - Gross (SAE J1995) (2019)
|
98 hp (73 kw)
|
|
Flywheel Power - Net (SAE 1349) (Since 2016)
|
95 hp (71 kw)
|
|
Flywheel Power - Net (SAE 1349) (2017)
|
95 hp (71 kw)
|
|
Flywheel Power - Net (SAE 1349) (2018)
|
95 hp (71 kw)
|
|
Flywheel Power - Net (SAE 1349) (2019)
|
95 hp (71 kw)
|
|
Front clearance circle radius (with bucket) (Since 2016)
|
94 in (239 cm)
|
|
Front clearance circle radius (with bucket) (Since 2016)
|
98 in (250 cm)
|
|
Front clearance circle radius (with bucket) (Since 2016)
|
92 in (234 cm)
|
|
Front clearance circle radius (with bucket) (Since 2016)
|
94 in (240 cm)
|
|
Front clearance circle radius (with bucket) (Since 2016)
|
96 in (243 cm)
|
|
Front clearance circle radius (with bucket) (Since 2017)
|
94 in (239 cm)
|
|
Front clearance circle radius (with bucket) (Since 2017)
|
98 in (250 cm)
|
|
Front clearance circle radius (with bucket) (Since 2017)
|
92 in (234 cm)
|
|
Front clearance circle radius (with bucket) (Since 2017)
|
94 in (240 cm)
|
|
Front clearance circle radius (with bucket) (Since 2017)
|
96 in (243 cm)
|
|
Front clearance circle radius (with bucket) (Since 2018)
|
94 in (239 cm)
|
|
Front clearance circle radius (with bucket) (Since 2018)
|
98 in (250 cm)
|
|
Front clearance circle radius (with bucket) (Since 2018)
|
92 in (234 cm)
|
|
Front clearance circle radius (with bucket) (Since 2018)
|
94 in (240 cm)
|
|
Front clearance circle radius (with bucket) (Since 2018)
|
96 in (243 cm)
|
|
Front clearance circle radius (with bucket) (Since 2019)
|
94 in (239 cm)
|
|
Front clearance circle radius (with bucket) (Since 2019)
|
98 in (250 cm)
|
|
Front clearance circle radius (with bucket) (Since 2019)
|
92 in (234 cm)
|
|
Front clearance circle radius (with bucket) (Since 2019)
|
94 in (240 cm)
|
|
Front clearance circle radius (with bucket) (Since 2019)
|
96 in (243 cm)
|
|
Fuel Tank Capacity (Since 2016)
|
32 US gal (122 L)
|
|
Fuel Tank Capacity (2017)
|
32 US gal (122 L)
|
|
Fuel Tank Capacity (2018)
|
32 US gal (122 L)
|
|
Fuel Tank Capacity (2019)
|
32 US gal (122 L)
|
|
G Bucket pin height at maximum lift (Since 2016)
|
126 in (321 cm)
|
|
G Bucket pin height at maximum lift (2017)
|
126 in (321 cm)
|
|
G Bucket pin height at maximum lift (2018)
|
126 in (321 cm)
|
|
G Bucket pin height at maximum lift (2019)
|
126 in (321 cm)
|
|
Ground Clearance (Since 2016)
|
10 in (24 cm)
|
|
Ground Clearance (2017)
|
10 in (24 cm)
|
|
Ground Clearance (2018)
|
10 in (24 cm)
|
|
Ground Clearance (2019)
|
10 in (24 cm)
|
|
Ground pressure (Since 2016)
|
5 psi (36 kPa)
|
|
Ground pressure (Since 2016)
|
6 psi (39 kPa)
|
|
Ground pressure (Since 2016)
|
6 psi (38 kPa)
|
|
Ground pressure (Since 2017)
|
5 psi (36 kPa)
|
|
Ground pressure (Since 2017)
|
6 psi (39 kPa)
|
|
Ground pressure (Since 2017)
|
6 psi (38 kPa)
|
|
Ground pressure (Since 2018)
|
5 psi (36 kPa)
|
|
Ground pressure (Since 2018)
|
6 psi (39 kPa)
|
|
Ground pressure (Since 2018)
|
6 psi (38 kPa)
|
|
Ground pressure (Since 2019)
|
5 psi (36 kPa)
|
|
Ground pressure (Since 2019)
|
6 psi (39 kPa)
|
|
Ground pressure (Since 2019)
|
6 psi (38 kPa)
|
|
H Bucket pin height at carry position (Since 2016)
|
7 in (18 cm)
|
|
H Bucket pin height at carry position (2017)
|
7 in (18 cm)
|
|
H Bucket pin height at carry position (2018)
|
7 in (18 cm)
|
|
H Bucket pin height at carry position (2019)
|
7 in (18 cm)
|
|
Hinge pin height at maximum lift (Since 2016)
|
126 in (321 cm)
|
|
Hinge pin height at maximum lift (Since 2016)
|
126 in (320 cm)
|
|
Hinge pin height at maximum lift (Since 2016)
|
126 in (321 cm)
|
|
Hinge pin height at maximum lift (Since 2016)
|
126 in (320 cm)
|
|
Hinge pin height at maximum lift (2016)
|
126 in (320 cm)
|
|
Hinge pin height at maximum lift (Since 2017)
|
126 in (321 cm)
|
|
Hinge pin height at maximum lift (Since 2017)
|
126 in (320 cm)
|
|
Hinge pin height at maximum lift (Since 2017)
|
126 in (321 cm)
|
|
Hinge pin height at maximum lift (Since 2017)
|
126 in (320 cm)
|
|
Hinge pin height at maximum lift (2017)
|
126 in (320 cm)
|
|
Hinge pin height at maximum lift (Since 2018)
|
126 in (321 cm)
|
|
Hinge pin height at maximum lift (Since 2018)
|
126 in (320 cm)
|
|
Hinge pin height at maximum lift (Since 2018)
|
126 in (321 cm)
|
|
Hinge pin height at maximum lift (Since 2018)
|
126 in (320 cm)
|
|
Hinge pin height at maximum lift (2018)
|
126 in (320 cm)
|
|
Hinge pin height at maximum lift (Since 2019)
|
126 in (321 cm)
|
|
Hinge pin height at maximum lift (Since 2019)
|
126 in (320 cm)
|
|
Hinge pin height at maximum lift (Since 2019)
|
126 in (321 cm)
|
|
Hinge pin height at maximum lift (Since 2019)
|
126 in (320 cm)
|
|
Hinge pin height at maximum lift (2019)
|
126 in (320 cm)
|
|

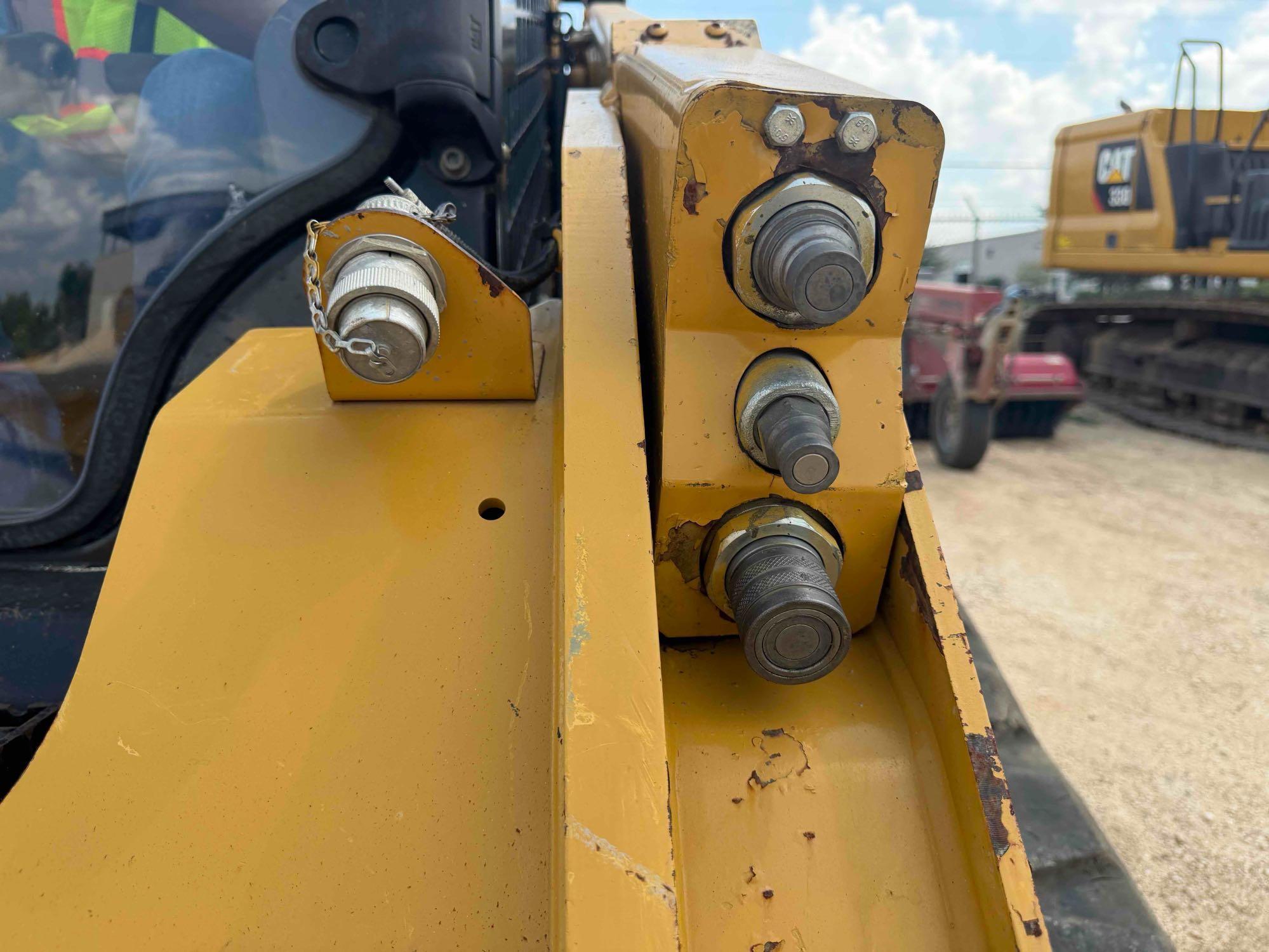

Hydraulic Pressure, High Flow/XPS (Since 2016)
|
4,061 psi (28,000 kPa)
|
|
Hydraulic Pressure, High Flow/XPS (2017)
|
4,061 psi (28,000 kPa)
|
|
Hydraulic Pressure, High Flow/XPS (2018)
|
4,061 psi (28,000 kPa)
|
|
Hydraulic Pressure, High Flow/XPS (2019)
|
4,061 psi (28,000 kPa)
|
|
Hydraulic Pressure, Standard (Since 2016)
|
3,336 psi (23,000 kPa)
|
|
Hydraulic Pressure, Standard (2017)
|
3,336 psi (23,000 kPa)
|
|
Hydraulic Pressure, Standard (2018)
|
3,336 psi (23,000 kPa)
|
|
Hydraulic Pressure, Standard (2019)
|
3,336 psi (23,000 kPa)
|
|
Hydraulic Pump Capacity, - High Flow/XPS (Since 2016)
|
32 US gpm (121 L/min)
|
|
Hydraulic Pump Capacity, - High Flow/XPS (2017)
|
32 US gpm (121 L/min)
|
|
Hydraulic Pump Capacity, - High Flow/XPS (2018)
|
32 US gpm (121 L/min)
|
|
Hydraulic Pump Capacity, - High Flow/XPS (2019)
|
32 US gpm (121 L/min)
|
|
Hydraulic Pump Capacity, Standard (Since 2016)
|
23 US gpm (86 L/min)
|
|
Hydraulic Pump Capacity, Standard (2017)
|
23 US gpm (86 L/min)
|
|
Hydraulic Pump Capacity, Standard (2018)
|
23 US gpm (86 L/min)
|
|
Hydraulic Pump Capacity, Standard (2019)
|
23 US gpm (86 L/min)
|
|
Hydraulic System Capacity - (includes tank) (Since 2016)
|
15 US gal (55 L)
|
|
Hydraulic System Capacity - (includes tank) (2017)
|
15 US gal (55 L)
|
|
Hydraulic System Capacity - (includes tank) (2018)
|
15 US gal (55 L)
|
|
Hydraulic System Capacity - (includes tank) (2019)
|
15 US gal (55 L)
|
|
Hydraulic Tank Capacity (Since 2016)
|
10 US gal (39 L)
|
|
Hydraulic Tank Capacity (2017)
|
10 US gal (39 L)
|
|
Hydraulic Tank Capacity (2018)
|
10 US gal (39 L)
|
|
Hydraulic Tank Capacity (2019)
|
10 US gal (39 L)
|
|
J Reach at maximum lift and dump (Since 2016)
|
34 in (85 cm)
|
|
J Reach at maximum lift and dump (2017)
|
34 in (85 cm)
|
|
J Reach at maximum lift and dump (2018)
|
34 in (85 cm)
|
|
J Reach at maximum lift and dump (2019)
|
34 in (85 cm)
|
|
K Clearance at maximum lift and dump (Since 2016)
|
95 in (240 cm)
|
|
K Clearance at maximum lift and dump (2017)
|
95 in (240 cm)
|
|
K Clearance at maximum lift and dump (2018)
|
95 in (240 cm)
|
|
K Clearance at maximum lift and dump (2019)
|
95 in (240 cm)
|
|
L Ground clearance (Since 2016)
|
10 in (24 cm)
|
|
L Ground clearance (2017)
|
10 in (24 cm)
|
|
L Ground clearance (2018)
|
10 in (24 cm)
|
|
L Ground clearance (2019)
|
10 in (24 cm)
|
|
Lower (Empty, Float Down) (Since 2016)
|
5 |
|
Lower (Empty, Float Down) (2017)
|
5 |
|
Lower (Empty, Float Down) (2018)
|
5 |
|
Lower (Empty, Float Down) (2019)
|
5 |
|
M Departure angle (Since 2016)
|
33 deg |
|
M Departure angle (2017)
|
33 deg |
|
M Departure angle (2018)
|
33 deg |
|
M Departure angle (2019)
|
33 deg |
|
Maximum floor angle at minimum lift (Since 2016)
|
25 deg |
|
Maximum floor angle at minimum lift (Since 2016)
|
25 deg |
|
Maximum floor angle at minimum lift (Since 2016)
|
25 deg |
|
Maximum floor angle at minimum lift (Since 2017)
|
25 deg |
|
Maximum floor angle at minimum lift (Since 2017)
|
25 deg |
|
Maximum floor angle at minimum lift (Since 2017)
|
25 deg |
|
Maximum floor angle at minimum lift (Since 2018)
|
25 deg |
|
Maximum floor angle at minimum lift (Since 2018)
|
25 deg |
|
Maximum floor angle at minimum lift (Since 2018)
|
25 deg |
|
Maximum floor angle at minimum lift (Since 2019)
|
25 deg |
|
Maximum floor angle at minimum lift (Since 2019)
|
25 deg |
|
Maximum floor angle at minimum lift (Since 2019)
|
25 deg |
|
Maximum overall height (Since 2016)
|
162 in (410 cm)
|
|
Maximum overall height (Since 2016)
|
165 in (420 cm)
|
|
Maximum overall height (Since 2016)
|
160 in (405 cm)
|
|
Maximum overall height (Since 2016)
|
162 in (410 cm)
|
|
Maximum overall height (Since 2016)
|
162 in (410 cm)
|
|
Maximum overall height (Since 2017)
|
162 in (410 cm)
|
|
Maximum overall height (Since 2017)
|
165 in (420 cm)
|
|
Maximum overall height (Since 2017)
|
160 in (405 cm)
|
|
Maximum overall height (Since 2017)
|
162 in (410 cm)
|
|
Maximum overall height (Since 2017)
|
162 in (410 cm)
|
|
Maximum overall height (Since 2018)
|
162 in (410 cm)
|
|
Maximum overall height (Since 2018)
|
165 in (420 cm)
|
|
Maximum overall height (Since 2018)
|
160 in (405 cm)
|
|
Maximum overall height (Since 2018)
|
162 in (410 cm)
|
|
Maximum overall height (Since 2018)
|
162 in (410 cm)
|
|
Maximum overall height (Since 2019)
|
162 in (410 cm)
|
|
Maximum overall height (Since 2019)
|
165 in (420 cm)
|
|
Maximum overall height (Since 2019)
|
160 in (405 cm)
|
|
Maximum overall height (Since 2019)
|
162 in (410 cm)
|
|
Maximum overall height (Since 2019)
|
162 in (410 cm)
|
|

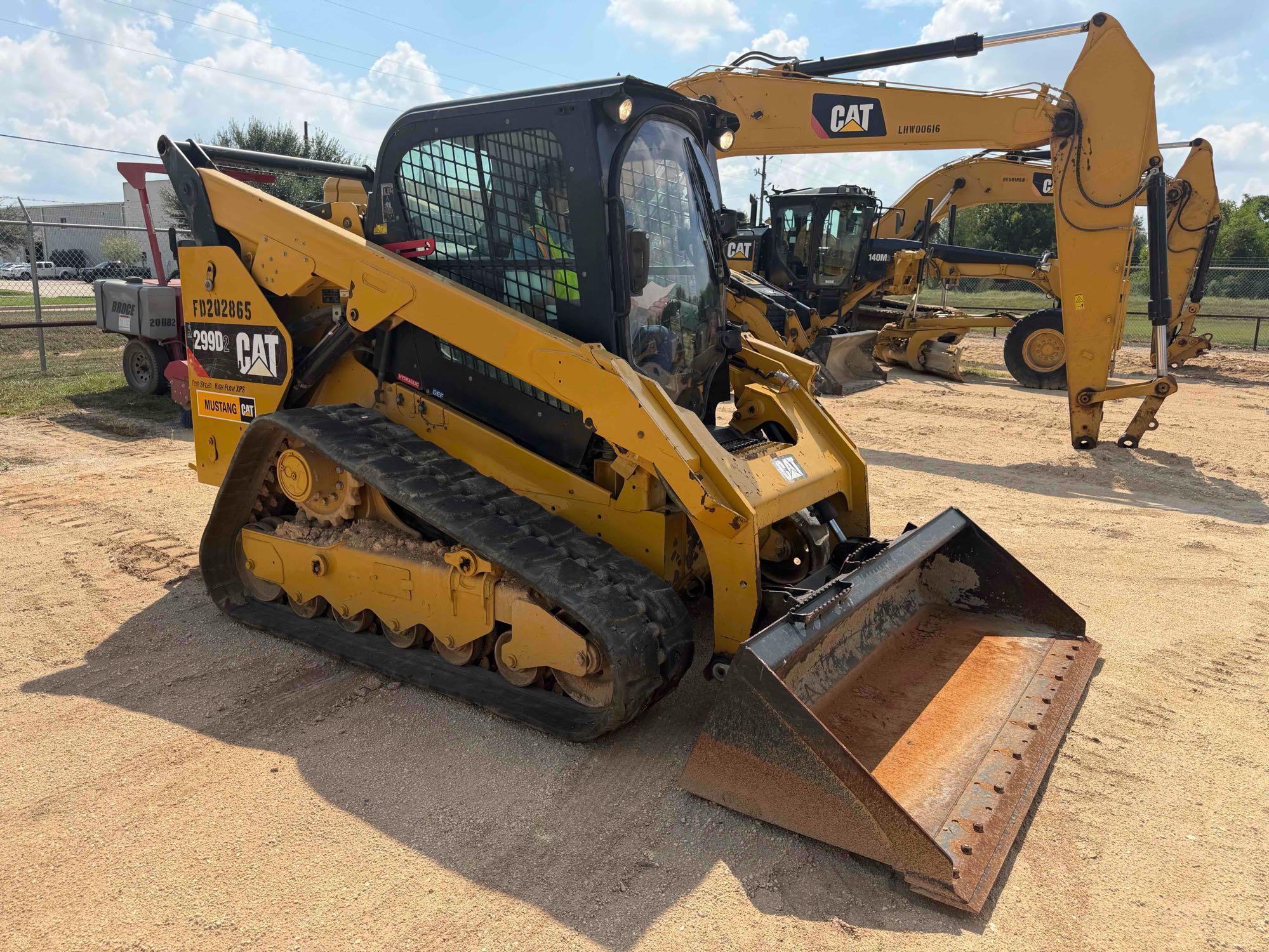

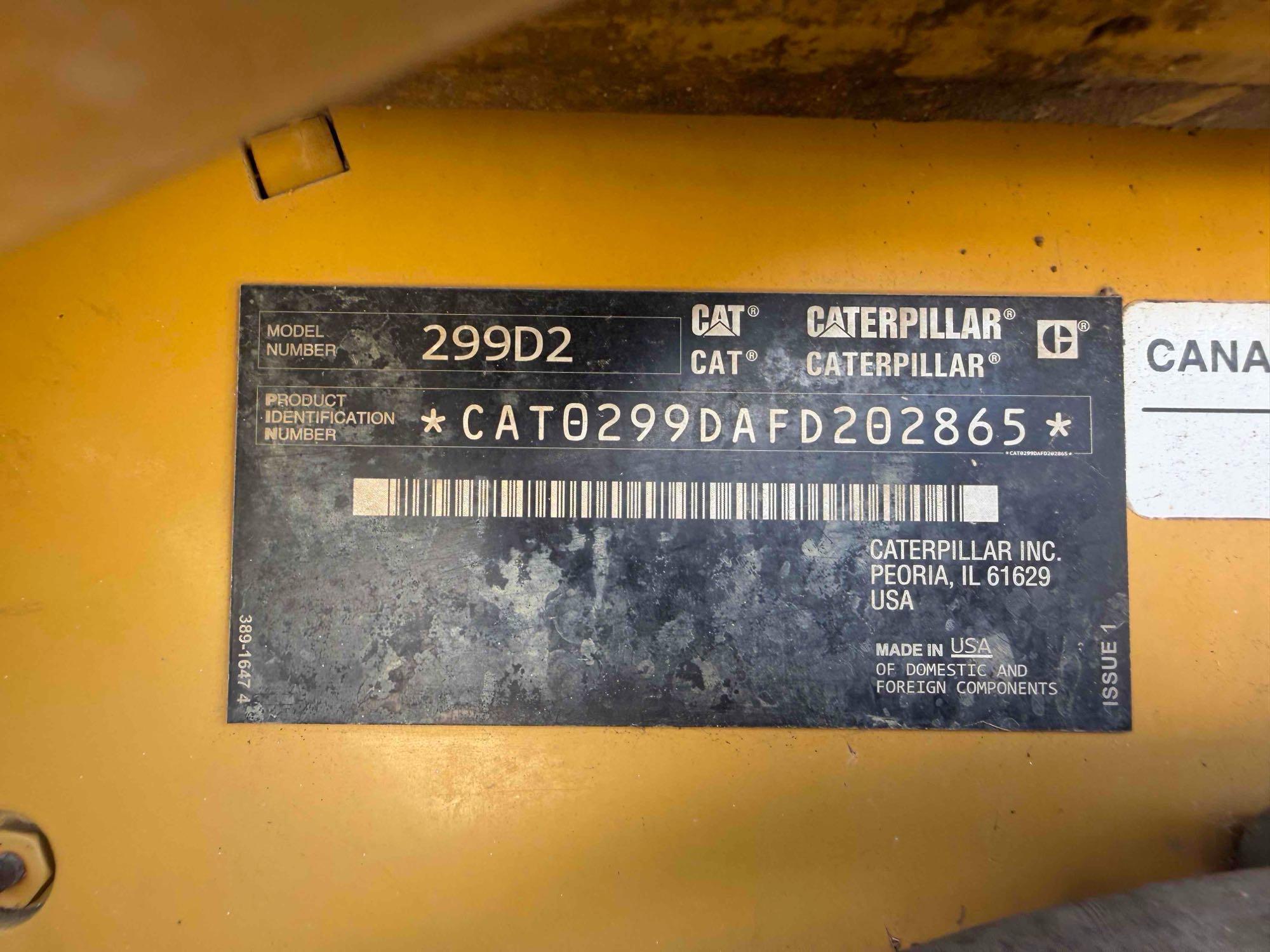

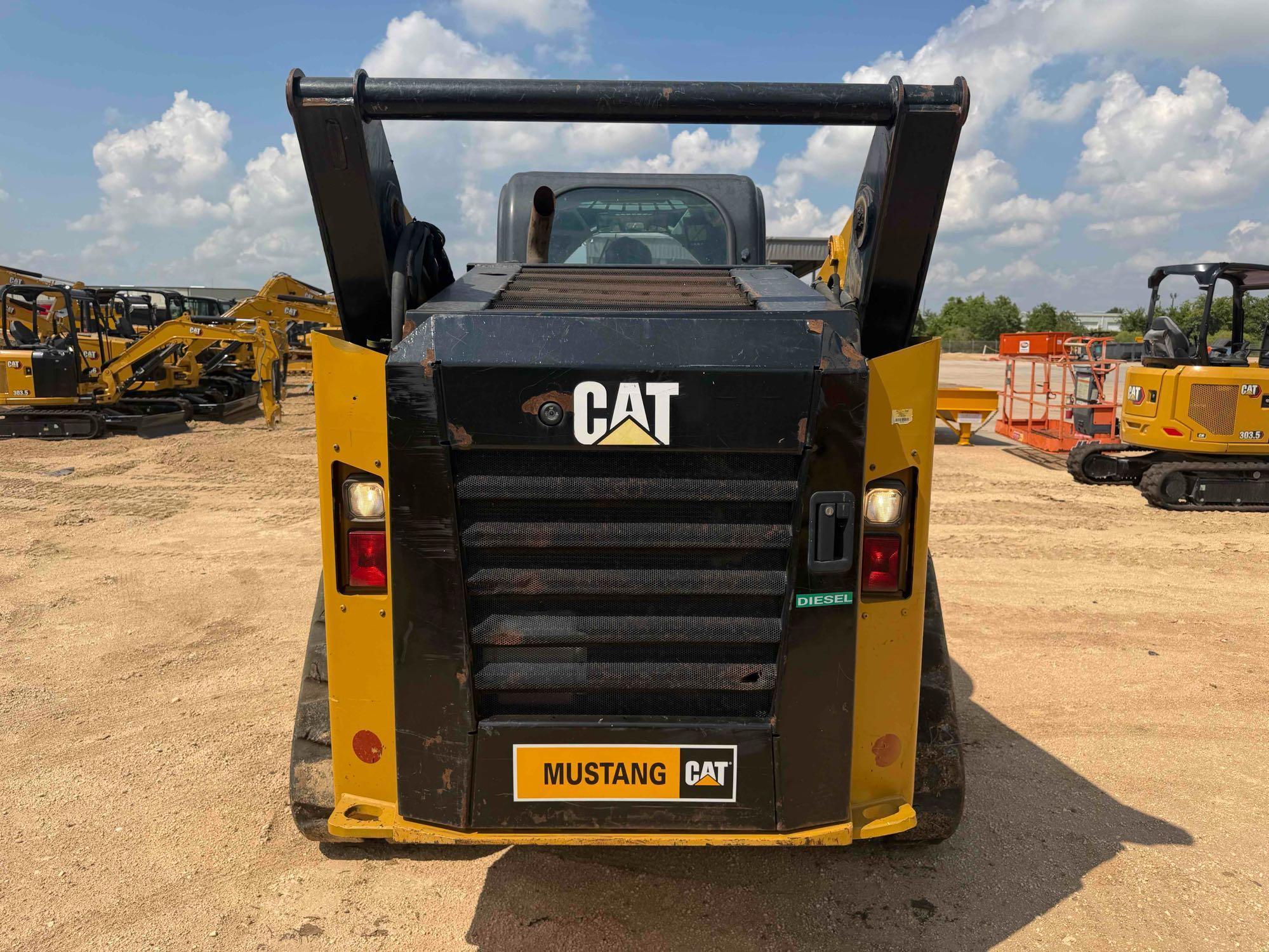

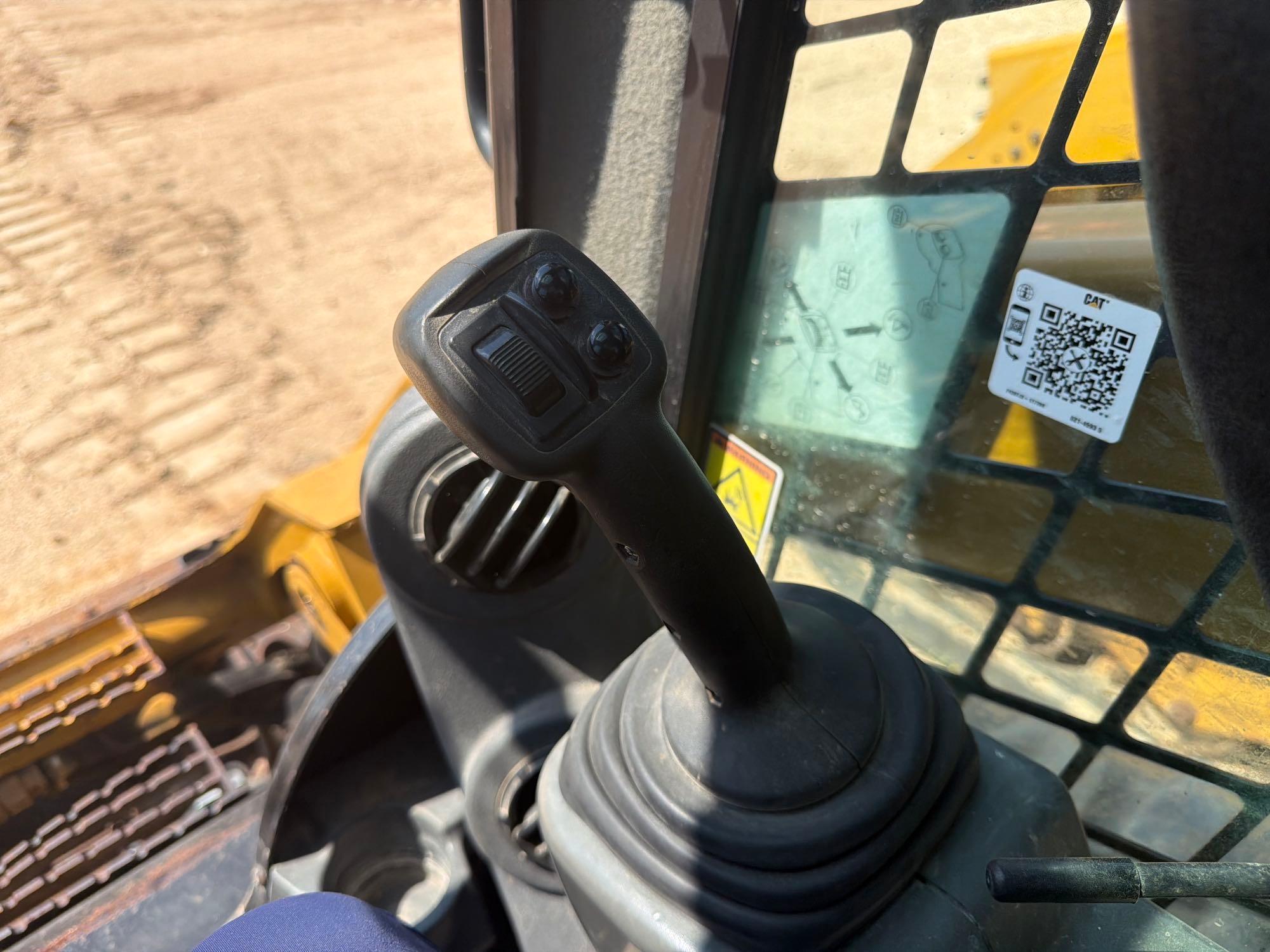

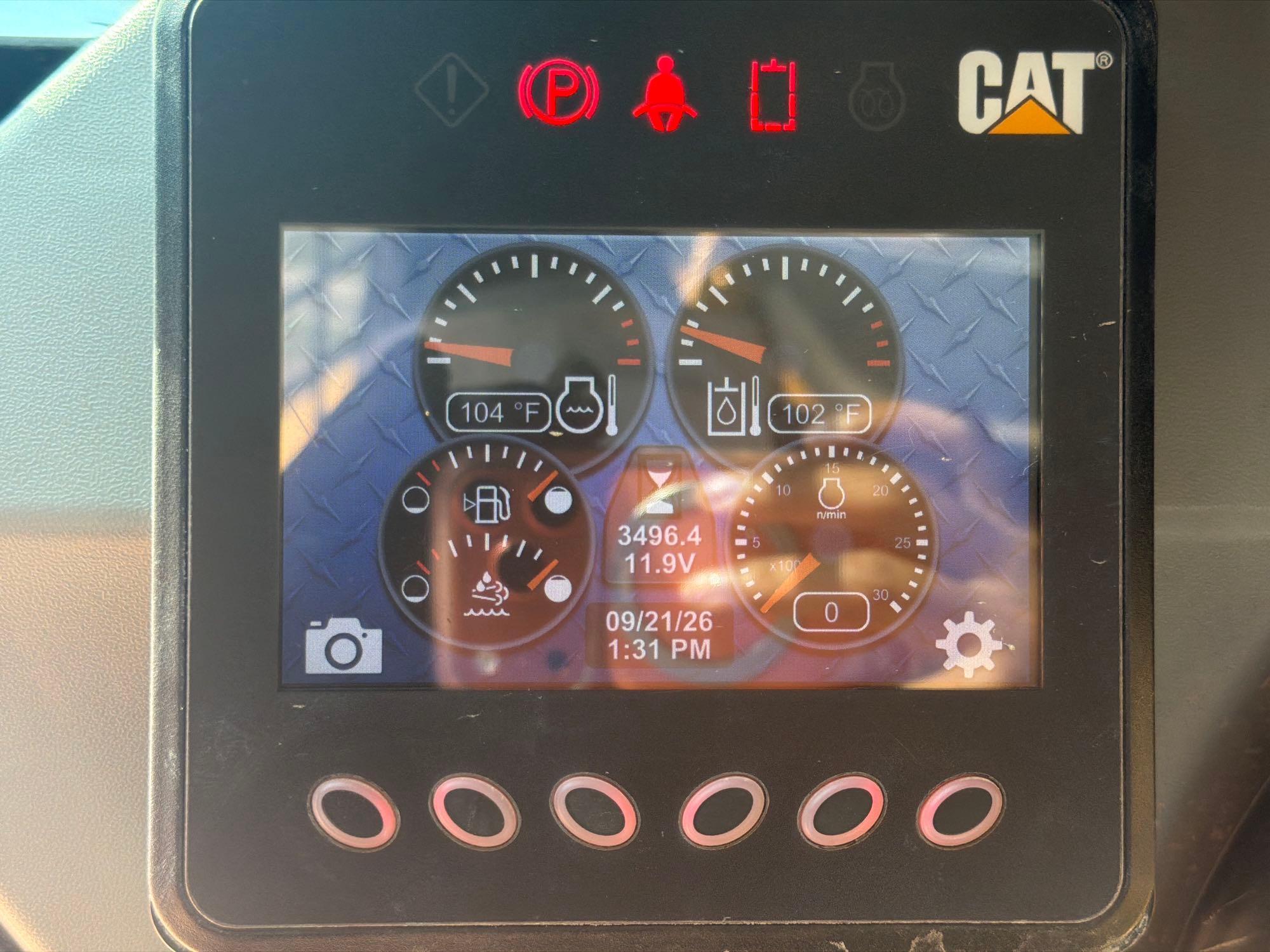

MODEL (Since 2016)
|
299D2 |
|
MODEL (2017)
|
299D2 |
|
MODEL (2019)
|
299D2 |
|
MODEL (2020)
|
299D2 |
|
N Maximum dump angle (Since 2016)
|
54 deg |
|
N Maximum dump angle (2017)
|
54 deg |
|
N Maximum dump angle (2018)
|
54 deg |
|
N Maximum dump angle (2019)
|
54 deg |
|
No. Cylinders (Since 2016)
|
4 |
|
No. Cylinders (2017)
|
4 |
|
No. Cylinders (2018)
|
4 |
|
No. Cylinders (2019)
|
4 |
|
O Vehicle width (Since 2016)
|
76 in (193 cm)
|
|
O Vehicle width (2017)
|
76 in (193 cm)
|
|
O Vehicle width (2018)
|
76 in (193 cm)
|
|
O Vehicle width (2019)
|
76 in (193 cm)
|
|
One Speed Forward (Since 2016)
|
5 mph (8 kph)
|
|
One Speed Forward (2017)
|
5 mph (8 kph)
|
|
One Speed Forward (2018)
|
5 mph (8 kph)
|
|
One Speed Forward (2019)
|
5 mph (8 kph)
|
|
One Speed Reverse (Since 2016)
|
5 mph (8 kph)
|
|
One Speed Reverse (2017)
|
5 mph (8 kph)
|
|
One Speed Reverse (2018)
|
5 mph (8 kph)
|
|
One Speed Reverse (2019)
|
5 mph (8 kph)
|
|
OPERATING LOAD (Since 2016)
|
4,600 lbs (2,087 kg)
|
|
OPERATING LOAD (2017)
|
4,600 lbs (2,087 kg)
|
|
Operating weight (Since 2016)
|
11,405 lbs (5,173 kg)
|
|
Operating weight (Since 2016)
|
11,487 lbs (5,210 kg)
|
|
Operating weight (Since 2016)
|
11,363 lbs (5,154 kg)
|
|
Operating weight (Since 2016)
|
11,728 lbs (5,320 kg)
|
|
Operating weight (Since 2016)
|
11,781 lbs (5,344 kg)
|
|
Operating weight (Since 2016)
|
11,189 lbs (5,075 kg)
|
|
Operating weight (Since 2016)
|
11,210 lbs (5,085 kg)
|
|
Operating weight (Since 2016)
|
11,166 lbs (5,065 kg)
|
|
Operating weight (Since 2016)
|
11,275 lbs (5,114 kg)
|
|
Operating weight (Since 2016)
|
12,281 lbs (5,571 kg)
|
|
Operating weight (Since 2016)
|
12,055 lbs (5,468 kg)
|
|
Operating weight (Since 2017)
|
11,405 lbs (5,173 kg)
|
|
Operating weight (Since 2017)
|
11,487 lbs (5,210 kg)
|
|
Operating weight (Since 2017)
|
11,363 lbs (5,154 kg)
|
|
Operating weight (Since 2017)
|
11,728 lbs (5,320 kg)
|
|
Operating weight (Since 2017)
|
11,781 lbs (5,344 kg)
|
|
Operating weight (Since 2017)
|
11,189 lbs (5,075 kg)
|
|
Operating weight (Since 2017)
|
11,210 lbs (5,085 kg)
|
|
Operating weight (Since 2017)
|
11,166 lbs (5,065 kg)
|
|
Operating weight (Since 2017)
|
11,275 lbs (5,114 kg)
|
|
Operating weight (Since 2017)
|
12,281 lbs (5,571 kg)
|
|
Operating weight (Since 2017)
|
12,055 lbs (5,468 kg)
|
|
Operating weight (Since 2018)
|
11,405 lbs (5,173 kg)
|
|
Operating weight (Since 2018)
|
11,487 lbs (5,210 kg)
|
|
Operating weight (Since 2018)
|
11,363 lbs (5,154 kg)
|
|
Operating weight (Since 2018)
|
11,728 lbs (5,320 kg)
|
|
Operating weight (Since 2018)
|
11,781 lbs (5,344 kg)
|
|
Operating weight (Since 2018)
|
11,189 lbs (5,075 kg)
|
|
Operating weight (Since 2018)
|
11,210 lbs (5,085 kg)
|
|
Operating weight (Since 2018)
|
11,166 lbs (5,065 kg)
|
|
Operating weight (Since 2018)
|
11,275 lbs (5,114 kg)
|
|
Operating weight (Since 2018)
|
12,281 lbs (5,571 kg)
|
|
Operating weight (Since 2018)
|
12,055 lbs (5,468 kg)
|
|
Operating weight (Since 2019)
|
11,405 lbs (5,173 kg)
|
|
Operating weight (Since 2019)
|
11,487 lbs (5,210 kg)
|
|
Operating weight (Since 2019)
|
11,363 lbs (5,154 kg)
|
|
Operating weight (Since 2019)
|
11,728 lbs (5,320 kg)
|
|
Operating weight (Since 2019)
|
11,781 lbs (5,344 kg)
|
|
Operating weight (Since 2019)
|
11,189 lbs (5,075 kg)
|
|
Operating weight (Since 2019)
|
11,210 lbs (5,085 kg)
|
|
Operating weight (Since 2019)
|
11,166 lbs (5,065 kg)
|
|
Operating weight (Since 2019)
|
11,275 lbs (5,114 kg)
|
|
Operating weight (Since 2019)
|
12,281 lbs (5,571 kg)
|
|
Operating weight (Since 2019)
|
12,055 lbs (5,468 kg)
|
|
OPERATING WIDTH (Since 2016)
|
76 / 78 |
|
OPERATING WIDTH (2017)
|
76 / 78 |
|
OPERATING WIDTH (2019)
|
76 / 78 |
|
OPERATING WIDTH (2020)
|
76 / 78 |
|
Overall length at minimum lift, level tine (Since 2016)
|
175 in (445 cm)
|
|
Overall length at minimum lift, level tine (Since 2016)
|
181 in (460 cm)
|
|
Overall length at minimum lift, level tine (Since 2016)
|
169 in (429 cm)
|
|
Overall length at minimum lift, level tine (Since 2017)
|
175 in (445 cm)
|
|
Overall length at minimum lift, level tine (Since 2017)
|
181 in (460 cm)
|
|
Overall length at minimum lift, level tine (Since 2017)
|
169 in (429 cm)
|
|
Overall length at minimum lift, level tine (Since 2018)
|
175 in (445 cm)
|
|
Overall length at minimum lift, level tine (Since 2018)
|
181 in (460 cm)
|
|
Overall length at minimum lift, level tine (Since 2018)
|
169 in (429 cm)
|
|
Overall length at minimum lift, level tine (Since 2019)
|
175 in (445 cm)
|
|
Overall length at minimum lift, level tine (Since 2019)
|
181 in (460 cm)
|
|
Overall length at minimum lift, level tine (Since 2019)
|
169 in (429 cm)
|
|
Overall length with bucket on ground (Since 2016)
|
158 in (400 cm)
|
|
Overall length with bucket on ground (Since 2016)
|
161 in (409 cm)
|
|
Overall length with bucket on ground (Since 2016)
|
155 in (395 cm)
|
|
Overall length with bucket on ground (Since 2016)
|
158 in (401 cm)
|
|
Overall length with bucket on ground (Since 2016)
|
158 in (400 cm)
|
|
Overall length with bucket on ground (Since 2017)
|
158 in (400 cm)
|
|
Overall length with bucket on ground (Since 2017)
|
161 in (409 cm)
|
|
Overall length with bucket on ground (Since 2017)
|
155 in (395 cm)
|
|
Overall length with bucket on ground (Since 2017)
|
158 in (401 cm)
|
|
Overall length with bucket on ground (Since 2017)
|
158 in (400 cm)
|
|
Overall length with bucket on ground (Since 2018)
|
158 in (400 cm)
|
|
Overall length with bucket on ground (Since 2018)
|
161 in (409 cm)
|
|
Overall length with bucket on ground (Since 2018)
|
155 in (395 cm)
|
|
Overall length with bucket on ground (Since 2018)
|
158 in (401 cm)
|
|
Overall length with bucket on ground (Since 2018)
|
158 in (400 cm)
|
|
Overall length with bucket on ground (Since 2019)
|
158 in (400 cm)
|
|
Overall length with bucket on ground (Since 2019)
|
161 in (409 cm)
|
|
Overall length with bucket on ground (Since 2019)
|
155 in (395 cm)
|
|
Overall length with bucket on ground (Since 2019)
|
158 in (401 cm)
|
|
Overall length with bucket on ground (Since 2019)
|
158 in (400 cm)
|
|
P Turning radius from center - machine rear (Since 2016)
|
74 in (188 cm)
|
|
P Turning radius from center - machine rear (2017)
|
74 in (188 cm)
|
|
P Turning radius from center - machine rear (2018)
|
74 in (188 cm)
|
|
P Turning radius from center - machine rear (2019)
|
74 in (188 cm)
|
|
Q Turning radius from center - coupler (Since 2016)
|
58 in (148 cm)
|
|
Q Turning radius from center - coupler (2017)
|
58 in (148 cm)
|
|
Q Turning radius from center - coupler (2018)
|
58 in (148 cm)
|
|
Q Turning radius from center - coupler (2019)
|
58 in (148 cm)
|
|
R Turning radius from center - bucket (Since 2016)
|
91 in (231 cm)
|
|
R Turning radius from center - bucket (2017)
|
91 in (231 cm)
|
|
R Turning radius from center - bucket (2018)
|
91 in (231 cm)
|
|
R Turning radius from center - bucket (2019)
|
91 in (231 cm)
|
|
Raise (Since 2016)
|
5 |
|
Raise (2017)
|
5 |
|
Raise (2018)
|
5 |
|
Raise (2019)
|
5 |
|

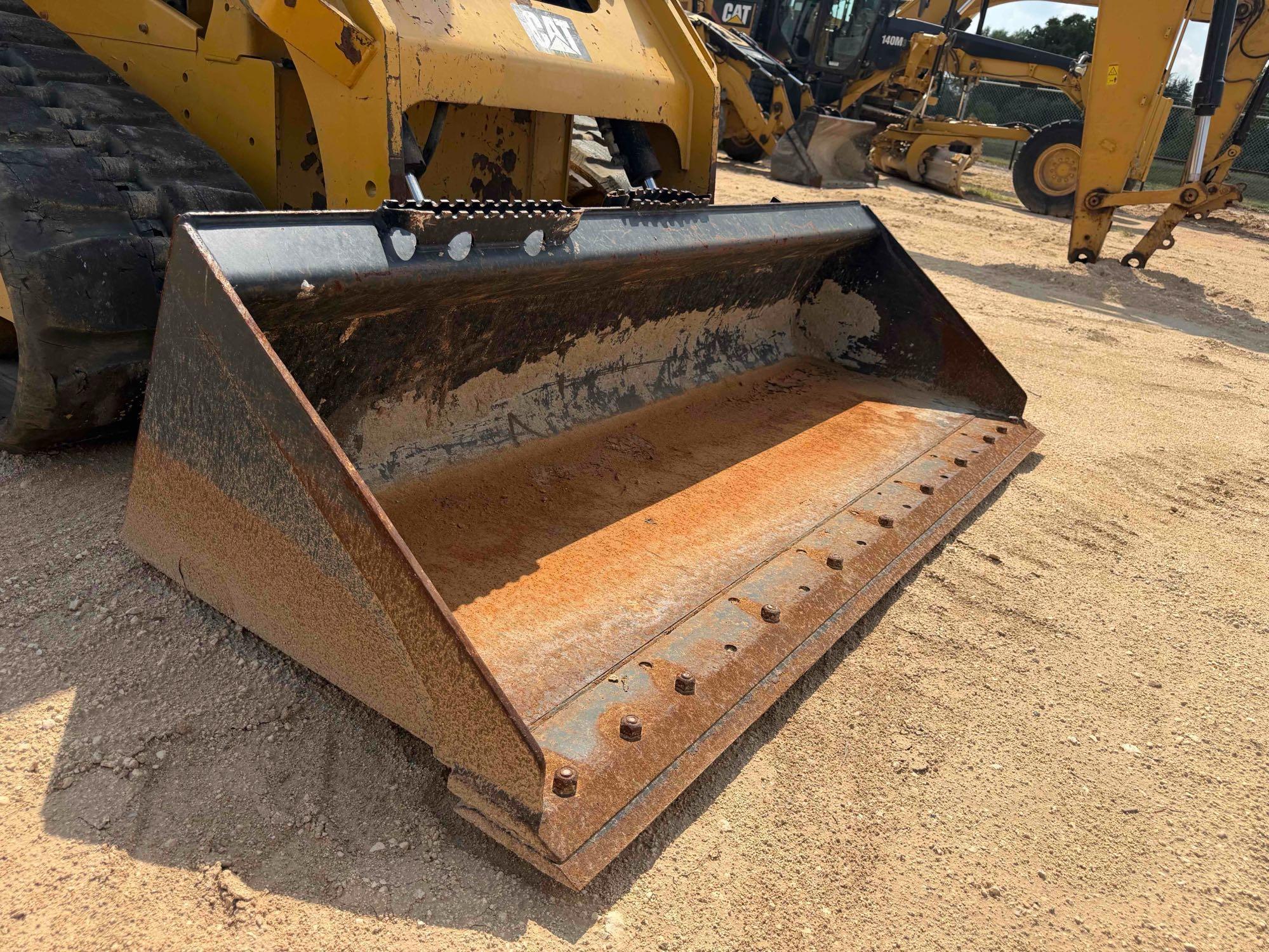

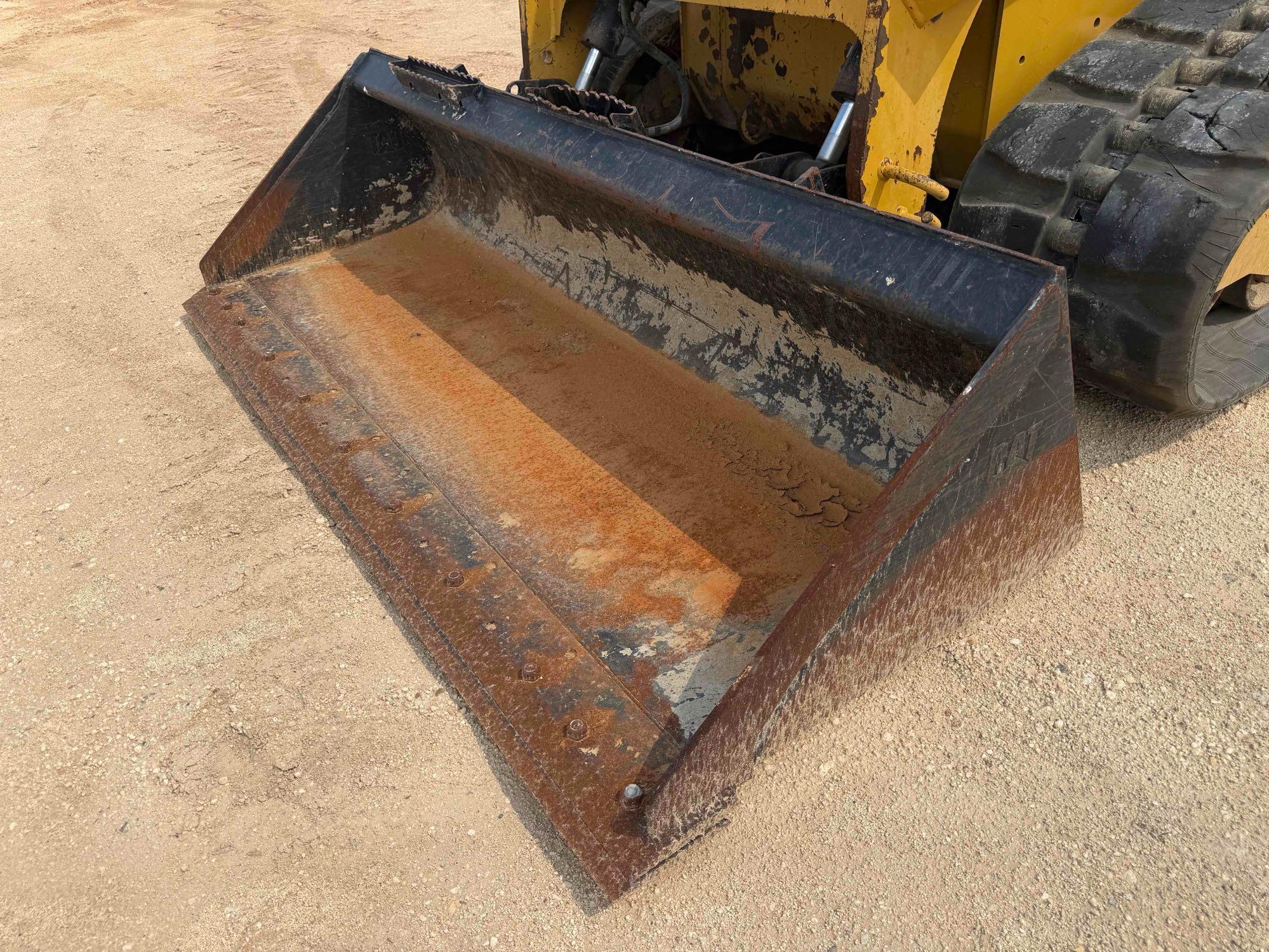

Rated bucket capacity (Since 2016)
|
1 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2016)
|
1 cu yd (1 cu m)
|
|
Rated bucket capacity (Since 2016)
|
1 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2016)
|
1 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2016)
|
1 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2017)
|
1 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2017)
|
1 cu yd (1 cu m)
|
|
Rated bucket capacity (Since 2017)
|
1 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2017)
|
1 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2017)
|
1 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2018)
|
1 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2018)
|
1 cu yd (1 cu m)
|
|
Rated bucket capacity (Since 2018)
|
1 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2018)
|
1 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2018)
|
1 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2019)
|
1 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2019)
|
1 cu yd (1 cu m)
|
|
Rated bucket capacity (Since 2019)
|
1 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2019)
|
1 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2019)
|
1 cu yd (0 cu m)
|
|
Rated Engine RPM (Since 2016)
|
2,400 rpm |
|
Rated Engine RPM (2017)
|
2,400 rpm |
|
Rated Engine RPM (2018)
|
2,400 rpm |
|
Rated Engine RPM (2019)
|
2,400 rpm |
|
RATED OPERATING CAPACITY (35%) (Since 2020)
|
3,200 lbs (1,452 kg)
|
|
RATED OPERATING CAPACITY (50%) (Since 2019)
|
3,200 lbs (1,452 kg)
|
|
Rated operating capacity at 35% (Since 2016)
|
3,215 lbs (1,458 kg)
|
|
Rated operating capacity at 35% (Since 2016)
|
3,546 lbs (1,608 kg)
|
|
Rated operating capacity at 35% (Since 2016)
|
3,481 lbs (1,579 kg)
|
|
Rated operating capacity at 35% (Since 2017)
|
3,200 lbs (1,452 kg)
|
|
Rated operating capacity at 35% (Since 2017)
|
3,546 lbs (1,608 kg)
|
|
Rated operating capacity at 35% (Since 2017)
|
3,481 lbs (1,579 kg)
|
|
Rated operating capacity at 35% (Since 2018)
|
3,200 lbs (1,452 kg)
|
|
Rated operating capacity at 35% (Since 2018)
|
3,546 lbs (1,608 kg)
|
|
Rated operating capacity at 35% (Since 2018)
|
3,481 lbs (1,579 kg)
|
|
Rated operating capacity at 35% (Since 2019)
|
3,200 lbs (1,452 kg)
|
|
Rated operating capacity at 35% (Since 2019)
|
3,546 lbs (1,608 kg)
|
|
Rated operating capacity at 35% (Since 2019)
|
3,481 lbs (1,579 kg)
|
|
Rated operating capacity at 50% (Since 2016)
|
4,592 lbs (2,083 kg)
|
|
Rated operating capacity at 50% (Since 2016)
|
5,065 lbs (2,297 kg)
|
|
Rated operating capacity at 50% (Since 2016)
|
4,973 lbs (2,256 kg)
|
|
Rated operating capacity at 50% (Since 2017)
|
4,600 lbs (2,087 kg)
|
|
Rated operating capacity at 50% (Since 2017)
|
5,065 lbs (2,297 kg)
|
|
Rated operating capacity at 50% (Since 2017)
|
4,972 lbs (2,255 kg)
|
|
Rated operating capacity at 50% (Since 2018)
|
4,600 lbs (2,087 kg)
|
|
Rated operating capacity at 50% (Since 2018)
|
5,065 lbs (2,297 kg)
|
|
Rated operating capacity at 50% (Since 2018)
|
4,972 lbs (2,255 kg)
|
|
Rated operating capacity at 50% (Since 2019)
|
4,600 lbs (2,087 kg)
|
|
Rated operating capacity at 50% (Since 2019)
|
5,065 lbs (2,297 kg)
|
|
Rated operating capacity at 50% (Since 2019)
|
4,972 lbs (2,255 kg)
|
|
Reach at level lift arm/bucket (Since 2016)
|
55 in (140 cm)
|
|
Reach at level lift arm/bucket (Since 2016)
|
59 in (150 cm)
|
|
Reach at level lift arm/bucket (Since 2016)
|
53 in (135 cm)
|
|
Reach at level lift arm/bucket (Since 2016)
|
55 in (139 cm)
|
|
Reach at level lift arm/bucket (Since 2016)
|
56 in (142 cm)
|
|
Reach at level lift arm/bucket (Since 2017)
|
55 in (140 cm)
|
|
Reach at level lift arm/bucket (Since 2017)
|
59 in (150 cm)
|
|
Reach at level lift arm/bucket (Since 2017)
|
53 in (135 cm)
|
|
Reach at level lift arm/bucket (Since 2017)
|
55 in (139 cm)
|
|
Reach at level lift arm/bucket (Since 2017)
|
56 in (142 cm)
|
|
Reach at level lift arm/bucket (Since 2018)
|
55 in (140 cm)
|
|
Reach at level lift arm/bucket (Since 2018)
|
59 in (150 cm)
|
|
Reach at level lift arm/bucket (Since 2018)
|
53 in (135 cm)
|
|
Reach at level lift arm/bucket (Since 2018)
|
55 in (139 cm)
|
|
Reach at level lift arm/bucket (Since 2018)
|
56 in (142 cm)
|
|
Reach at level lift arm/bucket (Since 2019)
|
55 in (140 cm)
|
|
Reach at level lift arm/bucket (Since 2019)
|
59 in (150 cm)
|
|
Reach at level lift arm/bucket (Since 2019)
|
53 in (135 cm)
|
|
Reach at level lift arm/bucket (Since 2019)
|
55 in (139 cm)
|
|
Reach at level lift arm/bucket (Since 2019)
|
56 in (142 cm)
|
|
Reach at maximum lift/dump (Since 2016)
|
35 in (89 cm)
|
|
Reach at maximum lift/dump (Since 2016)
|
37 in (95 cm)
|
|
Reach at maximum lift/dump (Since 2016)
|
34 in (86 cm)
|
|
Reach at maximum lift/dump (Since 2016)
|
36 in (90 cm)
|
|
Reach at maximum lift/dump (Since 2016)
|
36 in (90 cm)
|
|
Reach at maximum lift/dump (Since 2017)
|
35 in (89 cm)
|
|
Reach at maximum lift/dump (Since 2017)
|
37 in (95 cm)
|
|
Reach at maximum lift/dump (Since 2017)
|
34 in (86 cm)
|
|
Reach at maximum lift/dump (Since 2017)
|
36 in (90 cm)
|
|
Reach at maximum lift/dump (Since 2017)
|
36 in (90 cm)
|
|
Reach at maximum lift/dump (Since 2018)
|
35 in (89 cm)
|
|
Reach at maximum lift/dump (Since 2018)
|
37 in (95 cm)
|
|
Reach at maximum lift/dump (Since 2018)
|
34 in (86 cm)
|
|
Reach at maximum lift/dump (Since 2018)
|
36 in (90 cm)
|
|
Reach at maximum lift/dump (Since 2018)
|
36 in (90 cm)
|
|
Reach at maximum lift/dump (Since 2019)
|
35 in (89 cm)
|
|
Reach at maximum lift/dump (Since 2019)
|
37 in (95 cm)
|
|
Reach at maximum lift/dump (Since 2019)
|
34 in (86 cm)
|
|
Reach at maximum lift/dump (Since 2019)
|
36 in (90 cm)
|
|
Reach at maximum lift/dump (Since 2019)
|
36 in (90 cm)
|
|
S Maximum reach with arms parallel to ground (Since 2016)
|
52 in (132 cm)
|
|
S Maximum reach with arms parallel to ground (2017)
|
52 in (132 cm)
|
|
S Maximum reach with arms parallel to ground (2018)
|
52 in (132 cm)
|
|
S Maximum reach with arms parallel to ground (2019)
|
52 in (132 cm)
|
|
Shank front face reach at level lift arms (Since 2016)
|
31 in (78 cm)
|
|
Shank front face reach at level lift arms (2016)
|
31 in (78 cm)
|
|
Shank front face reach at level lift arms (Since 2016)
|
31 in (78 cm)
|
|
Shank front face reach at level lift arms (Since 2017)
|
31 in (78 cm)
|
|
Shank front face reach at level lift arms (2017)
|
31 in (78 cm)
|
|
Shank front face reach at level lift arms (Since 2017)
|
31 in (78 cm)
|
|
Shank front face reach at level lift arms (Since 2018)
|
31 in (78 cm)
|
|
Shank front face reach at level lift arms (2018)
|
31 in (78 cm)
|
|
Shank front face reach at level lift arms (Since 2018)
|
31 in (78 cm)
|
|
Shank front face reach at level lift arms (Since 2019)
|
31 in (78 cm)
|
|
Shank front face reach at level lift arms (2019)
|
31 in (78 cm)
|
|
Shank front face reach at level lift arms (Since 2019)
|
31 in (78 cm)
|
|
Shank front face reach at maximum height (Since 2016)
|
32 in (81 cm)
|
|
Shank front face reach at maximum height (Since 2016)
|
32 in (82 cm)
|
|
Shank front face reach at maximum height (Since 2016)
|
32 in (81 cm)
|
|
Shank front face reach at maximum height (Since 2017)
|
32 in (81 cm)
|
|
Shank front face reach at maximum height (Since 2017)
|
32 in (82 cm)
|
|
Shank front face reach at maximum height (Since 2017)
|
32 in (81 cm)
|
|
Shank front face reach at maximum height (Since 2018)
|
32 in (81 cm)
|
|
Shank front face reach at maximum height (Since 2018)
|
32 in (82 cm)
|
|
Shank front face reach at maximum height (Since 2018)
|
32 in (81 cm)
|
|
Shank front face reach at maximum height (Since 2019)
|
32 in (81 cm)
|
|
Shank front face reach at maximum height (Since 2019)
|
32 in (82 cm)
|
|
Shank front face reach at maximum height (Since 2019)
|
32 in (81 cm)
|
|
Shank front face reach at minimum lift (Since 2016)
|
16 in (40 cm)
|
|
Shank front face reach at minimum lift (Since 2016)
|
16 in (40 cm)
|
|
Shank front face reach at minimum lift (Since 2017)
|
16 in (40 cm)
|
|
Shank front face reach at minimum lift (Since 2017)
|
16 in (40 cm)
|
|
Shank front face reach at minimum lift (Since 2018)
|
16 in (40 cm)
|
|
Shank front face reach at minimum lift (Since 2018)
|
16 in (40 cm)
|
|
Shank front face reach at minimum lift (Since 2019)
|
16 in (40 cm)
|
|
Shank front face reach at minimum lift (Since 2019)
|
16 in (40 cm)
|
|
Stroke (Since 2016)
|
5 in (12 cm)
|
|
Stroke (2017)
|
5 in (12 cm)
|
|
Stroke (2018)
|
5 in (12 cm)
|
|
Stroke (2019)
|
5 in (12 cm)
|
|
Struck capacity (Since 2016)
|
0 cu yd (0 cu m)
|
|
Struck capacity (Since 2016)
|
1 cu yd (1 cu m)
|
|
Struck capacity (Since 2016)
|
0 cu yd (0 cu m)
|
|
Struck capacity (Since 2016)
|
0 cu yd (0 cu m)
|
|
Struck capacity (Since 2017)
|
0 cu yd (0 cu m)
|
|
Struck capacity (Since 2017)
|
1 cu yd (1 cu m)
|
|
Struck capacity (Since 2017)
|
0 cu yd (0 cu m)
|
|
Struck capacity (Since 2017)
|
0 cu yd (0 cu m)
|
|
Struck capacity (Since 2018)
|
0 cu yd (0 cu m)
|
|
Struck capacity (Since 2018)
|
1 cu yd (1 cu m)
|
|
Struck capacity (Since 2018)
|
0 cu yd (0 cu m)
|
|
Struck capacity (Since 2018)
|
0 cu yd (0 cu m)
|
|
Struck capacity (Since 2019)
|
0 cu yd (0 cu m)
|
|
Struck capacity (Since 2019)
|
1 cu yd (1 cu m)
|
|
Struck capacity (Since 2019)
|
0 cu yd (0 cu m)
|
|
Struck capacity (Since 2019)
|
0 cu yd (0 cu m)
|
|
T Rack back angle at maximum height (Since 2016)
|
81 deg |
|
T Rack back angle at maximum height (2017)
|
81 deg |
|
T Rack back angle at maximum height (2018)
|
81 deg |
|
T Rack back angle at maximum height (2019)
|
81 deg |
|
Tipping load (Since 2016)
|
8,696 lbs (3,944 kg)
|
|
Tipping load (Since 2016)
|
8,427 lbs (3,822 kg)
|
|
Tipping load (Since 2016)
|
8,969 lbs (4,068 kg)
|
|
Tipping load (Since 2016)
|
8,321 lbs (3,774 kg)
|
|
Tipping load (Since 2016)
|
8,271 lbs (3,752 kg)
|
|
Tipping load (Since 2016)
|
6,827 lbs (3,097 kg)
|
|
Tipping load (Since 2016)
|
6,519 lbs (2,957 kg)
|
|
Tipping load (Since 2016)
|
7,184 lbs (3,259 kg)
|
|
Tipping load (Since 2016)
|
9,184 lbs (4,166 kg)
|
|
Tipping load (Since 2016)
|
10,130 lbs (4,595 kg)
|
|
Tipping load (Since 2016)
|
9,946 lbs (4,511 kg)
|
|
Tipping load (Since 2017)
|
8,696 lbs (3,944 kg)
|
|
Tipping load (Since 2017)
|
8,427 lbs (3,822 kg)
|
|
Tipping load (Since 2017)
|
8,969 lbs (4,068 kg)
|
|
Tipping load (Since 2017)
|
8,321 lbs (3,774 kg)
|
|
Tipping load (Since 2017)
|
8,271 lbs (3,752 kg)
|
|
Tipping load (Since 2017)
|
6,827 lbs (3,097 kg)
|
|
Tipping load (Since 2017)
|
6,519 lbs (2,957 kg)
|
|
Tipping load (Since 2017)
|
7,184 lbs (3,259 kg)
|
|
Tipping load (Since 2017)
|
9,200 lbs (4,173 kg)
|
|
Tipping load (Since 2017)
|
10,131 lbs (4,595 kg)
|
|
Tipping load (Since 2017)
|
9,945 lbs (4,511 kg)
|
|
Tipping load (Since 2018)
|
8,696 lbs (3,944 kg)
|
|
Tipping load (Since 2018)
|
8,427 lbs (3,822 kg)
|
|
Tipping load (Since 2018)
|
8,969 lbs (4,068 kg)
|
|
Tipping load (Since 2018)
|
8,321 lbs (3,774 kg)
|
|
Tipping load (Since 2018)
|
8,271 lbs (3,752 kg)
|
|
Tipping load (Since 2018)
|
6,827 lbs (3,097 kg)
|
|
Tipping load (Since 2018)
|
6,519 lbs (2,957 kg)
|
|
Tipping load (Since 2018)
|
7,184 lbs (3,259 kg)
|
|
Tipping load (Since 2018)
|
9,200 lbs (4,173 kg)
|
|
Tipping load (Since 2018)
|
10,131 lbs (4,595 kg)
|
|
Tipping load (Since 2018)
|
9,945 lbs (4,511 kg)
|
|
Tipping load (Since 2019)
|
8,696 lbs (3,944 kg)
|
|
Tipping load (Since 2019)
|
8,427 lbs (3,822 kg)
|
|
Tipping load (Since 2019)
|
8,969 lbs (4,068 kg)
|
|
Tipping load (Since 2019)
|
8,321 lbs (3,774 kg)
|
|
Tipping load (Since 2019)
|
8,271 lbs (3,752 kg)
|
|
Tipping load (Since 2019)
|
6,827 lbs (3,097 kg)
|
|
Tipping load (Since 2019)
|
6,519 lbs (2,957 kg)
|
|
Tipping load (Since 2019)
|
7,184 lbs (3,259 kg)
|
|
Tipping load (Since 2019)
|
9,200 lbs (4,173 kg)
|
|
Tipping load (Since 2019)
|
10,131 lbs (4,595 kg)
|
|
Tipping load (Since 2019)
|
9,945 lbs (4,511 kg)
|
|
Total (Since 2016)
|
12 |
|
Total (2017)
|
12 |
|
Total (2018)
|
12 |
|
Total (2019)
|
12 |
|
Two Speed Forward (Since 2016)
|
8 mph (13 kph)
|
|
Two Speed Forward (Since 2017)
|
8 mph (14 kph)
|
|
Two Speed Forward (2018)
|
8 mph (14 kph)
|
|
Two Speed Forward (2019)
|
8 mph (14 kph)
|
|
U Bucket pin reach at maximum lift (Since 2016)
|
19 in (49 cm)
|
|
U Bucket pin reach at maximum lift (2017)
|
19 in (49 cm)
|
|
U Bucket pin reach at maximum lift (2018)
|
19 in (49 cm)
|
|
U Bucket pin reach at maximum lift (2019)
|
19 in (49 cm)
|
|
Width (Since 2016)
|
81 in (204 cm)
|
|
Width (Since 2016)
|
87 in (220 cm)
|
|
Width (Since 2016)
|
87 in (221 cm)
|
|
Width (Since 2017)
|
81 in (204 cm)
|
|
Width (Since 2017)
|
87 in (220 cm)
|
|
Width (Since 2017)
|
87 in (221 cm)
|
|
Width (Since 2018)
|
81 in (204 cm)
|
|
Width (Since 2018)
|
87 in (220 cm)
|
|
Width (Since 2018)
|
87 in (221 cm)
|
|
Width (Since 2019)
|
81 in (204 cm)
|
|
Width (Since 2019)
|
87 in (220 cm)
|
|
Width (Since 2019)
|
87 in (221 cm)
|
| Hydraulic System |
|
Hydraulic Flow - High Flow Xps - Hydraulic Power (Calculated) |
76 hp (57 kw)
|
|
Hydraulic Flow - High Flow Xps - Maximum Loader Hydraulic Flow |
32 gpm (121 lpm)
|
|
Hydraulic Flow - High Flow Xps - Maximum Loader Hydraulic Pressure |
4,061 psi |
|
Hydraulic Flow - Standard - Hydraulic Power (Calculated) |
44 hp (33 kw)
|
|
Hydraulic Flow - Standard - Loader Hydraulic Flow |
23 gpm (87 lpm)
|
|
Hydraulic Flow - Standard - Loader Hydraulic Pressure |
3,335 psi |
| Noise Level |
|
Inside Cab* |
83 dB(A) |
|
Note (1) |
Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe. |
|
Note (2) |
*The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds. |
|
Note (3) |
**The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC. |
|
Outside Cab** |
104 dB(A) |
| Operating Specifications |
|
Breakout Force - Lift Cylinder |
6,162 lbs (2,795 kg)
|
|
Breakout Force - Tilt Cylinder |
7,270 lbs (3,298 kg)
|
|
Ground Contact Area - With 400 Mm/15.7 In Track |
2184 in2 |
|
Ground Contact Area - With 450 Mm/17.7 In Track |
2463 in2 |
|
Ground Pressure - With 400 Mm/15.7 In Track |
5 psi |
|
Ground Pressure - With 450 Mm/17.7 In Track |
5 psi |
|
Note |
Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, 1981 mm (78 in) dirt bucket, 400 mm (15.7 in) tracks, dual flange front idler/single flange rear idler, standard flow hydraulics, enclosed cab with glass door, side windows, heater, mechanical suspension seat, advanced display, 880 CCA battery, no optional counterweights and manual quick coupler (unless otherwise noted). |
|
Rated Operating Capacities - 35% Tipping Load |
3,200 lbs (1,452 kg)
|
|
Rated Operating Capacities - 50% Tipping Load |
4,600 lbs (2,087 kg)
|
|
Rated Operating Capacity With Optional Counterweight |
4,860 lbs (2,204 kg)
|
|
Tipping Load |
9,200 lbs (4,173 kg)
|
| Operational |
|
Operating Weight |
11,275 lbs (5,114 kg)
|
| Power Train |
|
Travel Speed - Forward Or Reverse - One Speed |
5 mph (8 kph)
|
|
Travel Speed - Forward Or Reverse - Two Speed |
8 mph (14 kph)
|
| Service Refill Capacities |
|
Cooling System |
4 gal (16 l)
|
|
Diesel Exhaust Fluid (Def) Tank |
5 gal (19 l)
|
|
Engine Crankcase |
4 gal (13 l)
|
|
Fuel Tank |
32 gal (122 l)
|
|
Hydraulic System |
15 gal (55 l)
|
|
Hydraulic Tank |
10 gal (39 l)
|
| Weights |
|
Note |
Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, 1981 mm (78 in) dirt bucket, 400 mm (15.7 in) tracks, dual flange front idler/single flange rear idler, standard flow hydraulics, enclosed cab with glass door, side windows, heater, mechanical suspension seat, advanced display, 880 CCA battery, no optional counterweights and manual quick coupler (unless otherwise noted). |
