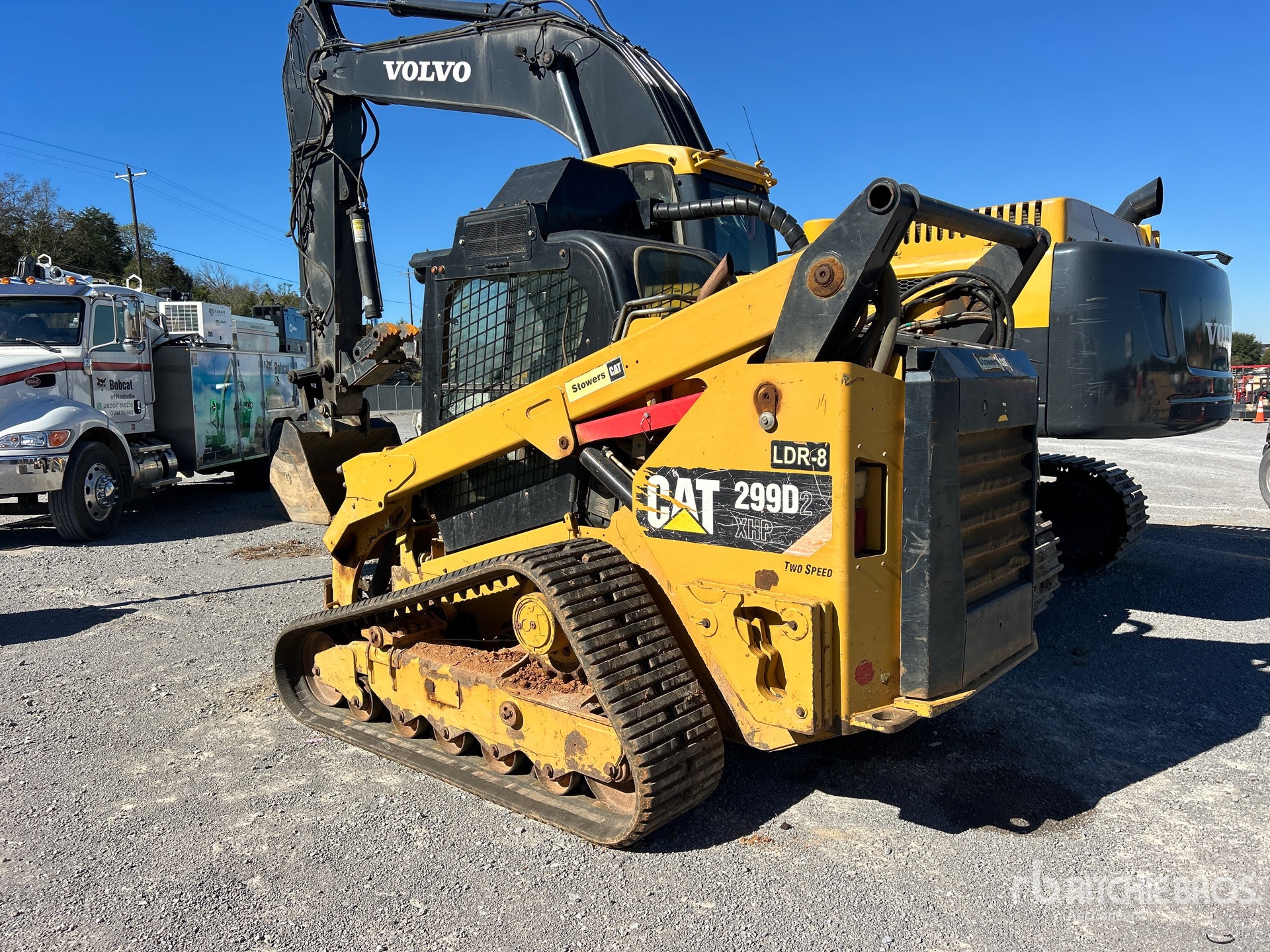

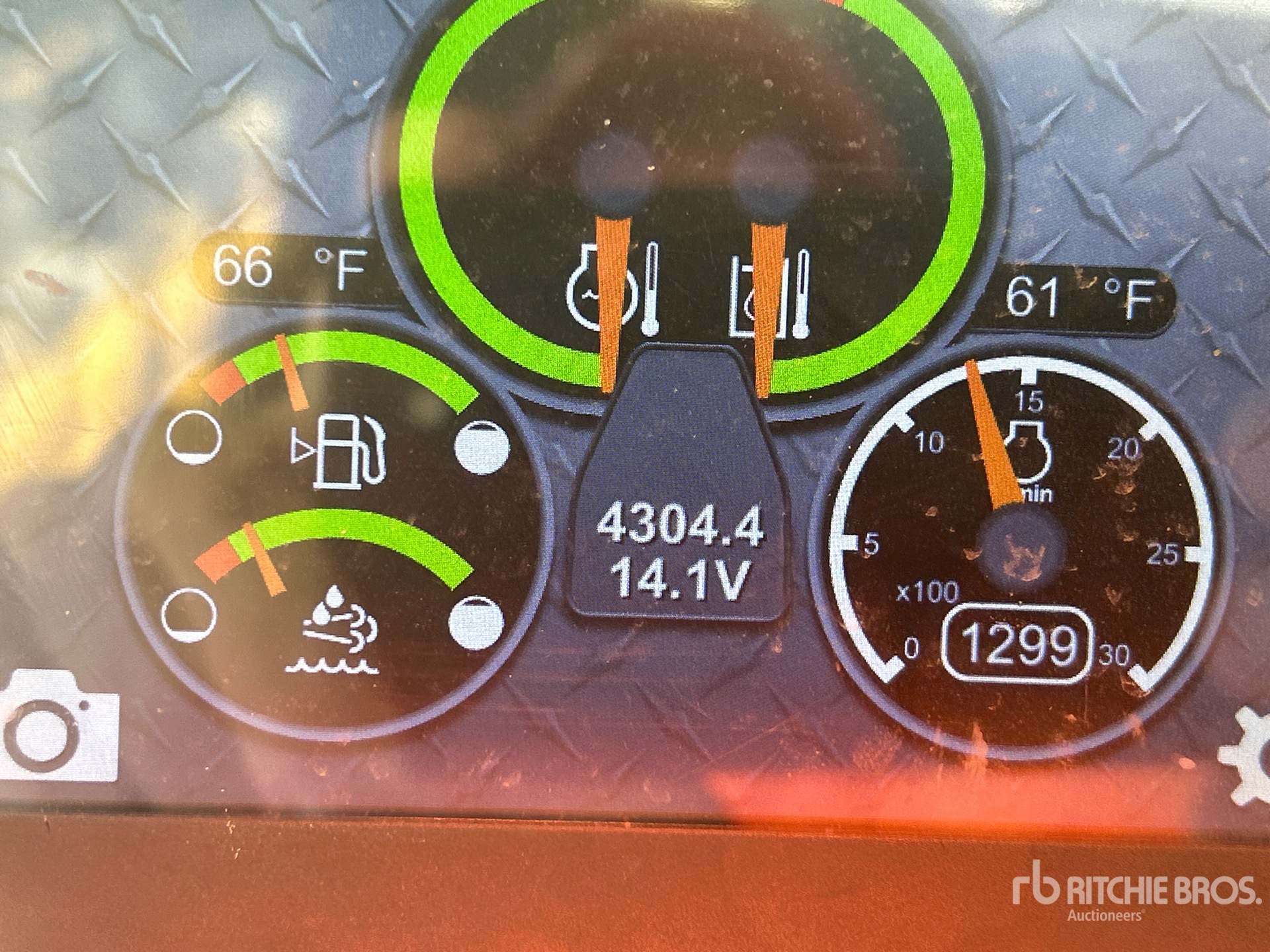

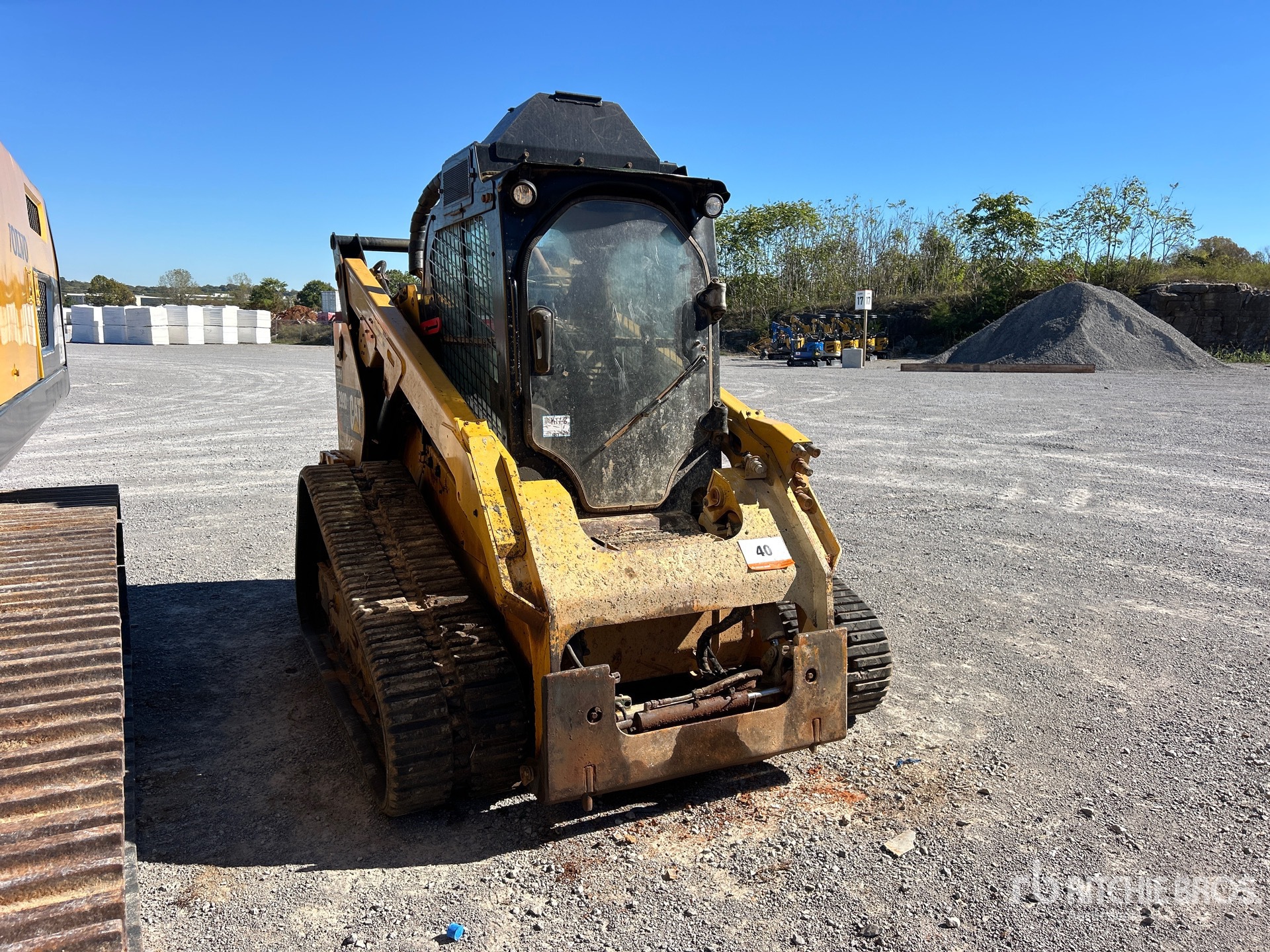

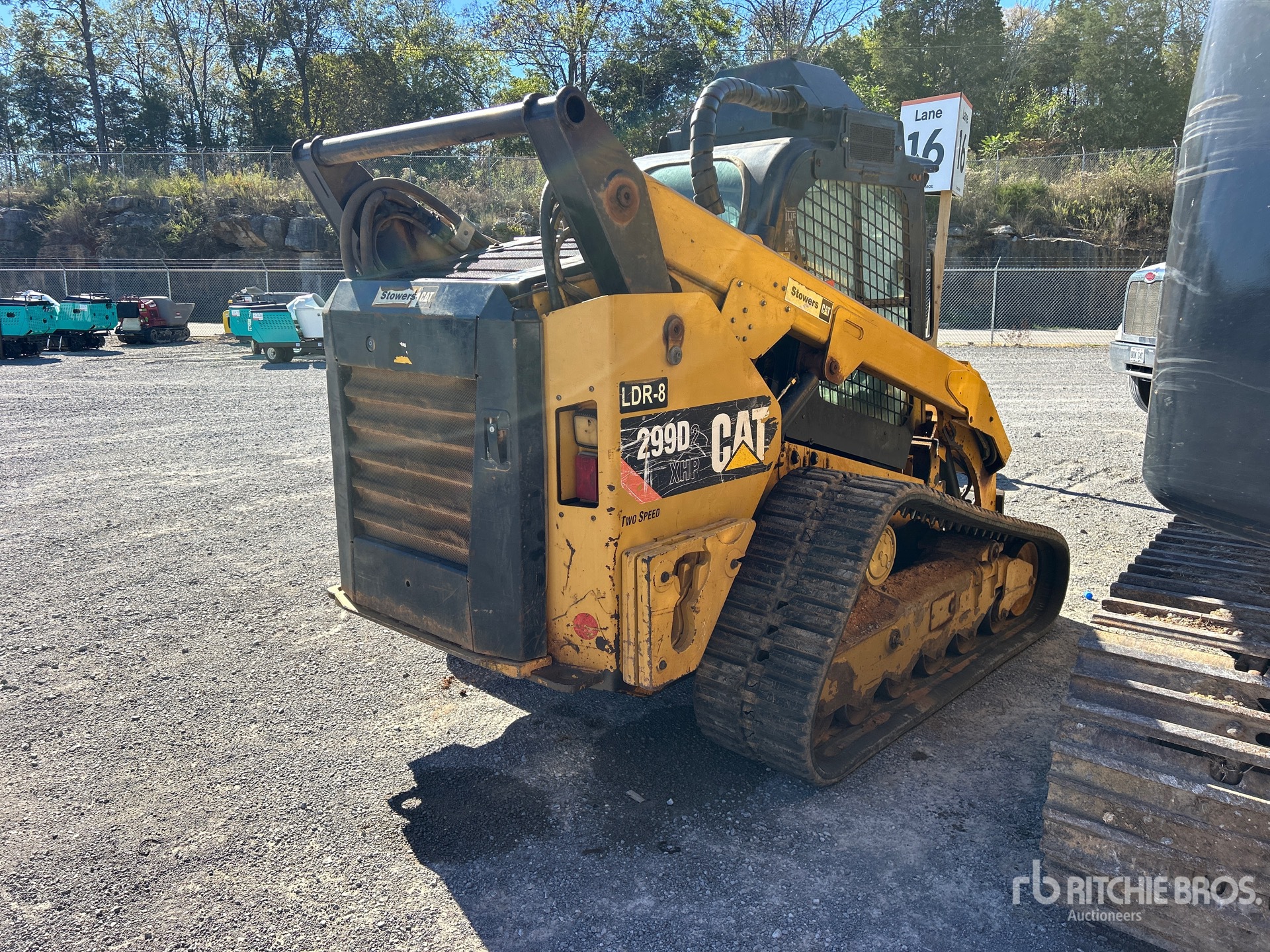

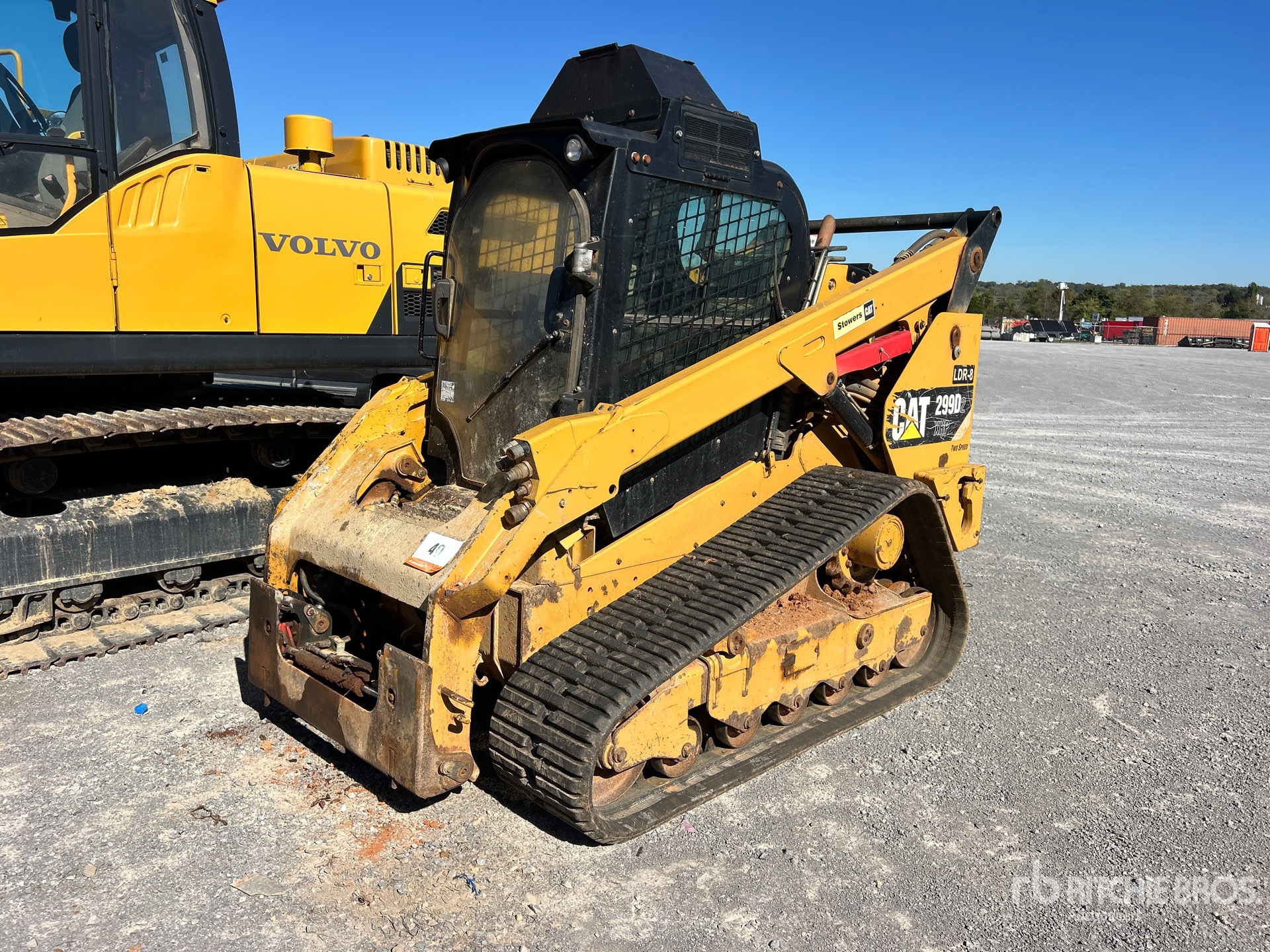

| Air Conditioning System |
|
Air Conditioning |
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.81 kg of refrigerant which has a CO2 equivalent of 1.158 metric tonnes. |
| Cab |
|
Fops |
ISO 3449:2005 Level I |
|
Fops Level Ii |
ISO 3449:2005 Level II |
|
Rops |
ISO 3471:2008 |
| Dimensions |
|
Bucket Pin Height - Carry Position |
7 in (18 cm)
|
|
Bucket Pin Height - Maximum Lift |
11 ft (3 m)
|
|
Bucket Pin Reach - Maximum Lift |
19 in (49 cm)
|
|
Clearance At Maximum Lift And Dump |
95 in (240 cm)
|
|
Departure Angle |
33 degrees |
|
Ground Clearance |
1 ft (0 m)
|
|
Height - Top Of Cab |
7 ft (2 m)
|
|
Length - Track On Ground |
70 in (177 cm)
|
|
Length - With Bucket On Ground |
155 in (393 cm)
|
|
Length - Without Bucket |
126 in (319 cm)
|
|
Maximum Dump Angle |
54 degrees |
|
Maximum Overall Height |
159 in (403 cm)
|
|
Maximum Reach - With Arms Parallel To Ground |
52 in (132 cm)
|
|
Note |
Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, ride control, enclosed cab with glass door, side windows, air conditioning, air ride seat, advanced display, rearview camera, 1,000 CCA battery, dual direction self level, 1981 mm (78 in) dirt bucket, 400 mm (15.7 in) tracks, triple flange front/rear idlers, no optional counterweights and manual quick coupler (unless otherwise noted). |
|
Overall Length - Track |
89 in (227 cm)
|
|
Rack Back Angle - Maximum Height |
81 degrees |
|
Reach - Maximum Lift/Dump |
34 in (85 cm)
|
|
Roll Back Angle |
25 degrees |
|
Turning Radius From Center - Bucket (Racked) |
91 in (231 cm)
|
|
Turning Radius From Center - Coupler |
58 in (148 cm)
|
|
Turning Radius From Center - Machine Rear |
74 in (188 cm)
|
|
Vehicle Width (400 Mm/15.7 In Tracks) |
76 in (193 cm)
|
| Engine |
|
Bore |
4 in (10 cm)
|
|
Displacement |
232 cu in (3,802 cu cm)
|
|
Engine Model |
Cat C3.8 DIT (turbo) |
|
Gross Power - Sae J1995 |
110 hp (82 kw)
|
|
Net Power |
106 hp (79 kw)
|
|
Net Power - Iso 9249 |
107 hp (80 kw)
|
|
Net Power - Sae 1349 |
106 hp (79 kw)
|
|
Peak Torque - 1,500 Rpm - Sae J1995 |
276 lbs ft (374 nm)
|
|
Stroke |
5 in (12 cm)
|
| General Specifications |
|
A Length of track on ground (Since 2016)
|
70 in (177 cm)
|
|
A Length of track on ground (2017)
|
70 in (177 cm)
|
|
A Length of track on ground (2018)
|
70 in (177 cm)
|
|
A Length of track on ground (2019)
|
70 in (177 cm)
|
|
B Overall length of track (Since 2016)
|
89 in (227 cm)
|
|
B Overall length of track (2017)
|
89 in (227 cm)
|
|
B Overall length of track (2018)
|
89 in (227 cm)
|
|
B Overall length of track (2019)
|
89 in (227 cm)
|
|
Blade surface height at level lift arms (Since 2016)
|
55 in (139 cm)
|
|
Blade surface height at level lift arms (Since 2016)
|
55 in (139 cm)
|
|
Blade surface height at level lift arms (Since 2016)
|
55 in (140 cm)
|
|
Blade surface height at level lift arms (Since 2017)
|
55 in (139 cm)
|
|
Blade surface height at level lift arms (Since 2017)
|
55 in (139 cm)
|
|
Blade surface height at level lift arms (Since 2017)
|
55 in (140 cm)
|
|
Blade surface height at level lift arms (Since 2018)
|
55 in (139 cm)
|
|
Blade surface height at level lift arms (Since 2018)
|
55 in (139 cm)
|
|
Blade surface height at level lift arms (Since 2018)
|
55 in (140 cm)
|
|
Blade surface height at level lift arms (Since 2019)
|
55 in (139 cm)
|
|
Blade surface height at level lift arms (Since 2019)
|
55 in (140 cm)
|
|
Blade surface height at level lift arms (Since 2019)
|
55 in (139 cm)
|
|
Blade surface height at maximum height (Since 2016)
|
121 in (308 cm)
|
|
Blade surface height at maximum height (Since 2016)
|
121 in (307 cm)
|
|
Blade surface height at maximum height (Since 2016)
|
121 in (308 cm)
|
|
Blade surface height at maximum height (Since 2017)
|
121 in (308 cm)
|
|
Blade surface height at maximum height (Since 2017)
|
121 in (307 cm)
|
|
Blade surface height at maximum height (Since 2017)
|
121 in (308 cm)
|
|
Blade surface height at maximum height (Since 2018)
|
121 in (308 cm)
|
|
Blade surface height at maximum height (Since 2018)
|
121 in (307 cm)
|
|
Blade surface height at maximum height (Since 2018)
|
121 in (308 cm)
|
|
Blade surface height at maximum height (2019)
|
121 in (308 cm)
|
|
Blade surface height at maximum height (Since 2019)
|
121 in (307 cm)
|
|
Blade surface height at maximum height (Since 2019)
|
121 in (308 cm)
|
|
Blade surface height at minimum lift (Since 2016)
|
1 in (3 cm)
|
|
Blade surface height at minimum lift (Since 2016)
|
1 in (2 cm)
|
|
Blade surface height at minimum lift (Since 2016)
|
1 in (3 cm)
|
|
Blade surface height at minimum lift (Since 2017)
|
1 in (3 cm)
|
|
Blade surface height at minimum lift (Since 2017)
|
1 in (2 cm)
|
|
Blade surface height at minimum lift (Since 2017)
|
1 in (3 cm)
|
|
Blade surface height at minimum lift (Since 2018)
|
1 in (3 cm)
|
|
Blade surface height at minimum lift (Since 2018)
|
1 in (2 cm)
|
|
Blade surface height at minimum lift (Since 2018)
|
1 in (3 cm)
|
|
Blade surface height at minimum lift (Since 2019)
|
1 in (2 cm)
|
|
Blade surface height at minimum lift (Since 2019)
|
1 in (3 cm)
|
|
Blade surface height at minimum lift (Since 2019)
|
1 in (3 cm)
|
|
Bore (Since 2016)
|
4 in (10 cm)
|
|
Bore (2017)
|
4 in (10 cm)
|
|
Bore (2018)
|
4 in (10 cm)
|
|
Bore (2019)
|
4 in (10 cm)
|
|
Breakout force - lift (Since 2016)
|
5,872 lbs (2,664 kg)
|
|
Breakout force - lift (Since 2016)
|
5,641 lbs (2,559 kg)
|
|
Breakout force - lift (Since 2016)
|
6,002 lbs (2,722 kg)
|
|
Breakout force - lift (Since 2016)
|
5,604 lbs (2,542 kg)
|
|
Breakout force - lift (Since 2016)
|
5,560 lbs (2,522 kg)
|
|
Breakout force - lift (Since 2017)
|
5,872 lbs (2,664 kg)
|
|
Breakout force - lift (Since 2017)
|
5,641 lbs (2,559 kg)
|
|
Breakout force - lift (Since 2017)
|
6,002 lbs (2,722 kg)
|
|
Breakout force - lift (Since 2017)
|
5,604 lbs (2,542 kg)
|
|
Breakout force - lift (Since 2017)
|
5,560 lbs (2,522 kg)
|
|
Breakout force - lift (Since 2018)
|
5,872 lbs (2,664 kg)
|
|
Breakout force - lift (Since 2018)
|
5,641 lbs (2,559 kg)
|
|
Breakout force - lift (Since 2018)
|
6,002 lbs (2,722 kg)
|
|
Breakout force - lift (Since 2018)
|
5,604 lbs (2,542 kg)
|
|
Breakout force - lift (Since 2018)
|
5,560 lbs (2,522 kg)
|
|
Breakout force - lift (Since 2019)
|
5,872 lbs (2,664 kg)
|
|
Breakout force - lift (Since 2019)
|
5,641 lbs (2,559 kg)
|
|
Breakout force - lift (Since 2019)
|
6,002 lbs (2,722 kg)
|
|
Breakout force - lift (Since 2019)
|
5,604 lbs (2,542 kg)
|
|
Breakout force - lift (Since 2019)
|
5,560 lbs (2,522 kg)
|
|
Breakout force - tilt (Since 2016)
|
6,412 lbs (2,908 kg)
|
|
Breakout force - tilt (Since 2016)
|
5,708 lbs (2,589 kg)
|
|
Breakout force - tilt (Since 2016)
|
6,864 lbs (3,113 kg)
|
|
Breakout force - tilt (Since 2016)
|
6,259 lbs (2,839 kg)
|
|
Breakout force - tilt (Since 2016)
|
6,232 lbs (2,827 kg)
|
|
Breakout force - tilt (Since 2017)
|
6,412 lbs (2,908 kg)
|
|
Breakout force - tilt (Since 2017)
|
5,708 lbs (2,589 kg)
|
|
Breakout force - tilt (Since 2017)
|
6,864 lbs (3,113 kg)
|
|
Breakout force - tilt (Since 2017)
|
6,259 lbs (2,839 kg)
|
|
Breakout force - tilt (Since 2017)
|
6,232 lbs (2,827 kg)
|
|
Breakout force - tilt (Since 2018)
|
6,412 lbs (2,908 kg)
|
|
Breakout force - tilt (Since 2018)
|
5,708 lbs (2,589 kg)
|
|
Breakout force - tilt (Since 2018)
|
6,864 lbs (3,113 kg)
|
|
Breakout force - tilt (Since 2018)
|
6,259 lbs (2,839 kg)
|
|
Breakout force - tilt (Since 2018)
|
6,232 lbs (2,827 kg)
|
|
Breakout force - tilt (Since 2019)
|
6,412 lbs (2,908 kg)
|
|
Breakout force - tilt (Since 2019)
|
5,708 lbs (2,589 kg)
|
|
Breakout force - tilt (Since 2019)
|
6,864 lbs (3,113 kg)
|
|
Breakout force - tilt (Since 2019)
|
6,232 lbs (2,827 kg)
|
|
Breakout force - tilt (Since 2019)
|
6,259 lbs (2,839 kg)
|
|
Breakout force, tilt cylinder (Since 2016)
|
7,270 lbs (3,298 kg)
|
|
Breakout force, tilt cylinder (2017)
|
7,270 lbs (3,298 kg)
|
|
Breakout force, tilt cylinder (2018)
|
7,270 lbs (3,298 kg)
|
|
Breakout force, tilt cylinder (2019)
|
7,270 lbs (3,298 kg)
|
|
C Length without bucket (Since 2016)
|
126 in (319 cm)
|
|
C Length without bucket (2017)
|
126 in (319 cm)
|
|
C Length without bucket (2018)
|
126 in (319 cm)
|
|
C Length without bucket (2019)
|
126 in (319 cm)
|
|
Carriage height above blade top (Since 2016)
|
37 in (93 cm)
|
|
Carriage height above blade top (2017)
|
37 in (93 cm)
|
|
Carriage height above blade top (2018)
|
37 in (93 cm)
|
|
Carriage height above blade top (2019)
|
37 in (93 cm)
|
|
Carriage overall width without step (Since 2016)
|
46 in (116 cm)
|
|
Carriage overall width without step (2017)
|
46 in (116 cm)
|
|
Carriage overall width without step (2018)
|
46 in (116 cm)
|
|
Carriage overall width without step (2019)
|
46 in (116 cm)
|
|
Carriage step additional width (Since 2016)
|
4 in (11 cm)
|
|
Carriage step additional width (2017)
|
4 in (11 cm)
|
|
Carriage step additional width (2018)
|
4 in (11 cm)
|
|
Carriage step additional width (2019)
|
4 in (11 cm)
|
|
category (Since 2020)
|
COMPACT TRACK LOADERS |
|
Clearance at maximum lift/level bucket (Since 2016)
|
117 in (297 cm)
|
|
Clearance at maximum lift/level bucket (Since 2016)
|
117 in (296 cm)
|
|
Clearance at maximum lift/level bucket (Since 2016)
|
117 in (298 cm)
|
|
Clearance at maximum lift/level bucket (Since 2016)
|
116 in (296 cm)
|
|
Clearance at maximum lift/level bucket (Since 2016)
|
116 in (295 cm)
|
|
Clearance at maximum lift/level bucket (Since 2017)
|
117 in (297 cm)
|
|
Clearance at maximum lift/level bucket (Since 2017)
|
117 in (296 cm)
|
|
Clearance at maximum lift/level bucket (Since 2017)
|
117 in (298 cm)
|
|
Clearance at maximum lift/level bucket (Since 2017)
|
116 in (296 cm)
|
|
Clearance at maximum lift/level bucket (Since 2017)
|
116 in (295 cm)
|
|
Clearance at maximum lift/level bucket (Since 2018)
|
117 in (297 cm)
|
|
Clearance at maximum lift/level bucket (Since 2018)
|
117 in (296 cm)
|
|
Clearance at maximum lift/level bucket (Since 2018)
|
117 in (298 cm)
|
|
Clearance at maximum lift/level bucket (Since 2018)
|
116 in (296 cm)
|
|
Clearance at maximum lift/level bucket (Since 2018)
|
116 in (295 cm)
|
|
Clearance at maximum lift/level bucket (Since 2019)
|
117 in (297 cm)
|
|
Clearance at maximum lift/level bucket (Since 2019)
|
117 in (296 cm)
|
|
Clearance at maximum lift/level bucket (Since 2019)
|
117 in (298 cm)
|
|
Clearance at maximum lift/level bucket (Since 2019)
|
116 in (296 cm)
|
|
Clearance at maximum lift/level bucket (Since 2019)
|
116 in (295 cm)
|
|
D Length with bucket on ground (Since 2016)
|
155 in (393 cm)
|
|
D Length with bucket on ground (2017)
|
155 in (393 cm)
|
|
D Length with bucket on ground (2018)
|
155 in (393 cm)
|
|
D Length with bucket on ground (2019)
|
155 in (393 cm)
|
|
Dig depth with level bucket (Since 2016)
|
-3 in (-7 cm)
|
|
Dig depth with level bucket (Since 2016)
|
-3 in (-8 cm)
|
|
Dig depth with level bucket (Since 2016)
|
-3 in (-7 cm)
|
|
Dig depth with level bucket (Since 2016)
|
-3 in (-9 cm)
|
|
Dig depth with level bucket (2016)
|
-3 in (-9 cm)
|
|
Dig depth with level bucket (Since 2017)
|
-3 in (-7 cm)
|
|
Dig depth with level bucket (Since 2017)
|
-3 in (-8 cm)
|
|
Dig depth with level bucket (Since 2017)
|
-3 in (-7 cm)
|
|
Dig depth with level bucket (Since 2017)
|
-3 in (-9 cm)
|
|
Dig depth with level bucket (2017)
|
-3 in (-9 cm)
|
|
Dig depth with level bucket (Since 2018)
|
-3 in (-7 cm)
|
|
Dig depth with level bucket (Since 2018)
|
-3 in (-8 cm)
|
|
Dig depth with level bucket (Since 2018)
|
-3 in (-7 cm)
|
|
Dig depth with level bucket (Since 2018)
|
-3 in (-9 cm)
|
|
Dig depth with level bucket (2018)
|
-3 in (-9 cm)
|
|
Dig depth with level bucket (Since 2019)
|
-3 in (-7 cm)
|
|
Dig depth with level bucket (Since 2019)
|
-3 in (-8 cm)
|
|
Dig depth with level bucket (Since 2019)
|
-3 in (-7 cm)
|
|
Dig depth with level bucket (Since 2019)
|
-3 in (-9 cm)
|
|
Dig depth with level bucket (2019)
|
-3 in (-9 cm)
|
|
Displacement (Since 2016)
|
232 cu in (3,800 cu cm)
|
|
Displacement (2017)
|
232 cu in (3,800 cu cm)
|
|
Displacement (2018)
|
232 cu in (3,800 cu cm)
|
|
Displacement (2019)
|
232 cu in (3,800 cu cm)
|
|
Dump (Since 2016)
|
2 |
|
Dump (2017)
|
2 |
|
Dump (2018)
|
2 |
|
Dump (2019)
|
2 |
|
Dump clearance at maximum lift/dump (Since 2016)
|
91 in (232 cm)
|
|
Dump clearance at maximum lift/dump (Since 2016)
|
88 in (224 cm)
|
|
Dump clearance at maximum lift/dump (Since 2016)
|
93 in (236 cm)
|
|
Dump clearance at maximum lift/dump (Since 2016)
|
91 in (230 cm)
|
|
Dump clearance at maximum lift/dump (2016)
|
91 in (230 cm)
|
|
Dump clearance at maximum lift/dump (Since 2017)
|
91 in (232 cm)
|
|
Dump clearance at maximum lift/dump (Since 2017)
|
88 in (224 cm)
|
|
Dump clearance at maximum lift/dump (Since 2017)
|
93 in (236 cm)
|
|
Dump clearance at maximum lift/dump (Since 2017)
|
91 in (230 cm)
|
|
Dump clearance at maximum lift/dump (2017)
|
91 in (230 cm)
|
|
Dump clearance at maximum lift/dump (Since 2018)
|
91 in (232 cm)
|
|
Dump clearance at maximum lift/dump (Since 2018)
|
88 in (224 cm)
|
|
Dump clearance at maximum lift/dump (Since 2018)
|
93 in (236 cm)
|
|
Dump clearance at maximum lift/dump (Since 2018)
|
91 in (230 cm)
|
|
Dump clearance at maximum lift/dump (2018)
|
91 in (230 cm)
|
|
Dump clearance at maximum lift/dump (Since 2019)
|
91 in (232 cm)
|
|
Dump clearance at maximum lift/dump (Since 2019)
|
88 in (224 cm)
|
|
Dump clearance at maximum lift/dump (Since 2019)
|
93 in (236 cm)
|
|
Dump clearance at maximum lift/dump (Since 2019)
|
91 in (230 cm)
|
|
Dump clearance at maximum lift/dump (2019)
|
91 in (230 cm)
|
|
E Height to top of cab (Since 2016)
|
84 in (212 cm)
|
|
E Height to top of cab (2017)
|
84 in (212 cm)
|
|
E Height to top of cab (2018)
|
84 in (212 cm)
|
|
E Height to top of cab (2019)
|
84 in (212 cm)
|
|
Engine Model (Since 2016)
|
C3.8 DITA |
|
Engine Model (2017)
|
C3.8 DITA |
|
Engine Model (2018)
|
C3.8 DITA |
|
Engine Model (2019)
|
C3.8 DITA |
|
ENGINE POWER (Since 2016)
|
106 hp (79 kw)
|
|
ENGINE POWER (2017)
|
106 hp (79 kw)
|
|
ENGINE POWER (2019)
|
106 hp (79 kw)
|
|
ENGINE POWER (2020)
|
106 hp (79 kw)
|
|
F Maximum overall height (Since 2016)
|
159 in (403 cm)
|
|
F Maximum overall height (2017)
|
159 in (403 cm)
|
|
F Maximum overall height (2018)
|
159 in (403 cm)
|
|
F Maximum overall height (2019)
|
159 in (403 cm)
|
|
Floor angle at maximum lift/dump (Since 2016)
|
-54 deg |
|
Floor angle at maximum lift/dump (Since 2016)
|
-54 deg |
|
Floor angle at maximum lift/dump (Since 2016)
|
-54 deg |
|
Floor angle at maximum lift/dump (Since 2017)
|
-54 deg |
|
Floor angle at maximum lift/dump (Since 2017)
|
-54 deg |
|
Floor angle at maximum lift/dump (Since 2017)
|
-54 deg |
|
Floor angle at maximum lift/dump (Since 2018)
|
-54 deg |
|
Floor angle at maximum lift/dump (Since 2018)
|
-54 deg |
|
Floor angle at maximum lift/dump (Since 2018)
|
-54 deg |
|
Floor angle at maximum lift/dump (Since 2019)
|
-54 deg |
|
Floor angle at maximum lift/dump (Since 2019)
|
-54 deg |
|
Floor angle at maximum lift/dump (Since 2019)
|
-54 deg |
|
Floor angle at maximum lift/rack back (Since 2016)
|
81 deg |
|
Floor angle at maximum lift/rack back (Since 2016)
|
81 deg |
|
Floor angle at maximum lift/rack back (Since 2016)
|
81 deg |
|
Floor angle at maximum lift/rack back (Since 2017)
|
81 deg |
|
Floor angle at maximum lift/rack back (Since 2017)
|
81 deg |
|
Floor angle at maximum lift/rack back (Since 2017)
|
81 deg |
|
Floor angle at maximum lift/rack back (Since 2018)
|
81 deg |
|
Floor angle at maximum lift/rack back (Since 2018)
|
81 deg |
|
Floor angle at maximum lift/rack back (Since 2018)
|
81 deg |
|
Floor angle at maximum lift/rack back (Since 2019)
|
81 deg |
|
Floor angle at maximum lift/rack back (Since 2019)
|
81 deg |
|
Floor angle at maximum lift/rack back (Since 2019)
|
81 deg |
|
Flywheel Power - Gross (SAE J1995) (Since 2016)
|
110 hp (82 kw)
|
|
Flywheel Power - Gross (SAE J1995) (2017)
|
110 hp (82 kw)
|
|
Flywheel Power - Gross (SAE J1995) (2018)
|
110 hp (82 kw)
|
|
Flywheel Power - Gross (SAE J1995) (2019)
|
110 hp (82 kw)
|
|
Flywheel Power - Net (SAE 1349) (Since 2016)
|
106 hp (79 kw)
|
|
Flywheel Power - Net (SAE 1349) (2017)
|
106 hp (79 kw)
|
|
Flywheel Power - Net (SAE 1349) (2018)
|
106 hp (79 kw)
|
|
Flywheel Power - Net (SAE 1349) (2019)
|
106 hp (79 kw)
|
|
Front clearance circle radius (with bucket) (Since 2016)
|
94 in (239 cm)
|
|
Front clearance circle radius (with bucket) (Since 2016)
|
98 in (250 cm)
|
|
Front clearance circle radius (with bucket) (Since 2016)
|
92 in (234 cm)
|
|
Front clearance circle radius (with bucket) (Since 2016)
|
94 in (240 cm)
|
|
Front clearance circle radius (with bucket) (Since 2016)
|
96 in (243 cm)
|
|
Front clearance circle radius (with bucket) (Since 2017)
|
94 in (239 cm)
|
|
Front clearance circle radius (with bucket) (Since 2017)
|
98 in (250 cm)
|
|
Front clearance circle radius (with bucket) (Since 2017)
|
92 in (234 cm)
|
|
Front clearance circle radius (with bucket) (Since 2017)
|
94 in (240 cm)
|
|
Front clearance circle radius (with bucket) (Since 2017)
|
96 in (243 cm)
|
|
Front clearance circle radius (with bucket) (Since 2018)
|
94 in (239 cm)
|
|
Front clearance circle radius (with bucket) (Since 2018)
|
98 in (250 cm)
|
|
Front clearance circle radius (with bucket) (Since 2018)
|
92 in (234 cm)
|
|
Front clearance circle radius (with bucket) (Since 2018)
|
94 in (240 cm)
|
|
Front clearance circle radius (with bucket) (Since 2018)
|
96 in (243 cm)
|
|
Front clearance circle radius (with bucket) (Since 2019)
|
94 in (239 cm)
|
|
Front clearance circle radius (with bucket) (Since 2019)
|
98 in (250 cm)
|
|
Front clearance circle radius (with bucket) (Since 2019)
|
92 in (234 cm)
|
|
Front clearance circle radius (with bucket) (Since 2019)
|
94 in (240 cm)
|
|
Front clearance circle radius (with bucket) (Since 2019)
|
96 in (243 cm)
|
|
Fuel Tank Capacity (Since 2016)
|
32 US gal (122 L)
|
|
Fuel Tank Capacity (2017)
|
32 US gal (122 L)
|
|
Fuel Tank Capacity (2018)
|
32 US gal (122 L)
|
|
Fuel Tank Capacity (2019)
|
32 US gal (122 L)
|
|
G Bucket pin height at maximum lift (Since 2016)
|
126 in (321 cm)
|
|
G Bucket pin height at maximum lift (2017)
|
126 in (321 cm)
|
|
G Bucket pin height at maximum lift (2018)
|
126 in (321 cm)
|
|
G Bucket pin height at maximum lift (2019)
|
126 in (321 cm)
|
|
Ground Clearance (Since 2016)
|
10 in (24 cm)
|
|
Ground Clearance (2017)
|
10 in (24 cm)
|
|
Ground Clearance (2018)
|
10 in (24 cm)
|
|
Ground Clearance (2019)
|
10 in (24 cm)
|
|
Ground pressure (Since 2016)
|
5 psi (37 kPa)
|
|
Ground pressure (2017)
|
5 psi (37 kPa)
|
|
Ground pressure (2018)
|
5 psi (37 kPa)
|
|
Ground pressure (2019)
|
5 psi (37 kPa)
|
|
H Bucket pin height at carry position (Since 2016)
|
7 in (18 cm)
|
|
H Bucket pin height at carry position (2017)
|
7 in (18 cm)
|
|
H Bucket pin height at carry position (2018)
|
7 in (18 cm)
|
|
H Bucket pin height at carry position (2019)
|
7 in (18 cm)
|
|
Hinge pin height at maximum lift (Since 2016)
|
126 in (321 cm)
|
|
Hinge pin height at maximum lift (Since 2016)
|
126 in (320 cm)
|
|
Hinge pin height at maximum lift (Since 2016)
|
126 in (321 cm)
|
|
Hinge pin height at maximum lift (Since 2016)
|
126 in (320 cm)
|
|
Hinge pin height at maximum lift (2016)
|
126 in (320 cm)
|
|
Hinge pin height at maximum lift (Since 2017)
|
126 in (321 cm)
|
|
Hinge pin height at maximum lift (Since 2017)
|
126 in (320 cm)
|
|
Hinge pin height at maximum lift (Since 2017)
|
126 in (321 cm)
|
|
Hinge pin height at maximum lift (Since 2017)
|
126 in (320 cm)
|
|
Hinge pin height at maximum lift (2017)
|
126 in (320 cm)
|
|
Hinge pin height at maximum lift (Since 2018)
|
126 in (321 cm)
|
|
Hinge pin height at maximum lift (Since 2018)
|
126 in (320 cm)
|
|
Hinge pin height at maximum lift (Since 2018)
|
126 in (321 cm)
|
|
Hinge pin height at maximum lift (Since 2018)
|
126 in (320 cm)
|
|
Hinge pin height at maximum lift (2018)
|
126 in (320 cm)
|
|
Hinge pin height at maximum lift (Since 2019)
|
126 in (321 cm)
|
|
Hinge pin height at maximum lift (Since 2019)
|
126 in (320 cm)
|
|
Hinge pin height at maximum lift (Since 2019)
|
126 in (321 cm)
|
|
Hinge pin height at maximum lift (Since 2019)
|
126 in (320 cm)
|
|
Hinge pin height at maximum lift (2019)
|
126 in (320 cm)
|
|
Hydraulic Pressure, High Flow/XHP (Since 2016)
|
4,061 psi (28,000 kPa)
|
|
Hydraulic Pressure, High Flow/XHP (2017)
|
4,061 psi (28,000 kPa)
|
|
Hydraulic Pressure, High Flow/XHP (2018)
|
4,061 psi (28,000 kPa)
|
|
Hydraulic Pressure, High Flow/XHP (2019)
|
4,061 psi (28,000 kPa)
|
|
Hydraulic Pressure, Standard (Since 2016)
|
3,336 psi (23,000 kPa)
|
|
Hydraulic Pressure, Standard (2017)
|
3,336 psi (23,000 kPa)
|
|
Hydraulic Pressure, Standard (2018)
|
3,336 psi (23,000 kPa)
|
|
Hydraulic Pressure, Standard (2019)
|
3,336 psi (23,000 kPa)
|
|
Hydraulic Pump Capacity, - High Flow/XHP (Since 2016)
|
40 US gpm (150 L/min)
|
|
Hydraulic Pump Capacity, - High Flow/XHP (2017)
|
40 US gpm (150 L/min)
|
|
Hydraulic Pump Capacity, - High Flow/XHP (2018)
|
40 US gpm (150 L/min)
|
|
Hydraulic Pump Capacity, - High Flow/XHP (2019)
|
40 US gpm (150 L/min)
|
|
Hydraulic Pump Capacity, Standard (Since 2016)
|
23 US gpm (86 L/min)
|
|
Hydraulic Pump Capacity, Standard (2017)
|
23 US gpm (86 L/min)
|
|
Hydraulic Pump Capacity, Standard (2018)
|
23 US gpm (86 L/min)
|
|
Hydraulic Pump Capacity, Standard (2019)
|
23 US gpm (86 L/min)
|
|
Hydraulic System Capacity - (includes tank) (Since 2016)
|
15 US gal (55 L)
|
|
Hydraulic System Capacity - (includes tank) (2017)
|
15 US gal (55 L)
|
|
Hydraulic System Capacity - (includes tank) (2018)
|
15 US gal (55 L)
|
|
Hydraulic System Capacity - (includes tank) (2019)
|
15 US gal (55 L)
|
|
Hydraulic Tank Capacity (Since 2016)
|
10 US gal (39 L)
|
|
Hydraulic Tank Capacity (2017)
|
10 US gal (39 L)
|
|
Hydraulic Tank Capacity (2018)
|
10 US gal (39 L)
|
|
Hydraulic Tank Capacity (2019)
|
10 US gal (39 L)
|
|
J Reach at maximum lift and dump (Since 2016)
|
34 in (85 cm)
|
|
J Reach at maximum lift and dump (2017)
|
34 in (85 cm)
|
|
J Reach at maximum lift and dump (2018)
|
34 in (85 cm)
|
|
J Reach at maximum lift and dump (2019)
|
34 in (85 cm)
|
|
K Clearance at maximum lift and dump (Since 2016)
|
95 in (240 cm)
|
|
K Clearance at maximum lift and dump (2017)
|
95 in (240 cm)
|
|
K Clearance at maximum lift and dump (2018)
|
95 in (240 cm)
|
|
K Clearance at maximum lift and dump (2019)
|
95 in (240 cm)
|
|
L Ground clearance (Since 2016)
|
10 in (24 cm)
|
|
L Ground clearance (2017)
|
10 in (24 cm)
|
|
L Ground clearance (2018)
|
10 in (24 cm)
|
|
L Ground clearance (2019)
|
10 in (24 cm)
|
|
Lower (Empty, Float Down) (Since 2016)
|
5 |
|
Lower (Empty, Float Down) (2017)
|
5 |
|
Lower (Empty, Float Down) (2018)
|
5 |
|
Lower (Empty, Float Down) (2019)
|
5 |
|
M Departure angle (Since 2016)
|
33 deg |
|
M Departure angle (2017)
|
33 deg |
|
M Departure angle (2018)
|
33 deg |
|
M Departure angle (2019)
|
33 deg |
|
Maximum floor angle at minimum lift (Since 2016)
|
25 deg |
|
Maximum floor angle at minimum lift (Since 2016)
|
25 deg |
|
Maximum floor angle at minimum lift (Since 2016)
|
25 deg |
|
Maximum floor angle at minimum lift (Since 2017)
|
25 deg |
|
Maximum floor angle at minimum lift (Since 2017)
|
25 deg |
|
Maximum floor angle at minimum lift (Since 2017)
|
25 deg |
|
Maximum floor angle at minimum lift (Since 2018)
|
25 deg |
|
Maximum floor angle at minimum lift (Since 2018)
|
25 deg |
|
Maximum floor angle at minimum lift (Since 2018)
|
25 deg |
|
Maximum floor angle at minimum lift (Since 2019)
|
25 deg |
|
Maximum floor angle at minimum lift (Since 2019)
|
25 deg |
|
Maximum floor angle at minimum lift (Since 2019)
|
25 deg |
|
Maximum overall height (Since 2016)
|
162 in (410 cm)
|
|
Maximum overall height (Since 2016)
|
165 in (419 cm)
|
|
Maximum overall height (Since 2016)
|
160 in (405 cm)
|
|
Maximum overall height (Since 2016)
|
162 in (410 cm)
|
|
Maximum overall height (Since 2016)
|
162 in (410 cm)
|
|
Maximum overall height (Since 2017)
|
162 in (410 cm)
|
|
Maximum overall height (Since 2017)
|
165 in (419 cm)
|
|
Maximum overall height (Since 2017)
|
160 in (405 cm)
|
|
Maximum overall height (Since 2017)
|
162 in (410 cm)
|
|
Maximum overall height (Since 2017)
|
162 in (410 cm)
|
|
Maximum overall height (Since 2018)
|
162 in (410 cm)
|
|
Maximum overall height (Since 2018)
|
165 in (419 cm)
|
|
Maximum overall height (Since 2018)
|
160 in (405 cm)
|
|
Maximum overall height (Since 2018)
|
162 in (410 cm)
|
|
Maximum overall height (Since 2018)
|
162 in (410 cm)
|
|
Maximum overall height (Since 2019)
|
162 in (410 cm)
|
|
Maximum overall height (Since 2019)
|
165 in (419 cm)
|
|
Maximum overall height (Since 2019)
|
160 in (405 cm)
|
|
Maximum overall height (Since 2019)
|
162 in (410 cm)
|
|
Maximum overall height (Since 2019)
|
162 in (410 cm)
|
|

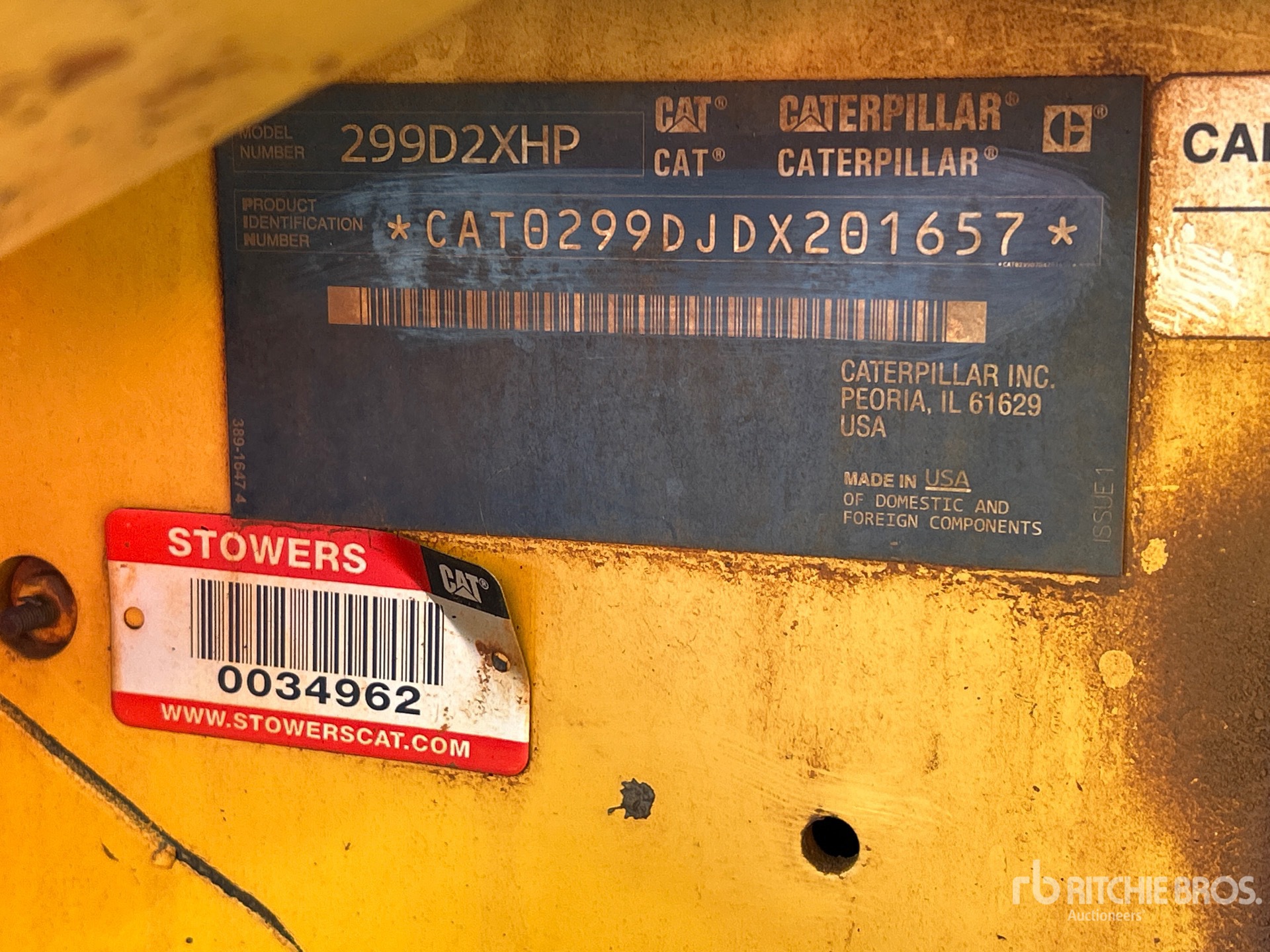

MODEL (Since 2016)
|
299D2 XHP |
|
MODEL (2017)
|
299D2 XHP |
|
MODEL (2019)
|
299D2 XHP |
|
MODEL (2020)
|
299D2 XHP |
|
N Maximum dump angle (Since 2016)
|
54 deg |
|
N Maximum dump angle (2017)
|
54 deg |
|
N Maximum dump angle (2018)
|
54 deg |
|
N Maximum dump angle (2019)
|
54 deg |
|
No. Cylinders (Since 2016)
|
4 |
|
No. Cylinders (2017)
|
4 |
|
No. Cylinders (2018)
|
4 |
|
No. Cylinders (2019)
|
4 |
|
O Vehicle width (Since 2016)
|
76 in (193 cm)
|
|
O Vehicle width (2017)
|
76 in (193 cm)
|
|
O Vehicle width (2018)
|
76 in (193 cm)
|
|
O Vehicle width (2019)
|
76 in (193 cm)
|
|
One Speed Forward (Since 2016)
|
5 mph (8 kph)
|
|
One Speed Forward (2017)
|
5 mph (8 kph)
|
|
One Speed Forward (2018)
|
5 mph (8 kph)
|
|
One Speed Forward (2019)
|
5 mph (8 kph)
|
|
One Speed Reverse (Since 2016)
|
5 mph (8 kph)
|
|
One Speed Reverse (2017)
|
5 mph (8 kph)
|
|
One Speed Reverse (2018)
|
5 mph (8 kph)
|
|
One Speed Reverse (2019)
|
5 mph (8 kph)
|
|
OPERATING LOAD (Since 2016)
|
4,725 lbs (2,143 kg)
|
|
OPERATING LOAD (2017)
|
4,725 lbs (2,143 kg)
|
|
Operating weight (Since 2016)
|
11,738 lbs (5,324 kg)
|
|
Operating weight (Since 2016)
|
11,819 lbs (5,361 kg)
|
|
Operating weight (Since 2016)
|
11,696 lbs (5,305 kg)
|
|
Operating weight (Since 2016)
|
12,061 lbs (5,471 kg)
|
|
Operating weight (Since 2016)
|
12,114 lbs (5,495 kg)
|
|
Operating weight (Since 2016)
|
11,522 lbs (5,226 kg)
|
|
Operating weight (Since 2016)
|
11,543 lbs (5,236 kg)
|
|
Operating weight (Since 2016)
|
11,499 lbs (5,216 kg)
|
|
Operating weight (Since 2016)
|
11,608 lbs (5,265 kg)
|
|
Operating weight (Since 2017)
|
11,738 lbs (5,324 kg)
|
|
Operating weight (Since 2017)
|
11,819 lbs (5,361 kg)
|
|
Operating weight (Since 2017)
|
11,696 lbs (5,305 kg)
|
|
Operating weight (Since 2017)
|
12,061 lbs (5,471 kg)
|
|
Operating weight (Since 2017)
|
12,114 lbs (5,495 kg)
|
|
Operating weight (Since 2017)
|
11,522 lbs (5,226 kg)
|
|
Operating weight (Since 2017)
|
11,543 lbs (5,236 kg)
|
|
Operating weight (Since 2017)
|
11,499 lbs (5,216 kg)
|
|
Operating weight (Since 2017)
|
11,608 lbs (5,265 kg)
|
|
Operating weight (Since 2018)
|
11,738 lbs (5,324 kg)
|
|
Operating weight (Since 2018)
|
11,819 lbs (5,361 kg)
|
|
Operating weight (Since 2018)
|
11,696 lbs (5,305 kg)
|
|
Operating weight (Since 2018)
|
12,061 lbs (5,471 kg)
|
|
Operating weight (Since 2018)
|
12,114 lbs (5,495 kg)
|
|
Operating weight (Since 2018)
|
11,522 lbs (5,226 kg)
|
|
Operating weight (Since 2018)
|
11,543 lbs (5,236 kg)
|
|
Operating weight (Since 2018)
|
11,499 lbs (5,216 kg)
|
|
Operating weight (Since 2018)
|
11,608 lbs (5,265 kg)
|
|
Operating weight (Since 2019)
|
11,738 lbs (5,324 kg)
|
|
Operating weight (Since 2019)
|
11,819 lbs (5,361 kg)
|
|
Operating weight (Since 2019)
|
11,696 lbs (5,305 kg)
|
|
Operating weight (Since 2019)
|
12,061 lbs (5,471 kg)
|
|
Operating weight (Since 2019)
|
12,114 lbs (5,495 kg)
|
|
Operating weight (Since 2019)
|
11,543 lbs (5,236 kg)
|
|
Operating weight (Since 2019)
|
11,608 lbs (5,265 kg)
|
|
Operating weight (Since 2019)
|
11,499 lbs (5,216 kg)
|
|
Operating weight (Since 2019)
|
11,522 lbs (5,226 kg)
|
|
OPERATING WIDTH (Since 2016)
|
76 in (193 cm)
|
|
OPERATING WIDTH (2017)
|
76 in (193 cm)
|
|
OPERATING WIDTH (2019)
|
76 in (193 cm)
|
|
OPERATING WIDTH (2020)
|
76 in (193 cm)
|
|
Overall length at minimum lift, level tine (Since 2016)
|
175 in (445 cm)
|
|
Overall length at minimum lift, level tine (Since 2016)
|
181 in (460 cm)
|
|
Overall length at minimum lift, level tine (Since 2016)
|
169 in (429 cm)
|
|
Overall length at minimum lift, level tine (Since 2017)
|
175 in (445 cm)
|
|
Overall length at minimum lift, level tine (Since 2017)
|
181 in (460 cm)
|
|
Overall length at minimum lift, level tine (Since 2017)
|
169 in (429 cm)
|
|
Overall length at minimum lift, level tine (Since 2018)
|
175 in (445 cm)
|
|
Overall length at minimum lift, level tine (Since 2018)
|
181 in (460 cm)
|
|
Overall length at minimum lift, level tine (Since 2018)
|
169 in (429 cm)
|
|
Overall length at minimum lift, level tine (Since 2019)
|
181 in (460 cm)
|
|
Overall length at minimum lift, level tine (Since 2019)
|
175 in (445 cm)
|
|
Overall length at minimum lift, level tine (Since 2019)
|
169 in (429 cm)
|
|
Overall length with bucket on ground (Since 2016)
|
158 in (400 cm)
|
|
Overall length with bucket on ground (Since 2016)
|
161 in (409 cm)
|
|
Overall length with bucket on ground (Since 2016)
|
155 in (395 cm)
|
|
Overall length with bucket on ground (Since 2016)
|
158 in (401 cm)
|
|
Overall length with bucket on ground (Since 2016)
|
158 in (400 cm)
|
|
Overall length with bucket on ground (Since 2017)
|
158 in (400 cm)
|
|
Overall length with bucket on ground (Since 2017)
|
161 in (409 cm)
|
|
Overall length with bucket on ground (Since 2017)
|
155 in (395 cm)
|
|
Overall length with bucket on ground (Since 2017)
|
158 in (401 cm)
|
|
Overall length with bucket on ground (Since 2017)
|
158 in (400 cm)
|
|
Overall length with bucket on ground (Since 2018)
|
158 in (400 cm)
|
|
Overall length with bucket on ground (Since 2018)
|
161 in (409 cm)
|
|
Overall length with bucket on ground (Since 2018)
|
155 in (395 cm)
|
|
Overall length with bucket on ground (Since 2018)
|
158 in (401 cm)
|
|
Overall length with bucket on ground (Since 2018)
|
158 in (400 cm)
|
|
Overall length with bucket on ground (Since 2019)
|
158 in (400 cm)
|
|
Overall length with bucket on ground (Since 2019)
|
161 in (409 cm)
|
|
Overall length with bucket on ground (Since 2019)
|
155 in (395 cm)
|
|
Overall length with bucket on ground (Since 2019)
|
158 in (401 cm)
|
|
Overall length with bucket on ground (Since 2019)
|
158 in (400 cm)
|
|
P Turning radius from center - machine rear (Since 2016)
|
74 in (188 cm)
|
|
P Turning radius from center - machine rear (2017)
|
74 in (188 cm)
|
|
P Turning radius from center - machine rear (2018)
|
74 in (188 cm)
|
|
P Turning radius from center - machine rear (2019)
|
74 in (188 cm)
|
|
Q Turning radius from center - coupler (Since 2016)
|
58 in (148 cm)
|
|
Q Turning radius from center - coupler (2017)
|
58 in (148 cm)
|
|
Q Turning radius from center - coupler (2018)
|
58 in (148 cm)
|
|
Q Turning radius from center - coupler (2019)
|
58 in (148 cm)
|
|
R Turning radius from center - bucket (Since 2016)
|
91 in (231 cm)
|
|
R Turning radius from center - bucket (2017)
|
91 in (231 cm)
|
|
R Turning radius from center - bucket (2018)
|
91 in (231 cm)
|
|
R Turning radius from center - bucket (2019)
|
91 in (231 cm)
|
|
Raise (Since 2016)
|
4 |
|
Raise (2017)
|
4 |
|
Raise (2018)
|
4 |
|
Raise (2019)
|
4 |
|
Rated bucket capacity (Since 2016)
|
1 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2016)
|
1 cu yd (1 cu m)
|
|
Rated bucket capacity (Since 2016)
|
1 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2016)
|
1 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2016)
|
1 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2017)
|
1 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2017)
|
1 cu yd (1 cu m)
|
|
Rated bucket capacity (Since 2017)
|
1 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2017)
|
1 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2017)
|
1 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2018)
|
1 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2018)
|
1 cu yd (1 cu m)
|
|
Rated bucket capacity (Since 2018)
|
1 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2018)
|
1 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2018)
|
1 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2019)
|
1 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2019)
|
1 cu yd (1 cu m)
|
|
Rated bucket capacity (Since 2019)
|
1 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2019)
|
1 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2019)
|
1 cu yd (0 cu m)
|
|
Rated Engine RPM (Since 2016)
|
2,400 rpm |
|
Rated Engine RPM (2017)
|
2,400 rpm |
|
Rated Engine RPM (2018)
|
2,400 rpm |
|
Rated Engine RPM (2019)
|
2,400 rpm |
|
RATED OPERATING CAPACITY (35%) (Since 2020)
|
3,308 lbs (1,500 kg)
|
|
RATED OPERATING CAPACITY (50%) (Since 2019)
|
3,308 lbs (1,500 kg)
|
|
Rated operating capacity at 35% (Since 2016)
|
3,301 lbs (1,497 kg)
|
|
Rated operating capacity at 35% (Since 2017)
|
3,308 lbs (1,500 kg)
|
|
Rated operating capacity at 35% (2018)
|
3,308 lbs (1,500 kg)
|
|
Rated operating capacity at 35% (2019)
|
3,308 lbs (1,500 kg)
|
|
Rated operating capacity at 50% (Since 2016)
|
4,716 lbs (2,139 kg)
|
|
Rated operating capacity at 50% (Since 2017)
|
4,725 lbs (2,143 kg)
|
|
Rated operating capacity at 50% (2018)
|
4,725 lbs (2,143 kg)
|
|
Rated operating capacity at 50% (2019)
|
4,725 lbs (2,143 kg)
|
|
Reach at level lift arm/bucket (Since 2016)
|
55 in (140 cm)
|
|
Reach at level lift arm/bucket (Since 2016)
|
59 in (150 cm)
|
|
Reach at level lift arm/bucket (Since 2016)
|
53 in (135 cm)
|
|
Reach at level lift arm/bucket (Since 2016)
|
56 in (141 cm)
|
|
Reach at level lift arm/bucket (Since 2016)
|
56 in (142 cm)
|
|
Reach at level lift arm/bucket (Since 2017)
|
55 in (140 cm)
|
|
Reach at level lift arm/bucket (Since 2017)
|
59 in (150 cm)
|
|
Reach at level lift arm/bucket (Since 2017)
|
53 in (135 cm)
|
|
Reach at level lift arm/bucket (Since 2017)
|
56 in (141 cm)
|
|
Reach at level lift arm/bucket (Since 2017)
|
56 in (142 cm)
|
|
Reach at level lift arm/bucket (Since 2018)
|
55 in (140 cm)
|
|
Reach at level lift arm/bucket (Since 2018)
|
59 in (150 cm)
|
|
Reach at level lift arm/bucket (Since 2018)
|
53 in (135 cm)
|
|
Reach at level lift arm/bucket (Since 2018)
|
56 in (141 cm)
|
|
Reach at level lift arm/bucket (Since 2018)
|
56 in (142 cm)
|
|
Reach at level lift arm/bucket (Since 2019)
|
55 in (140 cm)
|
|
Reach at level lift arm/bucket (Since 2019)
|
59 in (150 cm)
|
|
Reach at level lift arm/bucket (Since 2019)
|
53 in (135 cm)
|
|
Reach at level lift arm/bucket (Since 2019)
|
56 in (141 cm)
|
|
Reach at level lift arm/bucket (Since 2019)
|
56 in (142 cm)
|
|
Reach at maximum lift/dump (Since 2016)
|
35 in (89 cm)
|
|
Reach at maximum lift/dump (Since 2016)
|
37 in (95 cm)
|
|
Reach at maximum lift/dump (Since 2016)
|
34 in (86 cm)
|
|
Reach at maximum lift/dump (Since 2016)
|
36 in (90 cm)
|
|
Reach at maximum lift/dump (Since 2016)
|
36 in (90 cm)
|
|
Reach at maximum lift/dump (Since 2017)
|
35 in (89 cm)
|
|
Reach at maximum lift/dump (Since 2017)
|
37 in (95 cm)
|
|
Reach at maximum lift/dump (Since 2017)
|
34 in (86 cm)
|
|
Reach at maximum lift/dump (Since 2017)
|
36 in (90 cm)
|
|
Reach at maximum lift/dump (Since 2017)
|
36 in (90 cm)
|
|
Reach at maximum lift/dump (Since 2018)
|
35 in (89 cm)
|
|
Reach at maximum lift/dump (Since 2018)
|
37 in (95 cm)
|
|
Reach at maximum lift/dump (Since 2018)
|
34 in (86 cm)
|
|
Reach at maximum lift/dump (Since 2018)
|
36 in (90 cm)
|
|
Reach at maximum lift/dump (Since 2018)
|
36 in (90 cm)
|
|
Reach at maximum lift/dump (Since 2019)
|
35 in (89 cm)
|
|
Reach at maximum lift/dump (Since 2019)
|
37 in (95 cm)
|
|
Reach at maximum lift/dump (Since 2019)
|
34 in (86 cm)
|
|
Reach at maximum lift/dump (Since 2019)
|
36 in (90 cm)
|
|
Reach at maximum lift/dump (Since 2019)
|
36 in (90 cm)
|
|
S Maximum reach with arms parallel to ground (Since 2016)
|
52 in (132 cm)
|
|
S Maximum reach with arms parallel to ground (2017)
|
52 in (132 cm)
|
|
S Maximum reach with arms parallel to ground (2018)
|
52 in (132 cm)
|
|
S Maximum reach with arms parallel to ground (2019)
|
52 in (132 cm)
|
|
Shank front face reach at level lift arms (Since 2016)
|
31 in (78 cm)
|
|
Shank front face reach at level lift arms (2016)
|
31 in (78 cm)
|
|
Shank front face reach at level lift arms (Since 2016)
|
31 in (78 cm)
|
|
Shank front face reach at level lift arms (Since 2017)
|
31 in (78 cm)
|
|
Shank front face reach at level lift arms (2017)
|
31 in (78 cm)
|
|
Shank front face reach at level lift arms (Since 2017)
|
31 in (78 cm)
|
|
Shank front face reach at level lift arms (Since 2018)
|
31 in (78 cm)
|
|
Shank front face reach at level lift arms (2018)
|
31 in (78 cm)
|
|
Shank front face reach at level lift arms (Since 2018)
|
31 in (78 cm)
|
|
Shank front face reach at level lift arms (2019)
|
31 in (78 cm)
|
|
Shank front face reach at level lift arms (Since 2019)
|
31 in (78 cm)
|
|
Shank front face reach at level lift arms (2019)
|
31 in (78 cm)
|
|
Shank front face reach at maximum height (Since 2016)
|
32 in (81 cm)
|
|
Shank front face reach at maximum height (Since 2016)
|
32 in (82 cm)
|
|
Shank front face reach at maximum height (Since 2016)
|
32 in (81 cm)
|
|
Shank front face reach at maximum height (2017)
|
32 in (81 cm)
|
|
Shank front face reach at maximum height (Since 2017)
|
32 in (82 cm)
|
|
Shank front face reach at maximum height (Since 2017)
|
32 in (81 cm)
|
|
Shank front face reach at maximum height (2018)
|
32 in (81 cm)
|
|
Shank front face reach at maximum height (Since 2018)
|
32 in (82 cm)
|
|
Shank front face reach at maximum height (Since 2018)
|
32 in (81 cm)
|
|
Shank front face reach at maximum height (2019)
|
32 in (81 cm)
|
|
Shank front face reach at maximum height (2019)
|
32 in (81 cm)
|
|
Shank front face reach at maximum height (Since 2019)
|
32 in (82 cm)
|
|
Shank front face reach at minimum lift (Since 2016)
|
16 in (40 cm)
|
|
Shank front face reach at minimum lift (Since 2016)
|
16 in (40 cm)
|
|
Shank front face reach at minimum lift (Since 2017)
|
16 in (40 cm)
|
|
Shank front face reach at minimum lift (Since 2017)
|
16 in (40 cm)
|
|
Shank front face reach at minimum lift (Since 2018)
|
16 in (40 cm)
|
|
Shank front face reach at minimum lift (Since 2018)
|
16 in (40 cm)
|
|
Shank front face reach at minimum lift (Since 2019)
|
16 in (40 cm)
|
|
Shank front face reach at minimum lift (Since 2019)
|
16 in (40 cm)
|
|
Stroke (Since 2016)
|
5 in (12 cm)
|
|
Stroke (2017)
|
5 in (12 cm)
|
|
Stroke (2018)
|
5 in (12 cm)
|
|
Stroke (2019)
|
5 in (12 cm)
|
|
Struck capacity (Since 2016)
|
0 cu yd (0 cu m)
|
|
Struck capacity (Since 2016)
|
1 cu yd (1 cu m)
|
|
Struck capacity (Since 2016)
|
0 cu yd (0 cu m)
|
|
Struck capacity (Since 2016)
|
0 cu yd (0 cu m)
|
|
Struck capacity (Since 2017)
|
0 cu yd (0 cu m)
|
|
Struck capacity (Since 2017)
|
1 cu yd (1 cu m)
|
|
Struck capacity (Since 2017)
|
0 cu yd (0 cu m)
|
|
Struck capacity (Since 2017)
|
0 cu yd (0 cu m)
|
|
Struck capacity (Since 2018)
|
0 cu yd (0 cu m)
|
|
Struck capacity (Since 2018)
|
1 cu yd (1 cu m)
|
|
Struck capacity (Since 2018)
|
0 cu yd (0 cu m)
|
|
Struck capacity (Since 2018)
|
0 cu yd (0 cu m)
|
|
Struck capacity (Since 2019)
|
0 cu yd (0 cu m)
|
|
Struck capacity (Since 2019)
|
1 cu yd (1 cu m)
|
|
Struck capacity (Since 2019)
|
0 cu yd (0 cu m)
|
|
Struck capacity (Since 2019)
|
0 cu yd (0 cu m)
|
|
T Rack back angle at maximum height (Since 2016)
|
81 deg |
|
T Rack back angle at maximum height (2017)
|
81 deg |
|
T Rack back angle at maximum height (2018)
|
81 deg |
|
T Rack back angle at maximum height (2019)
|
81 deg |
|
Tipping load (Since 2016)
|
8,934 lbs (4,052 kg)
|
|
Tipping load (Since 2016)
|
8,660 lbs (3,928 kg)
|
|
Tipping load (Since 2016)
|
9,214 lbs (4,179 kg)
|
|
Tipping load (Since 2016)
|
8,556 lbs (3,881 kg)
|
|
Tipping load (Since 2016)
|
8,506 lbs (3,858 kg)
|
|
Tipping load (Since 2016)
|
7,009 lbs (3,179 kg)
|
|
Tipping load (Since 2016)
|
6,693 lbs (3,036 kg)
|
|
Tipping load (Since 2016)
|
7,375 lbs (3,345 kg)
|
|
Tipping load (Since 2016)
|
9,431 lbs (4,278 kg)
|
|
Tipping load (Since 2017)
|
8,934 lbs (4,052 kg)
|
|
Tipping load (Since 2017)
|
8,660 lbs (3,928 kg)
|
|
Tipping load (Since 2017)
|
9,214 lbs (4,179 kg)
|
|
Tipping load (Since 2017)
|
8,556 lbs (3,881 kg)
|
|
Tipping load (Since 2017)
|
8,506 lbs (3,858 kg)
|
|
Tipping load (Since 2017)
|
7,009 lbs (3,179 kg)
|
|
Tipping load (Since 2017)
|
6,693 lbs (3,036 kg)
|
|
Tipping load (Since 2017)
|
7,375 lbs (3,345 kg)
|
|
Tipping load (Since 2017)
|
9,450 lbs (4,286 kg)
|
|
Tipping load (Since 2018)
|
8,934 lbs (4,052 kg)
|
|
Tipping load (Since 2018)
|
8,660 lbs (3,928 kg)
|
|
Tipping load (Since 2018)
|
9,214 lbs (4,179 kg)
|
|
Tipping load (Since 2018)
|
8,556 lbs (3,881 kg)
|
|
Tipping load (Since 2018)
|
8,506 lbs (3,858 kg)
|
|
Tipping load (Since 2018)
|
7,009 lbs (3,179 kg)
|
|
Tipping load (Since 2018)
|
6,693 lbs (3,036 kg)
|
|
Tipping load (Since 2018)
|
7,375 lbs (3,345 kg)
|
|
Tipping load (Since 2018)
|
9,450 lbs (4,286 kg)
|
|
Tipping load (Since 2019)
|
8,934 lbs (4,052 kg)
|
|
Tipping load (Since 2019)
|
8,660 lbs (3,928 kg)
|
|
Tipping load (Since 2019)
|
9,214 lbs (4,179 kg)
|
|
Tipping load (Since 2019)
|
8,556 lbs (3,881 kg)
|
|
Tipping load (Since 2019)
|
9,450 lbs (4,286 kg)
|
|
Tipping load (Since 2019)
|
7,375 lbs (3,345 kg)
|
|
Tipping load (Since 2019)
|
6,693 lbs (3,036 kg)
|
|
Tipping load (Since 2019)
|
7,009 lbs (3,179 kg)
|
|
Tipping load (Since 2019)
|
8,506 lbs (3,858 kg)
|
|
Total (Since 2016)
|
11 |
|
Total (2017)
|
11 |
|
Total (2018)
|
11 |
|
Total (2019)
|
11 |
|
Two Speed Forward (Since 2016)
|
8 mph (13 kph)
|
|
Two Speed Forward (Since 2017)
|
8 mph (14 kph)
|
|
Two Speed Forward (2018)
|
8 mph (14 kph)
|
|
Two Speed Forward (2019)
|
8 mph (14 kph)
|
|
U Bucket pin reach at maximum lift (Since 2016)
|
19 in (49 cm)
|
|
U Bucket pin reach at maximum lift (2017)
|
19 in (49 cm)
|
|
U Bucket pin reach at maximum lift (2018)
|
19 in (49 cm)
|
|
U Bucket pin reach at maximum lift (2019)
|
19 in (49 cm)
|
|
Width (Since 2016)
|
81 in (204 cm)
|
|
Width (Since 2016)
|
87 in (220 cm)
|
|
Width (Since 2016)
|
87 in (221 cm)
|
|
Width (Since 2017)
|
81 in (204 cm)
|
|
Width (Since 2017)
|
87 in (220 cm)
|
|
Width (Since 2017)
|
87 in (221 cm)
|
|
Width (Since 2018)
|
81 in (204 cm)
|
|
Width (Since 2018)
|
87 in (220 cm)
|
|
Width (Since 2018)
|
87 in (221 cm)
|
|
Width (Since 2019)
|
81 in (204 cm)
|
|
Width (Since 2019)
|
87 in (220 cm)
|
|
Width (Since 2019)
|
87 in (221 cm)
|
| Hydraulic System |
|
Hydraulic Flow - Xhp - Hydraulic Power (Calculated) |
94 hp (70 kw)
|
|
Hydraulic Flow - Xhp - Maximum Loader Hydraulic Flow* |
40 gpm (151 lpm)
|
|
Hydraulic Flow - Xhp - Maximum Loader Hydraulic Pressure |
4,061 psi |
|
Note |
*When equipped with Cat 400 Series work tools. |
|
Standard Flow Mode - Hydraulic Power - Calculated |
44 hp (33 kw)
|
|
Standard Flow Mode - Loader Hydraulic Flow |
23 gpm (87 lpm)
|
|
Standard Flow Mode - Loader Hydraulic Pressure |
3,335 psi |
| Noise Level |
|
Inside Cab* |
83 dB(A) |
|
Note (1) |
Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe. |
|
Note (2) |
*The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds. |
|
Note (3) |
**The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC. |
|
Outside Cab** |
104 dB(A) |
| Operating Specifications |
|
Breakout Force - Lift Cylinder |
6,162 lbs (2,795 kg)
|
|
Breakout Force - Tilt Cylinder |
7,270 lbs (3,298 kg)
|
|
Ground Contact Area |
2184 in2 |
|
Ground Pressure |
5 psi |
|
Note |
Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, ride control, enclosed cab with glass door, side windows, air conditioning, air ride seat, advanced display, rearview camera, 1,000 CCA battery, dual direction self level, 1981 mm (78 in) dirt bucket, 400 mm (15.7 in) tracks, triple flange front/rear idlers, no optional counterweights and manual quick coupler (unless otherwise noted). |
|
Rated Operating Capacities - 35% Tipping Load |
3,308 lbs (1,500 kg)
|
|
Rated Operating Capacities - 50% Tipping Load |
4,725 lbs (2,143 kg)
|
|
Rated Operating Capacity With Optional Counterweight |
4,975 lbs (2,257 kg)
|
|
Tipping Load |
9,450 lbs (4,286 kg)
|
| Operational |
|
Operating Weight |
11,608 lbs (5,265 kg)
|
| Power Train |
|
Travel Speed - Forward Or Reverse - One Speed |
5 mph (8 kph)
|
|
Travel Speed - Forward Or Reverse - Two Speed |
8 mph (14 kph)
|
| Service Refill Capacities |
|
Cooling System |
4 gal (16 l)
|
|
Diesel Exhaust Fluid (Def) Tank |
5 gal (19 l)
|
|
Engine Crankcase |
4 gal (13 l)
|
|
Fuel Tank |
32 gal (122 l)
|
|
Hydraulic System |
15 gal (55 l)
|
|
Hydraulic Tank |
10 gal (39 l)
|
| Weights |
|
Note |
Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, ride control, enclosed cab with glass door, side windows, air conditioning, air ride seat, advanced display, rearview camera, 1,000 CCA battery, dual direction self level, 1981 mm (78 in) dirt bucket, 400 mm (15.7 in) tracks, triple flange front/rear idlers, no optional counterweights and manual quick coupler (unless otherwise noted). |
