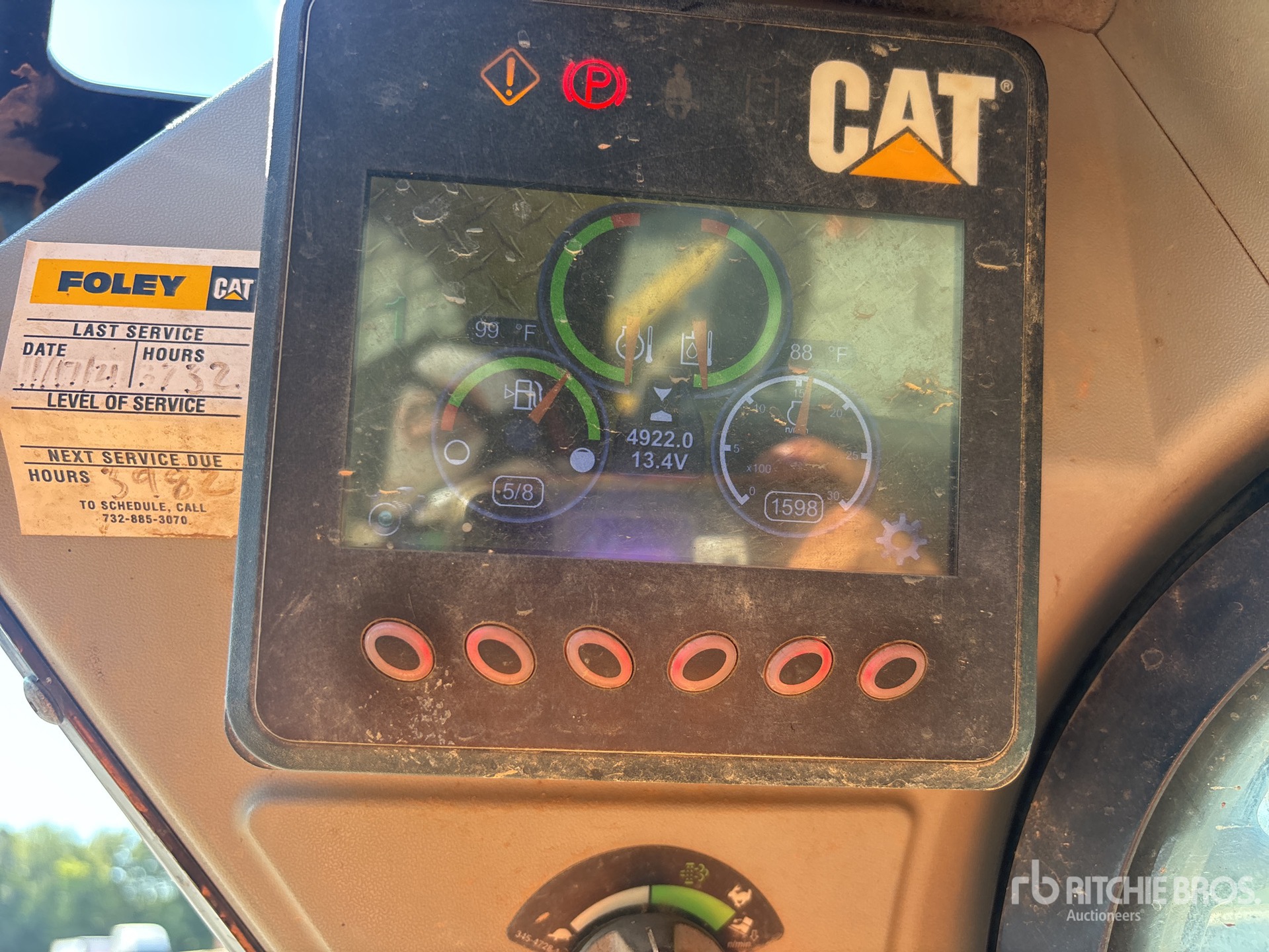

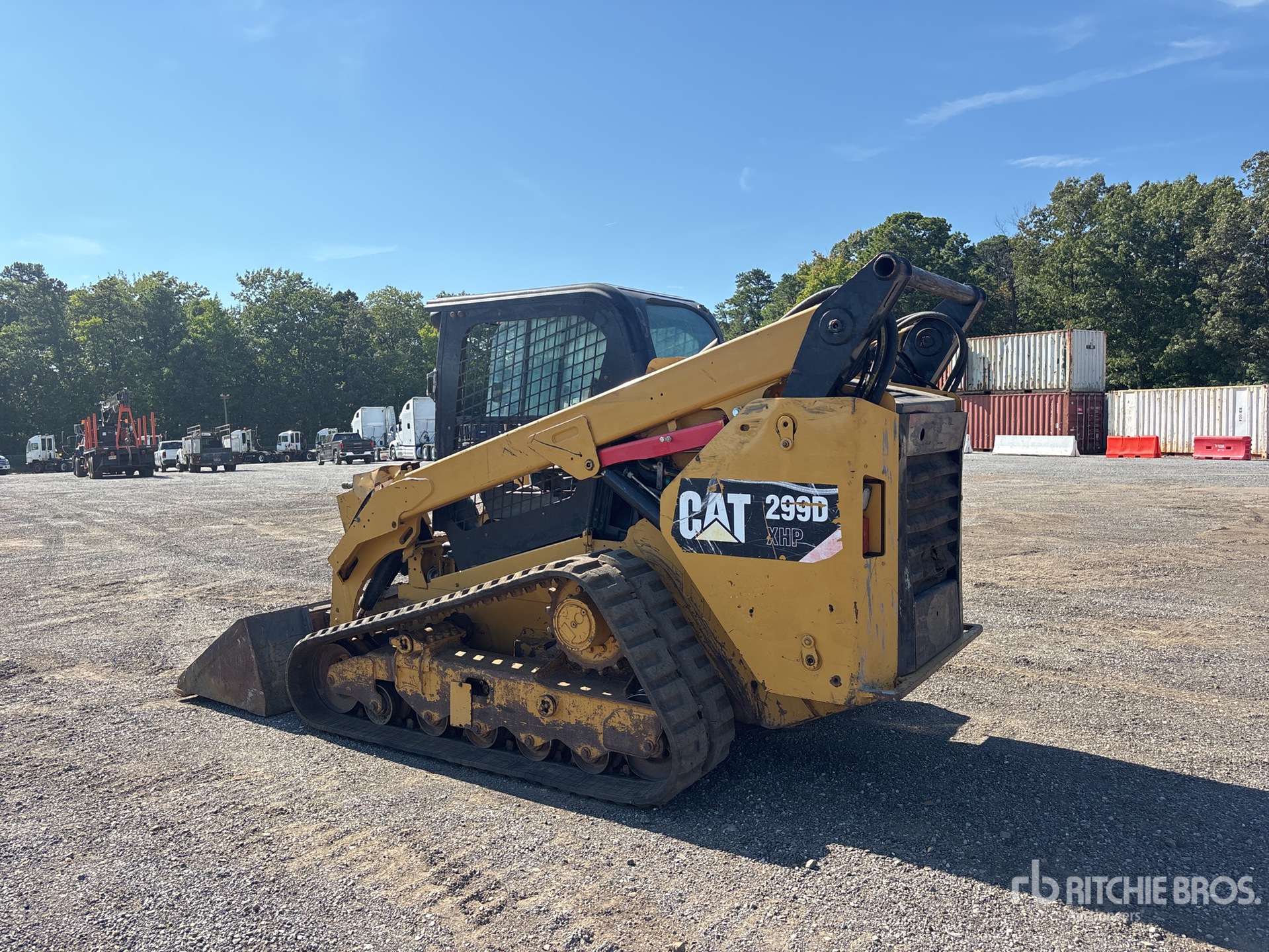

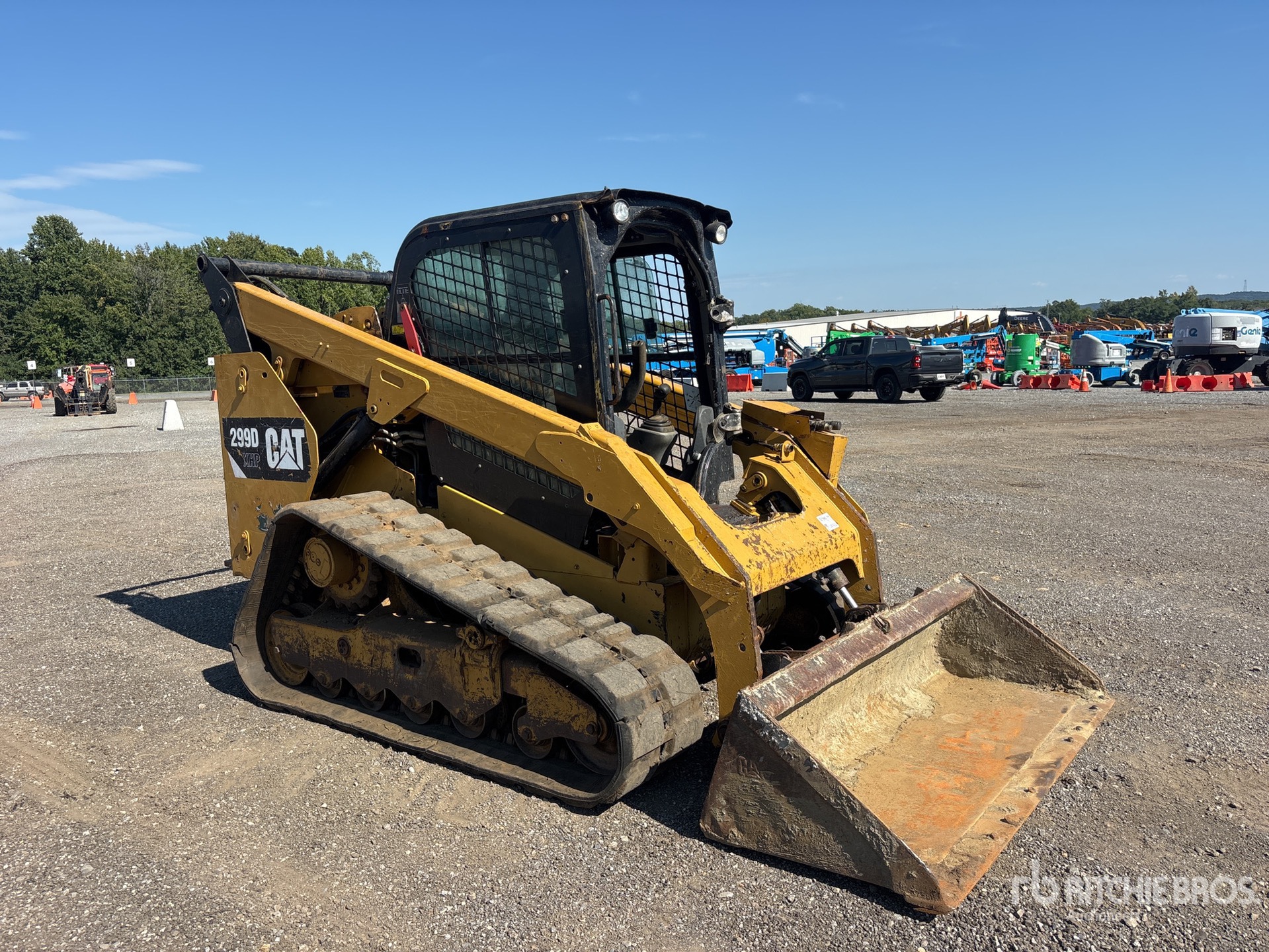

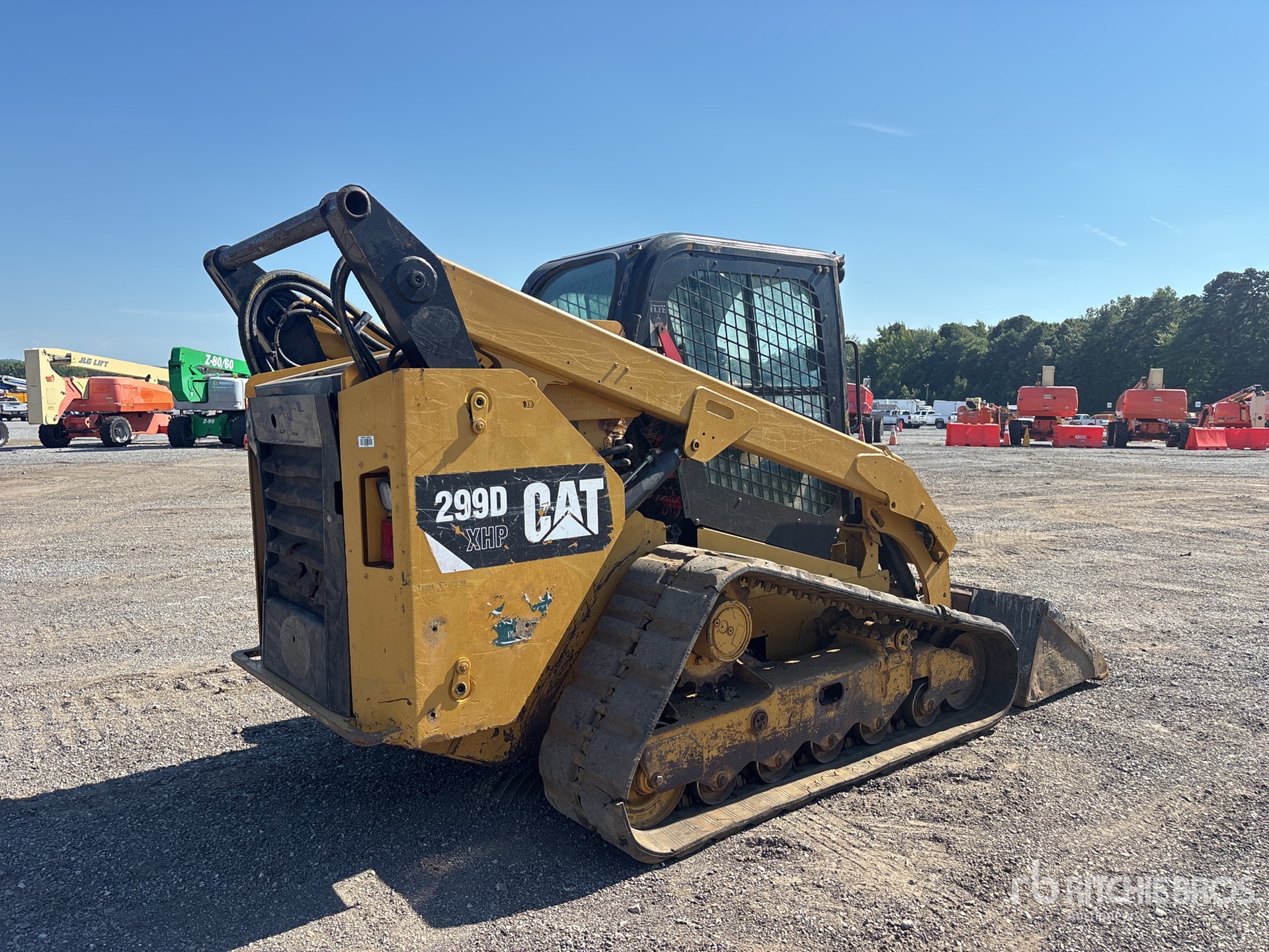

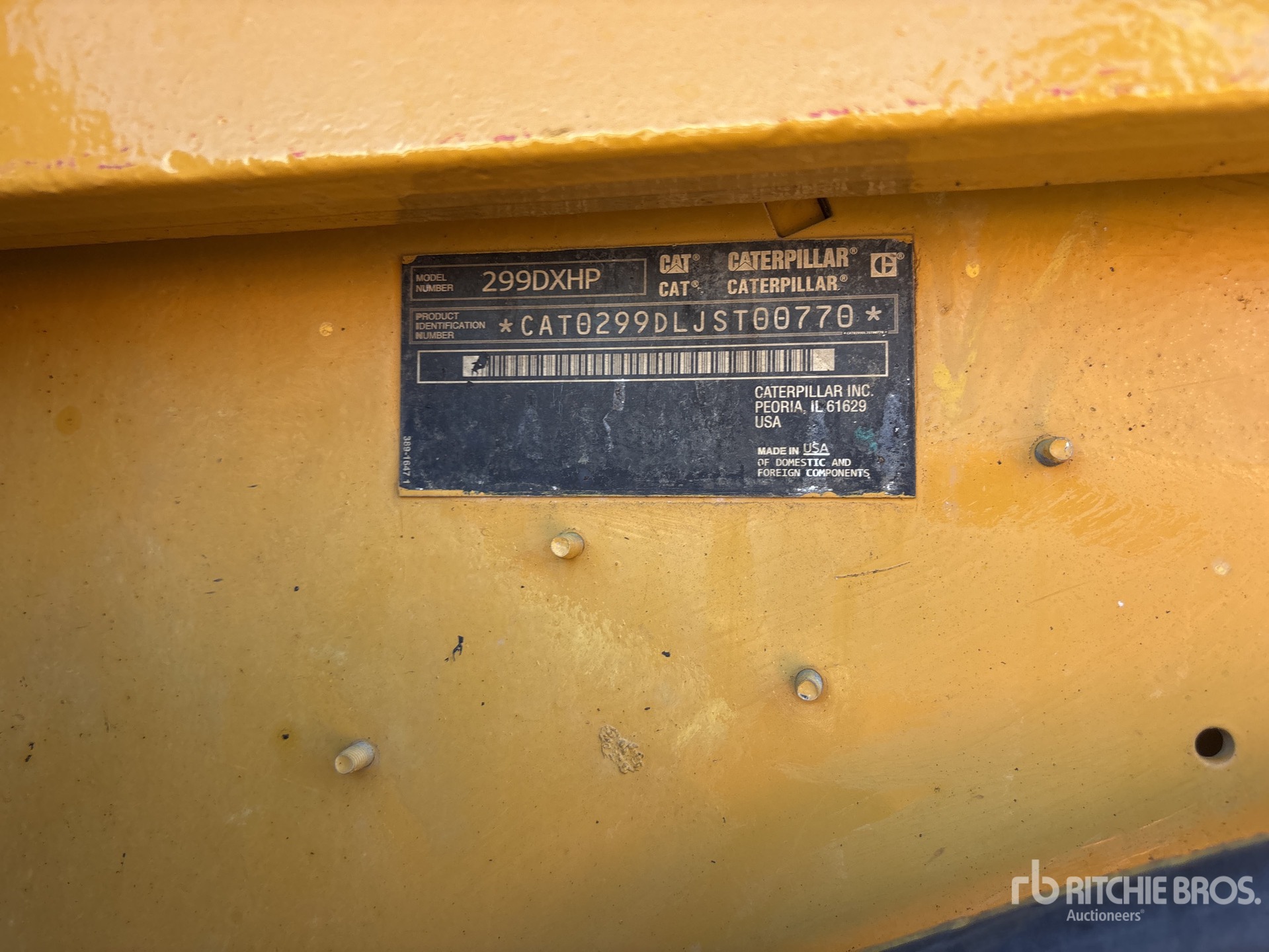

| Cab |
|
Fops |
SAE J1043 SEPT87, ISO 3449:1992 Level I |
|
Fops Level Ii |
SAE J231 JAN81, ISO 3449:1992 Level II |
|
Rops |
SAE J1040 MAY94, ISO 3471:1994 |
| Dimensions |
|
Bucket Pin Height - Carry Position |
8 in (20 cm)
|
|
Bucket Pin Height - Maximum Lift |
11 ft (3 m)
|
|
Bucket Pin Reach - Maximum Lift |
16 in (41 cm)
|
|
Clearance At Maximum Lift And Dump |
95 in (242 cm)
|
|
Departure Angle |
39 degrees |
|
Ground Clearance |
1 ft (0 m)
|
|
Height |
7 ft (2 m)
|
|
Height - Top Of Cab |
7 ft (2 m)
|
|
Length |
13 ft (4 m)
|
|
Length - Track On Ground |
70 in (177 cm)
|
|
Length - With Bucket On Ground |
152 in (385 cm)
|
|
Length - Without Bucket |
124 in (314 cm)
|
|
Maximum Dump Angle |
52 degrees |
|
Maximum Overall Height |
159 in (405 cm)
|
|
Maximum Reach - With Arms Parallel |
51 in (129 cm)
|
|
Overall Length - Track |
89 in (227 cm)
|
|
Rack Back Angle - Maximum Height |
83 degrees |
|
Reach At Maximum Lift/Dump |
31 in (79 cm)
|
|
Turn Radius From Center - Bucket |
92 in (235 cm)
|
|
Turn Radius From Center - Coupler |
60 in (153 cm)
|
|
Turn Radius From Center - Rear |
73 in (185 cm)
|
|
Vehicle Width |
76 in (193 cm)
|
|
Weight |
11,612 lbs (5,266 kg)
|
|
Width |
6 ft (2 m)
|
| Engine |
|
Bore |
4 in (10 cm)
|
|
Displacement |
232 cu in (3,802 cu cm)
|
|
Engine Model |
Cat C3.8 (turbocharged) |
|
Gross Power |
110 hp (82 kw)
|
|
Gross Power - Sae J1995 |
110 hp (82 kw)
|
|
Net Power |
106 hp (79 kw)
|
|
Net Power - Sae 1349 |
106 hp (79 kw)
|
|
Stroke |
5 in (12 cm)
|
| Hydraulic System |
|
Hydraulic Flow (1) |
Standard |
|
Hydraulic Flow (2) |
XHP |
|
Hydraulic Power |
44 hp (33 kw)
|
|
Hydraulic Power - Calculated |
94 hp (70 kw)
|
|
Loader Hydraulic Flow |
23 gpm (87 lpm)
|
|
Loader Hydraulic Pressure |
3,335 psi |
|
Maximum Loader Hydraulic Flow |
40 gpm (151 lpm)
|
|
Maximum Loader Hydraulic Pressure |
4,061 psi |
| Operating Specifications |
|
Breakout Force - Lift Cylinder |
6,100 lbs (2,767 kg)
|
|
Breakout Force - Tilt Cylinder |
7,381 lbs (3,348 kg)
|
|
Ground Contact Area |
2184 in2 |
|
Ground Pressure |
5 psi |
|
Rated Operating Capacities - 35% Tipping Load |
3,185 lbs (1,445 kg)
|
|
Rated Operating Capacities - 50% Tipping Load |
4,550 lbs (2,064 kg)
|
|
Tipping Load |
9,100 lbs (4,128 kg)
|
| Operational |
|
Operating Weight |
11,647 lbs (5,283 kg)
|
| Power Train |
|
Travel Speed Forward |
5 mph (8 kph)
|
|
Travel Speed Forward - 2-Speed |
9 mph (14 kph)
|
|
Travel Speed Reverse |
5 mph (8 kph)
|
|
Travel Speed Reverse - 2-Speed |
9 mph (14 kph)
|
| Service Refill Capacities |
|
Cooling System |
4 gal (14 l)
|
|
Engine Crankcase |
3 gal (10 l)
|
|
Fuel Tank |
31 gal (117 l)
|
|
Hydraulic System |
16 gal (61 l)
|
|
Hydraulic Tank |
10 gal (39 l)
|
