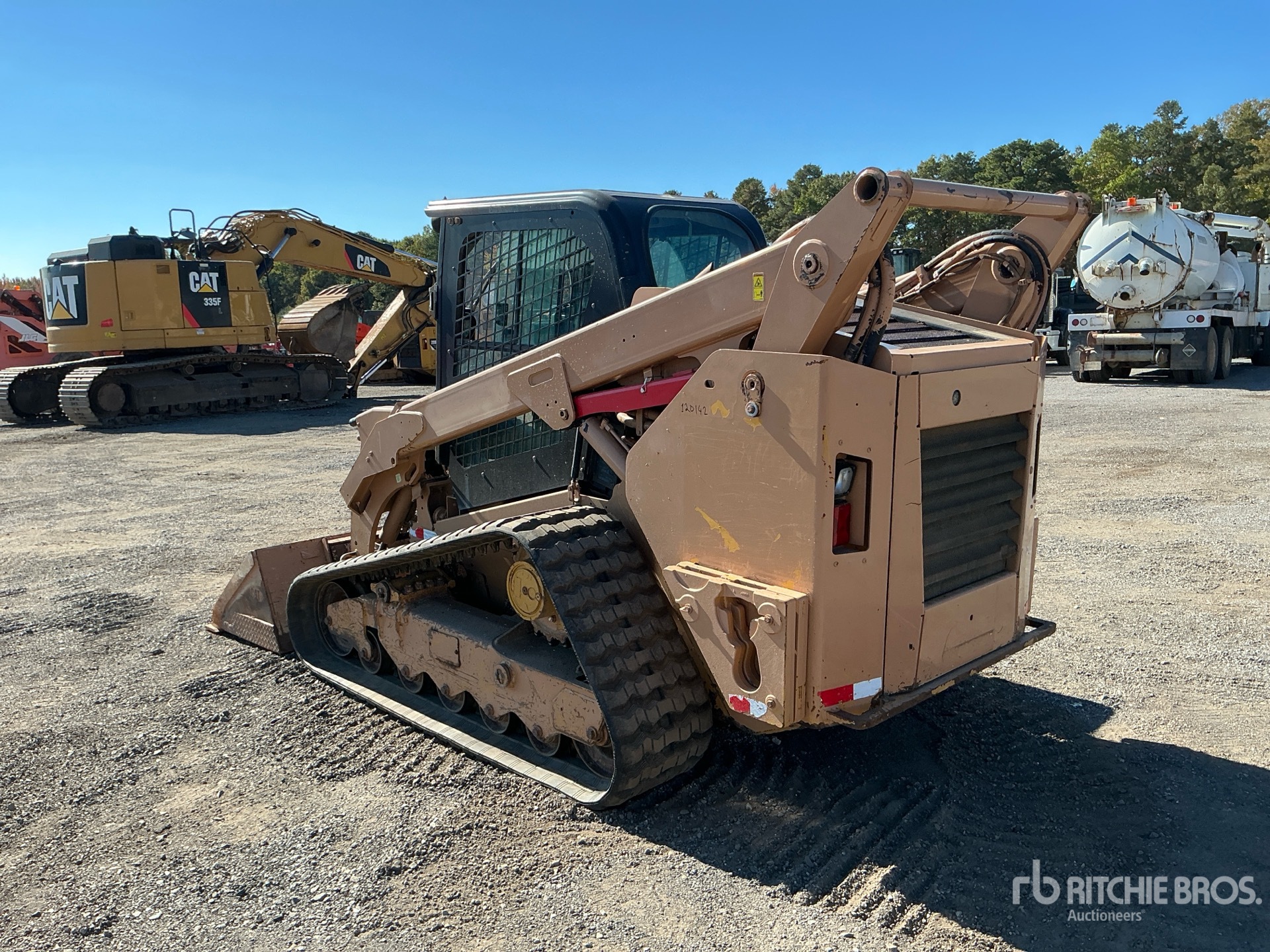

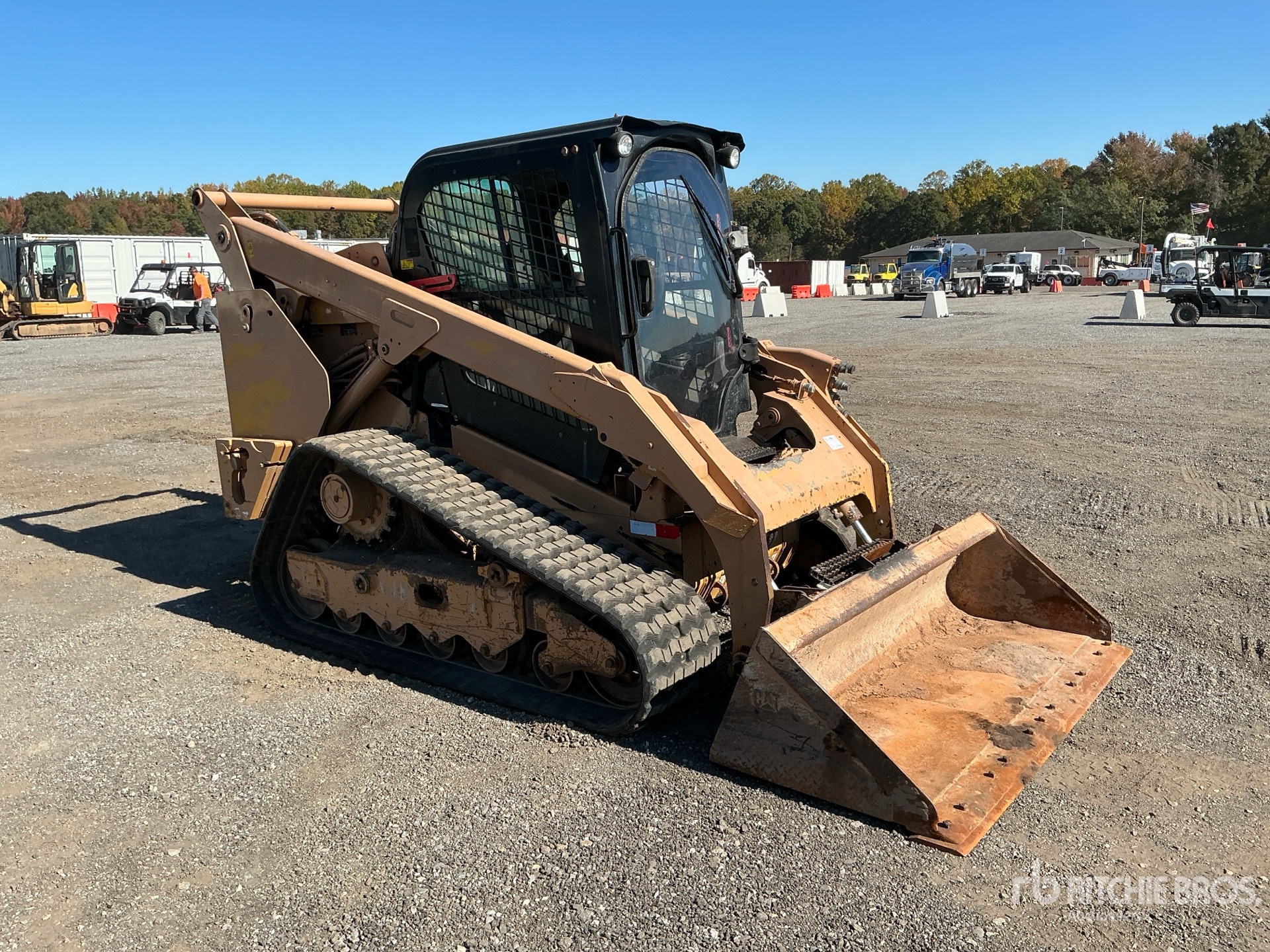

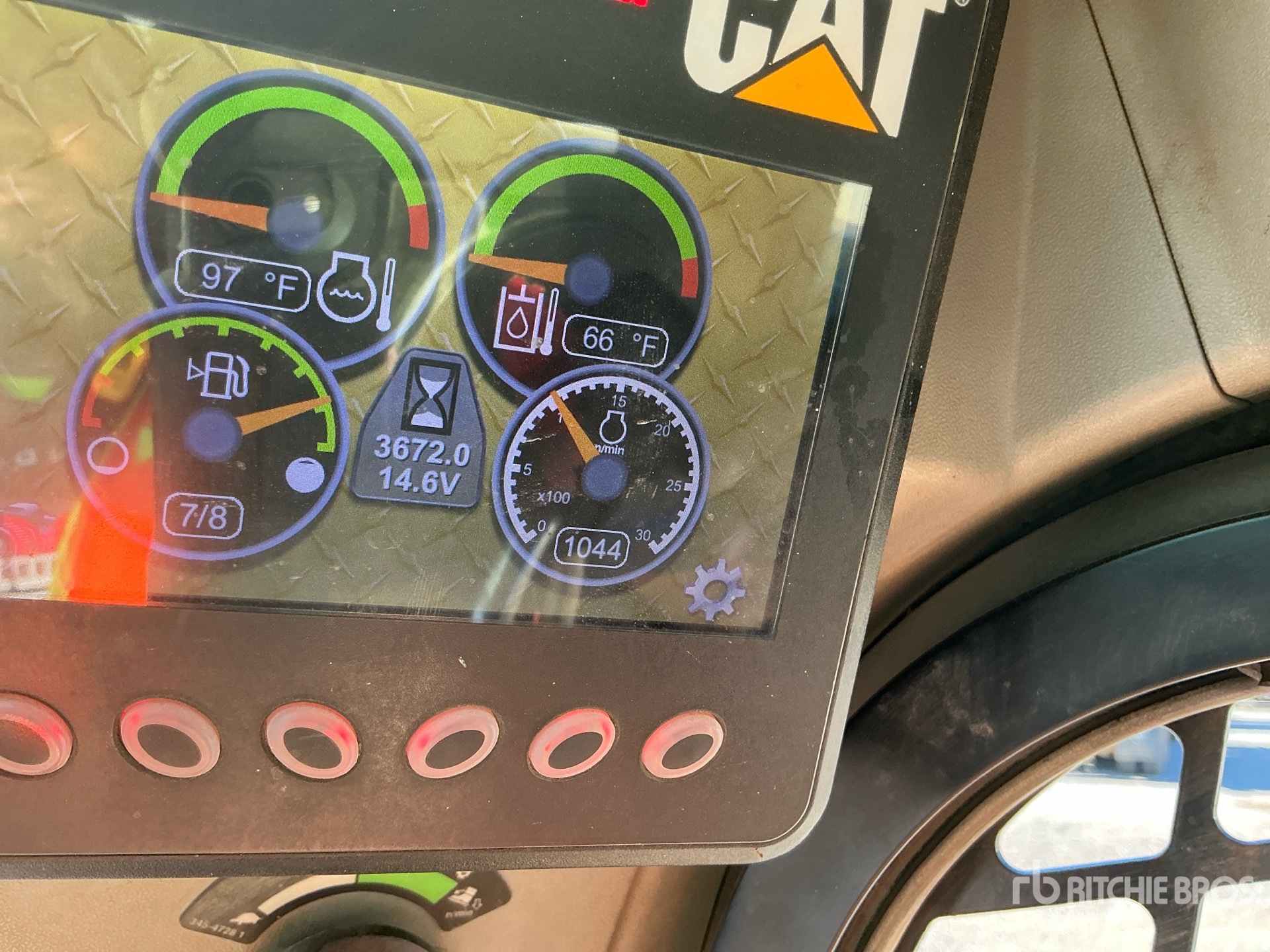

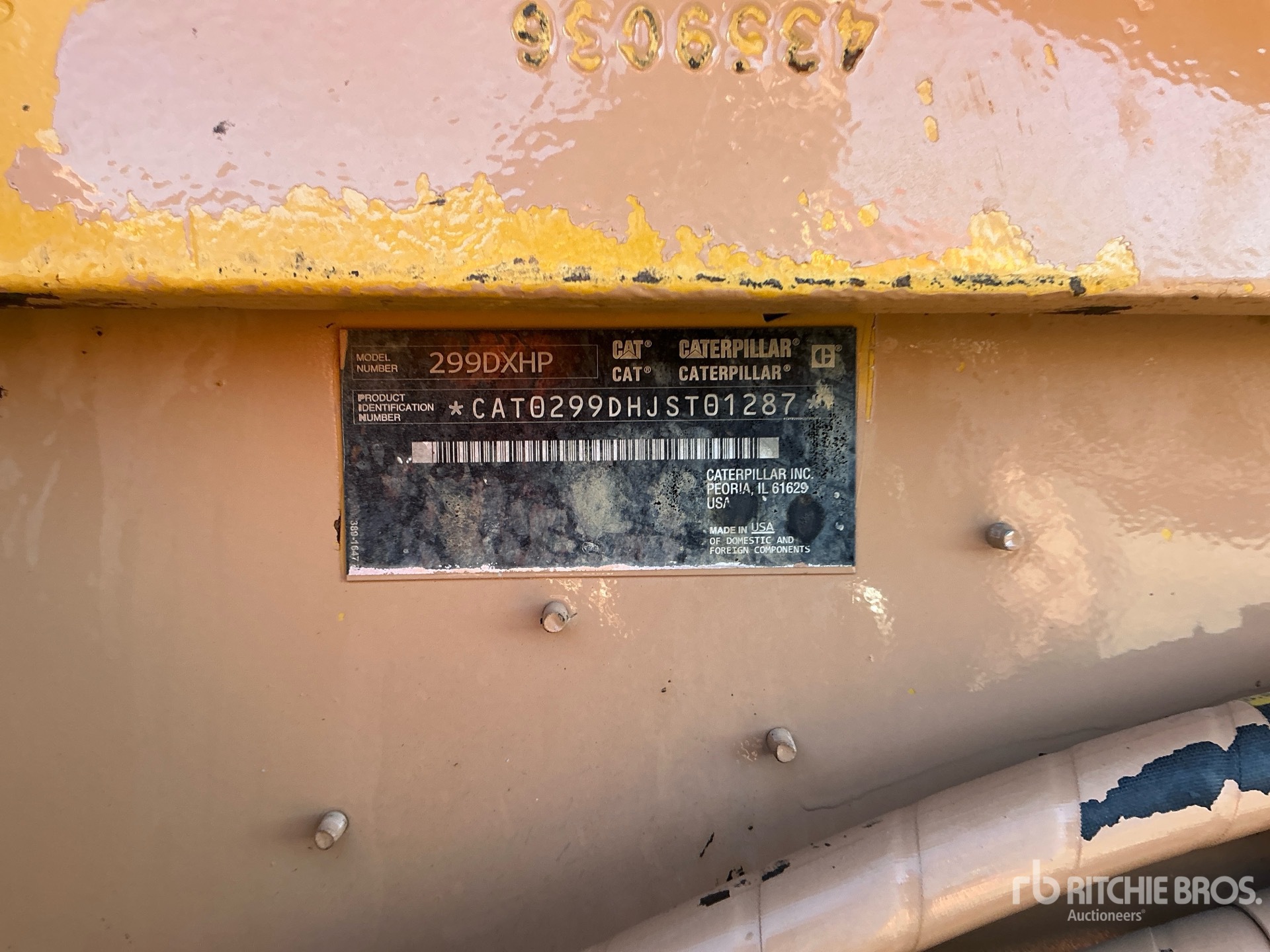

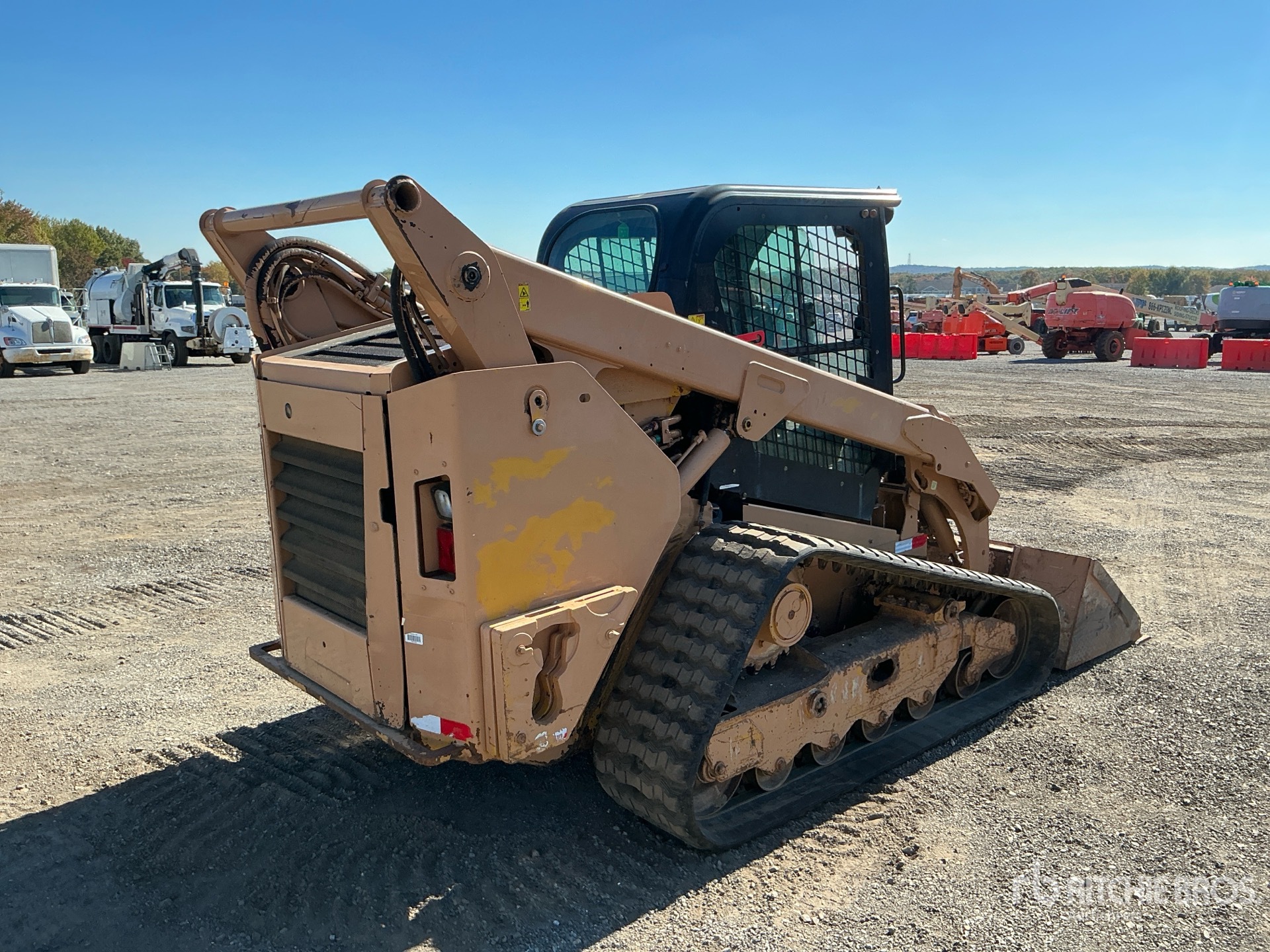

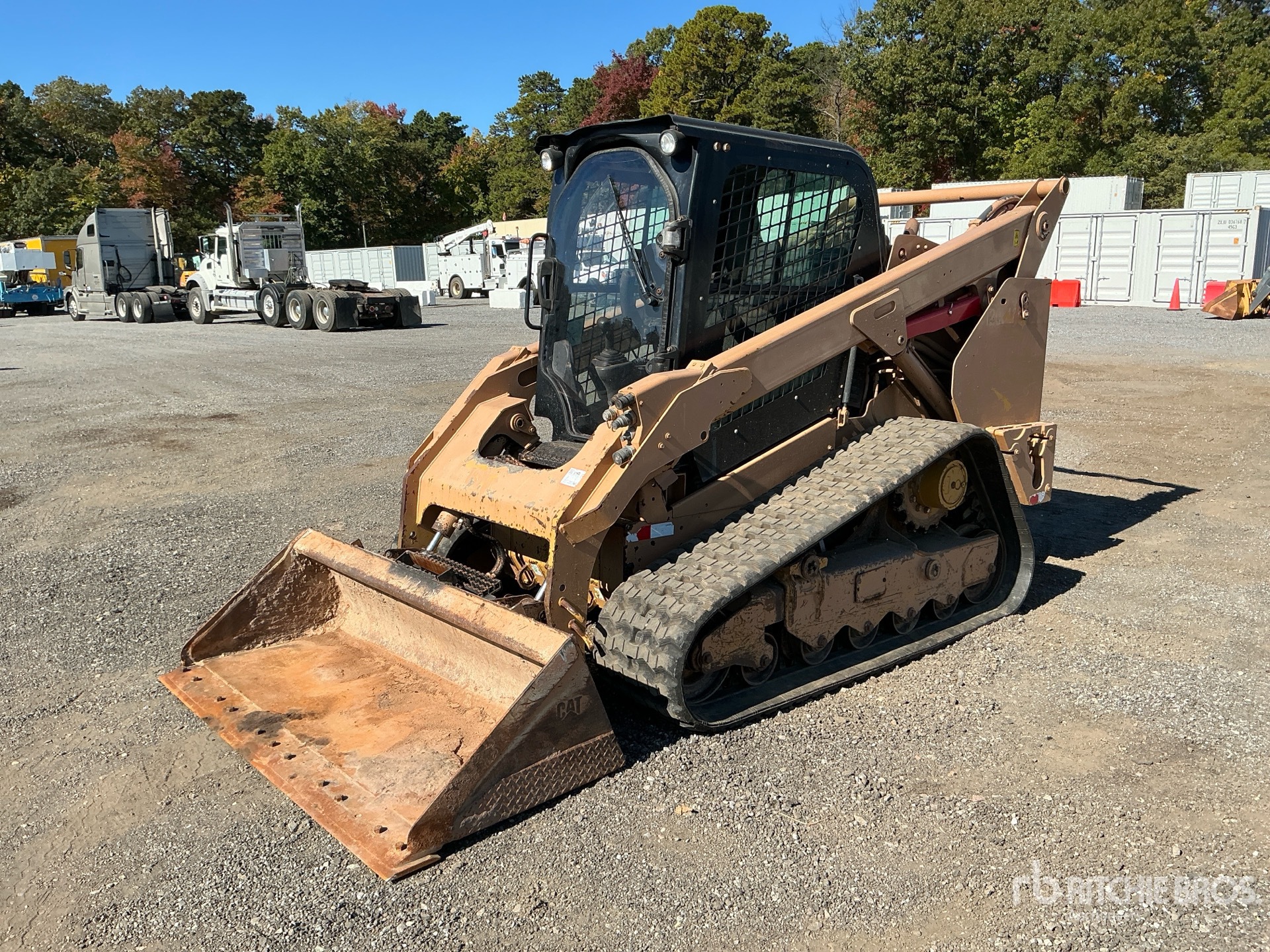

| Cab |
|
Fops |
SAE J1043 SEPT87, ISO 3449:1992 Level I |
|
Fops Level Ii |
SAE J231 JAN81, ISO 3449:1992 Level II |
|
Rops |
SAE J1040 MAY94, ISO 3471:1994 |
| Dimensions |
|
Bucket Pin Height - Carry Position |
8 in (20 cm)
|
|
Bucket Pin Height - Maximum Lift |
11 ft (3 m)
|
|
Bucket Pin Reach - Maximum Lift |
16 in (41 cm)
|
|
Clearance At Maximum Lift And Dump |
95 in (242 cm)
|
|
Departure Angle |
39 degrees |
|
Ground Clearance |
1 ft (0 m)
|
|
Height |
7 ft (2 m)
|
|
Height - Top Of Cab |
7 ft (2 m)
|
|
Length |
13 ft (4 m)
|
|
Length - Track On Ground |
70 in (177 cm)
|
|
Length - With Bucket On Ground |
152 in (385 cm)
|
|
Length - Without Bucket |
124 in (314 cm)
|
|
Maximum Dump Angle |
52 degrees |
|
Maximum Overall Height |
159 in (405 cm)
|
|
Maximum Reach - With Arms Parallel |
51 in (129 cm)
|
|
Overall Length - Track |
89 in (227 cm)
|
|
Rack Back Angle - Maximum Height |
83 degrees |
|
Reach At Maximum Lift/Dump |
31 in (79 cm)
|
|
Turn Radius From Center - Bucket |
92 in (235 cm)
|
|
Turn Radius From Center - Coupler |
60 in (153 cm)
|
|
Turn Radius From Center - Rear |
73 in (185 cm)
|
|
Vehicle Width |
76 in (193 cm)
|
|
Weight |
11,612 lbs (5,267 kg)
|
|
Width |
6 ft (2 m)
|
| Engine |
|
Bore |
4 in (10 cm)
|
|
Displacement |
232 cu in (3,802 cu cm)
|
|
Engine Model |
Cat C3.8 (turbocharged) |
|
Gross Power |
110 hp (82 kw)
|
|
Gross Power - Sae J1995 |
110 hp (82 kw)
|
|
Net Power |
106 hp (79 kw)
|
|
Net Power - Sae 1349 |
106 hp (79 kw)
|
|
Stroke |
5 in (12 cm)
|
| General Specifications |
|
A Height to top of ROPS (Since 2013)
|
83 in (211 cm)
|
|
A Length of track on ground (Since 2015)
|
70 in (178 cm)
|
|
B Length to coupler (Since 2013)
|
122 in (310 cm)
|
|
B Overall length of track (Since 2015)
|
89 in (227 cm)
|
|
Blade surface height at level lift arms (Since 2013)
|
66 in (168 cm)
|
|
Blade surface height at level lift arms (Since 2015)
|
61 in (156 cm)
|
|
Blade surface height at level lift arms (Since 2015)
|
61 in (156 cm)
|
|
Blade surface height at level lift arms (Since 2015)
|
61 in (156 cm)
|
|
Blade surface height at maximum height (Since 2013)
|
125 in (318 cm)
|
|
Blade surface height at maximum height (Since 2015)
|
122 in (309 cm)
|
|
Blade surface height at maximum height (Since 2015)
|
122 in (309 cm)
|
|
Blade surface height at minimum lift (Since 2013)
|
5 in (12 cm)
|
|
Blade surface height at minimum lift (Since 2015)
|
2 in (5 cm)
|
|
Blade surface height at minimum lift (2015)
|
2 in (5 cm)
|
|
Blade surface height at minimum lift (2015)
|
2 in (5 cm)
|
|
Bore (Since 2013)
|
4 in (10 cm)
|
|
Bore (2015)
|
4 in (10 cm)
|
|
Breakout force - lift (Since 2013)
|
5,863 lbf (26 kN)
|
|
Breakout force - lift (Since 2013)
|
5,853 lbf (26 kN)
|
|
Breakout force - lift (Since 2013)
|
5,993 lbf (27 kN)
|
|
Breakout force - lift (Since 2013)
|
5,657 lbf (25 kN)
|
|
Breakout force - lift (Since 2013)
|
5,754 lbf (26 kN)
|
|
Breakout force - lift (Since 2013)
|
5,792 lbf (26 kN)
|
|
Breakout force - lift (Since 2013)
|
5,585 lbf (25 kN)
|
|
Breakout force - lift (Since 2013)
|
5,713 lbf (25 kN)
|
|
Breakout force - lift (Since 2013)
|
5,977 lbf (27 kN)
|
|
Breakout force - lift (Since 2013)
|
6,114 lbf (27 kN)
|
|
Breakout force - lift (Since 2013)
|
5,638 lbf (25 kN)
|
|
Breakout force - lift (Since 2013)
|
5,673 lbf (25 kN)
|
|
Breakout force - lift (Since 2013)
|
5,541 lbf (25 kN)
|
|
Breakout force - lift (Since 2013)
|
5,677 lbf (25 kN)
|
|
Breakout force - lift (Since 2015)
|
5,855 lbf (26 kN)
|
|
Breakout force - lift (Since 2015)
|
5,638 lbf (25 kN)
|
|
Breakout force - lift (Since 2015)
|
5,979 lbf (27 kN)
|
|
Breakout force - lift (Since 2015)
|
5,605 lbf (25 kN)
|
|
Breakout force - lift (Since 2015)
|
5,564 lbf (25 kN)
|
|
Breakout force - tilt (Since 2013)
|
6,518 lbf (29 kN)
|
|
Breakout force - tilt (Since 2013)
|
6,836 lbf (30 kN)
|
|
Breakout force - tilt (Since 2013)
|
6,878 lbf (31 kN)
|
|
Breakout force - tilt (Since 2013)
|
5,810 lbf (26 kN)
|
|
Breakout force - tilt (Since 2013)
|
6,079 lbf (27 kN)
|
|
Breakout force - tilt (Since 2013)
|
6,121 lbf (27 kN)
|
|
Breakout force - tilt (Since 2013)
|
6,313 lbf (28 kN)
|
|
Breakout force - tilt (Since 2013)
|
6,662 lbf (30 kN)
|
|
Breakout force - tilt (Since 2013)
|
6,972 lbf (31 kN)
|
|
Breakout force - tilt (Since 2013)
|
7,380 lbf (33 kN)
|
|
Breakout force - tilt (Since 2013)
|
6,598 lbf (29 kN)
|
|
Breakout force - tilt (Since 2013)
|
6,620 lbf (29 kN)
|
|
Breakout force - tilt (Since 2013)
|
6,285 lbf (28 kN)
|
|
Breakout force - tilt (Since 2013)
|
6,642 lbf (30 kN)
|
|
Breakout force - tilt (Since 2015)
|
6,745 lbf (30 kN)
|
|
Breakout force - tilt (Since 2015)
|
6,058 lbf (27 kN)
|
|
Breakout force - tilt (Since 2015)
|
7,201 lbf (32 kN)
|
|
Breakout force - tilt (Since 2015)
|
6,667 lbf (30 kN)
|
|
Breakout force - tilt (Since 2015)
|
6,655 lbf (30 kN)
|
|
Breakout force, tilt cylinder (Since 2015)
|
7,552 lbf (34 kN)
|
|
Bucket overall width with edge (Since 2013)
|
78 in (198 cm)
|
|
Bumper overhang from axle (Since 2013)
|
34 in (86 cm)
|
|
C Length with bucket on ground (Since 2013)
|
151 in (384 cm)
|
|
C Length without bucket (Since 2015)
|
124 in (314 cm)
|
|
Carriage height above blade top (Since 2013)
|
37 in (93 cm)
|
|
Carriage height above blade top (Since 2015)
|
37 in (93 cm)
|
|
Carriage overall width without step (Since 2013)
|
46 in (116 cm)
|
|
Carriage overall width without step (Since 2015)
|
46 in (116 cm)
|
|
Carriage step additional width (Since 2013)
|
4 in (11 cm)
|
|
Carriage step additional width (2015)
|
4 in (11 cm)
|
|
Clearance at maximum lift/level bucket (Since 2013)
|
118 in (300 cm)
|
|
Clearance at maximum lift/level bucket (Since 2013)
|
119 in (302 cm)
|
|
Clearance at maximum lift/level bucket (Since 2013)
|
118 in (300 cm)
|
|
Clearance at maximum lift/level bucket (Since 2013)
|
119 in (302 cm)
|
|
Clearance at maximum lift/level bucket (Since 2013)
|
118 in (300 cm)
|
|
Clearance at maximum lift/level bucket (Since 2013)
|
119 in (302 cm)
|
|
Clearance at maximum lift/level bucket (Since 2015)
|
118 in (298 cm)
|
|
Clearance at maximum lift/level bucket (Since 2015)
|
117 in (298 cm)
|
|
Clearance at maximum lift/level bucket (Since 2015)
|
118 in (299 cm)
|
|
Clearance at maximum lift/level bucket (Since 2015)
|
117 in (297 cm)
|
|
Clearance at maximum lift/level bucket (2015)
|
117 in (297 cm)
|
|
D Length with bucket on ground (Since 2015)
|
152 in (386 cm)
|
|
D Maximum overall height (Since 2013)
|
166 in (422 cm)
|
|
Dig depth with level bucket (Since 2013)
|
1 in (3 cm)
|
|
Dig depth with level bucket (Since 2013)
|
0 in (1 cm)
|
|
Dig depth with level bucket (Since 2013)
|
1 in (3 cm)
|
|
Dig depth with level bucket (Since 2013)
|
1 in (2 cm)
|
|
Dig depth with level bucket (Since 2015)
|
-2 in (-5 cm)
|
|
Dig depth with level bucket (Since 2015)
|
-2 in (-6 cm)
|
|
Dig depth with level bucket (Since 2015)
|
-2 in (-5 cm)
|
|
Dig depth with level bucket (Since 2015)
|
-3 in (-6 cm)
|
|
Dig depth with level bucket (2015)
|
-3 in (-6 cm)
|
|
Displacement (Since 2013)
|
232 cu in (3,802 cu cm)
|
|
Displacement (2015)
|
232 cu in (3,802 cu cm)
|
|
Dump (Since 2013)
|
2 |
|
Dump (Since 2015)
|
2 |
|
Dump clearance at maximum lift/dump (Since 2013)
|
92 in (234 cm)
|
|
Dump clearance at maximum lift/dump (Since 2013)
|
91 in (231 cm)
|
|
Dump clearance at maximum lift/dump (Since 2013)
|
93 in (236 cm)
|
|
Dump clearance at maximum lift/dump (Since 2013)
|
89 in (227 cm)
|
|
Dump clearance at maximum lift/dump (Since 2013)
|
88 in (223 cm)
|
|
Dump clearance at maximum lift/dump (Since 2013)
|
91 in (231 cm)
|
|
Dump clearance at maximum lift/dump (2013)
|
91 in (231 cm)
|
|
Dump clearance at maximum lift/dump (Since 2013)
|
93 in (236 cm)
|
|
Dump clearance at maximum lift/dump (Since 2013)
|
94 in (239 cm)
|
|
Dump clearance at maximum lift/dump (Since 2013)
|
95 in (242 cm)
|
|
Dump clearance at maximum lift/dump (Since 2013)
|
91 in (230 cm)
|
|
Dump clearance at maximum lift/dump (Since 2013)
|
92 in (234 cm)
|
|
Dump clearance at maximum lift/dump (Since 2015)
|
92 in (233 cm)
|
|
Dump clearance at maximum lift/dump (Since 2015)
|
89 in (225 cm)
|
|
Dump clearance at maximum lift/dump (Since 2015)
|
93 in (237 cm)
|
|
Dump clearance at maximum lift/dump (Since 2015)
|
91 in (231 cm)
|
|
Dump clearance at maximum lift/dump (Since 2015)
|
91 in (231 cm)
|
|
E Ground clearance (Since 2013)
|
9 in (23 cm)
|
|
E Height to top of cab (Since 2015)
|
84 in (213 cm)
|
|
Engine Model (Since 2013)
|
C3.8 (turbo) |
|
Engine Model (Since 2015)
|
C3.8 DIT |
|
F Departure angle (Since 2013)
|
39 deg |
|
F Maximum overall height (Since 2015)
|
158 in (402 cm)
|
|
Floor angle at maximum lift/dump (Since 2013)
|
51 deg |
|
Floor angle at maximum lift/dump (Since 2015)
|
52 deg |
|
Floor angle at maximum lift/dump (Since 2015)
|
52 deg |
|
Floor angle at maximum lift/dump (Since 2015)
|
52 deg |
|
Floor angle at maximum lift/rack back (Since 2013)
|
83 deg |
|
Floor angle at maximum lift/rack back (Since 2015)
|
-83 deg |
|
Floor angle at maximum lift/rack back (Since 2015)
|
-83 deg |
|
Floor angle at maximum lift/rack back (Since 2015)
|
-83 deg |
|
Floor angle at maximum lift/rack back (Since 2015)
|
-83 deg |
|
Flywheel Power - Gross (SAE J1995) (Since 2015)
|
110 hp (82 kw)
|
|
Flywheel Power - Net (SAE 1349) (Since 2015)
|
106 hp (79 kw)
|
|
Flywheel Power: Gross (Since 2013)
|
110 hp (82 kw)
|
|
Flywheel Power: Net (Since 2013)
|
106 hp (79 kw)
|
|
Front clearance circle radius (with bucket) (Since 2013)
|
97 in (247 cm)
|
|
Front clearance circle radius (with bucket) (Since 2013)
|
99 in (251 cm)
|
|
Front clearance circle radius (with bucket) (Since 2013)
|
96 in (244 cm)
|
|
Front clearance circle radius (with bucket) (Since 2013)
|
94 in (239 cm)
|
|
Front clearance circle radius (with bucket) (Since 2013)
|
93 in (236 cm)
|
|
Front clearance circle radius (with bucket) (Since 2013)
|
92 in (234 cm)
|
|
Front clearance circle radius (with bucket) (Since 2013)
|
91 in (231 cm)
|
|
Front clearance circle radius (with bucket) (Since 2013)
|
100 in (254 cm)
|
|
Front clearance circle radius (with bucket) (Since 2013)
|
95 in (242 cm)
|
|
Front clearance circle radius (with bucket) (Since 2015)
|
94 in (239 cm)
|
|
Front clearance circle radius (with bucket) (Since 2015)
|
99 in (251 cm)
|
|
Front clearance circle radius (with bucket) (Since 2015)
|
92 in (235 cm)
|
|
Front clearance circle radius (with bucket) (Since 2015)
|
94 in (240 cm)
|
|
Front clearance circle radius (with bucket) (Since 2015)
|
96 in (243 cm)
|
|
Fuel Tank Capacity (Since 2013)
|
26 US gal (98 L)
|
|
Fuel Tank Capacity (Since 2015)
|
32 US gal (122 L)
|
|
G Bucket pin height at maximum lift (Since 2015)
|
126 in (319 cm)
|
|
G Wheelbase (Since 2013)
|
70 in (178 cm)
|
|
Ground Clearance (Since 2013)
|
9 in (23 cm)
|
|
Ground Clearance (Since 2015)
|
9 in (22 cm)
|
|
Ground pressure (Since 2015)
|
5 psi (36 kPa)
|
|
H Bucket pin height at carry position (Since 2015)
|
8 in (20 cm)
|
|
H Hinge pin height at carry position (Since 2013)
|
8 in (20 cm)
|
|
Hinge pin height at maximum lift (Since 2013)
|
127 in (322 cm)
|
|
Hinge pin height at maximum lift (Since 2015)
|
126 in (320 cm)
|
|
Hinge pin height at maximum lift (Since 2015)
|
126 in (319 cm)
|
|
Hinge pin height at maximum lift (Since 2015)
|
126 in (320 cm)
|
|
Hinge pin height at maximum lift (Since 2015)
|
126 in (319 cm)
|
|
Hinge pin height at maximum lift (2015)
|
126 in (319 cm)
|
|
Hydraulic Pressure - High Flow/XPS (Since 2013)
|
4,061 psi (28,000 kPa)
|
|
Hydraulic Pressure - Standard (Since 2013)
|
3,335 psi (23,000 kPa)
|
|
Hydraulic Pressure - Standard (2015)
|
3,335 psi (23,000 kPa)
|
|
Hydraulic Pressure - XHP (Since 2013)
|
4,061 psi (28,000 kPa)
|
|
Hydraulic Pressure - XHP (2015)
|
4,061 psi (28,000 kPa)
|
|
Hydraulic Pump Capacity - High Flow/XPS (Since 2013)
|
32 US gpm (120 L/min)
|
|
Hydraulic Pump Capacity - Standard (Since 2013)
|
23 US gpm (86 L/min)
|
|
Hydraulic Pump Capacity - Standard (Since 2015)
|
23 US gpm (86 L/min)
|
|
Hydraulic Pump Capacity - XHP (Since 2013)
|
40 US gpm (150 L/min)
|
|
Hydraulic Pump Capacity - XHP (2015)
|
40 US gpm (150 L/min)
|
|
Hydraulic System Capacity (includes tank) (Since 2013)
|
15 US gal (57 L)
|
|
Hydraulic System Capacity (includes tank) (Since 2015)
|
15 US gal (55 L)
|
|
Hydraulic Tank Capacity (Since 2013)
|
11 US gal (42 L)
|
|
Hydraulic Tank Capacity (Since 2015)
|
10 US gal (39 L)
|
|
J Clearance at maximum lift/dump (Since 2013)
|
95 in (241 cm)
|
|
J Reach at maximum lift and dump (Since 2015)
|
31 in (78 cm)
|
|
K Clearance at maximum lift and dump (Since 2015)
|
94 in (240 cm)
|
|
K Floor angle at maximum lift/dump (Since 2013)
|
52 deg |
|
L Floor angle at maximum lift/rack (Since 2013)
|
83 deg |
|
L Ground clearance (Since 2015)
|
9 in (22 cm)
|
|
Lower (Empty, Float Down) (Since 2013)
|
5 |
|
Lower (Empty, Float Down) (2015)
|
5 |
|
M Clearance at maximum lift/level (Since 2013)
|
119 in (302 cm)
|
|
M Departure angle (Since 2015)
|
30 deg |
|
Maximum floor angle - at carry position (Since 2013)
|
26 deg |
|
Maximum floor angle at minimum lift (Since 2013)
|
26 deg |
|
Maximum floor angle at minimum lift (Since 2015)
|
27 deg |
|
Maximum overall height (Since 2013)
|
163 in (413 cm)
|
|
Maximum overall height (Since 2013)
|
165 in (419 cm)
|
|
Maximum overall height (Since 2013)
|
161 in (410 cm)
|
|
Maximum overall height (Since 2013)
|
166 in (422 cm)
|
|
Maximum overall height (Since 2013)
|
169 in (428 cm)
|
|
Maximum overall height (Since 2013)
|
165 in (419 cm)
|
|
Maximum overall height (Since 2013)
|
163 in (413 cm)
|
|
Maximum overall height (Since 2013)
|
162 in (411 cm)
|
|
Maximum overall height (Since 2013)
|
160 in (407 cm)
|
|
Maximum overall height (Since 2013)
|
159 in (405 cm)
|
|
Maximum overall height (Since 2013)
|
165 in (420 cm)
|
|
Maximum overall height (Since 2015)
|
162 in (411 cm)
|
|
Maximum overall height (Since 2015)
|
165 in (420 cm)
|
|
Maximum overall height (Since 2015)
|
160 in (406 cm)
|
|
Maximum overall height (Since 2015)
|
162 in (410 cm)
|
|
Maximum overall height (2015)
|
162 in (410 cm)
|
|
N Hinge pin height at maximum lift (Since 2013)
|
127 in (323 cm)
|
|
N Maximum dump angle (Since 2015)
|
52 deg |
|
No. Cylinders (Since 2013)
|
4 |
|
No. Cylinders (2015)
|
4 |
|
O Reach at level lift arm/bucket (Since 2013)
|
51 in (130 cm)
|
|
O Vehicle width (Since 2015)
|
76 in (193 cm)
|
|
One Speed Forward (Since 2013)
|
0 - 5 mph |
|
One Speed Forward (2015)
|
0 - 5 mph |
|
One Speed Reverse (Since 2013)
|
0 - 5 mph |
|
One Speed Reverse (2015)
|
0 - 5 mph |
|
Operating weight (Since 2013)
|
11,030 lbs (5,003 kg)
|
|
Operating weight (Since 2013)
|
10,988 lbs (4,984 kg)
|
|
Operating weight (Since 2013)
|
10,948 lbs (4,966 kg)
|
|
Operating weight (Since 2013)
|
11,111 lbs (5,040 kg)
|
|
Operating weight (Since 2013)
|
11,059 lbs (5,016 kg)
|
|
Operating weight (Since 2013)
|
11,019 lbs (4,998 kg)
|
|
Operating weight (Since 2013)
|
11,354 lbs (5,150 kg)
|
|
Operating weight (Since 2013)
|
11,272 lbs (5,113 kg)
|
|
Operating weight (Since 2013)
|
10,988 lbs (4,984 kg)
|
|
Operating weight (Since 2013)
|
10,900 lbs (4,944 kg)
|
|
Operating weight (Since 2013)
|
11,312 lbs (5,131 kg)
|
|
Operating weight (Since 2013)
|
11,407 lbs (5,174 kg)
|
|
Operating weight (Since 2013)
|
11,314 lbs (5,132 kg)
|
|
Operating weight (Since 2013)
|
10,840 lbs (4,917 kg)
|
|
Operating weight (Since 2013)
|
10,860 lbs (4,926 kg)
|
|
Operating weight (Since 2013)
|
10,803 lbs (4,900 kg)
|
|
Operating weight (Since 2015)
|
11,722 lbs (5,317 kg)
|
|
Operating weight (Since 2015)
|
11,803 lbs (5,354 kg)
|
|
Operating weight (Since 2015)
|
11,680 lbs (5,298 kg)
|
|
Operating weight (Since 2015)
|
12,045 lbs (5,464 kg)
|
|
Operating weight (Since 2015)
|
12,097 lbs (5,487 kg)
|
|
Operating weight (Since 2015)
|
11,506 lbs (5,219 kg)
|
|
Operating weight (Since 2015)
|
11,527 lbs (5,229 kg)
|
|
Operating weight (Since 2015)
|
11,483 lbs (5,209 kg)
|
|
Operating weight (Since 2015)
|
11,505 lbs (5,219 kg)
|
|
Overall length at minimum lift, level tine (Since 2013)
|
169 in (429 cm)
|
|
Overall length at minimum lift, level tine (Since 2013)
|
175 in (444 cm)
|
|
Overall length at minimum lift, level tine (Since 2013)
|
163 in (414 cm)
|
|
Overall length at minimum lift, level tine (Since 2015)
|
173 in (439 cm)
|
|
Overall length at minimum lift, level tine (Since 2015)
|
179 in (454 cm)
|
|
Overall length at minimum lift, level tine (Since 2015)
|
167 in (423 cm)
|
|
Overall length with bucket on ground (Since 2013)
|
157 in (399 cm)
|
|
Overall length with bucket on ground (Since 2013)
|
159 in (405 cm)
|
|
Overall length with bucket on ground (Since 2013)
|
156 in (395 cm)
|
|
Overall length with bucket on ground (Since 2013)
|
154 in (390 cm)
|
|
Overall length with bucket on ground (Since 2013)
|
152 in (387 cm)
|
|
Overall length with bucket on ground (Since 2013)
|
152 in (385 cm)
|
|
Overall length with bucket on ground (Since 2013)
|
150 in (382 cm)
|
|
Overall length with bucket on ground (Since 2013)
|
156 in (396 cm)
|
|
Overall length with bucket on ground (Since 2015)
|
155 in (394 cm)
|
|
Overall length with bucket on ground (Since 2015)
|
159 in (404 cm)
|
|
Overall length with bucket on ground (Since 2015)
|
153 in (389 cm)
|
|
Overall length with bucket on ground (Since 2015)
|
156 in (395 cm)
|
|
P Turning radius from center - machine rear (Since 2015)
|
73 in (186 cm)
|
|
Q Turning radius from center - coupler (Since 2015)
|
58 in (147 cm)
|
|
R Turning radius from center - bucket (Since 2015)
|
91 in (232 cm)
|
|
Raise (Since 2013)
|
4 |
|
Raise (2015)
|
4 |
|
Rated bucket capacity (Since 2013)
|
1 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2013)
|
1 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2013)
|
1 cu yd (1 cu m)
|
|
Rated bucket capacity (Since 2013)
|
1 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2013)
|
1 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2013)
|
1 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2013)
|
1 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2013)
|
1 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2015)
|
1 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2015)
|
1 cu yd (1 cu m)
|
|
Rated bucket capacity (Since 2015)
|
1 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2015)
|
1 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2015)
|
1 cu yd (0 cu m)
|
|
Rated Engine RPM (Since 2013)
|
2,400 rpm |
|
Rated Engine RPM (2015)
|
2,400 rpm |
|
Rated operating capacity at 35% (Since 2013)
|
3,185 lbs (1,445 kg)
|
|
Rated operating capacity at 35% (Since 2015)
|
3,255 lbs (1,476 kg)
|
|
Rated operating capacity at 50% (Since 2013)
|
4,550 lbs (2,064 kg)
|
|
Rated operating capacity at 50% (Since 2015)
|
4,650 lbs (2,109 kg)
|
|
Reach at level lift arm/bucket (Since 2013)
|
54 in (137 cm)
|
|
Reach at level lift arm/bucket (Since 2013)
|
56 in (143 cm)
|
|
Reach at level lift arm/bucket (Since 2013)
|
53 in (134 cm)
|
|
Reach at level lift arm/bucket (Since 2013)
|
58 in (146 cm)
|
|
Reach at level lift arm/bucket (Since 2013)
|
60 in (152 cm)
|
|
Reach at level lift arm/bucket (Since 2013)
|
56 in (143 cm)
|
|
Reach at level lift arm/bucket (Since 2013)
|
54 in (138 cm)
|
|
Reach at level lift arm/bucket (Since 2013)
|
53 in (135 cm)
|
|
Reach at level lift arm/bucket (Since 2013)
|
52 in (132 cm)
|
|
Reach at level lift arm/bucket (Since 2013)
|
51 in (129 cm)
|
|
Reach at level lift arm/bucket (Since 2013)
|
57 in (144 cm)
|
|
Reach at level lift arm/bucket (Since 2015)
|
53 in (135 cm)
|
|
Reach at level lift arm/bucket (Since 2015)
|
57 in (145 cm)
|
|
Reach at level lift arm/bucket (Since 2015)
|
51 in (130 cm)
|
|
Reach at level lift arm/bucket (Since 2015)
|
54 in (137 cm)
|
|
Reach at level lift arm/bucket (Since 2015)
|
54 in (137 cm)
|
|
Reach at maximum lift/dump (Since 2013)
|
33 in (83 cm)
|
|
Reach at maximum lift/dump (Since 2013)
|
35 in (88 cm)
|
|
Reach at maximum lift/dump (Since 2013)
|
32 in (81 cm)
|
|
Reach at maximum lift/dump (Since 2013)
|
35 in (88 cm)
|
|
Reach at maximum lift/dump (Since 2013)
|
37 in (93 cm)
|
|
Reach at maximum lift/dump (Since 2013)
|
35 in (89 cm)
|
|
Reach at maximum lift/dump (Since 2013)
|
33 in (83 cm)
|
|
Reach at maximum lift/dump (Since 2013)
|
32 in (81 cm)
|
|
Reach at maximum lift/dump (Since 2013)
|
31 in (79 cm)
|
|
Reach at maximum lift/dump (Since 2013)
|
35 in (88 cm)
|
|
Reach at maximum lift/dump (Since 2015)
|
32 in (81 cm)
|
|
Reach at maximum lift/dump (Since 2015)
|
34 in (86 cm)
|
|
Reach at maximum lift/dump (Since 2015)
|
30 in (77 cm)
|
|
Reach at maximum lift/dump (Since 2015)
|
32 in (82 cm)
|
|
Reach at maximum lift/dump (2015)
|
32 in (82 cm)
|
|
S Maximum reach with arms parallel to ground (Since 2015)
|
50 in (128 cm)
|
|
Shank front face reach at level lift arms (Since 2013)
|
29 in (74 cm)
|
|
Shank front face reach at level lift arms (Since 2015)
|
29 in (73 cm)
|
|
Shank front face reach at level lift arms (Since 2015)
|
29 in (73 cm)
|
|
Shank front face reach at maximum height (Since 2013)
|
28 in (70 cm)
|
|
Shank front face reach at maximum height (Since 2015)
|
28 in (70 cm)
|
|
Shank front face reach at maximum height (Since 2015)
|
28 in (70 cm)
|
|
Shank front face reach at maximum height (Since 2015)
|
28 in (70 cm)
|
|
Shank front face reach at minimum lift (Since 2013)
|
16 in (41 cm)
|
|
Shank front face reach at minimum lift (Since 2015)
|
16 in (41 cm)
|
|
Shank front face reach at minimum lift (Since 2015)
|
16 in (41 cm)
|
|
Stroke (Since 2013)
|
5 in (12 cm)
|
|
Stroke (2015)
|
5 in (12 cm)
|
|
Struck capacity (Since 2013)
|
0 cu yd (0 cu m)
|
|
Struck capacity (Since 2013)
|
1 cu yd (1 cu m)
|
|
Struck capacity (Since 2013)
|
0 cu yd (0 cu m)
|
|
Struck capacity (Since 2013)
|
0 cu yd (0 cu m)
|
|
Struck capacity (Since 2013)
|
0 cu yd (0 cu m)
|
|
Struck capacity (Since 2015)
|
0 cu yd (0 cu m)
|
|
Struck capacity (Since 2015)
|
1 cu yd (1 cu m)
|
|
Struck capacity (Since 2015)
|
0 cu yd (0 cu m)
|
|
Struck capacity (Since 2015)
|
0 cu yd (0 cu m)
|
|
T Rack back angle at maximum height (Since 2015)
|
83 deg |
|
Tipping load (Since 2013)
|
8,047 lbs (3,650 kg)
|
|
Tipping load (Since 2013)
|
8,164 lbs (3,703 kg)
|
|
Tipping load (Since 2013)
|
8,217 lbs (3,727 kg)
|
|
Tipping load (Since 2013)
|
7,798 lbs (3,537 kg)
|
|
Tipping load (Since 2013)
|
7,921 lbs (3,593 kg)
|
|
Tipping load (Since 2013)
|
7,974 lbs (3,617 kg)
|
|
Tipping load (Since 2013)
|
7,681 lbs (3,484 kg)
|
|
Tipping load (Since 2013)
|
7,846 lbs (3,559 kg)
|
|
Tipping load (Since 2013)
|
8,298 lbs (3,764 kg)
|
|
Tipping load (Since 2013)
|
8,501 lbs (3,856 kg)
|
|
Tipping load (Since 2013)
|
7,756 lbs (3,518 kg)
|
|
Tipping load (Since 2013)
|
7,796 lbs (3,536 kg)
|
|
Tipping load (Since 2013)
|
7,630 lbs (3,461 kg)
|
|
Tipping load (Since 2013)
|
7,809 lbs (3,542 kg)
|
|
Tipping load (Since 2013)
|
6,627 lbs (3,006 kg)
|
|
Tipping load (Since 2013)
|
6,279 lbs (2,848 kg)
|
|
Tipping load (Since 2013)
|
7,050 lbs (3,198 kg)
|
|
Tipping load (Since 2015)
|
8,871 lbs (4,024 kg)
|
|
Tipping load (Since 2015)
|
8,631 lbs (3,915 kg)
|
|
Tipping load (Since 2015)
|
9,124 lbs (4,139 kg)
|
|
Tipping load (Since 2015)
|
8,544 lbs (3,876 kg)
|
|
Tipping load (Since 2015)
|
8,505 lbs (3,858 kg)
|
|
Tipping load (Since 2015)
|
7,062 lbs (3,203 kg)
|
|
Tipping load (Since 2015)
|
6,761 lbs (3,067 kg)
|
|
Tipping load (Since 2015)
|
7,414 lbs (3,363 kg)
|
|
Tipping load (Since 2015)
|
9,300 lbs (4,218 kg)
|
|
Total (Since 2013)
|
11 |
|
Total (Since 2015)
|
11 |
|
Tread Width (per side) (Since 2013)
|
16 in (40 cm)
|
|
Tread Width (per side) (2015)
|
16 in (40 cm)
|
|
Two Speed Forward (Since 2013)
|
0 - 9 mph |
|
Two Speed Forward (Since 2015)
|
0 - 8 mph |
|
U Bucket pin reach at maximum lift (Since 2015)
|
16 in (40 cm)
|
|
Width (Since 2013)
|
81 in (204 cm)
|
|
Width (Since 2013)
|
80 in (203 cm)
|
|
Width (Since 2013)
|
87 in (220 cm)
|
|
Width (Since 2013)
|
86 in (219 cm)
|
|
Width (Since 2013)
|
78 in (199 cm)
|
|
Width (Since 2013)
|
78 in (198 cm)
|
|
Width (Since 2015)
|
81 in (204 cm)
|
|
Width (Since 2015)
|
87 in (220 cm)
|
|
Width (Since 2015)
|
87 in (221 cm)
|
|
Width Over Tracks (Since 2013)
|
76 in (193 cm)
|
|
Width Over Tracks (2015)
|
76 in (193 cm)
|
| Hydraulic System |
|
Hydraulic Flow (1) |
Standard |
|
Hydraulic Flow (2) |
XHP |
|
Hydraulic Power |
44 hp (33 kw)
|
|
Hydraulic Power - Calculated |
94 hp (70 kw)
|
|
Loader Hydraulic Flow |
23 gpm (87 lpm)
|
|
Loader Hydraulic Pressure |
3,335 psi |
|
Maximum Loader Hydraulic Flow |
40 gpm (151 lpm)
|
|
Maximum Loader Hydraulic Pressure |
4,061 psi |
| Operating Specifications |
|
Breakout Force - Lift Cylinder |
6,100 lbs (2,767 kg)
|
|
Breakout Force - Tilt Cylinder |
7,381 lbs (3,348 kg)
|
|
Ground Contact Area |
2184 in2 |
|
Ground Pressure |
5 psi |
|
Rated Operating Capacities - 35% Tipping Load |
3,185 lbs (1,445 kg)
|
|
Rated Operating Capacities - 50% Tipping Load |
4,550 lbs (2,064 kg)
|
|
Tipping Load |
9,100 lbs (4,128 kg)
|
| Operational |
|
Operating Weight |
11,647 lbs (5,283 kg)
|
| Power Train |
|
Travel Speed Forward |
5 mph (8 kph)
|
|
Travel Speed Forward - 2-Speed |
9 mph (14 kph)
|
|
Travel Speed Reverse |
5 mph (8 kph)
|
|
Travel Speed Reverse - 2-Speed |
9 mph (14 kph)
|
| Service Refill Capacities |
|
Cooling System |
4 gal (14 l)
|
|
Engine Crankcase |
3 gal (10 l)
|
|
Fuel Tank |
31 gal (117 l)
|
|
Hydraulic System |
16 gal (61 l)
|
|
Hydraulic Tank |
10 gal (39 l)
|
