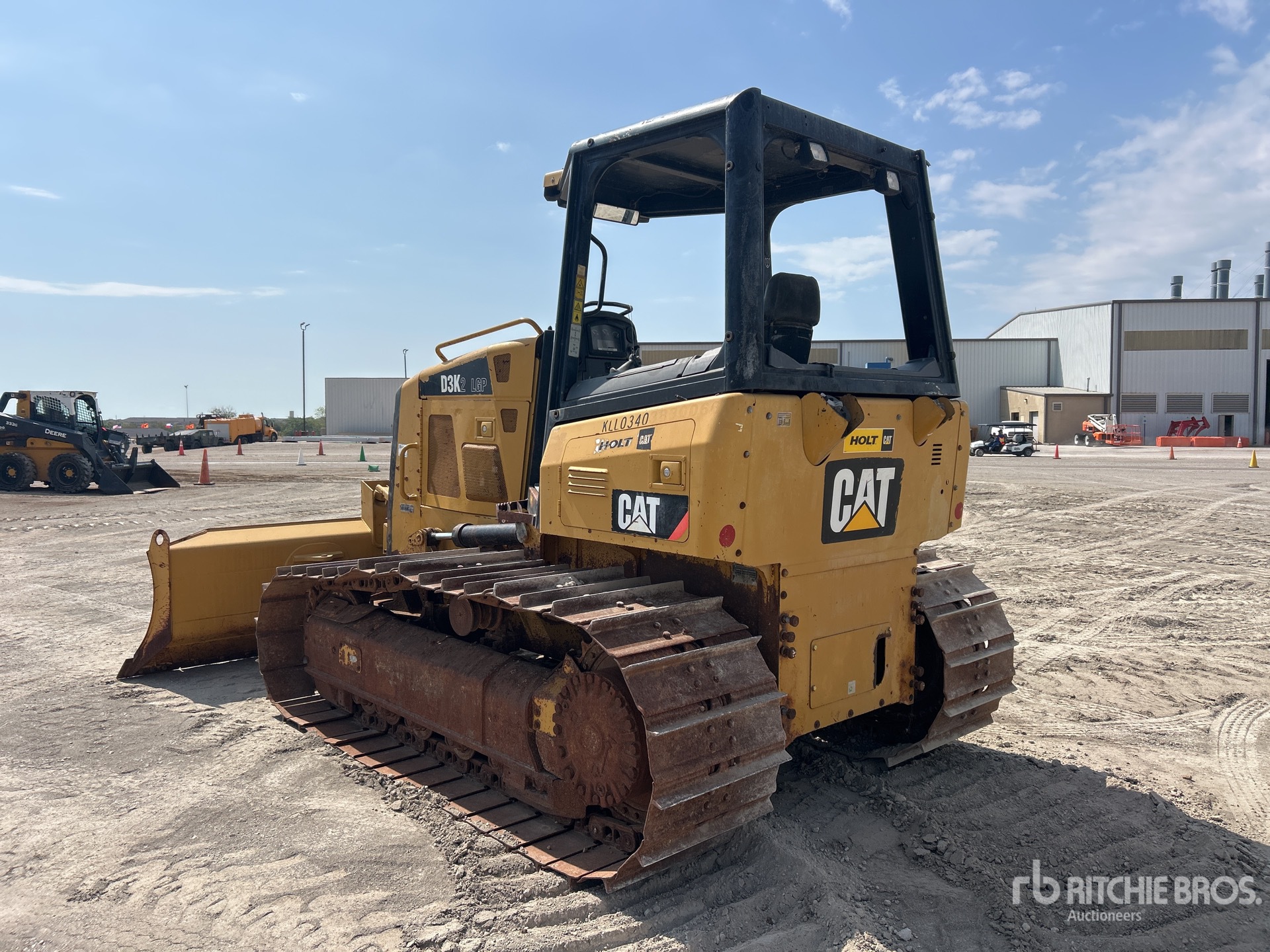

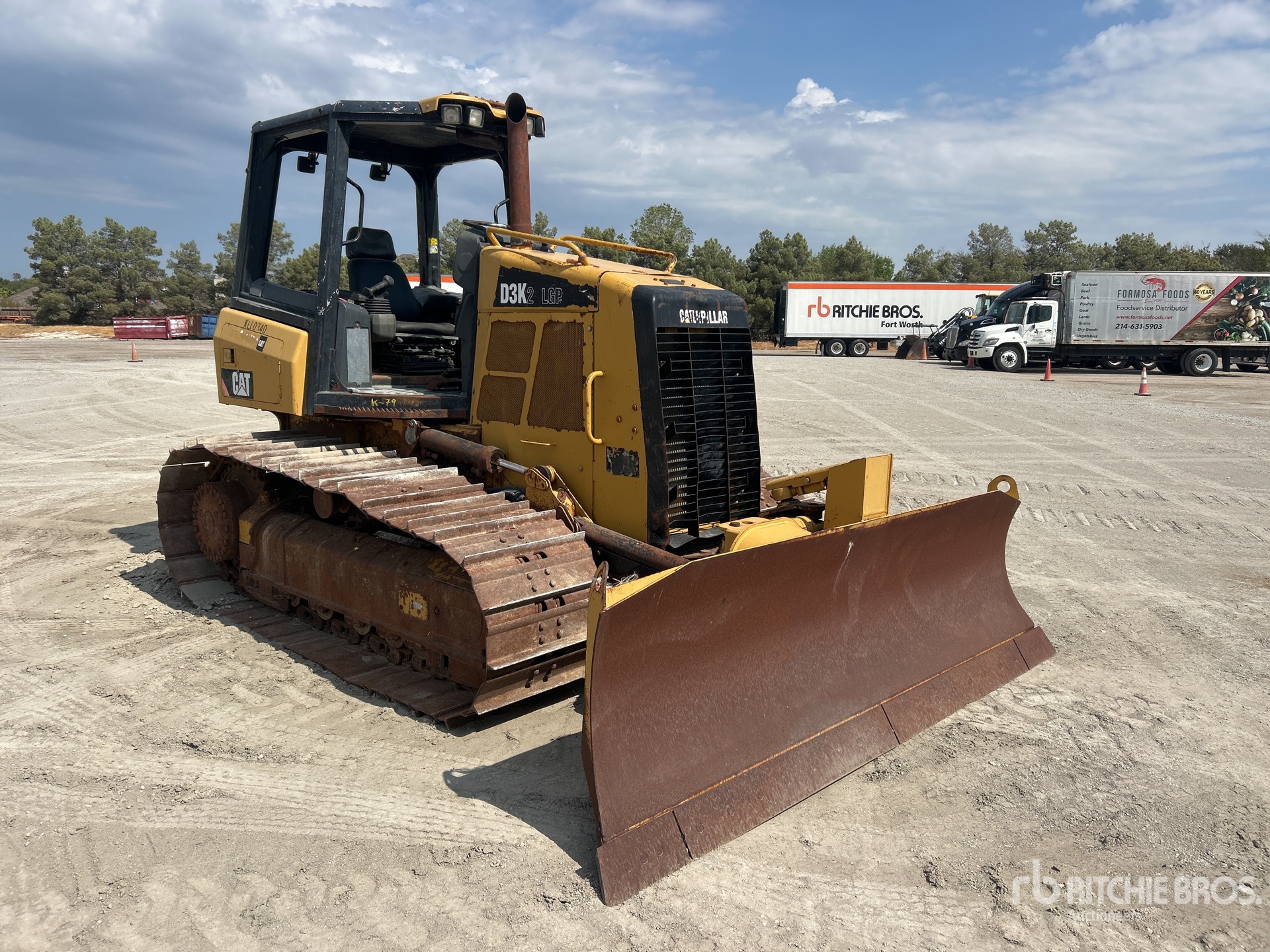

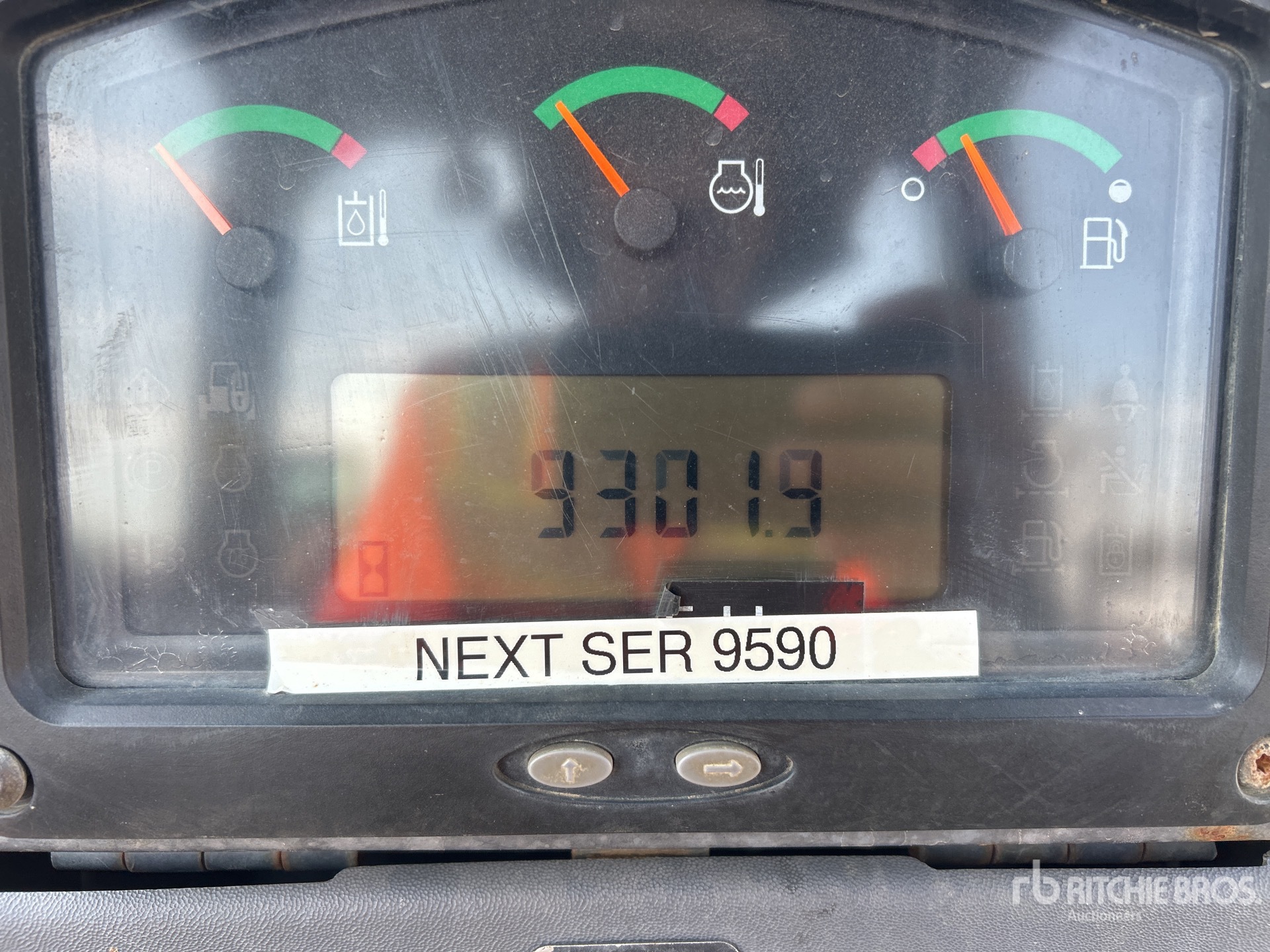

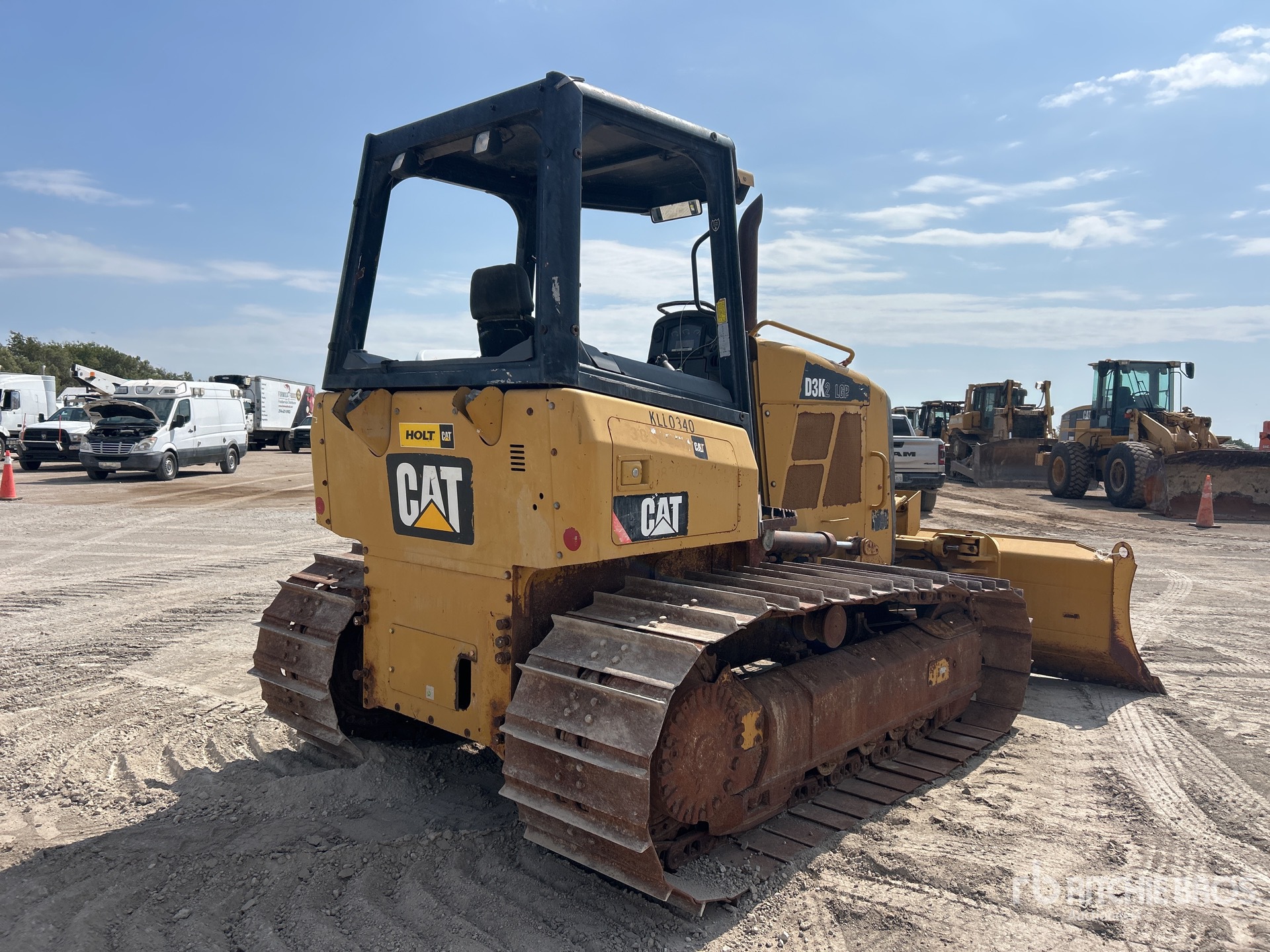

| Blade |
|
Blade Capacity - Intermediate |
2 cu yd |
|
Blade Capacity - Lgp |
2 cu yd |
|
Blade Capacity - Xl |
2 cu yd |
|
Blade Height - Intermediate |
34 in (86 cm)
|
|
Blade Height - Lgp |
34 in (86 cm)
|
|
Blade Height - Xl |
36 in (91 cm)
|
|
Blade Width - Intermediate |
115 in (292 cm)
|
|
Blade Width - Lgp |
124 in (315 cm)
|
|
Blade Width - Xl |
104 in (265 cm)
|
|
Digging Depth - Intermediate |
23 in (57 cm)
|
|
Digging Depth - Lgp |
23 in (57 cm)
|
|
Digging Depth - Xl |
23 in (57 cm)
|
| Engine |
|
Bore |
4 in (11 cm)
|
|
Displacement |
269 cu in (4,408 cu cm)
|
|
Eec 80/1269 |
80 hp (60 kw)
|
|
Engine Model |
Cat C4.4 ACERT |
|
Iso 9249 |
80 hp (60 kw)
|
|
Power - Net |
80 hp (60 kw)
|
|
Sae J1349 |
80 hp (60 kw)
|
|
Stroke |
5 in (13 cm)
|
| Hydraulic Controls |
|
Pump Output |
19 gpm (73 lpm)
|
|
Relief Valve Setting |
2,988 psi |
| Ripper |
|
Height |
7 in (17 cm)
|
|
Maximum Digging Depth |
13 in (34 cm)
|
|
Maximum Ground Clearance Under Tip |
18 in (45 cm)
|
|
Maximum Reach - Ground Line |
30 in (77 cm)
|
|
Number Of Shanks |
3 |
|
Overall Width |
67 in (171 cm)
|
|
Ripper Type |
Parallelogram |
|
Weight |
1,222 lbs (554 kg)
|
| Service Refill Capacities |
|
Cooling System |
6 gal (23 l)
|
|
Crankcase - With Filter |
3 gal (11 l)
|
|
Final Drive - Each - Lgp |
3 gal (10 l)
|
|
Final Drive - Each - Xl |
3 gal (10 l)
|
|
Fuel Tank |
52 gal (195 l)
|
|
Transmission - Hydraulic Tank |
16 gal (59 l)
|
| Standards |
|
Fops |
SAE J231-JAN81, ISO 3449-92 |
|
Rops |
SAE J397-OCT95, SAE J1040-MAY94, ISO 3471-94, ISO 3164-95 |
| Transmission |
|
Drive Pumps |
2 |
|
Maximum Travel Speed - Forward |
6 mph (9 kph)
|
|
Maximum Travel Speed - Reverse |
6 mph (10 kph)
|
|
Relief Valve Settings |
6,918 psi |
|
Track Motors |
2 |
| Undercarriage |
|
Ground Contact Area - Lgp |
4425 in2 |
|
Ground Contact Area - Lgp With 770 Mm (30 In) Shoes |
5340 in2 |
|
Ground Contact Area - Xl |
2829 in2 |
|
Ground Pressure - Lgp |
4 psi |
|
Ground Pressure - Lgp With 770 Mm (30 In) Shoes |
4 psi |
|
Ground Pressure - Xl |
6 psi |
|
Length - Track On Ground - Lgp |
89 in (226 cm)
|
|
Length - Track On Ground - Xl |
89 in (226 cm)
|
|
Shoe Width - Lgp |
25 in (64 cm)
|
|
Shoe Width - Xl |
16 in (41 cm)
|
|
Track Gauge - Lgp |
68 in (173 cm)
|
|
Track Gauge - Lgp, 770 Mm (30 In) |
73 in (185 cm)
|
|
Track Gauge - Xl |
59 in (150 cm)
|
| Weights |
|
Operating Weight - Lgp |
18,525 lbs (8,403 kg)
|
|
Operating Weight - Xl |
17,544 lbs (7,958 kg)
|
| Winch |
|
Control |
Hydraulic |
|
Drum Capacity - Optional Cable |
256 ft (78 m)
|
|
Drum Capacity - Recommended Cable |
371 ft (113 m)
|
|
Drum Diameter |
10 in (25 cm)
|
|
Drum Width |
11 in (27 cm)
|
|
Maximum Line Pull - Bare Drum |
40,000 lbs (18,144 kg)
|
|
Maximum Line Pull - Full Drum |
25,000 lbs (11,340 kg)
|
|
Maximum Line Speed - Bare Drum |
131 ft/min |
|
Maximum Line Speed - Full Drum |
207 ft/min |
|
Overall Width |
29 in (74 cm)
|
|
Rope Diameter - Optional |
1 in (2 cm)
|
|
Rope Diameter - Recommended |
1 in (2 cm)
|
|
Speed |
Variable |
|
Throat Clearance |
7 in (17 cm)
|
|
Weight |
1,345 lbs (610 kg)
|
|
Winch Drive |
Hydrostatic |
|
Winch Length |
28 in (71 cm)
|
