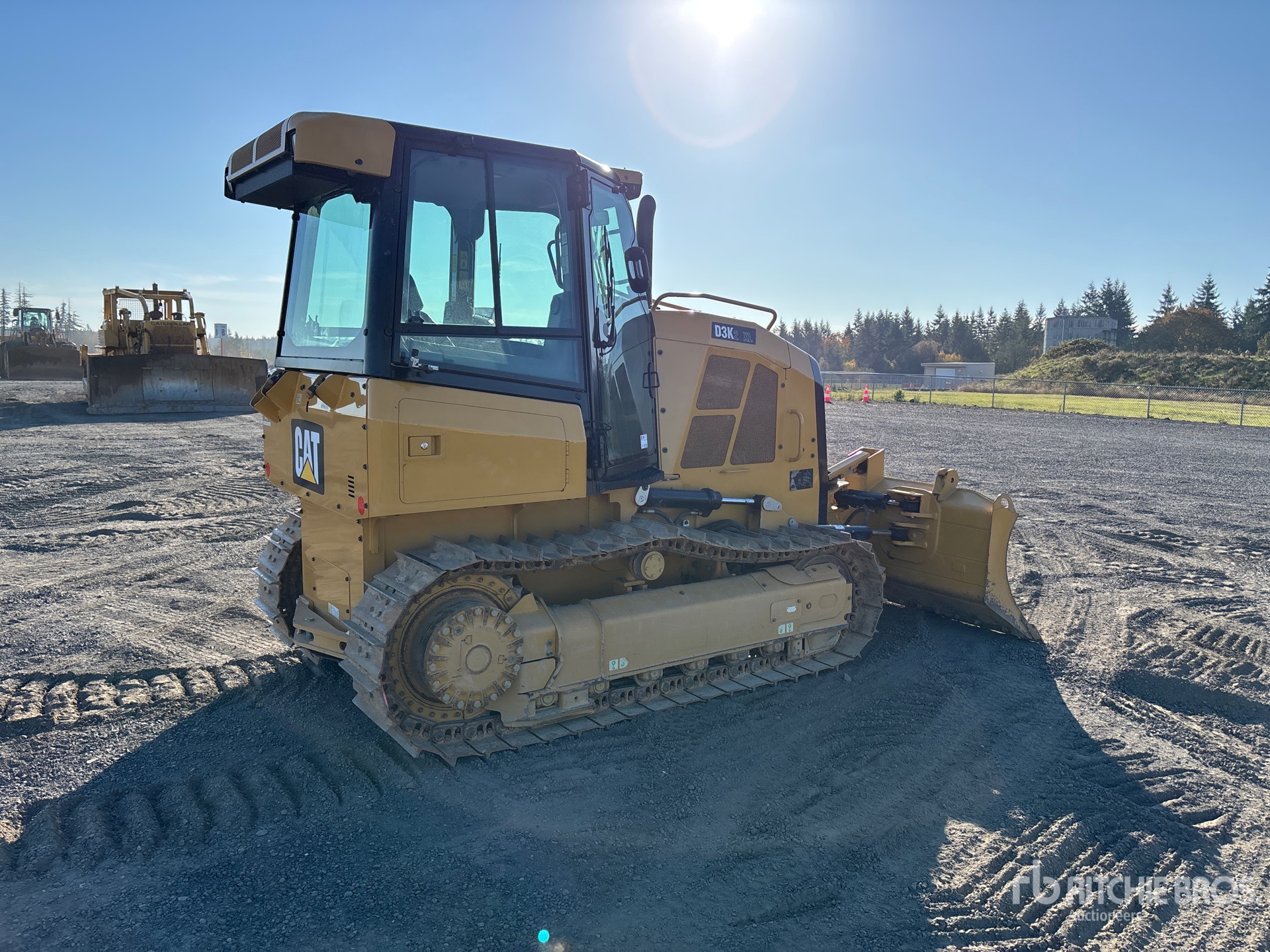

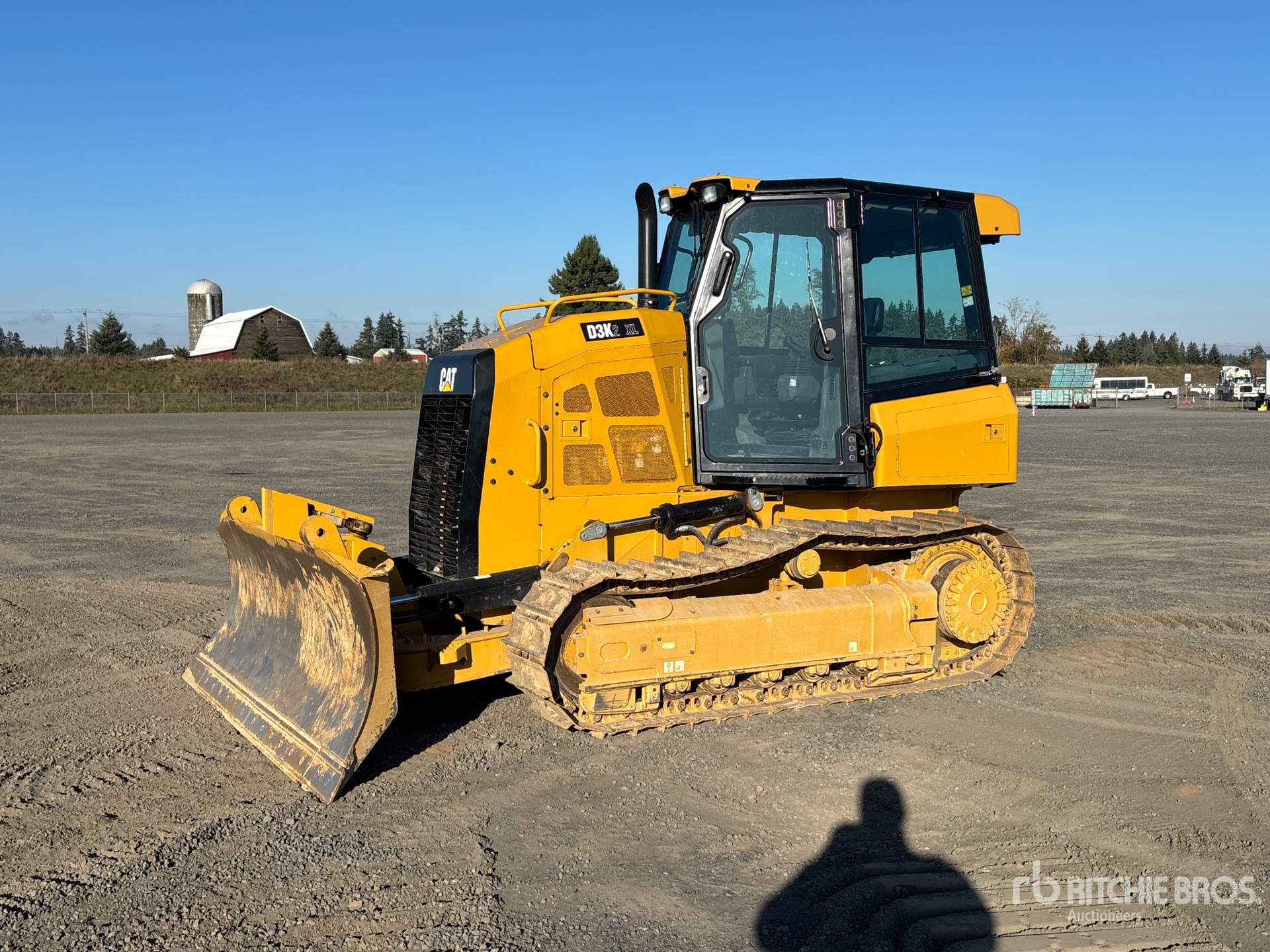

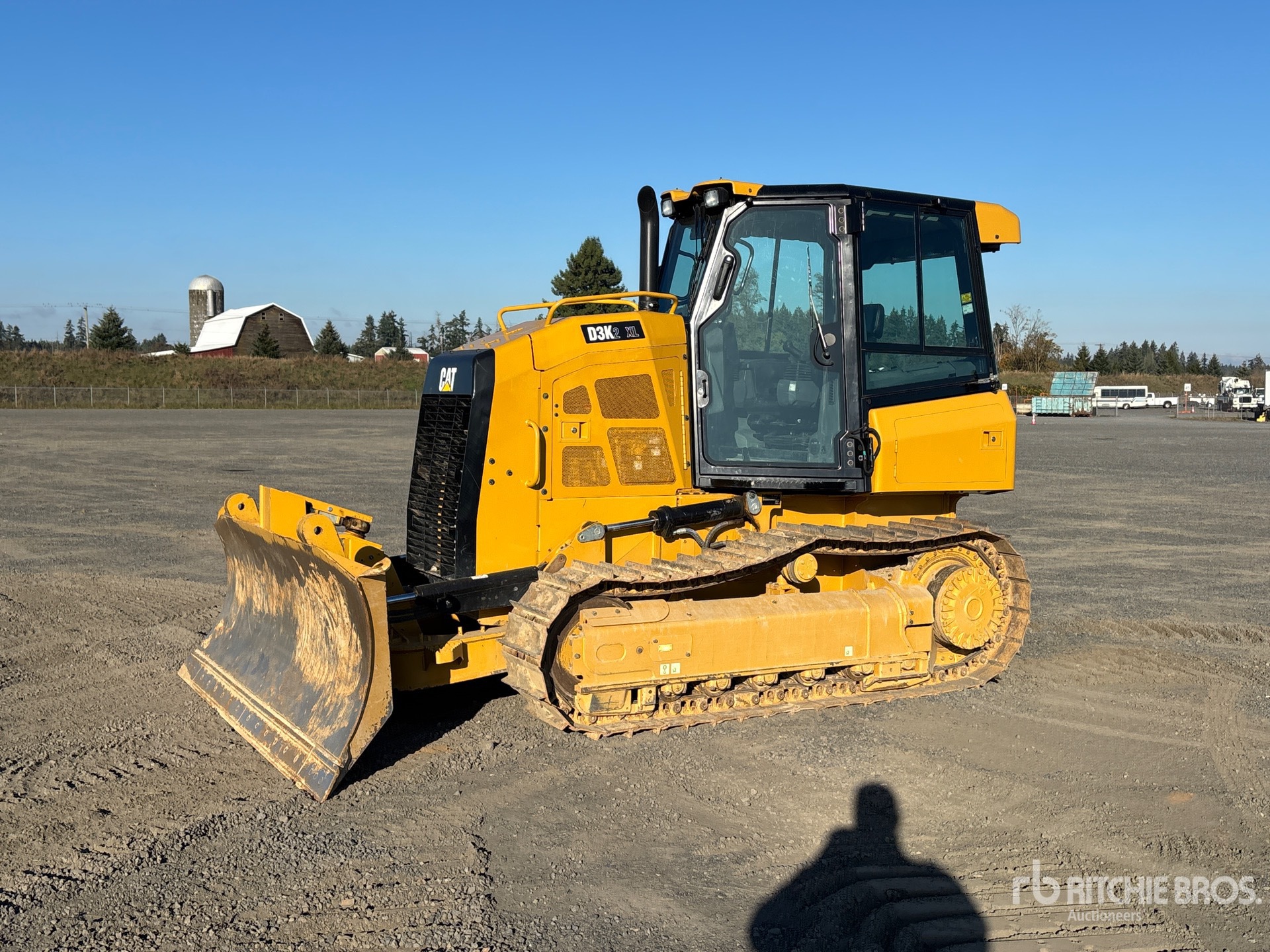

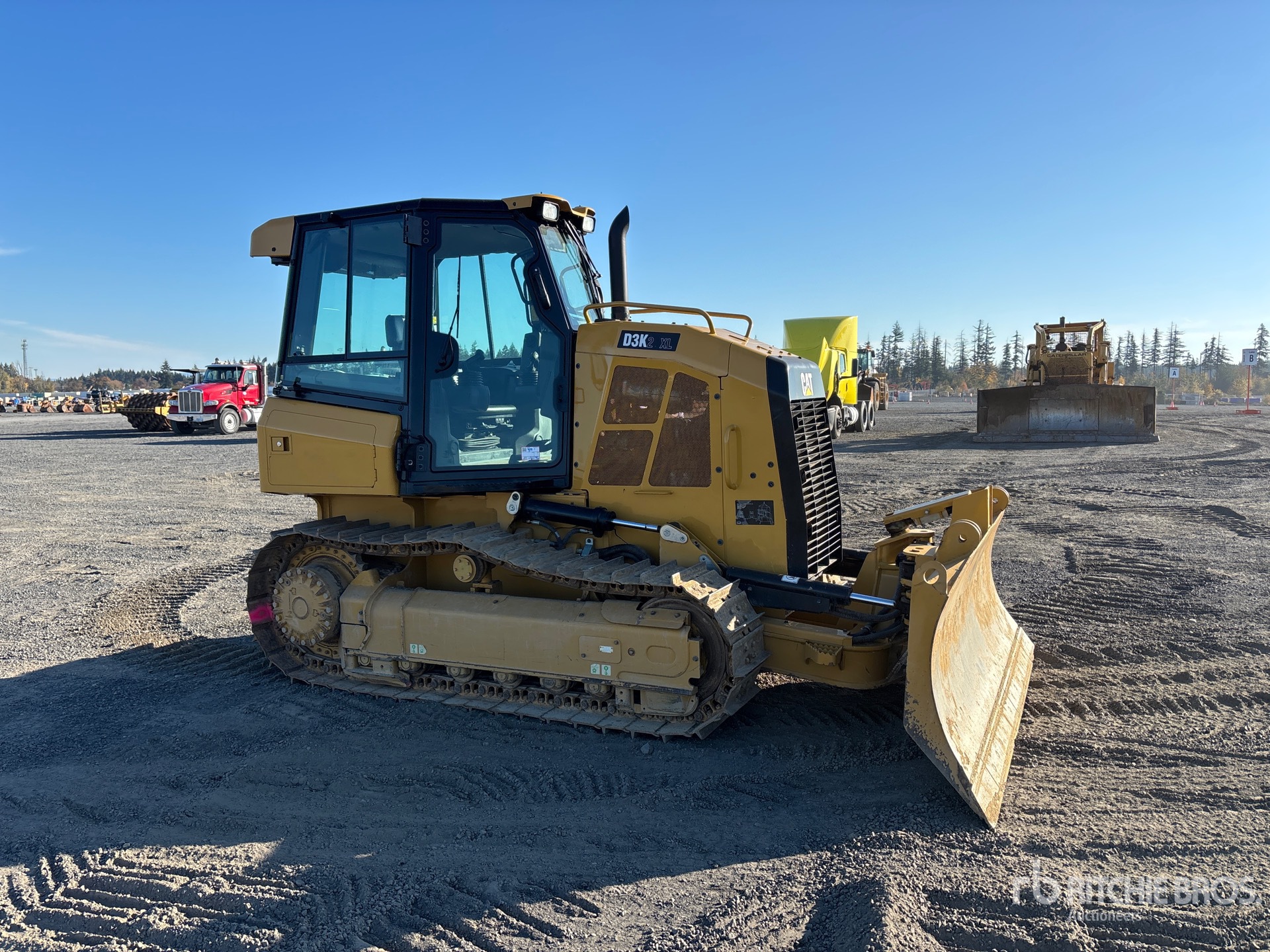

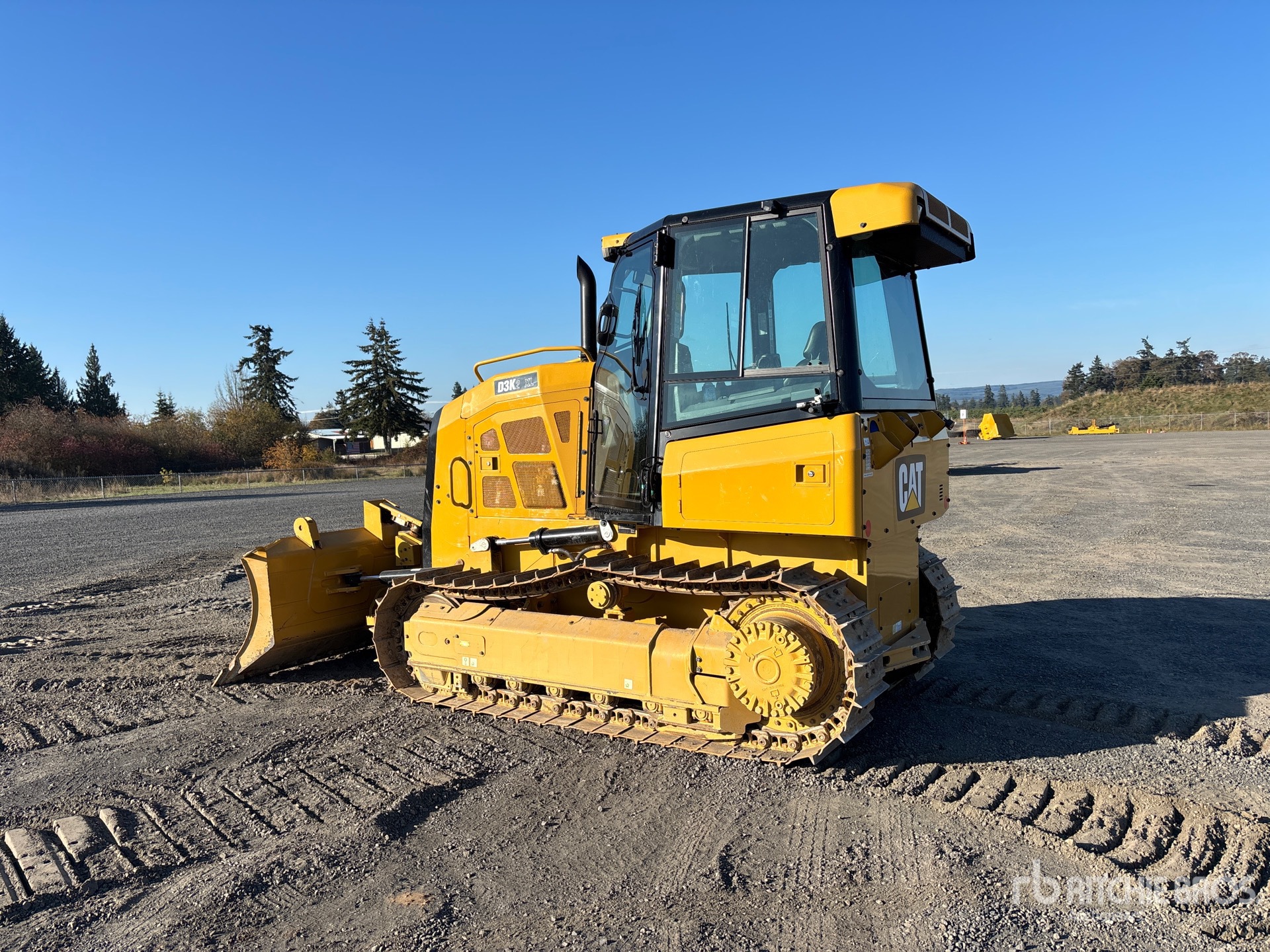

2017 Caterpillar D3K2 XL For Sale in Chehalis, Wa

Name: 2017 Caterpillar D3K2 XL
Brand: Caterpillar
SKU: 89505026
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-10-29 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

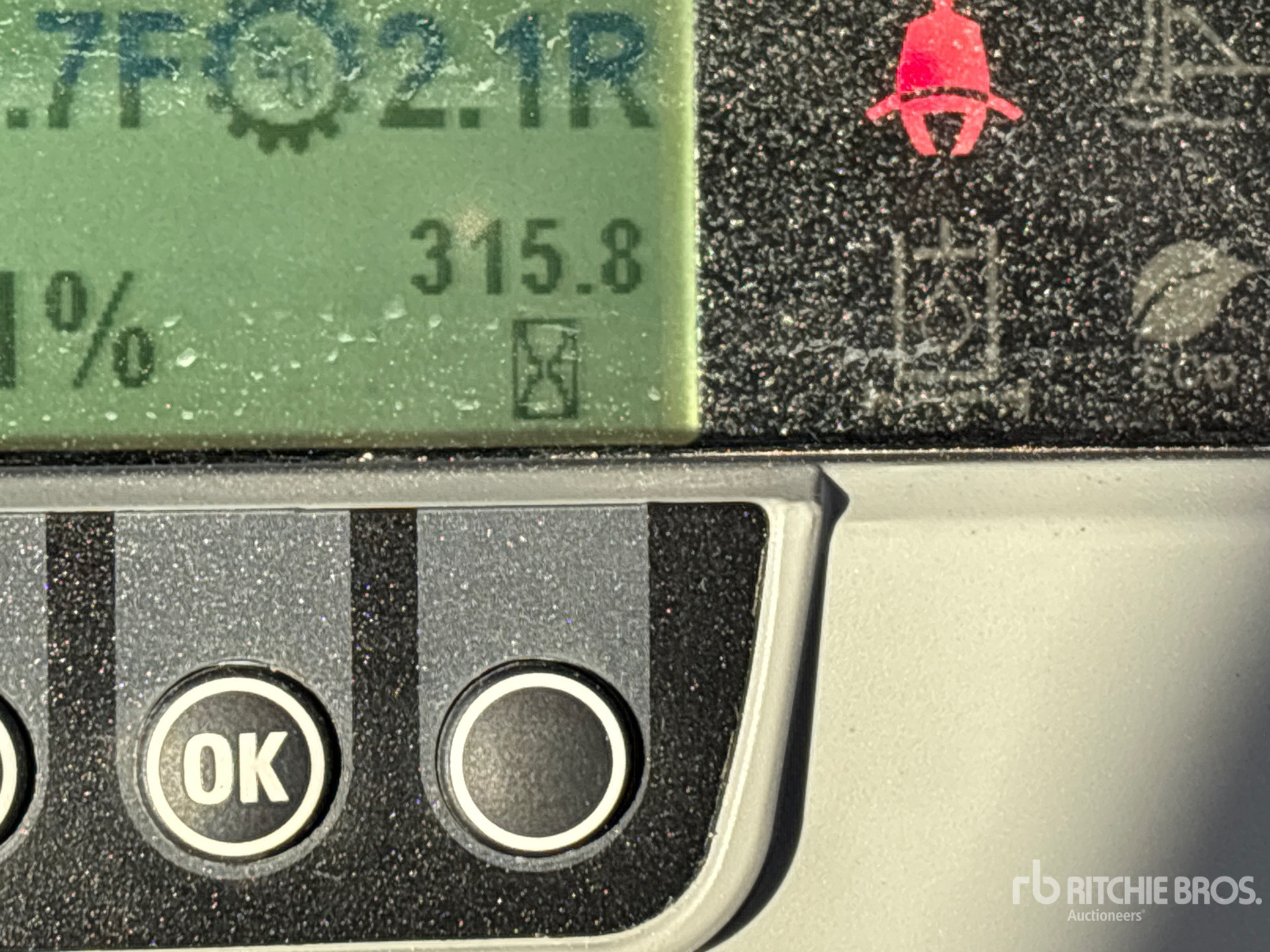

Hours:	315

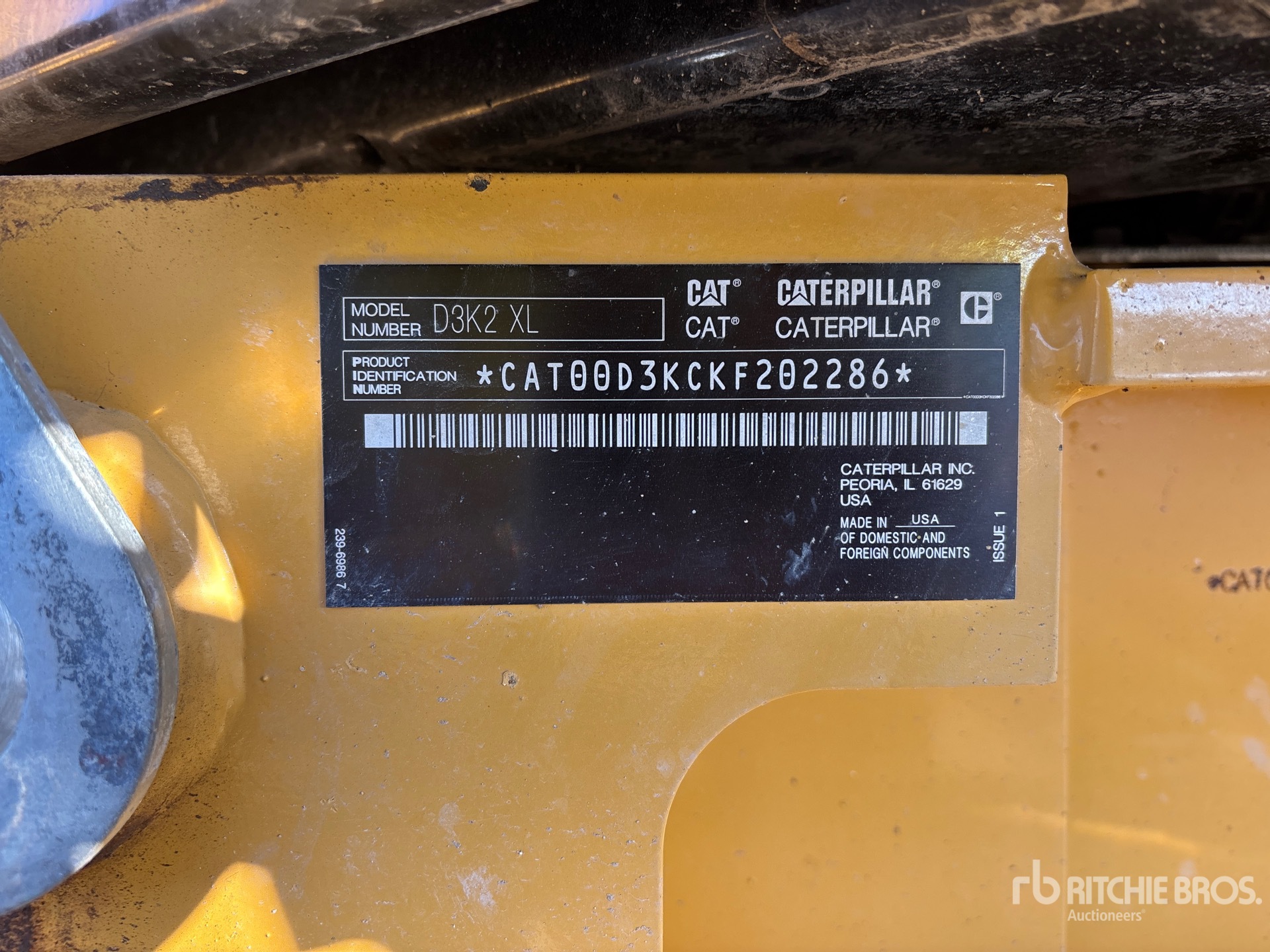

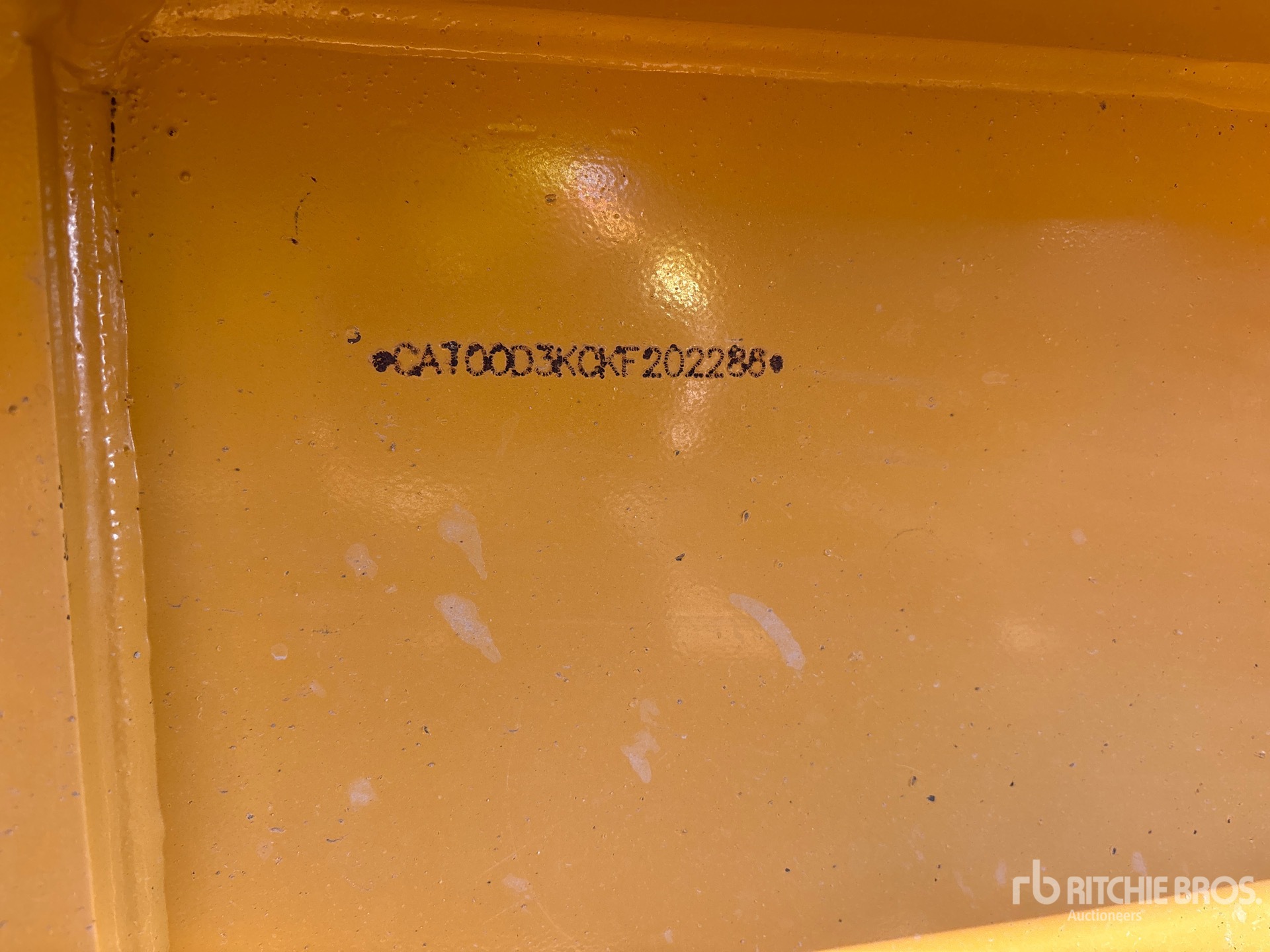

Serial Number:	CAT00D3KCKF202286
Machine Location:	CHEHALIS, WA

Description:

Located in Lane 5 Spot 14, Enclosed Cab, 2017 US EPA Label, Requires Diesel Exhaust Fluid, 103 in Wide PAT Blade, Drawbar, 16 in Single Grouser Track Shoes - The closing times of lots 124 thru 125 are tied together. If a bid is received, then a time extension will be applied to all lots. Once the time closes the higher bidder on each lot will be the winner Closing Time: 2026-10-29 09:41:00 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Caterpillar D3K2 XL is a compact crawler dozer designed for grading, site preparation, and general earthmoving in construction, landscaping, and utility work. It features a narrow XL undercarriage configuration for improved maneuverability in confined areas while maintaining stability and traction on uneven ground. The D3K2 XL is typically equipped with a Caterpillar diesel engine, hydrostatic transmission, and a six-way blade for precise dozing and finish grading. Its operator station is arranged for visibility and control, and the machine is commonly used on residential, commercial, and municipal job sites where a smaller crawler dozer is required.

Dimensions
Ground Clearance	1 ft (0 m)
Height To Top Of Cab	9 ft (3 m)
Length Of Track On Ground	7 ft (2 m)
Length W/ Blade	14 ft (4 m)
Length W/O Blade	11 ft (3 m)
Width Over Tracks	6 ft (2 m)
Engine
Displacement	269 cu in (4,408 cu cm)
Engine Make	2,236
Engine Model	C4.4 ACERT
Net Power	80 hp (60 kw)
General Specifications
Blade Types and Widths - VPAT, Angled 25° (Since 2012)	95 in (242 cm)
Blade Types and Widths - VPAT, Angled 25° (2013)	95 in (242 cm)
Blade Types and Widths - VPAT, Angled 25° (2016)	95 in (242 cm)
Blade Types and Widths - VPAT, Angled 25° (2017)	95 in (242 cm)
Blade Types and Widths - VPAT, Angled 25° (2018)	95 in (242 cm)
Blade Types and Widths - VPAT, Angled 25° (2019)	95 in (242 cm)
Blade Types and Widths - VPAT, Straight (Since 2012)	104 in (264 cm)
Blade Types and Widths - VPAT, Straight (2013)	104 in (264 cm)
Blade Types and Widths - VPAT, Straight (2016)	104 in (264 cm)
Blade Types and Widths - VPAT, Straight (2017)	104 in (264 cm)
Blade Types and Widths - VPAT, Straight (2018)	104 in (264 cm)
Blade Types and Widths - VPAT, Straight (2019)	104 in (264 cm)
Bore (Since 2012)	4 in (10 cm)
Bore (2013)	4 in (10 cm)
Bore (2016)	4 in (10 cm)
Bore (2017)	4 in (10 cm)
Bore (2018)	4 in (10 cm)
Bore (2019)	4 in (10 cm)
DEF Tank Refill Capacity (Since 2017)	5 US gal (19 L)
DEF Tank Refill Capacity (2018)	5 US gal (19 L)
DEF Tank Refill Capacity (2019)	5 US gal (19 L)
Displacement (Since 2012)	269 cu in (4,408 cu cm)
Displacement (2013)	269 cu in (4,408 cu cm)
Displacement (2016)	269 cu in (4,408 cu cm)
Displacement (2017)	269 cu in (4,408 cu cm)
Displacement (2018)	269 cu in (4,408 cu cm)
Displacement (2019)	269 cu in (4,408 cu cm)
Emission Standards (Since 2016)	U.S. EPA Tier 3/ EU Stage IIIA/ Japan 2006 (Tier 3) equivalent
Emission Standards (Since 2016)	Tier 4 Final/Stage IV/ Japan 2014 (Tier 4 Final
Emission Standards (Since 2017)	U.S. EPA Tier 3/ EU Stage IIIA/ Japan 2006 (Tier 3) equivalent
Emission Standards (Since 2017)	Tier 4 Final/Stage IV/ Japan 2014 (Tier 4 Final
Emission Standards (Since 2018)	U.S. EPA Tier 3/ EU Stage IIIA/ Japan 2006 (Tier 3) equivalent
Emission Standards (Since 2018)	Tier 4 Final/Stage IV/ Japan 2014 (Tier 4 Final
Emission Standards (Since 2019)	U.S. EPA Tier 3/ EU Stage IIIA/ Japan 2006 (Tier 3) equivalent
Emission Standards (Since 2019)	Tier 4 Final/Stage IV/ Japan 2014 (Tier 4 Final
Engine Model (Since 2012)	C4.4 ACERT
Engine Model (2013)	C4.4 ACERT
Engine Model (2016)	C4.4 ACERT
Engine Model (2017)	C4.4 ACERT
Engine Model (2018)	C4.4 ACERT
Engine Model (2019)	C4.4 ACERT
Engine Power (Since 2016)	80 hp (60 kw)
Engine Power (2017)	80 hp (60 kw)
Engine Power (2018)	80 hp (60 kw)
Engine Power (2019)	80 hp (60 kw)
Engine Type (Since 2016)	C4.4 ACERT
Engine Type (Since 2017)	Cat C4.4 ACERT
Engine Type (2018)	Cat C4.4 ACERT
Engine Type (2019)	Cat C4.4 ACERT
Flywheel Power (Since 2012)	80 hp (60 kw)
Flywheel Power (2013)	80 hp (60 kw)
Flywheel Power (Since 2016)	74 hp (55 kw)
Flywheel Power (Since 2016)	80 hp (60 kw)
Flywheel Power (Since 2017)	74 hp (55 kw)
Flywheel Power (Since 2017)	80 hp (60 kw)
Flywheel Power (Since 2018)	74 hp (55 kw)
Flywheel Power (Since 2018)	80 hp (60 kw)
Flywheel Power (Since 2019)	74 hp (55 kw)
Flywheel Power (Since 2019)	80 hp (60 kw)
Fuel Tank Refill Capacity (Since 2012)	52 US gal (195 L)
Fuel Tank Refill Capacity (2013)	52 US gal (195 L)
Fuel Tank Refill Capacity (2016)	52 US gal (195 L)
Fuel Tank Refill Capacity (2017)	52 US gal (195 L)
Fuel Tank Refill Capacity (2018)	52 US gal (195 L)
Fuel Tank Refill Capacity (2019)	52 US gal (195 L)
GENERAL DIMENSIONS - (without Blade) (Since 2012)	129 in (327 cm)
GENERAL DIMENSIONS - (without Blade) (2013)	129 in (327 cm)
GENERAL DIMENSIONS - (without Blade) (2016)	129 in (327 cm)
GENERAL DIMENSIONS - (without Blade) (2017)	129 in (327 cm)
GENERAL DIMENSIONS - (without Blade) (2018)	129 in (327 cm)
GENERAL DIMENSIONS - (without Blade) (2019)	129 in (327 cm)
GENERAL DIMENSIONS - Ground Clearance (Since 2012)	13 in (33 cm)
GENERAL DIMENSIONS - Ground Clearance (2013)	13 in (33 cm)
GENERAL DIMENSIONS - Ground Clearance (2016)	13 in (33 cm)
GENERAL DIMENSIONS - Ground Clearance (2017)	13 in (33 cm)
GENERAL DIMENSIONS - Ground Clearance (2018)	13 in (33 cm)
GENERAL DIMENSIONS - Ground Clearance (2019)	13 in (33 cm)
GENERAL DIMENSIONS - Height (To Top of ROPS) (Since 2012)	109 in (276 cm)
GENERAL DIMENSIONS - Height (To Top of ROPS) (2013)	109 in (276 cm)
GENERAL DIMENSIONS - Height (To Top of ROPS) (2016)	109 in (276 cm)
GENERAL DIMENSIONS - Height (To Top of ROPS) (2017)	109 in (276 cm)
GENERAL DIMENSIONS - Height (To Top of ROPS) (2018)	109 in (276 cm)
GENERAL DIMENSIONS - Height (To Top of ROPS) (2019)	109 in (276 cm)
GENERAL DIMENSIONS - Overall Length (with P blade) (Since 2012)	168 in (427 cm)
GENERAL DIMENSIONS - Overall Length (with P blade) (2013)	168 in (427 cm)
GENERAL DIMENSIONS - Overall Length (with P blade) (2016)	168 in (427 cm)
GENERAL DIMENSIONS - Overall Length (with P blade) (2017)	168 in (427 cm)
GENERAL DIMENSIONS - Overall Length (with P blade) (2018)	168 in (427 cm)
GENERAL DIMENSIONS - Overall Length (with P blade) (2019)	168 in (427 cm)
GENERAL DIMENSIONS - Width (w/o Trunnion and Blade - - Std. Shoe) (Since 2012)	75 in (190 cm)
GENERAL DIMENSIONS - Width (w/o Trunnion and Blade - - Std. Shoe) (2013)	75 in (190 cm)
GENERAL DIMENSIONS - Width (w/o Trunnion and Blade - - Std. Shoe) (2016)	75 in (190 cm)
GENERAL DIMENSIONS - Width (w/o Trunnion and Blade - - Std. Shoe) (2017)	75 in (190 cm)
GENERAL DIMENSIONS - Width (w/o Trunnion and Blade - - Std. Shoe) (2018)	75 in (190 cm)
GENERAL DIMENSIONS - Width (w/o Trunnion and Blade - - Std. Shoe) (2019)	75 in (190 cm)
Ground Contact Area (Since 2012)	2,637 sq in (2 sq m)
Ground Contact Area (2013)	2,637 sq in (2 sq m)
Ground Contact Area (2015)	2,637 sq in (2 sq m)
Ground Contact Area (2016)	2,637 sq in (2 sq m)
Ground Contact Area (2017)	2,637 sq in (2 sq m)
Ground Contact Area (2018)	2,637 sq in (2 sq m)
Ground Contact Area (2019)	2,637 sq in (2 sq m)
Ground Contact Area - (w/Std. Shoe) (Since 2012)	2,848 sq in (18,254 cm)
Ground Contact Area - (w/Std. Shoe) (2013)	2,848 sq in (18,254 cm)
Ground Contact Area - (w/Std. Shoe) (Since 2016)	2,637 sq in (17,011 cm)
Ground Contact Area - (w/Std. Shoe) (Since 2016)	2,848 sq in (18,254 cm)
Ground Contact Area - (w/Std. Shoe) (Since 2017)	2,637 sq in (17,011 cm)
Ground Contact Area - (w/Std. Shoe) (Since 2017)	2,848 sq in (18,254 cm)
Ground Contact Area - (w/Std. Shoe) (Since 2018)	2,637 sq in (17,011 cm)
Ground Contact Area - (w/Std. Shoe) (Since 2018)	2,848 sq in (18,254 cm)
Ground Contact Area - (w/Std. Shoe) (Since 2019)	2,637 sq in (17,011 cm)
Ground Contact Area - (w/Std. Shoe) (Since 2019)	2,848 sq in (18,254 cm)
Ground Pressure (Since 2012)	7 psi (45 kPa)
Ground Pressure (Since 2013)	7 psi (45 kPa)
Ground Pressure (2015)	7 psi (45 kPa)
Ground Pressure (2016)	7 psi (45 kPa)
Ground Pressure (2017)	7 psi (45 kPa)
Ground Pressure (2018)	7 psi (45 kPa)
Ground Pressure (2019)	7 psi (45 kPa)
Length of Track on Ground (Since 2012)	89 in (226 cm)
Length of Track on Ground (2013)	89 in (226 cm)
Length of Track on Ground (Since 2016)	83 in (211 cm)
Length of Track on Ground (Since 2016)	89 in (226 cm)
Length of Track on Ground (Since 2017)	83 in (211 cm)
Length of Track on Ground (Since 2017)	89 in (226 cm)
Length of Track on Ground (Since 2018)	83 in (211 cm)
Length of Track on Ground (Since 2018)	89 in (226 cm)
Length of Track on Ground (Since 2019)	83 in (211 cm)
Length of Track on Ground (Since 2019)	89 in (226 cm)
No. of Cylinders (Since 2012)	4
No. of Cylinders (2013)	4
No. of Cylinders (2016)	4
No. of Cylinders (2017)	4
No. of Cylinders (2018)	4
No. of Cylinders (2019)	4
Operating Weight (Since 2012)	17,544 lbs (7,958 kg)
Operating Weight (2013)	17,544 lbs (7,958 kg)
Operating Weight 2 (Since 2016)	17,185 lbs (7,795 kg)
Operating Weight 2 (Since 2016)	17,544 lbs (7,958 kg)
Operating Weight 2 (Since 2017)	17,185 lbs (7,795 kg)
Operating Weight 2 (Since 2017)	17,544 lbs (7,958 kg)
Operating Weight 2 (Since 2018)	17,185 lbs (7,795 kg)
Operating Weight 2 (Since 2018)	17,544 lbs (7,958 kg)
Operating Weight 2 (Since 2019)	17,185 lbs (7,795 kg)
Operating Weight 2 (Since 2019)	17,544 lbs (7,958 kg)
Rated Engine RPM (Since 2012)	2,200 rpm
Rated Engine RPM (2013)	2,200 rpm
Rated Engine RPM (Since 2016)	1,900 rpm
Rated Engine RPM (Since 2016)	2,200 rpm
Rated Engine RPM (Since 2017)	1,900 rpm
Rated Engine RPM (Since 2017)	2,200 rpm
Rated Engine RPM (Since 2018)	1,900 rpm
Rated Engine RPM (Since 2018)	2,200 rpm
Rated Engine RPM (Since 2019)	1,900 rpm
Rated Engine RPM (Since 2019)	2,200 rpm
Stroke (Since 2012)	5 in (13 cm)
Stroke (Since 2013)	5 in (13 cm)
Stroke (2016)	5 in (13 cm)
Stroke (2017)	5 in (13 cm)
Stroke (2018)	5 in (13 cm)
Stroke (2019)	5 in (13 cm)
Track Gauge (Since 2012)	59 in (150 cm)
Track Gauge (2013)	59 in (150 cm)
Track Gauge (2016)	59 in (150 cm)
Track Gauge (2017)	59 in (150 cm)
Track Gauge (2018)	59 in (150 cm)
Track Gauge (2019)	59 in (150 cm)
Track Rollers (Each Side) (Since 2012)	6
Track Rollers (Each Side) (2013)	6
Track Rollers (Each Side) (2016)	6
Track Rollers (Each Side) (2017)	6
Track Rollers (Each Side) (2018)	6
Track Rollers (Each Side) (2019)	6
Track Shoe Width (Since 2012)	16 in (41 cm)
Track Shoe Width (2013)	16 in (41 cm)
Track Shoe Width (2015)	16 in (41 cm)
Track Shoe Width (2016)	16 in (41 cm)
Track Shoe Width (2017)	16 in (41 cm)
Track Shoe Width (2018)	16 in (41 cm)
Track Shoe Width (2019)	16 in (41 cm)
Weight (Since 2016)	17,465 lbs (7,922 kg)
Weight (2017)	17,465 lbs (7,922 kg)
Weight (2018)	17,465 lbs (7,922 kg)
Weight (2019)	17,465 lbs (7,922 kg)
Width of Standard Track Shoe (Since 2012)	16 in (41 cm)
Width of Standard Track Shoe (2013)	16 in (41 cm)
Width of Standard Track Shoe (2016)	16 in (41 cm)
Width of Standard Track Shoe (2017)	16 in (41 cm)
Width of Standard Track Shoe (2018)	16 in (41 cm)
Width of Standard Track Shoe (2019)	16 in (41 cm)
Hydraulic System
Pump Flow Capacity	19 gpm (73 lpm)
Relief Valve Pressure	2,988 psi
Operational
Alternator Supplied Amperage	120 amps
Cooling System Fluid Capacity	6 gal (23 l)
Engine Oil Capacity	3 gal (11 l)
Final Drives Fluid Capacity	3 gal (10 l)
Fuel Capacity	52 gal (195 l)
Hydraulic Fluid Capacity	16 gal (59 l)
Operating Voltage	12 V
Operating Weight	17,544 lbs (7,958 kg)
Standard Blade
Blade Angle (Both Directions)	25 degrees
Capacity	2 cu yd
Cutting Depth	23 in (57 cm)
Height	36 in (91 cm)
Width	9 ft (3 m)
Transmission
Max Speed - Forward	6 mph (9 kph)
Max Speed - Reverse	6 mph (10 kph)
Transmission Type	Hydrostatic
Undercarriage
Ground Contact Area	2829 in2
Ground Pressure	6 psi
Number Of Shoes Per Side	41
Number Of Track Rollers Per Side	6
Standard Shoe Size	16 in (41 cm)
Track Gauge	5 ft (2 m)
Years Of Manufacture
Approximate First Year Of Manufacture	2013 A.D.
