Auction Pricing
Auction Info: Starting on 2026-09-10 Click here to place a bid
Supplied by HeavyEquipmentData.com →
| Air Conditioning System | |
| Air Conditioning (Since 2026) | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. - If equipped with R134a (Global Warming Potential = 1430), the system contains 1.6 kg (3.5 lb) of refrigerant which has a CO2 equivalent of 2.29 metric tonnes (2.52 tons). |

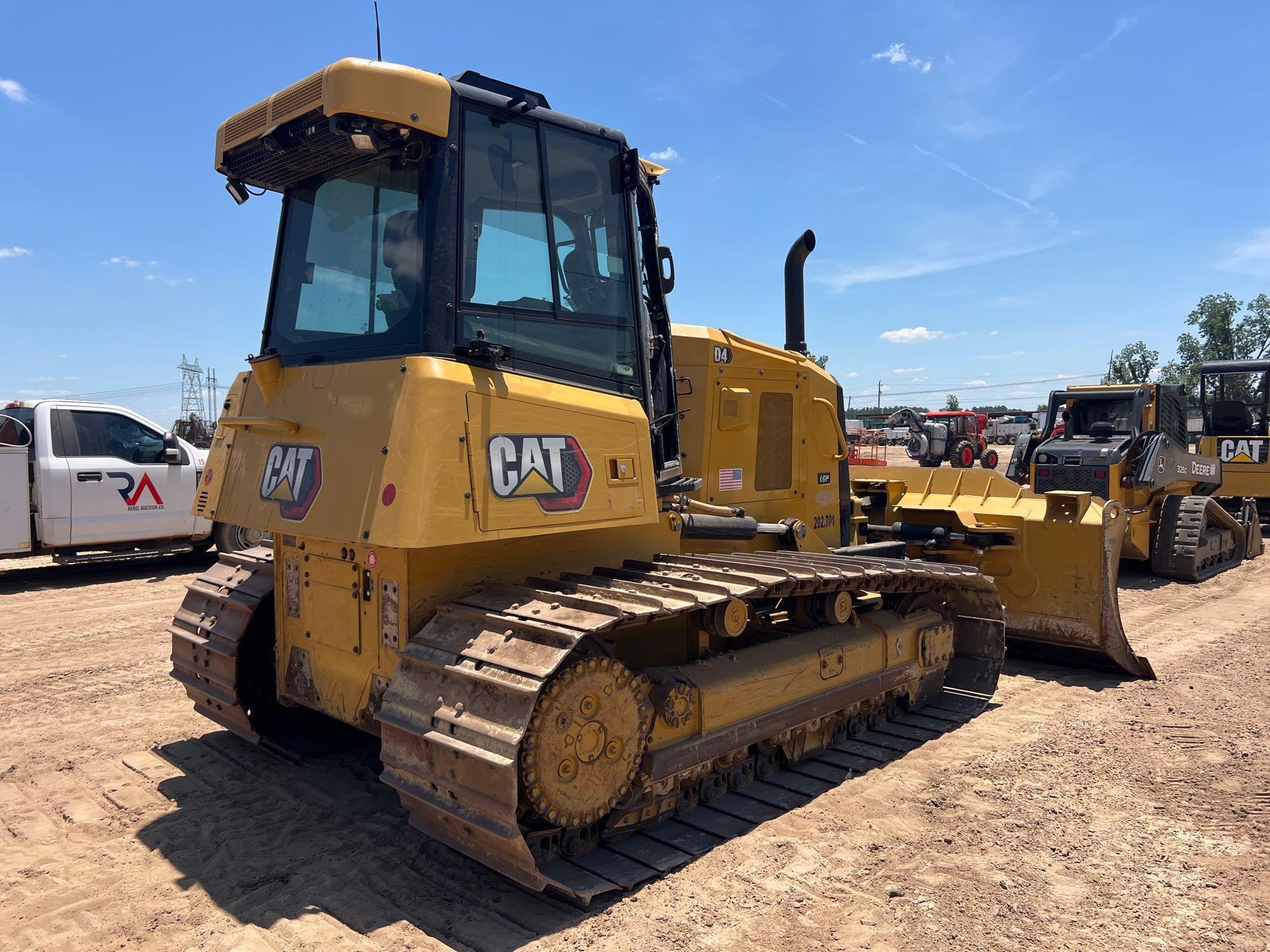

| D4 | |

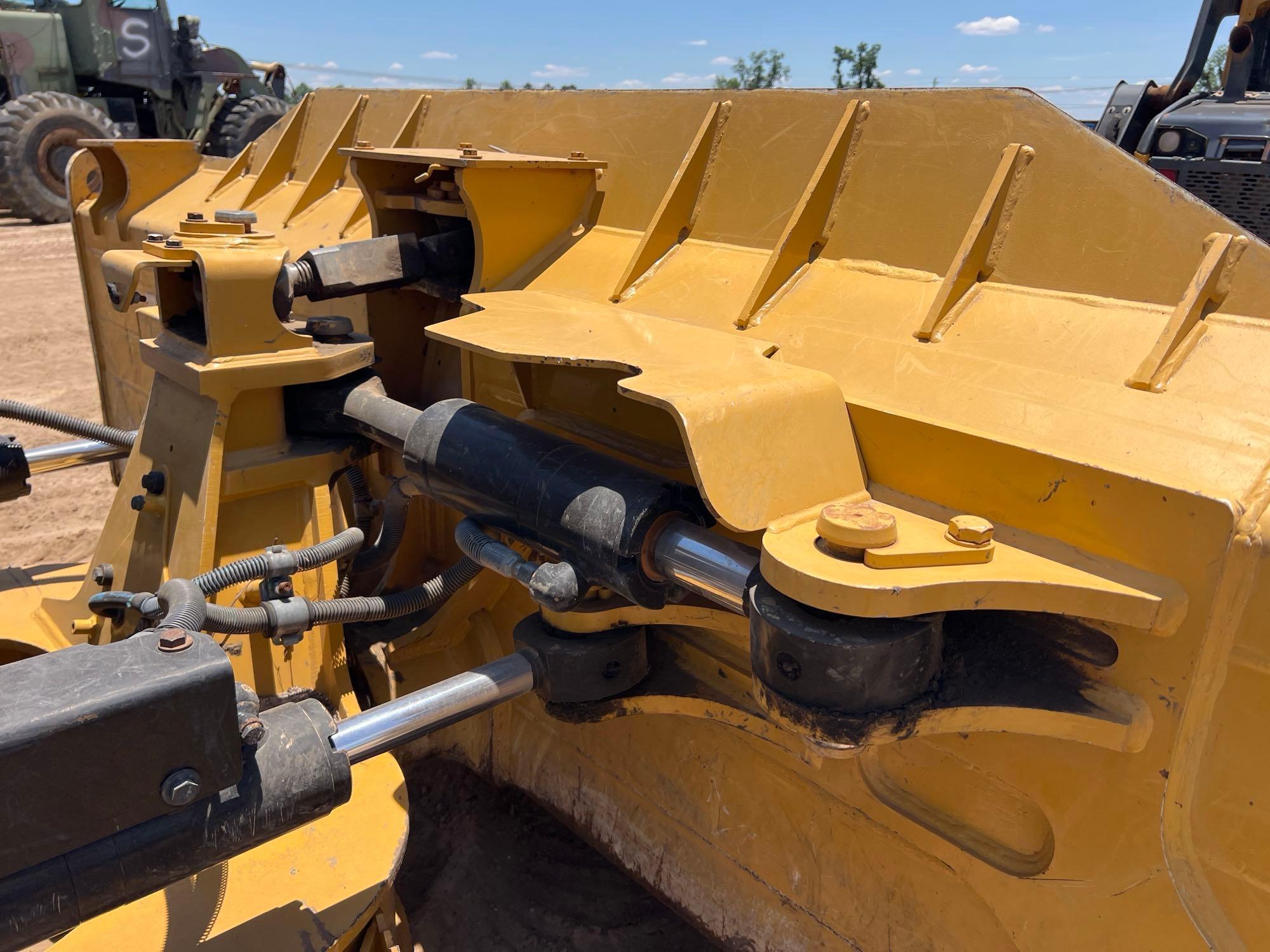

| Blade (Since 2026) | VPAT or VPAT Foldable* |
| Blade Capacity (Since 2026) | 4 cu yd |
| Ground Pressure (Since 2026) | 6 psi |
| Operating Weight (Since 2026) | 29,259 lbs (13,272 kg) |
| Width of Standard Shoe (Since 2026) | 22 in (56 cm) |
| D4 Lgp | |
| Blade (Since 2026) | VPAT or VPAT Foldable* |
| Blade Capacity (Since 2026) | 5 cu yd |
| Ground Pressure (Since 2026) | 5 psi |
| Operating Weight (Since 2026) | 30,882 lbs (14,008 kg) |
| Width of Standard Shoe (Since 2026) | 30 in (76 cm) |
| Dimensions | |
| Height | 10 ft (3 m) |
| Length | 17 ft (5 m) |
| Weight | 29,259 lbs (13,272 kg) |
| Width | 8 ft (2 m) |

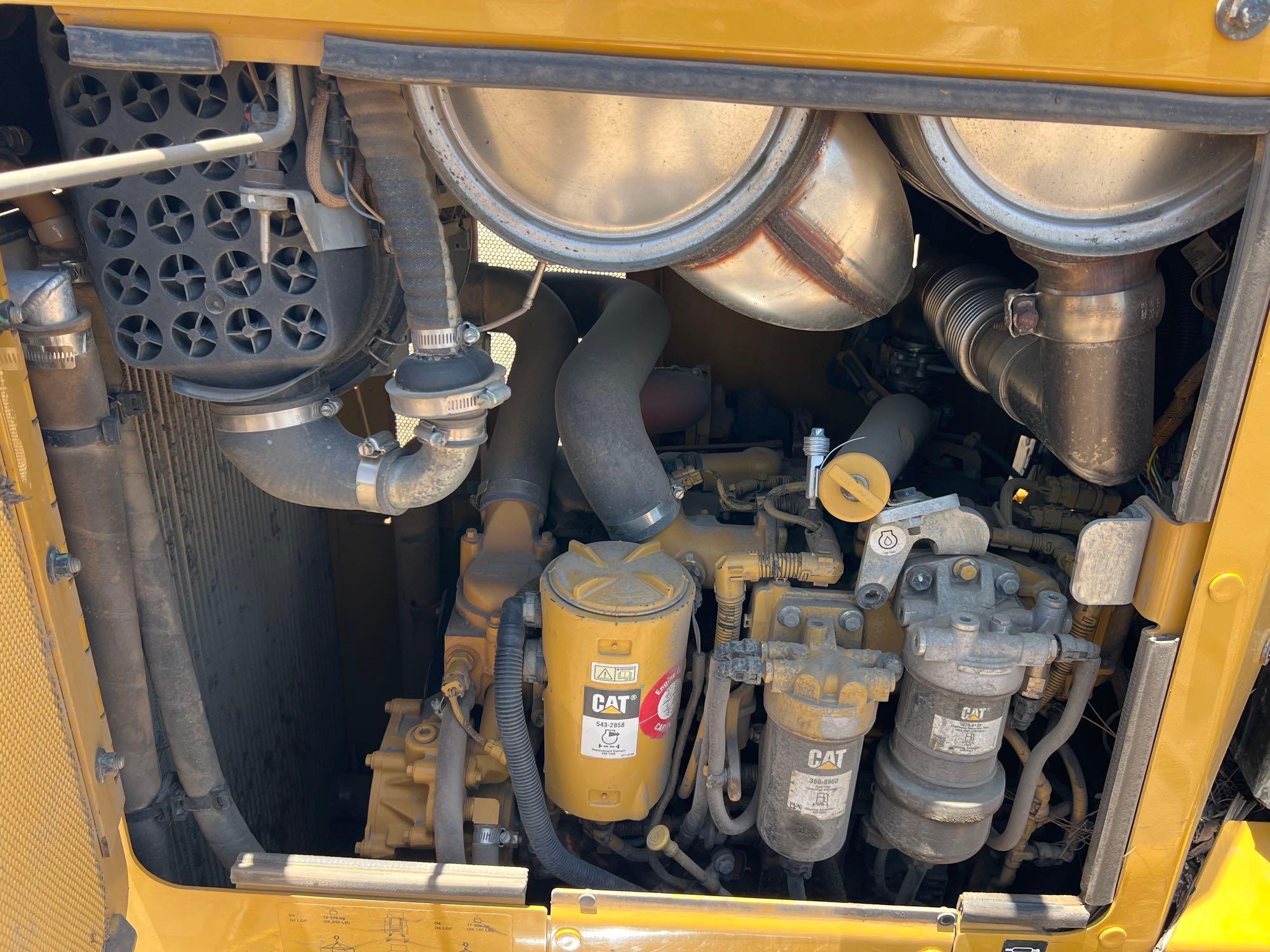

| Engine | |
| Emissions (Since 2026) | U.S. EPA Tier 4 Final/EU Stage V/Japan 2014/Korea Stage V |
| Engine Model (Since 2026) | Cat C4.4 |
| Net Power - ISO 9249 (Since 2026) | 130 hp (97 kw) |
| Net Power - ISO 9249 (DIN) (Since 2026) | 132 mhp |
| General Specifications | |
| Approx. Machine Weight (Since 1947) | 10,970 lbs (5,067 kg) |
| Blade Capacity (Since 2021) | 4 yd³ |
| Blade Capacity (Since 2023) | 5 yd³ |
| Blade Capacity (Since 2024) | 4 yd³ |
| Drawbar Pull - 1st (Since 1947) | 10,700 lbf (4,858 kgf) |
| Drawbar Pull - 2nd (Since 1947) | 7,770 lbf (3,528 kgf) |
| Drawbar Pull - 3rd (Since 1947) | 6,000 lbf (2,724 kgf) |
| Drawbar Pull - 4th (Since 1947) | 4,610 lbf (2,093 kgf) |
| Drawbar Pull - 5th (Since 1947) | 2,920 lbf (1,326 kgf) |
| Engine (Since 2023) | C4.4 |
| Engine Power (Since 2021) | 130 hp (97 kw) |
| Engine Type (Since 2021) | Cat C4.4 |
| Flywheel / Drawbar Horsepower (Since 1959) | 63/50 hp |
| Forward Speed - 1st (Since 1947) | 2 mph (3 km/h) |
| Forward Speed - 2nd (Since 1947) | 3 mph (4 km/h) |
| Forward Speed - 3rd (Since 1947) | 3 mph (6 km/h) |
| Forward Speed - 4th (Since 1947) | 4 mph (7 km/h) |
| Forward Speed - 5th (Since 1947) | 6 mph (10 km/h) |
| Horse- power FW/ Drawbar (Since 1947) | 63/50 hp |
| Net Power (Since 2021) | 130 hp (97 kw) |
| Notes (Since 2023) | Blade capacity unit omitted in guide; yd3 inferred from adjoining dozer tables. |
| Operating Weight (Since 2021) | 29,258 lb |
| Operating Weight (Since 2023) | 29,259 lb |
| Operating Weight (Since 2024) | 29,258 lb |
| Overall Height (Since 1947) | 70 in (2 m) |
| Overall Length (Since 1947) | 125 in (3 m) |
| Overall Width (Since 1947) | 78 in (2 m) |
| Product Identification Prefix (Since 1947) | 7U |
| Product Identification Prefix (Since 1961) | 29A |
| Product Identification Prefix [Australia] (Since 1959) | 30A |
| Track Gauge (Since 1947) | 60 in (2 m) |
| Track Gauge (Since 1961) | 44 in (1 m) |
| Track Gauge [Australia] (Since 1959) | 60 in (2 m) |
| Trans- mission (Since 1947) | DD |
| Transmission (Since 1959) | DD |
| Weight (Since 2021) | 29,259 lbs (13,272 kg) |
| Years Built [Australia] (Since 1959) | 1,959 - 1,960 |
| Service Refill Capacities | |
| DEF Tank (Since 2026) | 5 gal (19 l) |
| Fuel Tank (Since 2026) | 69 gal (261 l) |
| Sustainability | |
| Recyclability (Since 2026) | 93% |
| Transmission | |
| Powertrain (Since 2026) | Hydrostatic Transmission |
| Weights | |
| Operating Weight (Since 2026) | 29,259 lbs (13,272 kg) |
