2004 Caterpillar D4G LGP For Sale in Fort Worth, Tx

Name: 2004 Caterpillar D4G LGP
Brand: Caterpillar
SKU: 88899885
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-08-19 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

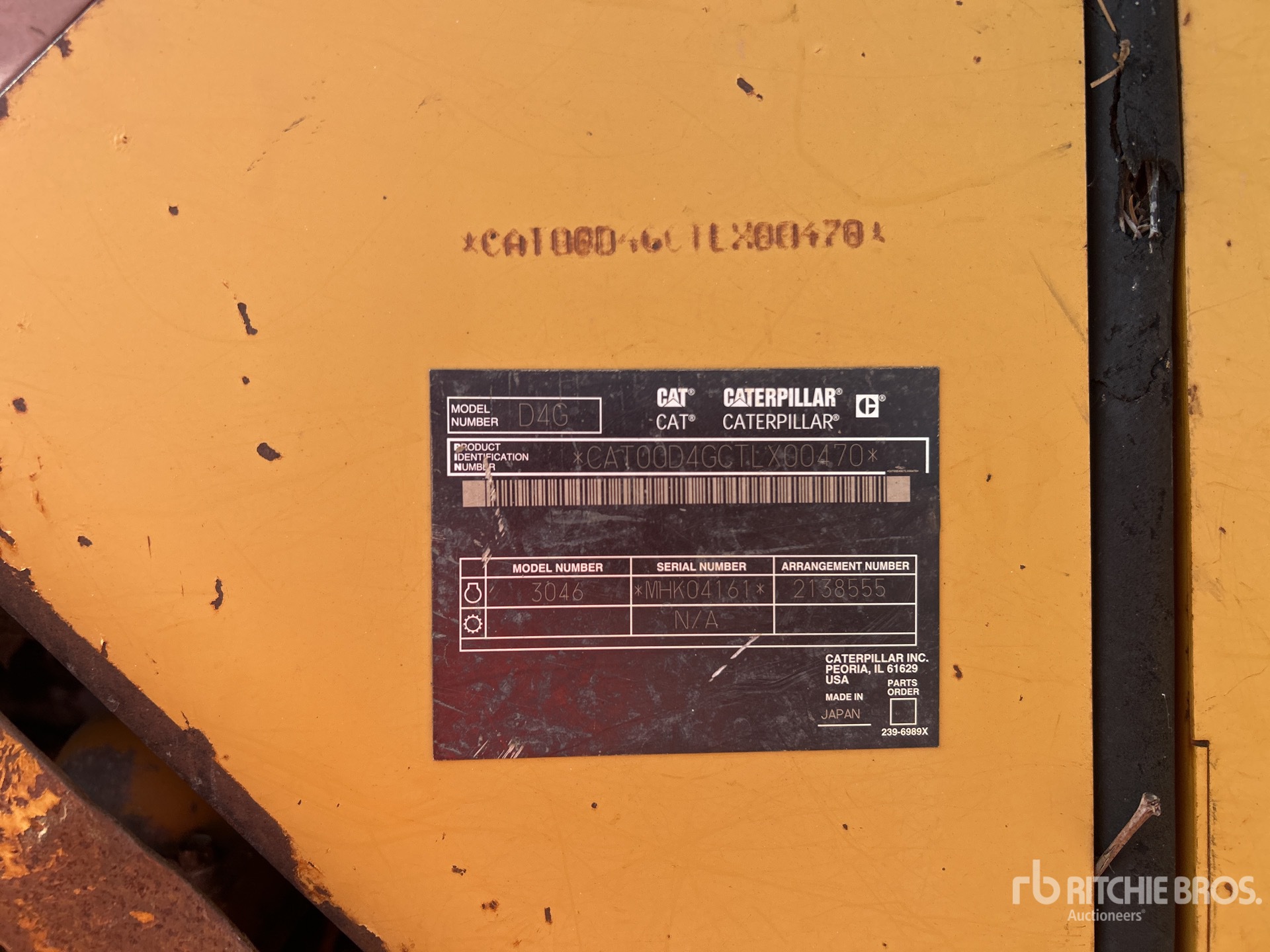

Serial Number:	CAT00D4GCTLX00470
Machine Location:	FORT WORTH, TX

Description:

Located in Lane 10 Spot 15, Open Operator Station, Sweeps, 121 in Wide PAT Root Rake, 25 in Single Grouser Track Shoes Closing Time: 2026-08-19 11:07:00 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Dimensions
Ground Clearance	1 ft (0 m)
Height - Top of Cab	9 ft (3 m)
Length of Track on Ground	10 ft (3 m)
Length w/ Blade	13 ft (4 m)
Length w/o Blade	10 ft (3 m)
Width Over Tracks	7 ft (2 m)
Engine
Bore	4 in (9 cm)
Displacement	305 cu in (4,998 cu cm)
Engine Model	Cat 3046
Gross Power	87 hp (65 kw)
Net Power	80 hp (60 kw)
Number of Cylinders	6
Power Measured @	2,200 rpm
Stroke	5 in (12 cm)
Hydraulic System
Pump Flow Capacity	16 gpm (61 lpm)
Relief Valve Pressure	2,901 psi
Operating Specifications
Cooling System Fluid Capacity	6 gal (21 l)
Engine Oil Capacity	4 gal (13 l)
Final Drives Fluid Capacity	4 gal (15 l)
Fuel Capacity	50 gal (187 l)
Hydraulic Fluid Capacity	12 gal (47 l)
Operating Weight	18,210 lbs (8,260 kg)
Ripper
Ripper Type	Parallelogram
Service Refill Capacities
Cooling System	6 gal (21 l)
Fuel Tank	49 gal (184 l)
Standard Blade
Blade Angle (both directions)	25 degrees
Capacity	3 cu yd (2 cu m)
Height	41 in (103 cm)
Width	9 ft (3 m)
Standards
FOPS	SAE J231-JAN81 ISO 3449-92
ROPS	SAE J397-OCT95 SAE J1040-MAY94 ISO 3471-94 ISO 3164-95
Transmission
Max Speed - Forward	6 mph (9 kph)
Max Speed - Reverse	6 mph (10 kph)
Number of Forward Gears	1
Number of Reverse Gears	1
Transmission Type	hydrostatic
Undercarriage
Ground Contact Area	31,528,615 cu in (516,662,567 cu cm)
Ground Pressure	6 psi
Number of Shoes per Side	41
Number of Track Rollers per Side	7
Standard Shoe Size	18 in (46 cm)
Track Gauge	5 ft (2 m)
Winch
Drum Diameter	10 in (25 cm)
Drum Width	11 in (27 cm)
Weight	1,345 lbs (610 kg)
