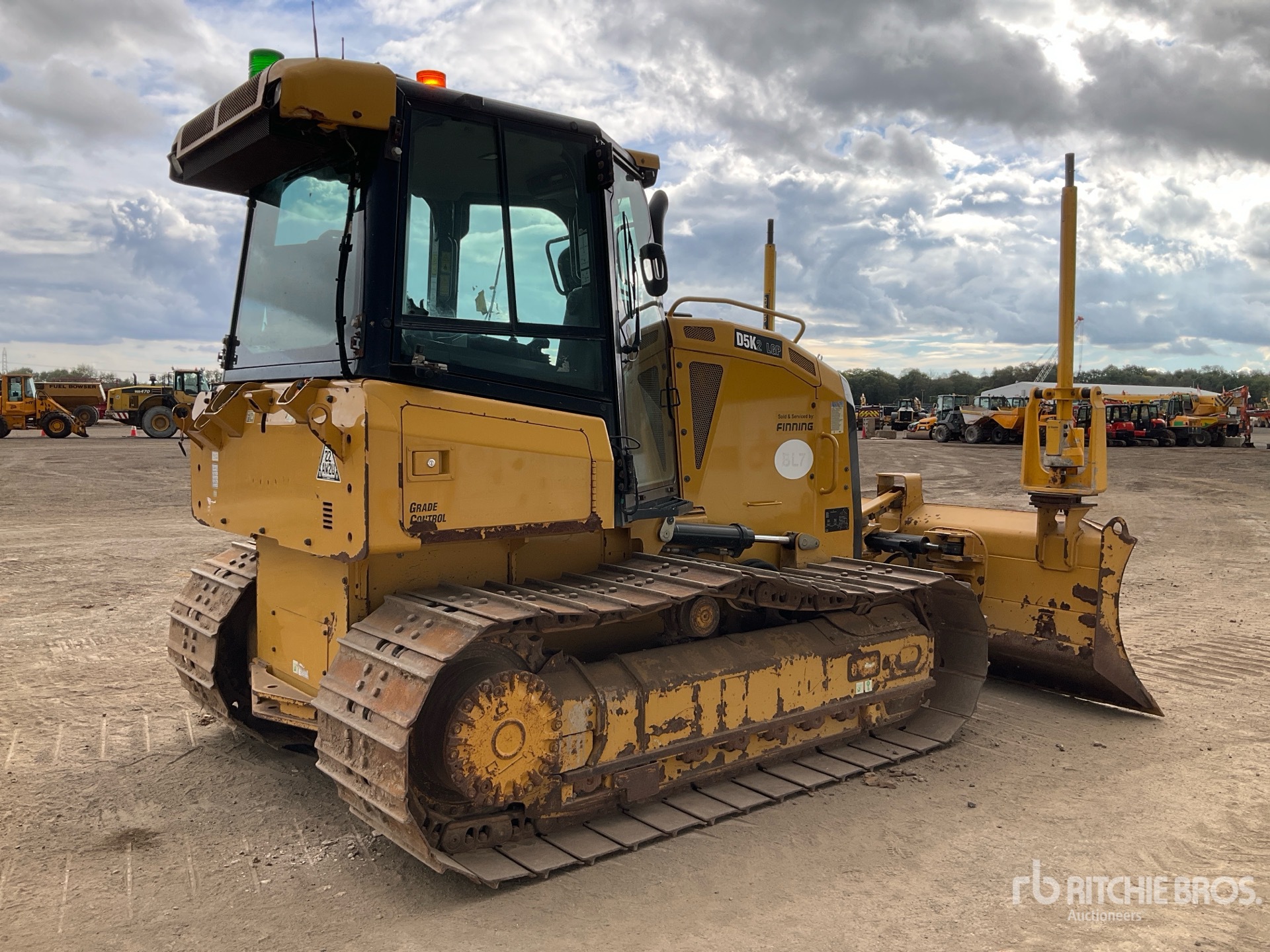

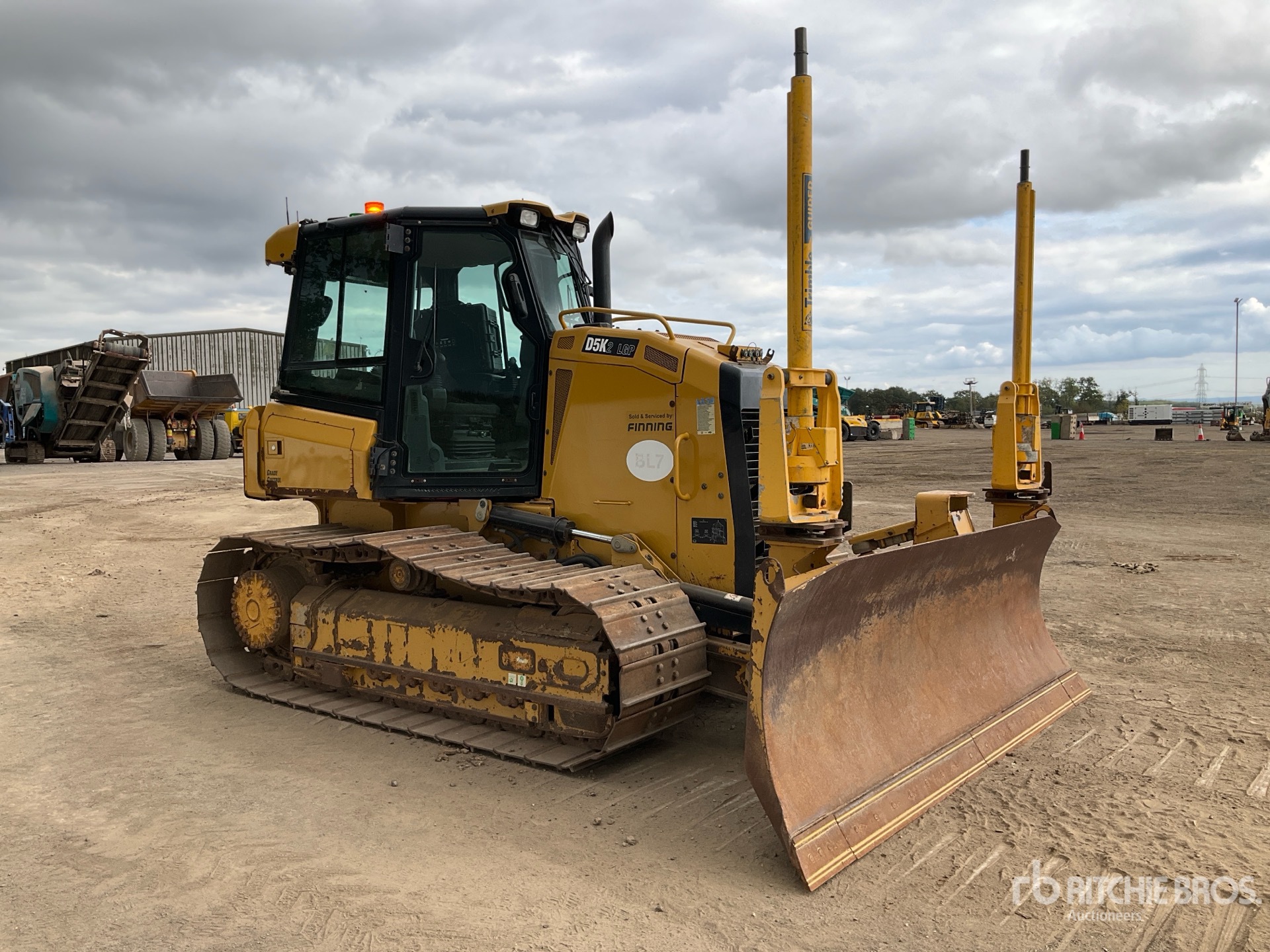

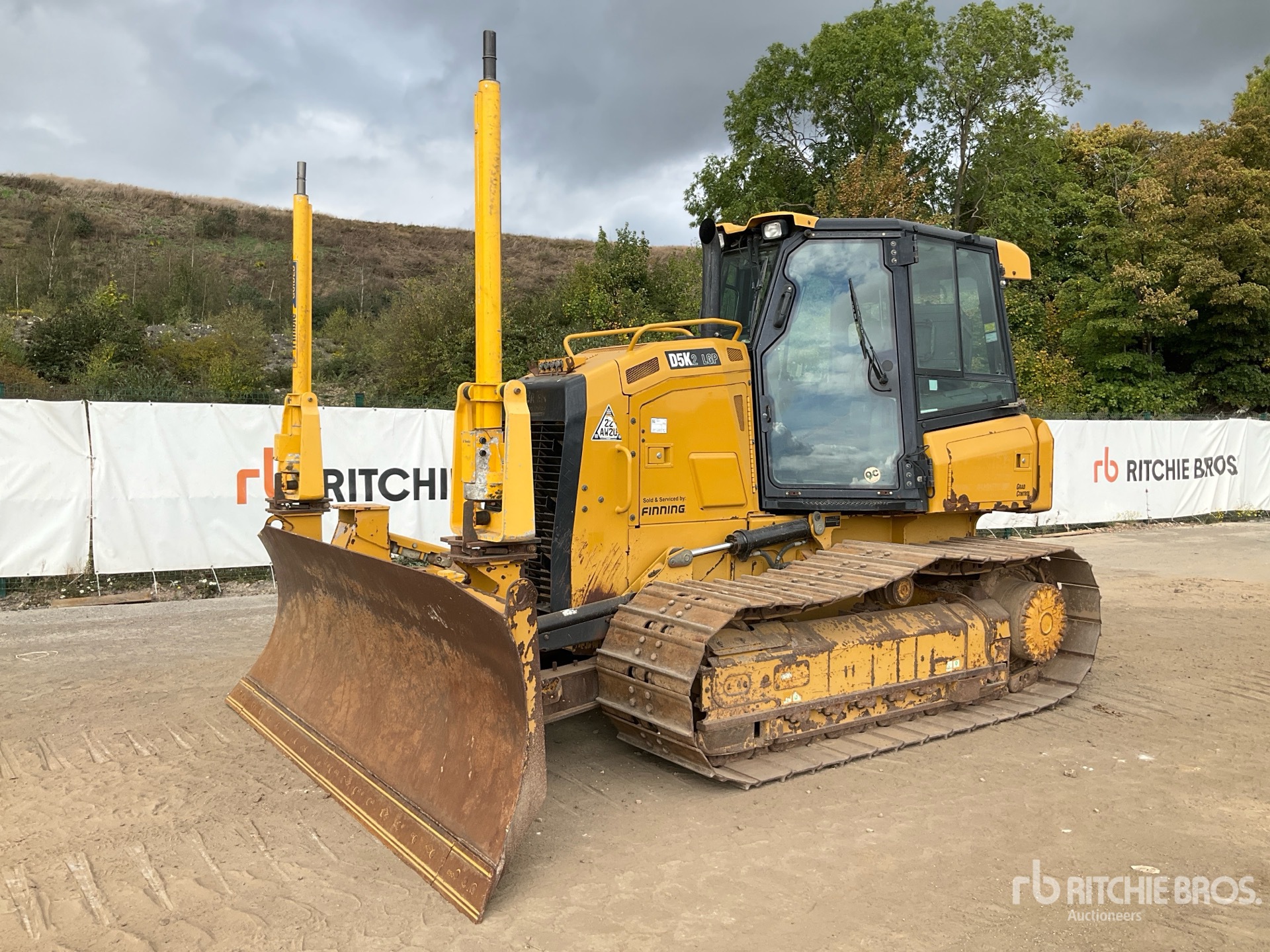

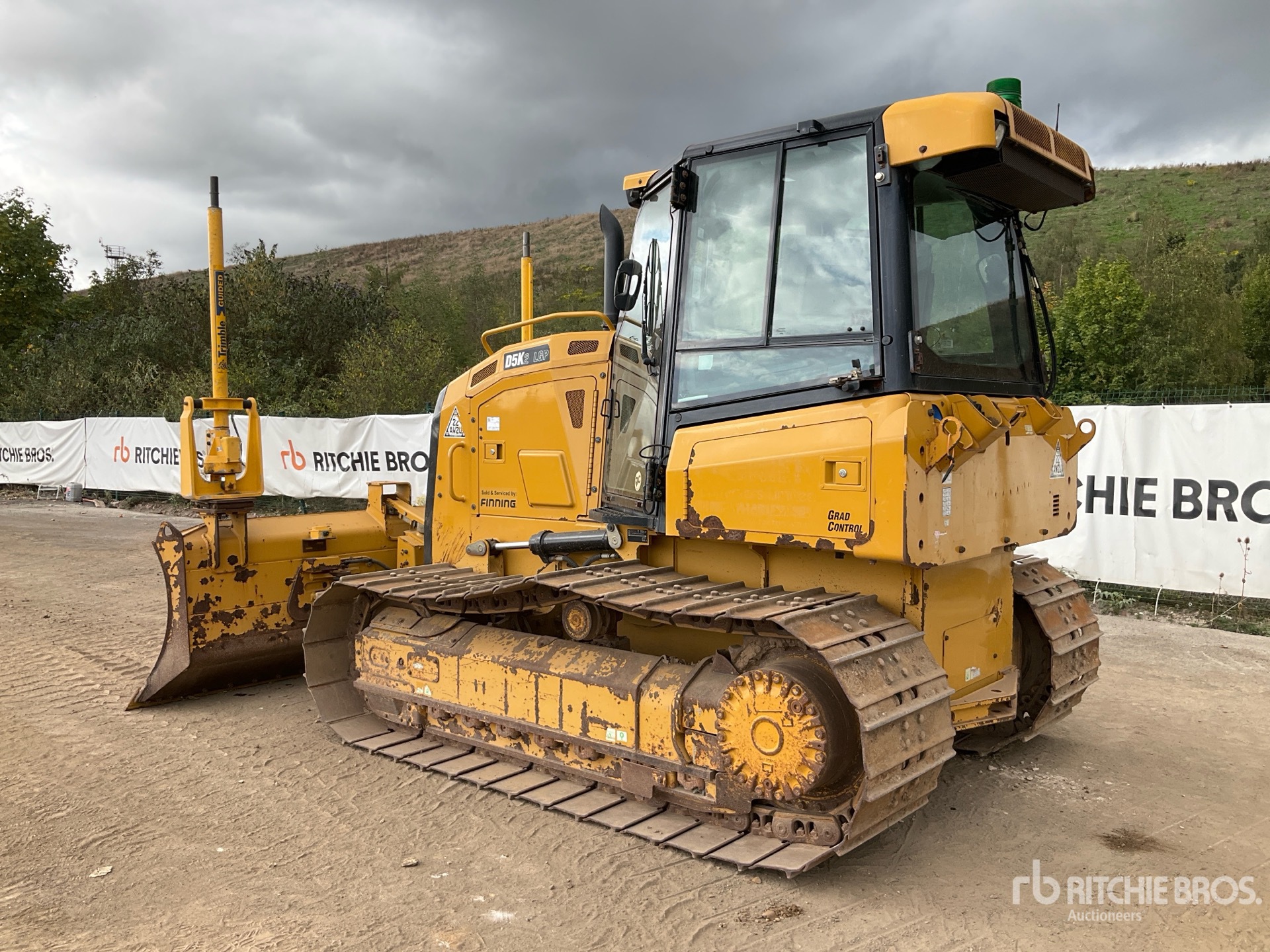

2019 Caterpillar D5K2 LGP For Sale in Maltby, Gbr

Name: 2019 Caterpillar D5K2 LGP
Brand: Caterpillar
SKU: 89410367
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-10-21 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

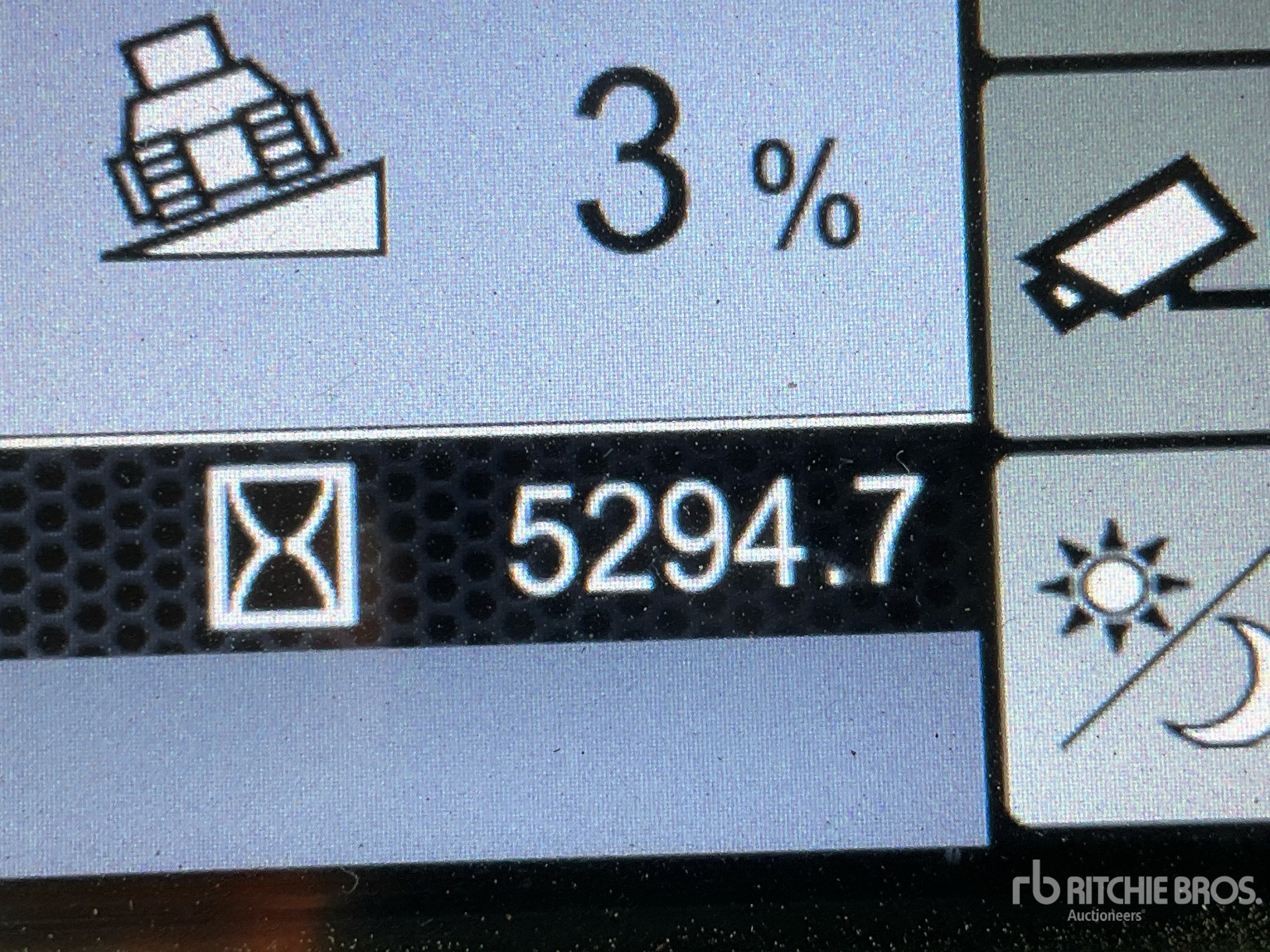

Hours:	5294

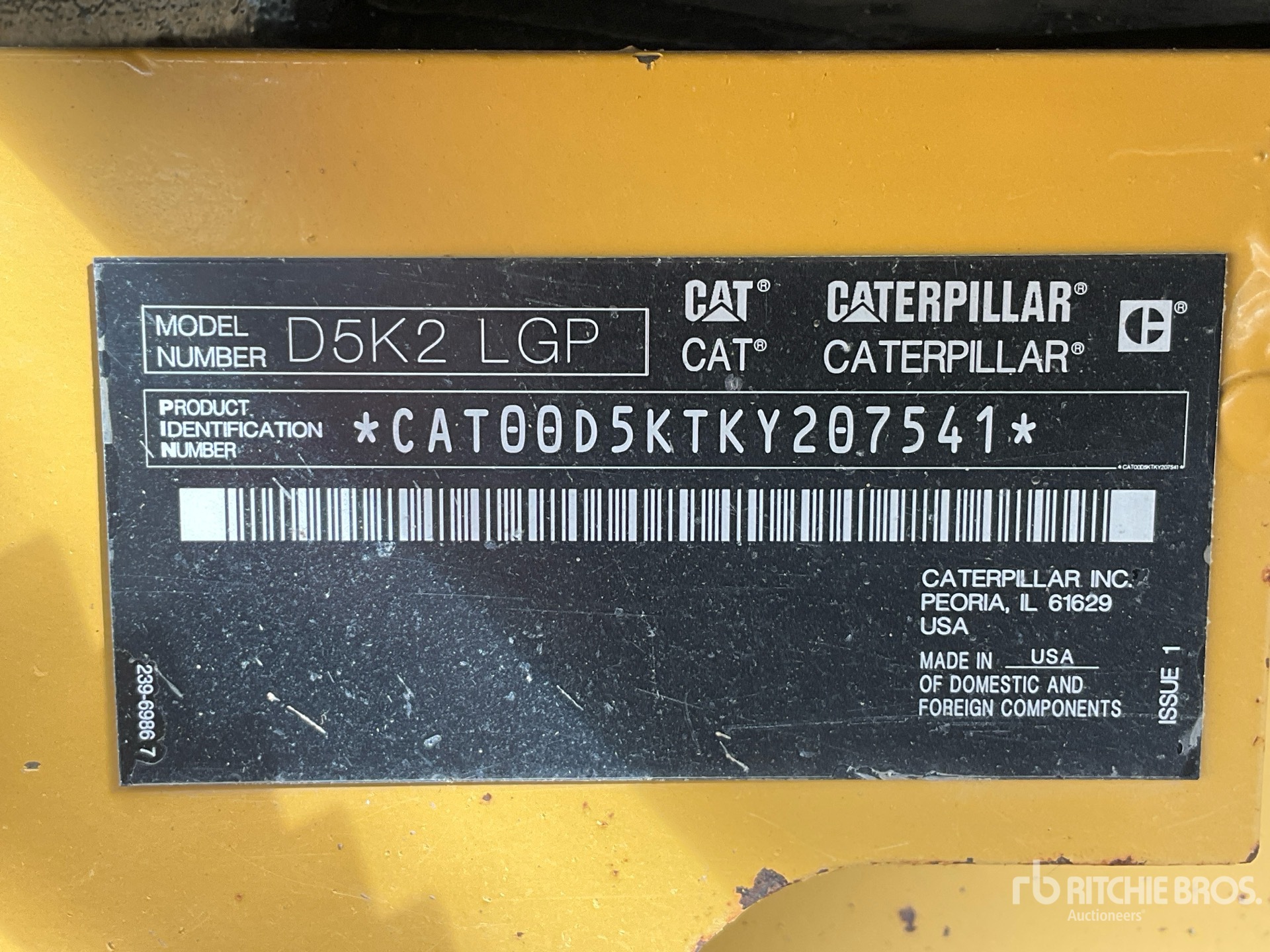

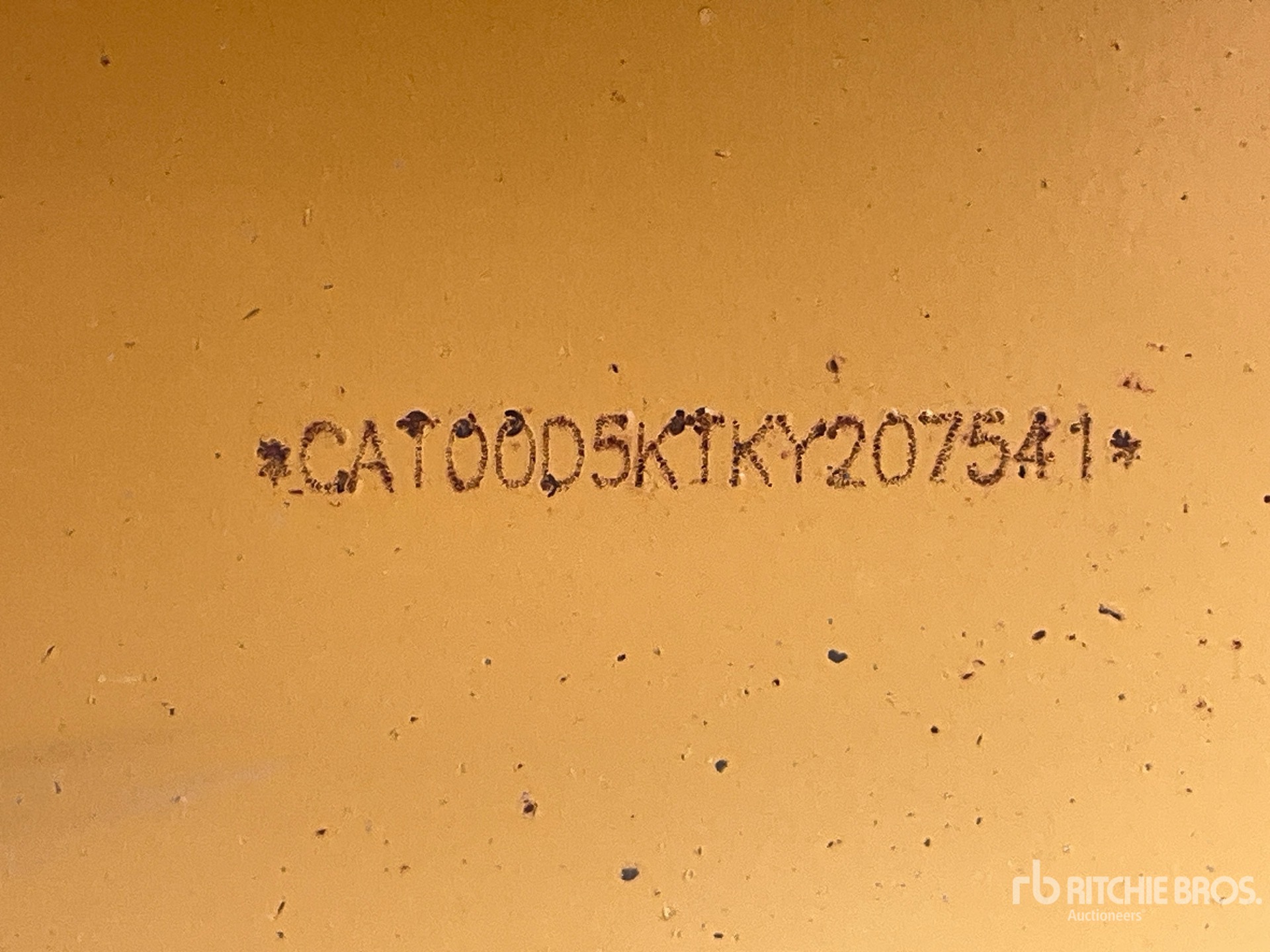

Serial Number:	CAT00D5KTKY207541
Machine Location:	MALTBY, GBR

Description:

Enclosed Cab, Air Conditioner, Rear View Camera, Trimble GCS900 Grade Control System, Requires AdBlue, 3160 mm Wide PAT Blade, Drawbar, 660 mm Track Shoes, SystemOne Undercarriage, Joystick Steering, Blade Controls **Trimble GCS900 Grade Control System** **Copy CE Certificate Available** **Additional Information Available** Closing Time: 2026-10-21 10:42:40 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Caterpillar D5K2 LGP is a crawler dozer designed for grading, dozing, and site preparation in soft or low-ground-pressure conditions. The LGP configuration uses wider tracks to reduce ground pressure and improve flotation on sensitive terrain. It is part of Caterpillar's D5K2 series and is commonly used in construction, land clearing, utility work, and general earthmoving. The machine typically features a hydrostatic transmission, responsive blade control, and a compact frame for maneuverability in confined areas. The D5K2 LGP is suited to applications requiring traction, stability, and reduced surface disturbance on uneven or soft ground.

Dimensions
Height To Top Of Cab	109 ft (33 m)
Length W/ Blade	169 ft (52 m)
Length W/O Blade	129 ft (39 m)
Width Over Tracks	95 ft (29 m)
Engine
Displacement	269 cu in (4,408 cu cm)
Engine Model	CAT C4.4 ACERT
Gross Power	104 hp (78 kw)
Net Power	104 hp (78 kw)
Number Of Cylinders	6
Power Measured @	2,200 rpm
General Specifications
Blade Types and Widths - VPAT, Angled 25° (Since 2012)	116 in (294 cm)
Blade Types and Widths - VPAT, Angled 25° (2013)	116 in (294 cm)
Blade Types and Widths - VPAT, Angled 25° (2016)	116 in (294 cm)
Blade Types and Widths - VPAT, Angled 25° (2017)	116 in (294 cm)
Blade Types and Widths - VPAT, Angled 25° (2018)	116 in (294 cm)
Blade Types and Widths - VPAT, Angled 25° (2019)	116 in (294 cm)
Blade Types and Widths - VPAT, Straight (Since 2012)	127 in (322 cm)
Blade Types and Widths - VPAT, Straight (2013)	127 in (322 cm)
Blade Types and Widths - VPAT, Straight (2016)	127 in (322 cm)
Blade Types and Widths - VPAT, Straight (2017)	127 in (322 cm)
Blade Types and Widths - VPAT, Straight (2018)	127 in (322 cm)
Blade Types and Widths - VPAT, Straight (2019)	127 in (322 cm)
Bore (Since 2012)	4 in (10 cm)
Bore (2013)	4 in (10 cm)
Bore (2016)	4 in (10 cm)
Bore (2017)	4 in (10 cm)
Bore (2018)	4 in (10 cm)
Bore (2019)	4 in (10 cm)
DEF Tank Refill Capacity (Since 2017)	5 US gal (19 L)
DEF Tank Refill Capacity (2018)	5 US gal (19 L)
DEF Tank Refill Capacity (2019)	5 US gal (19 L)
Displacement (Since 2012)	269 cu in (4,408 cu cm)
Displacement (2013)	269 cu in (4,408 cu cm)
Displacement (2016)	269 cu in (4,408 cu cm)
Displacement (2017)	269 cu in (4,408 cu cm)
Displacement (2018)	269 cu in (4,408 cu cm)
Displacement (2019)	269 cu in (4,408 cu cm)
Emission Standards (Since 2016)	Tier 3/Stage IIIA/ Japan 2006 (Tier 3) equivalent
Emission Standards (Since 2016)	Tier 4 Final/Stage IV/ Japan 2014 (Tier 4 Final
Emission Standards (Since 2017)	Tier 3/Stage IIIA/ Japan 2006 (Tier 3) equivalent
Emission Standards (Since 2017)	Tier 4 Final/Stage IV/ Japan 2014 (Tier 4 Final
Emission Standards (Since 2018)	Tier 3/Stage IIIA/ Japan 2006 (Tier 3) equivalent
Emission Standards (Since 2018)	Tier 4 Final/Stage IV/ Japan 2014 (Tier 4 Final
Emission Standards (Since 2019)	Tier 3/Stage IIIA/ Japan 2006 (Tier 3) equivalent
Emission Standards (Since 2019)	Tier 4 Final/Stage IV/ Japan 2014 (Tier 4 Final
Engine Model (Since 2012)	C4.4 ACERT
Engine Model (2013)	C4.4 ACERT
Engine Model (2016)	C4.4 ACERT
Engine Model (2017)	C4.4 ACERT
Engine Model (2018)	C4.4 ACERT
Engine Model (2019)	C4.4 ACERT
Engine Power (Since 2016)	104 hp (78 kw)
Engine Power (2017)	104 hp (78 kw)
Engine Power (2018)	104 hp (78 kw)
Engine Power (2019)	104 hp (78 kw)
Engine Power (2020)	104 hp (78 kw)
Engine Power (2021)	104 hp (78 kw)
Engine Type (Since 2016)	Cat C4.4 ACERT
Engine Type (2017)	Cat C4.4 ACERT
Engine Type (2018)	Cat C4.4 ACERT
Engine Type (2019)	Cat C4.4 ACERT
Engine Type (2020)	Cat C4.4 ACERT
Engine Type (2021)	Cat C4.4 ACERT
Flywheel Power - Hydrostatic (Since 2012)	104 hp (78 kw)
Flywheel Power - Hydrostatic (2013)	104 hp (78 kw)
Flywheel Power - Hydrostatic (Since 2016)	96 hp (72 kw)
Flywheel Power - Hydrostatic (Since 2016)	104 hp (78 kw)
Flywheel Power - Hydrostatic (Since 2017)	96 hp (72 kw)
Flywheel Power - Hydrostatic (Since 2017)	104 hp (78 kw)
Flywheel Power - Hydrostatic (Since 2018)	96 hp (72 kw)
Flywheel Power - Hydrostatic (Since 2018)	104 hp (78 kw)
Flywheel Power - Hydrostatic (Since 2019)	96 hp (72 kw)
Flywheel Power - Hydrostatic (Since 2019)	104 hp (78 kw)
Fuel Tank Refill Capacity (Since 2012)	52 US gal (195 L)
Fuel Tank Refill Capacity (2013)	52 US gal (195 L)
Fuel Tank Refill Capacity (2016)	52 US gal (195 L)
Fuel Tank Refill Capacity (2017)	52 US gal (195 L)
Fuel Tank Refill Capacity (2018)	52 US gal (195 L)
Fuel Tank Refill Capacity (2019)	52 US gal (195 L)
GENERAL DIMENSIONS - (without Blade) (Since 2012)	129 in (326 cm)
GENERAL DIMENSIONS - (without Blade) (2013)	129 in (326 cm)
GENERAL DIMENSIONS - (without Blade) (2016)	129 in (326 cm)
GENERAL DIMENSIONS - (without Blade) (2017)	129 in (326 cm)
GENERAL DIMENSIONS - (without Blade) (2018)	129 in (326 cm)
GENERAL DIMENSIONS - (without Blade) (2019)	129 in (326 cm)
GENERAL DIMENSIONS - Ground Clearance (Since 2012)	13 in (33 cm)
GENERAL DIMENSIONS - Ground Clearance (2013)	13 in (33 cm)
GENERAL DIMENSIONS - Ground Clearance (2016)	13 in (33 cm)
GENERAL DIMENSIONS - Ground Clearance (2017)	13 in (33 cm)
GENERAL DIMENSIONS - Ground Clearance (2018)	13 in (33 cm)
GENERAL DIMENSIONS - Ground Clearance (2019)	13 in (33 cm)
GENERAL DIMENSIONS - Height (To Top of ROPS Cab) (Since 2012)	109 in (277 cm)
GENERAL DIMENSIONS - Height (To Top of ROPS Cab) (Since 2013)	109 in (277 cm)
GENERAL DIMENSIONS - Height (To Top of ROPS Cab) (2016)	109 in (277 cm)
GENERAL DIMENSIONS - Height (To Top of ROPS Cab) (2017)	109 in (277 cm)
GENERAL DIMENSIONS - Height (To Top of ROPS Cab) (2018)	109 in (277 cm)
GENERAL DIMENSIONS - Height (To Top of ROPS Cab) (2019)	109 in (277 cm)
GENERAL DIMENSIONS - Height (To Top of ROPS Canopy) (Since 2012)	109 in (277 cm)
GENERAL DIMENSIONS - Height (To Top of ROPS Canopy) (Since 2013)	109 in (277 cm)
GENERAL DIMENSIONS - Height (To Top of ROPS Canopy) (2016)	109 in (277 cm)
GENERAL DIMENSIONS - Height (To Top of ROPS Canopy) (2017)	109 in (277 cm)
GENERAL DIMENSIONS - Height (To Top of ROPS Canopy) (2018)	109 in (277 cm)
GENERAL DIMENSIONS - Height (To Top of ROPS Canopy) (2019)	109 in (277 cm)
GENERAL DIMENSIONS - Overall Length (with P Blade) (Since 2012)	170 in (432 cm)
GENERAL DIMENSIONS - Overall Length (with P Blade) (2013)	170 in (432 cm)
GENERAL DIMENSIONS - Overall Length (with P Blade) (Since 2016)	169 in (430 cm)
GENERAL DIMENSIONS - Overall Length (with P Blade) (Since 2016)	170 in (432 cm)
GENERAL DIMENSIONS - Overall Length (with P Blade) (Since 2017)	169 in (430 cm)
GENERAL DIMENSIONS - Overall Length (with P Blade) (Since 2017)	170 in (432 cm)
GENERAL DIMENSIONS - Overall Length (with P Blade) (Since 2018)	169 in (430 cm)
GENERAL DIMENSIONS - Overall Length (with P Blade) (Since 2018)	170 in (432 cm)
GENERAL DIMENSIONS - Overall Length (with P Blade) (Since 2019)	169 in (430 cm)
GENERAL DIMENSIONS - Overall Length (with P Blade) (Since 2019)	170 in (432 cm)
GENERAL DIMENSIONS - Width (w/o Trunnion and Blade - - Std. Shoe) (Since 2012)	95 in (241 cm)
GENERAL DIMENSIONS - Width (w/o Trunnion and Blade - - Std. Shoe) (2013)	95 in (241 cm)
GENERAL DIMENSIONS - Width (w/o Trunnion and Blade - - Std. Shoe) (2016)	95 in (241 cm)
GENERAL DIMENSIONS - Width (w/o Trunnion and Blade - - Std. Shoe) (2017)	95 in (241 cm)
GENERAL DIMENSIONS - Width (w/o Trunnion and Blade - - Std. Shoe) (2018)	95 in (241 cm)
GENERAL DIMENSIONS - Width (w/o Trunnion and Blade - - Std. Shoe) (2019)	95 in (241 cm)
Ground Contact Area (Since 2012)	4,726 sq in (3 sq m)
Ground Contact Area (2013)	4,726 sq in (3 sq m)
Ground Contact Area (2015)	4,726 sq in (3 sq m)
Ground Contact Area (2016)	4,726 sq in (3 sq m)
Ground Contact Area (2017)	4,726 sq in (3 sq m)
Ground Contact Area (2018)	4,726 sq in (3 sq m)
Ground Contact Area (2019)	4,726 sq in (3 sq m)
Ground Contact Area - (w/Std. Shoe) (Since 2012)	4,726 sq in (30,492 cm)
Ground Contact Area - (w/Std. Shoe) (2013)	4,726 sq in (30,492 cm)
Ground Contact Area - (w/Std. Shoe) (2016)	4,726 sq in (30,492 cm)
Ground Contact Area - (w/Std. Shoe) (2017)	4,726 sq in (30,492 cm)
Ground Contact Area - (w/Std. Shoe) (2018)	4,726 sq in (30,492 cm)
Ground Contact Area - (w/Std. Shoe) (2019)	4,726 sq in (30,492 cm)
Ground Pressure (Since 2012)	5 psi (31 kPa)
Ground Pressure (2013)	5 psi (31 kPa)
Ground Pressure (2015)	5 psi (31 kPa)
Ground Pressure (2016)	5 psi (31 kPa)
Ground Pressure (2017)	5 psi (31 kPa)
Ground Pressure (2018)	5 psi (31 kPa)
Ground Pressure (2019)	5 psi (31 kPa)
Length of Track on Ground (Since 2012)	91 in (231 cm)
Length of Track on Ground (2013)	91 in (231 cm)
Length of Track on Ground (2016)	91 in (231 cm)
Length of Track on Ground (2017)	91 in (231 cm)
Length of Track on Ground (2018)	91 in (231 cm)
Length of Track on Ground (2019)	91 in (231 cm)
No. of Cylinders (Since 2012)	4
No. of Cylinders (2013)	4
No. of Cylinders (2016)	4
No. of Cylinders (2017)	4
No. of Cylinders (2018)	4
No. of Cylinders (2019)	4
Operating Weight: - Hydrostatic (Since 2012)	21,266 lbs (9,646 kg)
Operating Weight: - Hydrostatic (2013)	21,266 lbs (9,646 kg)
Operating Weight: 2 - Hydrostatic (Since 2016)	21,347 lbs (9,683 kg)
Operating Weight: 2 - Hydrostatic (Since 2016)	21,266 lbs (9,646 kg)
Operating Weight: 2 - Hydrostatic (Since 2017)	21,347 lbs (9,683 kg)
Operating Weight: 2 - Hydrostatic (Since 2017)	21,266 lbs (9,646 kg)
Operating Weight: 2 - Hydrostatic (Since 2018)	21,347 lbs (9,683 kg)
Operating Weight: 2 - Hydrostatic (Since 2018)	21,266 lbs (9,646 kg)
Operating Weight: 2 - Hydrostatic (Since 2019)	21,347 lbs (9,683 kg)
Operating Weight: 2 - Hydrostatic (Since 2019)	21,266 lbs (9,646 kg)
Rated Engine RPM (Since 2012)	2,100 rpm
Rated Engine RPM (2013)	2,100 rpm
Rated Engine RPM (Since 2016)	1,900 rpm
Rated Engine RPM (Since 2016)	2,100 rpm
Rated Engine RPM (Since 2017)	1,900 rpm
Rated Engine RPM (Since 2017)	2,100 rpm
Rated Engine RPM (Since 2018)	1,900 rpm
Rated Engine RPM (Since 2018)	2,100 rpm
Rated Engine RPM (Since 2019)	1,900 rpm
Rated Engine RPM (Since 2019)	2,100 rpm
Stroke (Since 2012)	5 in (13 cm)
Stroke (Since 2013)	5 in (13 cm)
Stroke (2016)	5 in (13 cm)
Stroke (2017)	5 in (13 cm)
Stroke (2018)	5 in (13 cm)
Stroke (2019)	5 in (13 cm)
Track Gauge (Since 2012)	69 in (175 cm)
Track Gauge (2013)	69 in (175 cm)
Track Gauge (2016)	69 in (175 cm)
Track Gauge (2017)	69 in (175 cm)
Track Gauge (2018)	69 in (175 cm)
Track Gauge (2019)	69 in (175 cm)
Track Rollers (Each Side) (Since 2012)	7
Track Rollers (Each Side) (2013)	7
Track Rollers (Each Side) (2016)	7
Track Rollers (Each Side) (2017)	7
Track Rollers (Each Side) (2018)	7
Track Rollers (Each Side) (2019)	7
Track Shoe Width (Since 2012)	26 in (66 cm)
Track Shoe Width (2013)	26 in (66 cm)
Track Shoe Width (2015)	26 in (66 cm)
Track Shoe Width (2016)	26 in (66 cm)
Track Shoe Width (2017)	26 in (66 cm)
Track Shoe Width (2018)	26 in (66 cm)
Track Shoe Width (2019)	26 in (66 cm)
Weight (Since 2016)	20,992 lbs (9,522 kg)
Weight (2017)	20,992 lbs (9,522 kg)
Weight (2018)	20,992 lbs (9,522 kg)
Weight (2019)	20,992 lbs (9,522 kg)
Weight (2020)	20,992 lbs (9,522 kg)
Weight (2021)	20,992 lbs (9,522 kg)
Width of Standard Track Shoe (Since 2012)	26 in (66 cm)
Width of Standard Track Shoe (2013)	26 in (66 cm)
Width of Standard Track Shoe (2016)	26 in (66 cm)
Width of Standard Track Shoe (2017)	26 in (66 cm)
Width of Standard Track Shoe (2018)	26 in (66 cm)
Width of Standard Track Shoe (2019)	26 in (66 cm)
Hydraulic System
Pump Flow Capacity	18 gpm (67 lpm)
Relief Valve Pressure	2,988 psi
Operational
Cooling System Fluid Capacity	3 gal (11 l)
Engine Oil Capacity	3 gal (10 l)
Final Drives Fluid Capacity	16 gal (59 l)
Fuel Capacity	52 gal (195 l)
Hydraulic Fluid Capacity	3 gal (10 l)
Operating Weight	20,992 lbs (9,522 kg)
Powertrain Fluid Capacity	6 gal (23 l)
Standard Blade
Blade Angle (Both Directions)	58 degrees
Capacity	3 cu yd
Height	7 in (17 cm)
Width	26 ft (8 m)
Transmission
Max Speed - Forward	6 mph (9 kph)
Max Speed - Reverse	6 mph (10 kph)
Undercarriage
Ground Contact Area	5 in2
Ground Pressure	7,033 psi
Number Of Shoes Per Side	40
Number Of Track Rollers Per Side	7
Standard Shoe Size	26 in (66 cm)
