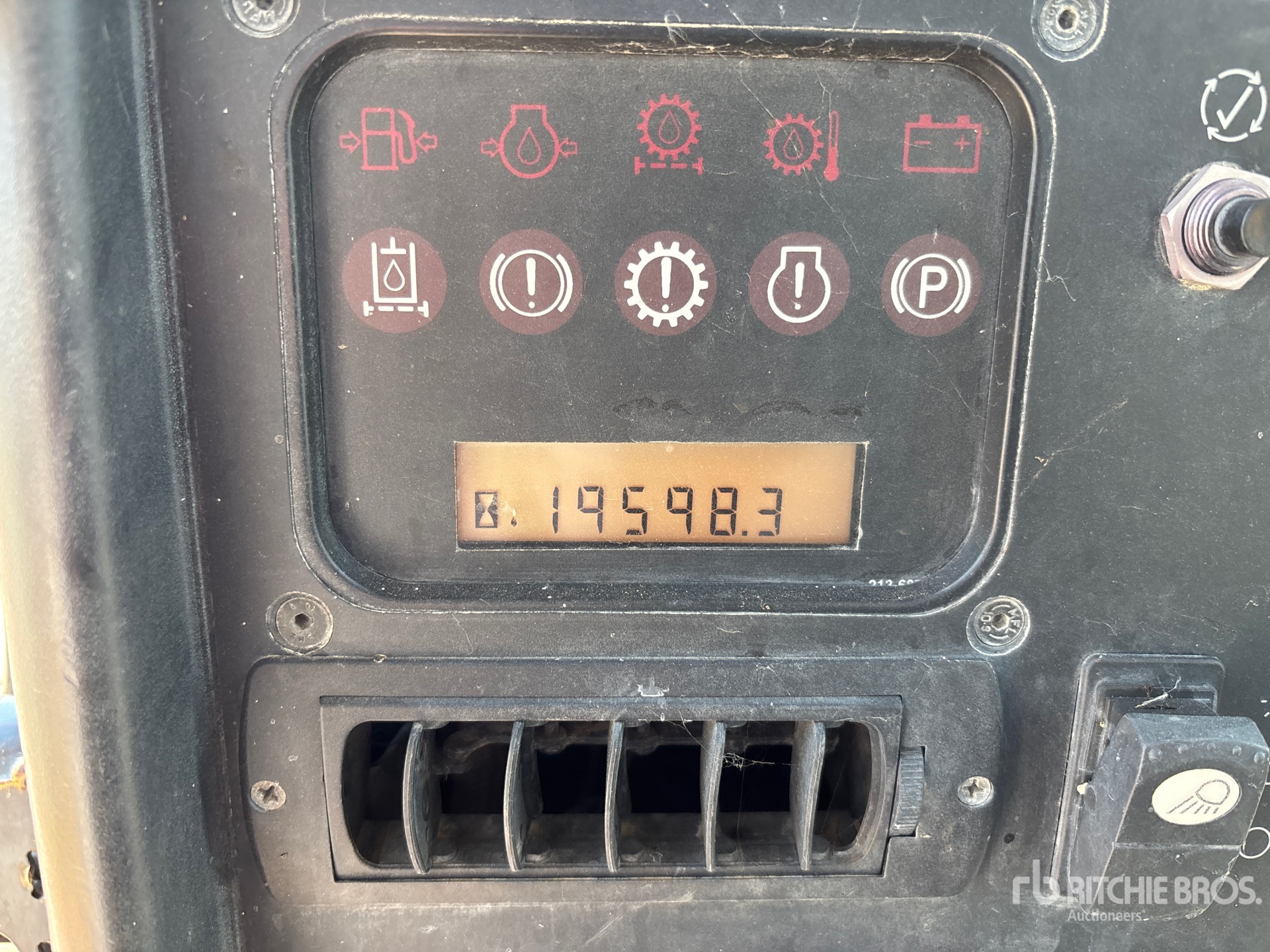

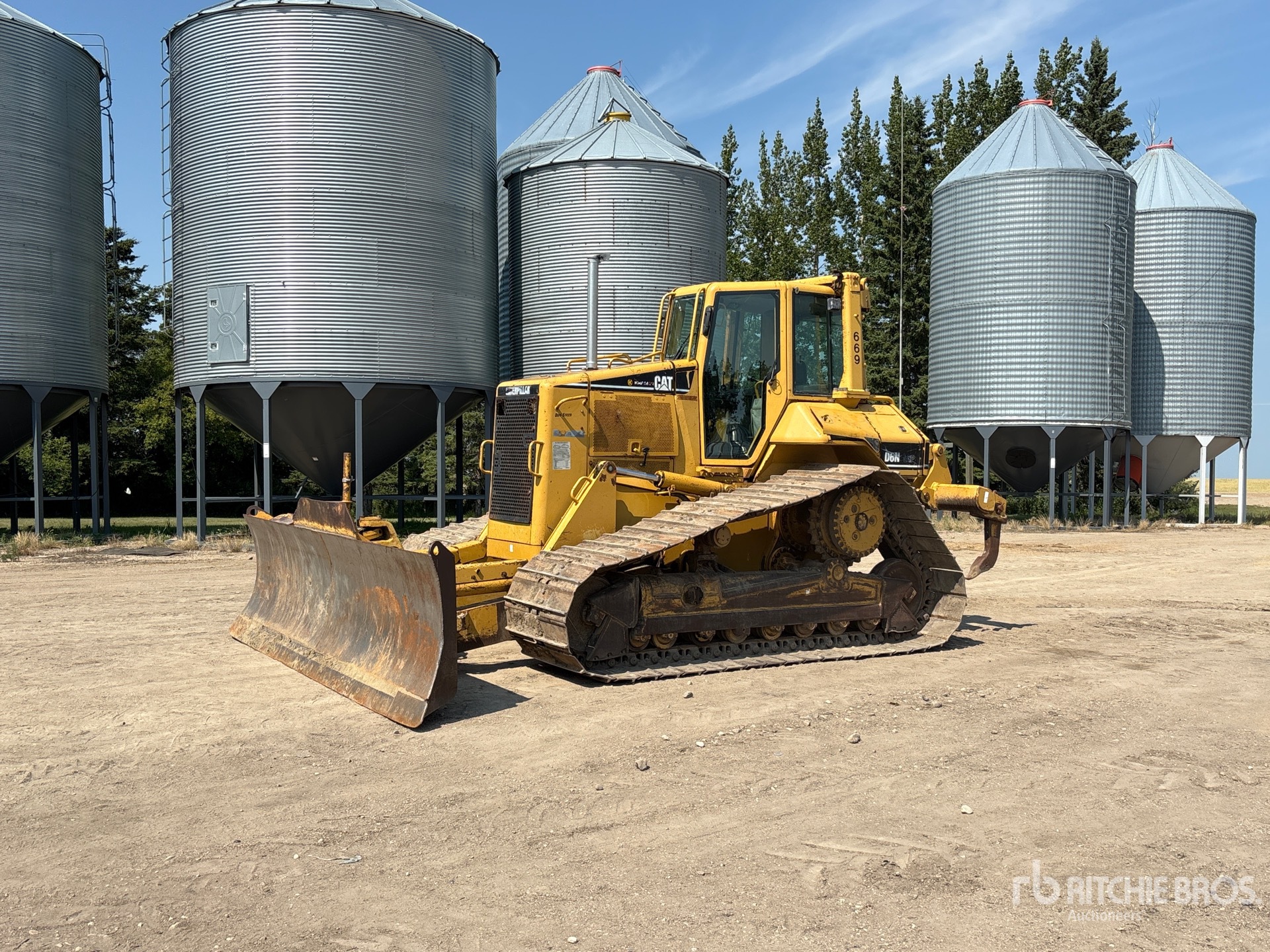

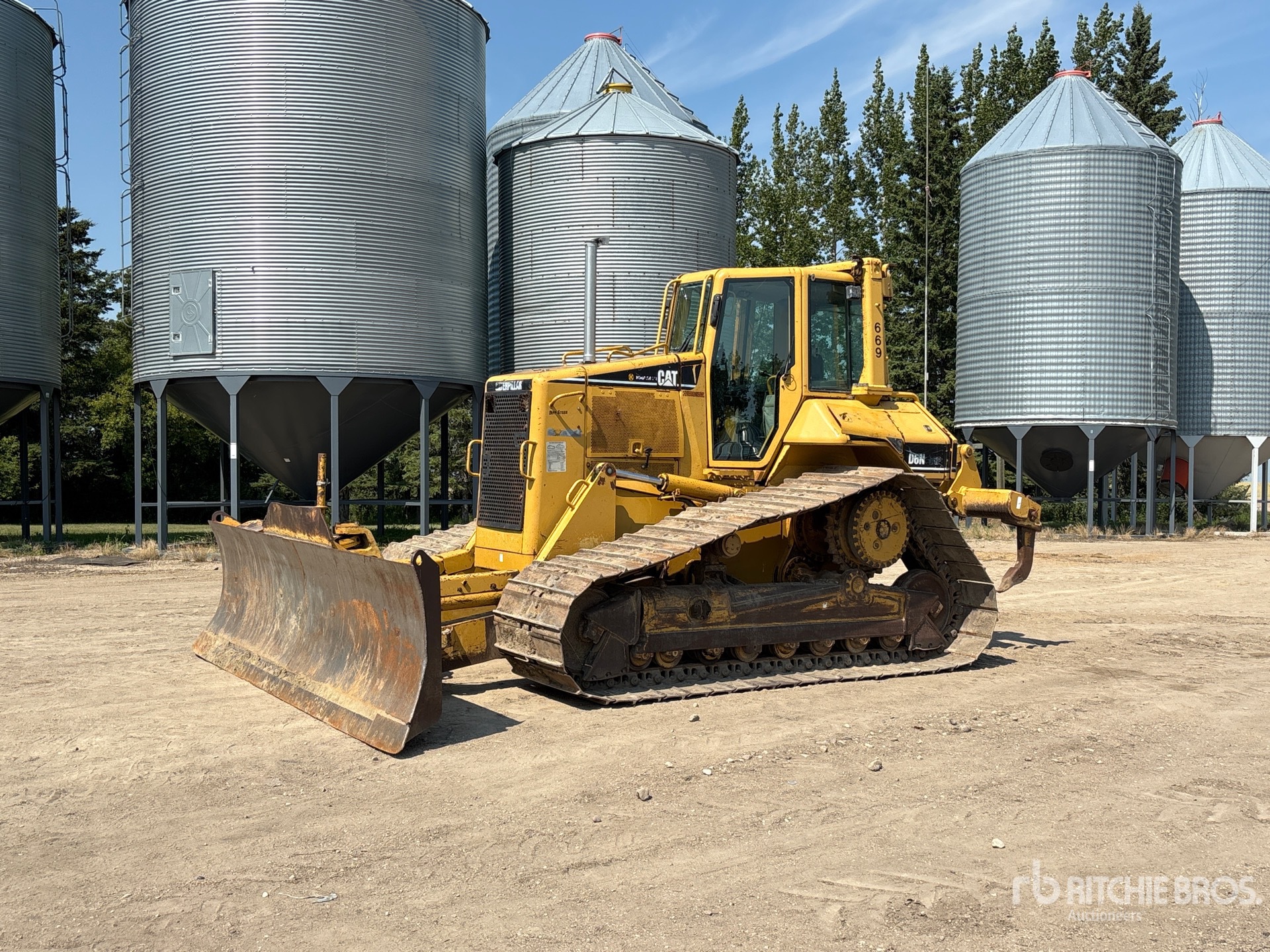

| Air Conditioning System |
|
Air Conditioning |
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.6 kg of refrigerant which has a CO2 equivalent of 2.288 metric tonnes. |
| Blades |
|
Capacity - Lgp Vpat |
5 cu yd |
|
Capacity - Lgp Vpat - Foldable |
5 cu yd |
|
Capacity - Xl Su |
6 cu yd |
|
Capacity - Xl Vpat |
4 cu yd |
|
Width - Lgp Vpat |
13 ft (4 m)
|
|
Width - Lgp Vpat - Foldable |
13 ft (4 m)
|
|
Width - Xl Su |
10 ft (3 m)
|
|
Width - Xl Vpat |
11 ft (3 m)
|
| Dimensions |
|
Ground Clearance |
1 ft (0 m)
|
|
Height |
10 ft (3 m)
|
|
Height To Top Of Cab |
10 ft (3 m)
|
|
Length |
15 ft (5 m)
|
|
Length Of Track On Ground |
8 ft (3 m)
|
|
Weight |
35,000 lbs (15,876 kg)
|
|
Width |
8 ft (2 m)
|
|
Width Over Tracks |
8 ft (2 m)
|
| Engine |
|
Bore |
4 in (10 cm)
|
|
Displacement |
433 cu in (7,096 cu cm)
|
|
Emissions |
U.S. EPA Tier 4 Final/EU Stage IV/Korea Tier 4 Final |
|
Engine Make |
2,236 |
|
Engine Model |
3126 DITAAC |
|
Engine Model |
Cat C7.1 ACERT |
|
Engine Power - Maximum - At 2,200 Rpm - Iso 14396 |
178 hp (133 kw)
|
|
Engine Power - Maximum - At 2,200 Rpm - Iso 14396 (Din) |
180 hp (134 kw)
|
|
Engine Power - Maximum - At 2,200 Rpm - Sae J1995 |
182 hp (136 kw)
|
|
Flywheel Power |
166 hp (124 kw)
|
|
Net Power |
145 hp (108 kw)
|
|
Net Power - 1,800 Rpm - Iso 9249/Sae J1349 |
166 hp (124 kw)
|
|
Net Power - 1,800 Rpm - Iso 9249/Sae J1349 (Din) |
168 hp (125 kw)
|
|
Note (1) |
Net power advertised is the power available at the engine flywheel when the engine is equipped with the air cleaner, muffler, alternator, cooling fan at maximum speed. |
|
Note (2) |
No derating required up to 3000 m (9,840 ft) altitude, beyond 3000 m (9,840 ft) automatic derating occurs. |
|
Note (3) |
All non-road Tier 4 Interim and Final, Stage IIIB and IV, and Korea Tier 4 Final diesel engines are required to use only Ultra Low Sulfur Diesel (ULSD) fuels containing 15 ppm EPA/10 ppm EU (mg/kg) sulfur or less. Biodiesel blends up to B20 (20% blend by volume) are acceptable when blended with 15 ppm (mg/kg) sulfur or less ULSD. B20 should meet ASTM D7467 specification (biodiesel blend stock should meet Cat biodiesel spec, ASTM D6751 or EN 14214). Cat DEO-ULS or oils that meet the Cat ECF-3, AP |
|
Note (4) |
Diesel Exhaust Fluid (DEF) used in Cat Selective Catalytic Reduction (SCR) systems must meet the requirements outlined in the International Organization for Standardization (ISO) standard 22241. |
|
Stroke |
5 in (13 cm)
|
| Hydraulic Controls - Pressures |
|
Maximum Implement Operating Pressure |
3,640 psi |
|
Maximum Steering Operating Pressure |
6,556 psi |
| Hydraulic Controls - Pump |
|
Angle Cylinder Flow - Vpat |
34 gpm (127 lpm)
|
|
Lift Cylinder Flow |
34 gpm (127 lpm)
|
|
Pump Output - Implement |
34 gpm (127 lpm)
|
|
Pump Output - Steering |
36 gpm (137 lpm)
|
|
Ripper Cylinder Flow |
34 gpm (127 lpm)
|
|
Tilt Cylinder Flow |
24 gpm (90 lpm)
|
| Operational |
|
Cooling System Fluid Capacity |
11 gal (41 l)
|
|
Final Drives Fluid Capacity |
2 gal (7 l)
|
|
Fuel Capacity |
79 gal (299 l)
|
|
Hydraulic Fluid Capacity |
8 gal (30 l)
|
|
Operating Weight |
34,361 lbs (15,583 kg)
|
| Ripper |
|
Beam Cross Section |
216 mm 254 mm (8.5 in 10.0 in) |
|
Each Additional Shank |
172 lbs (78 kg)
|
|
Maximum Clearance Raised - Shank Tip |
25 in (62 cm)
|
|
Maximum Penetration - Lgp |
16 in (40 cm)
|
|
Maximum Penetration - Xl |
20 in (51 cm)
|
|
Maximum Penetration Force - Lgp |
9,667 lbs ft (13,107 nm)
|
|
Maximum Penetration Force - Xl |
11,600 lbs ft (15,727 nm)
|
|
Maximum Pry-Out Force - Lgp |
38,217 lbs ft (51,815 nm)
|
|
Maximum Pry-Out Force - Xl |
47,480 lbs ft (64,373 nm)
|
|
Number Of Pockets |
3 |
|
Overall Beam Width |
87 in (220 cm)
|
|
Pocket Spacing |
3 ft (1 m)
|
|
Ripper Type |
Fixed Parallelogram |
|
Shank Gauge |
7 ft (2 m)
|
|
Shank Section |
73 mm 176 mm (2.9 in 6.9 in) |
|
Weight - With Three Shanks |
3,444 lbs (1,562 kg)
|
| Service Refill Capacities |
|
Cooling System |
11 gal (40 l)
|
|
Def Tank |
5 gal (19 l)
|
|
Engine Crankcase |
5 gal (17 l)
|
|
Final Drive - Each |
2 gal (7 l)
|
|
Fuel Tank |
73 gal (277 l)
|
|
Hydraulic Tank |
8 gal (30 l)
|
|
Power Train |
42 gal (160 l)
|
|
Roller Frames Xl/Lgp - Each |
20/17.5 L (4.3/4.6 gal) |
| Sound And Vibration - Cab |
|
Sound Level Information (1) |
The operator Equivalent Sound Pressure Level (Leq) is 81.5 dB(A) when ANSI/SAE J1166 FEB2008 is used to measure the value for an enclosed cab. The measurement was conducted at 100% of the maximum engine cooling fan speed. This is a work cycle sound exposure level. The cab was properly installed and maintained. The test was conducted with the cab doors and the cab windows closed. |
|
Sound Level Information (2) |
Hearing protection may be needed when the machine is operated with an open operator station for extended periods or in a noisy environment. Hearing protection may be needed when the machine is operated with a cab that is not properly maintained, or when the doors and windows are open for extended periods or in a noisy environment. |
|
Sound Level Information (3) |
The average exterior sound pressure level is 85.5 dB(A) when the SAE J88 FEB2006 Constant Speed Moving Test procedure is used to measure the value for the standard machine. The measurement was conducted under the following conditions: distance of 15 m (49.2 ft) and the machine moving forward in an intermediate gear ratio. |
|
Specification Name Too Long |
If equipped, the certification label 110 dB(A) is used to verify the environmental sound certification of the machine to the requirements of the European Union. The value that is listed on the label indicates the guaranteed exterior sound power level (LWA) at the time of manufacture for the conditions that are specified in 2000/14/EC. Your machine may have a different value. |
| Standard Blade |
|
Capacity |
4 cu yd |
|
Cutting Depth |
21 in (54 cm)
|
|
Height |
47 in (120 cm)
|
|
Width |
11 ft (3 m)
|
| Standards |
|
Brakes |
Brakes meet the standard ISO 10265:2008. |
|
Fops |
FOPS (Falling Object Protective Structure) meets ISO 3449-2005 Level II. |
|
Rops |
ROPS (Rollover Protective Structure) offered by Caterpillar for the machine meets ROPS criteria ISO 3471:2008. |
| Sustainability - Sound And Vibration Levels |
|
Note |
*Values are for an experienced operator in a dozing application, consult the Operating and Maintenance Manual for details. |
|
Sound Levels - Average Exterior Sound Pressure Level - Sae J88:2006 |
85.5 dB(A) |
|
Sound Levels - Dynamic Operator Sound Pressure Level (Lpa) - Iso 6396:2008 |
76 dB(A) |
|
Sound Levels - Maximum Sound Power Level - 2000/14/Ec |
110 dB(A) |
|
Vibration Levels - Maximum Hand/Arm* - Iso 5349:2001 |
2.5 m/s2 (8.2 ft/s2) |
|
Vibration Levels - Maximum Whole Body* - Iso/Tr25398:2006 |
0.5 m/s2 (1.6 ft/s2) |
|
Vibration Levels - Seat Transmissibility Factor - Iso 7096:2000 - Spectral Class Em6 |
Less Than 0.7 |
| Transmission |
|
0.5 Forward |
2 mph (3 kph)
|
|
0.5 Forward (Eu) |
2 mph (2 kph)
|
|
0.5 Reverse |
2 mph (3 kph)
|
|
0.5 Reverse (Eu) |
2 mph (3 kph)
|
|
0.7 Forward |
2 mph (3 kph)
|
|
0.7 Forward (Eu) |
2 mph (3 kph)
|
|
0.7 Reverse |
2 mph (3 kph)
|
|
0.7 Reverse (Eu) |
2 mph (3 kph)
|
|
1.0 Forward |
2 mph (3 kph)
|
|
1.0 Forward (Eu) |
2 mph (3 kph)
|
|
1.0 Reverse |
3 mph (4 kph)
|
|
1.0 Reverse (Eu) |
2 mph (4 kph)
|
|
1.5 Forward |
3 mph (4 kph)
|
|
1.5 Reverse |
3 mph (5 kph)
|
|
1.7 Forward |
3 mph (5 kph)
|
|
1.7 Reverse |
4 mph (6 kph)
|
|
2.0 Forward |
4 mph (6 kph)
|
|
2.0 Reverse |
4 mph (7 kph)
|
|
2.5 Forward |
5 mph (8 kph)
|
|
2.5 Reverse |
6 mph (10 kph)
|
|
2.7 Forward |
5 mph (8 kph)
|
|
2.7 Reverse |
7 mph (10 kph)
|
|
3.0 Forward |
6 mph (10 kph)
|
|
3.0 Reverse |
8 mph (12 kph)
|
|
Max Speed - Forward |
6 mph (10 kph)
|
|
Max Speed - Reverse |
7 mph (12 kph)
|
|
Maximum Drawbar Pull - 1.0 Forward |
71,939 lbs ft (97,535 nm)
|
|
Maximum Drawbar Pull - 2.0 Forward |
44,512 lbs ft (60,349 nm)
|
|
Maximum Drawbar Pull - 3.0 Forward |
25,403 lbs ft (34,441 nm)
|
|
Number Of Forward Gears |
3 |
|
Number Of Reverse Gears |
3 |
| Undercarriage |
|
Ground Contact Area |
4822 in2 |
|
Ground Contact Area* - Lgp |
8928 in2 |
|
Ground Contact Area* - Xl |
5518 in2 |
|
Ground Contact Area* - Xl - Fine Grading |
6479 in2 |
|
Ground Pressure |
7 psi |
|
Ground Pressure - Lgp* |
5 psi |
|
Ground Pressure - Xl* |
7 psi |
|
Ground Pressure* - Xl - Fine Grading |
6 psi |
|
Grouser Height - Lgp |
2 in (6 cm)
|
|
Grouser Height - Xl |
3 in (7 cm)
|
|
Grouser Height - Xl - Fine Grading |
3 in (7 cm)
|
|
Note (1) |
*ISO 16754 |
|
Note (2) |
All dimensions with SystemOne undercarriage. |
|
Number Of Shoes Per Side |
40 |
|
Number Of Track Rollers Per Side |
7 |
|
Shoe Width - Lgp |
33 in (84 cm)
|
|
Shoe Width - Xl |
24 in (61 cm)
|
|
Shoe Width - Xl - Fine Grading |
24 in (61 cm)
|
|
Shoes/Side - Lgp |
46 |
|
Shoes/Side - Xl |
40 |
|
Shoes/Side - Xl - Fine Grading |
46 |
|
Track Gauge |
6 ft (2 m)
|
|
Track Gauge - Lgp |
85 in (216 cm)
|
|
Track Gauge - Xl |
74 in (189 cm)
|
|
Track Gauge - Xl - Fine Grading |
74 in (189 cm)
|
|
Track On Ground - Lgp |
122 in (311 cm)
|
|
Track On Ground - Xl |
103 in (261 cm)
|
|
Track On Ground - Xl - Fine Grading |
122 in (311 cm)
|
|
Track Rollers/Side - Lgp |
8 |
|
Track Rollers/Side - Xl |
7 |
|
Track Rollers/Side - Xl - Fine Grading |
8 |
| Weights |
|
Lgp Vpat - Blade |
2,720 lbs (1,234 kg)
|
|
Lgp Vpat - Foldable |
3,287 lbs (1,491 kg)
|
|
Lgp Vpat - Landfill |
3,166 lbs (1,436 kg)
|
|
Multi-Shank Ripper - With 3 Shanks |
2,959 lbs (1,342 kg)
|
|
Note (1) |
Operating Weight: Includes EROPS, A/C, lights, VPAT dozer, transmission, drawbar, engine enclosure, 3-valve hydraulics, 100% fuel, and Cat Comfort Series Air Suspension Seat and operator. |
|
Note (2) |
Shipping Weight: Includes EROPS, A/C, lights, VPAT dozer, transmission, drawbar, engine enclosure, 3-valve hydraulics, 5% fuel, and Cat Comfort Series Air Suspension Seat. |
|
Operating Weight |
36,943 lbs (16,754 kg)
|
|
Operating Weight - Lgp |
40,446 lbs (18,343 kg)
|
|
Operating Weight - Lgp Waste Handler |
44,749 lbs (20,294 kg)
|
|
Operating Weight - Xl |
36,943 lbs (16,754 kg)
|
|
Operating Weight - Xl Fine Grading |
38,162 lbs (17,307 kg)
|
|
Operating Weight - Xl Waste Handler |
40,818 lbs (18,512 kg)
|
|
Shipping Weight - Lgp |
39,339 lbs (17,841 kg)
|
|
Shipping Weight - Lgp Waste Handler |
43,642 lbs (19,792 kg)
|
|
Shipping Weight - Xl |
36,153 lbs (16,396 kg)
|
|
Shipping Weight - Xl Fine Grading |
37,373 lbs (16,949 kg)
|
|
Shipping Weight - Xl Waste Handler |
40,029 lbs (18,154 kg)
|
|
Xl Su - Blade |
5,732 lbs (2,600 kg)
|
|
Xl Vpat Blade |
2,341 lbs (1,062 kg)
|
|
Xl Vpat Foldable |
2,762 lbs (1,253 kg)
|
|
Xl Vpat Landfill |
2,912 lbs (1,321 kg)
|
| Winch |
|
Cable Ferrule Size - O.D. Length |
54 mm 67 mm (2.13 in 2.63 in) |
|
Control |
Electric |
|
Drum Capacity - 22 Mm (0.88 In) |
289 ft (88 m)
|
|
Drum Diameter |
10 in (25 cm)
|
|
Drum Width |
12 in (32 cm)
|
|
Flange Diameter |
20 in (50 cm)
|
|
Maximum Bare Drum - Line Pull* |
69,200 lbs (31,383 kg)
|
|
Maximum Bare Drum - Line Speed |
141 ft/min |
|
Maximum Full Drum - Line Pull* |
44,410 lbs (20,141 kg)
|
|
Maximum Full Drum - Line Speed |
217 ft/min |
|
Note (1) |
*Weight: Includes pump, operator controls, oil, mounting brackets and spacers. |
|
Note (2) |
Slow and standard speed winches are available. |
|
Oil Capacity |
20 gal (74 l)
|
|
Overall Width |
38 in (98 cm)
|
|
Rope Diameter - Recommended |
1 in (2 cm)
|
|
Weight* |
2,814 lbs (1,276 kg)
|
|
Winch And Bracket Length |
45 in (115 cm)
|
|
Winch Case - Width |
38 in (98 cm)
|
|
Winch Drive |
Mechanical |
|
Winch Model |
PA55 |
