2004 Caterpillar D6R LGP SERIES

Name: 2004 Caterpillar D6R LGP SERIES
Brand: Caterpillar
SKU: 88897812
Availability: OutOfStock

❮

❯

/ Save to Watch List

Apply for Financing

MACHINE SOLD

Auction Info: Starting on 2026-09-03 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

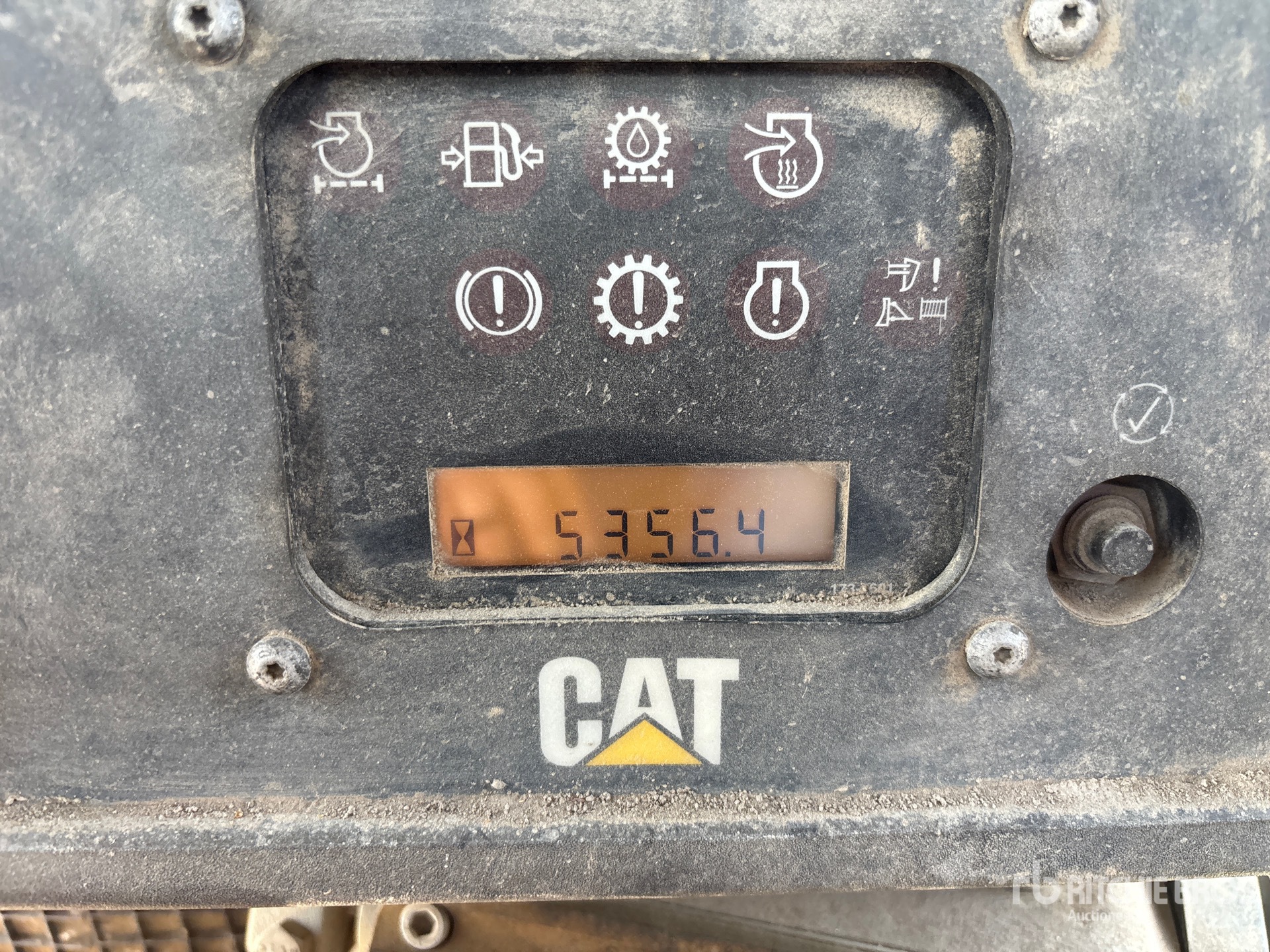

Hours:	5356

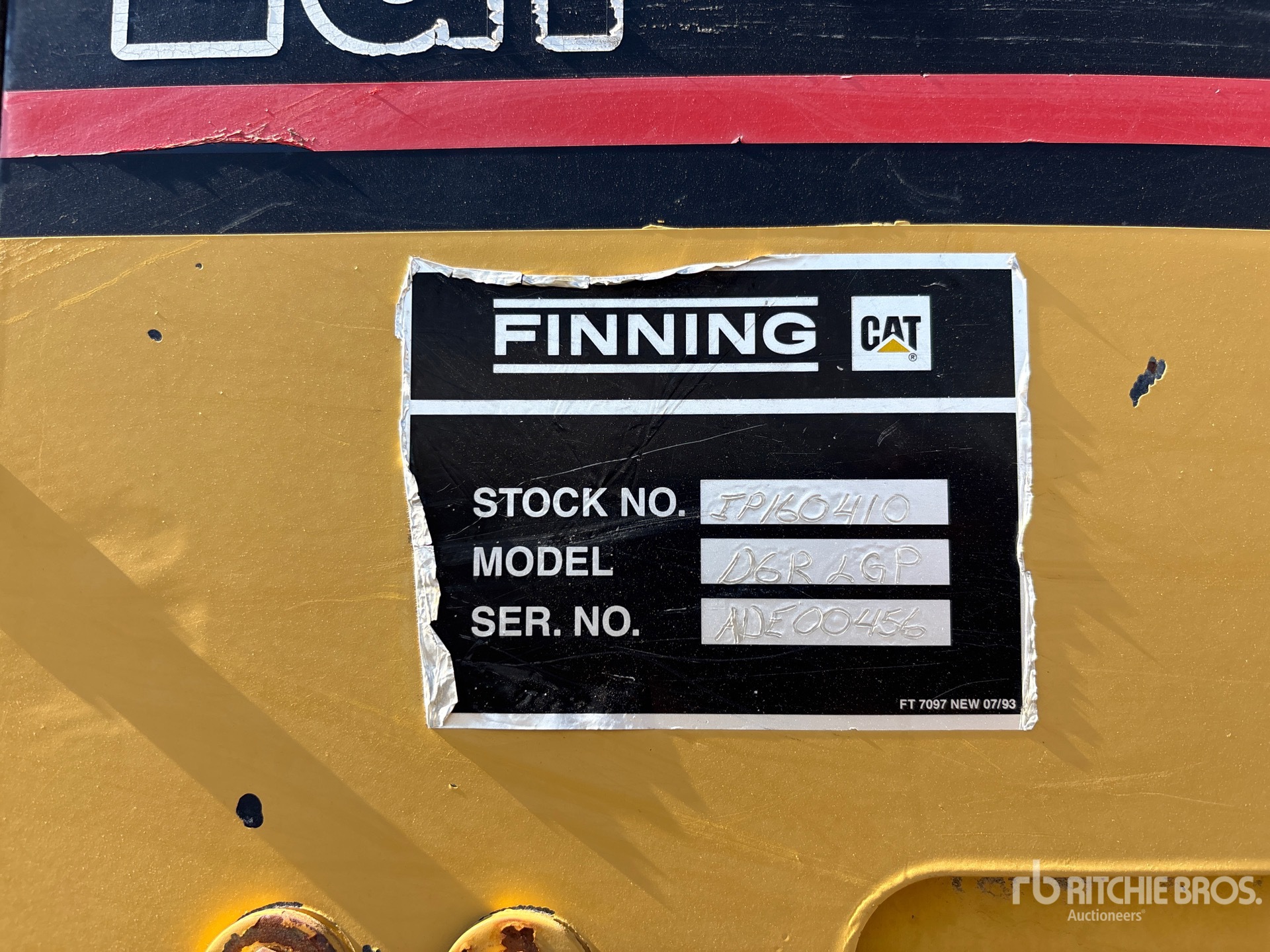

Serial Number:	ADE00456
Machine Location:	CHILLIWACK, BC

Description:

Enclosed Cab, Air Conditioner, Positive Air Shutoff, Sweeps, 192 in Wide Angle Blade w/ Dual Tilt, 36 in Single Grouser Track Shoes, Paccar PA56 Winch, Drawbar Selling Location: 11617 Rolla Road, Dawson Creek, BC V1G 4H8, CAN - Contact Joe (250) 492-2626 - Must be removed by Sept 18, 2026 - Buyer responsible for loadout -,, Closing Time: 2026-09-03 09:43:00 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

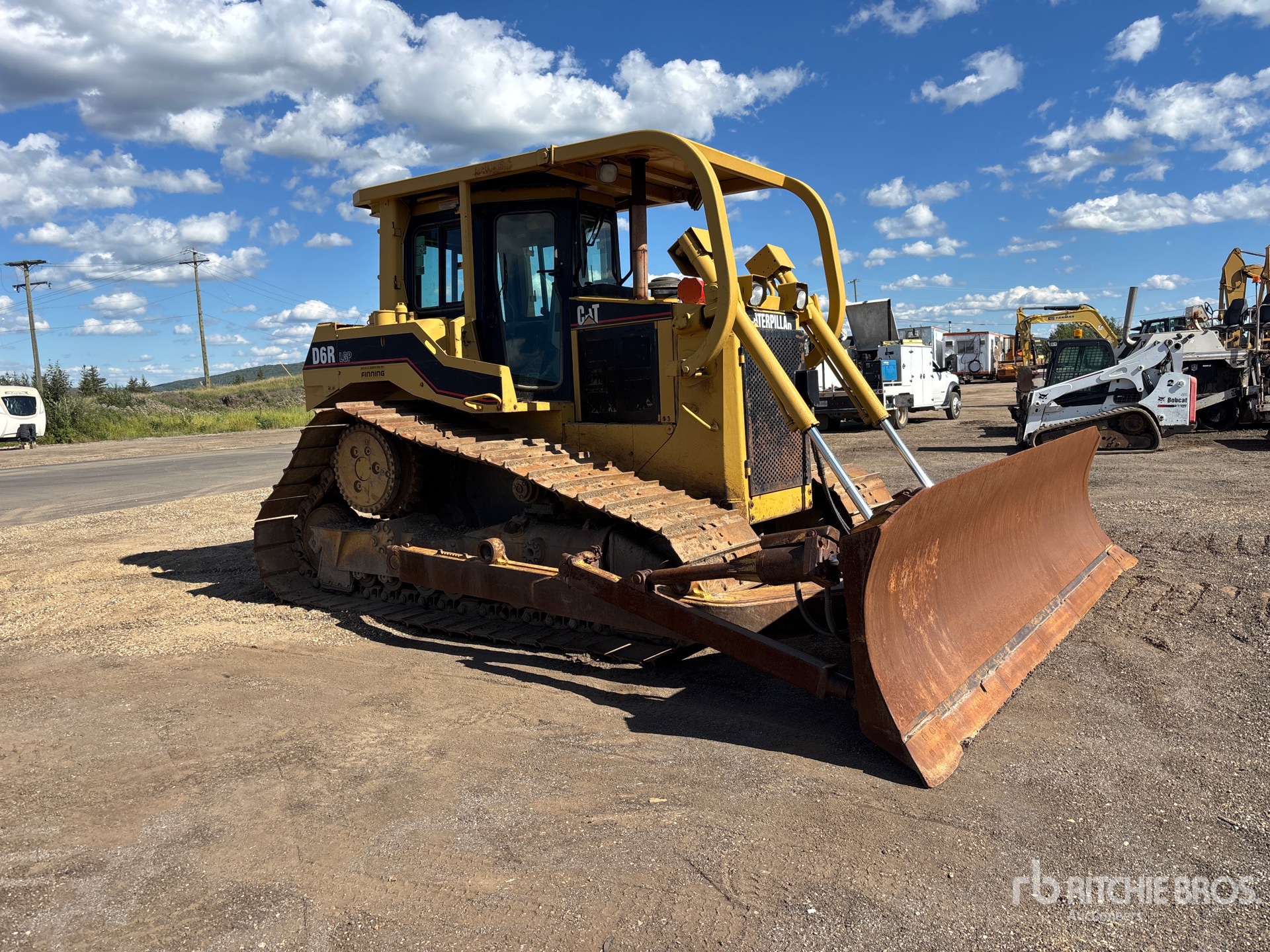

The Caterpillar D6R LGP is a crawler dozer designed for grading, pushing, and site preparation in soft or low-ground-pressure conditions. The LGP configuration uses wider tracks to reduce ground pressure and improve flotation on wet, sandy, or unstable terrain. It is commonly used in construction, land clearing, road building, and earthmoving applications. The D6R LGP is part of Caterpillar's medium dozer lineup and is known for its balance of traction, blade control, and undercarriage stability. Typical features include a diesel engine, hydraulic blade control, and a reinforced undercarriage suited to demanding earthmoving work.

Dimensions
Ground Clearance	1 ft (0 m)
Height	11 ft (3 m)
Height To Top Of Cab	11 ft (3 m)
Length	18 ft (5 m)
Length Of Track On Ground	11 ft (3 m)
Length W/ Blade	18 ft (5 m)
Length W/O Blade	14 ft (4 m)
Weight	45,600 lbs (20,680 kg)
Width	10 ft (3 m)
Width Over Tracks	10 ft (3 m)
Engine
Aspiration	Turbocharged
Displacement	638 cu in (10,455 cu cm)
Engine Make	2,236
Engine Model	3,306
Gross Power	199 hp (148 kw)
Net Power	185 hp (138 kw)
Number Of Cylinders	6
Power Measured @	1,900 rpm
Hydraulic System
Pump Flow Capacity	50 gpm (190 lpm)
Pump Type	Piston Style
Relief Valve Pressure	2,800 psi
Operational
Alternator Supplied Amperage	70 amps
Cooling System Fluid Capacity	20 gal (74 l)
Engine Oil Capacity	7 gal (28 l)
Final Drives Fluid Capacity	4 gal (14 l)
Fuel Capacity	101 gal (383 l)
Hydraulic Fluid Capacity	20 gal (76 l)
Operating Voltage	24 V
Operating Weight	45,200 lbs (20,502 kg)
Powertrain Fluid Capacity	41 gal (155 l)
Standard Blade
Capacity	5 cu yd
Cutting Depth	26 in (66 cm)
Height	43 in (110 cm)
Width	13 ft (4 m)
Transmission
Max Speed - Forward	7 mph (12 kph)
Max Speed - Reverse	10 mph (15 kph)
Number Of Forward Gears	3
Number Of Reverse Gears	3
Transmission Type	Power Shift
Undercarriage
Ground Contact Area	9961 in2
Ground Pressure	5 psi
Number Of Shoes Per Side	45
Number Of Track Rollers Per Side	8
Standard Shoe Size	36 in (92 cm)
Track Gauge	7 ft (2 m)
Track Pitch	8 in (20 cm)
