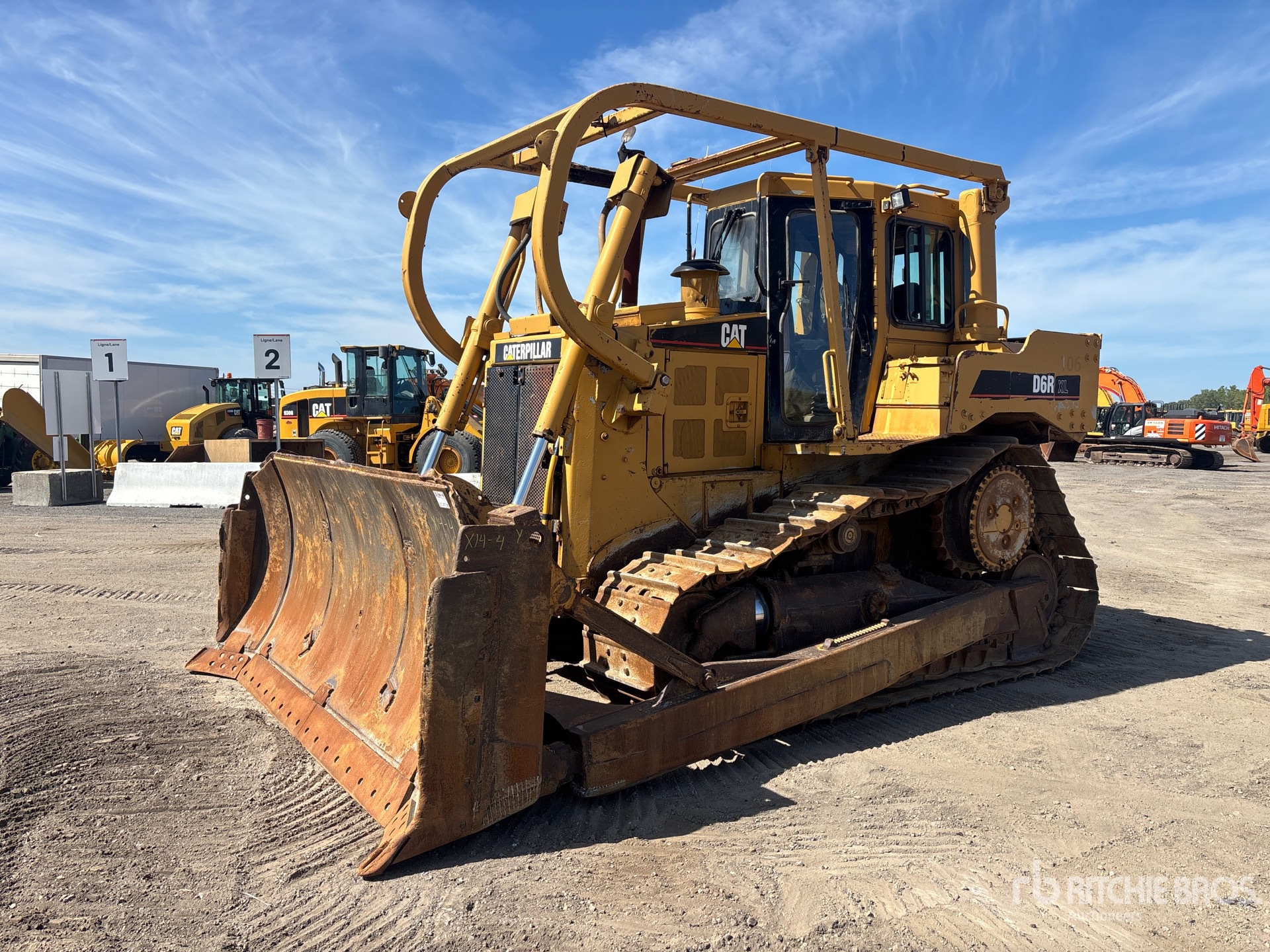

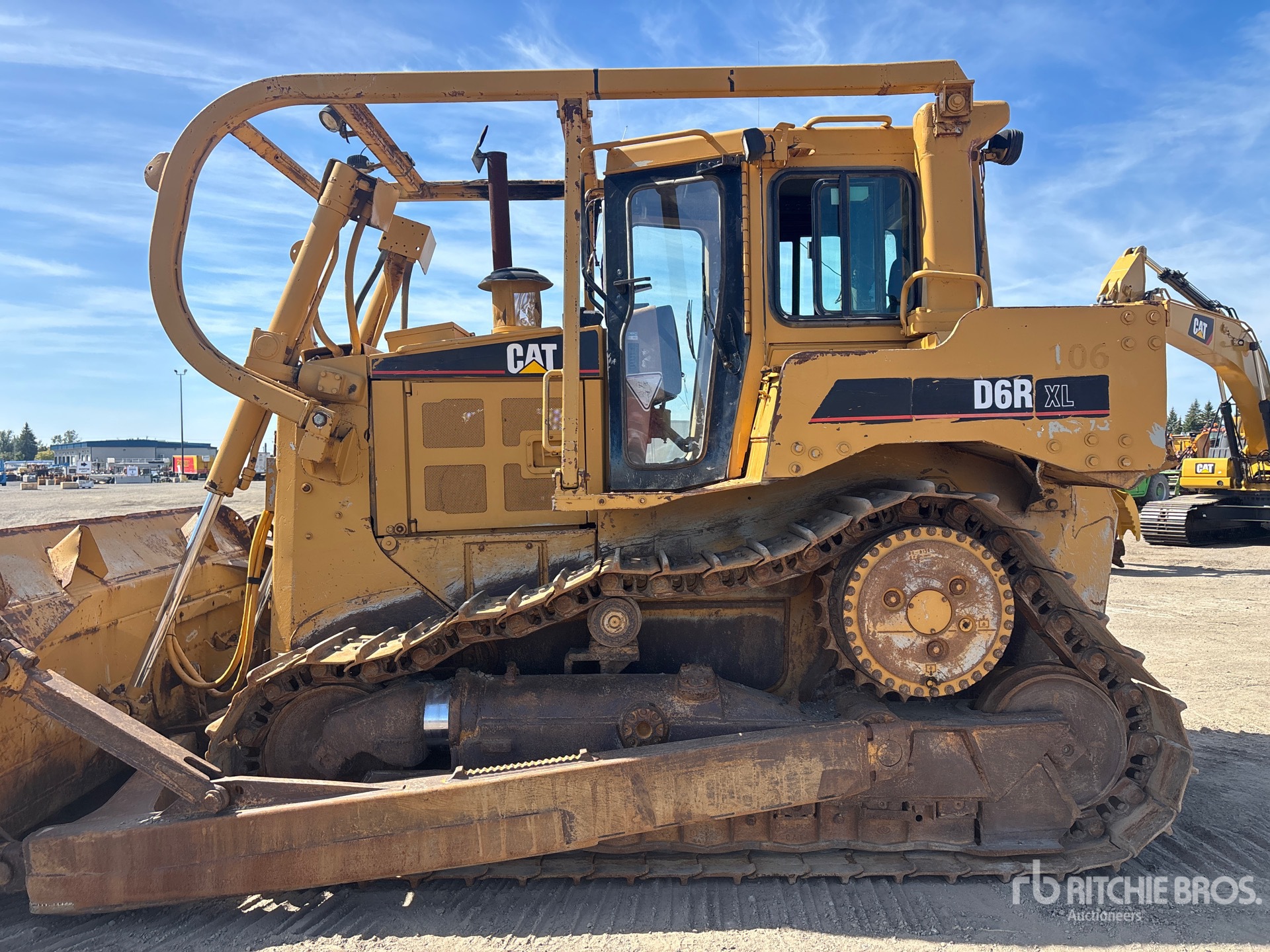

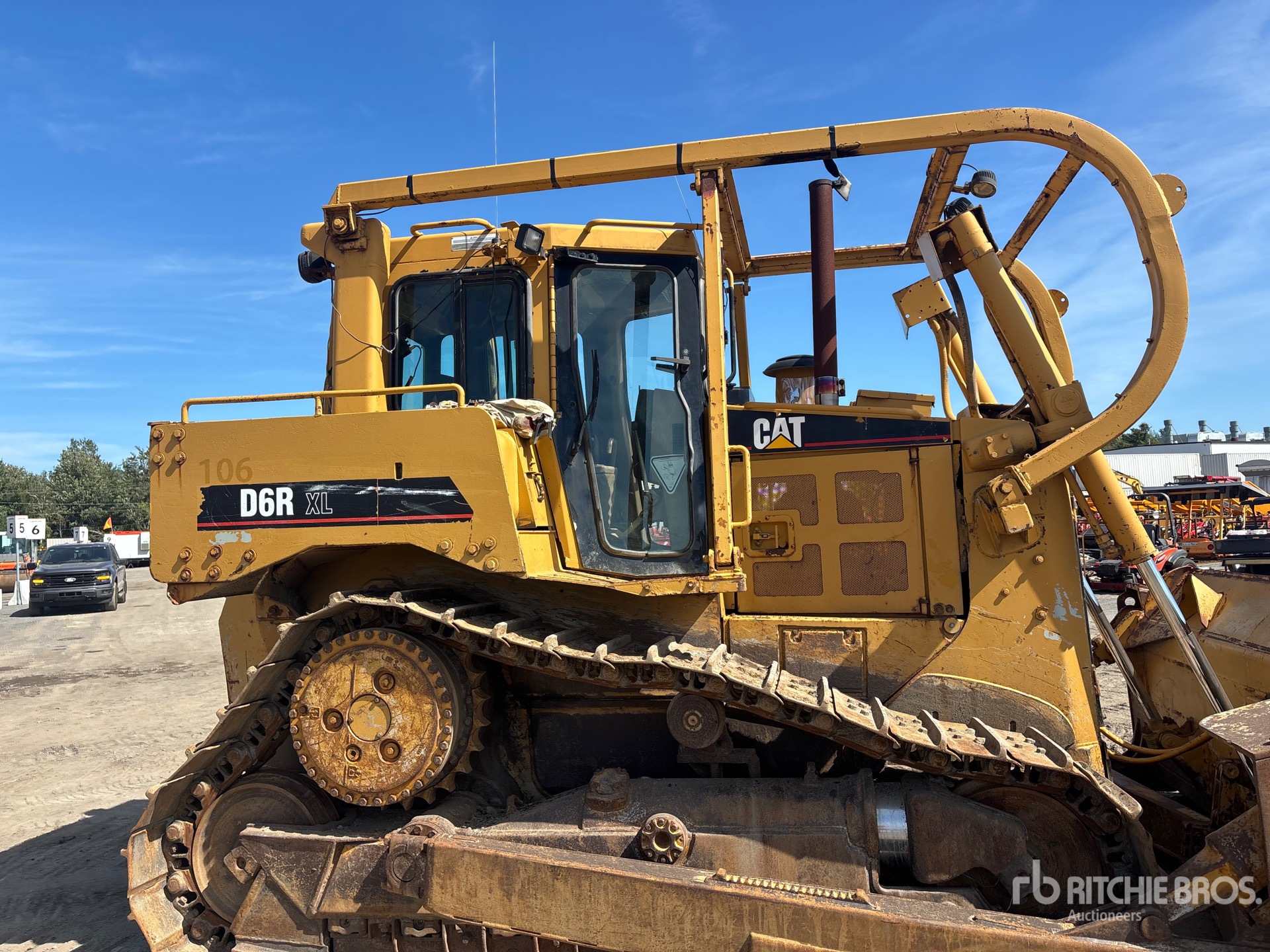

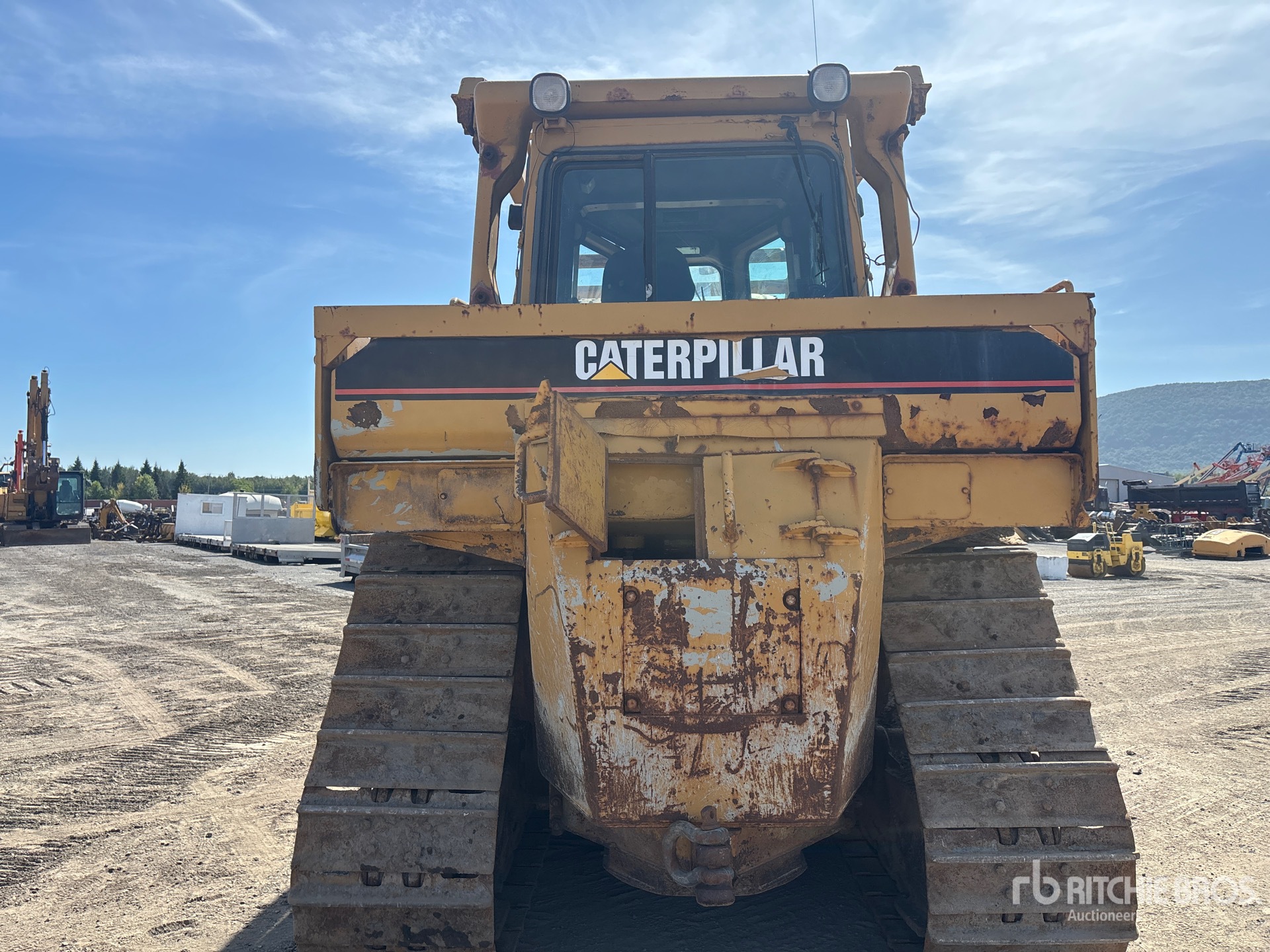

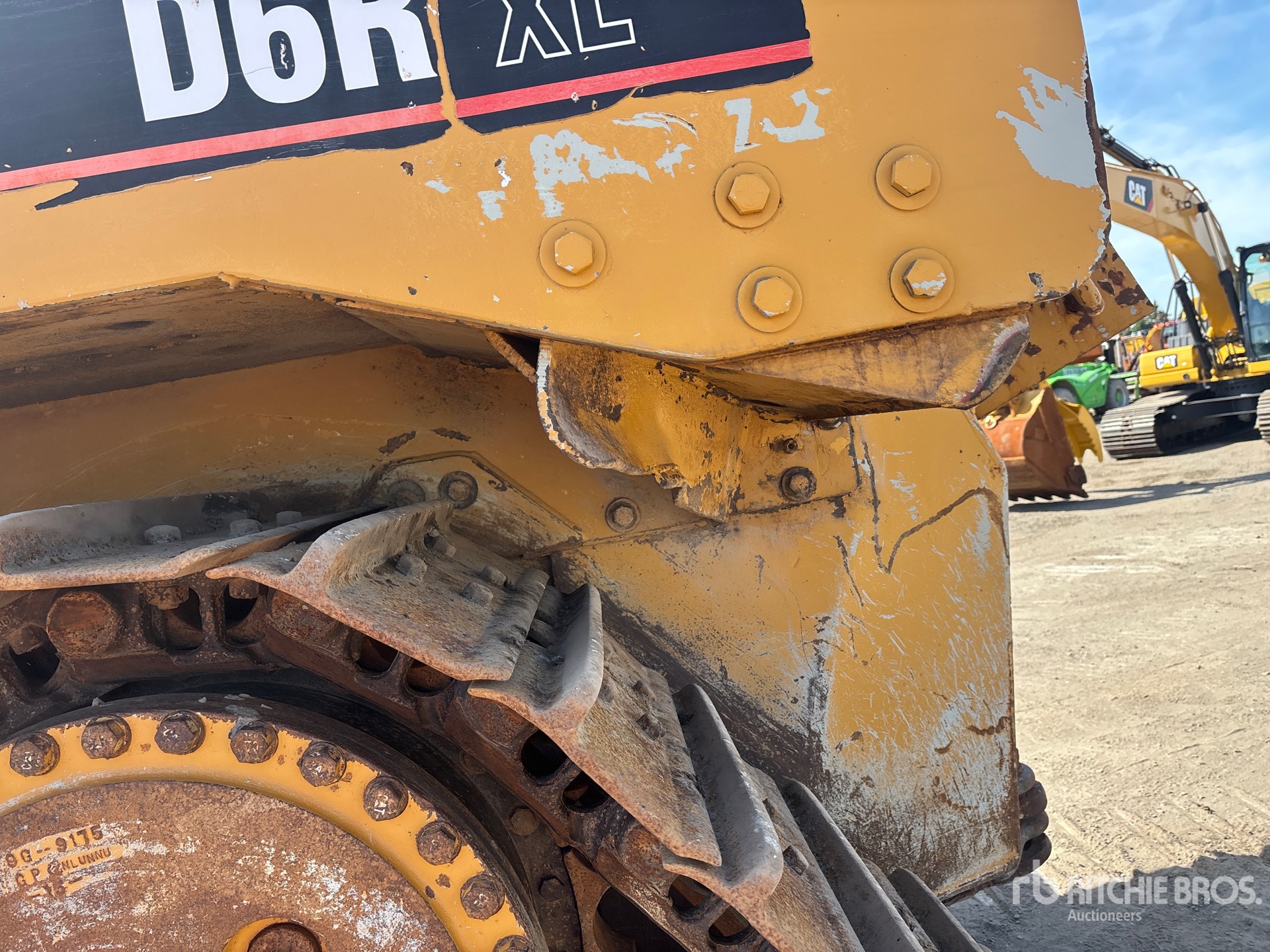

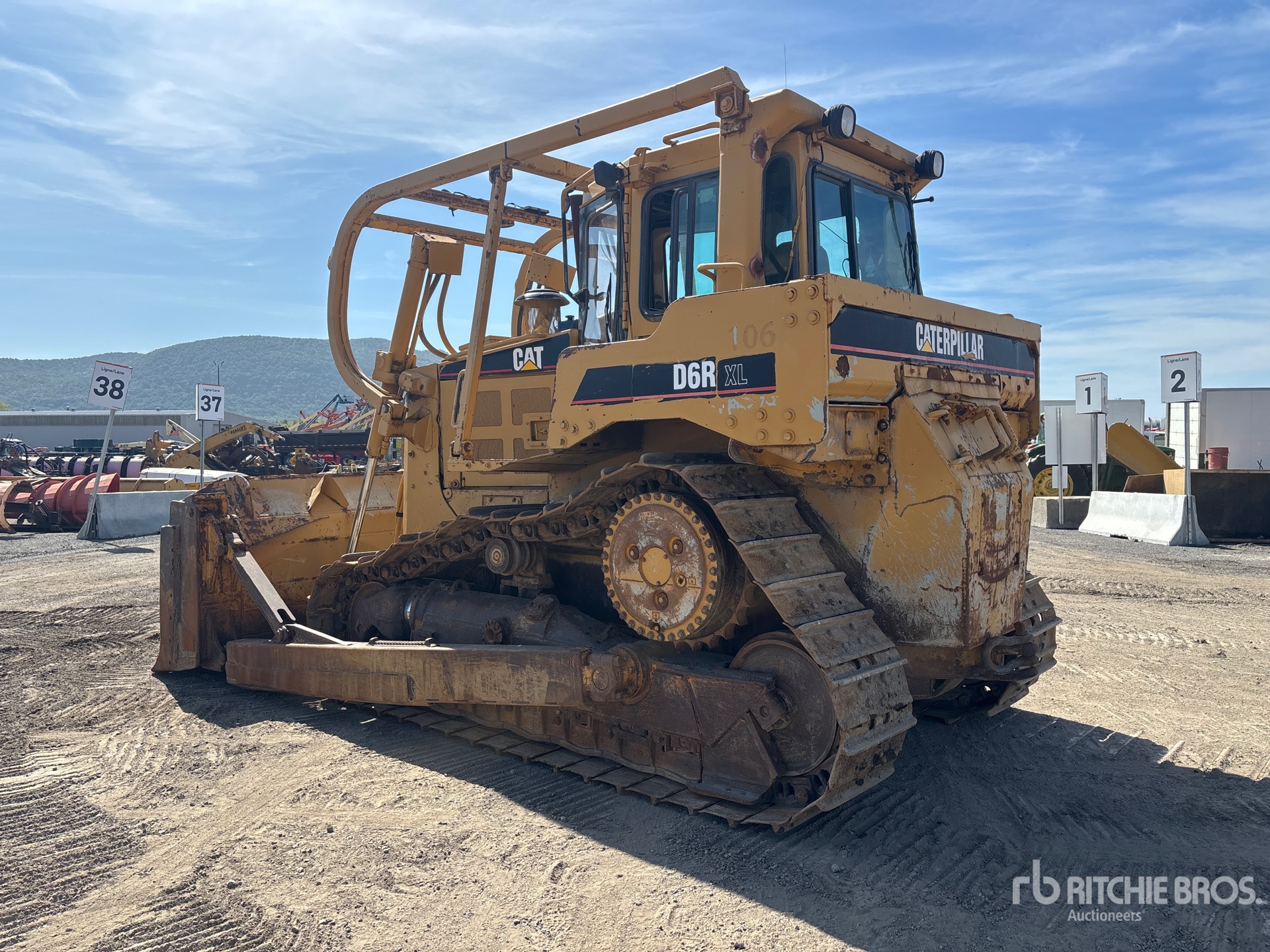

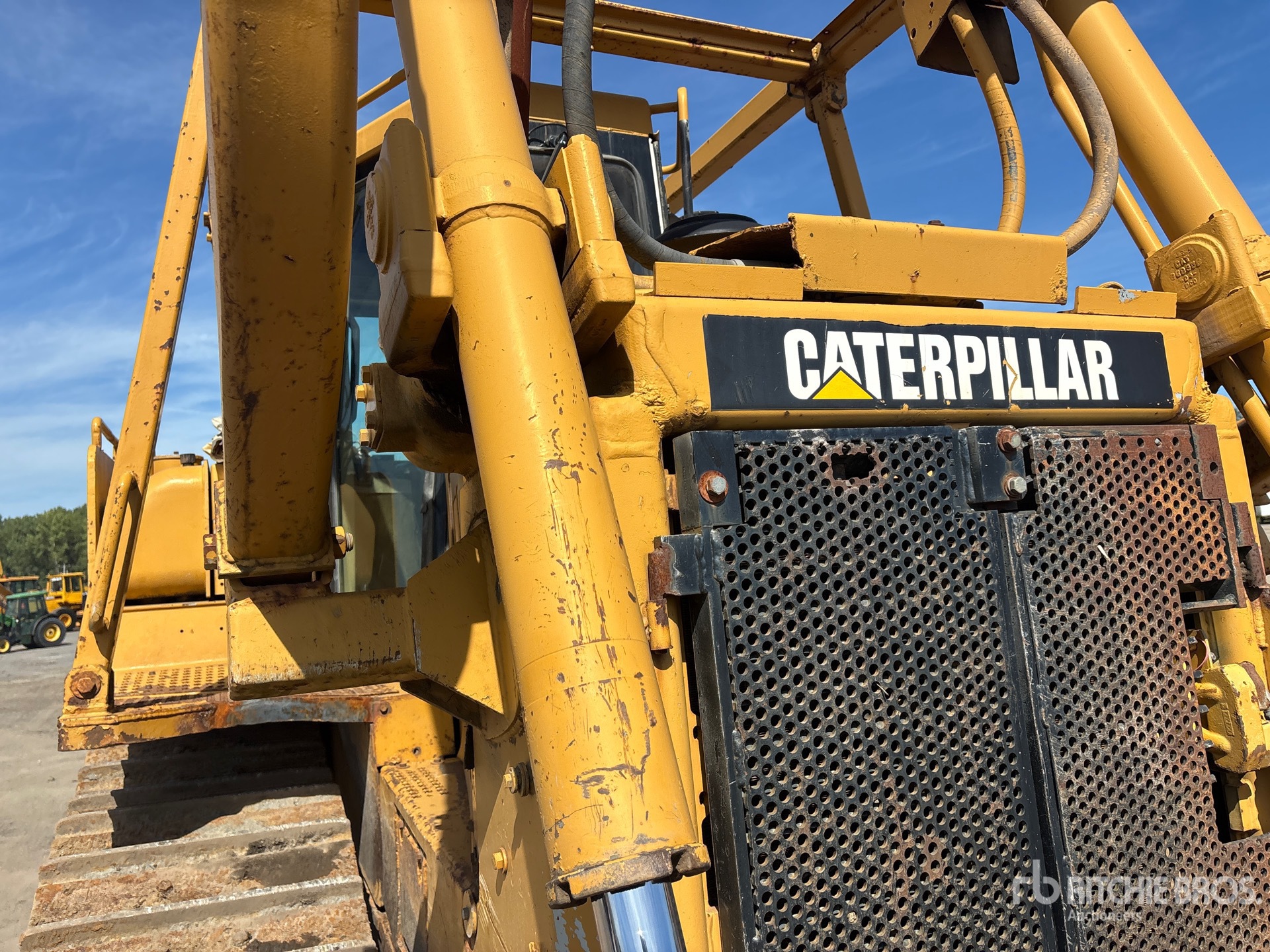

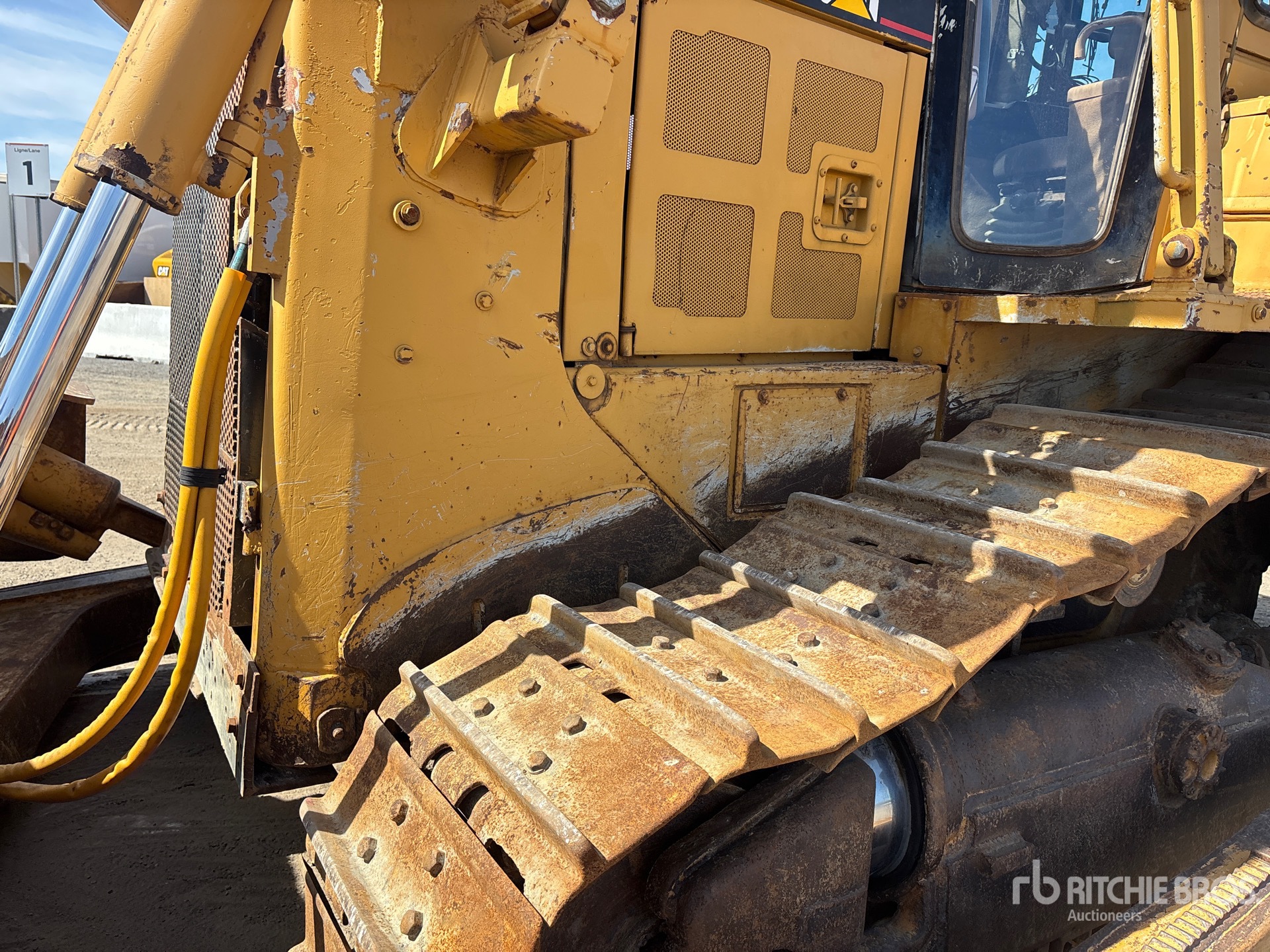

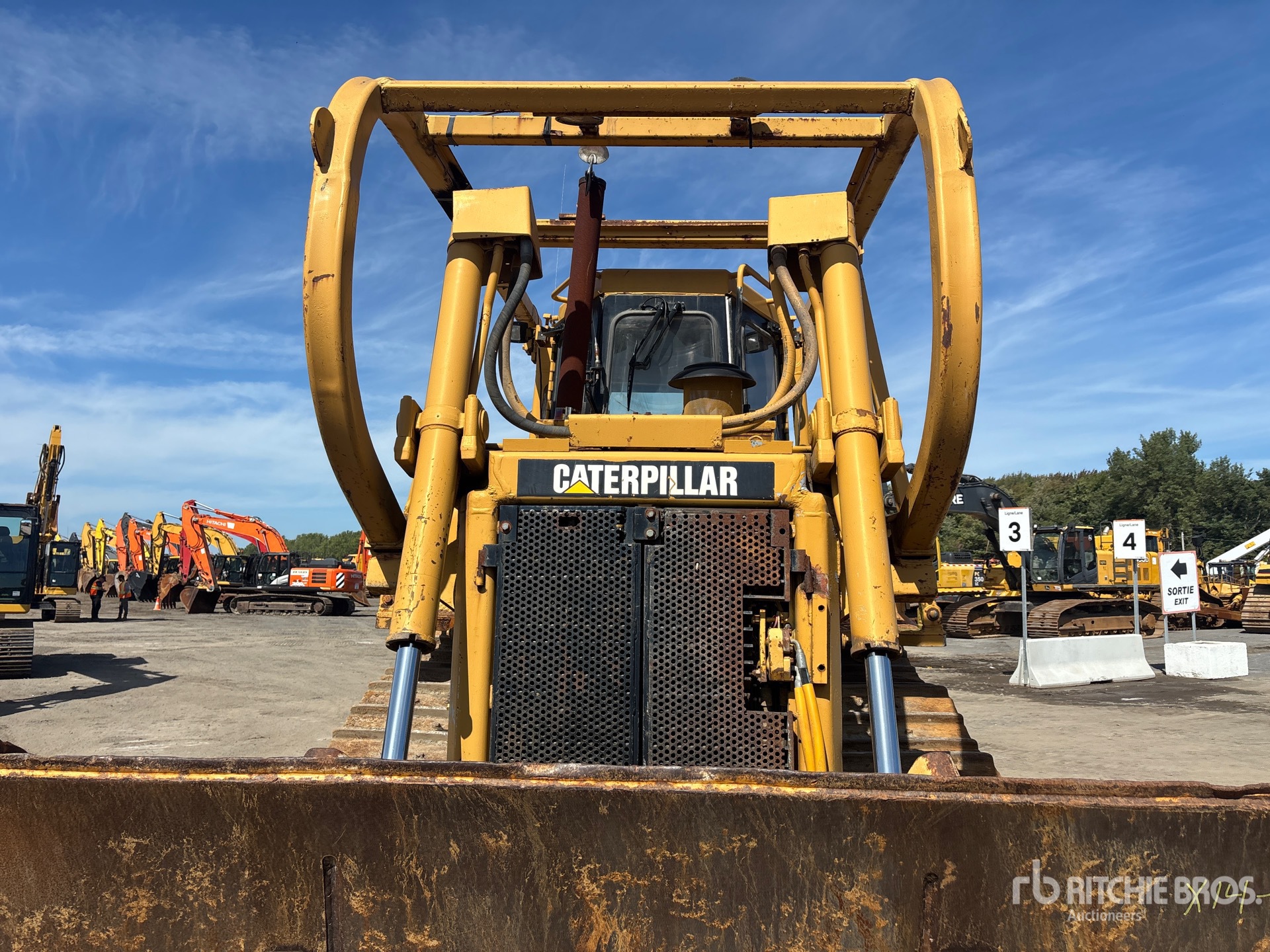

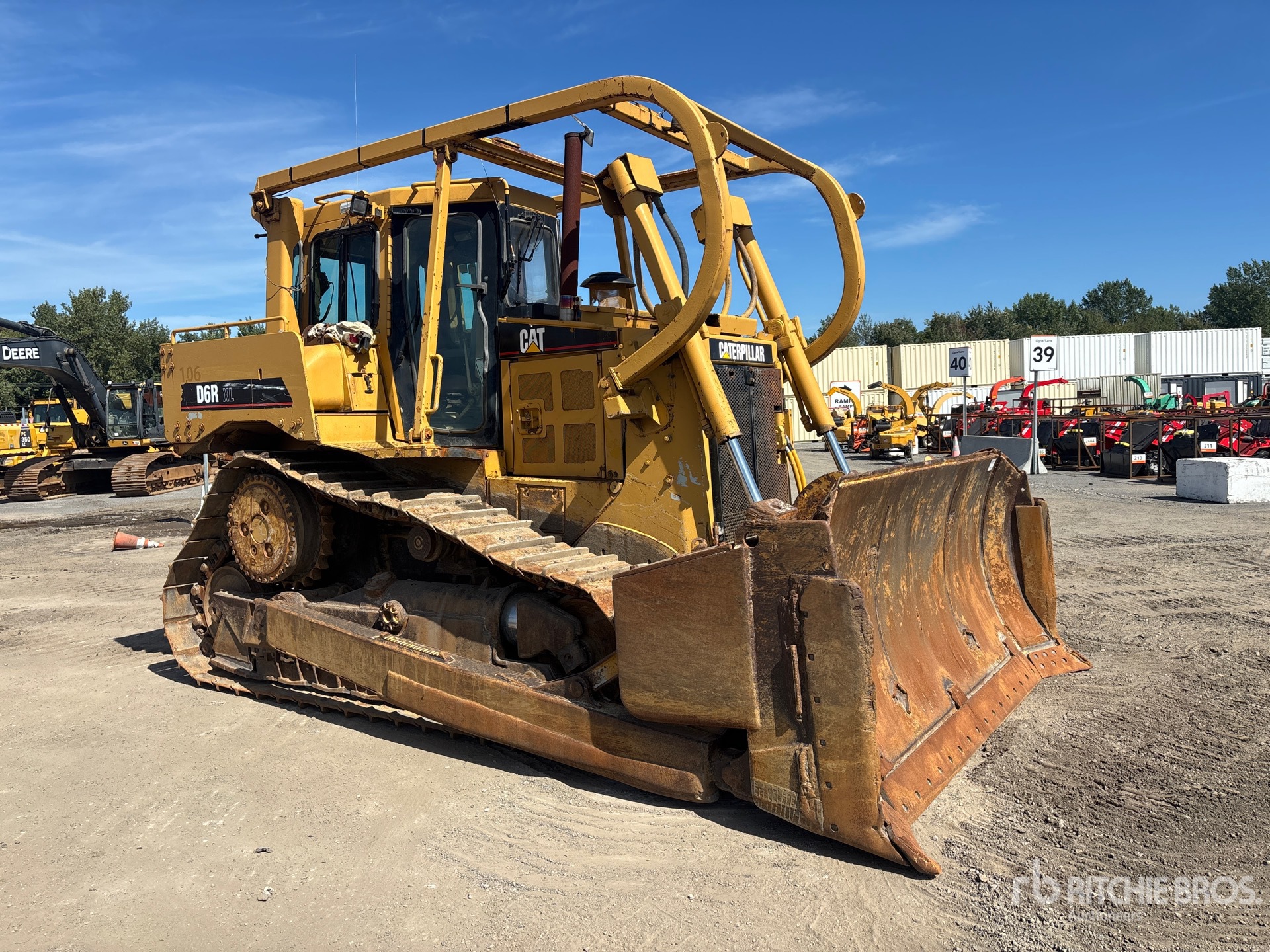

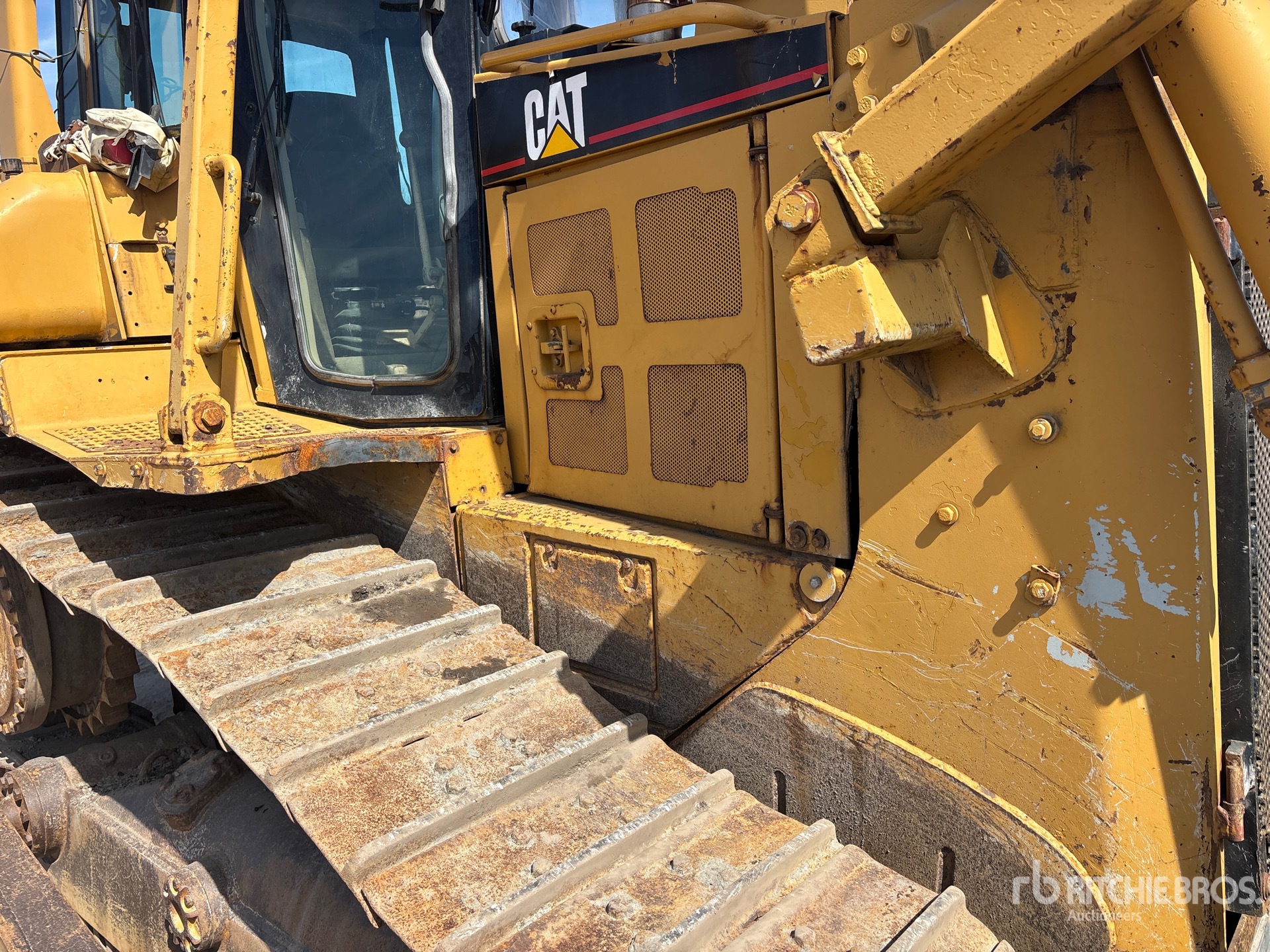

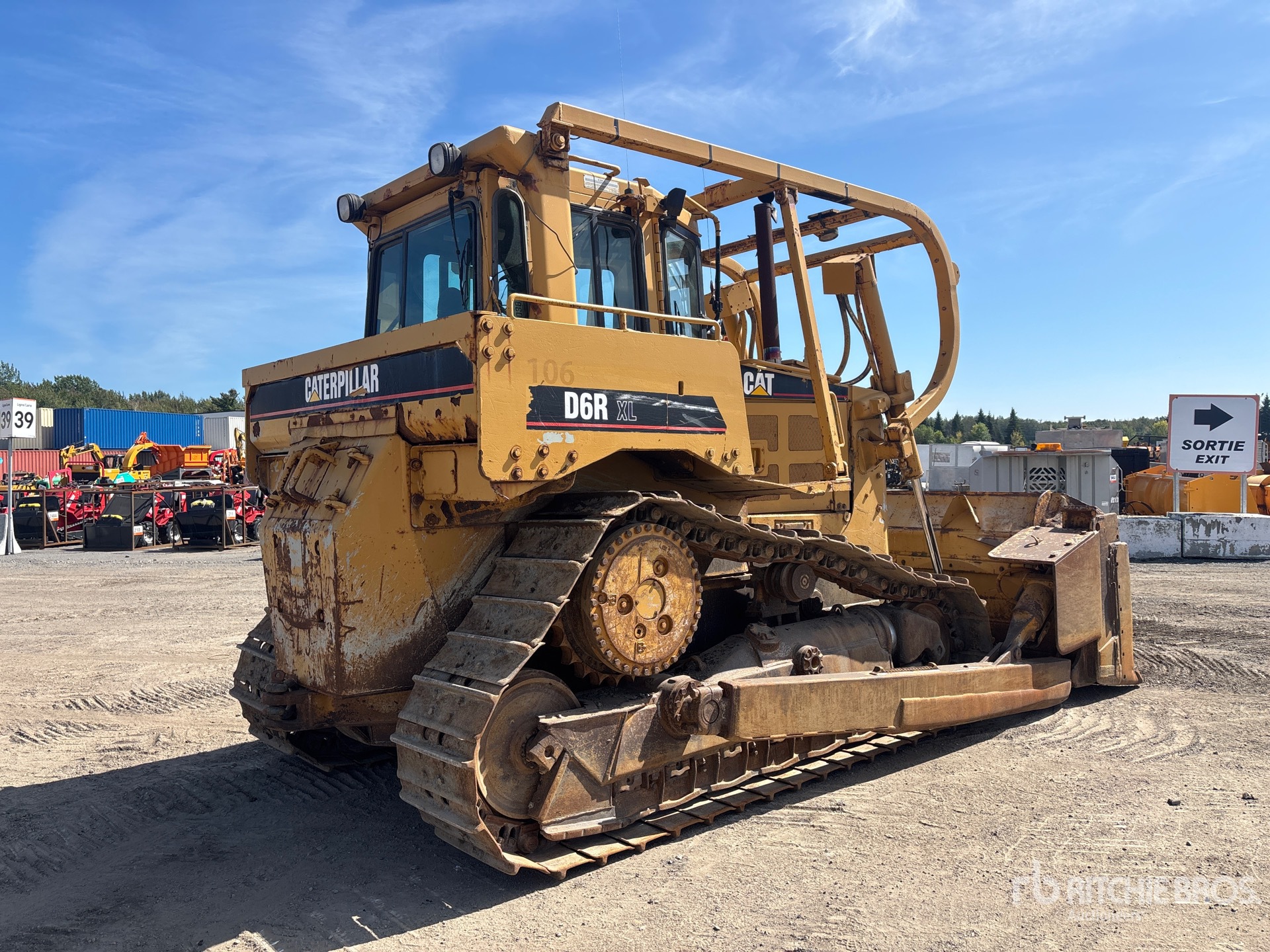

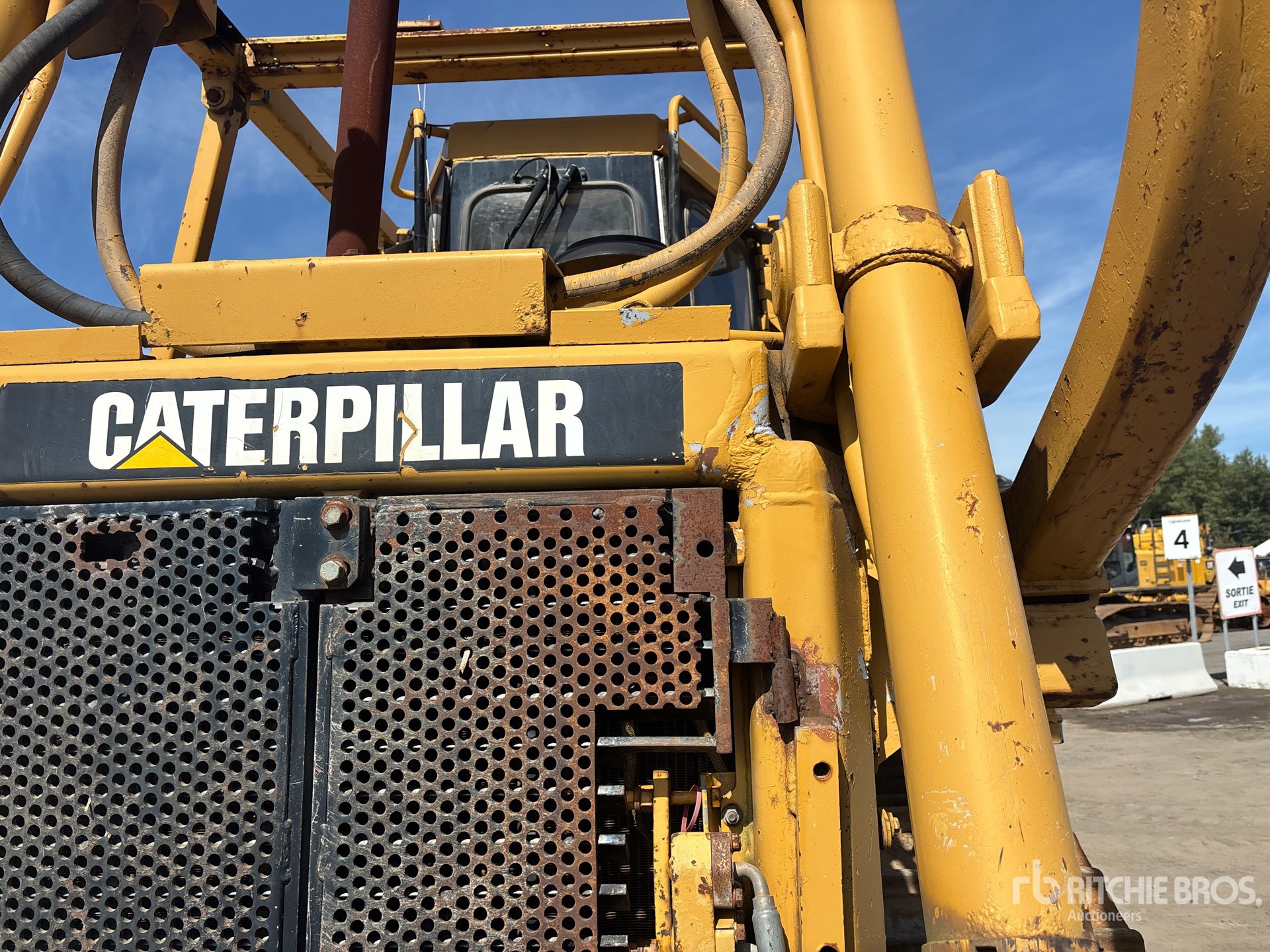

2002 Caterpillar D6R XL For Sale in Montreal, Qc

Name: 2002 Caterpillar D6R XL
Brand: Caterpillar
SKU: 89129680
Availability: InStock

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-09-21

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

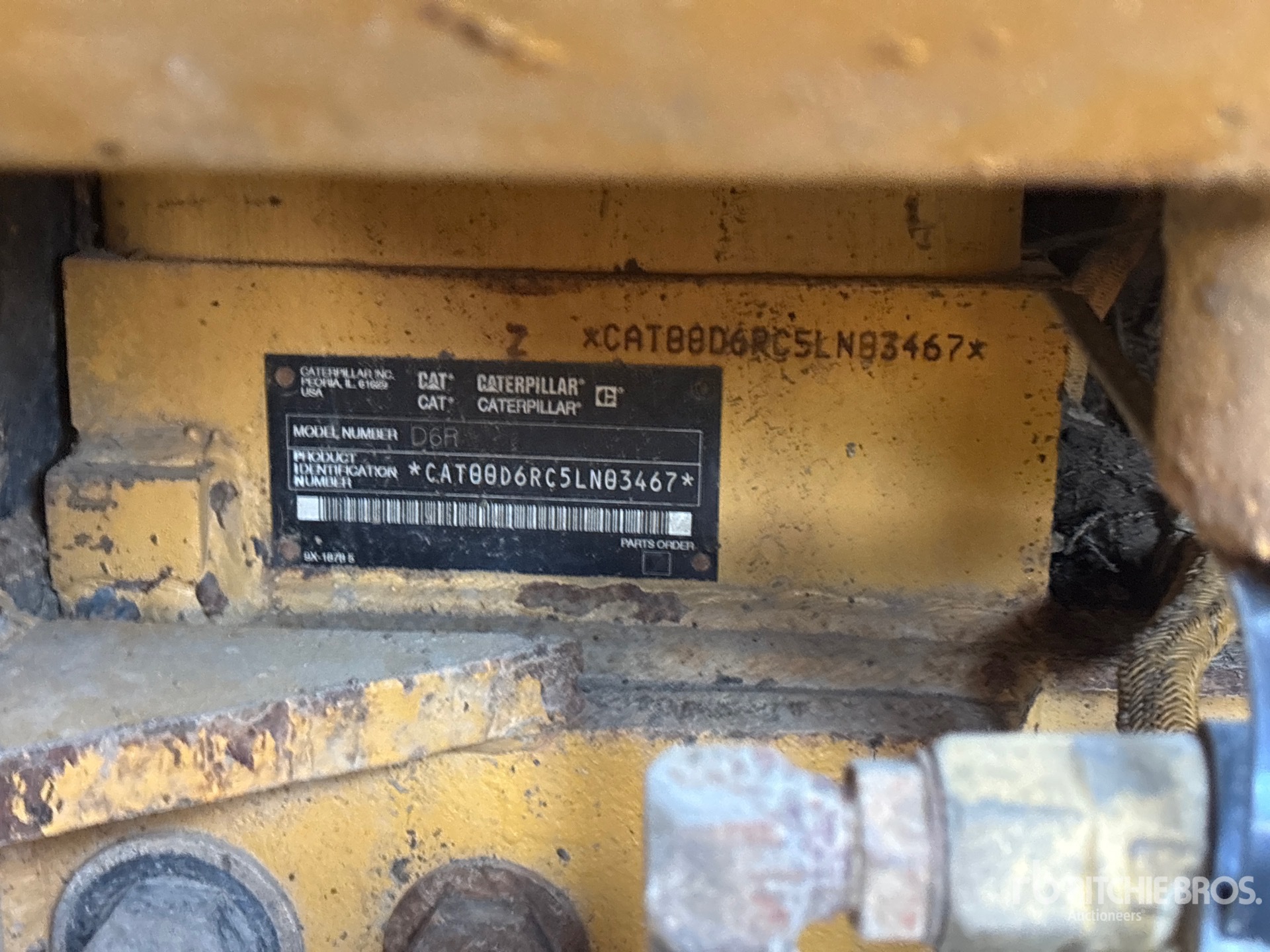

Serial Number:	CAT00D6RC5LN03467
Machine Location:	MONTREAL, QC

Description:

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Caterpillar D6R XL is a crawler dozer designed for grading, pushing, and site preparation in construction, mining, and earthmoving applications. It is part of Caterpillar's D6R series and uses an XL undercarriage configuration for improved stability and traction in demanding ground conditions. The machine is commonly equipped with a diesel engine, hydrostatic or powershift drivetrain depending on configuration, and a front blade for material movement. The D6R XL is used for road building, land clearing, stockpile work, and general dozing tasks. Its design emphasizes durability, operator control, and performance in rough terrain and heavy-duty work environments.

Blades
A-Blade Width	12 ft (4 m)
Angle Straight Blade Width	14 ft (4 m)
Blade Type	SU, A, PAT
Su - Blade Width	11 ft (3 m)
Dimensions
Ground Clearance	1 ft (0 m)
Height	8 ft (2 m)
Height	10 ft (3 m)
Height - Rops/Canopy	10 ft (3 m)
Height To Top Of Cab	10 ft (3 m)
Length	17 ft (5 m)
Length Of Track On Ground	9 ft (3 m)
Length W/ Blade	18 ft (5 m)
Length W/O Blade	13 ft (4 m)
Overall Length - Basic Tractor - With Drawbar	13 ft (4 m)
Overall Length - With Blade	225 in (572 cm)
Weight	43,600 lbs (19,777 kg)
Width	8 ft (2 m)
Width Over Tracks	8 ft (2 m)
Engine
Aspiration	Turbocharged
Displacement	641 cu in (10,501 cu cm)
Engine Make	2,236
Engine Model	3306 T
Engine Model	3,306
Flywheel Power	175 hp (131 kw)
Flywheel Power - Power Shift	175 hp (131 kw)
Gross Power	189 hp (141 kw)
Maximum Flywheel Power	189 hp (141 kw)
Net Power	175 hp (131 kw)
Number Of Cylinders	6
Power Measured @	1,900 rpm
Hydraulic System
Pump Flow Capacity	50 gpm (190 lpm)
Pump Type	Piston
Relief Valve Pressure	2,800 psi
Operational
Alternator Supplied Amperage	70 amps
Cooling System Fluid Capacity	20 gal (74 l)
Engine Oil Capacity	7 gal (28 l)
Final Drives Fluid Capacity	4 gal (14 l)
Fuel Capacity	101 gal (383 l)
Hydraulic Fluid Capacity	20 gal (76 l)
Operating Voltage	24 V
Operating Weight	41,900 lbs (19,002 kg)
Powertrain Fluid Capacity	41 gal (155 l)
Ripper
Maximum Clearance Raised - Under Tip, Pinned In Bottom Hole	20 in (51 cm)
Maximum Penetration	20 in (50 cm)
Number Of Pockets	3
Overall Beam Width	87 in (220 cm)
Ripper Type	Parallelogram
Service Refill Capacities
Cooling System	20 gal (74 l)
Engine Crankcase	7 gal (28 l)
Final Drive - Each	4 gal (14 l)
Fuel Tank	101 gal (383 l)
Hydraulic Tank	20 gal (76 l)
Power Train	41 gal (155 l)
Standard Blade
Capacity	7 cu yd
Cutting Depth	18 in (46 cm)
Height	56 in (141 cm)
Width	11 ft (3 m)
Transmission
1.0 Forward	3 mph (4 kph)
1.0 Reverse	3 mph (5 kph)
2.0 Forward	4 mph (7 kph)
2.0 Reverse	5 mph (9 kph)
3.0 Forward	7 mph (11 kph)
3.0 Reverse	9 mph (15 kph)
Max Speed - Forward	7 mph (12 kph)
Max Speed - Reverse	10 mph (15 kph)
Number Of Forward Gears	3
Number Of Reverse Gears	3
Transmission Type	Power Shift
Undercarriage
Ground Clearance	1 ft (0 m)
Ground Contact Area	4888 in2
Ground Pressure	9 psi
Number Of Shoes Per Side	41
Number Of Track Rollers Per Side	7
Shoe Type	Single grouser
Shoes/Side	41
Standard Shoe Size	22 in (56 cm)
Track Gauge	6 ft (2 m)
Track On Ground	9 in (23 cm)
Track Pitch	8 in (20 cm)
Track Rollers/Side	7
Width - Shoe	22 in (56 cm)
Weights
Operating Weight	42,300 lbs (19,184 kg)
Operating Weight - Power Psds	42,300 lbs (19,184 kg)
Operating Weight - Power Shift	41,900 lbs (19,002 kg)
Winch
Drum Diameter	10 in (26 cm)
Drum Width	10 in (25 cm)
Flange Diameter	13 in (33 cm)
Increased Tractor Length - Std	20 in (52 cm)
Oil Capacity	18 gal (67 l)
Weight*	2,502 lbs (1,135 kg)
Winch And Bracket Length	47 in (120 cm)
Winch Case - Width	38 in (98 cm)
