2005 Caterpillar D6R XL SERIES I For Sale in Polotitlan, Mex

2005 Caterpillar D6R XL SERIES I
2005 Caterpillar D6R XL SERIES I
2005 Caterpillar D6R XL SERIES I
2005 Caterpillar D6R XL SERIES I
2005 Caterpillar D6R XL SERIES I
2005 Caterpillar D6R XL SERIES I
2005 Caterpillar D6R XL SERIES I
2005 Caterpillar D6R XL SERIES I
2005 Caterpillar D6R XL SERIES I
2005 Caterpillar D6R XL SERIES I 2005 Caterpillar D6R XL SERIES I 2005 Caterpillar D6R XL SERIES I 2005 Caterpillar D6R XL SERIES I 2005 Caterpillar D6R XL SERIES I 2005 Caterpillar D6R XL SERIES I 2005 Caterpillar D6R XL SERIES I 2005 Caterpillar D6R XL SERIES I 2005 Caterpillar D6R XL SERIES I

/ Save to Watch List
Apply for Financing

Auction Pricing



   Auction Info: Starting on 2026-10-09   Click here to place a bid


Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info
Ritchie Bros. Auctioneers Website
Click here to email Ritchie Bros. Auctioneers.

Request an equipment inspection

Get shipping quotes
Click for Phone Number


Machine Info:

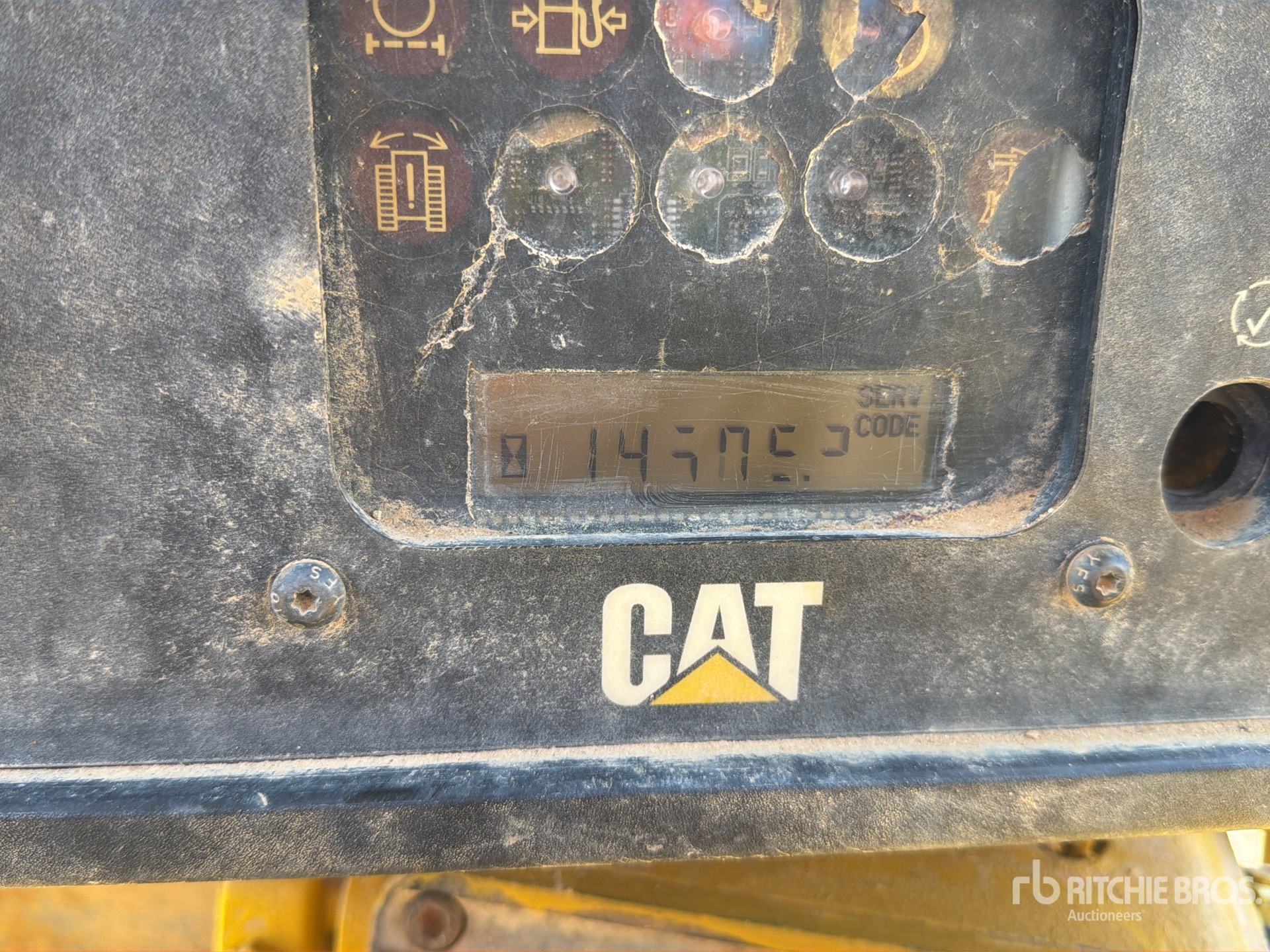

Hours:14505

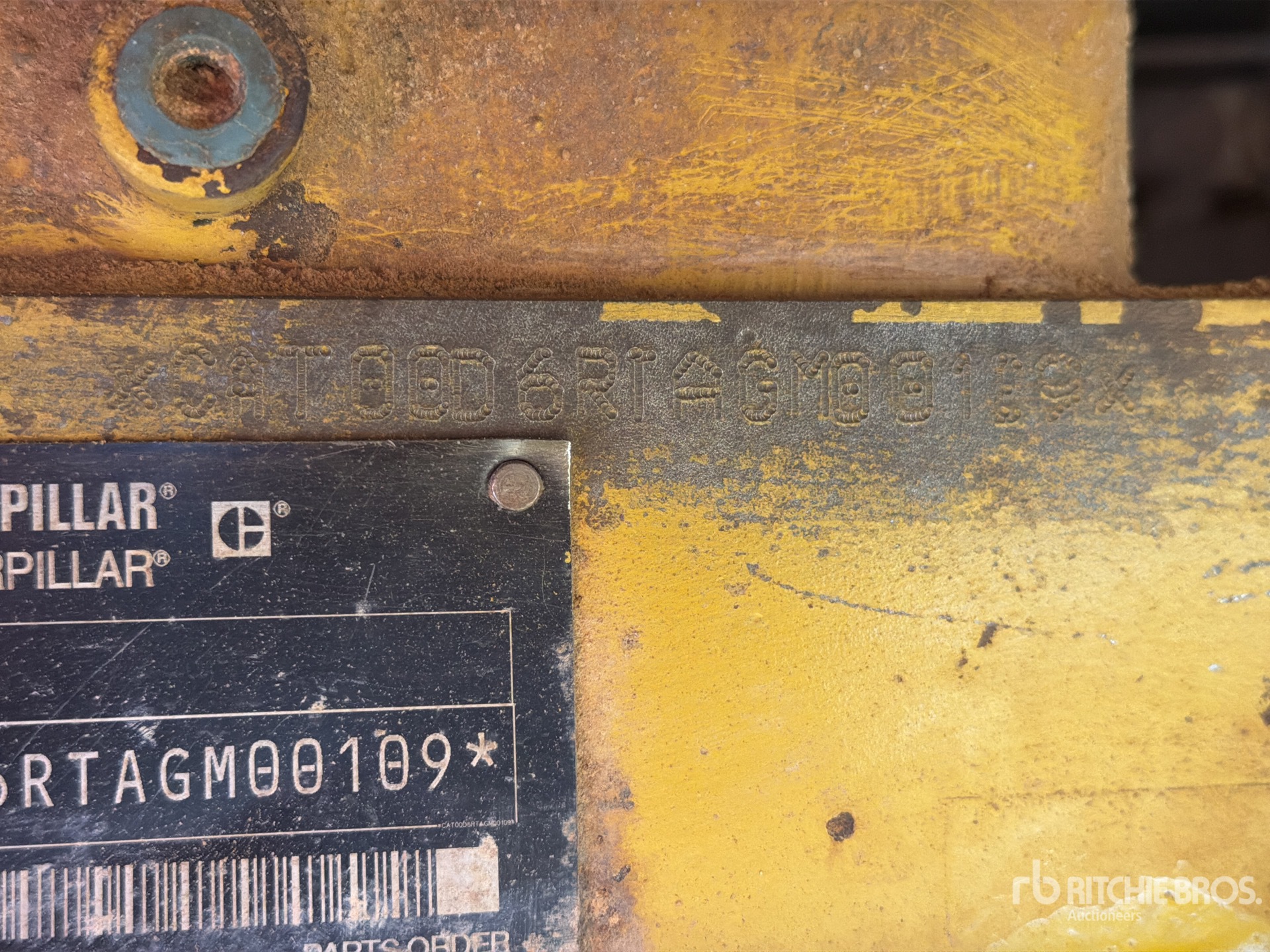

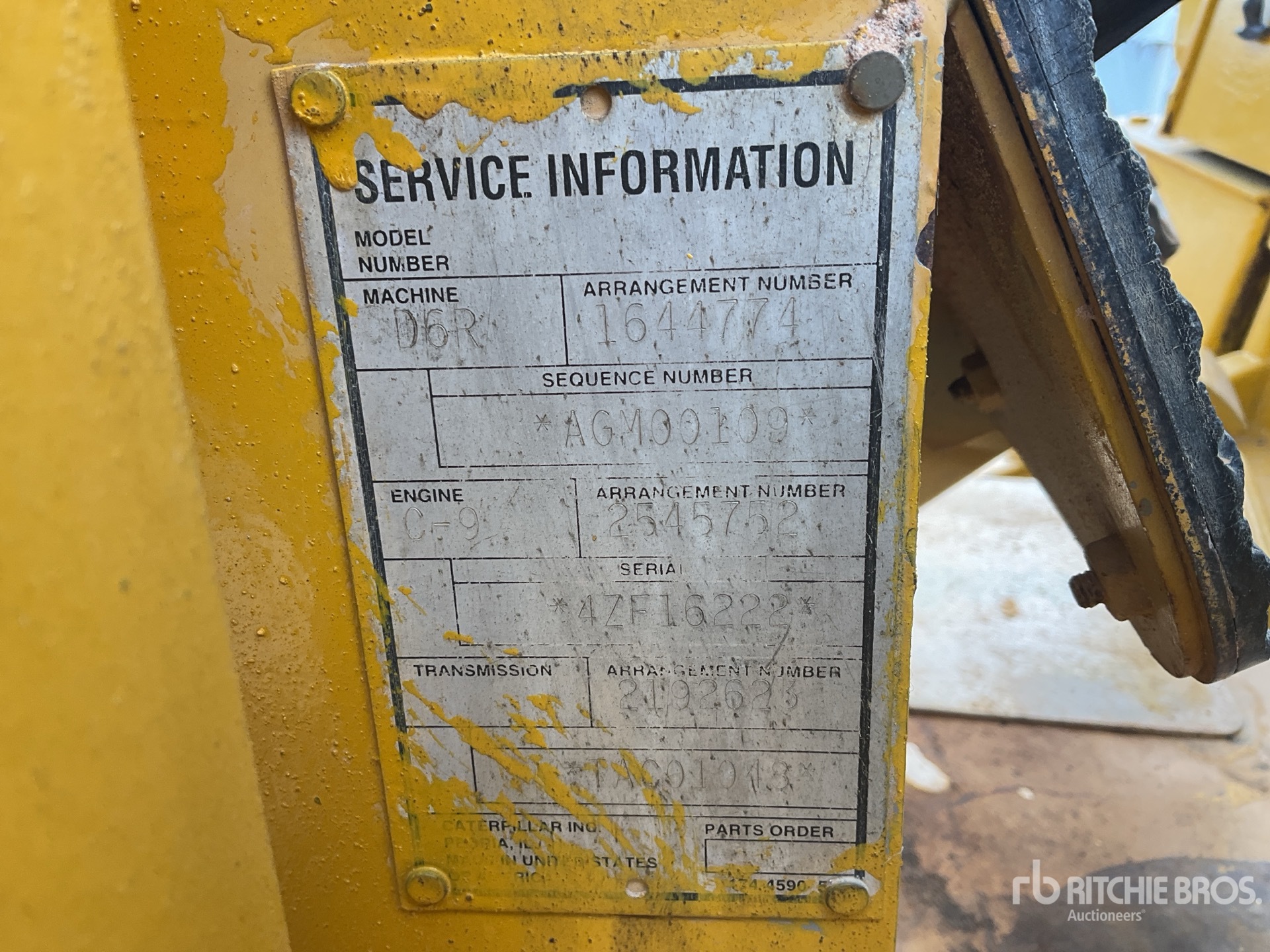

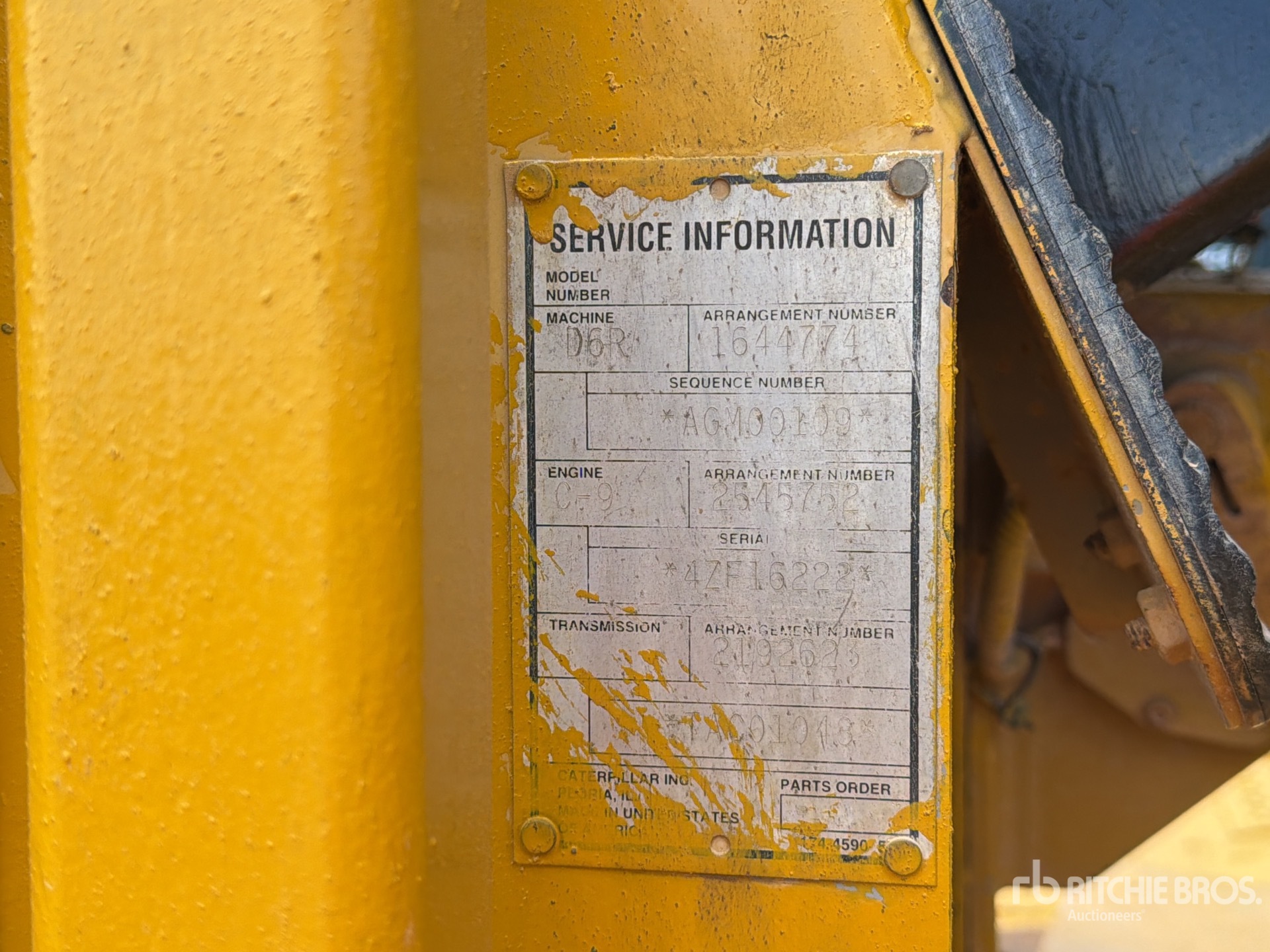

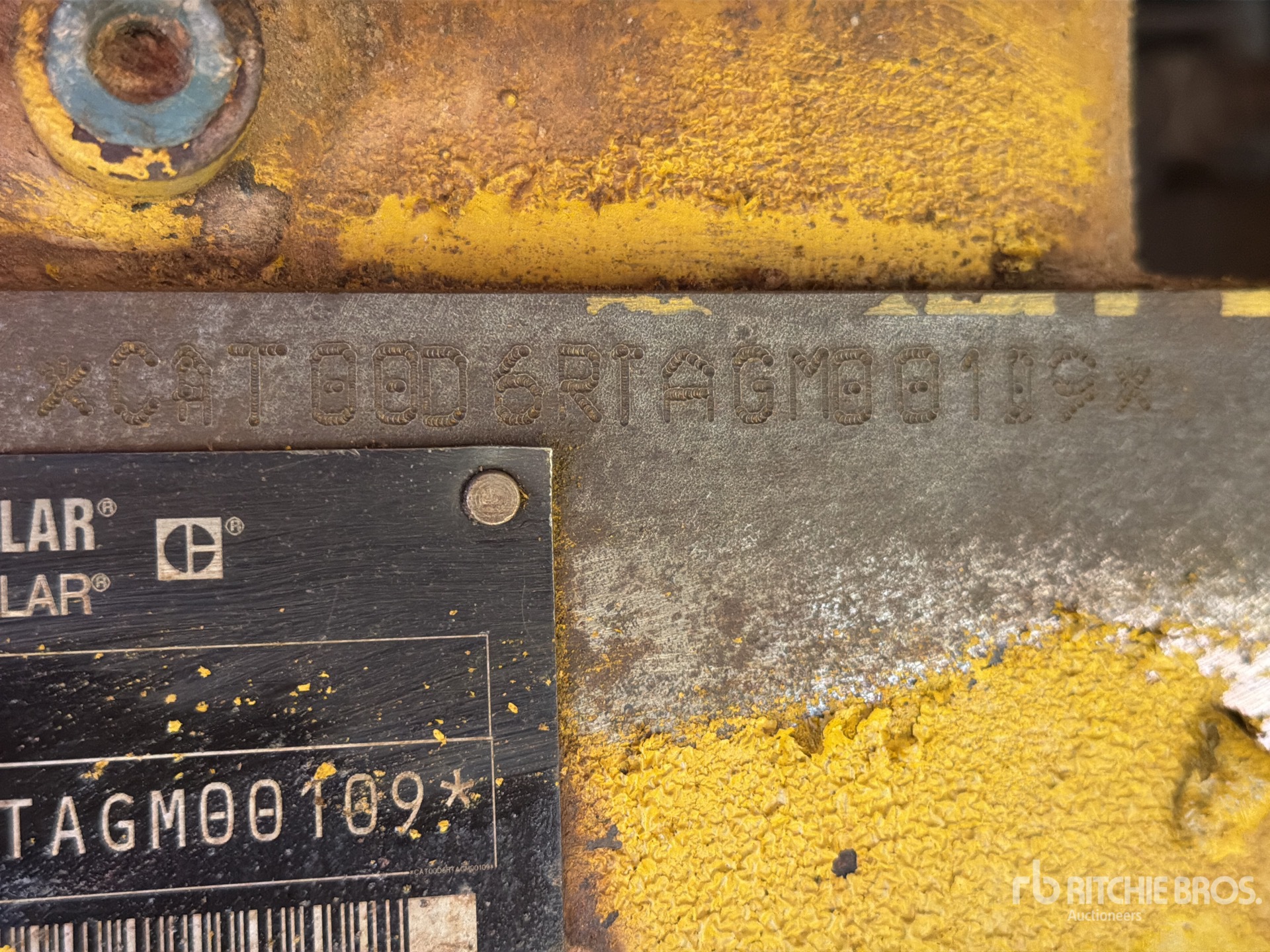

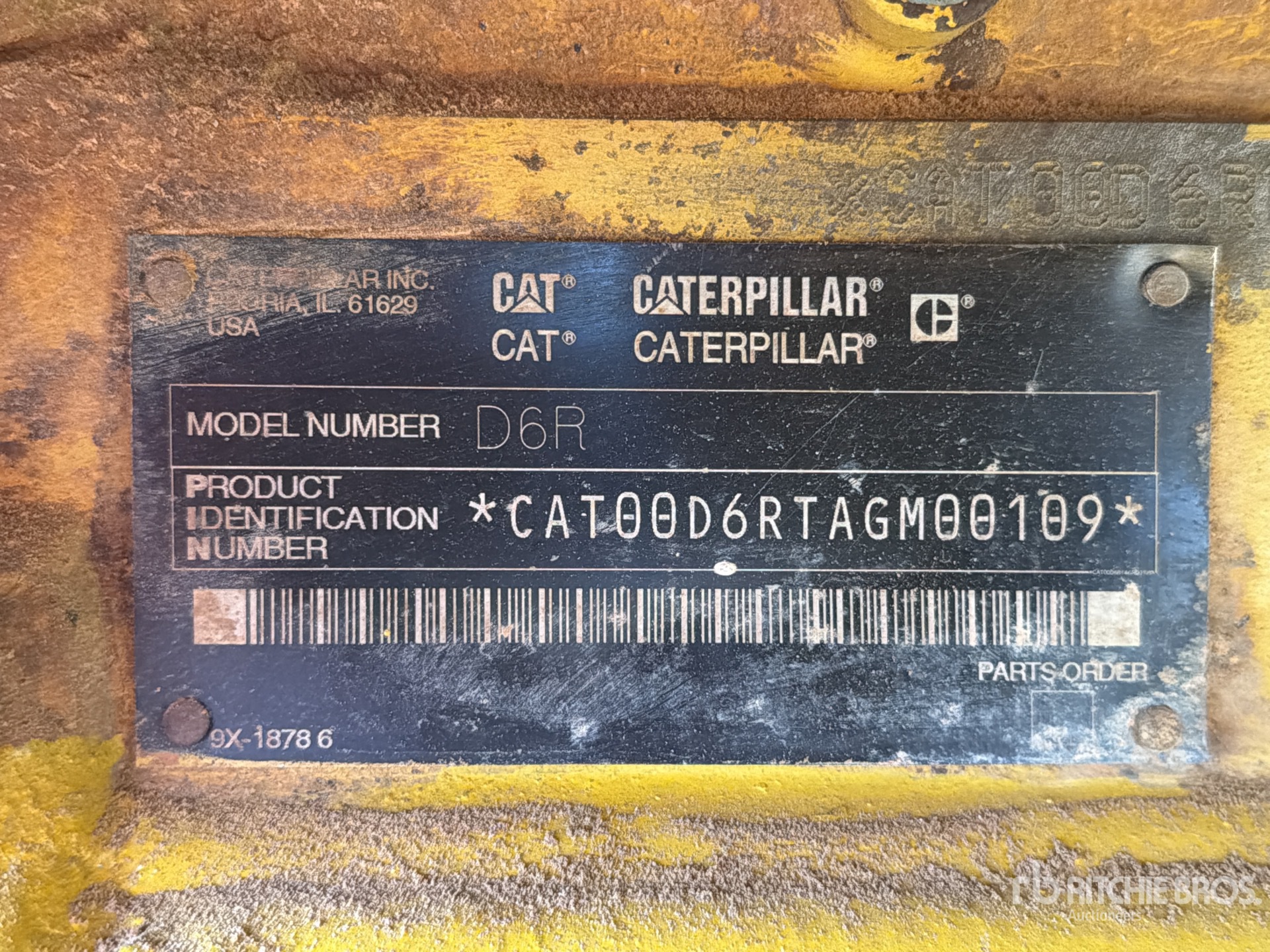

Serial Number:CAT00D6RTAGM00109
Machine Location:POLOTITLAN, MEX

Description:

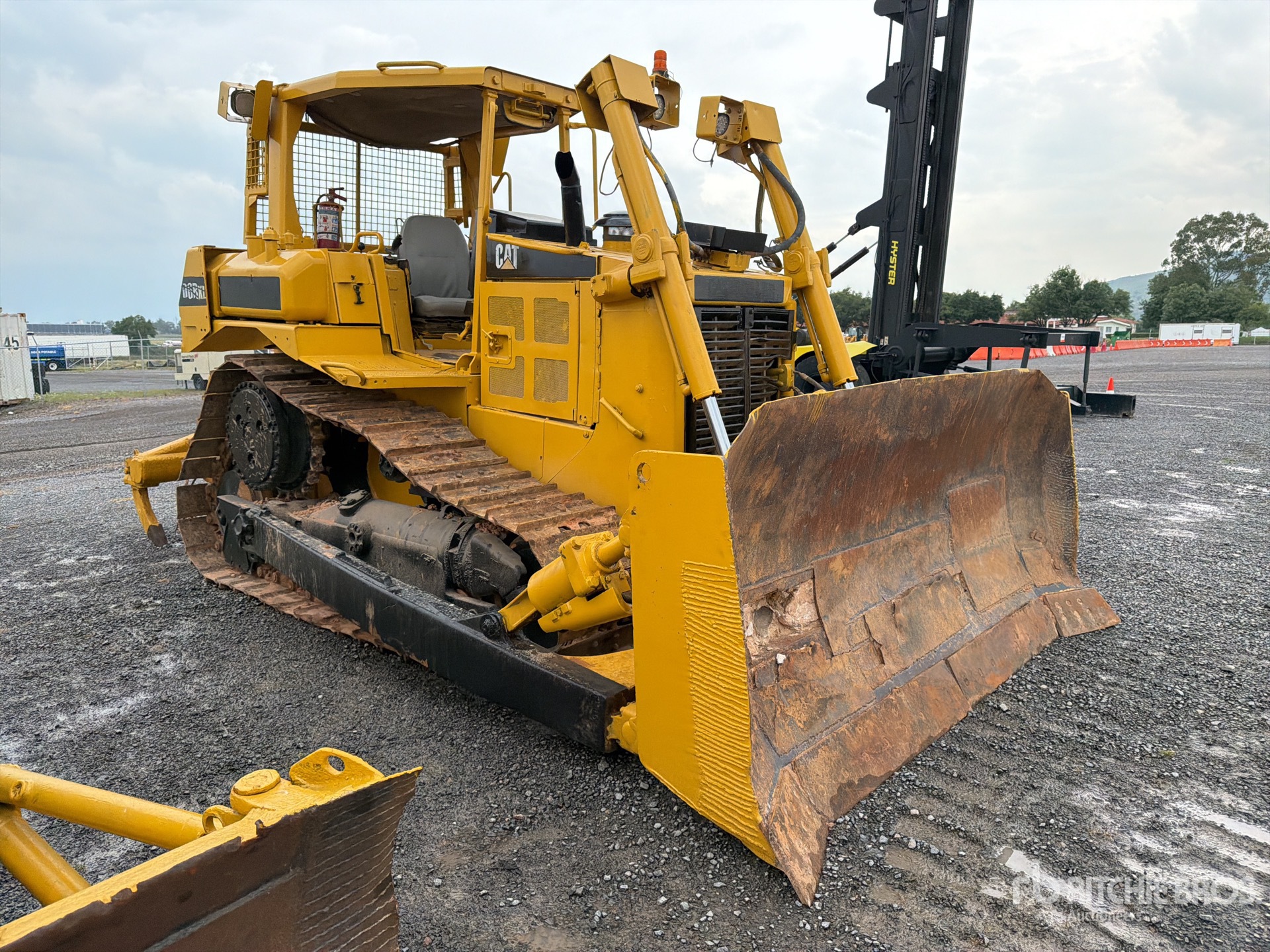

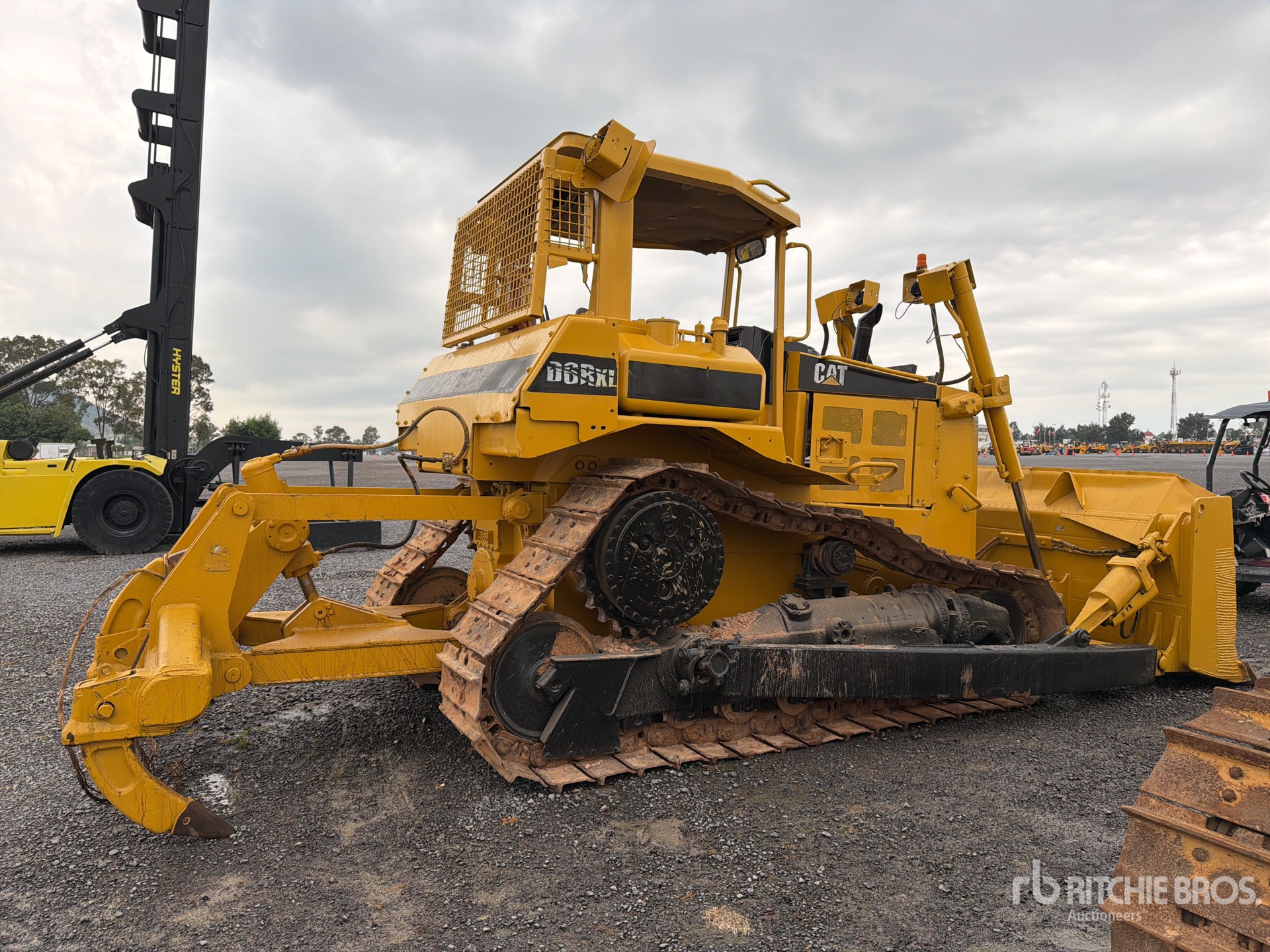

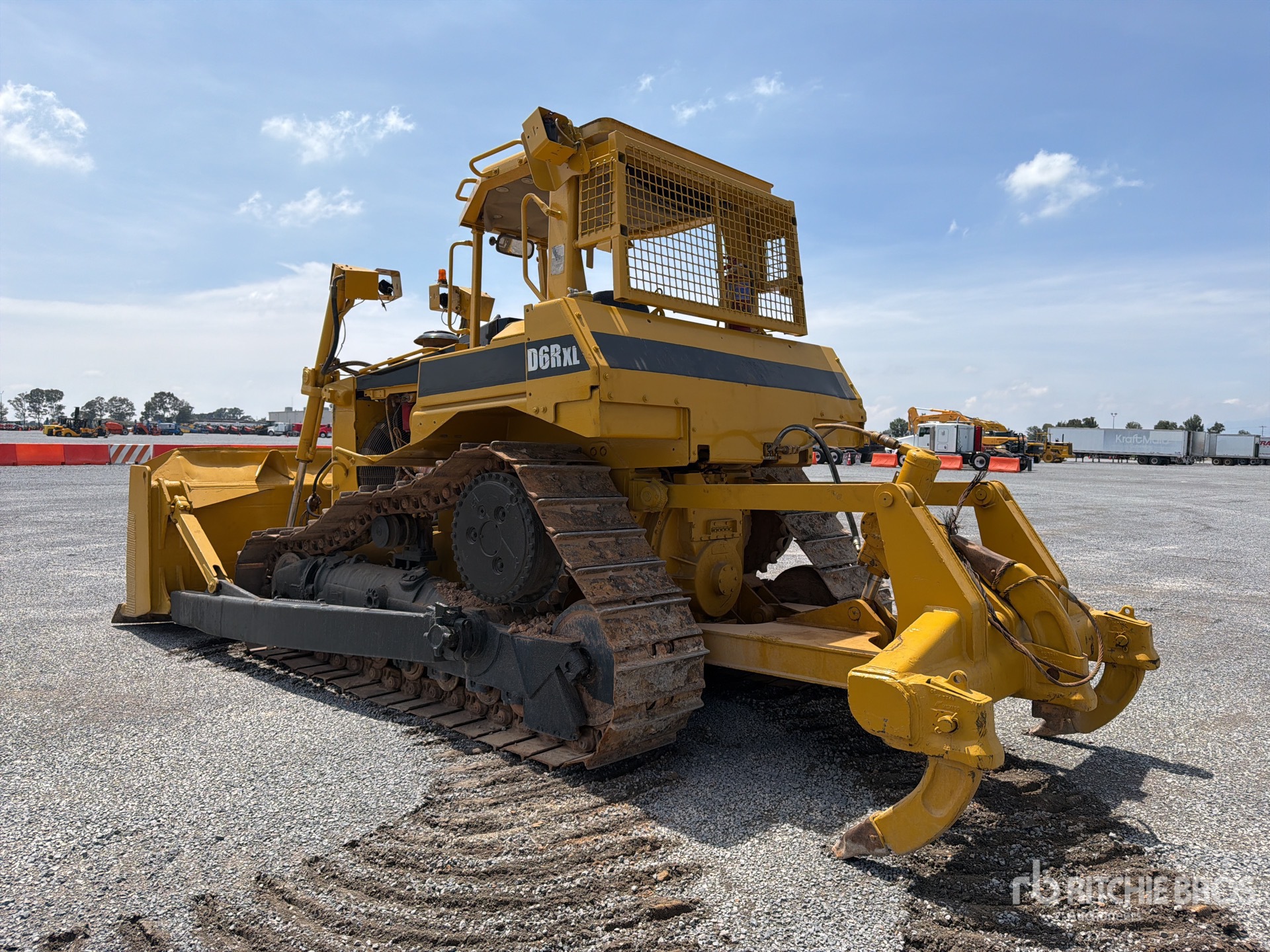

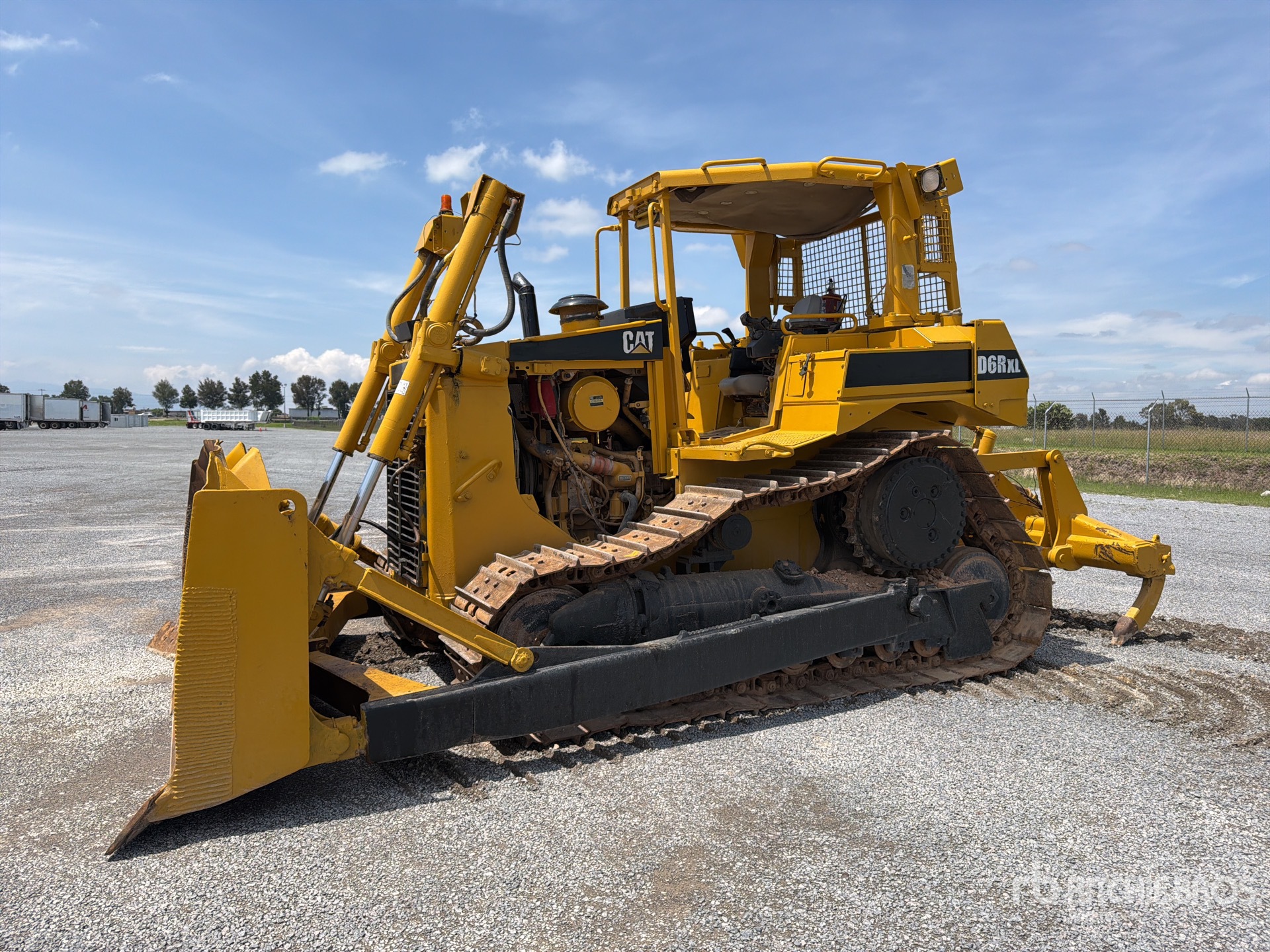

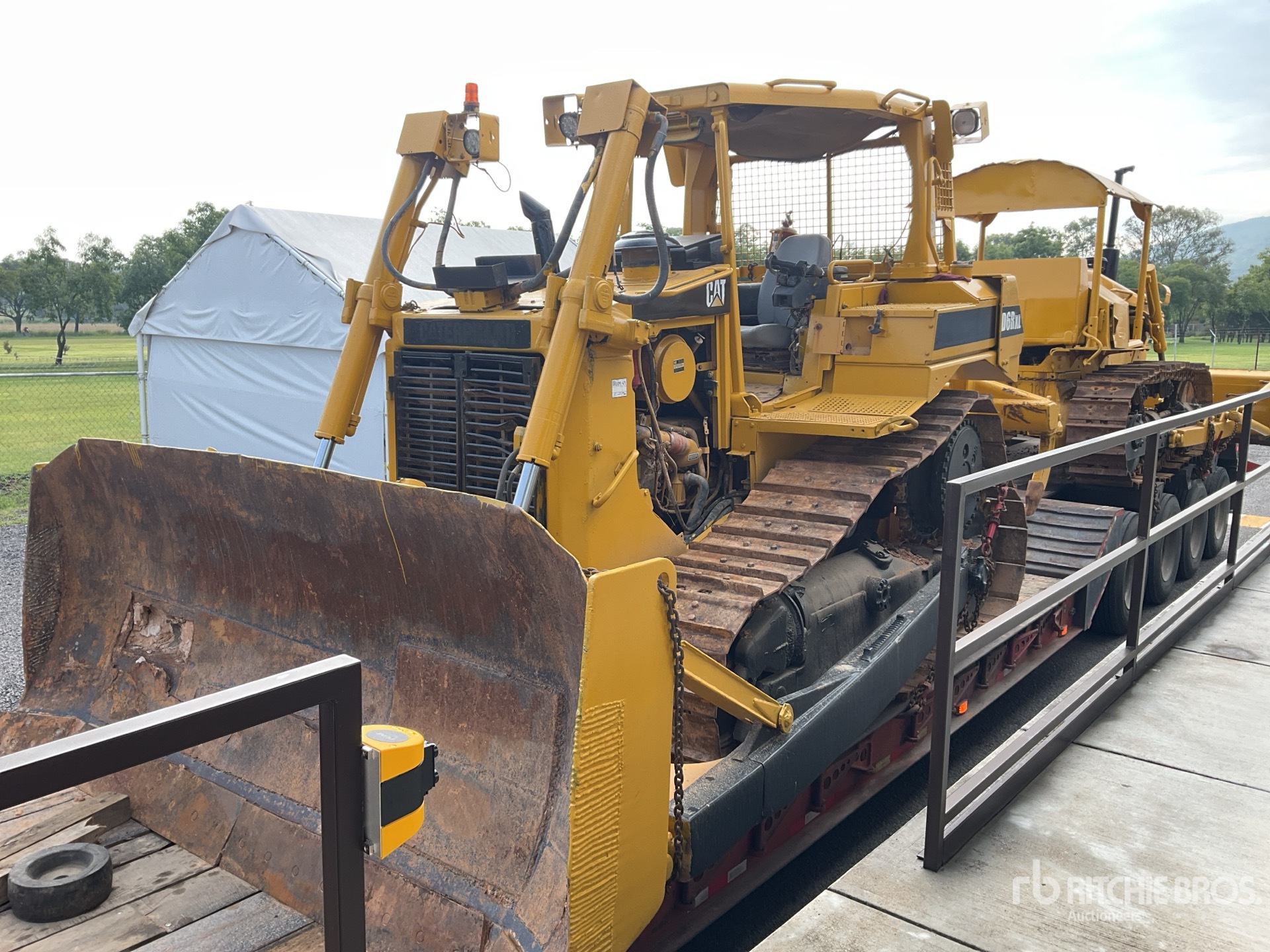

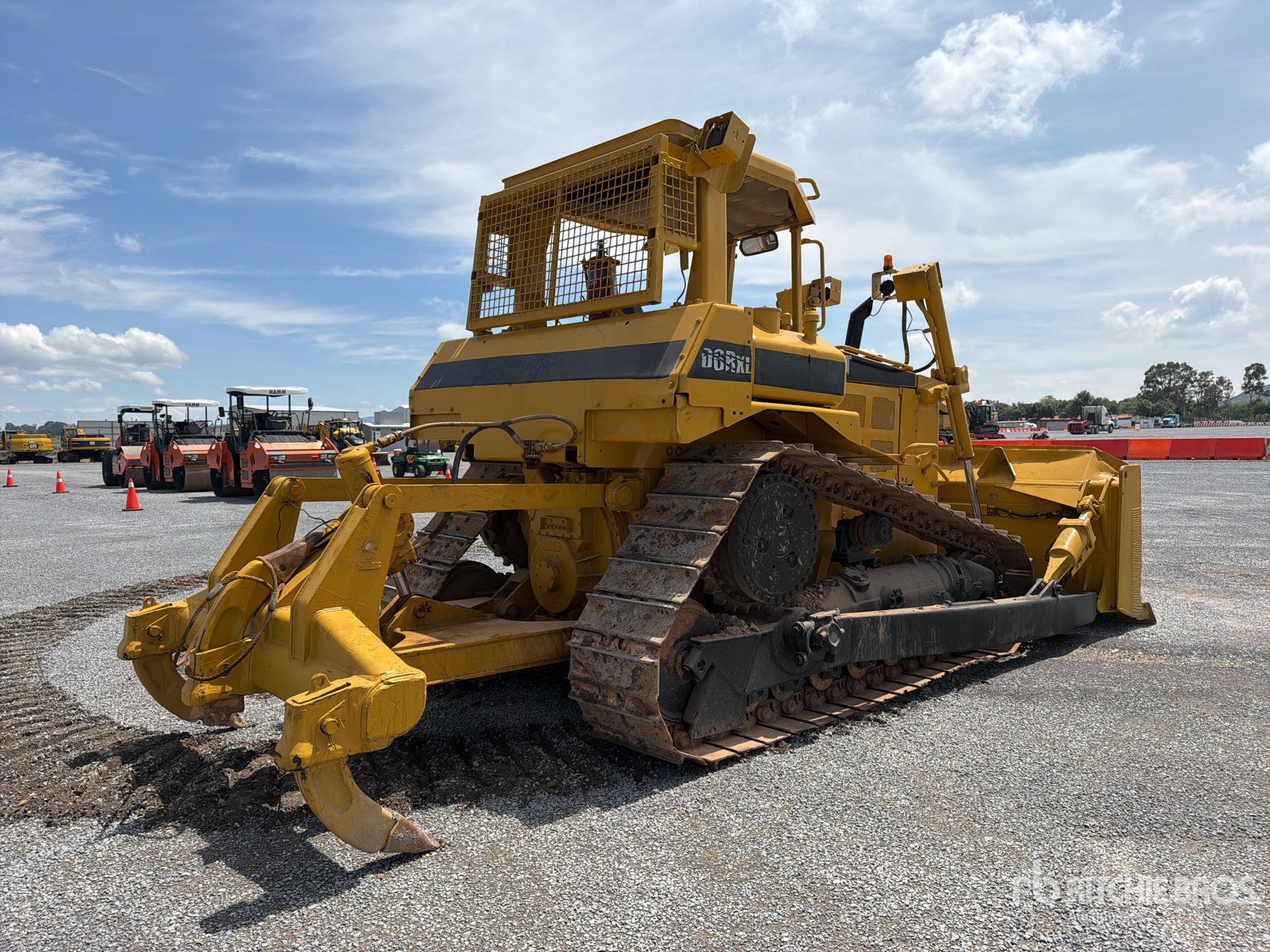

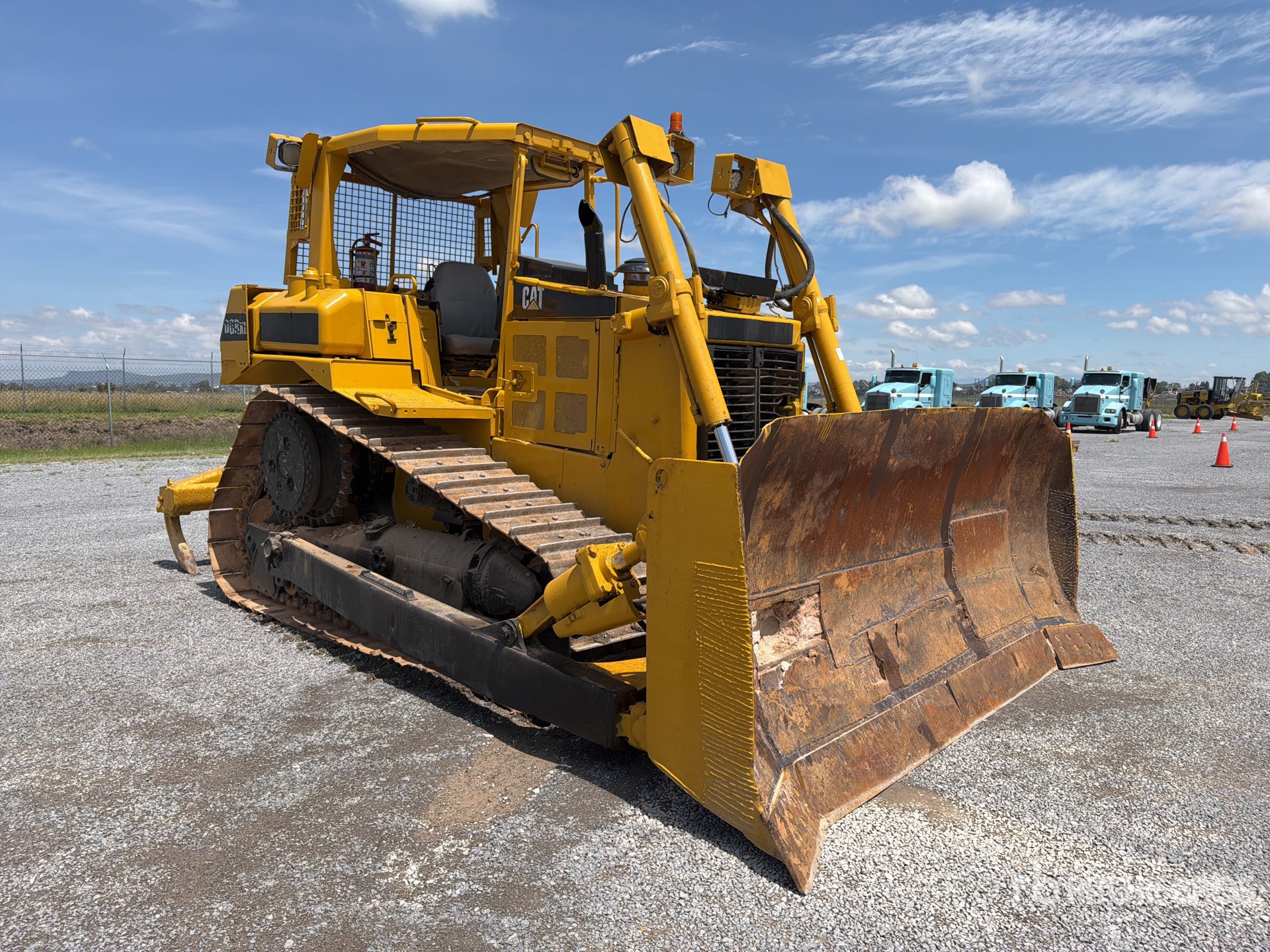

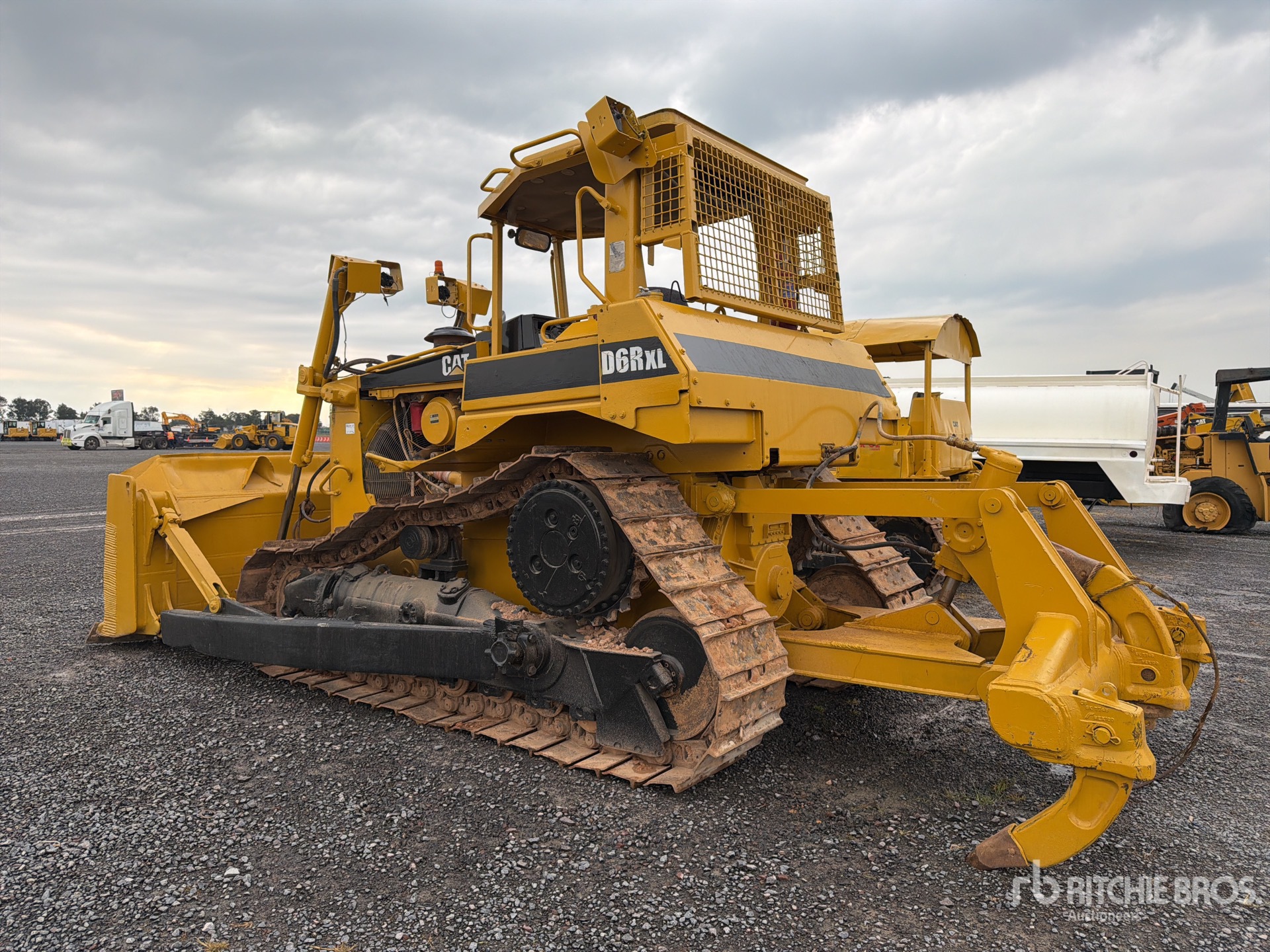

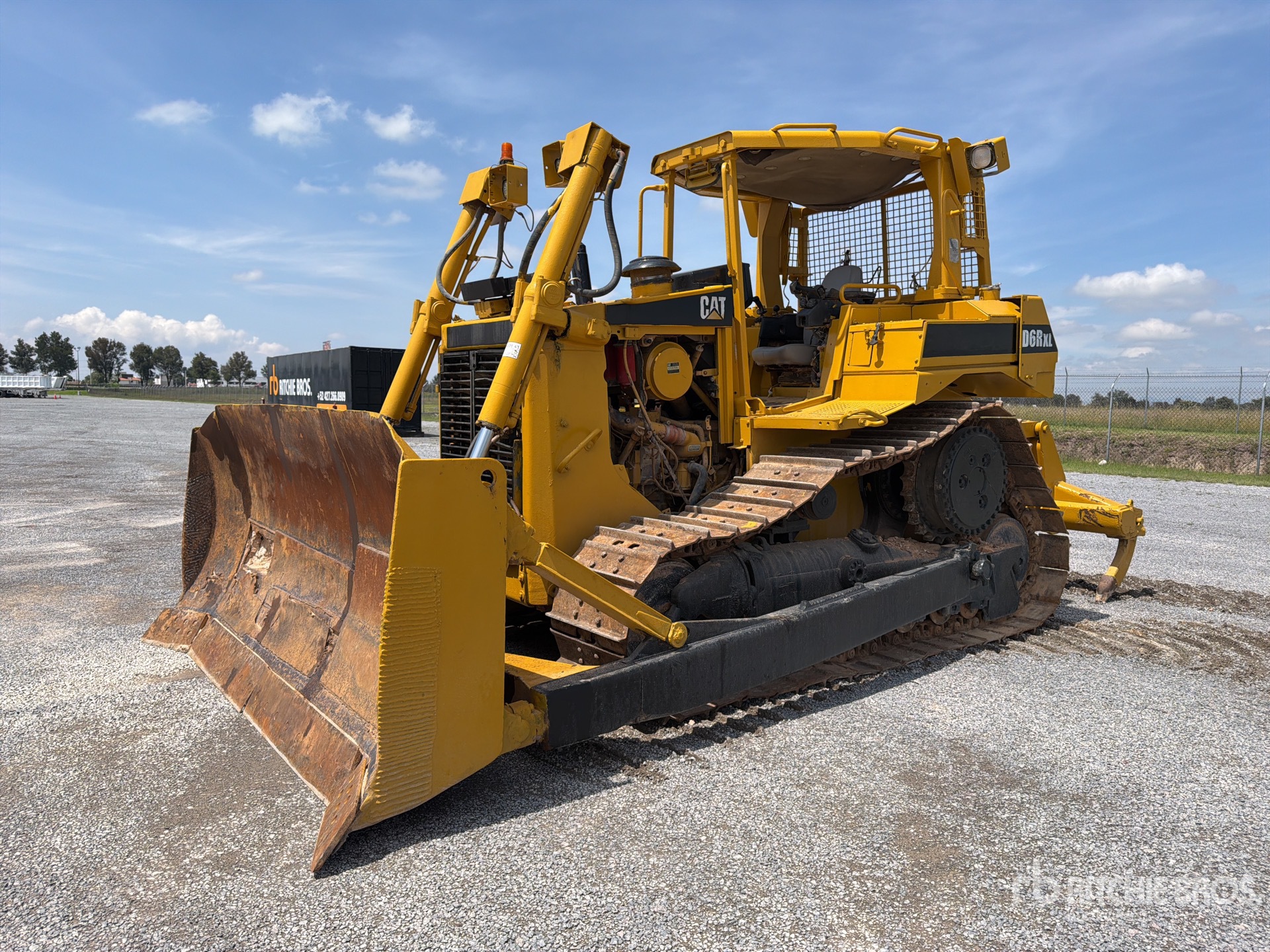

Located in Lane 25 Spot 3, Open Operator Station, 2005 US EPA Label, 124 in Wide Semi-U Blade w/ Single Tilt, 24 in Single Grouser Track Shoes, 1 Cylinder Multi-Shank Ripper, / Caseta, EPA 2005, Cuchilla Semi-U 124 in con Inclinacion Simple, Zapatas Simples 24 in, Riper Multi-Zanco con 1 Cilindro ; US-EPA-Certified US EPA Certified / Certificado con EPA / (US E-P-A Certified) Closing Time: 2026-10-09 10:27:54 AM


From the manufacturer:

Supplied by HeavyEquipmentData.com →


The Caterpillar D6R XL is a crawler dozer designed for grading, pushing, and site preparation in construction, mining, and land clearing applications. Built on Caterpillar's D6 platform, the XL configuration typically refers to a wider track gauge and longer undercarriage arrangement for improved stability and flotation in soft or uneven ground conditions. The machine is commonly equipped with a six-way blade, hydrostatic or powershift drivetrain depending on configuration, and a diesel engine sized for medium-duty earthmoving work. The D6R XL is used for dozing, ripping, backfilling, and finish grading, with service access and operator controls designed for productivity and maintenance efficiency.
Blades
A-Blade Width 12 ft (4 m)
Angle Straight Blade Width 14 ft (4 m)
Blade Type SU, A, PAT
Su - Blade Width 11 ft (3 m)
Dimensions
Ground Clearance 1 ft (0 m)
Height 8 ft (2 m)
Height 10 ft (3 m)
Height - Rops/Canopy 10 ft (3 m)
Height To Top Of Cab 10 ft (3 m)
Length 17 ft (5 m)
Length Of Track On Ground 9 ft (3 m)
Length W/ Blade 18 ft (5 m)
Length W/O Blade 13 ft (4 m)
Overall Length - Basic Tractor - With Drawbar 13 ft (4 m)
Overall Length - With Blade 225 in (572 cm)
Weight 43,600 lbs (19,777 kg)
Width 8 ft (2 m)
Width Over Tracks 8 ft (2 m)
Engine
Aspiration Turbocharged
Displacement 641 cu in (10,501 cu cm)
Engine Make 2,236
Engine Model 3306 T
Engine Model 3,306
Flywheel Power 175 hp (131 kw)
Flywheel Power - Power Shift 175 hp (131 kw)
Gross Power 189 hp (141 kw)
Maximum Flywheel Power 189 hp (141 kw)
Net Power 175 hp (131 kw)
Number Of Cylinders 6
Power Measured @ 1,900 rpm
Hydraulic System
Pump Flow Capacity 50 gpm (190 lpm)
Pump Type Piston
Relief Valve Pressure 2,800 psi
Operational
Alternator Supplied Amperage 70 amps
Cooling System Fluid Capacity 20 gal (74 l)
Engine Oil Capacity 7 gal (28 l)
Final Drives Fluid Capacity 4 gal (14 l)
Fuel Capacity 101 gal (383 l)
Hydraulic Fluid Capacity 20 gal (76 l)
Operating Voltage 24 V
Operating Weight 41,900 lbs (19,006 kg)
Powertrain Fluid Capacity 41 gal (155 l)
Ripper
Maximum Clearance Raised - Under Tip, Pinned In Bottom Hole 20 in (51 cm)
Maximum Penetration 20 in (50 cm)
Number Of Pockets 3
Overall Beam Width 87 in (220 cm)
Ripper Type Parallelogram
Service Refill Capacities
Cooling System 20 gal (74 l)
Engine Crankcase 7 gal (28 l)
Final Drive - Each 4 gal (14 l)
Fuel Tank 101 gal (383 l)
Hydraulic Tank 20 gal (76 l)
Power Train 41 gal (155 l)
Standard Blade
Capacity 7 cu yd
Cutting Depth 18 in (46 cm)
Height 56 in (141 cm)
Width 11 ft (3 m)
Transmission
1.0 Forward 3 mph (4 kph)
1.0 Reverse 3 mph (5 kph)
2.0 Forward 4 mph (7 kph)
2.0 Reverse 5 mph (9 kph)
3.0 Forward 7 mph (11 kph)
3.0 Reverse 9 mph (15 kph)
Max Speed - Forward 7 mph (12 kph)
Max Speed - Reverse 10 mph (15 kph)
Number Of Forward Gears 3
Number Of Reverse Gears 3
Transmission Type Power Shift
Undercarriage
Ground Clearance 1 ft (0 m)
Ground Contact Area 4888 in2
Ground Pressure 9 psi
Number Of Shoes Per Side 41
Number Of Track Rollers Per Side 7
Shoe Type Single grouser
Shoes/Side 41
Standard Shoe Size 22 in (56 cm)
Track Gauge 6 ft (2 m)
Track On Ground 9 in (23 cm)
Track Pitch 8 in (20 cm)
Track Rollers/Side 7
Width - Shoe 22 in (56 cm)
Weights
Operating Weight 42,300 lbs (19,187 kg)
Operating Weight - Power Psds 42,300 lbs (19,187 kg)
Operating Weight - Power Shift 41,900 lbs (19,006 kg)
Winch
Drum Diameter 10 in (26 cm)
Drum Width 10 in (25 cm)
Flange Diameter 13 in (33 cm)
Increased Tractor Length - Std 20 in (52 cm)
Oil Capacity 18 gal (67 l)
Weight* 2,502 lbs (1,135 kg)
Winch And Bracket Length 47 in (120 cm)
Winch Case - Width 38 in (98 cm)
