1994 Caterpillar D8N For Sale in Las Vegas, Nv

Name: 1994 Caterpillar D8N
Brand: Caterpillar
SKU: 89455877
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-11-24 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

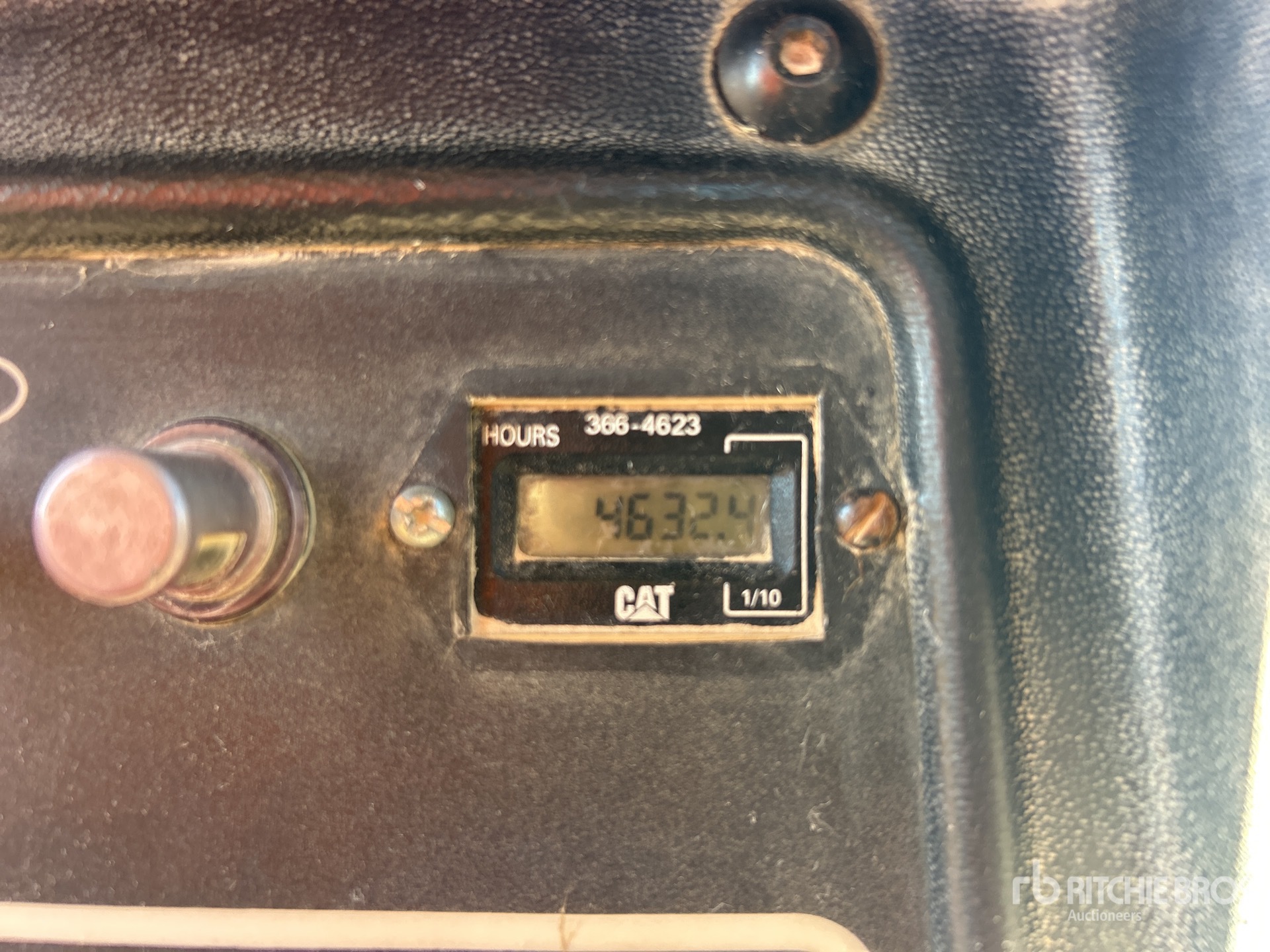

Hours:	4632

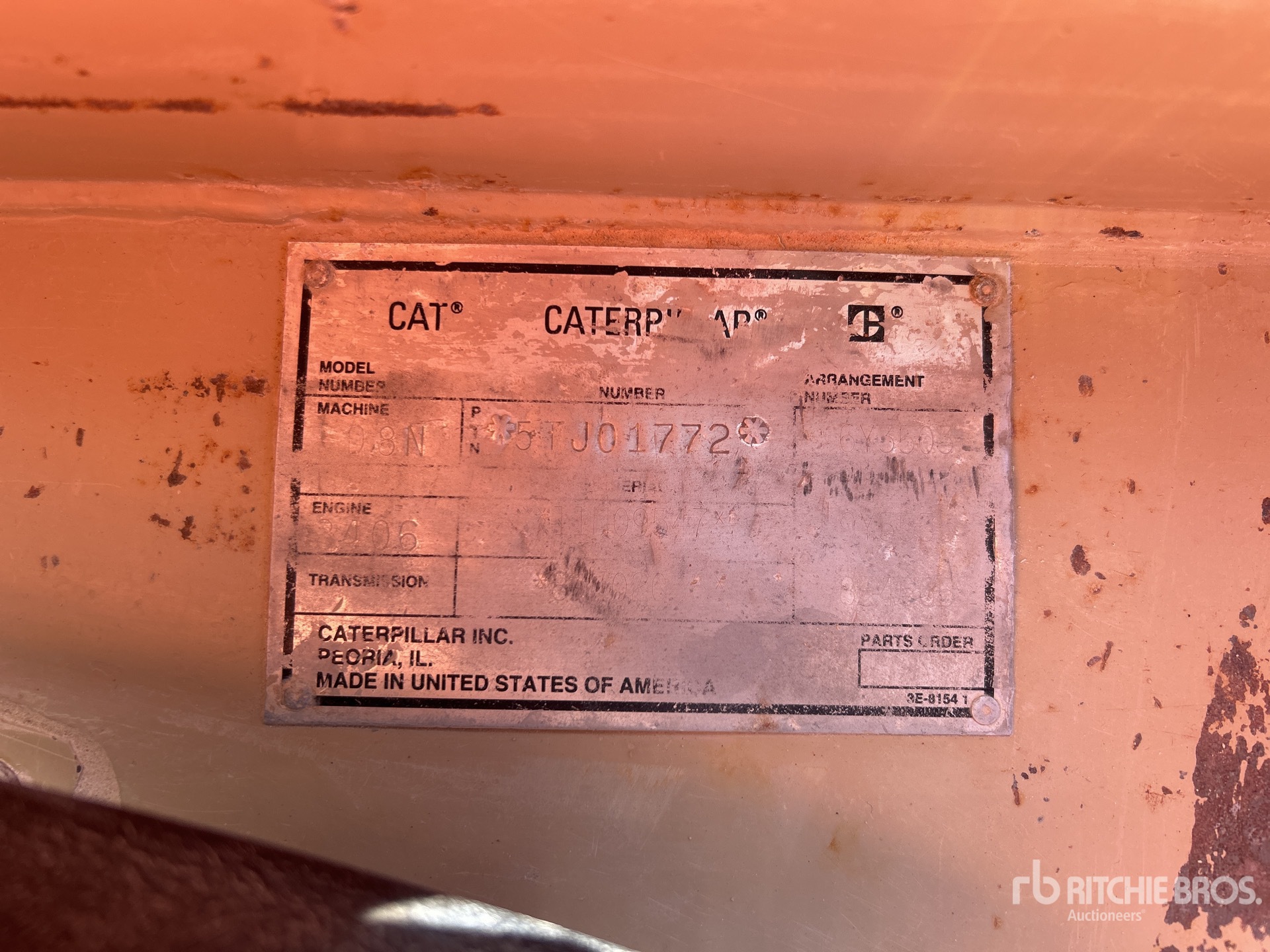

Serial Number:	5TJ01772
Machine Location:	LAS VEGAS, NV

Description:

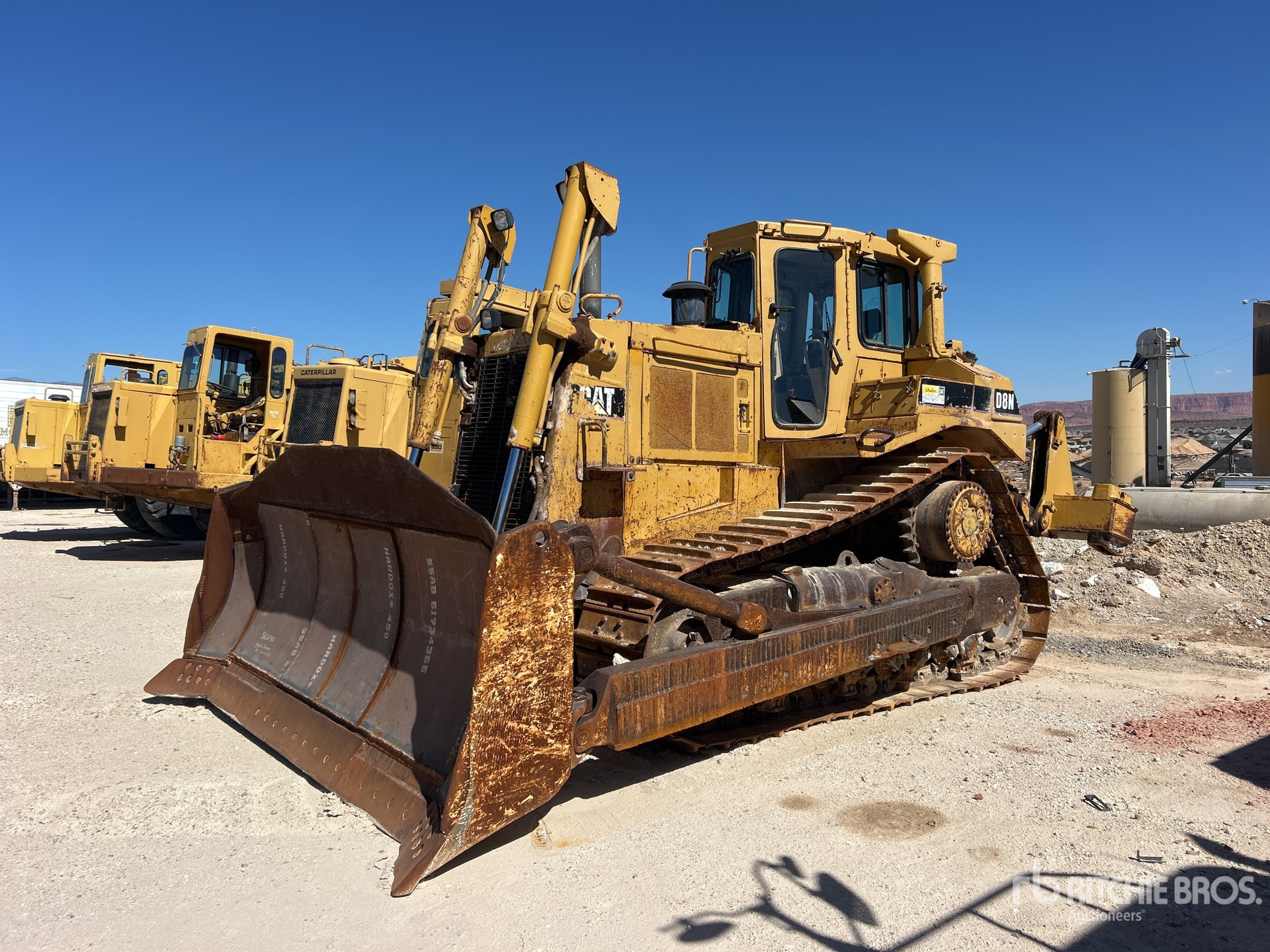

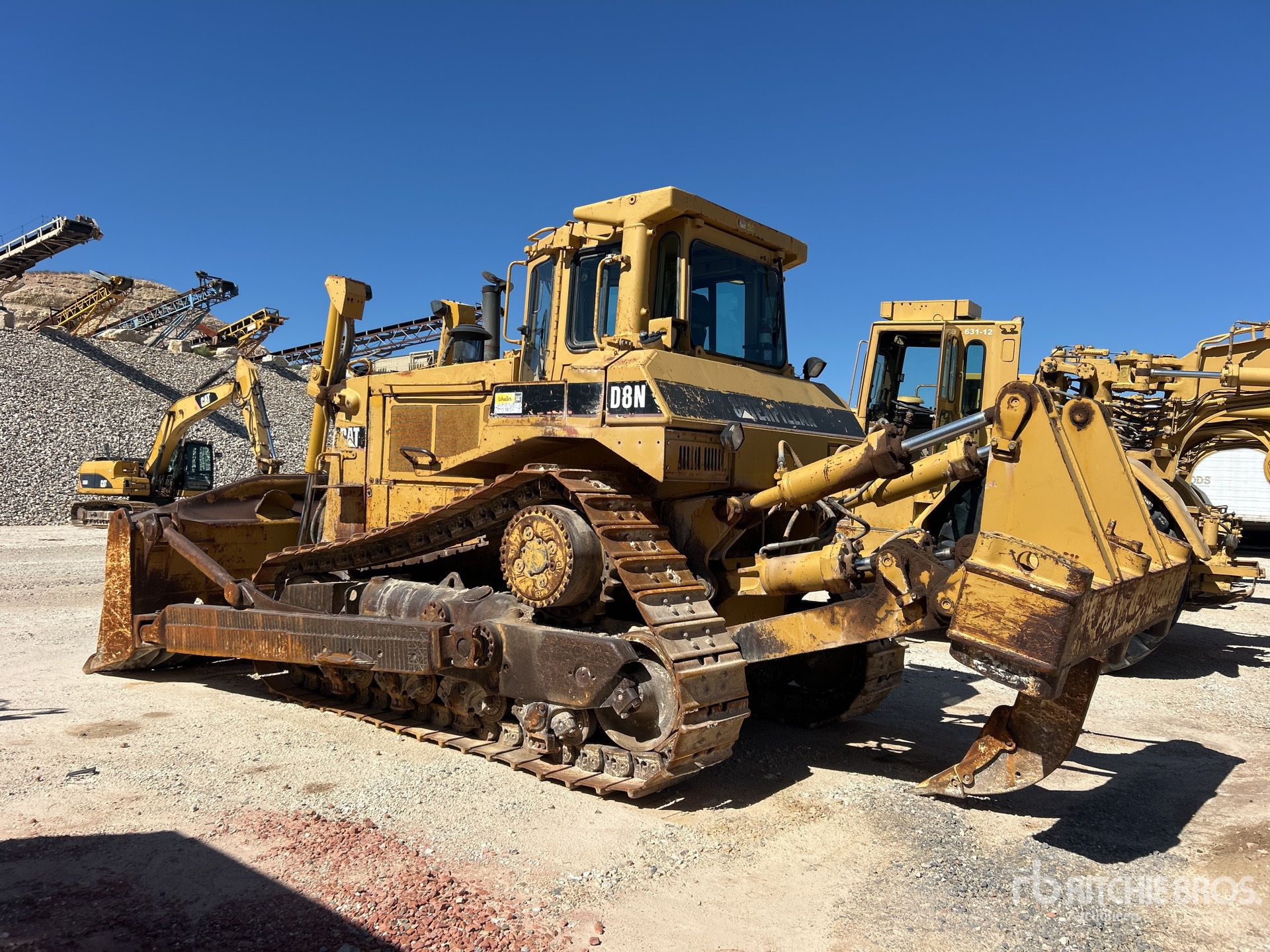

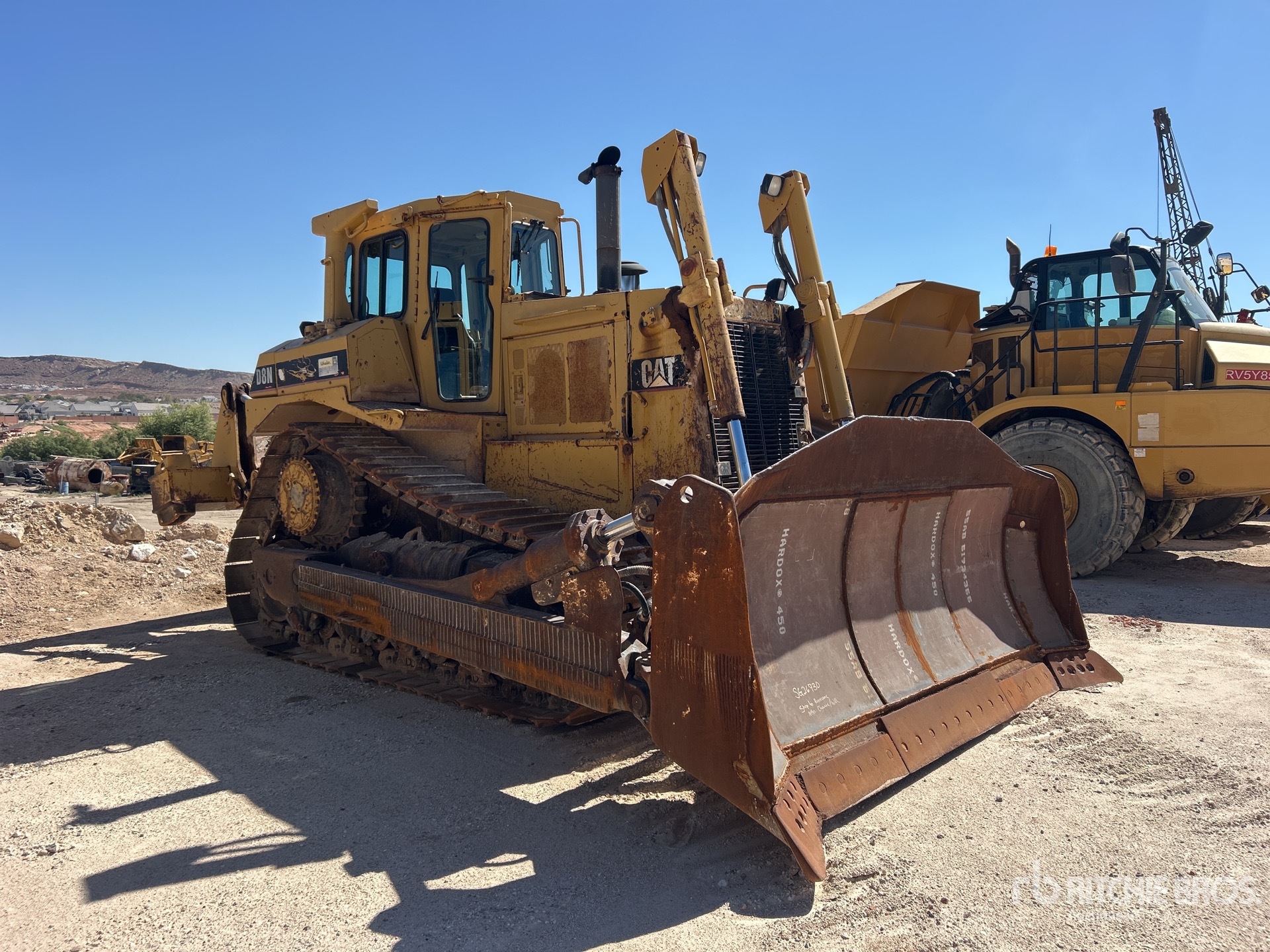

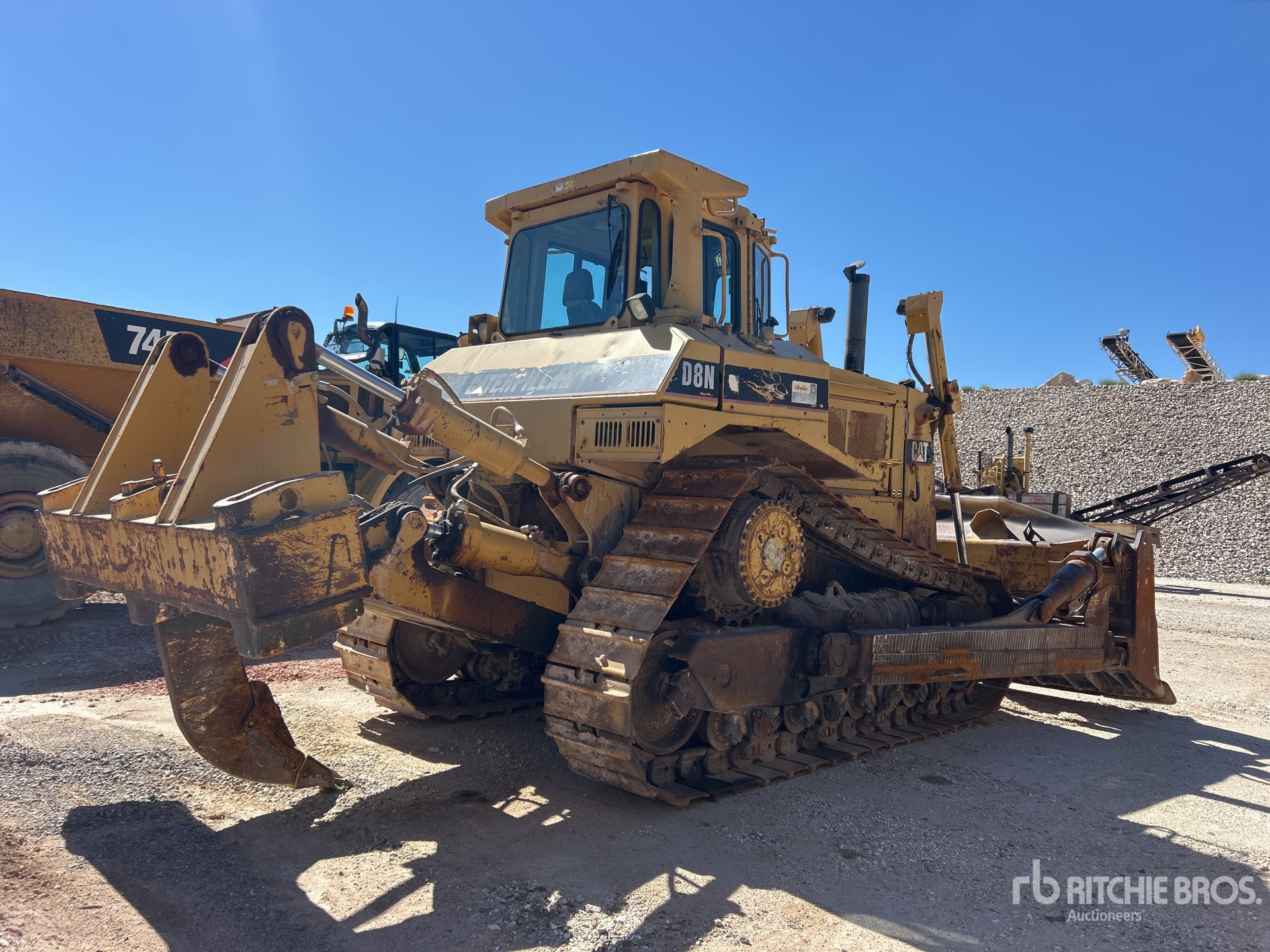

Enclosed Cab, 153 in Wide U-Blade w/ Single Tilt, 4 Cylinder Multi-Shank Ripper, 24 in Single Grouser Track Shoes, Equipment-from-Progressive-Contracting ; Closing Time: 2026-11-24 04:00:00 PM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Caterpillar D8N is a heavy crawler dozer designed for earthmoving, land clearing, and large-scale grading applications. Built by Caterpillar, the D8N is part of the D8 series and is commonly used in construction, mining, forestry, and site preparation. It features a tracked undercarriage for traction and stability on rough terrain, along with a large front blade for pushing and leveling material. The D8N is known for its durable frame, serviceability, and suitability for demanding dozing operations. As a crawler dozer, it is engineered for high drawbar pull, controlled blade work, and operation in challenging ground conditions.

Dimensions
Ground Clearance	2 ft (1 m)
Ground Clearance	2 ft (1 m)
Height	11 ft (3 m)
Height To Top Of Cab	11 ft (3 m)
Height To Top Of Cab	11 ft (3 m)
Length	21 ft (6 m)
Length Of Track On Ground	11 ft (3 m)
Length Of Track On Ground	11 ft (3 m)
Length W/ Blade	21 ft (6 m)
Length W/ Blade	20 ft (6 m)
Length W/O Blade	16 ft (5 m)
Length W/O Blade	16 ft (5 m)
Weight	83,000 lbs (37,648 kg)
Width	9 ft (3 m)
Width Over Tracks	9 ft (3 m)
Engine
Aspiration	turbocharged and aftercooled
Displacement	891 cu in (14,601 cu cm)
Displacement	891 cu in (14,601 cu cm)
Engine Make	2,236
Engine Make	2,236
Engine Model	3406C
Engine Model	3,406
Gross Power	306 hp (228 kw)
Gross Power	284 hp (212 kw)
Net Power	285 hp (213 kw)
Number Of Cylinders	6
Power Measured @	2,100 rpm
General Specifications
Approx. Machine Weight (Since 1987)	82,590 lbs (37,462 kg)
Approx. Machine Weight (1988)	82,590 lbs (37,462 kg)
Approx. Machine Weight (1989)	82,590 lbs (37,462 kg)
Approx. Machine Weight (1990)	82,590 lbs (37,462 kg)
Approx. Machine Weight (1991)	82,590 lbs (37,462 kg)
Approx. Machine Weight (1992)	82,590 lbs (37,462 kg)
Approx. Machine Weight (1993)	82,590 lbs (37,462 kg)
Approx. Machine Weight (1994)	82,590 lbs (37,462 kg)
Approx. Machine Weight (1995)	82,590 lbs (37,462 kg)
Flywheel / Drawbar Horsepower (Since 1993)	285/- hp
Flywheel / Drawbar Horsepower (1994)	285/- hp
Flywheel / Drawbar Horsepower (1995)	285/- hp
Flywheel Horsepower (Since 1993)	285 hp (213 kw)
Flywheel Horsepower (1994)	285 hp (213 kw)
Flywheel Horsepower (1995)	285 hp (213 kw)
Forward Speed - 1st (Since 1987)	2 mph (4 kph)
Forward Speed - 1st (1988)	2 mph (4 kph)
Forward Speed - 1st (1989)	2 mph (4 kph)
Forward Speed - 1st (1990)	2 mph (4 kph)
Forward Speed - 1st (1991)	2 mph (4 kph)
Forward Speed - 1st (1992)	2 mph (4 kph)
Forward Speed - 1st (1993)	2 mph (4 kph)
Forward Speed - 1st (1994)	2 mph (4 kph)
Forward Speed - 1st (1995)	2 mph (4 kph)
Forward Speed - 2nd (Since 1987)	4 mph (6 kph)
Forward Speed - 2nd (1988)	4 mph (6 kph)
Forward Speed - 2nd (1989)	4 mph (6 kph)
Forward Speed - 2nd (1990)	4 mph (6 kph)
Forward Speed - 2nd (1991)	4 mph (6 kph)
Forward Speed - 2nd (1992)	4 mph (6 kph)
Forward Speed - 2nd (1993)	4 mph (6 kph)
Forward Speed - 2nd (1994)	4 mph (6 kph)
Forward Speed - 2nd (1995)	4 mph (6 kph)
Forward Speed - 3rd (Since 1987)	7 mph (11 kph)
Forward Speed - 3rd (1988)	7 mph (11 kph)
Forward Speed - 3rd (1989)	7 mph (11 kph)
Forward Speed - 3rd (1990)	7 mph (11 kph)
Forward Speed - 3rd (1991)	7 mph (11 kph)
Forward Speed - 3rd (1992)	7 mph (11 kph)
Forward Speed - 3rd (1993)	7 mph (11 kph)
Forward Speed - 3rd (1994)	7 mph (11 kph)
Forward Speed - 3rd (1995)	7 mph (11 kph)
Horse- power FW/ Drawbar (Since 1987)	285,285 hp (212,741 kw)
Horse- power FW/ Drawbar (1988)	285,285 hp (212,741 kw)
Horse- power FW/ Drawbar (1989)	285,285 hp (212,741 kw)
Horse- power FW/ Drawbar (1990)	285,285 hp (212,741 kw)
Horse- power FW/ Drawbar (1991)	285,285 hp (212,741 kw)
Horse- power FW/ Drawbar (1992)	285,285 hp (212,741 kw)
Horse- power FW/ Drawbar (1993)	285,285 hp (212,741 kw)
Horse- power FW/ Drawbar (1994)	285,285 hp (212,741 kw)
Horse- power FW/ Drawbar (1995)	285,285 hp (212,741 kw)
Overall Height (Since 1987)	135 in (343 cm)
Overall Height (1988)	135 in (343 cm)
Overall Height (1989)	135 in (343 cm)
Overall Height (1990)	135 in (343 cm)
Overall Height (1991)	135 in (343 cm)
Overall Height (1992)	135 in (343 cm)
Overall Height (1993)	135 in (343 cm)
Overall Height (1994)	135 in (343 cm)
Overall Height (1995)	135 in (343 cm)
Overall Length (Since 1987)	195 in (495 cm)
Overall Length (1988)	195 in (495 cm)
Overall Length (1989)	195 in (495 cm)
Overall Length (1990)	195 in (495 cm)
Overall Length (1991)	195 in (495 cm)
Overall Length (1992)	195 in (495 cm)
Overall Length (1993)	195 in (495 cm)
Overall Length (1994)	195 in (495 cm)
Overall Length (1995)	195 in (495 cm)
Overall Width (Since 1987)	120 in (305 cm)
Overall Width (1988)	120 in (305 cm)
Overall Width (1989)	120 in (305 cm)
Overall Width (1990)	120 in (305 cm)
Overall Width (1991)	120 in (305 cm)
Overall Width (1992)	120 in (305 cm)
Overall Width (1993)	120 in (305 cm)
Overall Width (1994)	120 in (305 cm)
Overall Width (1995)	120 in (305 cm)
Product Identification Prefix (Since 1987)	9TC
Product Identification Prefix (1988)	9TC
Product Identification Prefix (1989)	9TC
Product Identification Prefix (1990)	9TC
Product Identification Prefix (1991)	9TC
Product Identification Prefix (Since 1992)	5TJ
Product Identification Prefix (Since 1992)	9TC
Product Identification Prefix (Since 1993)	5TJ
Product Identification Prefix (Since 1993)	7TK
Product Identification Prefix (Since 1994)	5TJ
Product Identification Prefix (Since 1994)	7TK
Product Identification Prefix (Since 1995)	5TJ
Product Identification Prefix (Since 1995)	7TK
Remarks (Since 1987)	Turbocharged, Sealed and Lubricated Track
Remarks (1988)	Turbocharged, Sealed and Lubricated Track
Remarks (1989)	Turbocharged, Sealed and Lubricated Track
Remarks (1990)	Turbocharged, Sealed and Lubricated Track
Remarks (1991)	Turbocharged, Sealed and Lubricated Track
Remarks (1992)	Turbocharged, Sealed and Lubricated Track
Remarks (1993)	Turbocharged, Sealed and Lubricated Track
Remarks (1994)	Turbocharged, Sealed and Lubricated Track
Remarks (1995)	Turbocharged, Sealed and Lubricated Track
Track Gauge (Since 1987)	82 in (208 cm)
Track Gauge (1988)	82 in (208 cm)
Track Gauge (1989)	82 in (208 cm)
Track Gauge (1990)	82 in (208 cm)
Track Gauge (1991)	82 in (208 cm)
Track Gauge (1992)	82 in (208 cm)
Track Gauge (1993)	82 in (208 cm)
Track Gauge (1994)	82 in (208 cm)
Track Gauge (1995)	82 in (208 cm)
Trans- mission (Since 1987)	PS
Trans- mission (1988)	PS
Trans- mission (1989)	PS
Trans- mission (1990)	PS
Trans- mission (1991)	PS
Trans- mission (1992)	PS
Trans- mission (1993)	PS
Trans- mission (1994)	PS
Trans- mission (1995)	PS
Years Built (Since 1987)	1,987 - 1,992
Years Built (1988)	1,987 - 1,992
Years Built (1989)	1,987 - 1,992
Years Built (1990)	1,987 - 1,992
Years Built (1991)	1,987 - 1,992
Years Built (Since 1992)	1,992 - 1,995
Years Built (Since 1992)	1,987 - 1,992
Years Built (Since 1993)	1,992 - 1,995
Years Built (Since 1993)	1,993 - 1,995
Years Built (Since 1994)	1,992 - 1,995
Years Built (Since 1994)	1,993 - 1,995
Years Built (Since 1995)	1,992 - 1,995
Years Built (Since 1995)	1,993 - 1,995
Hydraulic System
Pump Flow Capacity	64 gpm (240 lpm)
Relief Valve Pressure	3,500 psi
Operational
Alternator Supplied Amperage	50 amps
Cooling System Fluid Capacity	20 gal (74 l)
Engine Oil Capacity	10 gal (37 l)
Final Drives Fluid Capacity	4 gal (14 l)
Fuel Capacity	129 gal (488 l)
Fuel Capacity	127 gal (481 l)
Hydraulic Fluid Capacity	19 gal (70 l)
Operating Voltage	24 V
Operating Weight	82,590 lbs (37,462 kg)
Operating Weight	76,379 lbs (34,645 kg)
Powertrain Fluid Capacity	34 gal (129 l)
Standard Blade
Capacity	11 cu yd
Capacity	22 cu yd
Cutting Depth	23 in (58 cm)
Cutting Depth	23 in (58 cm)
Height	67 in (169 cm)
Height	89 in (226 cm)
Width	13 ft (4 m)
Width	13 ft (4 m)
Transmission
Max Speed - Forward	7 mph (11 kph)
Max Speed - Reverse	9 mph (14 kph)
Number Of Forward Gears	3
Number Of Forward Gears	3
Number Of Reverse Gears	3
Number Of Reverse Gears	3
Transmission Type	Planetary powershift
Transmission Type	powershift
Undercarriage
Ground Contact Area	5580.02 in2
Ground Contact Area	5580.02 in2
Ground Pressure	15 psi
Number Of Shoes Per Side	44
Number Of Track Rollers Per Side	8
Number Of Track Rollers Per Side	8
Standard Shoe Size	22 in (56 cm)
Standard Shoe Size	22 in (56 cm)
Track Gauge	7 ft (2 m)
Track Gauge	7 ft (2 m)
Track Pitch	9 in (22 cm)
