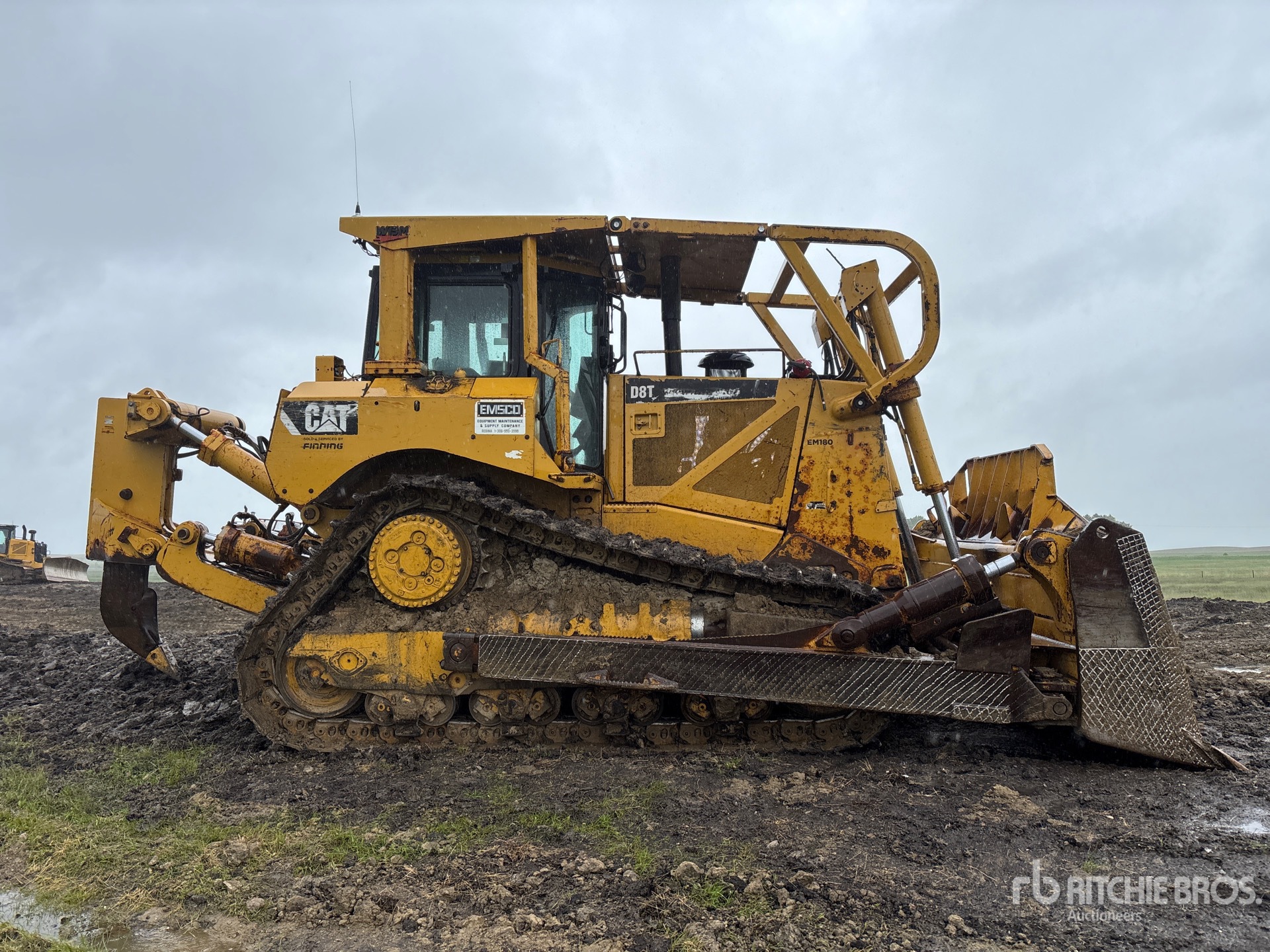

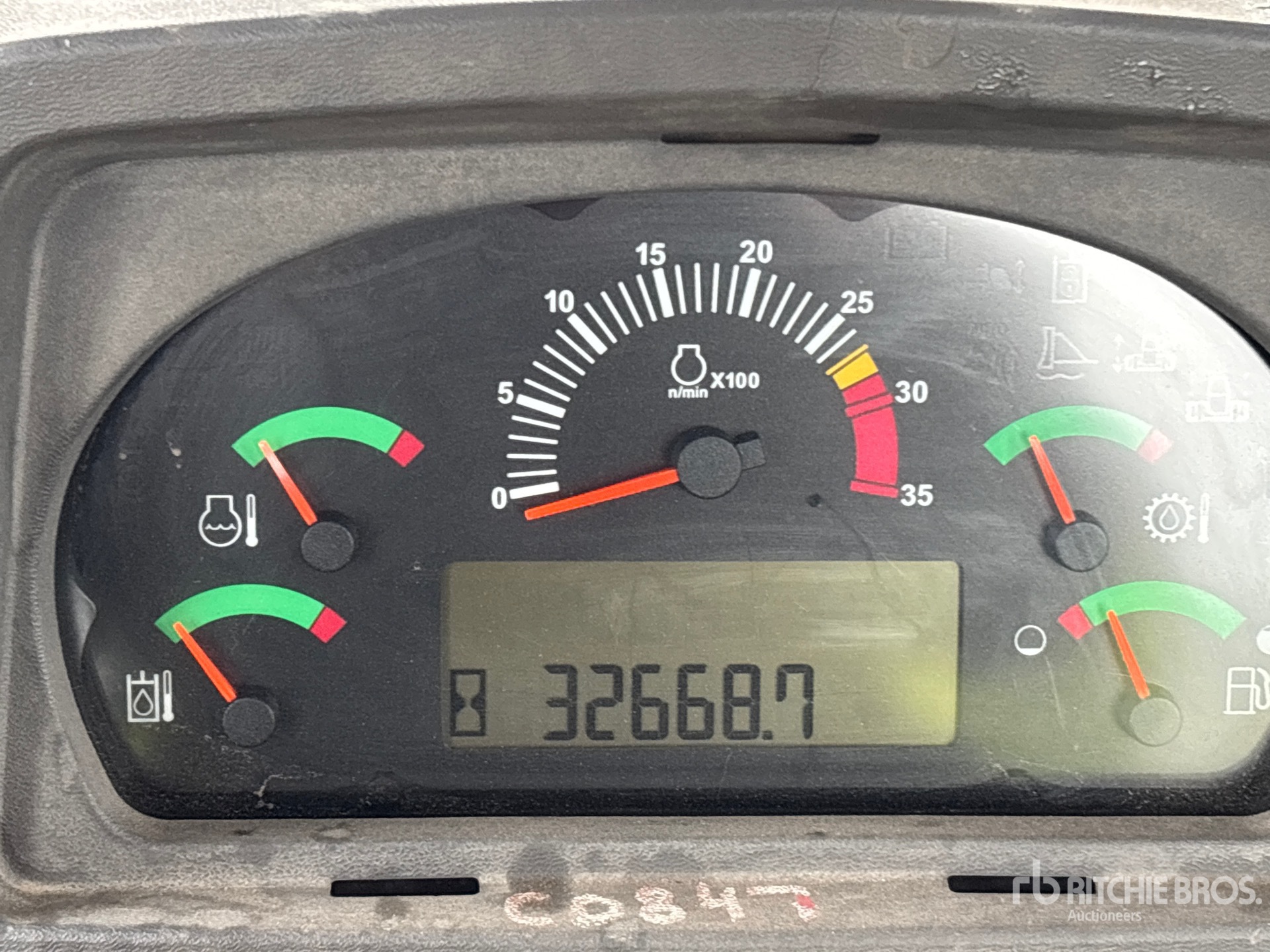

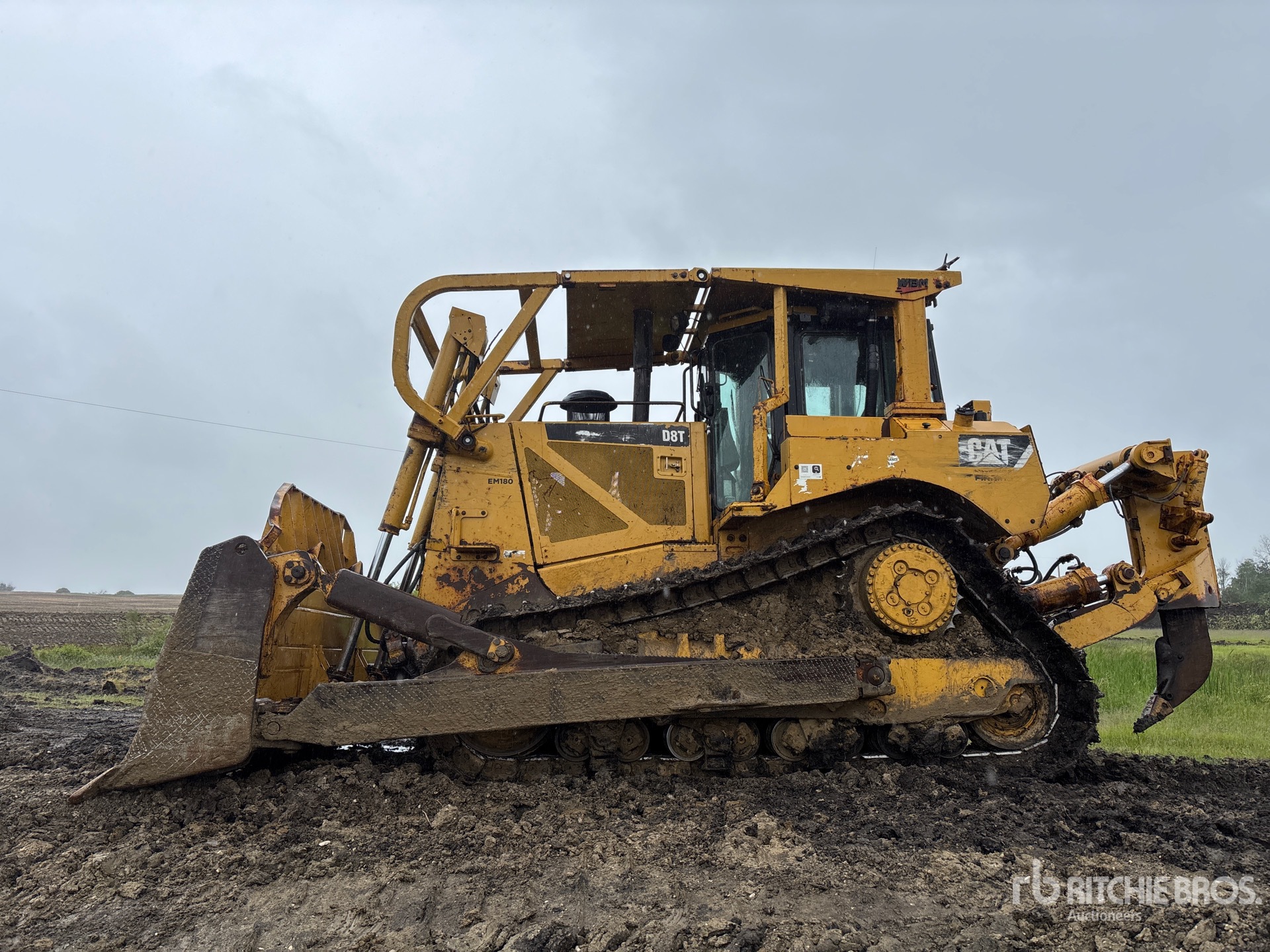

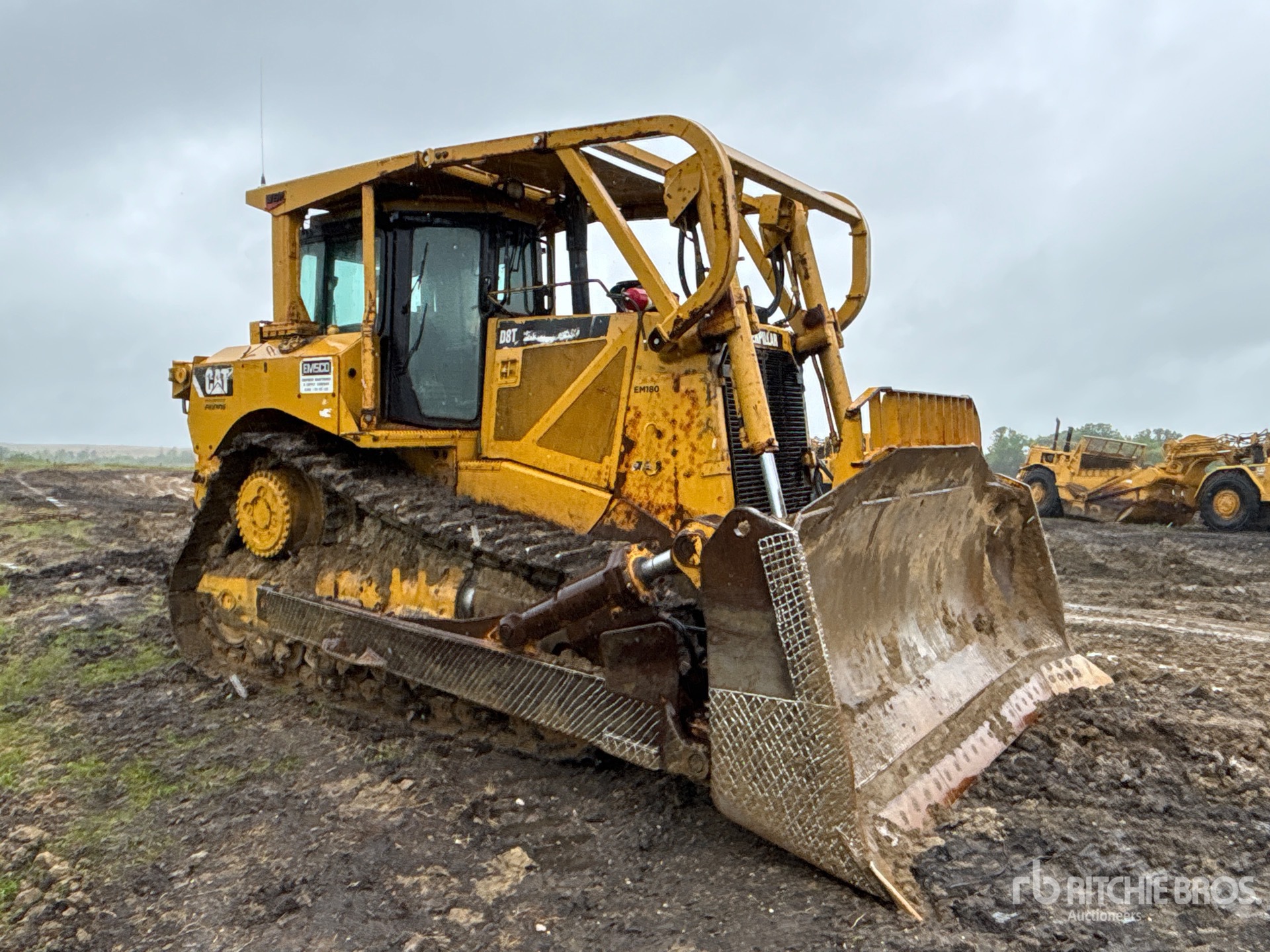

| Blades |
|
8a - Capacity - Sae J1265 |
7 cu yd |
|
8a - Width - Over End Bits |
17 ft (5 m)
|
|
8su - Capacity - Sae J1265 |
13 cu yd |
|
8su - Width - Over End Bits |
13 ft (4 m)
|
|
8su Lgp - Capacity - Sae J1265 |
13 cu yd |
|
8su Lgp - Width - Over End Bits |
15 ft (5 m)
|
|
8u - Capacity - Sae J1265 |
15 cu yd |
|
8u - Width - Over End Bits |
14 ft (4 m)
|
| Blades - 8a |
|
Capacity - Sae J1265 |
7 cu yd |
|
Digging Depth |
25 in (62 cm)
|
|
Ground Clearance |
52 in (132 cm)
|
|
Height |
4 ft (1 m)
|
|
Maximum Tilt |
29 in (73 cm)
|
|
Note (1) |
*Includes blade tilt cylinder. |
|
Note (2) |
**Operating Weight: Includes hydraulic controls, blade tilt cylinder, coolant, lubricants, 100% fuel, ROPS, FOPS cab, blade, single-shank ripper, 610 mm (24 in) MS shoes, and operator. |
|
Total Operating Weight** - With Blade And Single-Shank Ripper |
88,700 lbs (40,227 kg)
|
|
Weight* - Without Hydraulic Controls |
11,900 lbs (5,397 kg)
|
|
Width - Over End Bits |
17 ft (5 m)
|
| Dimensions |
|
Ground Clearance |
2 ft (1 m)
|
|
Height |
11 ft (3 m)
|
|
Height To Top Of Cab |
12 ft (4 m)
|
|
Length |
15 ft (5 m)
|
|
Length Of Track On Ground |
11 ft (3 m)
|
|
Length W/ Blade |
20 ft (6 m)
|
|
Length W/O Blade |
15 ft (5 m)
|
|
Weight |
87,733 lbs (39,795 kg)
|
|
Width |
11 ft (3 m)
|
|
Width Over Tracks |
9 ft (3 m)
|
| Dimensions - Lgp |
|
Ground Clearance |
2,401 in (6,099 cm)
|
|
Ground Pressure (Iso 16754) |
8 psi |
|
Length - Track On Ground |
126 in (321 cm)
|
|
Machine Height - Rops/Fops Cab |
140 in (357 cm)
|
|
Overall Length - Basic Tractor |
183 in (465 cm)
|
|
Width - Tractor - Without Trunnions - Standard Shoes |
130 in (330 cm)
|
| Dimensions - Non-Suspended |
|
Ground Clearance |
24 in (60 cm)
|
|
Ground Pressure (Iso 16754) |
13 psi |
|
Length - Track On Ground |
128 in (326 cm)
|
|
Machine Height - Rops/Fops Cab |
141 in (357 cm)
|
|
Overall Length - Basic Tractor |
183 in (465 cm)
|
|
Width - Tractor - Without Trunnions - Standard Shoes |
106 in (269 cm)
|
| Engine |
|
Displacement |
928 cu in (15,207 cu cm)
|
|
Engine Make |
2,236 |
|
Engine Model |
C15 ACERT |
|
Gross Power |
347 hp (259 kw)
|
|
Net Power |
310 hp (231 kw)
|
| General Specifications |
|
Engine Power (Since 2019)
|
354 hp (264 kw)
|
|
Engine Power (2020)
|
354 hp (264 kw)
|
|
Engine Power (2021)
|
354 hp (264 kw)
|
|
Engine Type (Since 2019)
|
Cat C15 ACERT |
|
Engine Type (2020)
|
Cat C15 ACERT |
|
Engine Type (2021)
|
Cat C15 ACERT |
|
Weight (Since 2019)
|
87,600 lbs (39,728 kg)
|
|
Weight (2020)
|
87,600 lbs (39,728 kg)
|
|
Weight (2021)
|
87,600 lbs (39,728 kg)
|
| Hydraulic System |
|
Pump Flow Capacity |
73 gpm (276 lpm)
|
|
Pump Type |
piston-type, variable displacement |
|
Relief Valve Pressure |
5,700 psi |
| Operational |
|
Alternator Supplied Amperage |
100 amps |
|
Cooling System Fluid Capacity |
20 gal (77 l)
|
|
Engine Oil Capacity |
10 gal (38 l)
|
|
Final Drives Fluid Capacity |
3 gal (12 l)
|
|
Fuel Capacity |
170 gal (643 l)
|
|
Hydraulic Fluid Capacity |
20 gal (75 l)
|
|
Operating Voltage |
24 V |
|
Operating Weight |
87,733 lbs (39,788 kg)
|
|
Powertrain Fluid Capacity |
41 gal (155 l)
|
| Standard Blade |
|
Capacity |
11 cu yd |
|
Cutting Depth |
23 in (57 cm)
|
|
Height |
65 in (165 cm)
|
|
Width |
13 ft (4 m)
|
| Transmission |
|
Max Speed - Forward |
7 mph (11 kph)
|
|
Max Speed - Reverse |
9 mph (14 kph)
|
|
Number Of Forward Gears |
3 |
|
Number Of Reverse Gears |
3 |
|
Transmission Type |
Hydrostatic |
| Undercarriage |
|
Ground Contact Area |
5554 in2 |
|
Number Of Carrier Rollers Per Side |
1 |
|
Number Of Shoes Per Side |
44 |
|
Number Of Track Rollers Per Side |
8 |
|
Standard Shoe Size |
24 in (61 cm)
|
|
Track Gauge |
7 ft (2 m)
|
|
Track Pitch |
9 in (22 cm)
|
| Undercarriage - Lgp |
|
Ground Clearance |
24 in (61 cm)
|
|
Ground Contact Area |
9593 in2 |
|
Ground Pressure (Iso 16754) |
8 psi |
|
Grouser Height |
3 in (8 cm)
|
|
Length - Track On Ground |
126 in (320 cm)
|
|
Pitch |
9 in (22 cm)
|
|
Shoe Type |
Moderate Service |
|
Shoes/Side |
44 |
|
Track Gauge |
92 in (234 cm)
|
|
Track Rollers - Each Side |
8 |
|
Width - Shoe |
38 in (97 cm)
|
| Weights |
|
Note (1) |
Operating Weight Standard: Includes hydraulic controls, blade, tilt cylinder, coolant, lubricants, 100% fuel, ROPS, FOPS cab, SU-Blade, Single-Shank Ripper, 610 mm (24 in) MS shoes, and operator. |
|
Note (2) |
Operating Weight LGP: Includes hydraulic controls, blade, tilt cylinder, drawbar, coolant, lubricants, 100% fuel, ROPS, FOPS cab, SU-Blade, 965 mm (38 in) MS shoes, and operator. |
|
Note (3) |
Shipping Weight Standard: Includes coolant, lubricants, 20% fuel, ROPS, FOPS cab, and 610 mm (24 in) MS shoes. |
|
Note (4) |
Shipping Weight LGP: Includes coolant, lubricants, 20% fuel, ROPS, FOPS cab, and 965 mm (38 in) MS shoes. |
|
Operating Weight |
86,900 lbs (39,410 kg)
|
|
Operating Weight - Lgp |
82,496 lbs (37,413 kg)
|
|
Operating Weight - Standard |
87,600 lbs (39,728 kg)
|
|
Shipping Weight - Lgp |
68,700 lbs (31,156 kg)
|
|
Shipping Weight - Standard Su Blade |
66,300 lbs (30,068 kg)
|
| Weights - Waste Handler |
|
Note (1) |
Operating Weight Standard: Includes hydraulic controls, blade, tilt cylinder, coolant, lubricants, 100% fuel, ROPS, FOPS cab, Waste SU-Blade, striker box, 610 mm (24 in) MS shoes, and operator. |
|
Note (2) |
Operating Weight LGP: Includes hydraulic controls, blade, tilt cylinder, drawbar, coolant, lubricants, 100% fuel, ROPS, FOPS cab, Waste SU-Blade, 965 mm (38 in) MS shoes, striker box, and operator. |
|
Note (3) |
Shipping Weight Standard: Includes coolant, lubricants, 20% fuel, ROPS, FOPS cab, striker box, and 610 mm (24 in) MS shoes. |
|
Note (4) |
Shipping Weight LGP: Includes coolant, lubricants, 20% fuel, ROPS, FOPS cab, striker box, and 965 mm (38 in) MS shoes. |
|
Operating Weight - Lgp |
92,300 lbs (41,859 kg)
|
|
Operating Weight - Standard |
87,400 lbs (39,637 kg)
|
|
Shipping Weight - Lgp |
77,900 lbs (35,329 kg)
|
|
Shipping Weight - Standard |
73,400 lbs (33,288 kg)
|
