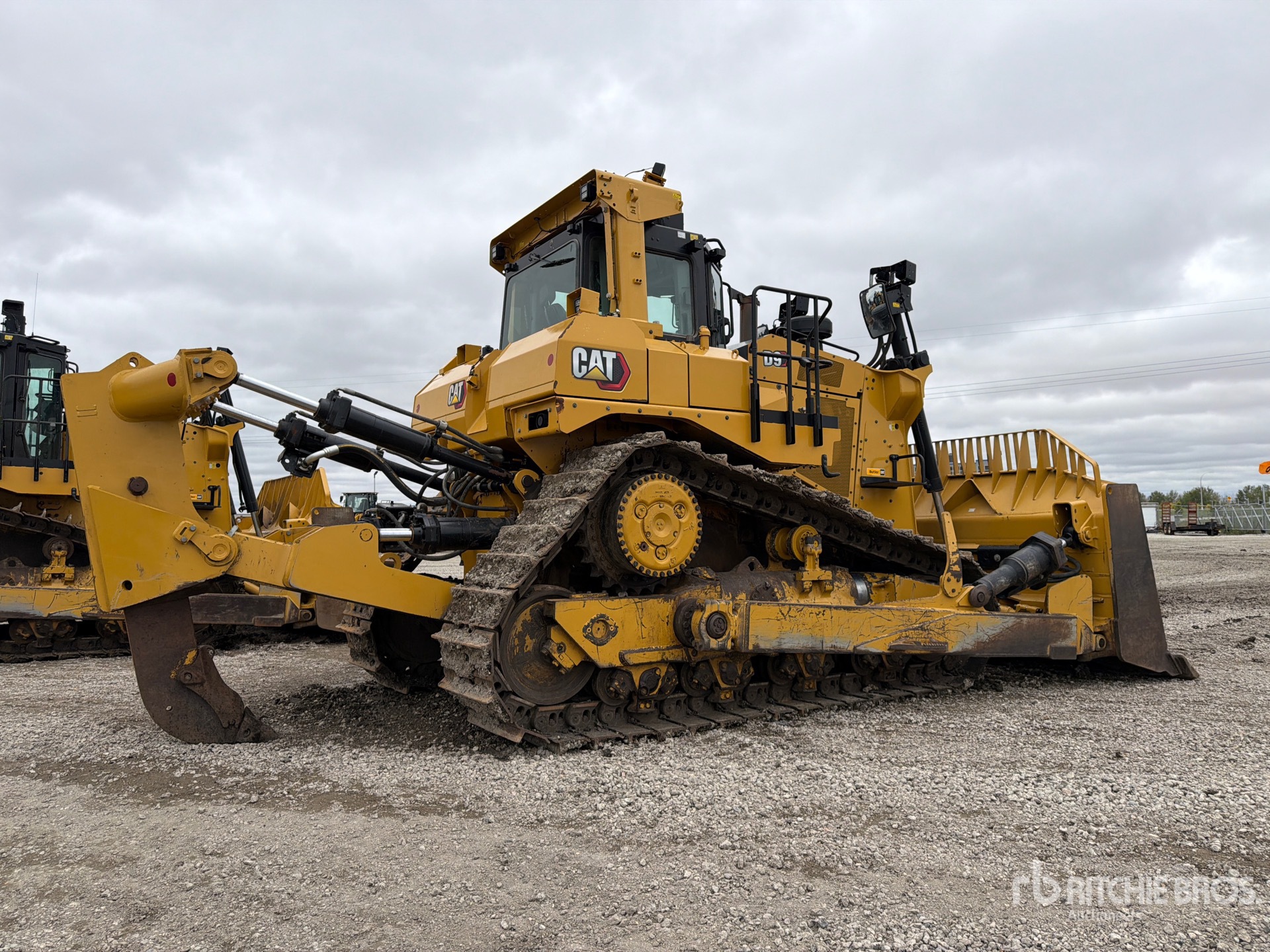

| Air Conditioning System |
|
Air Conditioning (Since 2026)
|
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430) the system contains 2.1 kg of refrigerant which has a CO2 equivalent of 3.003 metric tonnes. |

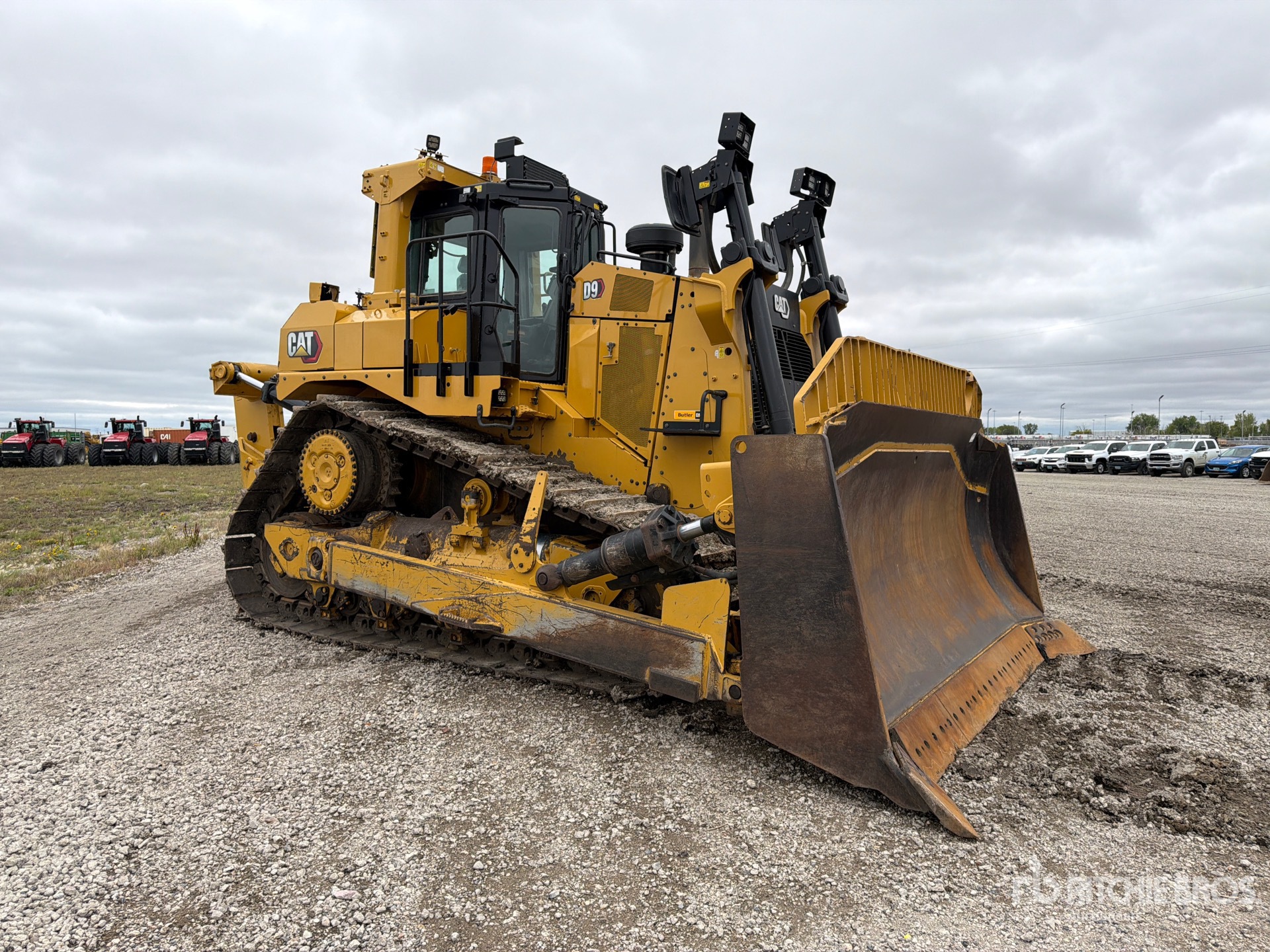

| Blade - Semi-Universal |
|
Blade Capacity (SAE J1265) (Since 2026)
|
18 cu yd |
|
Blade Height (Since 2026)
|
76 in (193 cm)
|
|
Blade Weight (Since 2026)
|
10,587 lbs (4,802 kg)
|
|
Blade Width (over end bits) (Since 2026)
|
171 in (435 cm)
|
|
Ground Clearance at Full Lift (Since 2026)
|
56 in (142 cm)
|
|
Maximum Digging Depth (Since 2026)
|
24 in (61 cm)
|
|
Maximum Tilt (Since 2026)
|
37 in (94 cm)
|
|
Total Operating Weight* (with blade and single-shank ripper) (Since 2026)
|
110,205 lbs (49,988 kg)
|
| Blade - Universal |
|
Blade Capacity (SAE J1265) (Since 2026)
|
22 cu yd |
|
Blade Height (Since 2026)
|
76 in (193 cm)
|
|
Blade Weight (Since 2026)
|
12,016 lbs (5,450 kg)
|
|
Blade Width (over end bits) (Since 2026)
|
184 in (468 cm)
|
|
Ground Clearance at Full Lift (Since 2026)
|
56 in (142 cm)
|
|
Maximum Digging Depth (Since 2026)
|
24 in (61 cm)
|
|
Maximum Tilt (Since 2026)
|
40 in (101 cm)
|
|
Total Operating Weight* (with blade and single-shank ripper) (Since 2026)
|
111,362 lbs (50,513 kg)
|

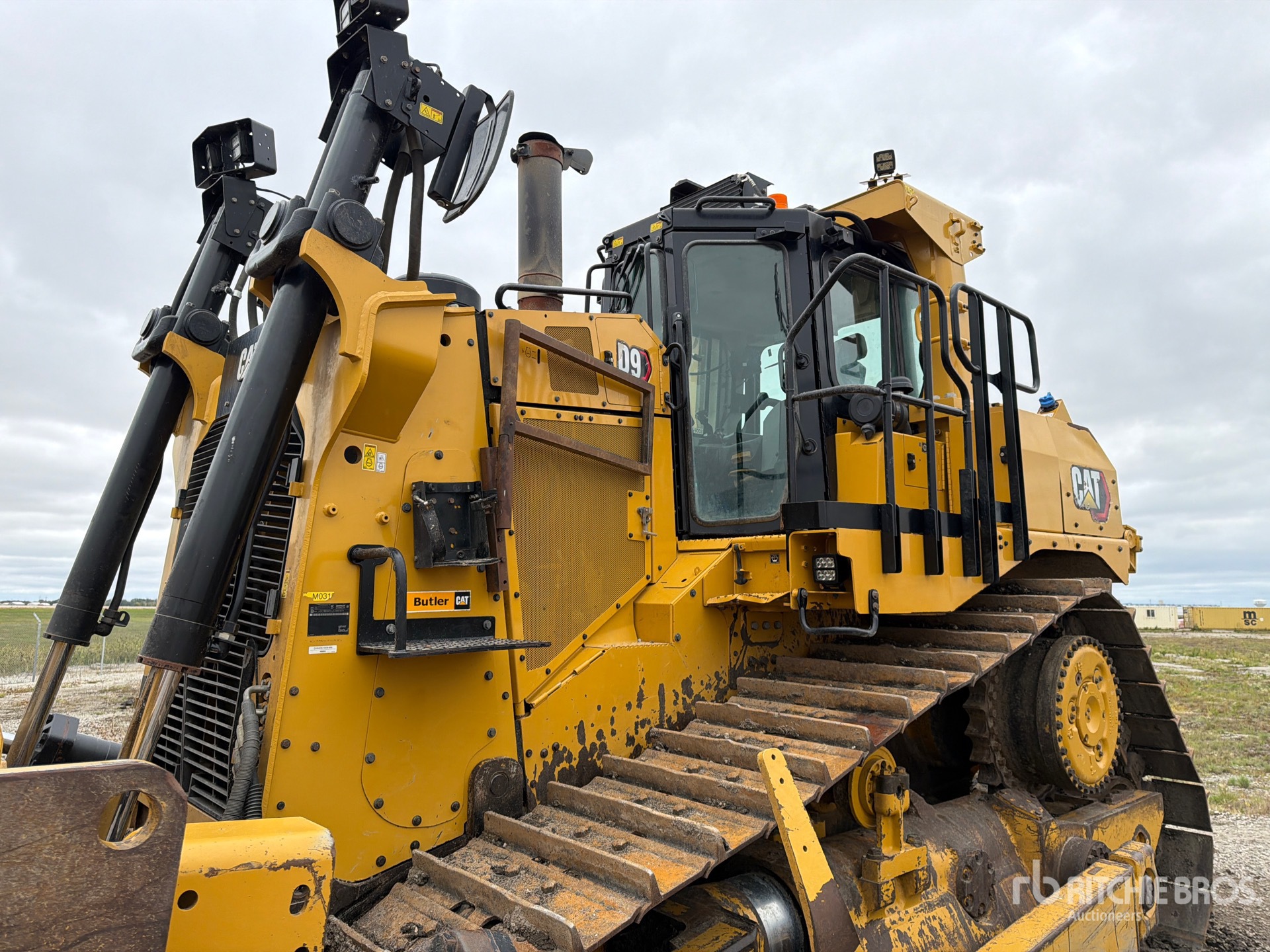

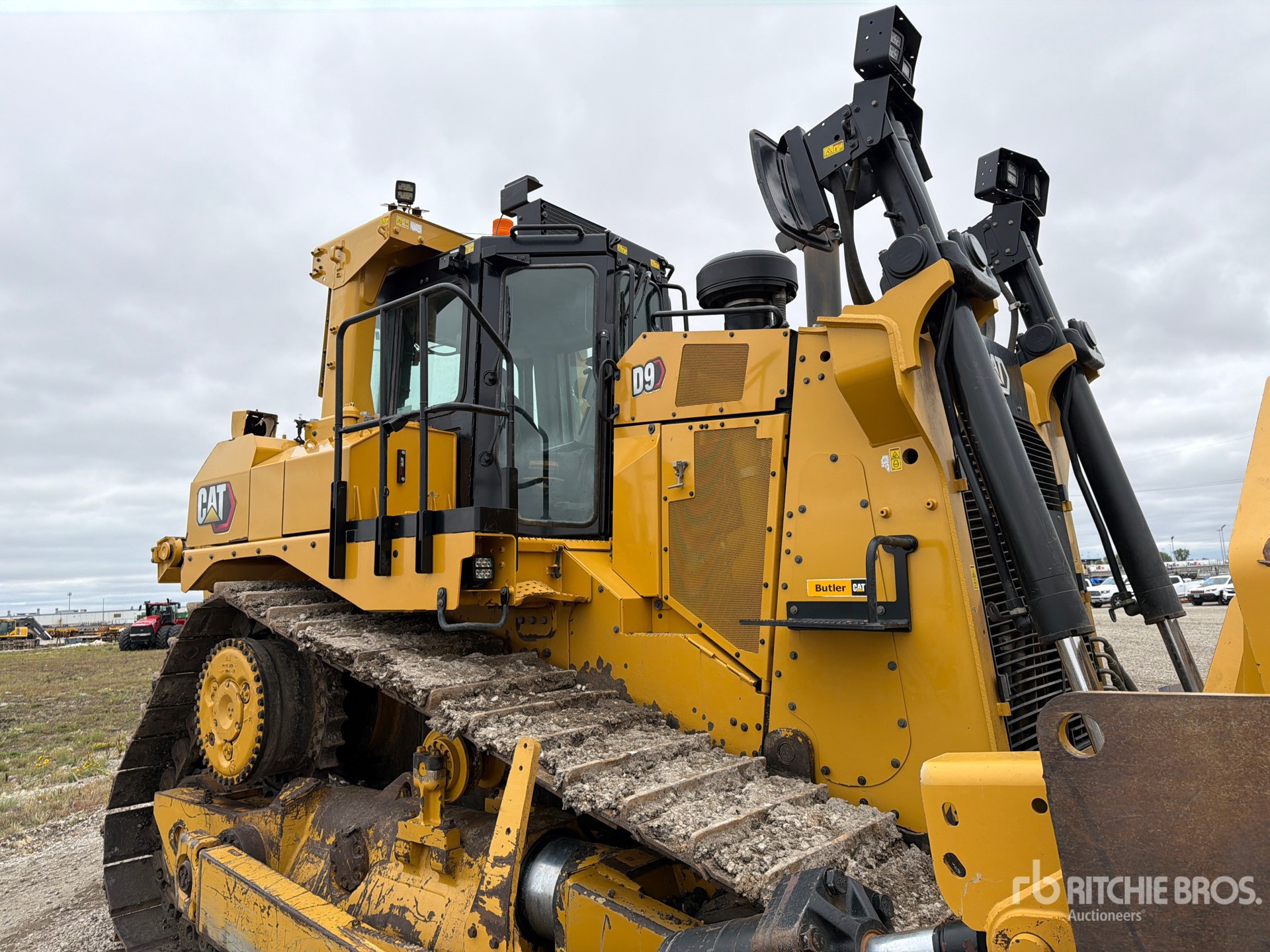

| Dimensions |
|
Height |
13 ft (4 m)
|
|
Length |
27 ft (8 m)
|
|
Weight |
110,225 lbs (49,997 kg)
|
|
Width |
9 ft (3 m)
|
| Dimensions (Approximate) |
|
Drawbar Height (Center of Clevis)* (Since 2026)
|
30 in (76 cm)
|
|
Ground Clearance* (Since 2026)
|
18 in (46 cm)
|
|
Height - FOPS Cab* (Since 2026)
|
150 in (382 cm)
|
|
Height - ROPS/Canopy* (Since 2026)
|
158 in (400 cm)
|
|
Height - Top of Stack* (Since 2026)
|
153 in (388 cm)
|
|
Length - Basic Tractor - With Drawbar (Since 2026)
|
206 in (524 cm)
|
|
Length - Basic Tractor - With Winch (Since 2026)
|
218 in (554 cm)
|
|
Length - Track on Ground (Since 2026)
|
137 in (347 cm)
|
|
Length - With Multi-Shank Ripper (Since 2026)
|
257 in (654 cm)
|
|
Length - With Single-Shank Ripper (Since 2026)
|
257 in (653 cm)
|
|
Length - With SU-Blade** (Since 2026)
|
260 in (660 cm)
|
|
Length - With U-Blade (Since 2026)
|
274 in (697 cm)
|
|
Overall Length - Basic Tractor (Since 2026)
|
193 in (491 cm)
|
|
Overall Length - SU-Blade/SS Ripper (Since 2026)
|
324 in (822 cm)
|
|
Track Gauge (Since 2026)
|
89 in (225 cm)
|
|
Width - Over Trunnions (Since 2026)
|
130 in (331 cm)
|
|
Width - Without Trunnions - Standard Shoe (Since 2026)
|
113 in (287 cm)
|
| Engine - U.s. Epa Tier 2/3 Equivalent |
|
Bore (Since 2026)
|
6 cu in (93 cu cm)
|
|
Displacement (Since 2026)
|
1,106 cu in (18,124 cu cm)
|
|
Emissions (Since 2026)
|
U.S. EPA Tier 2 or Tier 3 equivalent |
|
Engine Model (Since 2026)
|
Cat® C18 |
|
Engine Power - Gross SAE J1995 (Since 2026)
|
487 hp (363 kw)
|
|
Engine Power - ISO 14396 (Since 2026)
|
479 hp (357 kw)
|
|
Engine Power - Net SAE J1349/ISO 9249 (Since 2026)
|
452 hp (337 kw)
|
|
Stroke (Since 2026)
|
7 in (18 cm)
|
| Engine - U.s. Epa Tier 4 Final/Eu Stage V |
|
Bore (Since 2026)
|
6 cu in (93 cu cm)
|
|
Displacement (Since 2026)
|
1,106 cu in (18,124 cu cm)
|
|
Emissions (Since 2026)
|
U.S. EPA Tier 4 / EU Stage V |
|
Engine Model (Since 2026)
|
Cat® C18 |
|
Engine Power - Gross SAE J1995 (Since 2026)
|
477 hp (356 kw)
|
|
Engine Power - ISO 14396 (Since 2026)
|
468 hp (349 kw)
|
|
Engine Power - Net SAE J1349/ISO 9249 (Since 2026)
|
440 hp (328 kw)
|
|
Stroke (Since 2026)
|
7 cu in (118 cu cm)
|

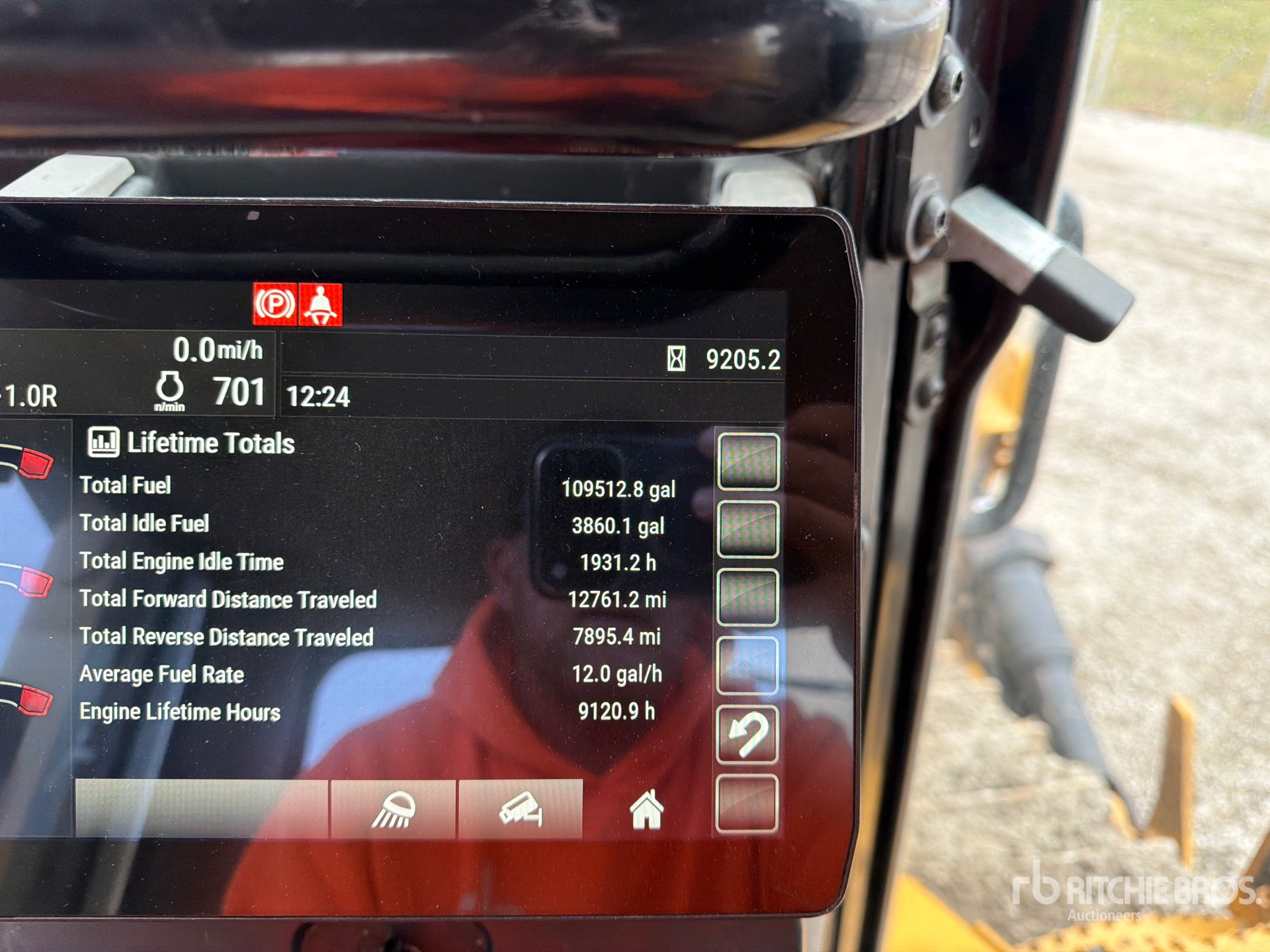

| Fluid Capacities |
|
Cooling System (Since 2026)
|
21 gal (79 l)
|
|
DEF Tank (Tier 4 only) (Since 2026)
|
10 gal (36 l)
|
|
Engine Crankcase* (Since 2026)
|
10 gal (38 l)
|
|
Final Drives (each) (Since 2026)
|
4 gal (15 l)
|
|
Fuel Tank (Fast Fill) (Since 2026)
|
248 gal (939 l)
|
|
Fuel Tank (Splash Fill) (Since 2026)
|
254 gal (961 l)
|
|
Hydraulic System Tank (Since 2026)
|
24 gal (91 l)
|
|
Note 2 (Since 2026)
|
Biodiesel blends up to B20 (20% blend by volume) are acceptable when blended with 15 ppm (mg/kg) sulfur or less ULSD. B20 should meet ASTM D7467 specification (biodiesel blend stock should meet Cat biodiesel spec, ASTM D6751 or EN 14214). Cat DEO-ULSTM or oils that meet the Cat ECF-3, API CJ-4, and ACEA E9 specification are required. Consult your OMM for further machine specific fuel recommendations. |
|
Note 3 (Since 2026)
|
All non-road Tier 4 Final diesel engines are required to use only ultra-low sulfur diesel (ULSD) fuels containing 15 ppm (mg/kg) sulfur or less. |
|
Note 4 (Since 2026)
|
Diesel Exhaust Fluid (DEF) used in Cat Selective Catalytic Reduction (SCR) systems must meet the requirements outlined in the International Organization for Standardization (ISO) standard 22241. |
|
Pivot Shaft Oil (Since 2026)
|
8 gal (30 l)
|
|
Powertrain (Since 2026)
|
40 gal (151 l)
|
|
Roller Frames (each) (Since 2026)
|
12 gal (45 l)
|

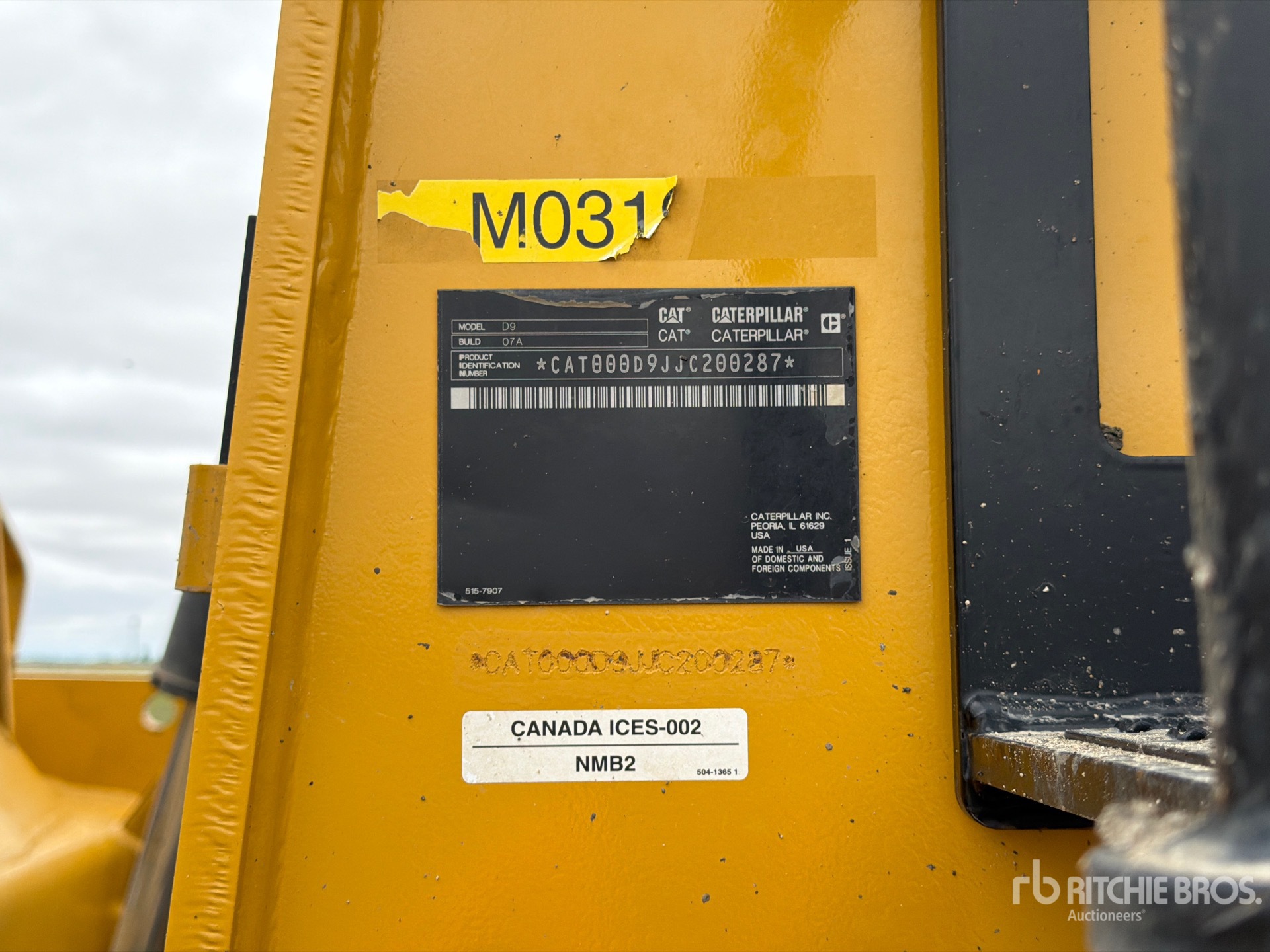

| General Specifications |
|
Engine Power (Since 2022)
|
452 hp (337 kw)
|
|
Engine Power (2023)
|
452 hp (337 kw)
|
|
Engine Power (2024)
|
452 hp (337 kw)
|
|
Engine Power (2025)
|
452 hp (337 kw)
|
|
Engine Type (Since 2022)
|
Cat C18 |
|
Engine Type (2023)
|
Cat C18 |
|
Engine Type (2024)
|
Cat C18 |
|
Engine Type (2025)
|
Cat C18 |
|
Weight (Since 2022)
|
110,225 lbs (49,997 kg)
|
|
Weight (2023)
|
110,225 lbs (49,997 kg)
|
|
Weight (2024)
|
110,225 lbs (49,997 kg)
|
|
Weight (2025)
|
110,225 lbs (49,997 kg)
|
| Hydraulic Controls |
|
Fan Pump (Since 2026)
|
21 gpm (79 lpm)
|
|
Lift Cylinder Relief Valve Setting (Since 2026)
|
3800 lbf/in |
|
Pump Output - Steering (Since 2026)
|
96 gpm (363 lpm)
|
|
Pump Type (Since 2026)
|
Piston-type geared to flywheel |
|
Ripper - Lift - Relief Valve Setting (Since 2026)
|
3,800 psi |
|
Ripper - Pitch - Relief Valve Setting (Since 2026)
|
3,800 psi |
|
Steering System - Pressure (Since 2026)
|
5,874 psi |
|
Tank Capacity (Since 2026)
|
24 gpm (91 lpm)
|
|
Tilt Cylinder Flow - Head End Flow (Since 2026)
|
53 gpm (201 lpm)
|
|
Tilt Cylinder Flow - Rod End Flow (Since 2026)
|
53 gpm (201 lpm)
|
|
Tilt Cylinder Relief Valve Setting (Since 2026)
|
2,799 psi |
| Ripper - Multi-Shank, Adjustable Parallelogram |
|
Maximum Clearance Raised - Under Tip, Pinned in Bottom Hole (Since 2026)
|
35 in (88 cm)
|
|
Maximum Penetration - Standard Tip (Since 2026)
|
31 in (80 cm)
|
|
Maximum Penetration Force - Shank Vertical (Since 2026)
|
34,621 lbs ft (46,939 nm)
|
|
Number of Pockets (Since 2026)
|
3 |
|
Pry-Out Force - Multi-Shank Ripper with One Tooth (Since 2026)
|
81,156 lbs ft (110,031 nm)
|
|
Total Operating Weight* - With SU-Blade and Ripper (Since 2026)
|
111,739 lbs (50,684 kg)
|
|
Weight (Since 2026)
|
12,136 lbs (5,505 kg)
|

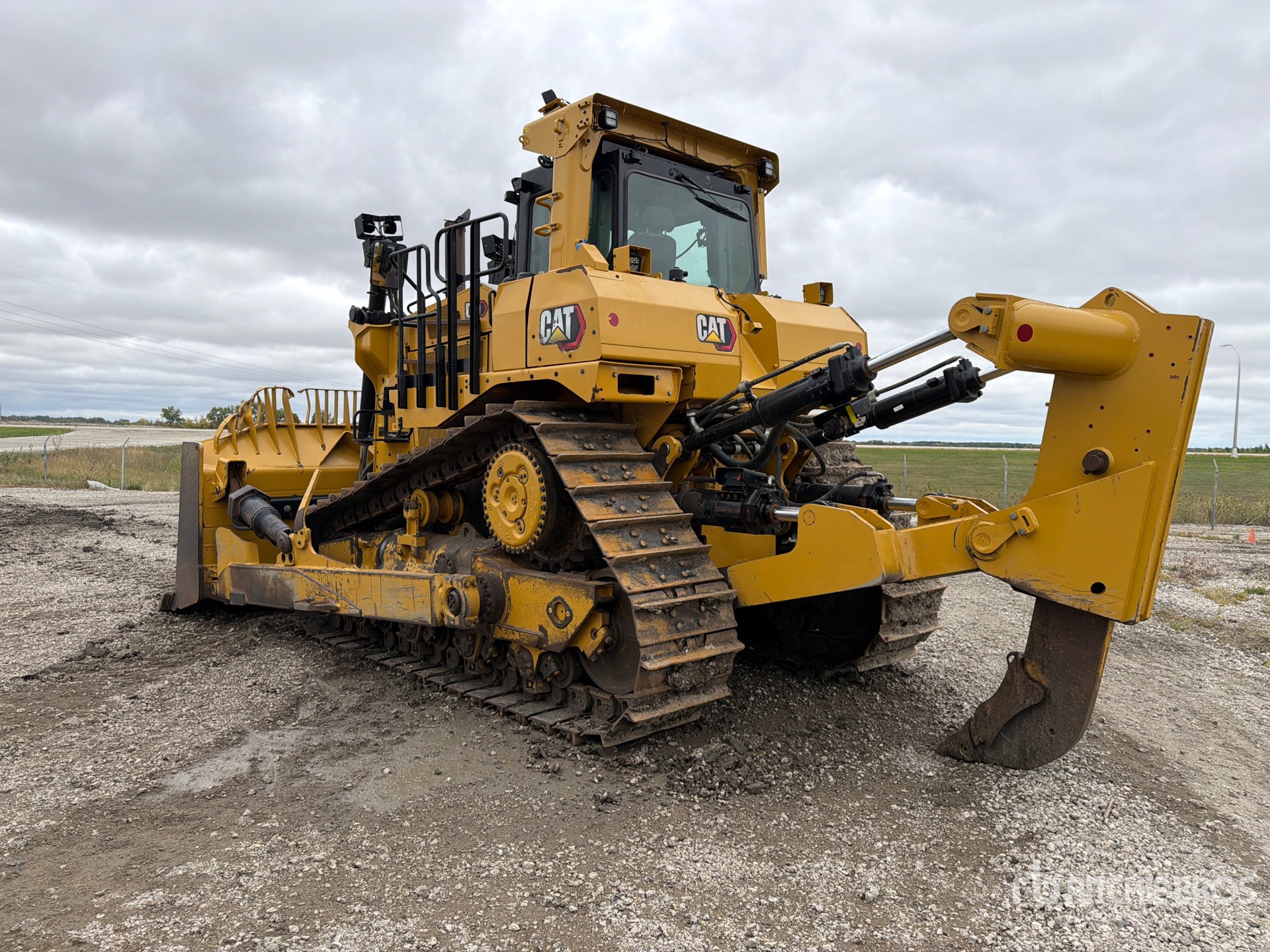

| Ripper - Single Shank |
|
Maximum Clearance Raised - Under Tip, Pinned in Bottom Hole (Since 2026)
|
35 in (88 cm)
|
|
Maximum penetration depth (standard tip) (Since 2026)
|
49 in (123 cm)
|
|
Maximum penetration force * (shank vertical) (Since 2026)
|
35,520 lbs ft (48,158 nm)
|
|
Number of Pockets (Since 2026)
|
1 |
|
Pryout Force (Since 2026)
|
74,637 lbs ft (101,193 nm)
|
|
Total Operating Weight* (with SU Blade and noted ripper) (Since 2026)
|
110,205 lbs (49,988 kg)
|
|
Weight (Since 2026)
|
10,701 lbs (4,854 kg)
|
| Ripper - Single Shank, Deep Ripping |
|
Maximum Clearance Raised - Under Tip, Pinned in Bottom Hole (Since 2026)
|
32 in (82 cm)
|
|
Maximum penetration depth (standard tip) (Since 2026)
|
68 in (173 cm)
|
|
Maximum penetration force * (shank vertical) (Since 2026)
|
38,667 lbs ft (52,425 nm)
|
|
Number of Pockets (Since 2026)
|
1 |
|
Pryout Force (Since 2026)
|
74,412 lbs ft (100,888 nm)
|
|
Total Operating Weight* (with SU Blade and noted ripper) (Since 2026)
|
110,485 lbs (50,115 kg)
|
|
Weight (Since 2026)
|
10,981 lbs (4,981 kg)
|
| Standards |
|
FOPS (Since 2026)
|
Falling Object Protective Structure (FOPS) meets the following criteria ISO 3449:2005 LEVEL II. |
|
ROPS (Since 2026)
|
Rollover Protective Structure (ROPS) meets the following criteria ISO 3471:2008. |
|
Sound (Since 2026)
|
The average dynamic spectator sound power level when ISO 6395:2008 is used to measure the value for a machine is 116 dB(A). The measurement was conducted at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds. NOTE: The dynamic sound power level uncertainty is +/-2 dB(A). |
|
Sound (1) (Since 2026)
|
The average dynamic operator sound pressure level when ISO 6396:2008 is used to measure the value for an enclosed cab is 78 dB(A). The measurement was conducted at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds. The cab was properly installed and maintained. The measurement was conducted with the cab doors and the cab windows closed. NOTE: The dynamic operator sound pressure level uncertainty is +/-2 dB(A). |
|
Sound (2) (Since 2026)
|
Hearing protection may be needed when the machine is operated with an open operator station for extended periods, in a noisy environment, or with a cab that is not properly maintained. |
| Steering And Brakes |
|
Brake Count (Since 2026)
|
8 |
|
Brake Diameter (Since 2026)
|
16 in (39 cm)
|
|
Brake Type (Since 2026)
|
Spring Applied Wet Disc |
|
Steering Type (Since 2026)
|
Differential |
| Transmission |
|
1.0 Forward (Since 2026)
|
2 mph (4 kph)
|
|
1.0 Reverse (Since 2026)
|
3 mph (4 kph)
|
|
2.0 Forward (Since 2026)
|
4 mph (6 kph)
|
|
2.0 Reverse (Since 2026)
|
5 mph (8 kph)
|
|
3.0 Forward (Since 2026)
|
7 mph (11 kph)
|
|
3.0 Reverse (Since 2026)
|
8 mph (14 kph)
|
|
Type (Since 2026)
|
Planetary powershift |
| Undercarriage |
|
Ground Clearance (Since 2026)
|
18 in (46 cm)
|
|
Ground Contact Area (Since 2026)
|
45.6 ft² |
|
Grouser Height (Since 2026)
|
3 in (8 cm)
|
|
Length - Track on Ground (Since 2026)
|
137 in (347 cm)
|
|
Number of Carrier Rollers (Since 2026)
|
1 per side (optional) |
|
Pitch (Since 2026)
|
9 in (24 cm)
|
|
Shoe Type (Since 2026)
|
Extreme Service |
|
Shoes/Side (Since 2026)
|
43 |
|
Track Gauge (Since 2026)
|
89 in (225 cm)
|
|
Track Rollers/Side (Since 2026)
|
8 |
|
Width - Shoe (Since 2026)
|
24 in (61 cm)
|
| Weights |
|
Operating Weight (Since 2026)
|
110,225 lbs (49,997 kg)
|
|
Shipping Weight (Since 2026)
|
84,373 lbs (38,271 kg)
|
| Winches |
|
Drum Width (Since 2026)
|
13 in (32 cm)
|
|
Maximum Drum Capacity - Optional Cable Length (Since 2026)
|
204 ft (62 m)
|
|
Maximum Drum Capacity - Recommended Cable Length (Since 2026)
|
257 in (653 cm)
|
|
Oil Capacity (Since 2026)
|
4 gal (15 l)
|
|
Weight* (Since 2026)
|
3,950 lbs (1,792 kg)
|
|
Winch Model (Since 2026)
|
PA 140VS |
|
Wire Cable Diameter - Optional (Since 2026)
|
1 ft (0 m)
|
|
Wire Cable Diameter - Recommended (Since 2026)
|
1 in (3 cm)
|
|
Wire Cable Ferrule Size - Length (Since 2026)
|
3 in (7 cm)
|
|
Wire Cable Ferrule Size - Outside Diameter (Since 2026)
|
2 in (6 cm)
|
