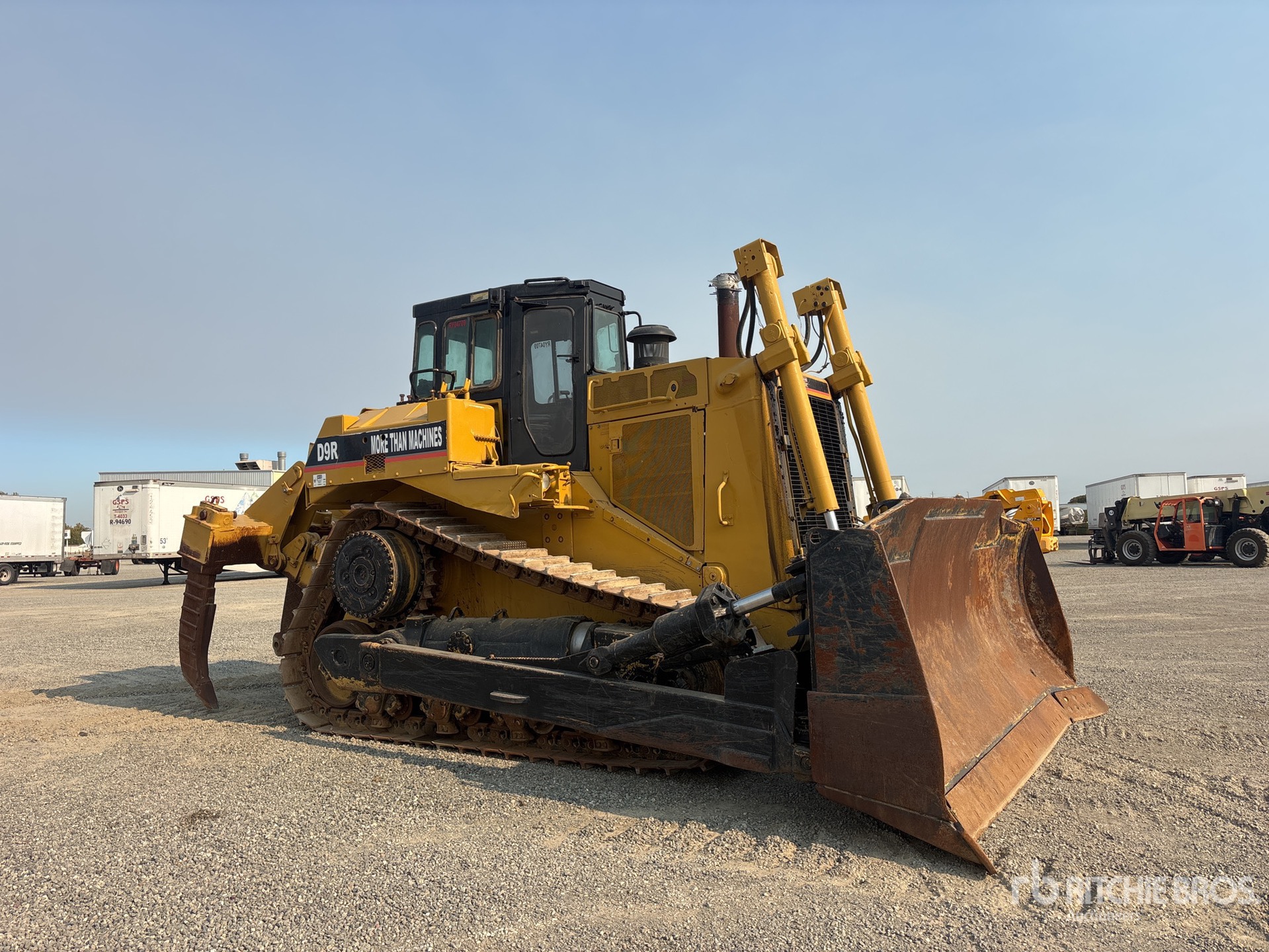

Caterpillar D9R For Sale in Los Angeles, Ca

Name: Caterpillar D9R
Brand: Caterpillar
SKU: 89093112
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-09-15 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

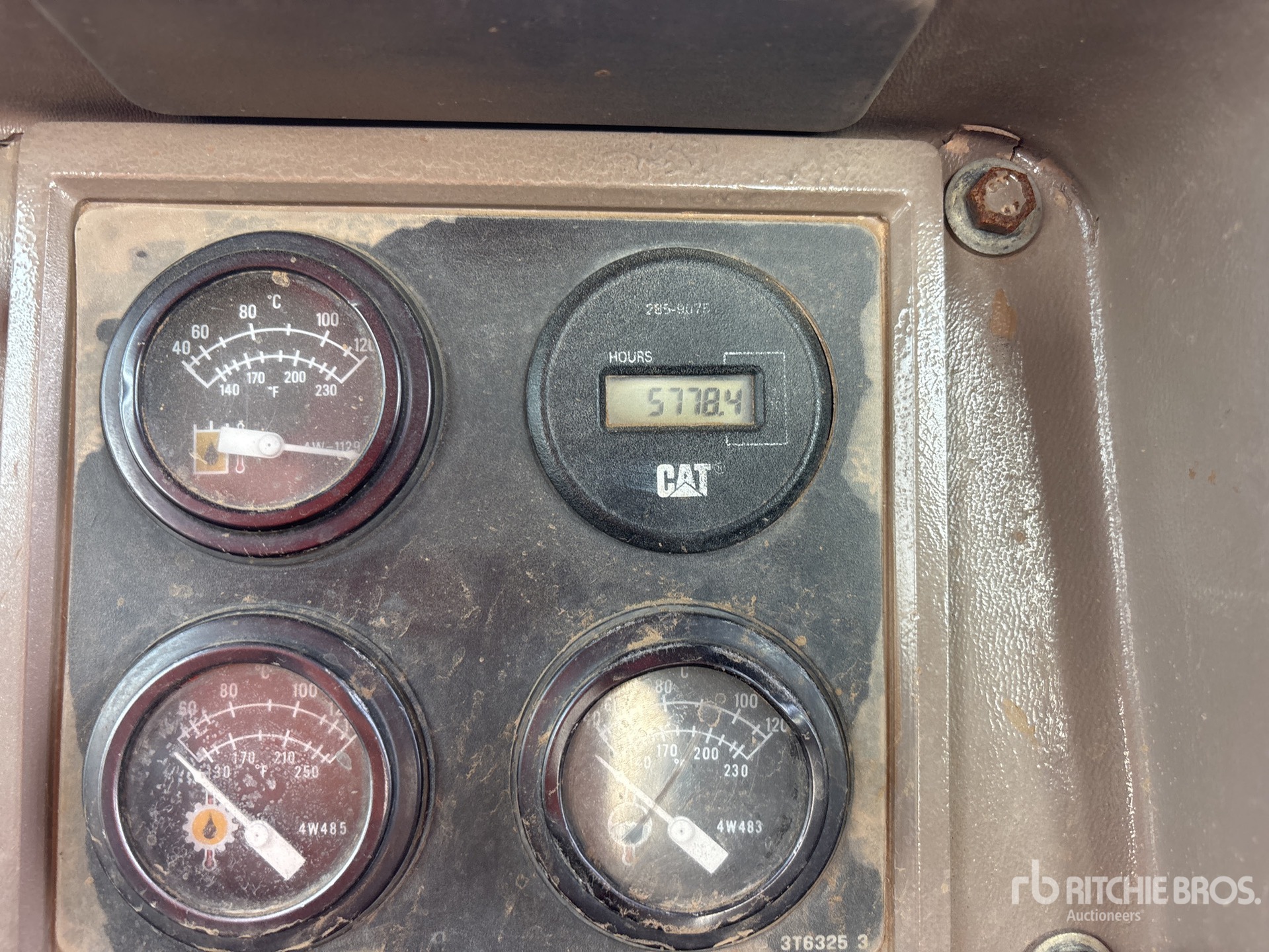

Hours:	5778

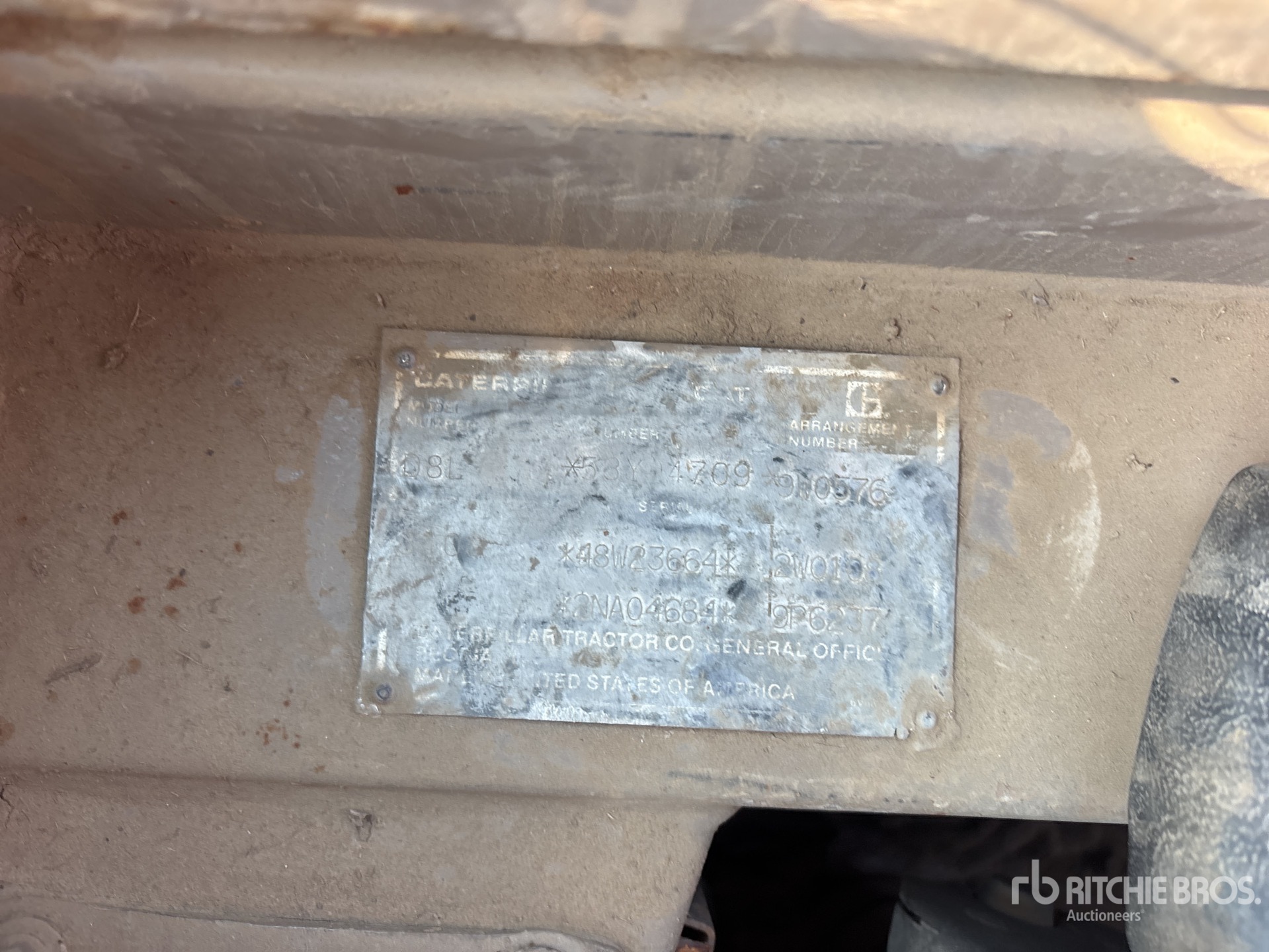

Serial Number:	48W23664
Machine Location:	LOS ANGELES, CA

Description:

Located in Lane 13 Spot 47, Enclosed Cab, 162 in Wide PAT Blade, 22 in Single Grouser Track Shoes, 4 Cylinder Multi-Shank Ripper Closing Time: 2026-09-15 04:00:00 PM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Caterpillar D9R is a heavy-duty crawler dozer designed for earthmoving, mining, land clearing, and large-scale construction applications. Part of Caterpillar's D9 series, the D9R is known for its high drawbar pull, durable undercarriage, and robust powertrain suited to demanding push and rip operations. It typically features a Caterpillar diesel engine, powershift transmission, and a reinforced frame for high-load work in harsh conditions. The D9R is commonly used with straight or semi-U blades and rear-mounted rippers for breaking hard material. Its serviceability, traction, and operating weight make it a standard reference model in the crawler dozer category.

Dimensions
Ground Clearance	2 ft (1 m)
Ground Clearance	2 ft (1 m)
Height	13 ft (4 m)
Height To Top Of Cab	13 ft (4 m)
Height To Top Of Cab	10 ft (3 m)
Length	23 ft (7 m)
Length Of Track On Ground	11 ft (3 m)
Length Of Track On Ground	11 ft (3 m)
Length W/ Blade	24 ft (7 m)
Length W/ Blade	17 ft (5 m)
Length W/O Blade	17 ft (5 m)
Length W/O Blade	22 ft (7 m)
Weight	107,550 lbs (48,776 kg)
Width	10 ft (3 m)
Width Over Tracks	10 ft (3 m)
Width Over Tracks	10 ft (3 m)
Engine
Displacement	1,099 cu in (18,001 cu cm)
Displacement	1,099 cu in (18,001 cu cm)
Engine Make	2,236
Engine Model	3408ETA
Engine Model	3408E
Gross Power	410 hp (306 kw)
Gross Power	405 hp (302 kw)
Number Of Cylinders	8
Power Measured @	1,900 rpm
Operational
Engine Oil Capacity	12 gal (45 l)
Final Drives Fluid Capacity	5 gal (19 l)
Fuel Capacity	216 gal (818 l)
Fuel Capacity	216 gal (818 l)
Hydraulic Fluid Capacity	19 gal (72 l)
Operating Voltage	24 V
Operating Weight	105,630 lbs (47,913 kg)
Operating Weight	109,277 lbs (49,567 kg)
Powertrain Fluid Capacity	44 gal (167 l)
Standard Blade
Capacity	21 cu yd
Capacity	38 cu yd
Cutting Depth	24 in (61 cm)
Cutting Depth	24 in (61 cm)
Height	76 in (194 cm)
Height	112 in (285 cm)
Width	15 ft (5 m)
Width	14 ft (4 m)
Transmission
Max Speed - Forward	7 mph (12 kph)
Max Speed - Reverse	9 mph (15 kph)
Number Of Forward Gears	3
Number Of Reverse Gears	3
Transmission Type	Powershift
Undercarriage
Ground Contact Area	6572.02 in2
Ground Contact Area	6569 in2
Ground Pressure	16 psi
Number Of Track Rollers Per Side	8
Number Of Track Rollers Per Side	8
Standard Shoe Size	24 in (61 cm)
Standard Shoe Size	24 in (61 cm)
Track Gauge	7 ft (2 m)
Track Gauge	7 ft (2 m)
