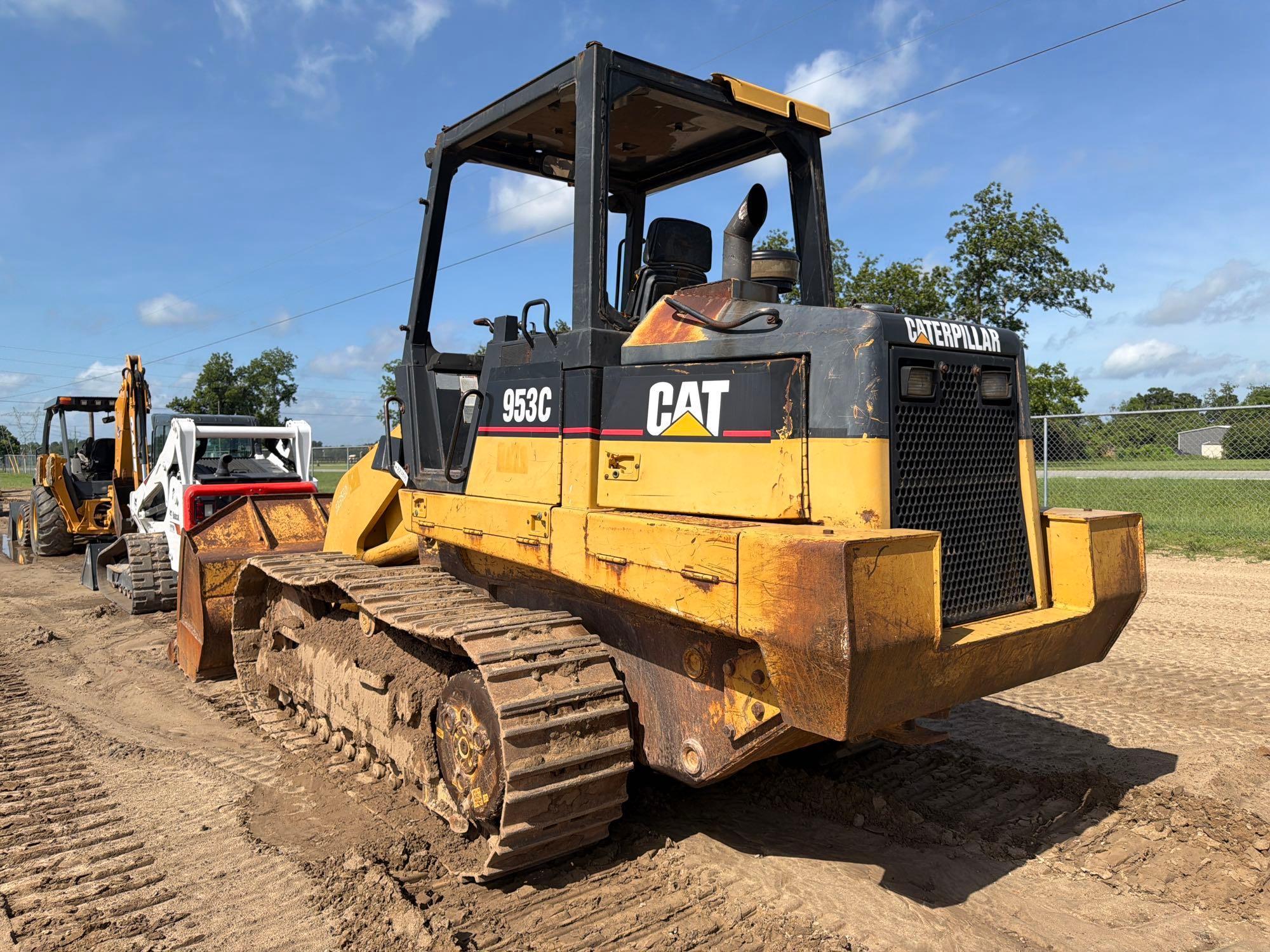

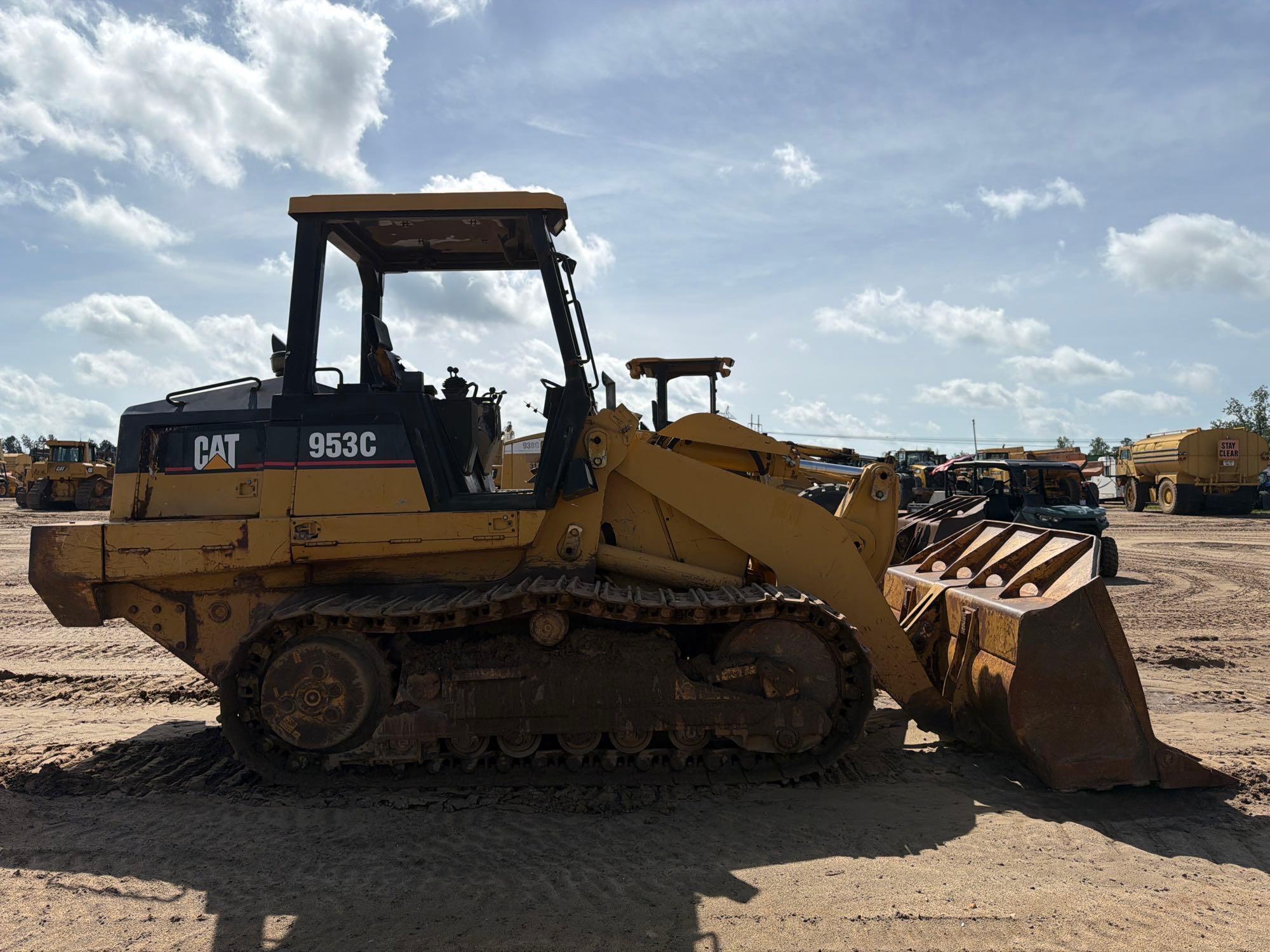

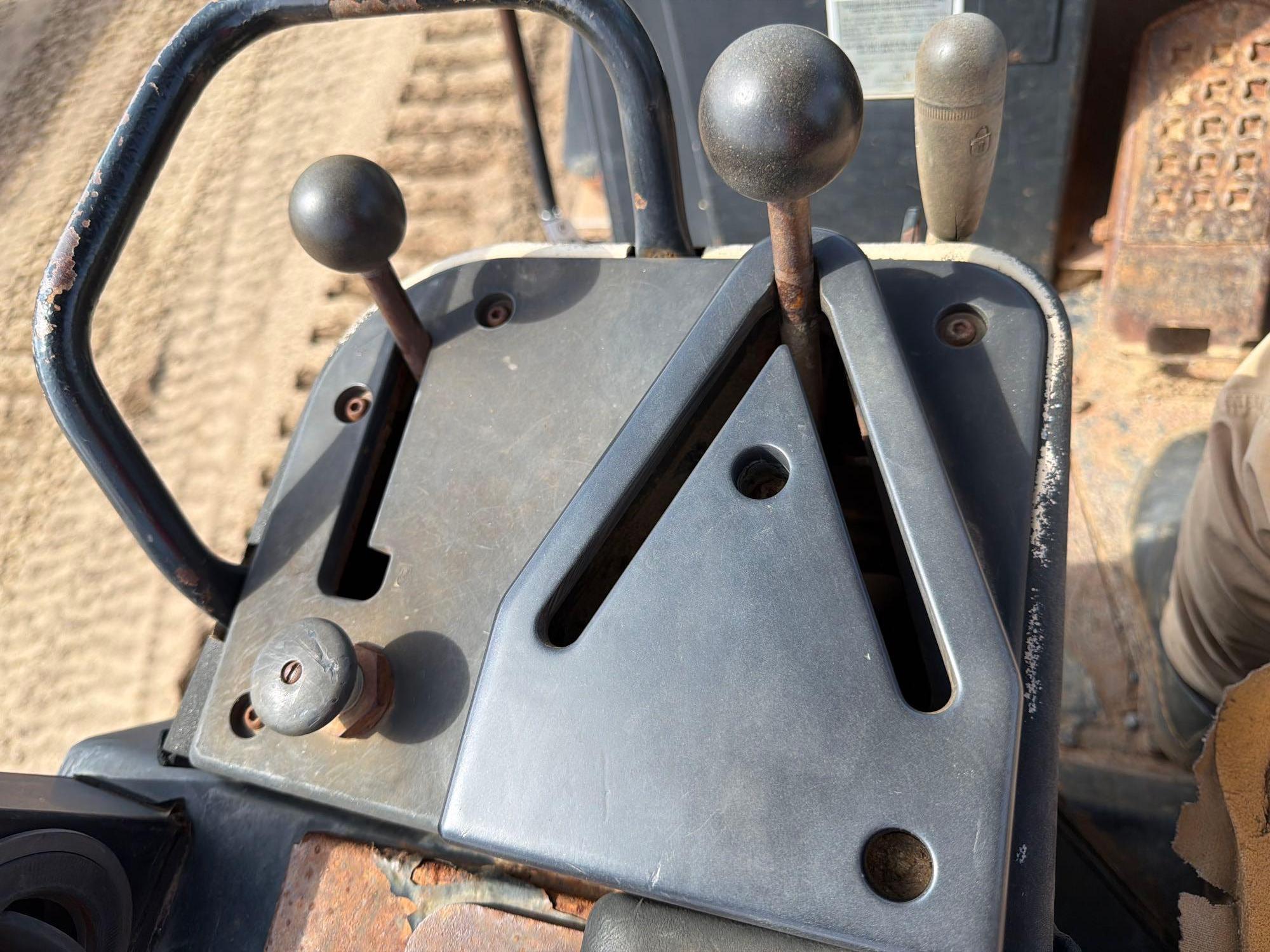

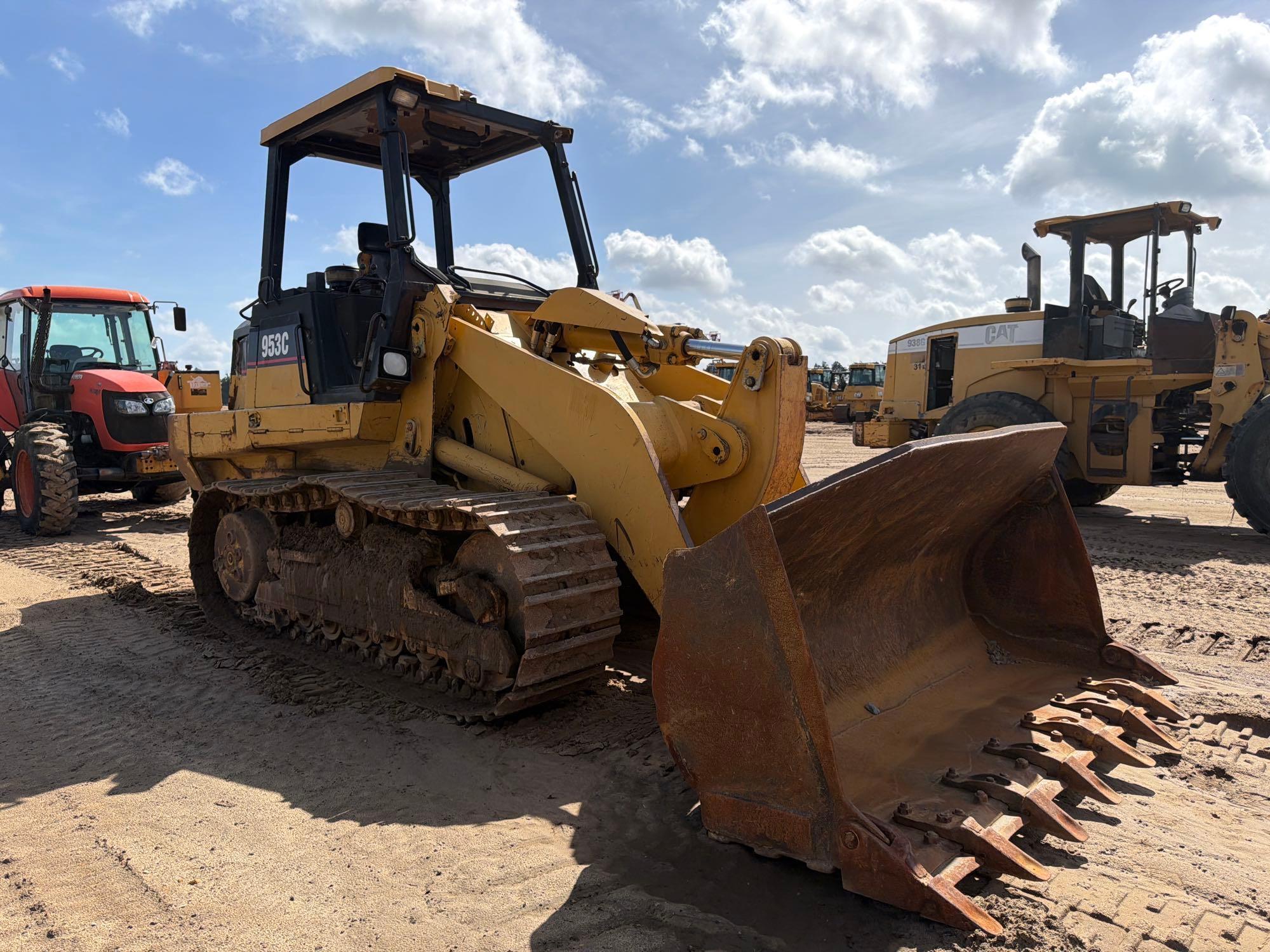

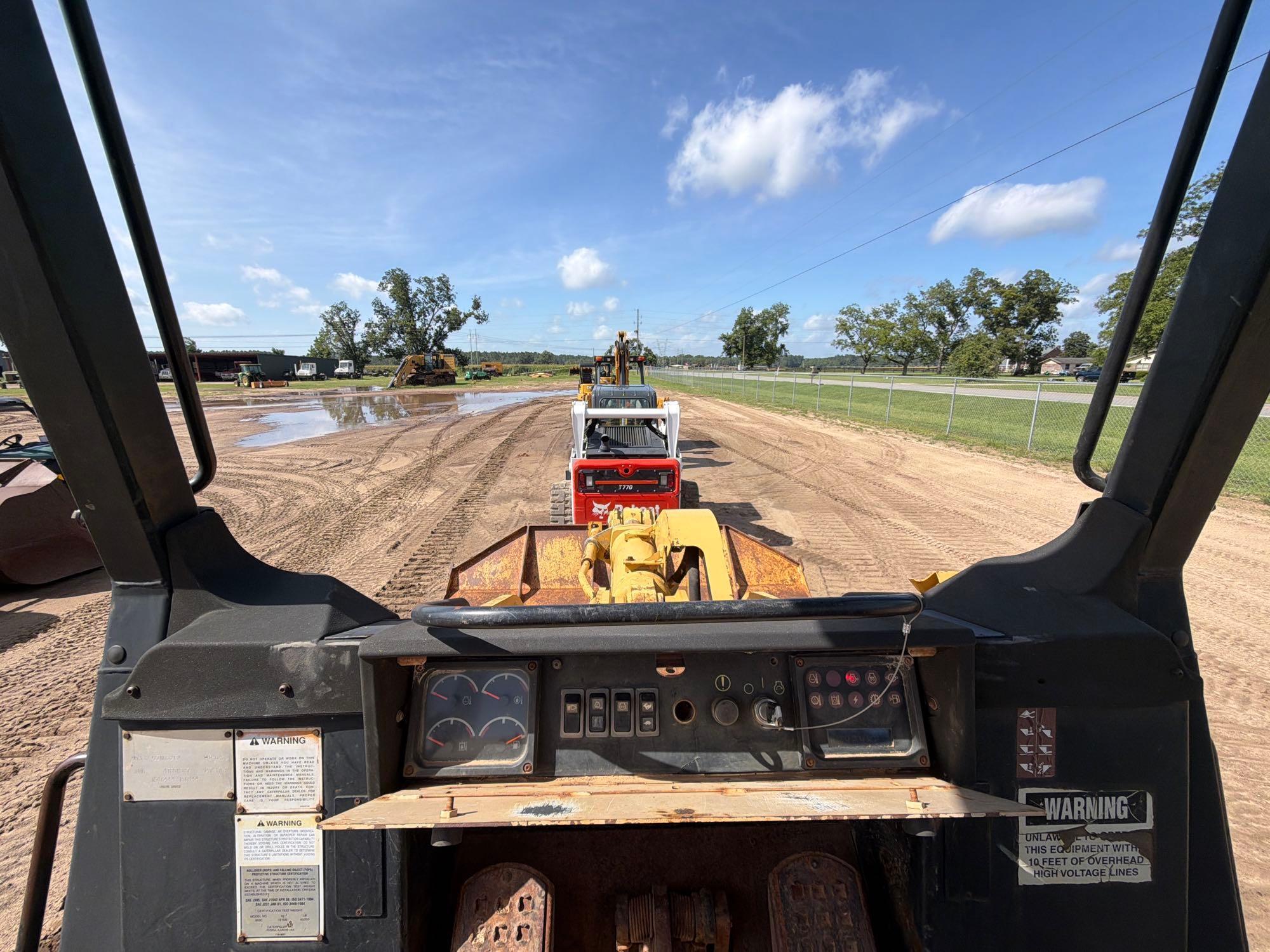

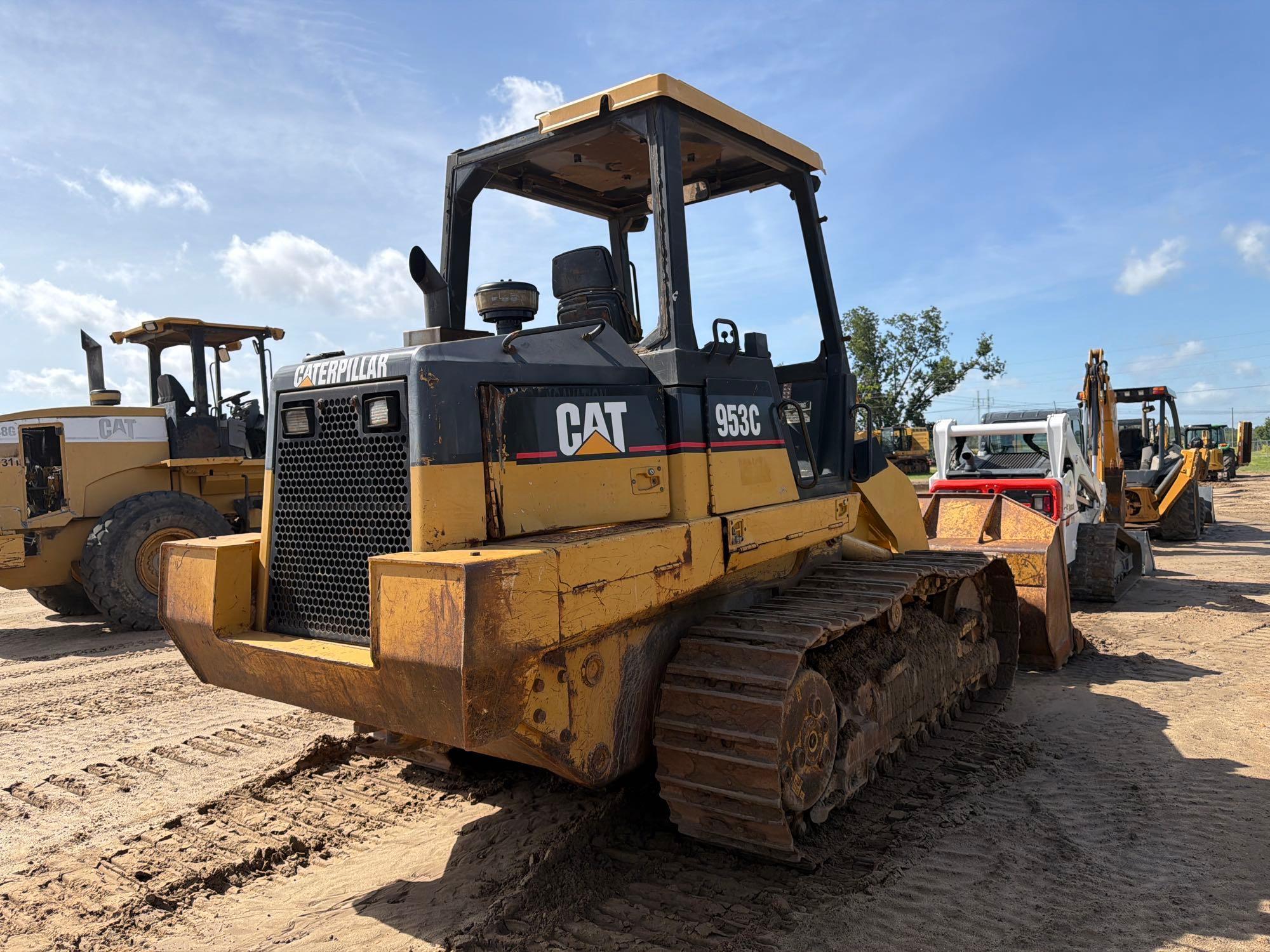

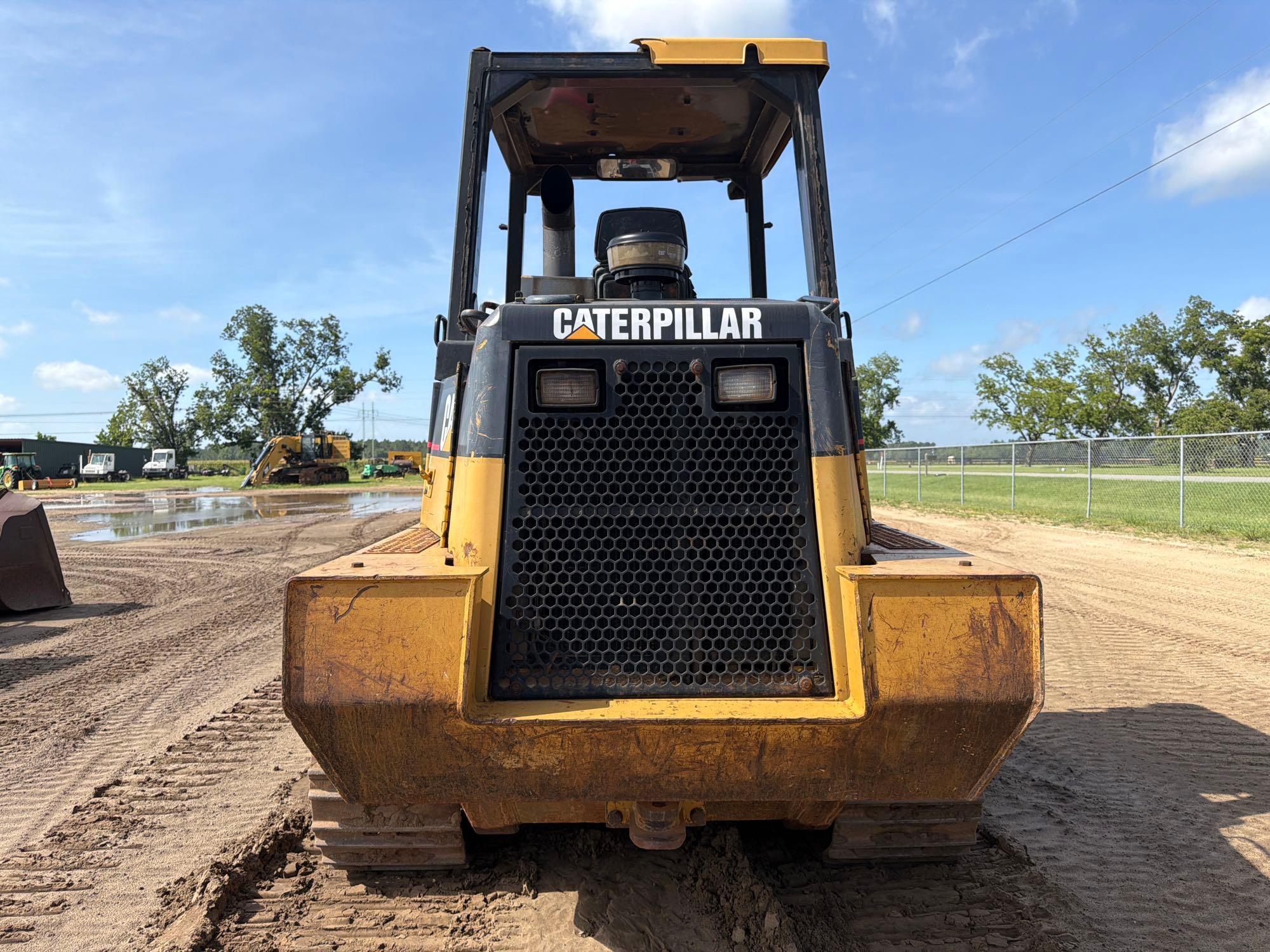

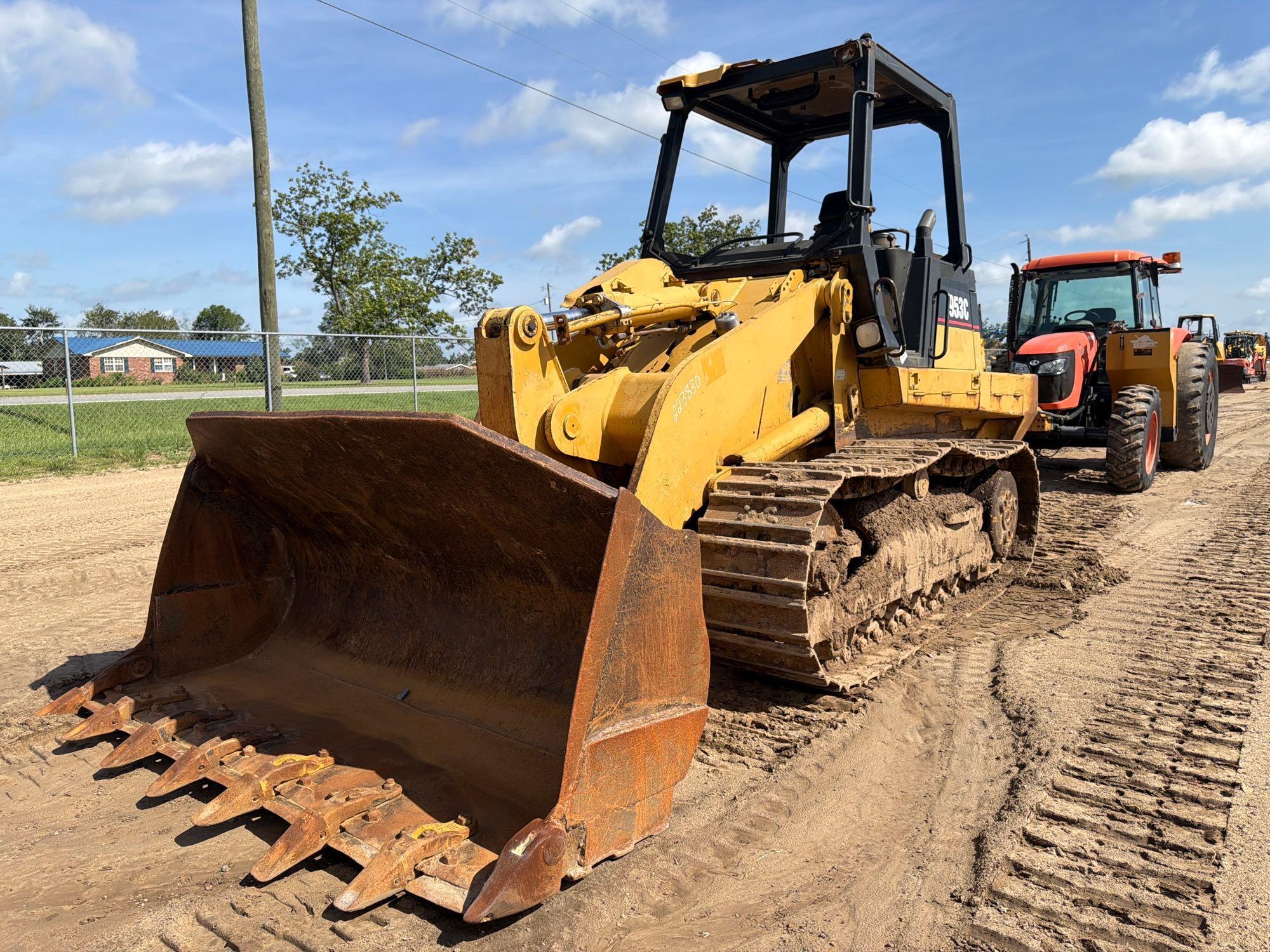

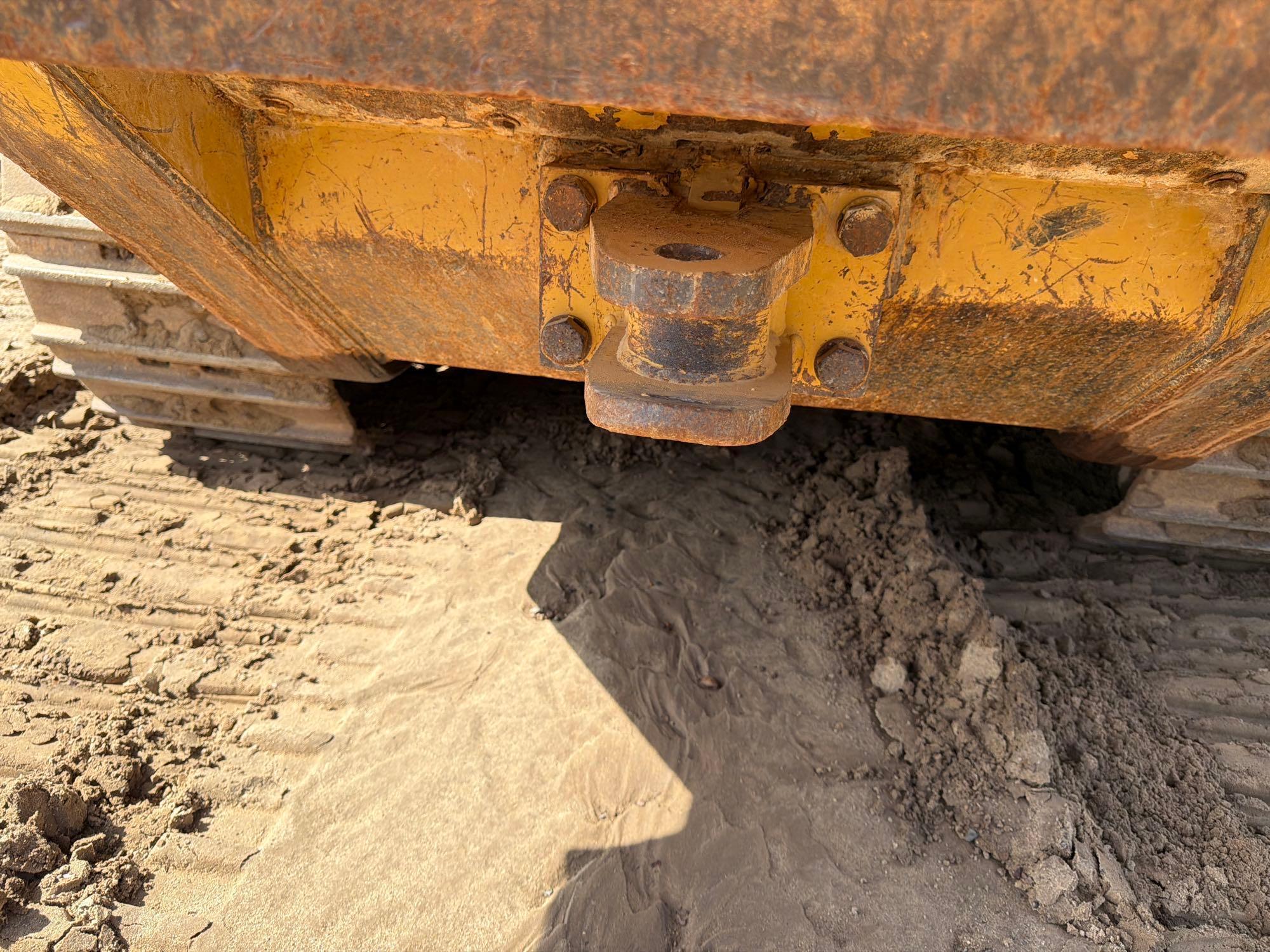

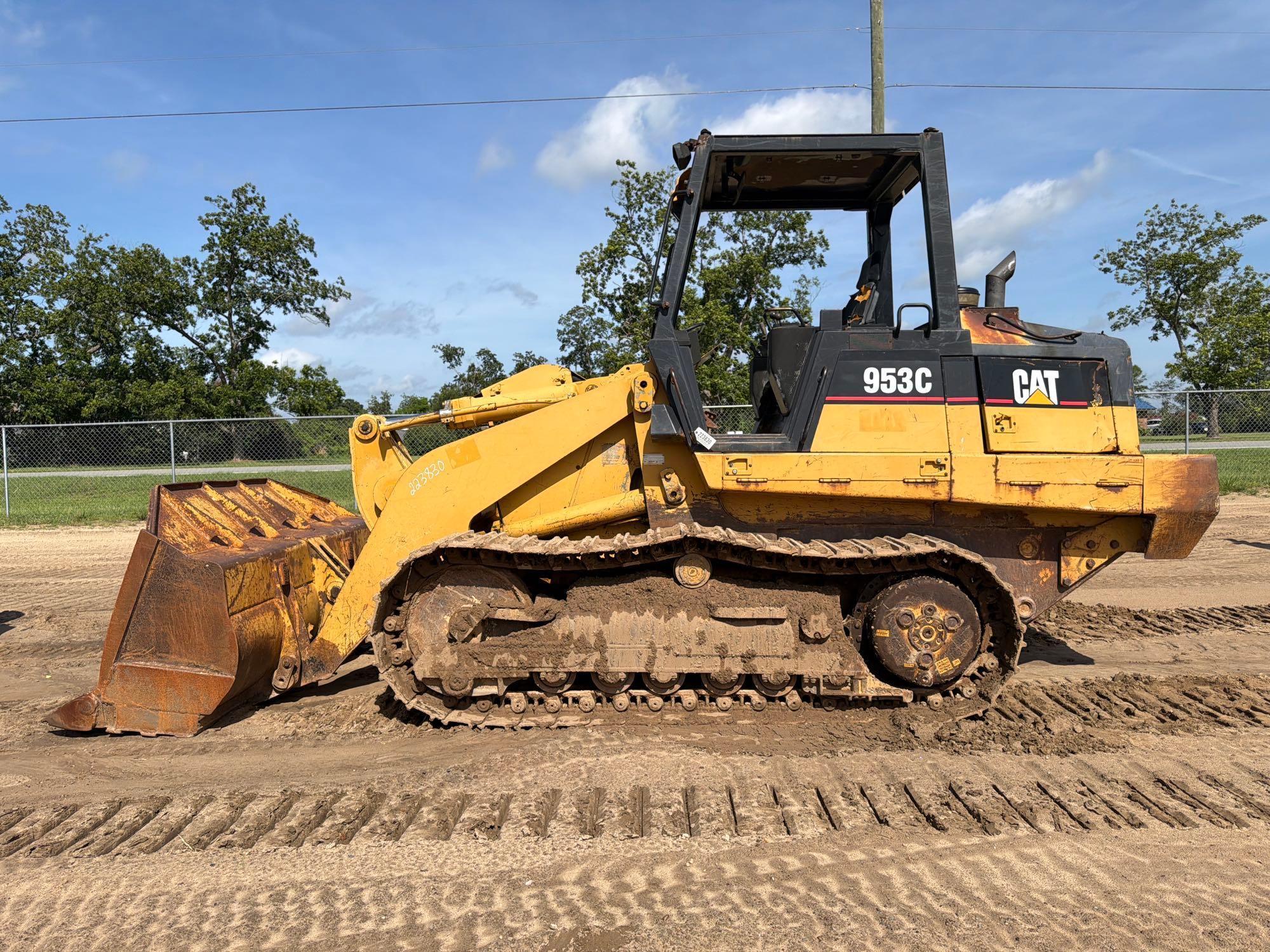

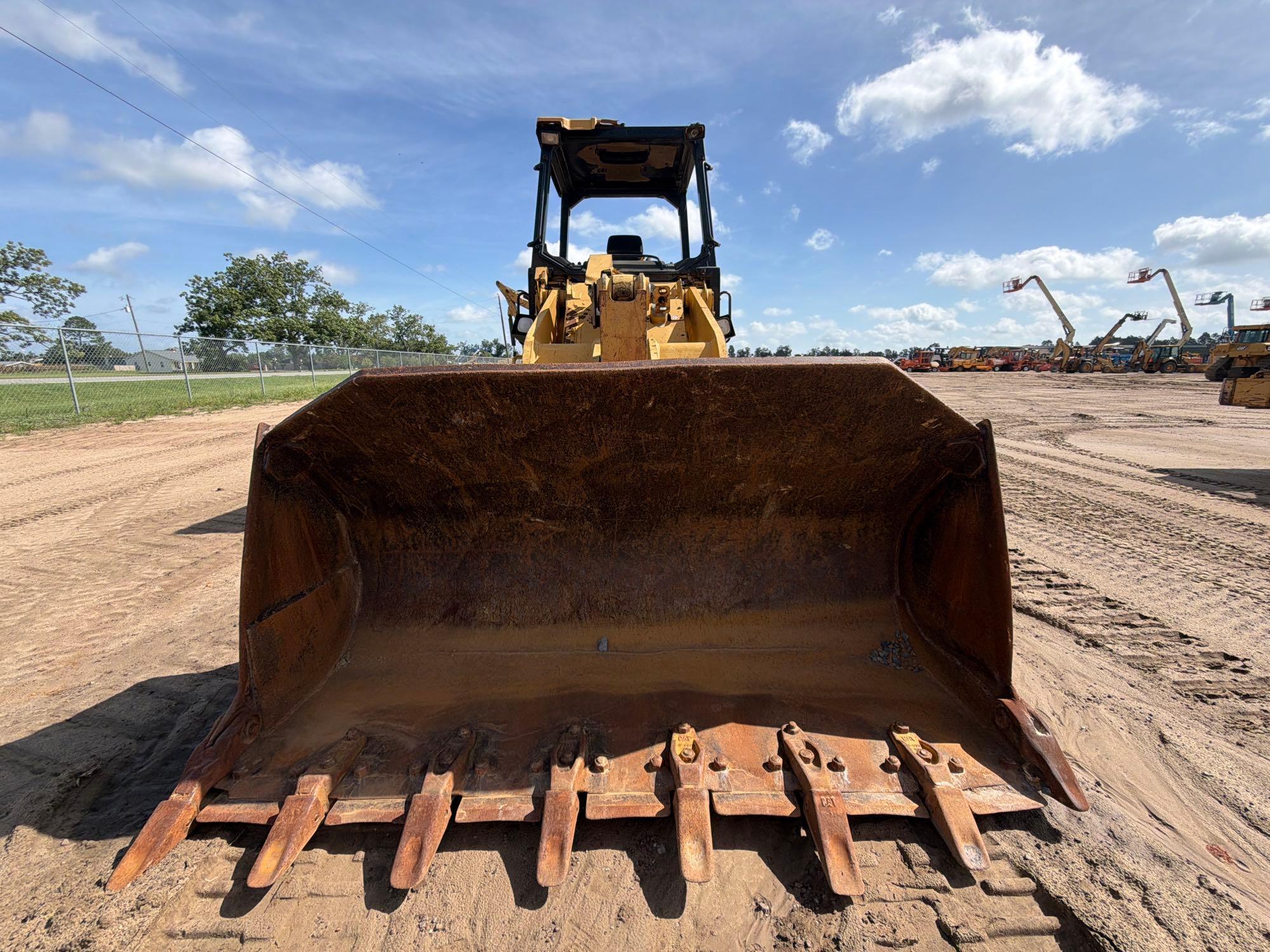

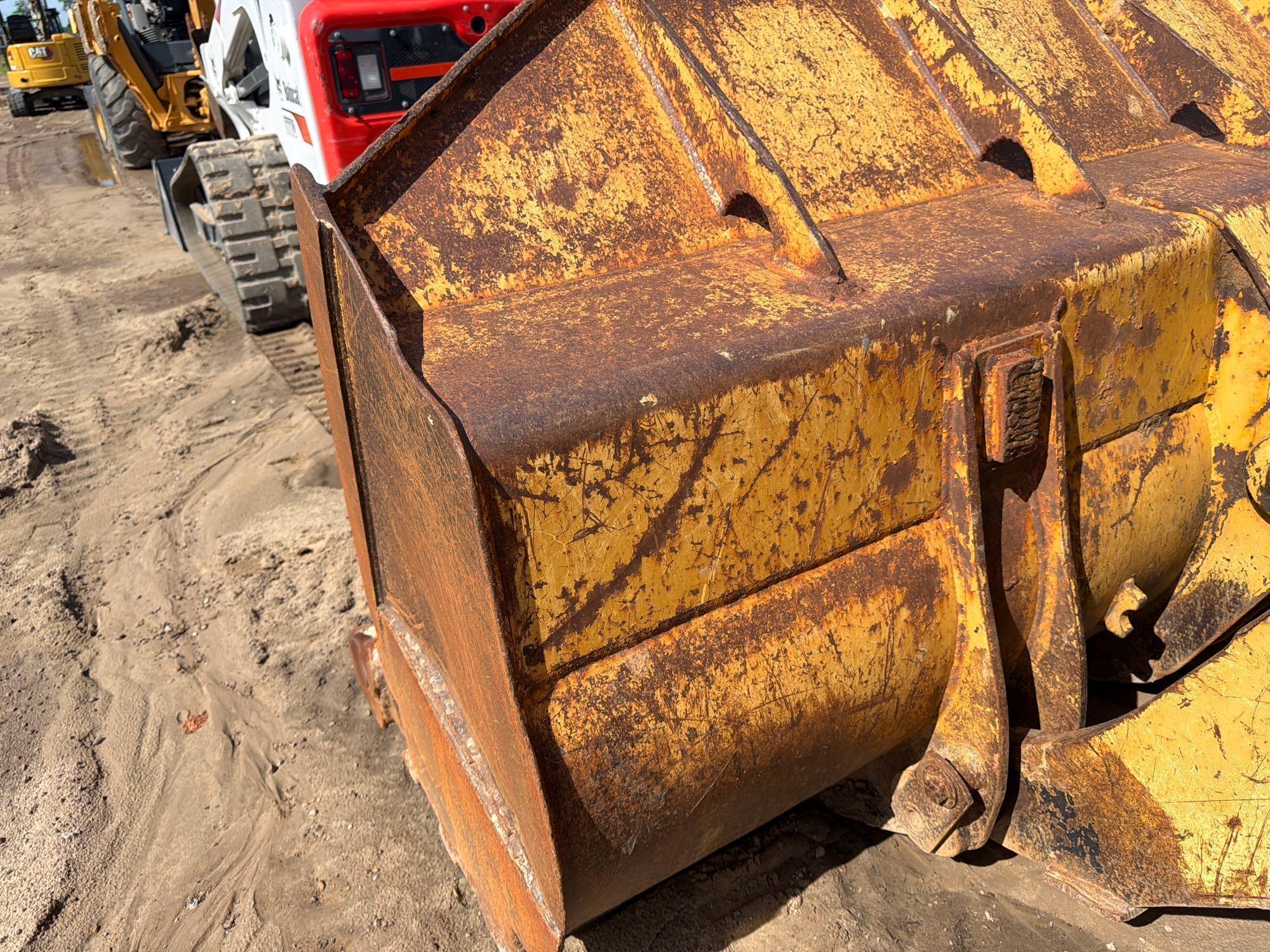

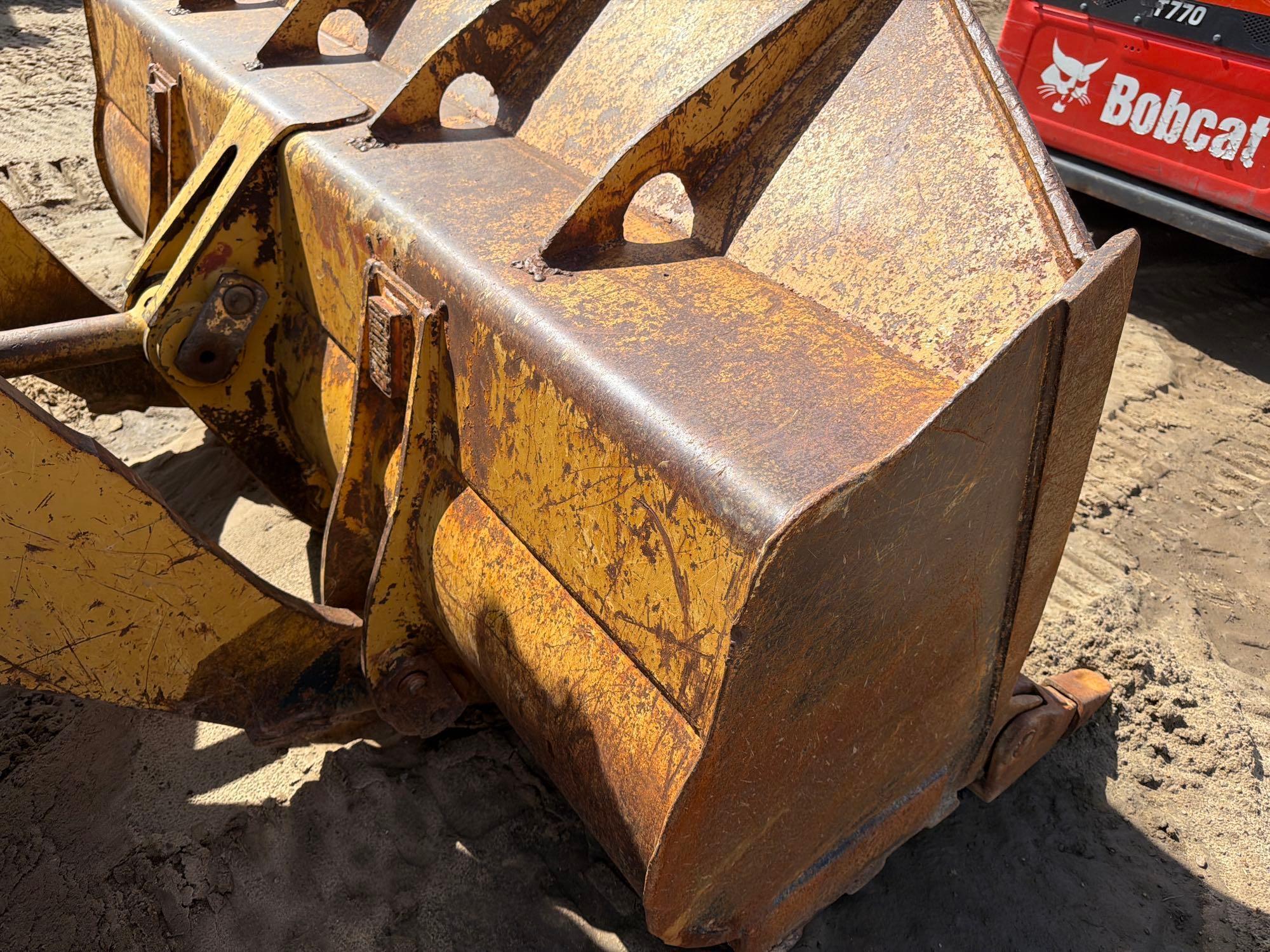

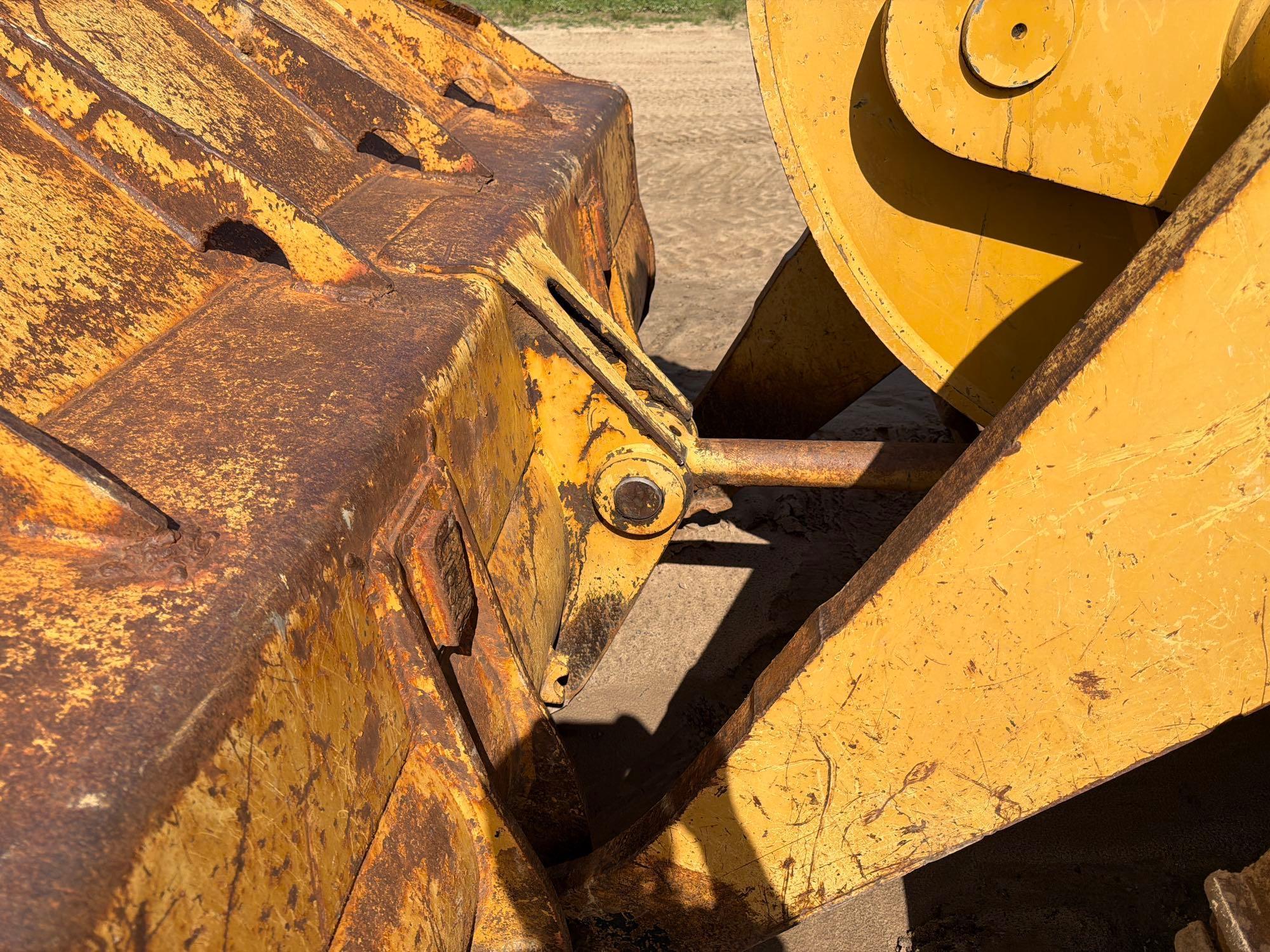

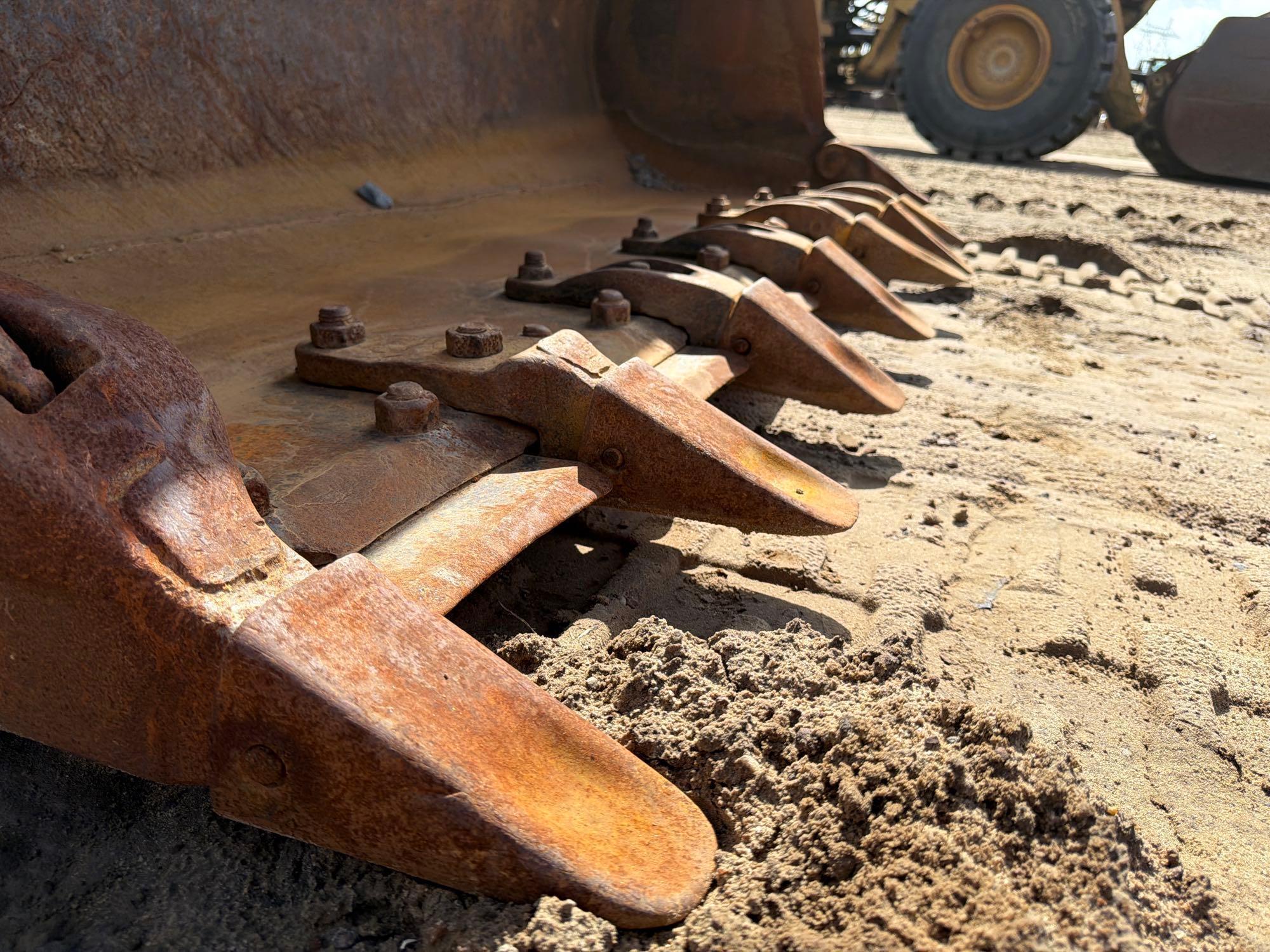

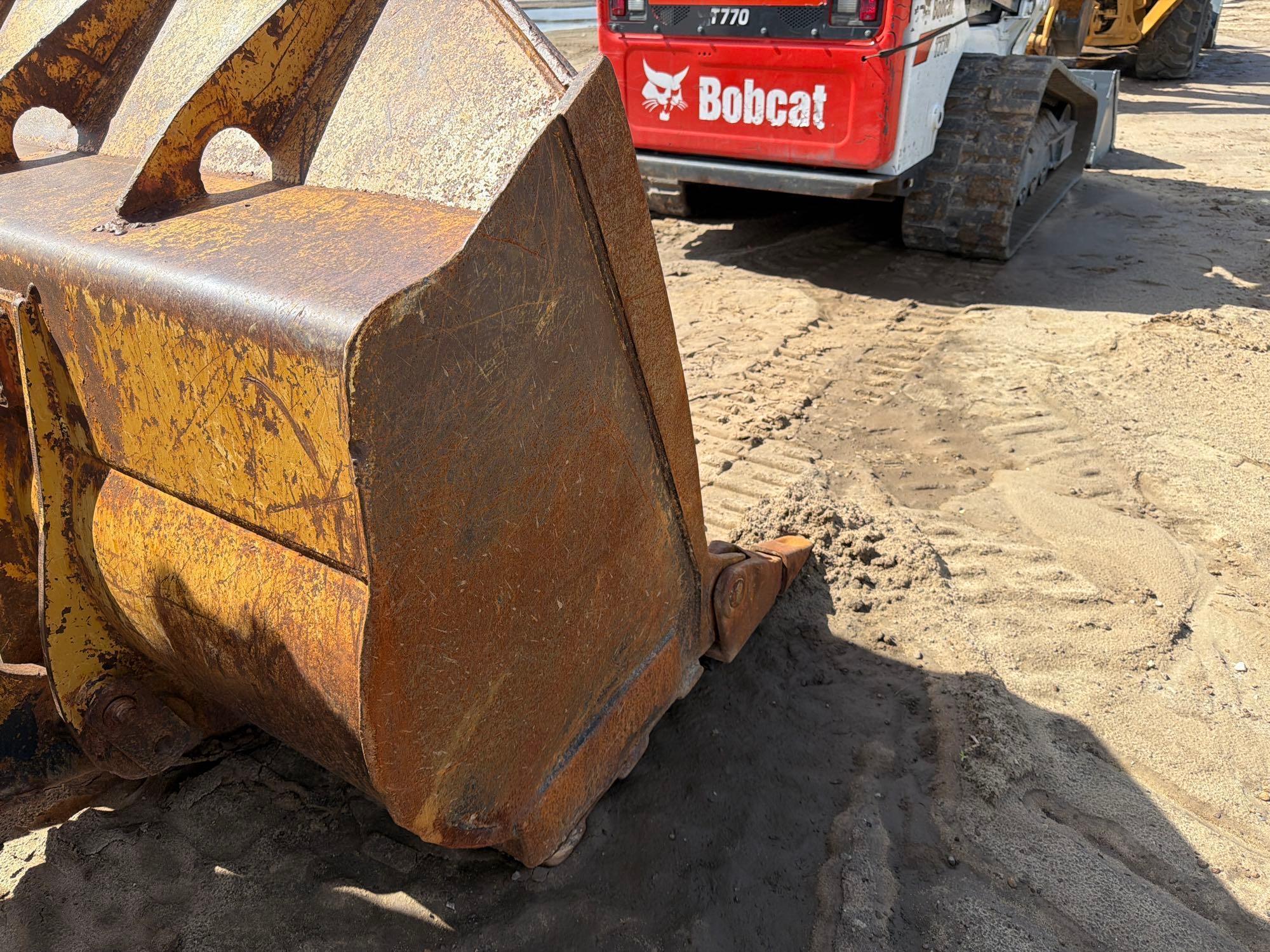

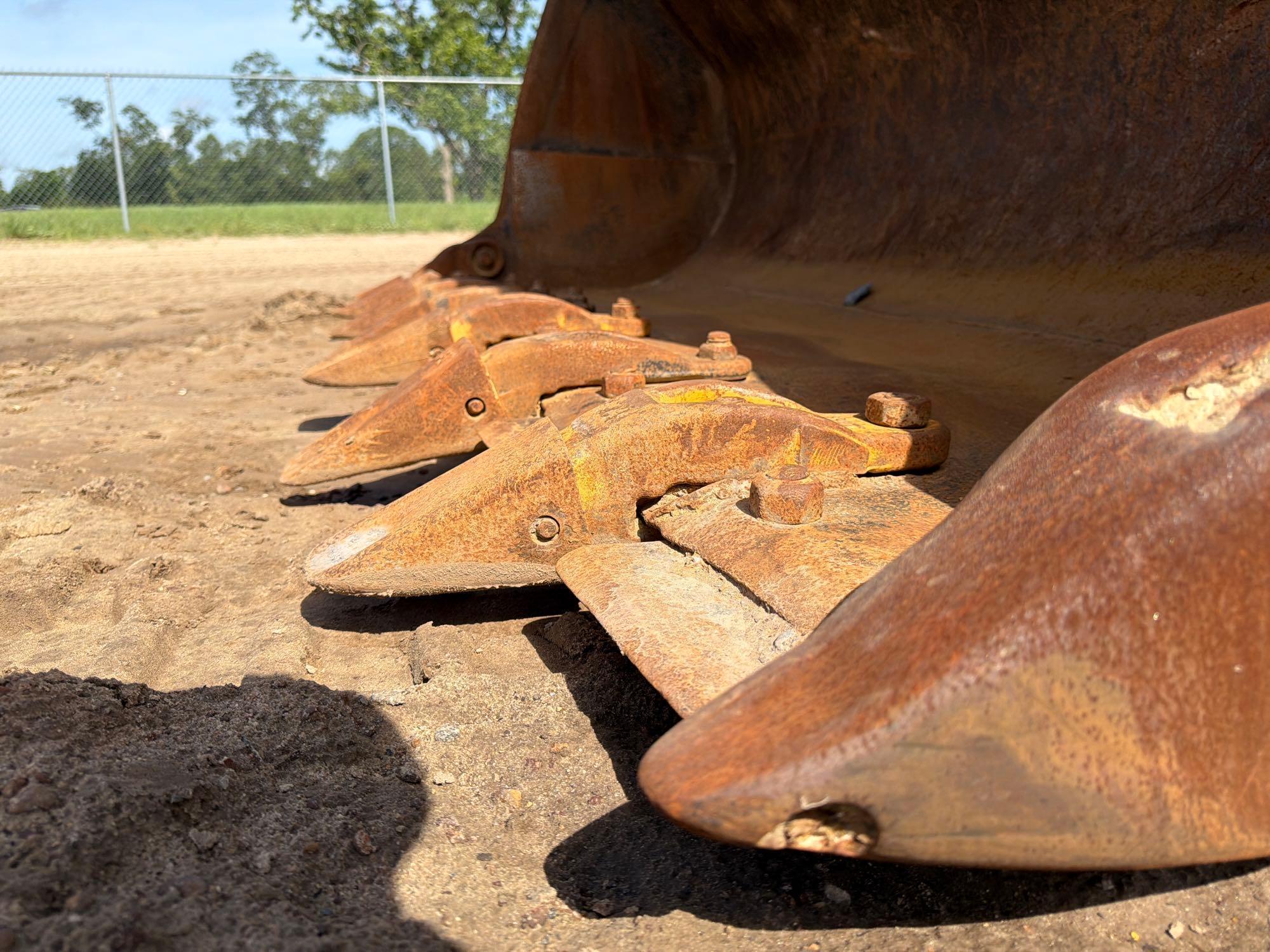

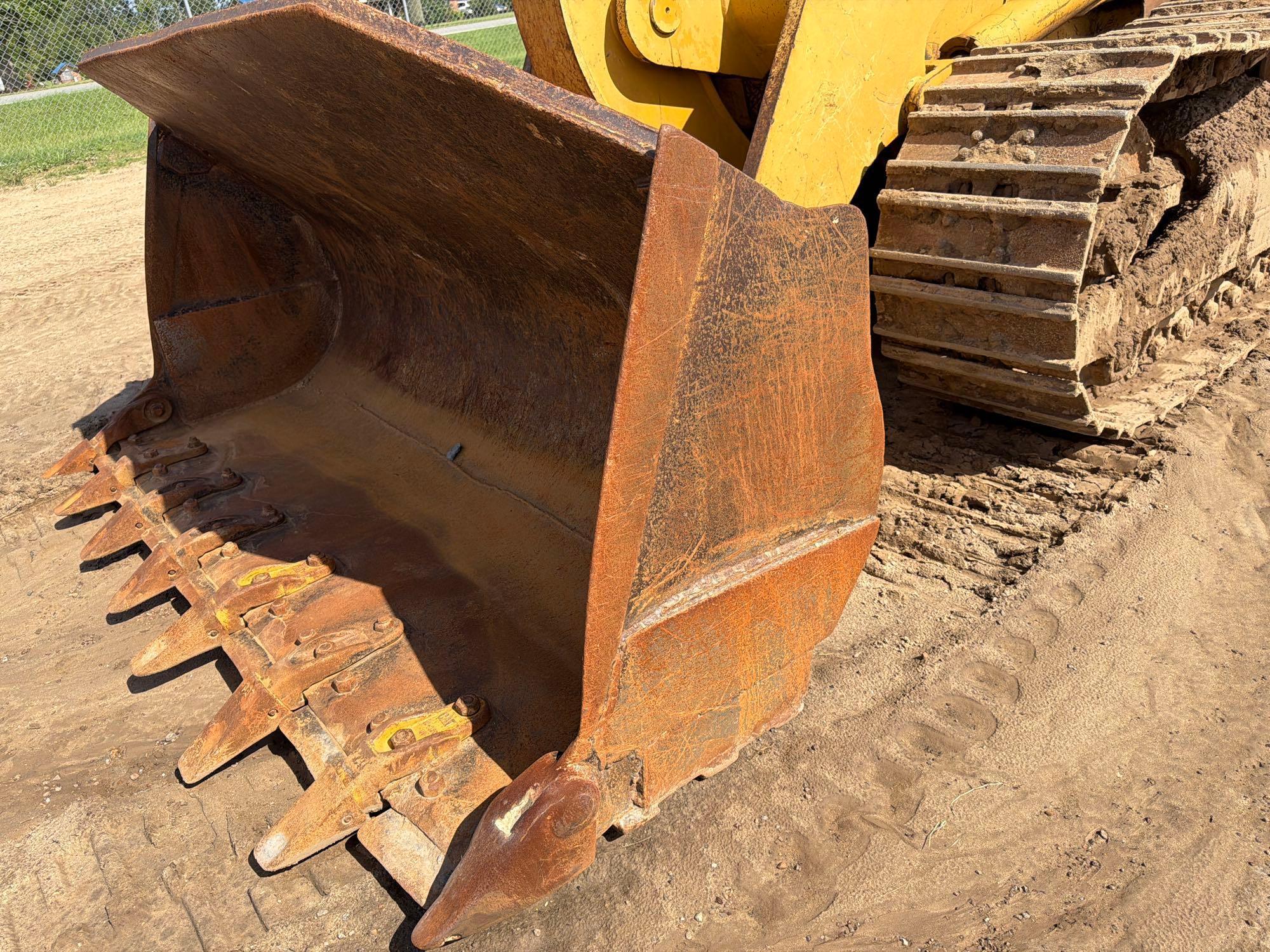

| Buckets |
|
Bucket Width - General Purpose |
94 in (238 cm)
|
|
Bucket Width - Multi-Purpose |
94 in (238 cm)
|
|
Capacity - General Purpose |
3 cu yd |
|
Capacity - Multi-Purpose |
2 cu yd |
| Dimensions |
|
Clearance At Full Height And Dump |
10 ft (3 m)
|
|
Ground Clearance |
1 ft (0 m)
|
|
Height |
10 ft (3 m)
|
|
Height To Top Of Cab |
10 ft (3 m)
|
|
Length |
19 ft (6 m)
|
|
Length To Front Of Track |
14 ft (4 m)
|
|
Length With Bucket On Ground |
19 ft (6 m)
|
|
Reach At Dump Height |
3 ft (1 m)
|
|
Weight |
33,000 lbs (14,969 kg)
|
|
Width |
7 ft (2 m)
|
|
Width To Outside Of Tracks |
8 ft (2 m)
|

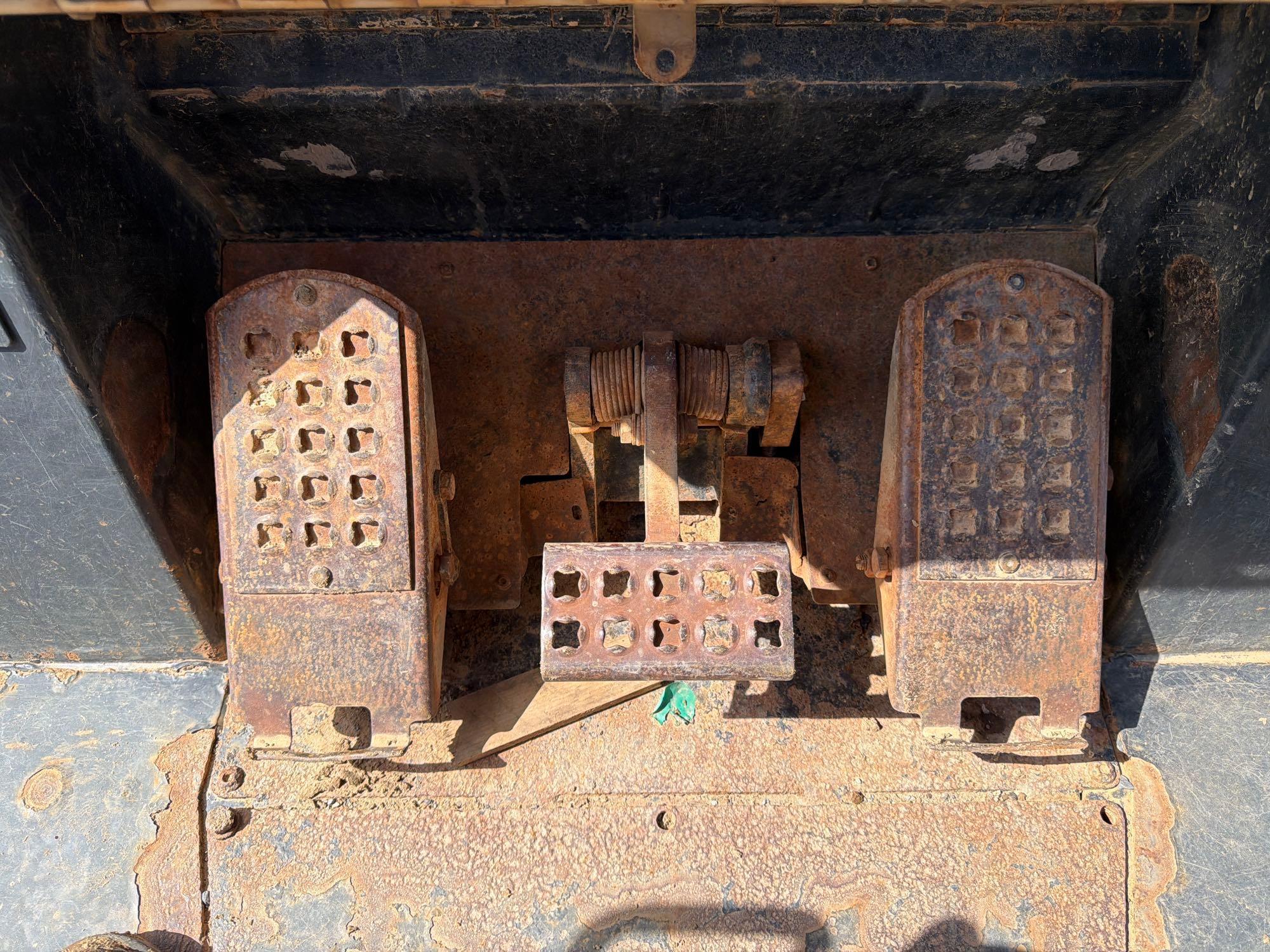

| Drive System |
|
Drive Pump |
Two, variable-displacement, slipper-type axial piston pumps |
|
Drive System Type |
Hydrostatic drive with infinite machine speeds to 9.2 km/h (5.7 mph) |
|
Relief Valve Setting |
6,380 psi |
|
Track Motor |
Two, variable-displacement, link-type piston motors |

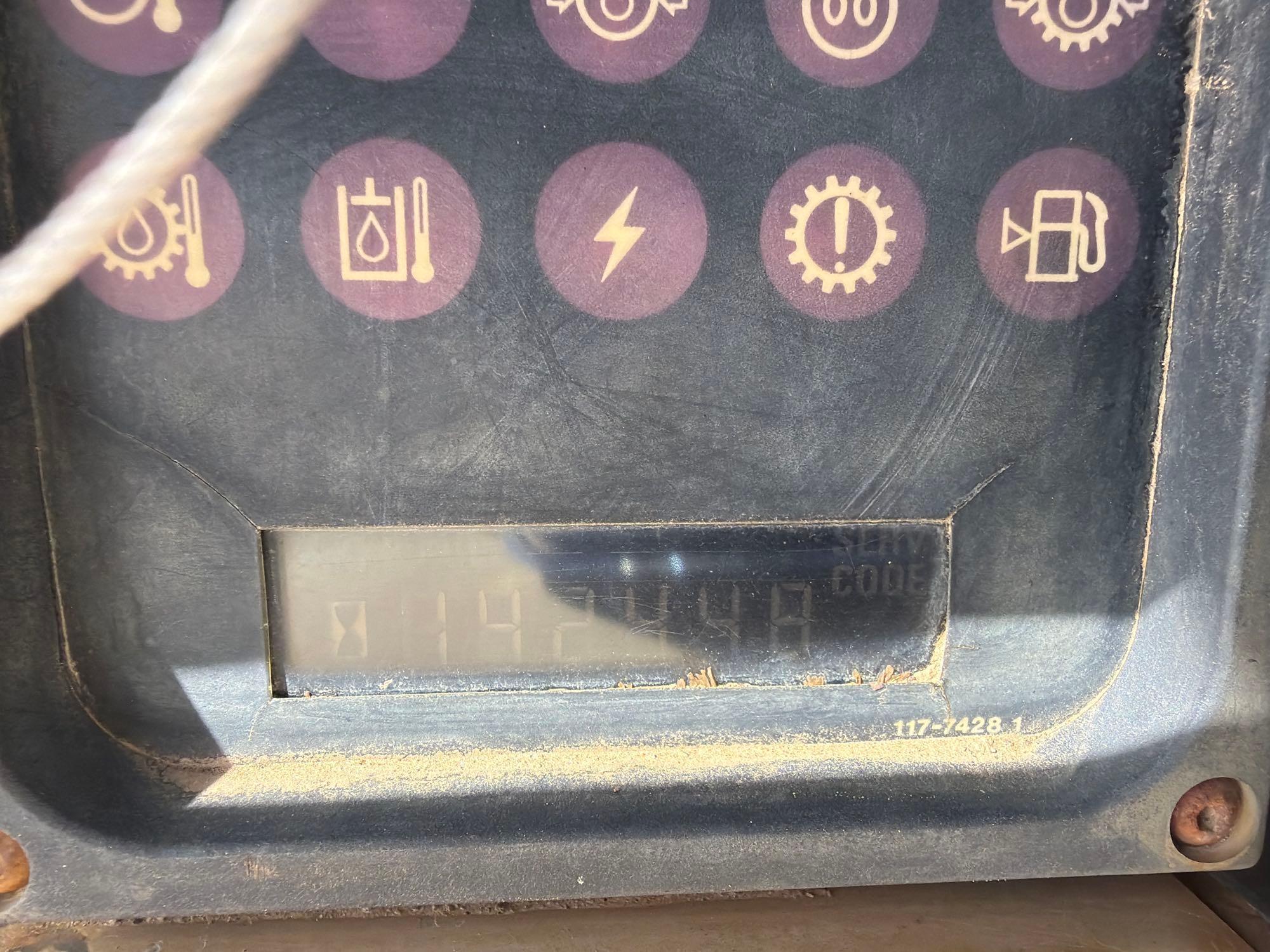

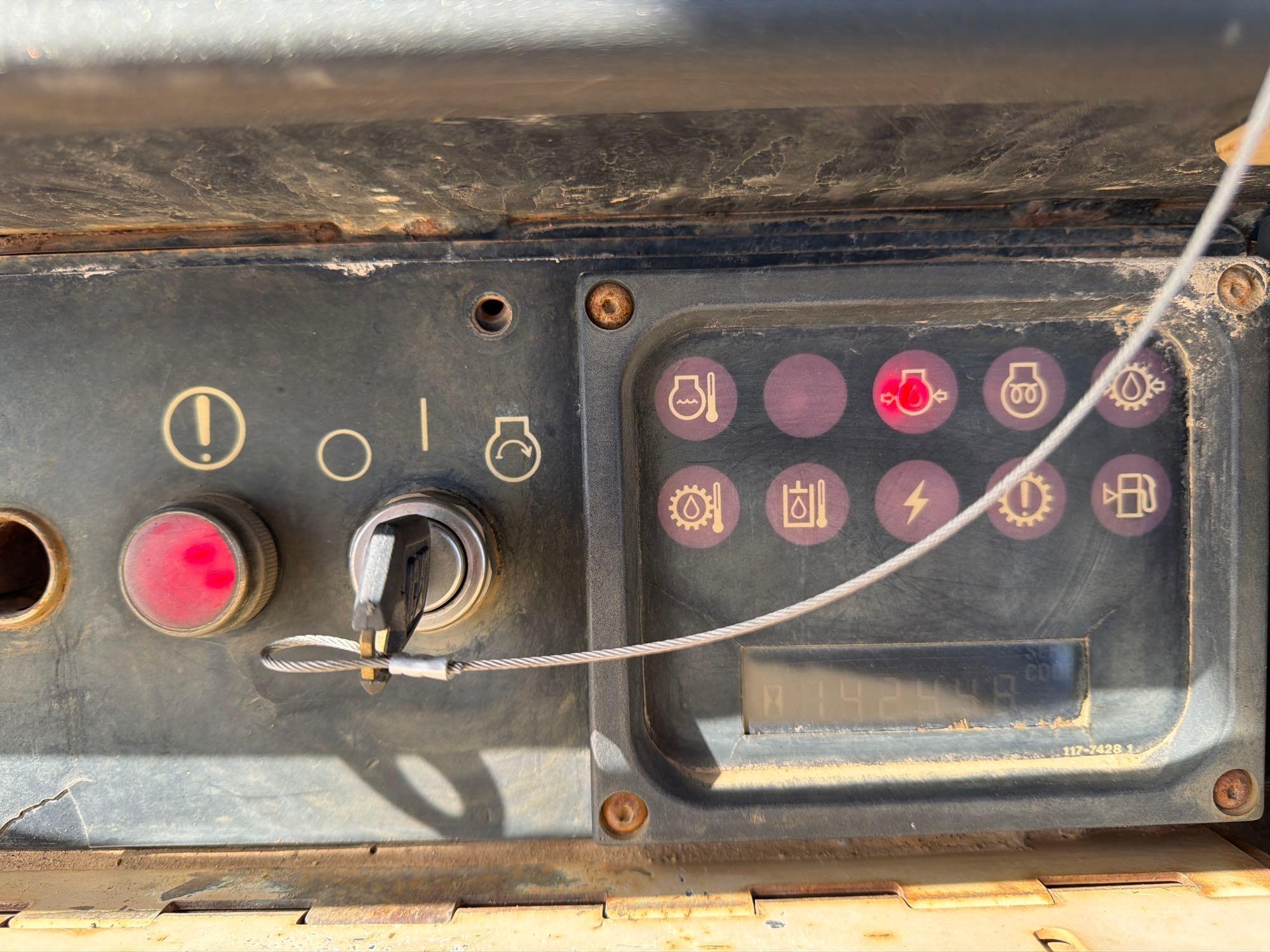

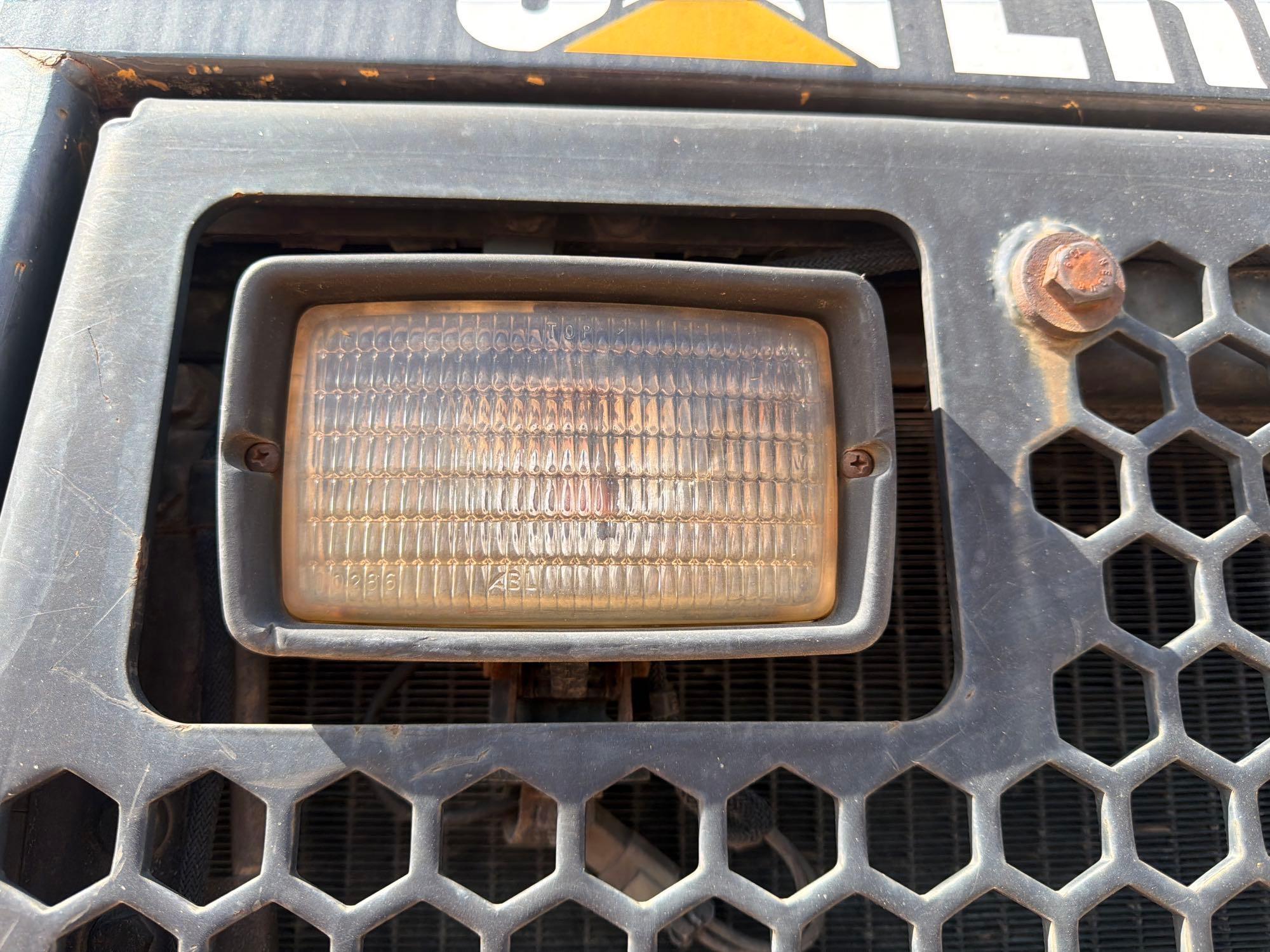

| Electrical System |
|
Alternator |
70 Amps, Heavy-Duty Brushless |
|
Battery Capacity |
750 CCA |
|
Battery Quantity |
2 |
|
Battery Voltage |
12 |
|
Electrical System Type |
24V DC |

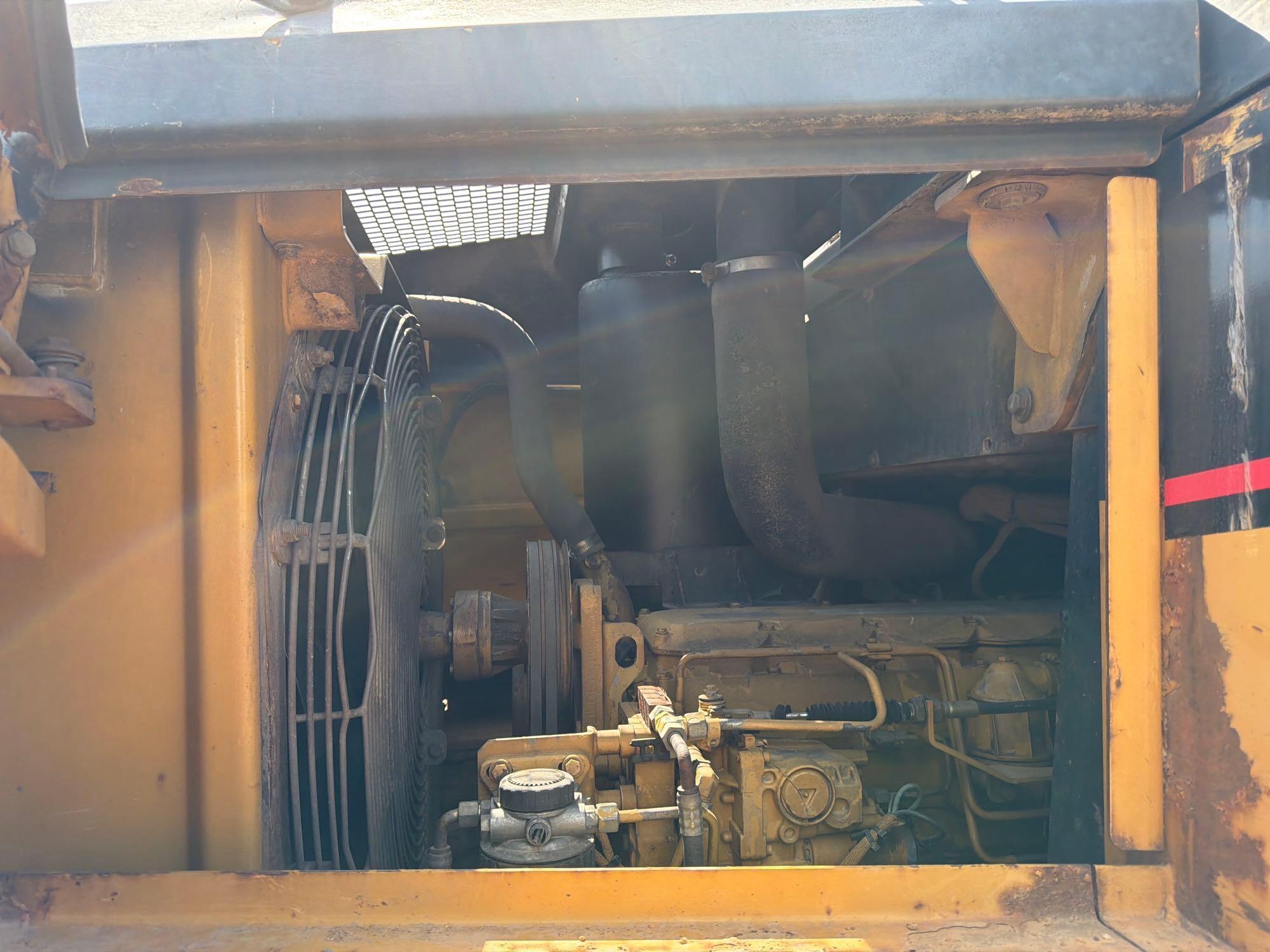

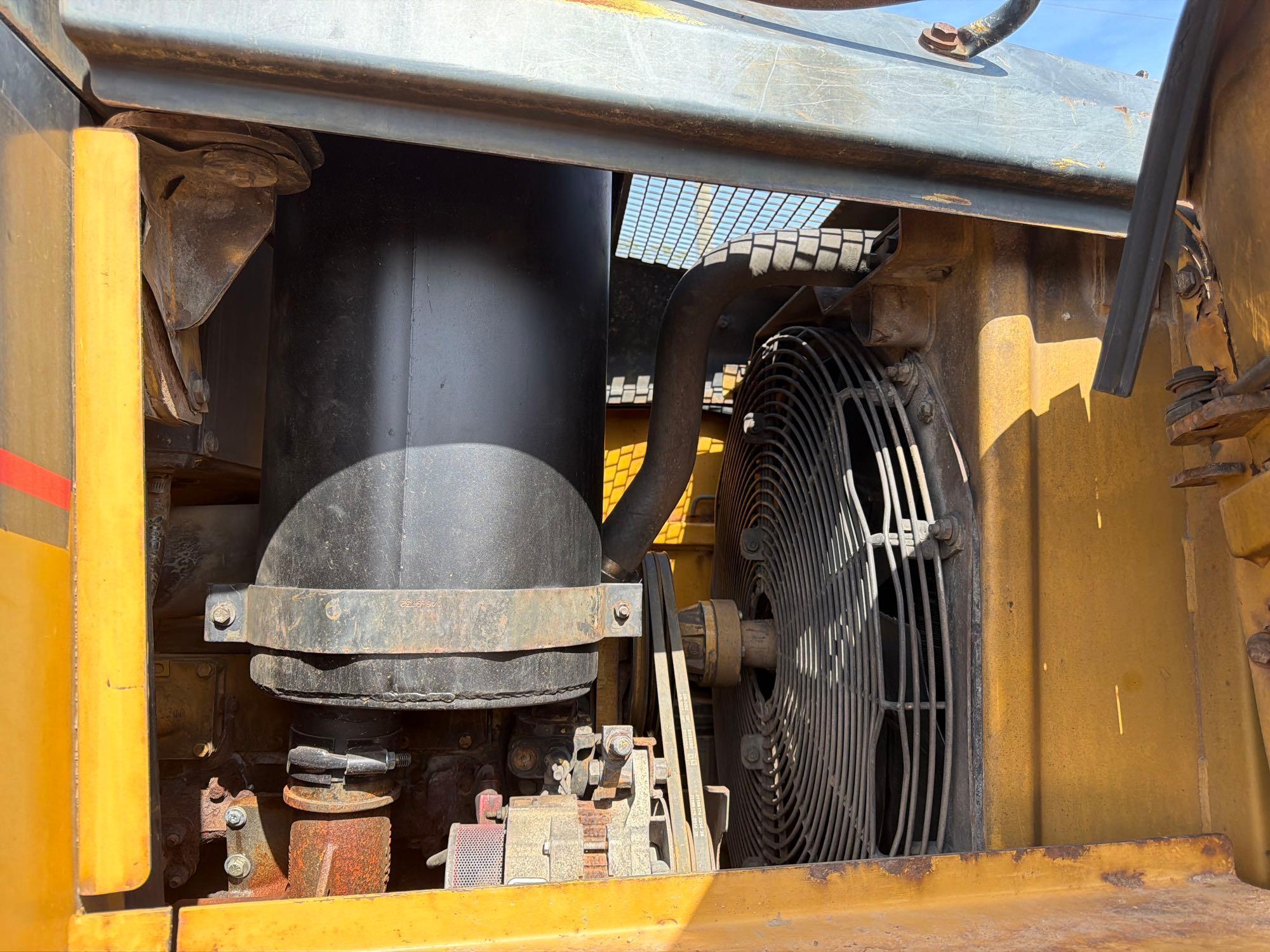

| Engine |
|
Aspiration |
Turbocharged |
|
Bore |
4 in (11 cm)
|
|
Displacement |
442 cu in (7,243 cu cm)
|
|
Engine Make |
2,236 |
|
Engine Model |
3126B ATAAC |
|
Engine Model |
Cat 3126B ATAAC |
|
Flywheel Power |
128 hp (95 kw)
|
|
Net Power |
128 hp (95 kw)
|
|
Net Power - Caterpillar |
128 hp (95 kw)
|
|
Net Power - Eec 80/1269 |
128 hp (95 kw)
|
|
Net Power - Iso 9249 |
128 hp (95 kw)
|
|
Net Power - Sae J1349 |
128 hp (95 kw)
|
|
Number Of Cylinders |
6 |
|
Power Measured @ |
2,000 rpm |
|
Stroke |
5 in (13 cm)
|
| General Specifications |
|
(optional track) (Since 1998)
|
91 in (231 cm)
|
|
(optional track) Weight of General Purpose Bucket (Since 2001)
|
91 in (231 cm)
|
|
1st (Since 1998)
|
0-10 0-6.2 |
|
1st (1998)
|
0-10 0-6.2 |
|
1st (Since 2001)
|
0-9.7 0-6.0 |
|
1st (Since 2006)
|
0-10 0-6.2 |
|
2133 mm (7'0") Clearance 1404 (Since 2006)
|
55 in (140 cm)
|
|
2nd (Since 1998)
|
Infinitely |
|
2nd (1998)
|
Infinitely |
|
2nd (2001)
|
Infinitely |
|
2nd (2006)
|
Infinitely |
|
3rd (Since 1998)
|
Variable |
|
3rd (1998)
|
Variable |
|
3rd (2001)
|
Variable |
|
3rd (2006)
|
Variable |
|
A Forward Dump Clearance (Since 1998)
|
107 in (272 cm)
|
|
A Forward Dump Clearance (Since 2001)
|
104 in (264 cm)
|
|
A Forward Dump Clearance (Since 2006)
|
101 in (256 cm)
|
|
A Height to Top of Seat (Since 2001)
|
93 in (236 cm)
|
|
A Height to Top of Seat (Since 2006)
|
103 in (261 cm)
|
|
A Height to Top of Stack (Since 1998)
|
96 in (244 cm)
|
|
Additional Hydraulics (Since 1998)
|
3,115 lbs (1,413 kg)
|
|
and Additional Hydraulics (Since 2001)
|
3,616 lbs (1,640 kg)
|
|
and Additional Hydraulics (2006)
|
3,616 lbs (1,640 kg)
|
|
Approx. Operating Weight (Since 1996)
|
32,360 lbs (14,678 kg)
|
|
Approx. Operating Weight (1997)
|
32,360 lbs (14,678 kg)
|
|
Approx. Operating Weight (1998)
|
32,360 lbs (14,678 kg)
|
|
Approx. Operating Weight (1999)
|
32,360 lbs (14,678 kg)
|
|
Approx. Operating Weight (2000)
|
32,360 lbs (14,678 kg)
|
|
Approx. Operating Weight (2001)
|
32,360 lbs (14,678 kg)
|
|
Approx. Operating Weight (2002)
|
32,360 lbs (14,678 kg)
|
|
Approx. Operating Weight (2003)
|
32,360 lbs (14,678 kg)
|
|
Approx. Operating Weight (Since 2003)
|
33,389 lbs (15,145 kg)
|
|
Approx. Operating Weight (2004)
|
33,389 lbs (15,145 kg)
|
|
Approx. Operating Weight (2005)
|
33,389 lbs (15,145 kg)
|
|
Approx. Operating Weight (2006)
|
33,389 lbs (15,145 kg)
|
|
Approx. Operating Weight (2007)
|
33,389 lbs (15,145 kg)
|
|
B Bottom Dump Clearance (Since 1998)
|
125 in (318 cm)
|
|
B Bottom Dump Clearance (2001)
|
125 in (318 cm)
|
|
B Bottom Dump Clearance (Since 2006)
|
121 in (307 cm)
|
|
B Height to Top of Seat (Since 1998)
|
93 in (236 cm)
|
|
B Height to Top of Stack (Since 2001)
|
96 in (244 cm)
|
|
B Height to Top of Stack (Since 2006)
|
104 in (265 cm)
|
|
Bore (Since 1998)
|
4 in (10 cm)
|
|
Bore (1998)
|
4 in (10 cm)
|
|
Bore (2001)
|
4 in (10 cm)
|
|
Bore (Since 2006)
|
4 in (11 cm)
|
|
C Height to Top of ROPS (Since 1998)
|
121 in (307 cm)
|
|
C Height to Top of ROPS (2001)
|
121 in (307 cm)
|
|
C Height to Top of ROPS (Since 2006)
|
124 in (315 cm)
|
|
C Hinge Pin Height (Since 1998)
|
142 in (361 cm)
|
|
C Hinge Pin Height (2001)
|
142 in (361 cm)
|
|
C Hinge Pin Height (Since 2006)
|
141 in (359 cm)
|
|
Closure Force, Clamp to Cutting Edge Weight of Bucket and (Since 1998)
|
16,134 lbs (7,318 kg)
|
|
Closure Force, Clamp to Cutting Edge Weight of Bucket with Teeth, Segments (Since 2001)
|
16,134 lbs (7,318 kg)
|
|
Closure Force, Clamp to Cutting Edge Weight of Bucket with Teeth, Segments (2006)
|
16,134 lbs (7,318 kg)
|
|
D Hinge Pin Height at Carry Position (Since 1998)
|
17 in (42 cm)
|
|
D Hinge Pin Height at Carry Position (2001)
|
17 in (42 cm)
|
|
D Hinge Pin Height at Carry Position (Since 2006)
|
17 in (42 cm)
|
|
D Overall Height (Since 1998)
|
212 in (538 cm)
|
|
D Overall Height (2001)
|
212 in (538 cm)
|
|
D Overall Height (Since 2006)
|
124 in (315 cm)
|
|
Dimensions Width (Since 1996)
|
91 in (231 cm)
|
|
Dimensions Width (1997)
|
91 in (231 cm)
|
|
Dimensions Width (1998)
|
91 in (231 cm)
|
|
Dimensions Width (1999)
|
91 in (231 cm)
|
|
Dimensions Width (2000)
|
91 in (231 cm)
|
|
Dimensions Width (2001)
|
91 in (231 cm)
|
|
Dimensions Width (2002)
|
91 in (231 cm)
|
|
Dimensions Width (2003)
|
91 in (231 cm)
|
|
Dimensions Width (2004)
|
91 in (231 cm)
|
|
Dimensions Width (2005)
|
91 in (231 cm)
|
|
Dimensions Width (2006)
|
91 in (231 cm)
|
|
Dimensions Width (2007)
|
91 in (231 cm)
|
|
Displacement (Since 2006)
|
439 cu in (7,194 cu cm)
|
|
E Bottom Dump Reach (Since 1998)
|
21 in (54 cm)
|
|
E Bottom Dump Reach (2001)
|
21 in (54 cm)
|
|
E Bottom Dump Reach (Since 2006)
|
23 in (58 cm)
|
|
E Rollback at Maximum Lift (Since 1998)
|
56 deg |
|
E Rollback at Maximum Lift (2001)
|
56 deg |
|
E Rollback at Maximum Lift (2006)
|
56 deg |
|
Engine Displacement (Since 1998)
|
403 cu in (6,604 cu cm)
|
|
Engine Displacement (1998)
|
403 cu in (6,604 cu cm)
|
|
Engine Displacement (2001)
|
403 cu in (6,604 cu cm)
|
|
Engine Model (Since 1998)
|
3116T |
|
Engine Model (1998)
|
3116T |
|
Engine Model (Since 2001)
|
3116 T |
|
Engine Model (Since 2006)
|
3126B ATAAC |
|
Equipped With Wide Track Shoe - (Specs that differ from above) (Since 1998)
|
953C |
|
Equipped With Wide Track Shoe - (Specs that differ from above) (2001)
|
953C |
|
Equipped With Wide Track Shoe - Ground Contact Area (Since 1998)
|
3,558 sq in (2 sq m)
|
|
Equipped With Wide Track Shoe - Ground Contact Area (2001)
|
3,558 sq in (2 sq m)
|
|
Equipped With Wide Track Shoe - Ground Pressure (Since 1998)
|
9 psi (64 kPa)
|
|
Equipped With Wide Track Shoe - Ground Pressure (Since 2001)
|
9 psi (64 kPa)
|
|
Equipped With Wide Track Shoe - Operating Weight (Since 1998)
|
33,010 lbs (14,973 kg)
|
|
Equipped With Wide Track Shoe - Operating Weight (2001)
|
33,010 lbs (14,973 kg)
|
|
Equipped With Wide Track Shoe - Track Gauge (Since 1998)
|
71 in (180 cm)
|
|
Equipped With Wide Track Shoe - Track Gauge (2001)
|
71 in (180 cm)
|
|
Equipped With Wide Track Shoe - Width of Track Shoe (Since 1998)
|
20 in (51 cm)
|
|
Equipped With Wide Track Shoe - Width of Track Shoe (2001)
|
20 in (51 cm)
|
|
Equipped With Wide Track Shoe - Width Without Bucket (Since 1998)
|
90 in (229 cm)
|
|
Equipped With Wide Track Shoe - Width Without Bucket (2001)
|
90 in (229 cm)
|
|
F Forward Dump Reach (Since 1998)
|
39 in (99 cm)
|
|
F Forward Dump Reach (Since 2001)
|
40 in (102 cm)
|
|
F Forward Dump Reach (Since 2006)
|
44 in (112 cm)
|
|
F Rollback at Carry Height (Since 1998)
|
48 deg |
|
F Rollback at Carry Height (2001)
|
48 deg |
|
F Rollback at Carry Height (2006)
|
48 deg |
|
Flywheel Horsepower (Since 1996)
|
121 hp (90 kw)
|
|
Flywheel Horsepower (1997)
|
121 hp (90 kw)
|
|
Flywheel Horsepower (1998)
|
121 hp (90 kw)
|
|
Flywheel Horsepower (1999)
|
121 hp (90 kw)
|
|
Flywheel Horsepower (2000)
|
121 hp (90 kw)
|
|
Flywheel Horsepower (2001)
|
121 hp (90 kw)
|
|
Flywheel Horsepower (2002)
|
121 hp (90 kw)
|
|
Flywheel Horsepower (2003)
|
121 hp (90 kw)
|
|
Flywheel Horsepower (Since 2003)
|
128 hp (95 kw)
|
|
Flywheel Horsepower (2004)
|
128 hp (95 kw)
|
|
Flywheel Horsepower (2005)
|
128 hp (95 kw)
|
|
Flywheel Horsepower (2006)
|
128 hp (95 kw)
|
|
Flywheel Horsepower (2007)
|
128 hp (95 kw)
|
|
Flywheel Power (Since 1998)
|
121 hp (90 kw)
|
|
Flywheel Power (1998)
|
121 hp (90 kw)
|
|
Flywheel Power (2001)
|
121 hp (90 kw)
|
|
Flywheel Power (Since 2006)
|
128 hp (95 kw)
|
|
Fuel Tank Refill Capacity (Since 1998)
|
64 US gal (241 L)
|
|
Fuel Tank Refill Capacity (Since 1998)
|
64 US gal (241 L)
|
|
Fuel Tank Refill Capacity (Since 2001)
|
64 US gal (241 L)
|
|
Fuel Tank Refill Capacity (Since 2006)
|
62 US gal (234 L)
|
|
G Digging Depth (Since 1998)
|
6 in (16 cm)
|
|
G Digging Depth (Since 2001)
|
7 in (18 cm)
|
|
G Digging Depth (Since 2006)
|
7 in (18 cm)
|
|
G Rollback at Ground Level (Since 1998)
|
41 deg |
|
G Rollback at Ground Level (2001)
|
41 deg |
|
G Rollback at Ground Level (2006)
|
41 deg |
|
Grading Angle (Bare Edge) (Since 1998)
|
74 deg |
|
Grading Angle (Bare Edge) (2001)
|
74 deg |
|
Grading Angle (Bare Edge) (2006)
|
74 deg |
|
Ground Clearance (Since 1998)
|
15 in (38 cm)
|
|
Ground Clearance (1998)
|
15 in (38 cm)
|
|
Ground Clearance (2001)
|
15 in (38 cm)
|
|
Ground Clearance (Since 2006)
|
16 in (40 cm)
|
|
Ground Contact Area - (with Standard Shoes) (Since 2006)
|
3,565 sq in (2 sq m)
|
|
Ground Contact Area - (With Std. Shoe) (Since 1998)
|
2,704 sq in (2 sq m)
|
|
Ground Contact Area - (With Std. Shoe) (1998)
|
2,704 sq in (2 sq m)
|
|
Ground Contact Area - (With Std. Shoe) (2001)
|
2,704 sq in (2 sq m)
|
|
Ground Pressure (Since 1998)
|
12 psi (83 kPa)
|
|
Ground Pressure (Since 1998)
|
13 psi (89 kPa)
|
|
Ground Pressure (Since 2001)
|
12 psi (83 kPa)
|
|
Ground Pressure (Since 2006)
|
10 psi (66 kPa)
|
|
H Bucket Opening (Since 1998)
|
45 in (114 cm)
|
|
H Bucket Opening (2001)
|
45 in (114 cm)
|
|
H Bucket Opening (Since 2006)
|
45 in (114 cm)
|
|
Height (Since 1996)
|
121 in (307 cm)
|
|
Height (1997)
|
121 in (307 cm)
|
|
Height (Since 1998)
|
7 in (17 cm)
|
|
Height (Since 1998)
|
121 in (307 cm)
|
|
Height (1999)
|
121 in (307 cm)
|
|
Height (2000)
|
121 in (307 cm)
|
|
Height (Since 2001)
|
7 in (17 cm)
|
|
Height (Since 2001)
|
121 in (307 cm)
|
|
Height (2002)
|
121 in (307 cm)
|
|
Height (2003)
|
121 in (307 cm)
|
|
Height (Since 2003)
|
124 in (315 cm)
|
|
Height (2004)
|
124 in (315 cm)
|
|
Height (2005)
|
124 in (315 cm)
|
|
Height (2006)
|
124 in (315 cm)
|
|
Height (Since 2006)
|
6 in (16 cm)
|
|
Height (Since 2007)
|
124 in (315 cm)
|
|
Hydraulic Cycle Time, Bucket - Dump (Since 1998)
|
1 sec |
|
Hydraulic Cycle Time, Bucket - Empty, in Seconds - Dump (Since 1998)
|
1 sec |
|
Hydraulic Cycle Time, Bucket - Empty, in Seconds - Dump (2001)
|
1 sec |
|
Hydraulic Cycle Time, Bucket - Empty, in Seconds - Dump (Since 2006)
|
1 sec |
|
Hydraulic Cycle Time, Bucket - Empty, in Seconds - Lower (Empty, Float Down) (Since 1998)
|
3 sec |
|
Hydraulic Cycle Time, Bucket - Empty, in Seconds - Lower (Empty, Float Down) (2001)
|
3 sec |
|
Hydraulic Cycle Time, Bucket - Empty, in Seconds - Lower (Empty, Float Down) (Since 2006)
|
3 sec |
|
Hydraulic Cycle Time, Bucket - Empty, in Seconds - Raise (Since 1998)
|
7 sec |
|
Hydraulic Cycle Time, Bucket - Empty, in Seconds - Raise (2001)
|
7 sec |
|
Hydraulic Cycle Time, Bucket - Empty, in Seconds - Raise (Since 2006)
|
7 sec |
|
Hydraulic Cycle Time, Bucket - Empty, in Seconds - Total (Since 1998)
|
10 sec |
|
Hydraulic Cycle Time, Bucket - Empty, in Seconds - Total (2001)
|
10 sec |
|
Hydraulic Cycle Time, Bucket - Lower (Empty, Float Down) (Since 1998)
|
3 sec |
|
Hydraulic Cycle Time, Bucket - Raise (Since 1998)
|
7 sec |
|
Hydraulic Cycle Time, Bucket - Total (Since 1998)
|
11 sec |
|
Hydraulic System Refill Capacity (Since 1998)
|
28 US gal (104 L)
|
|
Hydraulic System Refill Capacity (Since 1998)
|
17 US gal (65 L)
|
|
Hydraulic System Refill Capacity (Since 2001)
|
28 US gal (104 L)
|
|
Hydraulic System Refill Capacity (Since 2006)
|
18 US gal (67 L)
|
|
Installed Weights - Each Additional Shank (Since 2006)
|
3 shanks std. |
|
Installed weights - Ripper with standard shanks (Since 1998)
|
944 lbs (428 kg)
|
|
Installed Weights - Ripper with Standard Shanks (Since 2006)
|
1,144 lbs (519 kg)
|
|
Length (Since 1996)
|
171 in (434 cm)
|
|
Length (1997)
|
171 in (434 cm)
|
|
Length (Since 1998)
|
8 in (21 cm)
|
|
Length (Since 1998)
|
171 in (434 cm)
|
|
Length (1999)
|
171 in (434 cm)
|
|
Length (2000)
|
171 in (434 cm)
|
|
Length (Since 2001)
|
8 in (21 cm)
|
|
Length (Since 2001)
|
171 in (434 cm)
|
|
Length (2002)
|
171 in (434 cm)
|
|
Length (2003)
|
171 in (434 cm)
|
|
Length (2004)
|
171 in (434 cm)
|
|
Length (2005)
|
171 in (434 cm)
|
|
Length (2006)
|
171 in (434 cm)
|
|
Length (Since 2006)
|
8 in (21 cm)
|
|
Length (Since 2007)
|
171 in (434 cm)
|
|
Length of Track on Ground (Since 1998)
|
90 in (229 cm)
|
|
Length of Track on Ground (1998)
|
90 in (229 cm)
|
|
Length of Track on Ground (2001)
|
90 in (229 cm)
|
|
Length of Track on Ground (Since 2006)
|
92 in (235 cm)
|
|
Maximum ground - clearance under tip (shank pinned in bottom hole) (Since 2001)
|
21 in (52 cm)
|
|
Maximum Ground Clearance - under Tip (shank pinned in bottom hole) (Since 2006)
|
20 in (51 cm)
|
|
Maximum ramp angle, - ripper up (shank pinned in bottom hole) (Since 1998)
|
19 deg |
|
Maximum ramp angle, - ripper up (shank pinned in bottom hole) (2001)
|
19 deg |
|
Maximum Ramp Angle, Ripper Up - (shank pinned in bottom hole) (Since 2006)
|
18 deg |
|
Maximum reach at - ground line (Since 1998)
|
43 in (109 cm)
|
|
Maximum reach at - ground line (2001)
|
43 in (109 cm)
|
|
Maximum Reach at Ground Line (Since 2006)
|
43 in (110 cm)
|
|
No. Cylinders (Since 1998)
|
6 |
|
No. Cylinders (1998)
|
6 |
|
No. Cylinders (2001)
|
6 |
|
No. Cylinders (2006)
|
6 |
|
Number of Pockets (Since 1998)
|
3 |
|
Number of Pockets (2001)
|
3 |
|
Number of Pockets (2006)
|
3 |
|
Operating Weight (Since 1998)
|
32,360 lbs (14,678 kg)
|
|
Operating Weight (Since 1998)
|
34,920 lbs (15,839 kg)
|
|
Operating Weight (Since 2001)
|
32,360 lbs (14,678 kg)
|
|
Operating Weight (Since 2006)
|
33,389 lbs (15,145 kg)
|
|
Penetration Force (Since 1998)
|
10,380 lbs (4,708 kg)
|
|
Pocket Spacing (Since 1998)
|
35 in (90 cm)
|
|
Pocket Spacing (2001)
|
35 in (90 cm)
|
|
Pocket Spacing (Since 2006)
|
35 in (90 cm)
|
|

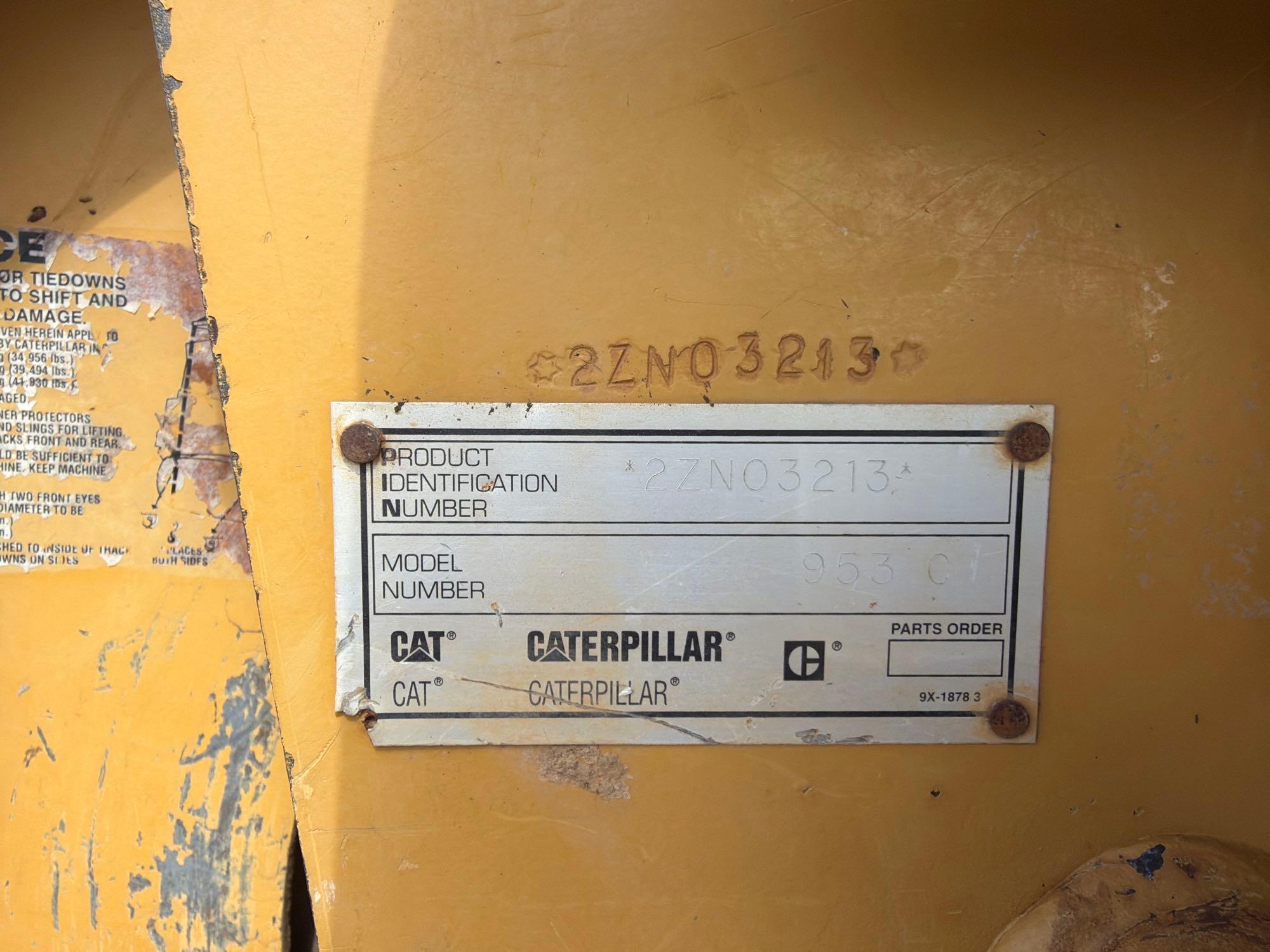

Product Identification Prefix (Since 1996)
|
2ZN |
|
Product Identification Prefix (1997)
|
2ZN |
|
Product Identification Prefix (1998)
|
2ZN |
|
Product Identification Prefix (1999)
|
2ZN |
|
Product Identification Prefix (2000)
|
2ZN |
|
Product Identification Prefix (2001)
|
2ZN |
|
Product Identification Prefix (2002)
|
2ZN |
|
Product Identification Prefix (2003)
|
2ZN |
|
Product Identification Prefix (Since 2003)
|
BBX |
|
Product Identification Prefix (2004)
|
BBX |
|
Product Identification Prefix (2005)
|
BBX |
|
Product Identification Prefix (2006)
|
BBX |
|
Product Identification Prefix (2007)
|
BBX |
|
Pryout Force (Since 1998)
|
22,905 lbs (10,390 kg)
|
|
Pryout Force (Since 2006)
|
22,901 lbs (10,388 kg)
|
|
Rated Capacity (Since 1996)
|
3 cu yd (2 cu m)
|
|
Rated Capacity (1997)
|
3 cu yd (2 cu m)
|
|
Rated Capacity (1998)
|
3 cu yd (2 cu m)
|
|
Rated Capacity (1999)
|
3 cu yd (2 cu m)
|
|
Rated Capacity (2000)
|
3 cu yd (2 cu m)
|
|
Rated Capacity (2001)
|
3 cu yd (2 cu m)
|
|
Rated Capacity (2002)
|
3 cu yd (2 cu m)
|
|
Rated Capacity (2003)
|
3 cu yd (2 cu m)
|
|
Rated Capacity (Since 2003)
|
2 cu yd (2 cu m)
|
|
Rated Capacity (2004)
|
2 cu yd (2 cu m)
|
|
Rated Capacity (2005)
|
2 cu yd (2 cu m)
|
|
Rated Capacity (2006)
|
2 cu yd (2 cu m)
|
|
Rated Capacity (2007)
|
2 cu yd (2 cu m)
|
|
Rated Engine RPM (Since 1998)
|
2,200 rpm |
|
Rated Engine RPM (1998)
|
2,200 rpm |
|
Rated Engine RPM (2001)
|
2,200 rpm |
|
Rated Engine RPM (Since 2006)
|
2,000 rpm |
|
Reach @ Full Lift and - 45° Discharge 949 (Since 2006)
|
37 in (95 cm)
|
|
Reach @ Full Lift and - Breakout Force 107.1 (Since 2006)
|
24,098 lbs (10,931 kg)
|
|
Reach @ Full Lift and - Digging Depth 147 (Since 2006)
|
6 in (15 cm)
|
|
Reach @ Full Lift and - Operating Weight 15 374 (Since 2006)
|
33,893 lbs (15,374 kg)
|
|
Reach @ Full Lift and - Overall Height 4862 (Since 2006)
|
210 in (534 cm)
|
|
Reach @ Full Lift and - Overall Length 6036 (Since 2006)
|
238 in (604 cm)
|
|
Reach @ Full Lift and - Static Tipping Load 10 354 (Since 2006)
|
22,826 lbs (10,354 kg)
|
|
Reach at 2133 mm (7'0") Height (Since 1998)
|
57 in (145 cm)
|
|
Reach at 2133 mm (7'0") Height (2001)
|
57 in (145 cm)
|
|
Reach at 2133 mm (7'0") Height (Since 2006)
|
57 in (144 cm)
|
|
Remarks (Since 2003)
|
SystemOne U/C |
|
Remarks (2004)
|
SystemOne U/C |
|
Remarks (2005)
|
SystemOne U/C |
|
Remarks (2006)
|
SystemOne U/C |
|
Remarks (2007)
|
SystemOne U/C |
|
Reverse - 1st (Since 1998)
|
0-10 0-6.2 |
|
Reverse - 2nd (Since 1998)
|
Infinitely |
|
Reverse - 3rd (Since 1998)
|
Variable |
|
Ripper Beam Overall width (Since 1998)
|
77 in (196 cm)
|
|
Ripper Beam Overall width (2001)
|
77 in (196 cm)
|
|
Ripper Beam Overall Width (Since 2006)
|
77 in (195 cm)
|
|
Ripper Forces Penetration Force (Since 2006)
|
10,377 lbs (4,707 kg)
|
|
Ripper Shank Maximum digging depth (Since 1998)
|
11 in (28 cm)
|
|
Ripper Shank Maximum penetration depth (Since 2001)
|
11 in (27 cm)
|
|
Ripper Shank Maximum Penetration Depth (Since 2006)
|
11 in (29 cm)
|
|
Ripper-Scarifier Type (Since 1998)
|
Radial |
|
Ripper-Scarifier Type (2001)
|
Radial |
|
Ripper-Scarifier Type (2006)
|
Radial |
|
See Wheel Loader section of this book for (Since 1998)
|
summary of S.A.E. Guidelines for Loader |
|
Shank Gauge (Since 1998)
|
71 in (180 cm)
|
|
Shank Gauge (2001)
|
71 in (180 cm)
|
|
Shank Gauge (Since 2006)
|
71 in (180 cm)
|
|
Speeds Forward/Reverse (Since 2006)
|
km/h mph |
|
Stroke (Since 1998)
|
5 in (13 cm)
|
|
Stroke (1998)
|
5 in (13 cm)
|
|
Stroke (2001)
|
5 in (13 cm)
|
|
Stroke (2006)
|
5 in (13 cm)
|
|
Tilt Back at Ground Level (Since 1998)
|
43 deg |
|
Tilt Back at Ground Level (2001)
|
43 deg |
|
Tilt Back at Ground Level (Since 2006)
|
42 deg |
|
Track Gauge (Since 1998)
|
71 in (180 cm)
|
|
Track Gauge (1998)
|
71 in (180 cm)
|
|
Track Gauge (2001)
|
71 in (180 cm)
|
|
Track Gauge (2006)
|
71 in (180 cm)
|
|
Track Rollers (Each Side) (Since 1998)
|
6 |
|
Track Rollers (Each Side) (1998)
|
6 |
|
Track Rollers (Each Side) (2001)
|
6 |
|
Track Rollers (Each Side) (2006)
|
6 |
|
w/Teeth & Segments (Since 2001)
|
2,518 lbs (1,142 kg)
|
|
Width of Standard Track Shoe (Since 1998)
|
15 in (38 cm)
|
|
Width of Standard Track Shoe (1998)
|
15 in (38 cm)
|
|
Width of Standard Track Shoe (2001)
|
15 in (38 cm)
|
|
Width of Standard Track Shoe (Since 2006)
|
20 in (51 cm)
|
|
Width Without Bucket (Since 1998)
|
86 in (218 cm)
|
|
Width Without Bucket (1998)
|
86 in (218 cm)
|
|
Width Without Bucket (2001)
|
86 in (218 cm)
|
|
Width Without Bucket (std. track) (Since 1998)
|
86 in (218 cm)
|
|
Width Without Bucket (std. track) (2001)
|
86 in (218 cm)
|
|
with Teeth & Segments (Since 2006)
|
2,591 lbs (1,175 kg)
|
|
Years Built (Since 1996)
|
1,996 - 2,003 |
|
Years Built (1997)
|
1,996 - 2,003 |
|
Years Built (1998)
|
1,996 - 2,003 |
|
Years Built (1999)
|
1,996 - 2,003 |
|
Years Built (2000)
|
1,996 - 2,003 |
|
Years Built (2001)
|
1,996 - 2,003 |
|
Years Built (2002)
|
1,996 - 2,003 |
|
Years Built (2003)
|
1,996 - 2,003 |
|
Years Built (Since 2003)
|
2,003 - 2,007 |
|
Years Built (2004)
|
2,003 - 2,007 |
|
Years Built (2005)
|
2,003 - 2,007 |
|
Years Built (2006)
|
2,003 - 2,007 |
|
Years Built (2007)
|
2,003 - 2,007 |
| Hydraulic |
|
Dump Time |
1 sec |
|
Lower Time |
3 sec |
|
Pump Flow Capacity |
32 gpm (120 lpm)
|
|
Pump Type |
VANE |
|
Raise Time |
7 sec |
|
Relief Valve Pressure |
3,481 psi |

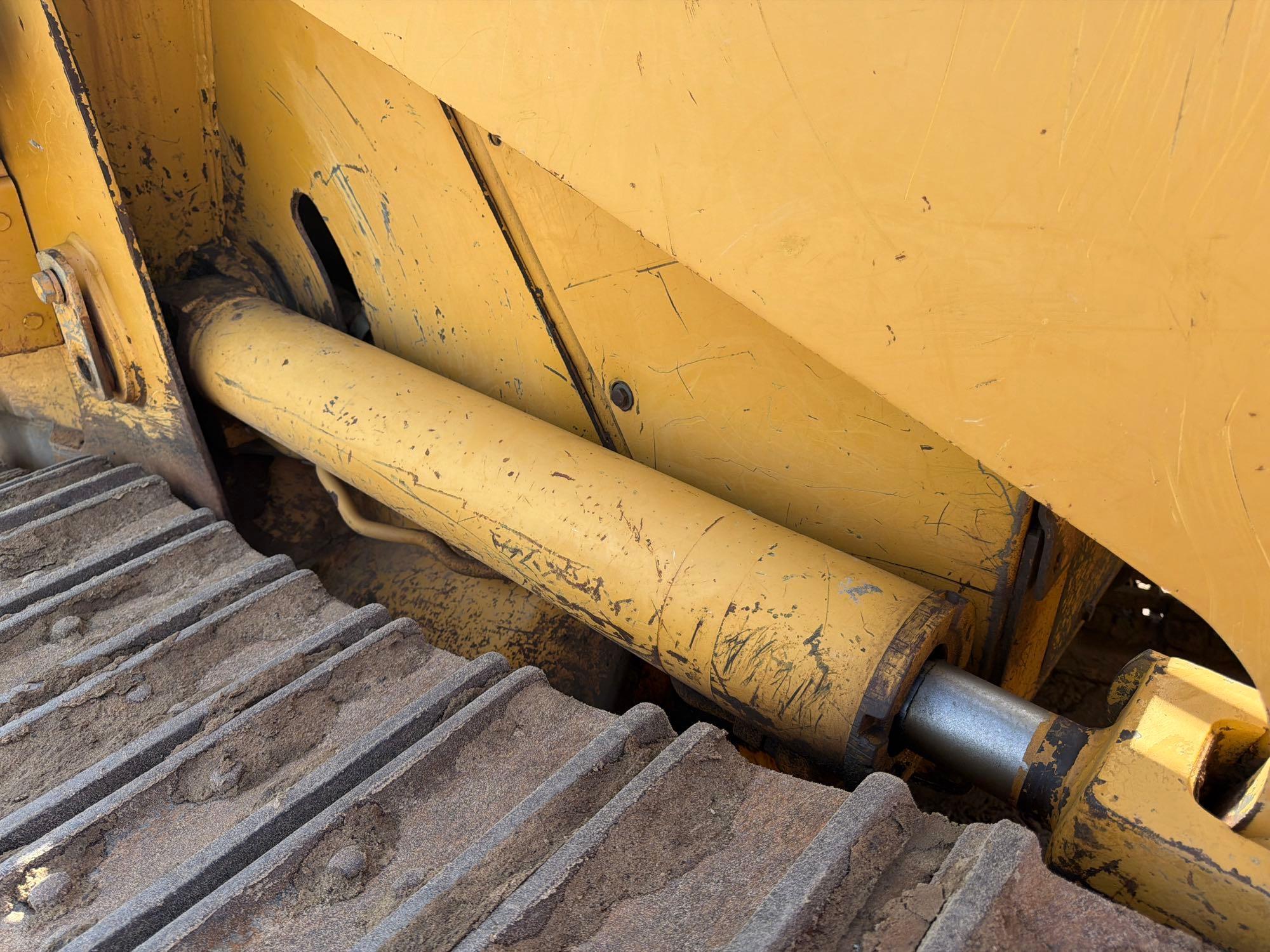

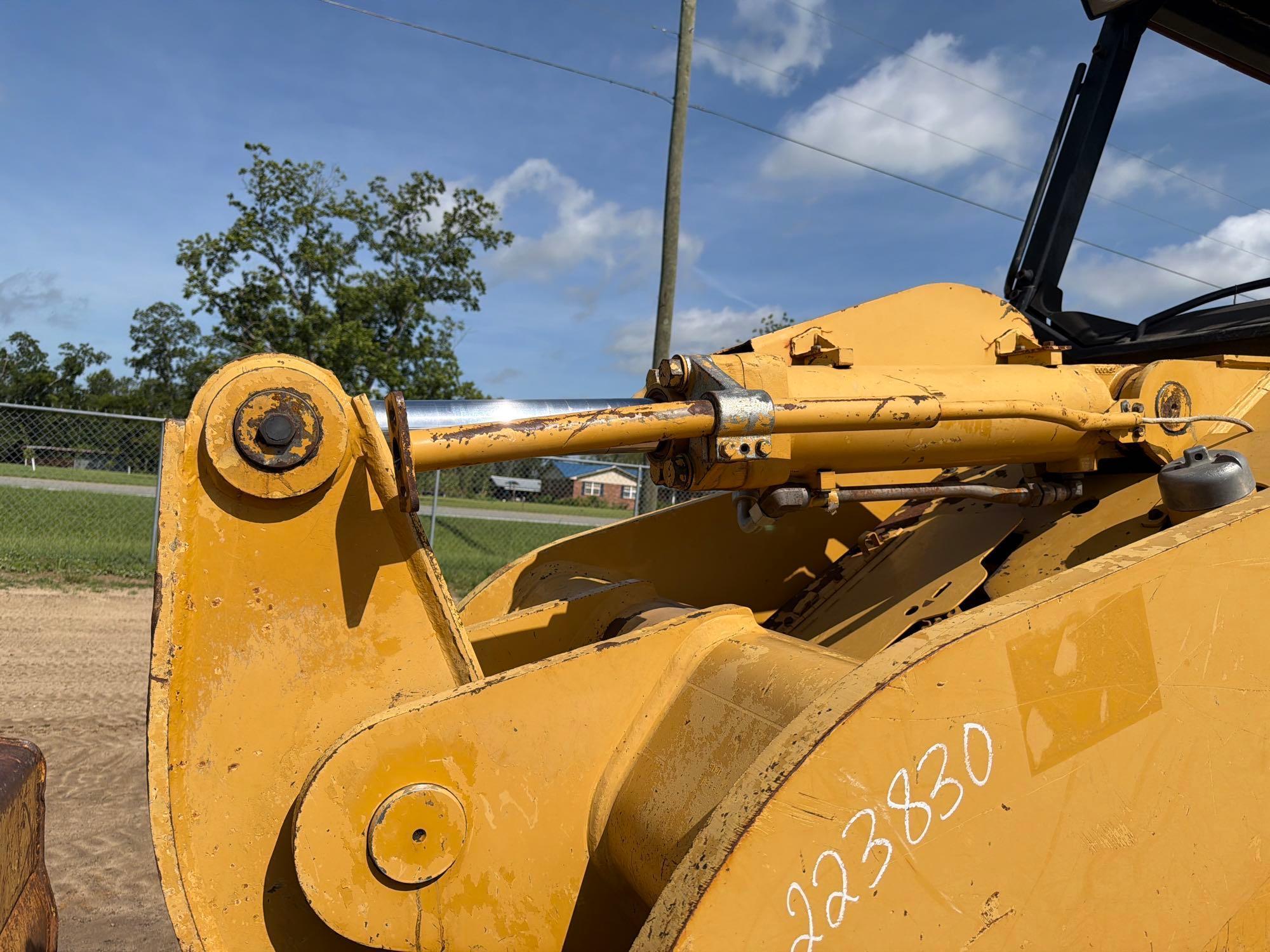

| Hydraulic System - Equipment |
|
Hydraulic System - Equipment Type |
Vane |
|

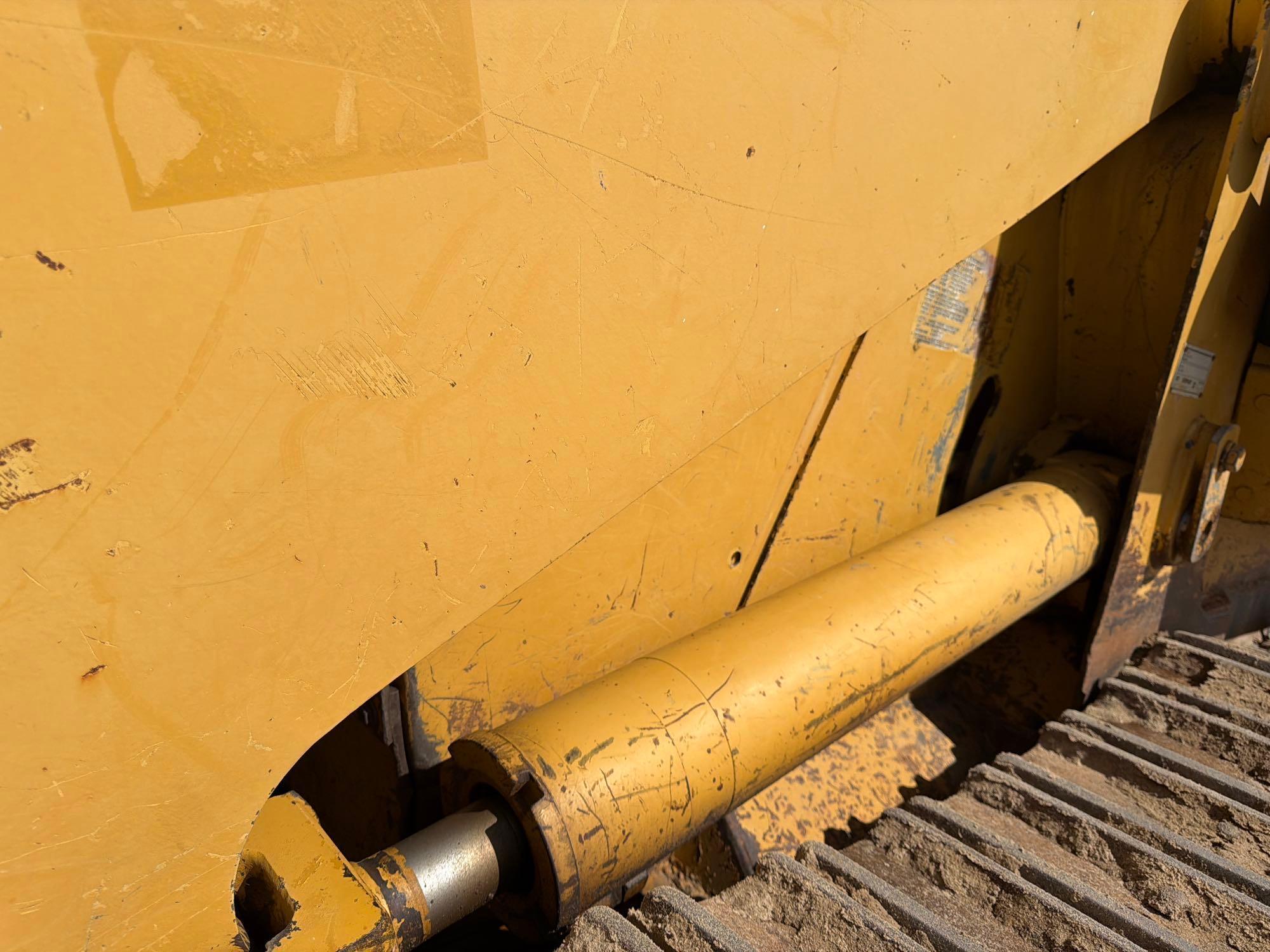

Lift Cylinder - Bore |
5 in (12 cm)
|
|
Lift Cylinder - Stroke |
28 in (71 cm)
|
|
Main Relief Valve Setting |
3,481 psi |
|
Output |
32 gpm (120 lpm)
|
|

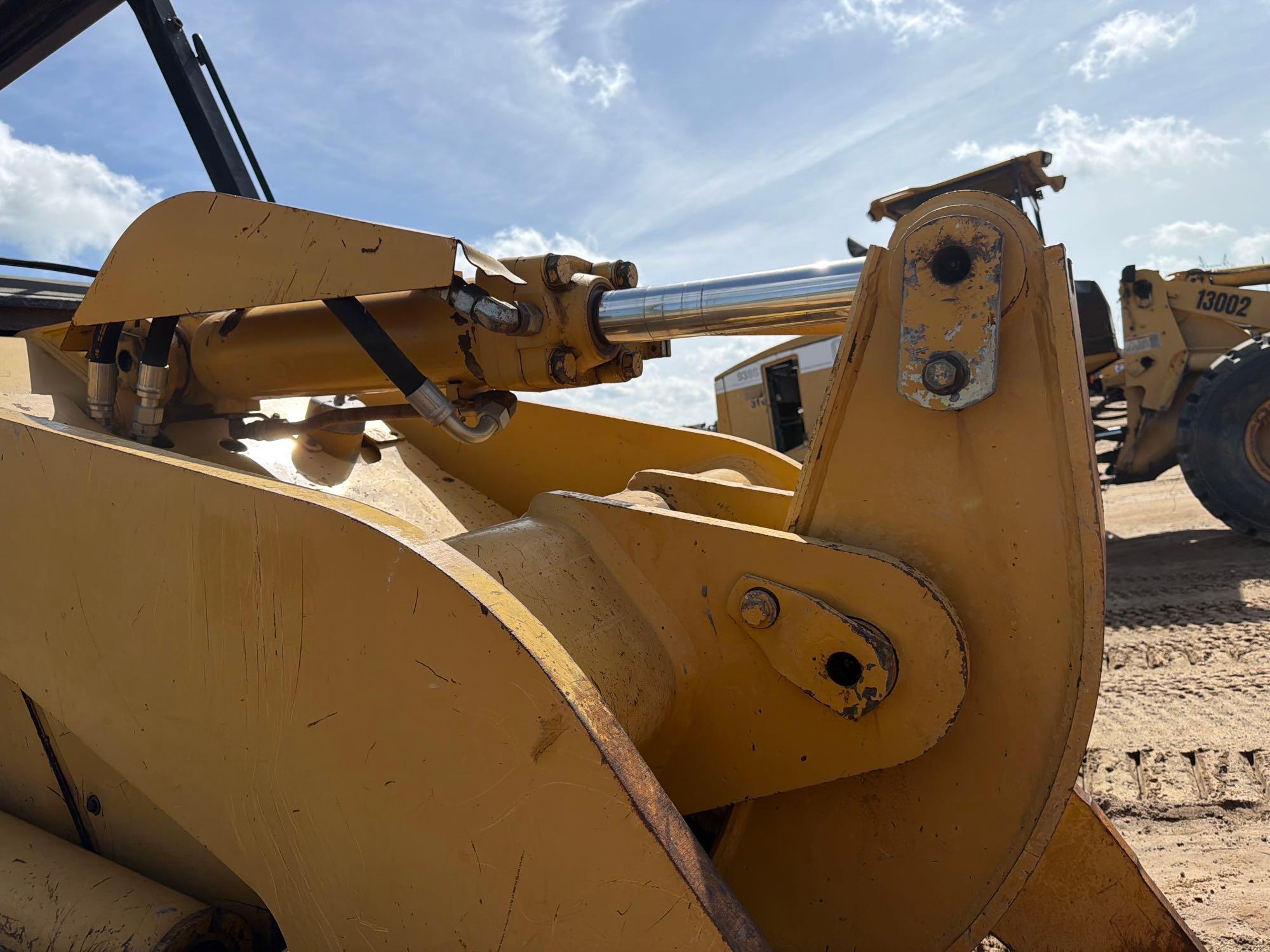

Tilt Cylinder - Bore |
6 in (14 cm)
|
|
Tilt Cylinder - Stroke |
19 in (48 cm)
|

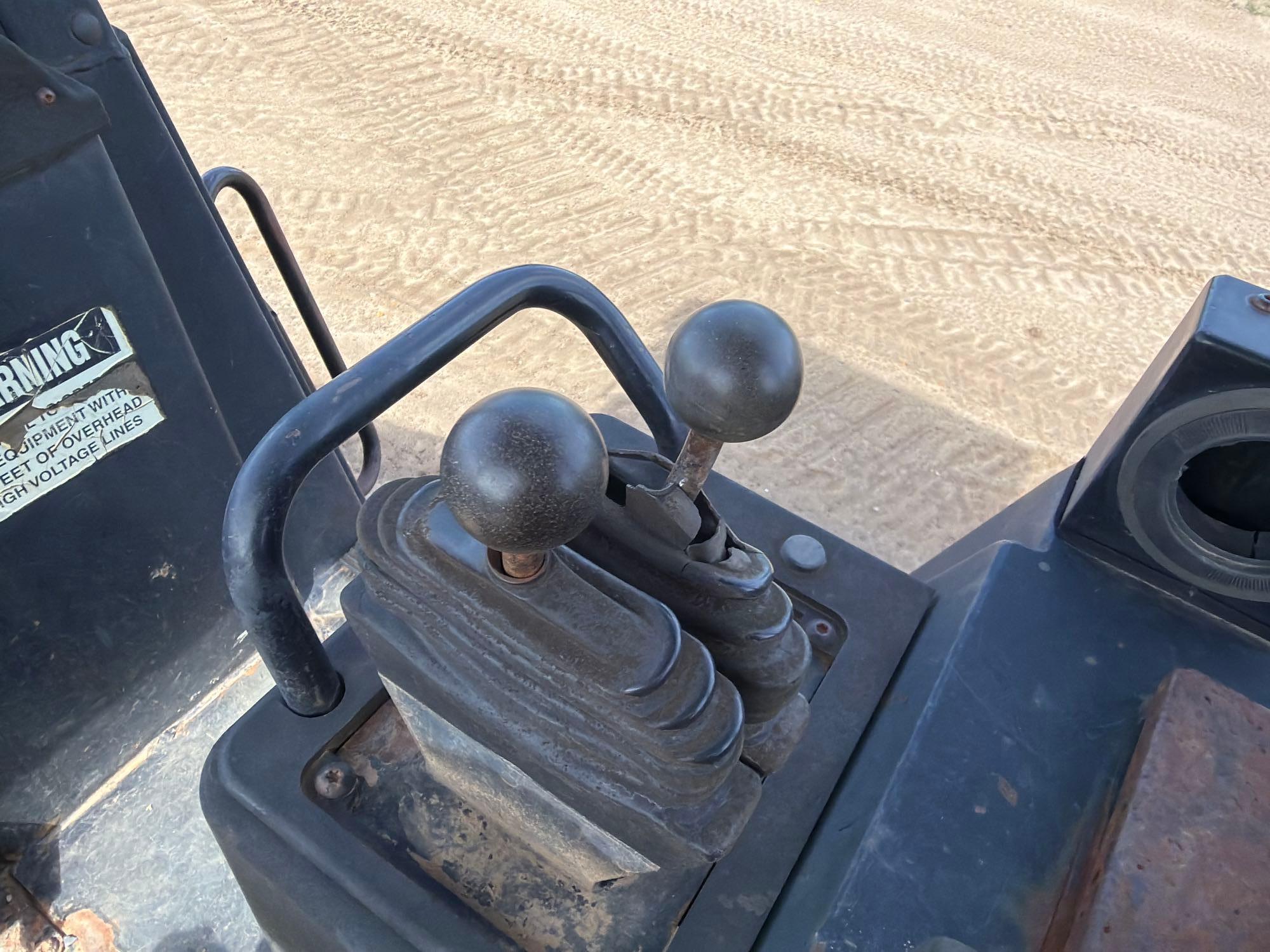

| Hydraulic System - Pilot |
|
Cycle Time - Dump |
1.3 s |
|
Cycle Time - Lower, Empty, Float Down |
2.6 s |
|
Cycle Time - Raise |
6.9 s |
|
Cycle Time - Raise And Dump |
5.8 s |
|
Output - Maximum |
3 gpm (12 lpm)
|
|
Relief Valve Setting |
413 psi |
| Operating Specifications |
|
Maximum Travel Speed |
6 mph (9 kph)
|
| Operational |
|
Alternator Supplied Amperage |
70 amps |
|
Breakout Force - Std Bucket |
21,400 lbs (9,707 kg)
|
|
Bucket Capacity - Heaped |
2 cu yd |
|
Bucket Capacity - Struck |
2 cu yd |
|
Cooling System Fluid Capacity |
7 gal (26 l)
|
|
Engine Oil Capacity |
5 gal (18 l)
|
|
Final Drive Fluid Capacity - Each |
4 gal (16 l)
|
|
Fuel Capacity |
64 gal (241 l)
|
|
Hydraulic System Fluid Capacity |
29 gal (110 l)
|
|
Max Speed |
6 mph (9 kph)
|
|
Operating Voltage |
12 V |
|
Operating Weight |
32,895 lbs (14,921 kg)
|
|
Static Tipping Load |
23,565 lbs (10,689 kg)
|
| Ripper Specifications |
|
Addition To Machine Length Due To Ripper In Transportation Position |
10 in (25 cm)
|
|
Cylinders - Bore |
4 in (10 cm)
|
|
Cylinders - Stroke |
11 in (27 cm)
|
|
Ground Clearance |
20 in (51 cm)
|
|
Number Of Pockets |
3 |
|
Overall Width/Beam |
77 in (195 cm)
|
|
Penetration |
11 in (29 cm)
|
|
Ripping Width |
71 in (180 cm)
|
|
Shank Cross Section |
50 x 109 mm 2.0 x 4.3 in |
|
Type |
Radial |
| Service Refill Capacities |
|
Cooling System |
7 gal (26 l)
|
|
Crankcase - With Filter |
5 gal (18 l)
|
|
Final Drive - Each |
4 gal (16 l)
|
|
Fuel Tank |
62 gal (235 l)
|
|
Hydraulic System - Equipment, Power Train And Tank |
29 gal (110 l)
|
|
Hydraulic Tank |
18 gal (67 l)
|
|
Pivot Shaft |
0 gal (1 l)
|
|
Pump Drive Box |
1 gal (4 l)
|
| Standards |
|
Brakes |
Brakes |
|

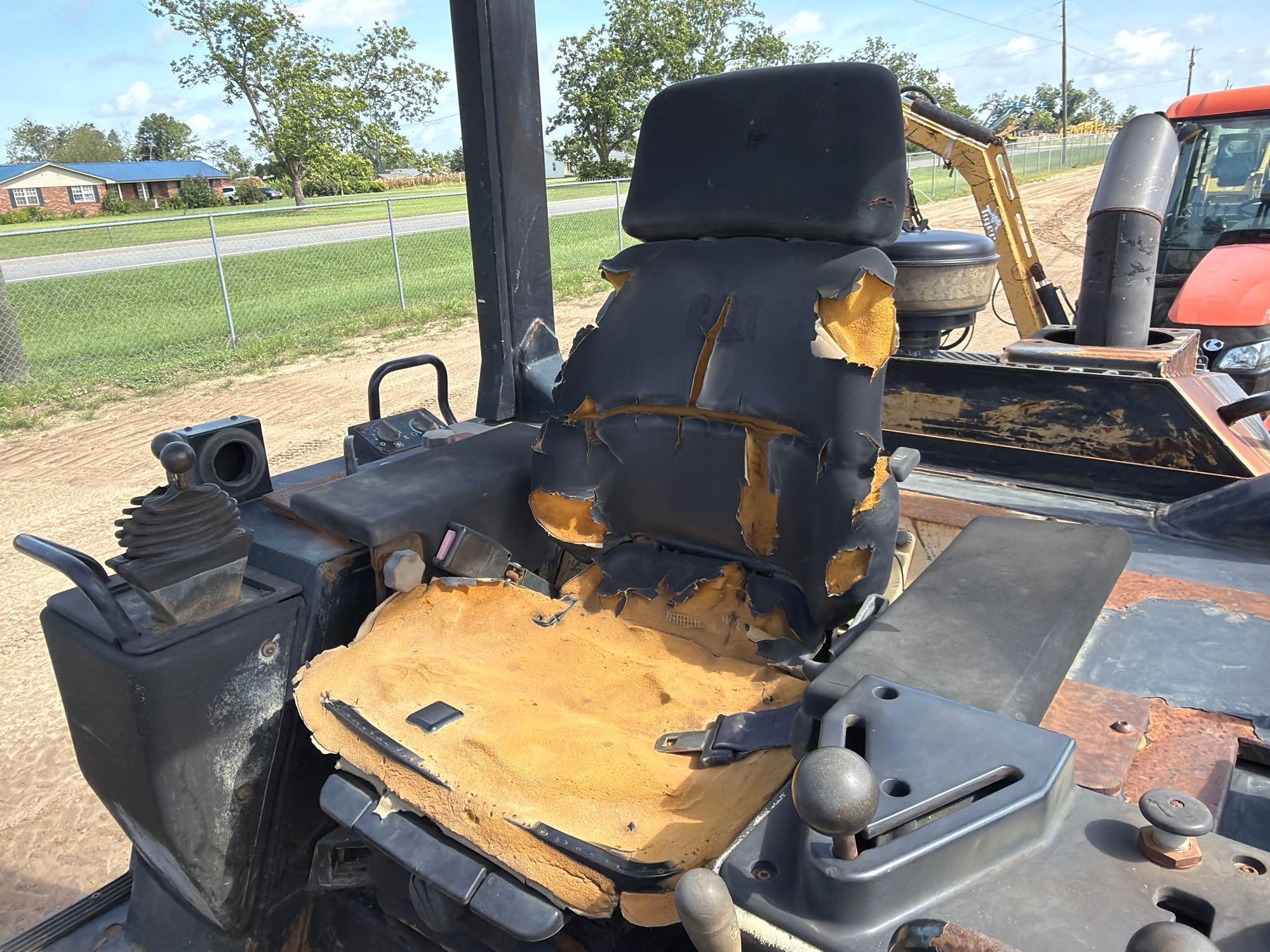

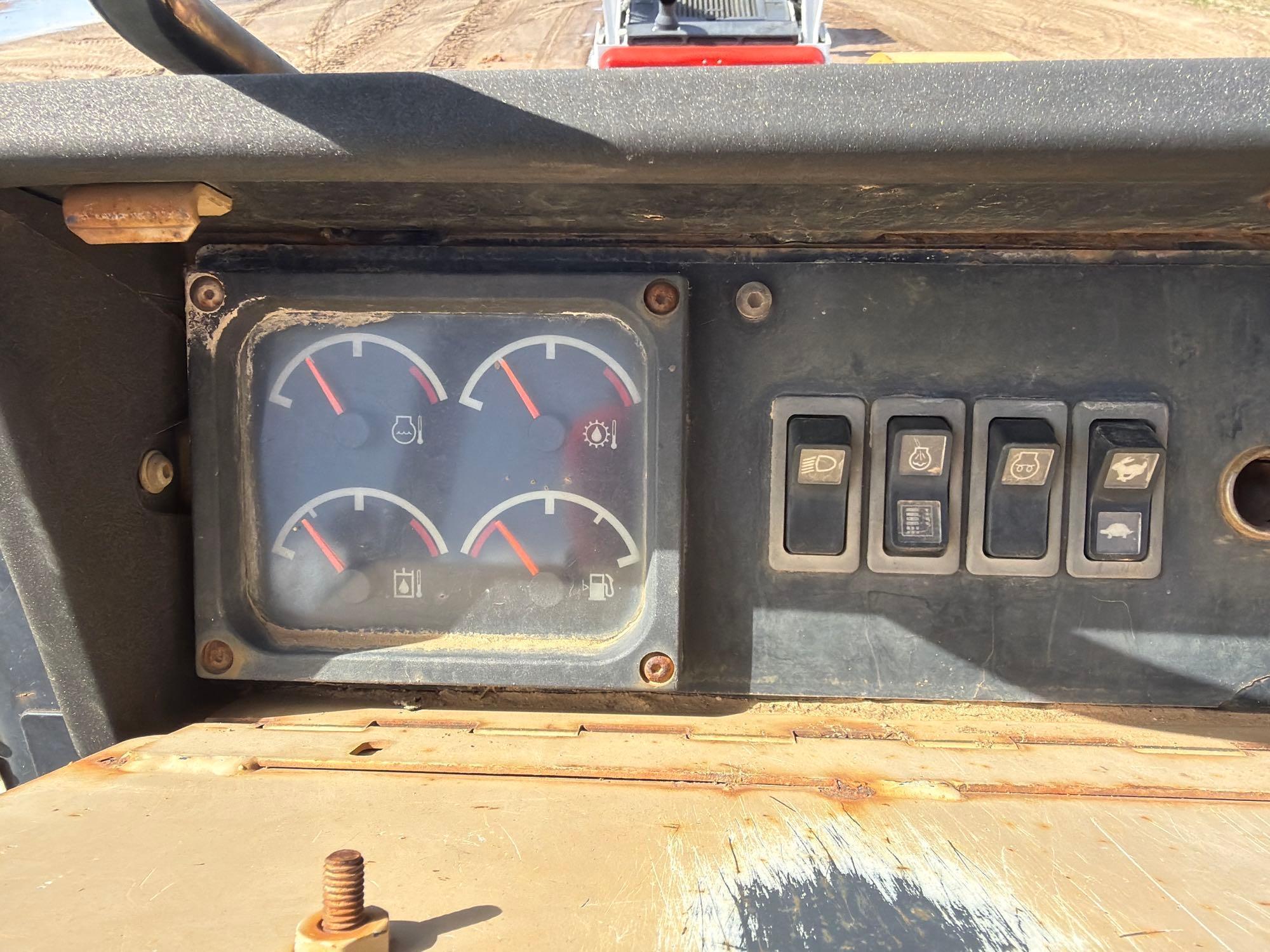

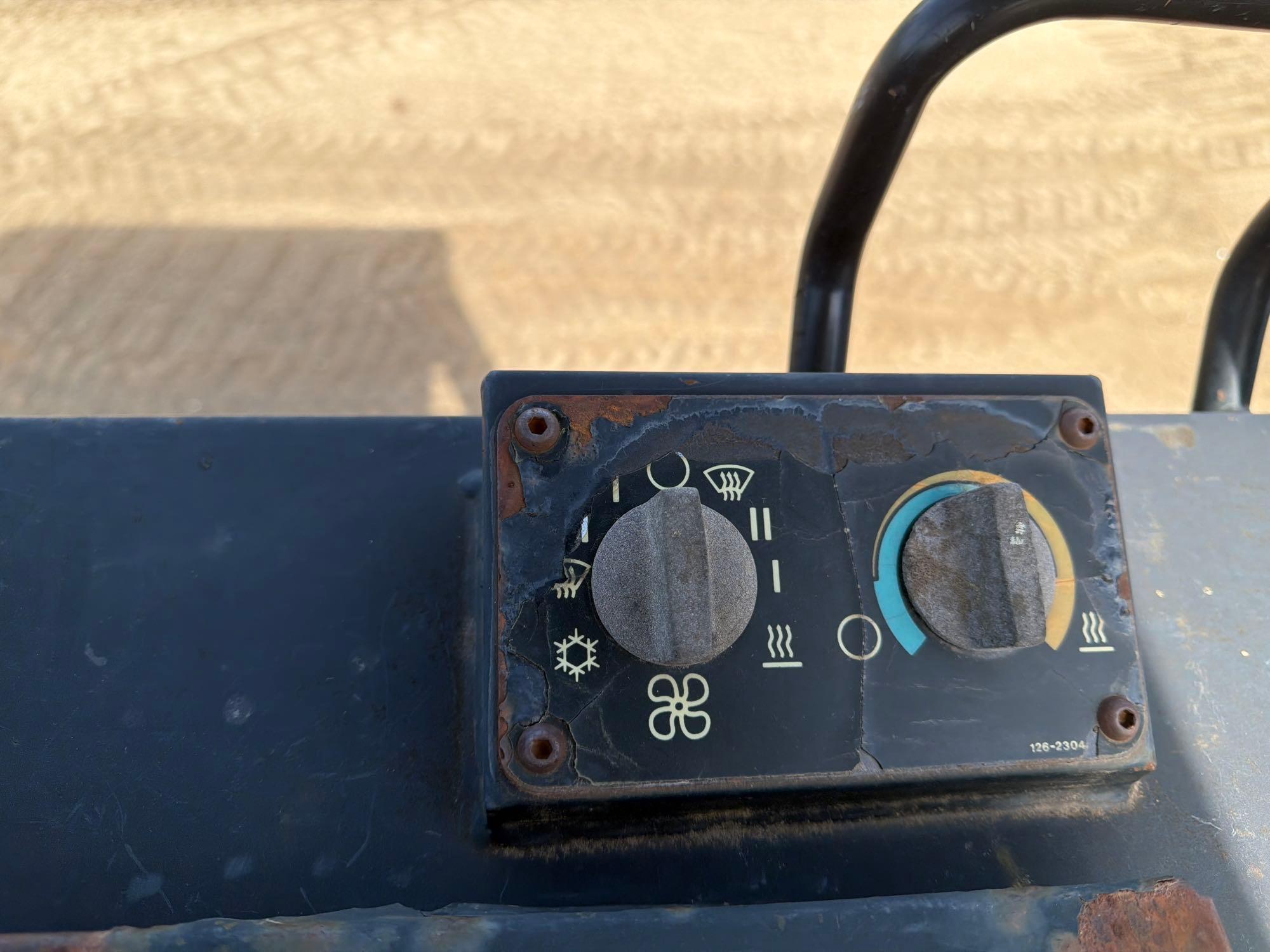

Cab |
Cab |
|

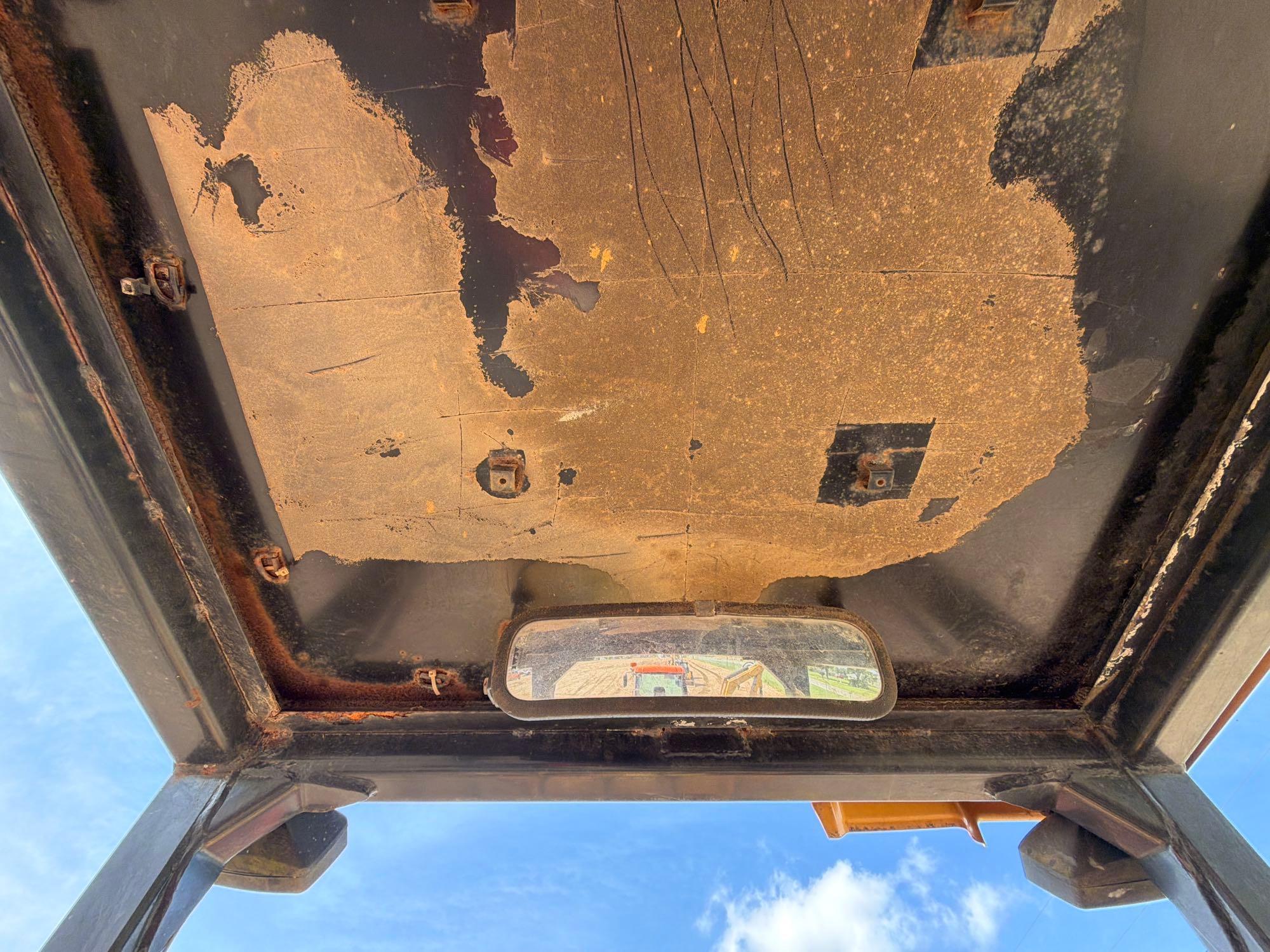

Rops/Fops |
ROPS/FOPS |

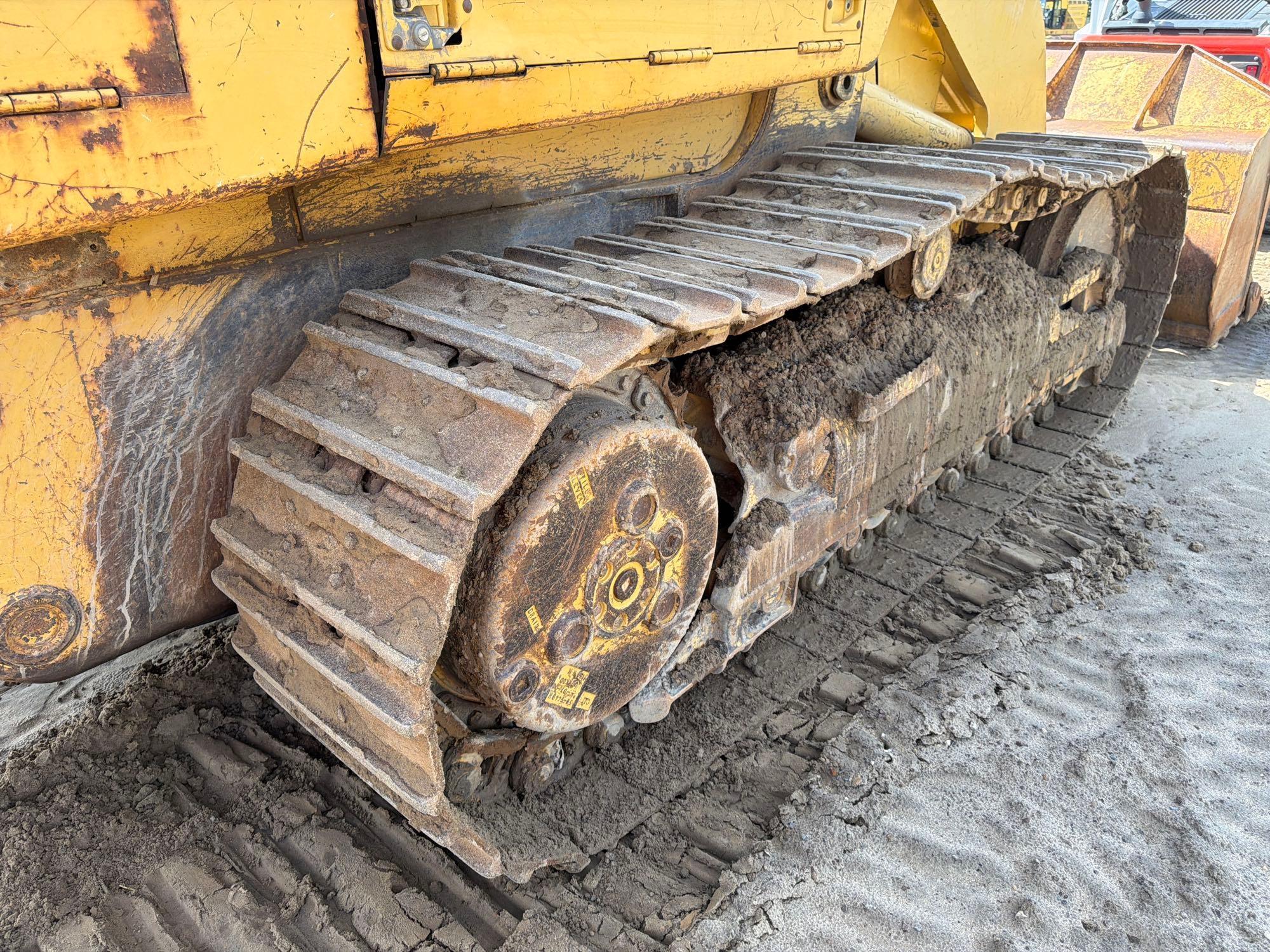

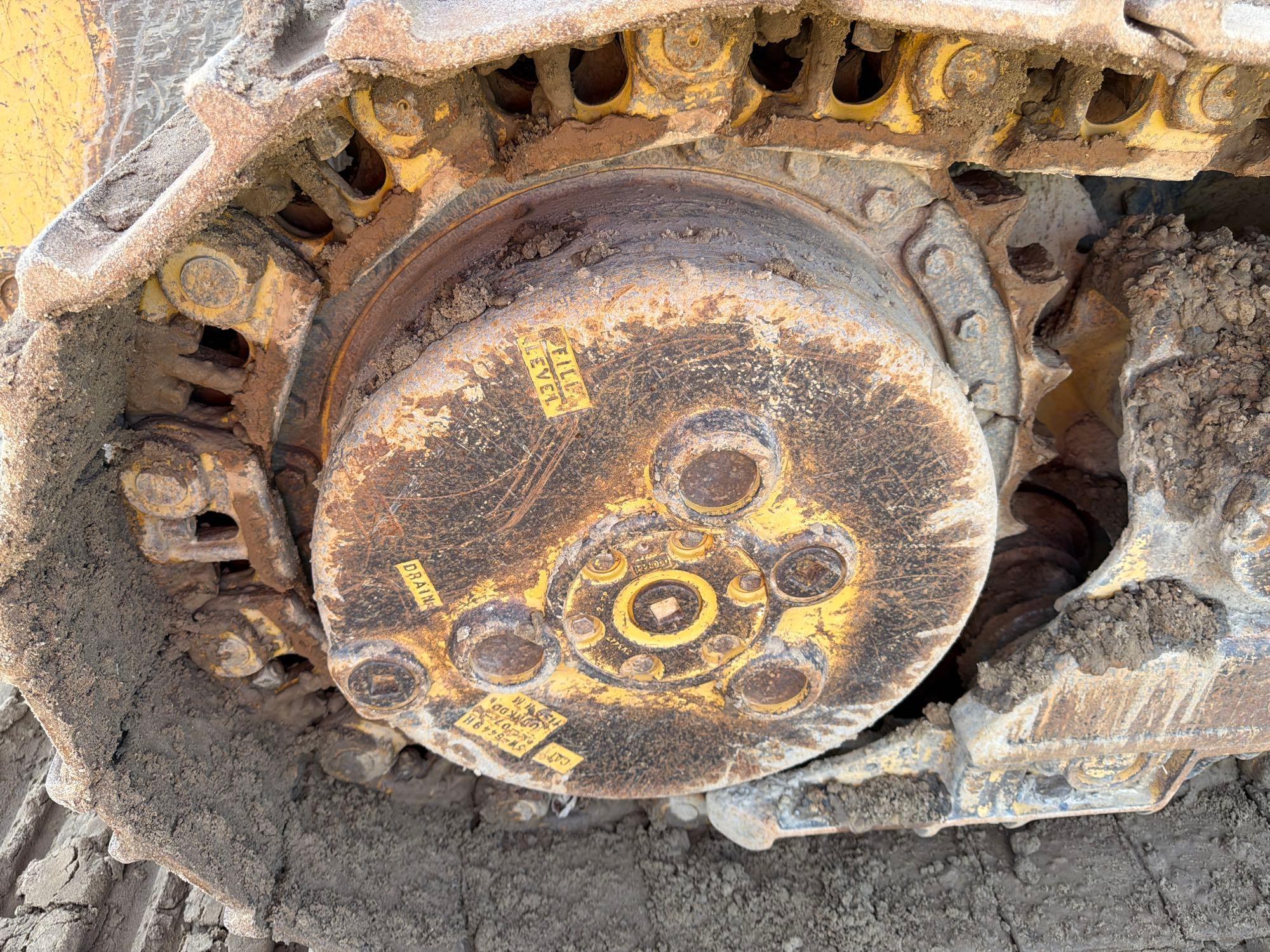

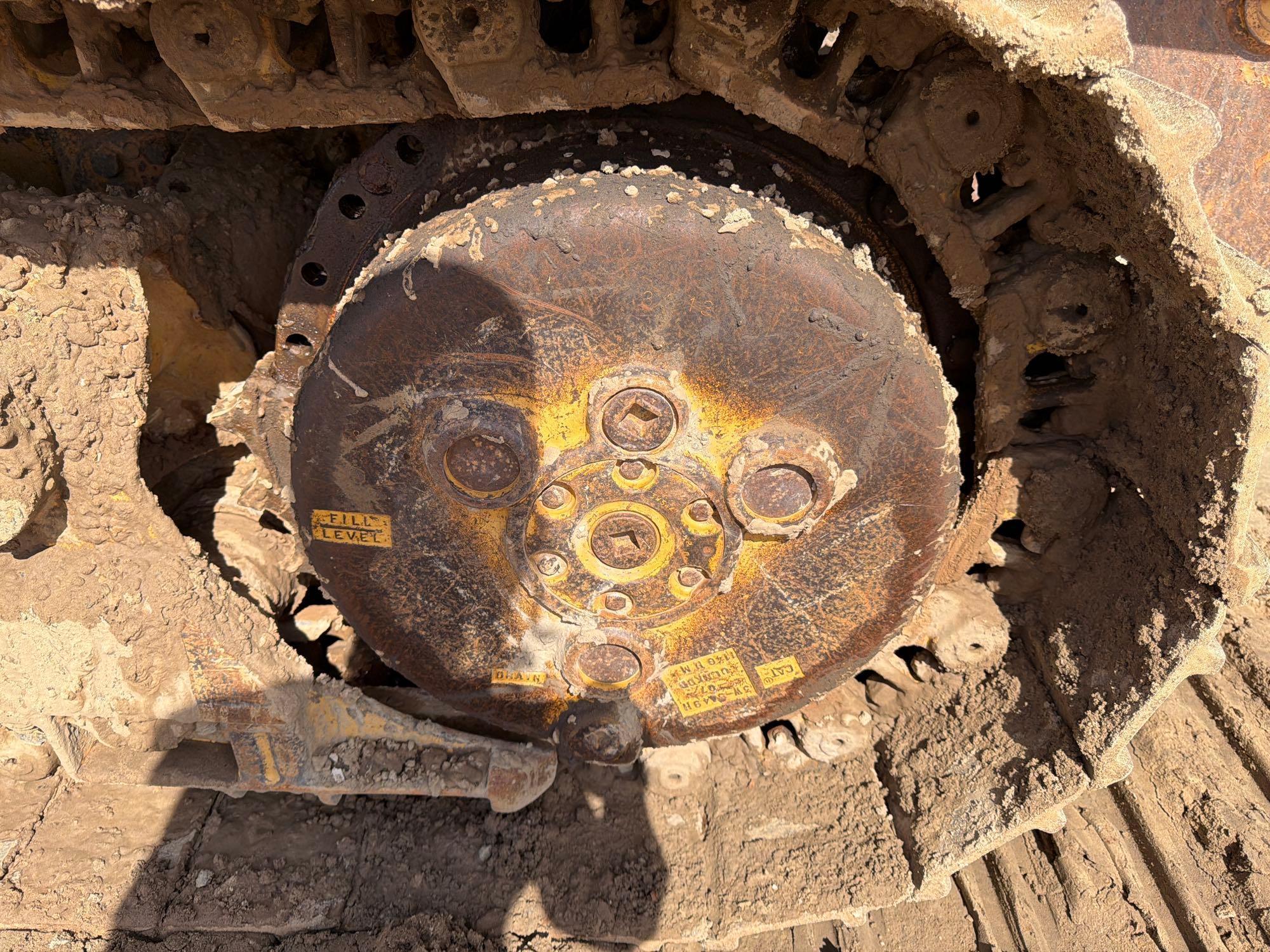

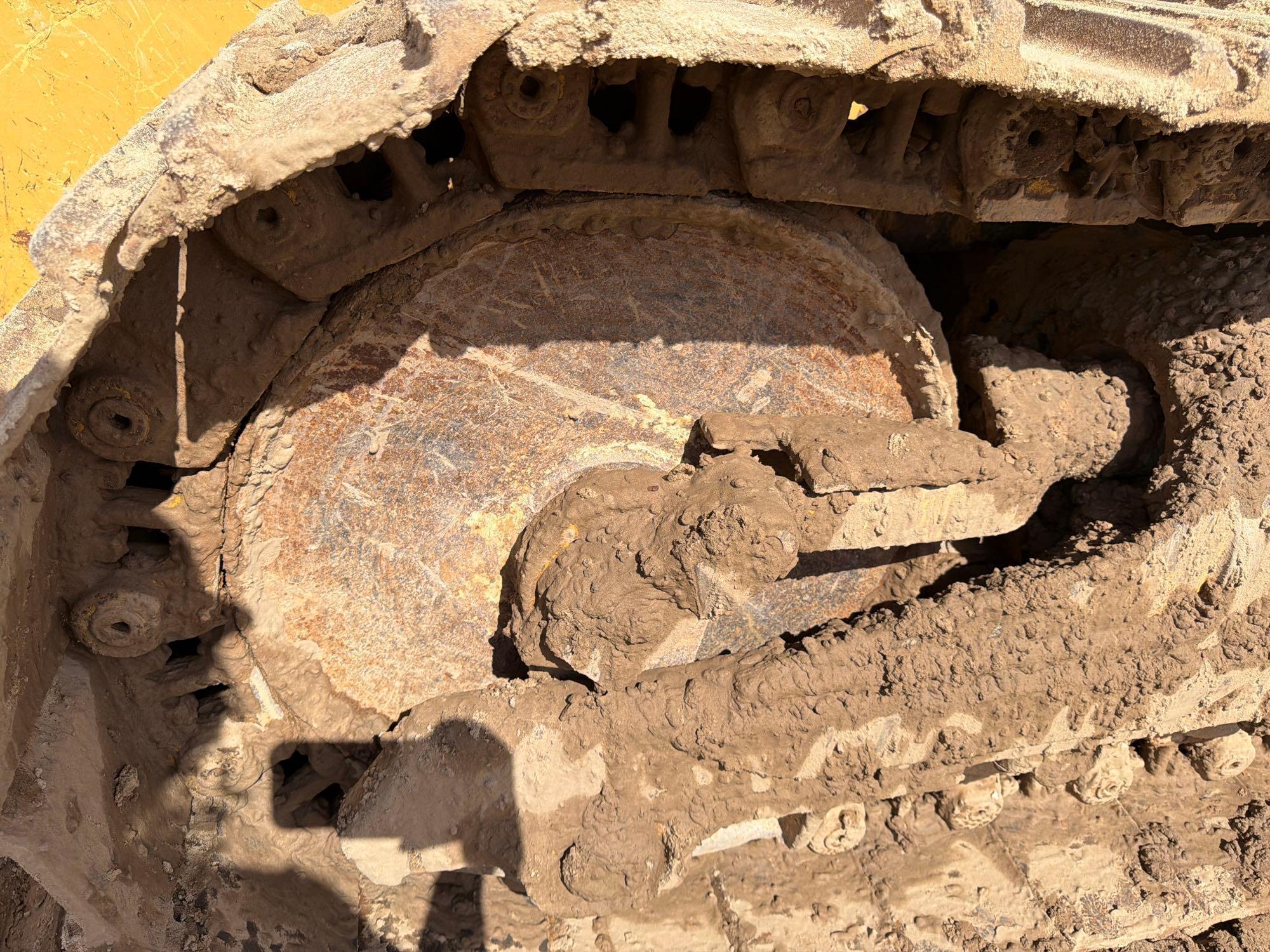

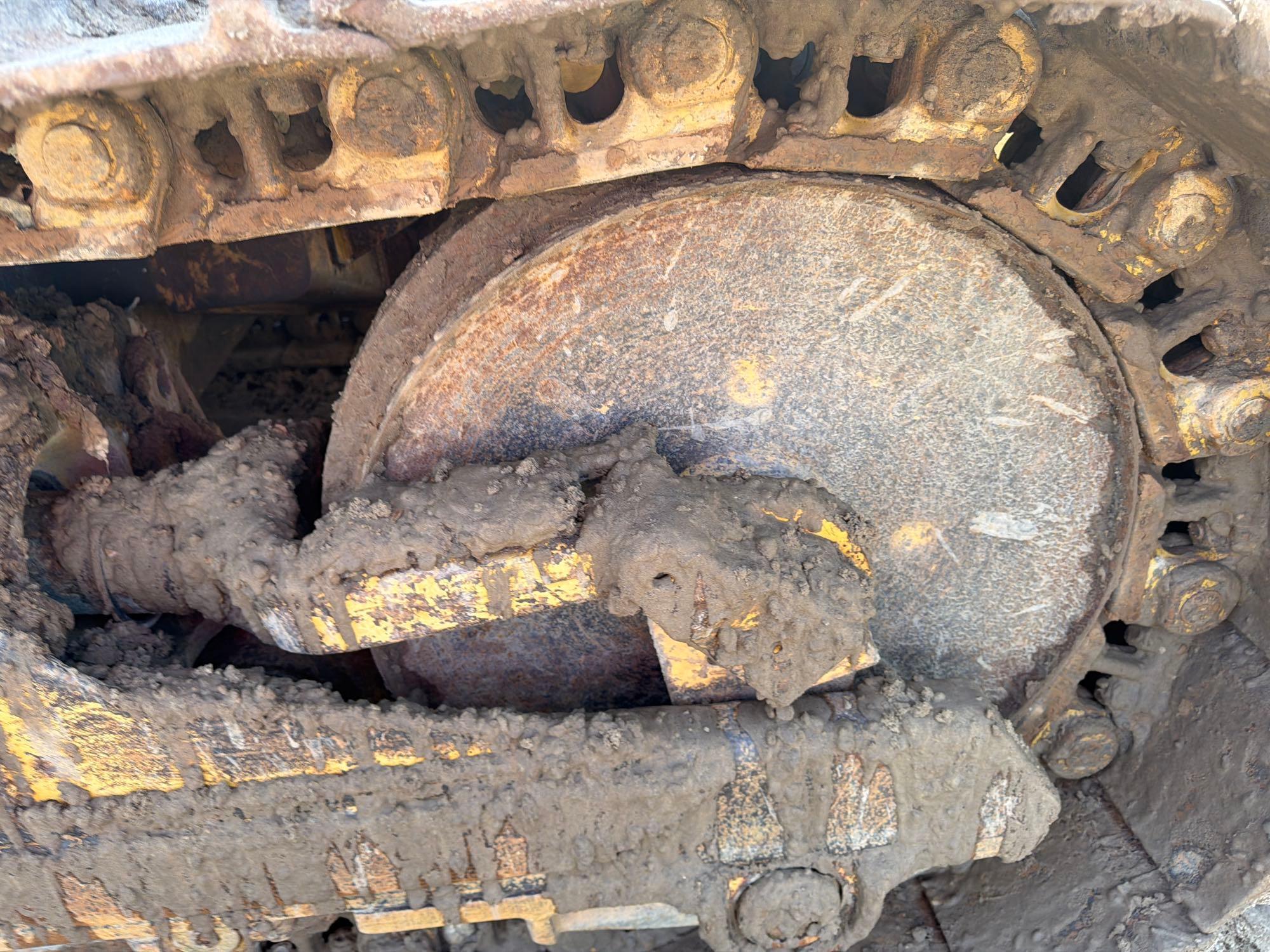

| Undercarriage |
|
Ground Contact Area |
3565.01 in2 |
|
Ground Contact Area - Optional Shoe |
2790 in2 |
|
Ground Contact Area - Standard Shoe |
3565 in2 |
|
Ground Pressure |
10 psi |
|
Ground Pressure - Optional Shoe |
12 psi |
|
Ground Pressure - Standard Shoe |
10 psi |
|
Grouser Height - Double Grouser |
1 in (4 cm)
|
|
Length Of Track On Ground |
8 ft (2 m)
|
|
Number Of Shoes - Each Side |
37 |
|
Number Of Shoes Per Side |
37 |
|

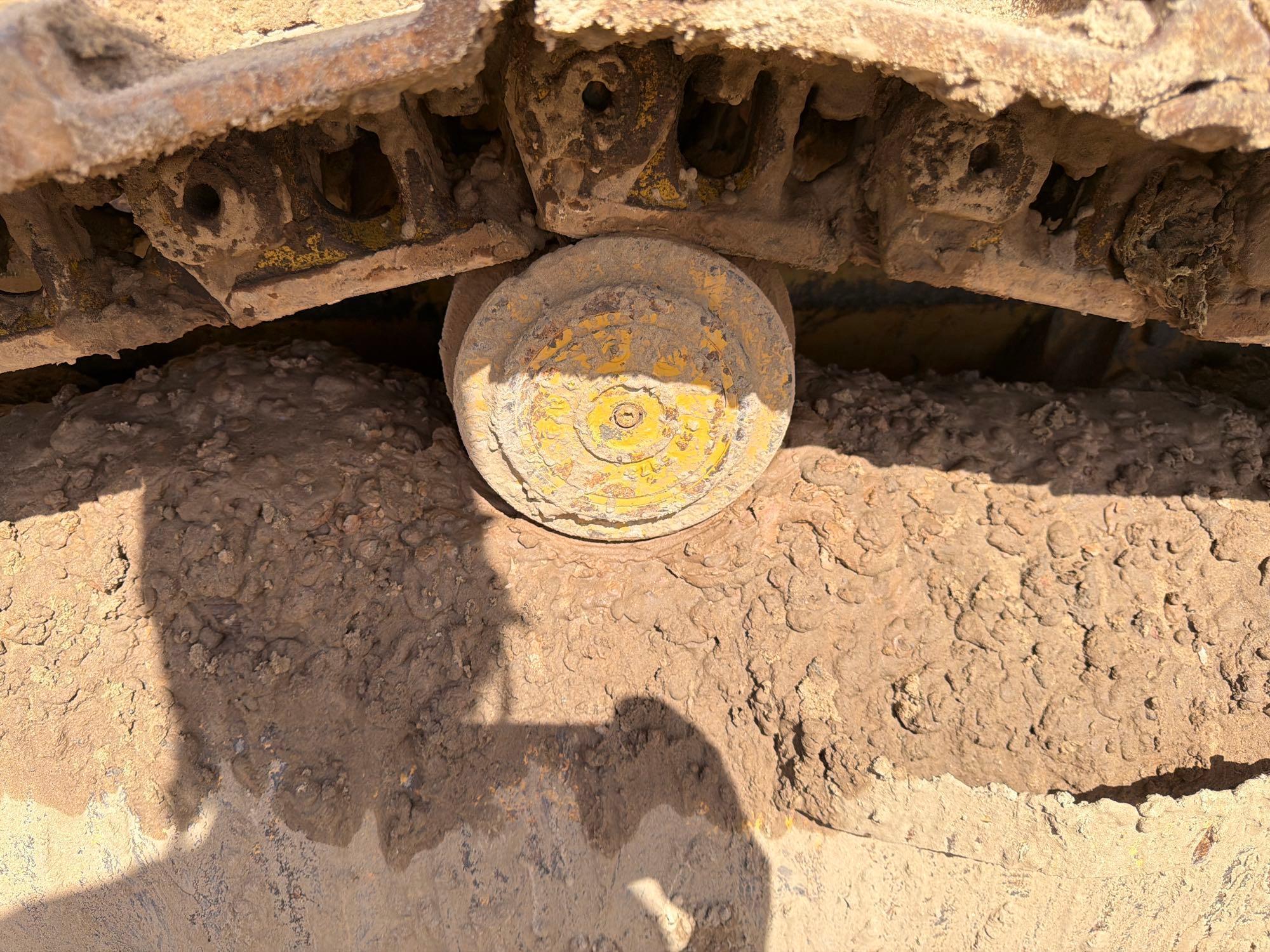

Number Of Track Rollers Per Side |
6 |
|
Track Gauge |
71 in (180 cm)
|
|
Track On Ground |
92 in (235 cm)
|
|

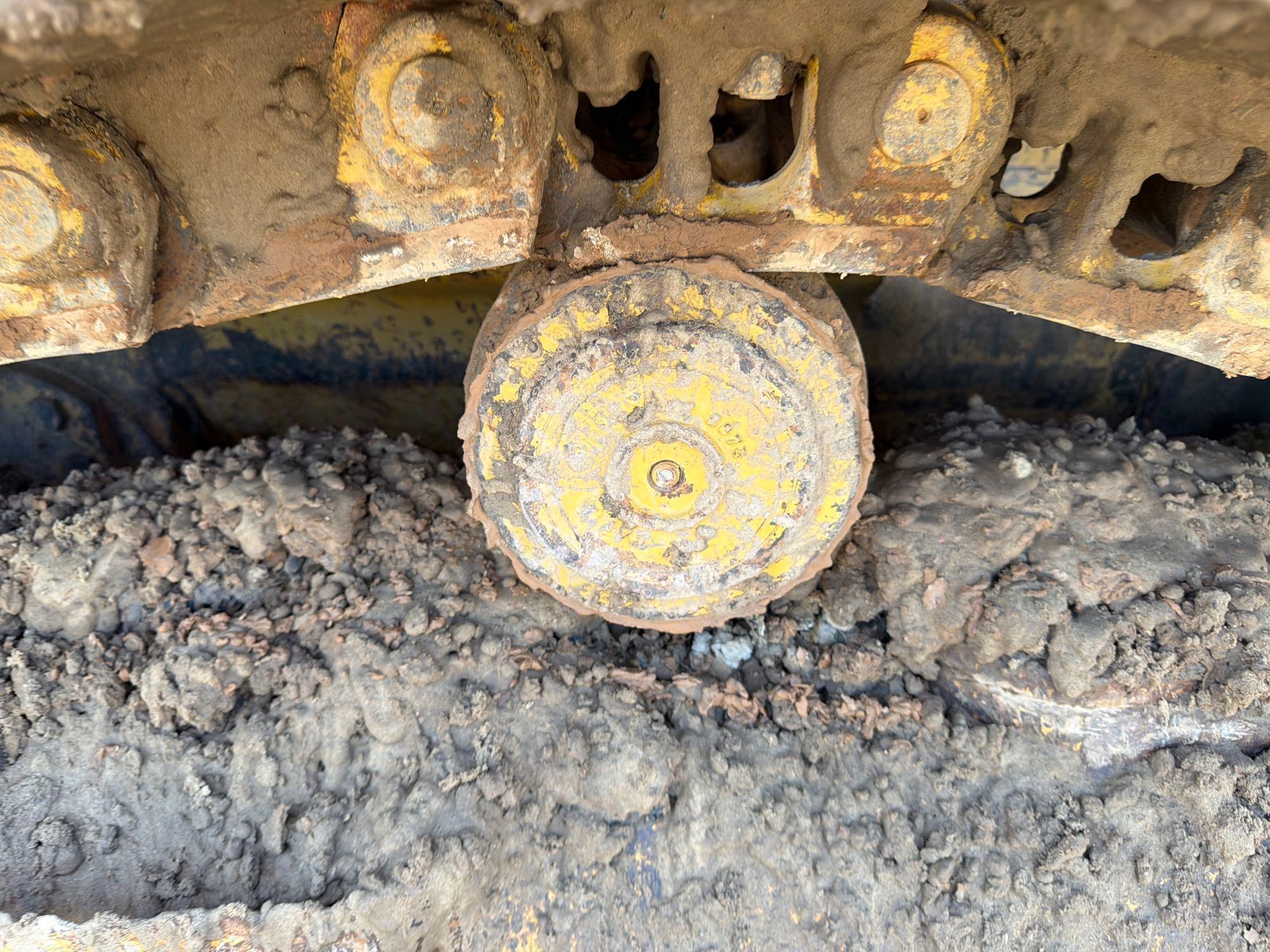

Track Rollers - Each Side |
6 |
|

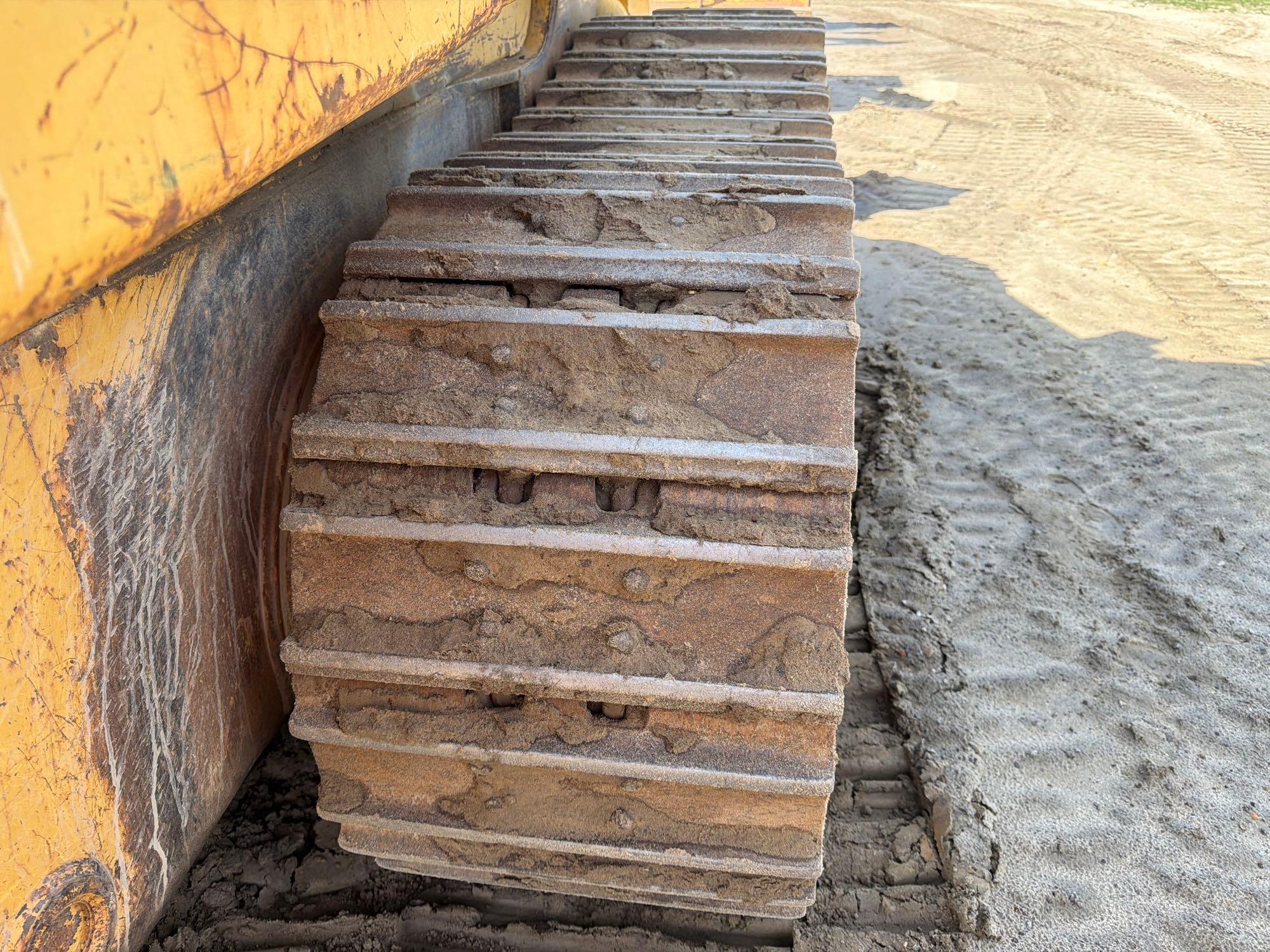

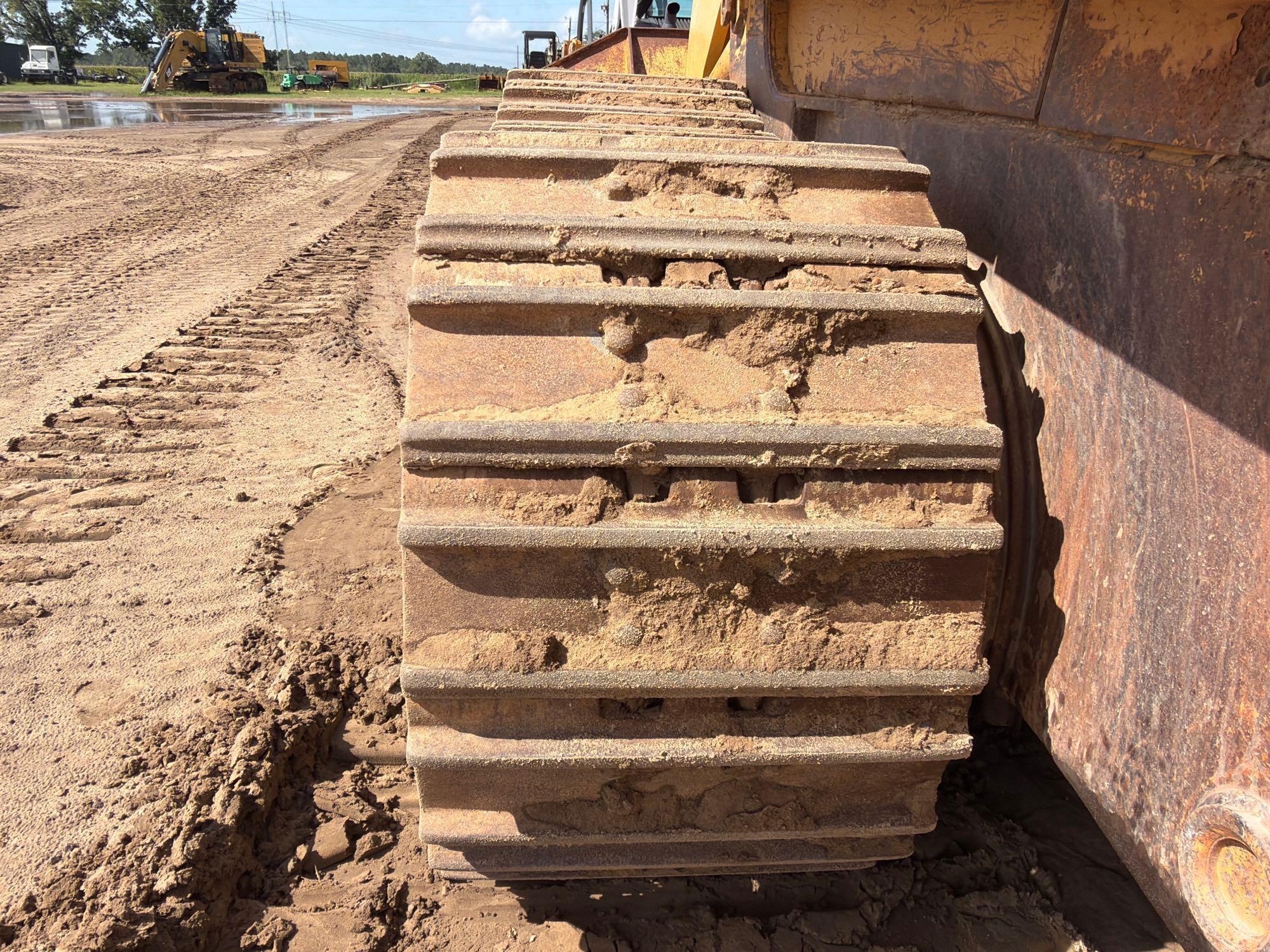

Track Shoe Type |
Double Grouser, Extreme Service |
|
Track Shoe Width |
20 in (50 cm)
|
|
Track Shoe Width - Optional |

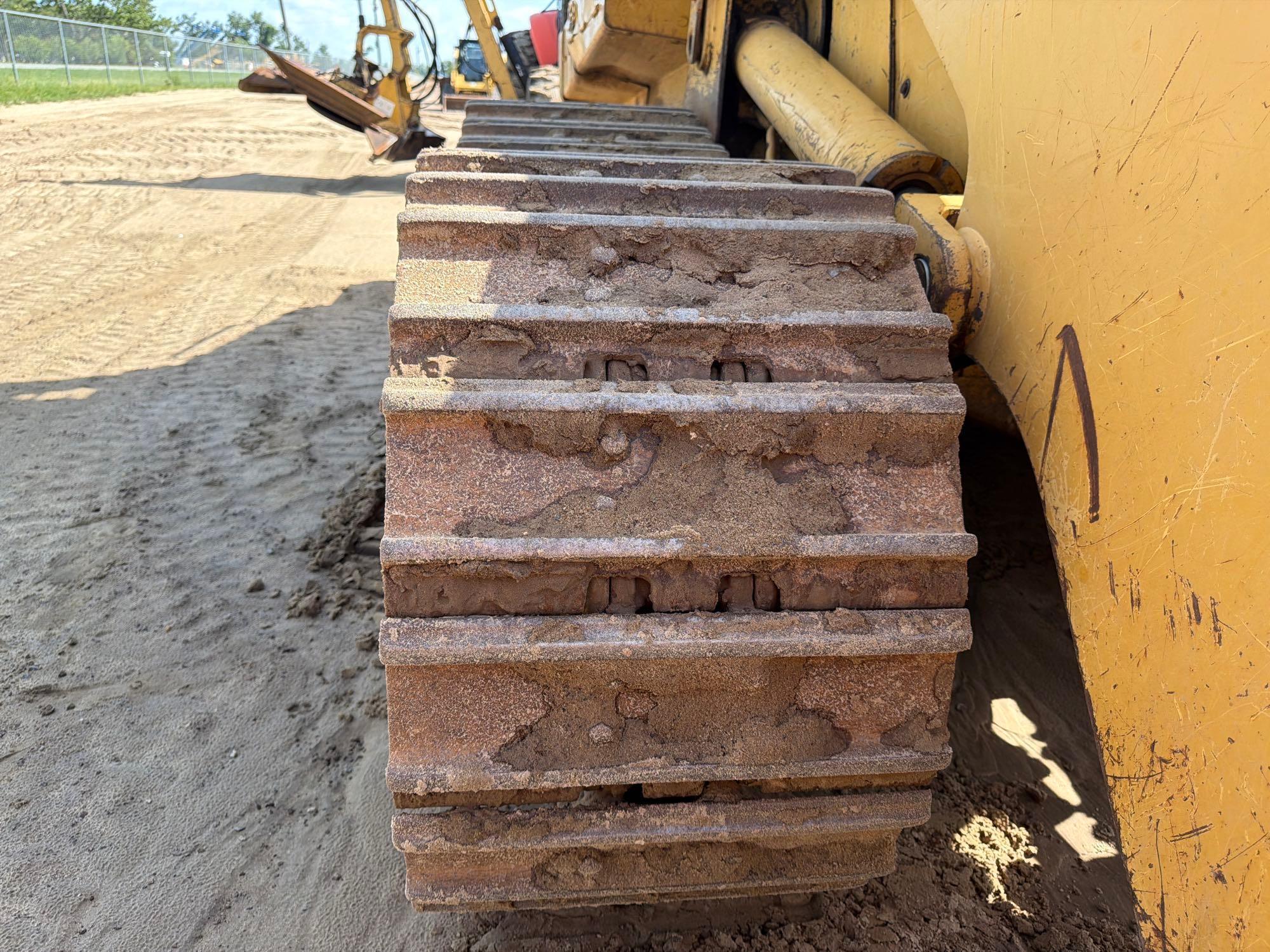

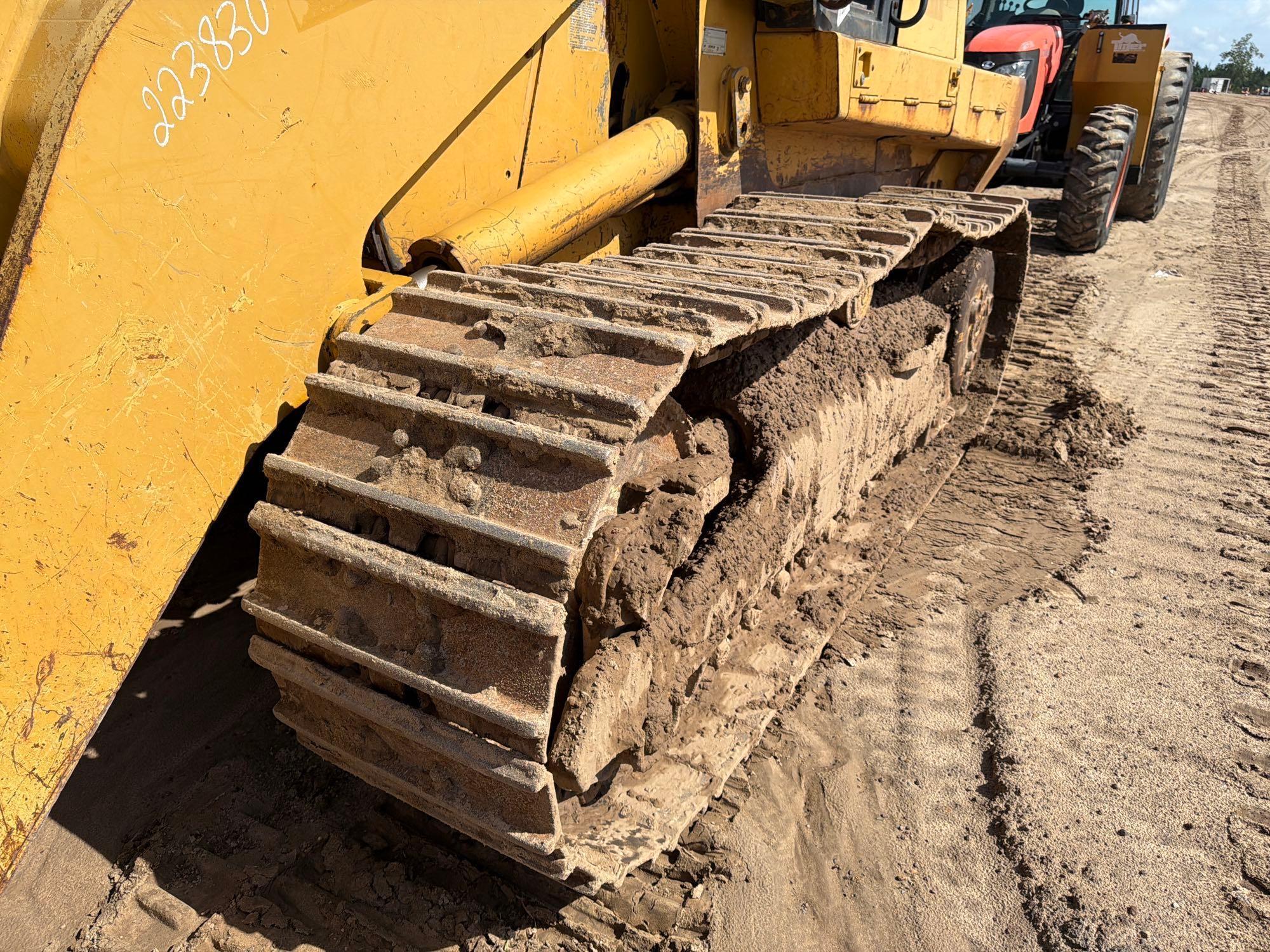

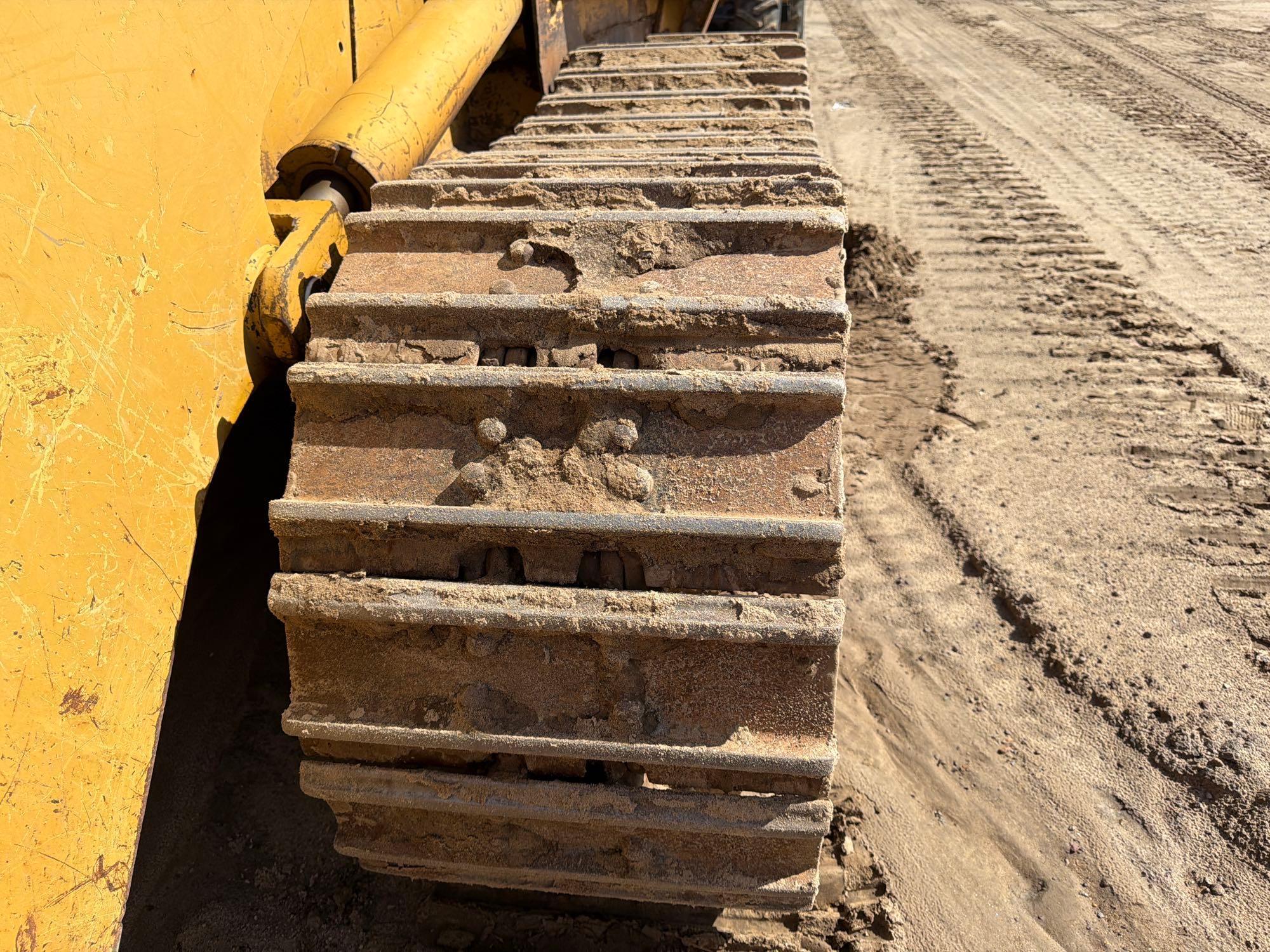

15 in (38 cm)
|
|
Track Shoe Width - Standard |
20 in (50 cm)
|
| Weights |
|
Operating Weight |
33,389 lbs (15,145 kg)
|
|
Shipping Weight - Without Bucket |
30,274 lbs (13,732 kg)
|
