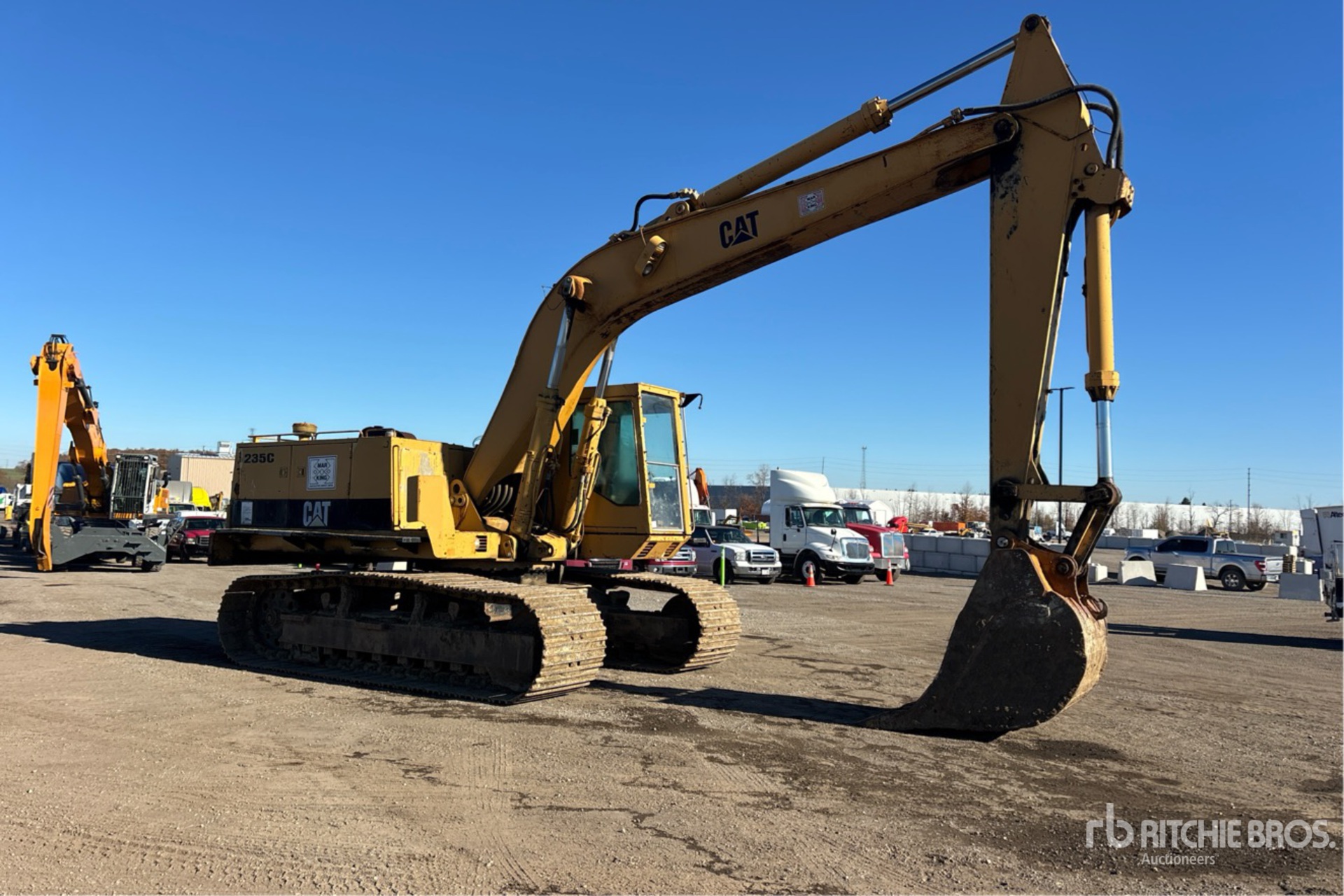

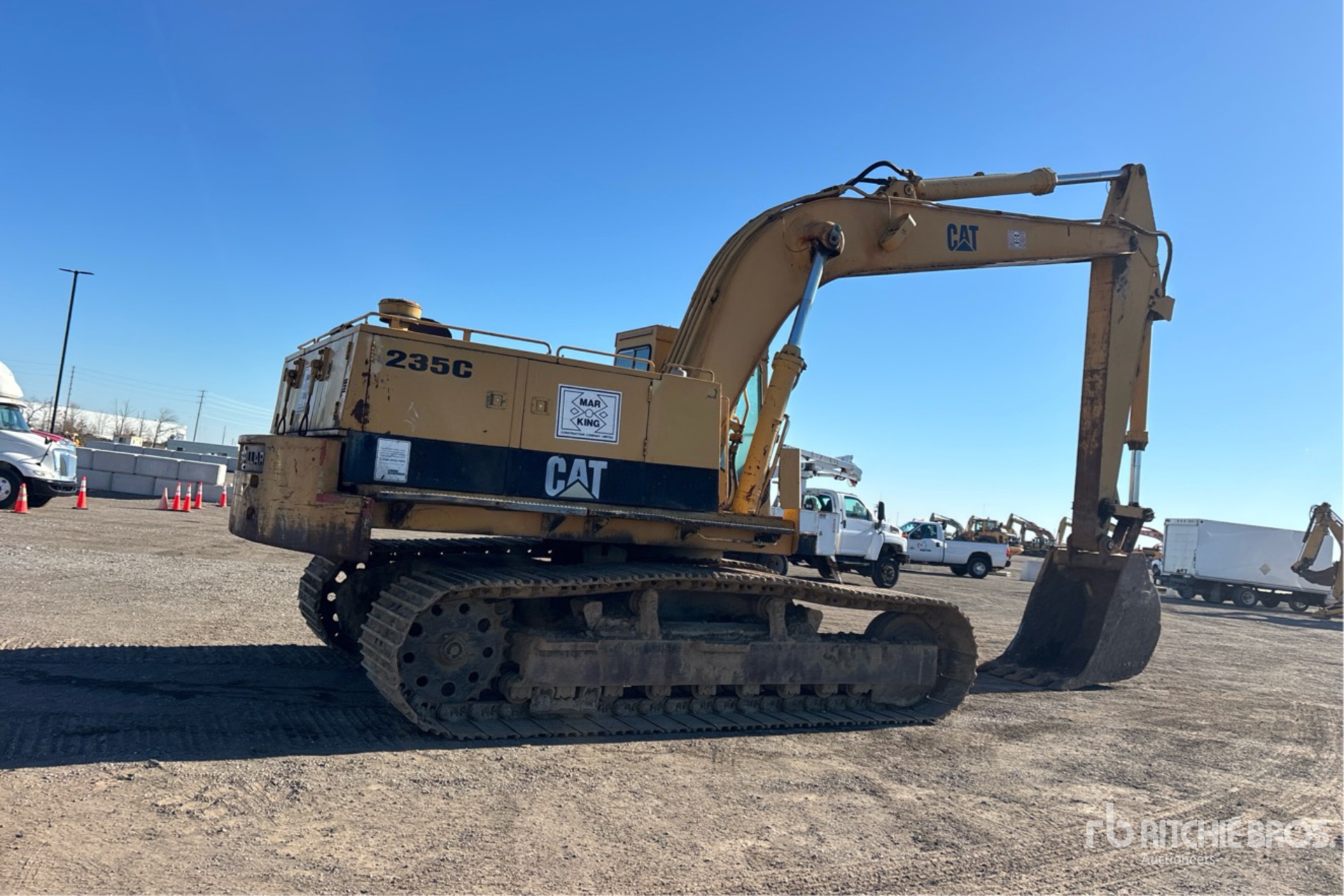

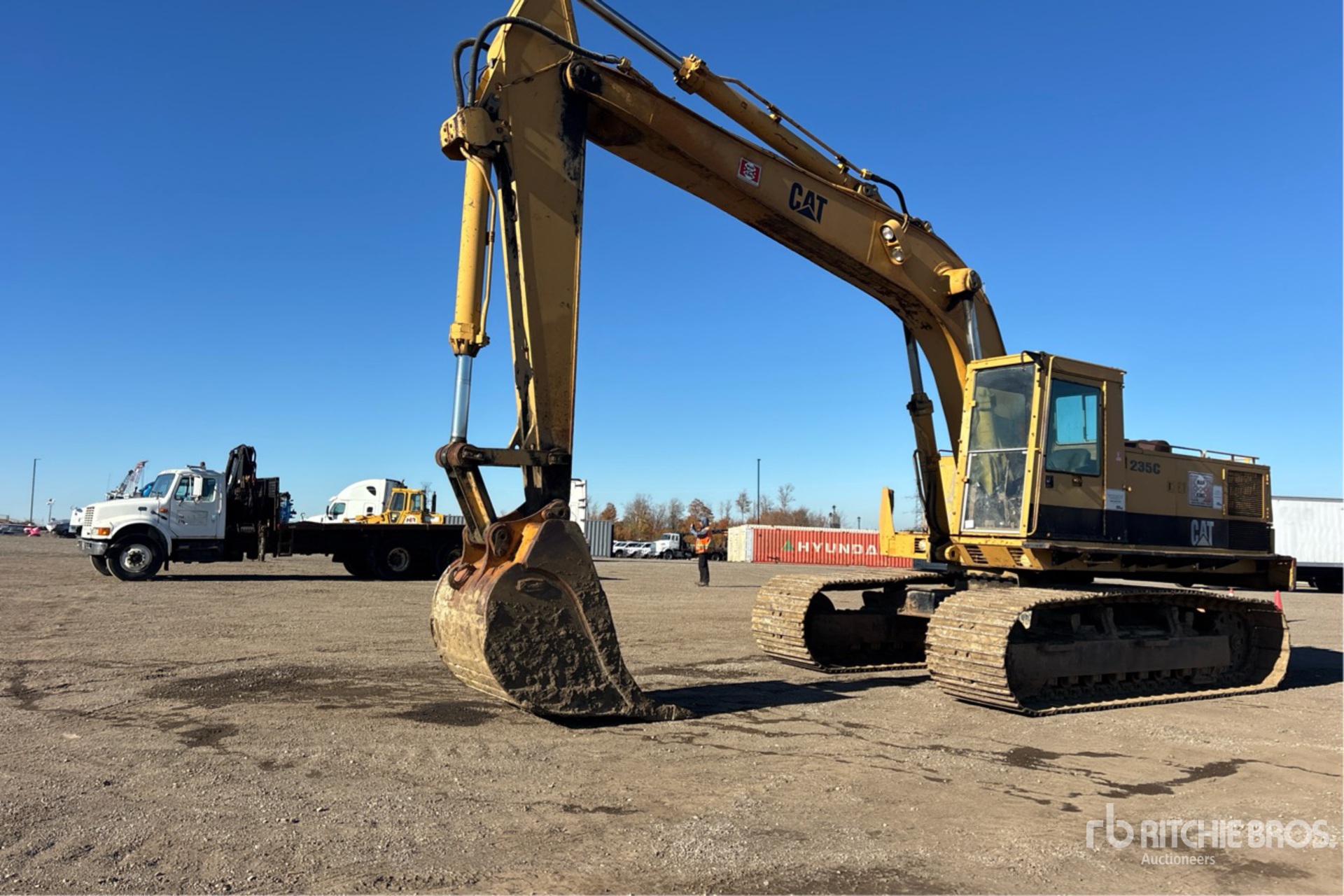

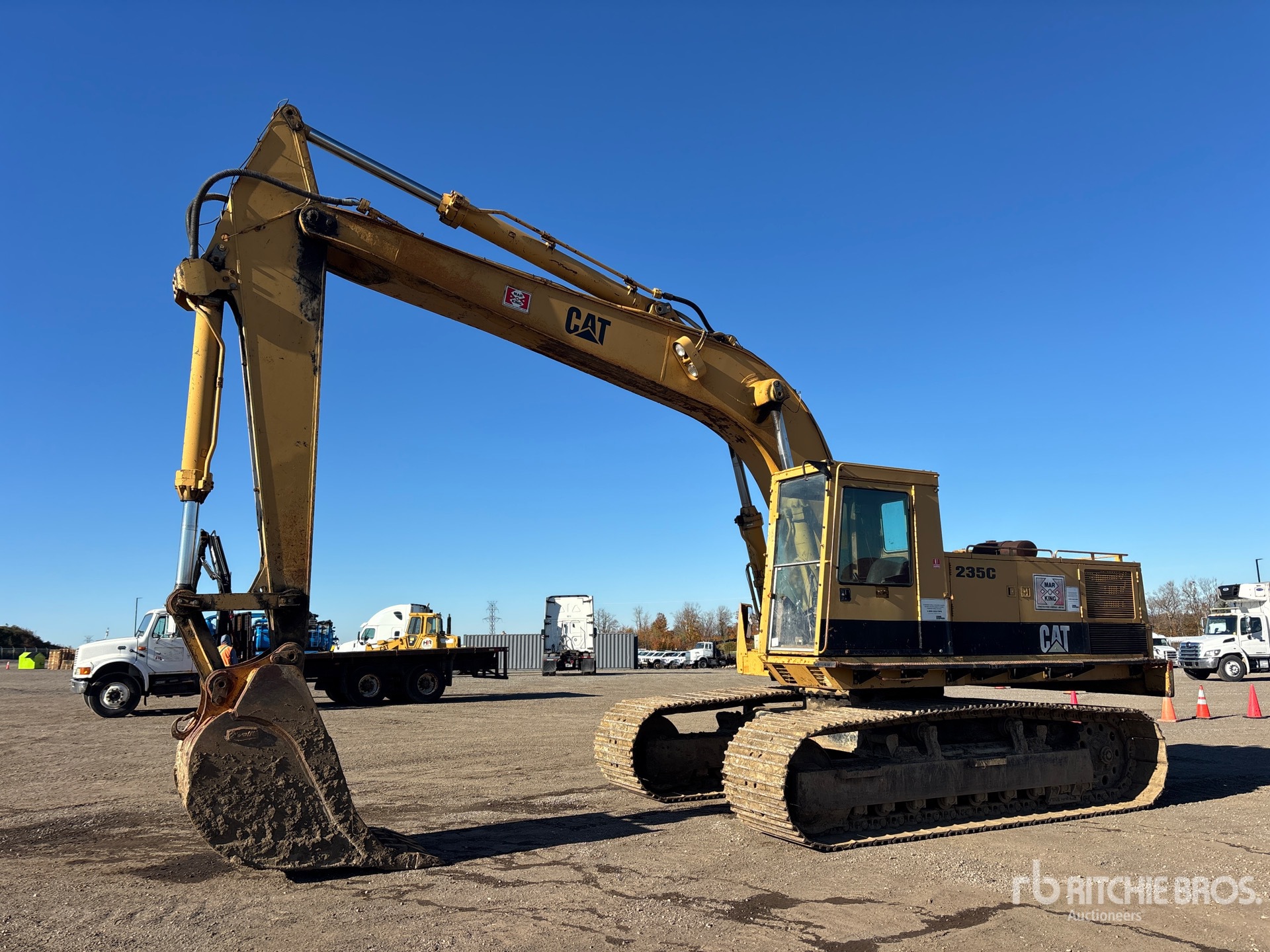

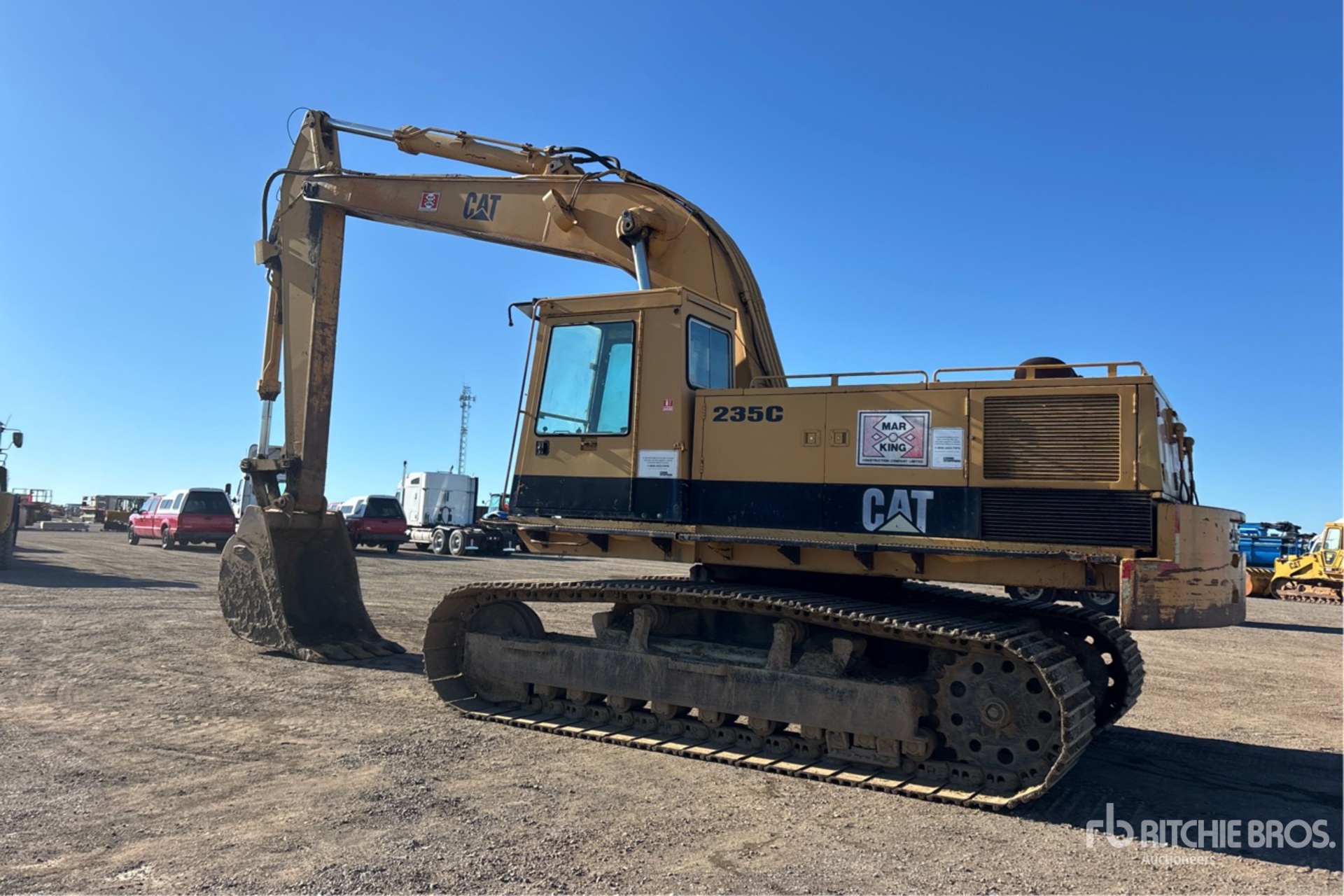

| Backhoe Boom / Stick 1 |
|
Backhoe Boom / Stick |
Stick 8'0" (2440mm) |
|
Max Cutting Height |
31 ft (10 m)
|
|
Max Dig Depth |
23 ft (7 m)
|
|
Max Dump Height |
21 ft (6 m)
|
|
Max Reach On Ground |
36 ft (11 m)
|
|
Max Vertical Wall Dig Depth |
16 ft (5 m)
|
| Backhoe Boom / Stick 2 |
|
Backhoe Boom / Stick |
Stick 9'6" (2900mm) |
|
Max Cutting Height |
32 ft (10 m)
|
|
Max Dig Depth |
24 ft (7 m)
|
|
Max Dump Height |
21 ft (6 m)
|
|
Max Reach On Ground |
37 ft (11 m)
|
|
Max Vertical Wall Dig Depth |
17 ft (5 m)
|
| Backhoe Boom / Stick 3 |
|
Backhoe Boom / Stick |
Stick 12'0" (3660mm) |
|
Max Cutting Height |
32 ft (10 m)
|
|
Max Dig Depth |
27 ft (8 m)
|
|
Max Dump Height |
22 ft (7 m)
|
|
Max Reach On Ground |
39 ft (12 m)
|
|
Max Vertical Wall Dig Depth |
19 ft (6 m)
|
| Boom/Stick 1 |
|
Boom/Stick 1 |
Stick 12'0" (3660mm) |
|
Max Cutting Height |
33 ft (10 m)
|
|
Max Digging Depth |
26 ft (8 m)
|
|
Max Loading Height |
22 ft (7 m)
|
|
Max Reach Along Ground |
39 ft (12 m)
|
|
Max Vertical Wall Digging Depth |
19 ft (6 m)
|
| Dimensions |
|
Ground Clearance |
2 ft (1 m)
|
|
Ground Clearance |
2 in (4 cm)
|
|
Height |
11 ft (3 m)
|
|
Height To Top Of Cab |
11 ft (3 m)
|
|
Height To Top Of Cab |
11 ft (3 m)
|
|
Length |
38 ft (11 m)
|
|
Length Of Tracks |
16 ft (5 m)
|
|
Removal Counterweight Clearance |
4 ft (1 m)
|
|
Tail Swing Radius |
11 ft (3 m)
|
|
Upper Structure Ground Clearance |
4 ft (1 m)
|
|
Weight |
92,800 lbs (42,093 kg)
|
|
Width |
11 ft (3 m)
|
|
Width Over Tracks |
11 ft (3 m)
|
|
Width To Outside Of Tracks |
12 ft (4 m)
|

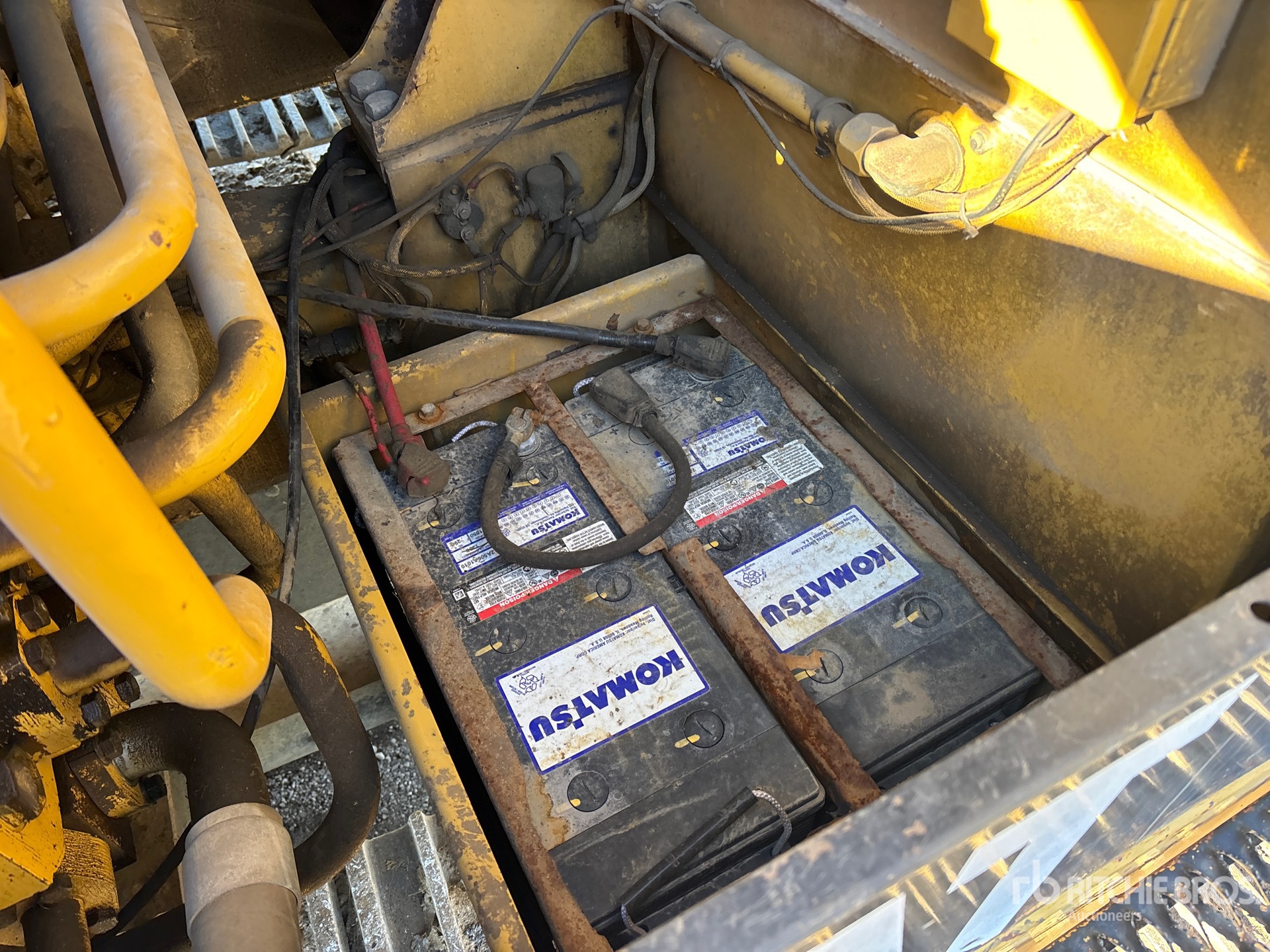

| Engine |
|
Displacement |
641 cu in (10,501 cu cm)
|
|
Displacement |
641 cu in (10,501 cu cm)
|
|
Engine Make |
2,236 |
|
Engine Make |
2,236 |
|
Engine Model |
3,306 |
|
Engine Model |
3,306 |
|
Gross Power |
250 hp (186 kw)
|
|
Gross Power |
250 hp (186 kw)
|
| General Specifications |
|
Approx. Operating Weight (Since 1988)
|
92,800 lbs (42,093 kg)
|
|
Approx. Operating Weight (1989)
|
92,800 lbs (42,093 kg)
|
|
Approx. Operating Weight (1990)
|
92,800 lbs (42,093 kg)
|
|
Approx. Operating Weight (1991)
|
92,800 lbs (42,093 kg)
|
|
Approx. Operating Weight (1992)
|
92,800 lbs (42,093 kg)
|
|
Flywheel Horsepower (Since 1988)
|
250 hp (186 kw)
|
|
Flywheel Horsepower (1989)
|
250 hp (186 kw)
|
|
Flywheel Horsepower (1990)
|
250 hp (186 kw)
|
|
Flywheel Horsepower (1991)
|
250 hp (186 kw)
|
|
Flywheel Horsepower (1992)
|
250 hp (186 kw)
|
|
Height (Since 1988)
|
136 in (345 cm)
|
|
Height (1989)
|
136 in (345 cm)
|
|
Height (1990)
|
136 in (345 cm)
|
|
Height (1991)
|
136 in (345 cm)
|
|
Height (1992)
|
136 in (345 cm)
|
|
Length (Since 1988)
|
451 in (1,146 cm)
|
|
Length (1989)
|
451 in (1,146 cm)
|
|
Length (1990)
|
451 in (1,146 cm)
|
|
Length (1991)
|
451 in (1,146 cm)
|
|
Length (1992)
|
451 in (1,146 cm)
|
|
Lift Capacity (Since 1988)
|
35,000 lbs (15,876 kg)
|
|
Lift Capacity (1989)
|
35,000 lbs (15,876 kg)
|
|
Lift Capacity (1990)
|
35,000 lbs (15,876 kg)
|
|
Lift Capacity (1991)
|
35,000 lbs (15,876 kg)
|
|
Lift Capacity (1992)
|
35,000 lbs (15,876 kg)
|
|
Max. Reach (Since 1988)
|
473 in (1,201 cm)
|
|
Max. Reach (1989)
|
473 in (1,201 cm)
|
|
Max. Reach (1990)
|
473 in (1,201 cm)
|
|
Max. Reach (1991)
|
473 in (1,201 cm)
|
|
Max. Reach (1992)
|
473 in (1,201 cm)
|
|

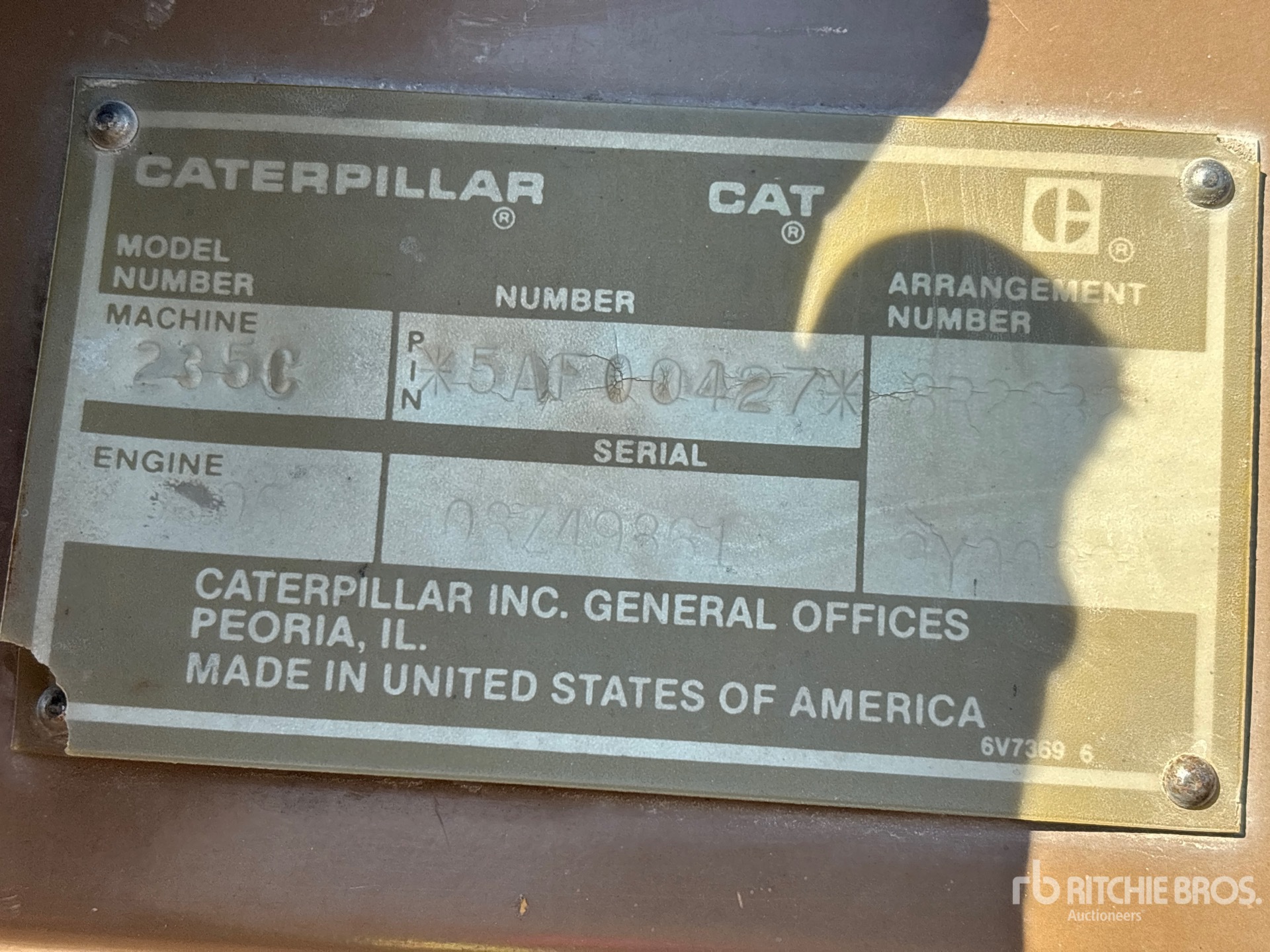

Product Identification Prefix (Since 1988)
|
(4DG) (5AF) (2PG) (3WG) |
|
Product Identification Prefix (1989)
|
(4DG) (5AF) (2PG) (3WG) |
|
Product Identification Prefix (1990)
|
(4DG) (5AF) (2PG) (3WG) |
|
Product Identification Prefix (1991)
|
(4DG) (5AF) (2PG) (3WG) |
|
Product Identification Prefix (1992)
|
(4DG) (5AF) (2PG) (3WG) |
|
Track Gauge (Since 1988)
|
106 in (269 cm)
|
|
Track Gauge (1989)
|
106 in (269 cm)
|
|
Track Gauge (1990)
|
106 in (269 cm)
|
|
Track Gauge (1991)
|
106 in (269 cm)
|
|
Track Gauge (1992)
|
106 in (269 cm)
|
|
Width (Since 1988)
|
136 in (345 cm)
|
|
Width (1989)
|
136 in (345 cm)
|
|
Width (1990)
|
136 in (345 cm)
|
|
Width (1991)
|
136 in (345 cm)
|
|
Width (1992)
|
136 in (345 cm)
|
|
Years Built (Since 1988)
|
1,988 - 1,992 |
|
Years Built (1989)
|
1,988 - 1,992 |
|
Years Built (1990)
|
1,988 - 1,992 |
|
Years Built (1991)
|
1,988 - 1,992 |
|
Years Built (1992)
|
1,988 - 1,992 |
| Loading Shovel |
|
Max Cutting Height |
30 ft (9 m)
|
|
Max Dig Reach |
27 ft (8 m)
|
|
Max Dump Height |
17 ft (5 m)
|

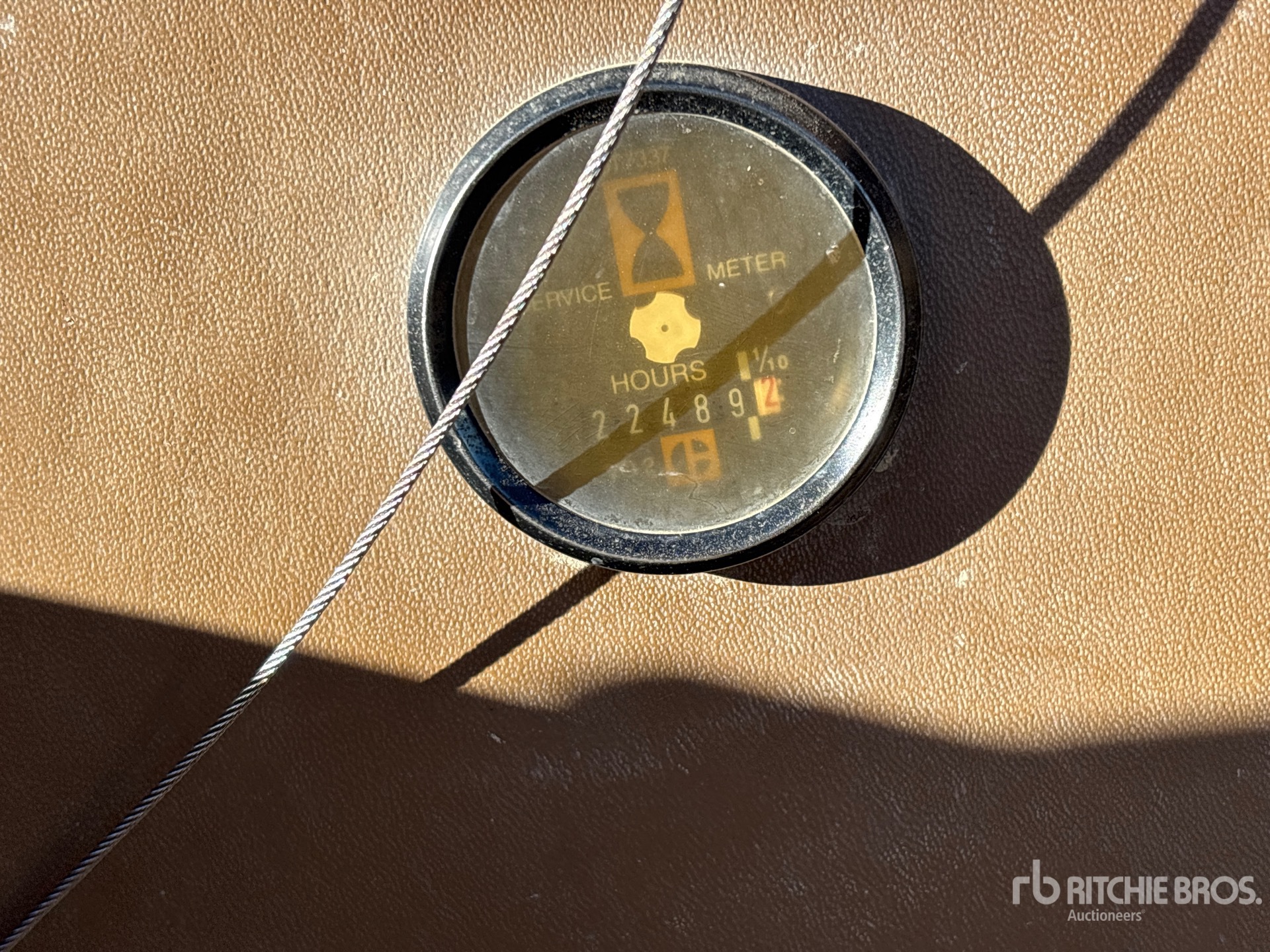

| Operational |
|
Fuel Capacity |
130 gal (492 l)
|
|
Fuel Capacity |
130 gal (492 l)
|
|
Hydraulic Pump Flow Capacity |
184 gpm (698 lpm)
|
|
Hydraulic System Relief Valve Pressure |
4,800 psi |
|
Operating Weight |
101,832 lbs (46,190 kg)
|
| Undercarriage |
|
Backhoe Ground Pressure - Shoe 1 |
9 psi |
|
Backhoe Ground Pressure - Shoe 2 |
7 psi |
|
Backhoe Operating Weight - Shoe 1 |
92,903 lbs (42,140 kg)
|
|
Backhoe Shoe Width 1 |
30 in (76 cm)
|
|
Backhoe Shoe Width 2 |
36 in (91 cm)
|
|
Drawbar Pull |
69,691 lbs (31,611 kg)
|
|
Ground Pressure |
10 psi |
|
Loading Shovel Ground Pressure |
15 psi |
|
Loading Shovel Operating Weight |
26,478 lbs (12,010 kg)
|
|
Loading Shovel Shoe Width |
18 in (46 cm)
|
|
Max Travel Speed |
2 mph (3 kph)
|
|
Max Travel Speed |
2 mph (3 kph)
|
|
Shoe Size |
30 in (76 cm)
|
|
Track Gauge |
11 ft (3 m)
|
