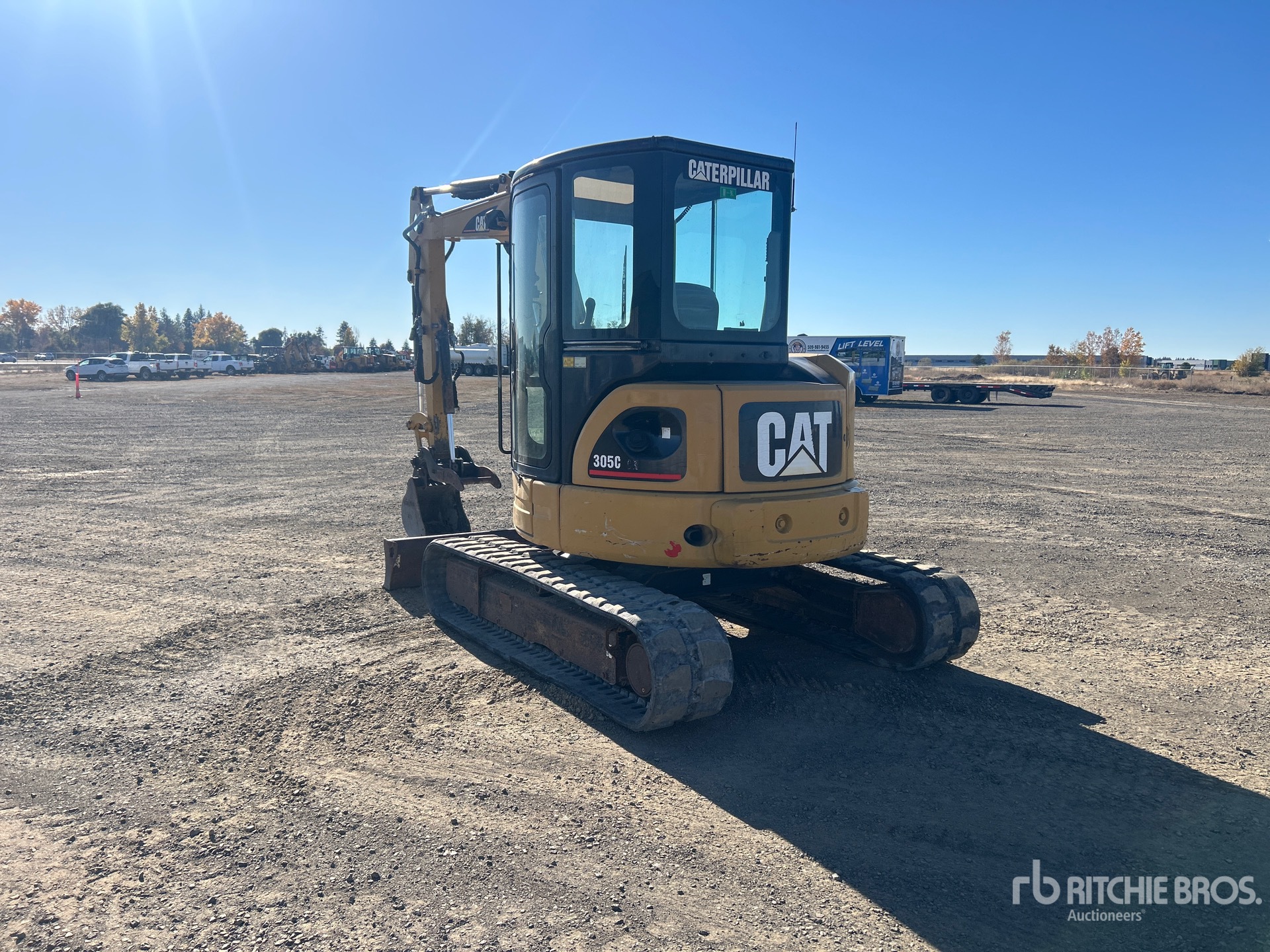

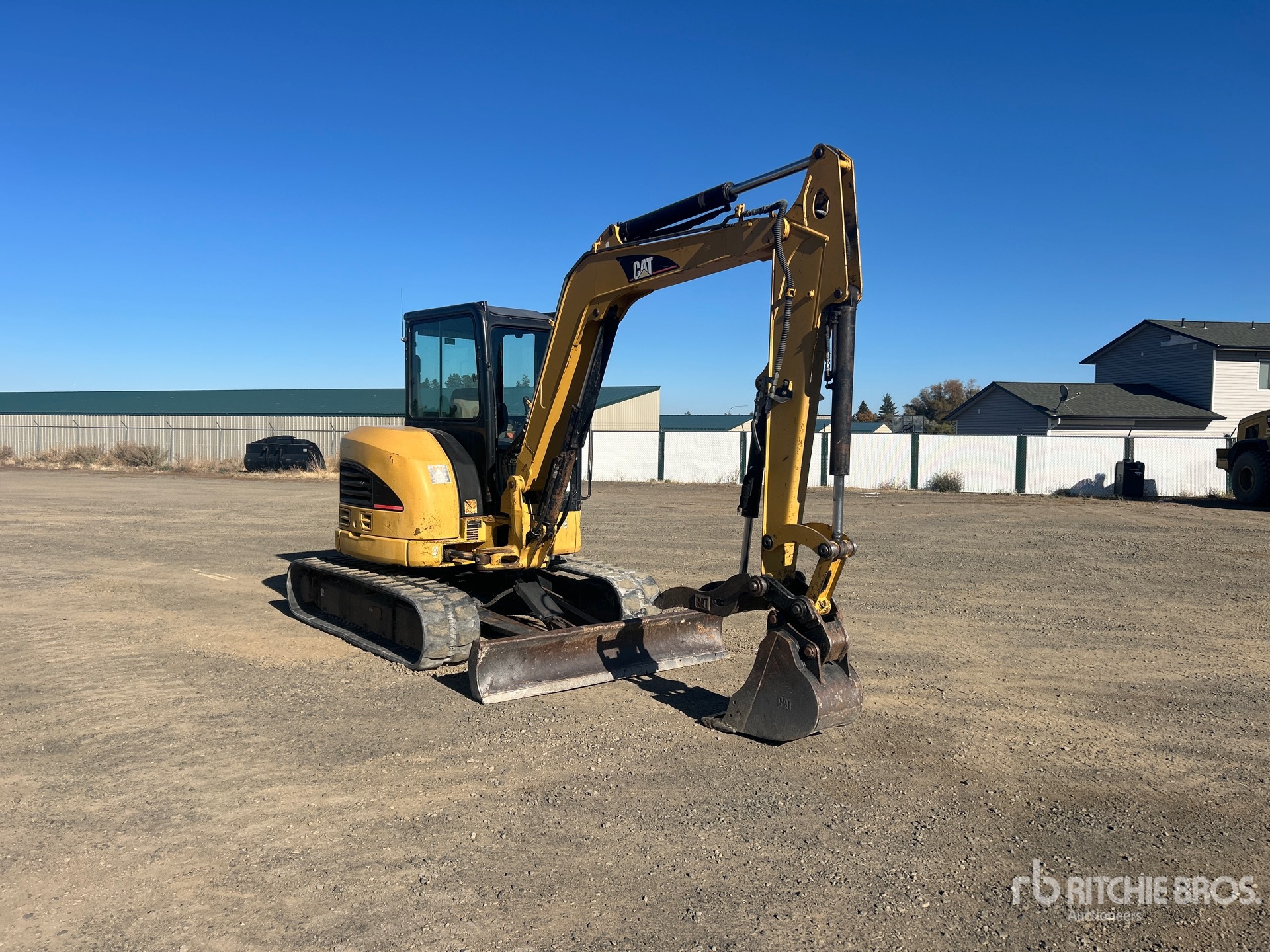

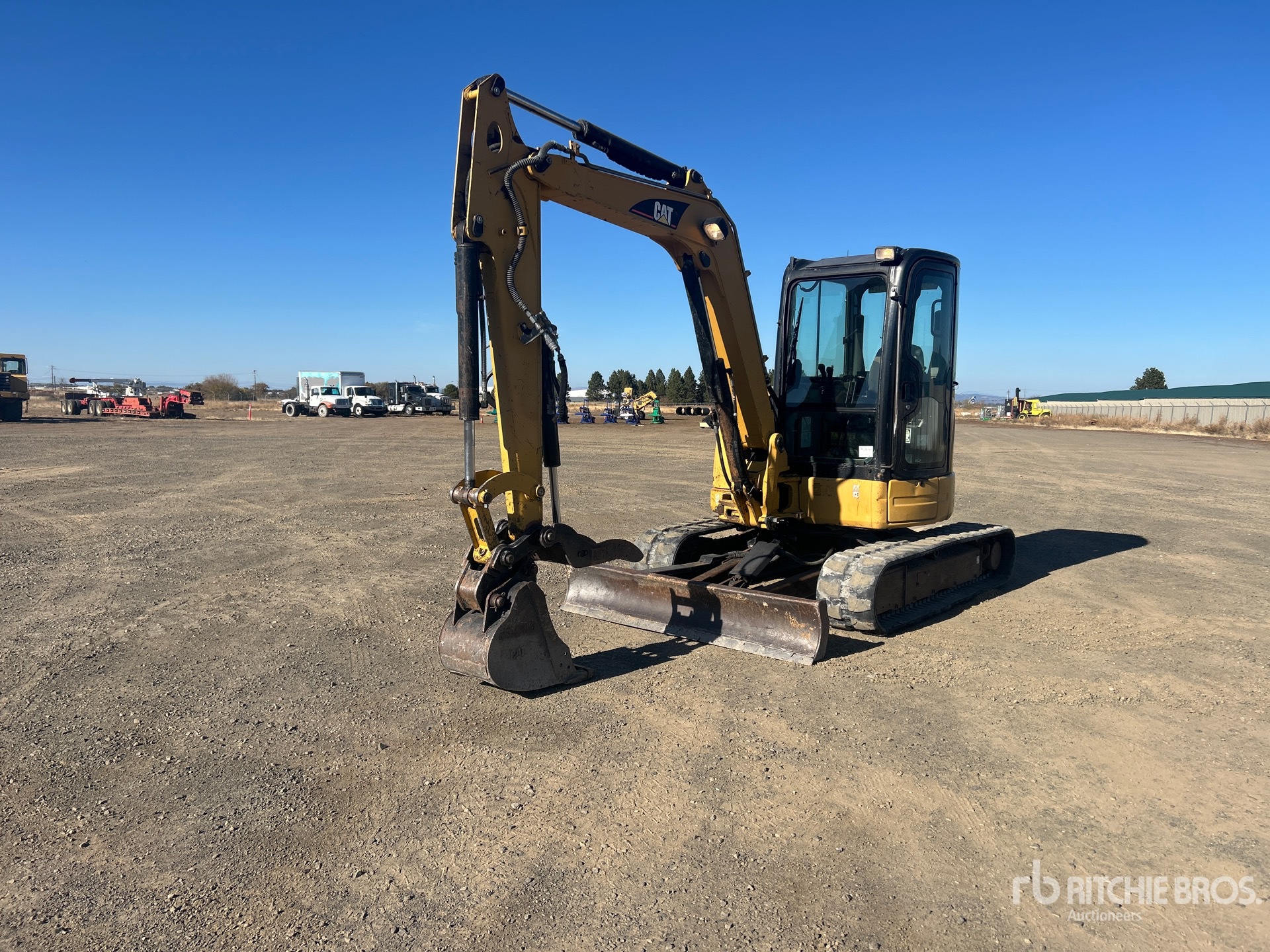

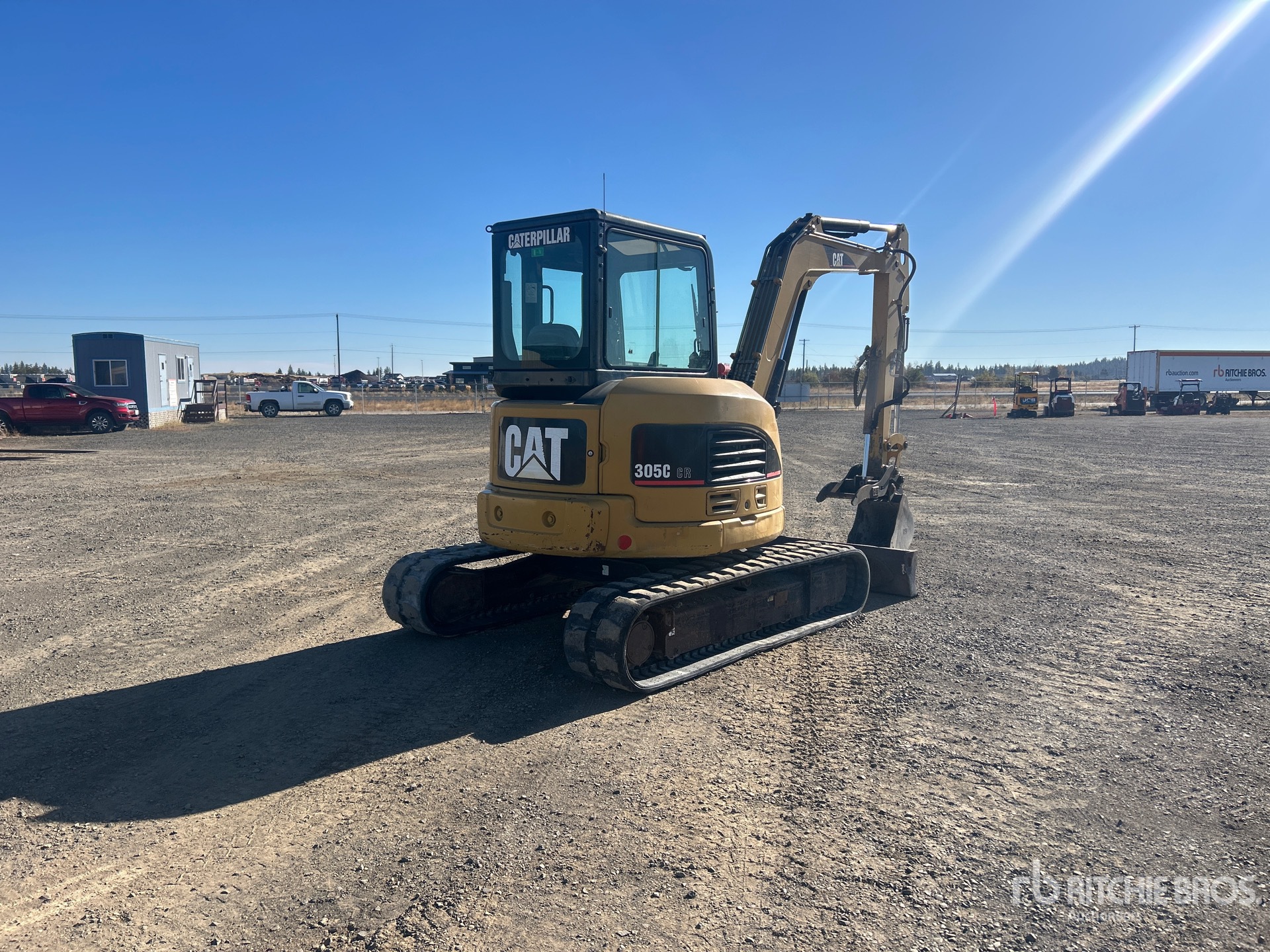

| Blade |
|
Dig Depth |
21 in (53 cm)
|
|
Height |
15 in (38 cm)
|
|
Lift Height |
17 in (43 cm)
|
|
Width |
7 ft (2 m)
|
| Boom/Stick 1 |
|
Boom/Stick 1 |
Standard Stick |
|
Max Cutting Height |
18 ft (5 m)
|
|
Max Digging Depth |
11 ft (3 m)
|
|
Max Loading Height |
13 ft (4 m)
|
|
Max Reach Along Ground |
19 ft (6 m)
|
|
Max Vertical Wall Digging Depth |
8 ft (3 m)
|
|
Shipping Height Of Unit |
8 ft (3 m)
|
|
Shipping Length Of Unit |
18 ft (5 m)
|
| Boom/Stick 2 |
|
Boom/Stick 2 |
Long Stick |
|
Max Cutting Height |
19 ft (6 m)
|
|
Max Digging Depth |
13 ft (4 m)
|
|
Max Loading Height |
13 ft (4 m)
|
|
Max Reach Along Ground |
20 ft (6 m)
|
|
Max Vertical Wall Digging Depth |
10 ft (3 m)
|
|
Shipping Height Of Unit |
8 ft (3 m)
|
|
Shipping Length Of Unit |
18 ft (5 m)
|
| Dimensions |
|
Ground Clearance |
1 ft (0 m)
|
|
Height - Over Cab |
8 ft (3 m)
|
|
Height To Top Of Cab |
8 ft (3 m)
|
|
Length - Center Of Rollers |
18.54 ft |
|
Length Of Track On Ground |
9 ft (3 m)
|
|
Maximum Cutting Height - Long Stick |
18 ft (6 m)
|
|
Maximum Cutting Height - Standard Stick |
18 ft (5 m)
|
|
Maximum Digging Depth - Standard Stick |
11 ft (3 m)
|
|
Maximum Dump Height - Long Stick |
13 ft (4 m)
|
|
Maximum Dump Height - Standard Stick |
13 ft (4 m)
|
|
Maximum Horizontal Reach - Long Stick |
20 ft (6 m)
|
|
Maximum Horizontal Reach - Standard Stick |
19 ft (6 m)
|
|
Maximum Reach - Ground Level - Standard Stick |
19 ft (6 m)
|
|
Maximum Vertical Dig Depth - Long Stick |
13 ft (4 m)
|
|
Maximum Vertical Dig Depth - Standard Stick |
10 ft (3 m)
|
|
Removal Counterweight Clearance |
2 ft (1 m)
|
|
Shipping Height |
8 ft (3 m)
|
|
Shipping Length |
18 ft (5 m)
|
|
Swing Radius - Rear |
4 ft (1 m)
|
|
Tail Swing Radius |
3 ft (1 m)
|
|
Track Gauge |
5 ft (2 m)
|
|
Track Shoe Width |
1 ft (0 m)
|
|
Transport Width |
7 ft (2 m)
|
|
Width To Outside Of Tracks |
7 ft (2 m)
|
| Engine |
|
Displacement |
153 cu in (2,507 cu cm)
|
|
Engine Make |
2,251 |
|
Engine Model |
S4Q2-T |
|
Engine Model |
Mitsubishi S4Q2-T |
|
Gross Power |
49 hp (36 kw)
|
|
Net Power |
47 hp (35 kw)
|
|
Number Of Cylinders |
4 |
|
Power Measured @ |
2,400 rpm |
| Engine Dimensions |
|
Bore |
4 in (9 cm)
|
|
Displacement |
153 cu in (2,507 cu cm)
|
|
Stroke |
4 in (10 cm)
|
| General Specifications |
|
Approx. Operating Weight (Since 2006)
|
11,464 lbs (5,200 kg)
|
|
Approx. Operating Weight (2007)
|
11,464 lbs (5,200 kg)
|
|
Approx. Operating Weight (2008)
|
11,464 lbs (5,200 kg)
|
|
Approx. Operating Weight (2009)
|
11,464 lbs (5,200 kg)
|
|
Approx. Operating Weight (2010)
|
11,464 lbs (5,200 kg)
|
|
at Rated RPM - High (Since 2010)
|
3 mph (5 kph)
|
|
Booms - One-piece (Since 2010)
|
620 lbs (281 kg)
|
|
Booms - One-piece (2012)
|
620 lbs (281 kg)
|
|
Booms - One-piece (2012)
|
620 lbs (281 kg)
|
|
Bore (Since 2010)
|
3 in (9 cm)
|
|
Bucket Bite Width (Since 2010)
|
20 in (51 cm)
|
|
Bucket Bite Width (Since 2010)
|
24 in (61 cm)
|
|
Bucket Bite Width (Since 2010)
|
30 in (76 cm)
|
|
Bucket Bite Width (Since 2010)
|
36 in (91 cm)
|
|
Bucket Bite Width (Since 2010)
|
12 in (30 cm)
|
|
Bucket Bite Width (Since 2010)
|
16 in (41 cm)
|
|
Bucket Bite Width (Since 2010)
|
18 in (46 cm)
|
|
Bucket Heaped Capacity (Since 2010)
|
0 cu yd (103 L)
|
|
Bucket Heaped Capacity (Since 2010)
|
0 cu yd (130 L)
|
|
Bucket Heaped Capacity (Since 2010)
|
0 cu yd (172 L)
|
|
Bucket Heaped Capacity (Since 2010)
|
0 cu yd (215 L)
|
|
Bucket Heaped Capacity (Since 2010)
|
0 cu yd (81 L)
|
|
Bucket Heaped Capacity (Since 2010)
|
0 cu yd (105 L)
|
|
Bucket Heaped Capacity (Since 2010)
|
0 cu yd (124 L)
|
|
Bucket Heaped Capacity (Since 2010)
|
0 cu yd (143 L)
|
|
Bucket Heaped Capacity (Since 2010)
|
0 cu yd (182 L)
|
|
Bucket Heaped Capacity (Since 2010)
|
0 cu yd (242 L)
|
|
Bucket Heaped Capacity (Since 2010)
|
0 cu yd (301 L)
|
|
Bucket Heaped Capacity (Since 2010)
|
0 cu yd (57 L)
|
|
Bucket Heaped Capacity (Since 2010)
|
0 cu yd (75 L)
|
|
Bucket Heaped Capacity (Since 2010)
|
0 cu yd (89 L)
|
|
Bucket Tip Radius (Since 2010)
|
32 in (81 cm)
|
|
Bucket Tip Radius (Since 2010)
|
35 in (88 cm)
|
|
Bucket Weight with Teeth (Since 2010)
|
207 lbs (94 kg)
|
|
Bucket Weight with Teeth (Since 2010)
|
234 lbs (106 kg)
|
|
Bucket Weight with Teeth (Since 2010)
|
274 lbs (124 kg)
|
|
Bucket Weight with Teeth (Since 2010)
|
319 lbs (145 kg)
|
|
Bucket Weight with Teeth (Since 2010)
|
179 lbs (81 kg)
|
|
Bucket Weight with Teeth (Since 2010)
|
200 lbs (91 kg)
|
|
Bucket Weight with Teeth (Since 2010)
|
220 lbs (100 kg)
|
|
Bucket Weight with Teeth (Since 2010)
|
241 lbs (109 kg)
|
|
Bucket Weight with Teeth (Since 2010)
|
271 lbs (123 kg)
|
|
Bucket Weight with Teeth (Since 2010)
|
316 lbs (143 kg)
|
|
Bucket Weight with Teeth (Since 2010)
|
366 lbs (166 kg)
|
|
Bucket Weight with Teeth (Since 2010)
|
151 lbs (68 kg)
|
|
Bucket Weight with Teeth (Since 2010)
|
169 lbs (77 kg)
|
|
Bucket Weight with Teeth (Since 2010)
|
189 lbs (86 kg)
|
|
cont'd) Flywheel Horsepower (Since 2006)
|
47 hp (35 kw)
|
|
cont'd) Flywheel Horsepower (2007)
|
47 hp (35 kw)
|
|
cont'd) Flywheel Horsepower (2008)
|
47 hp (35 kw)
|
|
cont'd) Flywheel Horsepower (2009)
|
47 hp (35 kw)
|
|
cont'd) Flywheel Horsepower (2010)
|
47 hp (35 kw)
|
|
Counterweight (Since 2010)
|
1,330 lbs (603 kg)
|
|
Counterweight (Since 2012)
|
1,822 lbs (826 kg)
|
|
Counterweight (2012)
|
1,822 lbs (826 kg)
|
|
Displacement (Since 2010)
|
153 cu in (2,506 cu cm)
|
|
Engine Model (Since 2010)
|
Mitsubishi S4Q2-T |
|
Extra Counterweight (Since 2010)
|
420 lbs (191 kg)
|
|
Flywheel Power (Since 2010)
|
47 hp (35 kw)
|
|
Fuel Tank Refill Capacity (Since 2010)
|
19 US gal (72 L)
|
|
Ground Contact Area with Std. Shoe (Since 2010)
|
2,796 sq in (2 sq m)
|
|
Height (Since 2006)
|
100 in (254 cm)
|
|
Height (2007)
|
100 in (254 cm)
|
|
Height (2008)
|
100 in (254 cm)
|
|
Height (2009)
|
100 in (254 cm)
|
|
Height (2010)
|
100 in (254 cm)
|
|
Hydraulic System (includes tank) (Since 2010)
|
21 US gal (78 L)
|
|
Length (Since 2006)
|
210 in (533 cm)
|
|
Length (2007)
|
210 in (533 cm)
|
|
Length (2008)
|
210 in (533 cm)
|
|
Length (2009)
|
210 in (533 cm)
|
|
Length (2010)
|
210 in (533 cm)
|
|
Lift Capacity (Since 2006)
|
5,622 lbs (2,550 kg)
|
|
Lift Capacity (2007)
|
5,622 lbs (2,550 kg)
|
|
Lift Capacity (2008)
|
5,622 lbs (2,550 kg)
|
|
Lift Capacity (2009)
|
5,622 lbs (2,550 kg)
|
|
Lift Capacity (2010)
|
5,622 lbs (2,550 kg)
|
|
Max. Reach (Since 2006)
|
222 in (564 cm)
|
|
Max. Reach (2007)
|
222 in (564 cm)
|
|
Max. Reach (2008)
|
222 in (564 cm)
|
|
Max. Reach (2009)
|
222 in (564 cm)
|
|
Max. Reach (2010)
|
222 in (564 cm)
|
|
Maximum Drawbar Pull (Since 2010)
|
48.1 kN 10,813 lb Two Speed Travel |
|
Maximum Travel Speed at Rated RPM - Low (Since 2010)
|
2 mph (3 kph)
|
|
No. of Cylinders (Since 2010)
|
4 |
|
Number of Bucket Teeth (Since 2010)
|
5 |
|
Number of Bucket Teeth (Since 2010)
|
6 |
|
Number of Bucket Teeth (Since 2010)
|
3 |
|
Number of Bucket Teeth (Since 2010)
|
4 |
|
Operating Weight - with Additional Counterweight (Since 2010)
|
11,729 lbs (5,320 kg)
|
|
Overall Track Length (Since 2010)
|
102 in (259 cm)
|
|

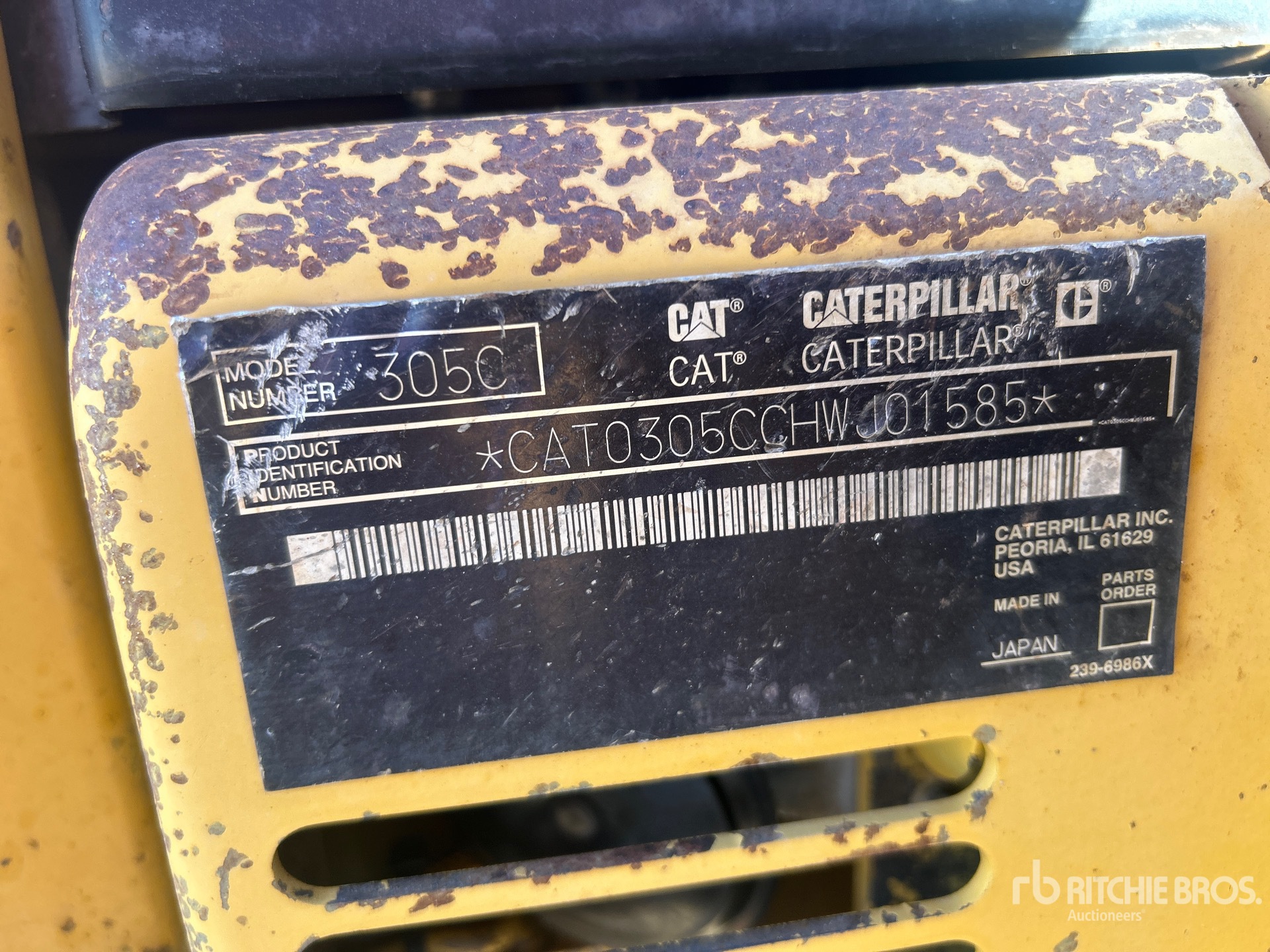

Product Identification Prefix (Since 2006)
|
HWJ |
|
Product Identification Prefix (2007)
|
HWJ |
|
Product Identification Prefix (2008)
|
HWJ |
|
Product Identification Prefix (2009)
|
HWJ |
|
Product Identification Prefix (2010)
|
HWJ |
|
Rated Engine RPM (Since 2010)
|
2,400 rpm |
|
Relief Valve Settings - Implement Circuits (Since 2010)
|
3,553 psi (25 mPa)
|
|
Relief Valve Settings - Swing Circuits (Since 2010)
|
2,669 psi (18 mPa)
|
|
Relief Valve Settings - Travel Circuits (Since 2010)
|
3,553 psi (25 mPa)
|
|
Shipping Dimension A (source diagram) (Since 2010)
|
100 in (254 cm)
|
|
Shipping Dimension B (source diagram) (Since 2010)
|
78 in (198 cm)
|
|
Shipping Dimension C (source diagram) (Since 2010)
|
78 in (198 cm)
|
|
Shipping Dimension E (source diagram) (Since 2010)
|
24 in (61 cm)
|
|
Shipping Dimension F (source diagram) (Since 2010)
|
39 in (99 cm)
|
|
Shipping Dimension G (source diagram) (Since 2010)
|
102 in (259 cm)
|
|
Shipping Dimension H (source diagram) (Since 2010)
|
210 in (533 cm)
|
|
Shipping Dimension L (source diagram) (Since 2010)
|
62 in (157 cm)
|
|
Sourcing (Since 2010)
|
Japan |
|
Standard undercarriage (std shoe) (Since 2010)
|
3,760 lbs (1,706 kg)
|
|
Standard undercarriage (std shoe) (2012)
|
3,760 lbs (1,706 kg)
|
|
Standard undercarriage (std shoe) (2012)
|
3,760 lbs (1,706 kg)
|
|
Sticks - Long Stick (Since 2010)
|
420 lbs (191 kg)
|
|
Sticks - Long Stick (2012)
|
420 lbs (191 kg)
|
|
Sticks - Long Stick (2012)
|
420 lbs (191 kg)
|
|
Sticks - Medium Stick (Since 2010)
|
320 lbs (145 kg)
|
|
Sticks - Medium Stick (2012)
|
320 lbs (145 kg)
|
|
Sticks - Medium Stick (2012)
|
320 lbs (145 kg)
|
|
Stroke (Since 2010)
|
4 in (10 cm)
|
|
Track Gauge (Since 2006)
|
62 in (157 cm)
|
|
Track Gauge (2007)
|
62 in (157 cm)
|
|
Track Gauge (2008)
|
62 in (157 cm)
|
|
Track Gauge (2009)
|
62 in (157 cm)
|
|
Track Gauge (2010)
|
62 in (157 cm)
|
|
Track Gauge - Standard Undercarriage (Since 2010)
|
62 in (157 cm)
|
|
Upperstructure (complete w/o ctwt) (Since 2010)
|
4,120 lbs (1,869 kg)
|
|
Upperstructure (complete w/o ctwt) (2012)
|
4,120 lbs (1,869 kg)
|
|
Upperstructure (complete w/o ctwt) (2012)
|
4,120 lbs (1,869 kg)
|
|
Width of Standard Track Shoe (Since 2010)
|
16 in (41 cm)
|
|
Years Built (Since 2006)
|
2,006 - 2,010 |
|
Years Built (2007)
|
2,006 - 2,010 |
|
Years Built (2008)
|
2,006 - 2,010 |
|
Years Built (2009)
|
2,006 - 2,010 |
|
Years Built (2010)
|
2,006 - 2,010 |
| Hydraulic System |
|
Auxiliary Circuit - Primary (245 Bar/3,553 Psi) |
19 gpm (70 lpm)
|
|
Auxiliary Circuits - Secondary - At 174 Bar |
9 gpm (35 lpm)
|
|
Digging Force - Bucket |
11,443 lbs (5,190 kg)
|
|
Digging Force - Stick - Long |
5,575 lbs (2,529 kg)
|
|
Digging Force - Stick - Standard |
6,497 lbs (2,947 kg)
|
|
Operating Pressure - Equipment |
3,553 psi |
|
Operating Pressure - Swing |
2,669 psi |
|
Operating Pressure - Travel |
3,553 psi |
| Msc Comments |
|
Msc Spec Date |
3/06 |
| Operational |
|
Alternator Supplied Amperage |
50 amps |
|
Cooling System Fluid Capacity |
3 gal (11 l)
|
|
Engine Oil Capacity |
2 gal (7 l)
|
|
Fuel Capacity |
19 gal (72 l)
|
|
Hydraulic Pump Flow Capacity |
34 gpm (130 lpm)
|
|
Hydraulic System Fluid Capacity |
21 gal (78 l)
|
|
Hydraulic System Relief Valve Pressure |
3,553 psi |
|
Operating Voltage |
12 V |
|
Operating Weight |
11,725 lbs (5,318 kg)
|
| Service Refill Capacities |
|
Cooling System |
3 gal (11 l)
|
|
Engine Oil |
2 gal (7 l)
|
|
Fuel Tank |
19 gal (72 l)
|
|
Hydraulic System |
21 gal (78 l)
|
|
Hydraulic Tank |
13 gal (48 l)
|
| Sound Levels |
|
Cab |
78 dB(A) |
|
Canopy |
77 dB(A) |
| Swing Mechanism |
|
Swing Speed |
9 rpm |
| Swing System |
|
Boom Swing - Left - With Stop |
60 degrees |
|
Boom Swing - Left - Without Stop |
80 degrees |
|
Boom Swing - Right |
50 degrees |
|
Machine Swing Speed |
9 rpm |
| Travel System |
|
Gradeability - Maximum - High |
30 degrees |
|
Maximum Traction Force - High Speed |
6,092 lbs (2,763 kg)
|
|
Maximum Traction Force - Low Speed |
10,813 lbs (4,905 kg)
|
|
Travel Speed - High |
3 mph (5 kph)
|
|
Travel Speed - Low |
2 mph (3 kph)
|
| Undercarriage |
|
Max Travel Speed |
3 mph (5 kph)
|
|
Shoe Size |
16 in (41 cm)
|
|
Track Gauge |
5 ft (2 m)
|
| Weights |
|
Operating Weight |
11,464 lbs (5,200 kg)
|
|
Operating Weight - With Cab |
11,725 lbs (5,318 kg)
|
