2008 Caterpillar 315D L For Sale in Chicago, Il

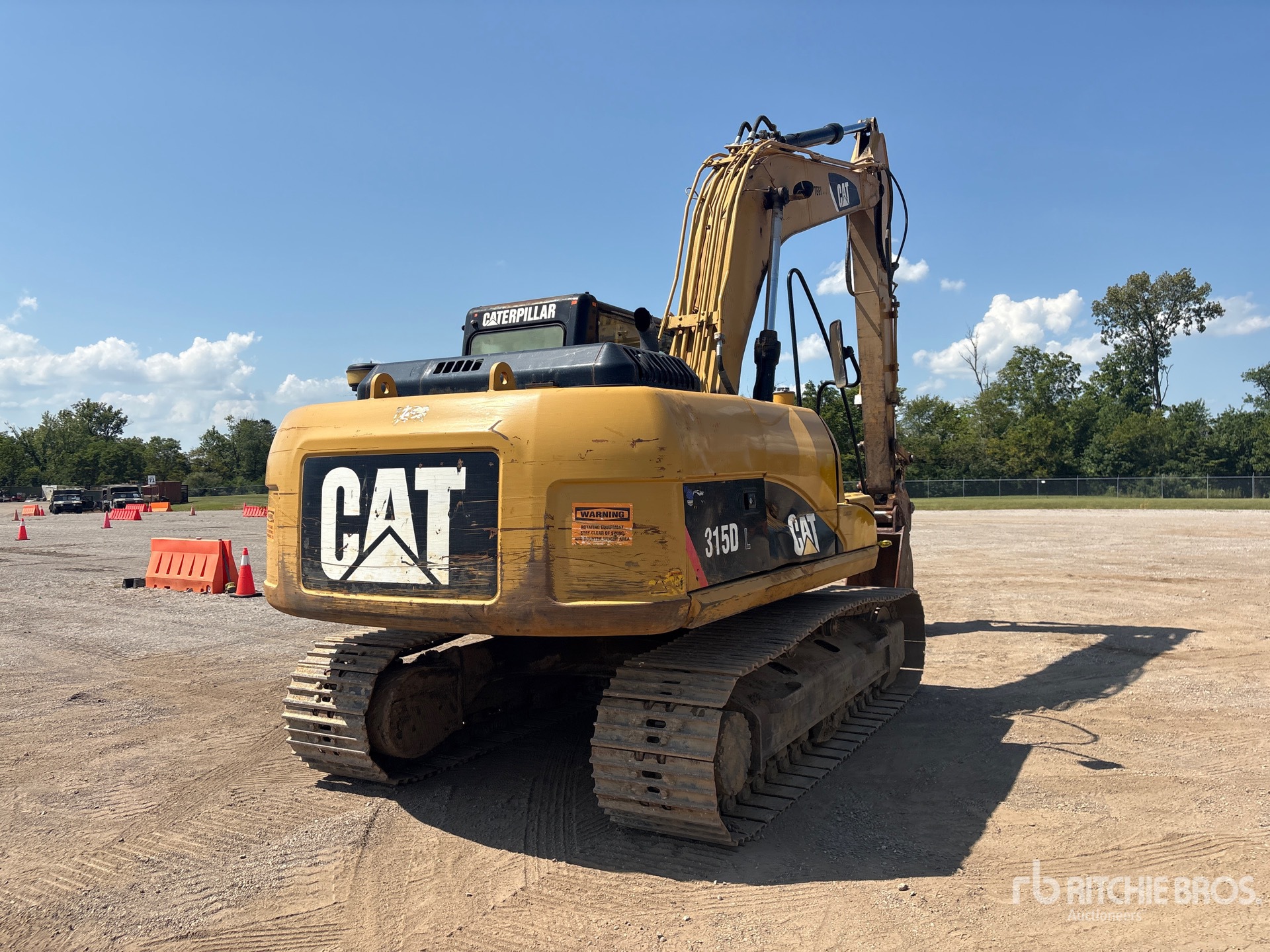

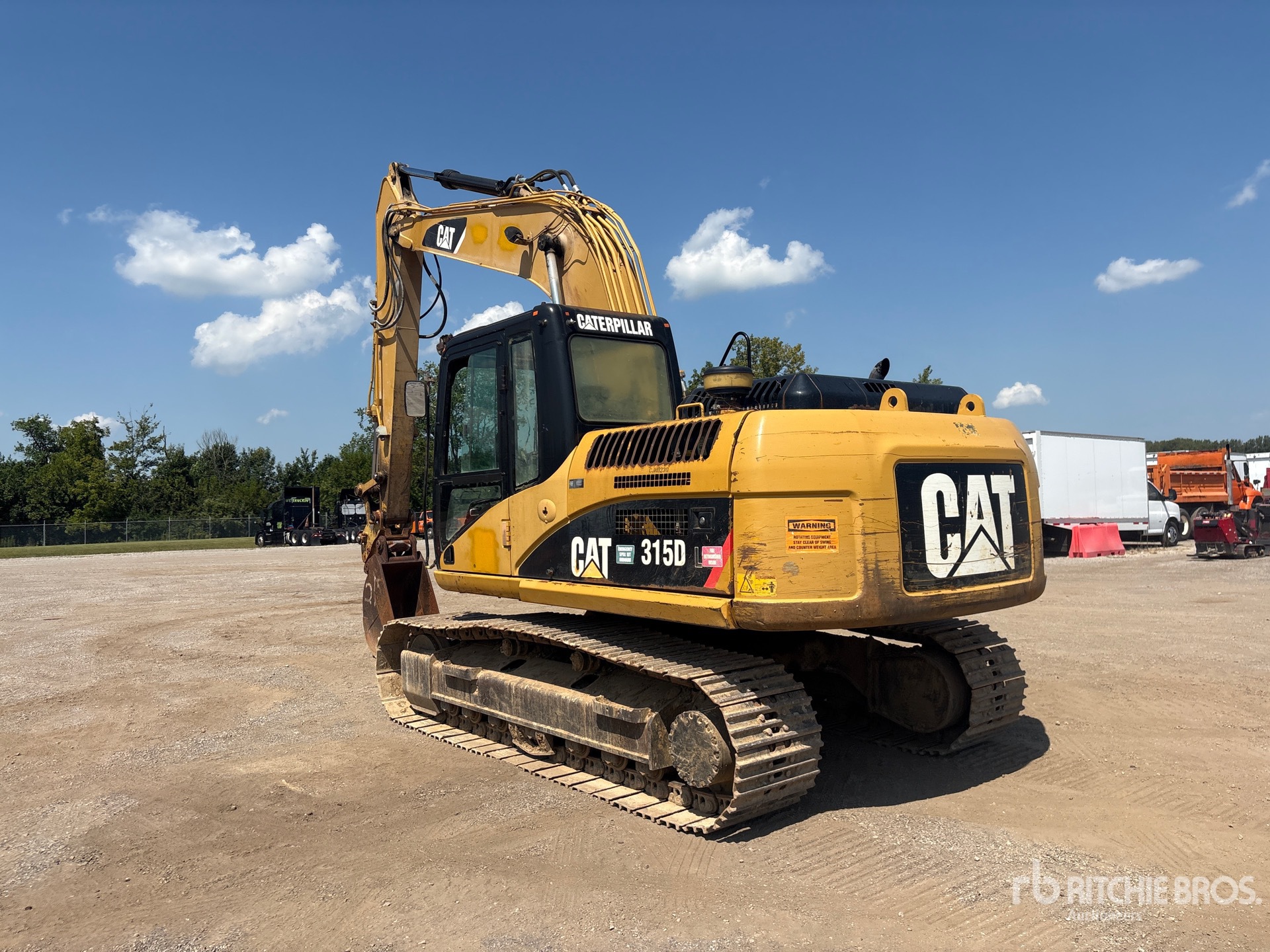

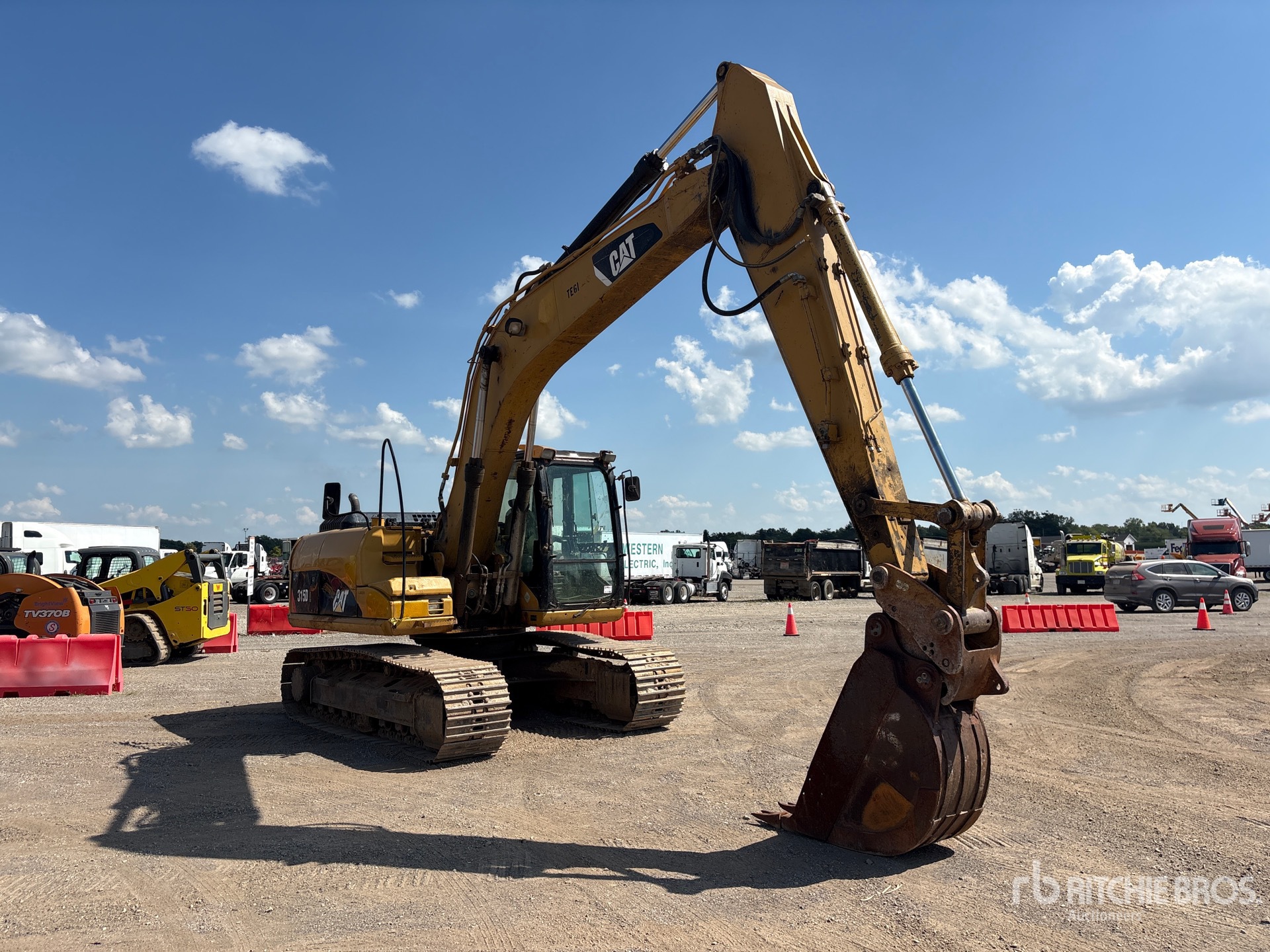

Name: 2008 Caterpillar 315D L
Brand: Caterpillar
SKU: 89141222
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-09-24 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

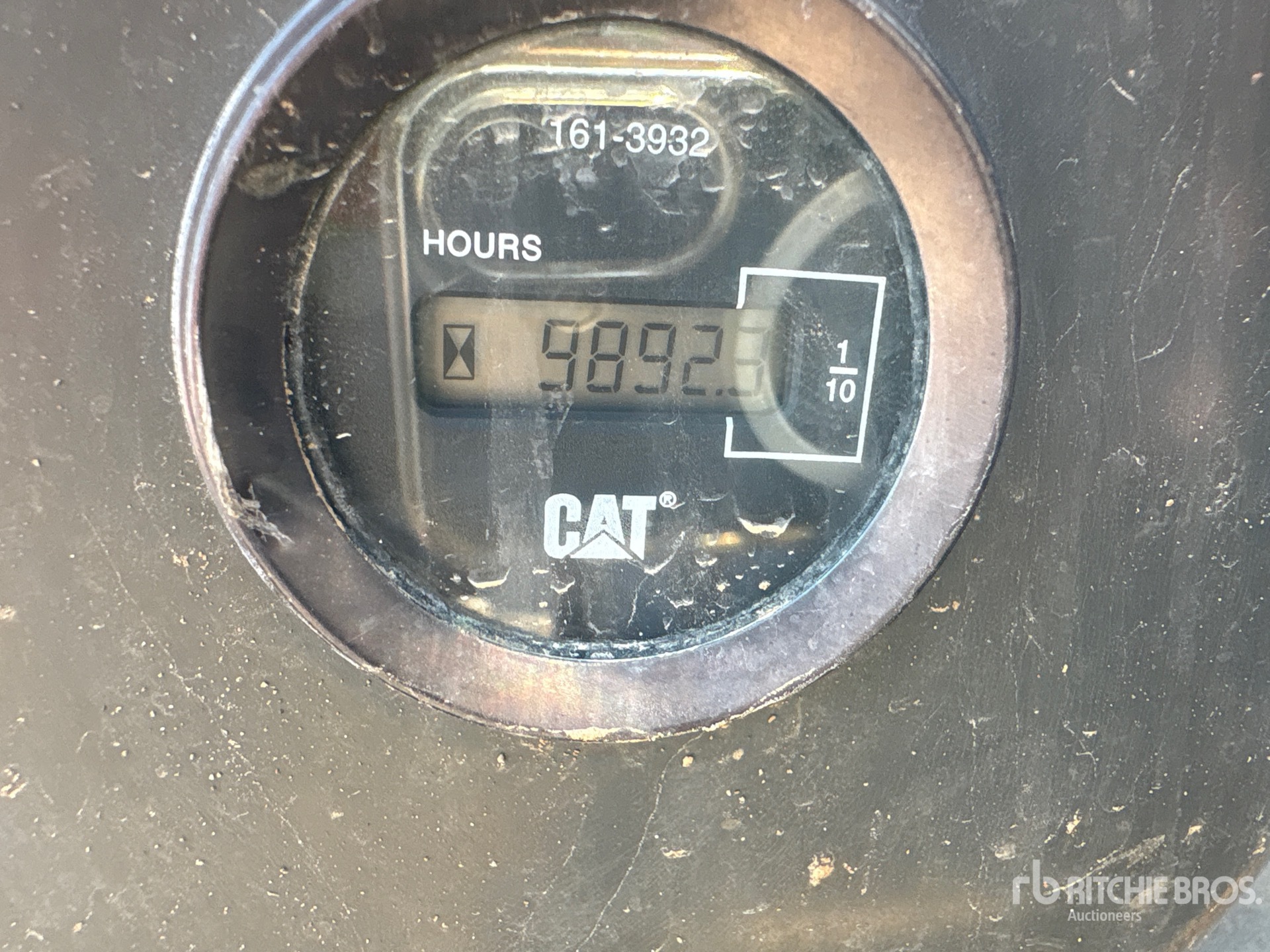

Hours:	9892

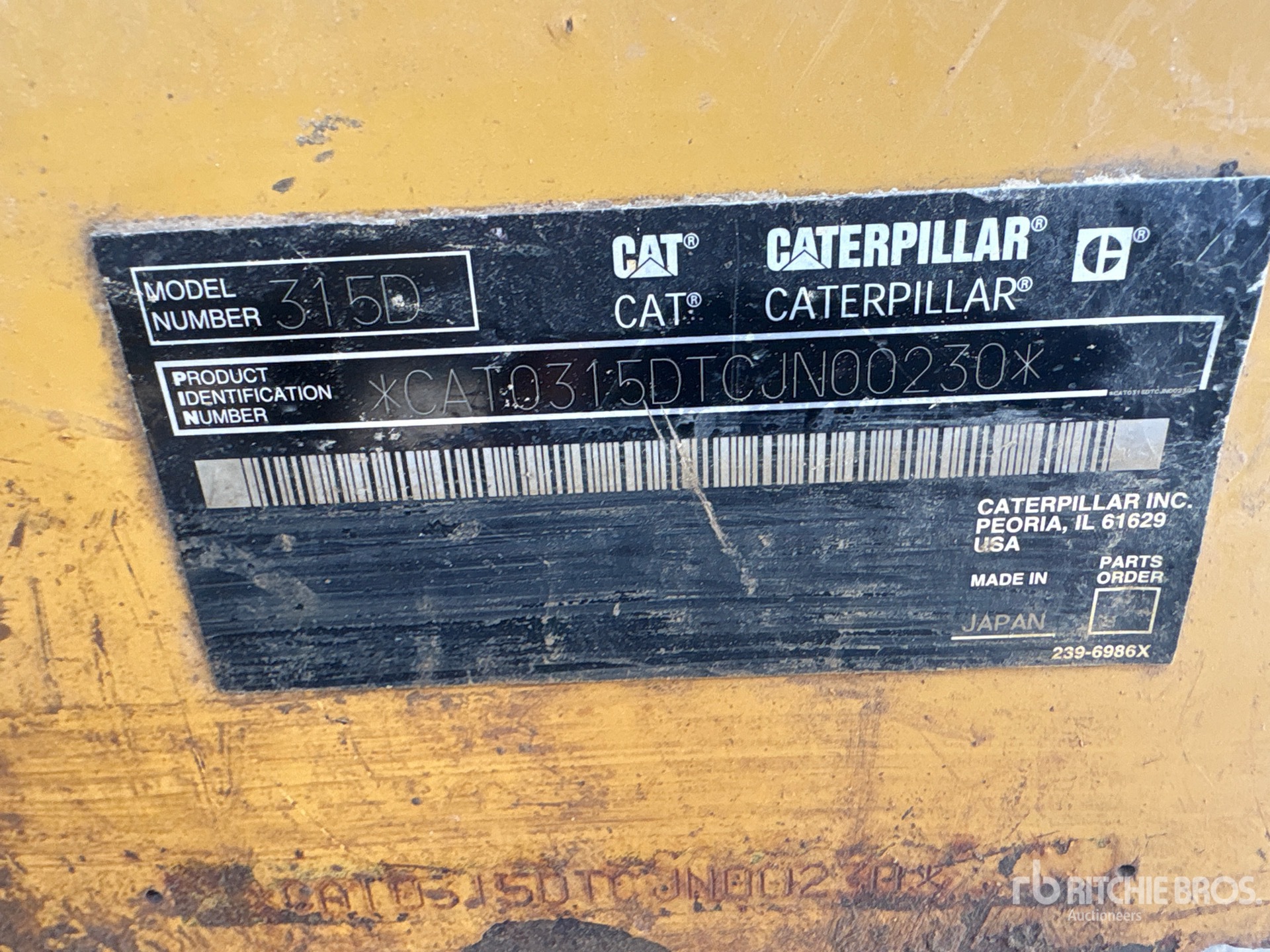

Serial Number:	CAT0315DTCJN00230
Machine Location:	CHICAGO, IL

Description:

Located in Lane 30 Spot 3, Air Conditioner, Straight Travel Pedal, 12 ft Stick, Auxiliary Hydraulic Plumbing, 24 in Triple Grouser Track Shoes, 18 in Digging Bucket Closing Time: 2026-09-24 04:00:00 PM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Caterpillar 315D L is a hydraulic excavator in Caterpillar's 15-ton class, designed for general excavation, trenching, site preparation, and utility work. It features a long undercarriage for improved stability and ground contact, making it suitable for work on uneven terrain and in confined job sites. The 315D L is typically equipped with a Caterpillar diesel engine, hydraulic system, and operator cab designed for productivity and control. Common attachments include buckets, thumbs, and hydraulic tools. The model is used in construction, landscaping, municipal, and infrastructure applications where a compact-to-mid-size excavator is required.

Boom/Stick 1
Boom/Stick 1	Boom 5100mm (16\\\' 9\\\'\\\') / Stick 2250mm (7\\\' 5\\\'\\\')
Max Cutting Height	29 ft (9 m)
Max Digging Depth	19 ft (6 m)
Max Loading Height	20 ft (6 m)
Max Reach Along Ground	28 ft (8 m)
Max Vertical Wall Digging Depth	16 ft (5 m)
Shipping Height Of Unit	10 ft (3 m)
Shipping Length Of Unit	28 ft (9 m)
Boom/Stick 2
Boom/Stick 2	Boom 5100mm (16\\\' 9\\\'\\\') / Stick 2600mm (8\\\' 6\\\'\\\')
Max Cutting Height	29 ft (9 m)
Max Digging Depth	20 ft (6 m)
Max Loading Height	8 ft (2 m)
Max Reach Along Ground	29 ft (9 m)
Max Vertical Wall Digging Depth	18 ft (5 m)
Shipping Height Of Unit	10 ft (3 m)
Shipping Length Of Unit	28 ft (9 m)
Boom/Stick 3
Boom/Stick 3	Boom 5100mm (16\\\' 9\\\'\\\') / Stick 2900mm (9\\\' 6\\\'\\\')
Max Cutting Height	29 ft (9 m)
Max Digging Depth	21 ft (6 m)
Max Loading Height	21 ft (6 m)
Max Reach Along Ground	29 ft (9 m)
Max Vertical Wall Digging Depth	18 ft (5 m)
Shipping Height Of Unit	10 ft (3 m)
Shipping Length Of Unit	28 ft (9 m)
Boom/Stick 4
Boom/Stick 4	Boom 5100mm (16\\\' 9\\\'\\\') / Stick 3100mm (10\\\' 2\\\'\\\')
Max Cutting Height	29 ft (9 m)
Max Digging Depth	22 ft (7 m)
Max Loading Height	22 ft (7 m)
Max Reach Along Ground	30 ft (9 m)
Max Vertical Wall Dig Depth	19 ft (6 m)
Shipping Height Of Unit	11 ft (3 m)
Shipping Length Of Unit	28 ft (9 m)
Buckets
Maximum Bucket Capacity	1 cu yd
Minimum Bucket Capacity	1 cu yd
Reference Bucket Capacity	1 cu yd
Dimensions
Ground Clearance	2 ft (0 m)
Height	9 ft (3 m)
Height To Top Of Cab	9 ft (3 m)
Length	28 ft (9 m)
Length Of Track On Ground	10 ft (3 m)
Removal Counterweight Clearance	3 ft (1 m)
Tail Swing Radius	8 ft (3 m)
Weight	36,200 lbs (16,417 kg)
Width	10 ft (3 m)
Width To Outside Of Tracks	9 ft (3 m)
Engine
Displacement	259 cu in (4,251 cu cm)
Engine Make	2,236
Engine Model	C4.2 ACERT
Flywheel Power	117 hp (87 kw)
Gross Power	122 hp (91 kw)
Net Power	115 hp (86 kw)
Operational
Cooling System Fluid Capacity	6 gal (22 l)
Engine Oil Capacity	5 gal (18 l)
Fuel Capacity	79 gal (300 l)
Hydraulic Pump Flow Capacity	40 gpm (150 lpm)
Hydraulic System Fluid Capacity	50 gal (190 l)
Hydraulic System Relief Valve Pressure	5,076 psi
Operating Weight	38,096 lbs (17,280 kg)
Swing Drive Fluid Capacity	1 gal (3 l)
Swing Mechanism
Swing Speed	10 rpm
Swing Torque	32,010 lbs ft (43,399 nm)
Undercarriage
Drawbar Pull	35,295 lbs (16,010 kg)
Ground Pressure	6 psi
Max Travel Speed	3 mph (6 kph)
Shoe Size	24 in (60 cm)
Track Gauge	7 ft (2 m)
Weights
Operating Weight	36,817 lbs (16,700 kg)
