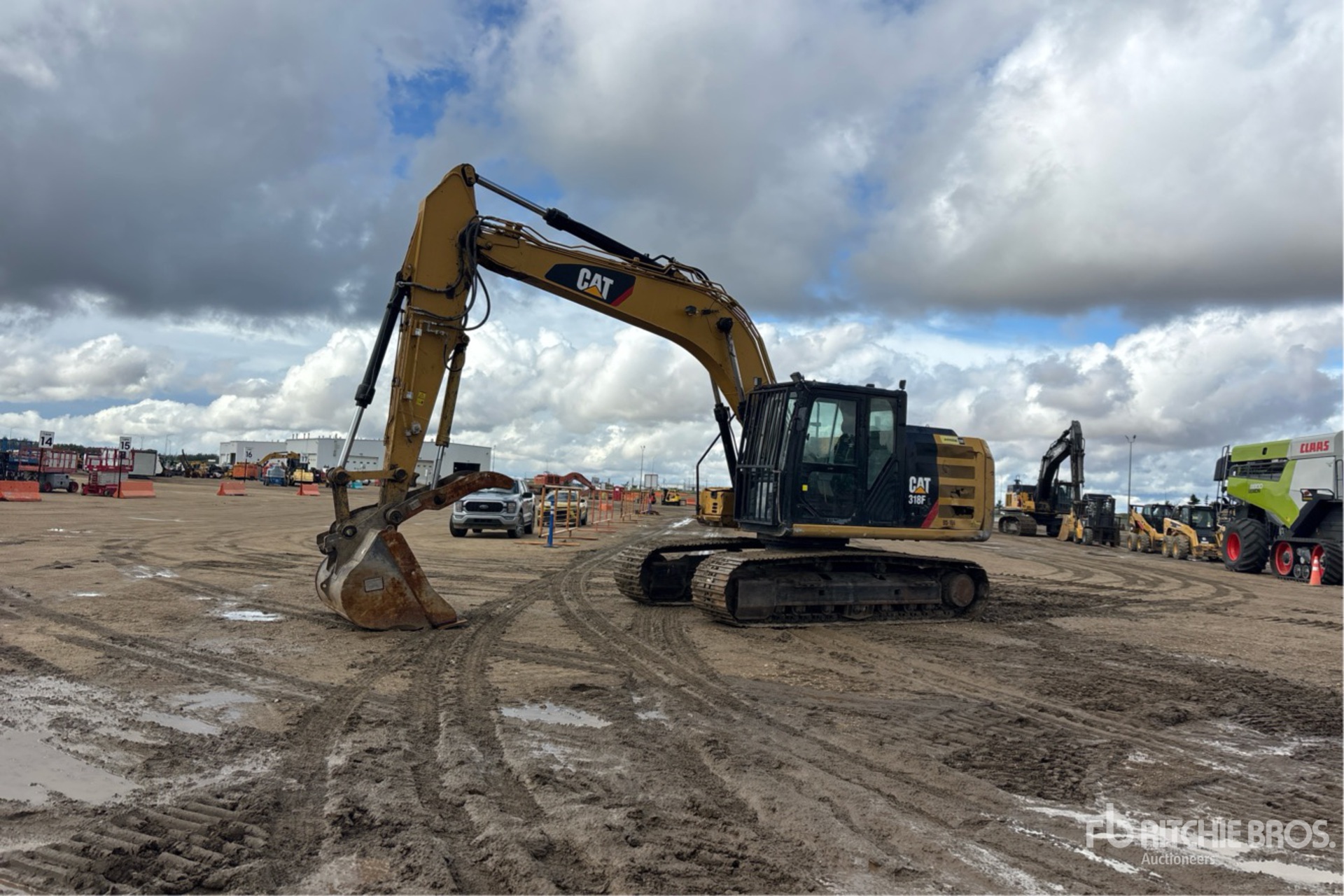

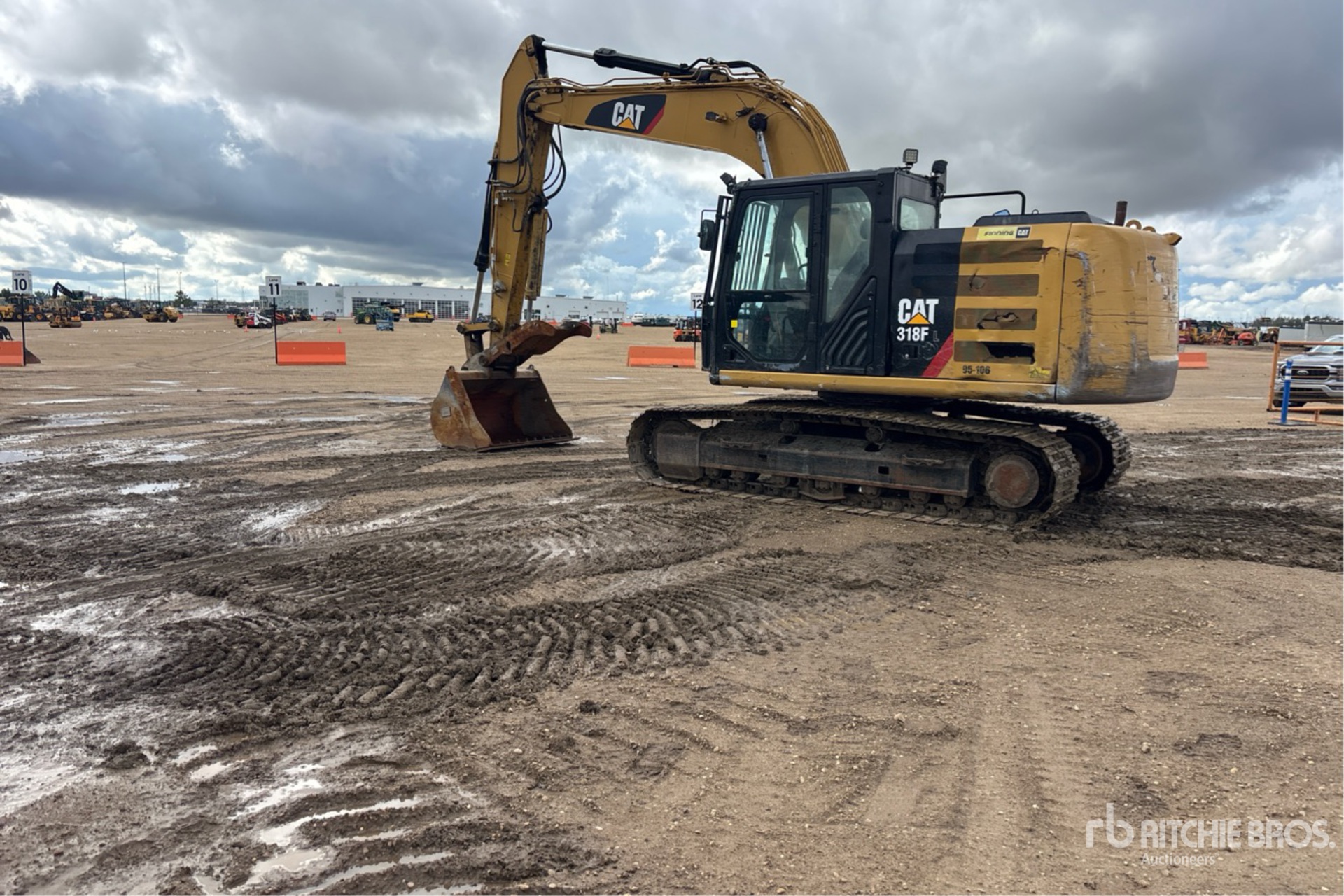

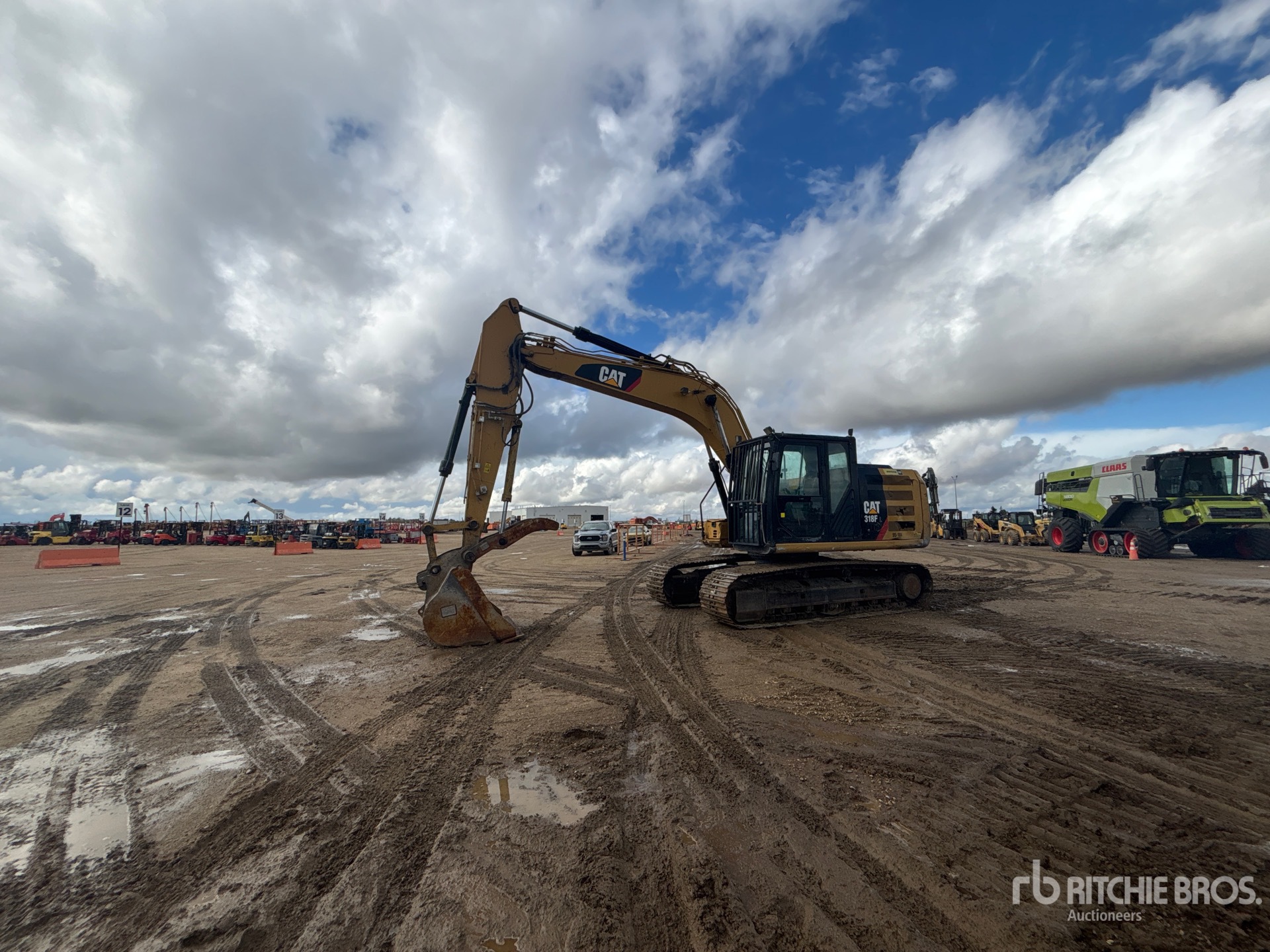

| Bucket & Stick Forces* - Reach Boom - 5.1 M (16'9"); R2.6 M (8'6") Stick; General Duty Bucket |
|
Bucket Digging Force - Iso |
27,700 lbs ft (37,556 nm)
|
|
Bucket Digging Force - Sae |
24,400 lbs ft (33,082 nm)
|
|
Note |
*With a 0.91 m3 (1.19 yd3), 1050 mm (41") GD bucket. |
|
Stick Digging Force - Iso |
19,300 lbs ft (26,167 nm)
|
|
Stick Digging Force - Sae |
16,700 lbs ft (22,642 nm)
|

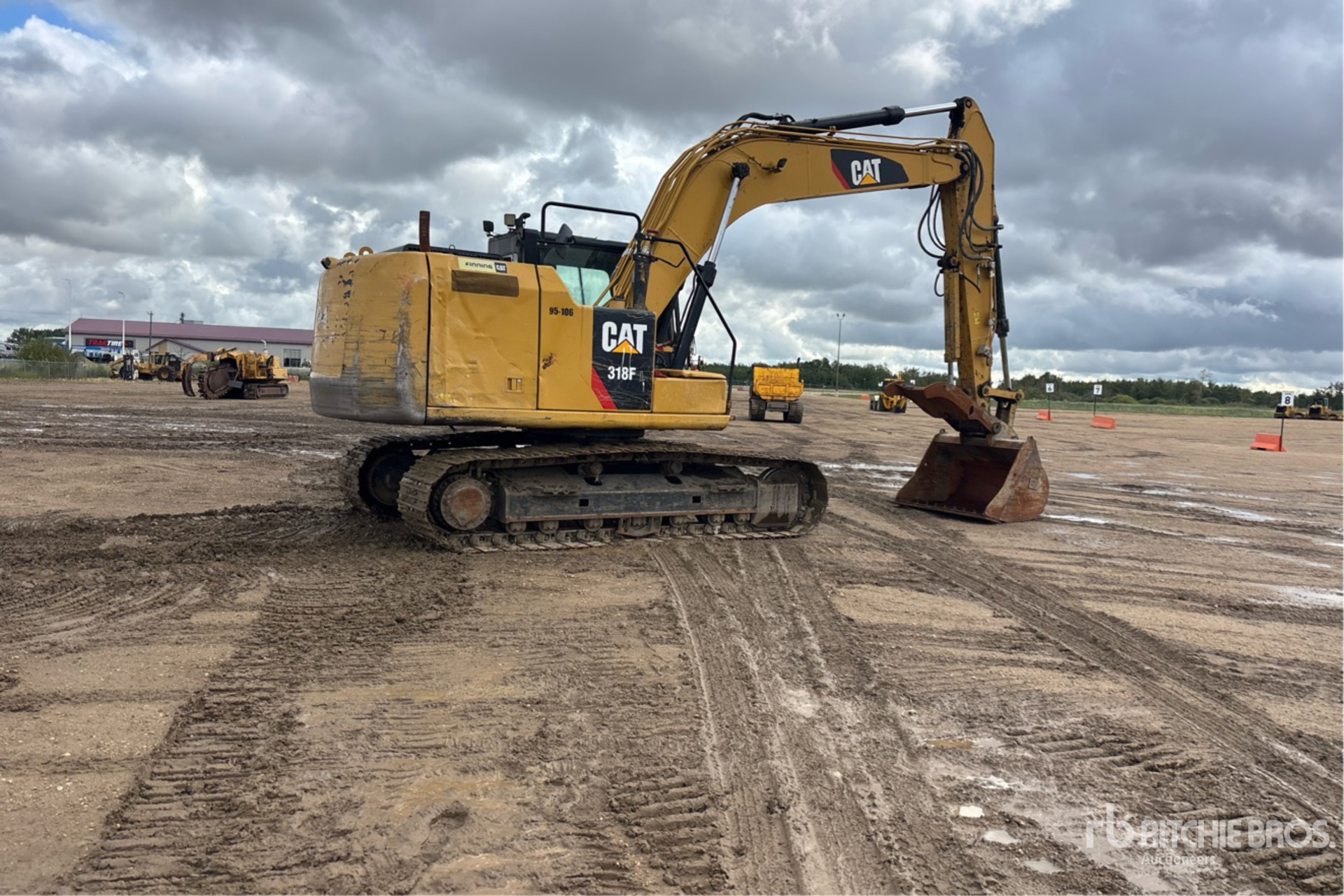

| Dimensions* - Reach Boom - 5.1 M (16'9"); R2.6 M (8'6") Stick |
|
Cab Height |
10 ft (3 m)
|
|
Cab Height - With Top Guard |
10 ft (3 m)
|
|
Counterweight Clearance |
3 ft (1 m)
|
|
Ground Clearance |
1 ft (0 m)
|
|
Length - Center Of Rollers |
11 ft (3 m)
|
|
Note |
*With a 0.91 m3 (1.19 yd3), 1050 mm (41") GD bucket. |
|
Shipping Height |
10 ft (3 m)
|
|
Shipping Length |
28 ft (9 m)
|
|
Tail Swing Radius |
8 ft (2 m)
|
|
Track Gauge |
7 ft (2 m)
|
|
Track Length |
13 ft (4 m)
|
|
Transport Width - 700 Mm (28 In) Shoes |
9 ft (3 m)
|
| Drive |
|
Maximum Drawbar Pull |
46,513 lbs (21,098 kg)
|
|
Maximum Travel Speed |
2 mph (4 kph)
|

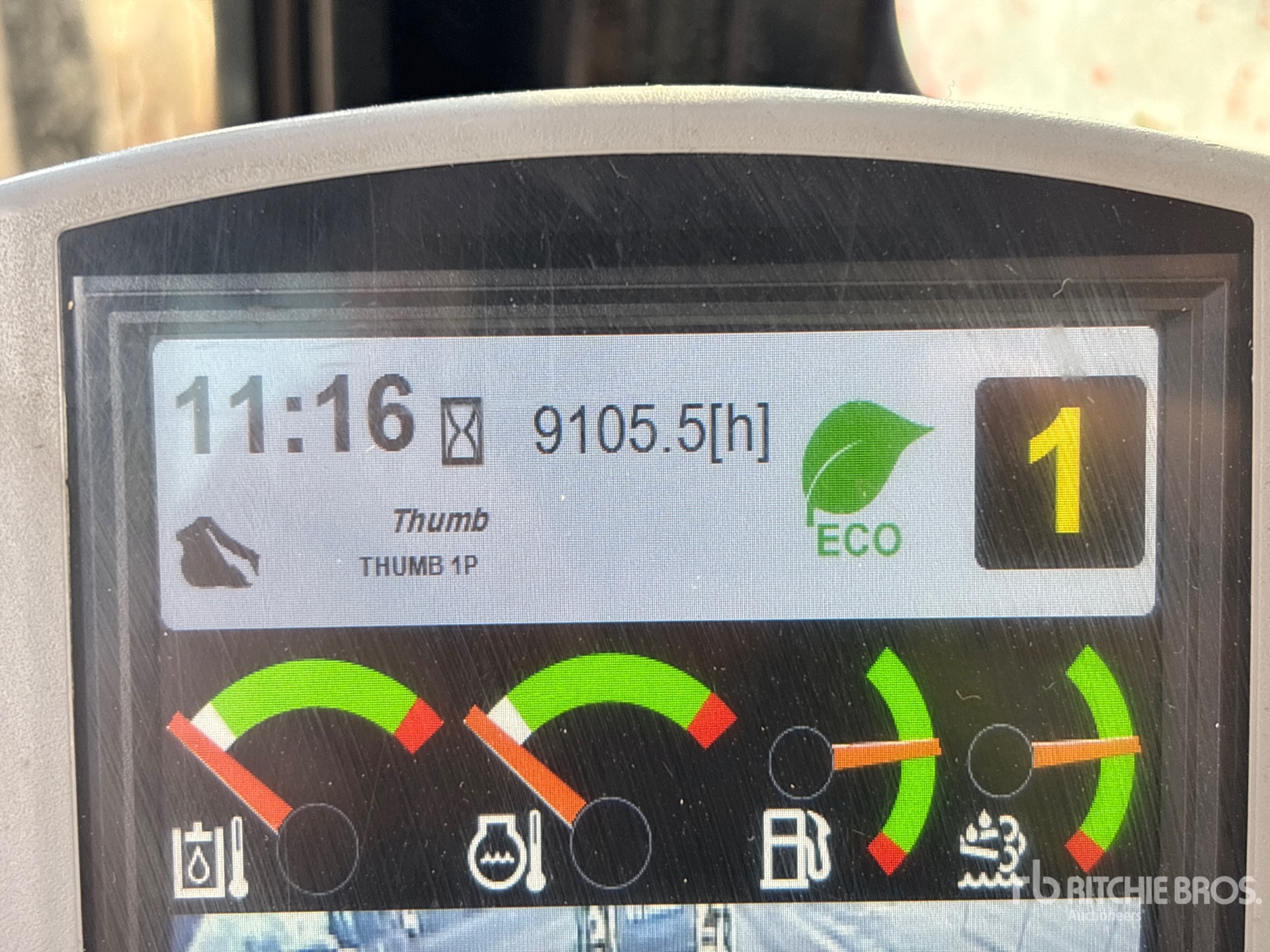

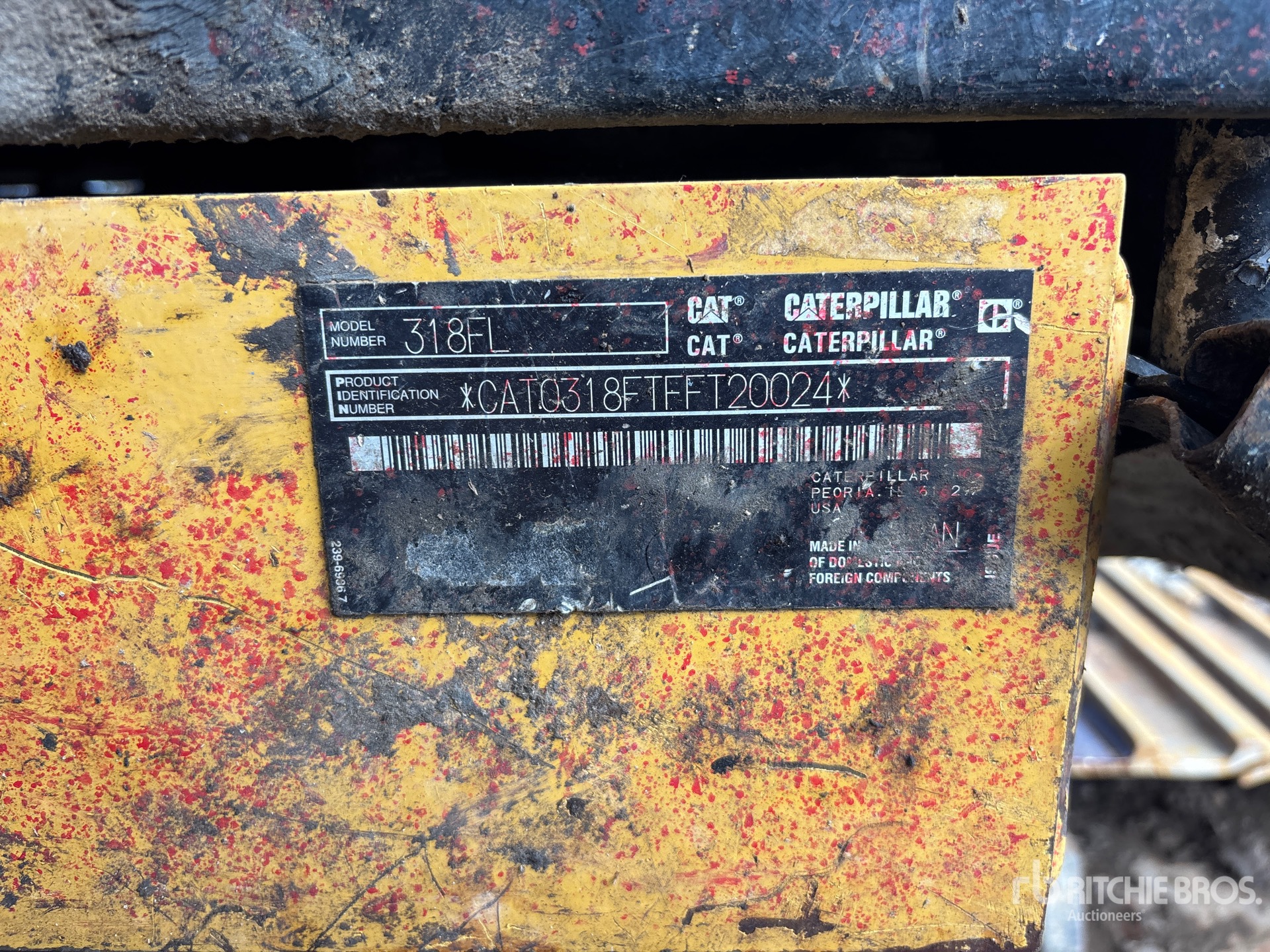

| Engine |
|
Bore |
4 in (11 cm)
|
|
Displacement |
269 cu in (4,408 cu cm)
|
|
Engine Model |
Cat C4.4 ACERT |
|
Flywheel Power |
117 hp (87 kw)
|
|
Stroke |
5 in (13 cm)
|
| Hydraulic System |
|
Main System - Maximum Flow - Total |
79 gpm (299 lpm)
|
|
Maximum Pressure - Equipment |
5,076 psi |
|
Maximum Pressure - Swing |
3,336 psi |
|
Maximum Pressure - Travel |
5,076 psi |
|
Pilot System - Maximum Flow |
1593 in/min |
|
Pilot System - Maximum Pressure |
598 psi |
| Machine Weight |
|
Maximum Operating Weight |
42,340 lbs (19,205 kg)
|
|
Minimum Operating Weight |
41,010 lbs (18,602 kg)
|
| Operational |
|
Operating Weight |
42,340 lbs (19,205 kg)
|
| Service Refill Capacities |
|
Cooling System |
6 gal (24 l)
|
|
Def Tank Capacity |
12 gal (44 l)
|
|
Engine Oil - With Filter |
4 gal (14 l)
|
|
Final Drive - Each |
2 gal (8 l)
|
|
Fuel Tank Capacity |
77 gal (290 l)
|
|
Hydraulic System - Including Tank |
32 gal (121 l)
|
|
Hydraulic Tank |
28 gal (106 l)
|
|
Swing Drive |
2 gal (8 l)
|
| Sound Performance |
|
Iso 6395 - Exterior Sound Power Level |
102 dB(A) |
|
Iso 6396 - Operator Sound Pressure Level |
71 dB(A) |
| Swing |
|
Swing Speed |
9 rpm |
|
Swing Torque |
37,394 lbs ft (50,699 nm)
|

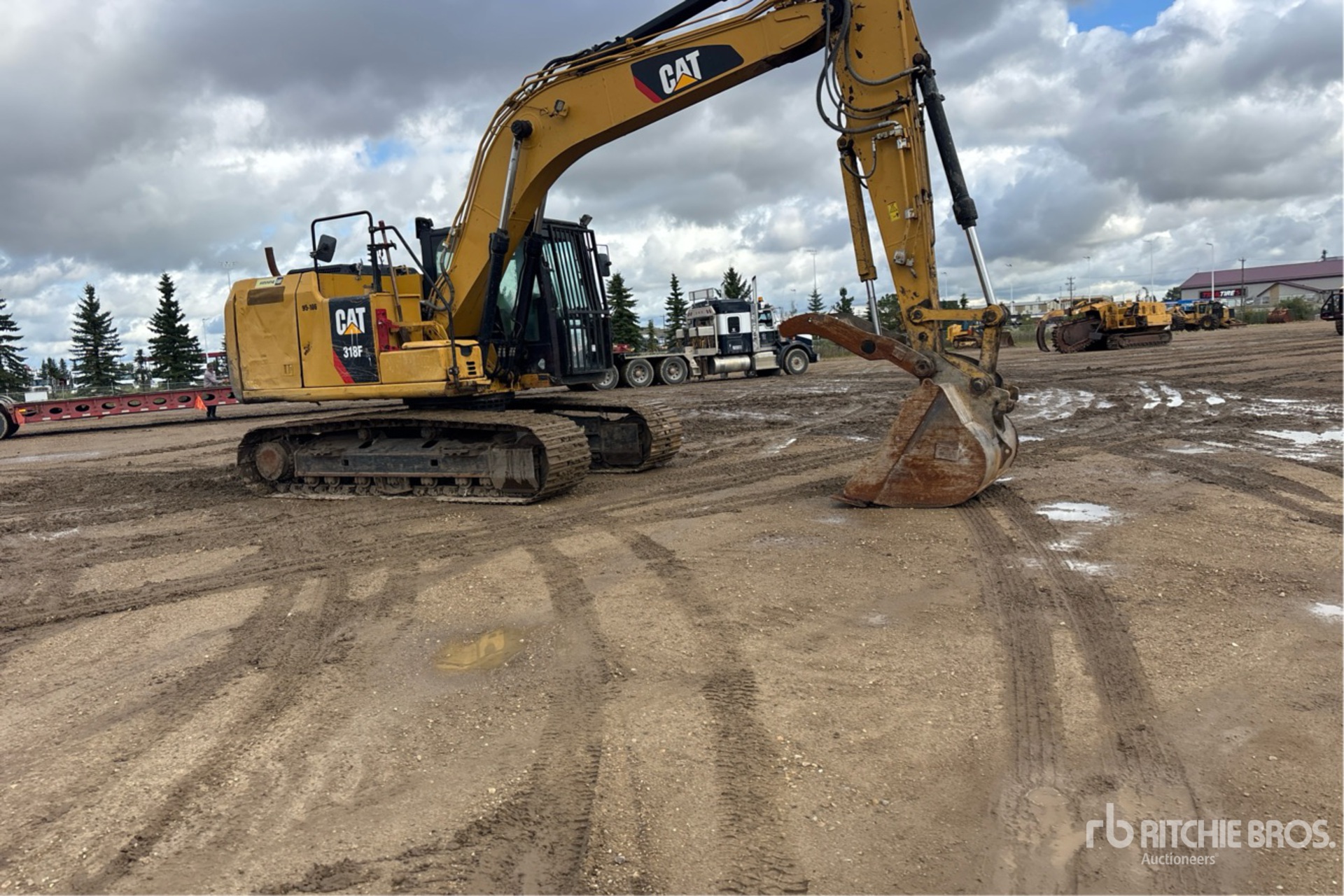

| Working Ranges* - Reach Boom - 5.1 M (16'9"); R2.6 M (8'6") Stick |
|
Maximum Cutting Height |
29 ft (9 m)
|
|
Maximum Depth Cut For 2440 Mm (8'0") Level Bottom |
19 ft (6 m)
|
|
Maximum Digging Depth |
20 ft (6 m)
|
|
Maximum Loading Height |
21 ft (6 m)
|
|
Maximum Reach - Ground Level |
29 ft (9 m)
|
|
Maximum Vertical Wall Digging Depth |
16 ft (5 m)
|
|
Minimum Loading Height |
8 ft (2 m)
|
|
Note |
*With a 0.91 m3 (1.19 yd3), 1050 mm (41") GD bucket. |
