| Dimensions |
|
Boom (Since 2026)
|
Reach 5.7 m (18'8") |
|
Bucket (Since 2026)
|
1.19 m ³ (1.56 yd³) |
|
Counterweight Clearance (Since 2026)
|
3 ft (1 m)
|
|
Ground Clearance (Since 2026)
|
2 ft (0 m)
|
|
Handrail Height (Since 2026)
|
10 ft (3 m)
|
|
Height |
10 ft (3 m)
|
|
Length |
31 ft (10 m)
|
|
Length to Center of Rollers (Since 2026)
|
12 ft (4 m)
|
|
Shipping Height - Top of Cab (Since 2026)
|
10 ft (3 m)
|
|
Shipping Length (Since 2026)
|
31 ft (10 m)
|
|
Stick (Since 2026)
|
Reach 2.9 m (9'6") |
|
Tail Swing Radius (Since 2026)
|
9 ft (3 m)
|
|
Track Gauge (Since 2026)
|
8 ft (2 m)
|
|
Track Length (Since 2026)
|
15 ft (4 m)
|
|
Transport Width (Since 2026)
|
10 ft (3 m)
|
|
Weight |
49,600 lbs (22,498 kg)
|
|
Width |
10 ft (3 m)
|
| Engine |
|
Biodiesel Capability (Since 2026)
|
Up to B20¹ |
|
Bore (Since 2026)
|
4 in (10 cm)
|
|
Displacement (Since 2026)
|
269 cu in (4,408 cu cm)
|
|
Emissions (Since 2026)
|
Meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards. |
|
Engine Model (Since 2026)
|
Cat® C4.4 |
|
Engine Power - ISO 14396 (Since 2026)
|
174 hp (130 kw)
|
|
Engine Power - ISO 14396 (DIN) (Since 2026)
|
176 hp (131 kw)
|
|
Net Power - ISO 9249 (Since 2026)
|
172 hp (128 kw)
|
|
Net Power - ISO 9249 (DIN) (Since 2026)
|
175 hp (131 kw)
|
|
Stroke (Since 2026)
|
5 in (13 cm)
|
| General Specifications |
|
Approx. Operating Weight (Since 1991)
|
42,150 lbs (19,119 kg)
|
|
Approx. Operating Weight (1991)
|
42,150 lbs (19,119 kg)
|
|
Approx. Operating Weight (1992)
|
42,150 lbs (19,119 kg)
|
|
Approx. Operating Weight (1992)
|
42,150 lbs (19,119 kg)
|
|
Approx. Operating Weight (1993)
|
42,150 lbs (19,119 kg)
|
|
Approx. Operating Weight (1993)
|
42,150 lbs (19,119 kg)
|
|
Approx. Operating Weight (1994)
|
42,150 lbs (19,119 kg)
|
|
Approx. Operating Weight (1994)
|
42,150 lbs (19,119 kg)
|
|
Approx. Operating Weight (1995)
|
42,150 lbs (19,119 kg)
|
|
Approx. Operating Weight (1995)
|
42,150 lbs (19,119 kg)
|
|
Approx. Operating Weight (1996)
|
42,150 lbs (19,119 kg)
|
|
Approx. Operating Weight (1996)
|
42,150 lbs (19,119 kg)
|
|
Digging Depth (Since 2025)
|
22 ft (7 m)
|
|
Digging Reach (Since 2025)
|
32 ft (10 m)
|
|
Engine (Since 2025)
|
172 hp (128 kw)
|
|
Flywheel Horsepower (Since 1991)
|
128 hp (95 kw)
|
|
Flywheel Horsepower (1992)
|
128 hp (95 kw)
|
|
Flywheel Horsepower (1993)
|
128 hp (95 kw)
|
|
Flywheel Horsepower (1994)
|
128 hp (95 kw)
|
|
Flywheel Horsepower (1995)
|
128 hp (95 kw)
|
|
Flywheel Horsepower (1996)
|
128 hp (95 kw)
|
|
Height (Since 1991)
|
115 in (292 cm)
|
|
Height (1991)
|
115 in (292 cm)
|
|
Height (1992)
|
115 in (292 cm)
|
|
Height (1992)
|
115 in (292 cm)
|
|
Height (1993)
|
115 in (292 cm)
|
|
Height (1993)
|
115 in (292 cm)
|
|
Height (1994)
|
115 in (292 cm)
|
|
Height (1994)
|
115 in (292 cm)
|
|
Height (1995)
|
115 in (292 cm)
|
|
Height (1995)
|
115 in (292 cm)
|
|
Height (1996)
|
115 in (292 cm)
|
|
Height (1996)
|
115 in (292 cm)
|
|
Length (Since 1991)
|
369 in (937 cm)
|
|
Length (Since 1991)
|
31 ft (9 m)
|
|
Length (Since 1992)
|
369 in (937 cm)
|
|
Length (Since 1992)
|
31 ft (9 m)
|
|
Length (Since 1993)
|
369 in (937 cm)
|
|
Length (Since 1993)
|
31 ft (9 m)
|
|
Length (Since 1994)
|
369 in (937 cm)
|
|
Length (Since 1994)
|
31 ft (9 m)
|
|
Length (Since 1995)
|
369 in (937 cm)
|
|
Length (Since 1995)
|
31 ft (9 m)
|
|
Length (Since 1996)
|
369 in (937 cm)
|
|
Length (Since 1996)
|
31 ft (9 m)
|
|
Lift Capacity (Since 1991)
|
17,700 lbs (8,029 kg)
|
|
Lift Capacity (1992)
|
17,700 lbs (8,029 kg)
|
|
Lift Capacity (1993)
|
17,700 lbs (8,029 kg)
|
|
Lift Capacity (1994)
|
17,700 lbs (8,029 kg)
|
|
Lift Capacity (1995)
|
17,700 lbs (8,029 kg)
|
|
Lift Capacity (1996)
|
17,700 lbs (8,029 kg)
|
|
Max. Reach (Since 1991)
|
417 in (1,059 cm)
|
|
Max. Reach (1991)
|
417 in (1,059 cm)
|
|
Max. Reach (1992)
|
417 in (1,059 cm)
|
|
Max. Reach (1992)
|
417 in (1,059 cm)
|
|
Max. Reach (1993)
|
417 in (1,059 cm)
|
|
Max. Reach (1993)
|
417 in (1,059 cm)
|
|
Max. Reach (1994)
|
417 in (1,059 cm)
|
|
Max. Reach (1994)
|
417 in (1,059 cm)
|
|
Max. Reach (1995)
|
417 in (1,059 cm)
|
|
Max. Reach (1995)
|
417 in (1,059 cm)
|
|
Max. Reach (1996)
|
417 in (1,059 cm)
|
|
Max. Reach (1996)
|
417 in (1,059 cm)
|
|
Operating Weight (Since 2025)
|
49,800 lbs (22,589 kg)
|
|

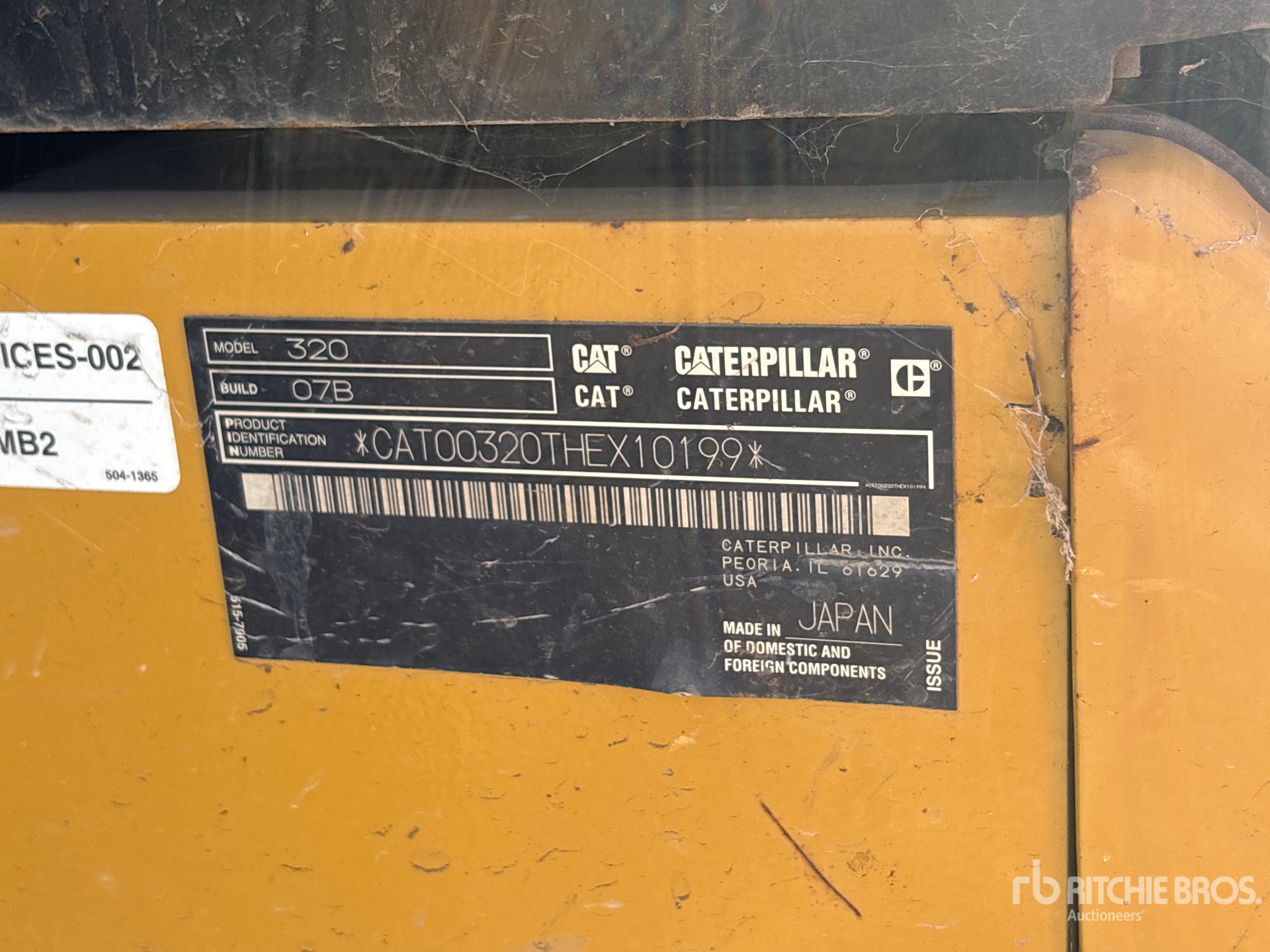

Product Identification Prefix (Since 1991)
|
7WK(OSJ) 2DL(OSJ) 8LG(OSJ) 7GJ(JPN) 3XM(JPN) 4ZJ(GOS) |
|
Product Identification Prefix (1991)
|
7WK(OSJ) 2DL(OSJ) 8LG(OSJ) 7GJ(JPN) 3XM(JPN) 4ZJ(GOS) |
|
Product Identification Prefix (1992)
|
7WK(OSJ) 2DL(OSJ) 8LG(OSJ) 7GJ(JPN) 3XM(JPN) 4ZJ(GOS) |
|
Product Identification Prefix (1992)
|
7WK(OSJ) 2DL(OSJ) 8LG(OSJ) 7GJ(JPN) 3XM(JPN) 4ZJ(GOS) |
|
Product Identification Prefix (1993)
|
7WK(OSJ) 2DL(OSJ) 8LG(OSJ) 7GJ(JPN) 3XM(JPN) 4ZJ(GOS) |
|
Product Identification Prefix (1993)
|
7WK(OSJ) 2DL(OSJ) 8LG(OSJ) 7GJ(JPN) 3XM(JPN) 4ZJ(GOS) |
|
Product Identification Prefix (1994)
|
7WK(OSJ) 2DL(OSJ) 8LG(OSJ) 7GJ(JPN) 3XM(JPN) 4ZJ(GOS) |
|
Product Identification Prefix (1994)
|
7WK(OSJ) 2DL(OSJ) 8LG(OSJ) 7GJ(JPN) 3XM(JPN) 4ZJ(GOS) |
|
Product Identification Prefix (1995)
|
7WK(OSJ) 2DL(OSJ) 8LG(OSJ) 7GJ(JPN) 3XM(JPN) 4ZJ(GOS) |
|
Product Identification Prefix (1995)
|
7WK(OSJ) 2DL(OSJ) 8LG(OSJ) 7GJ(JPN) 3XM(JPN) 4ZJ(GOS) |
|
Product Identification Prefix (1996)
|
7WK(OSJ) 2DL(OSJ) 8LG(OSJ) 7GJ(JPN) 3XM(JPN) 4ZJ(GOS) |
|
Product Identification Prefix (1996)
|
7WK(OSJ) 2DL(OSJ) 8LG(OSJ) 7GJ(JPN) 3XM(JPN) 4ZJ(GOS) |
|
Track Gauge (Since 1991)
|
87 in (221 cm)
|
|
Track Gauge (1991)
|
87 in (221 cm)
|
|
Track Gauge (1992)
|
87 in (221 cm)
|
|
Track Gauge (1992)
|
87 in (221 cm)
|
|
Track Gauge (1993)
|
87 in (221 cm)
|
|
Track Gauge (1993)
|
87 in (221 cm)
|
|
Track Gauge (1994)
|
87 in (221 cm)
|
|
Track Gauge (1994)
|
87 in (221 cm)
|
|
Track Gauge (1995)
|
87 in (221 cm)
|
|
Track Gauge (1995)
|
87 in (221 cm)
|
|
Track Gauge (1996)
|
87 in (221 cm)
|
|
Track Gauge (1996)
|
87 in (221 cm)
|
|
Width (Since 1991)
|
110 in (279 cm)
|
|
Width (1991)
|
110 in (279 cm)
|
|
Width (1992)
|
110 in (279 cm)
|
|
Width (1992)
|
110 in (279 cm)
|
|
Width (1993)
|
110 in (279 cm)
|
|
Width (1993)
|
110 in (279 cm)
|
|
Width (1994)
|
110 in (279 cm)
|
|
Width (1994)
|
110 in (279 cm)
|
|
Width (1995)
|
110 in (279 cm)
|
|
Width (1995)
|
110 in (279 cm)
|
|
Width (1996)
|
110 in (279 cm)
|
|
Width (1996)
|
110 in (279 cm)
|
|
Years Built (Since 1991)
|
1,991 - 1,996 |
|
Years Built (1992)
|
1,991 - 1,996 |
|
Years Built (1993)
|
1,991 - 1,996 |
|
Years Built (1994)
|
1,991 - 1,996 |
|
Years Built (1995)
|
1,991 - 1,996 |
|
Years Built (1996)
|
1,991 - 1,996 |
| Hydraulic System |
|
Main System - Maximum Flow (Since 2026)
|
429 lpm (113 gpm)
|
|
Maximum Pressure - Equipment (Since 2026)
|
5,075 psi |
|
Maximum Pressure - Equipment - Lift Mode (Since 2026)
|
5,510 psi |
|
Maximum Pressure - Swing (Since 2026)
|
3,988 psi |
|
Maximum Pressure - Travel (Since 2026)
|
4,974 psi |
| Service Refill Capacities |
|
Cooling System (Since 2026)
|
7 gal (25 l)
|
|
DEF Tank (Since 2026)
|
10 gal (39 l)
|
|
Engine Oil (Since 2026)
|
4 gal (15 l)
|
|
Final Drive - Each (Since 2026)
|
1 gal (4 l)
|
|
Fuel Tank Capacity (Since 2026)
|
91 gal (345 l)
|
|
Hydraulic System - Including Tank (Since 2026)
|
62 gal (234 l)
|
|
Hydraulic Tank (Since 2026)
|
30 gal (115 l)
|
|
Swing Drive (Since 2026)
|
2 gal (6 l)
|
| Sustainability |
|
Recyclability (Since 2026)
|
97% |
| Swing Mechanism |
|
Maximum Swing Torque (Since 2026)
|
60,300 lbs ft (81,755 nm)
|
|
Swing Speed* (Since 2026)
|
11 r/min |
| Weights |
|
Operating Weight (Since 2026)
|
49,800 lbs (22,589 kg)
|
| Working Ranges And Forces |
|
Boom (Since 2026)
|
Reach 5.7 m (18'8") |
|
Bucket (Since 2026)
|
1.19 m ³ (1.56 yd³) |
|
Bucket Digging Force - ISO (Since 2026)
|
31,586 lbs ft (42,824 nm)
|
|
Maximum Cutting Height (Since 2026)
|
31 ft (9 m)
|
|
Maximum Depth Cut for 2440 mm (8 ft) Level Bottom (Since 2026)
|
22 ft (7 m)
|
|
Maximum Digging Depth (Since 2026)
|
22 ft (7 m)
|
|
Maximum Loading Height (Since 2026)
|
21 ft (6 m)
|
|
Maximum Reach at Ground Level (Since 2026)
|
32 ft (10 m)
|
|
Maximum Vertical Wall Digging Depth (Since 2026)
|
17 ft (5 m)
|
|
Minimum Loading Height (Since 2026)
|
7 ft (2 m)
|
|
Stick (Since 2026)
|
Reach 2.9 m (9'6") |
|
Stick Digging Force - ISO (Since 2026)
|
23,987 lbs ft (32,522 nm)
|
