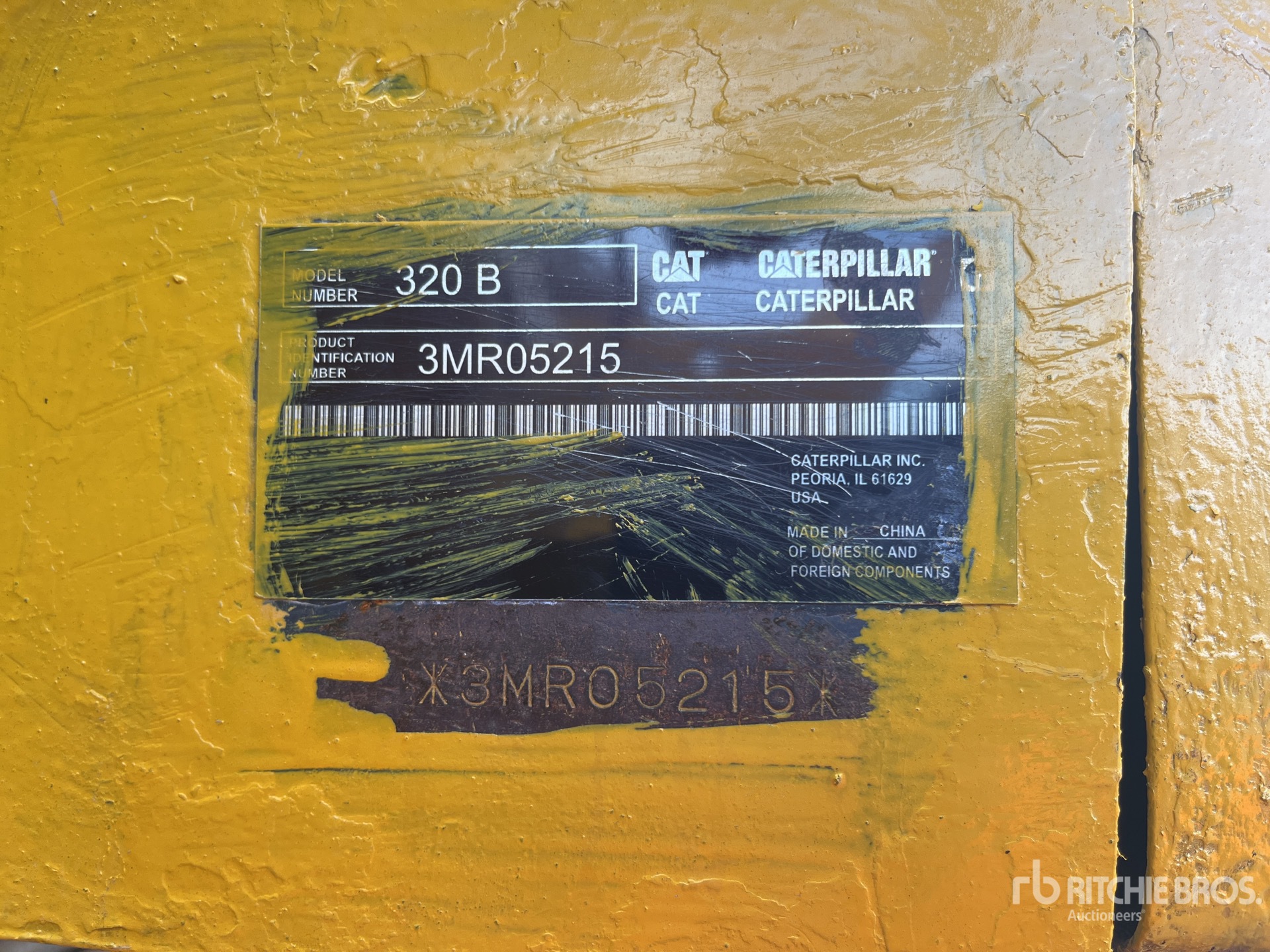

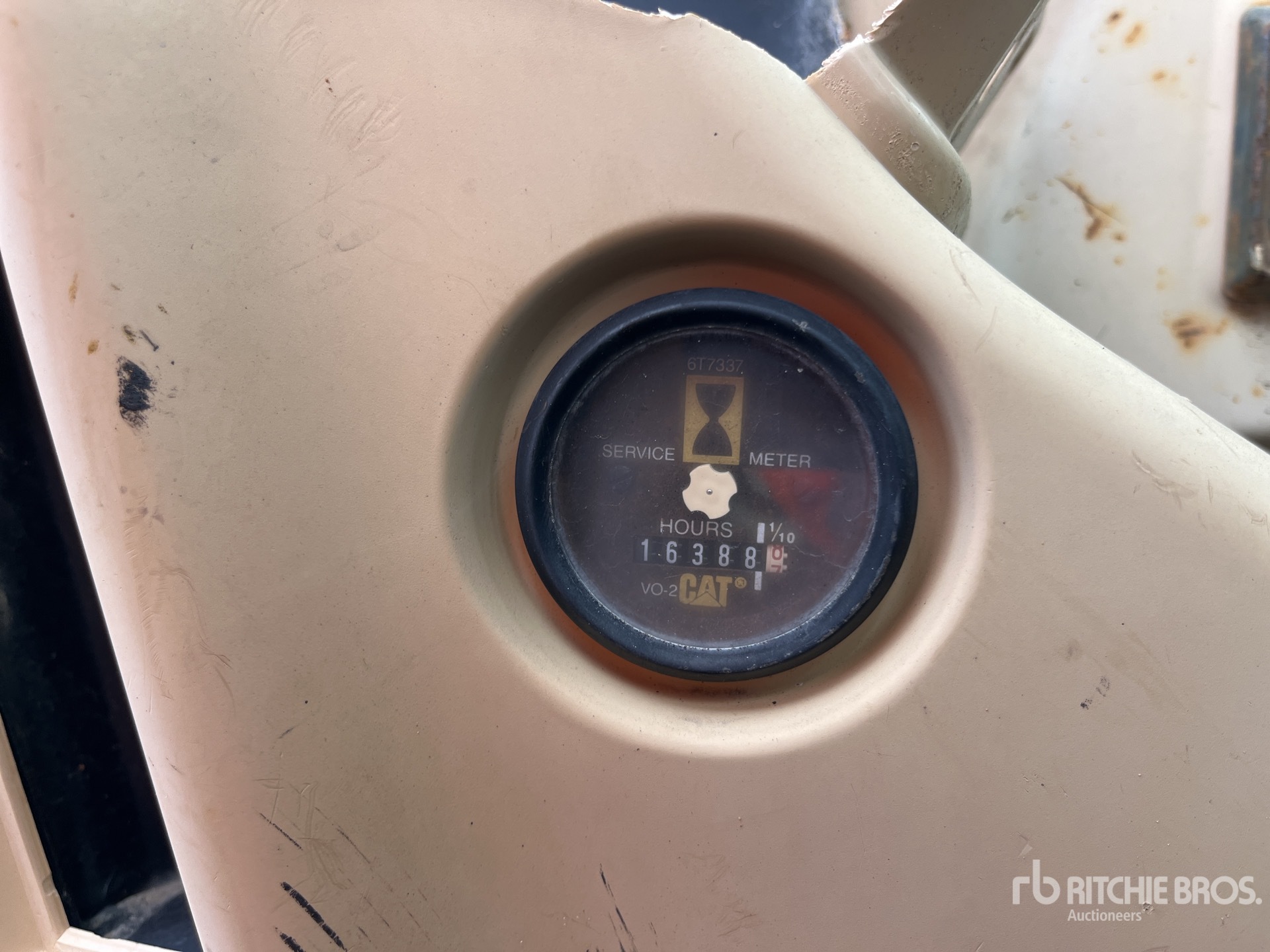

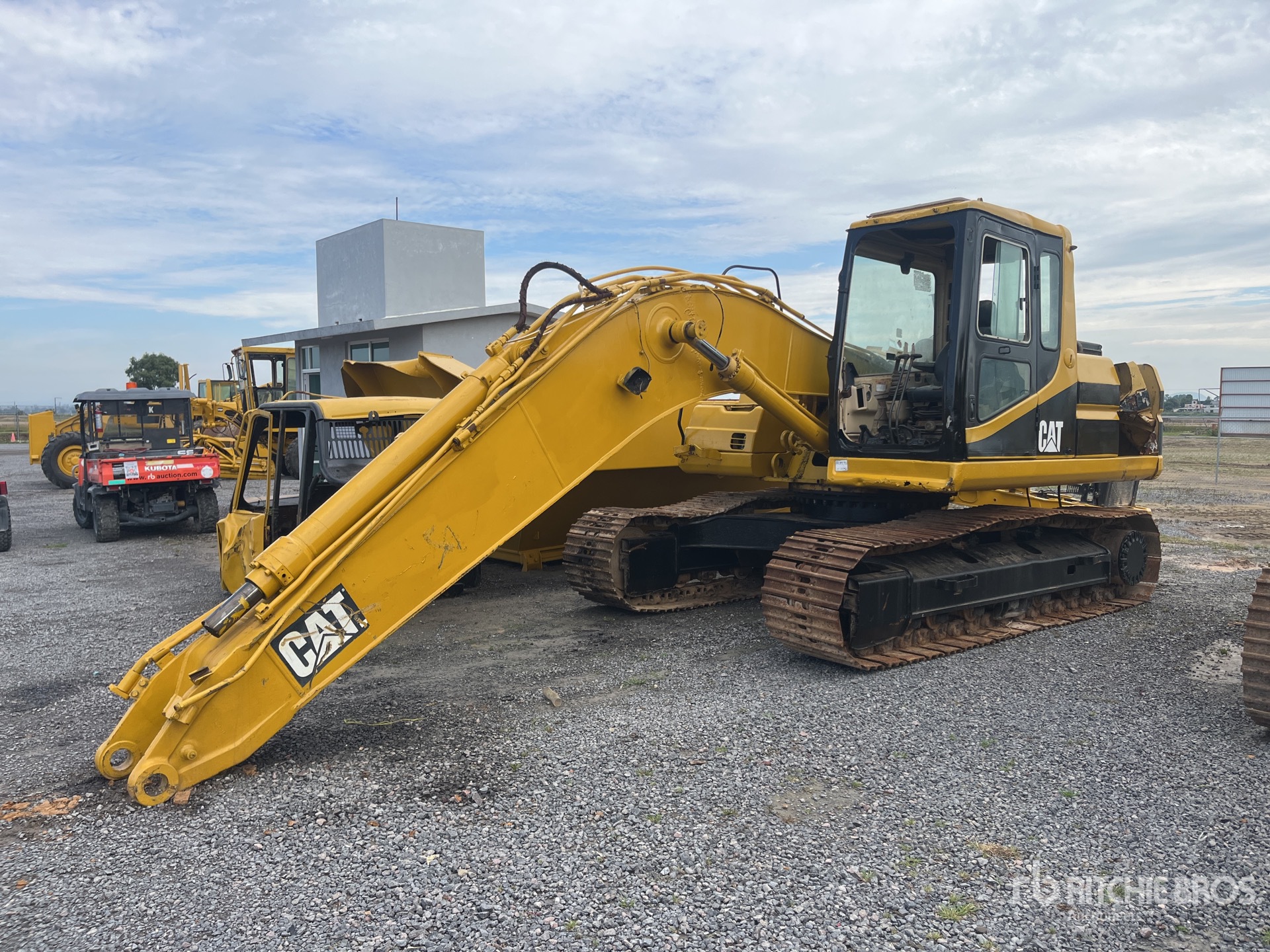

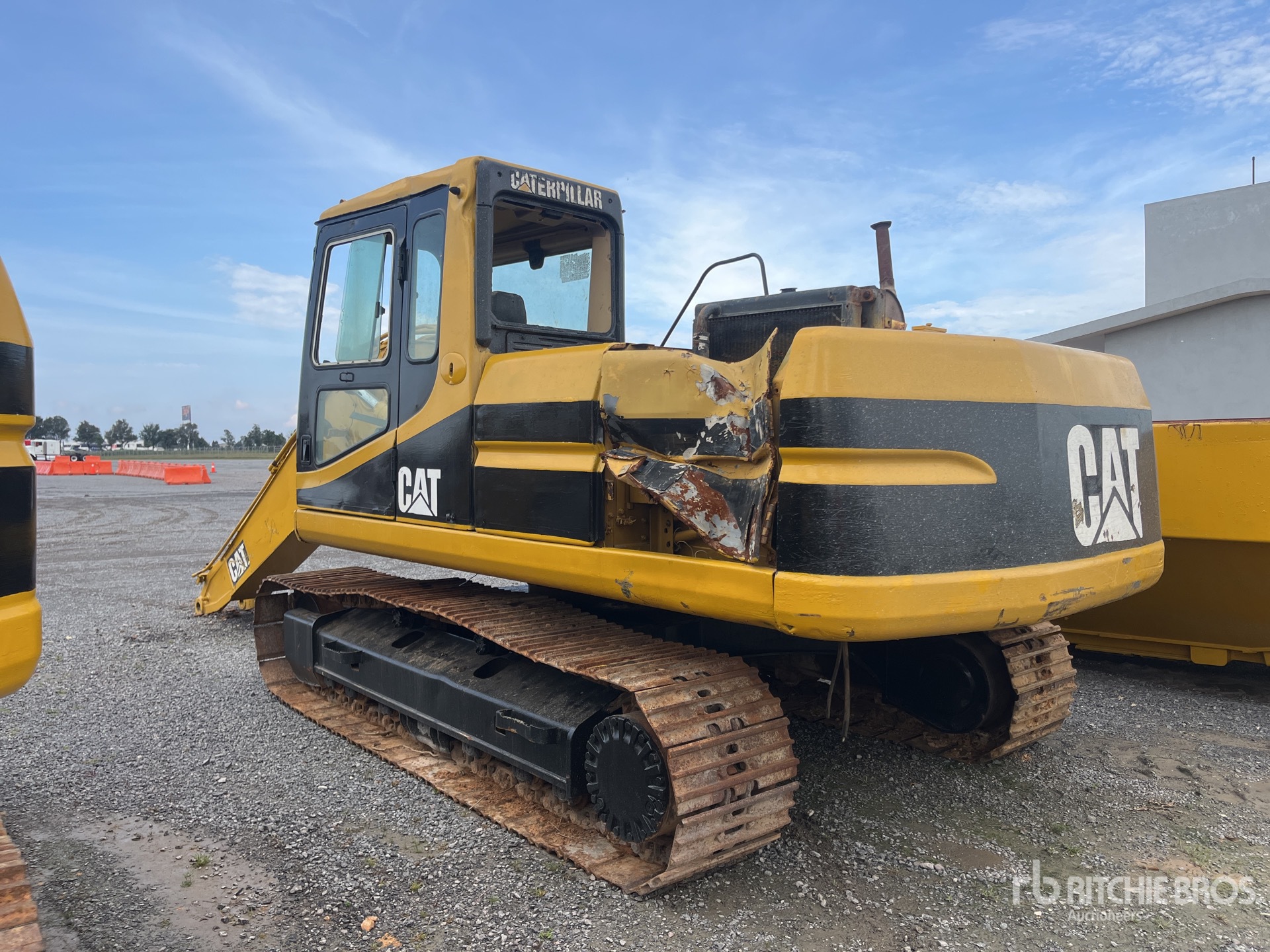

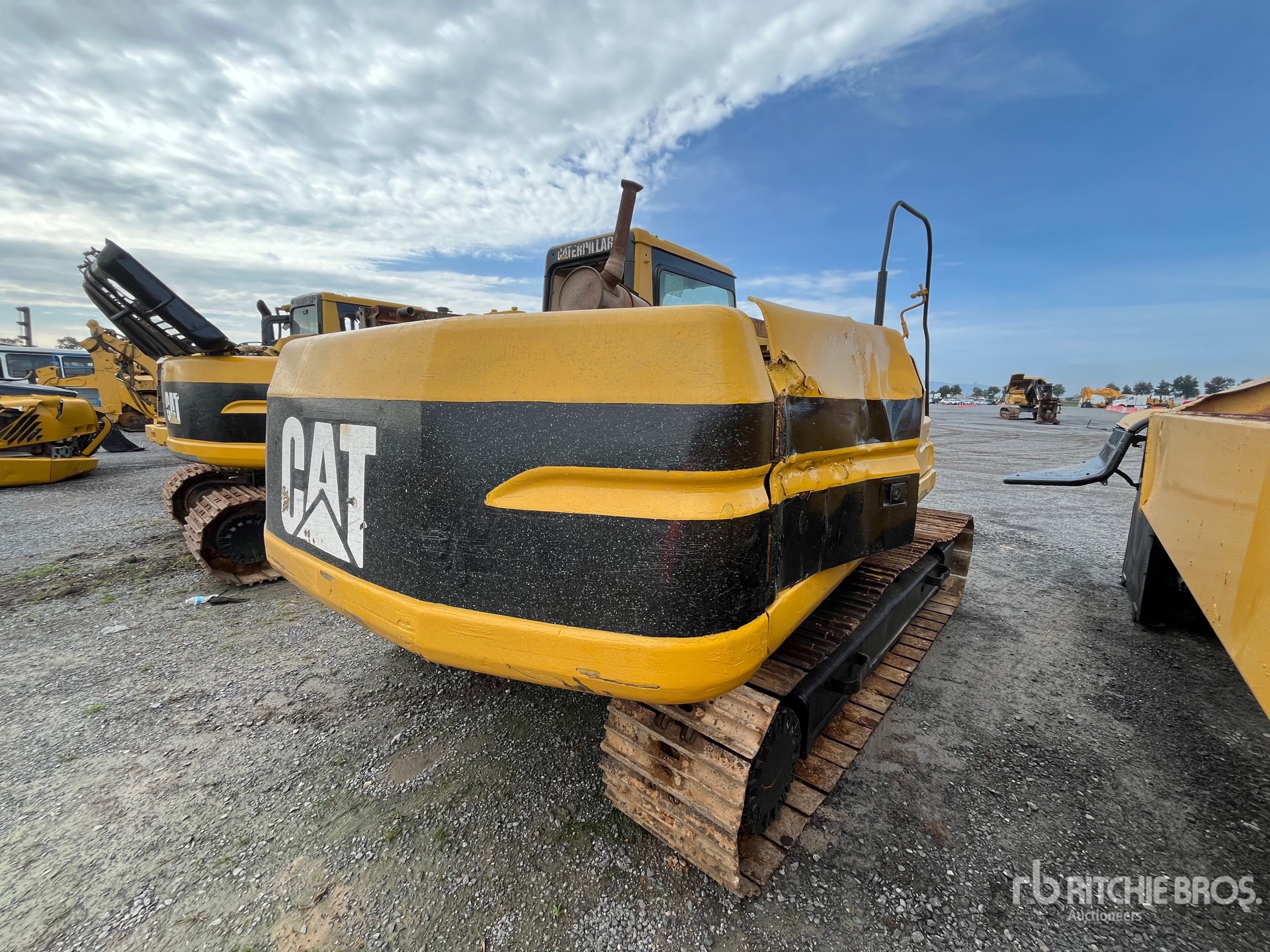

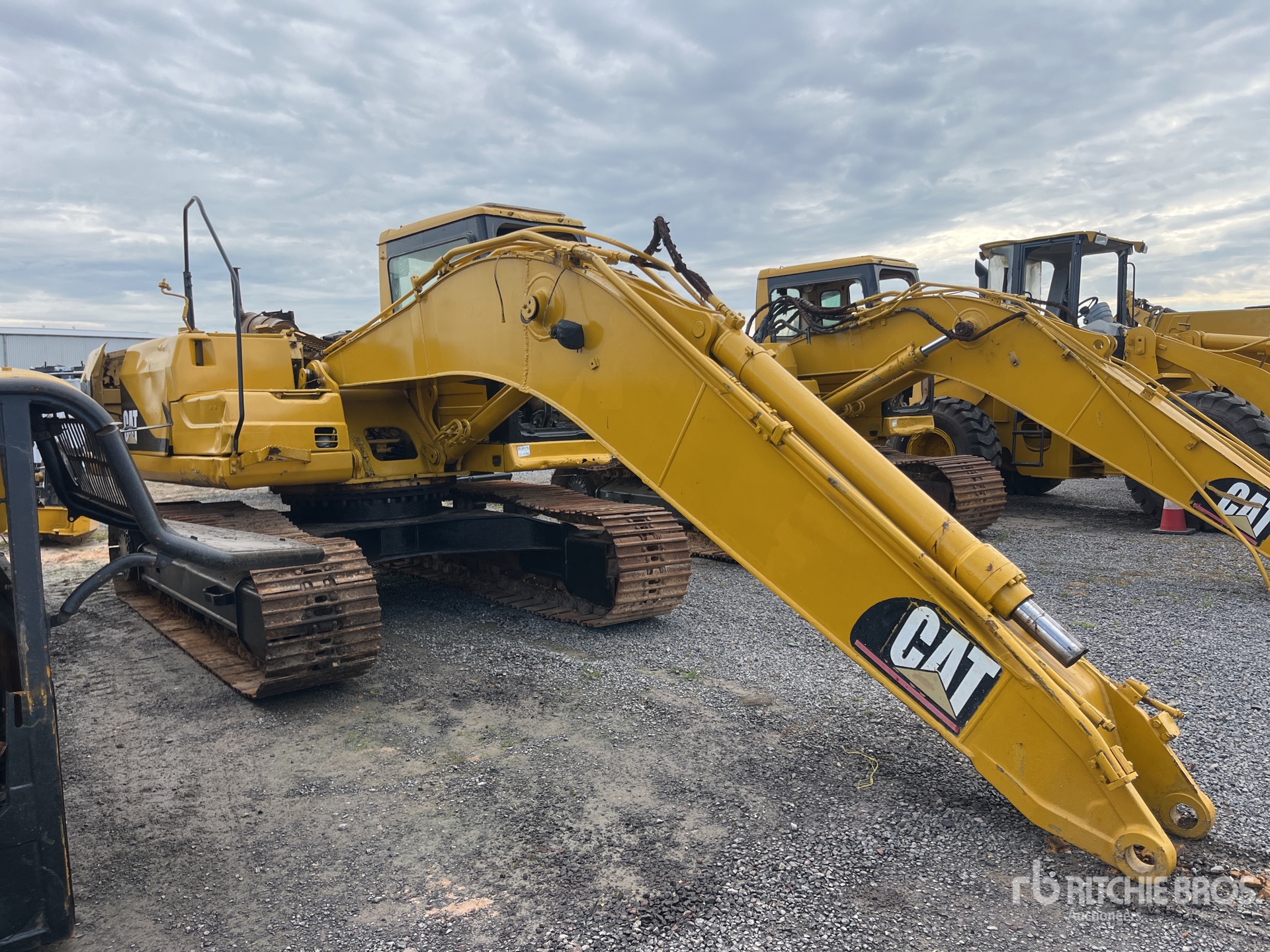

| Boom/Stick 1 |
|
Boom/Stick 1 |
Boom 18\'7\" (5680mm) / Stick 12\'8\" (3900mm) |
|
Max Cutting Height |
32 ft (10 m)
|
|
Max Digging Depth |
25 ft (8 m)
|
|
Max Loading Height |
23 ft (7 m)
|
|
Max Reach Along Ground |
35 ft (11 m)
|
|
Max Vertical Wall Digging Depth |
22 ft (7 m)
|
|
Shipping Height Of Unit |
11 ft (3 m)
|
|
Shipping Length Of Unit |
31 ft (9 m)
|
| Boom/Stick 2 |
|
Boom/Stick 2 |
Boom 18\'7\" (5680mm) / Stick 9\'7\" (2900mm) |
|
Max Cutting Height |
31 ft (9 m)
|
|
Max Digging Depth |
22 ft (7 m)
|
|
Max Loading Height |
22 ft (7 m)
|
|
Max Reach Along Ground |
32 ft (10 m)
|
|
Max Vertical Wall Digging Depth |
20 ft (6 m)
|
|
Shipping Height Of Unit |
10 ft (3 m)
|
|
Shipping Length Of Unit |
31 ft (9 m)
|
| Boom/Stick 3 |
|
Boom/Stick 3 |
Boom 18\'7\" (5680mm) / Stick 8\'2\" (2500mm) |
|
Max Cutting Height |
30 ft (9 m)
|
|
Max Digging Depth |
20 ft (6 m)
|
|
Max Loading Height |
21 ft (6 m)
|
|
Max Reach Along Ground |
31 ft (9 m)
|
|
Max Vertical Wall Digging Depth |
17 ft (5 m)
|
|
Shipping Height Of Unit |
10 ft (3 m)
|
|
Shipping Length Of Unit |
31 ft (9 m)
|
| Boom/Stick 4 |
|
Boom/Stick 4 |
Boom 18\'7\" (5680mm) / Stick 6\'3\" (1900mm) |
|
Max Cutting Height |
29 ft (9 m)
|
|
Max Digging Depth |
18 ft (6 m)
|
|
Max Loading Height |
20 ft (6 m)
|
|
Max Reach Along Ground |
29 ft (9 m)
|
|
Max Vertical Wall Dig Depth |
15 ft (5 m)
|
|
Shipping Height Of Unit |
10 ft (3 m)
|
|
Shipping Length Of Unit |
31 ft (9 m)
|
| Boom/Stick 5 |
|
Boom/Stick 5 |
Mass Boom 17\'1\" (5200mm) / Stick 7\'10\" (2400mm) |
|
Max Cutting Height |
29 ft (9 m)
|
|
Max Digging Depth |
19 ft (6 m)
|
|
Max Loading Height |
19 ft (6 m)
|
|
Max Reach Along Ground |
29 ft (9 m)
|
|
Max Vertical Wall Dig Depth |
16 ft (5 m)
|
|
Shipping Height Of Unit |
10 ft (3 m)
|
|
Shipping Length Of Unit |
30 ft (9 m)
|
| Buckets |
|
Maximum Bucket Capacity |
2 cu yd |
|
Minimum Bucket Capacity |
1 cu yd |
|
Reference Bucket Capacity |
1 cu yd |
| Dimensions |
|
Ground Clearance |
2 ft (0 m)
|
|
Height |
11 ft (3 m)
|
|
Height To Top Of Cab |
10 ft (3 m)
|
|
Length |
31 ft (10 m)
|
|
Length Of Track On Ground |
11 ft (3 m)
|
|
Removal Counterweight Clearance |
3 ft (1 m)
|
|
Tail Swing Radius |
9 ft (3 m)
|
|
Weight |
42,770 lbs (19,397 kg)
|
|
Width |
10 ft (3 m)
|
|
Width To Outside Of Tracks |
9 ft (3 m)
|
| Drive |
|
Maximum Drawbar Pull |
39,800 lbs (18,053 kg)
|
|
Maximum Travel Speed |
3 mph (5 kph)
|
| Engine |
|
Aspiration |
Turbocharged |
|
Bore |
4 in (10 cm)
|
|
Displacement |
389 cu in (6,375 cu cm)
|
|
Engine Make |
2,236 |
|
Engine Model |
3066T |
|
Engine Model |
Cat 3066 T Diesel Engine |
|
Gross Power |
134 hp (100 kw)
|
|
Net Flywheel Power |
128 hp (95 kw)
|
|
Net Power |
128 hp (95 kw)
|
|
Net Power - Eec 80/1269 |
128 hp (95 kw)
|
|
Net Power - Iso 9249 |
128 hp (95 kw)
|
|
Net Power - Sae J1349 |
128 hp (95 kw)
|
|
Number Of Cylinders |
6 |
|
Power Measured @ |
1,800 rpm |
|
Stroke |
5 in (13 cm)
|
| Hydraulic System |
|
B1 Family Bucket Cylinder - Bore |
5 in (13 cm)
|
|
B1 Family Bucket Cylinder - Stroke |
41 in (104 cm)
|
|
Boom Cylinder - Bore |
5 in (13 cm)
|
|
Boom Cylinder - Stroke |
50 in (127 cm)
|
|
C Family Bucket Cylinder - Bore |
5 in (13 cm)
|
|
C Family Bucket Cylinder - Stroke |
46 in (117 cm)
|
|
Main Implement System - Maximum Flow (2x) |
49 gpm (185 lpm)
|
|
Maximum Pressure - Equipment |
4,980 psi |
|
Maximum Pressure - Swing |
3,340 psi |
|
Maximum Pressure - Travel |
4,980 psi |
|
Pilot System - Maximum Flow |
11 gpm (41 lpm)
|
|
Pilot System - Maximum Pressure |
600 psi |
| Operational |
|
Alternator Supplied Amperage |
50 amps |
|
Cooling System Fluid Capacity |
7 gal (25 l)
|
|
Engine Oil Capacity |
6 gal (21 l)
|
|
Fuel Capacity |
90 gal (340 l)
|
|
Hydraulic Pump Flow Capacity |
98 gpm (370 lpm)
|
|
Hydraulic System Fluid Capacity |
58 gal (220 l)
|
|
Hydraulic System Relief Valve Pressure |
4,980 psi |
|
Operating Voltage |
24 V |
|
Operating Weight |
42,770 lbs (19,400 kg)
|
|
Swing Drive Fluid Capacity |
2 gal (6 l)
|
| Service Refill Capacities |
|
Cooling System |
7 gal (25 l)
|
|
Engine Oil |
5 gal (19 l)
|
|
Final Drive - Each |
3 gal (10 l)
|
|
Fuel Tank Capacity |
90 gal (341 l)
|
|
Hydraulic System - Including Tank |
58 gal (220 l)
|
|
Swing Drive |
2 gal (6 l)
|
| Swing Mechanism |
|
Swing Torque |
42,050 lbs ft (57,011 nm)
|
| Track |
|
Optional (1) |
24 in (61 cm)
|
|
Optional (2) |
28 in (71 cm)
|
|
Optional (3) |
32 in (81 cm)
|
|
Standard With Long Undercarriage - Triple Grouser |
32 in (81 cm)
|
|
Standard With Standard Undercarriage |
24 in (61 cm)
|
| Undercarriage |
|
Drawbar Pull |
39,800 lbs (18,053 kg)
|
|
Max Travel Speed |
3 mph (6 kph)
|
|
Shoe Size |
24 in (60 cm)
|
|
Track Gauge |
7 ft (2 m)
|
| Weights |
|
Operating Weight - Standard Undercarriage |
42,770 lbs (19,400 kg)
|
