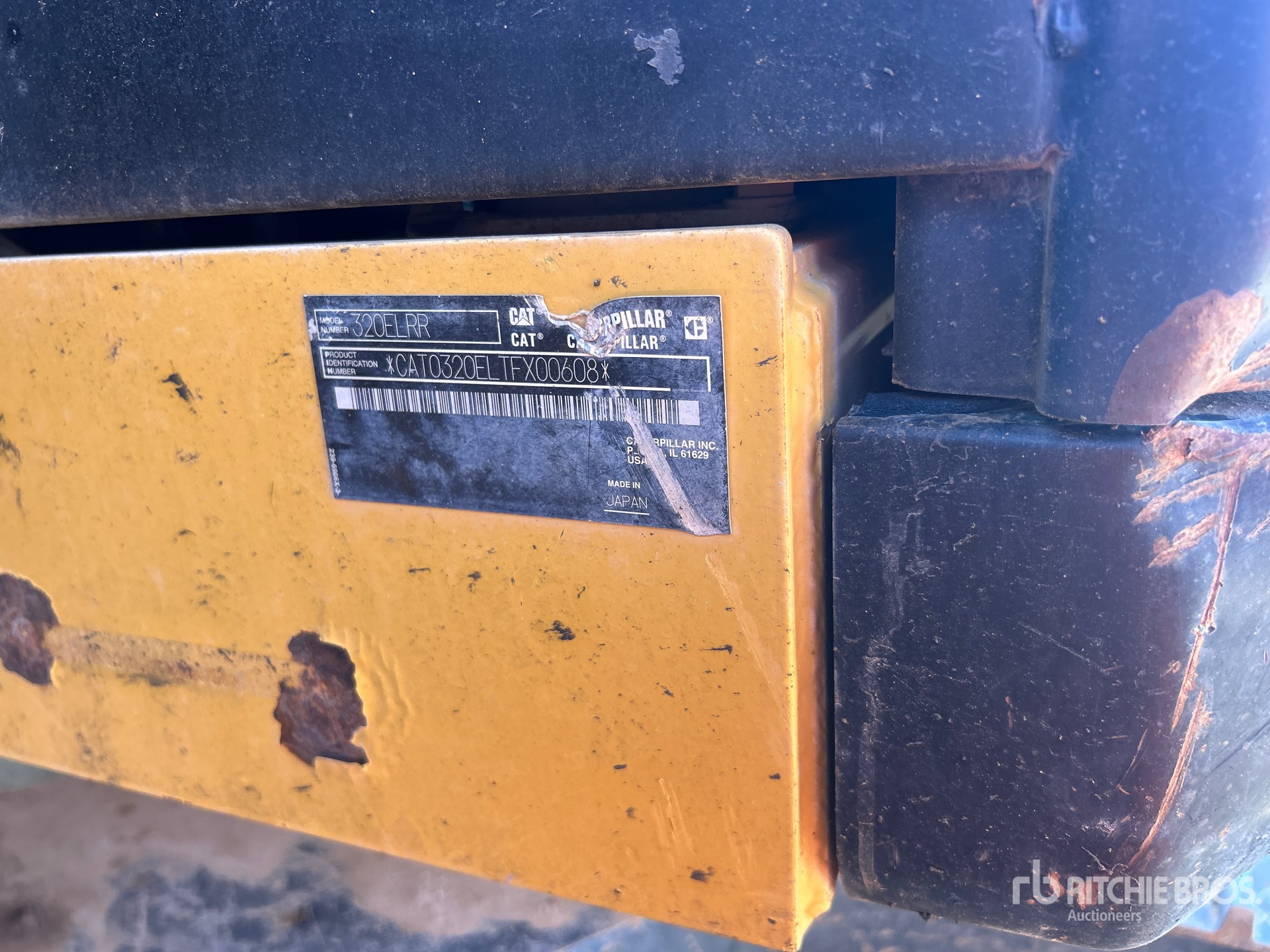

| Dimensions |
|
Ground Clearance |
8 ft (2 m)
|
|
Height |
10 ft (3 m)
|
|
Height To Top Of Cab |
10 ft (3 m)
|
|
Length |
29 ft (9 m)
|
|
Length Of Track On Ground |
15 ft (4 m)
|
|
Removal Counterweight Clearance |
3 ft (1 m)
|
|
Tail Swing Radius |
7 ft (2 m)
|
|
Weight |
56,440 lbs (25,596 kg)
|
|
Width |
10 ft (3 m)
|
| Drive |
|
Maximum Drawbar Pull |
46,086 lbs (20,904 kg)
|
|
Maximum Travel Speed |
4 mph (6 kph)
|
| Engine |
|
Bore |
4 in (10 cm)
|
|
Displacement |
403 cu in (6,604 cu cm)
|
|
Engine Make |
2,236 |
|
Engine Model |
C6.6 ACERT |
|
Engine Model |
Cat C6.6 ACERT |
|
Gross Power |
164 hp (122 kw)
|
|
Gross Power - Sae J1995 |
164 hp (122 kw)
|
|
Net Flywheel Power |
153 hp (114 kw)
|
|
Net Power |
153 hp (114 kw)
|
|
Net Power - Sae J1349 |
153 hp (114 kw)
|
|
Stroke |
5 in (13 cm)
|
| Hydraulic System |
|
B1 Bucket Cylinder - Bore |
4.7 lb/in |
|
B1 Bucket Cylinder - Stroke |
43.5 lb/in |
|
Boom Cylinder - Bore |
5 in (12 cm)
|
|
Boom Cylinder - Stroke |
50 in (126 cm)
|
|
Main System - Maximum Flow - Total |
113 gpm (428 lpm)
|
|
Maximum Pressure - Equipment - Heavy Lift |
5,511 psi |
|
Maximum Pressure - Equipment - Normal |
5,076 psi |
|
Maximum Pressure - Swing |
3,626 psi |
|
Maximum Pressure - Travel |
5,076 psi |
|
Pilot System - Maximum Flow |
6 gpm (24 lpm)
|
|
Pilot System - Maximum Pressure |
569 psi |
|
Stick Cylinder - Bore |
6 in (14 cm)
|
|
Stick Cylinder - Stroke |
59 in (150 cm)
|
| Operational |
|
Cooling System Fluid Capacity |
8 gal (30 l)
|
|
Engine Oil Capacity |
6 gal (23 l)
|
|
Fuel Capacity |
77 gal (290 l)
|
|
Hydraulic System Fluid Capacity |
54 gal (205 l)
|
|
Operating Weight |
52,250 lbs (23,700 kg)
|
| Service Refill Capacities |
|
Cooling System |
8 gal (30 l)
|
|
Engine Oil - With Filter |
6 gal (23 l)
|
|
Final Drive - Each |
2 gal (8 l)
|
|
Fuel Tank Capacity |
77 gal (290 l)
|
|
Hydraulic System - Including Tank |
54 gal (205 l)
|
|
Hydraulic Tank |
30 gal (115 l)
|
|
Swing Drive |
2 gal (8 l)
|
| Sound Performance |
|
Operator Noise (Closed) - Iso 6396 |
71 dB(A) |
|
Spectator Noise - Iso 6395 |
103 dB(A) |
| Standards |
|
Brakes |
ISO 10265 2008 |
|
Cab - Rops |
ISO 12117-2 2008 |
|
Cab/Fogs |
ISO 10262 1998 |
| Swing Mechanism |
|
Swing Speed |
11 rpm |
|
Swing Torque |
45,581 lbs ft (61,799 nm)
|
| Track |
|
Number Of Carrier Rollers - Each Side - Long Undercarriage |
2 pieces |
|
Number Of Shoes - Each Side - Long Undercarriage |
49 pieces |
|
Number Of Track Rollers - Each Side - Long Undercarriage |
8 pieces |
| Undercarriage |
|
Drawbar Pull |
46,086 lbs (20,904 kg)
|
|
Max Travel Speed |
4 mph (6 kph)
|
|
Number Of Carrier Rollers Per Side |
2 |
|
Number Of Shoes Per Side |
49 |
|
Number Of Track Rollers Per Side |
8 |
| Weights |
|
Maximum Operating Weight** |
56,440 lbs (25,601 kg)
|
|
Maximum Weight |
56,440 lbs (25,601 kg)
|
|
Minimum Operating Weight* |
52,250 lbs (23,700 kg)
|
|
Minimum Weight |
52,250 lbs (23,700 kg)
|
|
Operating Weight |
56,440 lbs (25,601 kg)
|
