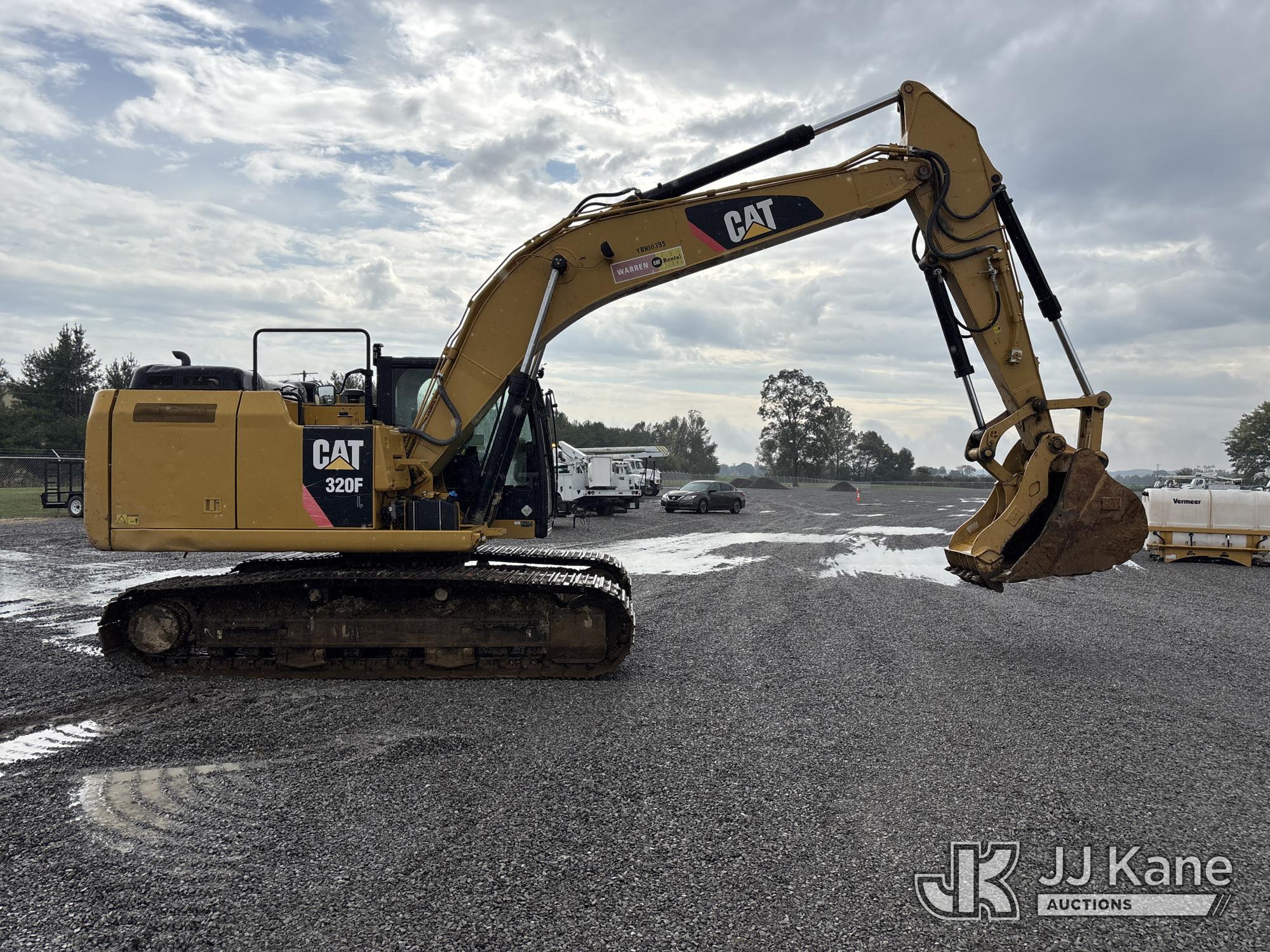

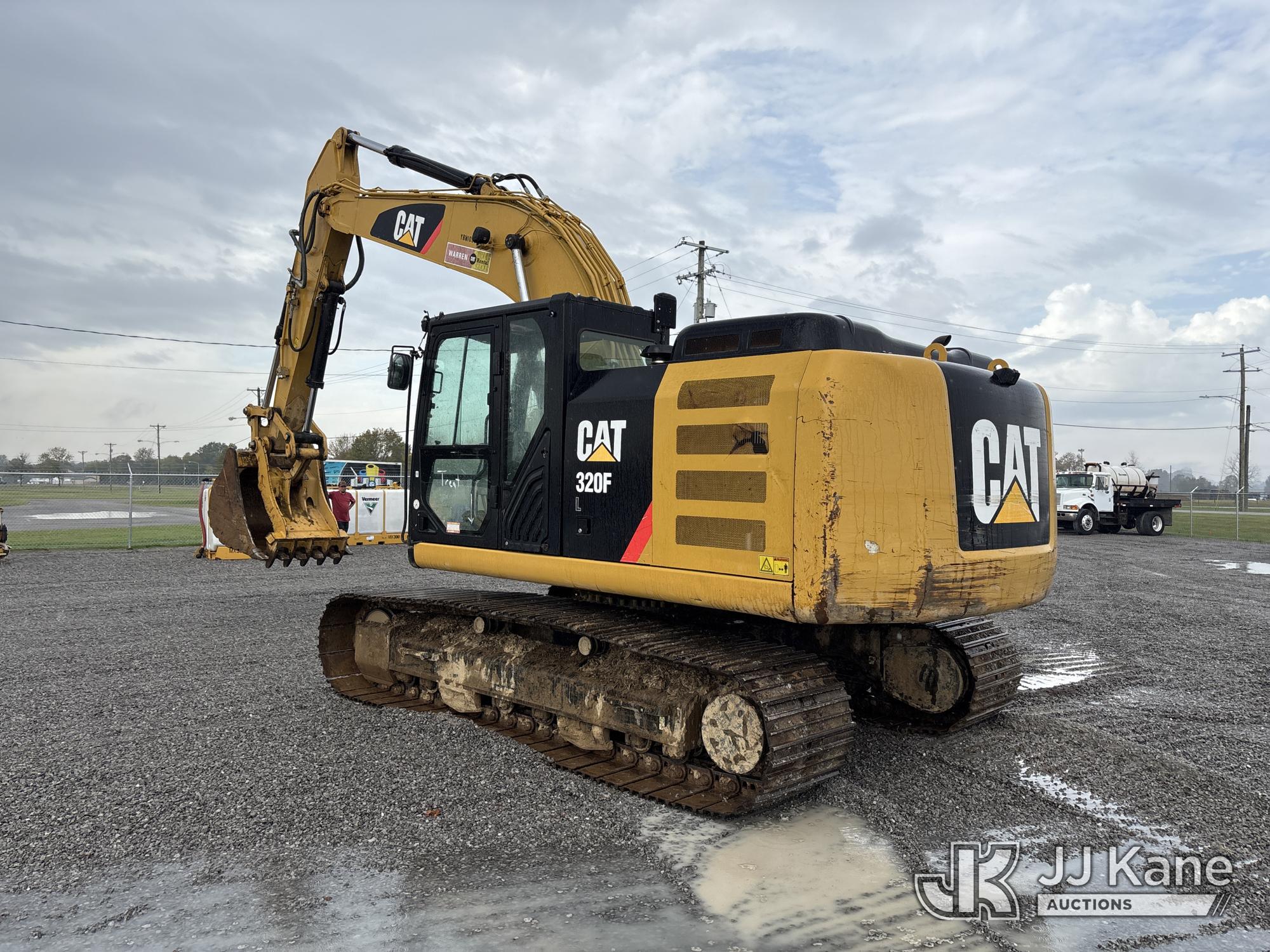

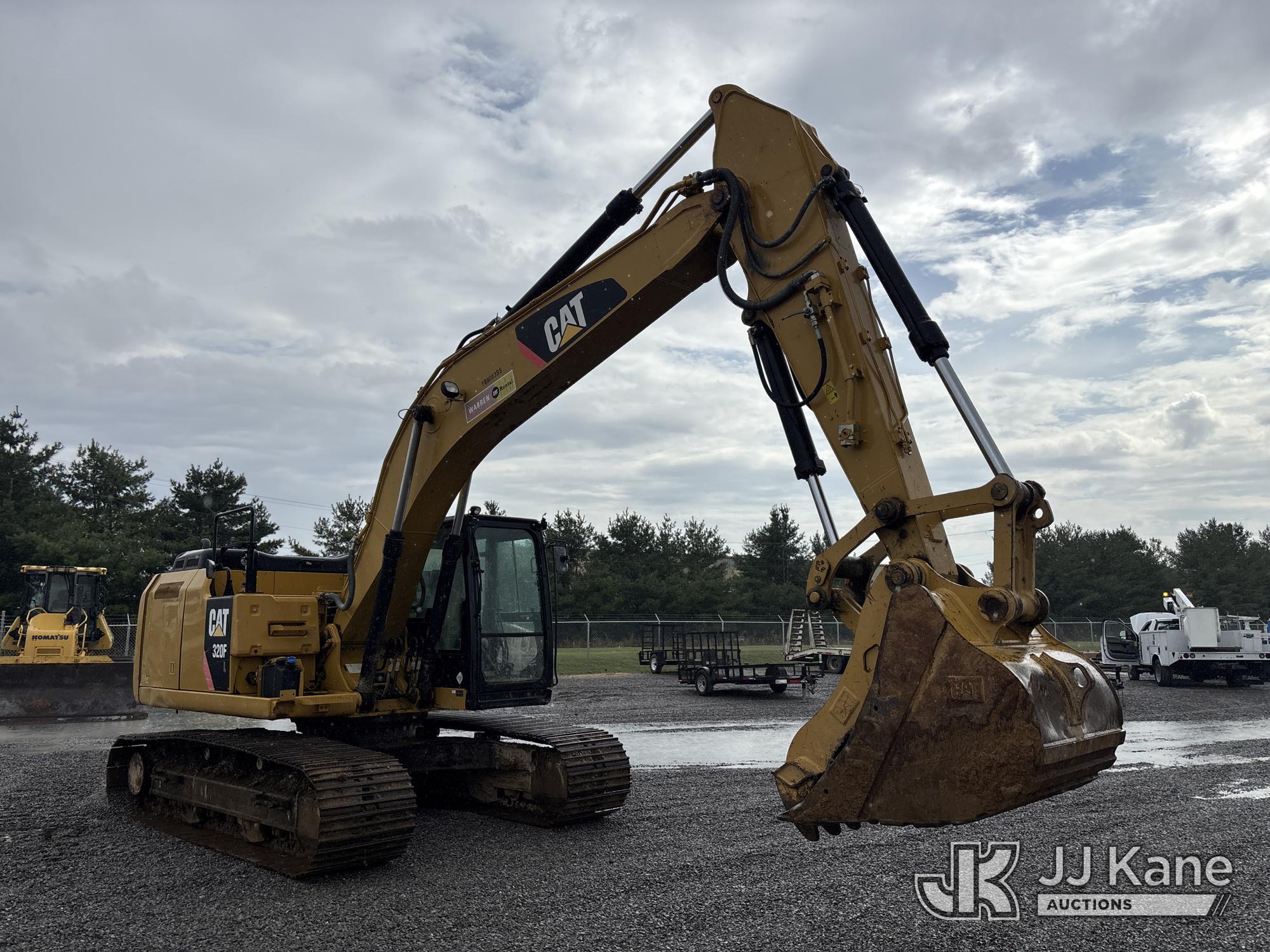

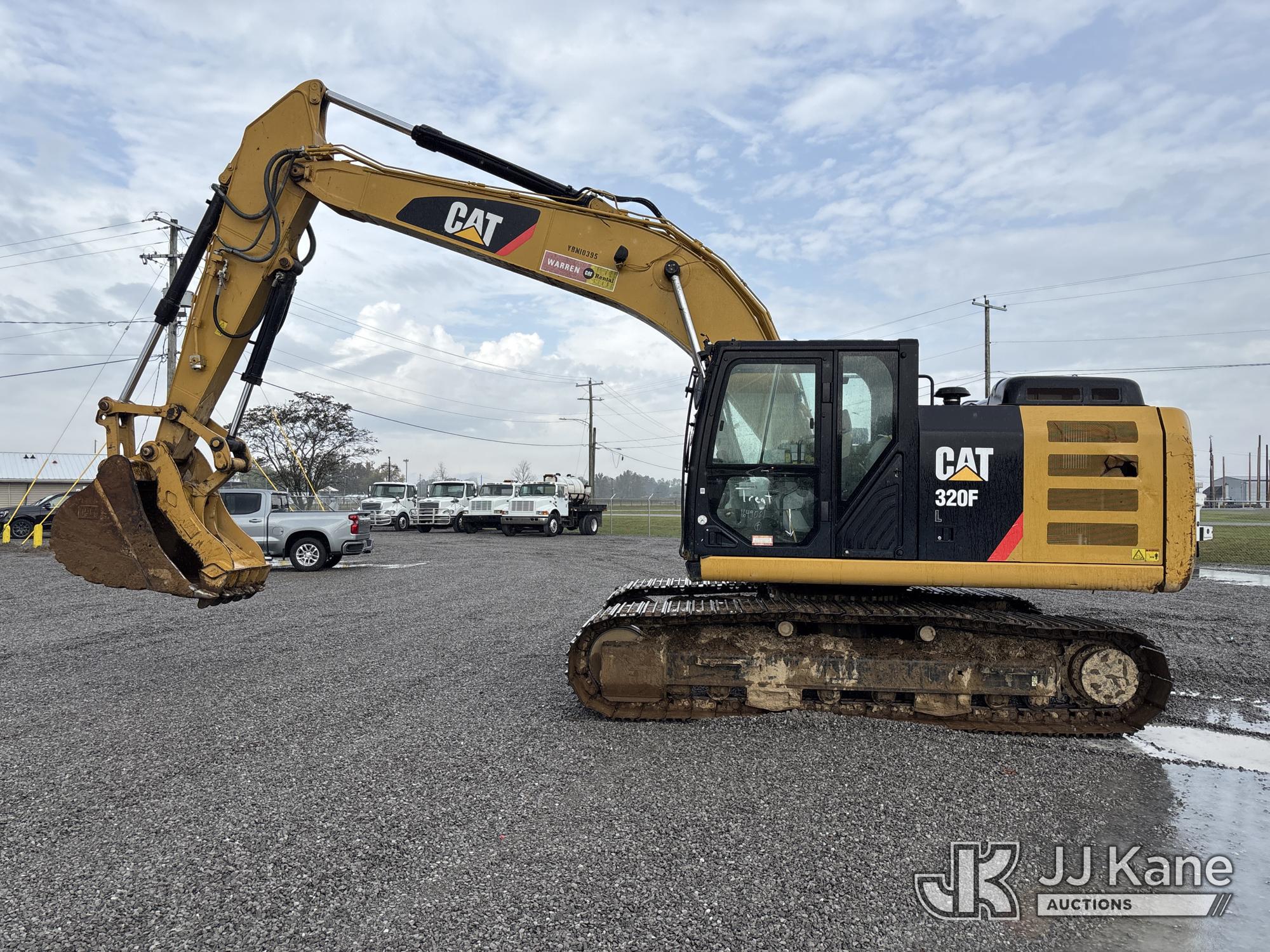

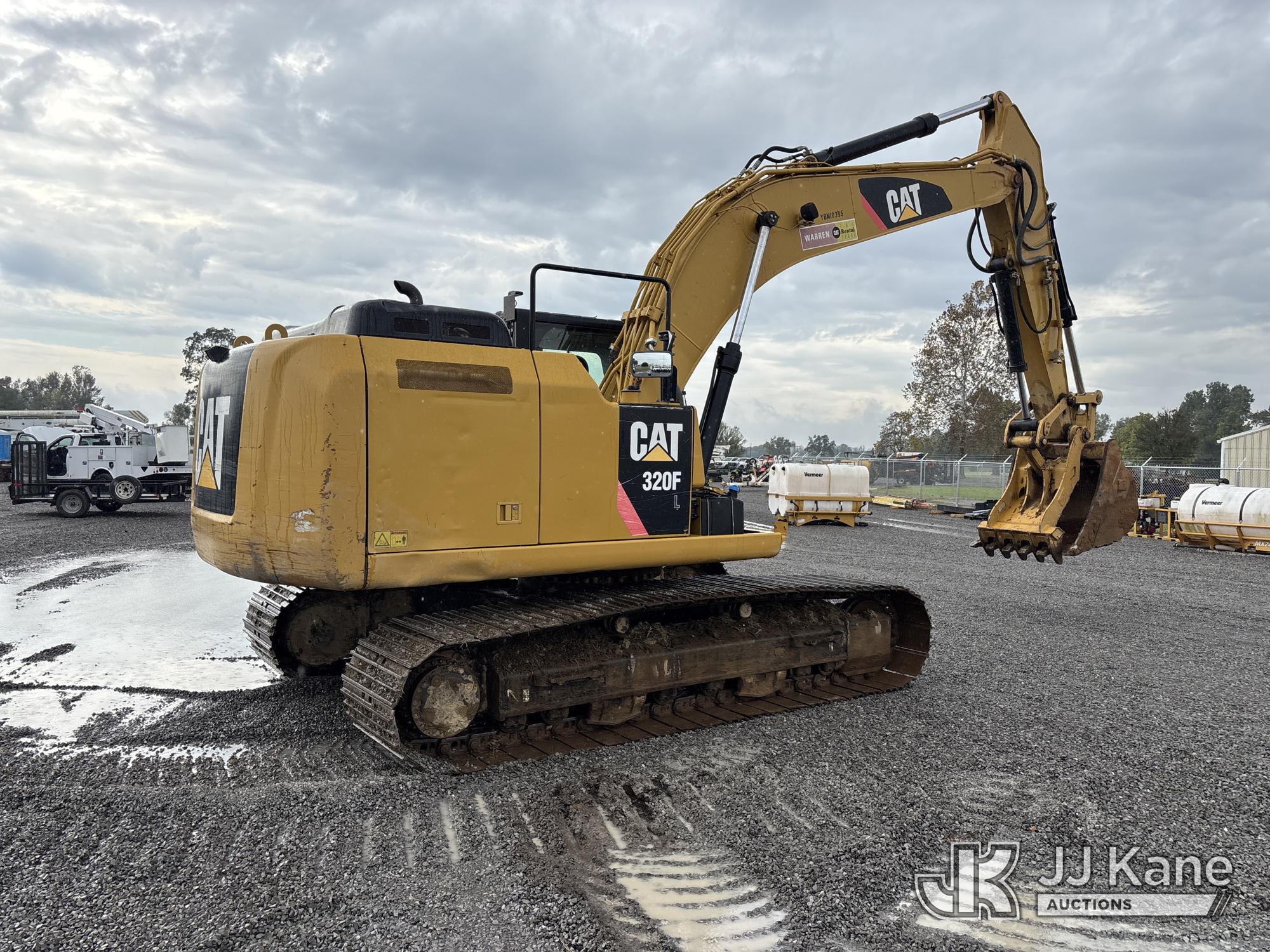

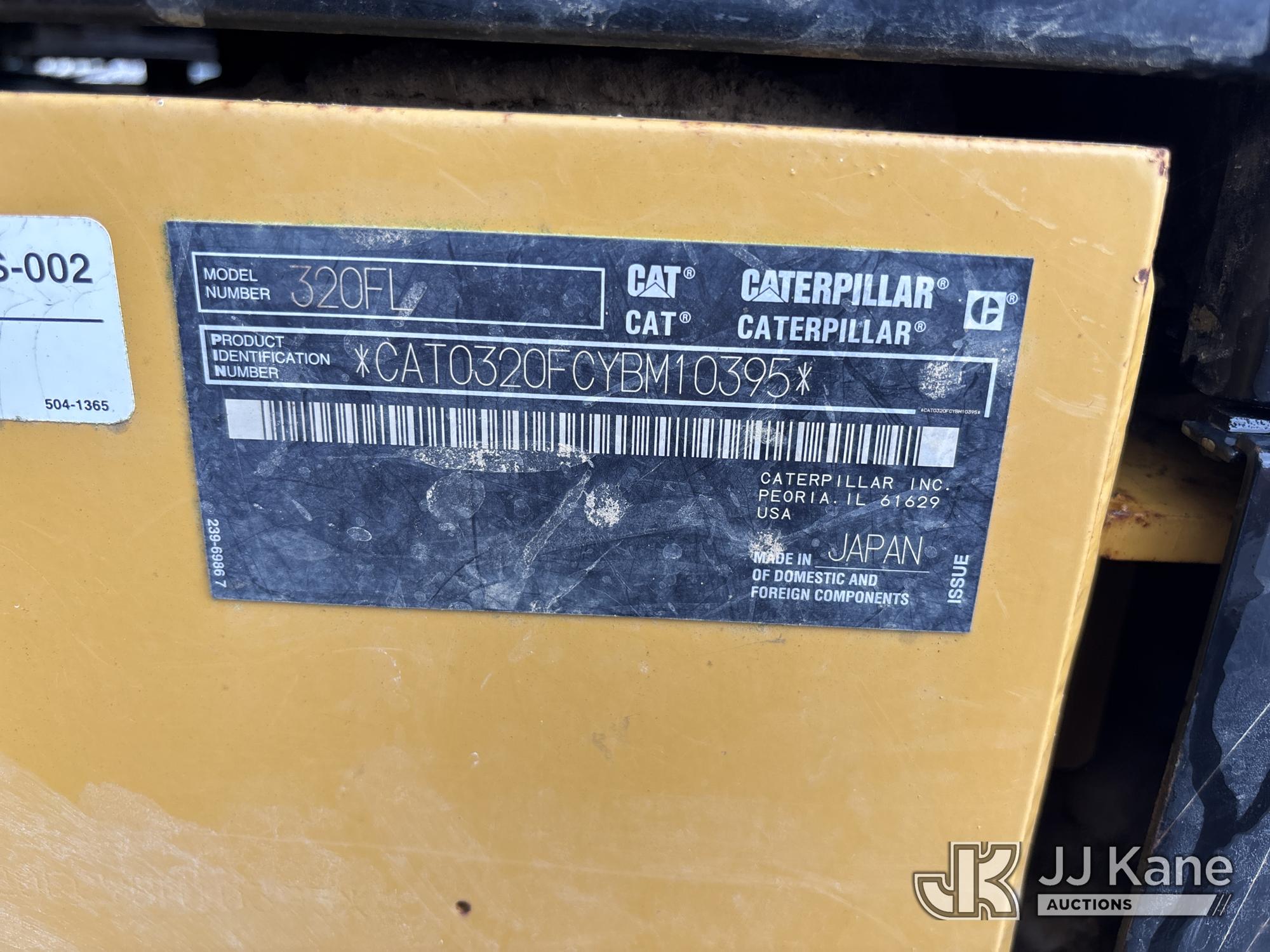

| Dimensions |
|
Height |
10 ft (3 m)
|
|
Length |
31 ft (10 m)
|
|
Weight |
49,200 lbs (22,317 kg)
|
|
Width |
10 ft (3 m)
|
| Drive |
|
Maximum Drawbar Pull |
46,086 lbs (20,904 kg)
|
|
Maximum Travel Speed - High |
4 mph (6 kph)
|
| Engine |
|
Bore |
4 in (11 cm)
|
|
Displacement |
269 cu in (4,408 cu cm)
|
|
Emissions |
The 320F meets Tier 4 Final emission standards. |
|
Engine Model |
Cat C4.4 ACERT |
|
Engine Power - Iso 14396 |
164 hp (122 kw)
|
|
Net Flywheel Power |
161 hp (120 kw)
|
|
Net Power - Sae J1349 |
161 hp (120 kw)
|
|
Stroke |
5 in (13 cm)
|
| General Specifications |
|
Bore (Since 2016)
|
4 in (10 cm)
|
|
Bore (2017)
|
4 in (10 cm)
|
|
Bore (2018)
|
4 in (10 cm)
|
|
Bore (2019)
|
4 in (10 cm)
|
|
Bucket Capacity Range (heaped) (Since 2016)
|
1 - 2 cu yd (1 - 2 cu m)
|
|
Bucket Capacity Range (heaped) (2017)
|
1 - 2 cu yd (1 - 2 cu m)
|
|
Bucket Capacity Range (heaped) (2018)
|
1 - 2 cu yd (1 - 2 cu m)
|
|
Bucket Capacity Range (heaped) (2019)
|
1 - 2 cu yd (1 - 2 cu m)
|
|
Counterweight - Standard (Since 2016)
|
8,160 lbs (3,701 kg)
|
|
Counterweight - Standard (2017)
|
8,160 lbs (3,701 kg)
|
|
Counterweight - Standard (2018)
|
8,160 lbs (3,701 kg)
|
|
Counterweight - Standard (2019)
|
8,160 lbs (3,701 kg)
|
|
Displacement (Since 2016)
|
269 cu in (4,408 cu cm)
|
|
Displacement (2017)
|
269 cu in (4,408 cu cm)
|
|
Displacement (2018)
|
269 cu in (4,408 cu cm)
|
|
Displacement (2019)
|
269 cu in (4,408 cu cm)
|
|
Emission Standards (Since 2016)
|
Tier 4 Final |
|
Emission Standards (Since 2017)
|
Tier 4 Final/Stage IV |
|
Emission Standards (2018)
|
Tier 4 Final/Stage IV |
|
Emission Standards (2019)
|
Tier 4 Final/Stage IV |
|
Engine Model (Since 2016)
|
C4.4 ACERT |
|
Engine Model (2017)
|
C4.4 ACERT |
|
Engine Model (2018)
|
C4.4 ACERT |
|
Engine Model (2019)
|
C4.4 ACERT |
|
Engine Power - SAE J1349 (Since 2016)
|
161 hp (120 kw)
|
|
Engine Power - SAE J1349 (2017)
|
161 hp (120 kw)
|
|
Engine Power - SAE J1349 (2018)
|
161 hp (120 kw)
|
|
Engine Power - SAE J1349 (2019)
|
161 hp (120 kw)
|
|
Fuel Tank Refill Capacity (Since 2016)
|
108 US gal (410 L)
|
|
Fuel Tank Refill Capacity (2017)
|
108 US gal (410 L)
|
|
Fuel Tank Refill Capacity (2018)
|
108 US gal (410 L)
|
|
Fuel Tank Refill Capacity (2019)
|
108 US gal (410 L)
|
|
Ground Contact Area with Std. Shoe (Since 2016)
|
9,600 sq in (6 sq m)
|
|
Ground Contact Area with Std. Shoe (2017)
|
9,600 sq in (6 sq m)
|
|
Ground Contact Area with Std. Shoe (2018)
|
9,600 sq in (6 sq m)
|
|
Ground Contact Area with Std. Shoe (2019)
|
9,600 sq in (6 sq m)
|
|
Ground Pressure (Since 2016)
|
7 psi (45 kPa)
|
|
Ground Pressure (Since 2016)
|
6 psi (39 kPa)
|
|
Ground Pressure (Since 2016)
|
5 psi (35 kPa)
|
|
Ground Pressure (Since 2017)
|
7 psi (45 kPa)
|
|
Ground Pressure (Since 2017)
|
6 psi (39 kPa)
|
|
Ground Pressure (Since 2017)
|
5 psi (35 kPa)
|
|
Ground Pressure (Since 2018)
|
7 psi (45 kPa)
|
|
Ground Pressure (Since 2018)
|
6 psi (39 kPa)
|
|
Ground Pressure (Since 2018)
|
5 psi (35 kPa)
|
|
Ground Pressure (Since 2019)
|
7 psi (45 kPa)
|
|
Ground Pressure (Since 2019)
|
6 psi (39 kPa)
|
|
Ground Pressure (Since 2019)
|
5 psi (35 kPa)
|
|
Hydraulic System (includes tank) (Since 2016)
|
69 US gal (260 L)
|
|
Hydraulic System (includes tank) (2017)
|
69 US gal (260 L)
|
|
Hydraulic System (includes tank) (2018)
|
69 US gal (260 L)
|
|
Hydraulic System (includes tank) (2019)
|
69 US gal (260 L)
|
|
Long Undercarriage (std shoe) (Since 2016)
|
17,270 lbs (7,834 kg)
|
|
Long Undercarriage (std shoe) (2017)
|
17,270 lbs (7,834 kg)
|
|
Long Undercarriage (std shoe) (2018)
|
17,270 lbs (7,834 kg)
|
|
Long Undercarriage (std shoe) (2019)
|
17,270 lbs (7,834 kg)
|
|
Maximum Drawbar Pull (Since 2016)
|
46,086 lbf (205 kN)
|
|
Maximum Drawbar Pull (2017)
|
46,086 lbf (205 kN)
|
|
Maximum Drawbar Pull (2018)
|
46,086 lbf (205 kN)
|
|
Maximum Drawbar Pull (2019)
|
46,086 lbf (205 kN)
|
|
Maximum Travel Speed at Rated RPM (Since 2016)
|
4 mph (6 kph)
|
|
Maximum Travel Speed at Rated RPM (2017)
|
4 mph (6 kph)
|
|
Maximum Travel Speed at Rated RPM (2018)
|
4 mph (6 kph)
|
|
Maximum Travel Speed at Rated RPM (2019)
|
4 mph (6 kph)
|
|
No. of Cylinders (Since 2016)
|
4 |
|
No. of Cylinders (2017)
|
4 |
|
No. of Cylinders (2018)
|
4 |
|
No. of Cylinders (2019)
|
4 |
|
Operating Weight (Since 2016)
|
47,600 - 49,200 lbs (21,591 - 22,317 kg)
|
|
Operating Weight (2017)
|
47,600 - 49,200 lbs (21,591 - 22,317 kg)
|
|
Operating Weight (2018)
|
47,600 - 49,200 lbs (21,591 - 22,317 kg)
|
|
Operating Weight (2019)
|
47,600 - 49,200 lbs (21,591 - 22,317 kg)
|
|
Overall Track Length (Since 2016)
|
176 in (447 cm)
|
|
Overall Track Length (2017)
|
176 in (447 cm)
|
|
Overall Track Length (2018)
|
176 in (447 cm)
|
|
Overall Track Length (2019)
|
176 in (447 cm)
|
|
Range Dimension A (source diagram) (Since 2016)
|
256 in (650 cm)
|
|
Range Dimension A (source diagram) (2017)
|
256 in (650 cm)
|
|
Range Dimension A (source diagram) (2017)
|
256 in (650 cm)
|
|
Range Dimension A (source diagram) (2017)
|
256 in (650 cm)
|
|
Range Dimension A (source diagram) (2018)
|
256 in (650 cm)
|
|
Range Dimension A (source diagram) (2018)
|
256 in (650 cm)
|
|
Range Dimension A (source diagram) (2018)
|
256 in (650 cm)
|
|
Range Dimension A (source diagram) (2019)
|
256 in (650 cm)
|
|
Range Dimension A (source diagram) (2019)
|
256 in (650 cm)
|
|
Range Dimension A (source diagram) (2019)
|
256 in (650 cm)
|
|
Range Dimension B (source diagram) (Since 2016)
|
388 in (986 cm)
|
|
Range Dimension B (source diagram) (2017)
|
388 in (986 cm)
|
|
Range Dimension B (source diagram) (2017)
|
388 in (986 cm)
|
|
Range Dimension B (source diagram) (2017)
|
388 in (986 cm)
|
|
Range Dimension B (source diagram) (2018)
|
388 in (986 cm)
|
|
Range Dimension B (source diagram) (2018)
|
388 in (986 cm)
|
|
Range Dimension B (source diagram) (2018)
|
388 in (986 cm)
|
|
Range Dimension B (source diagram) (2019)
|
388 in (986 cm)
|
|
Range Dimension B (source diagram) (2019)
|
388 in (986 cm)
|
|
Range Dimension B (source diagram) (2019)
|
388 in (986 cm)
|
|
Range Dimension C (source diagram) (Since 2016)
|
265 in (673 cm)
|
|
Range Dimension C (source diagram) (2017)
|
265 in (673 cm)
|
|
Range Dimension C (source diagram) (2017)
|
265 in (673 cm)
|
|
Range Dimension C (source diagram) (2017)
|
265 in (673 cm)
|
|
Range Dimension C (source diagram) (2018)
|
265 in (673 cm)
|
|
Range Dimension C (source diagram) (2018)
|
265 in (673 cm)
|
|
Range Dimension C (source diagram) (2018)
|
265 in (673 cm)
|
|
Range Dimension C (source diagram) (2019)
|
265 in (673 cm)
|
|
Range Dimension C (source diagram) (2019)
|
265 in (673 cm)
|
|
Range Dimension C (source diagram) (2019)
|
265 in (673 cm)
|
|
Range Dimension D (source diagram) (Since 2016)
|
199 in (505 cm)
|
|
Range Dimension D (source diagram) (2017)
|
199 in (505 cm)
|
|
Range Dimension D (source diagram) (2017)
|
199 in (505 cm)
|
|
Range Dimension D (source diagram) (2017)
|
199 in (505 cm)
|
|
Range Dimension D (source diagram) (2018)
|
199 in (505 cm)
|
|
Range Dimension D (source diagram) (2018)
|
199 in (505 cm)
|
|
Range Dimension D (source diagram) (2018)
|
199 in (505 cm)
|
|
Range Dimension D (source diagram) (2019)
|
199 in (505 cm)
|
|
Range Dimension D (source diagram) (2019)
|
199 in (505 cm)
|
|
Range Dimension D (source diagram) (2019)
|
199 in (505 cm)
|
|
Range Dimension E (source diagram) (Since 2016)
|
258 in (655 cm)
|
|
Range Dimension E (source diagram) (2017)
|
258 in (655 cm)
|
|
Range Dimension E (source diagram) (2017)
|
258 in (655 cm)
|
|
Range Dimension E (source diagram) (2017)
|
258 in (655 cm)
|
|
Range Dimension E (source diagram) (2018)
|
258 in (655 cm)
|
|
Range Dimension E (source diagram) (2018)
|
258 in (655 cm)
|
|
Range Dimension E (source diagram) (2018)
|
258 in (655 cm)
|
|
Range Dimension E (source diagram) (2019)
|
258 in (655 cm)
|
|
Range Dimension E (source diagram) (2019)
|
258 in (655 cm)
|
|
Range Dimension E (source diagram) (2019)
|
258 in (655 cm)
|
|
Range Dimension G (source diagram) (Since 2016)
|
369 in (937 cm)
|
|
Range Dimension G (source diagram) (2017)
|
369 in (937 cm)
|
|
Range Dimension G (source diagram) (2017)
|
369 in (937 cm)
|
|
Range Dimension G (source diagram) (2017)
|
369 in (937 cm)
|
|
Range Dimension G (source diagram) (2018)
|
369 in (937 cm)
|
|
Range Dimension G (source diagram) (2018)
|
369 in (937 cm)
|
|
Range Dimension G (source diagram) (2018)
|
369 in (937 cm)
|
|
Range Dimension G (source diagram) (2019)
|
369 in (937 cm)
|
|
Range Dimension G (source diagram) (2019)
|
369 in (937 cm)
|
|
Range Dimension G (source diagram) (2019)
|
369 in (937 cm)
|
|
Rated Engine RPM (Since 2016)
|
1,800 rpm |
|
Rated Engine RPM (2017)
|
1,800 rpm |
|
Rated Engine RPM (2018)
|
1,800 rpm |
|
Rated Engine RPM (2019)
|
1,800 rpm |
|
Region Offerings (Since 2016)
|
North America |
|
Region Offerings (Since 2017)
|
North America, Europe, Australia, New Zealand |
|
Region Offerings (2018)
|
North America, Europe, Australia, New Zealand |
|
Region Offerings (2019)
|
North America, Europe, Australia, New Zealand |
|
Relief Valve Settings - Implement Circuits (Since 2016)
|
5,076 psi (35,000 kPa)
|
|
Relief Valve Settings - Implement Circuits (2017)
|
5,076 psi (35,000 kPa)
|
|
Relief Valve Settings - Implement Circuits (2018)
|
5,076 psi (35,000 kPa)
|
|
Relief Valve Settings - Implement Circuits (2019)
|
5,076 psi (35,000 kPa)
|
|
Relief Valve Settings - Pilot Circuits (Since 2016)
|
569 psi (3,920 kPa)
|
|
Relief Valve Settings - Pilot Circuits (2017)
|
569 psi (3,920 kPa)
|
|
Relief Valve Settings - Pilot Circuits (2018)
|
569 psi (3,920 kPa)
|
|
Relief Valve Settings - Pilot Circuits (2019)
|
569 psi (3,920 kPa)
|
|
Relief Valve Settings - Swing Circuits (Since 2016)
|
3,626 psi (25,000 kPa)
|
|
Relief Valve Settings - Swing Circuits (2017)
|
3,626 psi (25,000 kPa)
|
|
Relief Valve Settings - Swing Circuits (2018)
|
3,626 psi (25,000 kPa)
|
|
Relief Valve Settings - Swing Circuits (2019)
|
3,626 psi (25,000 kPa)
|
|
Relief Valve Settings - Travel Circuits (Since 2016)
|
5,076 psi (35,000 kPa)
|
|
Relief Valve Settings - Travel Circuits (2017)
|
5,076 psi (35,000 kPa)
|
|
Relief Valve Settings - Travel Circuits (2018)
|
5,076 psi (35,000 kPa)
|
|
Relief Valve Settings - Travel Circuits (2019)
|
5,076 psi (35,000 kPa)
|
|
Shipping Dimension A (source diagram) (Since 2016)
|
123 in (312 cm)
|
|
Shipping Dimension A (source diagram) (2017)
|
123 in (312 cm)
|
|
Shipping Dimension A (source diagram) (Since 2017)
|
119 in (302 cm)
|
|
Shipping Dimension A (source diagram) (Since 2018)
|
123 in (312 cm)
|
|
Shipping Dimension A (source diagram) (Since 2018)
|
119 in (302 cm)
|
|
Shipping Dimension A (source diagram) (Since 2019)
|
123 in (312 cm)
|
|
Shipping Dimension A (source diagram) (Since 2019)
|
119 in (302 cm)
|
|
Shipping Dimension B (source diagram) (Since 2016)
|
109 in (277 cm)
|
|
Shipping Dimension B (source diagram) (2017)
|
109 in (277 cm)
|
|
Shipping Dimension B (source diagram) (2018)
|
109 in (277 cm)
|
|
Shipping Dimension B (source diagram) (2019)
|
109 in (277 cm)
|
|
Shipping Dimension C (source diagram) (Since 2016)
|
125 in (318 cm)
|
|
Shipping Dimension C (source diagram) (2017)
|
125 in (318 cm)
|
|
Shipping Dimension C (source diagram) (2018)
|
125 in (318 cm)
|
|
Shipping Dimension C (source diagram) (2019)
|
125 in (318 cm)
|
|
Shipping Dimension D (source diagram) (Since 2016)
|
18 in (46 cm)
|
|
Shipping Dimension D (source diagram) (2017)
|
18 in (46 cm)
|
|
Shipping Dimension D (source diagram) (2018)
|
18 in (46 cm)
|
|
Shipping Dimension D (source diagram) (2019)
|
18 in (46 cm)
|
|
Shipping Dimension E (source diagram) (Since 2016)
|
40 in (102 cm)
|
|
Shipping Dimension E (source diagram) (2017)
|
40 in (102 cm)
|
|
Shipping Dimension E (source diagram) (2018)
|
40 in (102 cm)
|
|
Shipping Dimension E (source diagram) (2019)
|
40 in (102 cm)
|
|
Shipping Dimension F (source diagram) (Since 2017)
|
111 in (282 cm)
|
|
Shipping Dimension F (source diagram) (2018)
|
111 in (282 cm)
|
|
Shipping Dimension F (source diagram) (2019)
|
111 in (282 cm)
|
|
Shipping Dimension G (source diagram) (Since 2016)
|
176 in (447 cm)
|
|
Shipping Dimension G (source diagram) (2017)
|
176 in (447 cm)
|
|
Shipping Dimension G (source diagram) (Since 2017)
|
175 in (445 cm)
|
|
Shipping Dimension G (source diagram) (Since 2018)
|
176 in (447 cm)
|
|
Shipping Dimension G (source diagram) (Since 2018)
|
175 in (445 cm)
|
|
Shipping Dimension G (source diagram) (Since 2019)
|
176 in (447 cm)
|
|
Shipping Dimension G (source diagram) (Since 2019)
|
175 in (445 cm)
|
|
Shipping Dimension H (source diagram) (Since 2016)
|
376 in (955 cm)
|
|
Shipping Dimension H (source diagram) (2017)
|
376 in (955 cm)
|
|
Shipping Dimension H (source diagram) (Since 2017)
|
385 in (978 cm)
|
|
Shipping Dimension H (source diagram) (Since 2018)
|
376 in (955 cm)
|
|
Shipping Dimension H (source diagram) (Since 2018)
|
385 in (978 cm)
|
|
Shipping Dimension H (source diagram) (Since 2019)
|
376 in (955 cm)
|
|
Shipping Dimension H (source diagram) (Since 2019)
|
385 in (978 cm)
|
|
Shipping Dimension J (source diagram) (Since 2016)
|
123 in (312 cm)
|
|
Shipping Dimension J (source diagram) (2017)
|
123 in (312 cm)
|
|
Shipping Dimension J (source diagram) (Since 2017)
|
119 in (302 cm)
|
|
Shipping Dimension J (source diagram) (Since 2018)
|
123 in (312 cm)
|
|
Shipping Dimension J (source diagram) (Since 2018)
|
119 in (302 cm)
|
|
Shipping Dimension J (source diagram) (Since 2019)
|
123 in (312 cm)
|
|
Shipping Dimension J (source diagram) (Since 2019)
|
119 in (302 cm)
|
|
Shipping Dimension K (source diagram) (Since 2016)
|
144 in (366 cm)
|
|
Shipping Dimension K (source diagram) (2017)
|
144 in (366 cm)
|
|
Shipping Dimension K (source diagram) (2018)
|
144 in (366 cm)
|
|
Shipping Dimension K (source diagram) (2019)
|
144 in (366 cm)
|
|
Shipping Dimension L (source diagram) (Since 2016)
|
94 in (239 cm)
|
|
Shipping Dimension L (source diagram) (2017)
|
94 in (239 cm)
|
|
Shipping Dimension L (source diagram) (2018)
|
94 in (239 cm)
|
|
Shipping Dimension L (source diagram) (2019)
|
94 in (239 cm)
|
|
Stick (Since 2016)
|
75 in (191 cm)
|
|
Sticks - Medium Stick HD (Since 2016)
|
1,500 lbs (680 kg)
|
|
Sticks - Medium Stick HD (2017)
|
1,500 lbs (680 kg)
|
|
Sticks - Medium Stick HD (2018)
|
1,500 lbs (680 kg)
|
|
Sticks - Medium Stick HD (2019)
|
1,500 lbs (680 kg)
|
|
Stroke (Since 2016)
|
5 in (13 cm)
|
|
Stroke (2017)
|
5 in (13 cm)
|
|
Stroke (2018)
|
5 in (13 cm)
|
|
Stroke (2019)
|
5 in (13 cm)
|
|
Track Gauge (Since 2016)
|
94 in (239 cm)
|
|
Track Gauge (2017)
|
94 in (239 cm)
|
|
Track Gauge (2018)
|
94 in (239 cm)
|
|
Track Gauge (2019)
|
94 in (239 cm)
|
|
Track Shoe Width (Since 2016)
|
24 in (61 cm)
|
|
Track Shoe Width (Since 2016)
|
28 in (71 cm)
|
|
Track Shoe Width (Since 2016)
|
31 in (79 cm)
|
|
Track Shoe Width (Since 2017)
|
24 in (61 cm)
|
|
Track Shoe Width (Since 2017)
|
28 in (71 cm)
|
|
Track Shoe Width (Since 2017)
|
31 in (79 cm)
|
|
Track Shoe Width (Since 2018)
|
24 in (61 cm)
|
|
Track Shoe Width (Since 2018)
|
28 in (71 cm)
|
|
Track Shoe Width (Since 2018)
|
31 in (79 cm)
|
|
Track Shoe Width (Since 2019)
|
24 in (61 cm)
|
|
Track Shoe Width (Since 2019)
|
28 in (71 cm)
|
|
Track Shoe Width (Since 2019)
|
31 in (79 cm)
|
|
Upperstructure (complete w/o ctwt) (Since 2016)
|
15,440 lbs (7,003 kg)
|
|
Upperstructure (complete w/o ctwt) (2017)
|
15,440 lbs (7,003 kg)
|
|
Upperstructure (complete w/o ctwt) (2018)
|
15,440 lbs (7,003 kg)
|
|
Upperstructure (complete w/o ctwt) (2019)
|
15,440 lbs (7,003 kg)
|
|
Width of Standard Track Shoe (Since 2016)
|
31 in (79 cm)
|
|
Width of Standard Track Shoe (2017)
|
31 in (79 cm)
|
|
Width of Standard Track Shoe (2018)
|
31 in (79 cm)
|
|
Width of Standard Track Shoe (2019)
|
31 in (79 cm)
|
| Hydraulic System |
|
Boom Cylinder - Bore |
5 in (13 cm)
|
|
Boom Cylinder - Stroke |
50 in (127 cm)
|
|
Bucket Cylinder - Bore |
5 in (13 cm)
|
|
Bucket Cylinder - Stroke |
43 in (109 cm)
|
|
Main System - Maximum Flow - Total |
113 gpm (428 lpm)
|
|
Maximum Pressure - Equipment - Heavy Lift |
5,511 psi |
|
Maximum Pressure - Equipment - Normal |
5,076 psi |
|
Maximum Pressure - Swing |
3,626 psi |
|
Maximum Pressure - Travel |
5,076 psi |
|
Pilot System - Maximum Flow - Total |
6 gpm (24 lpm)
|
|
Pilot System - Maximum Pressure |
569 psi |
|
Stick Cylinder - Bore |
6 in (15 cm)
|
|
Stick Cylinder - Stroke |
59 in (150 cm)
|
| Operational |
|
Operating Weight |
49,200 lbs (22,317 kg)
|
| Service Refill Capacities |
|
Cooling System |
8 gal (30 l)
|
|
Def Tank Capacity |
6 gal (21 l)
|
|
Engine Oil |
7 gal (25 l)
|
|
Final Drive |
2 gal (8 l)
|
|
Fuel Tank Capacity |
108 gal (410 l)
|
|
Hydraulic System - Including Tank |
69 gal (260 l)
|
|
Hydraulic Tank |
30 gal (115 l)
|
|
Swing Drive |
2 gal (8 l)
|
| Sound Performance |
|
Iso 6395 - Exterior |
97 dB(A) |
|
Iso 6396 - Inside Cab |
68 dB(A) |
| Swing Mechanism |
|
Swing Speed |
11 rpm |
|
Swing Torque |
45,581 lbs ft (61,799 nm)
|
| Track |
|
Number Of Carrier Rollers - Each Side |
2 pieces |
|
Number Of Shoes - Each Side |
49 pieces |
|
Number Of Track Rollers - Each Side |
8 pieces |
| Weights |
|
Note |
Reach Boom, R2.9 m (9'6") stick, GD 1.19 m3 (1.56 yd3) bucket and 790 mm (31") TG shoes. |
.jpg)
