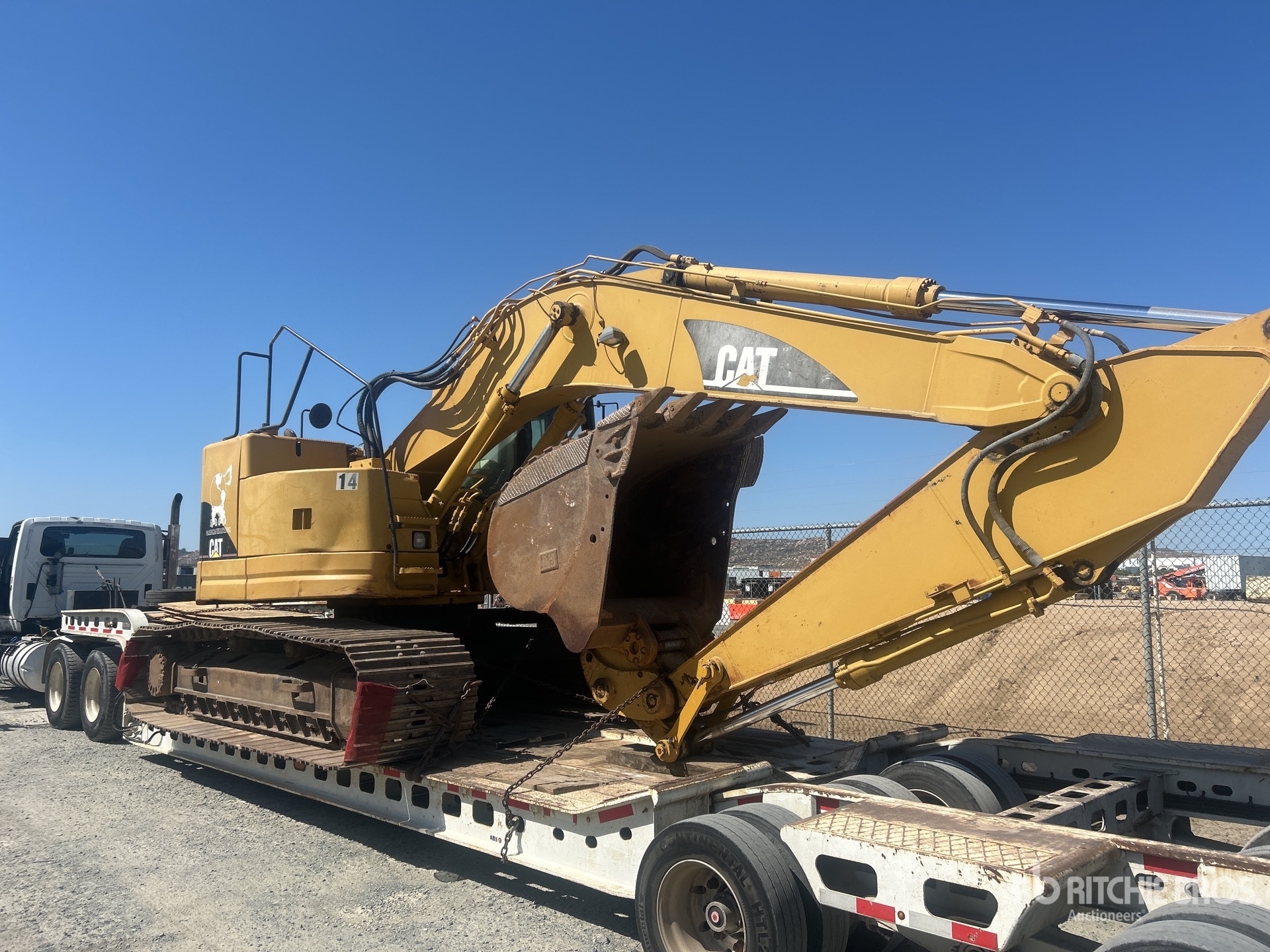

| Boom/Stick 1 |
|
Boom/Stick 1 |
Boom- 5680 mm / Stick Length - 2900 mm |
|
Max Cutting Height |
36 ft (11 m)
|
|
Max Digging Depth |
22 ft (7 m)
|
|
Max Loading Height |
26 ft (8 m)
|
|
Max Reach Along Ground |
32 ft (10 m)
|
|
Max Vertical Wall Digging Depth |
19 ft (6 m)
|
|
Shipping Height Of Unit |
10 ft (3 m)
|
|
Shipping Length Of Unit |
29 ft (9 m)
|
| Dimensions |
|
Ground Clearance |
2 ft (0 m)
|
|
Height |
10 ft (3 m)
|
|
Height To Top Of Cab |
10 ft (3 m)
|
|
Length |
29 ft (9 m)
|
|
Length Of Track On Ground |
29 ft (9 m)
|
|
Tail Swing Radius |
6 ft (2 m)
|
|
Transport Width |
10 ft (3 m)
|
|
Weight |
52,911 lbs (24,000 kg)
|
|
Width |
10 ft (3 m)
|
|
Width To Outside Of Tracks |
10 ft (3 m)
|
| Drive |
|
Maximum Drawbar Pull |
44,063 lbs (19,983 kg)
|
|
Maximum Travel Speed |
3 mph (5 kph)
|
| Engine |
|
Bore |
4 in (10 cm)
|
|
Bore |
4 in (10 cm)
|
|
Displacement |
391 cu in (6,401 cu cm)
|
|
Displacement |
389 cu in (6,375 cu cm)
|
|
Engine Make |
Caterpillar |
|
Engine Model |
3066T ATAAC |
|
Engine Model |
Cat 3066T ATAAC |
|
Gross Power |
148 hp (110 kw)
|
|
Net Flywheel Power |
137 hp (102 kw)
|
|
Net Power |
138 hp (103 kw)
|
|
Net Power - Eec 80/1269 |
138 hp (103 kw)
|
|
Net Power - Iso 9249 |
138 hp (103 kw)
|
|
Net Power - Sae J1349 |
137 hp (102 kw)
|
|
Power Measured @ |
1,800 rpm |
|
Stroke |
5 in (13 cm)
|
|
Stroke |
5 in (13 cm)
|
| Hydraulic System |
|
B1 Family Bucket Cylinder - Bore |
5 in (12 cm)
|
|
B1 Family Bucket Cylinder - Stroke |
41 in (104 cm)
|
|
Boom Cylinder - Bore |
5 in (13 cm)
|
|
Boom Cylinder - Stroke |
55 in (140 cm)
|
|
Main Implement System - Maximum Flow (2x) |
54 gpm (204 lpm)
|
|
Maximum Pressure - Equipment |
4,974 psi |
|
Maximum Pressure - Swing |
3,625 psi |
|
Maximum Pressure - Travel |
4,974 psi |
|
Pilot System - Maximum Flow |
11 gpm (42 lpm)
|
|
Pilot System - Maximum Pressure |
566 psi |
| Operational |
|
Cooling System Fluid Capacity |
9 gal (32 l)
|
|
Engine Oil Capacity |
8 gal (30 l)
|
|
Fuel Capacity |
87 gal (330 l)
|
|
Hydraulic Pump Flow Capacity |
54 gpm (205 lpm)
|
|
Hydraulic System Fluid Capacity |
69 gal (260 l)
|
|
Operating Weight |
50,155 lbs (22,746 kg)
|
|
Operating Weight |
51,864 lbs (23,521 kg)
|
|
Swing Drive Fluid Capacity |
2 gal (8 l)
|
| Service Refill Capacities |
|
Cooling System |
9 gal (32 l)
|
|
Engine Oil |
8 gal (30 l)
|
|
Final Drive - Each |
3 gal (10 l)
|
|
Fuel Tank Capacity |
87 gal (329 l)
|
|
Hydraulic System - Including Tank |
69 gal (261 l)
|
|
Swing Drive |
2 gal (8 l)
|
| Swing Mechanism |
|
Swing Speed |
11 rpm |
|
Swing Speed |
11 rpm |
|
Swing Torque |
45,581 lbs ft (61,799 nm)
|
|
Swing Torque |
45,582 lbs ft (61,800 nm)
|
| Track |
|
Ground Clearance - Fixed Gauge |
19 in (48 cm)
|
|
Optional (1) |
24 in (61 cm)
|
|
Optional (2) |
28 in (71 cm)
|
|
Standard With Long Undercarriage |
32 in (81 cm)
|
| Undercarriage |
|
Drawbar Pull |
44,063 lbs (19,983 kg)
|
|
Max Travel Speed |
3 mph (6 kph)
|
|
Shoe Size |
32 in (80 cm)
|
|
Track Gauge |
8 ft (2 m)
|
| Weights |
|
Counterweight |
13,448 lbs (6,099 kg)
|
|
Operating Weight - Minimum |
50,416 lbs (22,864 kg)
|
|
Operating Weight - Standard Undercarriage |
51,864 lbs (23,521 kg)
|
