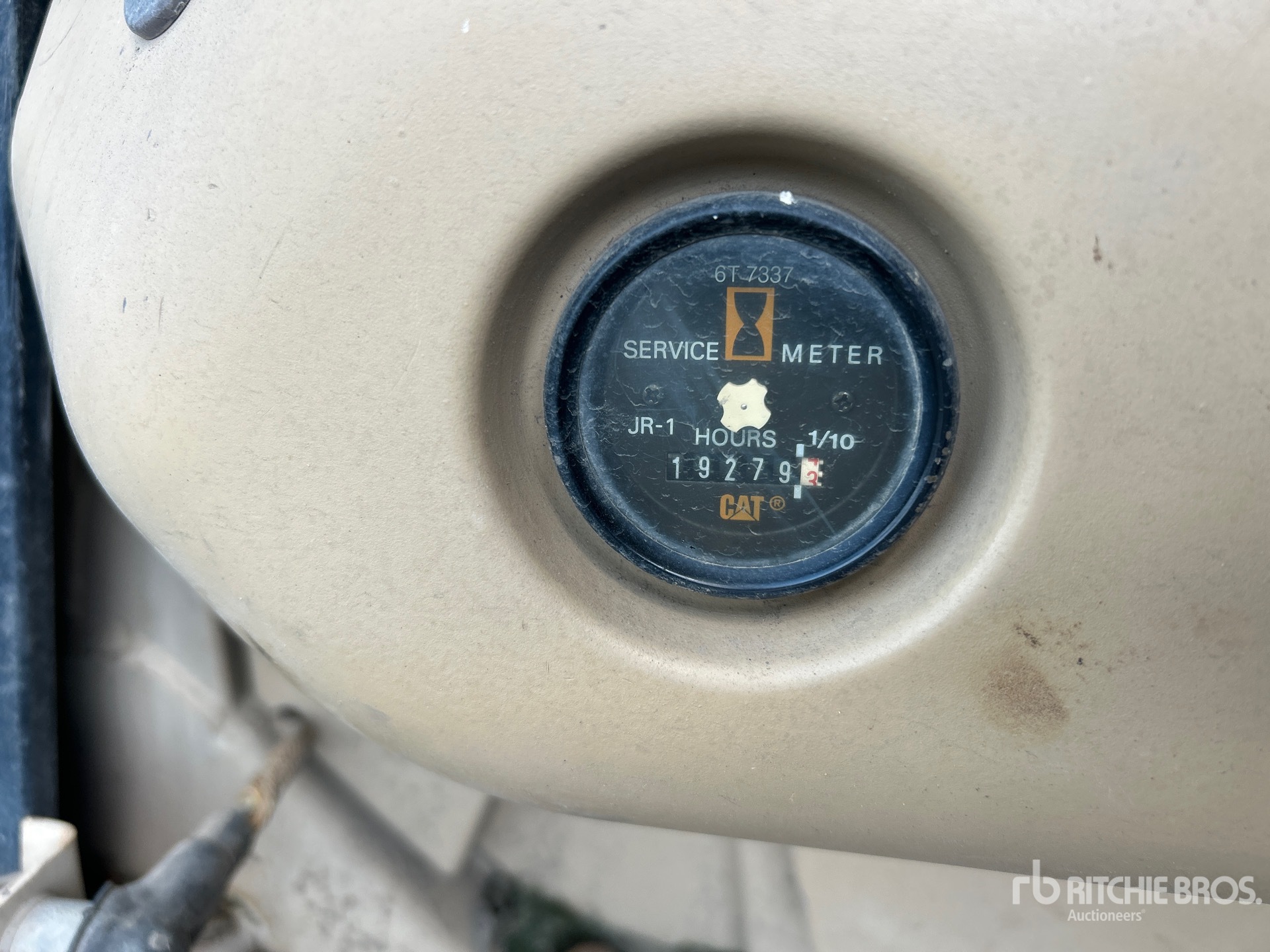

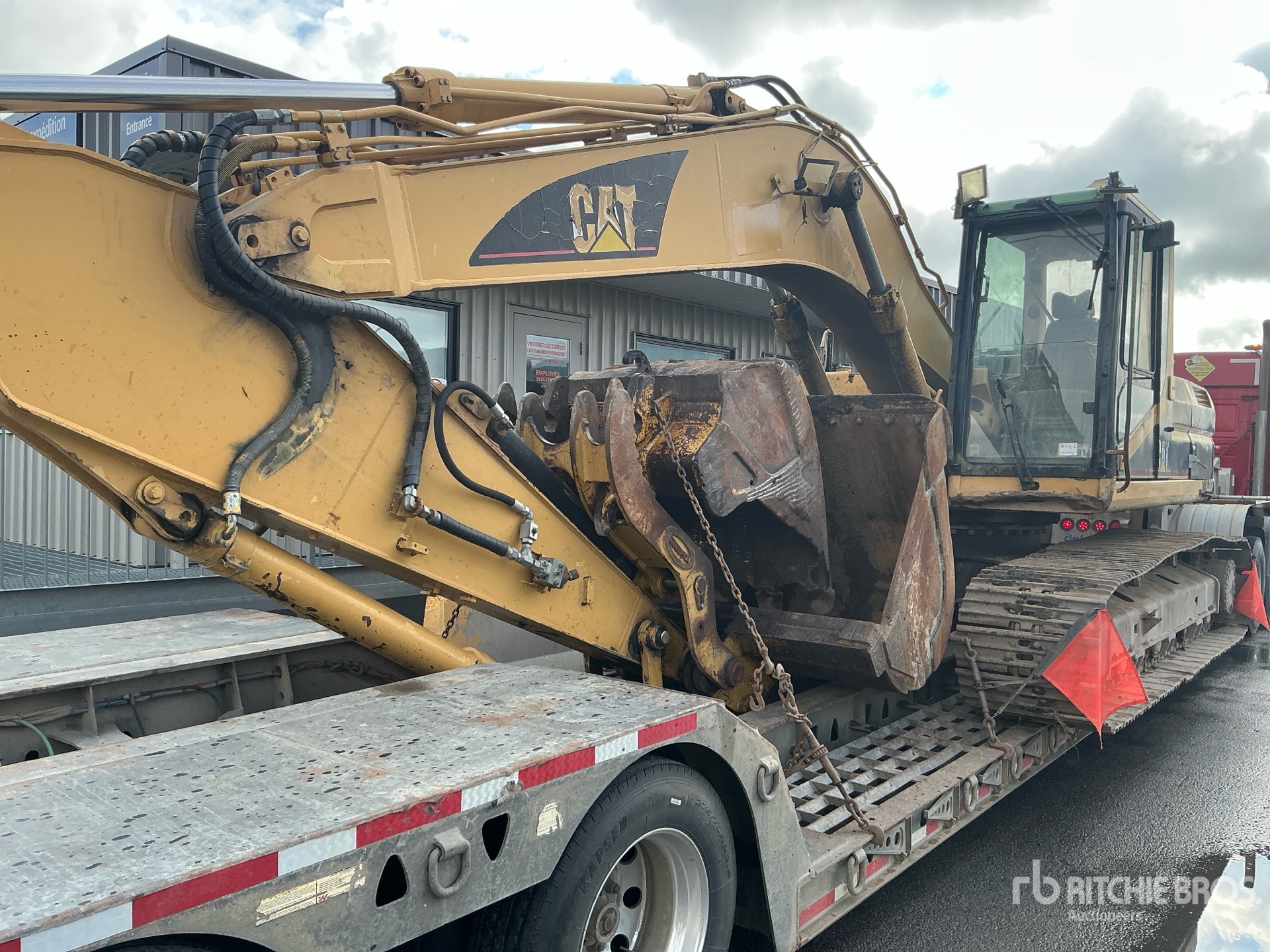

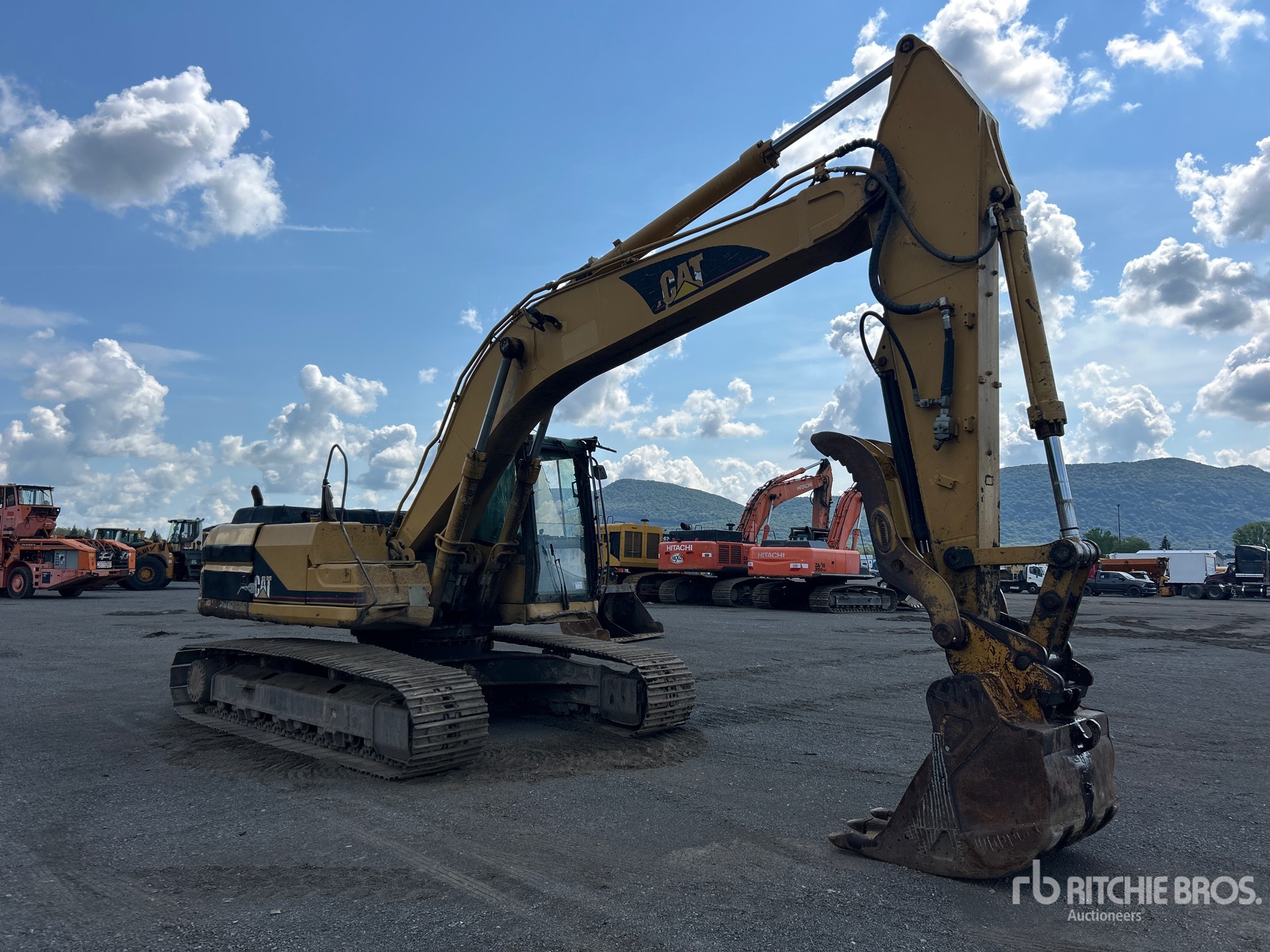

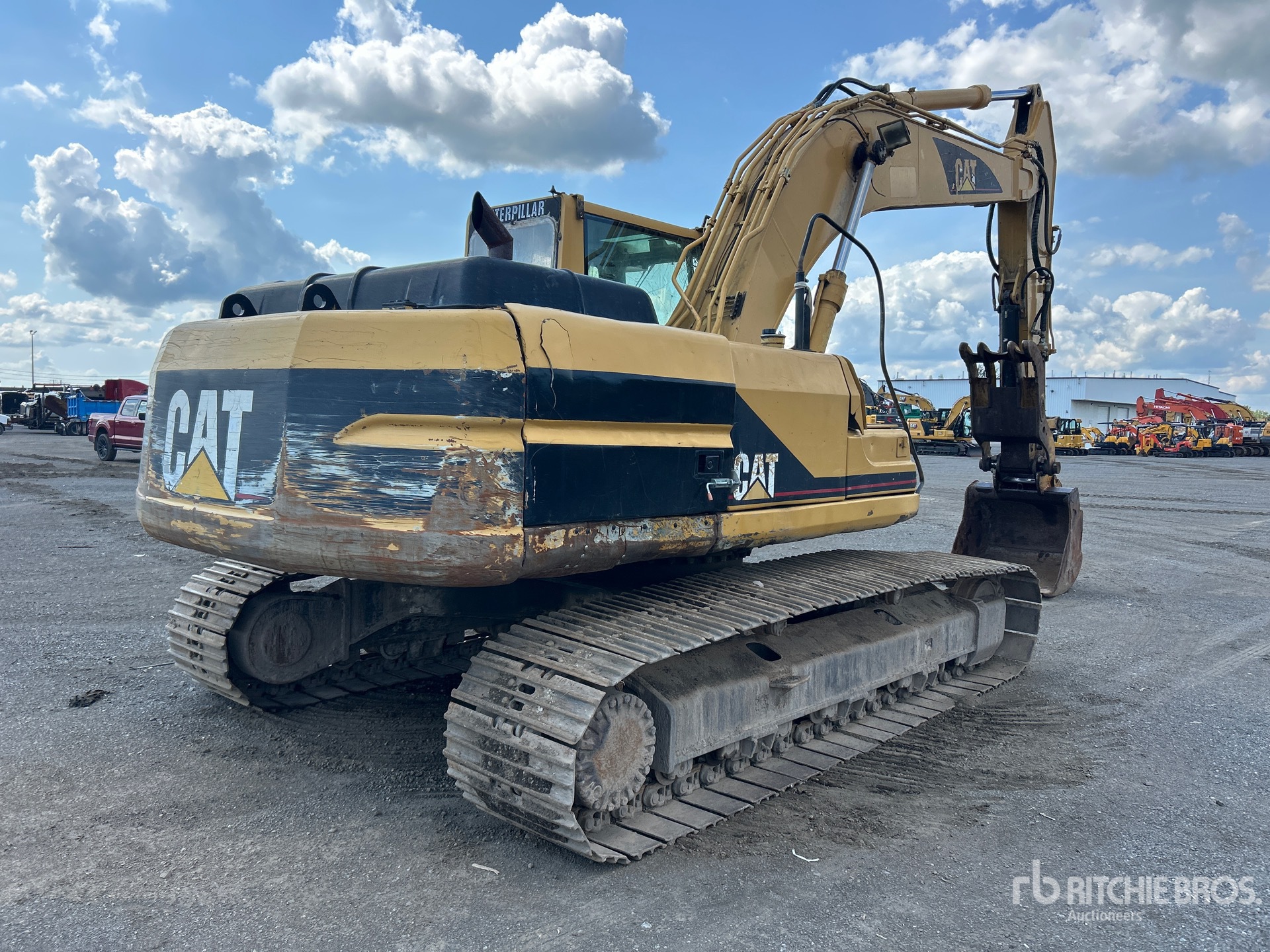

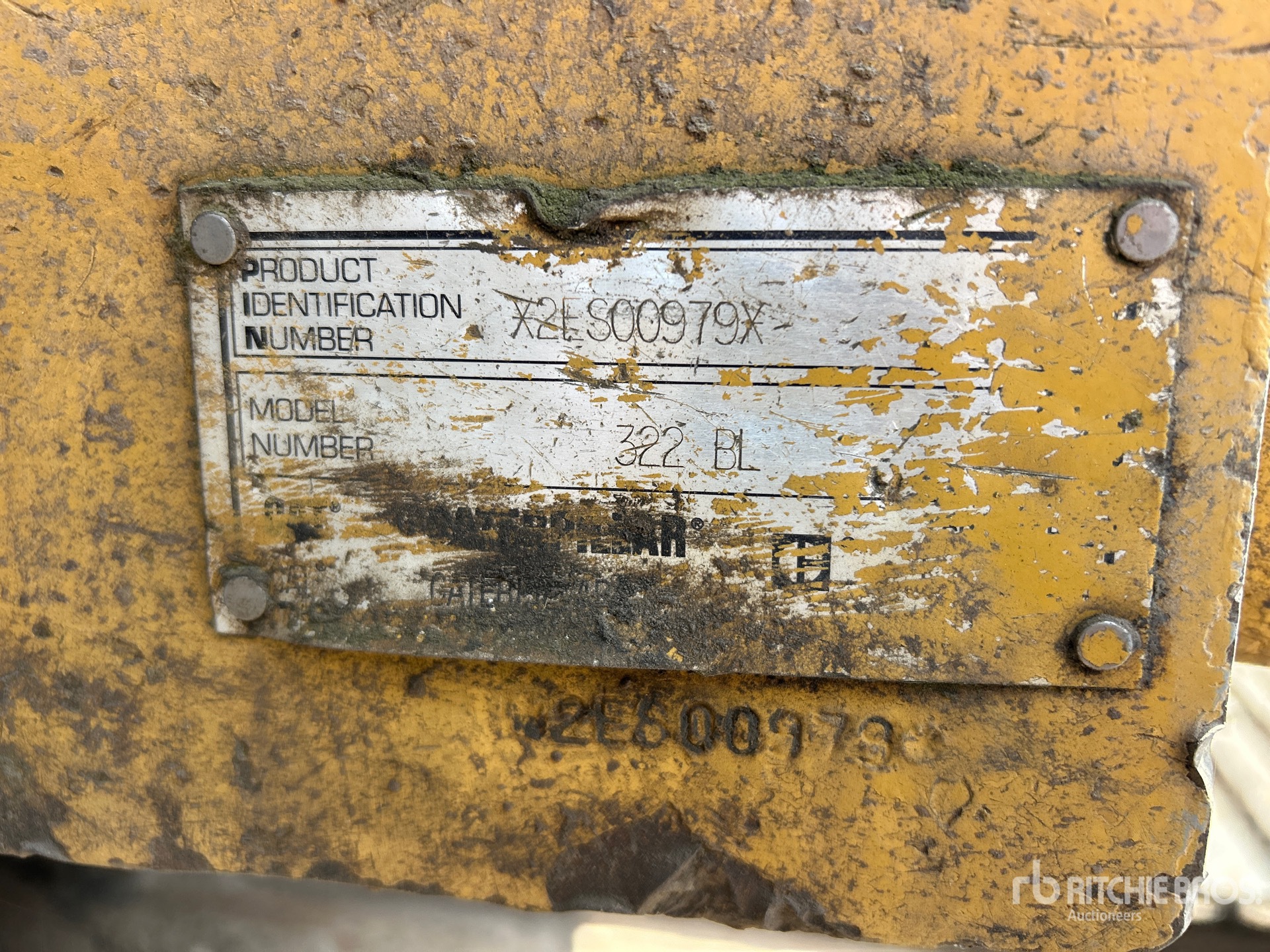

| Boom/Stick Excavator Option 1 |
|
Max Cutting Height |
32 ft (10 m)
|
|
Max Digging Depth |
22 ft (7 m)
|
|
Max Loading Height |
22 ft (7 m)
|
|
Max Reach Along Ground |
33 ft (10 m)
|
|
Max Vertical Wall Digging Depth |
19 ft (6 m)
|
|
Shipping Height of Unit |
10 ft (3 m)
|
|
Shipping Length of Unit |
33 ft (10 m)
|
| Boom/Stick Excavator Option 2 |
|
Max Cutting Height |
31 ft (10 m)
|
|
Max Digging Depth |
21 ft (6 m)
|
|
Max Loading Height |
22 ft (7 m)
|
|
Max Reach Along Ground |
32 ft (10 m)
|
|
Max Vertical Wall Digging Depth |
17 ft (5 m)
|
|
Shipping Height of Unit |
11 ft (3 m)
|
|
Shipping Length of Unit |
33 ft (10 m)
|
| Boom/Stick Excavator Option 3 |
|
Max Cutting Height |
30 ft (9 m)
|
|
Max Digging Depth |
19 ft (6 m)
|
|
Max Loading Height |
20 ft (6 m)
|
|
Max Reach Along Ground |
30 ft (9 m)
|
|
Max Vertical Wall Digging Depth |
17 ft (5 m)
|
|
Shipping Height of Unit |
11 ft (3 m)
|
|
Shipping Length of Unit |
31 ft (9 m)
|

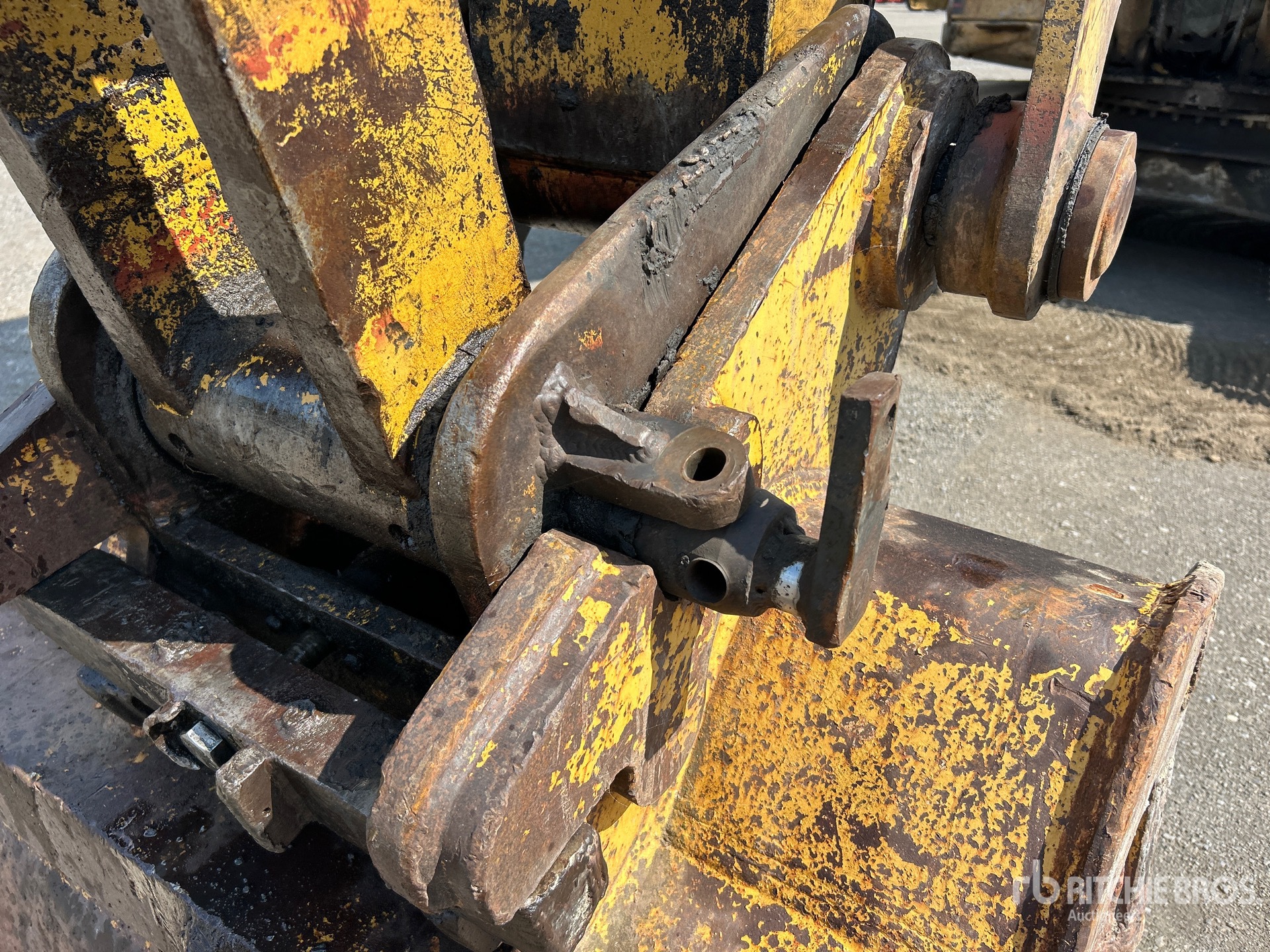

| Bucket |
|
Maximum Bucket Capacity |
2 cu yd (2 cu m)
|
|
Minimum Bucket Capacity |
1 cu yd (1 cu m)
|
|
Reference Bucket Capacity |
1 cu yd (1 cu m)
|
| Dimensions |
|
Ground Clearance |
2 ft (0 m)
|
|
Height - Top of Cab |
10 ft (3 m)
|
|
Length of Track on Ground |
13 ft (4 m)
|
|
Removal Counterweight Clearance |
4 ft (1 m)
|
|
Tail Swing Radius |
10 ft (3 m)
|
|
Width to Outside of Tracks |
11 ft (3 m)
|
| DRIVE SYSTEM |
|
Maximum Drawbar Pull |
43,612 lbs (19,779 kg)
|
| Engine |
|
Aspiration |
Turbocharged and Aftercooled |
|
Bore |
4 in (11 cm)
|
|
Displacement |
403 cu in (6,604 cu cm)
|
|
Engine Model |
Cat 3116TA |
|
Gross Power |
161 hp (120 kw)
|
|
Net Power |
153 hp (114 kw)
|
|
Net Power - EEC 80/1269 |
153 hp (114 kw)
|
|
Net Power - ISO 9249 |
153 hp (114 kw)
|
|
Net Power - SAE J1349 |
153 hp (114 kw)
|
|
Power Measured @ |
1,950 rpm |
|
Stroke |
5 in (13 cm)
|
| Hydraulic System |
|
Boom Cylinder - Bore |
5 in (13 cm)
|
|
Boom Cylinder - Stroke |
51 in (131 cm)
|
|
Main Implement System - Maximum Flow (2x) |
54 gpm (205 lpm)
|
|
Maximum Pressure - Equipment |
4,980 psi |
|
Maximum Pressure - Swing |
3,980 psi |
|
Maximum Pressure - Travel |
4,980 psi |
|
Pilot System - Maximum Flow |
10 gpm (39 lpm)
|
| Operating Specifications |
|
Alternator Supplied Amperage |
55 amps |
|
Cooling System Fluid Capacity |
8 gal (32 l)
|
|
Engine Oil Capacity |
6 gal (22 l)
|
|
Fuel Capacity |
90 gal (340 l)
|
|
Hydraulic Pump Flow Capacity |
108 gpm (410 lpm)
|
|
Hydraulic System Fluid Capacity |
70 gal (265 l)
|
|
Hydraulic System Relief Valve Pressure |
4,980 psi |
|
Operating Voltage |
24 volts |
|
Operating Weight |
50,177 lbs (22,756 kg)
|
|
Swing Drive Fluid Capacity |
2 gal (8 l)
|
| Service Refill Capacities |
|
Cooling System |
8 gal (31 l)
|
|
Engine Oil |
6 gal (22 l)
|
|
Final Drive - Each |
3 gal (10 l)
|
|
Fuel Tank Capacity |
90 gal (341 l)
|
|
Hydraulic System - Including Tank |
70 gal (265 l)
|
|
Swing Drive |
3 gal (10 l)
|

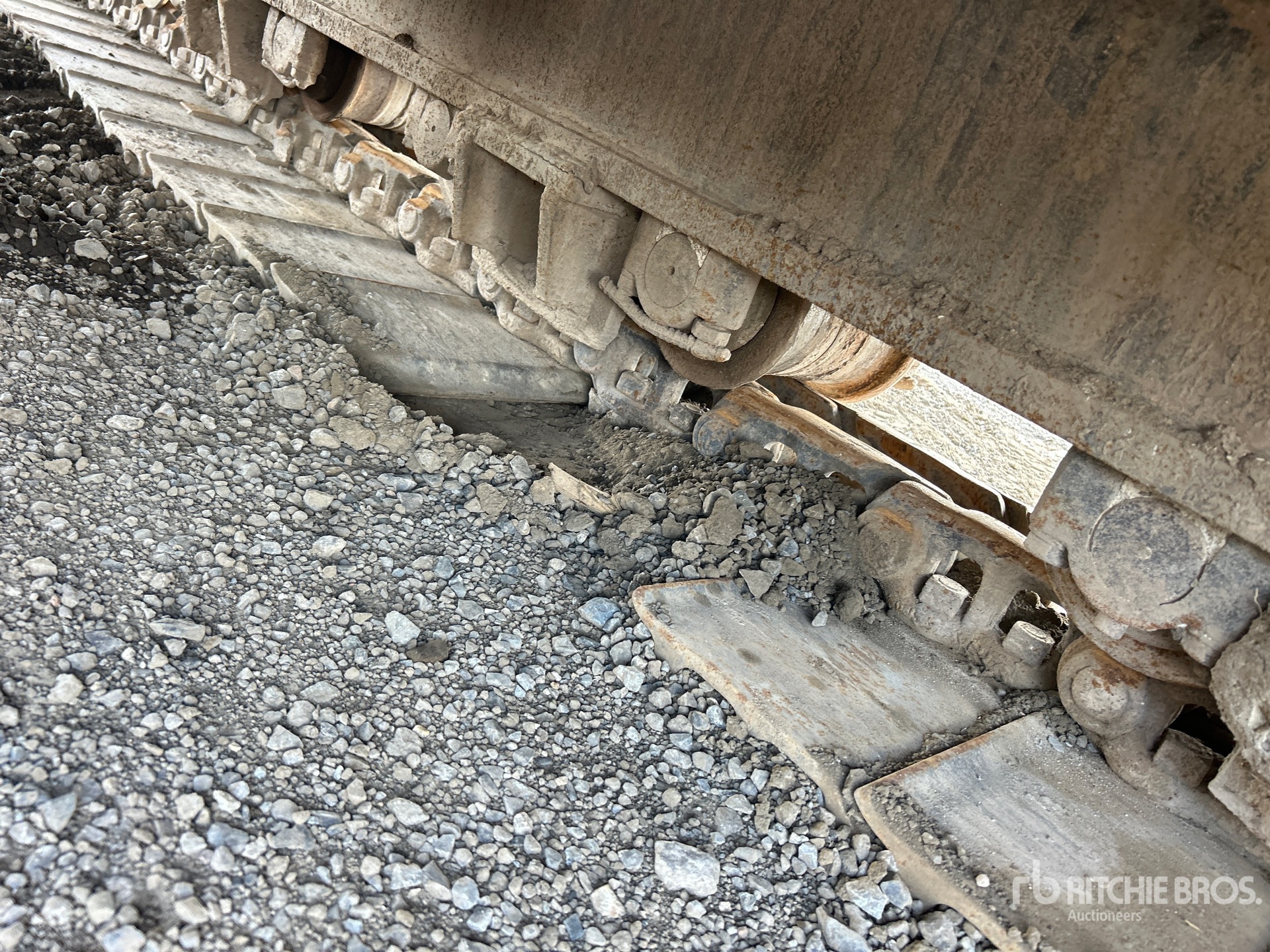

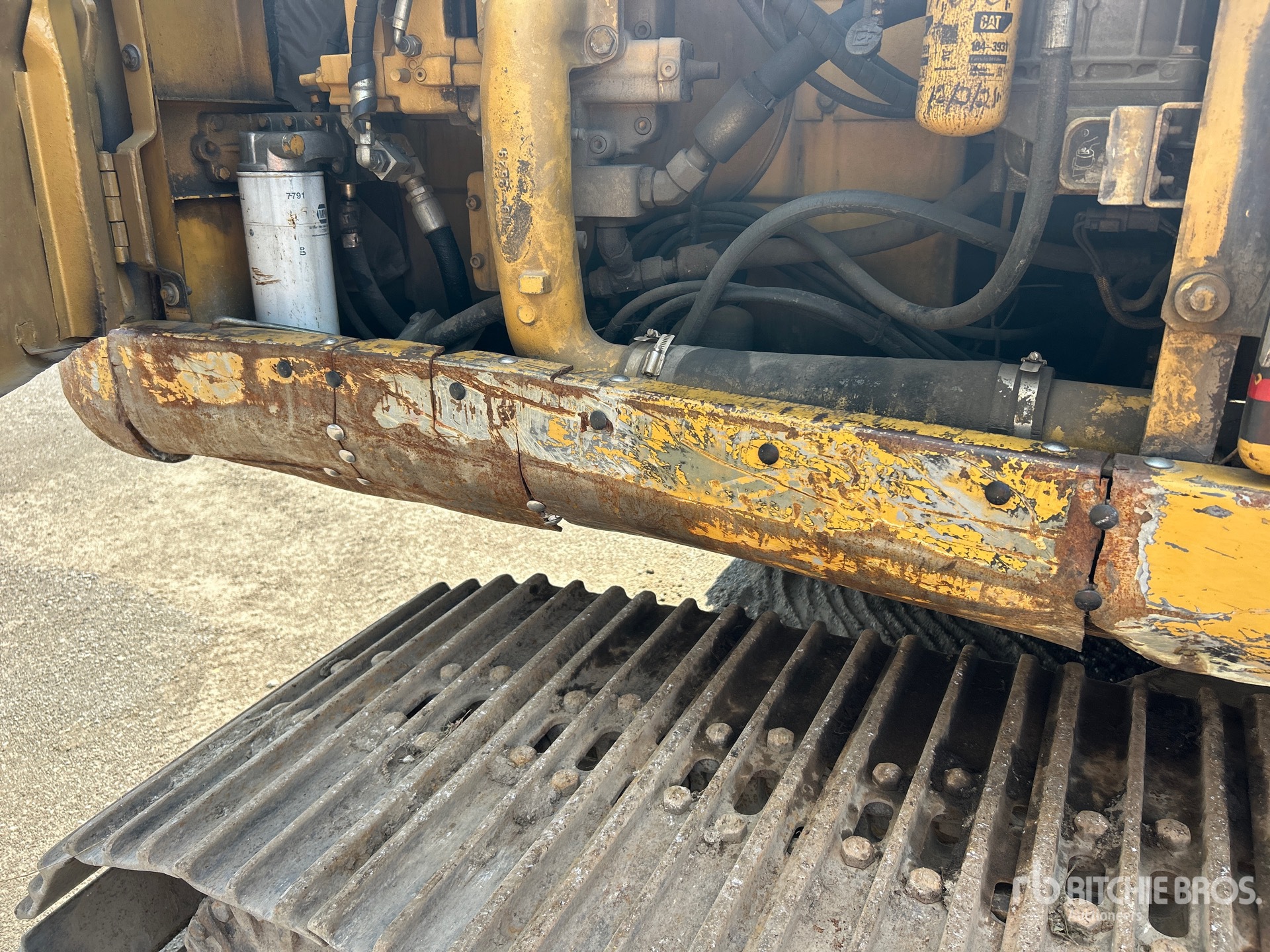

| Undercarriage |
|
Drawbar Pull |
43,613 lbs (19,779 kg)
|
|
Max Travel Speed |
4 mph (6 kph)
|
|
Shoe Size |
32 in (80 cm)
|
|
Track Gauge |
9 ft (3 m)
|
| Weights |
|
Operating Weight - Standard Undercarriage |
50,160 lbs (22,748 kg)
|
