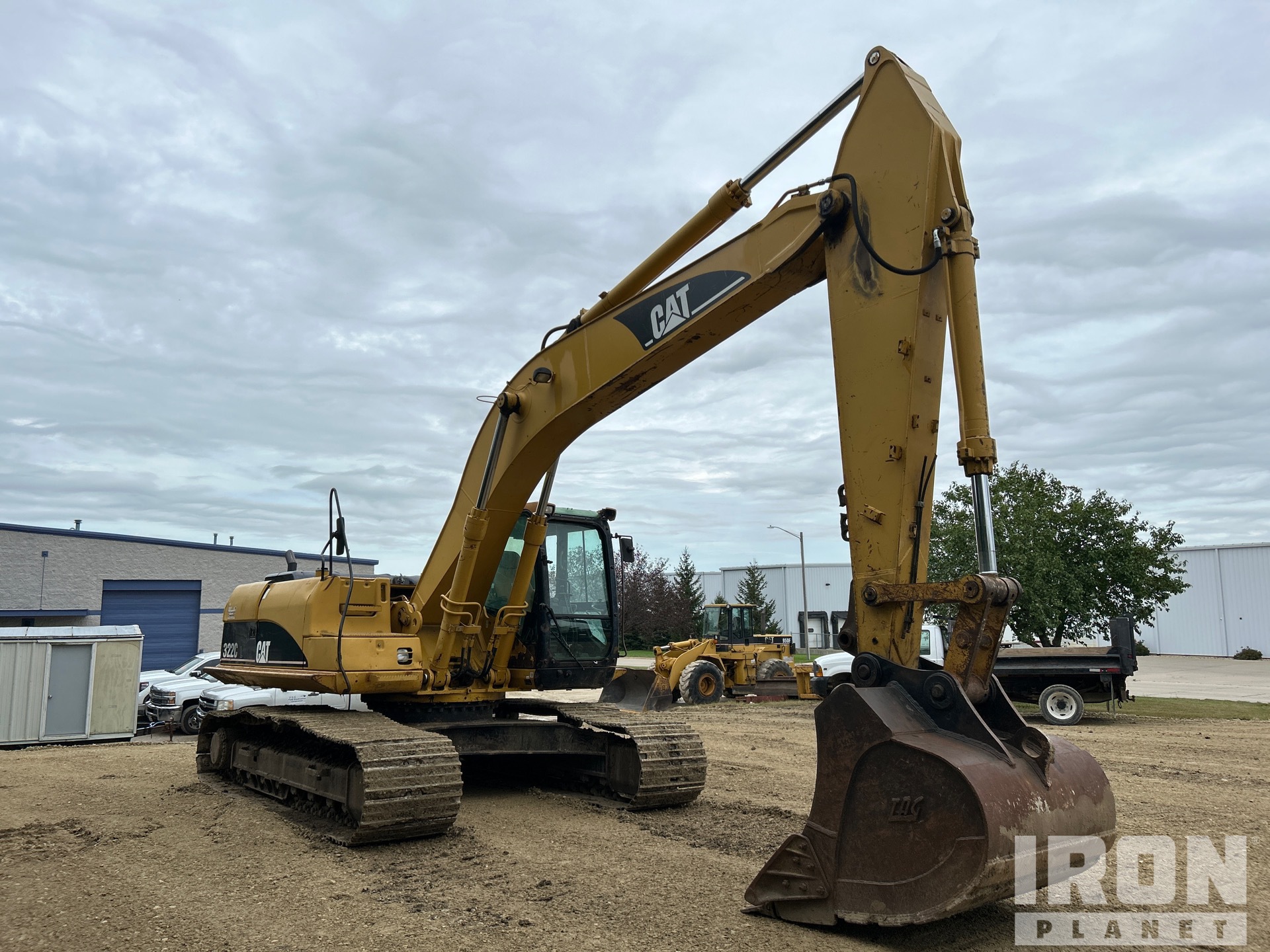

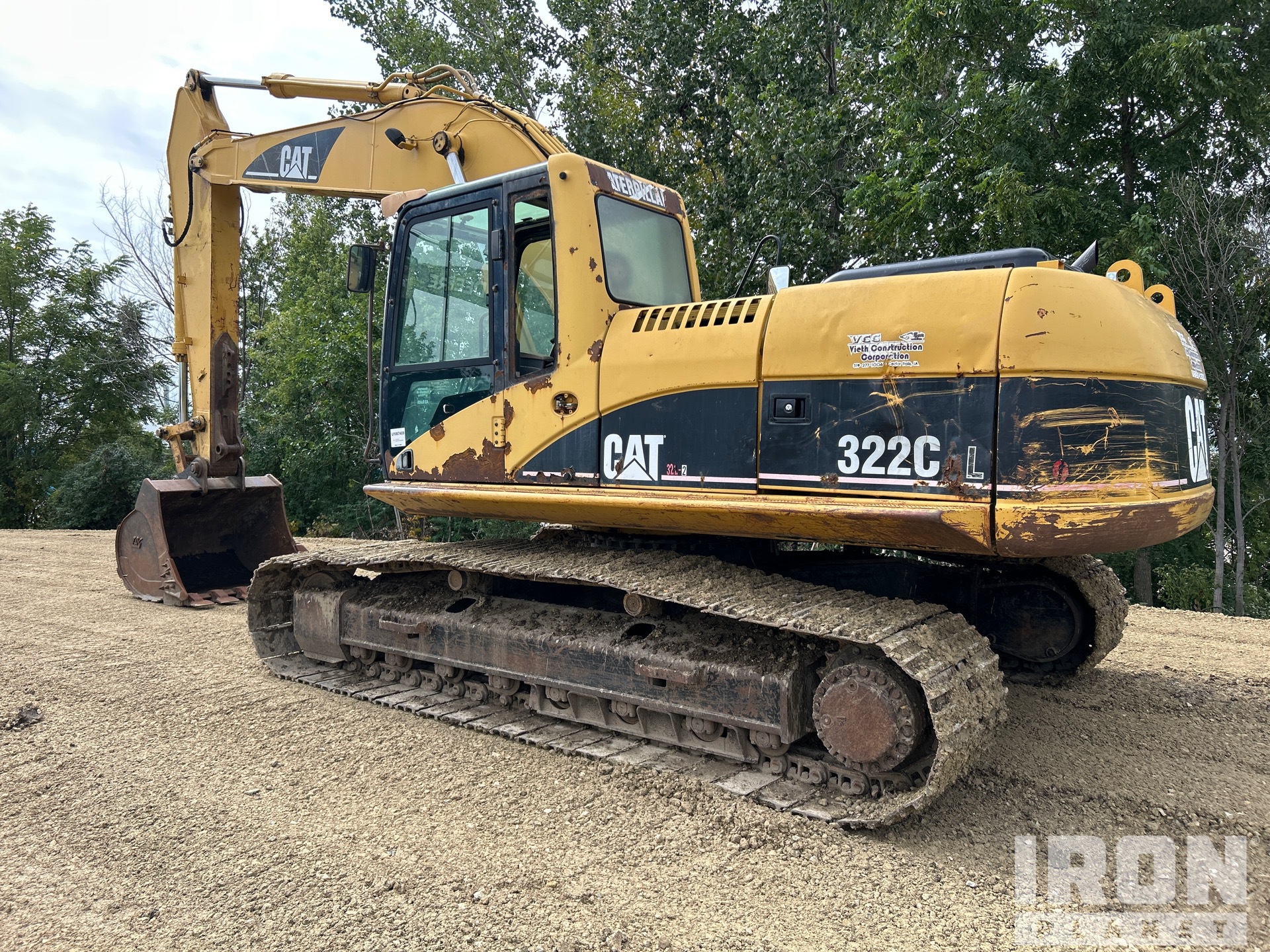

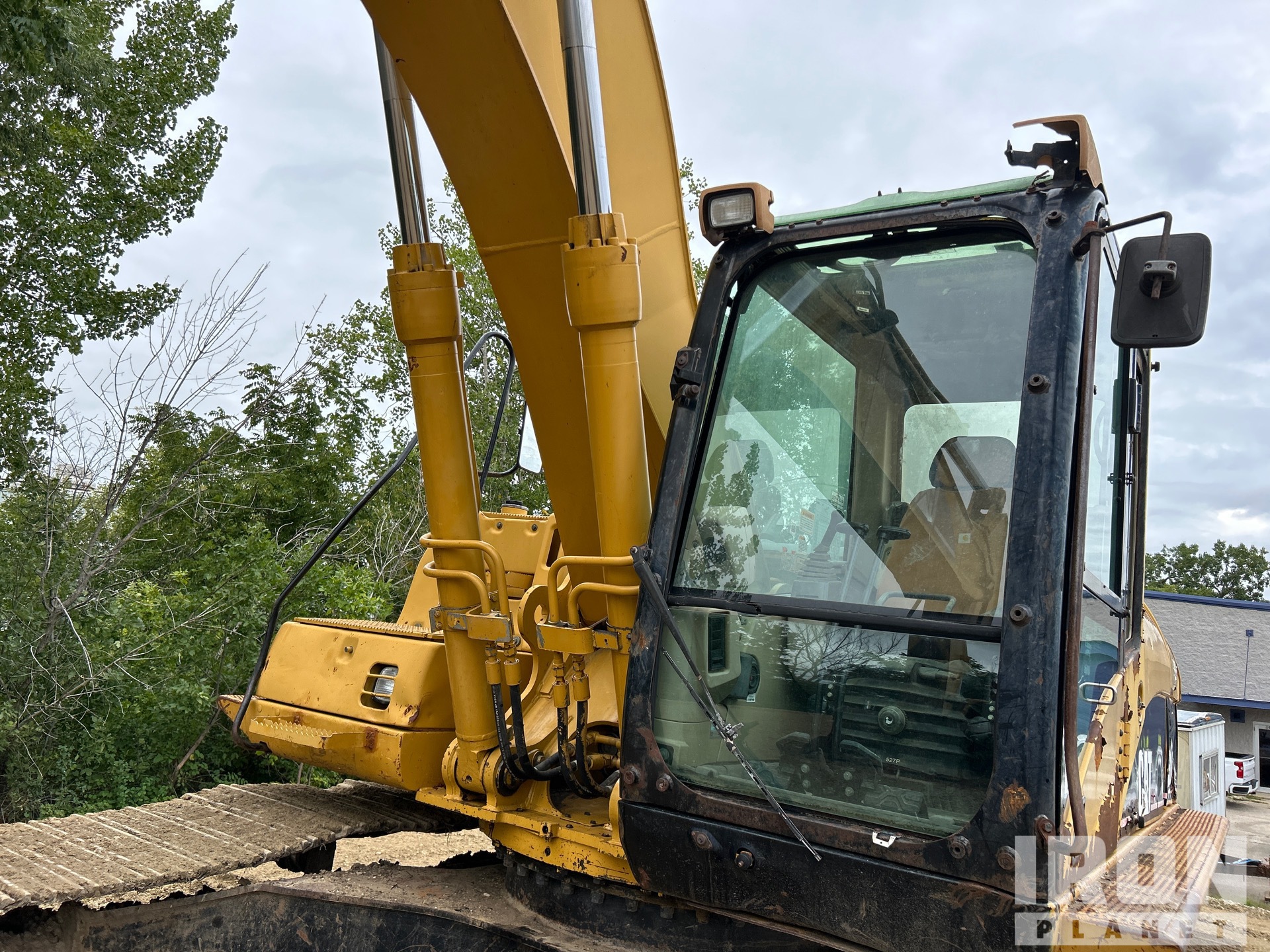

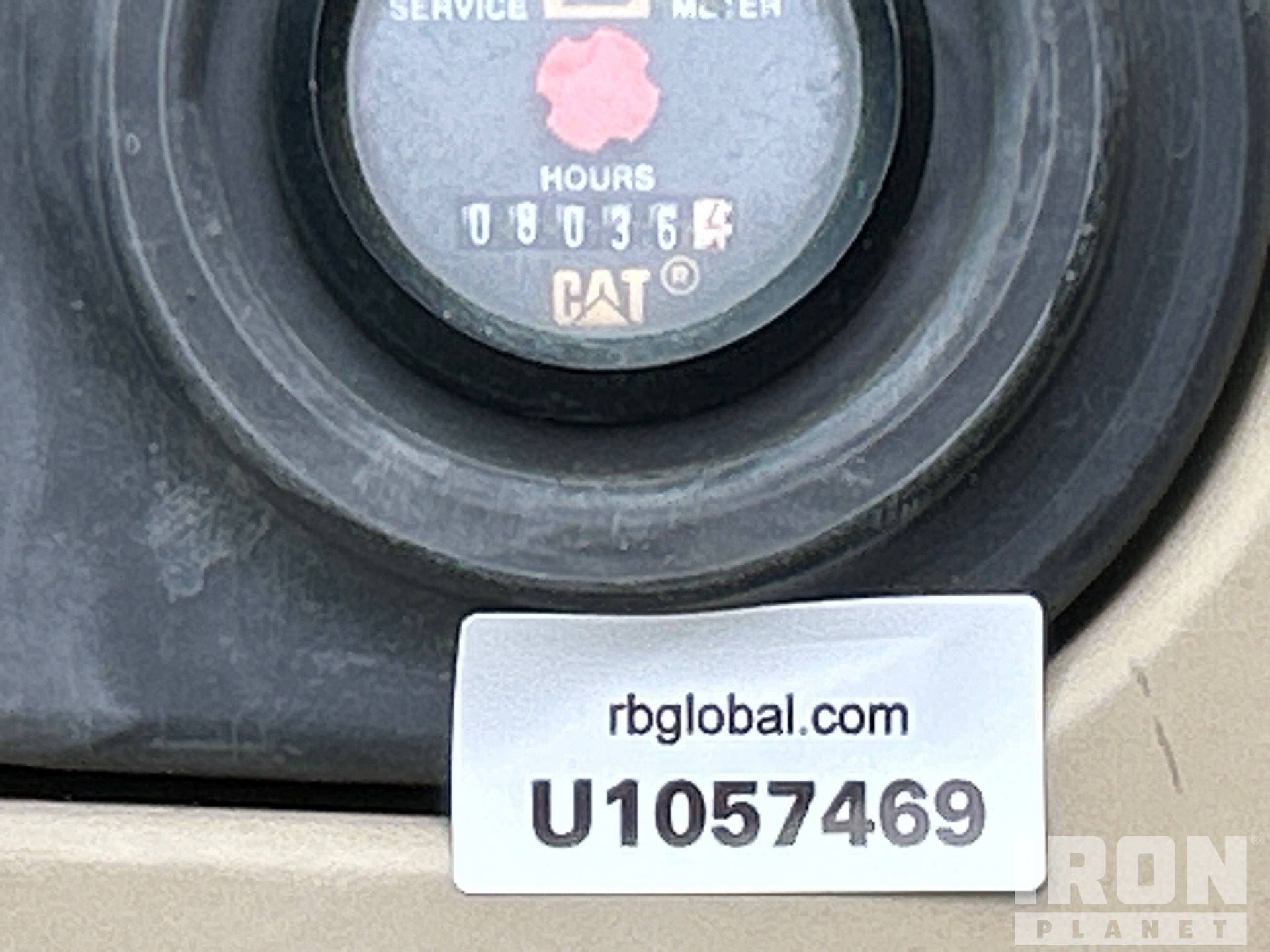

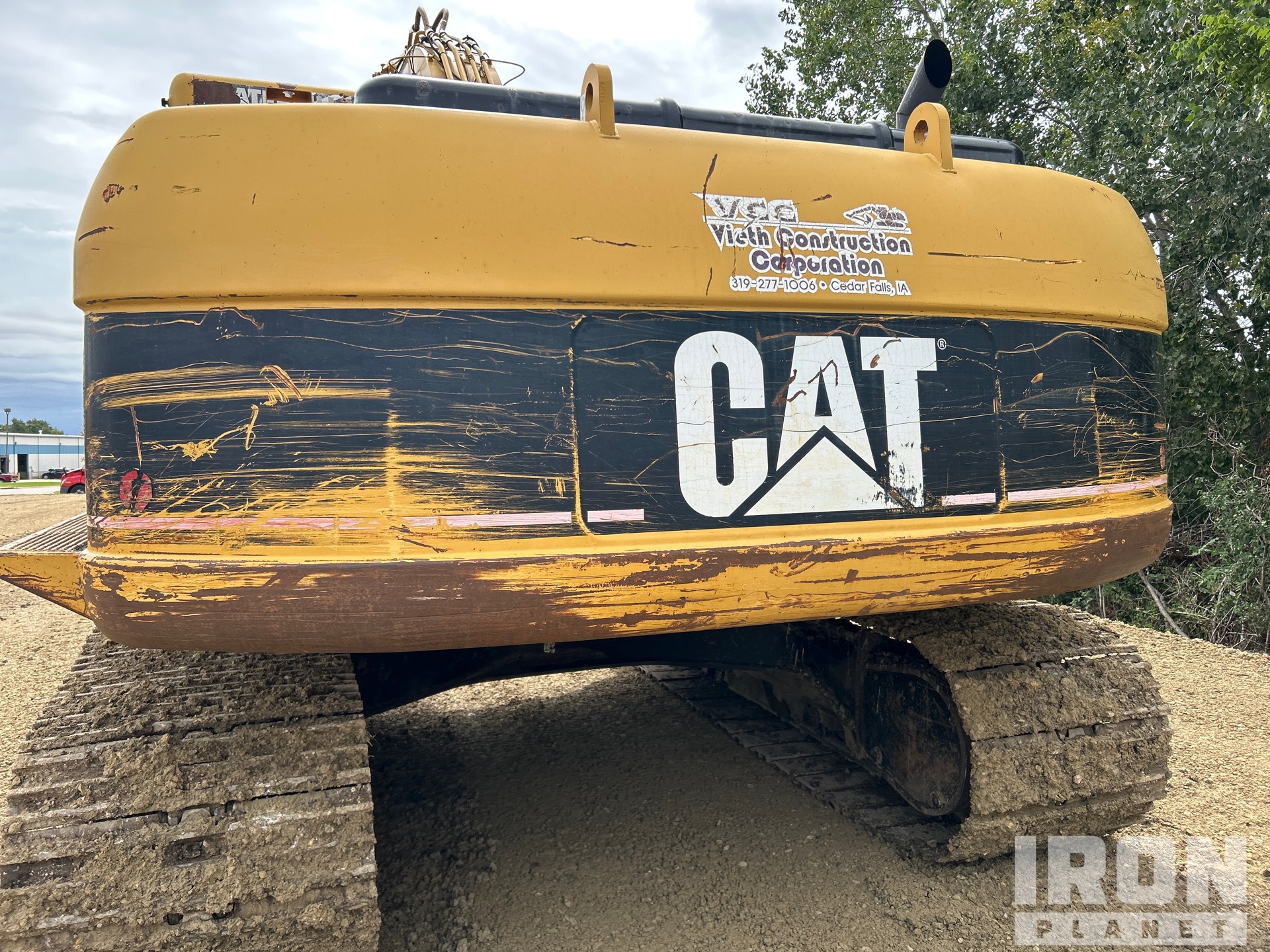

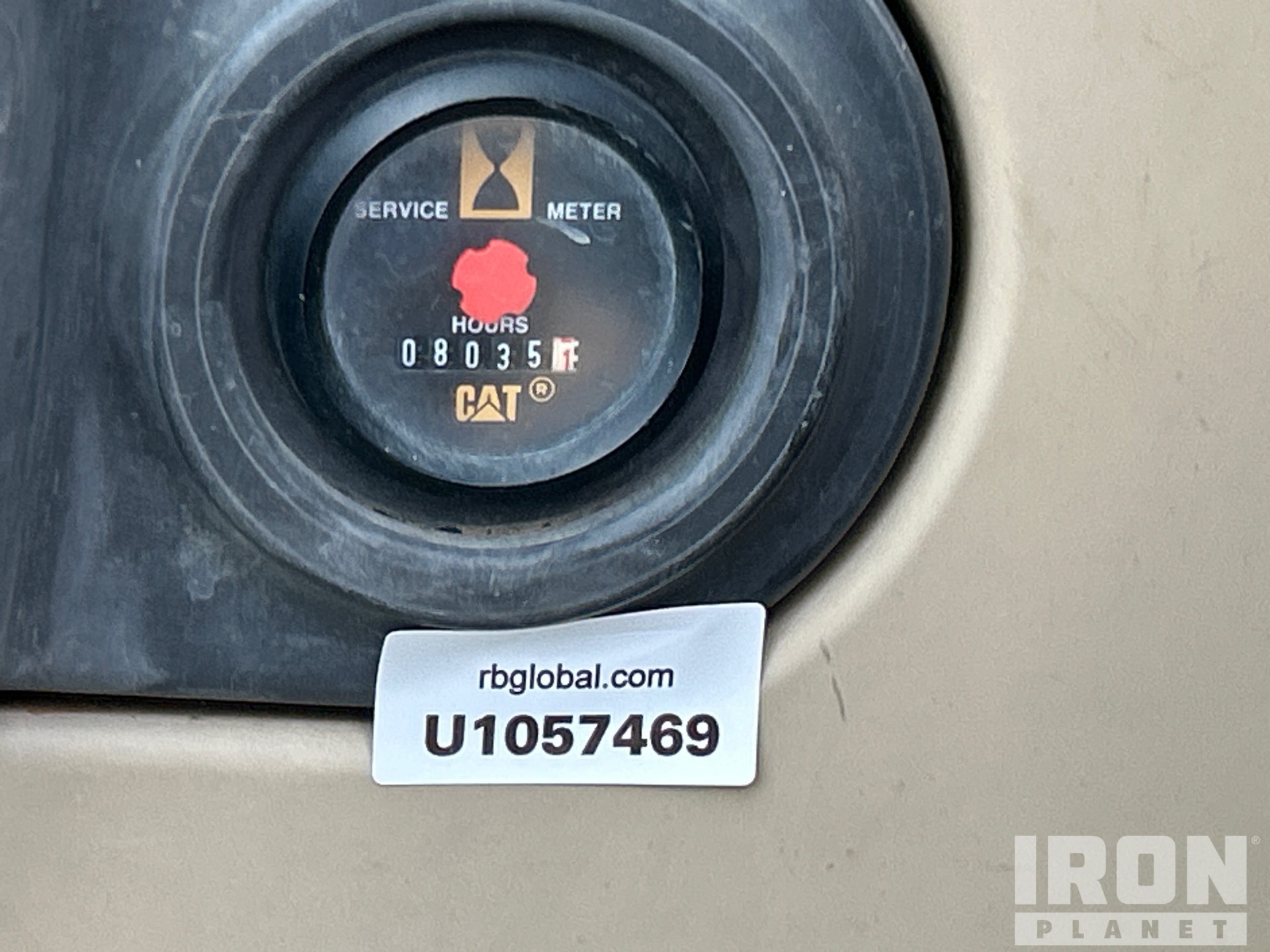

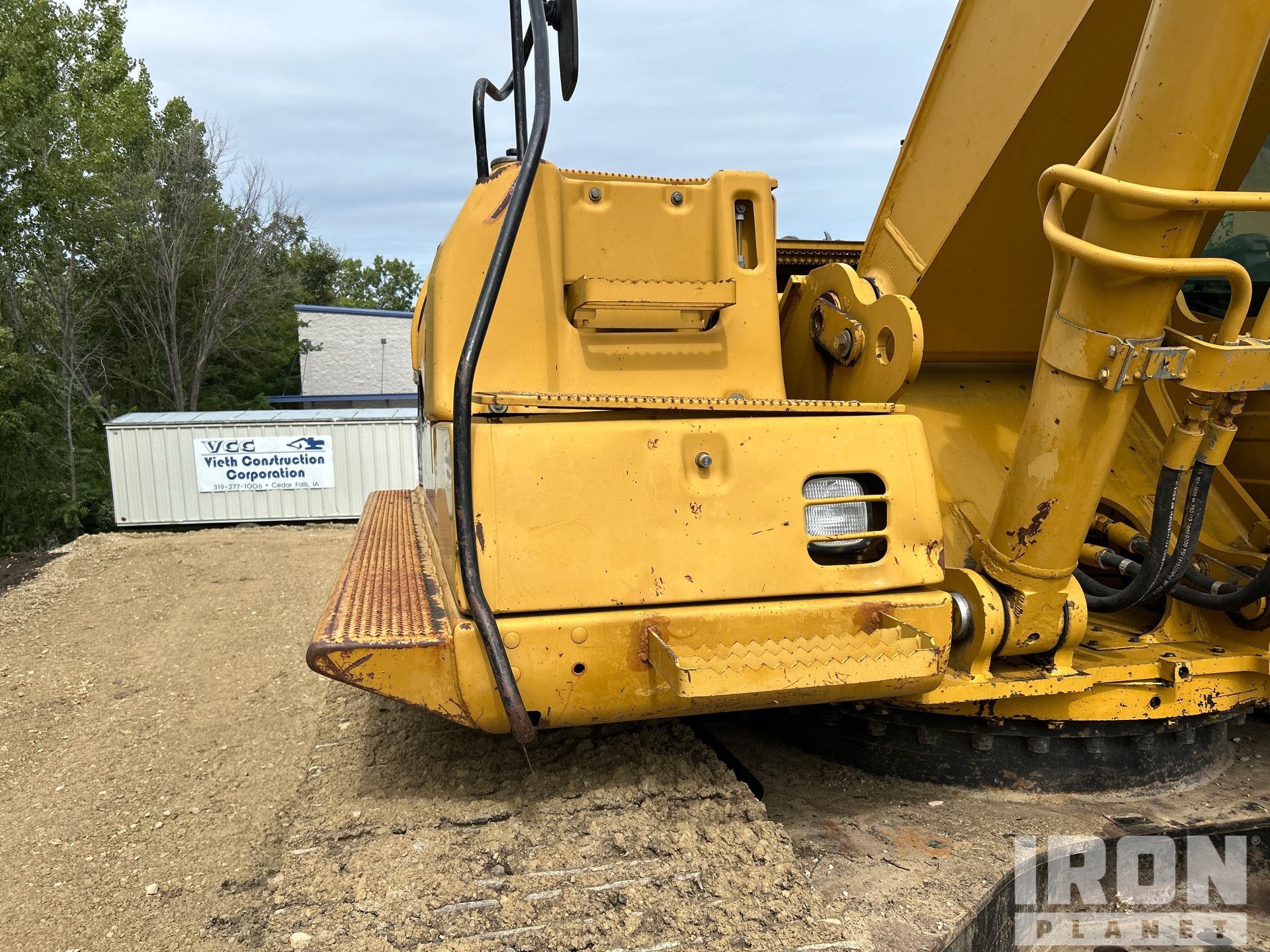

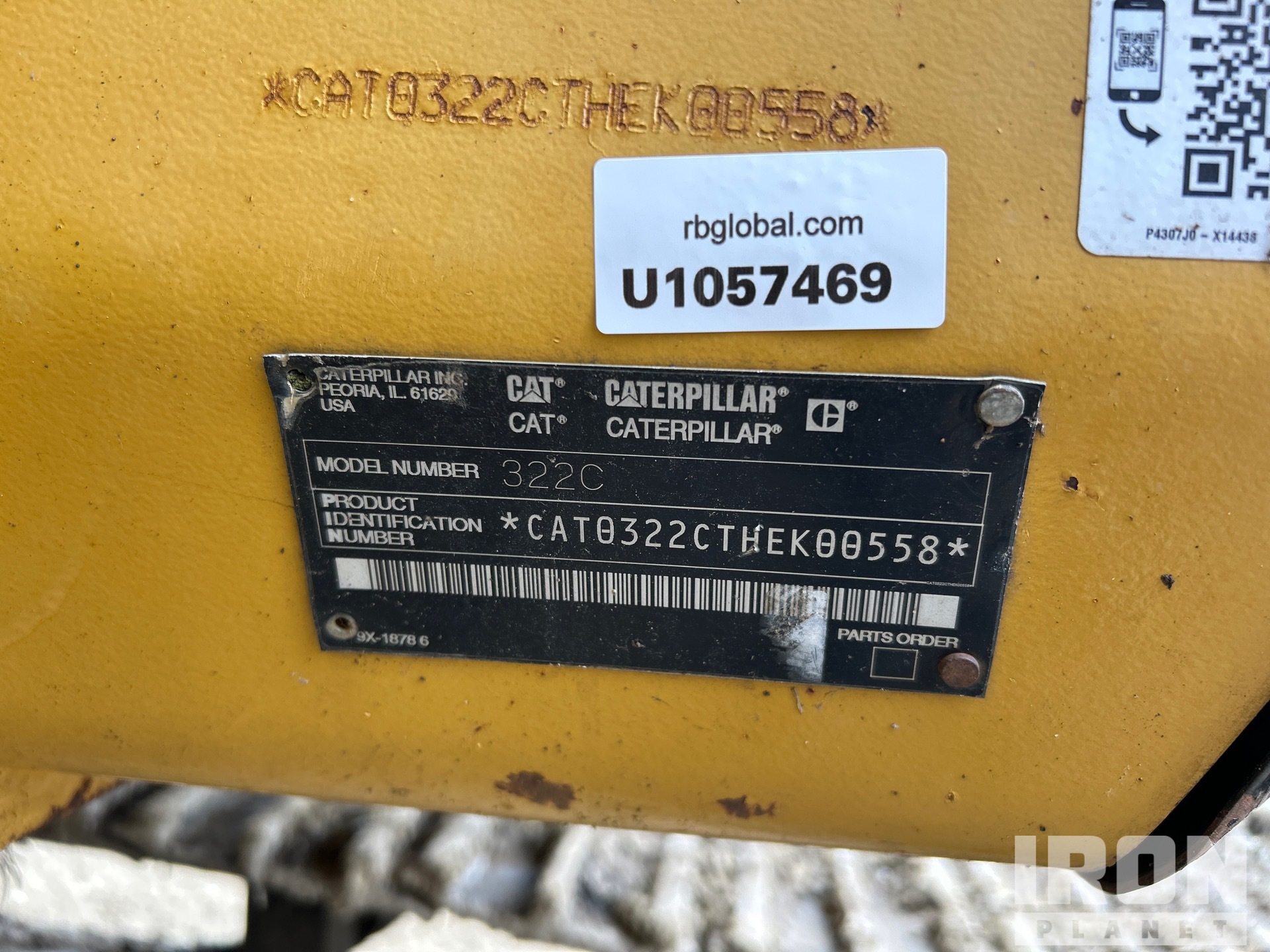

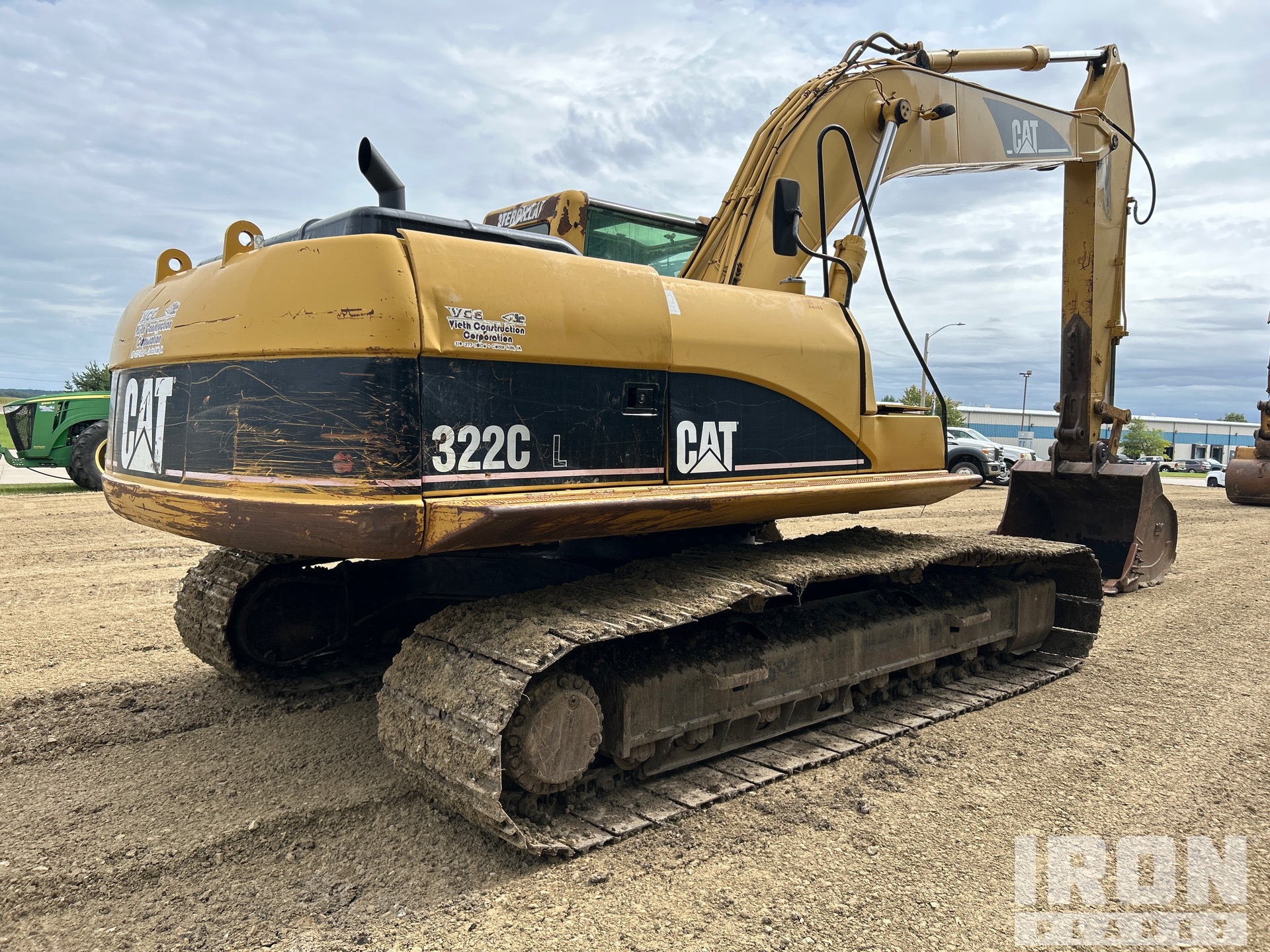

| Boom/Stick 1 |
|
Boom/Stick 1 |
boom w/ stick R2.0D 2000mm |
|
Max Cutting Height |
37 ft (11 m)
|
|
Max Digging Depth |
14 ft (4 m)
|
|
Max Loading Height |
26 ft (8 m)
|
|
Max Reach Along Ground |
32 ft (10 m)
|
|
Max Vertical Wall Digging Depth |
11 ft (3 m)
|
|
Shipping Height Of Unit |
10 ft (3 m)
|
|
Shipping Length Of Unit |
34 ft (10 m)
|
| Boom/Stick 2 |
|
Boom/Stick 2 |
boom w/ stick R2.5S 2500mm |
|
Max Cutting Height |
38 ft (12 m)
|
|
Max Digging Depth |
15 ft (5 m)
|
|
Max Loading Height |
28 ft (8 m)
|
|
Max Reach Along Ground |
33 ft (10 m)
|
|
Max Vertical Wall Digging Depth |
12 ft (4 m)
|
|
Shipping Height Of Unit |
10 ft (3 m)
|
|
Shipping Length Of Unit |
33 ft (10 m)
|
| Boom/Stick 3 |
|
Boom/Stick 3 |
boom w/ stick R2.95S 2950mm |
|
Max Cutting Height |
39 ft (12 m)
|
|
Max Digging Depth |
17 ft (5 m)
|
|
Max Loading Height |
29 ft (9 m)
|
|
Max Reach Along Ground |
34 ft (10 m)
|
|
Max Vertical Wall Digging Depth |
13 ft (4 m)
|
|
Shipping Height Of Unit |
10 ft (3 m)
|
|
Shipping Length Of Unit |
33 ft (10 m)
|
| Boom/Stick 4 |
|
Boom/Stick 4 |
boom w/ stick R3.9B |
|
Max Cutting Height |
41 ft (13 m)
|
|
Max Digging Depth |
19 ft (6 m)
|
|
Max Loading Height |
32 ft (10 m)
|
|
Max Reach Along Ground |
37 ft (11 m)
|
|
Max Vertical Wall Dig Depth |
16 ft (5 m)
|
|
Shipping Height Of Unit |
13 ft (4 m)
|
|
Shipping Length Of Unit |
33 ft (10 m)
|
| Buckets |
|
Maximum Bucket Capacity |
3 cu yd |
|
Minimum Bucket Capacity |
1 cu yd |
|
Reference Bucket Capacity |
2 cu yd |
| Dimensions |
|
Ground Clearance |
2 ft (0 m)
|
|
Height |
10 ft (3 m)
|
|
Height To Top Of Cab |
10 ft (3 m)
|
|
Length |
34 ft (10 m)
|
|
Length Of Track On Ground |
13 ft (4 m)
|
|
Tail Swing Radius |
10 ft (3 m)
|
|
Weight |
54,740 lbs (24,830 kg)
|
|
Width |
11 ft (3 m)
|
|
Width To Outside Of Tracks |
10 ft (3 m)
|
| Drive |
|
Maximum Drawbar Pull |
50,132 lbs (22,740 kg)
|
|
Maximum Travel Speed |
3 mph (5 kph)
|
| Engine |
|
Bore |
4 in (11 cm)
|
|
Engine Make |
2,236 |
|
Engine Model |
ATAAC 3126B |
|
Engine Model |
Cat 3126B ATAAC HEUI Fuel System |
|
Gross Power |
173 hp (129 kw)
|
|
Net Flywheel Power |
168 hp (125 kw)
|
|
Net Power - Eec 80/1269 |
168 hp (125 kw)
|
|
Net Power - Iso 9249 |
168 hp (125 kw)
|
|
Net Power - Sae J1349 |
166 hp (124 kw)
|
|
Stroke |
5 in (13 cm)
|
| Hydraulic System |
|
B1 Family Bucket Cylinder - Bore |
5 in (12 cm)
|
|
B1 Family Bucket Cylinder - Stroke |
41 in (103 cm)
|
|
Boom Cylinder - Bore |
5 in (13 cm)
|
|
Boom Cylinder - Stroke |
51 in (131 cm)
|
|
D Family Bucket Cylinder - Bore |
6 in (15 cm)
|
|
D Family Bucket Cylinder - Stroke |
46 in (117 cm)
|
|
Main Implement System - Maximum Flow (2x) |
58 gpm (220 lpm)
|
|
Maximum Pressure - Equipment |
4,980 psi |
|
Maximum Pressure - Swing |
3,553 psi |
|
Maximum Pressure - Travel |
4,980 psi |
|
Pilot System - Maximum Flow |
10 gpm (36 lpm)
|
|
Pilot System - Maximum Pressure |
568 psi |
|
S Family Bucket Cylinder - Bore |
5 in (13 cm)
|
|
S Family Bucket Cylinder - Stroke |
44 in (112 cm)
|
| Operational |
|
Operating Weight |
54,741 lbs (24,830 kg)
|
| Service Refill Capacities |
|
Cooling System |
10 gal (38 l)
|
|
Engine Oil |
9 gal (34 l)
|
|
Final Drive - Each |
1 gal (5 l)
|
|
Fuel Tank Capacity |
132 gal (500 l)
|
|
Hydraulic System - Including Tank |
65 gal (245 l)
|
|
Swing Drive |
2 gal (8 l)
|
| Sound Performance |
|
Performance |
ANSI/SAE |
| Standards |
|
Brakes |
SAE J1026 APR90 |
|
Cab/Fogs |
SAE J1356 FEB88 ISO 10262 |
| Track |
|
Optional (1) |
24 in (61 cm)
|
|
Optional (2) |
28 in (71 cm)
|
|
Standard With Long Undercarriage - Triple Grouser |
32 in (81 cm)
|
| Undercarriage |
|
Drawbar Pull |
50,132 lbs (22,740 kg)
|
|
Max Travel Speed |
3 mph (6 kph)
|
|
Shoe Size |
32 in (80 cm)
|
|
Track Gauge |
9 ft (3 m)
|
| Weights |
|
Operating Weight - Standard Undercarriage |
53,352 lbs (24,200 kg)
|
