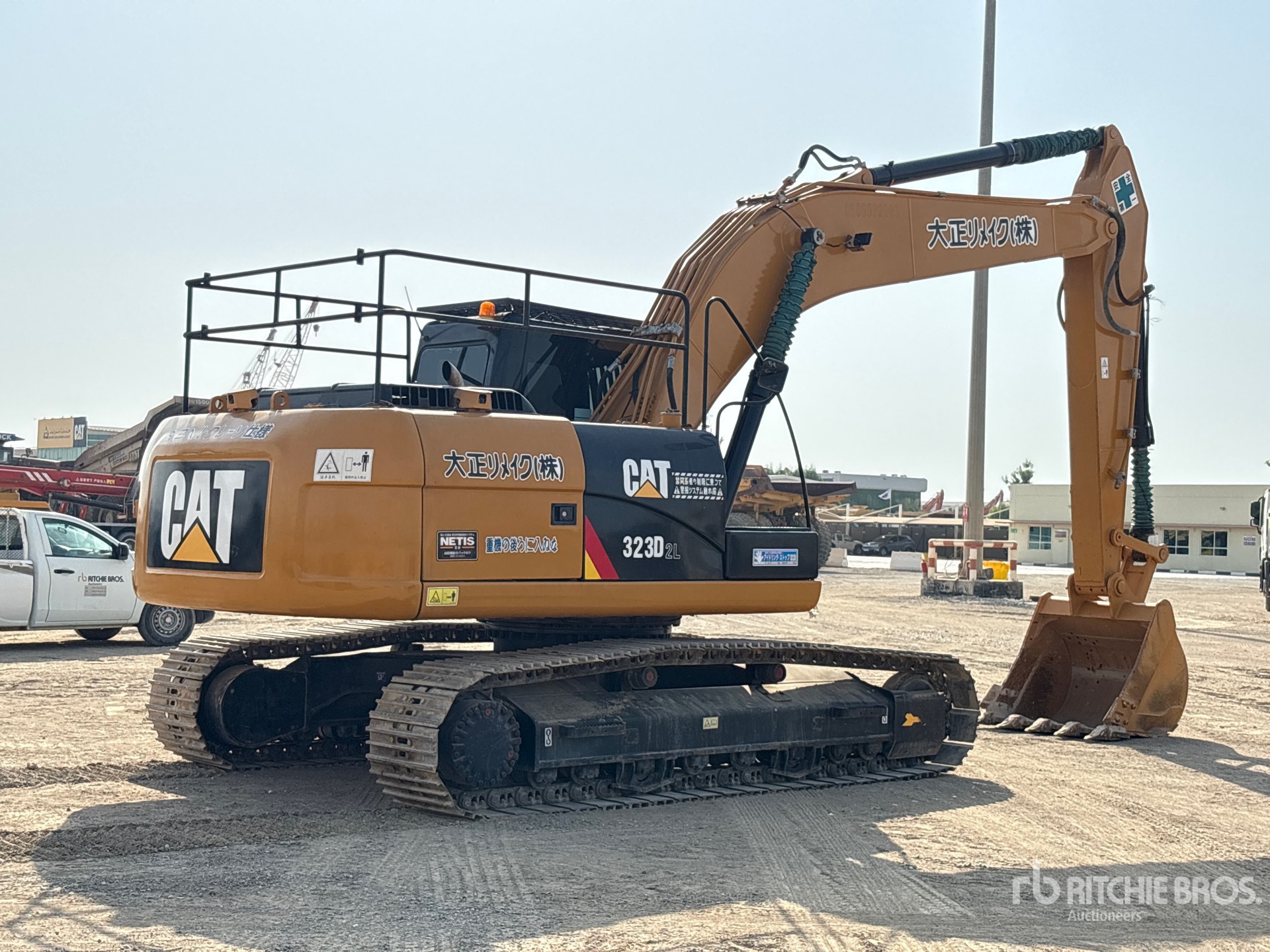

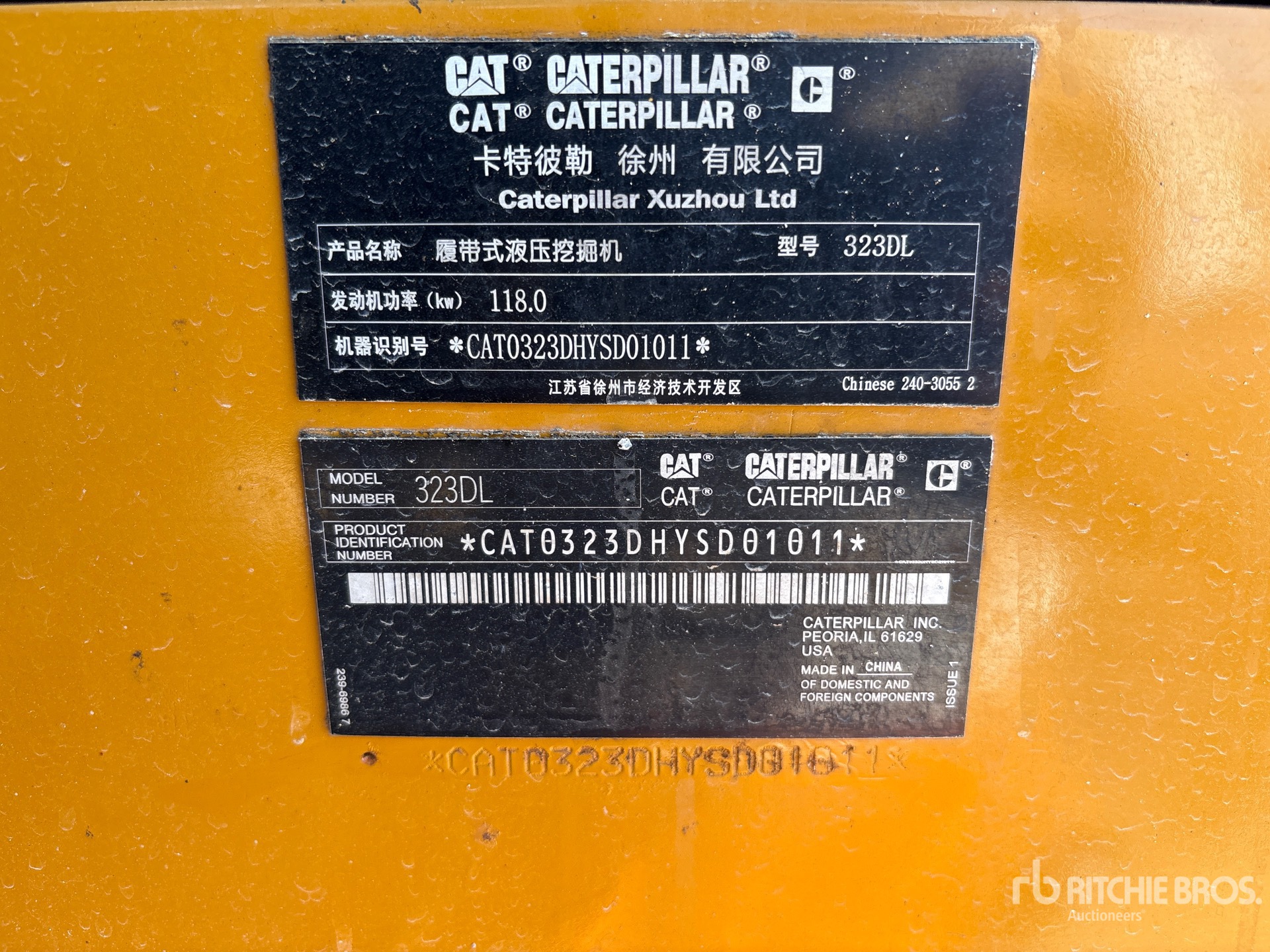

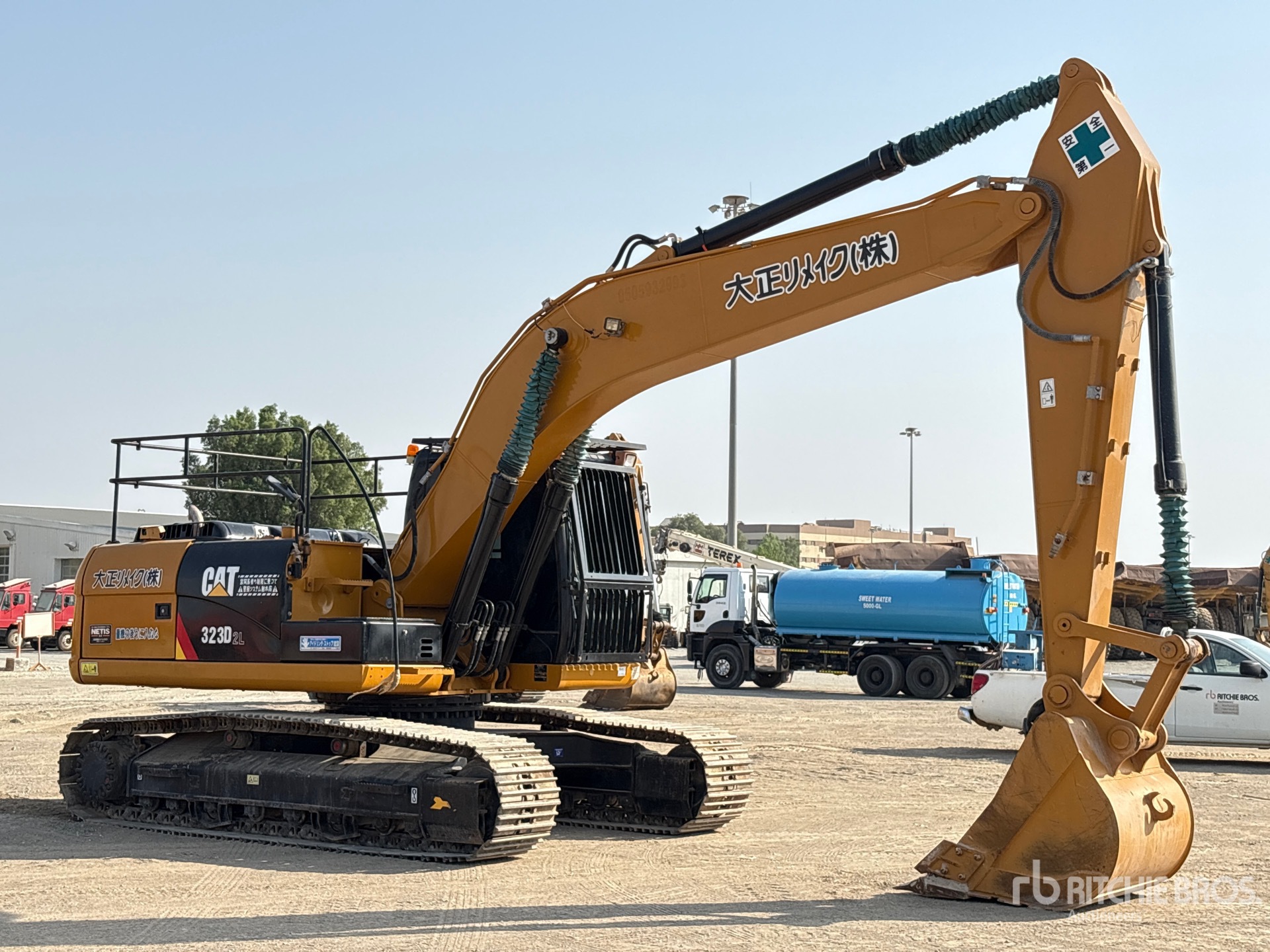

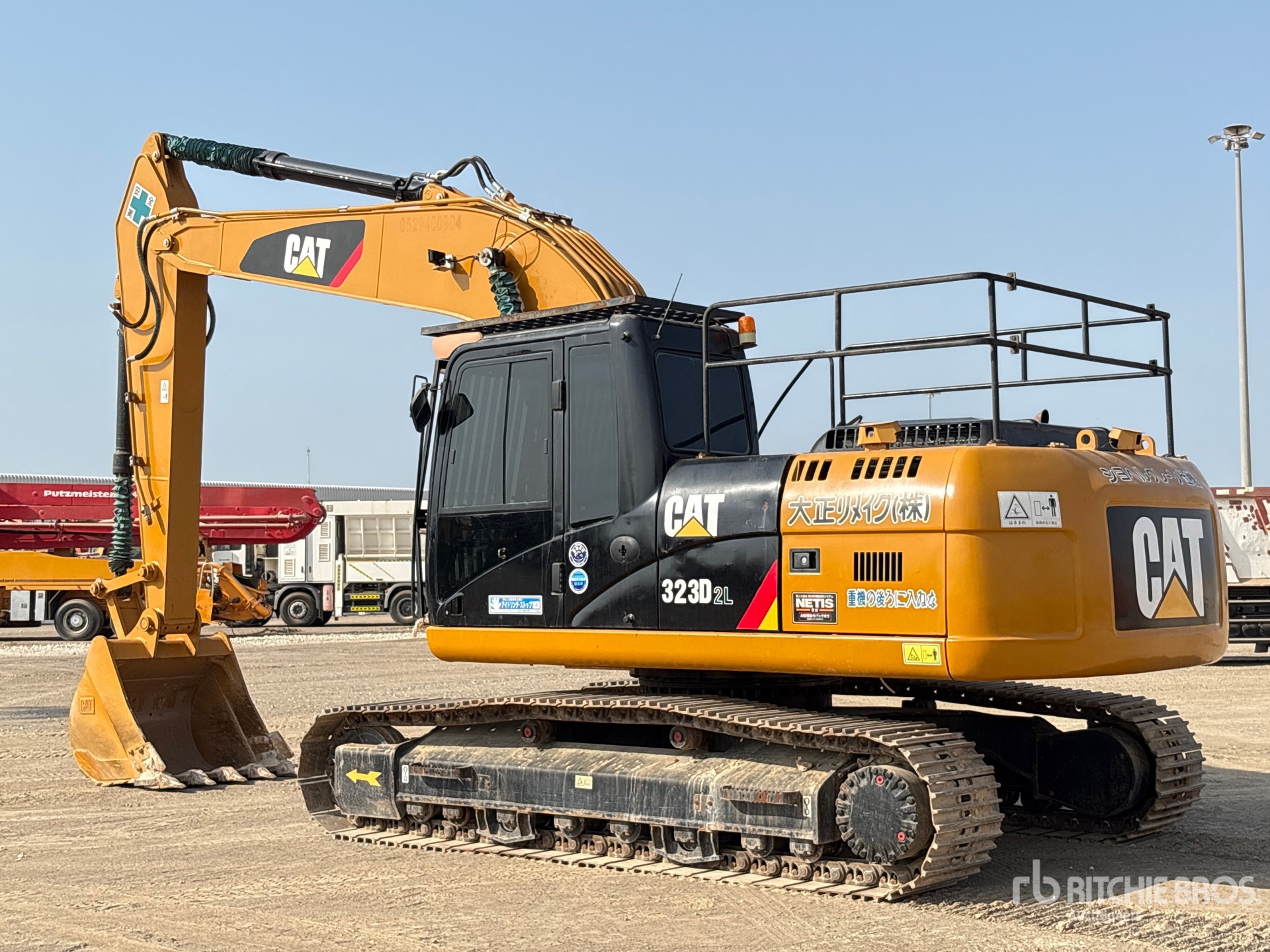

| Boom/Stick 1 |
|
Boom/Stick 1 |
Boom 5680mm / Stick 1900mm |
|
Max Cutting Height |
29 ft (9 m)
|
|
Max Digging Depth |
19 ft (6 m)
|
|
Max Loading Height |
20 ft (6 m)
|
|
Max Reach Along Ground |
29 ft (9 m)
|
|
Max Vertical Wall Digging Depth |
12 ft (4 m)
|
|
Shipping Height Of Unit |
10 ft (3 m)
|
|
Shipping Length Of Unit |
32 ft (10 m)
|
| Boom/Stick 2 |
|
Boom/Stick 2 |
Boom 5680mm / Stick 2500mm |
|
Max Cutting Height |
31 ft (9 m)
|
|
Max Digging Depth |
20 ft (6 m)
|
|
Max Loading Height |
22 ft (7 m)
|
|
Max Reach Along Ground |
31 ft (9 m)
|
|
Max Vertical Wall Digging Depth |
17 ft (5 m)
|
|
Shipping Height Of Unit |
10 ft (3 m)
|
|
Shipping Length Of Unit |
31 ft (9 m)
|
| Boom/Stick 3 |
|
Boom/Stick 3 |
Boom 5680mm / Stick 2920mm |
|
Max Cutting Height |
31 ft (10 m)
|
|
Max Digging Depth |
22 ft (7 m)
|
|
Max Loading Height |
22 ft (7 m)
|
|
Max Reach Along Ground |
32 ft (10 m)
|
|
Max Vertical Wall Digging Depth |
18 ft (6 m)
|
|
Shipping Height Of Unit |
10 ft (3 m)
|
|
Shipping Length Of Unit |
31 ft (9 m)
|
| Boom/Stick 4 |
|
Boom/Stick 4 |
Mass Boom 5200mm / Stick 1900mm |
|
Max Cutting Height |
29 ft (9 m)
|
|
Max Digging Depth |
17 ft (5 m)
|
|
Max Loading Height |
19 ft (6 m)
|
|
Max Reach Along Ground |
28 ft (9 m)
|
|
Max Vertical Wall Dig Depth |
12 ft (4 m)
|
|
Shipping Height Of Unit |
10 ft (3 m)
|
|
Shipping Length Of Unit |
30 ft (9 m)
|
| Buckets |
|
Reference Bucket Capacity |
2 cu yd |

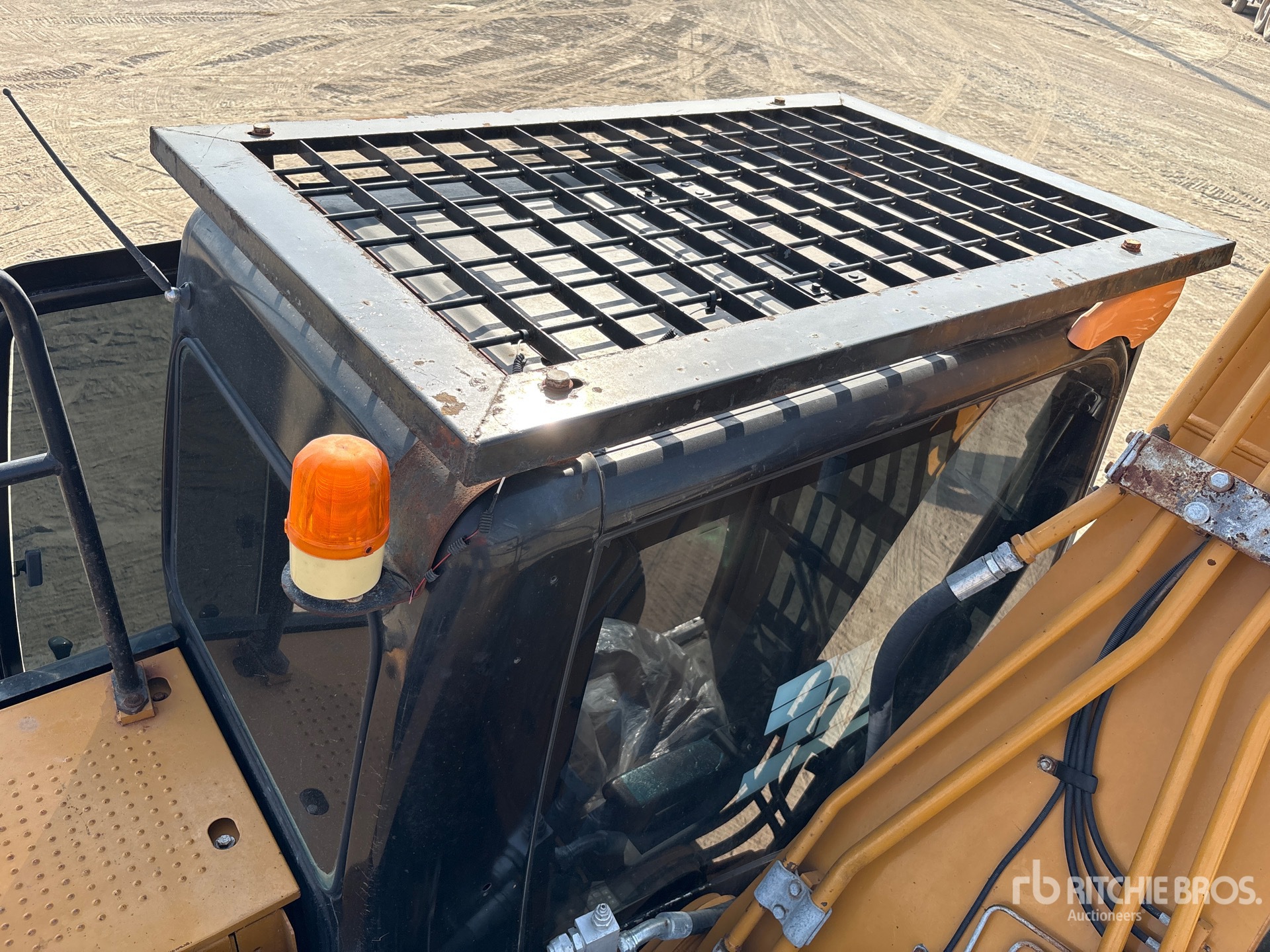

| Dimensions |
|
Ground Clearance |
2 ft (0 m)
|
|
Height |
10 ft (3 m)
|
|
Height |
10 ft (3 m)
|
|
Height To Top Of Cab |
10 ft (3 m)
|
|
Length |
33 ft (10 m)
|
|
Length |
32 ft (10 m)
|
|
Length Of Track On Ground |
12 ft (4 m)
|
|
Removal Counterweight Clearance |
3 ft (1 m)
|
|
Tail Swing Radius |
9 ft (3 m)
|
|
Weight |
50,706 lbs (22,996 kg)
|
|
Weight |
48,193 lbs (21,856 kg)
|
|
Width |
10 ft (3 m)
|
|
Width |
9 ft (3 m)
|
|
Width To Outside Of Tracks |
10 ft (3 m)
|
| Drive |
|
Maximum Drawbar Pull |
46,310 lbs (21,006 kg)
|
|
Maximum Travel Speed |
4 mph (6 kph)
|
| Engine |
|
Aspiration |
Turbocharged |
|
Bore |
4 in (10 cm)
|
|
Displacement |
389 cu in (6,375 cu cm)
|
|
Engine Make |
2,236 |
|
Engine Model |
3066 ATAAC |
|
Engine Model |
Cat C6.4 ACERT |
|
Net Flywheel Power |
150 hp (112 kw)
|
|
Net Power |
140 hp (104 kw)
|
|
Net Power - Eec 80/1269 |
150 hp (112 kw)
|
|
Net Power - Iso 9249 |
150 hp (112 kw)
|
|
Power Measured @ |
1,800 rpm |
|
Stroke |
5 in (13 cm)
|
| Hydraulic System |
|
B1 Family Bucket Cylinder - Bore |
5 in (12 cm)
|
|
B1 Family Bucket Cylinder - Stroke |
44 in (110 cm)
|
|
Boom Cylinder - Bore |
5 in (12 cm)
|
|
Boom Cylinder - Stroke |
50 in (126 cm)
|
|
Main Implement System - Maximum Flow (2x) |
54 gpm (204 lpm)
|
|
Maximum Pressure - Equipment |
5,076 psi |
|
Maximum Pressure - Normal |
5,076 psi |
|
Maximum Pressure - Swing |
3,626 psi |
|
Maximum Pressure - Travel |
5,076 psi |
|
Pilot System - Maximum Flow |
9 gpm (33 lpm)
|
|
Pilot System - Maximum Pressure |
566 psi |
|
Stick Cylinder - Bore |
6 in (14 cm)
|
|
Stick Cylinder - Stroke |
59 in (150 cm)
|
| Operational |
|
Alternator Supplied Amperage |
80 amps |
|
Cooling System Fluid Capacity |
7 gal (25 l)
|
|
Engine Oil Capacity |
8 gal (30 l)
|
|
Fuel Capacity |
85 gal (320 l)
|
|
Hydraulic Pump Flow Capacity |
108 gpm (410 lpm)
|
|
Hydraulic System Fluid Capacity |
69 gal (260 l)
|
|
Hydraulic System Relief Valve Pressure |
5,076 psi |
|
Operating Voltage |
24 V |
|
Operating Weight |
48,193 lbs (21,860 kg)
|
|
Swing Drive Fluid Capacity |
2 gal (8 l)
|

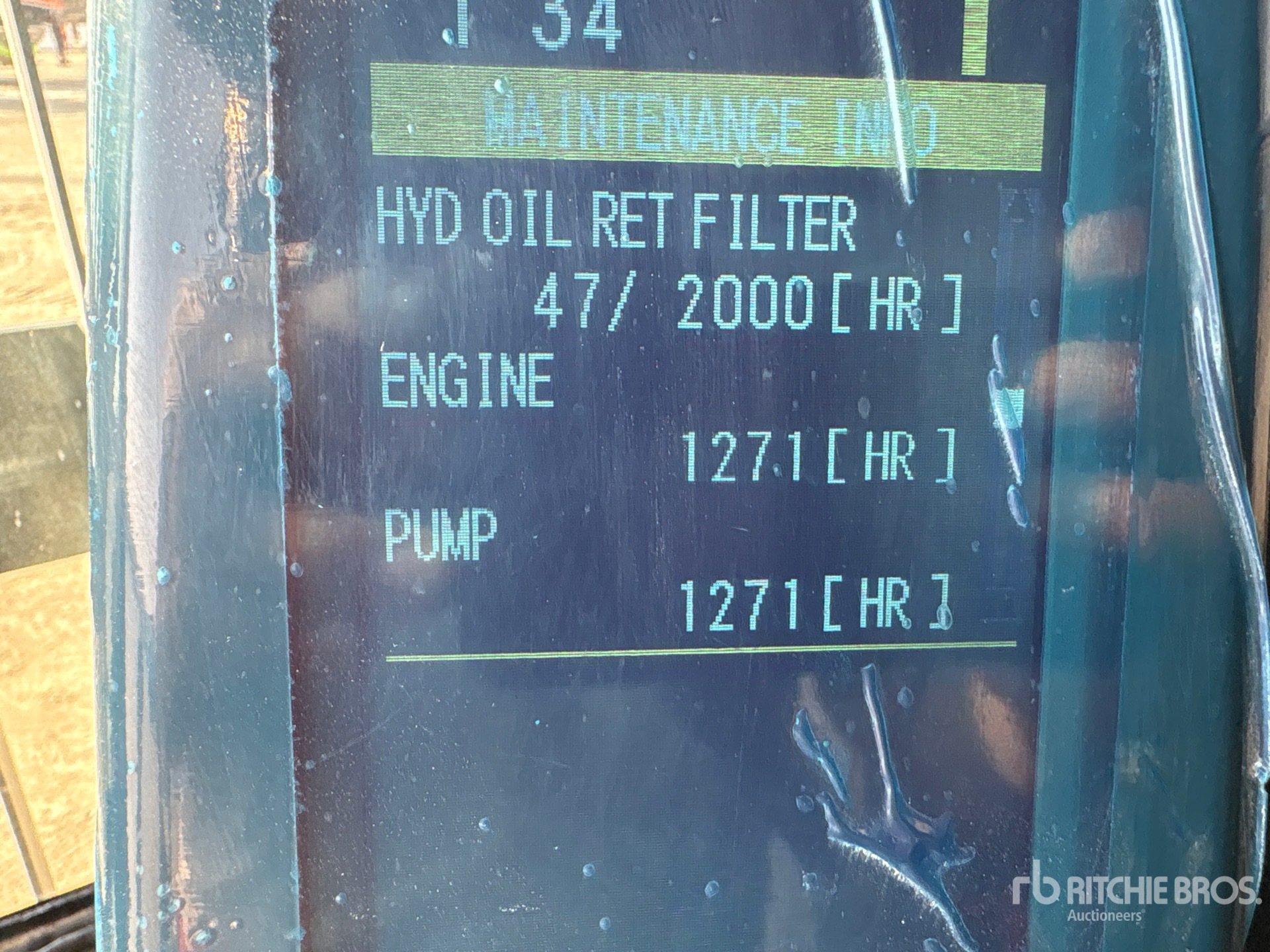

| Service Refill Capacities |
|
Cooling System |
7 gal (25 l)
|
|
Engine Oil |
8 gal (30 l)
|
|
Final Drive - Each |
3 gal (10 l)
|
|
Fuel Tank Capacity |
108 gal (409 l)
|
|
Hydraulic System - Including Tank |
69 gal (261 l)
|
|
Hydraulic Tank |
32 gal (121 l)
|
|
Swing Drive |
2 gal (8 l)
|
| Sound Performance |
|
Performance |
ANSI/SAE J1166 OCT 98 |
| Standards |
|
Brakes |
SAE J1026 APR90 |
|
Cab/Fogs |
SAE J1356 FEB88 |
| Swing Mechanism |
|
Swing Speed |
12 rpm |
|
Swing Torque |
45,600 lbs ft (61,824 nm)
|
| Undercarriage |
|
Drawbar Pull |
46,311 lbs (21,006 kg)
|
|
Ground Pressure |
7 psi |
|
Max Travel Speed |
3 mph (6 kph)
|
|
Shoe Size |
24 in (60 cm)
|
|
Track Gauge |
8 ft (2 m)
|
| Weights |
|
Operating Weight |
50,706 lbs (23,000 kg)
|
|
Operating Weight - Maximum |
50,926 lbs (23,100 kg)
|
|
Operating Weight - Minimum |
49,163 lbs (22,300 kg)
|
