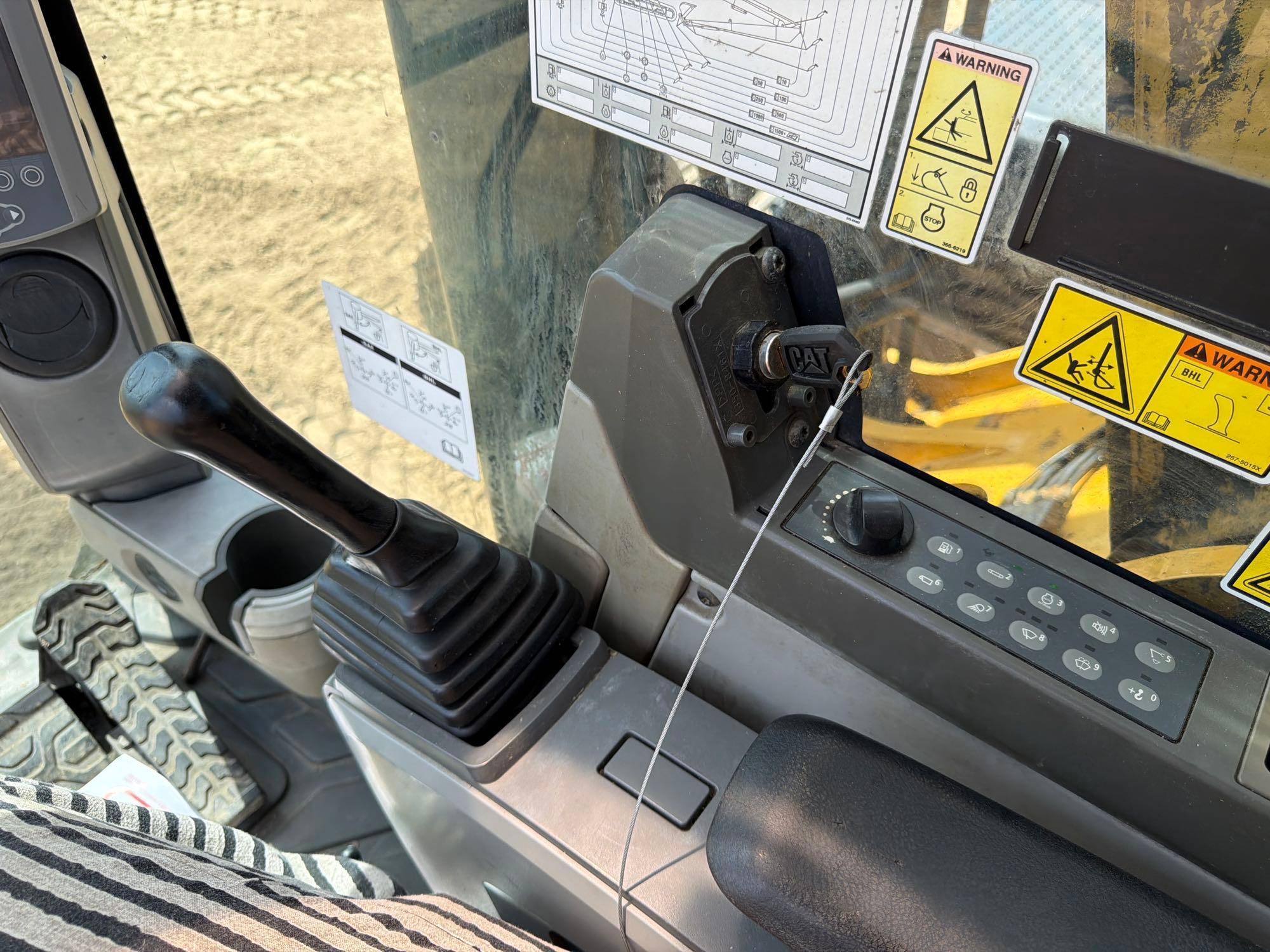

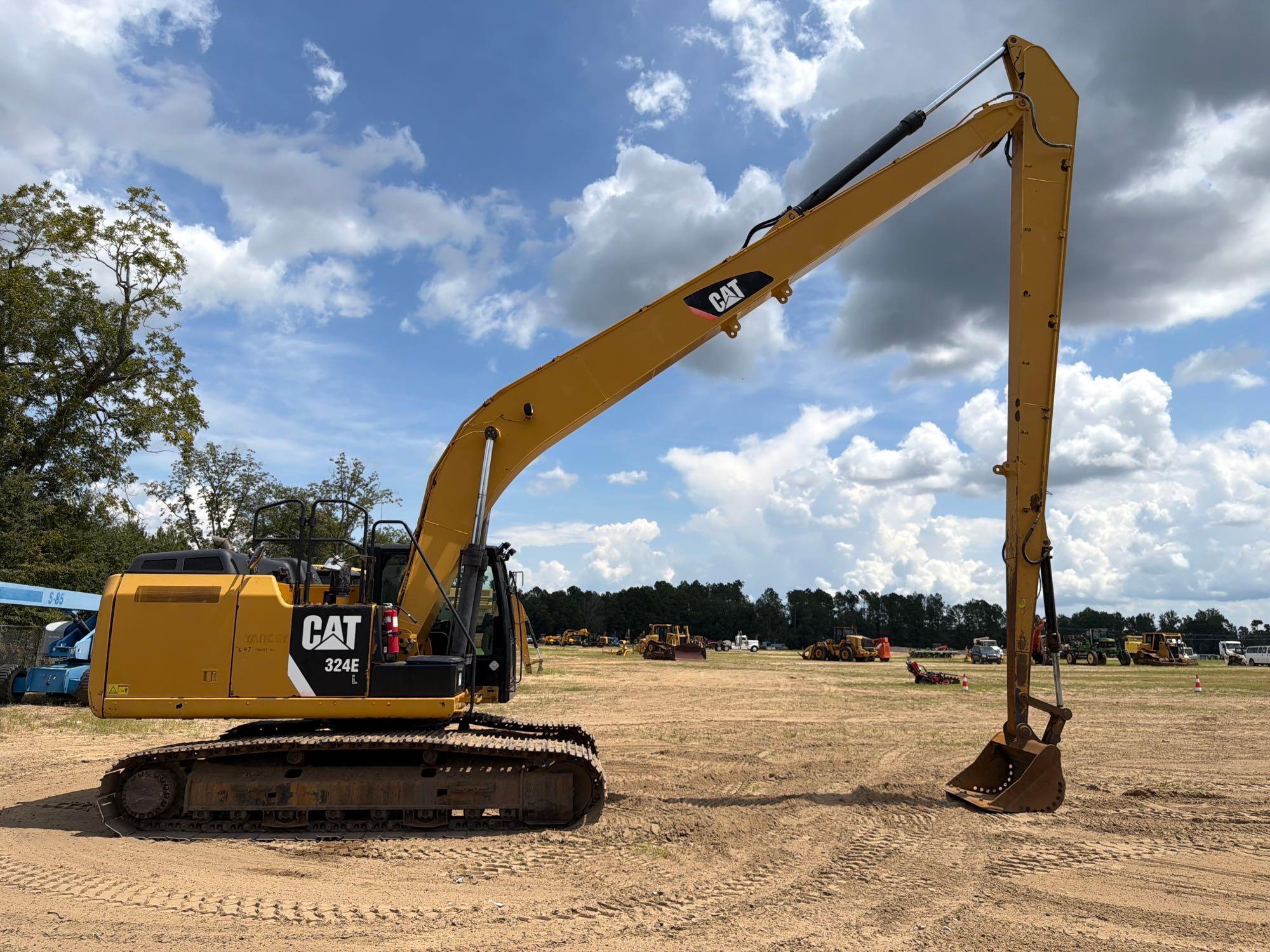

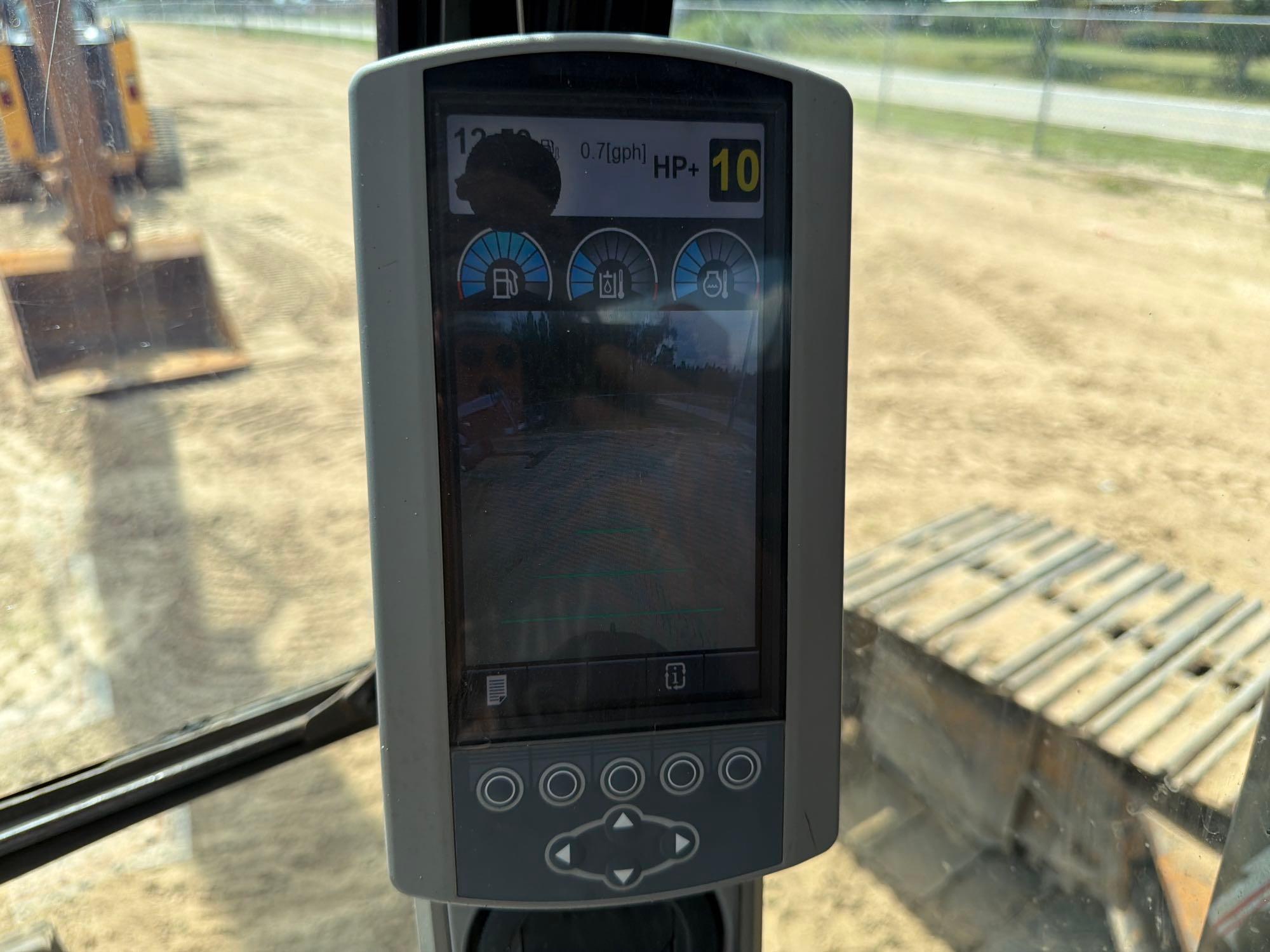

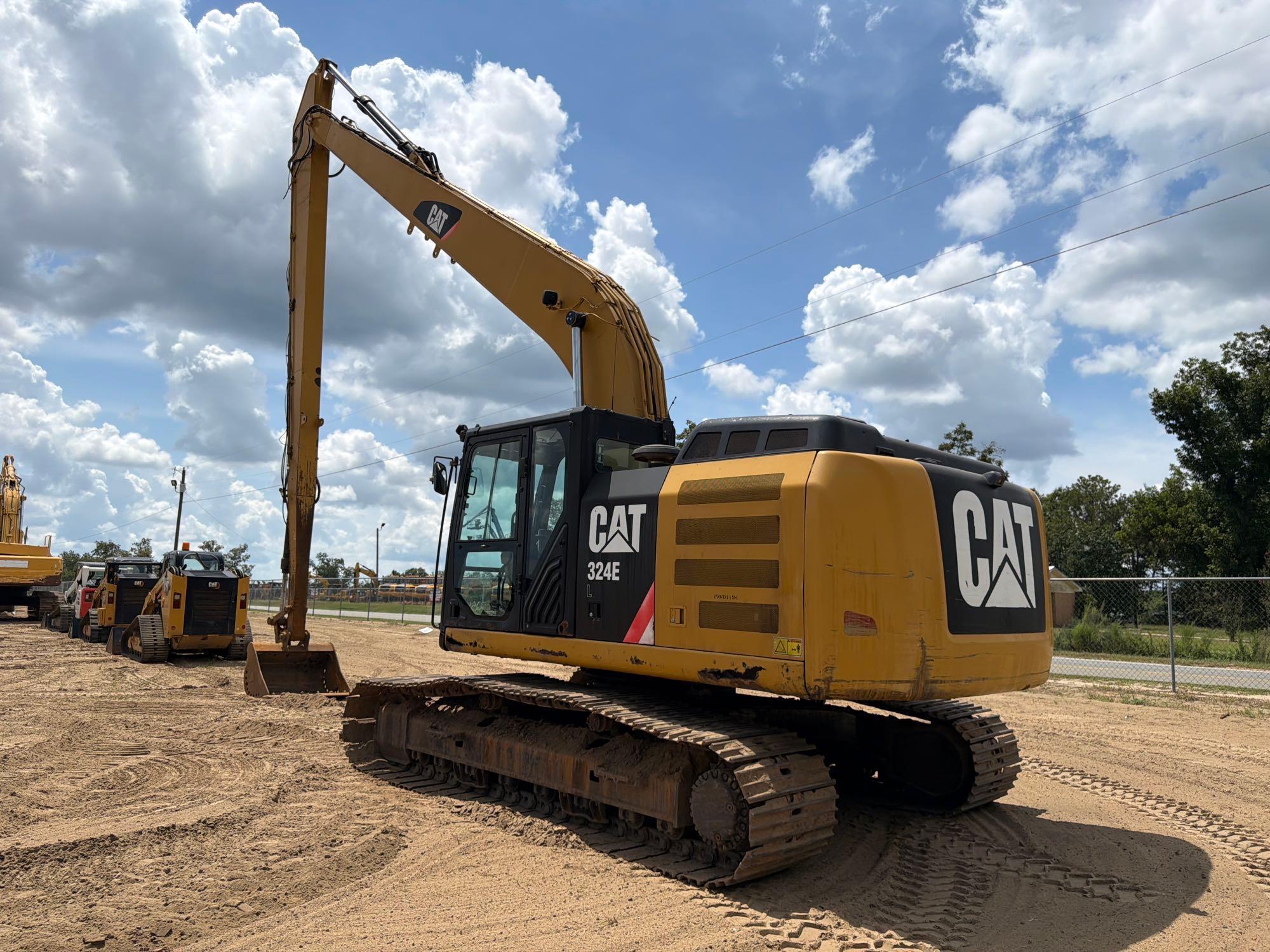

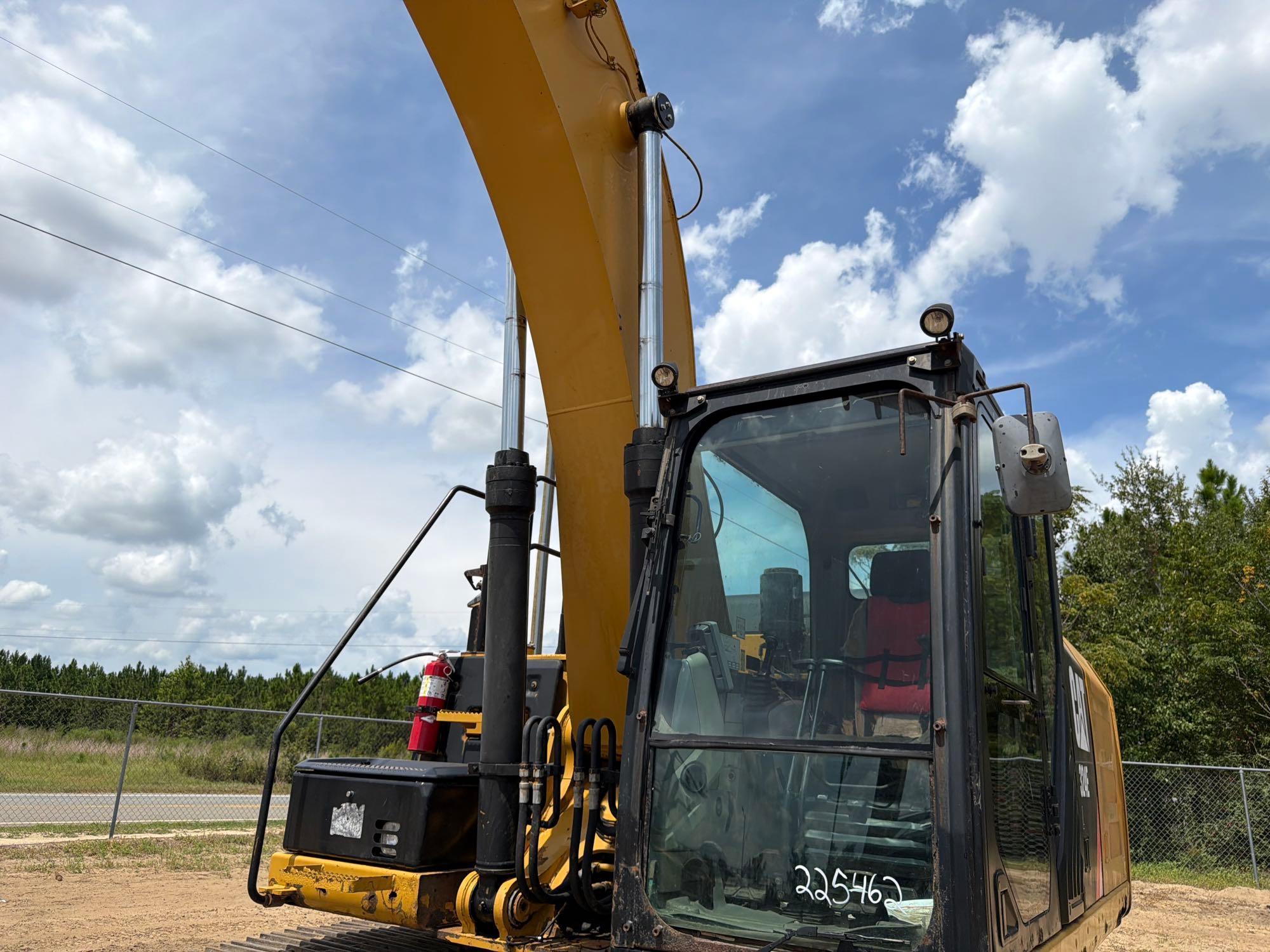

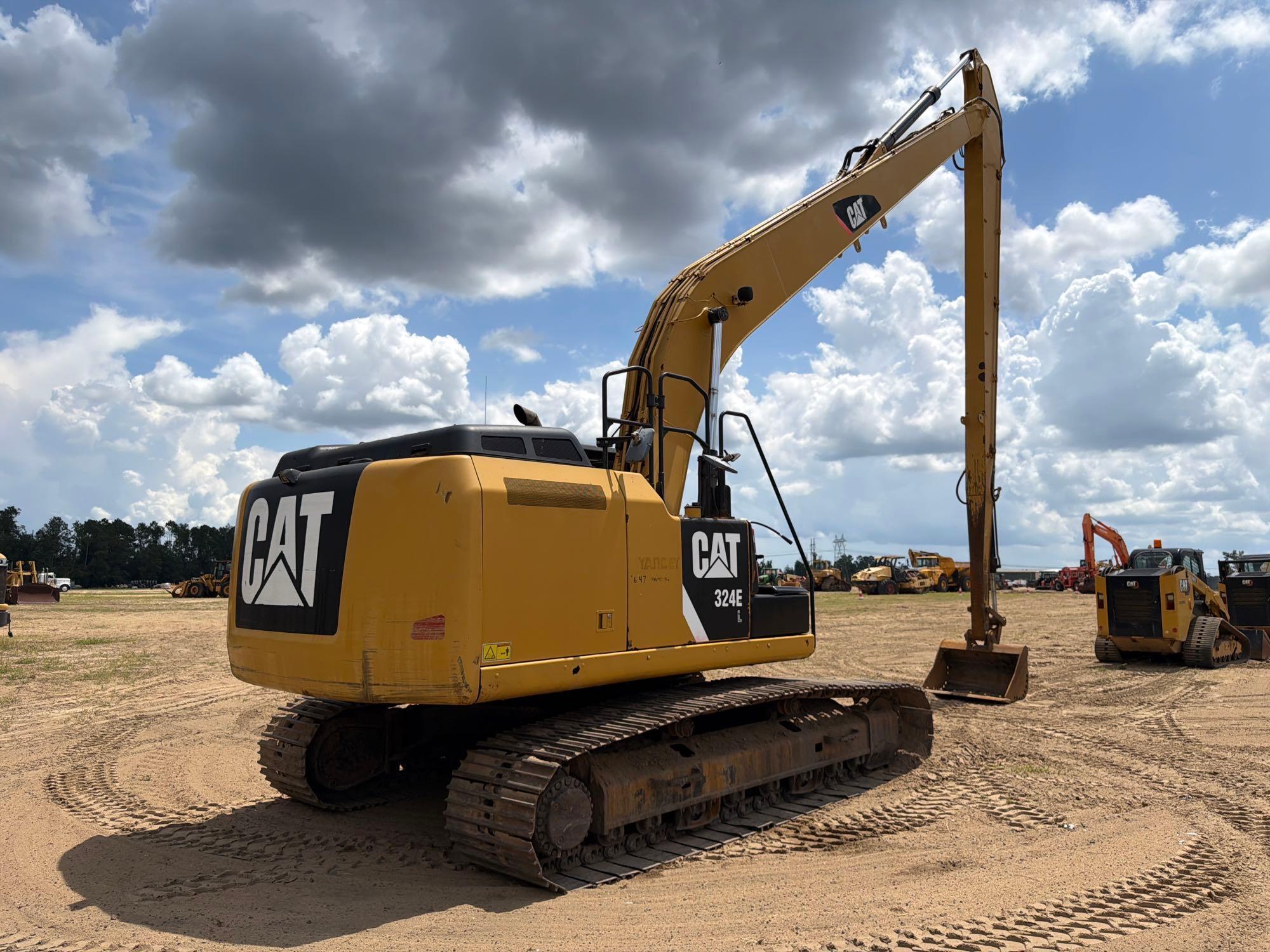

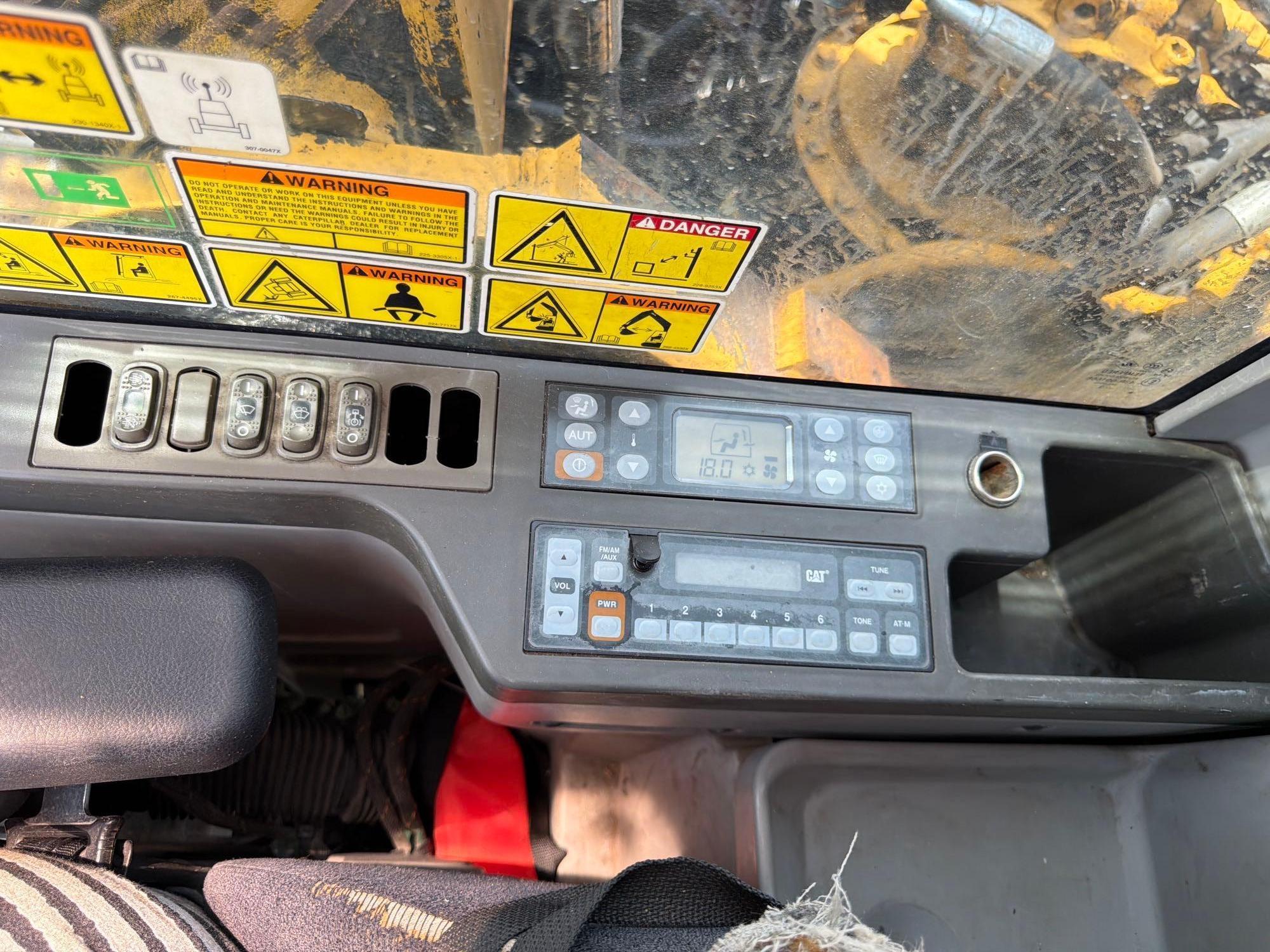

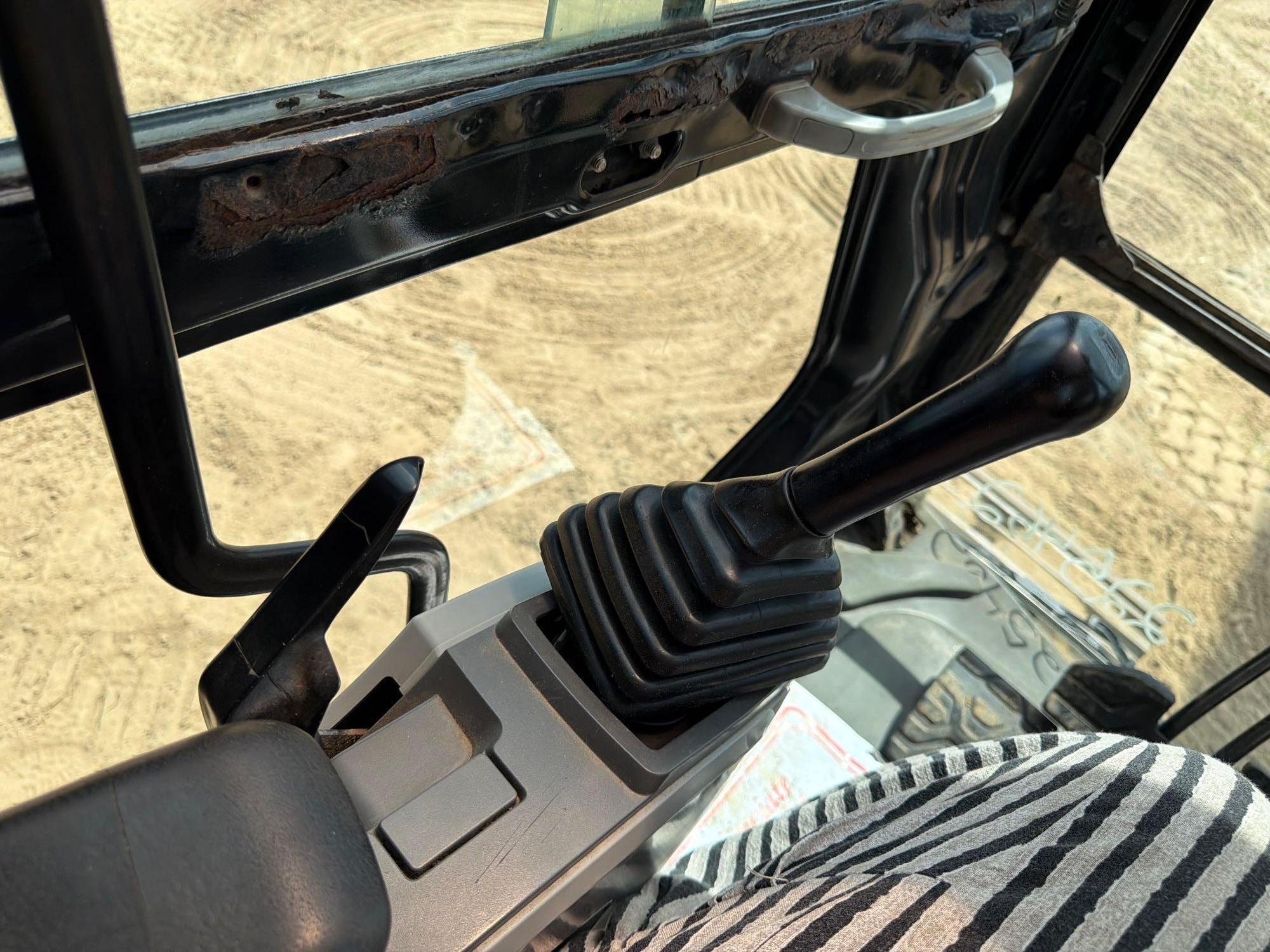

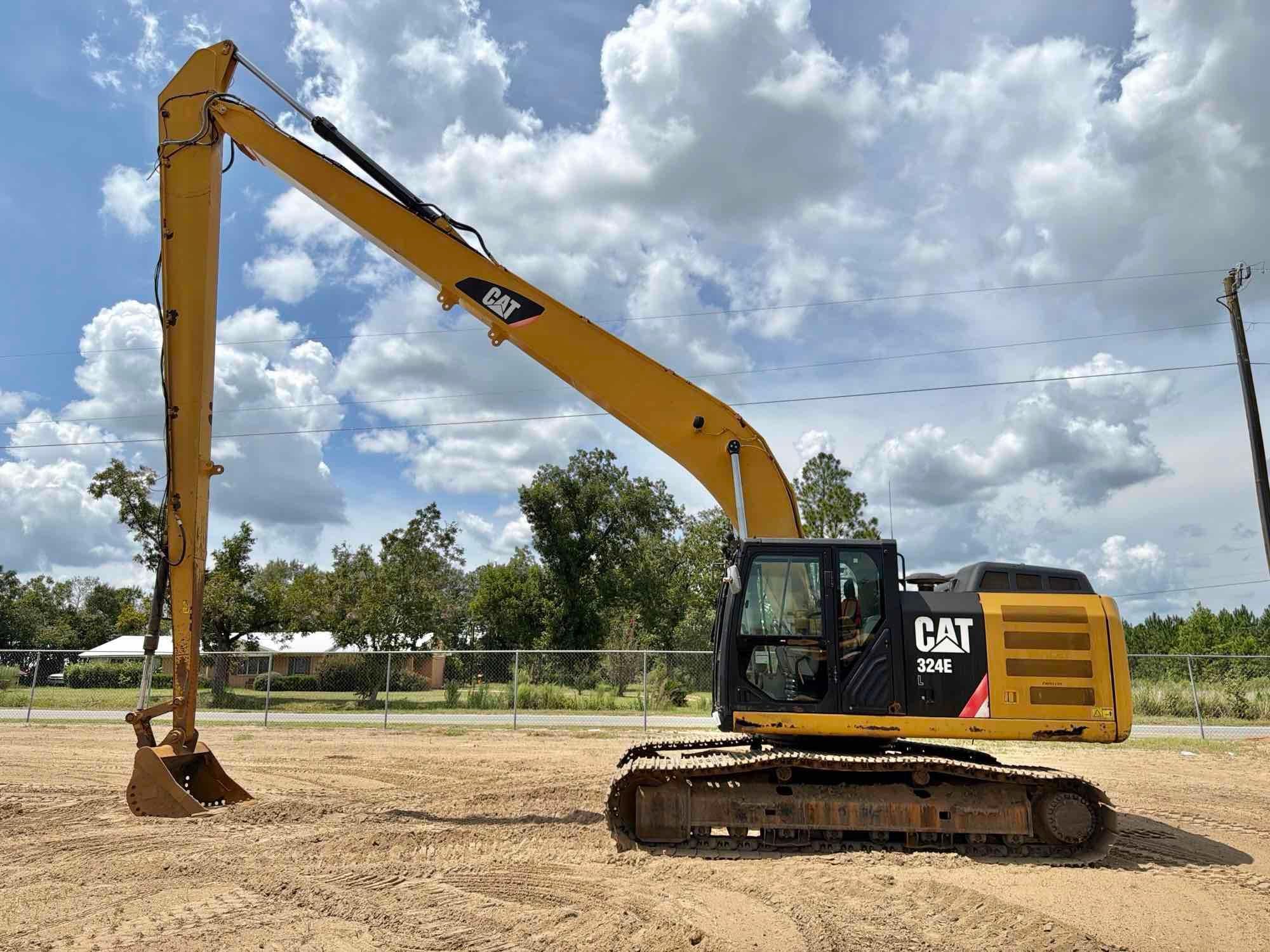

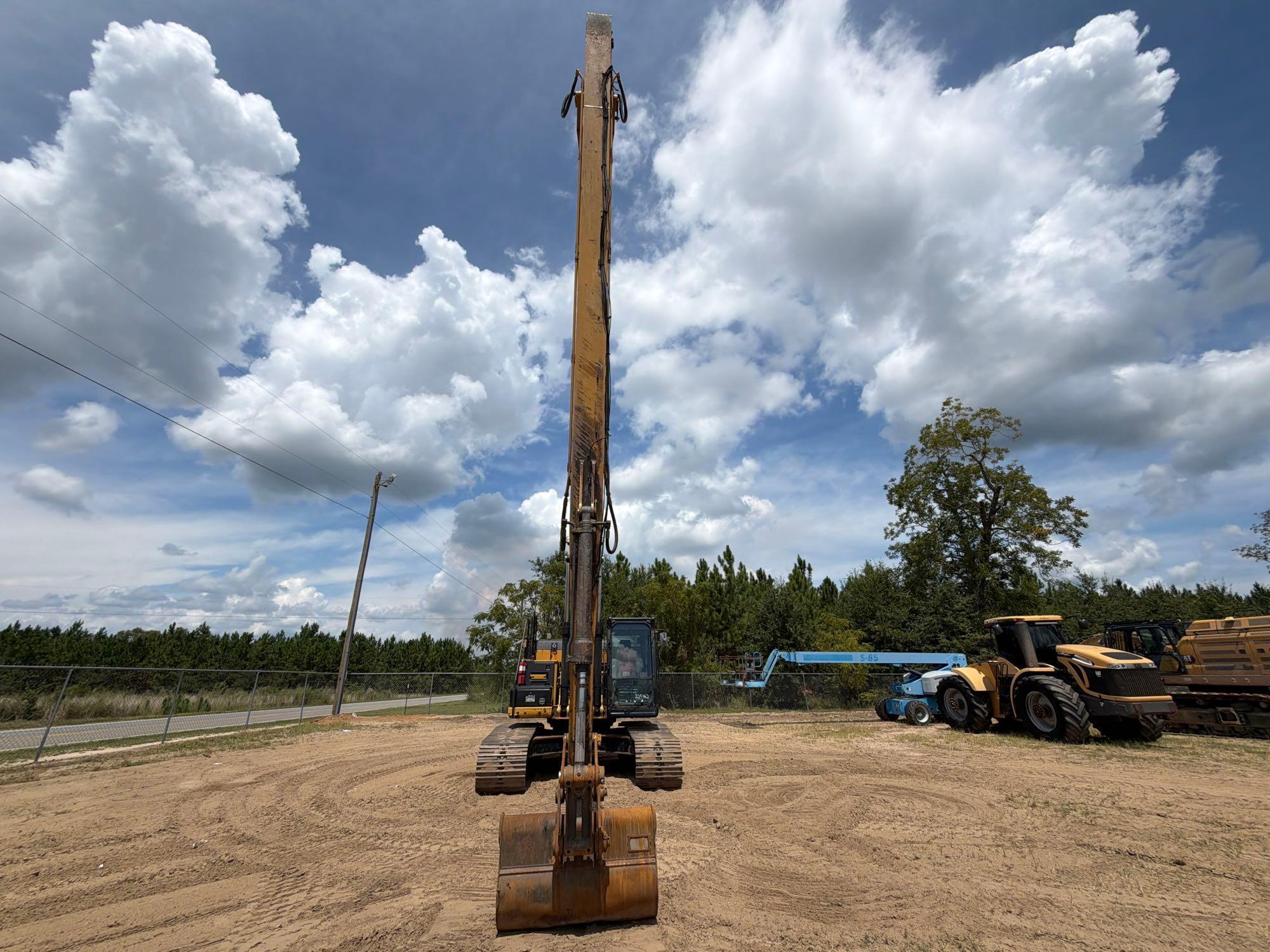

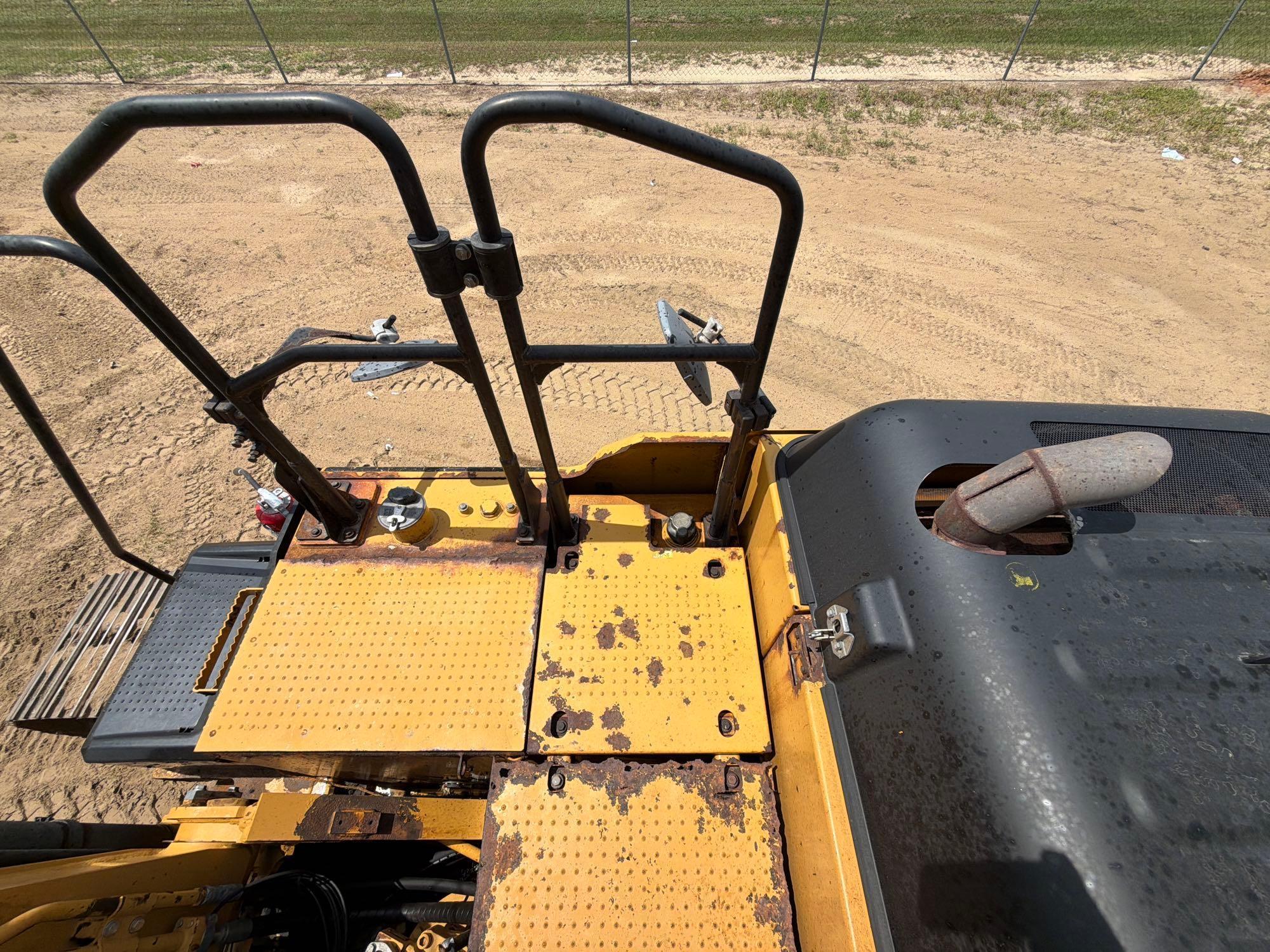

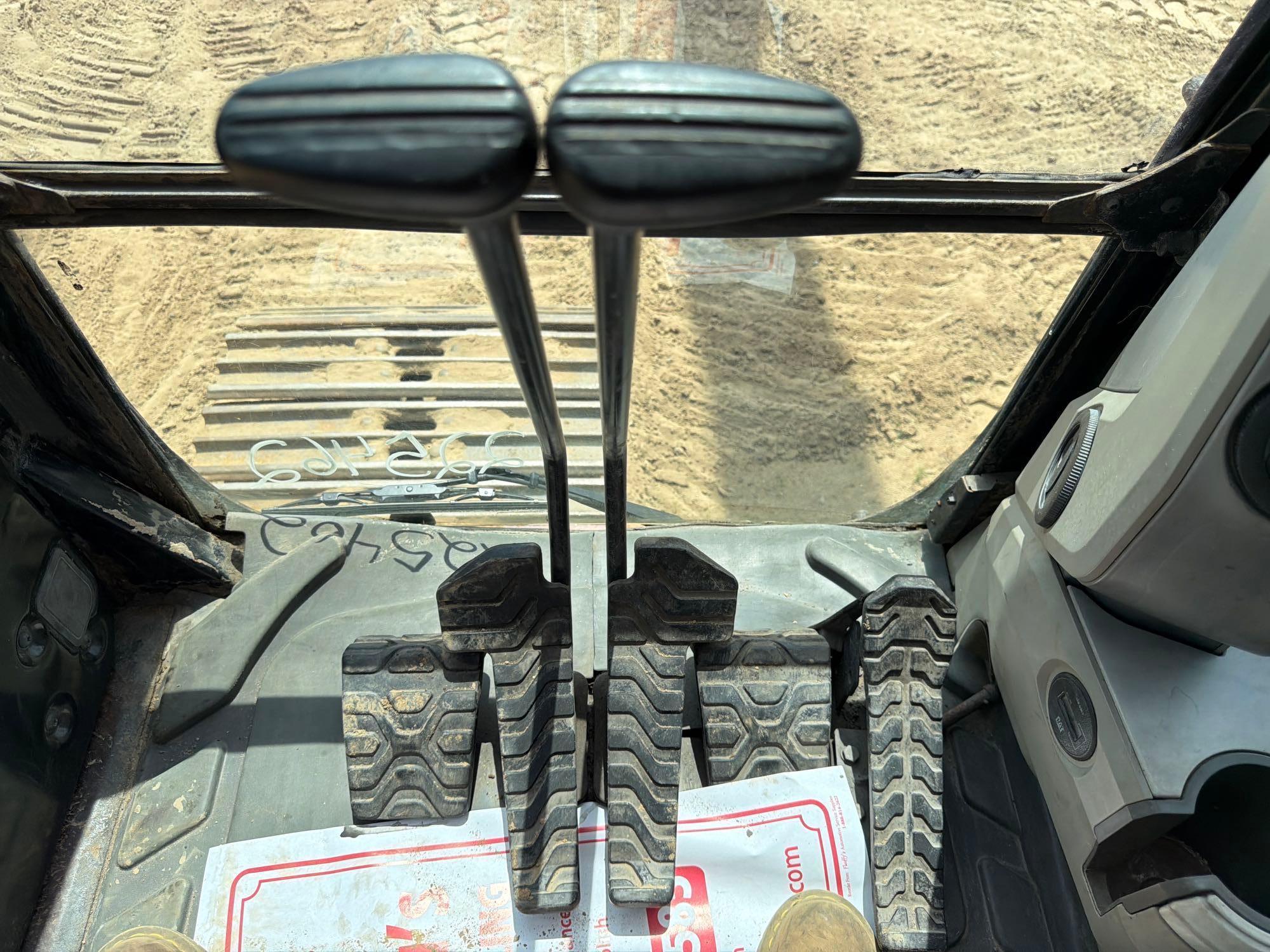

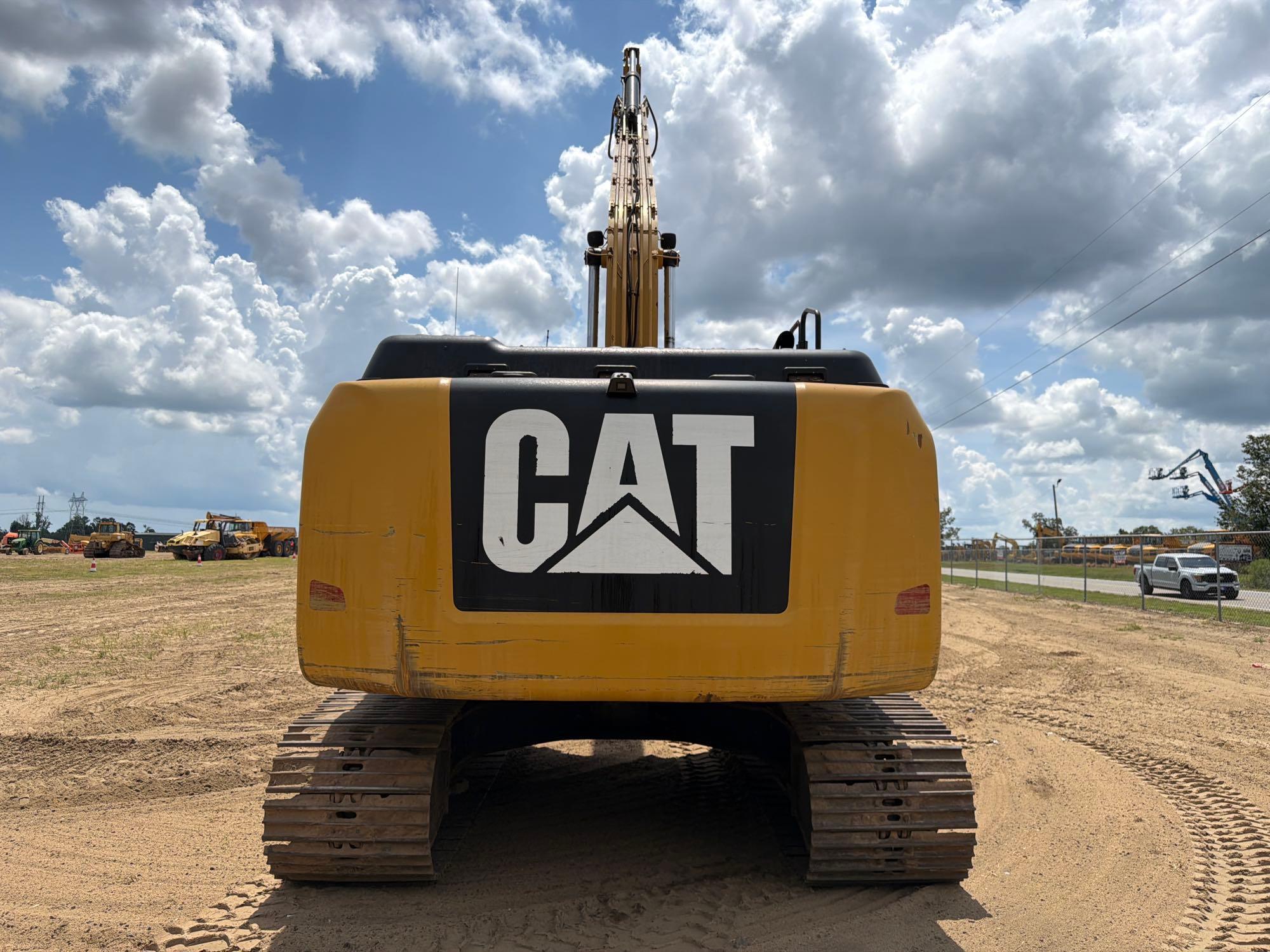

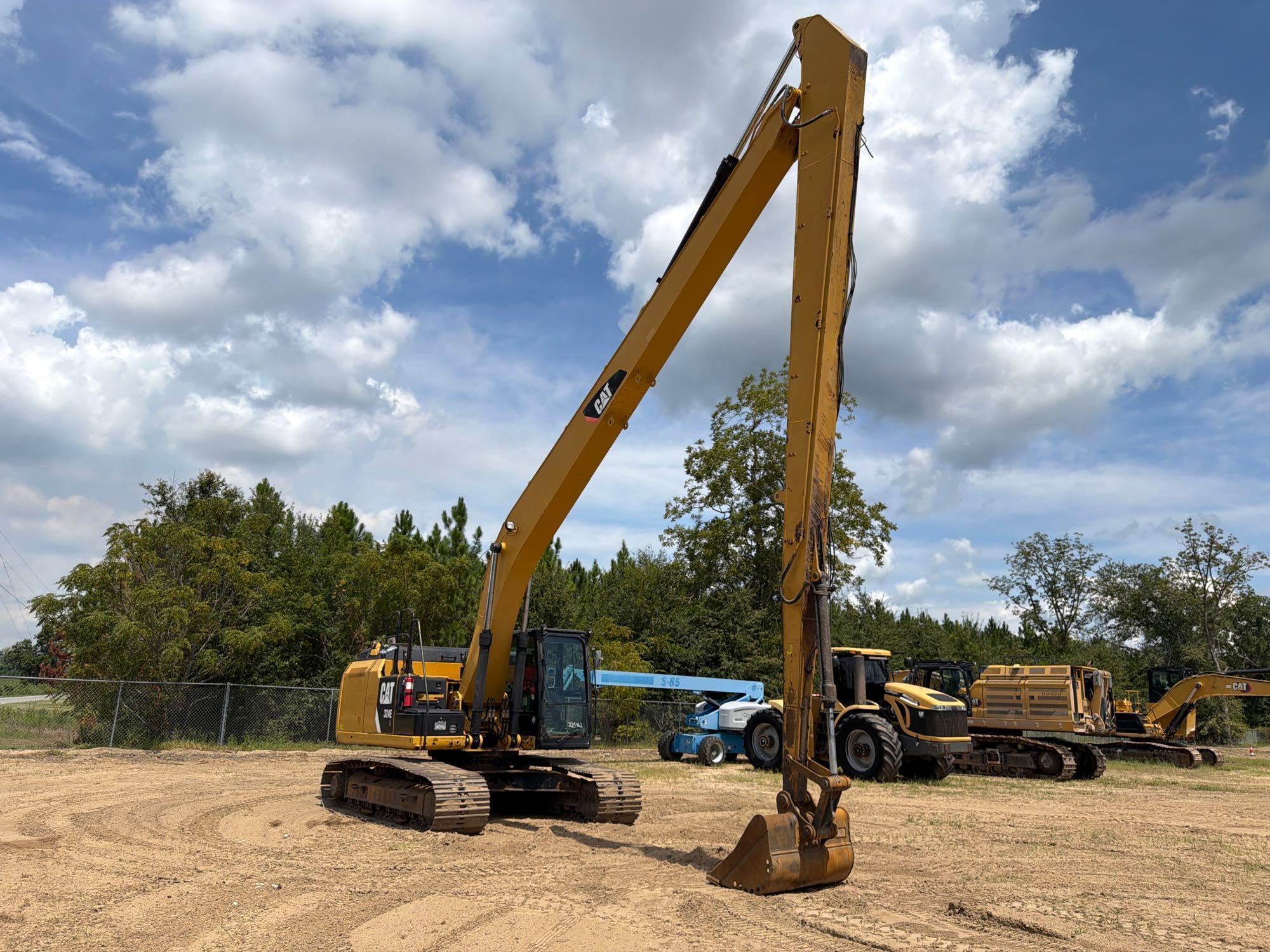

| Dimensions |
|
Ground Clearance |
1 ft (0 m)
|
|
Height |
11 ft (3 m)
|
|
Length |
33 ft (10 m)
|
|
Weight |
64,990 lbs (29,479 kg)
|
|
Width |
11 ft (3 m)
|

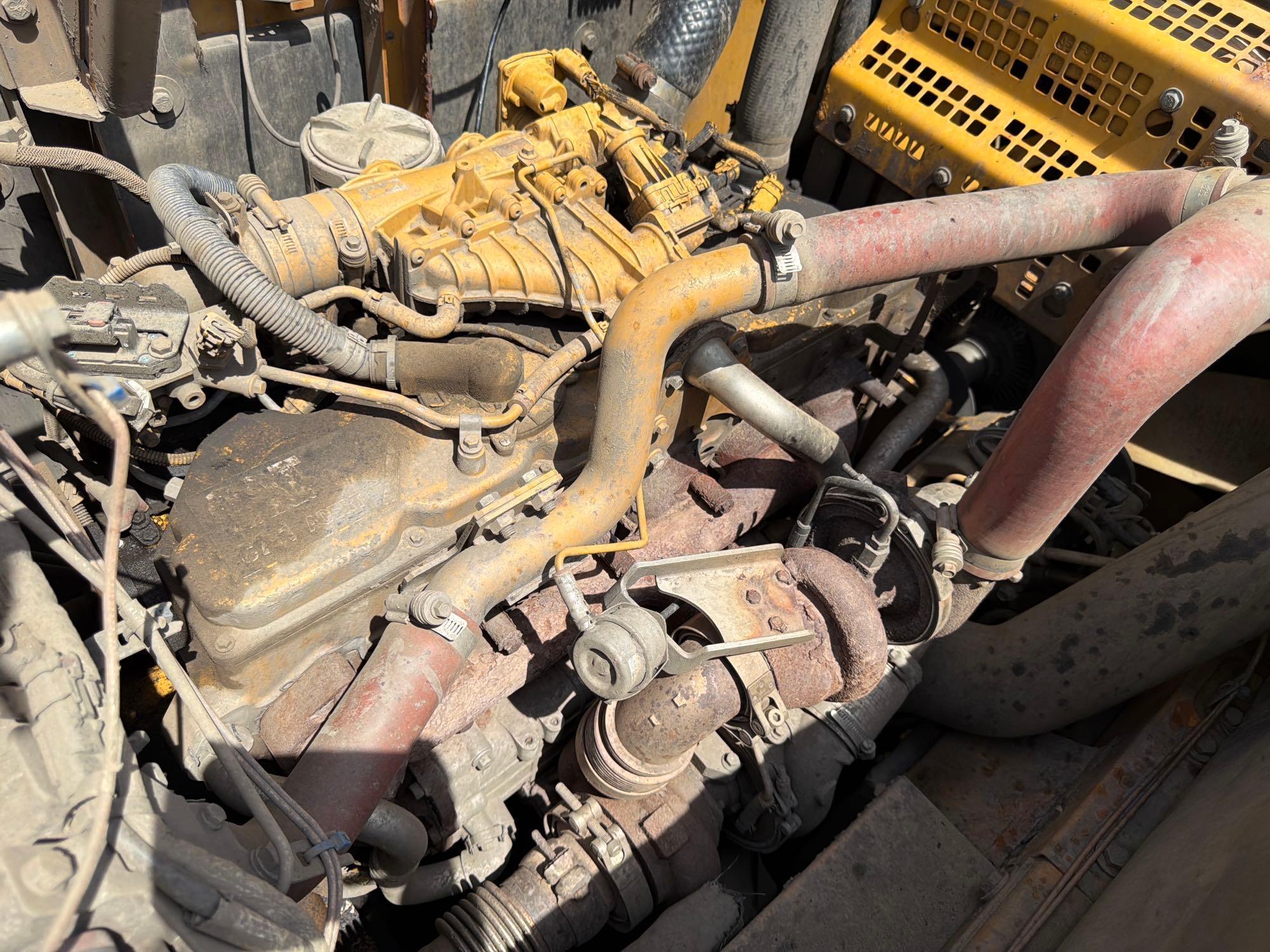

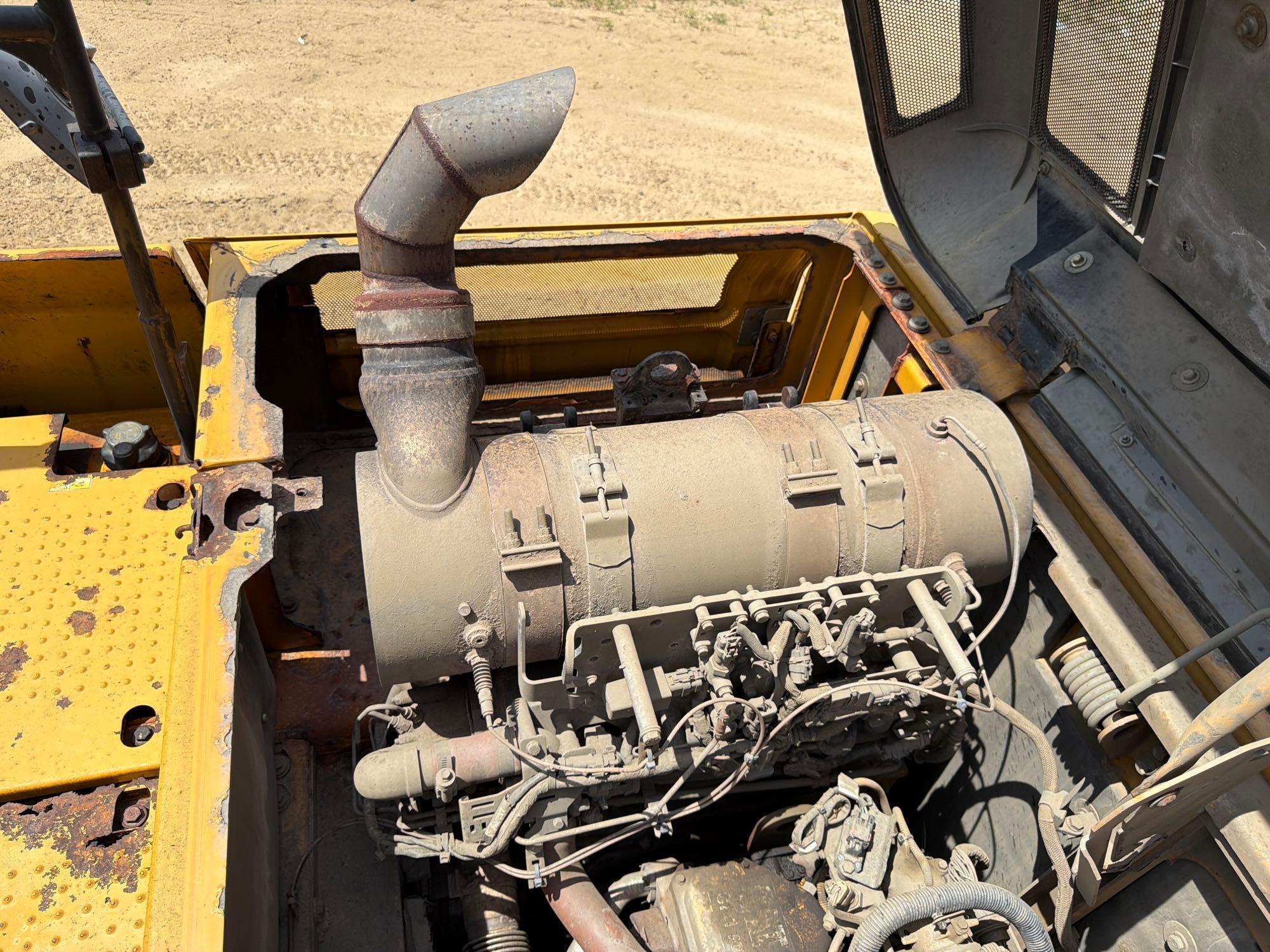

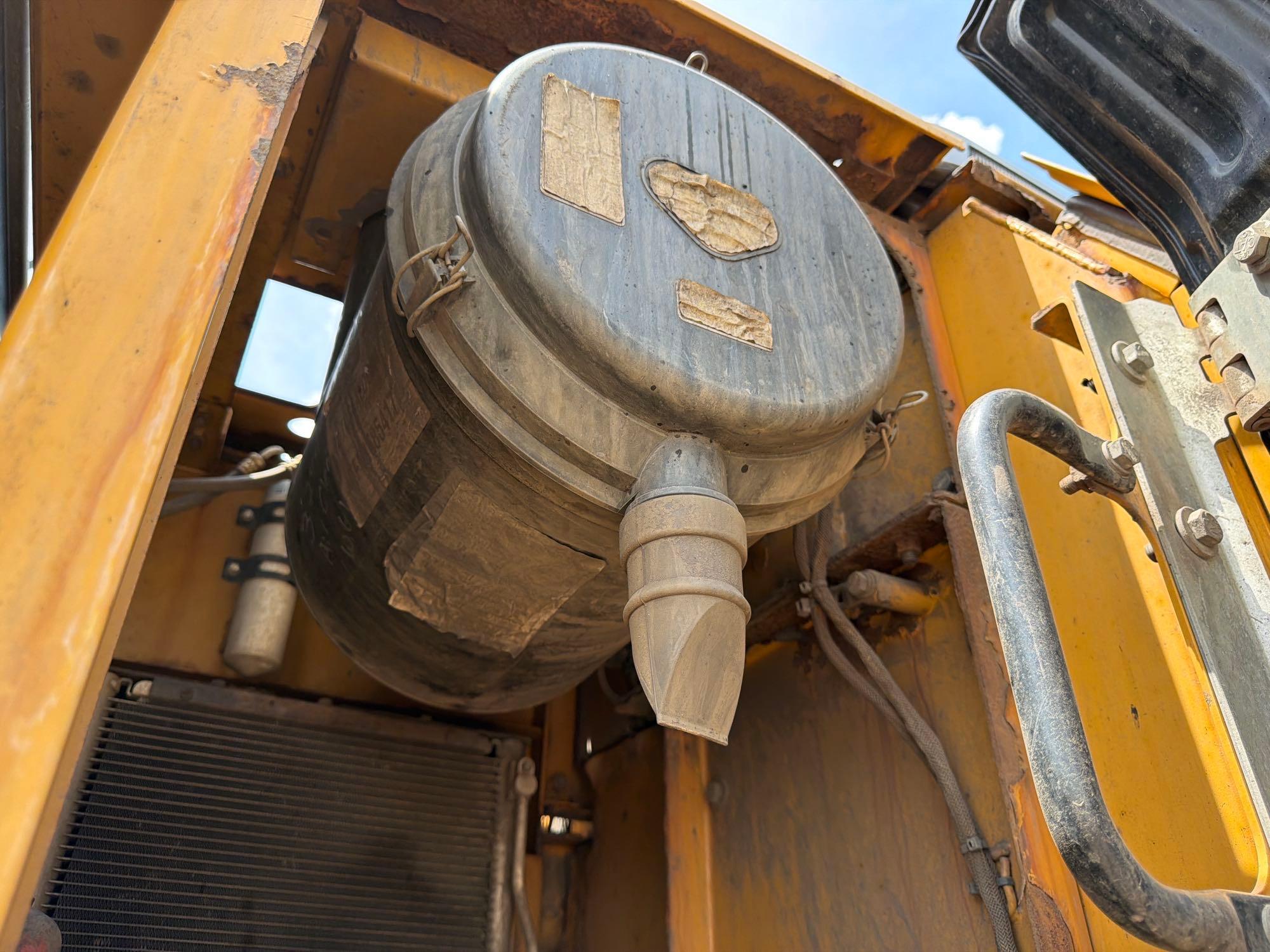

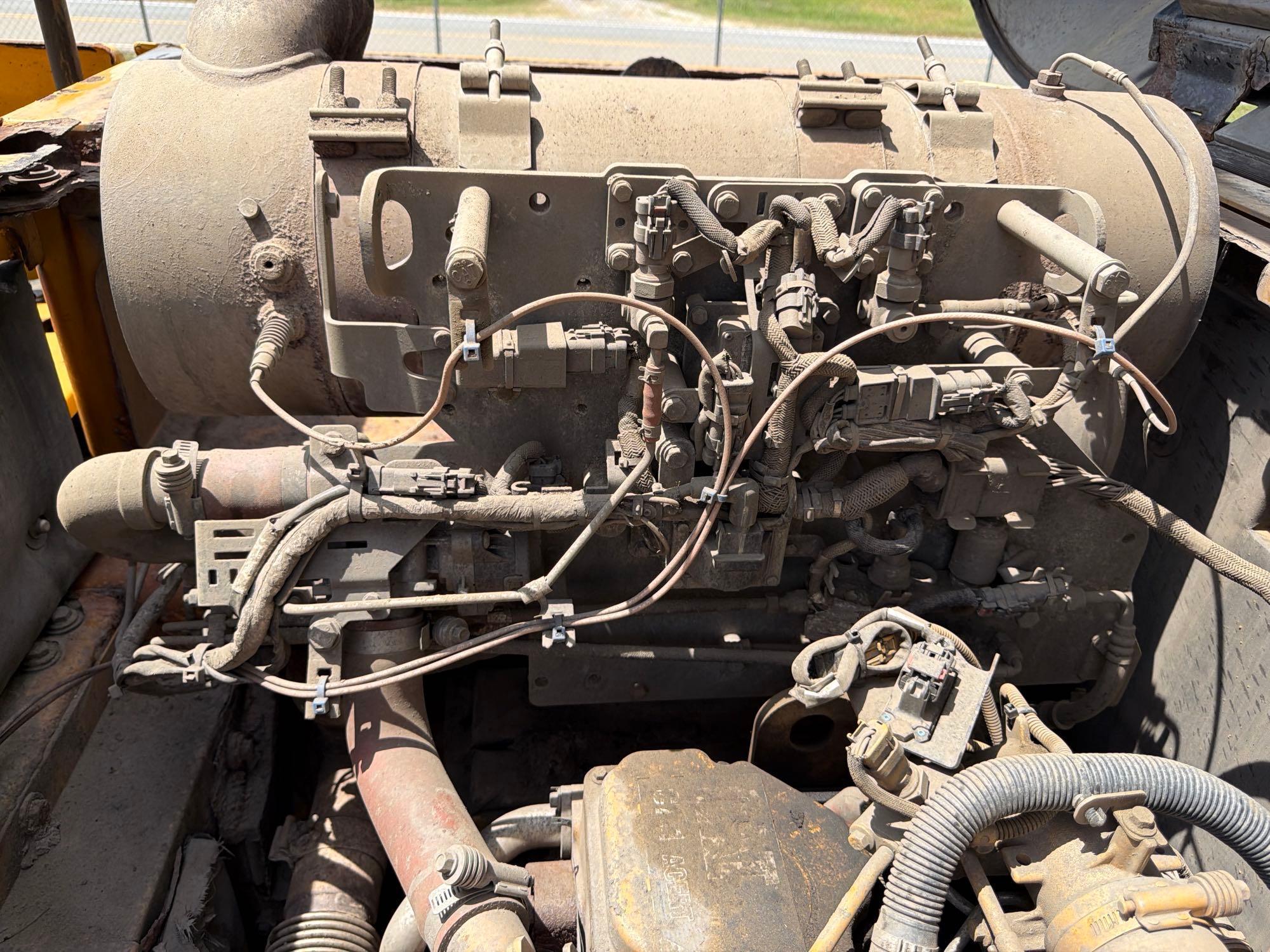

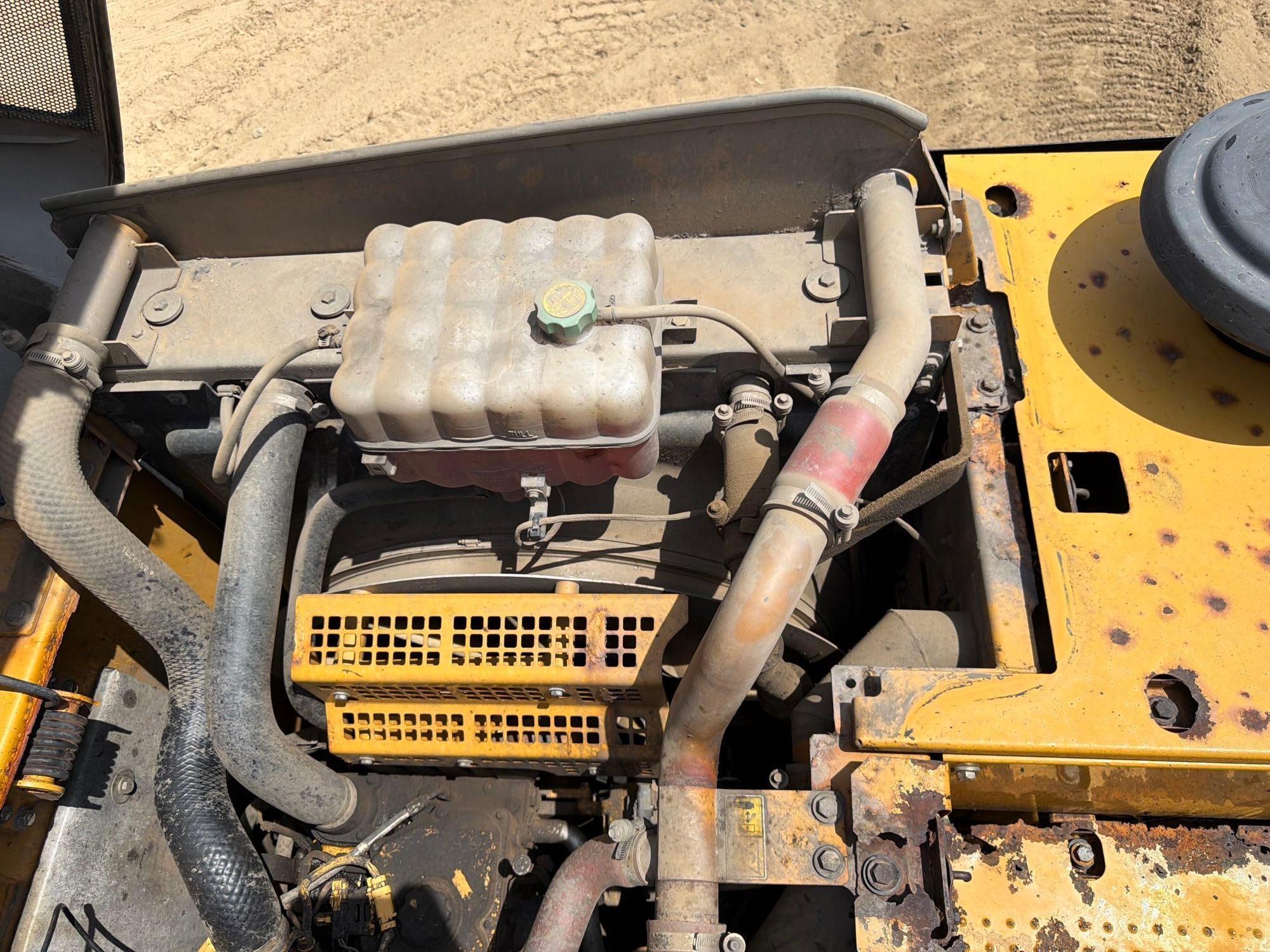

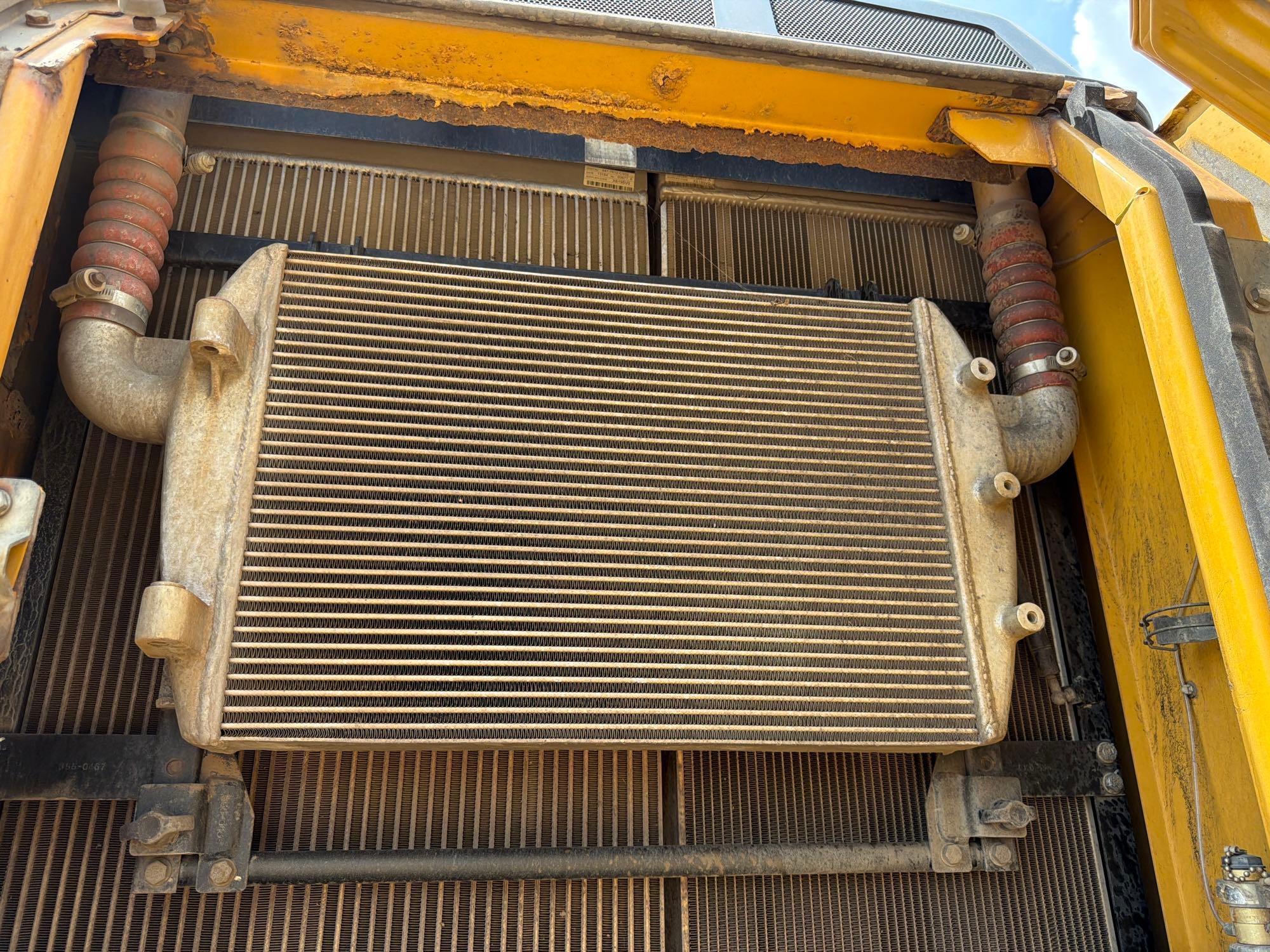

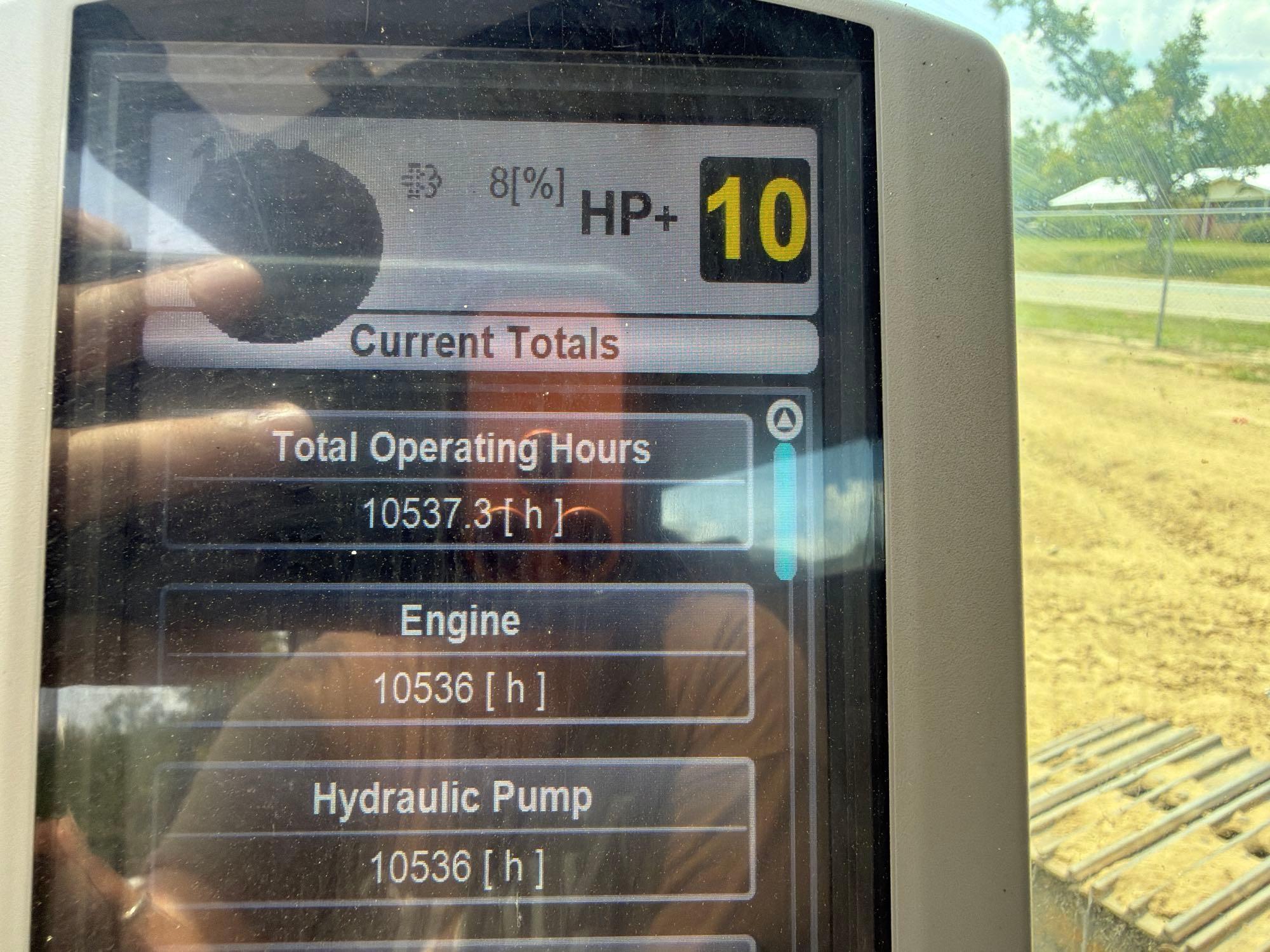

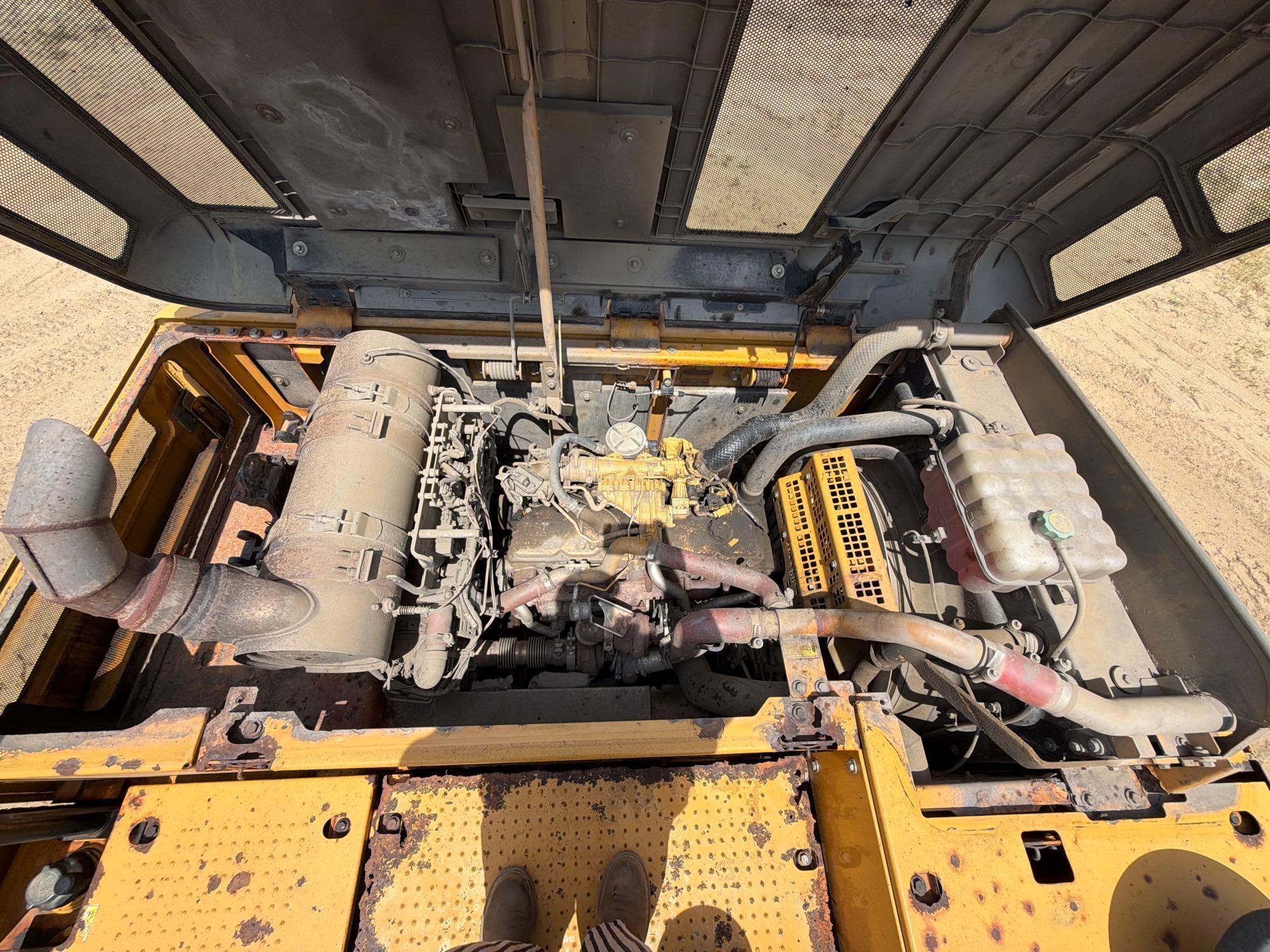

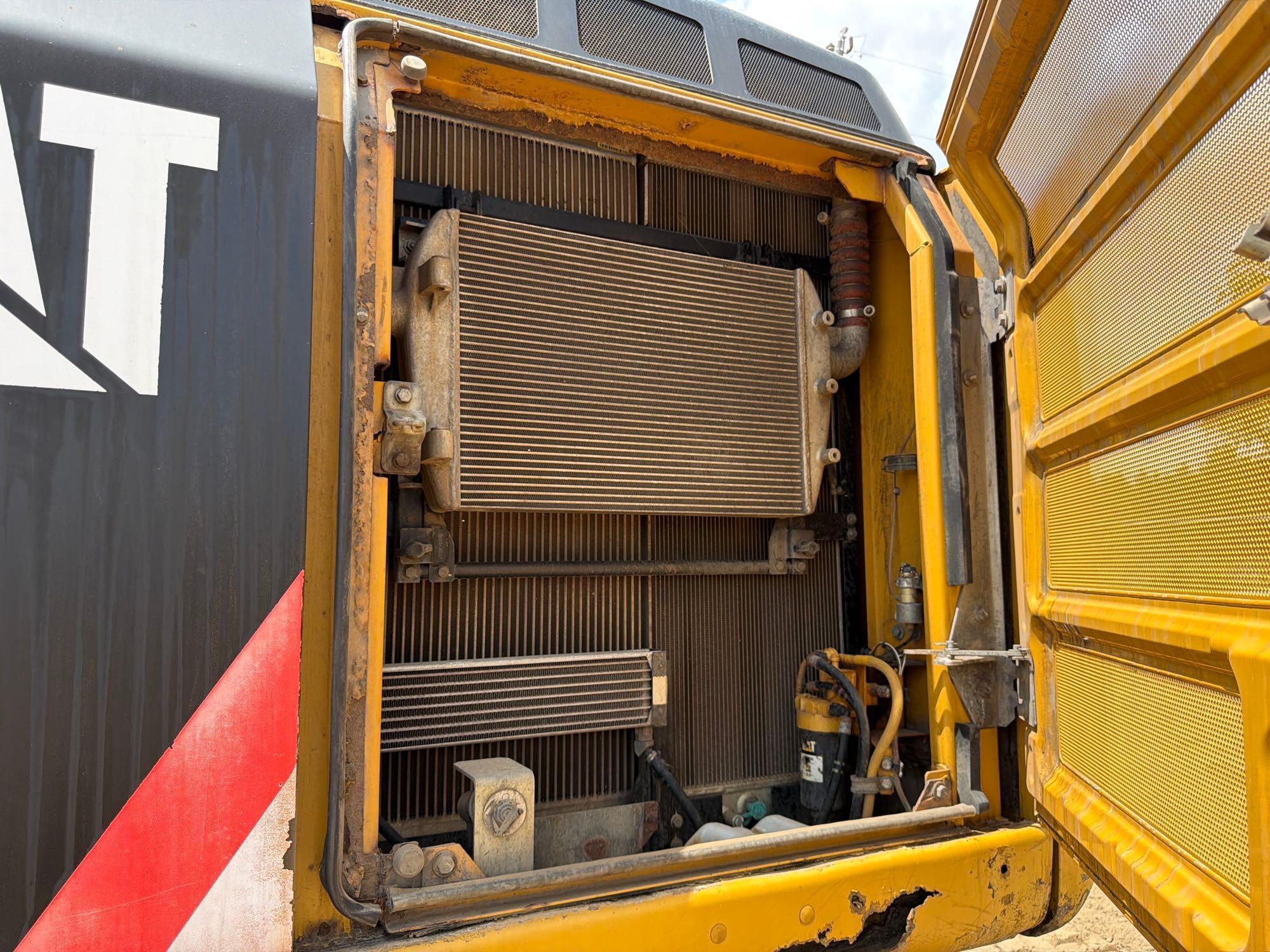

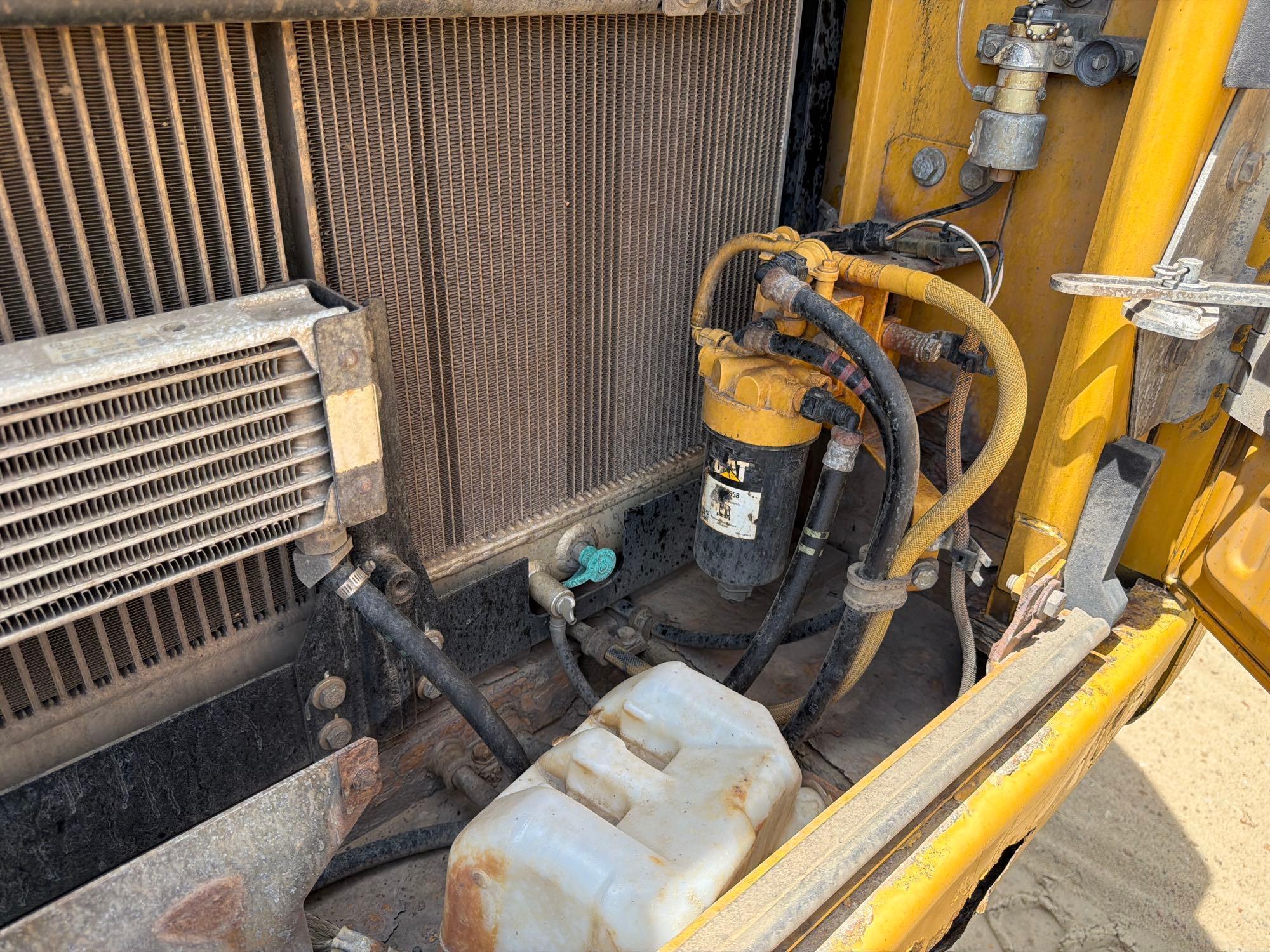

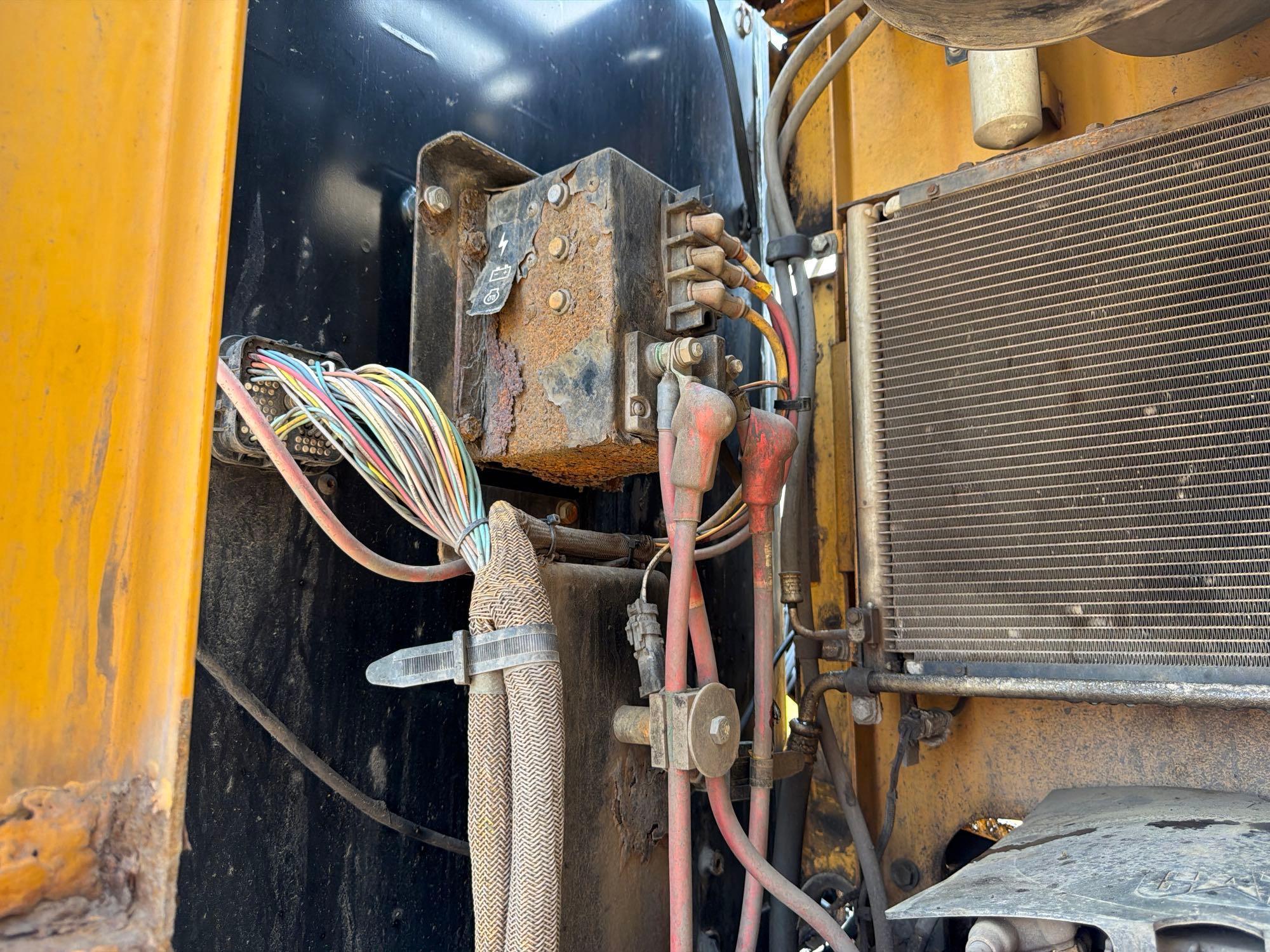

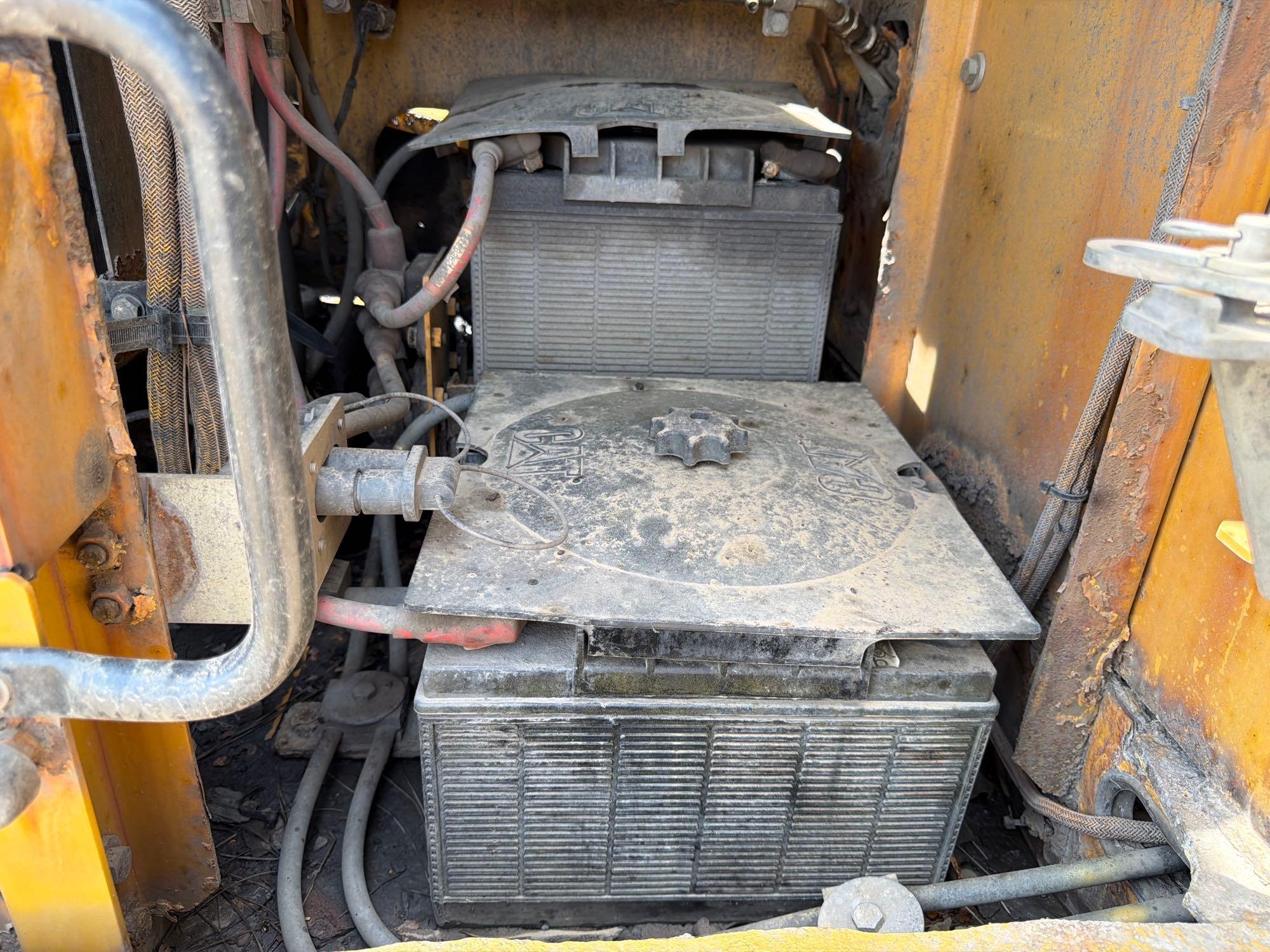

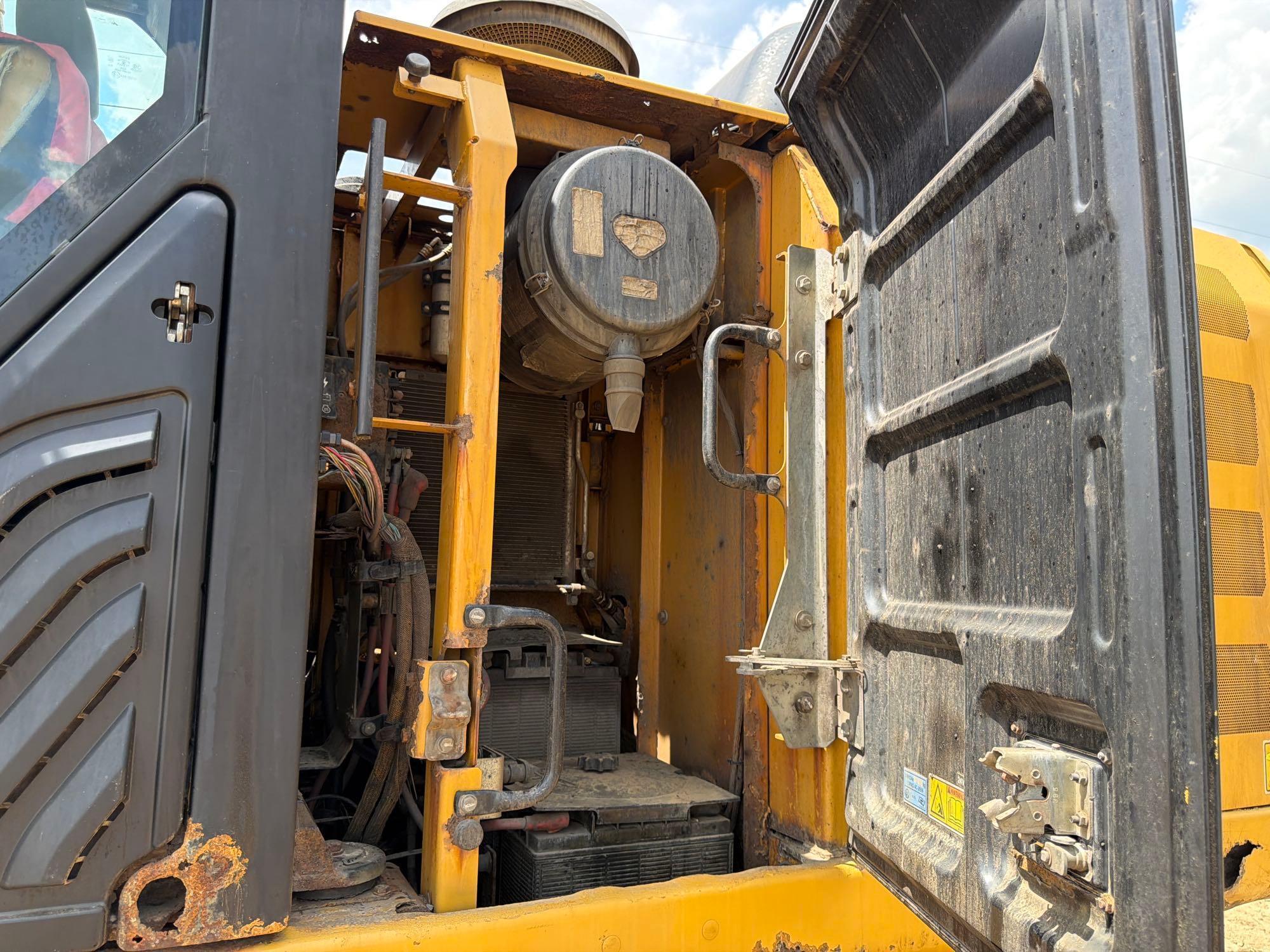

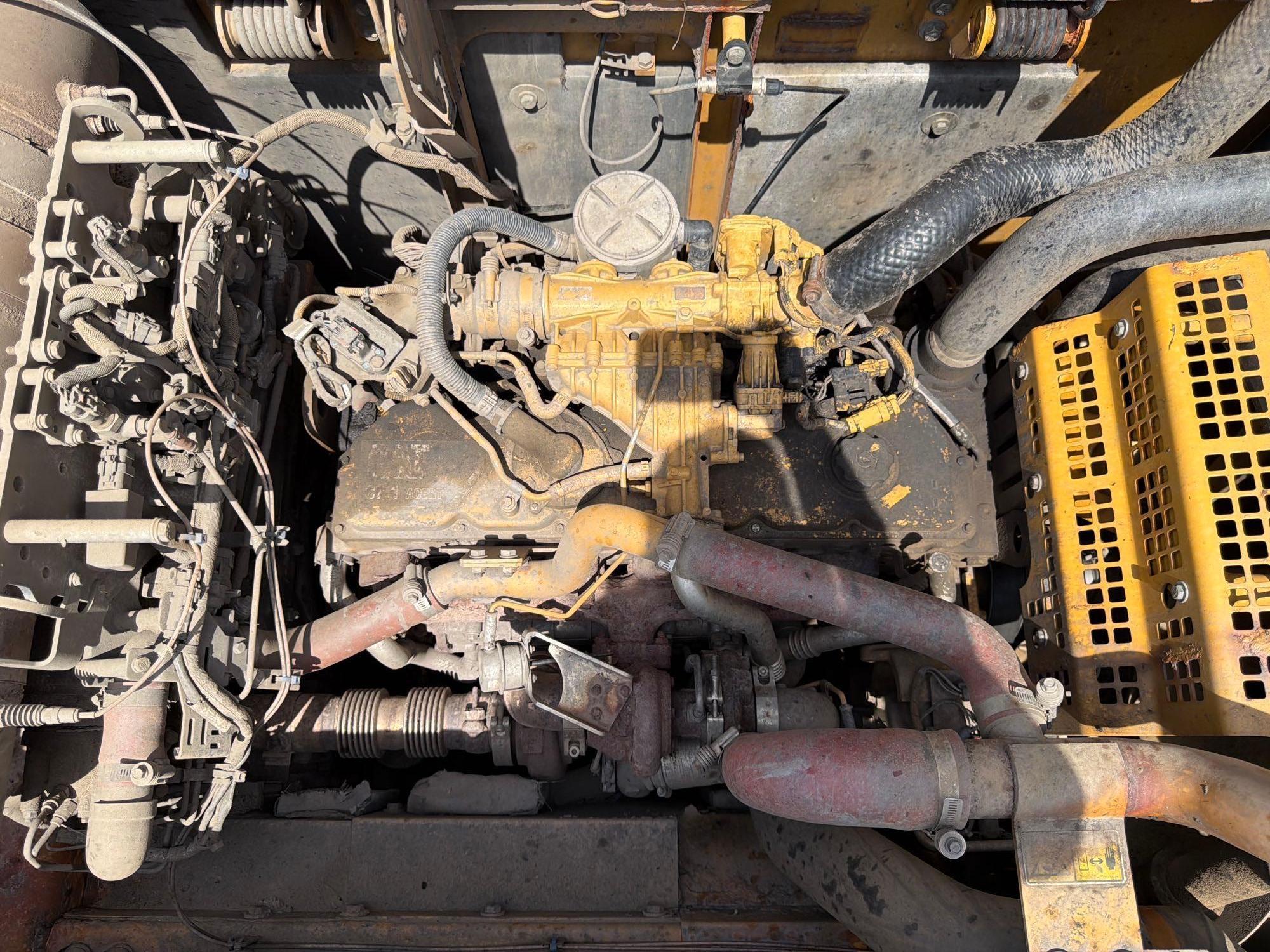

| Engine |
|
Displacement |
428 cu in (7,014 cu cm)
|
|
Engine Make |
2,236 |
|
Engine Model |
C7 |
|
Net Power |
194 hp (145 kw)
|
| General Specifications |
|
Approx. Operating Weight (Since 2010)
|
58,000 lbs (26,308 kg)
|
|
Approx. Operating Weight (2011)
|
58,000 lbs (26,308 kg)
|
|
Approx. Operating Weight (2012)
|
58,000 lbs (26,308 kg)
|
|
Approx. Operating Weight (2013)
|
58,000 lbs (26,308 kg)
|
|
Approx. Operating Weight (2014)
|
58,000 lbs (26,308 kg)
|
|
Approx. Operating Weight (2015)
|
58,000 lbs (26,308 kg)
|
|
Approx. Operating Weight (2016)
|
58,000 lbs (26,308 kg)
|
|

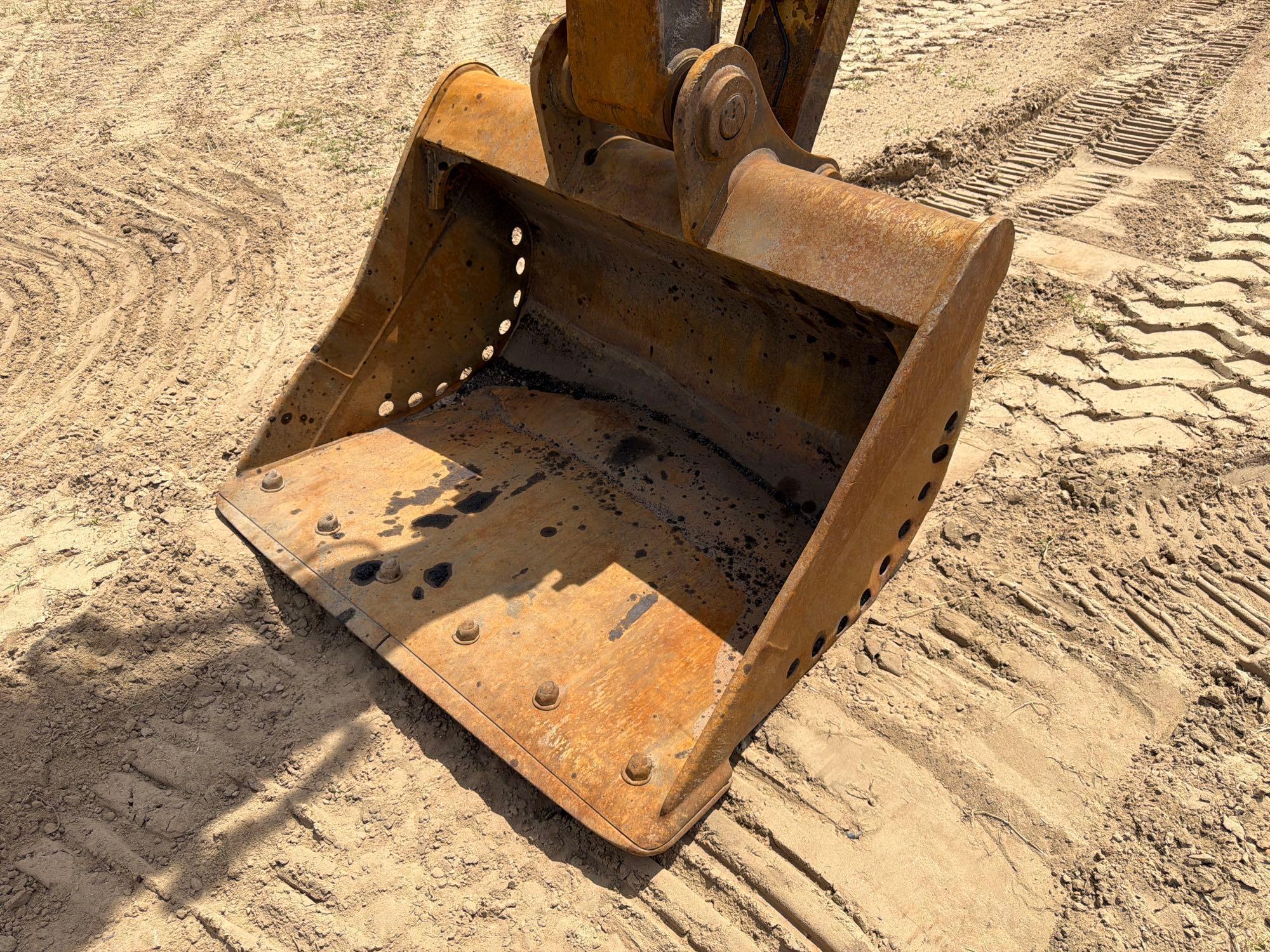

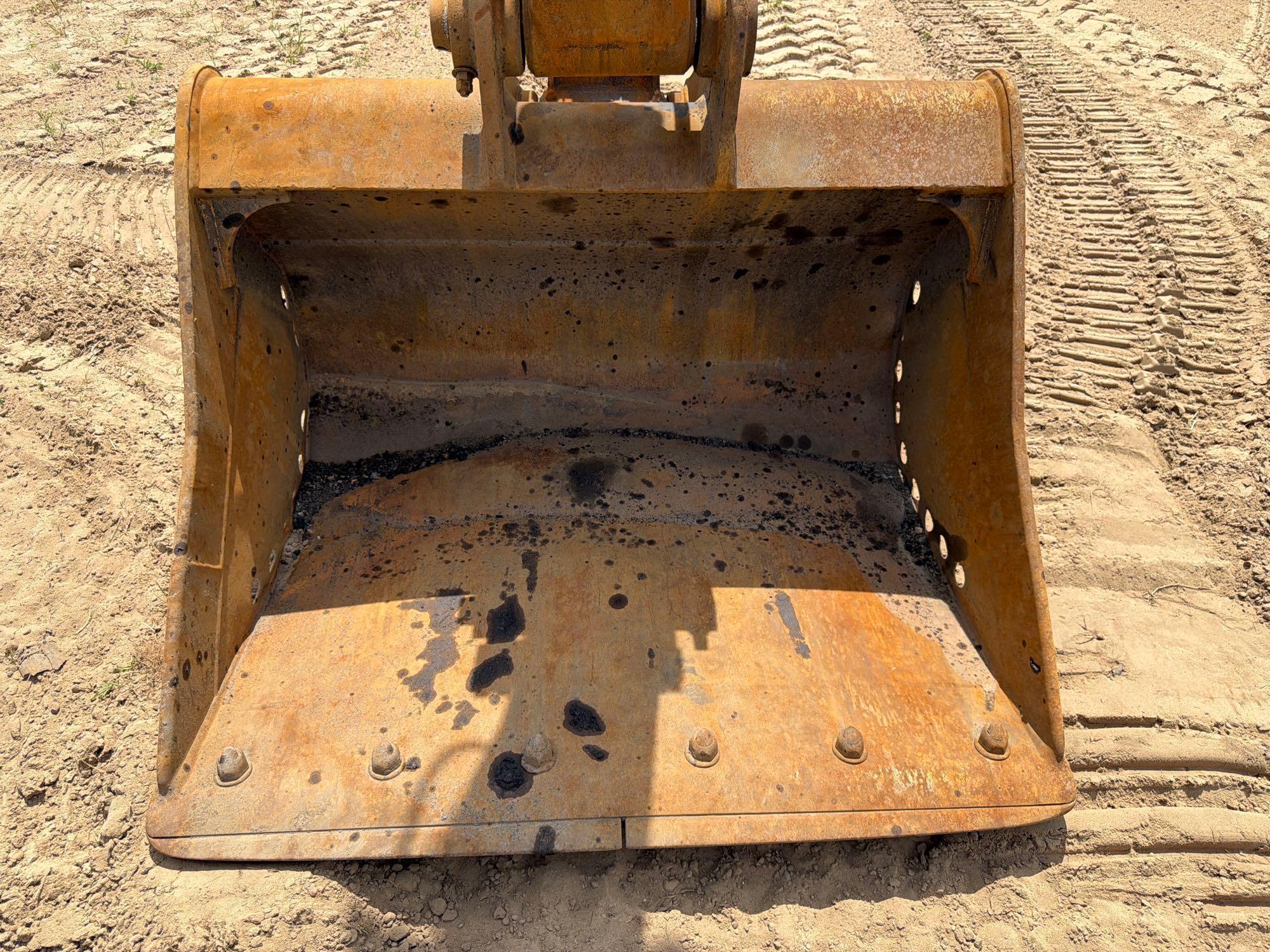

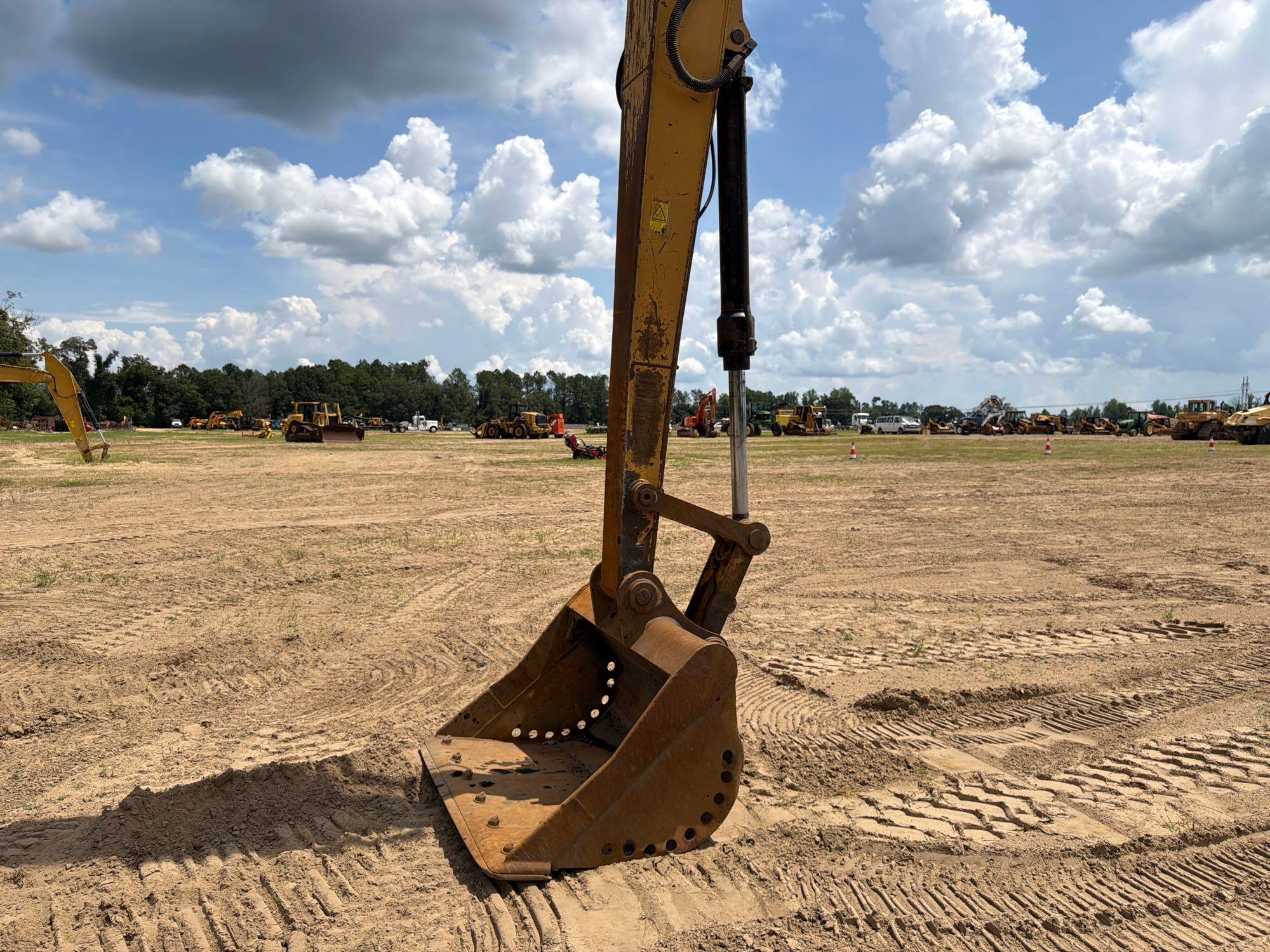

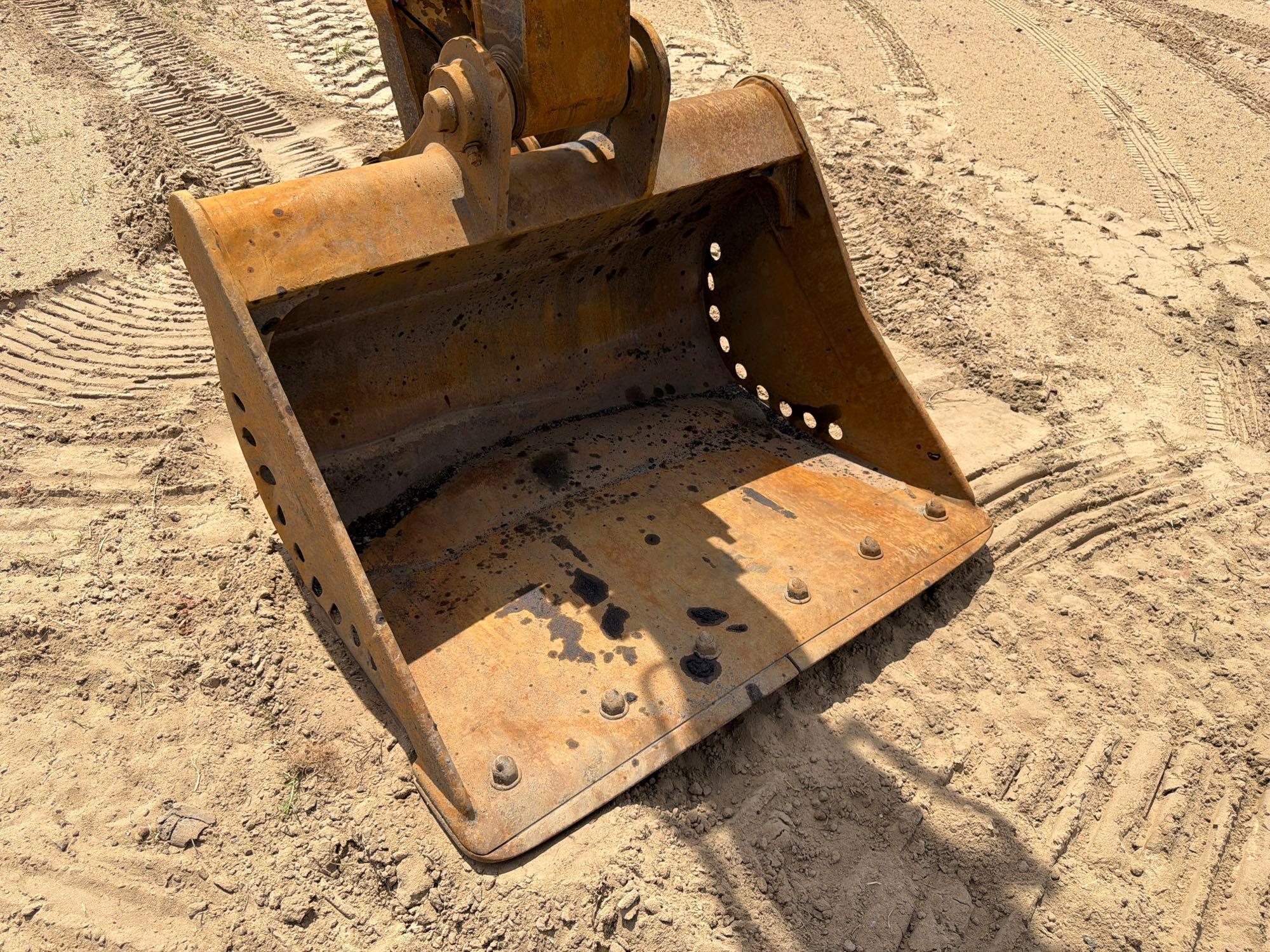

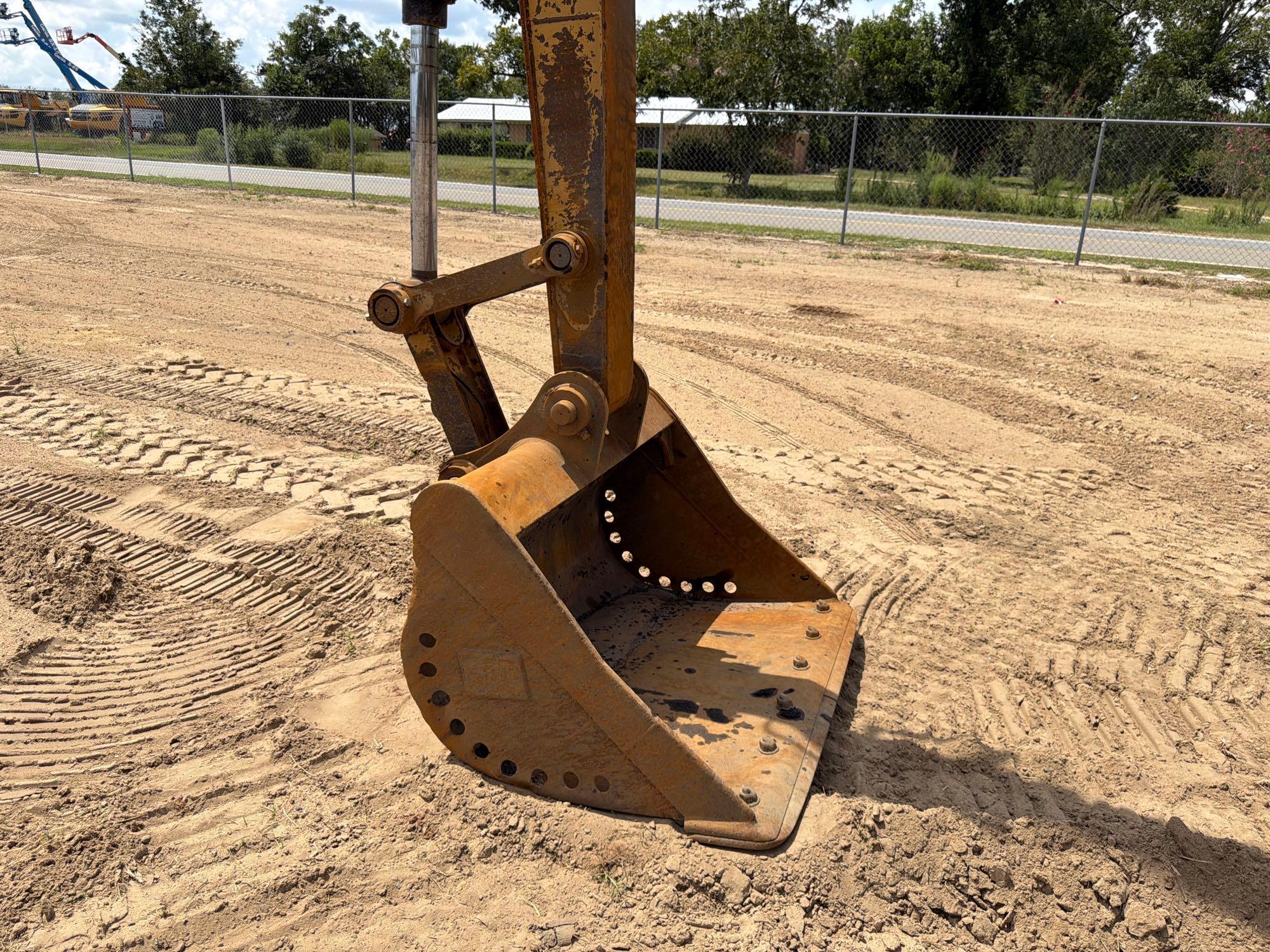

Bucket Capacity Range (heaped) (Since 2012)
|
1 - 3 cu yd (0 - 2 cu m)
|
|
Bucket Capacity Range (heaped) (2013)
|
1 - 3 cu yd (0 - 2 cu m)
|
|
Bucket Capacity Range (heaped) (2015)
|
1 - 3 cu yd (0 - 2 cu m)
|
|
Bucket Capacity Range (heaped) (2016)
|
1 - 3 cu yd (0 - 2 cu m)
|
|
cont'd) Flywheel Horsepower (Since 2010)
|
145 hp (108 kw)
|
|
cont'd) Flywheel Horsepower (2011)
|
145 hp (108 kw)
|
|
cont'd) Flywheel Horsepower (2012)
|
145 hp (108 kw)
|
|
cont'd) Flywheel Horsepower (2013)
|
145 hp (108 kw)
|
|
cont'd) Flywheel Horsepower (2014)
|
145 hp (108 kw)
|
|
cont'd) Flywheel Horsepower (2015)
|
145 hp (108 kw)
|
|
cont'd) Flywheel Horsepower (2016)
|
145 hp (108 kw)
|
|
Displacement (Since 2012)
|
428 cu in (7,014 cu cm)
|
|
Displacement (2013)
|
428 cu in (7,014 cu cm)
|
|
Displacement (2015)
|
428 cu in (7,014 cu cm)
|
|
Displacement (2016)
|
428 cu in (7,014 cu cm)
|
|
Emission Standards (Since 2016)
|
Tier 4 Interim/Stage IIIB/ Japan 2011 (Tier 4 Interim) Equivalent |
|
Emissions (Since 2012)
|
Tier 4, Stage IIIB, Step 3 |
|
Emissions (2013)
|
Tier 4, Stage IIIB, Step 3 |
|
Emissions (Since 2015)
|
Tier 4 Interim/Stage IIIB/ Japan 2011 (Tier 4 Interim) |
|
Engine Model (Since 2012)
|
C7.1 ACERT |
|
Engine Model (2013)
|
C7.1 ACERT |
|
Engine Model (2015)
|
C7.1 ACERT |
|
Engine Model (2016)
|
C7.1 ACERT |
|
Engine Power - ISO 9249 (Since 2012)
|
194 hp (145 kw)
|
|
Engine Power - ISO 9249 (2013)
|
194 hp (145 kw)
|
|
Engine Power - ISO 9249 (2015)
|
194 hp (145 kw)
|
|
Engine Power - ISO 9249 (2016)
|
194 hp (145 kw)
|
|
Engine Power - SAE J1349 (Since 2012)
|
194 hp (145 kw)
|
|
Engine Power - SAE J1349 (2013)
|
194 hp (145 kw)
|
|
Engine Power - SAE J1349 (2015)
|
194 hp (145 kw)
|
|
Engine Power - SAE J1349 (2016)
|
194 hp (145 kw)
|
|

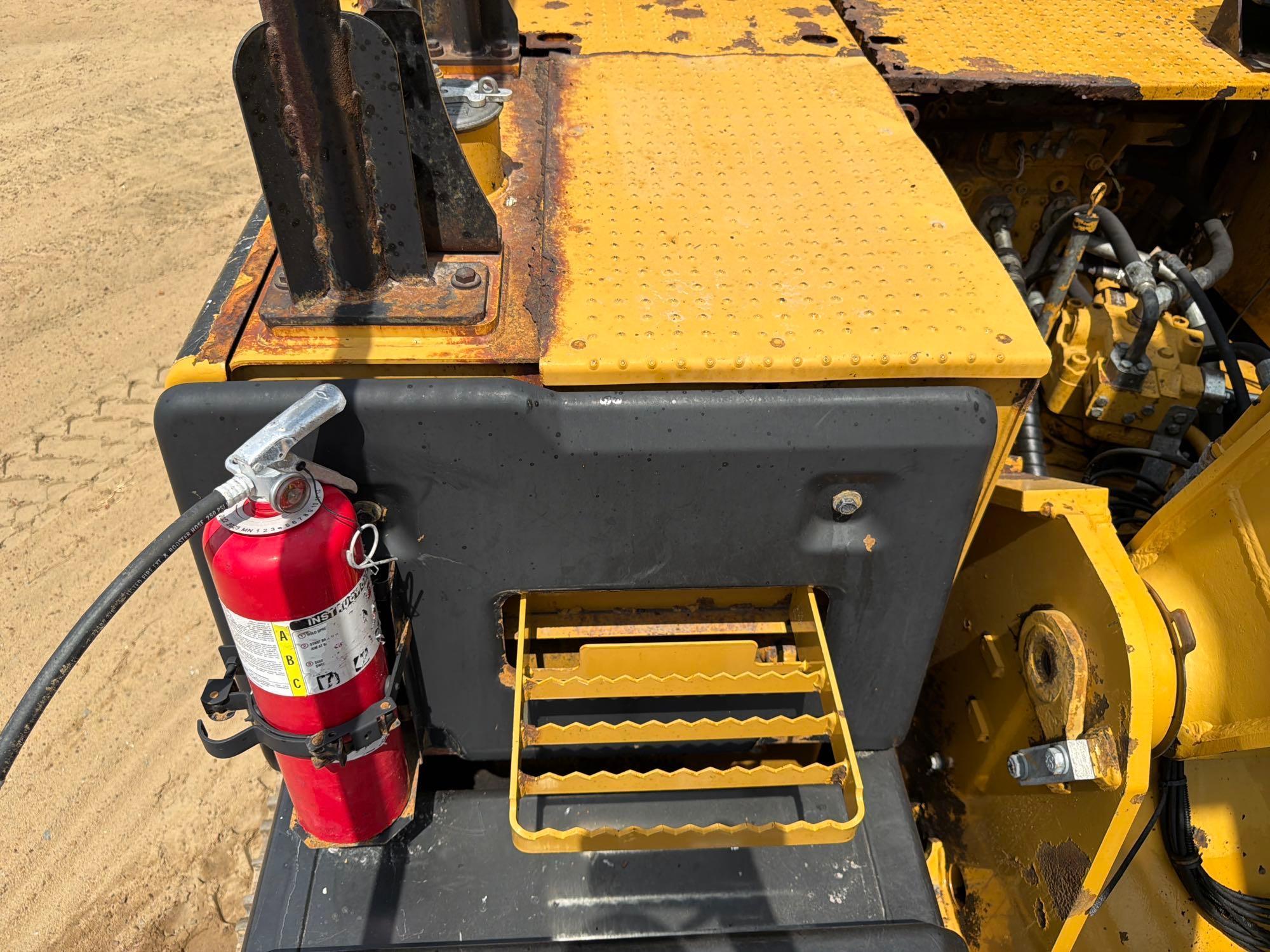

Fuel Tank Refill Capacity (Since 2012)
|
137 US gal (520 L)
|
|
Fuel Tank Refill Capacity (2013)
|
137 US gal (520 L)
|
|
Fuel Tank Refill Capacity (2015)
|
137 US gal (520 L)
|
|
Fuel Tank Refill Capacity (Since 2016)
|
137 US gal (520 L)
|
|
Ground Contact Area with Std. Shoe (Since 2012)
|
10,075 sq in (7 sq m)
|
|
Ground Contact Area with Std. Shoe (2013)
|
10,075 sq in (7 sq m)
|
|
Ground Contact Area with Std. Shoe (2015)
|
10,075 sq in (7 sq m)
|
|
Ground Contact Area with Std. Shoe (Since 2016)
|
6,950 sq in (5 sq m)
|
|
Height (Since 2010)
|
127 in (323 cm)
|
|
Height (2011)
|
127 in (323 cm)
|
|
Height (2012)
|
127 in (323 cm)
|
|
Height (2013)
|
127 in (323 cm)
|
|
Height (2014)
|
127 in (323 cm)
|
|
Height (2015)
|
127 in (323 cm)
|
|
Height (2016)
|
127 in (323 cm)
|
|

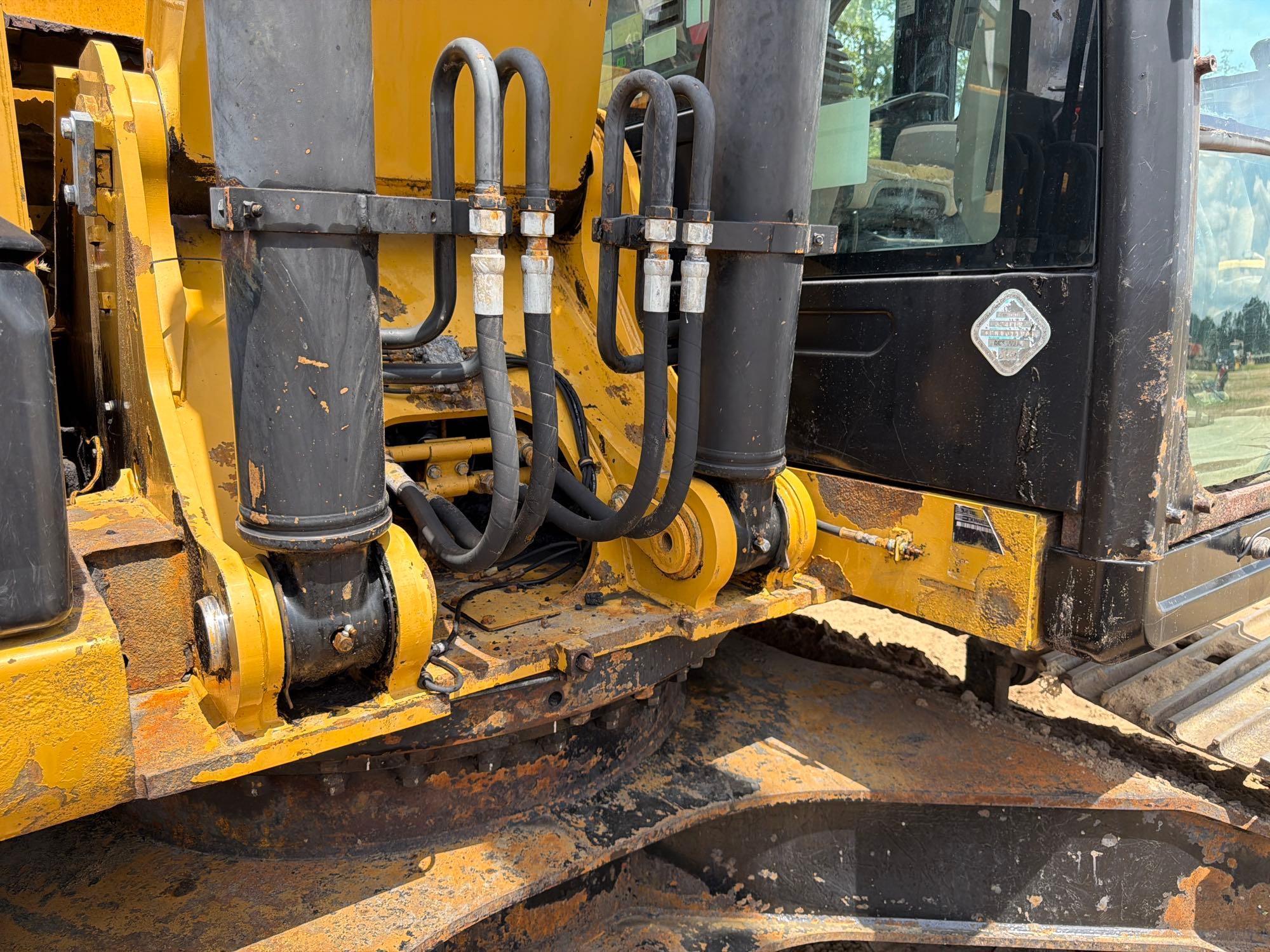

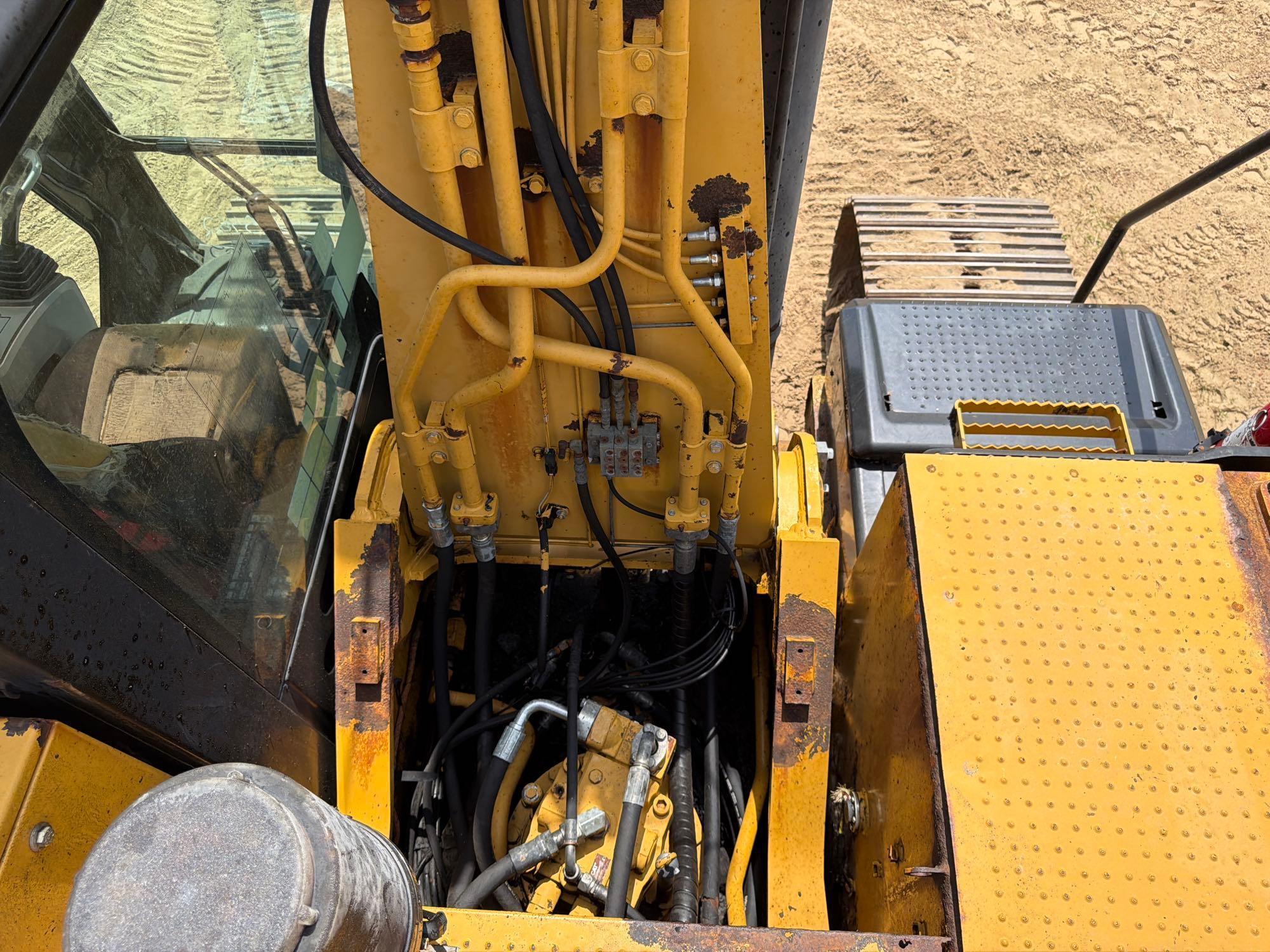

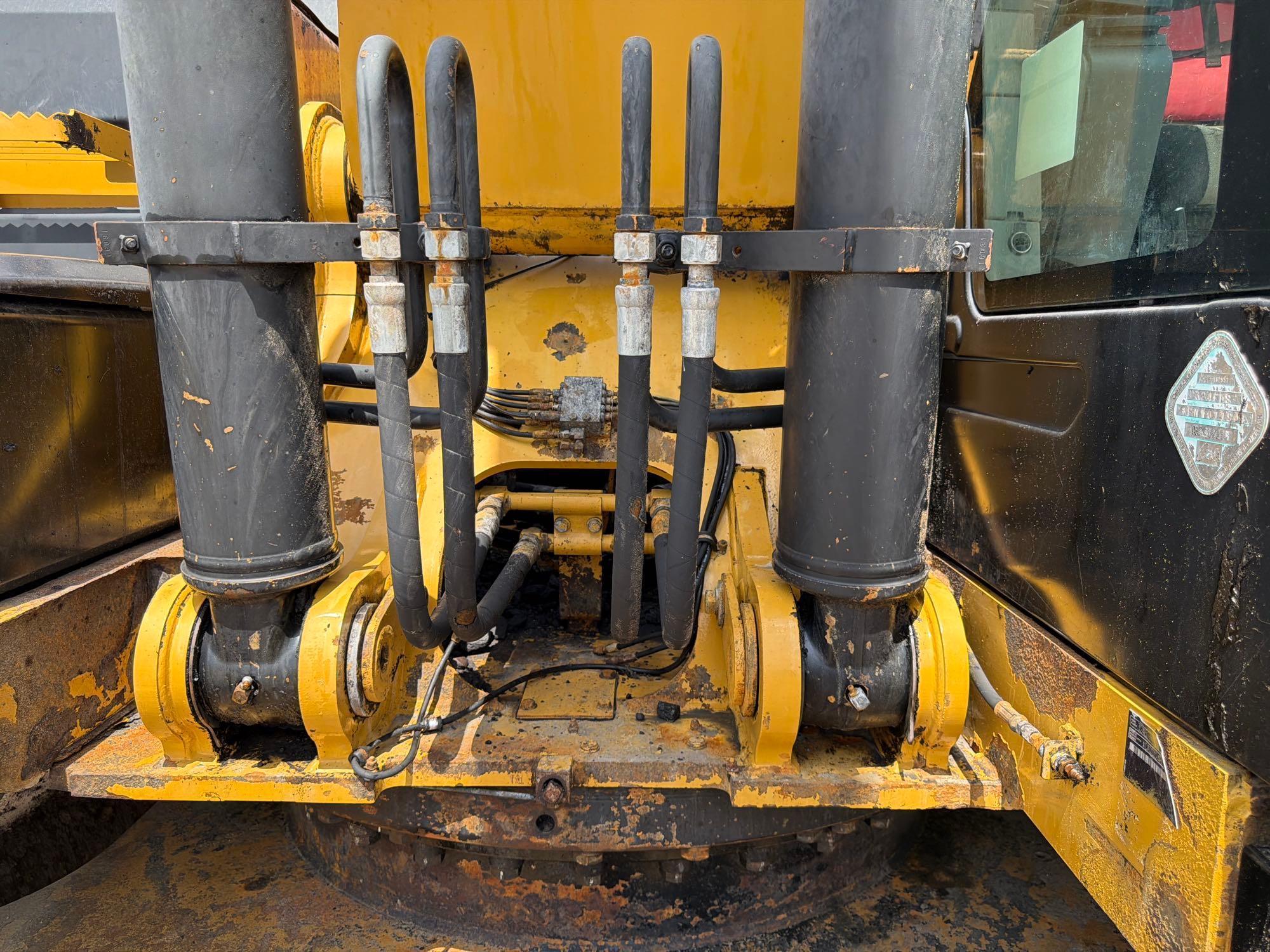

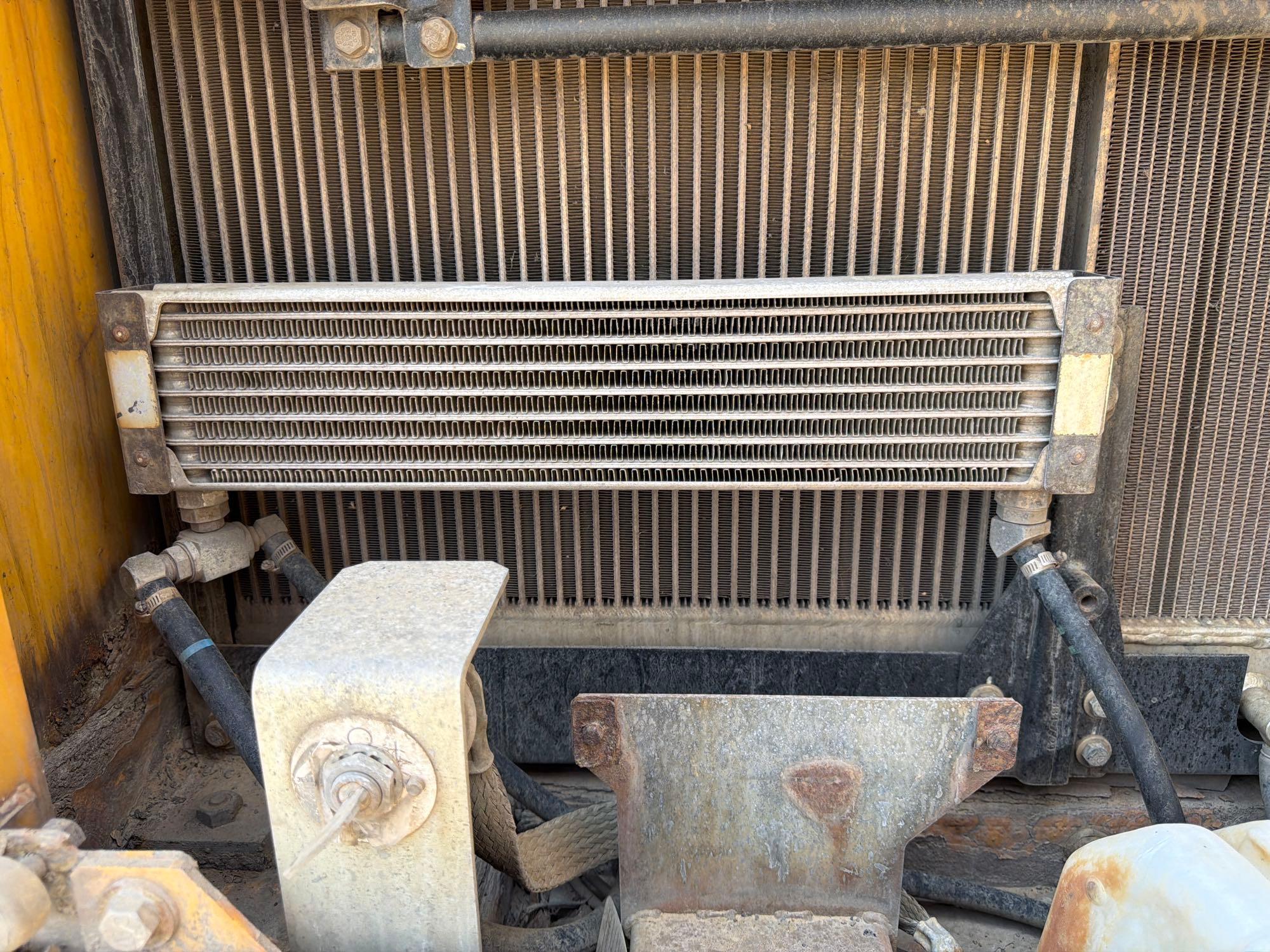

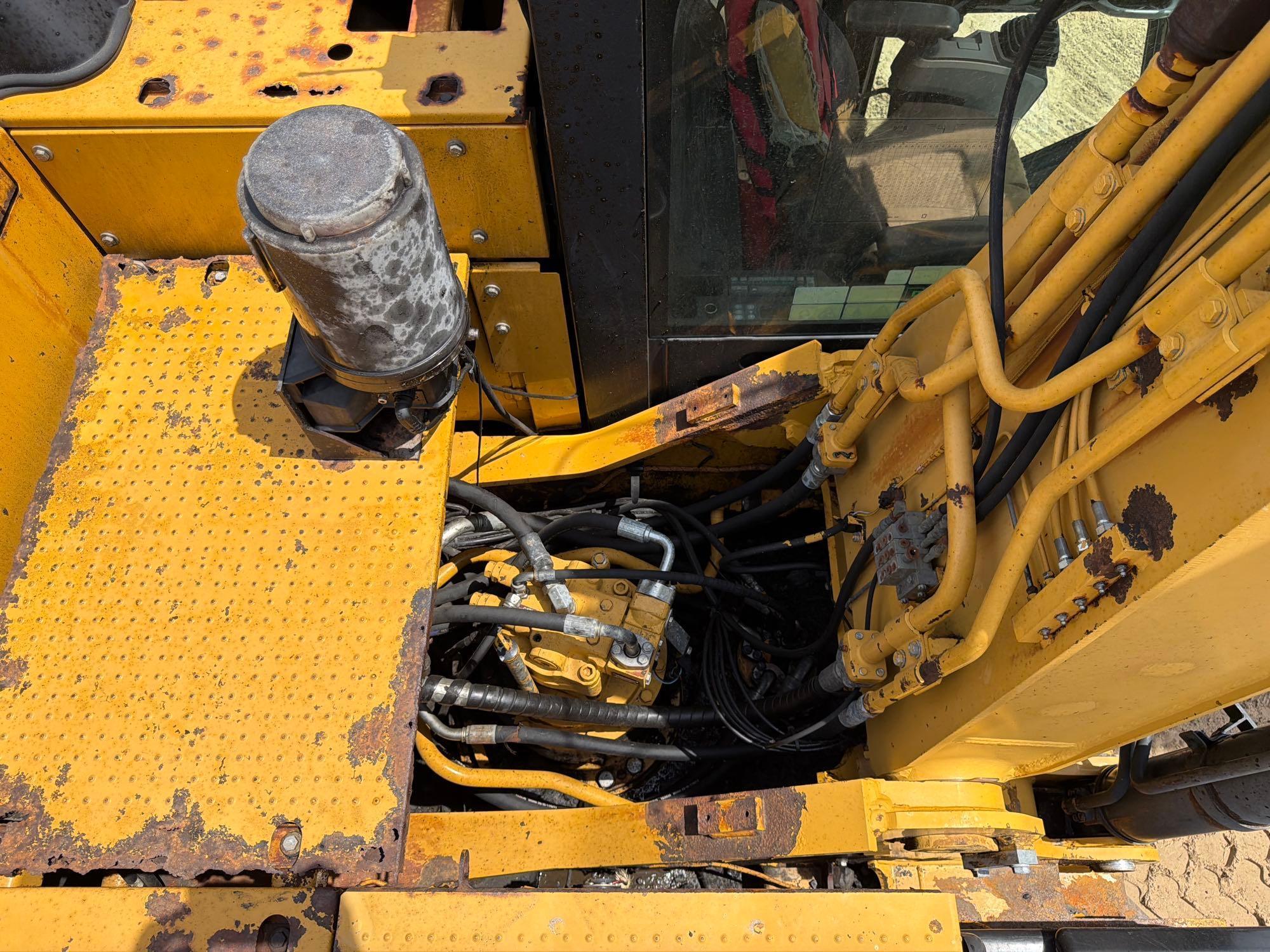

Hydraulic System (includes tank) (Since 2012)
|
75 US gal (280 L)
|
|
Hydraulic System (includes tank) (2013)
|
75 US gal (280 L)
|
|
Hydraulic System (includes tank) (2015)
|
75 US gal (280 L)
|
|
Hydraulic System (includes tank) (Since 2016)
|
75 US gal (280 L)
|
|
Length (Since 2010)
|
396 in (1,006 cm)
|
|
Length (2011)
|
396 in (1,006 cm)
|
|
Length (2012)
|
396 in (1,006 cm)
|
|
Length (2013)
|
396 in (1,006 cm)
|
|
Length (2014)
|
396 in (1,006 cm)
|
|
Length (2015)
|
396 in (1,006 cm)
|
|
Length (2016)
|
396 in (1,006 cm)
|
|
Lift Capacity (Since 2010)
|
32,900 lbs (14,923 kg)
|
|
Lift Capacity (2011)
|
32,900 lbs (14,923 kg)
|
|
Lift Capacity (2012)
|
32,900 lbs (14,923 kg)
|
|
Lift Capacity (2013)
|
32,900 lbs (14,923 kg)
|
|
Lift Capacity (2014)
|
32,900 lbs (14,923 kg)
|
|
Lift Capacity (2015)
|
32,900 lbs (14,923 kg)
|
|
Lift Capacity (2016)
|
32,900 lbs (14,923 kg)
|
|

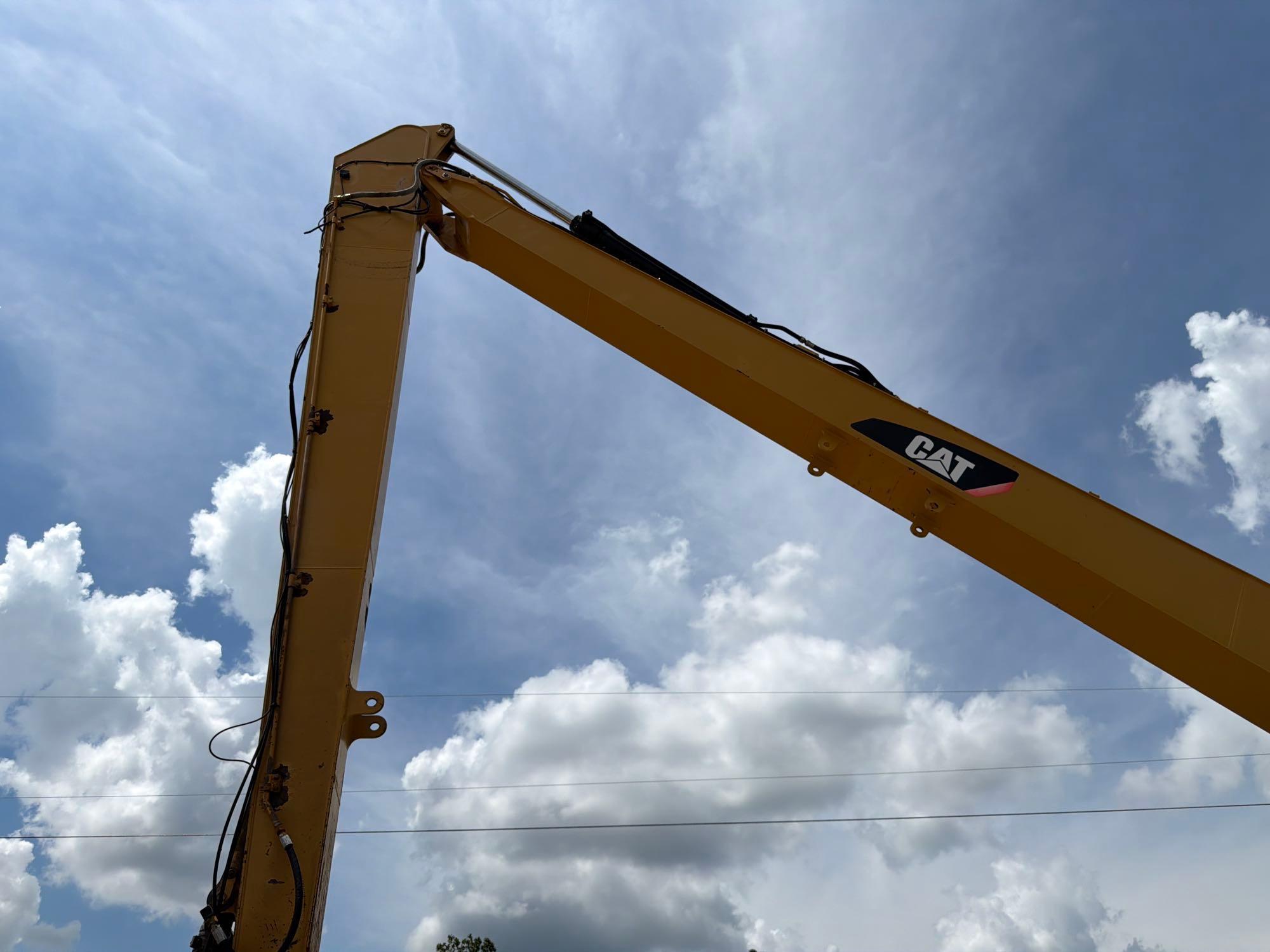

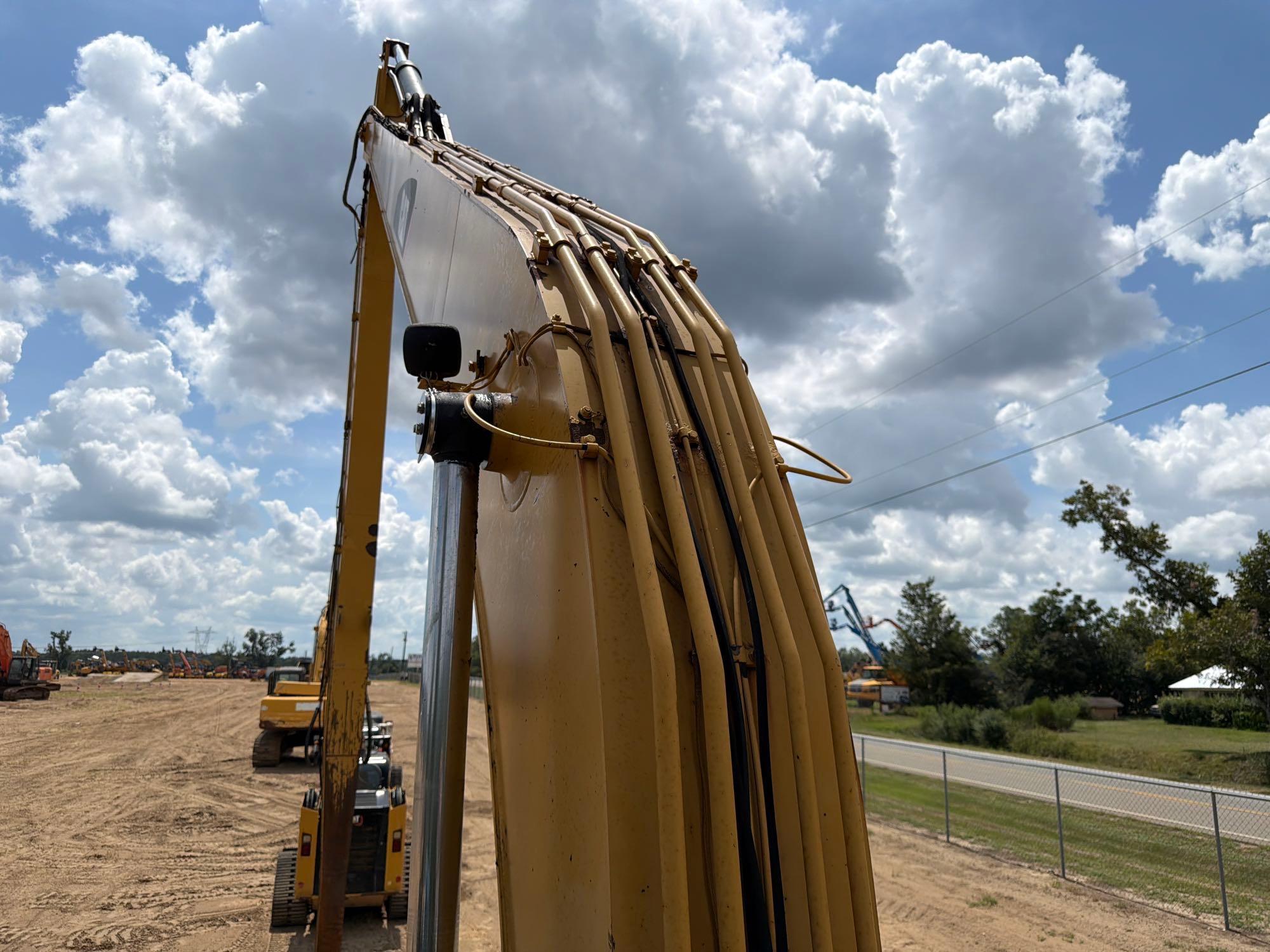

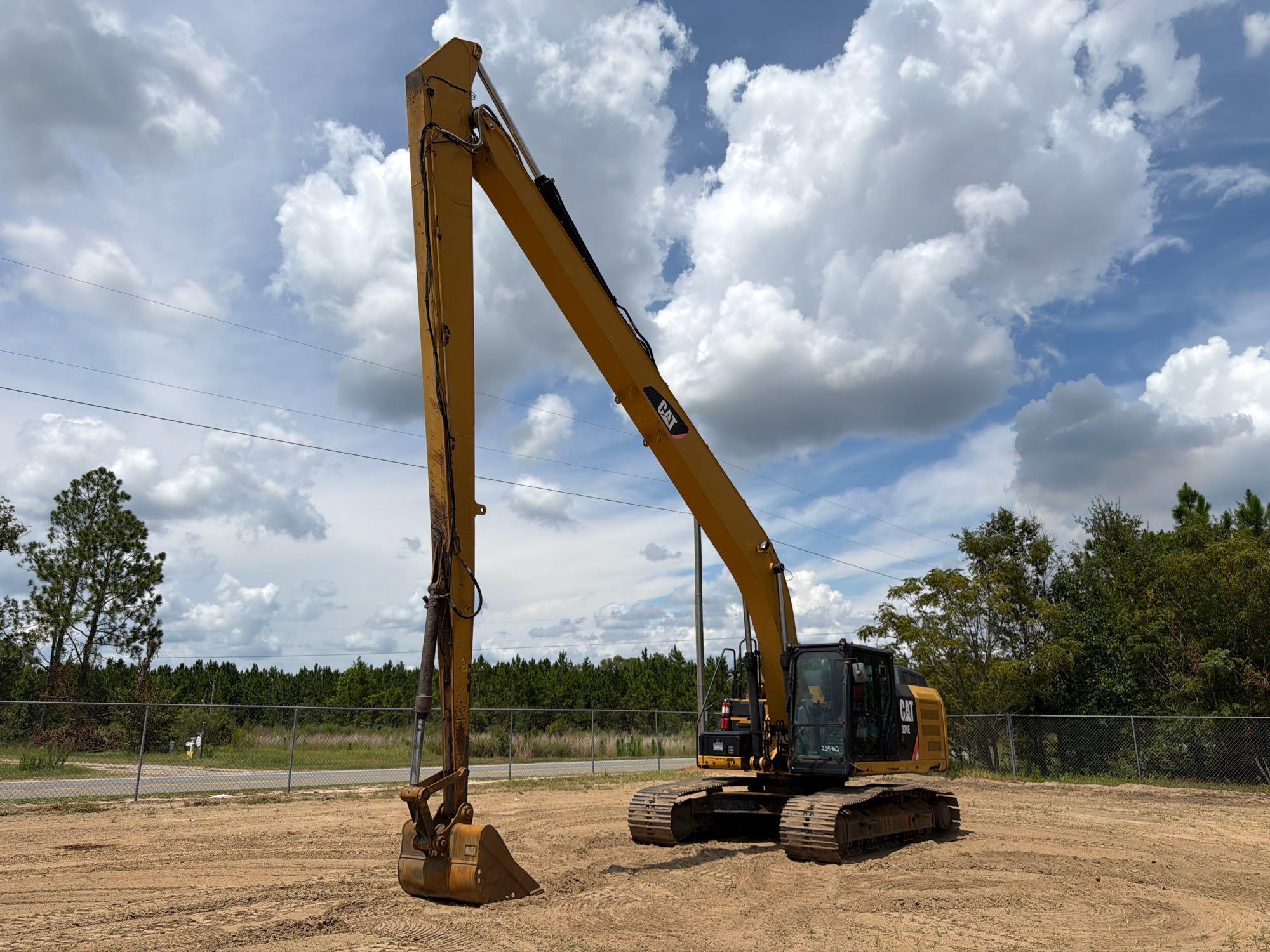

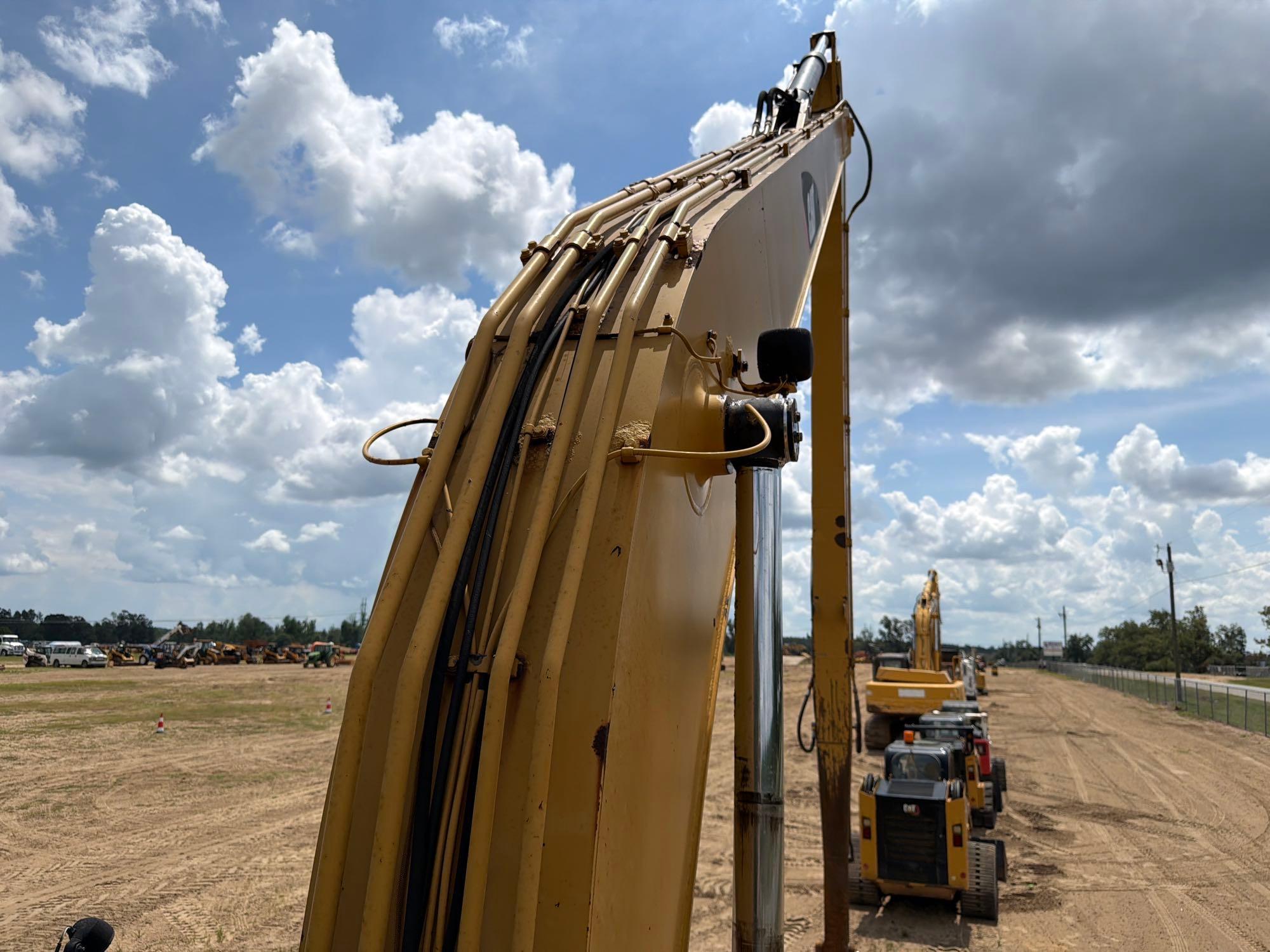

Max. Reach (Since 2010)
|
398 in (1,011 cm)
|
|
Max. Reach (2011)
|
398 in (1,011 cm)
|
|
Max. Reach (2012)
|
398 in (1,011 cm)
|
|
Max. Reach (2013)
|
398 in (1,011 cm)
|
|
Max. Reach (2014)
|
398 in (1,011 cm)
|
|
Max. Reach (2015)
|
398 in (1,011 cm)
|
|
Max. Reach (2016)
|
398 in (1,011 cm)
|
|
Maximum Drawbar Pull (Since 2012)
|
50,807 lbf (226 kN)
|
|
Maximum Drawbar Pull (2013)
|
50,807 lbf (226 kN)
|
|
Maximum Drawbar Pull (2015)
|
50,807 lbf (226 kN)
|
|
Maximum Drawbar Pull (Since 2016)
|
51,032 lbf (227 kN)
|
|

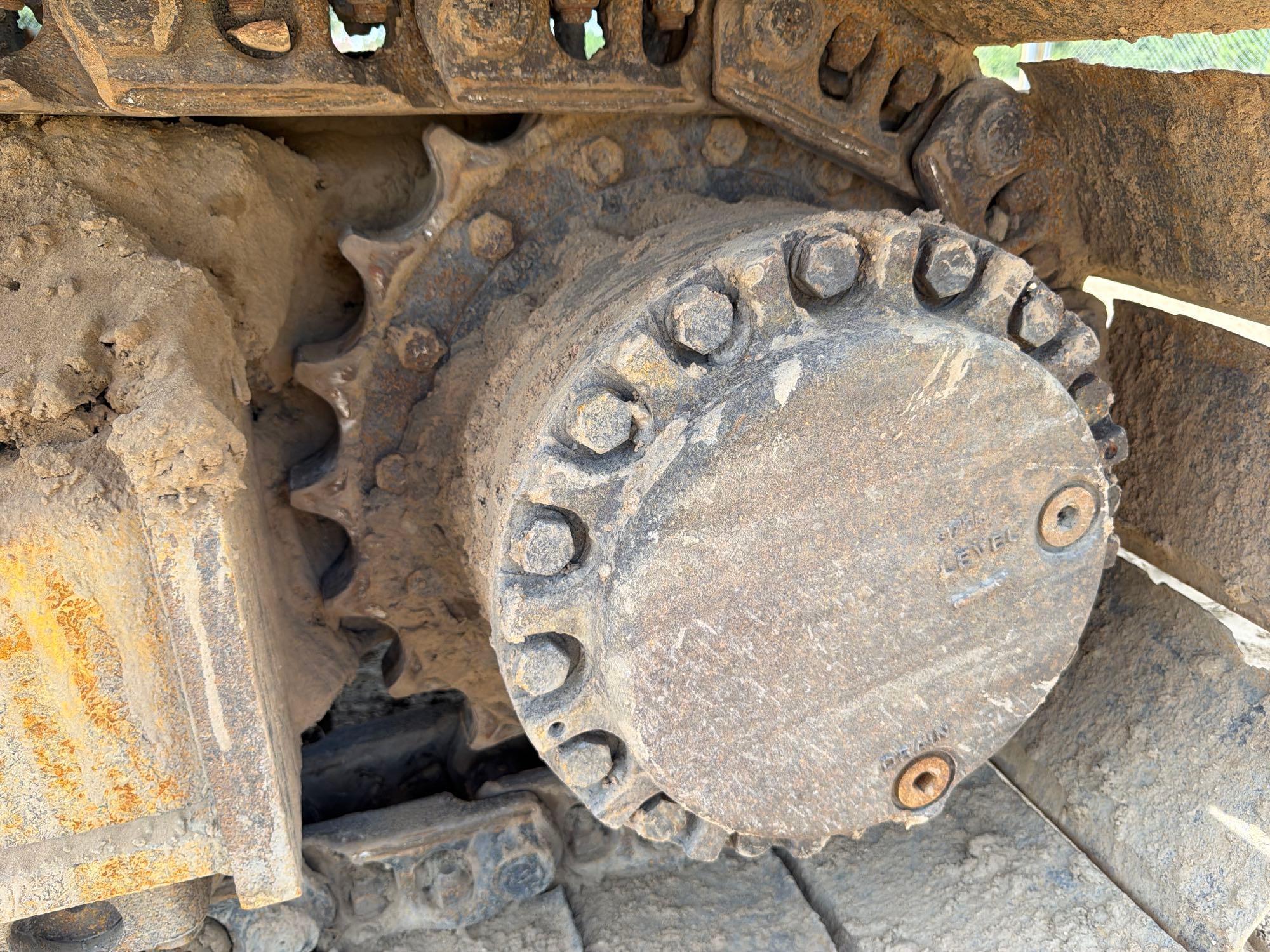

Maximum Travel Speed at Rated RPM (Since 2012)
|
3 mph (5 kph)
|
|
Maximum Travel Speed at Rated RPM (2013)
|
3 mph (5 kph)
|
|
Maximum Travel Speed at Rated RPM (2015)
|
3 mph (5 kph)
|
|
Maximum Travel Speed at Rated RPM (2016)
|
3 mph (5 kph)
|
|
No. of Cylinders (Since 2012)
|
6 |
|
No. of Cylinders (2013)
|
6 |
|
No. of Cylinders (2015)
|
6 |
|
No. of Cylinders (2016)
|
6 |
|
Operating Weight (Since 2012)
|
55,395 - 58,394 lbs (25,127 - 26,487 kg)
|
|
Operating Weight (2013)
|
55,395 - 58,394 lbs (25,127 - 26,487 kg)
|
|
Operating Weight (2015)
|
55,395 - 58,394 lbs (25,127 - 26,487 kg)
|
|
Operating Weight (Since 2016)
|
55,396 - 57,997 lbs (25,127 - 26,307 kg)
|
|

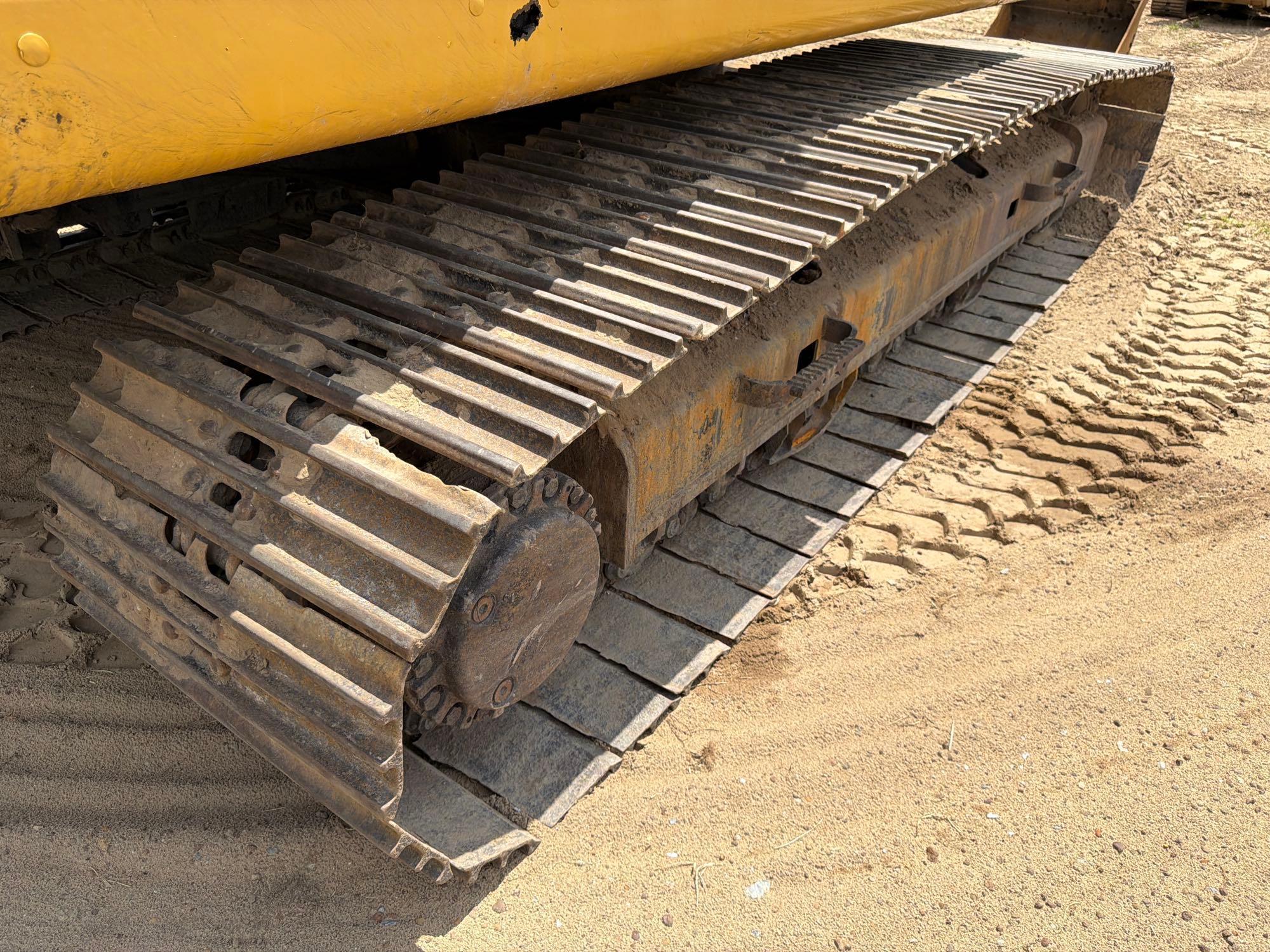

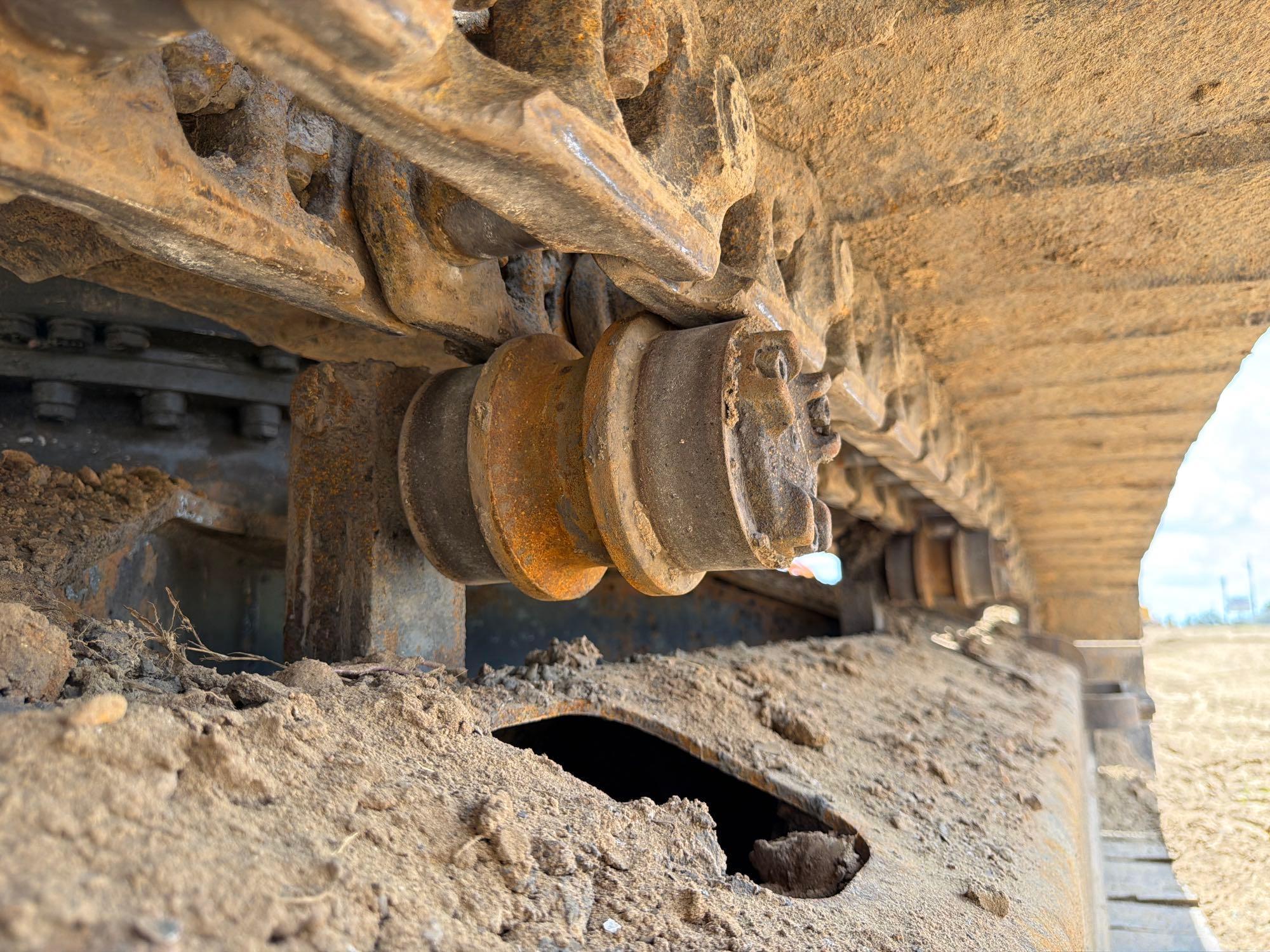

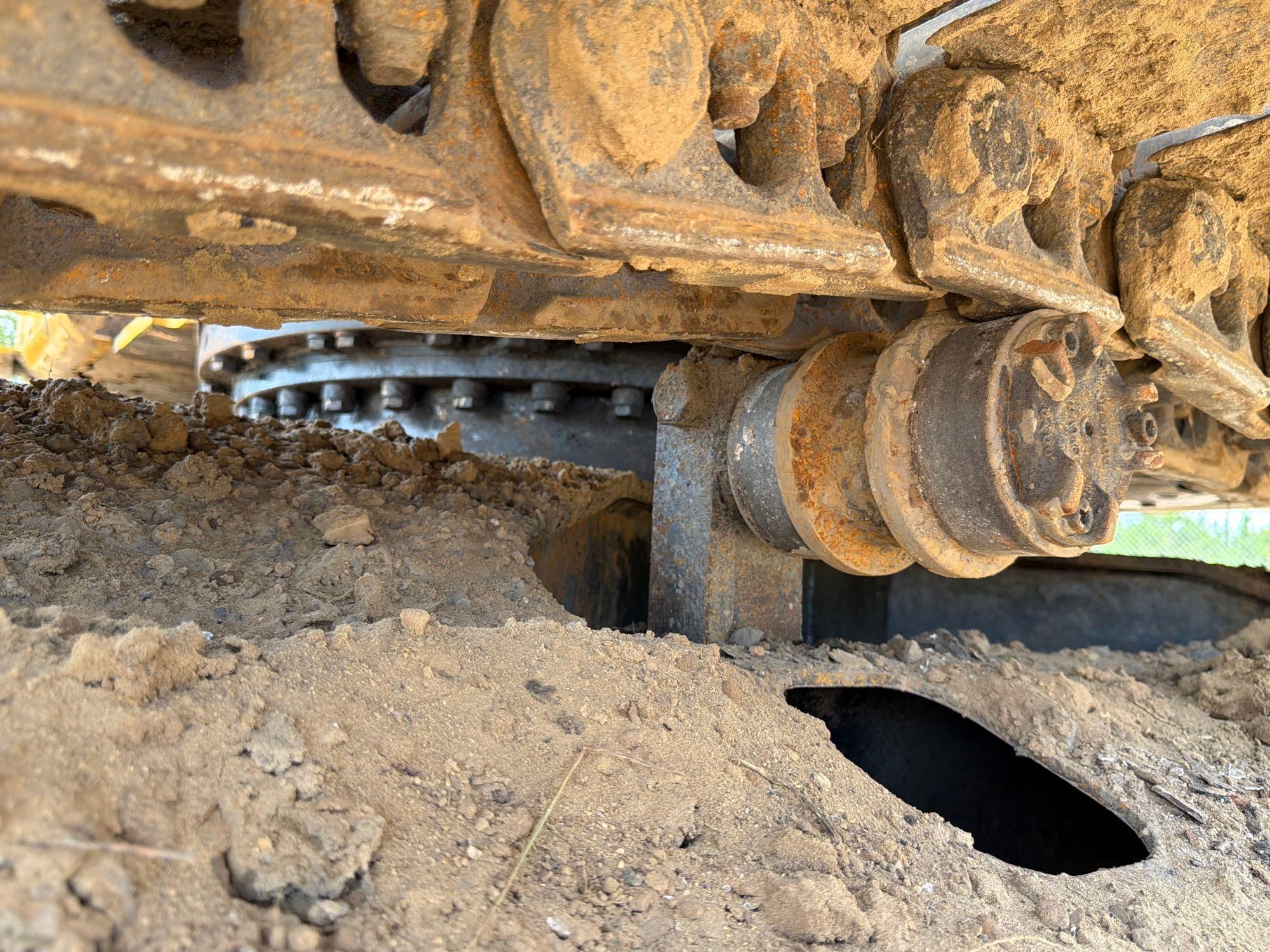

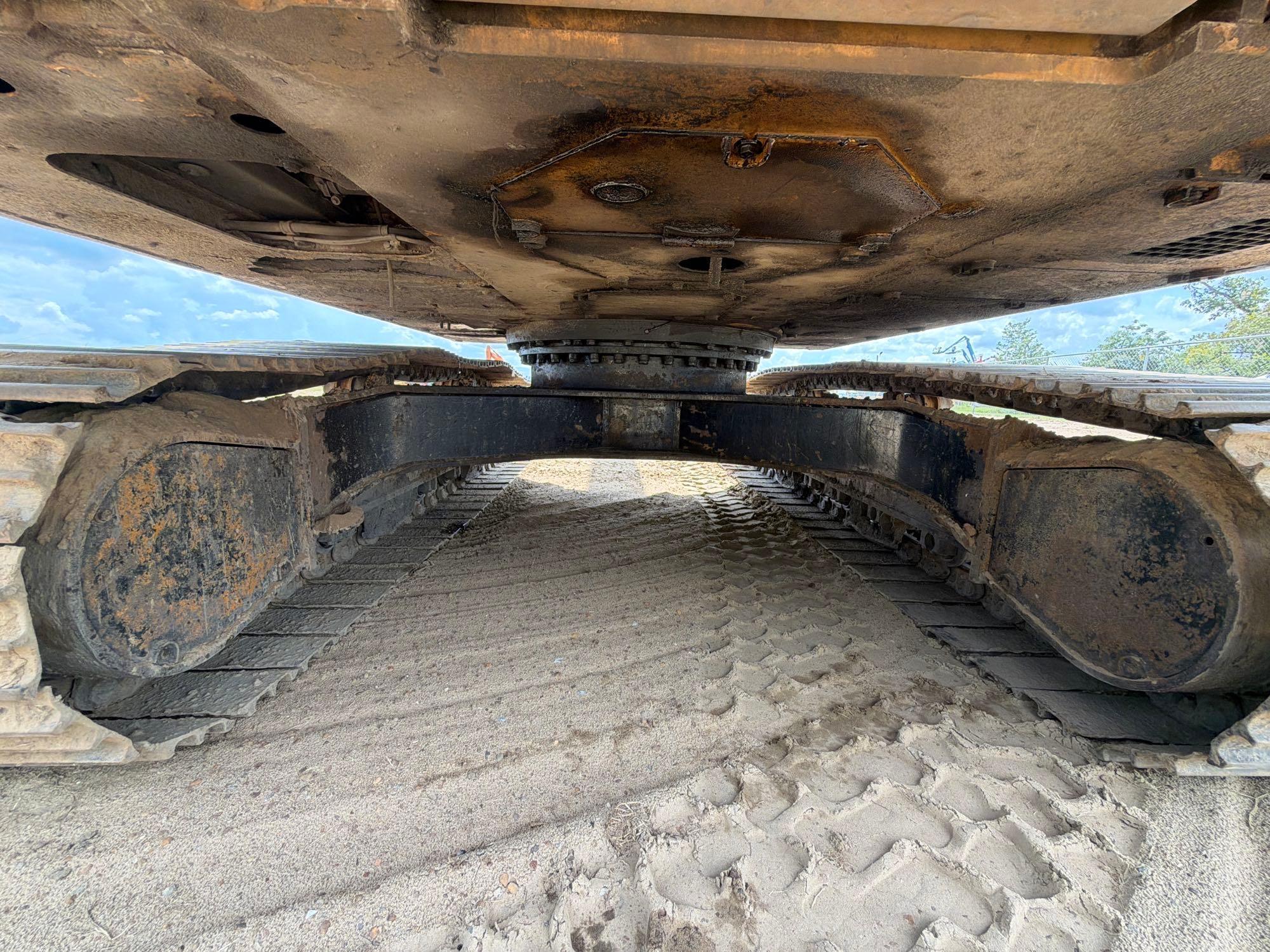

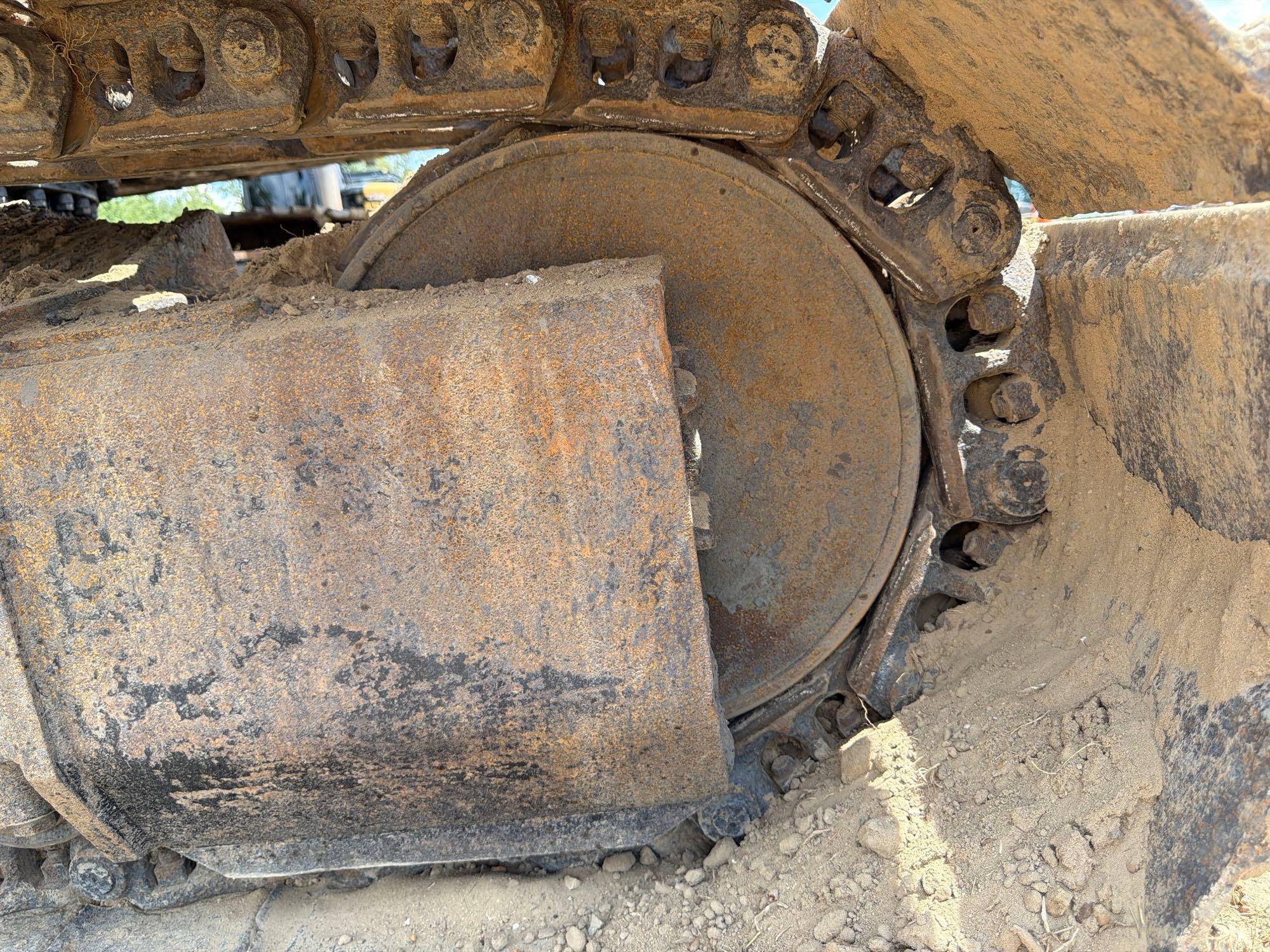

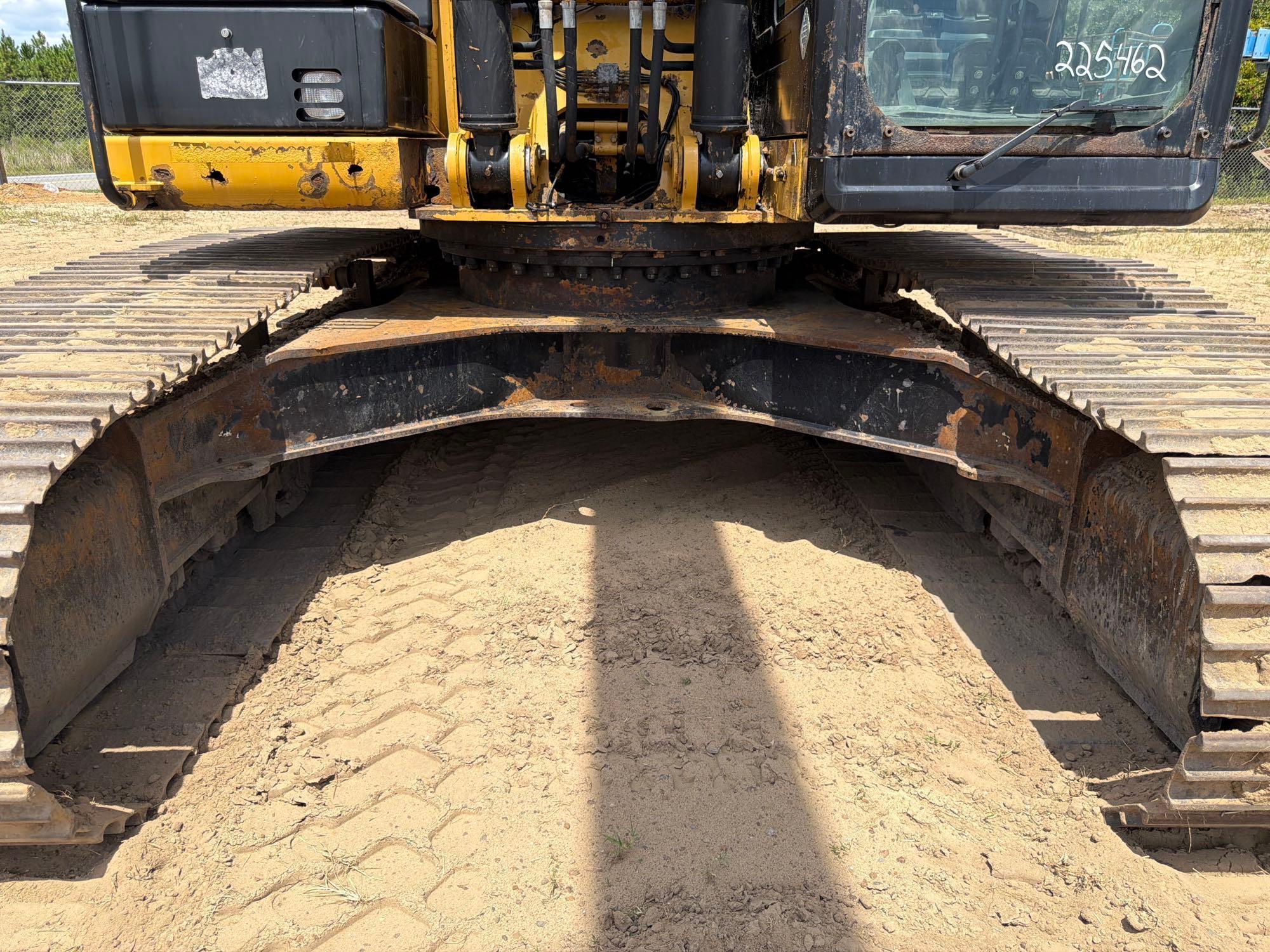

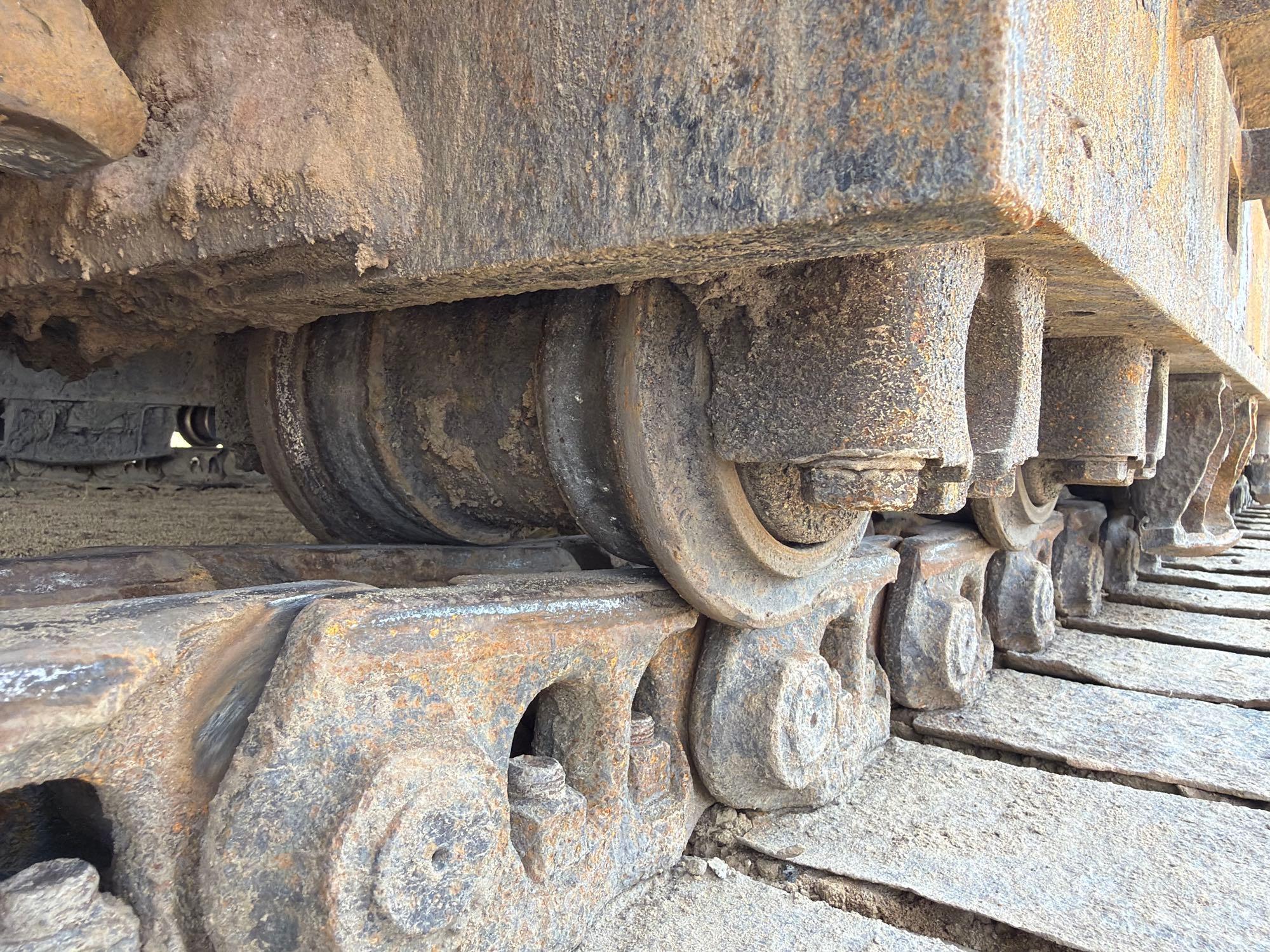

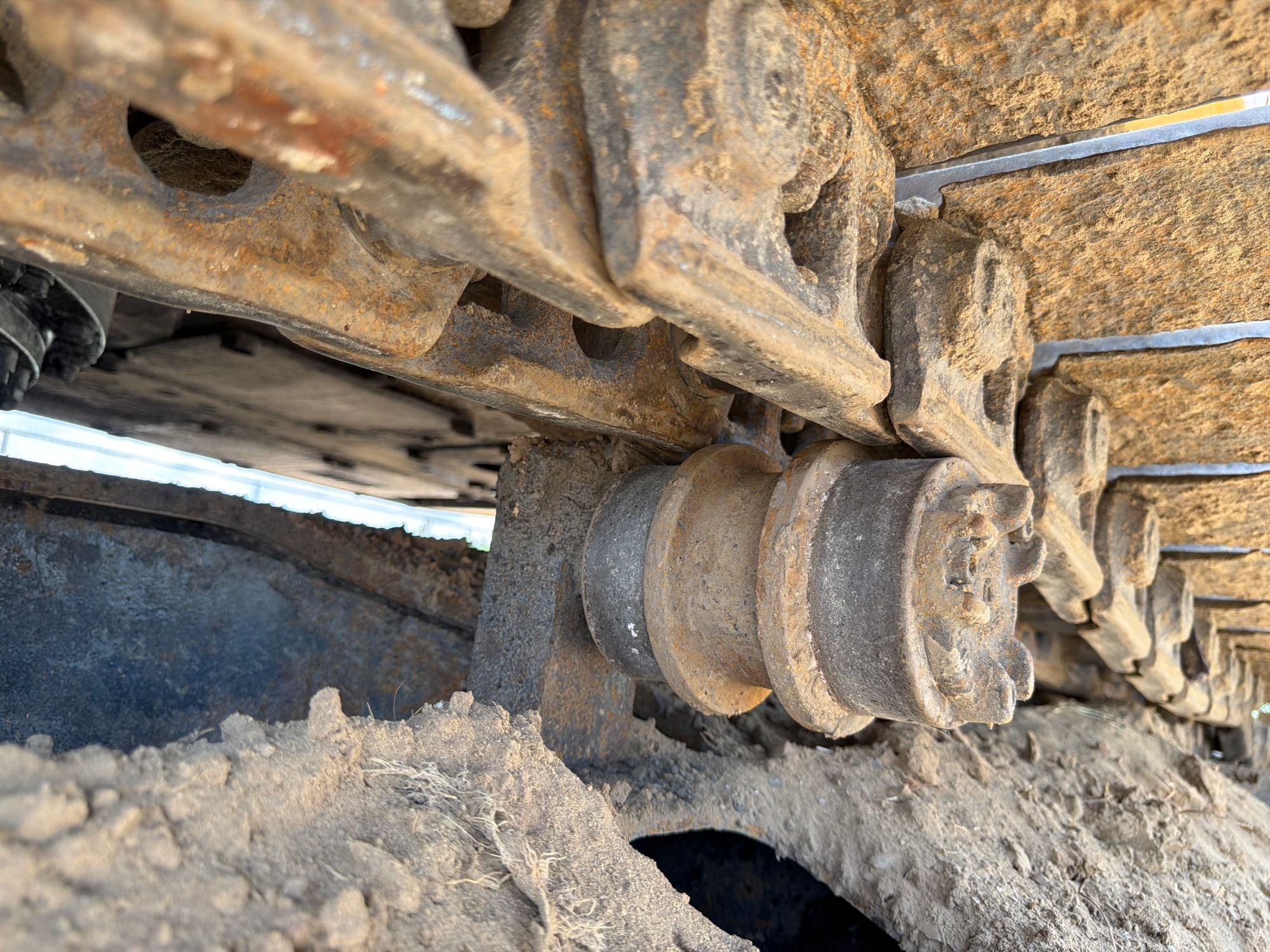

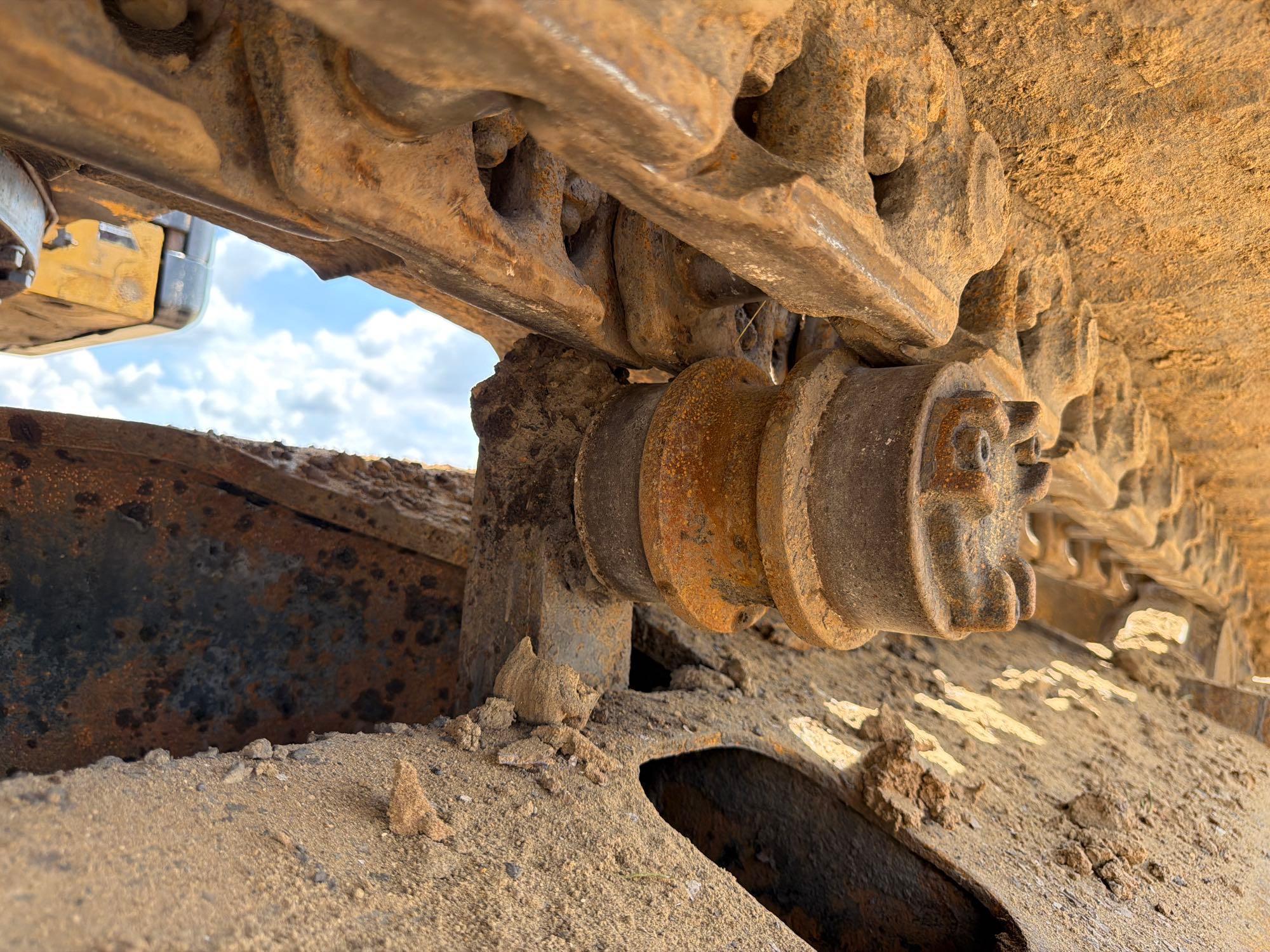

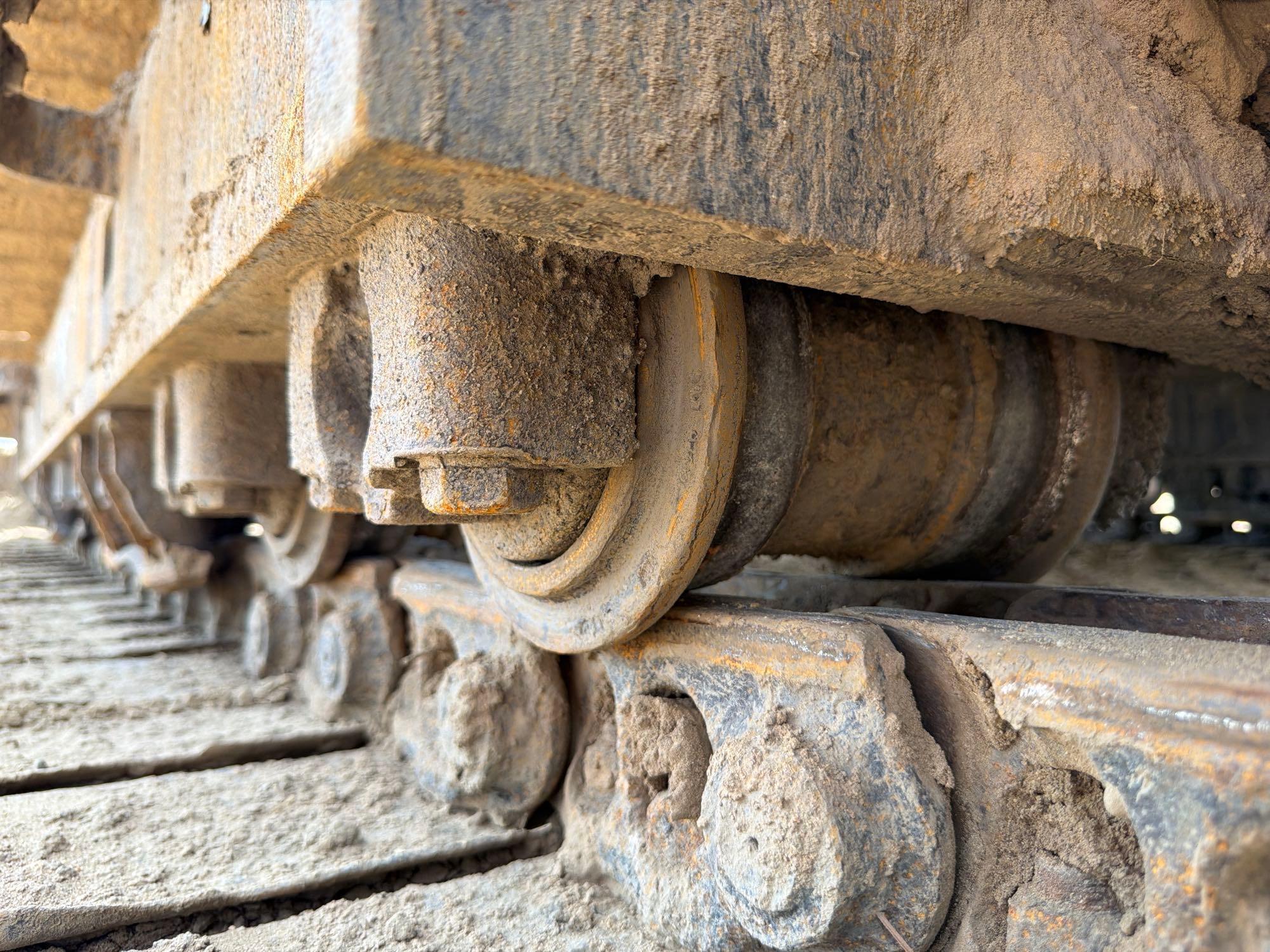

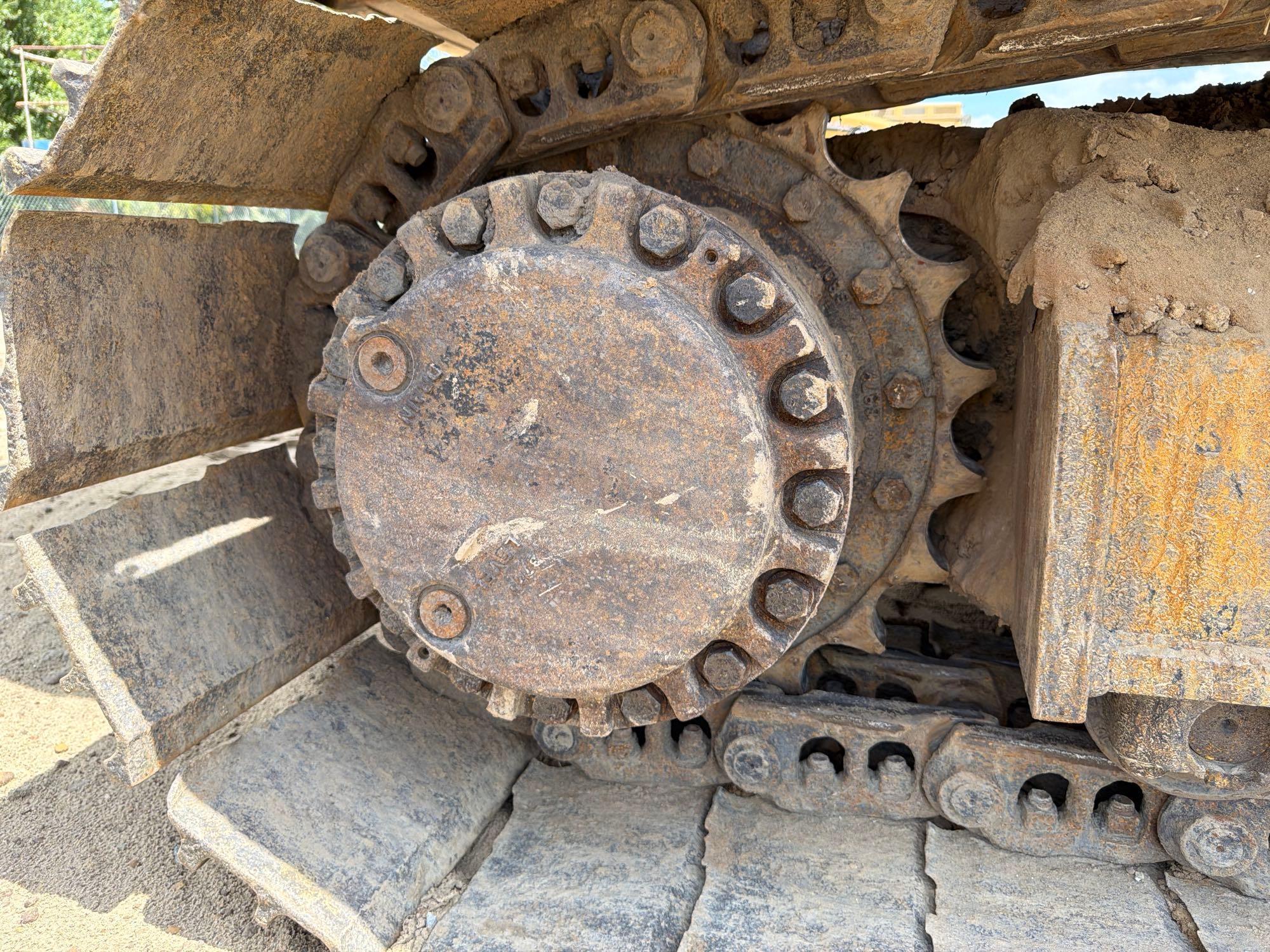

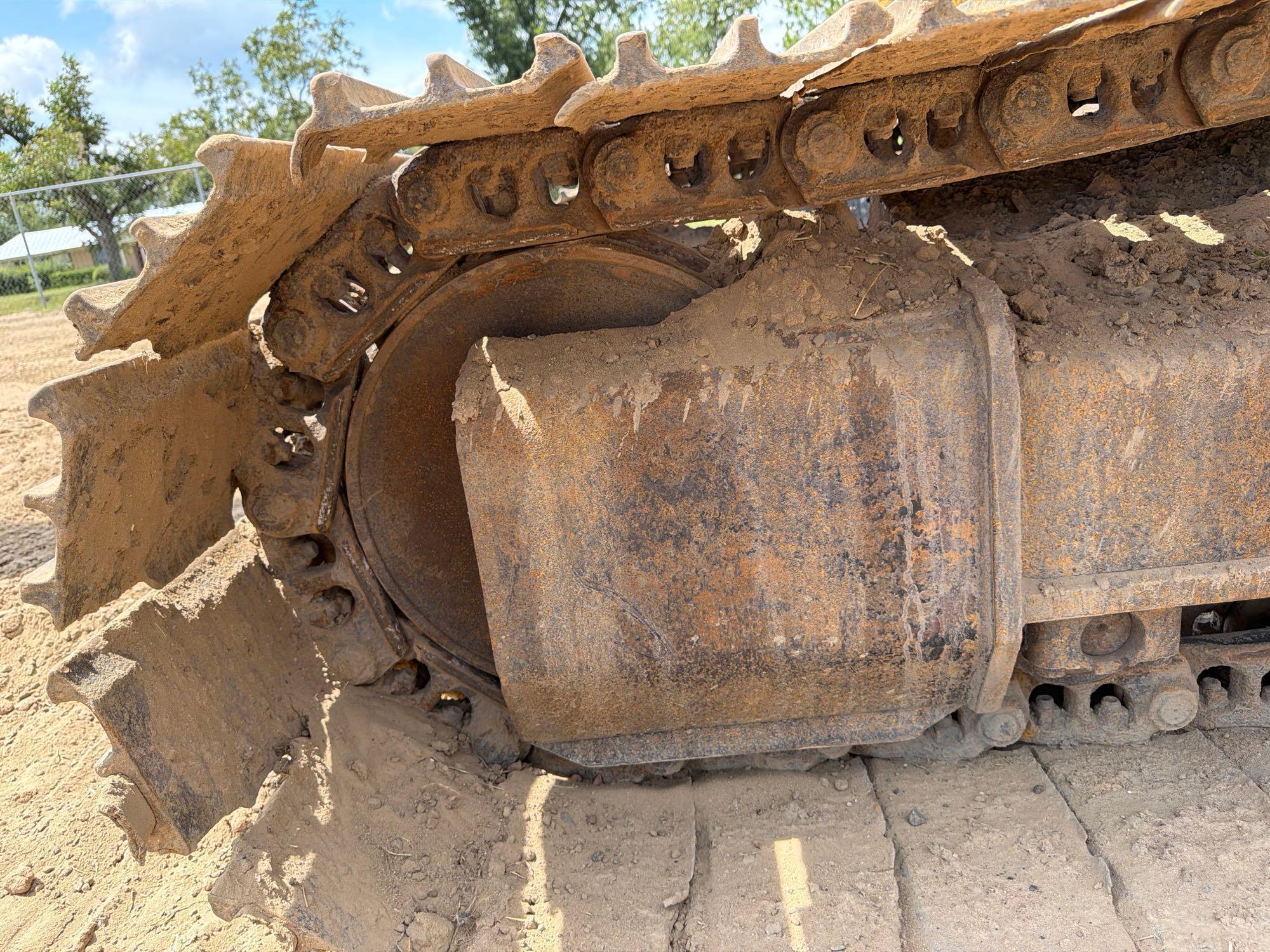

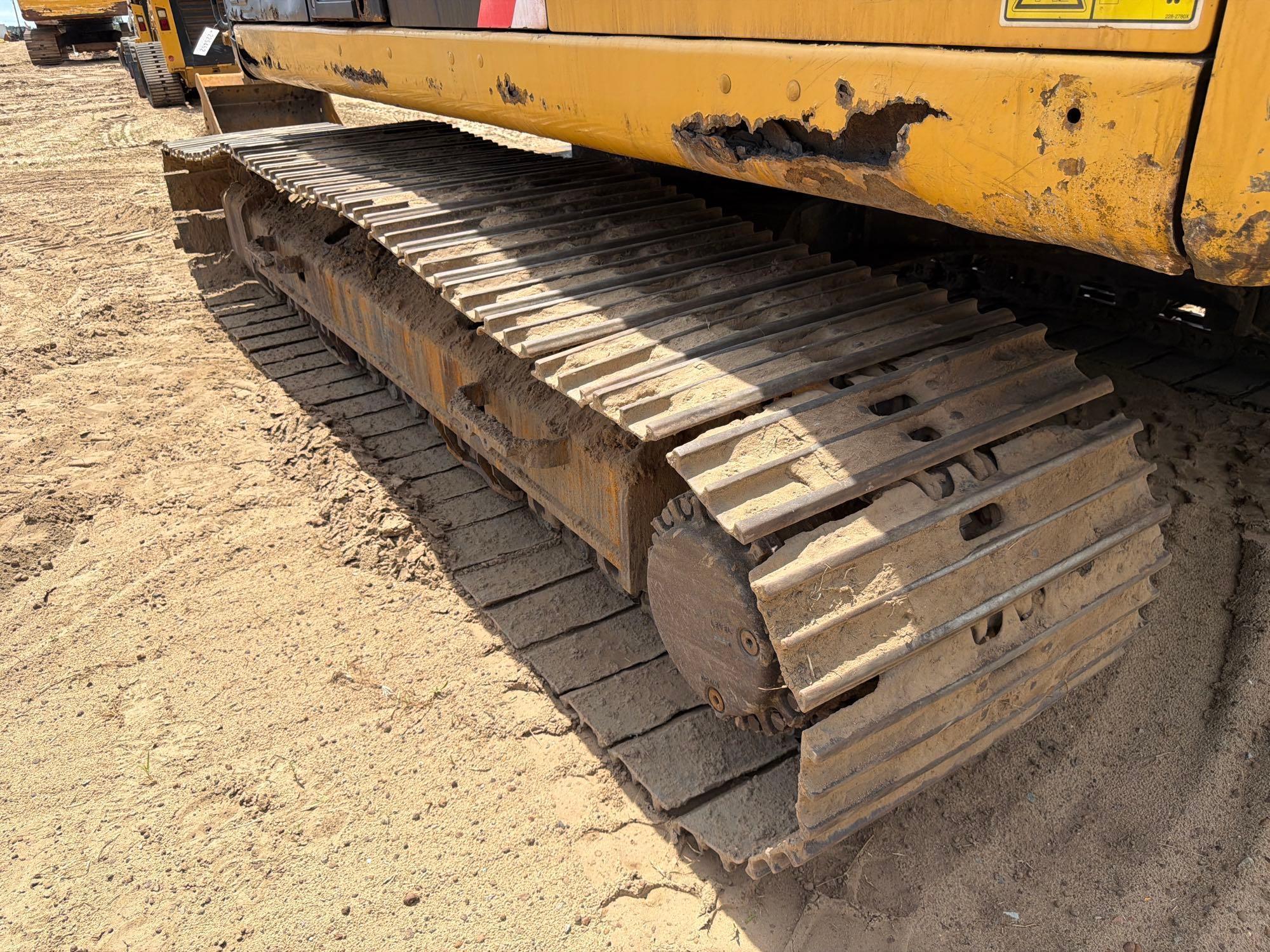

Overall Track Length (Since 2012)
|
183 in (465 cm)
|
|
Overall Track Length (2013)
|
183 in (465 cm)
|
|
Overall Track Length (2015)
|
183 in (465 cm)
|
|
Overall Track Length (2016)
|
183 in (465 cm)
|
|

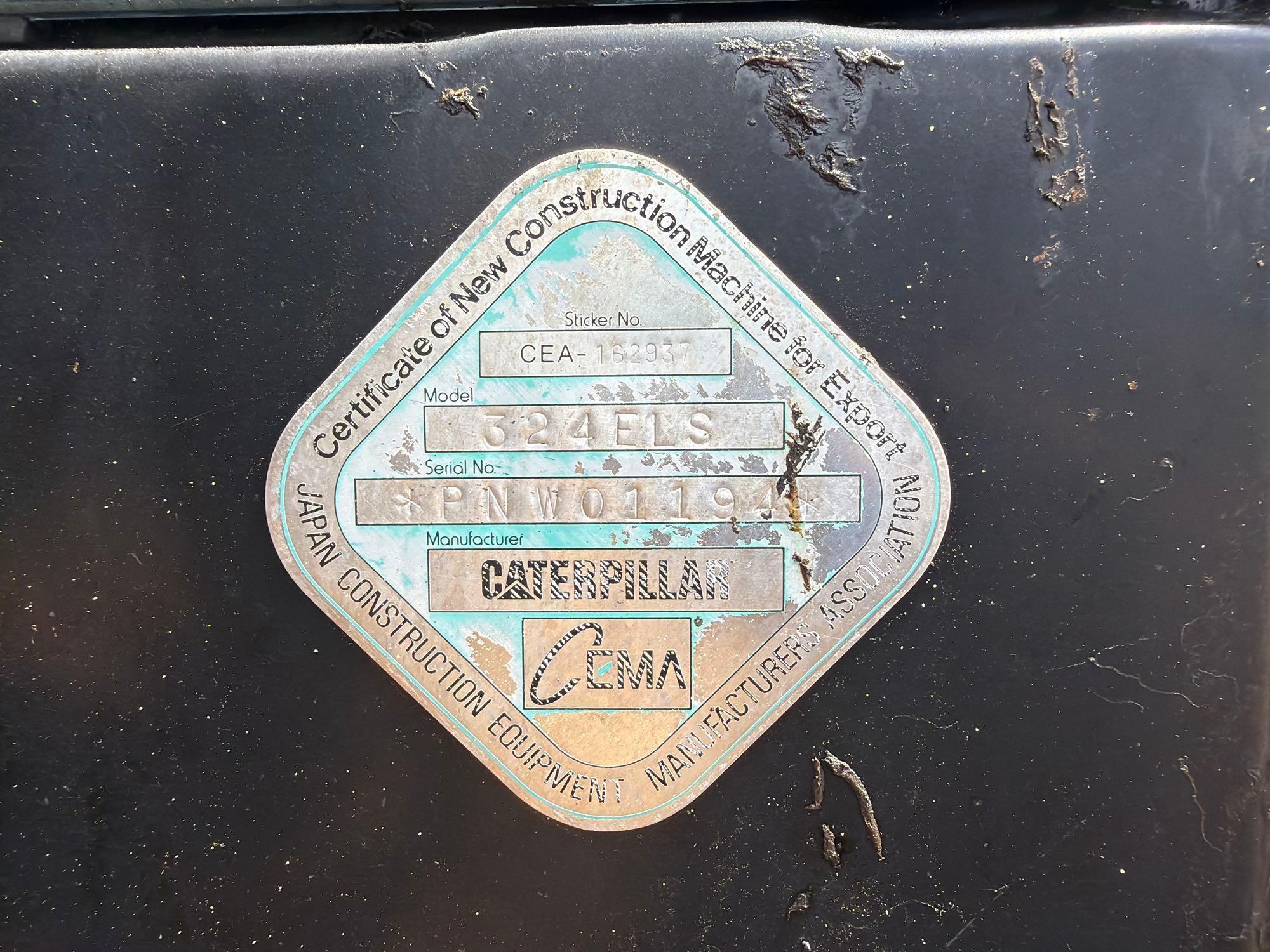

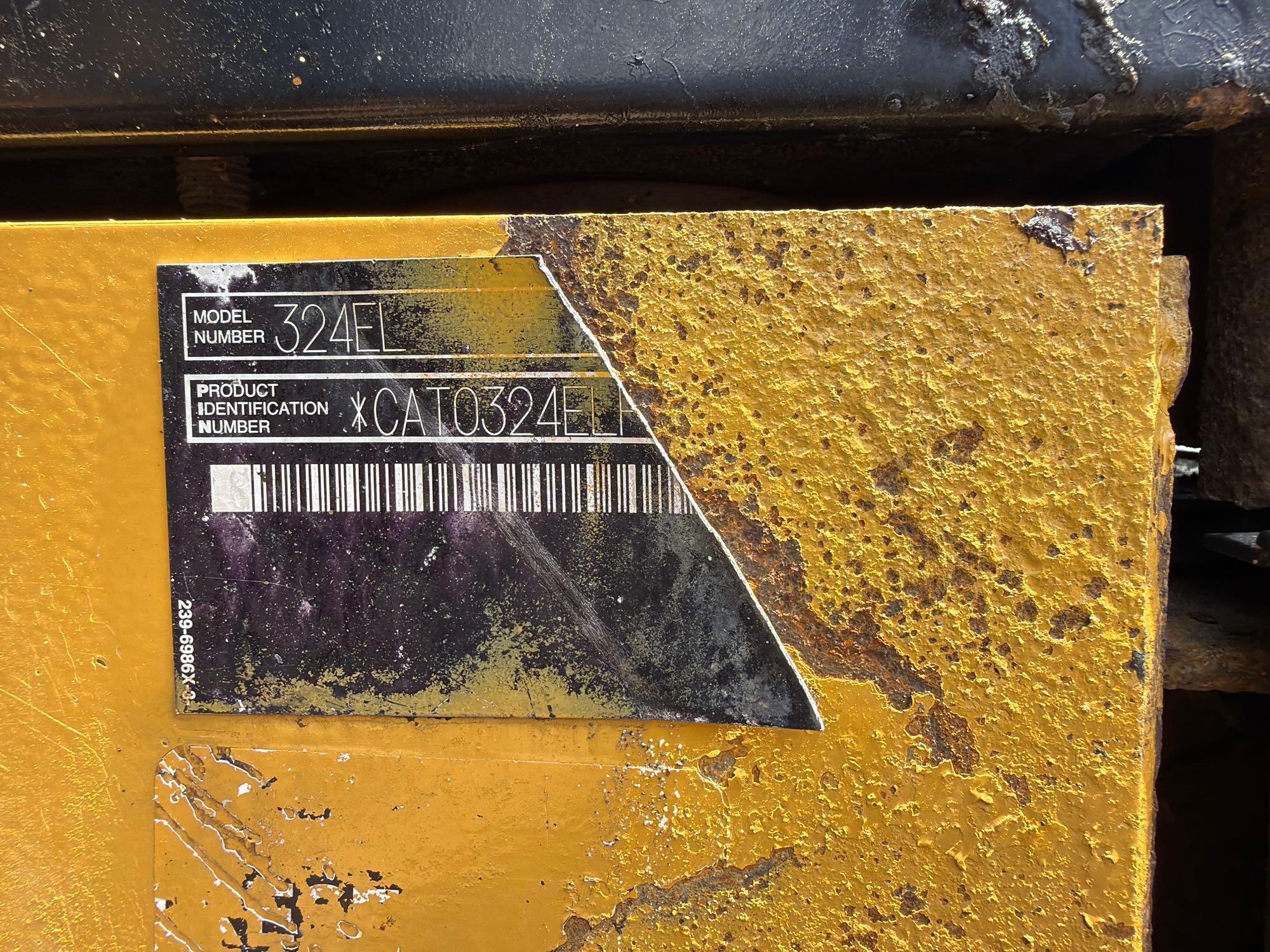

Product Identification Prefix (Since 2010)
|
KTE PNW TLF |
|
Product Identification Prefix (2011)
|
KTE PNW TLF |
|
Product Identification Prefix (2012)
|
KTE PNW TLF |
|
Product Identification Prefix (2013)
|
KTE PNW TLF |
|
Product Identification Prefix (2014)
|
KTE PNW TLF |
|
Product Identification Prefix (2015)
|
KTE PNW TLF |
|
Product Identification Prefix (2016)
|
KTE PNW TLF |
|
Range Dimension A (source diagram) (Since 2012)
|
232 in (589 cm)
|
|
Range Dimension A (source diagram) (Since 2012)
|
254 in (645 cm)
|
|
Range Dimension A (source diagram) (Since 2012)
|
328 in (833 cm)
|
|
Range Dimension A (source diagram) (Since 2012)
|
293 in (744 cm)
|
|
Range Dimension A (source diagram) (Since 2013)
|
232 in (589 cm)
|
|
Range Dimension A (source diagram) (Since 2013)
|
254 in (645 cm)
|
|
Range Dimension A (source diagram) (Since 2013)
|
328 in (833 cm)
|
|
Range Dimension A (source diagram) (Since 2013)
|
293 in (744 cm)
|
|
Range Dimension A (source diagram) (Since 2015)
|
232 in (589 cm)
|
|
Range Dimension A (source diagram) (Since 2015)
|
254 in (645 cm)
|
|
Range Dimension A (source diagram) (Since 2015)
|
328 in (833 cm)
|
|
Range Dimension A (source diagram) (Since 2015)
|
293 in (744 cm)
|
|
Range Dimension A (source diagram) (Since 2016)
|
254 in (645 cm)
|
|
Range Dimension A (source diagram) (Since 2016)
|
232 in (589 cm)
|
|
Range Dimension A (source diagram) (Since 2016)
|
328 in (833 cm)
|
|
Range Dimension A (source diagram) (Since 2016)
|
293 in (744 cm)
|
|
Range Dimension B (source diagram) (Since 2012)
|
357 in (907 cm)
|
|
Range Dimension B (source diagram) (Since 2012)
|
381 in (968 cm)
|
|
Range Dimension B (source diagram) (Since 2012)
|
407 in (1,034 cm)
|
|
Range Dimension B (source diagram) (Since 2012)
|
398 in (1,011 cm)
|
|
Range Dimension B (source diagram) (Since 2013)
|
357 in (907 cm)
|
|
Range Dimension B (source diagram) (Since 2013)
|
381 in (968 cm)
|
|
Range Dimension B (source diagram) (Since 2013)
|
407 in (1,034 cm)
|
|
Range Dimension B (source diagram) (Since 2013)
|
398 in (1,011 cm)
|
|
Range Dimension B (source diagram) (Since 2015)
|
357 in (907 cm)
|
|
Range Dimension B (source diagram) (Since 2015)
|
381 in (968 cm)
|
|
Range Dimension B (source diagram) (Since 2015)
|
407 in (1,034 cm)
|
|
Range Dimension B (source diagram) (Since 2015)
|
398 in (1,011 cm)
|
|
Range Dimension B (source diagram) (Since 2016)
|
381 in (968 cm)
|
|
Range Dimension B (source diagram) (Since 2016)
|
362 in (919 cm)
|
|
Range Dimension B (source diagram) (Since 2016)
|
407 in (1,034 cm)
|
|
Range Dimension B (source diagram) (Since 2016)
|
398 in (1,011 cm)
|
|
Range Dimension C (source diagram) (Since 2012)
|
236 in (599 cm)
|
|
Range Dimension C (source diagram) (Since 2012)
|
250 in (635 cm)
|
|
Range Dimension C (source diagram) (Since 2012)
|
263 in (668 cm)
|
|
Range Dimension C (source diagram) (Since 2012)
|
264 in (671 cm)
|
|
Range Dimension C (source diagram) (Since 2013)
|
236 in (599 cm)
|
|
Range Dimension C (source diagram) (Since 2013)
|
250 in (635 cm)
|
|
Range Dimension C (source diagram) (Since 2013)
|
263 in (668 cm)
|
|
Range Dimension C (source diagram) (Since 2013)
|
264 in (671 cm)
|
|
Range Dimension C (source diagram) (Since 2015)
|
236 in (599 cm)
|
|
Range Dimension C (source diagram) (Since 2015)
|
250 in (635 cm)
|
|
Range Dimension C (source diagram) (Since 2015)
|
263 in (668 cm)
|
|
Range Dimension C (source diagram) (Since 2015)
|
264 in (671 cm)
|
|
Range Dimension C (source diagram) (Since 2016)
|
250 in (635 cm)
|
|
Range Dimension C (source diagram) (Since 2016)
|
236 in (599 cm)
|
|
Range Dimension C (source diagram) (Since 2016)
|
263 in (668 cm)
|
|
Range Dimension C (source diagram) (Since 2016)
|
268 in (681 cm)
|
|
Range Dimension D (source diagram) (Since 2012)
|
167 in (424 cm)
|
|
Range Dimension D (source diagram) (Since 2012)
|
192 in (488 cm)
|
|
Range Dimension D (source diagram) (Since 2012)
|
201 in (511 cm)
|
|
Range Dimension D (source diagram) (Since 2012)
|
209 in (531 cm)
|
|
Range Dimension D (source diagram) (Since 2013)
|
167 in (424 cm)
|
|
Range Dimension D (source diagram) (Since 2013)
|
192 in (488 cm)
|
|
Range Dimension D (source diagram) (Since 2013)
|
201 in (511 cm)
|
|
Range Dimension D (source diagram) (Since 2013)
|
209 in (531 cm)
|
|
Range Dimension D (source diagram) (Since 2015)
|
167 in (424 cm)
|
|
Range Dimension D (source diagram) (Since 2015)
|
192 in (488 cm)
|
|
Range Dimension D (source diagram) (Since 2015)
|
201 in (511 cm)
|
|
Range Dimension D (source diagram) (Since 2015)
|
209 in (531 cm)
|
|
Range Dimension D (source diagram) (Since 2016)
|
192 in (488 cm)
|
|
Range Dimension D (source diagram) (Since 2016)
|
167 in (424 cm)
|
|
Range Dimension D (source diagram) (Since 2016)
|
201 in (511 cm)
|
|
Range Dimension D (source diagram) (Since 2016)
|
209 in (531 cm)
|
|
Range Dimension E (source diagram) (Since 2012)
|
229 in (582 cm)
|
|
Range Dimension E (source diagram) (Since 2012)
|
243 in (617 cm)
|
|
Range Dimension E (source diagram) (Since 2012)
|
259 in (658 cm)
|
|
Range Dimension E (source diagram) (Since 2012)
|
261 in (663 cm)
|
|
Range Dimension E (source diagram) (Since 2013)
|
229 in (582 cm)
|
|
Range Dimension E (source diagram) (Since 2013)
|
243 in (617 cm)
|
|
Range Dimension E (source diagram) (Since 2013)
|
259 in (658 cm)
|
|
Range Dimension E (source diagram) (Since 2013)
|
261 in (663 cm)
|
|
Range Dimension E (source diagram) (Since 2015)
|
229 in (582 cm)
|
|
Range Dimension E (source diagram) (Since 2015)
|
243 in (617 cm)
|
|
Range Dimension E (source diagram) (Since 2015)
|
259 in (658 cm)
|
|
Range Dimension E (source diagram) (Since 2015)
|
261 in (663 cm)
|
|
Range Dimension E (source diagram) (Since 2016)
|
243 in (617 cm)
|
|
Range Dimension E (source diagram) (Since 2016)
|
229 in (582 cm)
|
|
Range Dimension E (source diagram) (Since 2016)
|
259 in (658 cm)
|
|
Range Dimension E (source diagram) (Since 2016)
|
261 in (663 cm)
|
|
Range Dimension F (source diagram) (Since 2012)
|
393 in (998 cm)
|
|
Range Dimension F (source diagram) (2013)
|
393 in (998 cm)
|
|
Range Dimension F (source diagram) (2015)
|
393 in (998 cm)
|
|
Range Dimension F (source diagram) (2016)
|
393 in (998 cm)
|
|
Range Dimension G (source diagram) (Since 2012)
|
357 in (907 cm)
|
|
Range Dimension G (source diagram) (Since 2012)
|
374 in (950 cm)
|
|
Range Dimension G (source diagram) (Since 2012)
|
457 in (1,161 cm)
|
|
Range Dimension G (source diagram) (Since 2012)
|
381 in (968 cm)
|
|
Range Dimension G (source diagram) (Since 2013)
|
357 in (907 cm)
|
|
Range Dimension G (source diagram) (Since 2013)
|
374 in (950 cm)
|
|
Range Dimension G (source diagram) (Since 2013)
|
457 in (1,161 cm)
|
|
Range Dimension G (source diagram) (Since 2013)
|
381 in (968 cm)
|
|
Range Dimension G (source diagram) (Since 2015)
|
357 in (907 cm)
|
|
Range Dimension G (source diagram) (Since 2015)
|
374 in (950 cm)
|
|
Range Dimension G (source diagram) (Since 2015)
|
457 in (1,161 cm)
|
|
Range Dimension G (source diagram) (Since 2015)
|
381 in (968 cm)
|
|
Range Dimension G (source diagram) (Since 2016)
|
374 in (950 cm)
|
|
Range Dimension G (source diagram) (Since 2016)
|
357 in (907 cm)
|
|
Range Dimension G (source diagram) (Since 2016)
|
457 in (1,161 cm)
|
|
Range Dimension G (source diagram) (Since 2016)
|
381 in (968 cm)
|
|
Rated Engine RPM (Since 2012)
|
1,800 rpm |
|
Rated Engine RPM (2013)
|
1,800 rpm |
|
Rated Engine RPM (2015)
|
1,800 rpm |
|
Rated Engine RPM (2016)
|
1,800 rpm |
|
Region Offerings (Since 2012)
|
North America, Europe, Japan |
|
Region Offerings (2013)
|
North America, Europe, Japan |
|
Region Offerings (Since 2015)
|
North America, Europe, Japan, Australia, New Zealand |
|
Region Offerings (2016)
|
North America, Europe, Japan, Australia, New Zealand |
|

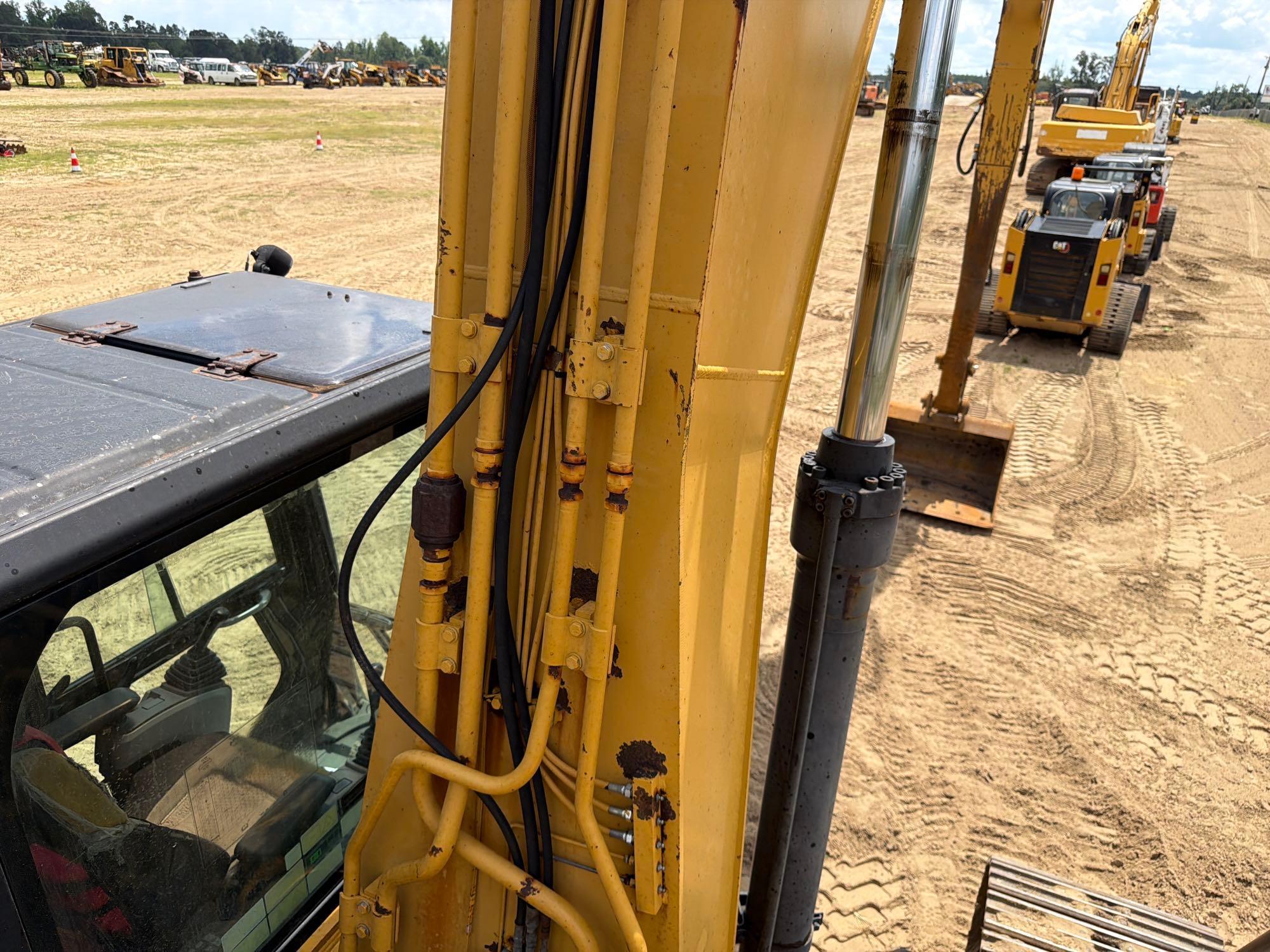

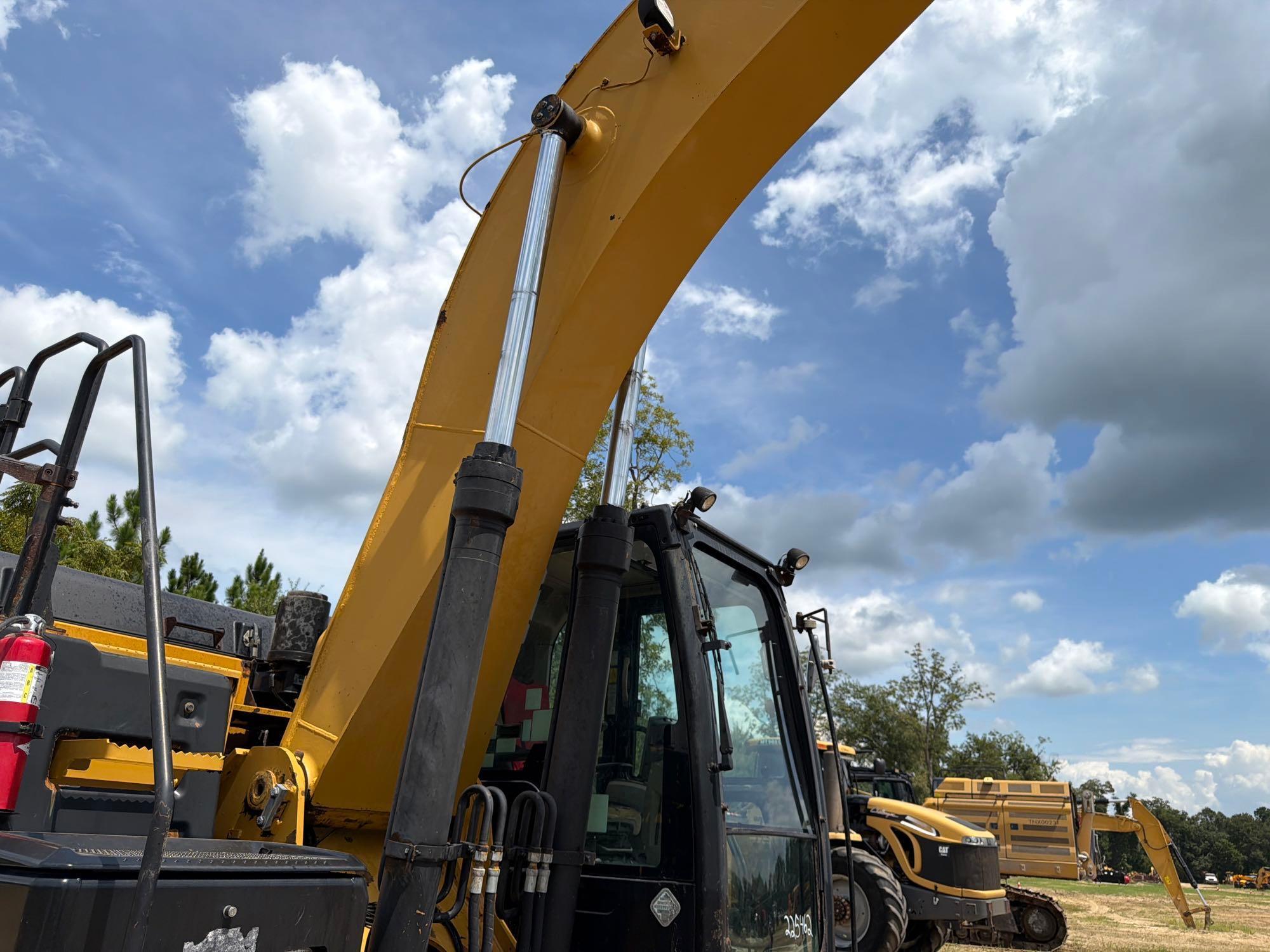

Relief Valve Settings - Implement Circuits (Since 2012)
|
5,076 psi (35,000 kPa)
|
|
Relief Valve Settings - Implement Circuits (2013)
|
5,076 psi (35,000 kPa)
|
|
Relief Valve Settings - Implement Circuits (2015)
|
5,076 psi (35,000 kPa)
|
|
Relief Valve Settings - Implement Circuits (2016)
|
5,076 psi (35,000 kPa)
|
|
Relief Valve Settings - Pilot Circuits (Since 2012)
|
569 psi (3,920 kPa)
|
|
Relief Valve Settings - Pilot Circuits (2013)
|
569 psi (3,920 kPa)
|
|
Relief Valve Settings - Pilot Circuits (2015)
|
569 psi (3,920 kPa)
|
|
Relief Valve Settings - Pilot Circuits (2016)
|
569 psi (3,920 kPa)
|
|
Relief Valve Settings - Swing Circuits (Since 2012)
|
3,553 psi (24,500 kPa)
|
|
Relief Valve Settings - Swing Circuits (2013)
|
3,553 psi (24,500 kPa)
|
|
Relief Valve Settings - Swing Circuits (2015)
|
3,553 psi (24,500 kPa)
|
|
Relief Valve Settings - Swing Circuits (Since 2016)
|
3,553 psi (24,497 kPa)
|
|
Relief Valve Settings - Travel Circuits (Since 2012)
|
5,076 psi (35,000 kPa)
|
|
Relief Valve Settings - Travel Circuits (2013)
|
5,076 psi (35,000 kPa)
|
|
Relief Valve Settings - Travel Circuits (2015)
|
5,076 psi (35,000 kPa)
|
|
Relief Valve Settings - Travel Circuits (2016)
|
5,076 psi (35,000 kPa)
|
|
Shipping Dimension A (source diagram) (Since 2012)
|
118 in (300 cm)
|
|
Shipping Dimension A (source diagram) (2013)
|
118 in (300 cm)
|
|
Shipping Dimension A (source diagram) (2015)
|
118 in (300 cm)
|
|
Shipping Dimension A (source diagram) (2016)
|
118 in (300 cm)
|
|
Shipping Dimension B (source diagram) (Since 2012)
|
116 in (295 cm)
|
|
Shipping Dimension B (source diagram) (2013)
|
116 in (295 cm)
|
|
Shipping Dimension B (source diagram) (2015)
|
116 in (295 cm)
|
|
Shipping Dimension B (source diagram) (2016)
|
116 in (295 cm)
|
|
Shipping Dimension C (source diagram) (Since 2012)
|
133 in (338 cm)
|
|
Shipping Dimension C (source diagram) (Since 2012)
|
126 in (320 cm)
|
|
Shipping Dimension C (source diagram) (Since 2013)
|
133 in (338 cm)
|
|
Shipping Dimension C (source diagram) (Since 2013)
|
126 in (320 cm)
|
|
Shipping Dimension C (source diagram) (Since 2015)
|
133 in (338 cm)
|
|
Shipping Dimension C (source diagram) (Since 2015)
|
126 in (320 cm)
|
|
Shipping Dimension C (source diagram) (Since 2016)
|
133 in (338 cm)
|
|
Shipping Dimension C (source diagram) (Since 2016)
|
126 in (320 cm)
|
|
Shipping Dimension D (source diagram) (Since 2012)
|
19 in (48 cm)
|
|
Shipping Dimension D (source diagram) (2013)
|
19 in (48 cm)
|
|
Shipping Dimension D (source diagram) (2015)
|
19 in (48 cm)
|
|
Shipping Dimension D (source diagram) (Since 2016)
|
17 in (43 cm)
|
|
Shipping Dimension E (source diagram) (Since 2012)
|
43 in (109 cm)
|
|
Shipping Dimension E (source diagram) (2013)
|
43 in (109 cm)
|
|
Shipping Dimension E (source diagram) (2015)
|
43 in (109 cm)
|
|
Shipping Dimension E (source diagram) (2016)
|
43 in (109 cm)
|
|
Shipping Dimension F (source diagram) (Since 2012)
|
116 in (295 cm)
|
|
Shipping Dimension F (source diagram) (2013)
|
116 in (295 cm)
|
|
Shipping Dimension F (source diagram) (2015)
|
116 in (295 cm)
|
|
Shipping Dimension F (source diagram) (2016)
|
116 in (295 cm)
|
|
Shipping Dimension G (source diagram) (Since 2012)
|
183 in (465 cm)
|
|
Shipping Dimension G (source diagram) (2013)
|
183 in (465 cm)
|
|
Shipping Dimension G (source diagram) (2015)
|
183 in (465 cm)
|
|
Shipping Dimension G (source diagram) (2016)
|
183 in (465 cm)
|
|
Shipping Dimension H (source diagram) (Since 2012)
|
373 in (947 cm)
|
|
Shipping Dimension H (source diagram) (Since 2012)
|
396 in (1,006 cm)
|
|
Shipping Dimension H (source diagram) (Since 2012)
|
398 in (1,011 cm)
|
|
Shipping Dimension H (source diagram) (Since 2012)
|
565 in (1,435 cm)
|
|
Shipping Dimension H (source diagram) (Since 2012)
|
402 in (1,021 cm)
|
|
Shipping Dimension H (source diagram) (Since 2013)
|
373 in (947 cm)
|
|
Shipping Dimension H (source diagram) (Since 2013)
|
396 in (1,006 cm)
|
|
Shipping Dimension H (source diagram) (Since 2013)
|
398 in (1,011 cm)
|
|
Shipping Dimension H (source diagram) (Since 2013)
|
565 in (1,435 cm)
|
|
Shipping Dimension H (source diagram) (Since 2013)
|
402 in (1,021 cm)
|
|
Shipping Dimension H (source diagram) (Since 2015)
|
373 in (947 cm)
|
|
Shipping Dimension H (source diagram) (Since 2015)
|
396 in (1,006 cm)
|
|
Shipping Dimension H (source diagram) (Since 2015)
|
398 in (1,011 cm)
|
|
Shipping Dimension H (source diagram) (Since 2015)
|
565 in (1,435 cm)
|
|
Shipping Dimension H (source diagram) (Since 2015)
|
402 in (1,021 cm)
|
|
Shipping Dimension H (source diagram) (Since 2016)
|
373 in (947 cm)
|
|
Shipping Dimension H (source diagram) (Since 2016)
|
396 in (1,006 cm)
|
|
Shipping Dimension H (source diagram) (Since 2016)
|
398 in (1,011 cm)
|
|
Shipping Dimension H (source diagram) (Since 2016)
|
565 in (1,435 cm)
|
|
Shipping Dimension H (source diagram) (Since 2016)
|
402 in (1,021 cm)
|
|
Shipping Dimension J (source diagram) (Since 2012)
|
138 in (351 cm)
|
|
Shipping Dimension J (source diagram) (Since 2012)
|
127 in (323 cm)
|
|
Shipping Dimension J (source diagram) (Since 2012)
|
134 in (340 cm)
|
|
Shipping Dimension J (source diagram) (Since 2012)
|
124 in (315 cm)
|
|
Shipping Dimension J (source diagram) (Since 2012)
|
123 in (312 cm)
|
|
Shipping Dimension J (source diagram) (Since 2013)
|
138 in (351 cm)
|
|
Shipping Dimension J (source diagram) (Since 2013)
|
127 in (323 cm)
|
|
Shipping Dimension J (source diagram) (Since 2013)
|
134 in (340 cm)
|
|
Shipping Dimension J (source diagram) (Since 2013)
|
124 in (315 cm)
|
|
Shipping Dimension J (source diagram) (Since 2013)
|
123 in (312 cm)
|
|
Shipping Dimension J (source diagram) (Since 2015)
|
138 in (351 cm)
|
|
Shipping Dimension J (source diagram) (Since 2015)
|
127 in (323 cm)
|
|
Shipping Dimension J (source diagram) (Since 2015)
|
134 in (340 cm)
|
|
Shipping Dimension J (source diagram) (Since 2015)
|
124 in (315 cm)
|
|
Shipping Dimension J (source diagram) (Since 2015)
|
123 in (312 cm)
|
|
Shipping Dimension J (source diagram) (Since 2016)
|
138 in (351 cm)
|
|
Shipping Dimension J (source diagram) (Since 2016)
|
127 in (323 cm)
|
|
Shipping Dimension J (source diagram) (Since 2016)
|
134 in (340 cm)
|
|
Shipping Dimension J (source diagram) (Since 2016)
|
124 in (315 cm)
|
|
Shipping Dimension J (source diagram) (Since 2016)
|
123 in (312 cm)
|
|
Shipping Dimension K (source diagram) (Since 2012)
|
151 in (384 cm)
|
|
Shipping Dimension K (source diagram) (2013)
|
151 in (384 cm)
|
|
Shipping Dimension K (source diagram) (2015)
|
151 in (384 cm)
|
|
Shipping Dimension K (source diagram) (2016)
|
151 in (384 cm)
|
|
Shipping Dimension L (source diagram) (Since 2012)
|
102 in (259 cm)
|
|
Shipping Dimension L (source diagram) (2013)
|
102 in (259 cm)
|
|
Shipping Dimension L (source diagram) (2015)
|
102 in (259 cm)
|
|
Shipping Dimension L (source diagram) (2016)
|
102 in (259 cm)
|
|
Track Gauge (Since 2010)
|
102 in (259 cm)
|
|
Track Gauge (2011)
|
102 in (259 cm)
|
|
Track Gauge (2012)
|
102 in (259 cm)
|
|
Track Gauge (2012)
|
102 in (259 cm)
|
|
Track Gauge (2013)
|
102 in (259 cm)
|
|
Track Gauge (2013)
|
102 in (259 cm)
|
|
Track Gauge (2014)
|
102 in (259 cm)
|
|
Track Gauge (2015)
|
102 in (259 cm)
|
|
Track Gauge (2015)
|
102 in (259 cm)
|
|
Track Gauge (2016)
|
102 in (259 cm)
|
|
Track Gauge (2016)
|
102 in (259 cm)
|
|
Width (Since 2010)
|
133 in (338 cm)
|
|
Width (2011)
|
133 in (338 cm)
|
|
Width (2012)
|
133 in (338 cm)
|
|
Width (2013)
|
133 in (338 cm)
|
|
Width (2014)
|
133 in (338 cm)
|
|
Width (2015)
|
133 in (338 cm)
|
|
Width (2016)
|
133 in (338 cm)
|
|

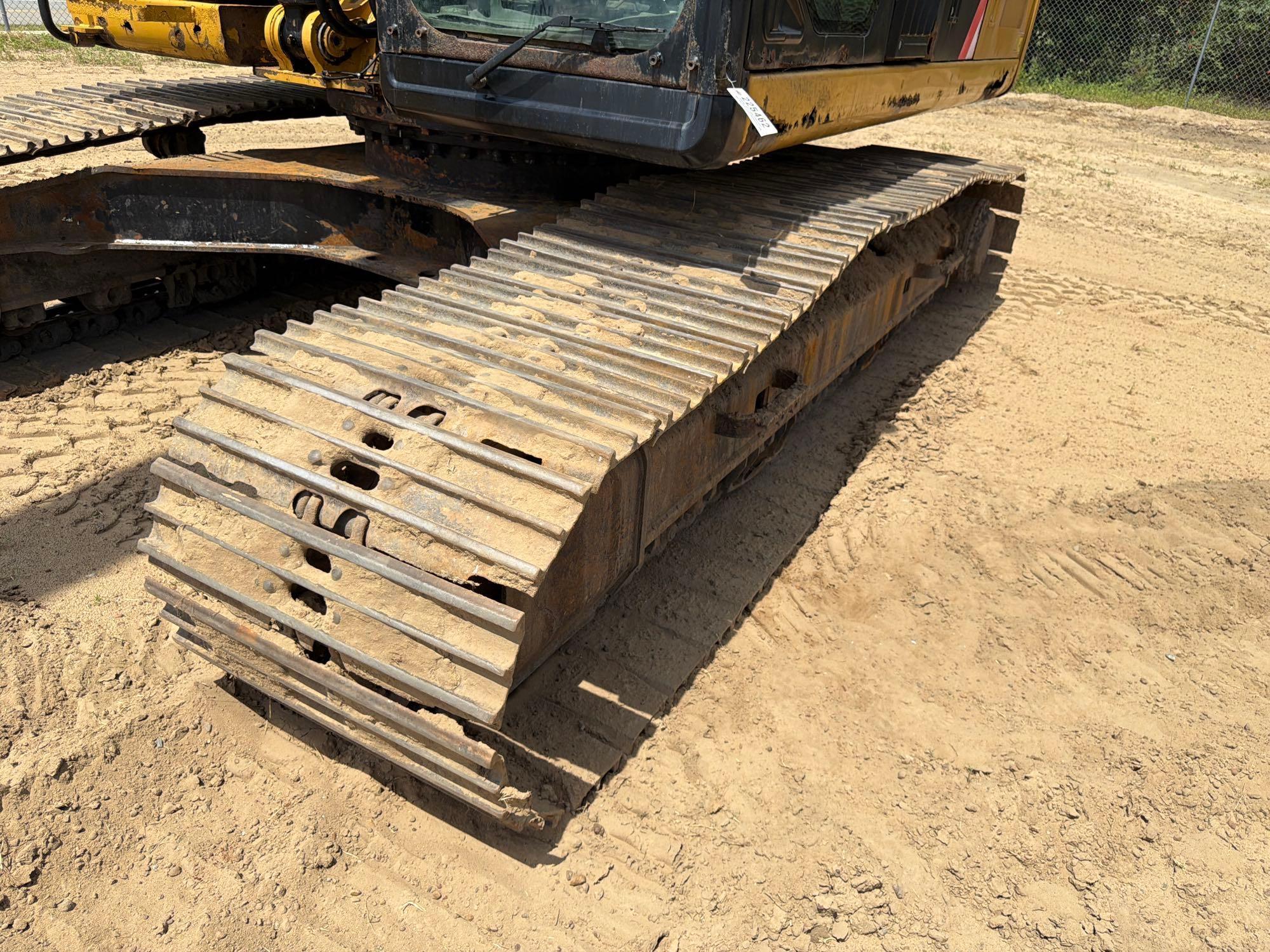

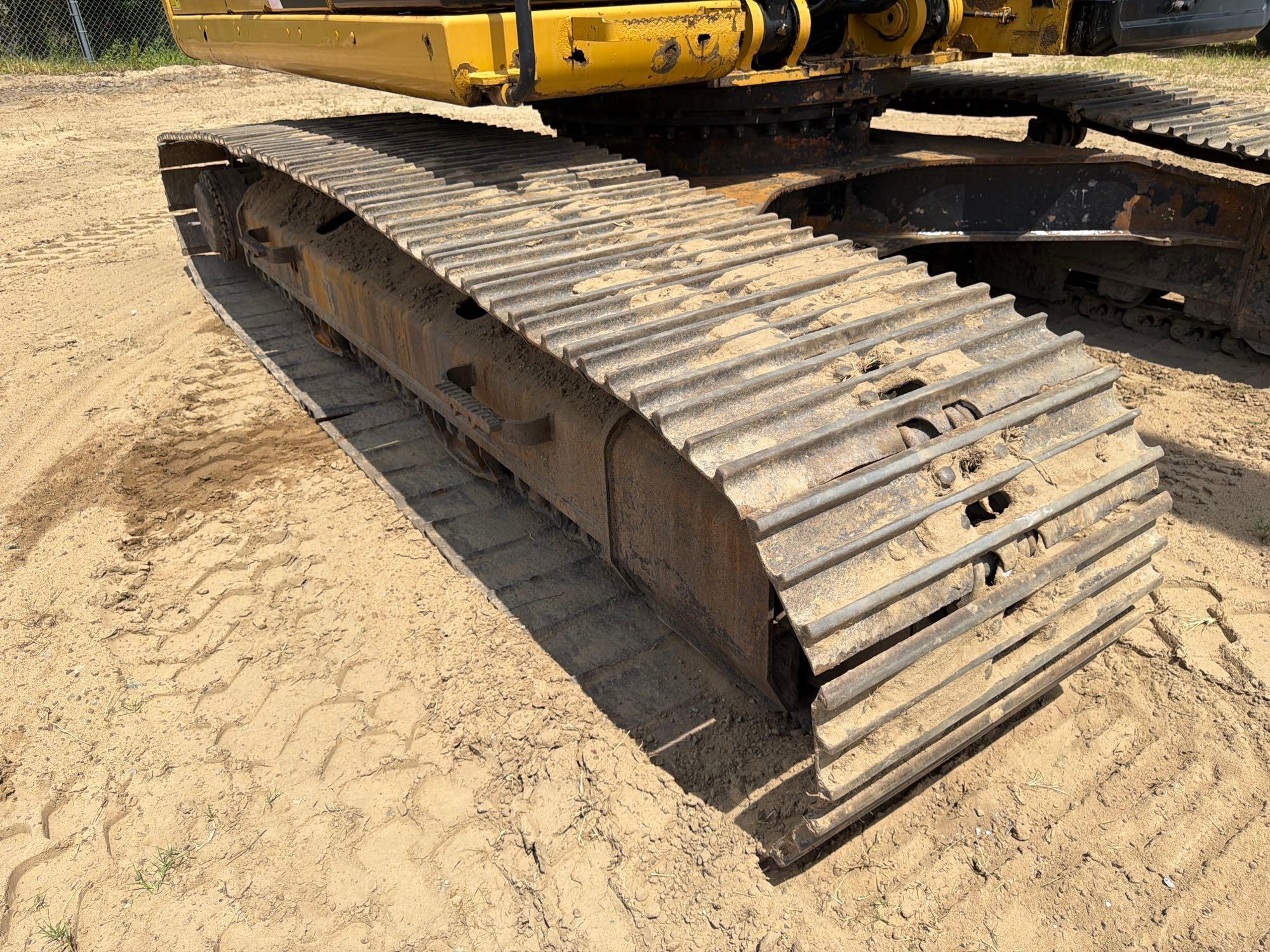

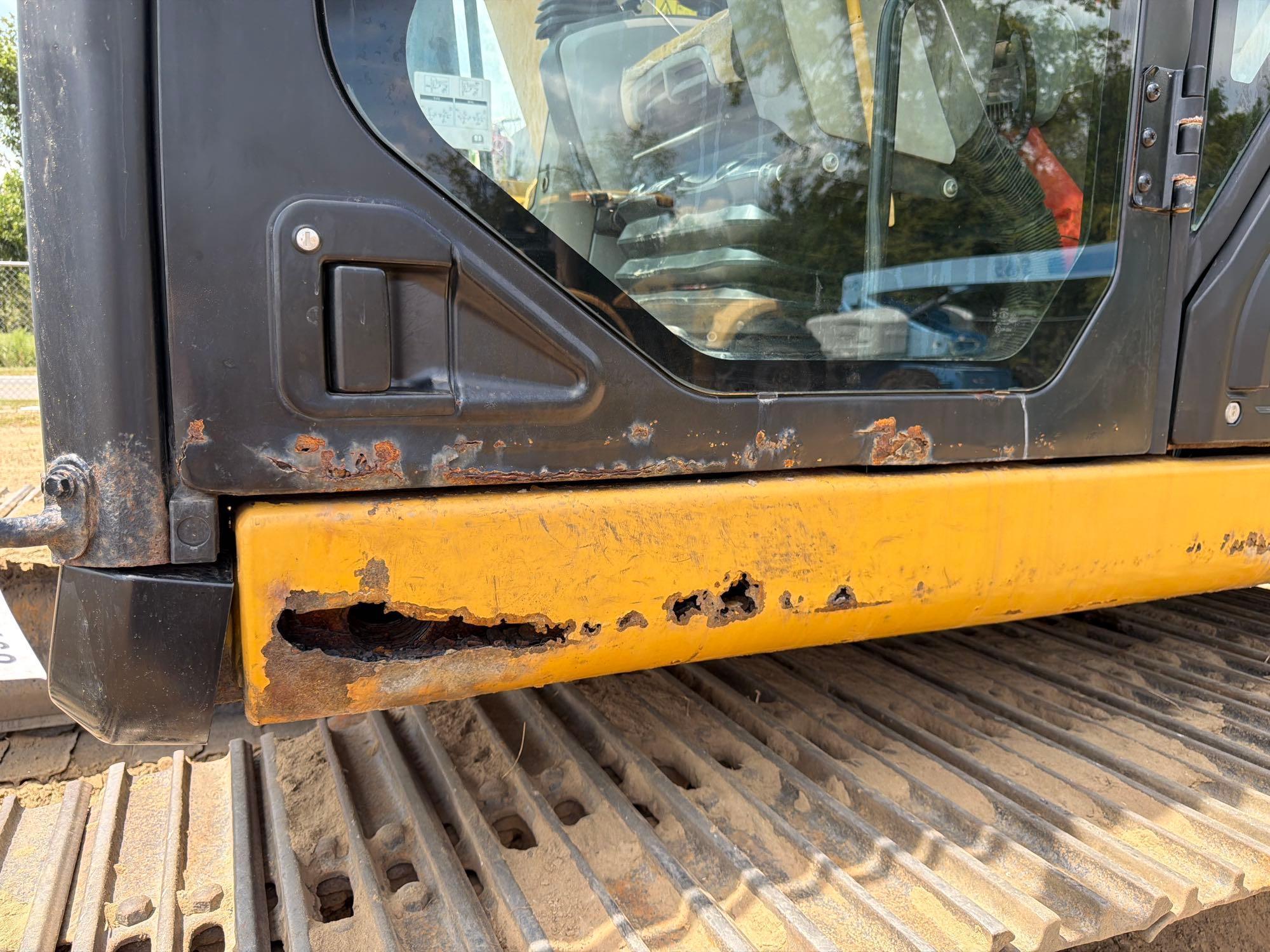

Width of Standard Track Shoe (Since 2012)
|
32 in (81 cm)
|
|
Width of Standard Track Shoe (2013)
|
32 in (81 cm)
|
|
Width of Standard Track Shoe (2015)
|
32 in (81 cm)
|
|
Width of Standard Track Shoe (2016)
|
32 in (81 cm)
|
|
Years Built (Since 2010)
|
2,010 - 2,016 |
|
Years Built (2011)
|
2,010 - 2,016 |
|
Years Built (2012)
|
2,010 - 2,016 |
|
Years Built (2013)
|
2,010 - 2,016 |
|
Years Built (2014)
|
2,010 - 2,016 |
|
Years Built (2015)
|
2,010 - 2,016 |
|
Years Built (2016)
|
2,010 - 2,016 |
| Operational |
|
Fuel Capacity |
137 gal (520 l)
|
|
Hydraulic System Fluid Capacity |
41 gal (155 l)
|
|
Operating Weight |
57,071 lbs (25,887 kg)
|
