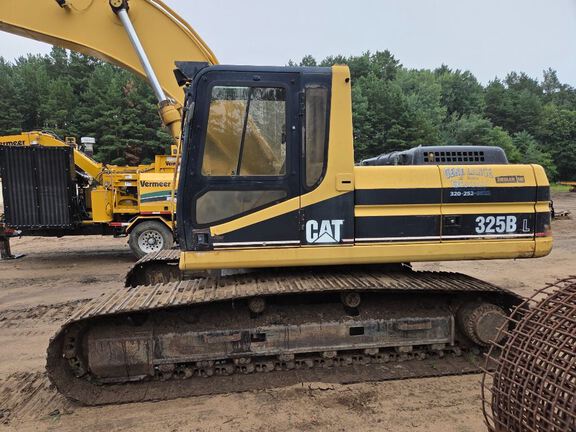

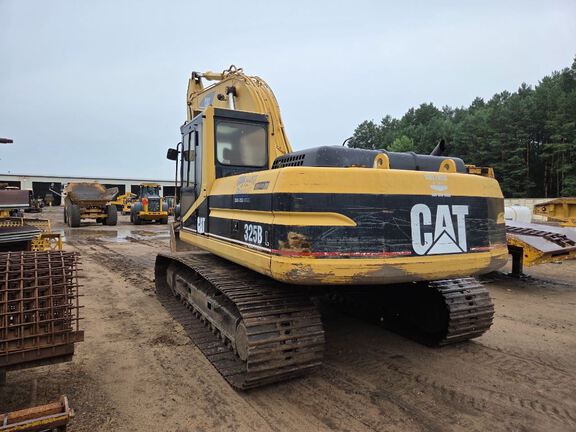

| Boom/Stick Excavator Option 1 |
|
Max Cutting Height |
33 ft (10 m)
|
|
Max Digging Depth |
23 ft (7 m)
|
|
Max Loading Height |
23 ft (7 m)
|
|
Max Reach Along Ground |
35 ft (11 m)
|
|
Max Vertical Wall Digging Depth |
21 ft (6 m)
|
|
Shipping Height of Unit |
11 ft (3 m)
|
|
Shipping Length of Unit |
34 ft (10 m)
|
| Boom/Stick Excavator Option 2 |
|
Max Cutting Height |
32 ft (10 m)
|
|
Max Digging Depth |
22 ft (7 m)
|
|
Max Loading Height |
23 ft (7 m)
|
|
Max Reach Along Ground |
33 ft (10 m)
|
|
Max Vertical Wall Digging Depth |
17 ft (5 m)
|
|
Shipping Height of Unit |
11 ft (3 m)
|
|
Shipping Length of Unit |
34 ft (10 m)
|
| Boom/Stick Excavator Option 3 |
|
Max Cutting Height |
30 ft (9 m)
|
|
Max Digging Depth |
20 ft (6 m)
|
|
Max Loading Height |
20 ft (6 m)
|
|
Max Reach Along Ground |
31 ft (9 m)
|
|
Max Vertical Wall Digging Depth |
15 ft (5 m)
|
|
Shipping Height of Unit |
11 ft (3 m)
|
|
Shipping Length of Unit |
32 ft (10 m)
|
| Bucket |
|
Maximum Bucket Capacity |
3 cu yd (2 cu m)
|
|
Minimum Bucket Capacity |
1 cu yd (1 cu m)
|
|
Reference Bucket Capacity |
2 cu yd (1 cu m)
|
| Dimensions |
|
Ground Clearance |
2 ft (1 m)
|
|
Height - Top of Cab |
10 ft (3 m)
|
|
Length of Track on Ground |
13 ft (4 m)
|
|
Removal Counterweight Clearance |
4 ft (1 m)
|
|
Tail Swing Radius |
10 ft (3 m)
|
|
Width to Outside of Tracks |
11 ft (3 m)
|
| DRIVE SYSTEM |
|
Maximum Drawbar Pull |
48,350 lbs (21,931 kg)
|
| Engine |
|
Aspiration |
Turbocharged and Aftercooled |
|
Bore |
4 in (11 cm)
|
|
Displacement |
403 cu in (6,604 cu cm)
|
|
Engine Model |
Cat 3116TA |
|
Gross Power |
177 hp (132 kw)
|
|
Net Power |
168 hp (125 kw)
|
|
Net Power - EEC 80/1269 |
168 hp (125 kw)
|
|
Net Power - ISO 9249 |
168 hp (125 kw)
|
|
Net Power - SAE J1349 |
168 hp (125 kw)
|
|
Power Measured @ |
2,000 rpm |
|
Stroke |
5 in (13 cm)
|
| Hydraulic System |
|
Boom Cylinder - Bore |
6 in (14 cm)
|
|
Boom Cylinder - Stroke |
55 in (140 cm)
|
|
Main Implement System - Maximum Flow (2x) |
57 gpm (214 lpm)
|
|
Maximum Pressure - Equipment |
4,980 psi |
|
Maximum Pressure - Swing |
4,250 psi |
|
Maximum Pressure - Travel |
4,980 psi |
|
Pilot System - Maximum Flow |
11 gpm (41 lpm)
|
| Operating Specifications |
|
Alternator Supplied Amperage |
52 amps |
|
Cooling System Fluid Capacity |
8 gal (32 l)
|
|
Engine Oil Capacity |
5 gal (20 l)
|
|
Fuel Capacity |
111 gal (420 l)
|
|
Hydraulic Pump Flow Capacity |
110 gpm (416 lpm)
|
|
Hydraulic System Fluid Capacity |
82 gal (310 l)
|
|
Hydraulic System Relief Valve Pressure |
4,975 psi |
|
Operating Voltage |
24 volts |
|
Operating Weight |
60,600 lbs (27,488 kg)
|
|
Swing Drive Fluid Capacity |
3 gal (10 l)
|
| Service Refill Capacities |
|
Cooling System |
8 gal (31 l)
|
|
Engine Oil |
5 gal (20 l)
|
|
Final Drive - Each |
2 gal (8 l)
|
|
Fuel Tank Capacity |
111 gal (420 l)
|
|
Hydraulic System - Including Tank |
82 gal (310 l)
|
|
Swing Drive |
3 gal (10 l)
|
| Undercarriage |
|
Drawbar Pull |
48,334 lbs (21,924 kg)
|
|
Max Travel Speed |
3 mph (5 kph)
|
|
Shoe Size |
32 in (80 cm)
|
|
Track Gauge |
9 ft (3 m)
|
| Weights |
|
Operating Weight - Standard Undercarriage |
56,240 lbs (25,510 kg)
|
