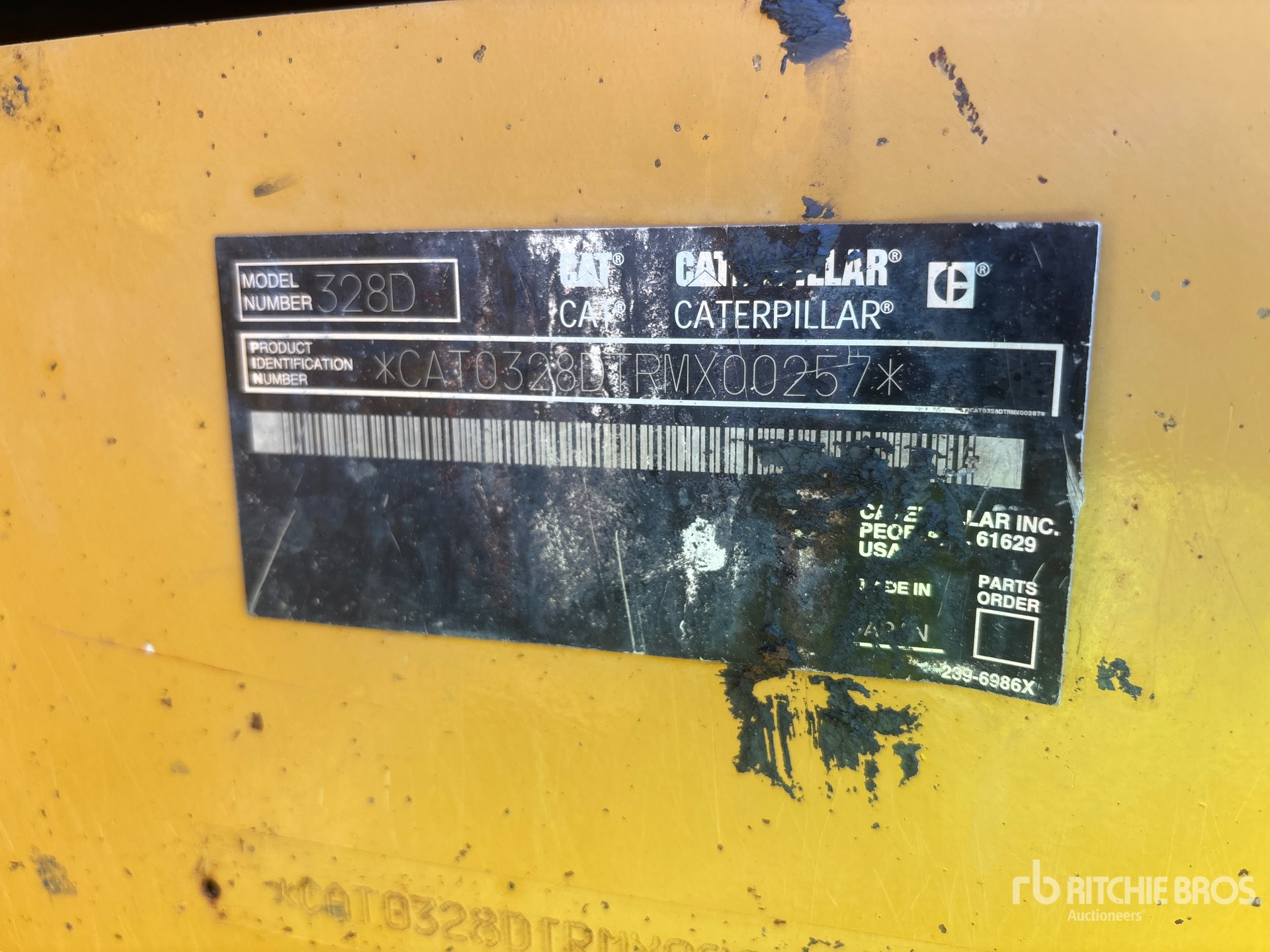

| Boom/Stick 1 |
|
Boom/Stick 1 |
Boom 20'2" (6150mm) / Stick 10'6" (3200mm) |
|
Max Cutting Height |
36 ft (11 m)
|
|
Max Digging Depth |
23 ft (7 m)
|
|
Max Loading Height |
26 ft (8 m)
|
|
Max Reach Along Ground |
35 ft (11 m)
|
|
Max Vertical Wall Digging Depth |
21 ft (6 m)
|
|
Shipping Height Of Unit |
11 ft (3 m)
|
|
Shipping Length Of Unit |
32 ft (10 m)
|
| Boom/Stick 2 |
|
Boom/Stick 2 |
Boom 20'2" (6150mm) / Stick 8'8" (2650mm) |
|
Max Cutting Height |
36 ft (11 m)
|
|
Max Digging Depth |
21 ft (6 m)
|
|
Max Loading Height |
26 ft (8 m)
|
|
Max Reach Along Ground |
33 ft (10 m)
|
|
Max Vertical Wall Digging Depth |
19 ft (6 m)
|
|
Shipping Height Of Unit |
11 ft (3 m)
|
|
Shipping Length Of Unit |
32 ft (10 m)
|
| Buckets |
|
Maximum Bucket Capacity |
3 cu yd |
|
Reference Bucket Capacity |
2 cu yd |
| Dimensions |
|
Ground Clearance |
2 ft (1 m)
|
|
Height |
11 ft (3 m)
|
|
Height To Top Of Cab |
10 ft (3 m)
|
|
Length |
32 ft (10 m)
|
|
Removal Counterweight Clearance |
4 ft (1 m)
|
|
Tail Swing Radius |
6 ft (2 m)
|
|
Weight |
72,500 lbs (32,885 kg)
|
|
Width |
11 ft (3 m)
|
|
Width To Outside Of Tracks |
11 ft (3 m)
|
| Drive |
|
Maximum Drawbar Pull |
67,443 lbs (30,586 kg)
|
|
Maximum Travel Speed |
3 mph (4 kph)
|
| Engine |
|
Bore |
4 in (11 cm)
|
|
Displacement |
440 cu in (7,210 cu cm)
|
|
Engine Make |
2,236 |
|
Engine Model |
C7 ACERT |
|
Engine Model |
Cat C7 ACERT |
|
Net Flywheel Power |
204 hp (152 kw)
|
|
Net Power |
204 hp (152 kw)
|
|
Net Power - Eec 80/1269 |
204 hp (152 kw)
|
|
Net Power - Iso 9249 |
204 hp (152 kw)
|
|
Net Power - Sae J1349 |
202 hp (151 kw)
|
|
Stroke |
5 in (13 cm)
|
| Hydraulic System |
|
Boom Cylinder - Bore |
6 in (14 cm)
|
|
Boom Cylinder - Stroke |
55 in (141 cm)
|
|
Cb2 Family Bucket Cylinder - Bore |
5 in (13 cm)
|
|
Cb2 Family Bucket Cylinder - Stroke |
46 in (117 cm)
|
|
Main Implement System - Maximum Flow (2x) |
62 gpm (235 lpm)
|
|
Maximum Pressure - Equipment |
5,076 psi |
|
Maximum Pressure - Equipment - Heavy |
5,221 psi |
|
Maximum Pressure - Swing |
3,989 psi |
|
Maximum Pressure - Travel |
5,076 psi |
|
Pilot System - Maximum Flow |
9 gpm (33 lpm)
|
|
Pilot System - Maximum Pressure |
566 psi |
|
Stick Cylinder - Bore |
6 in (15 cm)
|
|
Stick Cylinder - Stroke |
65 in (165 cm)
|
| Operational |
|
Alternator Supplied Amperage |
65 amps |
|
Cooling System Fluid Capacity |
9 gal (32 l)
|
|
Engine Oil Capacity |
9 gal (32 l)
|
|
Fuel Capacity |
106 gal (401 l)
|
|
Hydraulic Pump Flow Capacity |
62 gpm (235 lpm)
|
|
Hydraulic System Fluid Capacity |
77 gal (290 l)
|
|
Hydraulic System Relief Valve Pressure |
5,221 psi |
|
Operating Voltage |
24 V |
|
Operating Weight |
72,500 lbs (32,880 kg)
|
|
Swing Drive Fluid Capacity |
3 gal (10 l)
|
| Service Refill Capacities |
|
Cooling System |
9 gal (32 l)
|
|
Engine Oil |
9 gal (32 l)
|
|
Final Drive - Each |
2 gal (8 l)
|
|
Fuel Tank Capacity |
106 gal (401 l)
|
|
Hydraulic System - Including Tank |
77 gal (290 l)
|
|
Hydraulic Tank |
40 gal (153 l)
|
|
Swing Drive |
3 gal (10 l)
|
| Sound Performance |
|
Performance |
ANSI/SAE |
| Standards |
|
Brakes |
SAE J1026 APR90 |
|
Cab - Rops |
ISO 12117-2:2008 |
|
Cab/Fogs |
SAE J1356 FEB88 ISO 10262 |
| Swing Mechanism |
|
Swing Speed |
10 rpm |
|
Swing Torque |
60,628 lbs ft (82,199 nm)
|
| Track |
|
Number Of Carrier Rollers - Each Side - Long Undercarriage |
2 |
|
Number Of Shoes - Each Side - Long Undercarriage |
49 |
|
Number Of Track Rollers - Each Side - Long Undercarriage |
9 |
|
Optional (1) |
34 in (86 cm)
|
|
Optional (2) |
28 in (71 cm)
|
|
Optional (3) |
24 in (61 cm)
|
| Undercarriage |
|
Drawbar Pull |
67,443 lbs (30,586 kg)
|
|
Max Travel Speed |
3 mph (4 kph)
|
|
Number Of Carrier Rollers Per Side |
2 |
|
Number Of Shoes Per Side |
49 |
|
Number Of Track Rollers Per Side |
9 |
|
Shoe Size |
34 in (86 cm)
|
|
Track Gauge |
9 ft (3 m)
|
| Weights |
|
Maximum Weight |
87,850 lbs (39,841 kg)
|
|
Maximum Weight** |
87,850 lbs (39,841 kg)
|
|
Minimum Weight |
73,350 lbs (33,265 kg)
|
|
Minimum Weight* |
73,350 lbs (33,265 kg)
|
|
Operating Weight |
87,850 lbs (39,841 kg)
|
