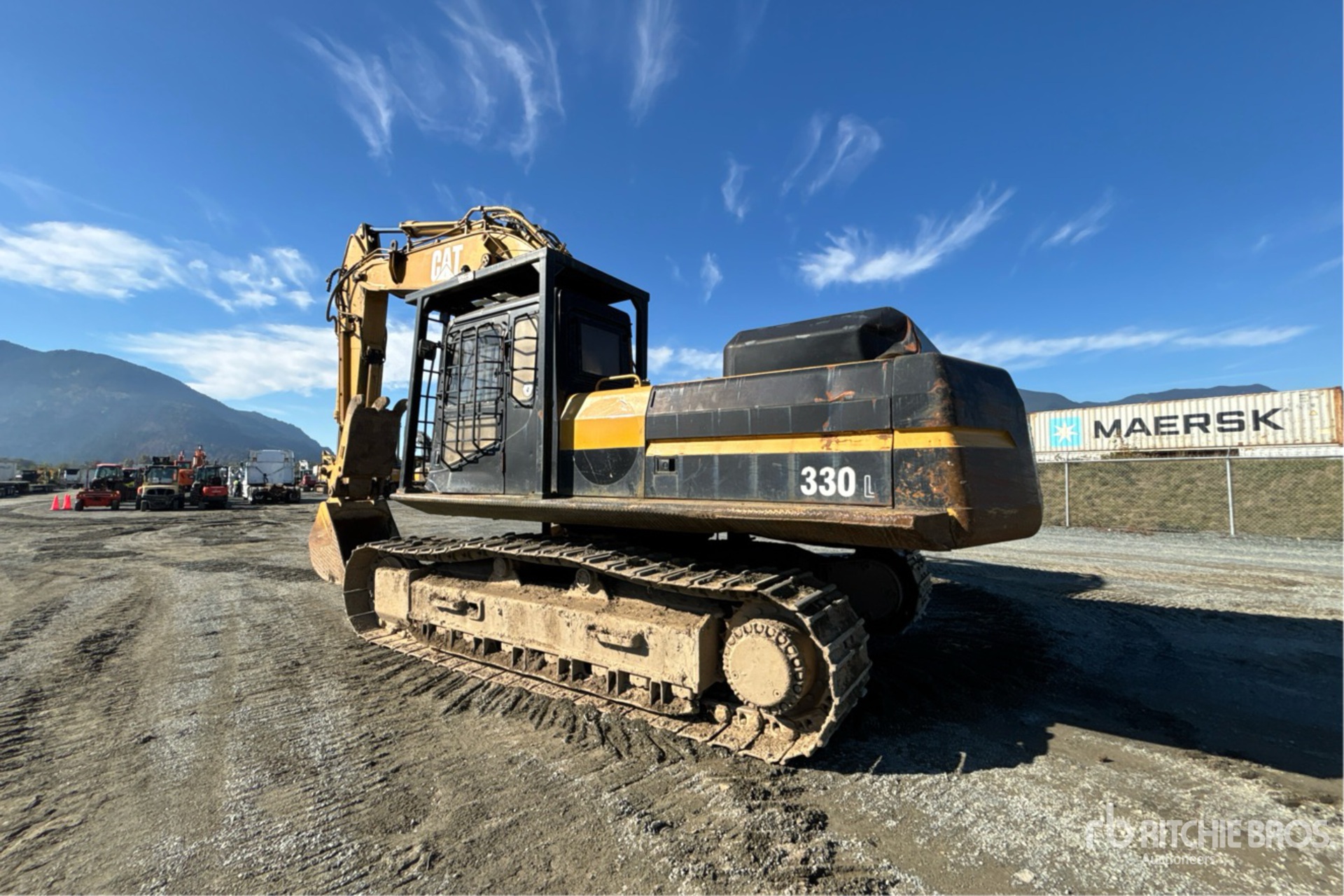

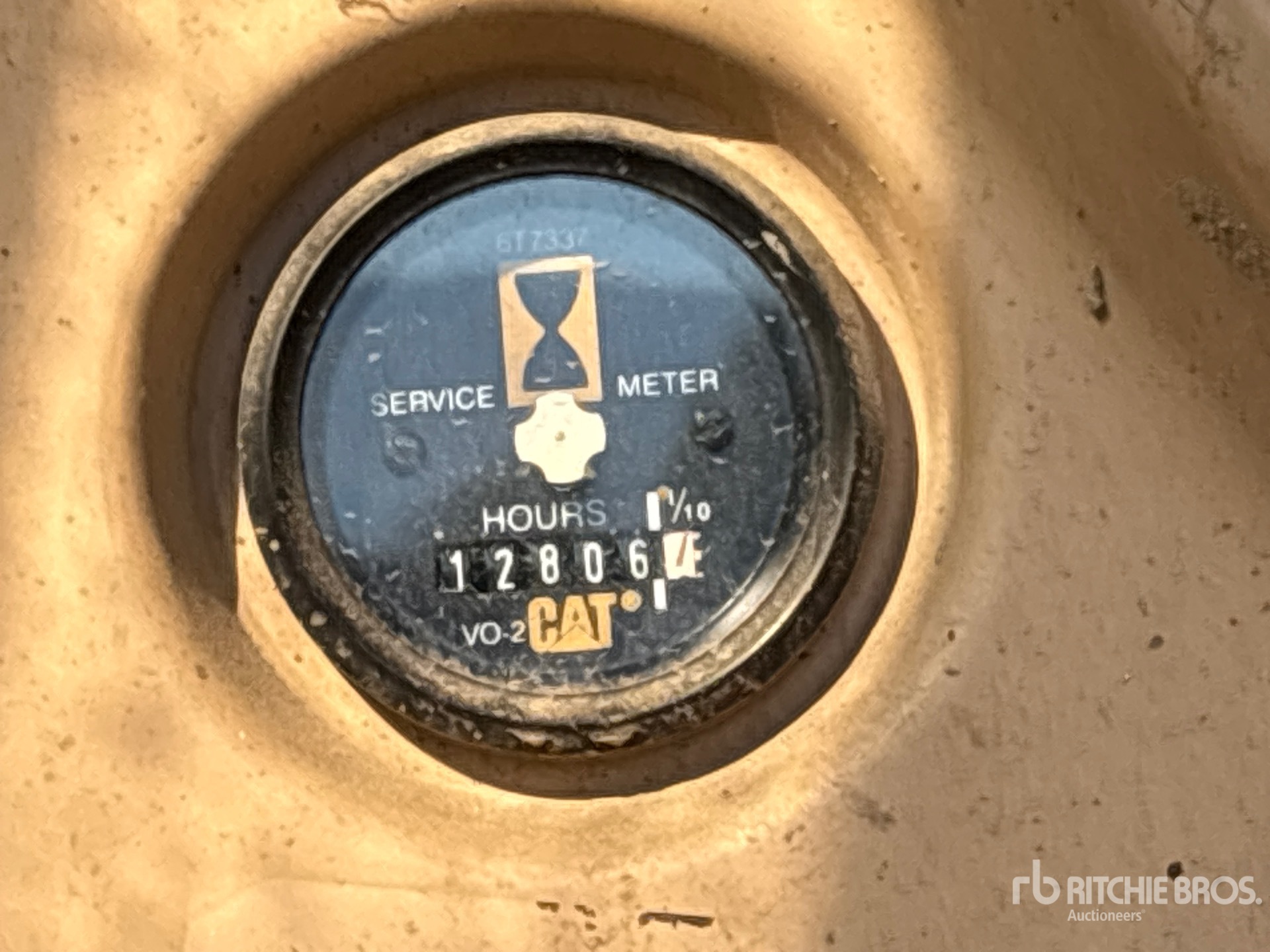

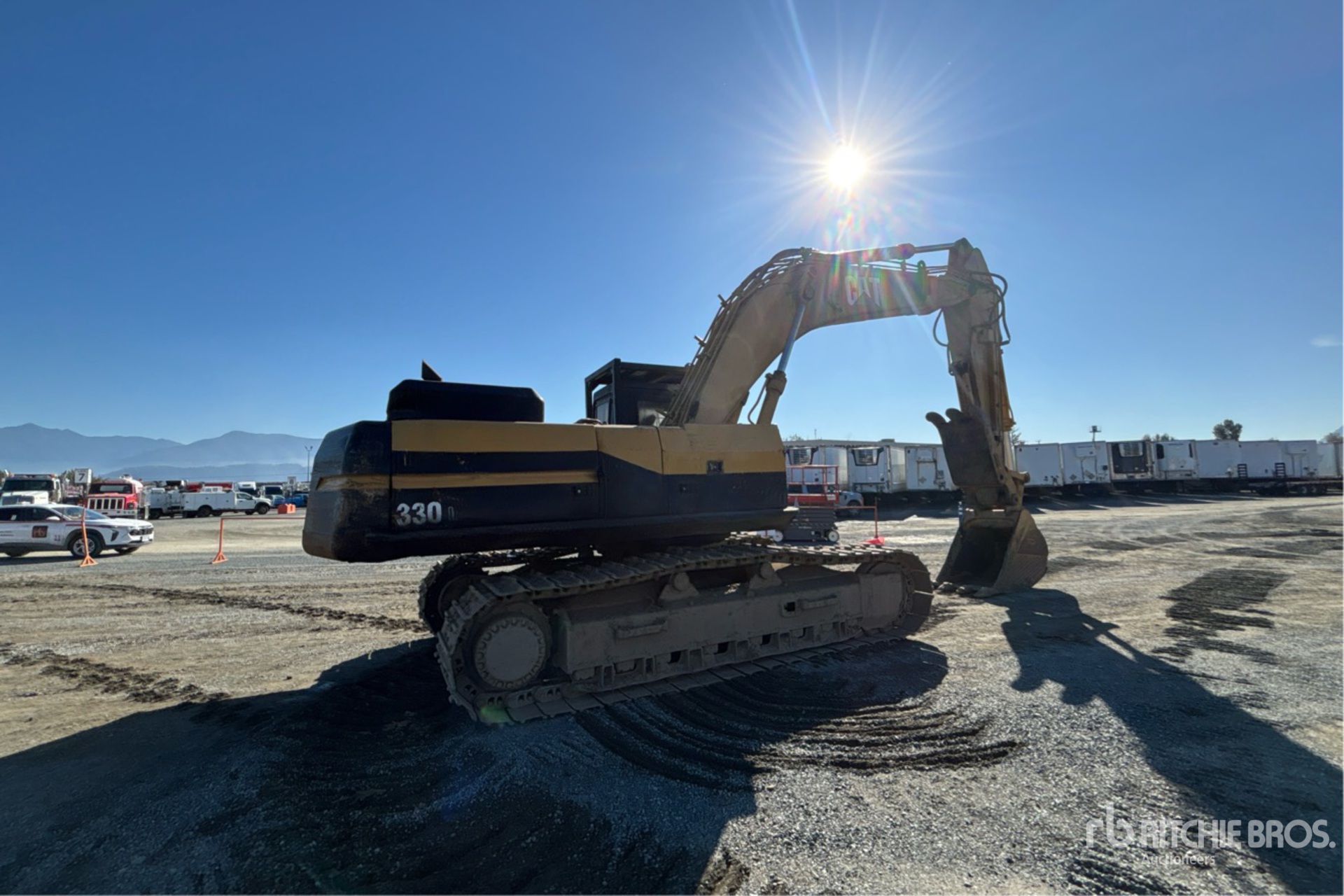

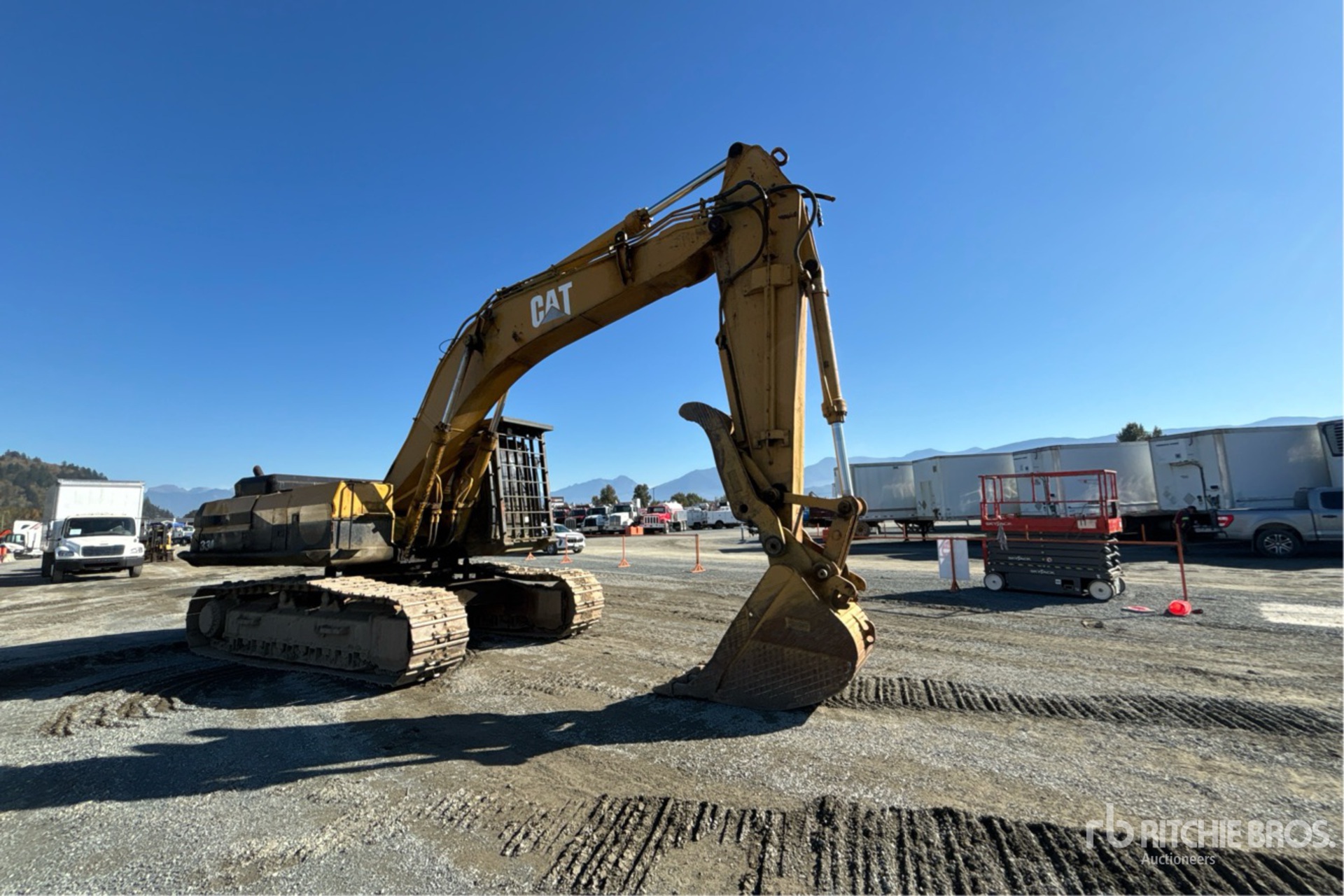

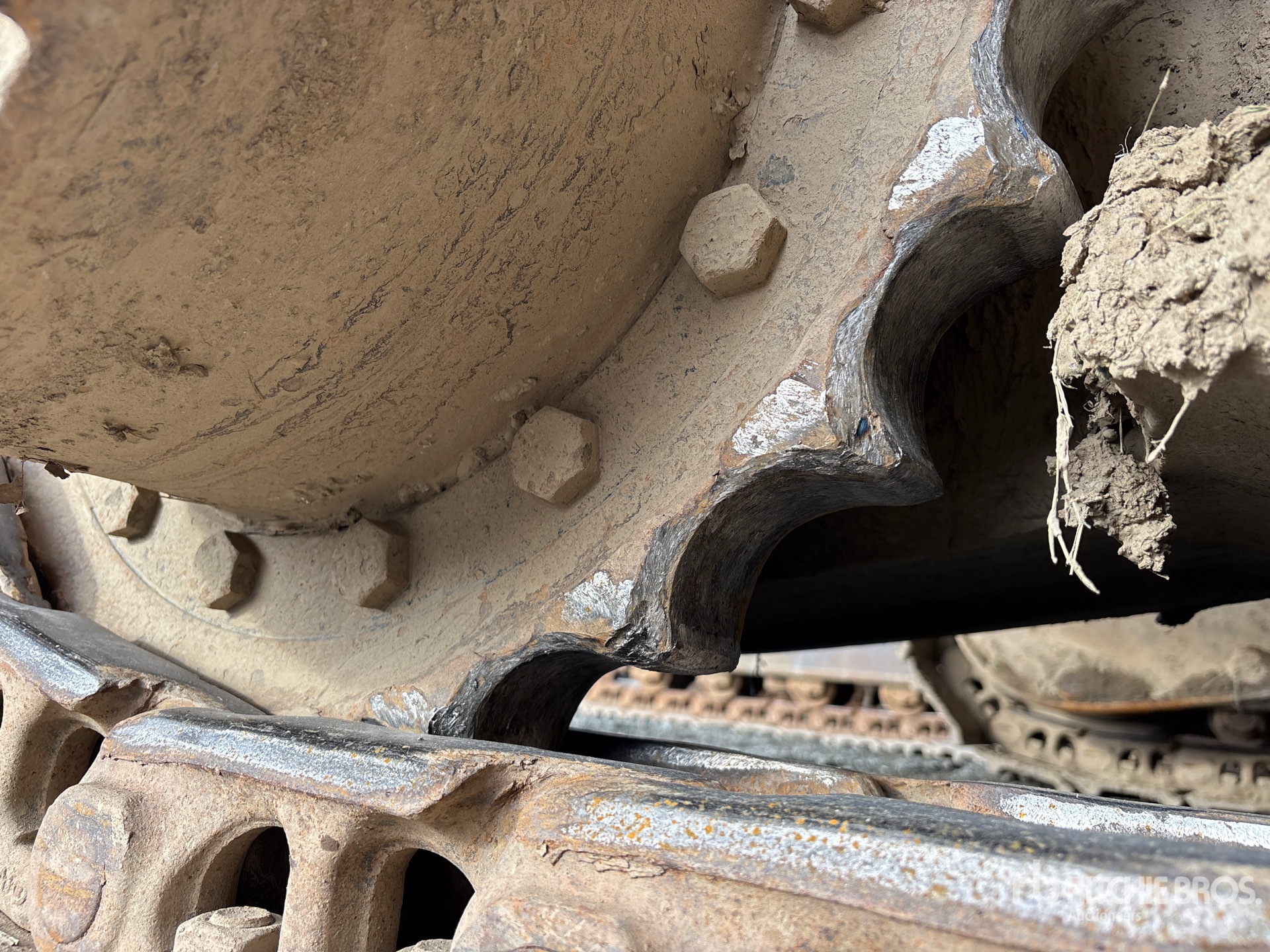

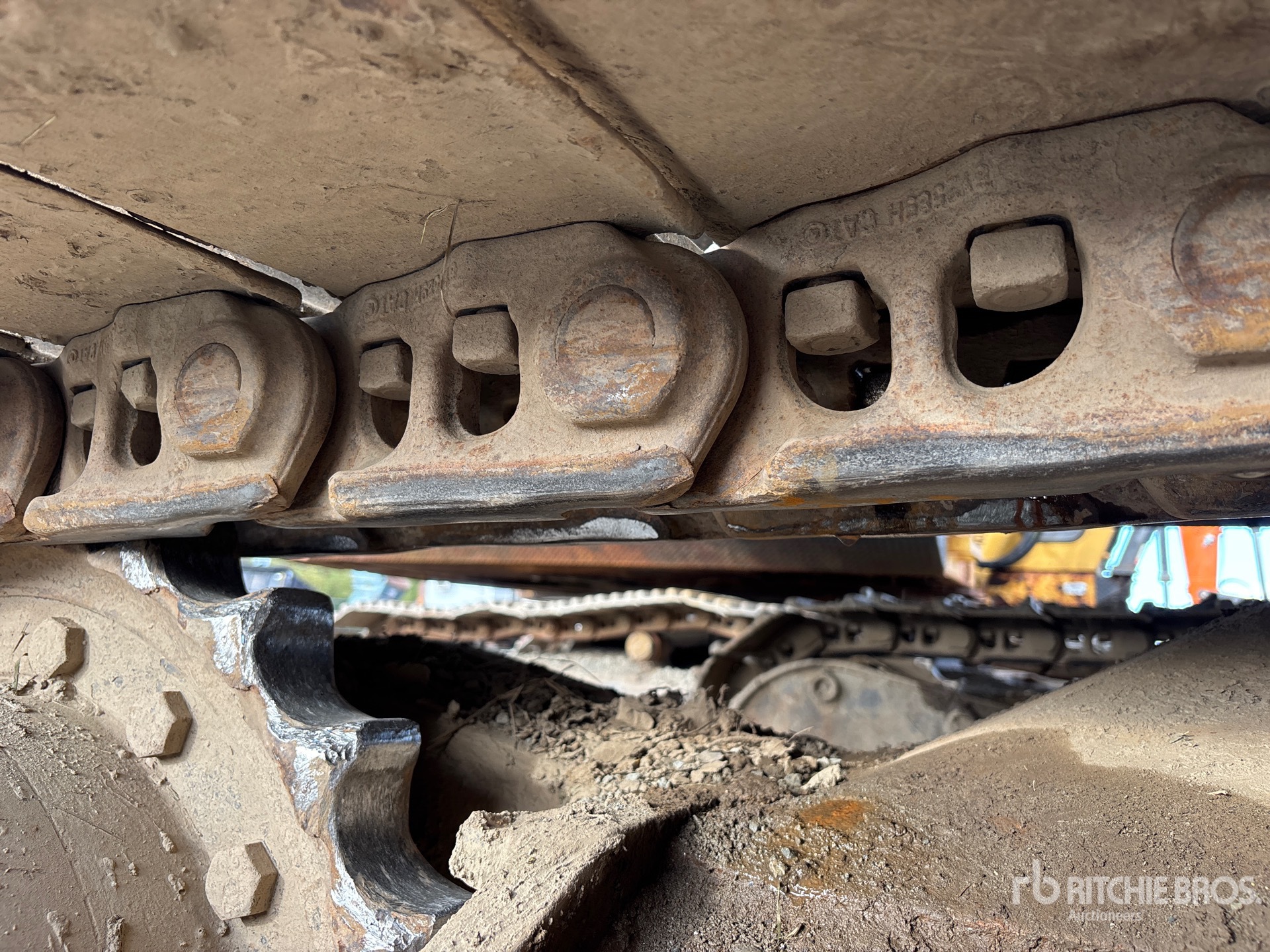

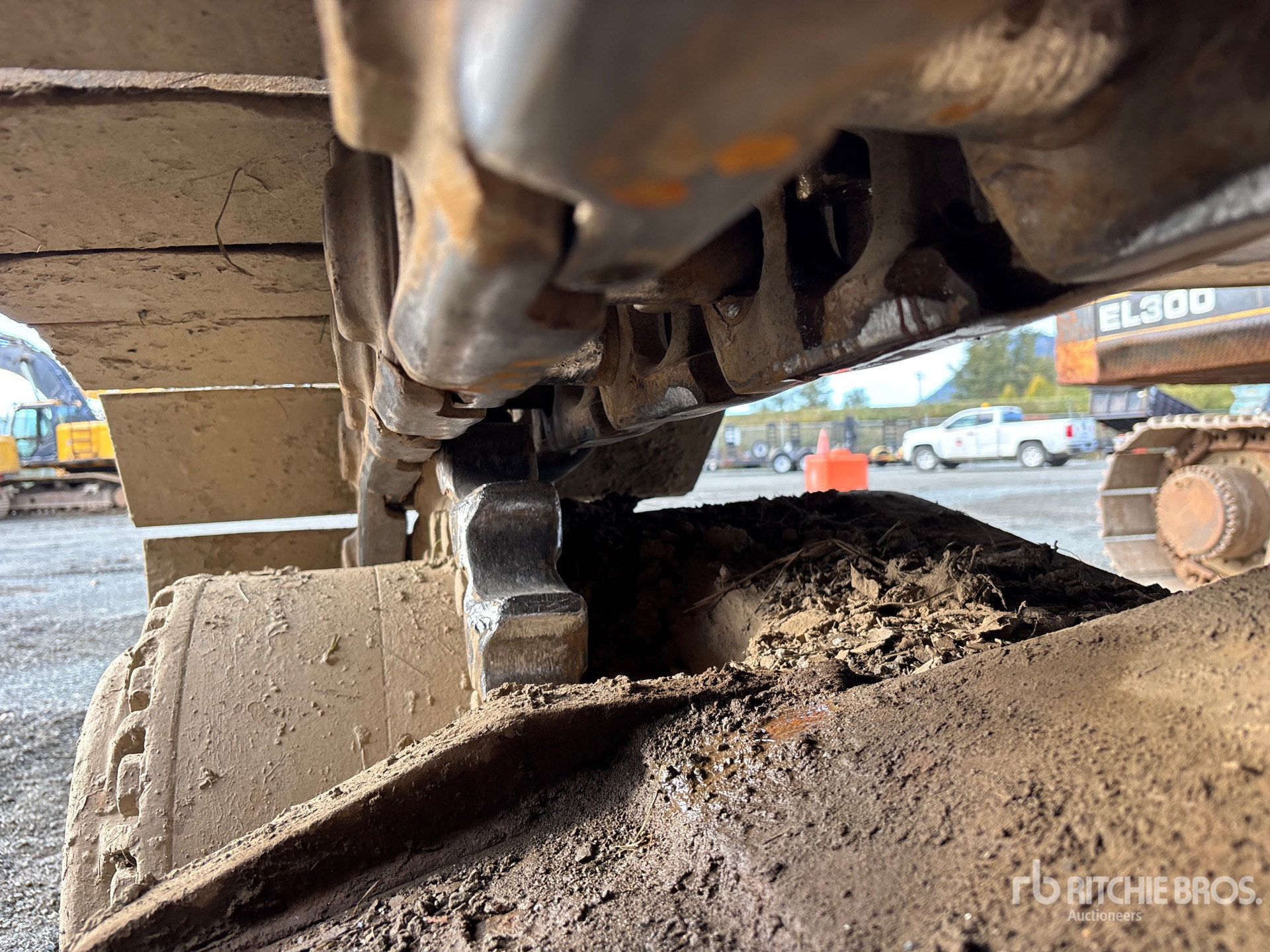

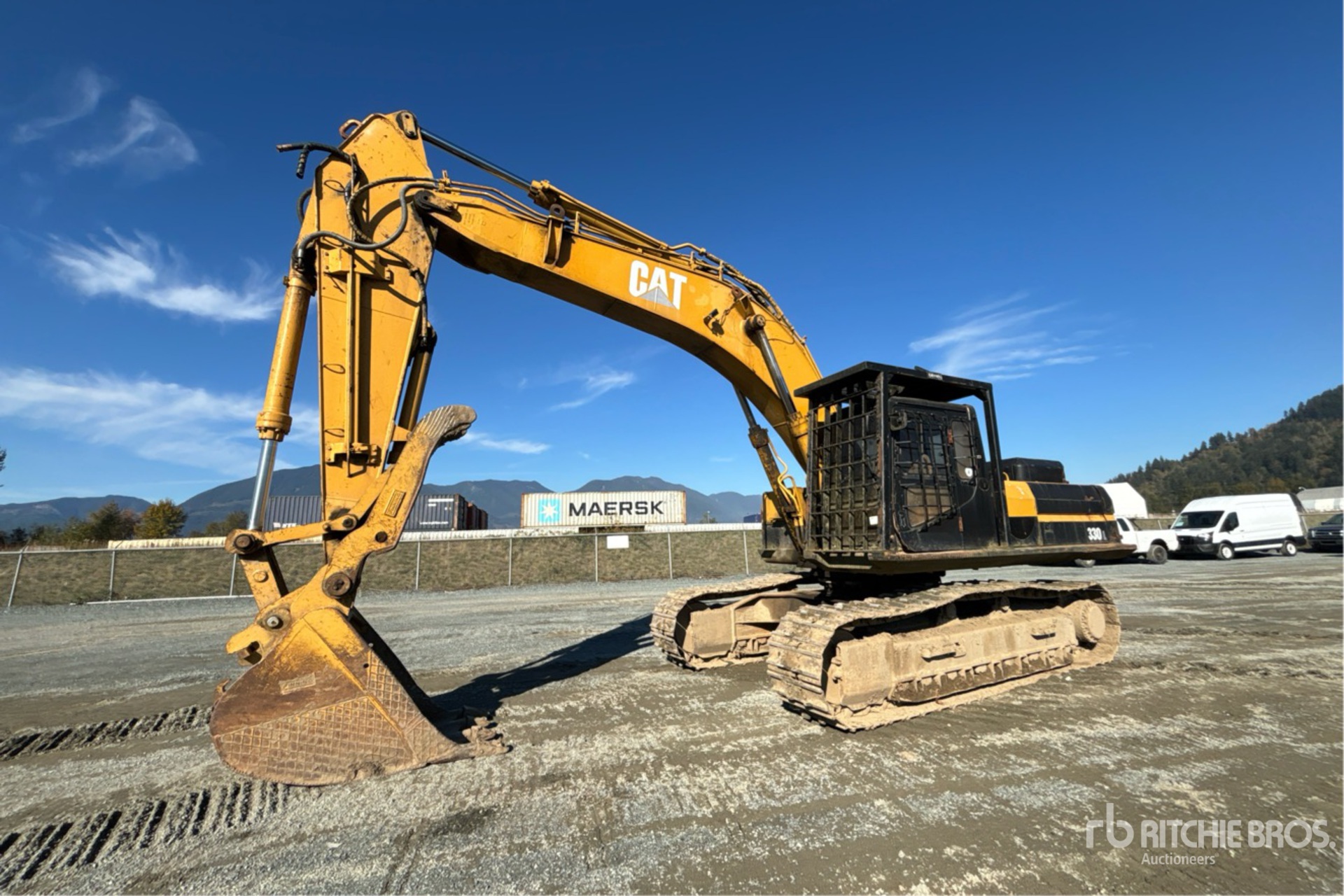

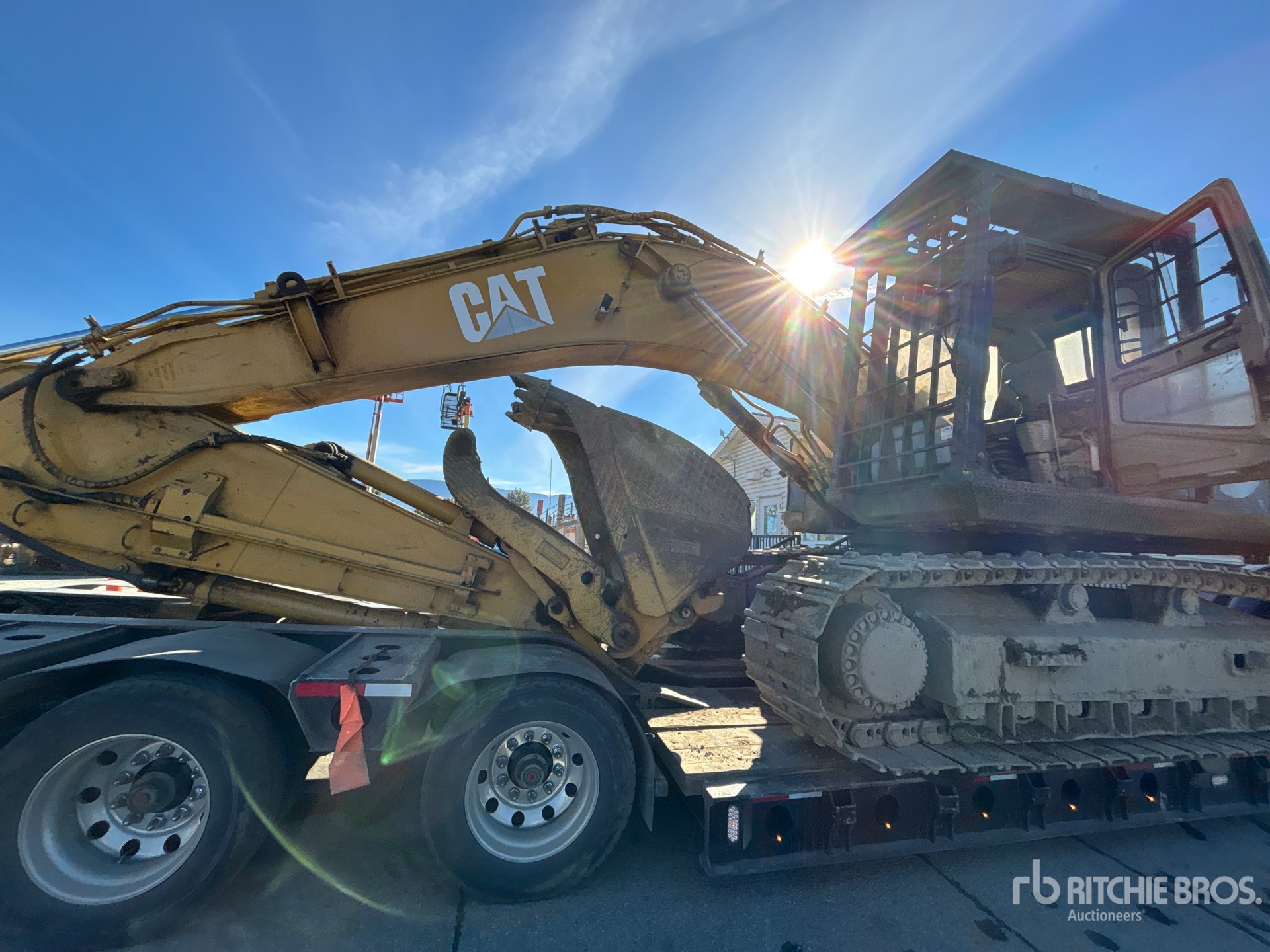

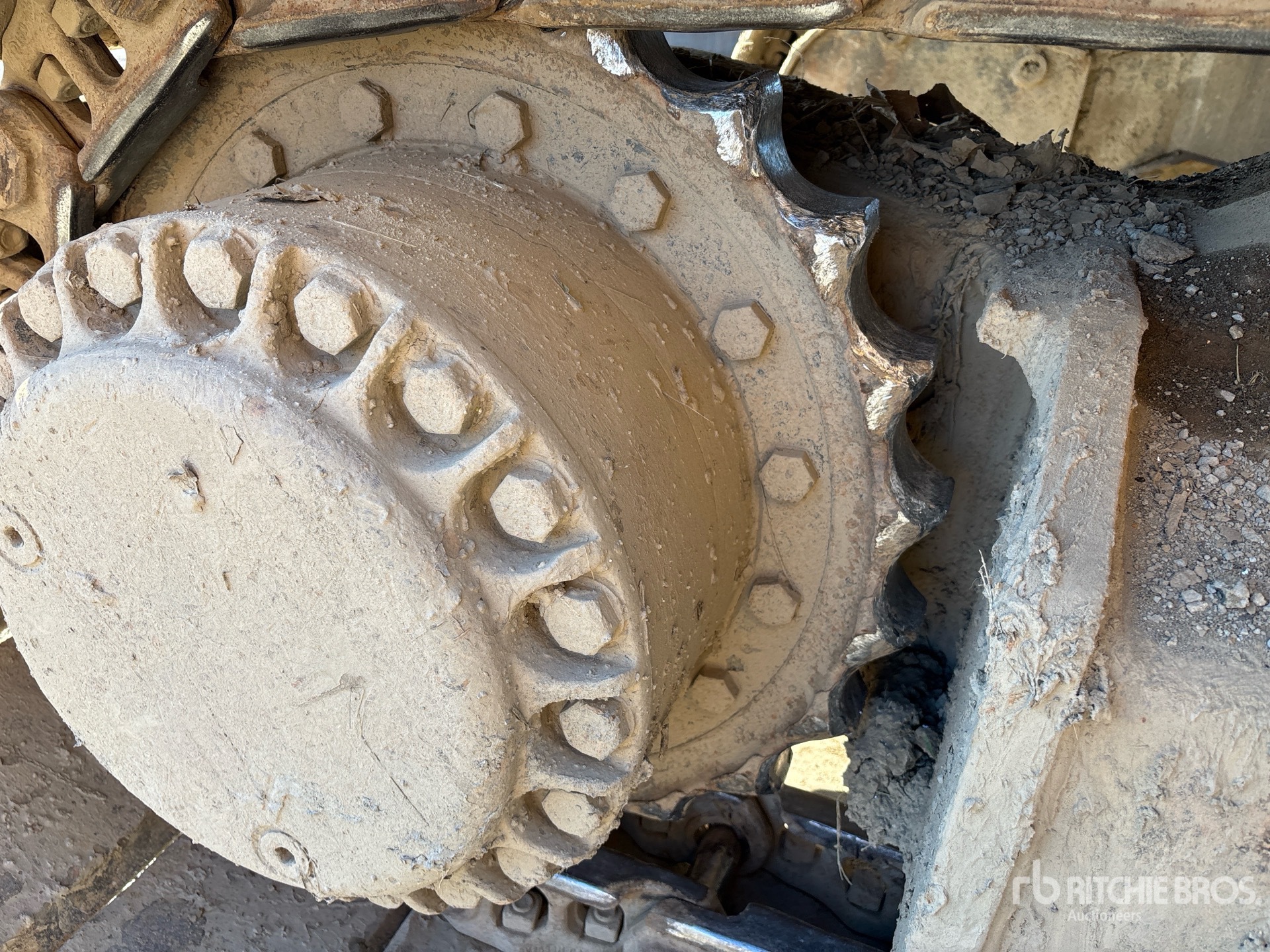

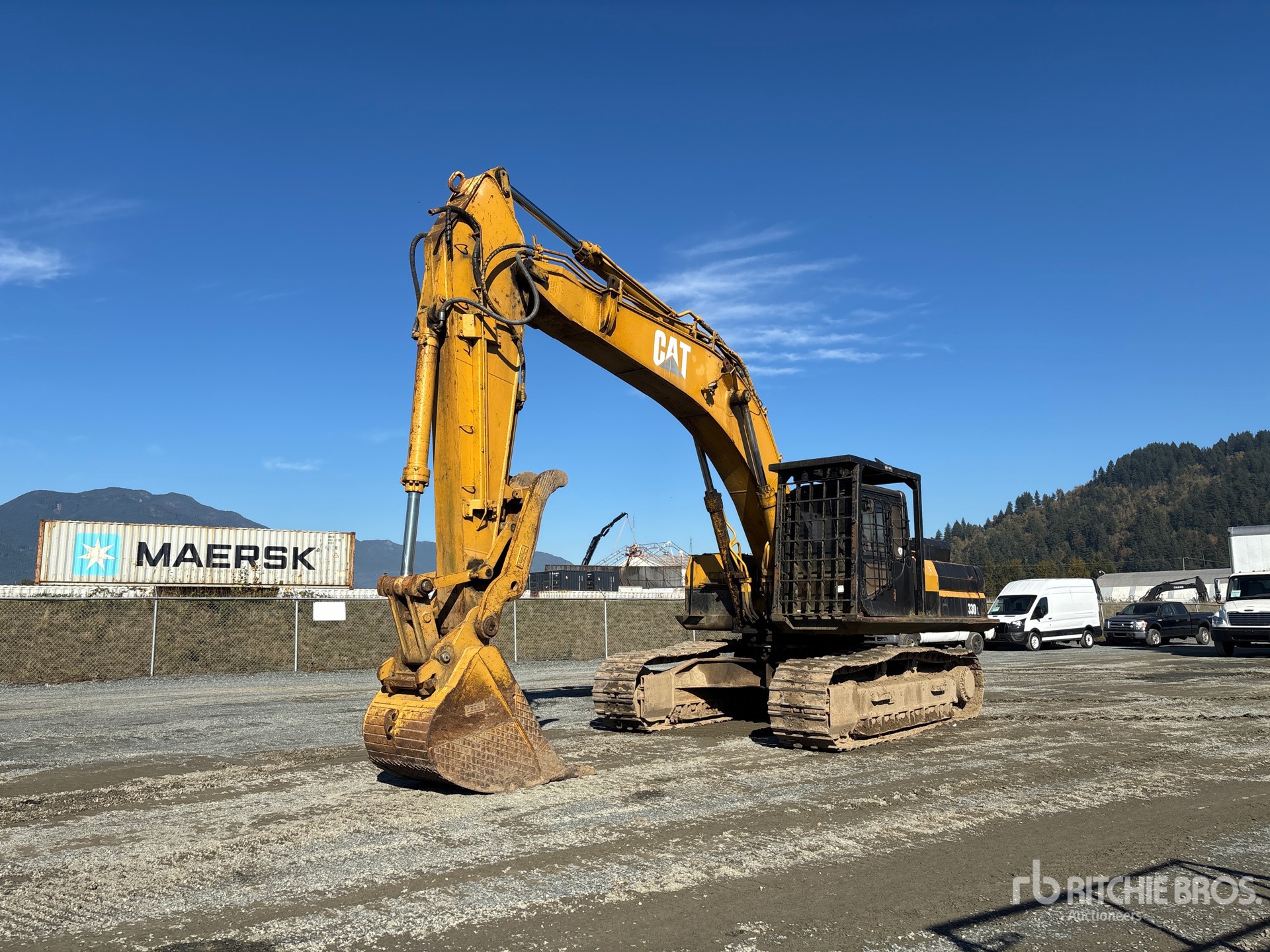

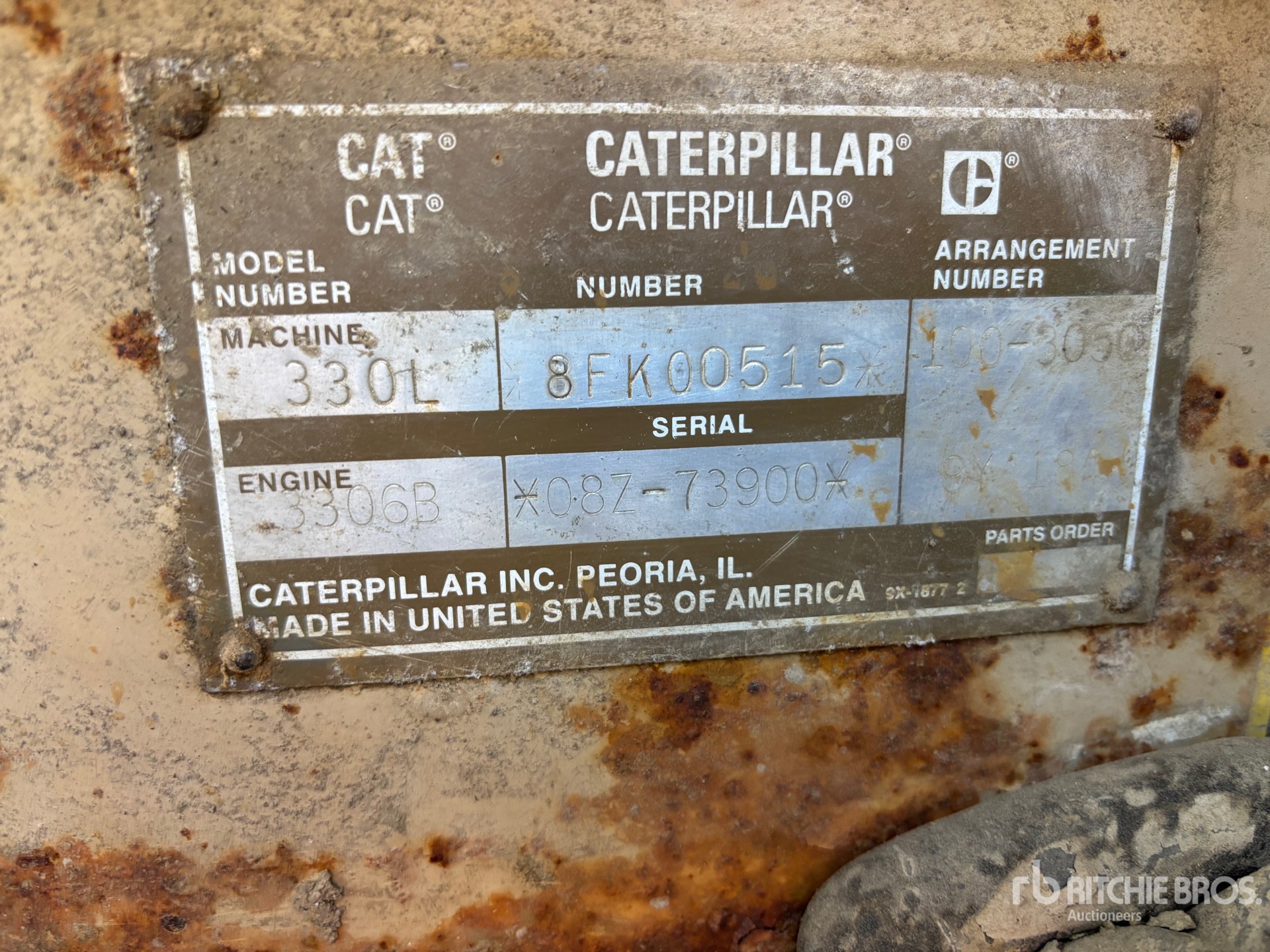

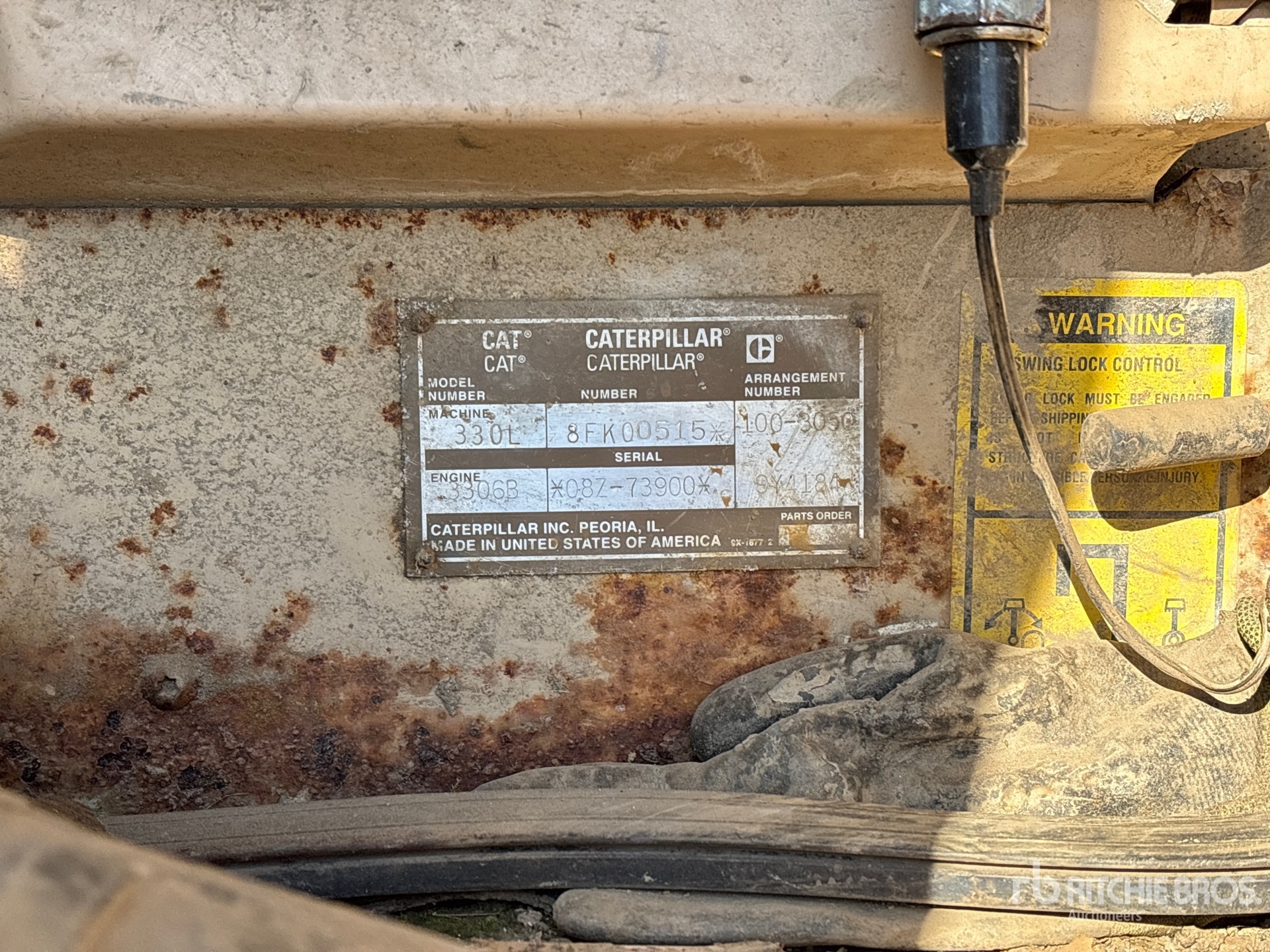

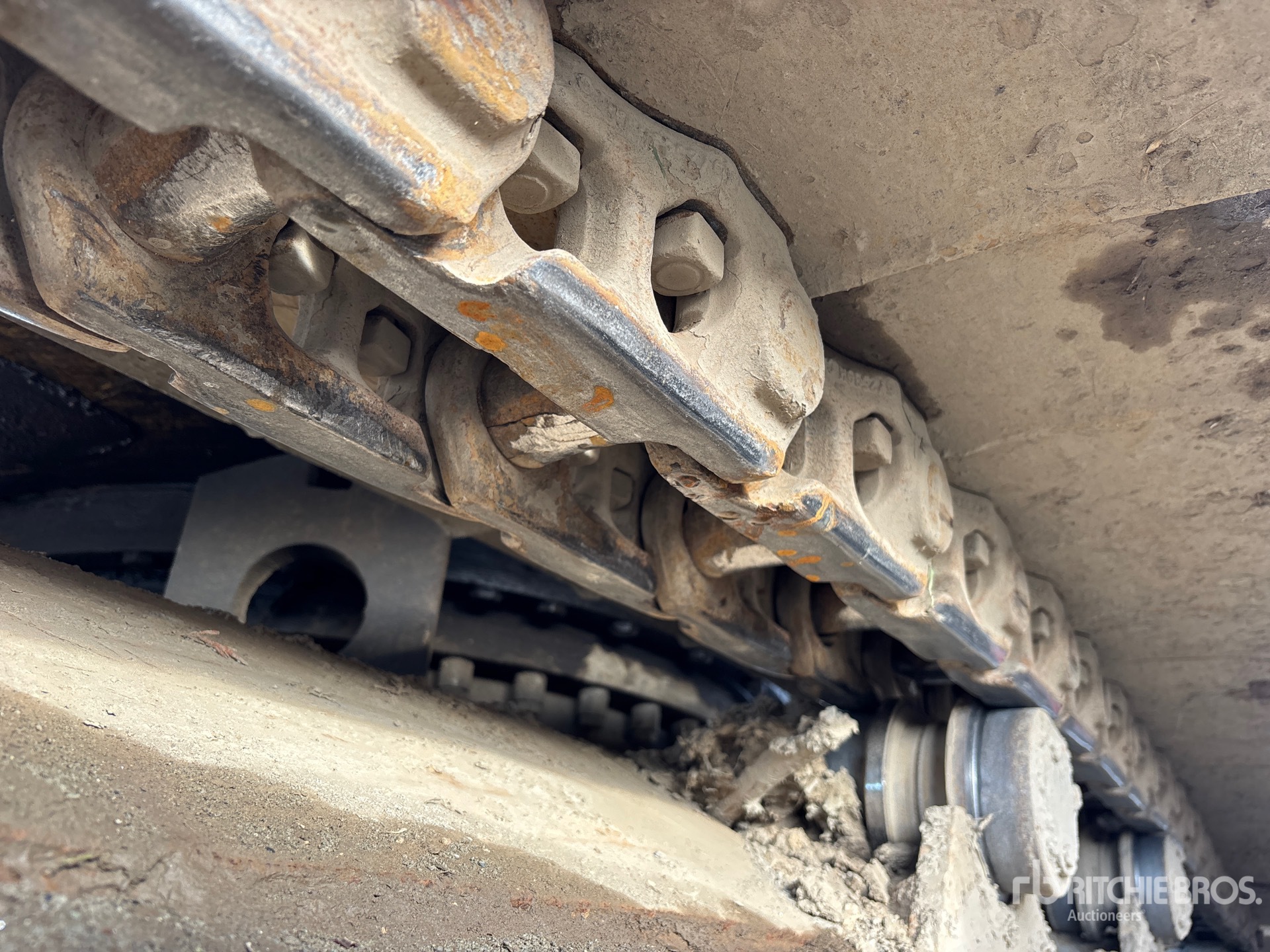

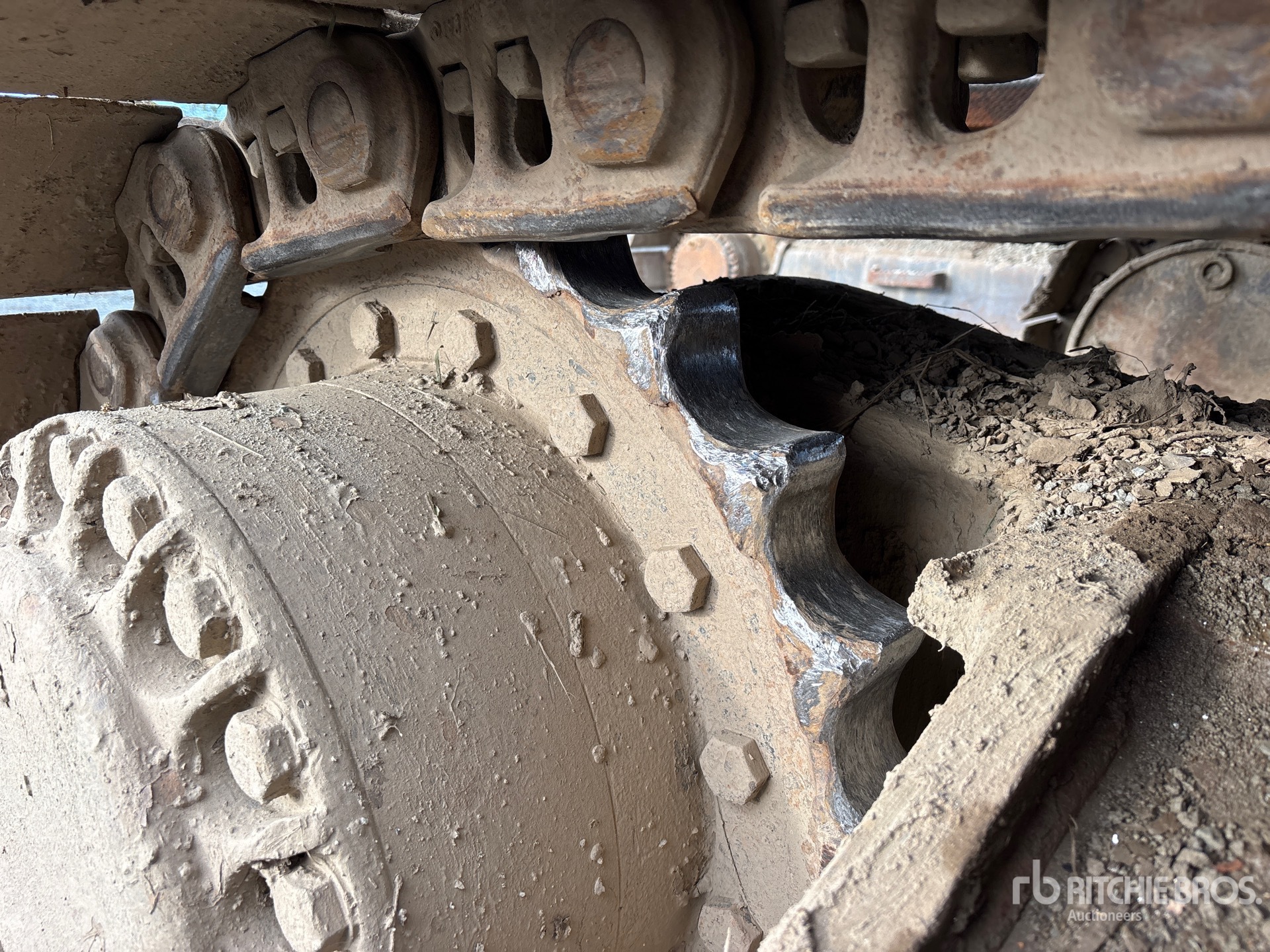

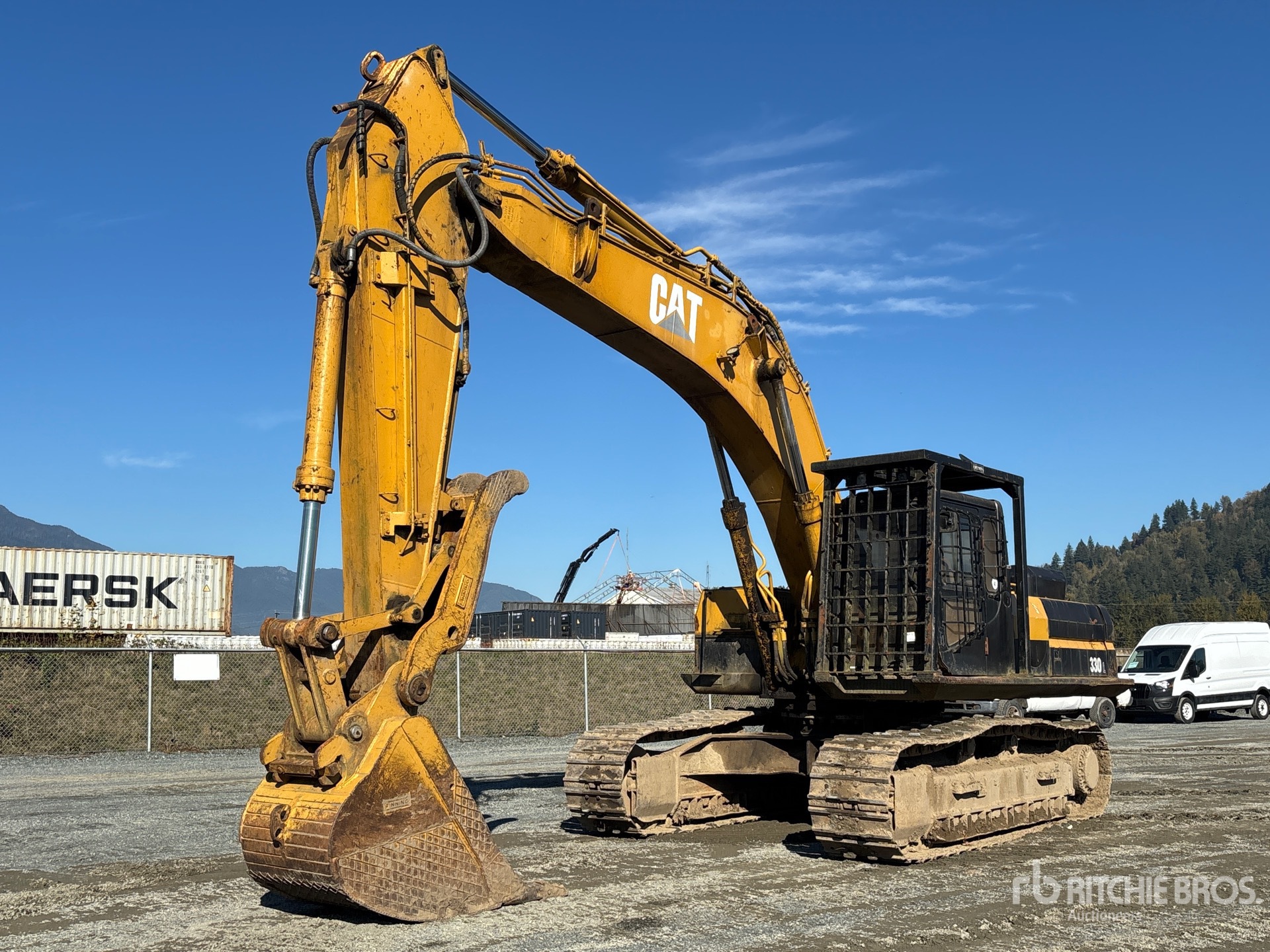

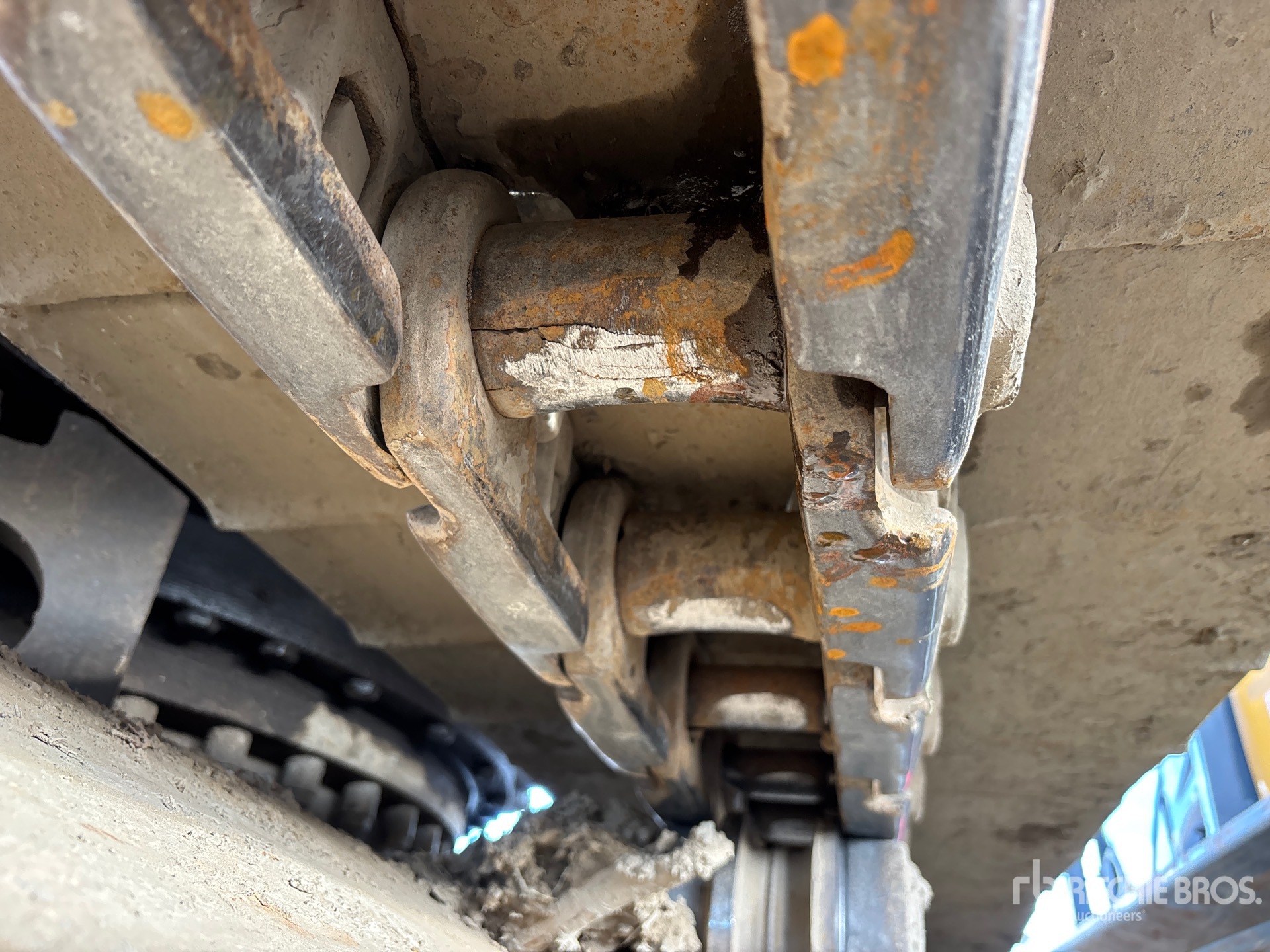

| Boom/Stick 1 |
|
Boom/Stick 1 |
Boom 21\'4\" (6500mm) / Stick 12\'10\" (3900mm) |
|
Max Cutting Height |
35 ft (11 m)
|
|
Max Digging Depth |
27 ft (8 m)
|
|
Max Loading Height |
25 ft (8 m)
|
|
Max Reach Along Ground |
38 ft (12 m)
|
|
Max Vertical Wall Digging Depth |
24 ft (7 m)
|
|
Shipping Height Of Unit |
12 ft (4 m)
|
|
Shipping Length Of Unit |
36 ft (11 m)
|
| Boom/Stick 2 |
|
Boom/Stick 2 |
Boom 21\'4\" (6500mm) / Stick 10\'10\" (3300mm) |
|
Max Cutting Height |
34 ft (10 m)
|
|
Max Digging Depth |
25 ft (7 m)
|
|
Max Loading Height |
24 ft (7 m)
|
|
Max Reach Along Ground |
36 ft (11 m)
|
|
Max Vertical Wall Digging Depth |
21 ft (7 m)
|
|
Shipping Height Of Unit |
11 ft (3 m)
|
|
Shipping Length Of Unit |
36 ft (11 m)
|
| Boom/Stick 3 |
|
Boom/Stick 3 |
Mass Boom 20\'3\" (6180mm) / Stick 8\'4\" (2600mm) |
|
Max Cutting Height |
33 ft (10 m)
|
|
Max Digging Depth |
22 ft (7 m)
|
|
Max Loading Height |
22 ft (7 m)
|
|
Max Reach Along Ground |
34 ft (10 m)
|
|
Max Vertical Wall Digging Depth |
19 ft (6 m)
|
|
Shipping Height Of Unit |
12 ft (4 m)
|
|
Shipping Length Of Unit |
35 ft (11 m)
|
| Dimensions |
|
Ground Clearance |
2 ft (1 m)
|
|
Height |
11 ft (3 m)
|
|
Height To Top Of Cab |
10 ft (3 m)
|
|
Length |
36 ft (11 m)
|
|

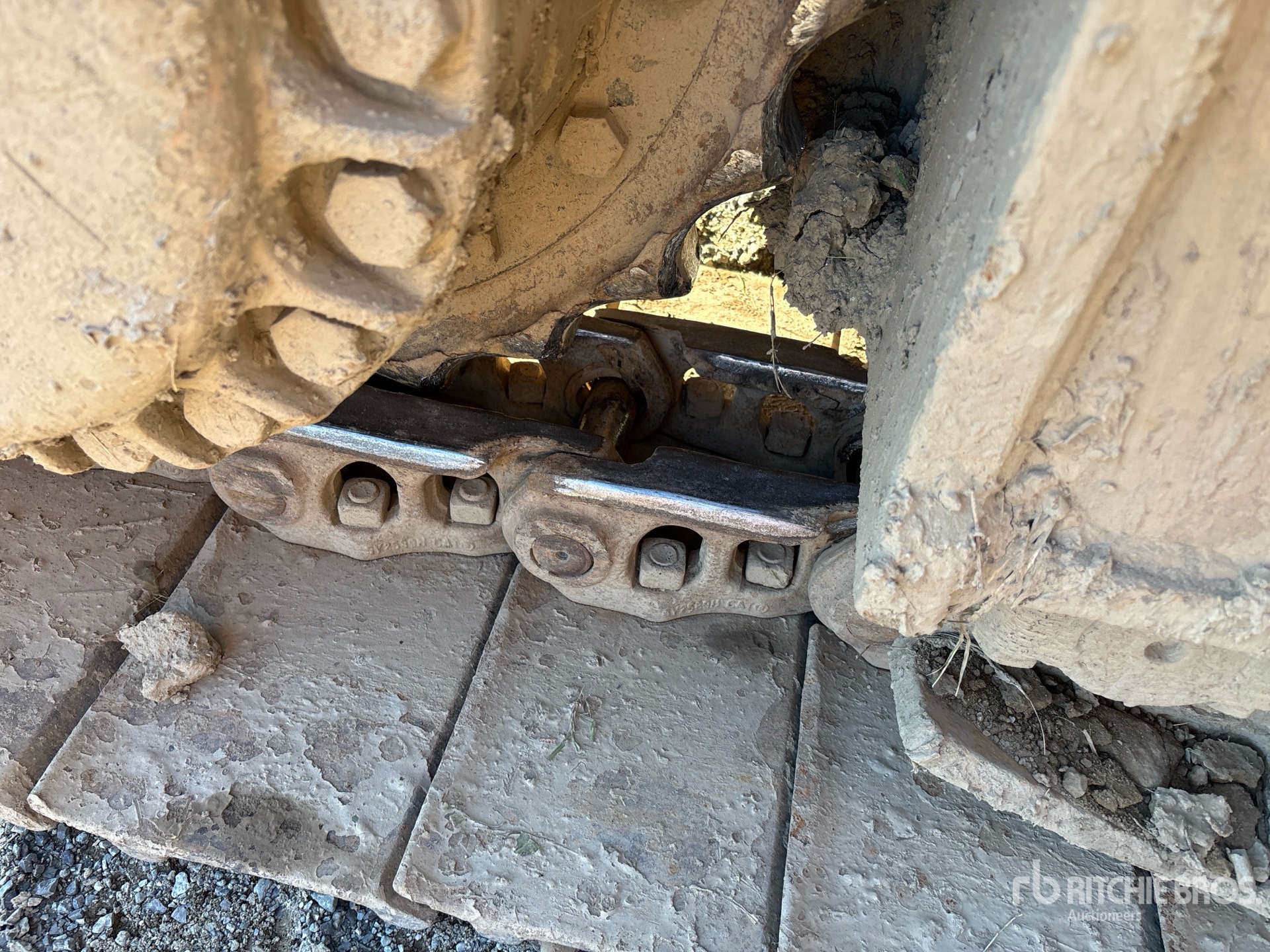

Length Of Track On Ground |
12 ft (4 m)
|
|
Removal Counterweight Clearance |
4 ft (1 m)
|
|
Tail Swing Radius |
11 ft (4 m)
|
|
Weight |
71,470 lbs (32,418 kg)
|
|
Width |
11 ft (3 m)
|
|
Width To Outside Of Tracks |
10 ft (3 m)
|
| Engine |
|
Aspiration |
Turbocharged and Aftercooled |
|
Displacement |
641 cu in (10,501 cu cm)
|
|
Engine Make |
2,236 |
|
Engine Model |
3306TA |
|
Gross Power |
236 hp (176 kw)
|
|
Net Power |
222 hp (166 kw)
|
|
Number Of Cylinders |
6 |
|
Power Measured @ |
1,800 rpm |
| General Specifications |
|
A Shipping Height (Since 1998)
|
142 in (361 cm)
|
|
A Shipping Height (2001)
|
142 in (361 cm)
|
|
Approx. Operating Weight (Since 1996)
|
71,650 lbs (32,500 kg)
|
|
Approx. Operating Weight (1997)
|
71,650 lbs (32,500 kg)
|
|
Approx. Operating Weight (1998)
|
71,650 lbs (32,500 kg)
|
|
Approx. Operating Weight (1999)
|
71,650 lbs (32,500 kg)
|
|
Approx. Operating Weight (2000)
|
71,650 lbs (32,500 kg)
|
|
Approx. Operating Weight (2001)
|
71,650 lbs (32,500 kg)
|
|
B Shipping Length (Since 1998)
|
421 in (1,069 cm)
|
|
B Shipping Length (Since 1998)
|
413 in (1,049 cm)
|
|
B Shipping Length (2001)
|
413 in (1,049 cm)
|
|
B Shipping Length (Since 2001)
|
421 in (1,069 cm)
|
|
Boom (Since 1998)
|
270 in (686 cm)
|
|
Boom (2001)
|
270 in (686 cm)
|
|
Bore (Since 1998)
|
5 in (12 cm)
|
|
Bore (2001)
|
5 in (12 cm)
|
|
Bucket Bite Width (Since 1998)
|
30 in (75 cm)
|
|
Bucket Bite Width (Since 1998)
|
39 in (100 cm)
|
|
Bucket Bite Width (Since 1998)
|
45 in (115 cm)
|
|
Bucket Bite Width (Since 1998)
|
51 in (130 cm)
|
|
Bucket Bite Width (Since 1998)
|
53 in (135 cm)
|
|
Bucket Bite Width (Since 1998)
|
59 in (150 cm)
|
|
Bucket Bite Width (Since 1998)
|
65 in (165 cm)
|
|
Bucket Bite Width (Since 1998)
|
53 in (135 cm)
|
|
Bucket Bite Width (Since 1998)
|
56 in (142 cm)
|
|
Bucket Bite Width (Since 1998)
|
59 in (150 cm)
|
|
Bucket Bite Width (Since 1998)
|
58 in (147 cm)
|
|
Bucket Bite Width (Since 1998)
|
63 in (160 cm)
|
|
Bucket Bite Width (Since 1998)
|
55 in (140 cm)
|
|
Bucket Bite Width (Since 1998)
|
30 in (76 cm)
|
|
Bucket Bite Width (Since 1998)
|
36 in (91 cm)
|
|
Bucket Bite Width (Since 1998)
|
42 in (107 cm)
|
|
Bucket Bite Width (Since 1998)
|
48 in (122 cm)
|
|
Bucket Bite Width (Since 1998)
|
55 in (140 cm)
|
|
Bucket Bite Width (Since 1998)
|
60 in (152 cm)
|
|
Bucket Bite Width (Since 1998)
|
66 in (168 cm)
|
|
Bucket Bite Width (Since 1998)
|
72 in (183 cm)
|
|
Bucket Bite Width (Since 1998)
|
49 in (125 cm)
|
|
Bucket Bite Width (Since 1998)
|
60 in (152 cm)
|
|
Bucket Bite Width (Since 1998)
|
67 in (170 cm)
|
|
Bucket Bite Width (Since 1998)
|
68 in (173 cm)
|
|
Bucket Bite Width (Since 1998)
|
87 in (220 cm)
|
|
Bucket Bite Width (Since 1998)
|
95 in (240 cm)
|
|
Bucket Bite Width (Since 1998)
|
102 in (260 cm)
|
|
Bucket Bite Width (Since 1998)
|
66 in (168 cm)
|
|
Bucket Bite Width (Since 1998)
|
72 in (183 cm)
|
|
Bucket Bite Width (Since 1998)
|
57 in (145 cm)
|
|
Bucket Bite Width (Since 1998)
|
55 in (140 cm)
|
|
Bucket Bite Width (Since 1998)
|
35 in (89 cm)
|
|
Bucket Bite Width (Since 1998)
|
71 in (180 cm)
|
|
Bucket Bite Width (Since 1998)
|
83 in (210 cm)
|
|
Bucket Bite Width (Since 1998)
|
106 in (270 cm)
|
|
Bucket Bite Width (Since 2001)
|
65 in (165 cm)
|
|
Bucket Bite Width (Since 2001)
|
71 in (180 cm)
|
|
Bucket Bite Width (Since 2001)
|
59 in (150 cm)
|
|
Bucket Bite Width (Since 2001)
|
58 in (147 cm)
|
|
Bucket Bite Width (Since 2001)
|
63 in (160 cm)
|
|
Bucket Bite Width (Since 2001)
|
55 in (140 cm)
|
|
Bucket Bite Width (Since 2001)
|
67 in (170 cm)
|
|
Bucket Bite Width (Since 2001)
|
30 in (75 cm)
|
|
Bucket Bite Width (Since 2001)
|
53 in (135 cm)
|
|
Bucket Bite Width (Since 2001)
|
56 in (142 cm)
|
|
Bucket Bite Width (Since 2001)
|
59 in (150 cm)
|
|
Bucket Bite Width (Since 2001)
|
39 in (100 cm)
|
|
Bucket Bite Width (Since 2001)
|
45 in (115 cm)
|
|
Bucket Bite Width (Since 2001)
|
51 in (130 cm)
|
|
Bucket Bite Width (Since 2001)
|
53 in (135 cm)
|
|
Bucket Bite Width (Since 2001)
|
36 in (91 cm)
|
|
Bucket Bite Width (Since 2001)
|
42 in (107 cm)
|
|
Bucket Bite Width (Since 2001)
|
48 in (122 cm)
|
|
Bucket Bite Width (Since 2001)
|
55 in (140 cm)
|
|
Bucket Bite Width (Since 2001)
|
60 in (152 cm)
|
|
Bucket Bite Width (Since 2001)
|
66 in (168 cm)
|
|
Bucket Bite Width (Since 2001)
|
72 in (183 cm)
|
|
Bucket Bite Width (Since 2001)
|
49 in (125 cm)
|
|
Bucket Bite Width (Since 2001)
|
30 in (76 cm)
|
|
Bucket Bite Width (Since 2001)
|
87 in (220 cm)
|
|
Bucket Bite Width (Since 2001)
|
95 in (240 cm)
|
|
Bucket Bite Width (Since 2001)
|
102 in (260 cm)
|
|
Bucket Bite Width (Since 2001)
|
66 in (168 cm)
|
|
Bucket Bite Width (Since 2001)
|
72 in (183 cm)
|
|
Bucket Bite Width (Since 2001)
|
57 in (145 cm)
|
|
Bucket Bite Width (Since 2001)
|
55 in (140 cm)
|
|
Bucket Bite Width (Since 2001)
|
60 in (152 cm)
|
|
Bucket Bite Width (Since 2001)
|
67 in (170 cm)
|
|
Bucket Bite Width (Since 2001)
|
68 in (173 cm)
|
|
Bucket Bite Width (Since 2001)
|
35 in (89 cm)
|
|
Bucket Bite Width (Since 2001)
|
83 in (210 cm)
|
|
Bucket Bite Width (Since 2001)
|
106 in (270 cm)
|
|
Bucket Capacity Range (heaped) (Since 1998)
|
1 - 3 cu yd (1 - 2 cu m)
|
|
Bucket Capacity Range (heaped) (2001)
|
1 - 3 cu yd (1 - 2 cu m)
|
|
Bucket Heaped Capacity (Since 1998)
|
1 cu yd (660 L)
|
|
Bucket Heaped Capacity (Since 1998)
|
1 cu yd (1,000 L)
|
|
Bucket Heaped Capacity (Since 1998)
|
2 cu yd (1,300 L)
|
|
Bucket Heaped Capacity (Since 1998)
|
2 cu yd (1,450 L)
|
|
Bucket Heaped Capacity (Since 1998)
|
2 cu yd (1,500 L)
|
|
Bucket Heaped Capacity (Since 1998)
|
2 cu yd (1,700 L)
|
|
Bucket Heaped Capacity (Since 1998)
|
2 cu yd (1,900 L)
|
|
Bucket Heaped Capacity (Since 1998)
|
2 cu yd (1,400 L)
|
|
Bucket Heaped Capacity (Since 1998)
|
3 cu yd (2,100 L)
|
|
Bucket Heaped Capacity (Since 1998)
|
1 cu yd (700 L)
|
|
Bucket Heaped Capacity (Since 1998)
|
1 cu yd (900 L)
|
|
Bucket Heaped Capacity (Since 1998)
|
2 cu yd (1,200 L)
|
|
Bucket Heaped Capacity (Since 1998)
|
2 cu yd (1,400 L)
|
|
Bucket Heaped Capacity (Since 1998)
|
2 cu yd (1,600 L)
|
|
Bucket Heaped Capacity (Since 1998)
|
3 cu yd (1,800 L)
|
|
Bucket Heaped Capacity (Since 1998)
|
3 cu yd (2,000 L)
|
|
Bucket Heaped Capacity (Since 1998)
|
3 cu yd (2,200 L)
|
|
Bucket Heaped Capacity (Since 1998)
|
1 cu yd (800 L)
|
|
Bucket Heaped Capacity (Since 1998)
|
2 cu yd (1,100 L)
|
|
Bucket Heaped Capacity (Since 1998)
|
2 cu yd (1,700 L)
|
|
Bucket Heaped Capacity (Since 1998)
|
3 cu yd (2,200 L)
|
|
Bucket Heaped Capacity (Since 1998)
|
2 cu yd (1,600 L)
|
|
Bucket Heaped Capacity (Since 1998)
|
1 cu yd (1,080 L)
|
|
Bucket Heaped Capacity (Since 1998)
|
2 cu yd (1,180 L)
|
|
Bucket Heaped Capacity (Since 1998)
|
2 cu yd (1,280 L)
|
|
Bucket Heaped Capacity (Since 1998)
|
2 cu yd (1,500 L)
|
|
Bucket Heaped Capacity (Since 1998)
|
3 cu yd (2,000 L)
|
|
Bucket Heaped Capacity (Since 1998)
|
3 cu yd (2,400 L)
|
|
Bucket Heaped Capacity (Since 1998)
|
3 cu yd (2,600 L)
|
|
Bucket Heaped Capacity (Since 1998)
|
1 cu yd (700 L)
|
|
Bucket Heaped Capacity (Since 1998)
|
2 cu yd (1,385 L)
|
|
Bucket Heaped Capacity (Since 1998)
|
2 cu yd (1,630 L)
|
|
Bucket Heaped Capacity (Since 1998)
|
2 cu yd (1,875 L)
|
|
Bucket Heaped Capacity (Since 1998)
|
3 cu yd (2,120 L)
|
|
Bucket Heaped Capacity (Since 2001)
|
2 cu yd (1,900 L)
|
|
Bucket Heaped Capacity (Since 2001)
|
3 cu yd (2,200 L)
|
|
Bucket Heaped Capacity (Since 2001)
|
2 cu yd (1,700 L)
|
|
Bucket Heaped Capacity (Since 2001)
|
3 cu yd (2,100 L)
|
|
Bucket Heaped Capacity (Since 2001)
|
1 cu yd (680 L)
|
|
Bucket Heaped Capacity (Since 2001)
|
2 cu yd (1,300 L)
|
|
Bucket Heaped Capacity (Since 2001)
|
2 cu yd (1,400 L)
|
|
Bucket Heaped Capacity (Since 2001)
|
2 cu yd (1,500 L)
|
|
Bucket Heaped Capacity (Since 2001)
|
1 cu yd (660 L)
|
|
Bucket Heaped Capacity (Since 2001)
|
1 cu yd (1,000 L)
|
|
Bucket Heaped Capacity (Since 2001)
|
2 cu yd (1,450 L)
|
|
Bucket Heaped Capacity (Since 2001)
|
1 cu yd (900 L)
|
|
Bucket Heaped Capacity (Since 2001)
|
2 cu yd (1,200 L)
|
|
Bucket Heaped Capacity (Since 2001)
|
2 cu yd (1,400 L)
|
|
Bucket Heaped Capacity (Since 2001)
|
2 cu yd (1,600 L)
|
|
Bucket Heaped Capacity (Since 2001)
|
3 cu yd (1,800 L)
|
|
Bucket Heaped Capacity (Since 2001)
|
3 cu yd (2,000 L)
|
|
Bucket Heaped Capacity (Since 2001)
|
1 cu yd (700 L)
|
|
Bucket Heaped Capacity (Since 2001)
|
2 cu yd (1,100 L)
|
|
Bucket Heaped Capacity (Since 2001)
|
2 cu yd (1,700 L)
|
|
Bucket Heaped Capacity (Since 2001)
|
3 cu yd (2,200 L)
|
|
Bucket Heaped Capacity (Since 2001)
|
1 cu yd (800 L)
|
|
Bucket Heaped Capacity (Since 2001)
|
3 cu yd (2,300 L)
|
|
Bucket Heaped Capacity (Since 2001)
|
1 cu yd (1,080 L)
|
|
Bucket Heaped Capacity (Since 2001)
|
2 cu yd (1,180 L)
|
|
Bucket Heaped Capacity (Since 2001)
|
2 cu yd (1,280 L)
|
|
Bucket Heaped Capacity (Since 2001)
|
3 cu yd (2,000 L)
|
|
Bucket Heaped Capacity (Since 2001)
|
2 cu yd (1,500 L)
|
|
Bucket Heaped Capacity (Since 2001)
|
3 cu yd (2,400 L)
|
|
Bucket Heaped Capacity (Since 2001)
|
3 cu yd (2,600 L)
|
|
Bucket Heaped Capacity (Since 2001)
|
2 cu yd (1,600 L)
|
|
Bucket Heaped Capacity (Since 2001)
|
1 cu yd (700 L)
|
|
Bucket Heaped Capacity (Since 2001)
|
2 cu yd (1,385 L)
|
|
Bucket Heaped Capacity (Since 2001)
|
2 cu yd (1,630 L)
|
|
Bucket Heaped Capacity (Since 2001)
|
2 cu yd (1,875 L)
|
|
Bucket Heaped Capacity (Since 2001)
|
3 cu yd (2,120 L)
|
|
Bucket Tip Radius (Since 1998)
|
65 in (166 cm)
|
|
Bucket Tip Radius (Since 1998)
|
72 in (183 cm)
|
|
Bucket Tip Radius (Since 1998)
|
70 in (178 cm)
|
|
Bucket Tip Radius (Since 1998)
|
69 in (176 cm)
|
|
Bucket Tip Radius (Since 1998)
|
73 in (185 cm)
|
|
Bucket Tip Radius (Since 1998)
|
56 in (142 cm)
|
|
Bucket Tip Radius (Since 1998)
|
69 in (175 cm)
|
|
Bucket Tip Radius (Since 1998)
|
67 in (170 cm)
|
|
Bucket Tip Radius (Since 1998)
|
68 in (173 cm)
|
|
Bucket Tip radius (Since 1998)
|
73 in (185 cm)
|
|
Bucket Tip Radius (Since 2001)
|
65 in (166 cm)
|
|
Bucket Tip Radius (Since 2001)
|
72 in (183 cm)
|
|
Bucket Tip Radius (Since 2001)
|
70 in (178 cm)
|
|
Bucket Tip Radius (Since 2001)
|
69 in (176 cm)
|
|
Bucket Tip Radius (Since 2001)
|
73 in (185 cm)
|
|
Bucket Tip Radius (Since 2001)
|
56 in (141 cm)
|
|
Bucket Tip Radius (Since 2001)
|
69 in (175 cm)
|
|
Bucket Tip Radius (Since 2001)
|
67 in (170 cm)
|
|
Bucket Tip Radius (Since 2001)
|
74 in (187 cm)
|
|
Bucket Tip Radius (Since 2001)
|
68 in (173 cm)
|
|
Bucket Tip radius (Since 2001)
|
73 in (185 cm)
|
|
Bucket Weight with Teeth (Since 1998)
|
2,040 lbs (925 kg)
|
|
Bucket Weight with Teeth (Since 1998)
|
2,240 lbs (1,016 kg)
|
|
Bucket Weight with Teeth (Since 1998)
|
2,470 lbs (1,120 kg)
|
|
Bucket Weight with Teeth (Since 1998)
|
2,540 lbs (1,152 kg)
|
|
Bucket Weight with Teeth (Since 1998)
|
2,680 lbs (1,216 kg)
|
|
Bucket Weight with Teeth (Since 1998)
|
2,880 lbs (1,306 kg)
|
|
Bucket Weight with Teeth (Since 1998)
|
3,065 lbs (1,390 kg)
|
|
Bucket Weight with Teeth (Since 1998)
|
2,460 lbs (1,116 kg)
|
|
Bucket Weight with Teeth (Since 1998)
|
2,640 lbs (1,197 kg)
|
|
Bucket Weight with Teeth (Since 1998)
|
2,560 lbs (1,161 kg)
|
|
Bucket Weight with Teeth (Since 1998)
|
3,240 lbs (1,470 kg)
|
|
Bucket Weight with Teeth (Since 1998)
|
3,410 lbs (1,547 kg)
|
|
Bucket Weight with Teeth (Since 1998)
|
3,285 lbs (1,490 kg)
|
|
Bucket Weight with Teeth (Since 1998)
|
3,505 lbs (1,590 kg)
|
|
Bucket Weight with Teeth (Since 1998)
|
3,815 lbs (1,730 kg)
|
|
Bucket Weight with Teeth (Since 1998)
|
2,100 lbs (953 kg)
|
|
Bucket Weight with Teeth (Since 1998)
|
2,310 lbs (1,048 kg)
|
|
Bucket Weight with Teeth (Since 1998)
|
2,610 lbs (1,184 kg)
|
|
Bucket Weight with Teeth (Since 1998)
|
2,950 lbs (1,338 kg)
|
|
Bucket Weight with Teeth (Since 1998)
|
3,170 lbs (1,438 kg)
|
|
Bucket Weight with Teeth (Since 1998)
|
3,450 lbs (1,565 kg)
|
|
Bucket Weight with Teeth (Since 1998)
|
3,640 lbs (1,651 kg)
|
|
Bucket Weight with Teeth (Since 1998)
|
3,970 lbs (1,801 kg)
|
|
Bucket Weight with Teeth (Since 1998)
|
2,440 lbs (1,107 kg)
|
|
Bucket Weight with Teeth (Since 1998)
|
2,780 lbs (1,261 kg)
|
|
Bucket Weight with Teeth (Since 1998)
|
3,020 lbs (1,370 kg)
|
|
Bucket Weight with Teeth (Since 1998)
|
3,260 lbs (1,479 kg)
|
|
Bucket Weight with Teeth (Since 1998)
|
3,460 lbs (1,569 kg)
|
|
Bucket Weight with Teeth (Since 1998)
|
2,083 lbs (945 kg)
|
|
Bucket Weight with Teeth (Since 1998)
|
2,253 lbs (1,022 kg)
|
|
Bucket Weight with Teeth (Since 1998)
|
2,455 lbs (1,114 kg)
|
|
Bucket Weight with Teeth (Since 1998)
|
2,521 lbs (1,144 kg)
|
|
Bucket Weight with Teeth (Since 1998)
|
2,622 lbs (1,189 kg)
|
|
Bucket Weight with Teeth (Since 1998)
|
3,080 lbs (1,397 kg)
|
|
Bucket Weight with Teeth (Since 1998)
|
2,930 lbs (1,329 kg)
|
|
Bucket Weight with Teeth (Since 1998)
|
2,920 lbs (1,324 kg)
|
|
Bucket Weight with Teeth (Since 1998)
|
3,770 lbs (1,710 kg)
|
|
Bucket Weight with Teeth (Since 1998)
|
2,670 lbs (1,211 kg)
|
|
Bucket Weight with Teeth (Since 1998)
|
2,840 lbs (1,288 kg)
|
|
Bucket Weight with Teeth (Since 1998)
|
2,847 lbs (1,291 kg)
|
|
Bucket Weight with Teeth (Since 1998)
|
3,161 lbs (1,434 kg)
|
|
Bucket Weight with Teeth (Since 1998)
|
3,414 lbs (1,549 kg)
|
|
Bucket Weight with Teeth (Since 1998)
|
1,925 lbs (873 kg)
|
|
Bucket Weight with Teeth (Since 1998)
|
2,130 lbs (966 kg)
|
|
Bucket Weight with Teeth (Since 1998)
|
2,374 lbs (1,077 kg)
|
|
Bucket Weight with Teeth (Since 1998)
|
2,653 lbs (1,203 kg)
|
|
Bucket Weight with Teeth (Since 1998)
|
2,926 lbs (1,327 kg)
|
|
Bucket Weight with Teeth (Since 1998)
|
2,873 lbs (1,303 kg)
|
|
Bucket Weight with Teeth (Since 1998)
|
3,095 lbs (1,404 kg)
|
|
Bucket Weight with Teeth (Since 1998)
|
3,285 lbs (1,490 kg)
|
|
Bucket Weight with Teeth (Since 1998)
|
3,564 lbs (1,617 kg)
|
|
Bucket Weight with Teeth (Since 1998)
|
4,660 lbs (2,114 kg)
|
|
Bucket Weight with Teeth (Since 1998)
|
4,940 lbs (2,241 kg)
|
|
Bucket Weight with Teeth (Since 1998)
|
2,471 lbs (1,121 kg)
|
|
Bucket Weight with Teeth (Since 1998)
|
2,150 lbs (975 kg)
|
|
Bucket Weight with Teeth (Since 1998)
|
3,600 lbs (1,633 kg)
|
|
Bucket Weight with Teeth (Since 1998)
|
3,730 lbs (1,692 kg)
|
|
Bucket Weight with Teeth (Since 1998)
|
2,760 lbs (1,252 kg)
|
|
Bucket Weight with Teeth (Since 1998)
|
3,040 lbs (1,379 kg)
|
|
Bucket Weight with Teeth (Since 1998)
|
3,330 lbs (1,510 kg)
|
|
Bucket Weight with Teeth (Since 1998)
|
3,530 lbs (1,601 kg)
|
|
Bucket Weight with Teeth (Since 1998)
|
4,060 lbs (1,842 kg)
|
|
Bucket Weight with Teeth (Since 1998)
|
4,450 lbs (2,018 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
3,250 lbs (1,474 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
3,640 lbs (1,651 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
3,240 lbs (1,470 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
3,540 lbs (1,606 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
3,410 lbs (1,547 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
3,285 lbs (1,490 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
3,690 lbs (1,674 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
3,815 lbs (1,730 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
4,030 lbs (1,828 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
2,500 lbs (1,134 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
3,505 lbs (1,590 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
4,210 lbs (1,910 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
2,460 lbs (1,116 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
2,640 lbs (1,197 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
2,560 lbs (1,161 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
2,040 lbs (925 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
2,240 lbs (1,016 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
2,470 lbs (1,120 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
2,540 lbs (1,152 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
2,680 lbs (1,216 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
2,880 lbs (1,306 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
2,310 lbs (1,048 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
2,610 lbs (1,184 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
2,950 lbs (1,338 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
3,170 lbs (1,438 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
3,450 lbs (1,565 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
3,970 lbs (1,801 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
2,440 lbs (1,107 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
2,780 lbs (1,261 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
3,020 lbs (1,370 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
2,100 lbs (953 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
2,253 lbs (1,022 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
2,455 lbs (1,114 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
2,521 lbs (1,144 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
2,622 lbs (1,189 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
3,080 lbs (1,397 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
2,083 lbs (945 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
2,620 lbs (1,188 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
3,680 lbs (1,669 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
4,240 lbs (1,923 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
4,830 lbs (2,191 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
2,670 lbs (1,211 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
2,840 lbs (1,288 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
2,847 lbs (1,291 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
3,161 lbs (1,434 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
3,414 lbs (1,549 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
3,095 lbs (1,404 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
3,285 lbs (1,490 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
3,564 lbs (1,617 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
1,925 lbs (873 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
2,130 lbs (966 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
2,374 lbs (1,077 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
2,653 lbs (1,203 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
2,926 lbs (1,327 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
2,873 lbs (1,303 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
4,660 lbs (2,114 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
4,940 lbs (2,241 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
2,930 lbs (1,329 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
2,920 lbs (1,324 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
3,770 lbs (1,710 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
2,471 lbs (1,121 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
2,150 lbs (975 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
2,760 lbs (1,252 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
3,040 lbs (1,379 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
3,330 lbs (1,510 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
3,530 lbs (1,601 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
4,060 lbs (1,842 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
4,450 lbs (2,018 kg)
|
|
cont'd) Flywheel Horsepower (Since 1996)
|
222 hp (166 kw)
|
|
cont'd) Flywheel Horsepower (1997)
|
222 hp (166 kw)
|
|
cont'd) Flywheel Horsepower (1998)
|
222 hp (166 kw)
|
|
cont'd) Flywheel Horsepower (1999)
|
222 hp (166 kw)
|
|
cont'd) Flywheel Horsepower (2000)
|
222 hp (166 kw)
|
|
cont'd) Flywheel Horsepower (2001)
|
222 hp (166 kw)
|
|
Displacement (Since 1998)
|
638 cu in (10,455 cu cm)
|
|
Displacement (2001)
|
638 cu in (10,455 cu cm)
|
|
Engine Model (Since 1998)
|
3306TA |
|
Engine Model (Since 2001)
|
3306 TA |
|
Flywheel Power (Since 1998)
|
222 hp (166 kw)
|
|
Flywheel Power (2001)
|
222 hp (166 kw)
|
|
Fuel Tank Refill - Capacity (Since 1998)
|
148 US gal (560 L)
|
|
Fuel Tank Refill - Capacity (2001)
|
148 US gal (560 L)
|
|
Ground Contact Area - with Std. Shoe (Since 1998)
|
7,350 sq in (5 sq m)
|
|
Ground Contact Area - with Std. Shoe (2001)
|
7,350 sq in (5 sq m)
|
|
Ground Pressure (Since 1998)
|
10 psi (67 kPa)
|
|
Ground Pressure (Since 1998)
|
8 psi (54 kPa)
|
|
Ground Pressure (Since 1998)
|
7 psi (49 kPa)
|
|
Ground Pressure (Since 2001)
|
10 psi (67 kPa)
|
|
Ground Pressure (Since 2001)
|
8 psi (54 kPa)
|
|
Ground Pressure (Since 2001)
|
7 psi (49 kPa)
|
|
Height (Since 1996)
|
130 in (330 cm)
|
|
Height (1997)
|
130 in (330 cm)
|
|
Height (1998)
|
130 in (330 cm)
|
|
Height (1999)
|
130 in (330 cm)
|
|
Height (2000)
|
130 in (330 cm)
|
|
Height (2001)
|
130 in (330 cm)
|
|
Length (Since 1996)
|
435 in (1,105 cm)
|
|
Length (1997)
|
435 in (1,105 cm)
|
|
Length (1998)
|
435 in (1,105 cm)
|
|
Length (1999)
|
435 in (1,105 cm)
|
|
Length (2000)
|
435 in (1,105 cm)
|
|
Length (2001)
|
435 in (1,105 cm)
|
|
Lift Capacity (Since 1996)
|
35,200 lbs (15,966 kg)
|
|
Lift Capacity (1997)
|
35,200 lbs (15,966 kg)
|
|
Lift Capacity (1998)
|
35,200 lbs (15,966 kg)
|
|
Lift Capacity (1999)
|
35,200 lbs (15,966 kg)
|
|
Lift Capacity (2000)
|
35,200 lbs (15,966 kg)
|
|
Lift Capacity (2001)
|
35,200 lbs (15,966 kg)
|
|
Max. Reach (Since 1996)
|
457 in (1,161 cm)
|
|
Max. Reach (1997)
|
457 in (1,161 cm)
|
|
Max. Reach (1998)
|
457 in (1,161 cm)
|
|
Max. Reach (1999)
|
457 in (1,161 cm)
|
|
Max. Reach (2000)
|
457 in (1,161 cm)
|
|
Max. Reach (2001)
|
457 in (1,161 cm)
|
|
Maximum Drawbar Pull - High (Since 1998)
|
33,300 lbs (15,105 kg)
|
|
Maximum Drawbar Pull - High (2001)
|
33,300 lbs (15,105 kg)
|
|
Maximum Drawbar Pull - Low (Since 1998)
|
60,250 lbs (27,329 kg)
|
|
Maximum Drawbar Pull - Low (2001)
|
60,250 lbs (27,329 kg)
|
|
Maximum Travel Speed at Rated RPM - High (Since 1998)
|
3 mph (5 kph)
|
|
Maximum Travel Speed at Rated RPM - High (2001)
|
3 mph (5 kph)
|
|
Maximum Travel Speed at Rated RPM - Low (Since 1998)
|
2 mph (3 kph)
|
|
Maximum Travel Speed at Rated RPM - Low (2001)
|
2 mph (3 kph)
|
|
No. of Cylinders (Since 1998)
|
6 |
|
No. of Cylinders (2001)
|
6 |
|
Operating Weight (Since 1998)
|
71,470 lbs (32,418 kg)
|
|
Operating Weight (2001)
|
71,470 lbs (32,418 kg)
|
|
Overall Track Length (Since 1998)
|
180 in (457 cm)
|
|
Overall Track Length (2001)
|
180 in (457 cm)
|
|
Product Identification Prefix (Since 1996)
|
2RR 4YW 5EZ 8SR 9HN |
|
Product Identification Prefix (1997)
|
2RR 4YW 5EZ 8SR 9HN |
|
Product Identification Prefix (1998)
|
2RR 4YW 5EZ 8SR 9HN |
|
Product Identification Prefix (1999)
|
2RR 4YW 5EZ 8SR 9HN |
|
Product Identification Prefix (2000)
|
2RR 4YW 5EZ 8SR 9HN |
|
Product Identification Prefix (2001)
|
2RR 4YW 5EZ 8SR 9HN |
|
Range Dimension A (source diagram) (Since 1998)
|
256 in (650 cm)
|
|
Range Dimension A (source diagram) (Since 1998)
|
246 in (625 cm)
|
|
Range Dimension A (source diagram) (Since 1998)
|
280 in (711 cm)
|
|
Range Dimension A (source diagram) (Since 1998)
|
263 in (668 cm)
|
|
Range Dimension A (source diagram) (Since 1998)
|
287 in (729 cm)
|
|
Range Dimension A (source diagram) (Since 1998)
|
299 in (759 cm)
|
|
Range Dimension A (source diagram) (Since 1998)
|
239 in (607 cm)
|
|
Range Dimension A (source diagram) (Since 1998)
|
262 in (665 cm)
|
|
Range Dimension A (source diagram) (Since 2001)
|
299 in (759 cm)
|
|
Range Dimension A (source diagram) (Since 2001)
|
263 in (668 cm)
|
|
Range Dimension A (source diagram) (Since 2001)
|
287 in (729 cm)
|
|
Range Dimension A (source diagram) (Since 2001)
|
246 in (625 cm)
|
|
Range Dimension A (source diagram) (Since 2001)
|
280 in (711 cm)
|
|
Range Dimension A (source diagram) (Since 2001)
|
256 in (650 cm)
|
|
Range Dimension A (source diagram) (Since 2001)
|
239 in (607 cm)
|
|
Range Dimension A (source diagram) (Since 2001)
|
262 in (665 cm)
|
|
Range Dimension B (source diagram) (Since 1998)
|
397 in (1,008 cm)
|
|
Range Dimension B (source diagram) (Since 1998)
|
382 in (970 cm)
|
|
Range Dimension B (source diagram) (Since 1998)
|
417 in (1,059 cm)
|
|
Range Dimension B (source diagram) (Since 1998)
|
402 in (1,021 cm)
|
|
Range Dimension B (source diagram) (Since 1998)
|
434 in (1,102 cm)
|
|
Range Dimension B (source diagram) (Since 1998)
|
457 in (1,161 cm)
|
|
Range Dimension B (source diagram) (Since 1998)
|
454 in (1,153 cm)
|
|
Range Dimension B (source diagram) (Since 1998)
|
478 in (1,214 cm)
|
|
Range Dimension B (source diagram) (Since 2001)
|
457 in (1,161 cm)
|
|
Range Dimension B (source diagram) (Since 2001)
|
402 in (1,021 cm)
|
|
Range Dimension B (source diagram) (Since 2001)
|
434 in (1,102 cm)
|
|
Range Dimension B (source diagram) (Since 2001)
|
382 in (970 cm)
|
|
Range Dimension B (source diagram) (Since 2001)
|
417 in (1,059 cm)
|
|
Range Dimension B (source diagram) (Since 2001)
|
397 in (1,008 cm)
|
|
Range Dimension B (source diagram) (Since 2001)
|
454 in (1,153 cm)
|
|
Range Dimension B (source diagram) (Since 2001)
|
478 in (1,214 cm)
|
|
Range Dimension C (source diagram) (Since 1998)
|
257 in (653 cm)
|
|
Range Dimension C (source diagram) (Since 1998)
|
244 in (620 cm)
|
|
Range Dimension C (source diagram) (Since 1998)
|
275 in (699 cm)
|
|
Range Dimension C (source diagram) (Since 1998)
|
259 in (658 cm)
|
|
Range Dimension C (source diagram) (Since 1998)
|
295 in (749 cm)
|
|
Range Dimension C (source diagram) (Since 1998)
|
318 in (808 cm)
|
|
Range Dimension C (source diagram) (Since 1998)
|
518 in (1,316 cm)
|
|
Range Dimension C (source diagram) (Since 1998)
|
538 in (1,367 cm)
|
|
Range Dimension C (source diagram) (Since 2001)
|
318 in (808 cm)
|
|
Range Dimension C (source diagram) (Since 2001)
|
259 in (658 cm)
|
|
Range Dimension C (source diagram) (Since 2001)
|
295 in (749 cm)
|
|
Range Dimension C (source diagram) (Since 2001)
|
244 in (620 cm)
|
|
Range Dimension C (source diagram) (Since 2001)
|
275 in (699 cm)
|
|
Range Dimension C (source diagram) (Since 2001)
|
257 in (653 cm)
|
|
Range Dimension C (source diagram) (Since 2001)
|
518 in (1,316 cm)
|
|
Range Dimension C (source diagram) (Since 2001)
|
538 in (1,367 cm)
|
|
Range Dimension D (source diagram) (Since 1998)
|
202 in (513 cm)
|
|
Range Dimension D (source diagram) (Since 1998)
|
187 in (475 cm)
|
|
Range Dimension D (source diagram) (Since 1998)
|
241 in (612 cm)
|
|
Range Dimension D (source diagram) (Since 1998)
|
232 in (589 cm)
|
|
Range Dimension D (source diagram) (Since 1998)
|
269 in (683 cm)
|
|
Range Dimension D (source diagram) (Since 1998)
|
285 in (724 cm)
|
|
Range Dimension D (source diagram) (Since 1998)
|
382 in (970 cm)
|
|
Range Dimension D (source diagram) (Since 1998)
|
403 in (1,024 cm)
|
|
Range Dimension D (source diagram) (Since 2001)
|
285 in (724 cm)
|
|
Range Dimension D (source diagram) (Since 2001)
|
232 in (589 cm)
|
|
Range Dimension D (source diagram) (Since 2001)
|
269 in (683 cm)
|
|
Range Dimension D (source diagram) (Since 2001)
|
187 in (475 cm)
|
|
Range Dimension D (source diagram) (Since 2001)
|
241 in (612 cm)
|
|
Range Dimension D (source diagram) (Since 2001)
|
202 in (513 cm)
|
|
Range Dimension D (source diagram) (Since 2001)
|
382 in (970 cm)
|
|
Range Dimension D (source diagram) (Since 2001)
|
403 in (1,024 cm)
|
|
Range Dimension E (source diagram) (Since 1998)
|
241 in (612 cm)
|
|
Range Dimension E (source diagram) (Since 1998)
|
228 in (579 cm)
|
|
Range Dimension E (source diagram) (Since 1998)
|
262 in (665 cm)
|
|
Range Dimension E (source diagram) (Since 1998)
|
244 in (620 cm)
|
|
Range Dimension E (source diagram) (Since 1998)
|
281 in (714 cm)
|
|
Range Dimension E (source diagram) (Since 1998)
|
305 in (775 cm)
|
|
Range Dimension E (source diagram) (Since 1998)
|
152 in (386 cm)
|
|
Range Dimension E (source diagram) (Since 1998)
|
132 in (335 cm)
|
|
Range Dimension E (source diagram) (Since 2001)
|
305 in (775 cm)
|
|
Range Dimension E (source diagram) (Since 2001)
|
244 in (620 cm)
|
|
Range Dimension E (source diagram) (Since 2001)
|
281 in (714 cm)
|
|
Range Dimension E (source diagram) (Since 2001)
|
228 in (579 cm)
|
|
Range Dimension E (source diagram) (Since 2001)
|
262 in (665 cm)
|
|
Range Dimension E (source diagram) (Since 2001)
|
241 in (612 cm)
|
|
Range Dimension E (source diagram) (Since 2001)
|
152 in (386 cm)
|
|
Range Dimension E (source diagram) (Since 2001)
|
132 in (335 cm)
|
|
Range Dimension F (source diagram) (Since 1998)
|
330 in (838 cm)
|
|
Range Dimension F (source diagram) (Since 1998)
|
320 in (813 cm)
|
|
Range Dimension F (source diagram) (Since 1998)
|
346 in (879 cm)
|
|
Range Dimension F (source diagram) (Since 1998)
|
333 in (846 cm)
|
|
Range Dimension F (source diagram) (Since 1998)
|
353 in (897 cm)
|
|
Range Dimension F (source diagram) (Since 1998)
|
366 in (930 cm)
|
|
Range Dimension F (source diagram) (Since 1998)
|
233 in (592 cm)
|
|
Range Dimension F (source diagram) (Since 1998)
|
257 in (653 cm)
|
|
Range Dimension F (source diagram) (Since 2001)
|
366 in (930 cm)
|
|
Range Dimension F (source diagram) (Since 2001)
|
333 in (846 cm)
|
|
Range Dimension F (source diagram) (Since 2001)
|
353 in (897 cm)
|
|
Range Dimension F (source diagram) (Since 2001)
|
320 in (813 cm)
|
|
Range Dimension F (source diagram) (Since 2001)
|
346 in (879 cm)
|
|
Range Dimension F (source diagram) (Since 2001)
|
330 in (838 cm)
|
|
Range Dimension F (source diagram) (Since 2001)
|
233 in (592 cm)
|
|
Range Dimension F (source diagram) (Since 2001)
|
257 in (653 cm)
|
|
Range Dimension G (source diagram) (Since 1998)
|
390 in (991 cm)
|
|
Range Dimension G (source diagram) (Since 1998)
|
380 in (965 cm)
|
|
Range Dimension G (source diagram) (Since 1998)
|
404 in (1,026 cm)
|
|
Range Dimension G (source diagram) (Since 1998)
|
400 in (1,016 cm)
|
|
Range Dimension G (source diagram) (Since 1998)
|
411 in (1,044 cm)
|
|
Range Dimension G (source diagram) (Since 1998)
|
424 in (1,077 cm)
|
|
Range Dimension G (source diagram) (Since 1998)
|
198 in (503 cm)
|
|
Range Dimension G (source diagram) (Since 1998)
|
217 in (551 cm)
|
|
Range Dimension G (source diagram) (Since 2001)
|
424 in (1,077 cm)
|
|
Range Dimension G (source diagram) (Since 2001)
|
400 in (1,016 cm)
|
|
Range Dimension G (source diagram) (Since 2001)
|
411 in (1,044 cm)
|
|
Range Dimension G (source diagram) (Since 2001)
|
380 in (965 cm)
|
|
Range Dimension G (source diagram) (Since 2001)
|
404 in (1,026 cm)
|
|
Range Dimension G (source diagram) (Since 2001)
|
390 in (991 cm)
|
|
Range Dimension G (source diagram) (Since 2001)
|
198 in (503 cm)
|
|
Range Dimension G (source diagram) (Since 2001)
|
217 in (551 cm)
|
|
Rated Engine RPM (Since 1998)
|
1,800 rpm |
|
Rated Engine RPM (2001)
|
1,800 rpm |
|
Relief Valve Settings - at Rated RPM Implement Circuits (Since 1998)
|
4,980 psi (34,300 kPa)
|
|
Relief Valve Settings - Implement Circuits (Since 2001)
|
4,980 psi (34,300 kPa)
|
|
Relief Valve Settings - Pilot Circuits (Since 1998)
|
600 psi (4,140 kPa)
|
|
Relief Valve Settings - Pilot Circuits (2001)
|
600 psi (4,140 kPa)
|
|
Relief Valve Settings - Swing Circuits (Since 1998)
|
3,980 psi (27,500 kPa)
|
|
Relief Valve Settings - Swing Circuits (2001)
|
3,980 psi (27,500 kPa)
|
|
Relief Valve Settings - Travel Circuits (Since 1998)
|
4,980 psi (34,300 kPa)
|
|
Relief Valve Settings - Travel Circuits (2001)
|
4,980 psi (34,300 kPa)
|
|
Shipping Dimension A (source diagram) (Since 1998)
|
124 in (315 cm)
|
|
Shipping Dimension A (source diagram) (2001)
|
124 in (315 cm)
|
|
Shipping Dimension B (source diagram) (Since 1998)
|
118 in (300 cm)
|
|
Shipping Dimension B (source diagram) (2001)
|
118 in (300 cm)
|
|
Shipping Dimension C (source diagram) (Since 1998)
|
126 in (320 cm)
|
|
Shipping Dimension C (source diagram) (2001)
|
126 in (320 cm)
|
|
Shipping Dimension D (source diagram) (Since 1998)
|
19 in (48 cm)
|
|
Shipping Dimension D (source diagram) (Since 2001)
|
20 in (51 cm)
|
|
Shipping Dimension E (source diagram) (Since 1998)
|
48 in (122 cm)
|
|
Shipping Dimension E (source diagram) (Since 2001)
|
50 in (127 cm)
|
|
Shipping Dimension F (source diagram) (Since 1998)
|
138 in (351 cm)
|
|
Shipping Dimension F (source diagram) (2001)
|
138 in (351 cm)
|
|
Shipping Dimension G (source diagram) (Since 1998)
|
180 in (457 cm)
|
|
Shipping Dimension G (source diagram) (2001)
|
180 in (457 cm)
|
|
Shipping Dimension H (source diagram) (Since 1998)
|
424 in (1,077 cm)
|
|
Shipping Dimension H (source diagram) (Since 1998)
|
434 in (1,102 cm)
|
|
Shipping Dimension H (source diagram) (Since 2001)
|
424 in (1,077 cm)
|
|
Shipping Dimension H (source diagram) (Since 2001)
|
434 in (1,102 cm)
|
|
Shipping Dimension J (source diagram) (Since 1998)
|
140 in (356 cm)
|
|
Shipping Dimension J (source diagram) (Since 1998)
|
130 in (330 cm)
|
|
Shipping Dimension J (source diagram) (Since 2001)
|
140 in (356 cm)
|
|
Shipping Dimension J (source diagram) (Since 2001)
|
130 in (330 cm)
|
|
Shipping Dimension K (source diagram) (Since 1998)
|
142 in (361 cm)
|
|
Shipping Dimension K (source diagram) (2001)
|
142 in (361 cm)
|
|
Shipping Dimension L (source diagram) (Since 1998)
|
102 in (259 cm)
|
|
Shipping Dimension L (source diagram) (2001)
|
102 in (259 cm)
|
|
Sourcing (Since 1998)
|
Japan |
|
Sourcing (2001)
|
Japan |
|
Stick (Since 1998)
|
87 in (221 cm)
|
|
Stick (Since 1998)
|
110 in (279 cm)
|
|
Stick (Since 1998)
|
102 in (259 cm)
|
|
Stick (Since 1998)
|
130 in (330 cm)
|
|
Stick (Since 1998)
|
154 in (391 cm)
|
|
Stick (2001)
|
154 in (391 cm)
|
|
Stick (Since 2001)
|
102 in (259 cm)
|
|
Stick (Since 2001)
|
130 in (330 cm)
|
|
Stick (Since 2001)
|
87 in (221 cm)
|
|
Stick (Since 2001)
|
110 in (279 cm)
|
|
Sticks: (for Mass Boom) - - L (Since 1998)
|
27,120 lbs (12,301 kg)
|
|
Sticks: (for Mass Boom) - - L (2001)
|
27,120 lbs (12,301 kg)
|
|
Sticks: (for Mass Boom) - - LN (Since 1998)
|
25,360 lbs (11,503 kg)
|
|
Sticks: (for Mass Boom) - - LN (2001)
|
25,360 lbs (11,503 kg)
|
|
Stroke (Since 1998)
|
6 in (15 cm)
|
|
Stroke (2001)
|
6 in (15 cm)
|
|
Track Gauge (Since 1996)
|
102 in (259 cm)
|
|
Track Gauge (1997)
|
102 in (259 cm)
|
|
Track Gauge (1998)
|
102 in (259 cm)
|
|
Track Gauge (1999)
|
102 in (259 cm)
|
|
Track Gauge (2000)
|
102 in (259 cm)
|
|
Track Gauge (2001)
|
102 in (259 cm)
|
|
Track Shoe Width (Since 1998)
|
24 in (61 cm)
|
|
Track Shoe Width (Since 1998)
|
30 in (76 cm)
|
|
Track Shoe Width (Since 1998)
|
33 in (84 cm)
|
|
Track Shoe Width (Since 2001)
|
24 in (61 cm)
|
|
Track Shoe Width (Since 2001)
|
30 in (76 cm)
|
|
Track Shoe Width (Since 2001)
|
33 in (84 cm)
|
|
Width (Since 1996)
|
126 in (320 cm)
|
|
Width (1997)
|
126 in (320 cm)
|
|
Width (1998)
|
126 in (320 cm)
|
|
Width (1999)
|
126 in (320 cm)
|
|
Width (2000)
|
126 in (320 cm)
|
|
Width (2001)
|
126 in (320 cm)
|
|
Width of Standard - Track Shoe (Since 1998)
|
24 in (61 cm)
|
|
Width of Standard - Track Shoe (2001)
|
24 in (61 cm)
|
|
Years Built (Since 1996)
|
1,996 - 2,001 |
|
Years Built (1997)
|
1,996 - 2,001 |
|
Years Built (1998)
|
1,996 - 2,001 |
|
Years Built (1999)
|
1,996 - 2,001 |
|
Years Built (2000)
|
1,996 - 2,001 |
|
Years Built (2001)
|
1,996 - 2,001 |
| Operational |
|
Alternator Supplied Amperage |
50 amps |
|
Cooling System Fluid Capacity |
12 gal (45 l)
|
|
Engine Oil Capacity |
8 gal (30 l)
|
|
Fuel Capacity |
148 gal (560 l)
|
|
Hydraulic Pump Flow Capacity |
127 gpm (480 lpm)
|
|
Hydraulic System Fluid Capacity |
106 gal (400 l)
|
|
Hydraulic System Relief Valve Pressure |
4,980 psi |
|
Operating Voltage |
24 V |
|
Operating Weight |
71,474 lbs (32,420 kg)
|
|
Swing Drive Fluid Capacity |
4 gal (15 l)
|
| Swing Mechanism |
|
Swing Torque |
78,200 lbs ft (106,024 nm)
|
| Undercarriage |
|
Drawbar Pull |
60,250 lbs (27,329 kg)
|
|
Max Travel Speed |
3 mph (5 kph)
|
|
Shoe Size |
24 in (60 cm)
|
|
Track Gauge |
9 ft (3 m)
|
